Intended Use
The MD212G3/MD211G5 grayscale displays are intended to be used for displaying and viewing of digital images for diagnosis,
including digital mammography, by trained physicians.
Caution: The MD212G3/MD211G5 grayscale displays cannot be used for a life-support system.
This device is designed as component of a fi nal system which is in compliance to IEC 60601-1-1 requirements.
Contraindications: None known.
Safety Precautions
This device is designed for exclusive interconnection with IEC 60950-1 certifi ed equipment outside of patient vicinity.
• Equipment connected to digital interfaces must comply with the respective IEC standards (e.g. IEC 60950-1 for data
processing equipment and IEC 60601-1 for medical equipment).
• This device complies with IEC 60601-1-2. To minimize the interference from other equipment, a minimum 0.5 m distance shall
be kept form other potential electromagnetic sources, such as a Cell Phone.
• To reduce the risk of electric shock, make sure that the power cord is unplugged from wall socket. To fully disengage the
power to the unit, please disconnect the power cord from the AC outlet. Do not open the back cover. No user serviceable parts
inside. Refer servicing to qualifi ed service personnel. The AC outlet shall be readily available and accessible.
EMC Precaution
This product requires special EMC precautions and needs to be installed and used according to the following information.
Use the specifi ed cable. Using other cables could increase emission or decrease immunity.
Do not place any RF communication equipment in the vicinity of this product. It could affect the performance of the product.
Any additional equipment connected to this product needs to comply with the requirements of IEC 60601-1-2.
North America Customers
Grounding reliability can only be achieved when the equipment is connected to an equivalent receptacle, marked “Hospital Only”
or “Hospital Grade”. That signal input port need to be connected properly and that any unused signal input port shall not be
accessible for the patient to contact in the patient area after the LCD is integrated into a medical system.
Federal law restricts this device to sale by or on the order of a licensed healthcare practitioner.
European Customers
Unpacking, Installation and calibration of this display should only be done by authorized and trained personnel. Any installation
done by a non-authorized person is done under his own risk and we accept no responsibility in any device malfunctioning. To
secure full functionality of this display, only NEC approved display controller models for connection with the fi nal system must be
used.
Medical Imaging
MD212G3 is designed for 1536 x 2048, MD211G5 is designed for 2048 x 2560 medical imaging.
English-4
Recommended use
Safety Precautions and Maintenance
FOR OPTIMUM PERFORMANCE, PLEASE NOTE
THE FOLLOWING WHEN SETTING UP AND
USING THE LCD GRAYSCALE MONITOR:
WARNING: Do not modify this equipment without authorization of the manufacturer.
WARNING: To disconnect this product from the mains supply disconnect the mains plug from the socket outlet.
WARNING: To avoid risk of electric shock, this equipment must only be connected to a supply mains with protective earth.
WARNING: No modifi cation of this equipment is allowed.
WARNING: For EMC details information, please contact the NEC local representative.
• DO NOT OPEN THE MONITOR. There are no user serviceable parts inside and opening or removing covers may expose
you to dangerous shock hazards or other risks. Refer all servicing to qualifi ed service personnel.
• Do not spill any liquids into the cabinet or use your monitor near water.
• Do not insert objects of any kind into the cabinet slots, as they may touch dangerous voltage points, which can be harmful or
fatal or may cause electric shock, fi re or equipment failure.
• Do not place any heavy objects on the power cord. Damage to the cord may cause shock or fi re.
• Do not place this product on a sloping or unstable cart, stand or table, as the monitor may fall, causing serious damage to
the monitor.
• The power supply cord you use must have been approved by and comply with the safety standards of your country.
• In UK, use a BS-approved power cord with molded plug having a black (5A) fuse installed for use with this monitor.
• Do not place any objects onto the monitor and do not use the monitor outdoors.
• Do not bend, crimp or damage the power cord.
• Do not use monitor in high temperatured, humid, dusty, or oily areas.
• Do not cover vent on monitor.
• Vibration can damage the backlight. Do not install the monitor where it will be exposed to continual vibration.
• If the monitor's LCD panel is broken, do not come in contact with the liquid crystal and handle with care.
• To prevent damage to the LCD monitor caused by tipping over due to earthquakes or other shocks, make sure to install the
monitor in a stable location and take measures to prevent falling.
• Please do not touch patient and this medical device at the same time.
Immediately turn off the power, unplug your monitor from the wall outlet and move to a safe location then refer servicing to
qualifi ed service personnel under the following conditions. If the monitor is used in this condition, the monitor may cause fall, fi re
and electric shock:
• If the monitor stand has been cracked or peeled.
• If the monitor has been wobbled.
• If the monitor emanates an unusual odor.
• When the power supply cord or plug is damaged.
• If liquid has been spilled, or objects have fallen into the monitor.
• If the monitor has been exposed to rain or water.
• If the monitor has been dropped or the cabinet is damaged.
• If the monitor does not operate normally by following operating instructions.
• Allow adequate ventilation around the monitor so that heat can properly dissipate. Do not block ventilated
openings or place the monitor near a radiator or other heat sources. Do not put anything on top of monitor.
CAUTION
• The power cable connector is the primary means of detaching the system from the power supply.
The monitor should be installed close to a power outlet which is easily accessible.
• Handle with care when transporting. Save packaging for transporting.
• Do not touch LCD panel surface while transporting, mounting and setting. Applying pressure on the LCD
panel can cause serious damage.
• Carry the monitor by holding the top and the bottom of the monitor head with both hands.
• Do not carry holding only the stand.
English
English-5
Image Persistence: Image persistence exists, when a residual or “ghost” image of a previous image remains visible on the
screen. Unlike with CRT monitors, image persistence on LCD monitors is not permanent, but constant images being displayed
for a long period of time should be avoided.
To alleviate image persistence, turn off the monitor for as long as the previous image was displayed. For example, if an image
was on the monitor for one hour and a residual image remains, the monitor should be turned off for one hour to erase the image.
NOTE: As with all personal display devices, NEC DISPLAY SOLUTIONS recommends using a moving screen saver at regular
intervals whenever the screen is idle or turning off the monitor when not in use.
Maintenance: This display is factory calibrated for diagnostic imaging, in accordance with DICOM Part 14. To ensure constant
visual quality over the life of the display, the recommended time interval to re-calibrate these models is 12 months.
CORRECT PLACEMENT AND ADJUSTMENT OF THE MONITOR CAN
REDUCE EYE, SHOULDER AND NECK FATIGUE. CHECK THE
FOLLOWING WHEN YOU POSITION THE MONITOR:
• For optimum performance during normal operation, allow 20 minutes for the display
to warm up. For re-calibration and DICOM conformance tests, please allow at least
60 minutes to achieve best results.
• Adjust the monitor height so that the top of the screen is at or slightly below eye level.
Your eyes should look slightly downward when viewing the middle of the screen.
• Position your monitor no closer than 40 cm (15.75 inches) and no further away than
70 cm (27.56 inches) from your eyes. The optimal distance is 50 cm (19.69 inches).
• Rest your eyes periodically by focusing on an object at least 6 m (20 feet) away.
Blink often.
• Position the monitor at a 90° angle to windows and other light sources to minimize glare
and refl ections. Adjust the monitor tilt so that ceiling lights do not refl ect on your screen.
• Position whatever you are looking at most of the time (the screen or reference material)
directly in front of you to minimize turning your head.
• Avoid displaying fi xed patterns on the monitor for long periods of time to avoid image persistence (after-image effects).
• Get regular eye checkups.
Cleaning the LCD Panel
• When the LCD is dusty, please gently wipe with a soft cloth.
• Please do not rub the LCD panel with hard or coarse material.
• Please do not apply pressure to the LCD surface.
• Please do not use OA cleaner as it will cause deterioration or discoloration on the LCD surface.
Cleaning the Cabinet
• Unplug the power supply cord from the wall outlet.
• Gently wipe the cabinet with a soft cloth.
• To clean the cabinet, dampen the cloth with a neutral detergent and water, wipe the cabinet and follow with a dry cloth.
NOTE: Many plastics are used on the surface of the cabinet. DO NOT clean with benzene, thinner, alkaline detergent,
alcoholic system detergent, glass cleaner, wax, polish cleaner, soap powder, or insecticide. Do not touch rubber or
vinyl to the cabinet for a long time. These types of fl uids and fabrics can cause the paint to deteriorate, crack or peel.
English-6
Contents
Your new NEC monitor box* should contain the following:
• MD212G3/MD211G5 monitor with tilt/swivel/pivot/height adjust stand
• Power Cord
• Video Signal Cable (DVI-D to DVI-D cable)*
• Video Signal Cable (DisplayPort to DisplayPort cable)
• USB Cable
• Quick Reference Guide
1
English
Guide
2
USB Cable
DisplayPort cable
1
Power Cord*
Quick Reference
Quick Reference Guide DVI-D to DVI-D cable*
* Remember to save your original box and packing material to transport or ship the monitor.
1
Dual link DVI cable.
*
2
*
Type and number of power cords included will depend on the where the LCD monitor is to be shipped. When more than one power cord is
included, please use a power cord that matches the AC voltage of the power outlet and has been approved by and complies with the safety
standard of your particular country.
English-7
Connecting the cables
To connect the LCD monitor to your system, please follow these instructions:
NOTE: Make sure to read “Recommended Use” before installation.
In order to display the maximum resolution, a display controller that can output a resolution of 1536 x 2048 for
MD212G3 and 2048 x 2560 for MD211G5 is needed.
1. Turn off the computer.
2. DVI connection: Connect the DVI signal cable to the connector of the display controller in your system (Figure A.1).
Tighten all screws.
DisplayPort connection: Connect the DisplayPort cable to the connector of the display controller in your system
(Figure A.2).
DisplayPort cable
Figure A.1 Figure A.2
NOTE: 1. Please use a DisplayPort cable with a DisplayPort logo.
2. When removing the DisplayPort cable, hold down the top button to release the lock.
3. Remove the cable cover (Figure B).
To remove the cable cover, unlock the slide latch (1) on the cable cover (2) and slide the cover to the side to remove it.
Slide latch
Cable cover
Figure B
4. Connect all cables to the appropriate connectors (Figure C).
NOTE: 1. Incorrect cable connections may result in irregular operation, damage display quality/components of LCD module
and/or shorten the module’s life.
2. For re-calibration and display management, the USB cable shipped with the display must be connected with a
USB 2.0 port of the computer as well. For connection details please refer to page 10.
Back of the display
Computer
AC IN
Figure C
English-8
To the wall outlet
5. To keep the cables neatly organized, place them into the cable management system that is built into the stand.
Place the cables in the hooks fi rmly and evenly (Figure D).
Figure D
6. Slide down the cable cover (Figure E).
7. Please check that you can still rotate, raise and lower the monitor screen, when you have installed the cables.
NOTE: Handle with care when raising, lowering, rotating or tilting the monitor screen.
8. Connect one end of the power cord to the AC inlet on the back side of the monitor and the other end to the power outlet.
NOTE: Please refer to the CAUTION section of this Installation & Maintenance Guide for proper selection of AC power cord.
English
Figure E
9. Turn on the monitor with the front power switch (Figure F) and the computer.
NOTE: If you have any problems, please refer to the Troubleshooting section of this Installation & Maintenance Guide.
Power switch
Figure F
English-9
When using a USB hub...
This display has a USB 2.0 compliant hub. By connecting the supplied USB cable to a USB 2.0 port of the computer or another
USB 2.0 hub, USB devices can be connected to the display directly.
With the computer and the display turned on, connect the supplied USB cable between the display’s USB upstream port and the
computer’s USB 2.0 downstream port.
Back of the display
Computer
AC IN
IMPORTANT: Proper operation of all USB devices is not guaranteed. Depending on the computer, operating system, and/or
peripheral devices used, the device may not work properly.
The supplied USB cable can also be used for the followings:
• To calibrate the display.
• To calibrate multiple displays in succession.
To calibrate the display
Connect the supplied USB cable between one of the display’s USB upstream port and the computer’s USB 2.0 downstream
port. Regarding display calibration, please refer to the GammaCompMD QA user manual.
To calibrate multiple displays in succession
Up to 8 displays can be connected one after another in a daisy chain using USB cables.
1. Connect the supplied USB cable between the fi rst display’s USB upstream port and the computer’s USB 2.0 port.
2. Connect a USB cable between the fi rst display’s USB downstream port and the second display’s USB upstream port.
3. Repeat step 2 until all displays are connected one after another.
NOTE: Up to 5 sub monitors may be daisy-chained.
Computer
English-10

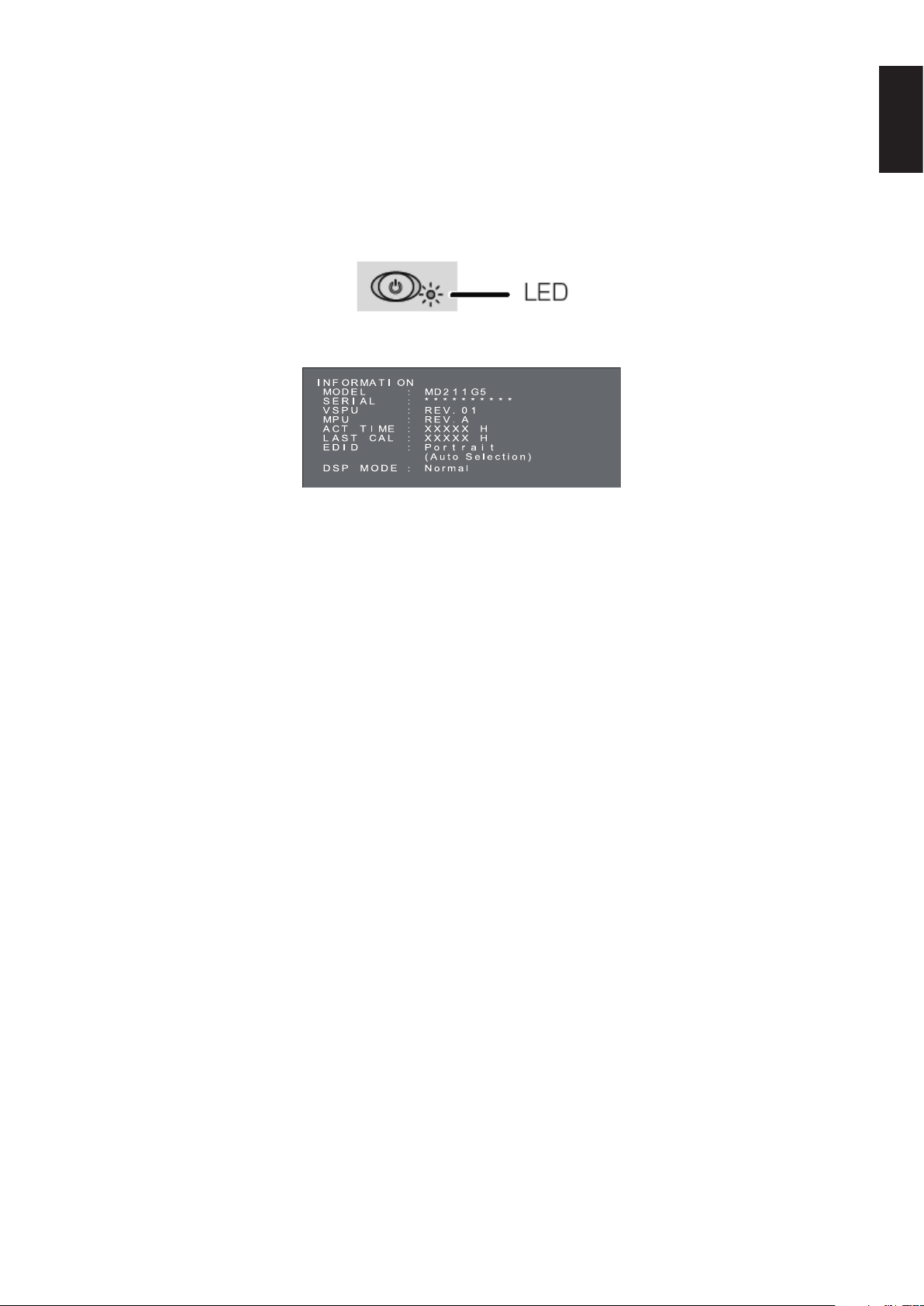

Controls
1 Power Switch To turn the monitor on and off.
2 LED Indicates that the power is on.
Turns off automatically, when the luminance is stabilized.
3 Front Sensor For luminance stabilization and calibration.
4 Ambient Light Sensor Measures ambient light during calibration process.
5 + (plus) Button To open the OSD menu (On Screen Display)
6 – (minus) Button Same as + (plus) Button
7 Main power switch Main power supply switch.
st
click – Display information
1
2nd click – Present operating state
3rd click – DICOM conformance test
4th click – OSD menu off (otherwise the OSD menu disappears in 15 sec.)
English

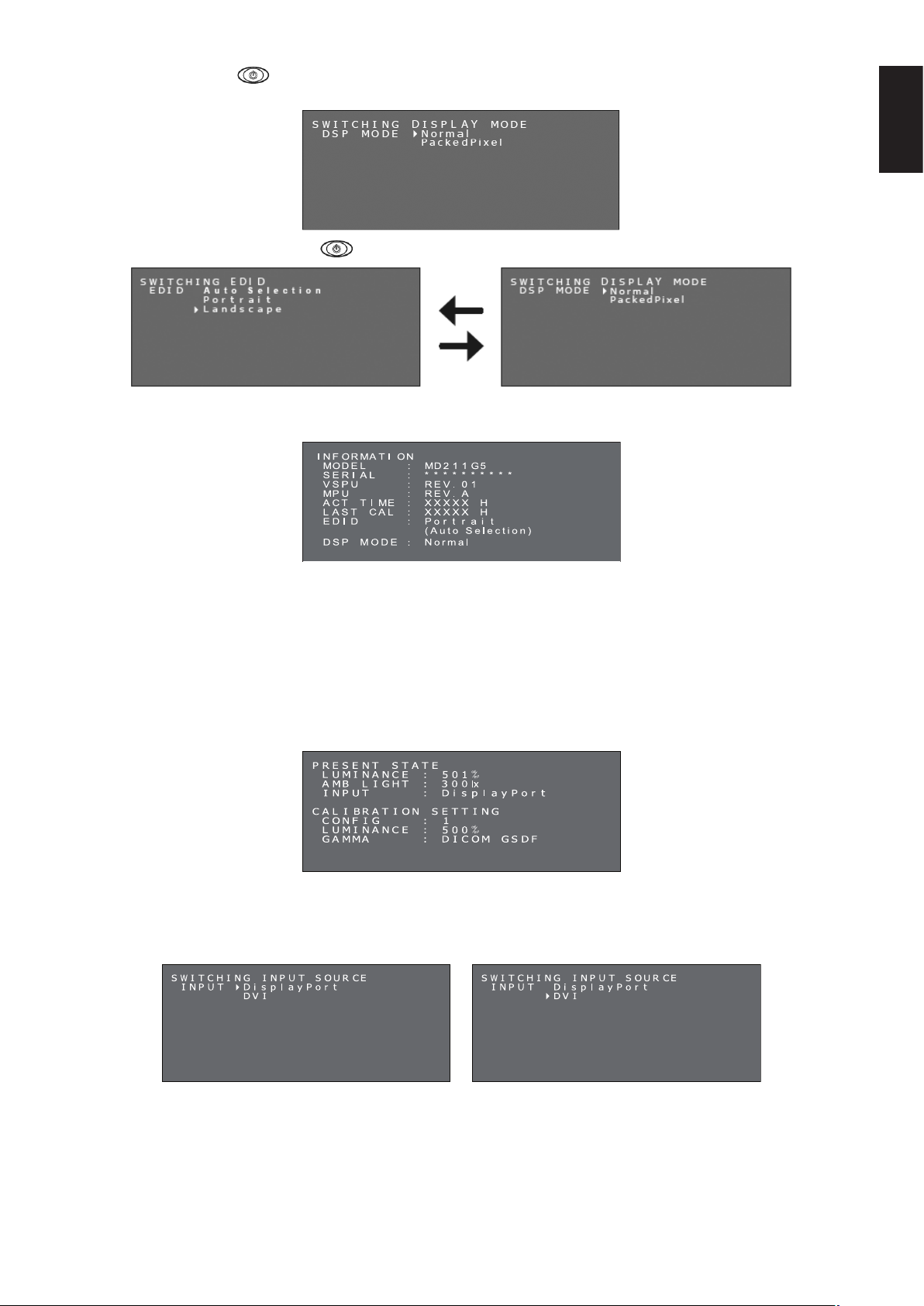

OSD (On Screen Display)
Model
Maintenance Information
Total Operating Hours
Operating Hours Since The Last Calibration
Current input source
Confi guration Number
Result of the last test
Serial Number
EDID Data Status
Display Mode*
Current Luminance
Ambient Light
Luminance Setting
Gamma Setting

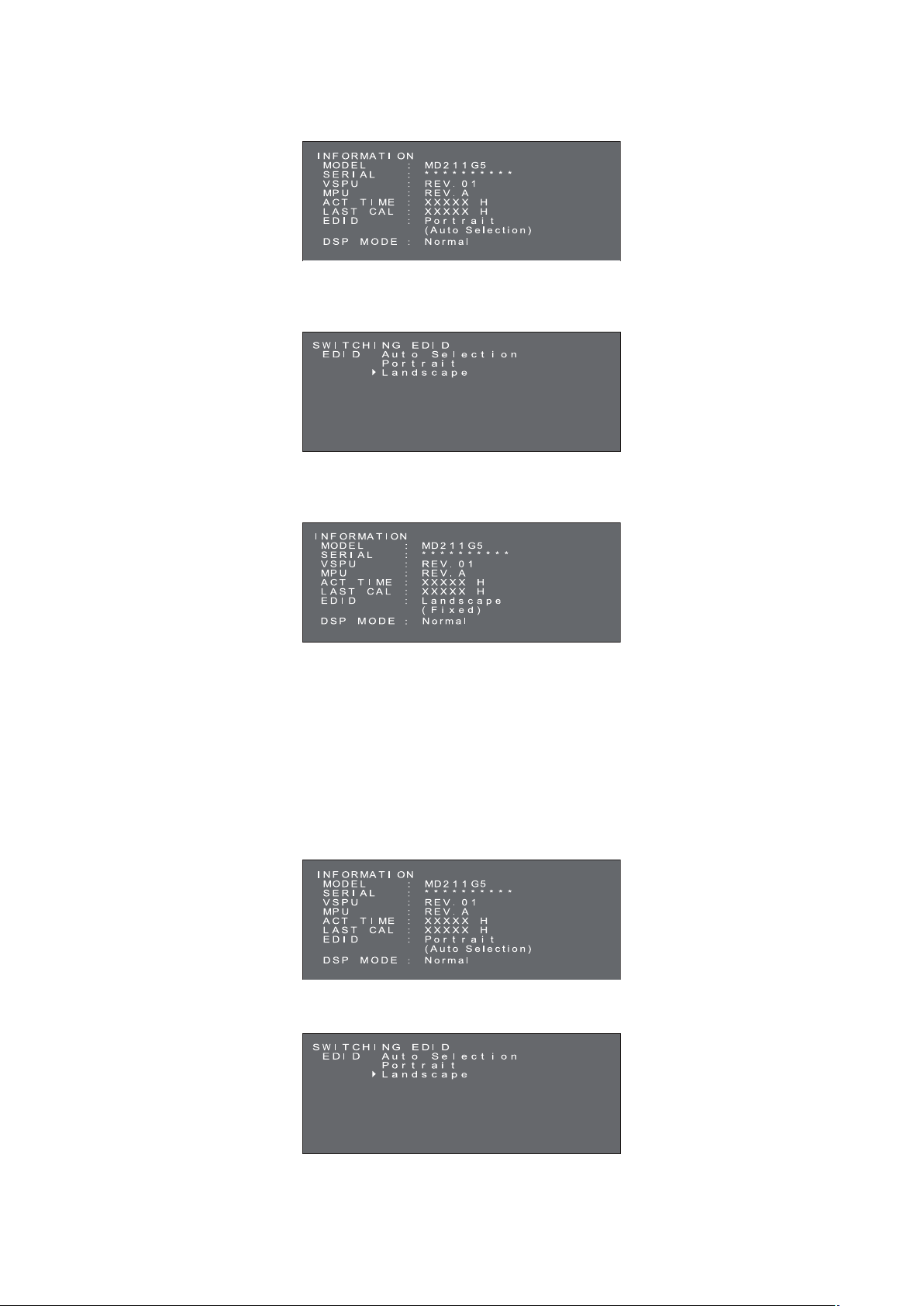

Display information

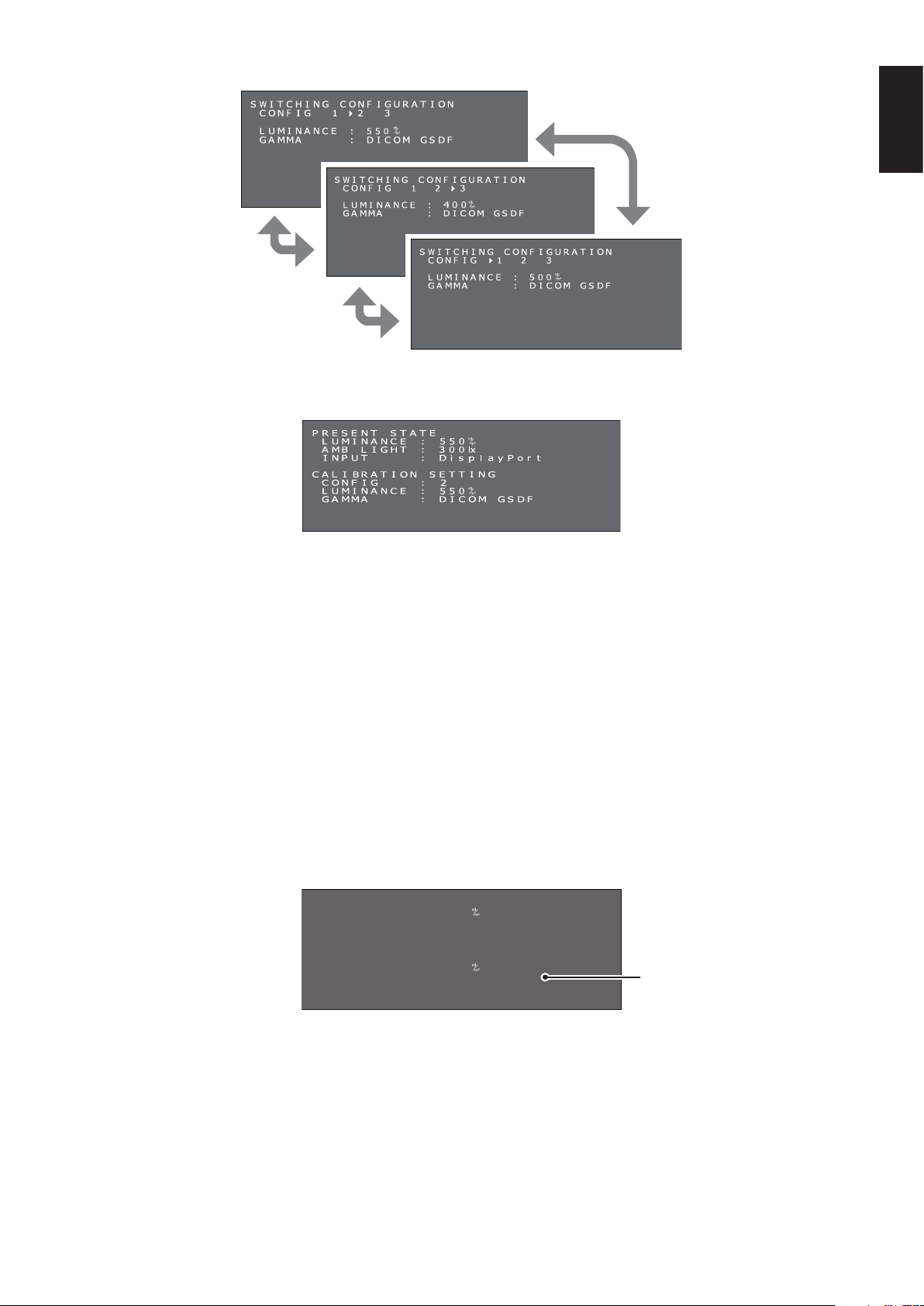

Present operating state

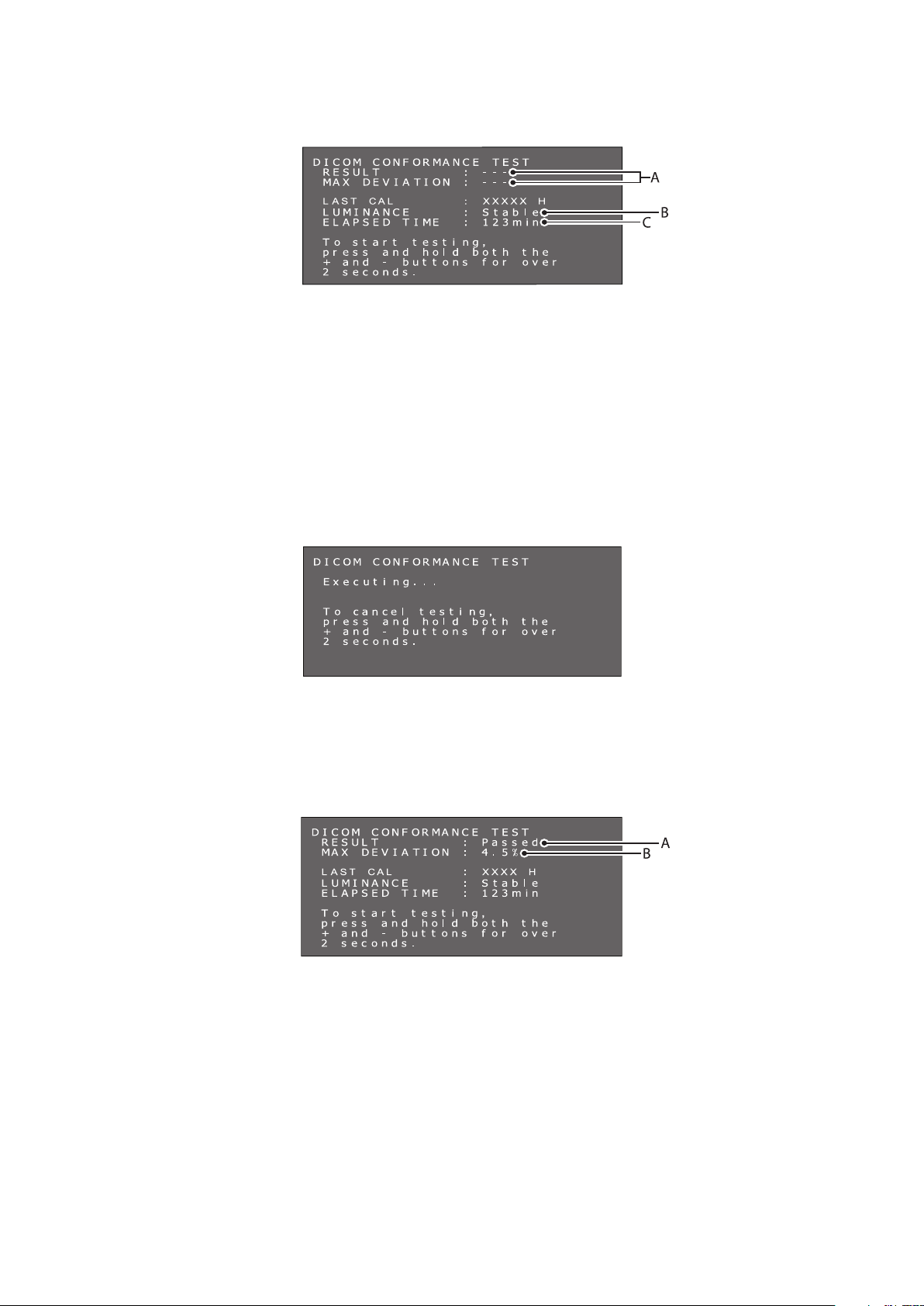

DICOM conformance test
*: MD211G5 only.
Luminance status
Continuous lighting time of the backlight
English-11
Specifi cations - MD212G3
Monitor Specifi cations MD212G3 Notes
LCD panel color Clear Base
LCD 21.3-inch (54 cm), monochrome, TFT active matrix, anti-glare
Pixel pitch (H x V) 0.212 x 0.212 mm
Display area (H x V) 324.86 x 433.15 mm
Pixel (H x V) 1536 x 2048
Grayscale 256 steps of gray out of a palette of 12277
Backlight Edge Light Type with white LED
LCD Optical characteristics (typ.) Viewing angle: 176° horizontal/vertical (contrast ratio ≥ 10:1)
Luminance DICOM calibrated 400 cd/m
Input sync signal DVI 1.0 compliant, DisplayPort 1.1a compliant
Available resolution 640 x 480
Input connectors DVI 24-pin connector, DisplayPort connector
Power Supply AC 100-240 V ~ 50/60 Hz
Current Rating 1.5 - 0.6 A
USB Hub USB Rev. 2.0 compliant, Self-powered
Ambient conditions Temperature:
Humidity (no condensation):
Air pressure:
Dimensions & weight Net: 367.0 x 487.3/583.8 x 227.6 mm (W x H x D: Portrait) approx. 10.8 kg
Safety certifi cations ANSI/AAMI ES60601-1:2005, CAN/CSA-C22.2 No. 60601-1:08, FCC-B, CE-MDD, VCCI-B
NOTE: Technical specifi cations are subject to change without notice.
10-bit (1024) simultaneously displayable grayscale in DisplayPort input
Contrast ratio: 1400:1 (Viewing angle perpendicular to LCD panel)
2
as factory default
2
Maximum 600 cd/m
800 x 600
1024 x 768
1536 x 2048 (at Fv=30/60Hz)
2048 x 1536 (at Fv=30/60Hz)
USB upstream port (x1), USB downstream ports (x2)
Operating: 5 - 35°C, Transport / Storage: -20 - 60°C
Operating: 20 - 80%, Transport / Storage: 10 - 85%
Operating: 700 - 1060hPa, Transport / Storage: 266 - 1060hPa
14.4 x 19.2/23.0 x 9.0 inches (W x H x D: Portrait) approx. 23.8 lbs
(1700 cd/m2 typ. as LCD component)
English-12
Specifi cations - MD211G5
Monitor Specifi cations MD211G5 Notes
LCD panel color Clear Base
LCD 21.3-inch (54 cm), monochrome, TFT active matrix, anti-glare
Pixel pitch (H x V) 0.165 x 0.165 mm
Display area (H x V) 337.9 x 422.4 mm
Pixel (H x V) 2048 x 2560
Grayscale 256 steps of gray out of a palette of 12277
Backlight Edge Light Type with white LED
LCD Optical characteristics (typ.) Viewing angle: 176° horizontal/vertical (contrast ratio ≥ 50:1)
Luminance DICOM calibrated 500 cd/m
Input sync signal DVI 1.0 compliant, DisplayPort 1.1a compliant
Available resolution 640 x 480
Input connectors DVI 24-pin connector, DisplayPort connector
Power Supply AC 100-240 V ~ 50/60 Hz
Current Rating 1.5 - 0.6 A
USB Hub USB Rev. 2.0 compliant, Self-powered
Ambient conditions Temperature:
Humidity (no condensation):
Air pressure:
Dimensions & weight Net: 390.0 x 487.8/584.0 x 227.6 mm (W x H x D: Portrait) approx. 11.8 kg
Safety certifi cations ANSI/AAMI ES60601-1:2005, CAN/CSA-C22.2 No. 60601-1:08, FCC-B, CE-MDD, VCCI-B
NOTE: Technical specifi cations are subject to change without notice.
10-bit (1024) simultaneously displayable grayscale in DisplayPort input
10-bit (1024) simultaneously displayable grayscale in packed pixel mode in DVI input
Contrast ratio: 1200:1 (Viewing angle perpendicular to LCD panel)
2
as factory default
2
Maximum 600 cd/m
800 x 600
1024 x 768
2048 x 2560 (at Fv=25/50Hz)
2560 x 2048 (at Fv=25/50Hz)
USB upstream port (x1), USB downstream ports (x2)
Operating: 5 - 35°C, Transport / Storage: -20 - 60°C
Operating: 20 - 80%, Transport / Storage: 10 - 85%
Operating: 700 - 1060hPa, Transport / Storage: 266 - 1060hPa
15.4 x 19.2/23.0 x 9.0 inches (W x H x D: Portrait) approx. 26.0 lbs
(1200 cd/m2 typ. as LCD component)
English
English-13
Troubleshooting
The display won't turn on! (The power indicator is off.)
• Make sure the display is connected to the power outlet.
• Check to see if the display is turned on.
The screen is not lit!
• Check if cables are connected correctly.
• Check if the computer is turned on.
• If the LED indicator is orange, the computer may be in energy saving mode. Press any key on the keyboard to wake up
the computer.
• The input signal frequency or display resolution may not be appropriate for the display. Refer to the computer instruction
manual and adjust the frequency and/or resolution.
• If the LED is red, this may be an error indication. Contact your supplier.
Images are not displayed properly!
• The display resolution may not be appropriate for the display. Refer to the computer instruction manual and adjust the
resolution.
The refresh rate is set to 60 Hz (MD212G3 DVI Dual Link mode)/50 Hz (MD211G5 DVI Dual Link mode) and resolution
loss (scan line gaps) occurs!
• This can happen when a DVI Single Link cable or a DisplayPort to DVI Single Link adapter is used.
Use the supplied DVI Dual Link cable which supports both DVI Single Link and DVI Dual Link modes.
MD212G3: Alternatively set the refresh rate in the operating system to 30 Hz.
MD211G5: Alternatively set the refresh rate in the operating system to 25 Hz.
English-14
Additional Installation Information
Advanced OSD menu
Several control functions are available by entering the advanced OSD menu. These control functions are additional OSD menu
items, which are always accessible after opening the standard OSD menu.
Control Function Description
EDID
Display Mode
(MD211G5 only)
Input Source
Change the picture format to be recognized by the operating system. The factory default is
“(Auto Selection)”.
• Portrait format - MD212G3: 1536 x 2048 pixels.
- MD211G5: 2048 x 2560 pixels.
• Landscape format - MD212G3: 2048 x 1536 pixels.
- MD211G5: 2560 x 2048 pixels.
Change the video signal input format
• Normal Mode [Factory Default]
The display accepts the video signal with either 25Hz refresh rate (DVI Single Link) or 50Hz
refresh rate (DVI Dual Link), based on DVI 1.0 specifi cations.
• Packed Pixel Mode
The display accepts the video signal with 50Hz refresh rate in a special packed pixel data format
(DVI Single Link). This requires the use of a customized driver for the display controller. Make
sure that a customized driver is available for your specifi c display controller model. For the
availability of a packed pixel driver, please contact your supplier.
Change the input source
• DVI
• DisplayPort
English
Confi guration
DICOM
conformance test
Change luminance and gamma correction factory presets. The factory presets are:
MD212G3:
2
Confi guration
1 400 0.6 0.0 DICOM Default
2 400 1.0 0.0 DICOM
3 500 0.6 0.0 DICOM
MD211G5:
Confi guration
1 500 1.0 0.0 DICOM Default
2 550 1.0 0.0 DICOM
3 400 1.0 0.0 DICOM
The confi guration 1 parameter may be modifi ed anytime by a new display calibration.
NOTE: Regarding display calibration, please refer to the GammaCompMD QA user manual.
Perform a quick DICOM conformance test without software to check the display properties.
Maximum Minimum Ambient
Maximum Minimum Ambient
Luminance (cd/m
Luminance (cd/m
)
2
)
Gamma Remark
Gamma Remark
English-15
Changing the EDID settings (Portrait / Landscape)
1. Click the (+) plus button or (-) minus button on the back side of the display once to open the “INFORMATION” OSD main
menu. A menu opens on the screen, which looks similar to this picture.
2. Hold down the (+) plus button and the (-) minus button simultaneously for over 2 seconds.
The “SWITCHING EDID” submenu opens on the screen. Select “Portrait” or “Landscape” by the (+) plus button or the (-)
minus button.
3. After selecting your preferred EDID mode, hold down the (+) plus button and the (-) minus button simultaneously for over
2 seconds again. Then displayed (Information) OSD main menu and selected (Landscape) EDID data is displayed as
(FIXED). Then confi rm the EDID line (Portrait/Landscape) on the “INFORMATION” OSD main menu.
4. Click the (+) plus button or (-) minus button once to close the “INFORMATION” OSD main menu.
NOTE: When using the “Portrait” setting, the display controller does not need to rotate the image in the video ram. In most
applications, this setting is preferable. However, if there is a need to rotate the image by the display controller, the
“Landscape” setting may be preferable.
Changing the Display Mode between Normal and Packed Pixel (MD211G5 only)
NOTE: This function is only available for DVI-D connection.
1. Click the (+) plus button or (-) minus button on the back side of the display once to open the “INFORMATION” OSD main
menu. A menu opens on the screen, which looks similar to this picture.
2. Hold down the (+) plus button and the (-) minus button simultaneously for over 2 seconds.
The “SWITCHING EDID” submenu opens on the screen.
English-16
3. Press the power switch on the front of the monitor once to display the “SWITCHING DISPLAY MODE” submenu.
Select “Normal” or “Packed Pixel” by the (+) plus button or the (-) minus button.
NOTE: By pressing the power switch , the OSD submenu information changes as below.
4. After selecting your preferred Display Mode, hold down the (+) plus button and the (-) minus button simultaneously for over
2 seconds again. Then confi rm the DSP MODE line (Normal/PackedPixel) on the “INFORMATION” OSD main menu.
English
5. Click the (+) plus button or (-) minus button once to close the “INFORMATION” OSD.
Input source switching
Please operate input source change following the procedure mentioned below.
1. The (+) / (-) buttons are located in the back side of the display. Press either button twice, and the “PRESENT STATE” OSD
main menu appears.
Present operating state
2. With the “PRESENT STATE” OSD main menu displayed, press and hold both the buttons for 2 seconds. The “SWITCHING
INPUT SOURCE” submenu appears.
With the screens above displayed, select a input source using the (+) plus button or the (-) minus button.
Select a DisplayPort Select a DVI
English-17
3. Switching the input source, press and hold both the buttons for 2 seconds. And the “PRESENT STATE” OSD main menu
with the selected input source appears.
Current signal input source is confi rmed on the INPUT description of “PRESENT STATE” OSD main menu.
Input source
Changing the confi guration (Preset 1, 2, 3)
The NEC model MD212G3 is shipped with 3 factory preset confi gurations, as listed below.
2
Confi guration
Maximum Minimum Ambient
Luminance (cd/m
1 400 0.6 0.0 DICOM [Factory Default]
2 400 1.0 0.0 DICOM
3 500 0.6 0.0 DICOM
)
Gamma Remark
The NEC model MD211G5 is shipped with 3 factory preset confi gurations, as listed below.
2
Confi guration
Luminance (cd/m
Maximum Minimum Ambient
)
Gamma Remark
1 500 1.0 0.0 DICOM [Factory Default]
2 550 1.0 0.0 DICOM
3 400 1.0 0.0 DICOM
The confi guration can be changed via an OSD menu. The confi guration 1 parameters may be modifi ed anytime by a new
display calibration. Regarding display calibration, please refer to the GammaCompMD QA user manual.
HINT: In order to apply a change of confi guration, make sure to press and hold both (+) and (-) buttons for over 2 seconds
after moving the cursor. Otherwise the OSD menu will disappear in 15 seconds and the confi guration will not be
changed.
1. Click the (+) plus button or (-) minus button on the back side of the display once to open the “PRESENT STATE” OSD main
menu. A menu opens on the screen, which looks similar to this picture.
2. With the “PRESENT STATE” OSD main menu displayed, press and hold both the buttons for 2 seconds. The “SWITCHING
CONFIGURATION” submenu appears.
With the screens above displayed, press the power-switch quickly, the OSD submenu switches to “SWITCHING
INPUT SOURCE” and “SWITCHING CONFIGURATION” in that order.
English-18
3. Select your desired confi guration by the (+) plus button or the (-) minus button.
4. After selecting your preferred CONFIGURATION mode, hold down the (+) plus button and the (-) minus button
simultaneously for over 2 seconds again. Then confi rm any change of confi guration in the “PRESENT STATE” OSD main
menu.
English
5. Click the (+) plus button or (-) minus button once to close the “PRESENT STATE” OSD main menu.
Performing the DICOM conformance test
This function is available only when the display has been calibrated to DICOM GSDF.
Performing a DICOM conformance test ensures DICOM conformance of the display by measuring and checking the display
properties.
The DICOM conformance test is recommended to be performed after 60 minutes of continuous active backlight time of the LCD
panel. If the test is performed within less than 60 minutes of active backlight time, the reported DICOM GDSF error value may
be larger because the luminance was not yet stable enough.
HINT: If the power management setting of the computer is set to less than 60 minutes, either change the computer’s power
management setting only for this test or try “OSD operation without signal input from computer” on page 21.
DICOM conformance test procedure:
1. Checking the gamma setting
The (+) / (-) buttons are located in the back side of the display. Press either button twice, and the “PRESENT STATE” OSD
main menu appears.
Make sure that GAMMA is set to “DICOM GSDF”.
Present operating state
P R E S E N T S T A T E
L UMI NA NCE : 5 0 1
AMB L IGHT : 300
INPUT : Di sp l ayPor t
CAL I BRATI ON SETT I NG
CONF I G : 1
L UMI NA NCE : 50 0
GAMMA : DI C OM GS DF
COLOR : 6500K
lx
Gamma setting
English-19
2. DICOM conformance test submenu.
Press either button again, and the DICOM conformance test submenu appears.
Make sure at least 60 minutes of continuous lighting time of the backlight has elapsed.
DICOM conformance test
A. Result of the last test
( “---” indicates that the test has not been performed.)
B. Luminance status
Stable: Luminance is stable. (Recommended)
Unstable: Luminance is unstable.
C. Continuous lighting time of the backlight
Over 60 minutes (Recommended)
“Over 240 min” indicates more than 240 minutes has elapsed.
3. Performing the DICOM conformance test.
Press and hold both the buttons for 2 seconds.
The screen that shows the test is in execution appears.
Screen that shows the test is in execution
Completing the test takes between 30 seconds to 1 minute.
To cancel the test, press and hold the both plus (+) and minus (-) buttons for over 2 seconds.
4. Showing the test results
When the measurement is completed, the test results are shown.
Test results
A. Test results
Passed: Max. deviation (GSDF error) ≤ 10%, complies with AAPM TG18 guidelines for primary displays.
Failed: Max. deviation (GSDF error) > 10%, does not comply with AAPM TG18 guidelines for primary displays.
Canceled: Test has been canceled.
Passed(!), Failed(!)
When “Passed” or “Failed” is followed by “(!)”, the test has not been performed under the recommended condition
(minimum 60 minutes of active backlight time) or the luminance is unstable.
B. Maximum deviation
The test results are saved until the next test or calibration.
If the maximum deviation (GSDF error) result does not conform to the AAPM TG18 guidelines, even though the test has been
performed under the recommended conditions, calibrate the display using an external calibration sensor, i.e. the NEC model
MDSVSENSOR3. During calibration with an external sensor, the front sensor of the display will be re-adjusted as well.
Without the OSD operation for over 15 seconds, the OSD menu disappears automatically.
English-20
OSD operation without signal input from computer
Without a signal input from the computer, normally a display goes into energy saving mode and cannot show the OSD menu.
MD212G3 and MD211G5 can exit the energy saving mode temporarily and show the OSD menu in the normal operation mode.
Therefore it is possible to change settings in the OSD or perform a DICOM conformance test without changing the computer’s
power management settings.
Follow the procedures below to show the OSD menus.
1. Confi rm that the display is in the energy saving mode and the LED next to the power switch is lit orange. If the LED is off,
please push the power switch to turn on the monitor.
2. Hold down the (+) plus button and the (-) minus button simultaneously for over 2 seconds.
The “INFORMATION” OSD main menu opens on the screen. The LED color changes from orange to green.
3. Switch EDID, input source, confi guration or DICOM conformance test, referring to this manual.
Changing the EDID settings (see page 16)
Changing the Display Mode* (see page 16)
Input source switching (see page 17)
Changing the confi guration (see page 18)
Performing the DICOM conformance test (see page 19)
English
4. If the display enters the energy saving mode during this operation, please start from the beginning again.
NOTE: The display being turned on to the normal operation mode by the operation as described above is only temporary.
This mode is left after any of the following conditions are met:
1. 3 hours have passed.
2. The display power has been turned off.
3. A DICOM conformance test has been performed.
*: MD211G5 only.
English-21

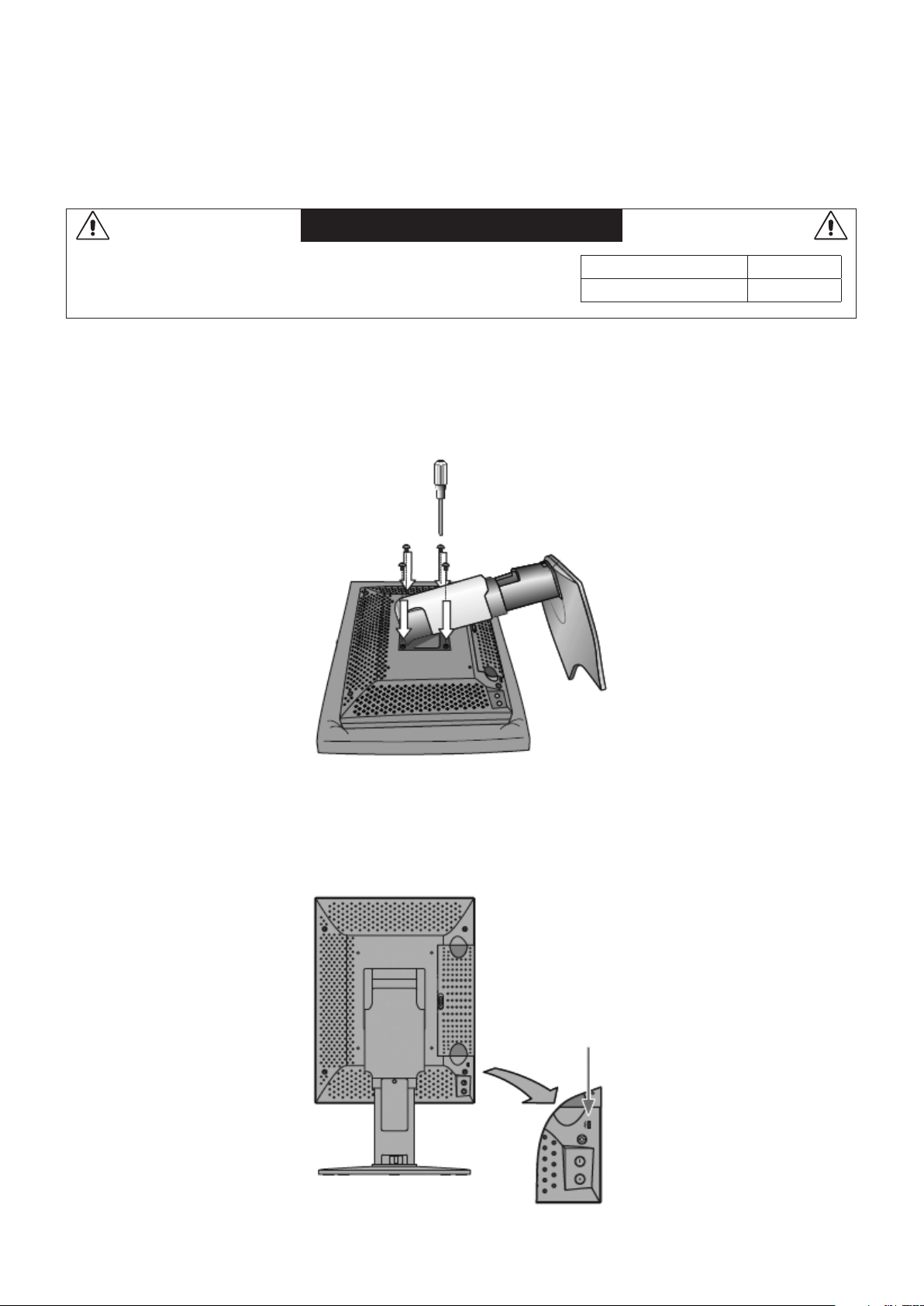

Attaching a wall mount or multi-display mounting arm
The tilt and swivel stand, as shipped with the display, is interchangeable with commercially available wall mounts or multi-display
mounting arms that:
• Come with a mount plate with 4 slotted screw holes at 100 mm x 100 mm and
• Can bear the total weight of the LCD panel (without the stand) and the cables connected to it.
NOTE: Use the original screws to use the LCD panel back on its original tilt stand.
CAUTION
Choose the screw size carefully according to the mount plate thickness.
If the screws are too long, they could damage the internal parts. If they are
too short, the connection becomes loose and the display could fall out.
Mounting plate thickness Screw size
1.5-4.0mm ISO M4x16
How to attach wall mounts or multi-display mounting arms
1. Place a soft cloth or cushioning material over a stable even surface.
2. Put the display face down on the soft cloth or cushioning material.
3. Remove 4 screws and detach the tilt and swivel stand shipped with the display.
4. Attach the wall mount or multi-display mounting arm according to the manufacturer’s instructions.
Antitheft Security Slot
The display is equipped with the security slot for use with the MicroSaver Security Lock System by Kensington Technology
Group. The MicroSaver locks are available at PC supply stores.
NOTE: Kensington is the registered trademark of Kensington Technology Group.
English-22
Manufacturer’s Recycling and Energy Information
NEC DISPLAY SOLUTIONS is strongly committed to environmental protection and sees recycling as one of the company’s
top priorities in trying to minimize the burden placed on the environment. We are engaged in developing environmentallyfriendly products, and always strive to help defi ne and comply with the latest independent standards from agencies such as
ISO (International Organisation for Standardization).
Disposing of your old NEC product
The aim of recycling is to gain an environmental benefi t by means of re-use, upgrading, reconditioning or reclamation of
material. Dedicated recycling sites ensure that environmentally harmful components are properly handled and securely
disposed. To ensure the best recycling of our products, NEC DISPLAY SOLUTIONS offers a variety of recycling procedures
and gives advice on how to handle the product in an environmentally sensitive way, once it has reached the end of its life.
All required information concerning the disposal of the product and country-specifi c information on recycling facilities can be
found on our following websites:
http://www.nec-display-solutions.com (in Europe),
http://www.nec-display.com (in Japan) or
http://www.necdisplay.com (in USA).
Energy Saving
This monitor features an advanced energy saving capability.
Mode Power consumption LED colour
Normal Operation
Energy Saving Mode Less than 2 W Orange
Off Mode Less than 2 W Unlit
Approx. 50 W (MD212G3)
Approx. 80 W (MD211G5)
Green (then unlit when
luminance is stabilized)
English
WEEE Mark (European Directive 2012/19/EU)
Within the European Union
EU-wide legislation, as implemented in each Member State, requires that waste electrical and electronic
products carrying the mark (left) must be disposed of separately from normal household waste. This includes
monitors and electrical accessories, such as signal cables or power cords. When you need to dispose of your
NEC display products, please follow the guidance of your local authority, or ask the shop where you purchased
the product, or if applicable, follow any agreements made between yourself and NEC.
The mark on electrical and electronic products only applies to the current European Union Member States.
Outside the European Union
If you wish to dispose of used electrical and electronic products outside the European Union, please contact your local authority
so as to comply with the correct disposal method.
English-23
NEC Display Solutions, Ltd.
4-28, Mita 1-chome, Minato-ku,
Tokyo, Japan
NEC Display Solutions of America
500 Park Blvd. Suite 1100 Itasca,
Illinois 60143
USA
Phone: +1-630.467.3000
Fax: +1-630.467.3010
