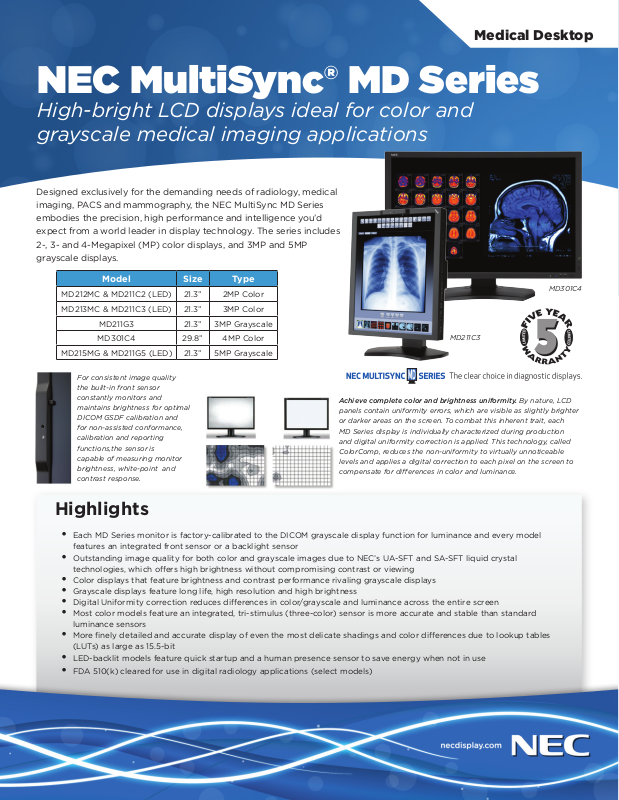

NEC MD211G5, MDG3-BNDN1, MDC3-BNDN1, MD211G5-A1, MDG5-BNDL2 Brochure

Medical Desktop

NEC MultiSync® MD Series

High-bright LCD displays ideal for color and
grayscale medical imaging applications

Designed exclusively for the demanding needs of radiology, medical
imaging, PACS and mammography, the NEC MultiSync MD Series
embodies the precision, high performance and intelligence you’d
expect from a world leader in display technology. The series includes
2-, 3- and 4-Megapixel (MP) color displays, and 3MP and 5MP
grayscale displays.

Model Size Type

MD212MC & MD211C2 (LED) 21.3” 2MP Color

MD213MC & MD211C3 (LED) 21.3” 3MP Color

MD211G3 21.3” 3MP Grayscale

MD301C4 29.8” 4MP Color

MD215MG & MD211G5 (LED) 21.3” 5MP Grayscale

For consistent image quality
the built-in front sensor
constantly monitors and
maintains brightness for optimal
DICOM GSDF calibration and
for non-assisted conformance,
calibration and reporting
functions,the sensor is
capable of measuring monitor
brightness, white-point and
contrast response.

Achieve complete color and brightness uniformity. By nature, LCD
panels contain uniformity errors, which are visible as slightly brighter
or darker areas on the screen. To combat this inherent trait, each
MD Series display is individually characterized during production
and digital uniformity correction is applied. This technology, called
ColorComp, reduces the non-uniformity to virtually unnoticeable
levels and applies a digital correction to each pixel on the screen to
compensate for dierences in color and luminance.

MD211C3

Highlights

• Each MD Series monitor is factory-calibrated to the DICOM grayscale display function for luminance and every model

features an integrated front sensor or a backlight sensor

• Outstanding image quality for both color and grayscale images due to NEC’s UA-SFT and SA-SFT liquid crystal

technologies, which offers high brightness without compromising contrast or viewing

• Color displays that feature brightness and contrast performance rivaling grayscale displays

• Grayscale displays feature long life, high resolution and high brightness

• Digital Uniformity correction reduces differences in color/grayscale and luminance across the entire screen

• Most color models feature an integrated, tri-stimulus (three-color) sensor is more accurate and stable than standard

luminance sensors

• More finely detailed and accurate display of even the most delicate shadings and color differences due to lookup tables

(LUTs) as large as 15.5-bit

• LED-backlit models feature quick startup and a human presence sensor to save energy when not in use

• FDA 510(k) cleared for use in digital radiology applications (select models)

MD301C4

Specifications for MD212MC/MD213MC/MD211C2/MD211C3/MD211G3/MD301C4/MD215MG/MD211G5

MODEL

DISPLAY

Viewable Image Size 21.3” 29.8” 21.3” 21.3”

Color Type Color Grayscale Color Grayscale Grayscale

MegaPixels 2MP 3MP 2MP 3MP 3MP 4MP 5MP 5MP

Native Resolution 1600 x 1200 2048 x 1536 1600 x 1200 2048 x 1536 2560 x 1600 2048 x 2560 2048 x 2560

Pixel Pitch 0.27mm 0.21mm 0.27mm 0.21mm 0.251mm 0.165mm 0.17mm

Pixels Per Inch 94 @ native resolution 120 @ native resolution 94 @ native resolution 120 @ native resolution 101 @ native resolution 154 @ native resolution 154 @ native resolution

Brightness (typical) 400 cd/m

Contrast Ratio
(typical)

Viewing Angle 176° Vert., 176° Hor. (88U/88D/88L/88R) @ CR>10 178° Vert., 178° Hor.

Response Time 20ms 12ms 40ms 13ms 7ms 18ms 25ms

Lookup Table 12-bit 14-bit 15.5-bit 14-bit (3D) 11.9-bit 13.5-bit

Displayable Colors 16.7 million colors out of 68.5 billion color palette

Sensors Tri-stimulus front Front Backlight Front NA

Synchronization
Range

Horizontal
(Analog/Digital)

Vertical 50-85 Hz 30-85 Hz 50-85 Hz 30, 50-85 Hz 50-85 Hz/30 Hz 30-87 Hz 25-75 Hz 25-75 Hz

Input Signal

Video Analog RGB 0.7 Vp-p/75 Ohms NA

Sync Separate Sync: TTL Level (Positive/Negative);

CONNECTIVITY

Input Connectors DVI-D, DVI-I, VGA 15-pin

POWER CONSUMPTION

On (typical) 100W 105W 80W 85W 105W 155W 90W 80W

Power Savings Mode
(typical)

PHYSICAL SPECIFICATIONS

Dimensions (WxHxD)

Net (with stand) 18.4 x 17.1-23 x 12 in. / 467.8 x 434.3-584.3 x

Net (without stand) 18.4 x 14.2 x 4.4 in. / 467.8 x 361.6 x 110.7mm 18.6 x 14.7 x 4.1 in. / 473 x 373.4 x 104.1mm 18.4 x 14.2 x 4.1 in. /

Weight

Net (with stand) 23.5 lbs. / 10.7 kg 26 lbs. / 11.8 kg 23.5 lbs. / 10.7 kg 41.5 lbs. / 18.8 kg 24.5 lbs. / 11.1 kg 26 lbs. / 11.8 kg

Net (without stand) 16.5 lbs. / 7.5 kg 17 lbs. / 7.8 kg 16.5 lbs. / 7.5 kg 27.6 lbs. / 12.5 kg 17.4 lbs. / 7.9 kg 19.0 lbs. / 8.6 kg

VESA Hole
Configuration

ENVIRONMENTAL
CONDITIONS

Operating
Temperature

Operating Humidity 30 - 80% 20 - 80% 30 - 80% 20 - 80% 30 - 80%

Operating Altitude 9842 ft. / 3000m 10,000 ft. / 3048m 9842 ft. / 3000m 10,000 ft. / 3048m 9842 ft. / 3000m

Storage Temperature 14-140°F / -10-60°C -4-140°F / -20-60°C

Storage Humidity 10 - 85%

Storage Altitude 40,000 ft. / 12,192m 32,808 ft. / 10,000m

LIMITED WARRANTY 5 years, including Advanced Overnight Exchange*

ADDITIONAL
FEATURES

SHIPS WITH Power cord; DVI cable (Dual Link for several models); Setup sheet; CD-ROM (GammaCompMD QA software); DisplayPort cable (MD301C4 & MD211G5 only); USB cable (MD301C4, MD215MG & MD211G5 only)

OPTIONAL
ACCESSORIES

MD212MC MD213MC MD211C2 MD211C3 MD211G3 MD301C4 MD215MG MD211G5

2

calibrated /

850 cd/m2 max.

1050:1 750:1 1400:1 900:1 1000:1 850:1 1200:1

and 256 shades of gray out of 4096

31.5-91.1 kHz 31.5-93.8/95.4 kHz 31.5-74.5/99.4 kHz 31.5-94.8/126.3 kHz 31.5-99.4/126.3 kHz 31.5-98.7 kHz (Digital

Composite Sync: TTL Level (Positive/Negative);

Composite Sync on Green: (0.3Vp-p negative

D-sub

DICOM GSDF calibrated; Digital uniformity correction; USB hub (1 up/2 down MD215MG; 2 up/3 down MD301C4); Quick QA feature (MD211C2, MD211C3, MD211G3); GammaComp MD QA software; Analog/digital

Nvidia Quadro 2000D dual PCIe video card (MDN-Q2000D); AMD V5800 dual DVI PCIe video card

(MDA-V5800D); Matrox Xenia Pro triple-head video card (MDM-XENPRO); Color calibration sensor

* Backlight replacement limited to 44,000 hours of usage at 400 cd/m2 or less at the native white point (MD212MC and MD213MC limited to 30,000 hours at 400 cd/m2 or less,
MD301C4 limited to 20,000 hours at 200 cd/m2 or less)

400 cd/m2 calibrated /

800 cd/m2 max.

0.7Vp-p positive)

DVI-D, DVI-I DVI-D, DisplayPort DisplayPort (2), DVI-D

2W <2W 1.7W 10W 7W

306mm

400 cd/m2 calibrated /

900 cd/m2 max.

16.8 million colors out of a 4.398 trillion color

pallette (8-bit) / 1.074 billion colors out of a 4.398

trillion color palette (10-bit) / 16,384 levels

100 x 100mm 100 x 100mm,

(MDSVSENSOR2)

of grayscale

14.7 x 19.3-23.4 x 9.3 in. /

373.4 x 490.6-593.4 x 235.5mm

41-95°F / 5-35°C 41-104°F / 5-40°C 41-95°F / 5-35°C

CableComp; Pivot; Tilt; Swivel; Height-adjustable stand

400 cd/m2 calibrated /

800 cd/m2 max.

400 cd/m2 calibrated /

1450 cd/m2 max.

1024 shades of gray out

of 48,961 (256 shades

of gray out of 48,961

[DVI-D])

18.4 x 14.9-20.8 x 9 in. /

467.8 x 377.6-527.6 x

227.6mm

467.8 x 361.6 x 104mm

Nvidia Quadro 2000D

dual PCIe video card

(MDN-Q2000D); AMD

V5800 dual DVI PCIe

video card (MDA-

V5800D); Matrox Xenia

Pro triple-head video

card (MDM-XENPRO);

Medical calibration sen-

sor (MDSVSENSOR2)

200 cd/m2 calibrated /

350 cd/m2 max.

(89U/89D/89L/89R)

@ CR>10

1.07 billion colors out
of 4.3 trillion or 1024

shades of gray out of
4096 (10-bit DisplayPort
input); 16.7 million colors

out of 1.05 billion color
palette or 256 shades of
gray out of 4096 (DVI-D

input)

only)

NA

(2)

27.1 x 18.4-24.3 x 11.9 in. /

687.3 x 467.6-617.2 x

302.3mm

27.1 x 17.6 x 4.9 in. /

687.3 x 447 x 124.5mm

200 x 100mm

Nvidia Quadro 2000D

dual PCIe video card

(MDN-Q2000D); AMD

V5800 dual DVI PCIe

video card (MDA-

V5800D); Matrox Xenia

Pro triple-head video

card (MDM-XENPRO);

Color calibration sensor

(MDSVSENSOR2);
Medical calibrator

(MD-N2M5B); Hood

(90HD30)

500 cd/m2 calibrated /

1100 cd/m2 max.

170° Vert., 170° Hor.

(85U/85D/85L/85R) @

CR>20

256 levels of gray out of

a palette of 3826

30-135 kHz 30-135 kHz

DVI-D DisplayPort, DVI-D

18.7 x 15.9-21.3 x 9 in. /

474.5 x 403.3-541.8 x

227.6mm

18.7 x 15.4 x 4.1 in. /

474.5 x 390 x 103.4mm

100 x 100mm 100 x 100mm

Nvidia dual-head video

card (MDN-Q2000D);

AMD dual-head

video card (MDA-

V5800D);Matrox Xenia

Pro triple-head video

card (MDM-XENPRO);

Medical calibration sen-

sor (MDSVSENSOR2)

500 cd/m2 calibrated /

1200 cd/m2 max.

176° Vert., 176° Hor.

(88U/88D/88L/88R) @

CR>50

1024 levels of gray out of

a palette of 12277

18.7 x 15.9-21.3 x 9 in. /

474.5 x 403.3-541.8 x

227.6mm

18.7 x 15.4 x 3.9 in. /

474.5 x 390 x 98.2mm

AMD triple-head video

card (MDA-W5000),

NVIDIA triple-head video

card (MDN-K2000),

NVIDIA dual-head video

card (MDN-Q2000D),
AMD dual-head video

card (MDA-V5800D),

AMD triple-head video

card (MDA-W5000),

Matrox triple-head video

card (MDM-XENPRO),

Medical calibration sen-

sor (MDSVSENSOR2),

Medical calibration sen-

sor (MDSVSENSOR3)

GammaCompMD™ QA software, included with each display, ensures consistent image quality. The software provides a simple interface for
conformance to the DICOM standard, while providing an easy-to-use QA environment for medical imaging. The optional GammaCompMD QA
Server provides centralized control and management of multiple display systems across the healthcare facility.

MultiSync is a registered trademark, and ColorComp and
GammaCompMD QA are trademarks of NEC Display Solutions. All other
brand or product names are trademarks or registered trademarks of
their respective holders. Product specifications subject to change.

©2012 NEC Display Solutions of America, Inc. All rights reserved.

25.NEC.80.GL.UN.037 rev. 121512
