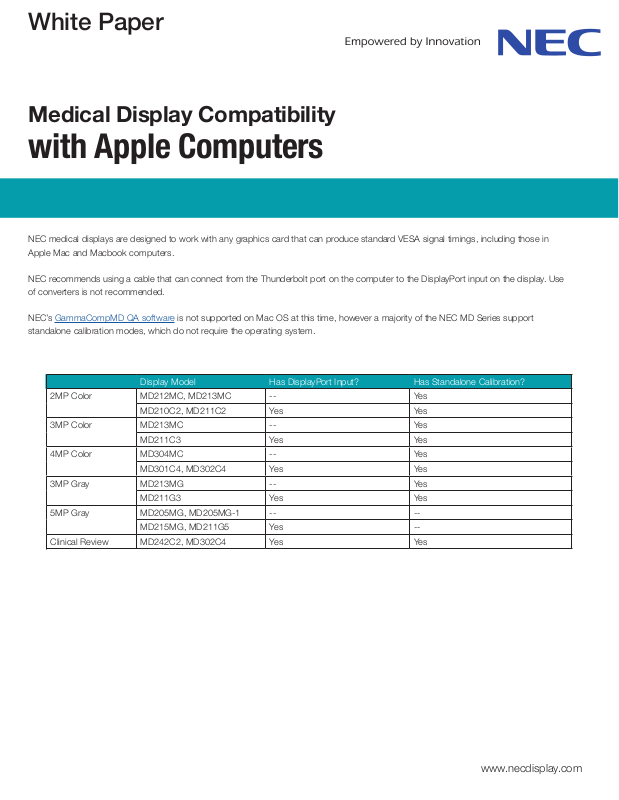

White Paper

Medical Display Compatibility

with Apple Computers

NEC medical displays are designed to work with any graphics card that can produce standard VESA signal timings, including those in
Apple Mac and Macbook computers.

NEC recommends using a cable that can connect from the Thunderbolt port on the computer to the DisplayPort input on the display. Use
of converters is not recommended.

NEC’s GammaCompMD QA software is not supported on Mac OS at this time, however a majority of the NEC MD Series support
standalone calibration modes, which do not require the operating system.

Display Model Has DisplayPort Input? Has Standalone Calibration?

2MP Color MD212MC, MD213MC -- Yes

MD210C2, MD211C2 Yes Yes

3MP Color MD213MC -- Yes

MD211C3 Yes Yes

4MP Color MD304MC -- Yes

MD301C4, MD302C4 Yes Yes

3MP Gray MD213MG -- Yes

MD211G3 Yes Yes

5MP Gray MD205MG, MD205MG-1 -- --

MD215MG, MD211G5 Yes --

Clinical Review MD242C2, MD302C4 Yes Yes

www.necdisplay.com
