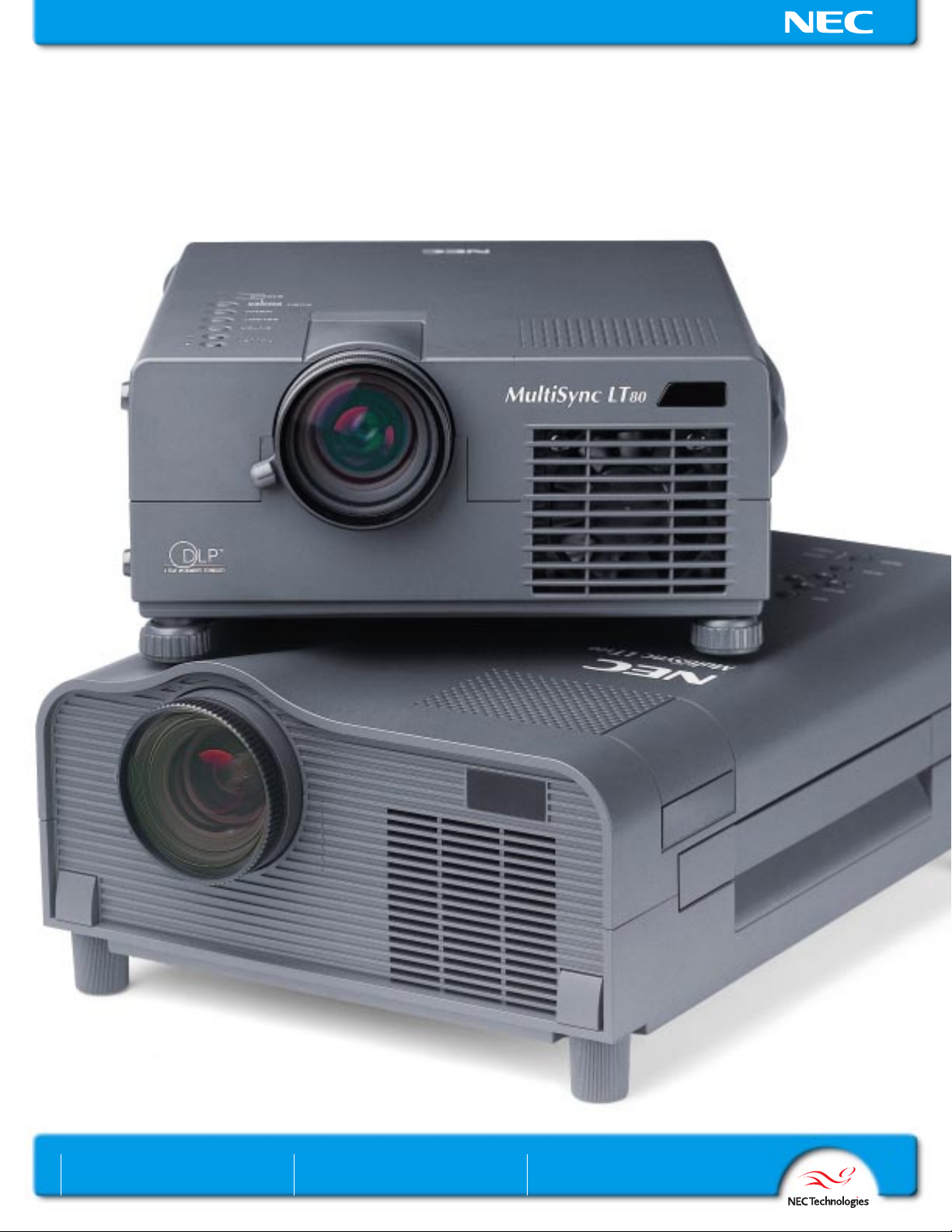

Page 1
MultiSync
®
LT80
™
and LT100
™
Designed and equipped for
remarkable portability
Excellent image
quality and brightness
Outstanding ease-of-use plus
full-feature remote control
Page 2
The ultra-portable MultiSync®LT Series projectors are the premier
solution for making powerful presentations on the road.
Continuing the NEC Technologies legacy of
outstanding image quality, ease of use and reliability, the new MultiSync LT Series single-chip
DLP projectors are an ultraportable solution for
making powerful presentations. With exclusive
NEC Technologies features, the MultiSync LT Series
projectors stand out as the projectors of choice
for sales automation efforts aimed at boosting
productivity. Smaller than a briefcase, the MultiSync
LT Series projectors are perfect traveling partners
for anyone who makes presentations on the road,
including sales representatives, consultants and
marketing professionals.
Designed and equipped for true portability.
The MultiSync LT Series projectors are the ultraportable projection solution for the professional
on the go. They easily fit under the airplane seat
in front of you, so you can take them wherever
business takes you, with no hassles. Their sturdy
construction includes a convenient handle integrated into the unit. And, a padded carrying case
is included to ensure that your investment is
protected. Other optional cases are available to
provide extra protection during travel or shipping.
For added convenience, the MultiSync LT100 projector offers an optional PC Card Viewer so you
can store and transport your presentation on a
PCMCIA card and leave your laptop behind.
High brightness and accurate, lifelike color.
The MultiSync LT Series projectors produce
accurate, lifelike images using an entirely digital
projection system. Texas Instruments single-chip
DLP technology creates seamless images with a
higher perceived resolution than that of other
projection technologies. And, its digital gray scale
and color reproduction results in lifelike color
images with exceptional accuracy. Additional
image enhancements offered on the MultiSync
LT100 projector include a 2X color wheel that
reduces flicker, and excellent video quality due to
the unique comb filter technology.
High-resolution images without loss of data.
Using NEC Technologies AccuBlend
™
intelligent
pixel blending technology, the MultiSync LT Series
projectors deliver superior high-resolution images.
Unlike competitive technologies that result in
MultiSync LT80
Brightness
Resolutions supported
Included remote control
Manual zoom
Flexible outputs including audio
Integrated carrying handle
Adjustable front feet
InstaCare 24 hour
replacement service
600 ANSI lumens
640 × 480 –1024 × 768 w/ AccuBlend
Yes
Integrated mouse lets you
control your computer and
presentation
Built-in laser pointer
Yes
Yes
Yes
Yes
Yes
2 years
a significant loss of data, AccuBlend is an intelligent compression technology that blends and
remaps input data to match the available pixels
on the DLP chip. Other technologies simply drop
pixels or lines of information, resulting in a visible
absence of information that can obscure important
parts of your presentation.
Outstanding ease of use featuring total
remote control. Because the MultiSync LT Series
projectors are remarkably easy to use, you can
concentrate on your message instead of your display
technology. The MultiSync LT Series projectors
include a full-featured remote control with built-
MultiSync LT100
1000 ANSI lumens
640 × 480–1280 ×1024 w/AccuBlend
Yes
Integrated mouse lets you
control your computer and
presentation
Built-in laser pointer
360° infrared system for use
from anywhere in the room
Yes
Yes
Yes
Yes; plus rear adjustable feet
Yes
2 years
Smaller than a briefcase, the ultraportable MultiSync LT Series is a
powerful solution for the mobile
professional.
Page 3
Turns the projector on and off
Select your source with
the touch of a button
Easily access and scrollthrough the comprehensive
on-screen menus
Right mouse click button
(left click button on back)
Lets you reposition a
magnified image
Allows you to magnify
the image size up
to 400%
in laser pointer that enables quick, one-button
access to important features. The remote control
also provides access to helpful, intuitive on-screen
controls that you can easily navigate using the
integrated mouse. On-screen controls include:
Image adjustments including brightness, color,
contrast, sharpness and position.
Customized settings that enable you to create
and store up to five different settings. There’s no
need to re-adjust image settings every time you
connect a different source. Just plug in the source,
select your customized setting and begin! This
feature saves time when you are using more than
one source in the same presentation, because
there are no interruptions to re-adjust brightness
or contrast for each source.
Lamp timer that displays how many hours the
lamp has been used, helping you anticipate and
manage maintenance of the projector.
Control your computer-based
presentation and the projector
with one easy-to-use wireless
remote control (LT80 remote
pictured)
Adjust the projector’s volume with
one-touch ease
Control the integrated laser pointer
The built-in mouse lets you control your
computer and presentation, including launching the presentation and advancing slides
Turns off the image for a short period of time if
you need to direct attention elsewhere
Lets you freeze your image for further audience
clarification or emphasis
MultiSync LT Series projectors are compatible
with most common video standards in use today
including NTSC, PAL, SECAM and NTSC 4.43.
Plus, their universal power supply enables global
companies to use the same projector model
throughout their organizations.
Unbeatable peace of mind with an exclusive
service warranty. NEC Technologies exclusive
SM
InstaCare
service ensures you won’t be stranded
on the road with a projector that’s not performing.
InstaCare guarantees a
replacement projector
within 24 hours or repairs on your original projector within 72 hours. NEC Technologies pays
for and tracks shipping of your projector and any
replacement projector via Federal Express. In
addition to this convenient service, you’ll have
the peace of mind of knowing that your projector
is backed by the responsive service and support
of NEC Technologies.
MultiSync LT Series Accessories
NEC Technologies offers a full line of
accessories designed to complement
your MultiSync LT Series Projector.
LT TownCase
This durable case was
designed for local trans-
portation and safe storage.
A front pocket provides
additional safe storage for
the remote control, plus
any cables.
LT TownCase Plus
This case offers all of the
features of the TownCase
and the added convenience of a special pocket
that safely stores your
notebook computer.
LT AirCase This sturdy
shipping case features
reinforced panels, wheels
and is ATA-approved for
shipping via land carrier
or airline. A Federal
Express-approved trans-
parent pouch stores
shipping labels for added
convenience.
LT Mount Sturdy,
multiple-access ceiling
mount features quick
release capability for ease
of transport plus a built-in
security feature.
Replacement Lamp
A user changeable metal
halide lamp. NEC recommends replacement after
1000 hours of use.
Language select feature, which allows you to
select the language in which the on-screen
menus appear.
In addition, the MultiSync LT80 comes with an
introductory video and the MultiSync LT100
comes with an introductory CD-ROM that provides
a hands-on demonstration of key features. Users
can review the demo at their own pace, eliminating the need for corporate training.
Compatibility so broad, you just plug in and
play. The MultiSync LT Series projectors offer
quick and easy connection via a comprehensive
input panel, which includes audio, computer,
video and S-Video inputs. The included VGA
cable and Macintosh
®
multimode adapter enable
you to simply plug in and play. And, because the
cable is an industry standard, you can replace it
easily if you forget it or lose it on the road. The
The MultiSync LT Series offers the ultimate in portability.
An integrated handle makes the projectors easy and
convenient to carry.
Replacement Remote
Should your remote get
lost or damaged, NEC
offers an identical replacement remote.
PC Card Viewer
Store and transport
your presentation on
a PCMCIA card. One
memory card included.
(LT100 only)
Page 4
MultiSync LT80 and LT100 Specifications Model # LT80, LT100
DMD
LT80: 1-Chip DMD, 800 × 600 pixel
LT100: 1-Chip DMD, 1024 × 768 pixel
Lens
Both Models: 1.3 times manual zoom, manual focus, F2.44 F=26-30
Lamp
LT80: Metal halide lamp 270 Watt AC
LT100: Metal halide lamp 280 Watt DC
Image Size
Both models: Min 24" (61cm), Max 300" (762cm)
Projection Distance
Both models: Min 3.9' (1.2m), Max 40.4' (12.3m)
Light Output
LT80: 600 ANSI lumens, 1000 hour life
LT100: 1000 ANSI lumens, 1000 hour life
Contrast Ratio
Both models: Greater than 200:1
Color Reproduction
Both models: 16,777,216 colors simultaneously
Color Temperature
LT80: 5600° Kelvin
LT100: 7000° Kelvin
Synchronization Range
LT80: Horizontal: 15 to 60kHz (non-interlaced)
Vertical: 50 to 85Hz
LT100: Horizontal: 15 to 85kHz (non-interlaced)
Vertical: 50 to 85Hz
RGB
Both models: Input Signals:
Visual: 75 ohm 0.7Vp-positive, Sync TTL
Audio: 47k ohm 0.4V rms
Both models: Input Terminals:
Visual: 15pin to 15pin mini D sub cable
Audio: Stereo Mini Jack
Both models: Output Terminals:
Visual: RGB Throughout
Audio: Stereo Mini Jack
PC Compatibility
Both models: 640 × 480: 60, 72, 75 and 85Hz vertical refresh
Both models: 800 × 600: 56 to 75Hz vertical refresh
LT80: 1024 × 768: AccuBlend
LT100: 1024 × 768
LT100: 1280 × 1024: AccuBlend
Macintosh Compatibility
Both models: 640 × 480: 60 and 67Hz vertical refresh
Both models: 832 × 624: AccuBlend
Video
Both models: Input Signals:
Visual: S-Video Y: 75 ohm .72Vp-p, C: 75 ohm
0.28Vp-p
Audio: 47k ohm 0.4V rms
Both models: Input Terminals:
Visual: RCA
Audio: RCA x 2
Both models: Horizontal Resolution:
NTSC 550 lines
PAL/ SECAM / NTSC 4.43 350 lines
All specifications are the same for both models unless otherwise noted.
MultiSync is a registered trademark and LT80, LT100, AccuBlend, FastFacts and the NEC Technologies icon are trade-
marks of NEC Technologies, Inc. Digital Micromirror Device (DMD) and DLP are trademarks of Texas Instruments, Inc.
All other brand or product names are trademarks or registered trademarks of their respective holders. All specifications
are subject to change without notice. ©1998 NEC Technologies, Inc.
Video Compatibility
LT80: NTSC / PAL/SECAM / NTSC 4.43
LT100: NTSC/PAL/SECAM/NTSC 4.43/
3 Line Digital Comb Filter
Audio
Both models: Built-in mono speaker (1.0w, 8 ohm)
Remote Control Functions
Both models: Computer Mouse Control with left and right click buttons,
Built-in Laser Pointer, Source Selection, Volume, Picture
Magnification, Position, Picture Freeze, Picture Mute
On-screen Controls
Both models: Source Selection Menu:
Video, S-Video, RGB
Image Adjust Menu:
Volume, Brightness, Contrast, Color, T int, Sharpness,
Image Mode, H Position, V Position, Auto Picture,
Picture Adjust, Fine Picture Adjust
Power Menu:
Lamp Timer, Auto Start, Power Management
Settings Menu:
Custom Memory, Set Position, Language Select, Reset
LT100: PC Card, White Balance, Display Mode
Fan Noise
Both models: Less than 44dB
Power Requirement
Both models: 100–120v/220–240v AC, 50Hz/60Hz
Power Consumption
LT80: 380W, 6.25A
LT100: 400W, 6.25A
Dimensions (W×H×D
LT80: 9.8" x 4.8" x 12.8" (24.8cm x 12.2cm x 32.5cm)
LT100: 10” x 5.8” x 13.4” (25.3cm x 14.8cm x 34.0cm)
)
Net Weight
LT80: 9.9 lbs. (4.5kg)
LT100: 10.8 lbs. (4.9kg)
Supplied Accessories
Both models: Carrying Case, Wireless Remote Control with wireless mouse
and laser pointer, Signal Cable, Mac Adapter, Power Cable,
User’s Manual, Registration Card, Quick Connect Guide
LT80: Remote Mouse Receiver, Introductory Video
LT100: Remote Cable, Introductory CD-ROM
Safety and Regulation
Both models: FCC: Class “A”, UL 1950, CSA
Environmental Considerations
Both models: Temperature: 41°–95°F (5°–35°C), operational
Humidity 30%–85%, operational
Warranty
Both models: 2 year limited, parts and labor
including InstaCare 24 hour replacement service
Both lamps: 1000 hours or 6 months, whichever comes first
For the location of the MultiSync LT dealer nearest you or for more
information on MultiSync LT accessories, call 1-800-NEC-INFO.
To speak to a MultiSync LT customer service representative, call
1-800 -836 -0655.
Visit our World Wide Web home page at http://www.nec.com.
For more information via fax, call NEC FastFacts
1-800 -366 -0476 and request Catalog #1.
NEC Technologies, Inc.
1250 N. Arlington Heights Road, Suite 500
Itasca, Illinois 60143-1248
™
at
Loading...
