Nec LT35, LT30 installation guide

Page 1
NEC Solutions (America), Inc.
Visual Systems Division
LT30/35 Installation Guide
Ceiling Mounted and Desktop Rev 1.0

Contents

_________ Pg 4
Product Description
Type: .7 DDR DMD™ projector Dimensions: 10.24”(W) x 3.5”(H) x 8.2”(D) Resolution: 1024 x 768 Weight: 4.4 lbs Brightness: LT30: 2600 ANSI Lumens LT35: 3000 ANSI Lumens
Lens Specifications
Throw Ratio: 1.8 – 2.16:1 (for 100” diagonal) Focal Length: 25.7 – 30.8 mm Offset Angle: 9.8° - 11.7° (for 100” diagonal) F/#: 2.4 – 2.6 Screen Sizes: 30” - 300” diagonal (4:3) Manual Zoom/Power Focus (w/autofocus)
Notes
For screen sizes not indicated on the projection tables, use the formulas below.
If the figures on the tables do not match the results of formulas, use the figures in the table.
• All calculations are based on 4:3 aspect ratio.
• Distances are in inches, for millimeters multiply by 25.4.
• Distances may vary ±5%.
Formulas
The Projection Formulas use the image width for calculation. For proper projection placement, determine the image width for the desired screen size. Use the Screen Formulas below to calculate all screen dimensions. Plug in the width for “W” in the Projection Formulas. Refer to the diagrams and charts for popular screen sizes on page 2:
Definitions: 4:3 Screen Formulas:
W = Image Width W = H x 4/3 H = Image Height (size) H = W x 3/4 B = Vertical distance between lens center and screen center Screen Diagonal = W x 5/4 C = Throw distance D = Vertical distance between lens center and screen top (screen bottom for desktop application)
Projection Formulas: B = 0.375W C (wide) = 1.831W – 2.076 C (tele) = 2.19W – 2.08
α (wide) = tan¯¹ (B/C(wide)) α (tele) = tan¯¹ (B/C(tele))
______________________________________________________________________________________________________________________
www.necvisualsystems.com LT30/35 Page 1 of 6
Pg 2 Pg 3
Pg 5
Page 2
NEC Solutions (America), Inc.
Visual Systems Division
LT30/35 Installation Guide

Ceiling Mounted and Desktop Rev 1.0 Diagrams and Distance Charts

The following diagrams show the relationship between projector position and the screen. Refer to the chart below for data. Distances are in inches. For millimeters multiply by 25.4.
Ceiling Mounted
Lens Ctr
Screen Top
C
Throw Distance
4.75"
B
Screen Ctr
3.35"
Desktop
Screen Ctr
C
Throw Distance
Lens Ctr
B
Screen Bottom
2.38"
Distance Chart for popular 4:3 screens
Note:
projection tables, use the formulas on page 1.
______________________________________________________________________________________________________________________
www.necvisualsystems.com LT30/35 Page 2 of 6
For screen sizes not indicated on the
Screen Size (4:3)
Diag W H
inches inches inches inches inches inches degrees
30 24 18 9 42 - 51 - 12.1 -10.0
60 48 36 18 86 - 104 - 11.8 - 9.9
72 57.6 43.2 22 104 - 125 - 11.7 - 9.8
84 67.2 50.4 25 121 - 146 - 11.7 - 9.8
90 72 54 27 130 - 156 - 11.7 - 9.8
100 80 60 30 145 - 174 - 11.7 - 9.8
120 96 72 36 174 - 209 - 11.7 - 9.8
150 120 90 45 218 - 261 - 11.7 - 9.8
180 144 108 54 262 - 314 - 11.7 - 9.8
200 160 120 60 291 - 349 - 11.6 - 9.7
260 200 150 78 379 - 454 - 11.6 - 9.7
300 240 180 90 438 - 524 - 11.6 - 9.7
B C
wide - tele
D α
5"
Lens Offset From Mount Pipe
wide - tele
Page 3
NEC Solutions (America), Inc.
Visual Systems Division
LT30/35 Installation Guide
Ceiling Mounted and Desktop Rev 1.0

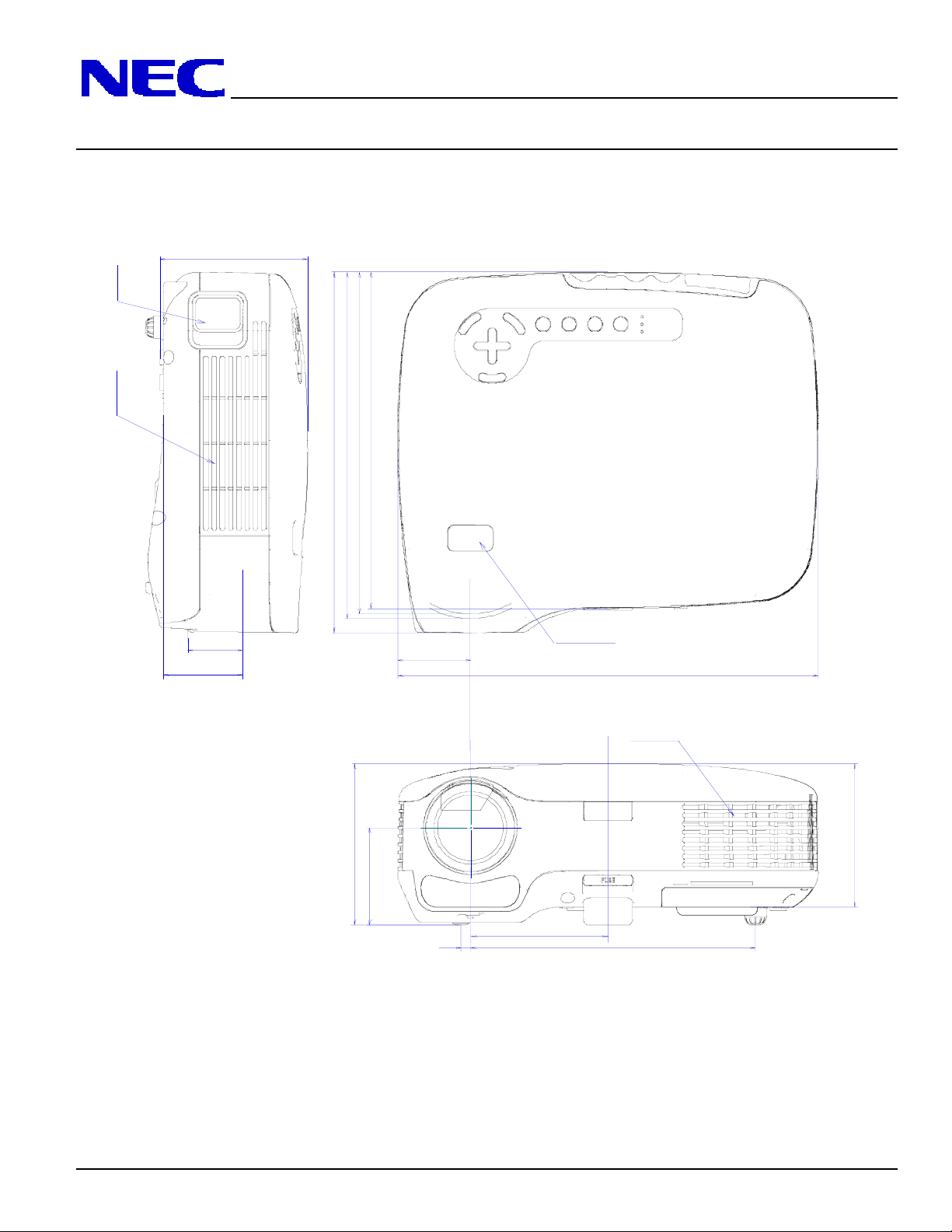

Cabinet Dimensions

The following drawings show the cabinet dimensions. Dimensions are in inches. For millimeters multiply by 25.4.
AC inlet
ventilation
3.6
8.21
8.81
8.34 (LENS MIN)
8.46 (LENS MAX)
Zoom Control
10.24
ventilation
3.50
3.35
6.93
1.94
1.35
1.77
3.94
2.36
0.24
______________________________________________________________________________________________________________________
www.necvisualsystems.com LT30/35 Page 3 of 6
Page 4
NEC Solutions (America), Inc.
Visual Systems Division
LT30/35 Installation Guide
Ceiling Mounted and Desktop Rev 1.0

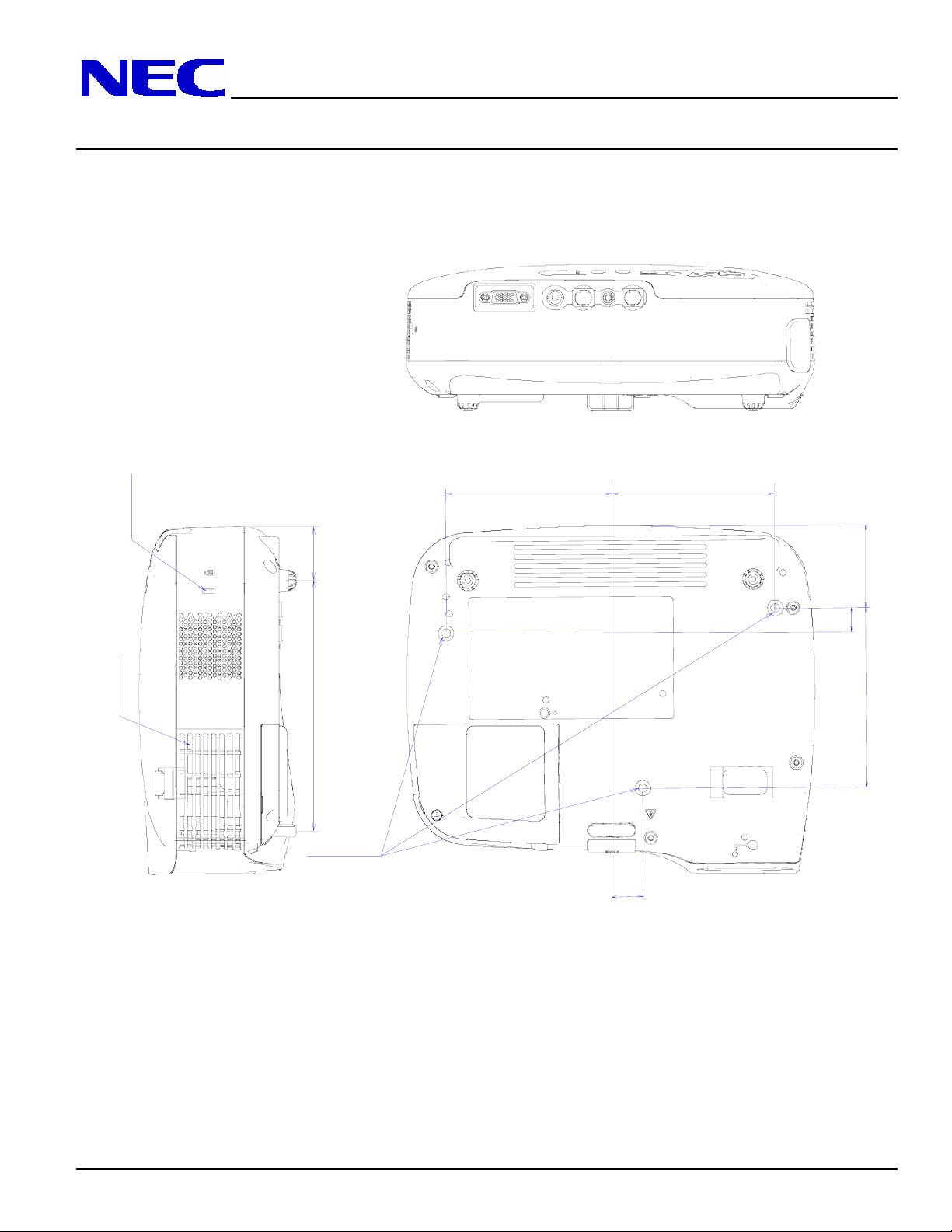

Cabinet Dimensions (continued)

The following drawings show the cabinet dimensions. Dimensions are in inches. For millimeters multiply by 25.4.
t o
l s
y t
i r
u c e s
9 0
. 2
3
1
.
4
1
3
4
.
9 0
. 2
3 6
. 0
n o
i
t a
l
i
t n e v
9 0
. 2
a
x
m
8
4
x
M
-
3
t
n
u
o
m
r
o
f
9
7
.
0
5 5
. 4
______________________________________________________________________________________________________________________
www.necvisualsystems.com LT30/35 Page 4 of 6
Page 5
NEC Solutions (America), Inc.
Visual Systems Division
LT30/35 Installation Guide
Ceiling Mounted and Desktop Rev 1.0

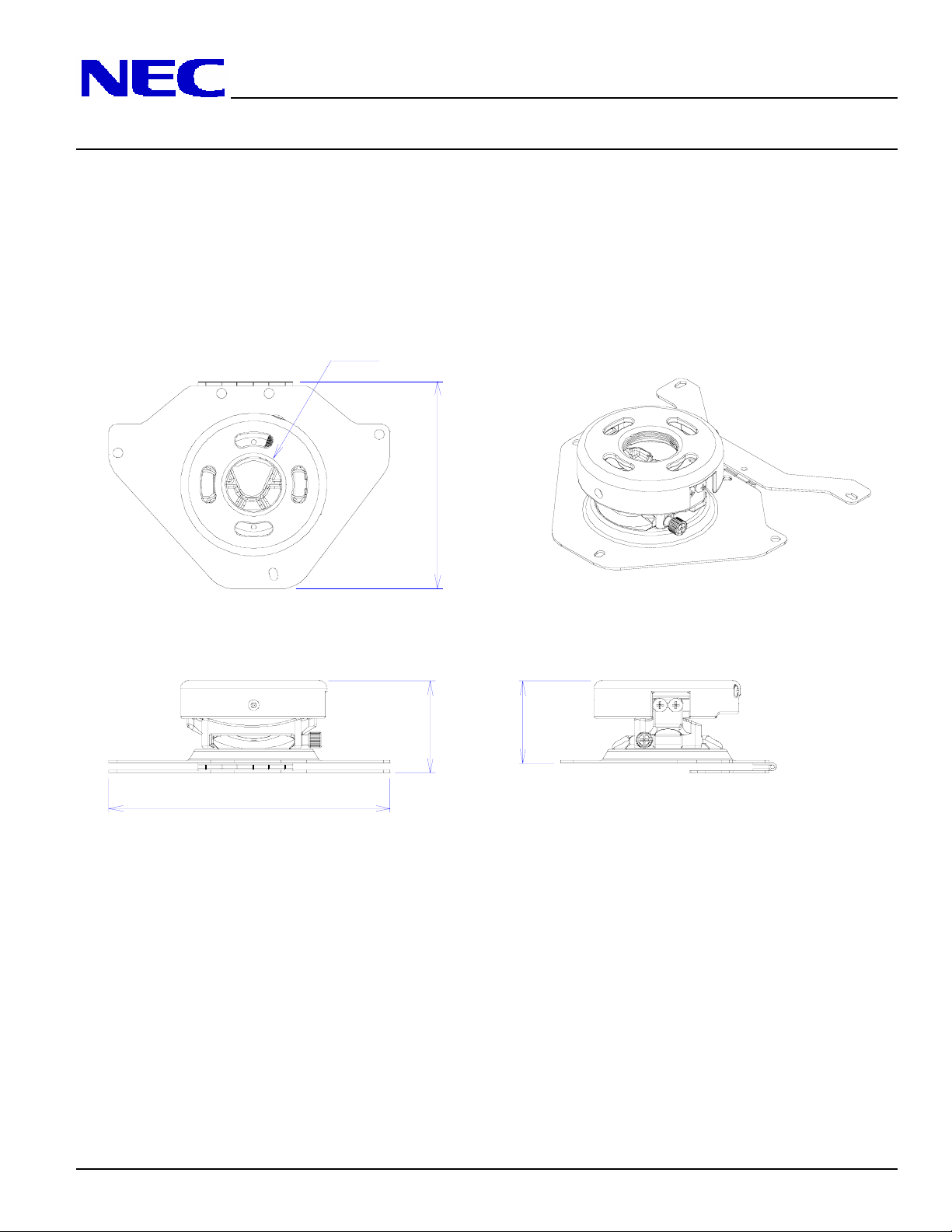

Optional Ceiling Mount Dimensions (Model #: LT30CM )

The following drawings show the ceiling mount dimensions. Dimensions are in inches. For millimeters multiply by 25.4.
1.5 NPT
6.75
2.95
8.813
______________________________________________________________________________________________________________________
www.necvisualsystems.com LT30/35 Page 5 of 6
2.58
Page 6
NEC Solutions (America), Inc.
Visual Systems Division
LT30/35 Installation Guide
Ceiling Mounted and Desktop Rev 1.0

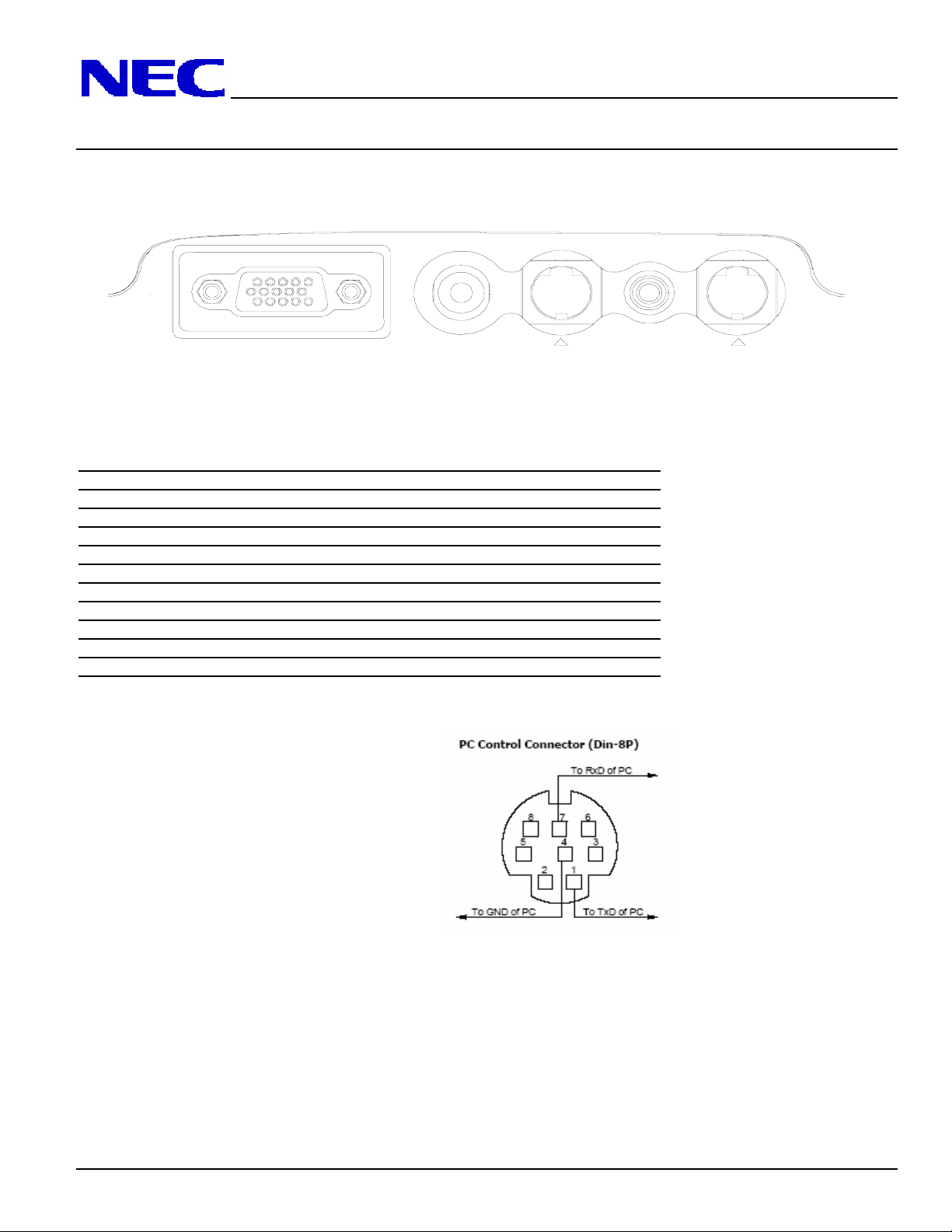

Input Panel

COMPUTER IN
VIDEO IN S-VIDEO IN
AUDIO IN PC CONTROL

PC Control Codes

Function Code Data

POWER ON 02H 00H 00H 00H 00H 02H POWER OFF 02H 01H 00H 00H 00H 03H INPUT SELECT CCOMPUTER 02H 03H 00H 00H 02H 01H 01H 09H INPUT SELECT VIDEO 02H 03H 00H 00H 02H 01H 06H 0EH INPUT SELECT S-VIDEO 02H 03H 00H 00H 02H 01H 0BH 13H INPUT SELECT DVI (DIGITAL) 02H 03H 00H 00H 02H 01H 1AH 22H PICTURE MUTE ON 02H 10H 00H 00H 00H 12H PICTURE MUTE OFF 02H 11H 00H 00H 00H 13H SOUND MUTE ON 02H 12H 00H 00H 00H 14H SOUND MUTE OFF 02H 13H 00H 00H 00H 15H

Note: Contact your NEC rep for codes not listed.

Cable Connection
Communication Protocol:
Baud Rate: 38400 bps Data Length: 8 bits Parity: No Parity Stop Bit: One Bit X on/off: None Communications: Full duplex
NOTE 1 : Pins 2, 3, 5, and 6 are used inside the projector. NOTE 2: For long cable runs it is recommended to set communication speed within the projector to 9600 bps.
______________________________________________________________________________________________________________________
www.necvisualsystems.com LT30/35 Page 6 of 6
