Large-Screen LCD
NEC MultiSync® Information Display Series
32” (31.5” VIS), 40”, 46”, 57” and 65” LCD displays
ideal for digital signage applications
Airports/flight and
baggage information
Also serving
markets such as...
Corporate
Restaurants Medical Financial
Theaters
Digital
merchandising
Tradeshows Broadcasting
www.necdisplay.com
Page 2
Expanding information display options with
SUPERIOR
screen performance.
Providing visual display solutions to a wide variety of users for
many years, NEC LCD monitors have consistently set the standard for flat-panel technology and continue to offer new ways to
enhance visual experiences. Our visual solutions provide users
with a diverse range of options to help them see their digital world
more clearly and support them in achieving their goals.
Building on this tradition of quality and innovation, NEC’s 32”–65”
MultiSync Information Display Series models feature the next
generation of LCD technologies and create new options for those
in the information display market. The exclusive Digital Signage
Technology Suite (DSTS), which was developed based on feedback from our customers, further sets these displays apart with
more than 20 advanced features that take screen performance to
uncharted levels.
These models include
all of the benefits users
have come to value in
NEC’s smaller-sized
LCD monitors, and now
they can be enjoyed in
a variety of information
display applications,
including airports, retail
merchandising, conference rooms, financial exchanges, broadcasting environments and tradeshow exhibits.
All models (except the LCD6520L/P) are available in both standard and IT versions to best meet your display requirements. The
value-driven IT version features only PC inputs, while the standard
version includes audio and video inputs for a broader set of AV
applications.
Sized to please. With their spacious screens, MultiSync Information Display LCDs are ideal for applications that require precise
readability and clarity from a distance, such as airports and
financial institutions. The LCD6520L/P touts the largest screen
size LCD that NEC has offered to date. The LCD3210, which fills
the gap between flat panels designed for the desktop and those
intended for larger venues, offers digital signage markets a lowerpriced option for a variety of visual display needs. The ultra-thin
bezels of the LCD4020 and LCD4620, with widths as thin as onefifth of the industry norm for 40” and 46” displays, provide ideal
solutions for tiled video walls.
Superior screen performance. MultiSync Information Display LCDs
take advantage of the many display technologies that have made
LCD monitors so popular over the years, and deliver them through
expansive screens featuring a wide aspect ratio. Their 1366 x 768
The screen performance of the MultiSync
Information Display Series brings ideas to
life, capturing the attention and imagination
of viewers and ensuring that messages reach
audiences with maximum clarity and impact.
(WXGA) resolution (1920 x 1080 on the LCD5710 and LCD6520L/P),
which provides a true 16:9 aspect ratio, optimizes on-screen text,
images and video with remarkable precision and clarity, allowing
onlookers to clearly view presentations, charts, advertisements, pricing and other public display information. Further, applications can
be viewed simultaneously, utilizing the displays’ picture-in-picture
capability when using the defined combination of video inputs (see
User’s Manual).
In applications where spectators are situated at various angles
in front of the screen or where they are passing by the display,
the monitors provide an undistorted view of the screen. Using
XtraView wide-angle viewing technology, the displays deliver flexible horizontal and vertical viewing angles (up to 176°; 88° up,
down, left and right) with
less glare, reflection and
distortion.
With brightness adjustable to 700 cd/m2, these
displays stand out in a
crowd, allowing onlookers
to view text and graphics
with ease and comfort.
Exceptional contrast
ratios help the displays deliver amazingly vivid colors, while
automatic black level adjustment regulates grayscale images
for optimal picture quality. A 10-bit gamma lookup table (LUT)
(available on the MultiSync LCD4020, LCD4620 and LCD6520L/P)
allows the display of 16.7 million colors out of a palette of 68.5
billion, while providing for more finely detailed, high-definition
rendering of color images and crisper display of even the most
delicate shadings and color differences. Further, Rapid Response
technology allows for virtually undistorted viewing of high-speed,
full-motion video without ghosting or image trailing.
Avoid image persistence. With some screen technologies, leaving
the display on for a long period of time would permanently burn
the image into the screen. As can be noted with phosphor-based
public displays, the image would remain permanently “engraved”
into the display, rendering it useless. It is important to understand
that LCD technology may experience phenomena known as image persistence, which occurs when a residual or “ghost” image
of a previously displayed image remains visible on the screen.
Unlike CRT or other phosphor-based monitors, LCD monitors’
image persistence is not permanent; however, constant images
being displayed for a long period of time should be avoided. To
alleviate image persistence and promote a longer lifecycle, NEC
Display Solutions developed an exclusive panel design with thermal barrier layers and employs many advanced technologies for
Page 3
its MultiSync Information Display LCDs. Some of these technologies include a screen saver function, a power-save function that
puts the display in power management mode when a sync or input
signal is lost, a side color function that adjusts black bars in 4:3
mode, a real-time clock for content scheduling and sleep/wake
management and an image mover function.
Take control of your monitor. To make remote control and diagnostics easier, MultiSync Information Display LCDs provide three
different methods to manipulate the display—an RS-232 connector, an advanced remote diagnostics and remote control capabilities of the Display Data Channel/ Command Interface (DDC/CI),
and a handheld IR remote control. By utilizing the inherent power
of the PC (a typical source for the display), DDC/CI allows control
commands to be sent directly to the monitor through a standard
PC system or remotely over an existing network (LAN) by a system
administrator. A wide range of DDC/CI-based graphics cards allow for easy control through a Windows 2000/XP/Vista interface.
Another control capability is daisy-chaining, which links monitors
to one another to display the same content and deliver the same audio—all from a single source. This helps avoid the hassle and extra
costs of using splitters or connecting monitors to multiple sources.
With an eye toward
the future, NEC
engineers designed
the LCD4020,
LCD4620 and
LCD6520L/P with a
built-in expansion
slot, making them
ready to welcome
components that
are not yet available. Instead of
having to replace
their display down
the road, users will
be able to upgrade
its technology for
innovations such as
small form factor
PCs. Users currently
have the option of
connecting a digital
tuner to these three
displays, expanding
their capabilities
as high-definition
televisions for your
favorite broadcasts.
Achieve consistent,
long-distance signals. NEC Display
Solutions’ exclusive CableComp
technology (featured
on the LCD4020,

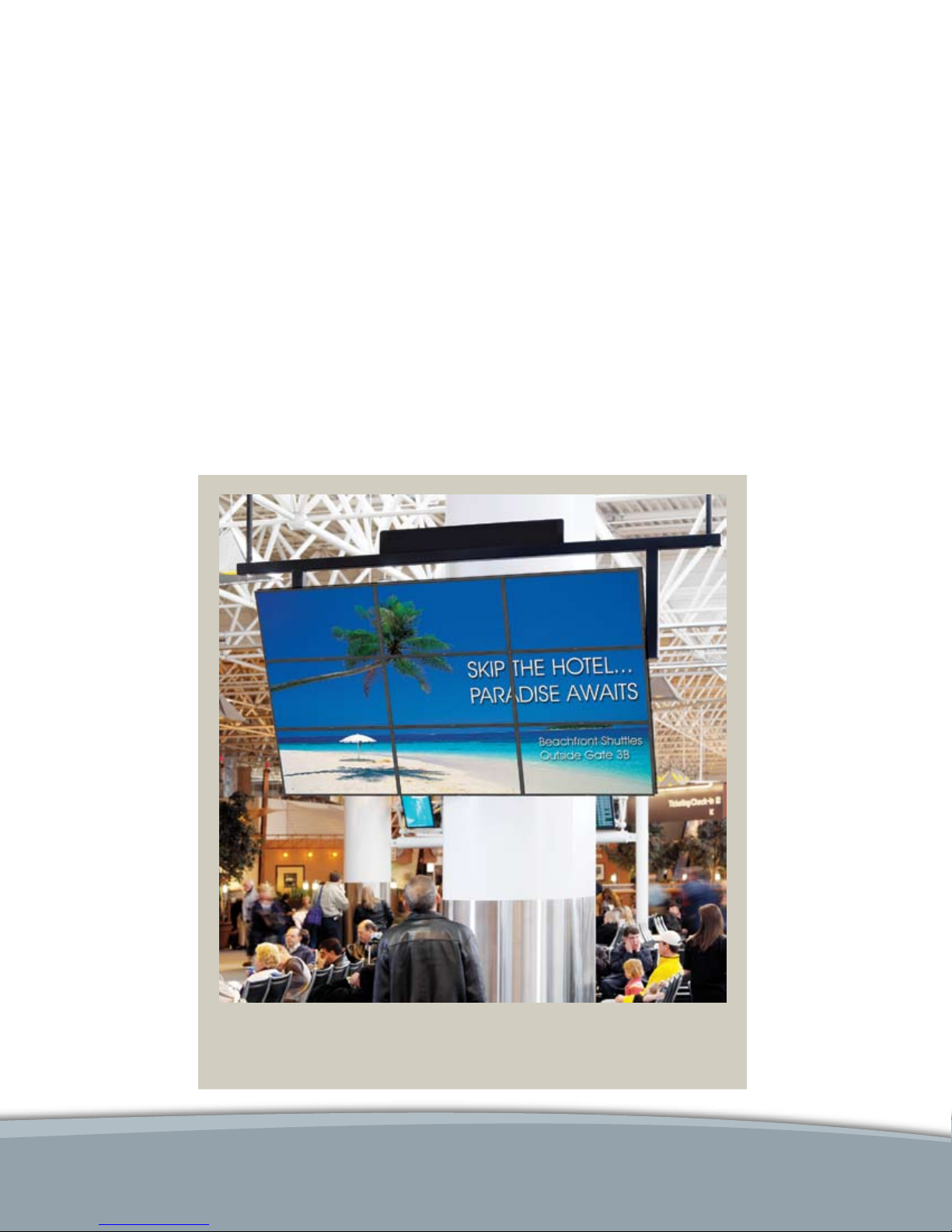

The ultra-thin-bezel design of the MultiSync LCD4020 (15.5mm) and LCD4620 (16.5mm
left/right, 17mm top/bottom) helps to create near-seamless video walls using TileMatrix and
TileComp. These technologies allow the displays to be tiled in various configurations (up to
5 x 5), equalling up to 20 feet diagonally.
LCD4620, LCD5710 and LCD6520L/P) enables users to realize the
advantages of long monitor cable lengths without the difficulties
and costs normally associated with this type of configuration. In
environments such as trading floors, call centers and public signage venues, longer cables enable systems to be centrally located
in control rooms far away from displays (up to 326 feet/100 meters;
98 feet/30 meters with digital DVI cables), allowing upgrades, service and repairs to be accomplished without interrupting the work
or display environment.
CableComp technology solves signal and blurred image dilemmas
by using a digitized signal delay circuit to automatically compensate
for each red, green and blue cable’s length and video signal delay,
ensuring sharp image reproduction. CableComp also boosts the digital/analog video signal to prevent blurred images without the need
for costly repeaters. A new feature of this technology is its ability to
equalize the video signal to eliminate color halos on long cable runs.
Get connected. MultiSync Information Display LCDs feature a
number of input connections for maximum compatibility (Fig.
1). Both versions include a DVI-D connector for digital video
signal adapters and a traditional 15-pin mini D-sub connector that is configured for IBM® VGA-compatible adapters. This
wide compatibility
makes it possible to
upgrade adapters
or software without
having to purchase
a new monitor. By
accepting analog
signal inputs, the
monitors can display
more than 16 million
colors, depending on
the graphics card and
software being used.
The standard version
display also features
BNC VGA, composite video, component
video, and an S-Video
connector, allowing
you to run numerous
peripheral devices, including DVD players
and media PCs. The
LCD4020, LCD4620
and LCD6520L/P
take your connectivity even further with
an HDMI input for
high-definition set-top
boxes, DVD players
and video games.
HDCP support provides copy protection
for high-definition
content via this input
as well as the DVI
input.
Page 4
User-friendly, efficient design. As ease of installation is a main
AC IN RGB/HV OUT
PC IN
VIDEO
DVD/HD IN
AUDIO SPEAKER
RGB/HV IN
VGA(D-SUB)
DVI(DVI-D)
HDMI
Y Cb/Pb Cr/Pr
S-VIDEO IN
OUT
AUDIO OUT
R L
-
-
-
AUDIO1 INAUDIO2 INAUDIO3 IN
R R
L L
IN
IN
R G B H V
R G B H V
concern for the information display market, these displays were
designed with light weight in mind, making them simple to transport and install wherever necessary. In addition, NEC is on the
forefront of mounting technology as the displays’ cabinets were
designed to meet currently proposed VESA mounting standards
for larger-sized public displays, which will be required of all
manufacturers in the future. Their ability to be mounted in either
portrait or landscape orientation further adds to your flexibility.
With a uniformly thin frame, the displays’ designs are ideal for
multi-screen construction for virtually seamless video walls.
Simplified control of screen settings. For quick and easy setups,
a multitude of presets, including automatic image adjust and automatic input detect, make MultiSync Information Display LCDs
ready to go right out of the box. Their factory reset feature even
allows you to return to the display’s original settings if desired.
Figure 1
LCD4020/LCD4620/LCD6520L/P
LCD5710
Intelligent power management ensures a smart investment. Utiliz-
ing energy-efficient technologies in their design, these displays
reduce power consumption and significantly lower your total cost
of ownership (TCO). The high-efficiency backlight reduces not
only the power consumption but also the heat generation at the
front of the screen, while the real-time clock’s sleep/wake management scheduler improves energy savings and extends display life.
In addition, the MultiSync LCD4020, LCD4620 and LCD6520L/P
have been designed with two thermally controlled fans. Based on
default temperature set points (or user-defined settings), sensors
continuously monitor the interior temperature of the display.
When the set temperature level is reached, the fans cool the
display to the desired level. In cases in which the fans are unable
to cool down the display, the backlights are dimmed or, as a last
resort, the display is automatically shut down.

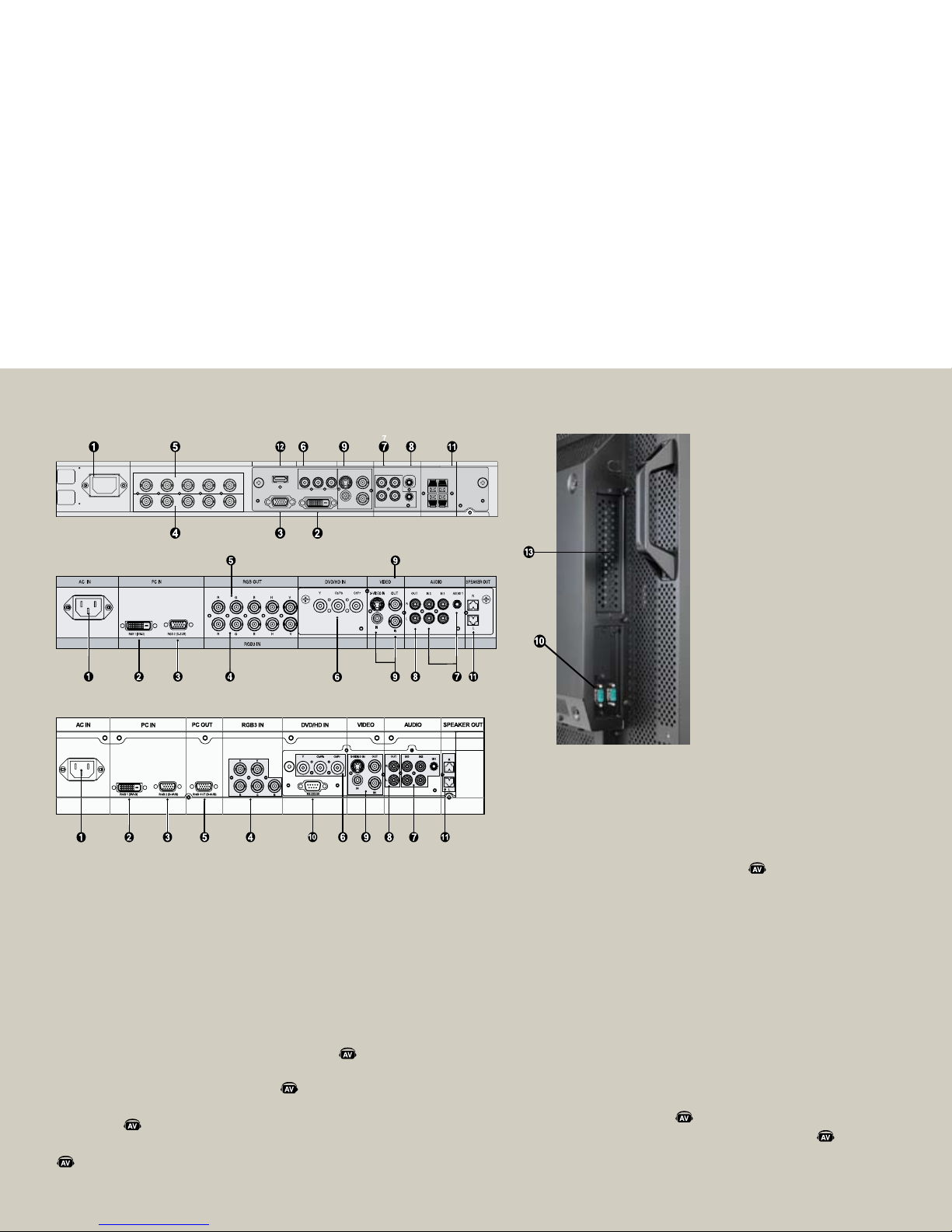

MultiSync Large-Screen
LCDs feature a number
of input connectors for
maximum compatibility.
This makes it possible
to upgrade adapters or
software without having to
purchase a new display.
LCD3210
1. AC IN connector Connects with the supplied power cord.
2. RGB 1 IN (DVI-D) To input digital RGB signals from a computer*
* This connector does not support analog input.
3. RGB 2 IN (mini D-Sub 15 pin) To input analog RGB signals from a
personal computer or other RGB equipment.
4. RGB 3 DVD/HD [R, G, B, H, V] (BNC) To input the analog RGB
signals or signals from other RGB equipment. A Sync-on-Green
signal can be connected to the G connector.
5. RGB OUT connector (mini D-Sub 15 pin) To output the signal from
the RGB 2 or 3 IN connector.
6. DVD/HD CONNECTOR (BNC) Connecting equipment such as a
DVD player, HDTV device or laser disc player.
7. AUDIO IN 1,2,3 Input audio signal from external equipment such
as a computer, VCR or DVD player.
8. AUDIO OUT Output the audio signal from the selected AUDIO IN
source.
Denotes an AV unit function.
All AV functions are enabled when the AV unit is installed.
9. VIDEO INPUT/OUTPUT CONNECTOR
VIDEO IN connector (BNC and RCA): Input a composite video
signal. BNC and RCA are not available at the same time. (Use only
one input).
VIDEO OUT connector (BNC): Output the composite video signal
from the VIDEO IN source.
S-VIDEO IN connector (DIN 4 pin): Input the S-video (Y/C separate
signal).
10. EXTERNAL CONTROL (mini D-Sub 9 pin) RS-232C Input signal
from control equipment such as a computer.
In connector: Input signal from control equipment such as a
computer or the output from a different MultiSync Information
Display Series unit
Out connector: To connect multiple MultiSync Information Display
Series units (not available on the LCD3210)
11. EXTERNAL SPEAKER TERMINAL Outputs the audio signal from
the selected audio source.
12. HDMI CONNECTOR To input digital HDMI signals.
13. EXPANSION SLOT To connect ATSC/NTSC/QAM tuner or other
third-party components
Page 5
SERIES FEATURES AND BENEFITS
High brightness level and contrast ratio, measured according to VESA FPDM, enhance the visual experience
XtraView® technology allows for up 176° wide-angle viewing
User-friendly, efficient design features VESA-standard mounting and an overall lightweight construction for easy transport and installation
Automatic black level adjustment regulates grayscale images for optimal picture quality
Reduced reflection and glare in high ambient light environments provide you with a more comfortable view of the screen
Built-in expansion slot allows for seamless integration of future third-party components (LCD4020, LCD4620 and LCD6520L/P)
Optional detachable speakers deliver an enhanced multimedia experience with amazing sound quality (Onkyo® for LCD3210, NEC for
LCD4020-2-AV/LCD4620-2-AV and Innovox Audio for LCD5710)
Optional digital tuner expands the display’s capabilities for high-definition television (LCD4020-2-AV, LCD4620-2-AV and LCD6520L)
Optional tilt wall mount kit (WMK3260-L) puts your display on center stage for optimal viewing (all models except LCD6520L/P)
Rapid Response™ technology delivers virtually uninterrupted, undistorted viewing of high-speed, full-motion video
Digital Signage Technology Suite Feature and Benefits
Improved screen performance
• 1366 x 768 ultra-high resolution (1920 x
1080 for LCD5710 and LCD6520L/P) for
true 16:9 aspect ratio
• High-definition capable display supports
480i, 480p, 720p and 1080i (1080p for
LCD4020, LCD4620, LCD5710 and
LCD6520L/P)
• New backlight system leads to better
brightness uniformity
• Zoom mode enables you to customize
the screen size in three directions
• TileMatrix™ allows you to build video
walls (up to 25 displays in a 5x5 matrix
[4x4 for LCD3210] equalling almost 20
ft. diagonal)
• TileComp™ works in tandem with Tile Matrix to compensate for the bezel width
and create a more seamless video wall
• Image flip allows you to properly display
content originally prepared for alternative
display technologies such as rear project ion (LCD4020, LCD4620, LCD5710 and
LCD6520L/P)
• Film mode delivers a smoother image for
DVD movies
• Color temperature adjustable from 600K
to 10,000K
Lower total cost of ownership
• Exclusive panel design, featuring thermal
protection and a power-efficient backlight
system, leads to less image persistence
and a longer display life
• Power save function puts the display in
power management mode when a sync
or input signal is lost
• Screen saver function reduces the risk of
image persistence for extended display life
• Gamma adjustment reduces the effect of
high contrast images on long-term image
quality
• Side color function adjusts black bars in
4:3 mode to reduce the risk of image
persistence with extended use
• Real-time clock allows for content sched-
uling and monitor sleep/wake manage ment, improving energy savings and
extending display life
• Internal temperature sensors control
self-protective circuits to minimize heat
damage (user-defined set points avail able with the LCD4020, LCD4620 and
LCD6520L/P)
• Self-diagnostic capabilities help detect
possible failure points via queries
through DDC/CI and RS-232C
• Brightness control reduces energy
consumption and heat generation while
extending display life
Enhanced display management
• Improved CableComp™ technology
equalizes the video signal to eliminate
color halos on long cable runs (LCD4020,
LCD4620, LCD5710 and LCD6520L/P)
• Video detect automatically finds the first
or last signal used for easy setup
• Picture-in picture (PIP) places a smaller
video frame within the full-screen video
frame
• Picture-on-picture (POP) places a smaller
video frame next to the full-screen video
frame (LCD4020, LCD4620, LCD5710
and LCD6520L/P)
• Side-by-side view places two video
frames of equal size next to each other
(LCD4020, LCD4620, LCD5710 and
LCD6520L/P)
• Gamma selection lets you adjust the
screen to your preferred settings (2.2,
2.4, S-Curve or native)
• Black level expansion improves image
quality in shaded and darker images
• DDC/CI enables communication between
the PC and monitor for display manage ment, diagnostics and the remote control
• Power-on delay allows for multiple
displays on a single electrical circuit
• 6-axis color control engine allows for
precise and simplified color, color tem perature and saturation adjustment
(LCD4020, LCD4620, LCD5710 and
LCD6520L/P)
• Daisy chain capability enabled through
RS-232C allows for individually address able display control (LCD4020, LCD4620,
LCD5710 and LCD6520L/P)
Page 6
Model
Display
Viewable Size Image
Pixel Pitch
Pixels Per Inch
Brightness (typical)
Contrast Ratio (typical)
Viewing Angle (typical)
Response Time (typical)
Display Colors
Active Screen Area (W X H)
Bezel Width (L/R, T/B)
Screen Aspect Ratio
Synchronization Range
Horizontal
Vertical
Input Signal
Video
Sync
Input
RGB1
RGB2
RGB3
Video 1*
Component Video 1 (DVD/HD)*
Audio*
External Control
Output
RGB
Video*
Audio*
Control
Audio Amplifier*
Resolutions Supported
Native Resolution
Recommended Resolution
Additional Features
Touch-Capable
Voltage Rating
Power Consumption (typical)
On
Power Savings Mode
Dimensions (WxHxD)
Net (with stand)
Net (without stand)
Net Weight
(with stand)
(without stand)
VESA Hole Configuration Specifications
Environmental Conditions
Operating Temperature
Operating Humidity
Operating Altitude
Storage Temperature
Storage Humidity
Storage Altitude
Regulatory Approvals
Included Accessories
Optional Accessories
Limited Warranty
Technical Support
LCD3210-BK (LCD3210-BK-IT)
31.5"
0.511
50 @ native resolution
2
500 cd/m
600:1
176° Vert., 176° Hor.
(88U/88D/88L/88R) @ CR>10
Rapid Response (18ms)
256 RGB Level, more than 16 million
760 x 450mm
45.66mm, 43.372mm
16:9
-15.625, 15.744, 31.5-91.1 KHz
(Analog, LCD3210-BK)/-31.5-91.1 KHz
(Analog, LCD3210-BK-IT)/
-31.5-91.1 KHz (Digital)
50-85 Hz Analog/Digital
ANALOG RGB 0.7 Vp-p / 75 Ohms
Separate sync: TTL Level
(Positive/Negative)
Composite sync: TTL Level
(Positive/Negative)
Composite sync on green:
(0.3Vp-p negative 0.7Vp-p positive)
DVI-D
Analog D-sub
Analog BNC
Composite RCA or S-Video
Component BNC
Audio 1 (minijack), Audio 2 and 3
Stereo (RCA)
Internal Speaker: None
RS232, DDC/CI
Daisychain RGB3
Daisychain Video1
Daisychain - Selected Audio in
RS232 for multiple monitor control
7W x 7W
720 x 400 @ 70-85 Hz
640 x 480 @ 60-85 Hz
800 x 600 @ 50-85 Hz
832 x 624 @ 74.5 Hz
1024 x 768 @ 50-85 Hz
1280 x 1024 @ 50-85 Hz
1600 x 1200 @ 60 Hz (Compressed)
1280 x 768 @ 50-85 Hz
1360 x 768 @ 50-85 Hz
NTSC/PAL, SECAM, 4.43 NTSC,
Pal60 HDTV, 480i, 480p, 720p, 1080i
(not available on LCD3210-BK-IT)
1366 x 768
1360 x 768 or 1366 x 768
Power Management, Plug and Play
(DDC/CI, DDC2B), PIP (Remote), Multilevel Zoom, FullScan, TileMatrix, TileComp, Screen Saver, Rapid Response,
Video Ready (no tuner), Infrared
remote control included, removeable
stand included, portrait-capable
Designed for integration
AC 100-120V/AC 220-240V@50/60 Hz
140W
<5W
31.1 x 20.1 x 7.9 in. /
789 x 510.3 x 200mm
31.1 x 18.9 x 5.5 in. /
789 x 479 x 140mm
37.5 lbs. / 17 kg
35.3 lbs. / 16 kg
200 x 200mm (8 hole) /
200 x 100mm (6 hole)
5-40° C / 41-104° F
20-80%
4200m / 13,780 ft.
-20-60° C / -4-140° F
10-90%
12,000m / 39,370 ft.
UL 1950/CSA C22.2 No. 950/TUVGS/EN60950/FCC-B/DOC-B/EN55022B/EN55024/EN61000-3-2/EN10003-3/CE
AC power cord,user manual, setup
sheet, wireless remote control, batteries, 15-pin RGB cable, CD-ROM, stand
External speakers, tilt wall mount kit
3 years parts and labor,
including backlight
24 hours/7 days
* not available on IT models
** optional stand available
LCD4020-2-AV (LCD4020-2-IT)
40"
0.648mm
40 @ native resolution
2
700 cd/m
2000:1
178° Vert., 178° Hor.
(89U/89D/89L/89R)@ CR>10
Rapid Response (16ms)
256 RGB Level, more than 16 million
886.5 x 497.8mm
15.5mm, 15.5mm
16:9
-15.625, 15.744, 31.5-91.1 KHz
(Analog, LCD4020-BK-AV)/-31.5-91.1
KHz (Analog, LCD4020-BK-IT)/
-31.5-91.1 KHz (Digital)
50-85 Hz Analog/Digital
ANALOG RGB 0.7 Vp-p/75 Ohms,
Digital, S-Video, HDMI, Composite,
Component, Audio
Separate sync: TTL Level
(Positive/Negative)
Composite sync: TTL Level
(Positive/Negative)
Composite sync on green:
(0.3Vp-p negative 0.7Vp-p positive)
DVI-D
Analog D-sub
Analog BNC
Composite (Shared RCA and BNC),
S-Video, HDMI
Component (RCA)
Audio 1 (minijack), Audio 2 and 3
Stereo (RCA), HDMI
Internal Speaker: None
RS232, DDC/CI
Daisychain BNC - RGB3
Daisychain BNC (Composite) - Video1
Daisychain - Mini Pin Jack
RS232 for multiple monitor control
15W x 15W
640 x 400 @ 56.2 Hz
720 x 400 @ 70-85 Hz
640 x 480 @ 50-85 Hz
800 x 600 @ 50-85Hz
832 x 624 @ 74.5 Hz
1024 x 768 @ 50-85 Hz
1152 x 870
1600 x 1200 @ 50-85 Hz
1280 x 768 @ 50-85 Hz
1360 x 768 @ 50-85 Hz
1920 x 1080 @ 60Hz (compressed)
NTSC/PAL, SECAM, 4.43 NTSC, Pal60
HDTV, 480i, 480p, 720p, 1080i, 1080p
(not available on LCD4020-BK-IT)
1366 x 768
1360 x 768 or 1366 x 768
Expansion slot, ultra-thin bezel,
programable lookup tables, Plug and
Play (DDC/CI, DDC2B), PIP (remote),
POP, 6-axis color control, multilevel zoom, FullScan, CableComp,
TileMatrix (5x5), TileComp, video
ready, scheduler (w/ RTC), OmniColor
(NCM), sharpness/softness, off-timer
(countdown), screen saver, vacation
switch, 10-bit gamma, AutoBright
(signal input), Windows Vista-certified,
portrait-capable
Designed for integration
AC 100-120V/AC 220-240V@50/60 Hz
240W
<5W
36.2 x 22.4 x 13 in. /
919.5 x 567 x 330mm**
36.2 x 21 x 5.5 in. /
919.5 x 533.4 x 140mm
68.6 lbs. / 31.1 kg
64.8 lbs. / 29.4 kg
200 x 200mm (8 hole) /
200 x 100mm (6 hole)
5-40° C / 41-104° F
10-80%
4200m / 13,780 ft.
-20-60° C / -4-140° F
10-90%
12,000m / 39,370 ft.
UL 60950/CSA C22.2 No. 950/TUVGS/EN60950/FCC-B/DOC-B/EN55022B/EN55024/EN61000-3-2/EN10003-3/CE
AC power cord, user manual, setup
sheet, wireless remote control, batteries, 15-pin RGB cable, CD-ROM
External speakers (-AV only), digital tuner
(-AV only), tilt wall mount kit, stand
3 years parts and labor,
including backlight
24 hours/7 days
LCD4620-2-AV (LCD4620-2-IT)
46"
0.746mm
34 @ native resolution
2
700 cd/m
1800:1
178° Vert., 178° Hor.
(89U/89D/89L/89R)@ CR>10
Rapid Response (16ms)
256 RGB Level, more than 16 million
1018.5 x 574mm
16.5mm, 17mm
16:9
-15.625, 15.744, 31.5-91.1 KHz (Analog, LCD4620-BK-AV)/-31.5-91.1 KHz
(Analog, LCD4620-BK-IT)/-31.5-91.1
KHz (Digital)
50-85 Hz Analog/Digital
ANALOG RGB 0.7 Vp-p/75 Ohms,
Digital, S-Video, HDMI, Composite,
Component, Audio
Separate sync: TTL Level
(Positive/Negative)
Composite sync: TTL Level
(Positive/Negative)
Composite sync on green:
(0.3Vp-p negative 0.7Vp-p positive)
DVI-D
Analog D-sub
Analog BNC
Composite (Shared RCA and BNC),
S-Video, HDMI
Component (RCA)
Audio 1 (minijack), Audio 2 and 3
Stereo (RCA), HDMI
Internal Speaker: None
RS232, DDC/CI
Daisychain BNC - RGB3
Daisychain BNC (Composite) - Video1
Daisychain - Mini Pin Jack
RS232 for multiple monitor control
15W x 15W
640 x 400 @ 56.2 Hz
720 x 400 @ 70-85 Hz
640 x 480 @ 50-85 Hz
800 x 600 @ 50-85 Hz
832 x 624 @ 74.5 Hz
1024 x 768 @ 50-85 Hz
1152 x 870
1600 x 1200 @ 50-85 Hz
1280 x 768 @ 50-85 Hz
1360 x 768 @ 50-85 Hz
1920 x 1080 @ 60 Hz (compressed)
NTSC/PAL, SECAM, 4.43 NTSC, Pal60
HDTV, 480i, 480p, 720p, 1080i, 1080p
(not available on LCD4620-BK-IT)
1366 x 768
1360 x 768 or 1366 x 768
Expansion slot, ultra-thin bezel,
programable lookup tables, Plug and
Play (DDC/CI, DDC2B), PIP (remote),
POP, 6-axis color control, multilevel zoom, FullScan, CableComp,
TileMatrix (5x5), TileComp, video
ready, scheduler (w/ RTC), OmniColor
(NCM), sharpness/softness, off-timer
(countdown), screen saver, vacation
switch, 10-bit gamma, AutoBright
(signal input), Windows Vista-certified,
portrait-capable
Designed for integration
AC 100-120V/AC 220-240V@50/60 Hz
240W
<5W
41.6 x 25.4 x 13.8 in. /
1056.6 x 645.2 x 350.3mm**
41.6 x 24 x 5.5 in. /
1056.6 x 609.6 x 140mm
83.6 lbs. / 37.9 kg
79.6 lbs. / 36.1 kg
200 x 200mm (8 hole) /
200 x 100mm (6 hole)
5-40° C / 41-104° F
10-80%
4200m / 13,780 ft.
-20-60° C / -4-140° F
10-90%
12,000m / 39,370 ft.
UL 60950/CSA C22.2 No. 950/TUVGS/EN60950/FCC-B/DOC-B/EN55022B/EN55024/EN61000-3-2/EN10003-3/CE
AC power cord, user manual, setup
sheet, wireless remote control, batteries, 15-pin RGB cable, CD-ROM
External speakers (-AV only), digital
tuner (-AV only), tilt wall mount kit, stand
3 years parts and labor,
including backlight
24 hours/7 days
LCD5710-BK (LCD5710-BK-IT)
57"
0.6525mm
39 @ native resolution
2
450 cd/m
900:1
178° Vert., 178° Hor.
(89U/89D/89L/89R)@ CR>10
Rapid Response (16ms)
256 RGB Level, more than 16 million
1252.8 x 704.7mm
52.5mm, 44mm
16:9
-15.625, 15.744, 31.5-91.1 KHz
(Analog, LCD5710-BK)/-31.5-91.1 KHz
(Analog, LCD5710-BK-IT)/-31.5-91.1
KHz (Digital)
50-85 Hz Analog/Digital
ANALOG RGB 0.7 Vp-p / 75 Ohms
Separate sync: TTL Level
(Positive/Negative)
Composite sync: TTL Level
(Positive/Negative)
Composite sync on green: (0.3Vp-p
negative 0.7Vp-p positive)
DVI-D
Analog D-sub
Analog BNC
Composite RCA or S-Video
Component BNC
Audio 1 (minijack), Audio 2 and 3
Stereo (RCA)
Internal Speaker: None
RS232, DDC/CI
Daisychain RGB2, RGB3
Daisychain Video1
Daisychain - Selected Audio in
RS232 for multiple monitor control
7W x 7W
720 x 400 @ 70-85 Hz
640 x 480 @ 60-85 Hz
800 x 600 @ 50-85 Hz
832 x 624 @ 74.5 Hz
1024 x 768 @ 50-85 Hz
1280 x 1024 @ 50-85 Hz
1600 x 1200 @ 60 Hz (Compressed)
1280 x 768 @ 50-85 Hz
1360 x 768 @ 50-85 Hz
1920 x 1080 % 50-60 Hz
NTSC/PAL, SECAM, 4.43NTSC, Pal60
HDTV, 480i, 480p, 720p, 1080i (not
available on LCD5710-BK-IT), 1080p
1920 x 1080
1920 x 1080
Power Management, Plug and Play
(DDC/CI, DDC2B), PIP (Remote), Multilevel Zoom, FullScan, 6-axis color,
CableComp, TileMatrix, TileComp,
Screen Saver, Rapid Response, Video
Ready (no tuner), Infrared remote
control included, portrait-capable
Designed for integration
AC 100-120V/AC 220-240V@50/60 Hz
350W
<5W
53.5 x 32.5 x 19.4 in. /
1357.8 x 825.1 x 492mm
53.5 x 31.2 x 6.5 in. /
1357.8 x 792.8 x 164mm
138.9 lbs. / 63 kg
130.1 lbs. / 59 kg
200 x 200mm (8 hole) /
200 x 100mm (6 hole)
5-40° C / 41-104° F
20-80%
4200m / 13,780 ft.
-20-60° C / -4-140° F
10-90%
12,000m / 39,370 ft.
UL 60950/CSA C22.2 No. 950/TUVGS/EN60950/FCC-B/DOC-B/EN55022B/EN55024/EN61000-3-2/EN10003-3/CE
AC power cord, user manual, wireless
remote control, batteries, 15-pin RGB
cable, CD-ROM, stand
External speakers, tilt wall mount kit
3 years parts and labor,
including backlight
24 hours/7 days
LCD6520L-BK-AV/LCD6520P-BK-AV
65"
0.744mm
34 @ native resolution
2
450 cd/m
2000:1
176° Vert., 176° Hor.
(88U/88D/88L/88R) @ CR>10
Rapid Response (6ms)
256 RGB Level, more than 16 million
1428.5 x 803.5mm
TBD
16:9
-15.625, 15.744, 31.5-91.1 KHz
(Analog, LCD4610-BK)/-31.5-91.1 KHz
(Analog, LCD4610-BK-IT)/31.5-91.1
KHz (Digital)
50-85 Hz Analog/Digital
ANALOG RGB 0.7 Vp-p / 75 Ohms
Separate sync: TTL Level
(Positive/Negative)
Composite sync: TTL Level
(Positive/Negative)
Composite sync on green: (0.3Vp-p
negative 0.7Vp-p positive)
DVI-D
Analog D-sub
Analog BNC
Composite (Shared RCA and BNC),
S-Video, HDMI
Component BNC
Audio 1 (minijack), Audio 2 and 3
Stereo (RCA), HDMI
Internal Speaker: None
RS232, DDC/CI
Daisychain RGB2, RGB3
Daisychain Video1
Daisychain - Selected Audio in
RS232 for multiple monitor control
15W x 15W
720 x 400 @ 70-85 Hz
640 x 480 @ 60-85 Hz
800 x 600 @ 50-85 Hz
832 x 624 @ 74.5 Hz
1024 x 768 @ 50-85 Hz
1280 x 1024 @ 50-85 Hz
1600 x 1200 @ 60 Hz (Compressed)
1280 x 768 @ 50-85 Hz
1360 x 768 @ 50-85 Hz
1920 x 1080 % 50-60 Hz
NTSC/PAL, SECAM, 4.43NTSC,
Pal60 HDTV, 480i, 480p, 720p,
1080i, 1080p
1920 x 1080 / 1080 x 1920
1920 x 1080 / 1080 x 1920
Expansion slot, ultra-thin bezel,
programable lookup tables, Plug and
Play (DDC/CI, DDC2B), PIP (remote),
POP, 6-axis color control, multilevel zoom, FullScan, CableComp,
TileMatrix (5x5), TileComp, video
ready, scheduler (w/ RTC), OmniColor
(NCM), sharpness/softness, off-timer
(countdown), screen saver, vacation
switch, 10-bit gamma, AutoBright
(signal input), Windows Vista-certified, portrait-capable
Designed for integration
AC 100-120V/AC 220-240V@50/60 Hz
590W
<7W
(L) 61.8x38x19.7 in./1569.4x966x500mm
(P) 36.3x64.2x16.1 in./921x1631.8x410mm
(L) 61.8x36.3x8.7 in./1569.4x921x221.6mm
(P) 36.3x61.8x8.7 in./921x1569.4x221.6mm
194 lbs. / 88 kg
183 lbs. / 83 kg
200 x 200mm (8 hole) /
200 x 100mm (6 hole)
5-40° C / 41-104° F
20-80%
4200m / 13,780 ft.
-20-60° C / -4-140° F
10-90%
12,000m / 39,370 ft.
UL 60950/CSA C22.2 No. 950/TUVGS/EN60950/FCC-B/DOC-B/EN55022B/EN55024/EN61000-3-2/EN10003-3/CE
AC power cord, user manual, wireless
remote control, batteries, 15-pin RGB
cable, CD-ROM, stand
Digital tuner
3 years parts and labor,
including backlight
24 hours/7 days
MultiSync, OSM and XtraView are registered trademarks, and
CableComp, Rapid Response, TileComp and TileMatrix are trademarks of NEC Display Solutions. All other brand or product names
are trademarks or registered trademarks of their respective holders.
Product specifications subject to change. 12/07 ver. 5.
©2007 NEC Display Solutions of America, Inc. All rights reserved.
NEC Display Solutions
500 Park Boulevard, Suite 1100
Itasca, IL 60143
866-NEC-MORE
Loading...
