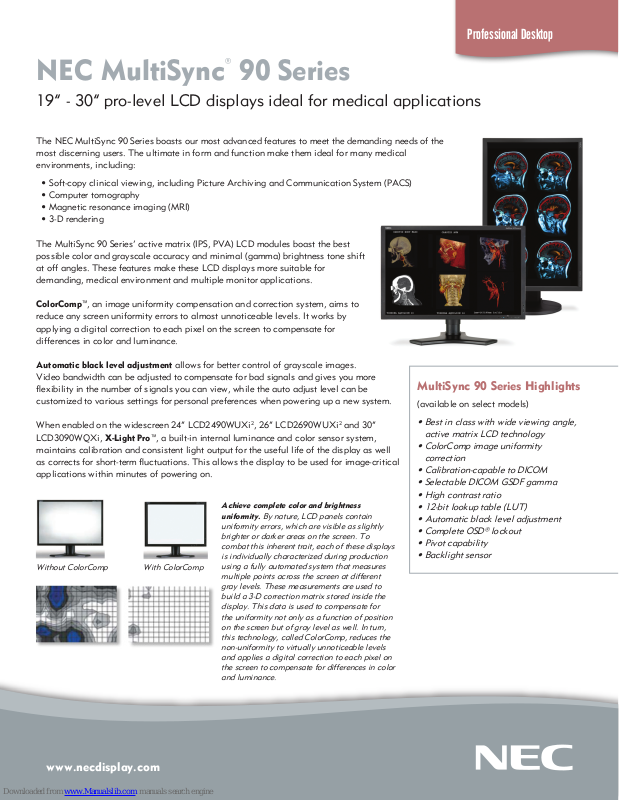

Page 1
Professional Desktop
NEC MultiSync® 90 Series
19” - 30” pro-level LCD displays ideal for medical applications
The NEC MultiSync 90 Series boasts our most advanced features to meet the demanding needs of the
most discerning users. The ultimate in form and function make them ideal for many medical
environments, including:
• Soft-copy clinical viewing, including Picture Archiving and Communication System (PACS)
• Computer tomography
• Magnetic resonance imaging (MRI)
• 3-D rendering
The MultiSync 90 Series’ active matrix (IPS, PVA) LCD modules boast the best
possible color and grayscale accuracy and minimal (gamma) brightness tone shift
at off angles. These features make these LCD displays more suitable for
demanding, medical environment and multiple monitor applications.
ColorComp™, an image uniformity compensation and correction system, aims to
reduce any screen uniformity errors to almost unnoticeable levels. It works by
applying a digital correction to each pixel on the screen to compensate for
differences in color and luminance.
Automatic black level adjustment allows for better control of grayscale images.
Video bandwidth can be adjusted to compensate for bad signals and gives you more
exibility in the number of signals you can view, while the auto adjust level can be
customized to various settings for personal preferences when powering up a new system.
When enabled on the widescreen 24” LCD2490WUXi2, 26” LCD2690WUXi2 and 30”
LCD3090WQXi, X-Light Pro™, a built-in internal luminance and color sensor system,
maintains calibration and consistent light output for the useful life of the display as well
as corrects for short-term uctuations. This allows the display to be used for image-critical
applications within minutes of powering on.
Achieve complete color and brightness
uniformity. By nature, LCD panels contain
uniformity errors, which are visible as slightly
brighter or darker areas on the screen. To
combat this inherent trait, each of these displays
is individually characterized during production
With ColorCompWithout ColorComp
using a fully automated system that measures
multiple points across the screen at different
gray levels. These measurements are used to
build a 3-D correction matrix stored inside the
display. This data is used to compensate for
the uniformity not only as a function of position
on the screen but of gray level as well. In turn,
this technology, called ColorComp, reduces the
non-uniformity to virtually unnoticeable levels
and applies a digital correction to each pixel on
the screen to compensate for differences in color
and luminance.
MultiSync 90 Series Highlights
(available on select models)
• Best in class with wide viewing angle,
active matrix LCD technology
• ColorComp image uniformity
correction
• Calibration-capable to DICOM
• Selectable DICOM GSDF gamma
• High contrast ratio
• 12-bit lookup table (LUT)
• Automatic black level adjustment
• Complete OSD® lockout
• Pivot capability
• Backlight sensor
www.necdisplay.com
Page 2
Model
Display
Viewable Size Image
Pixel Pitch
Pixels Per Inch
Brightness (typical)
Contrast Ratio (typical)
Viewing Angle (typical)
Response Time (typical)
Display Colors
Input
Native Resolution
Additional Features
Touch-Capable
Voltage Rating
Power Consumption (typ)
On
Power Savings Mode
Dimensions (WxHxD)
Net (with stand)
Net (without stand)
Net Weight
(with stand)
(without stand)
VESA Hole Configuration
Specifications
Limited Warranty
Technical Support
LCD1990SX
19"
0.294mm
86 @ native resolution
250 cd/m
1500:1
178° Vert., 178° Hor.
(89U/89D/89L/89R)@
CR>10
Rapid Response (8ms
Gray-to-Gray)
12-bit internal LUTs,
displays 16.7 million
colors out of 68.5 bil-
lion color palette
DVI-D, DVI-I & VGA
15 pin D-sub
1280 x 1024 @ 60 Hz
ColorComp, AmbiBright ambient light
sensor, No Touch
Auto Adjust, tilt,
swivel, height-adjustable stand (150mm),
pivot, quick-release
stand, black level ad-
justment, ECO Mode
Designed for integration
AC 100-120V /
AC 220-240V
39W
1W
15.8 x 14.4-19.5 x
9.7 in./
402.3 x 410.7-560.7 x
247.3mm
15.8 x 13 x 3.1 in./
402.3 x 330.3 x 80mm
19.8 lbs. / 9 kg
13.8 lbs. / 6.3 kg
100 x 100mm
3 years parts and
labor, including
backlight / 2-day
Advanced Exchange
service
M - F (7am - 7pm CST)
LCD2090UXi
20.1”
0.255mm
2
100 @ native resolution
2
280 cd/m
700:1
178° Vert., 178° Hor.
(89U/89D/89L/89R)@
CR>10
Rapid Response (8ms
Gray-to-Gray)
12-bit internal LUTs,
displays 16.7 million
colors out of 68.5 bil-
lion color palette
DVI-D, DVI-I & VGA
15 pin D-sub
1600 x 1200 @ 60 Hz
ColorComp, AmbiBright ambient light
sensor, No Touch
Auto Adjust, tilt,
swivel, height-adjustable stand (150mm),
pivot, quick-release
stand, black level ad-
justment, ECO Mode
LCD2190UXp
21.3”
0.27mm
94 @ native resolution
2
300 cd/m
1000:1
178° Vert., 178° Hor.
(89U/89D/89L/89R)@
CR>10
Rapid Response (8ms
Gray-to-Gray)
12-bit internal LUTs,
displays 16.7 million
colors out of 68.5 bil-
lion color palette
DVI-D, DVI-I & VGA
15 pin D-sub
1600 x 1200 @ 60 Hz
ColorComp, AmbiBright ambient light
sensor, No Touch
Auto Adjust, tilt,
swivel, height-adjustable stand (150mm),
pivot, quick-release
stand, black level ad-
justment, ECO Mode
LCD2490WUXi2
24”
0.27mm
94 @ native resolution
2
320 cd/m
1000:1
178° Vert., 178° Hor.
(89U/89D/89L/89R) @
CR>10
Rapid Response (8ms
Gray-to-Gray; 16ms
Black-to-Black)
12-bit internal LUTs,
displays 16.7 million
colors out of 68.5 bil-
lion color palette
DVI-D, DVI-I & VGA
15-pin D-sub
1920 x 1200 @ 60 Hz
landscape /
1200 x 1920 @ 60 Hz
portrait
ColorComp, X-Light
Pro backlight stabilization, AmbiBright
ambient light sensor,
No Touch Auto
Adjust, tilt, swivel,
height-adjustable
stand (150mm), pivot,
quick-release stand,
black level adjustment, ECO Mode
LCD2690WUWi2
25.5”
0.287mm
89 @ native resolution
2
320 cd/m
1000:1
178° Vert., 178° Hor.
(89U/89D/89L/89R) @
CR>10
Rapid Response (8ms
Gray-to-Gray; 16ms
Black-to-Black)
12-bit internal LUTs,
displays 16.7 million
colors out of 68.5 bil-
lion color palette
DVI-D, DVI-I & VGA
15-pin D-sub
1920 x 1200 @ 60 Hz
landscape /
1200 x 1920 @ 60 Hz
portrait
ColorComp, X-Light
Pro backlight stabilization, AmbiBright
ambient light sensor,
No Touch Auto
Adjust, tilt, swivel,
height-adjustable
stand (150mm), pivot,
quick-release stand,
black level adjustment, ECO Mode
LCD3090WQXi
29.8”
0.251mm
101 @ native resolution
2
350 cd/m
1000:1
178° Vert., 178° Hor.
(89U/89D/89L/89R)@
CR>10
Rapid Response (6ms
Gray-to-Gray; 12ms
Black-to-Black)
12-bit internal LUTs,
displays 16.7 million
colors out of 68.5 bil-
lion color palette
DVI-D (HDCP), DVI-I
2560 x 1600 @ 60 Hz
landscape /
1600 x 2560 @ 60 Hz
portrait
ColorComp, X-Light
Pro backlight stabilization, AmbiBright
ambient light sensor,
No Touch Auto
Adjust, tilt, swivel,
height-adjustable
stand (190mm), pivot,
quick-release stand,
black level adjustment, ECO Mode,
standalone calibration
Designed for integration
AC 100-120V /
AC 220-240V
50W
<1W
17.3 x 16.4-22.3 x
9.7 in./
439.2 x 415.5-565.5 x
247.3mm
17.3 x 13.4 x 3.3 in./
439.2 x 340 x 85mm
19.3 lbs. / 8.8 kg
18.5 lbs. / 8.4 kg
100 x 100mm
4 years parts and
labor, including
backlight / 2-day
Advanced Exchange
service
M - F (7am - 7pm CST)
Designed for integration
AC 100-120V /
AC 220-240V
60W
1W
18.3 x 16.7-22.6 x
9.7 in./
464.8 x 424.8-574.8 x
247.3mm
18.3 x 14.1 x 3.3 in./
464.8 x 358.6 x 85mm
23.6 lbs. / 10.7 kg
17.6 lbs. / 8 kg
100 x 100mm
3 years parts and
labor, including
backlight / 2-day
Advanced Exchange
service
M - F (7am - 7pm CST)
Designed for integration
AC 100-120V /
AC 220-240V
75W
1W
21.8 x 17 x12 in. /
554.2 x 432.4 x
306mm
21.8 x 14.2 x 4.1in. /
554.2 x 359.8 x
104mm
26 lbs. / 11.8 kg
19.2 lbs. / 8.7 kg
100 x 100mm /
200 x 100mm
4 years parts and
labor, including
backlight / 2-day
Advanced Exchange
service
M - F (7am - 7pm CST)
Designed for integration
AC 100-120V /
AC 220-240V
111W
1W
23.2 x 17.5 x 12 in. /
589.8 x 444.2 x
306mm
23.2 x 15.1 x 4.1in. /
589.8 x 383.4 x
104mm
27.7 lbs./12.6 kg
20.2 lbs./9.2 kg
100 x 100mm
4 years parts and
labor, including
backlight / 2-day
Advanced Exchange
service
M - F (7am - 7pm CST)
Designed for integration
AC 100-120V /
AC 220-240V
143W
1.3W
27.1 x 18.8-26.3 x
13.5 in./
687.3 x 478.6-668.6 x
342.8mm
27.1 x 17.6 x 5 in./
687.3 x 446.8 x
126mm
40.7 lbs. / 18.5 kg
31.9 lbs. / 14.5 kg
100 x 100mm /
200 x 100mm
4 years parts and
labor, including
backlight / 2-day
Advanced Exchange
service
M - F (7am - 7pm CST)
MultiSync is a registered trademarks, and AmbiBright, ColorComp, ECO Mode,
No Touch Auto Adjust, Rapid Response and X-Light Pro are trademarks of
NEC Display Solutions. All other brand or product names are trademarks or
registered trademarks of their respective holders. Product specications subject
to change. 3/11 ver. 3.
©2011 NEC Display Solutions of America, Inc. All rights reserved.
