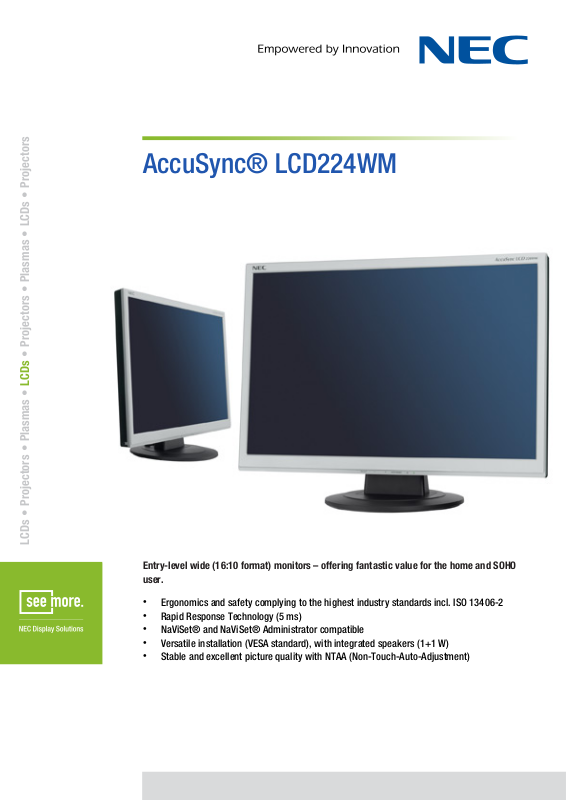

AccuSync® LCD224WM
Entry-level wide (16:10 format) monitors – offering fantastic value for the home and SOHO
user.
•
Ergonomics and safety complying to the highest industry standards incl. ISO 13406-2
•
Rapid Response Technology (5 ms)
•
NaViSet® and NaViSet® Administrator compatible
•
Versatile installation (VESA standard), with integrated speakers (1+1 W)
•
Stable and excellent picture quality with NTAA (Non-Touch-Auto-Adjustment)
LCDs
•
Projectors
•
Plasmas
•
LCDs
•
Projectors
•
Plasmas
•
LCDs
•
Projectors
•
Plasmas
•
LCDs
•
Projectors
•
Plasmas
•
LCDs
AccuSync® LCD224WM
TECHNICAL SPECIFICATIONS
Panel Technology TN+ film TFT
Screen Size [inch/cm] 22.0 / 55.9
Pixel Pitch [mm] 0.282
Viewing Angle [°] 176 horizontal / 176 vertical (typ. at contrast ratio 5:1)
160 horizontal / 160 vertical (typ. at contrast ratio 10:1)
Contrast Ratio (typ.) 1000:1
Brightness (typ.) [cd/m²] 300
Response Time (typ.) [ms] 5 (1 white / black; 4 black / white)
Colours [Mio.] 16.7
Horizontal Frequency [kHz] 31.5 - 82.3
Vertical Frequency [Hz] 56.0 - 75.0
Optimum Resolution 1680 x 1050 at 60 Hz
Supported Resolutions 1440 x 900; 1400 x 1050; 1360 x 768; 1280 x 1024; 1280 x 960; 1152 x 870; 1152 x 864; 1024 x
768; 832 x 624; 800 x 600; 720 x 400; 640 x 480
Connectors Analog: 1 x mini D-sub 15 pin
Plug & Play VESA DDC/CI; DDC2B/2Bi; EDID Standard
Adjust Functions Auto Adjust; Brightness; Colour Temperature Control; Contrast; Fine Adjust (analog); Language Select;
Monitor Information; NTAA (Non-Touch-Auto-Adjustment); On-Screen-Manager (OSM) lock-out;
Volume
Safety and Ergonomics CE; TCO 03; TÜV Ergonomics; TÜV GS; Energy Star; FCC Class B; PCT/Gost; UL/C-UL or CSA; ISO
13406-2 (pixel failure class II); MPR II/ MPR III; RoHS
Power Consumption on Mode [W] 40 (typ.)
Power Consumption Power-Saving Mode [W] 2
Power Supply 100-120 V/220-240 V; 0.95 A/0.55 A; internal power supply
Ambient Temperature (operating) [°C] +5 to +35
Ambient Humidity (operating) [%] 30 to 80
VESA Mounting [mm] 100 x 100
Screen Tilt [°] -5 to +20
Dimensions (W x H x D) [mm] 505.2 x 390.9 x 221.8
Bezel Width [mm] 14.8
Weight [kg] 5.2
Cable Management yes
Kensington Lock yes
Benefits 16:10 wide format; NaViSet® and NaViSet® Administrator compatible; Rapid Response Technology
Audio Functions Integrated Speakers (1 W + 1 W)
Colour Versions Silver Front Bezel, Black Back Cabinet
Shipping Content Monitor; Power Cable; Signal Cable VGA - VGA; Audio Cable; CD-ROM; Sales Office List; User Manual
Warranty 3 years warranty incl. backlight
All hardware and software names are brand names and/or registered trademarks of the respective manufacturers. All rights reserved. All specifications are subject to change without notice. 03/2008
