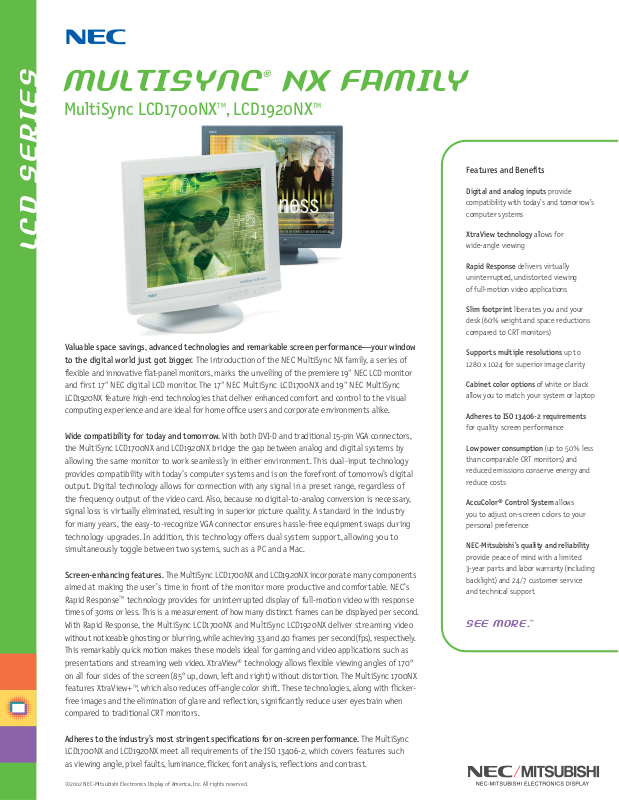

NEC LCD1700NX, LCD1920NX User Manual

MultiSync

MultiSync LCD1700NXTM,LCD1920NX

family

lcd series

Valuable space savings, advanced technologies and remarkable screen performance—your window to the digital world just got bigger. The introduction of the NEC MultiSync NX family, a series of

flexible and innovative flat-panel monitors, marks the unveiling of the premiere 19" NEC LCD monitor and first 17" NEC digital LCD monitor. The 17" NEC MultiSync LCD1700NX and 19" NEC MultiSync LCD1920NX feature high-end technologies that deliver enhanced comfort and control to the visual computing experience and are ideal for home office users and corporate environments alike.

Wide compatibility for today and tomorrow. With both DVI-D and traditional 15-pin VGA connectors, the MultiSync LCD1700NX and LCD1920NX bridge the gap between analog and digital systems by allowing the same monitor to work seamlessly in either environment. This dual-input technology provides compatibility with today’s computer systems and is on the forefront of tomorrow’s digital output. Digital technology allows for connection with any signal in a preset range, regardless of the frequency output of the video card. Also, because no digital-to-analog conversion is necessary, signal loss is virtually eliminated, resulting in superior picture quality. A standard in the industry for many years, the easy-to-recognize VGA connector ensures hassle-free equipment swaps during technology upgrades. In addition, this technology offers dual system support, allowing you to simultaneously toggle between two systems, such as a PC and a Mac.

Screen-enhancing features. The MultiSync LCD1700NX and LCD1920NX incorporate many components aimed at making the user’s time in front of the monitor more productive and comfortable. NEC’s Rapid Response times of 30ms or less. This is a measurement of how many distinct frames can be displayed per second. With Rapid Response, the MultiSync LCD1700NX and MultiSync LCD1920NX deliver streaming video without noticeable ghosting or blurring, while achieving 33 and 40 frames per second(fps), respectively. This remarkably quick motion makes these models ideal for gaming and video applications such as presentations and streaming web video. XtraView on all four sides of the screen (85° up, down, left and right) without distortion. The MultiSync 1700NX features XtraView+ free images and the elimination of glare and reflection, significantly reduce user eyestrain when compared to traditional CRT monitors.

technology provides for uninterrupted display of full-motion video with response

technology allows flexible viewing angles of 170°

, which also reduces off-angle color shift. These technologies, along with flicker-

Features and Benefits

Digital and analog inputs provide

compatibility with today’s and tomorrow’s computer systems

XtraView technology allows for wide-angle viewing

Rapid Response delivers virtually uninterrupted, undistorted viewing of full-motion video applications

Slim footprint liberates you and your desk (60% weight and space reductions compared to CRT monitors)

Supports multiple resolutions up to 1280 x 1024 for superior image clarity

Cabinet color options of white or black allow you to match your system or laptop

Adheres to ISO 13406-2 requirements

for quality screen performance

Low power consumption (up to 50% less than comparable CRT monitors) and reduced emissions conserve energy and reduce costs

AccuColor

you to adjust on-screen colors to your personal preference

NEC-Mitsubishi’s quality and reliability

provide peace of mind with a limited 3-year parts and labor warranty (including backlight) and 24/7 customer service and technical support

Control System allows

™

Adheres to the industry’s most stringent specifications for on-screen performance. The MultiSync

LCD1700NX and LCD1920NX meet all requirements of the ISO 13406-2, which covers features such as viewing angle, pixel faults, luminance, flicker, font analysis, reflections and contrast.

Model

MultiSync LCD1700NX MultiSync LCD1920NX

Display

Viewable Size Image Pixel Pitch Pixels Per Inch Brightness Contrast Ratio Viewing Angle Response Time Display Colors

Synchronization Range

Horizontal Ver tica l

Input Signal

Video Sync

Input

Resolutions Supported

17"/43.26cm 19"/48.19cm .264mm .294mm 96 @ native resolution 86 @ native resolution 200 cd/m

250 cd/m

300:1 500:1 85/85/85/85 (U/D/L/R) 85/85/85/85 (U/D/L/R) Rapid Response (30ms) Rapid Response (25ms) More than 16 million More than 16 million

31.5-81.1 kHz 31.5-80 kHz 56-76 Hz 56-75 Hz

Analog 0.7 Vp-p/75 Ohms Analog 0.7 Vp-p/75 Ohms Separate Sync:TTL Level (positive/negative) Separate Sync: TTL Level (positive/negative)

Composite Sync: TTL Level (positive/negative)

DVI-D and VGA 15 pin D-sub DVI-D and VGA 15 pin D-sub

Analog: Digital: Analog: Digital: 720 x 400 @ 70 Hz 720 x 400 @ 70 Hz 720 x 400 @ 70 Hz 720 x 400 @ 70 Hz 640 x 480 @ 60-75 Hz 640 x 480 @ 60-75 Hz 640 x 480 @ 60-75 Hz 640 x 480 @ 60-75 Hz 800 x 600 @ 56-75 Hz 800 x 600 @ 56-75 Hz 800 x 600 @ 56-75 Hz 800 x 600 @ 56-75 Hz 832 x 624 @ 75 Hz 832 x 624 @ 75 Hz 832 x 624 @ 75 Hz 832 x 624 @ 75 Hz 1024 x 768 @ 60-75 Hz 1024 x 768 @ 60-75 Hz 1024 x 768 @ 60-75 Hz 1024 x 768 @ 60-75 Hz 1152 x 870 @ 75 Hz 1280 x 1024 @ 60 Hz 1152 x 870 @ 75 Hz 1152 x 870 @ 75 Hz 1280 x 1024 @ 60-76 Hz 1280 x 1024 @ 60-75 Hz 1280 x 1024 @ 60-75 Hz (60 Hz is recommended) (60 Hz is recommended)

Additional Features

Voltage Rating

Power Consumption

On: Power Savings Mode:

Dimensions (W x H x D)

Net (with st and) Net (without st and)

Net Weight

(with stand) (without stand)

VESA Hole Configuration Specifications

Environmental Conditions

Operating Temperature: Operating Humidity: Operating Altitude: Storage Temperature: Storage Humidity: Storage Altitude:

Limited Warranty

Te chnical Support

LiquidView, XtraView+ technology, Digital Smoothing, Digital XtraView technology, Auto Adjust, Digital Smoothing, Digital Controls, Plug and Play (VESA DDC2B&2Bi),VESA DPMS power Controls, Plug and Play (VESA DDC2B&2Bi)VESA DPMS power management, User OSM controls, ISO 13406-2 Class 2 management, User OSM controls, ISO 13406-2 Class 2

Universal 100 (110-240V)50-60 Hz Universal 100 (110-240V)50-60 Hz

41W 38W 3W 3W

17.1 x 17.2 x 8.7 in./434 x 437 x 220mm 17.1 x 16.7 x 8.1 in./434.5 x 423 x 205mm

17.1 x 15.1 x 2.8 in./434 x 384.2 x 71.5mm 17.1 x 15 x 2.7 in./434.5 x 380 x 69.5mm

13.7 lbs./6.2 kg 17.6 lbs./8.0 kg

10.4 lbs./4.7 kg 14.3 lbs./ 6.5 kg

100mm x 100mm 100mm x 100mm

C/41-95oF5-35

5-35

C/41-95oF 30-80% 10-80% 3,658m/12,000 ft. 3,000m/9,843 ft.

C/14-140oF-10-60oC/14-140oF

-10-60 10-85% 10-85% 12,192m/40,000 ft. 12,000m/39,370 ft.

3 years parts and labor, including backlight 3 years parts and labor, including backlight

24 hours/7 days 24 hours/7 days

MultiSync, AccuColor and XtraView are registered trademarks and XtraView+, Rapid Response, LCD1700NX, LCD1920NX are trademarks of NEC-Mitsubishi Electronics Display of America. All other brand or product names are trademarks or registered trademarks of their respective holders. 6/02 ver.1.

NEC-Mitsubishi Electronics Display of America 1250 North Arlington Heights Road Itasca, Illinois 60143-1248 888-NEC-MITS www.necmitsubishi.com
