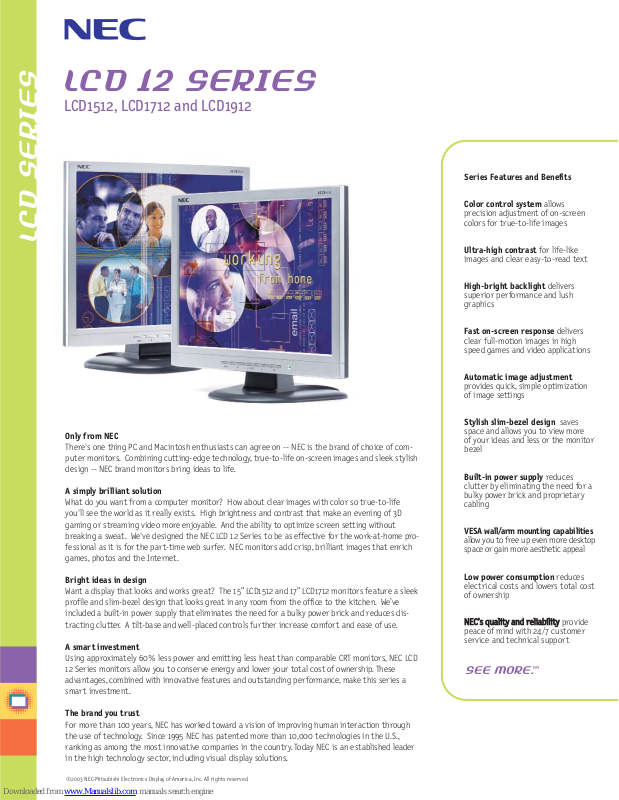

NEC LCD1512, LCD1712, LCD1912 Specifications

Download

Page 1

Series Features and Benefits

Color control system allows

precision adjustment of on-screen colors for true-to-life images

Ultra-high contrast for life-like images and clear easy-to-read text

High-bright backlight delivers superior performance and lush graphics

Fast on-screen response delivers clear full-motion images in high speed games and video applications

Automatic image adjustment

provides quick, simple optimization of image settings

Stylish slim-bezel design saves space and allows you to view more of your ideas and less or the monitor bezel

Built-in power supply reduces clutter by eliminating the need for a bulky power brick and proprietary cabling

VESA wall/arm mounting capabilities

allow you to free up even more desktop space or gain more aesthetic appeal

Low power consumption reduces electrical costs and lowers total cost of ownership

NNEECC’’ss qquuaalliittyy aanndd rreelliiaabbiilliittyy

provide peace of mind with 24/7 customer service and technical support

Only from NEC

There's one thing PC and Macintosh enthusiasts can agree on -- NEC is the brand of choice of computer monitors. Combining cutting-edge technology, true-to-life on-screen images and sleek stylish design -- NEC brand monitors bring ideas to life.

A simply brilliant solution

What do you want from a computer monitor? How about clear images with color so true-to-life you'll see the world as it really exists. High brightness and contrast that make an evening of 3D gaming or streaming video more enjoyable. And the ability to optimize screen setting without breaking a sweat. We've designed the NEC LCD 12 Series to be as effective for the work-at-home professional as it is for the part-time web surfer. NEC monitors add crisp, brilliant images that enrich games, photos and the Internet.

Bright ideas in design

Want a display that looks and works great? The 15” LCD1512 and 17” LCD1712 monitors feature a sleek profile and slim-bezel design that looks great in any room from the office to the kitchen. We’ve included a built-in power supply that eliminates the need for a bulky power brick and reduces distracting clutter. A tilt-base and well-placed controls further increase comfort and ease of use.

A smart investment

Using approximately 60% less power and emitting less heat than comparable CRT monitors, NEC LCD 12 Series monitors allow you to conserve energy and lower your total cost of ownership. These advantages, combined with innovative features and outstanding performance, make this series a smart investment.

The brand you trust

For more than 100 years, NEC has worked toward a vision of improving human interaction through the use of technology. Since 1995 NEC has patented more than 10,000 technologies in the U.S., ranking as among the most innovative companies in the country.Today NEC is an established leader in the high technology sector, including visual display solutions.

lcd 12 series

LCD1512, LCD1712 and LCD1912

LCD series

Page 2

All specifications are the same for all models unless otherwise noted. See More is a trademark of NEC-Mitsubishi. Macintosh is a registered trademarks of Apple Computer, Inc. All other brand or product names are trademarks or registered trademarks of their respective holders. *Brightness decreases over time. Product specifications subject to change. 06/03 ver. 1.

NEC-Mitsubishi Electronics Display of America 1250 North Arlington Heights Road Itasca, Illinois 60143-1248 888-NEC-MITS www.necdisplay.com

15.0"/38 cm 17.0"/43.3 cm 19.0"/48.3 cm .297 mm .264 mm .294 mm 86 @ native resolution 96 @ native resolution 86 @ native resolution 250 cd/m

250 cd/m

400:1 400:1 500:1 50U/50D/60L/60R 60U/60D/70L/70R 85U/85D/85L/85R 30 ms (full cycle) 16 ms (full cycle) 25 ms (full cycle) More than 16 million More than 16 million More than 16 million

31.5-60 kHz 31.5-81 kHz 31.5-81.0 kHz

56.0-75.0 Hz 56.0-75.0 Hz 56.0-75.0 Hz

Analog 0.7 Vp-p/75 Ohms Analog 0.7 Vp-p/75 Ohms Analog 0.7 Vp-p/75 Ohms Separate sync: TTL Level (positive/negative) Separate sync: TTL Level (positive/negative) Separate sync: TTL Level (positive/negative)

VGA 15 pin D-sub VGA 15 pin D-sub VGA 15 pin D-sub

720 x 400 @ 70 Hz 720 x 400 @ 70 Hz 720 x 400 @ 70 Hz 640 x 480 @ 60-75 Hz 640 x 480 @ 60-75 Hz 640 x 480 @ 60-75 Hz 800 x 600 @ 56-75 Hz 800 x 600 @ 56-75 Hz 800 x 600 @ 56-75 Hz 832 x 624 @ 75 Hz 832 x 624 @ 75 Hz 832 x 624 @ 75 Hz 1024 x 768 @ 60-75 Hz 1024 x 768 @ 60-75 Hz 1024 x 768 @ 60-75 Hz

1152 x 864 @ 75 Hz 1152 x 864 @ 75 Hz 1280 x 960 @ 60 Hz 1280 x 960 @ 60 Hz 1280 x 1024 @ 60-75 Hz 1280 x 1024 @ 60-75 Hz

Thin-frame (bezel), digital smoothing, digital Thin-frame (bezel), digital smoothing, digital Thin-frame (bezel), digital smoothing, digital controls, Plug and Play (VESA DDC2B), VESA controls, Plug and Play (VESA DDC2B), VESA controls, Plug and Play (VESA DDC2B), VESA DPMS power management, on-screen DPMS power management, on-screen DPMS power management, on-screen controls (OSM), ISO 13406-2 Class II controls (OSM), ISO 13406-2 Class II controls (OSM), ISO 13406-2 Class II

1024 x 768 @ 75 Hz 1280 x 1024 @ 60 Hz 1280 x 1024 @ 75 Hz

0.5 @ 100-120V, 0.25 @ 220-240V 0.8 @ 100-120V, 0.4 @ 220-240V 0.9 @ 100-120V, 0.5 @ 220-240V

22W 38W 46W 2W 2W 3W 2W 2W 3W

13.6 x 12.8 x 7.9 in./ 346 x 325.5 x 200 mm 14.7 x 14.8 x 7.9 in./ 374 x 375 x 200.5 mm 16.5 x 16.4-21.1 x 9.1 in./ 418 x 417-537 x 230.5 mm

16.5 x 16.3 x 5.2 in./ 420 x 414 x 133 mm 17.9 x 18.5 x 6.4 in./ 454 x 470 x 162 mm 20.2 x 20.9 x 11.2 in./ 512 x 530 x 285 mm

7.3 lbs./ 3.3 kg 9.9 lbs./ 4.5 kg 16.1 lbs./ 7.3 kg

11.0 lbs./ 5.0 kg 14.8 lbs./ 6.7 kg 20.9 lbs./ 9.5 kg

75 mm x 75 mm 100 mm x 100 mm 100 mm x 100 mm

5-35

C/41-95oF 5-35oC/41-95oF 5-35oC/41-95oF 30-80% 30-80% 30-80% 3,048m/10,000 ft. 3,048m/9,843 ft. 3,048m/10,000 ft.

-10-60

C/14-140oF -10-60oC/14-140oF -10-60oC/-14-140oF 10-85% 10-85% 10-85% 9,144m/30,000 ft. 9,144m/30,000 ft. 9,144m/30,000 ft.

3 year parts and labor, including backlight 3 year parts and labor, including backlight 3 year parts and labor, including backlight

24 hours / 7 days 24 hours / 7 days 24 hours / 7 days

Model

Display

Viewable Size Image Pixel Pitch Pixels Per Inch Brightness (typical) Contrast Ratio (typical) Viewing Angle (typical) Response Time (typical) Display Colors

Synchronization Range

Horizontal Ver tical

Input Signal

Video Sync

Input

Resolutions Supported

Additional Features

Native Resolution

Voltage Rating

Power Consumption (typical)

On Power Savings Mode Power Off Mode

Dimensions (W x H x D)

Net (with stand) Gross

Weight

Net (with stand) Gross

VESA Hole Configuration

Environmental Conditions

Operating Temperature Operating Humidity Operating Altitude Storage Temperature Storage Humidity Storage Altitude

Limited Warranty

Technical Support

LCD1512 LCD1712 LCD1912

LCD 12 Series Specifications
