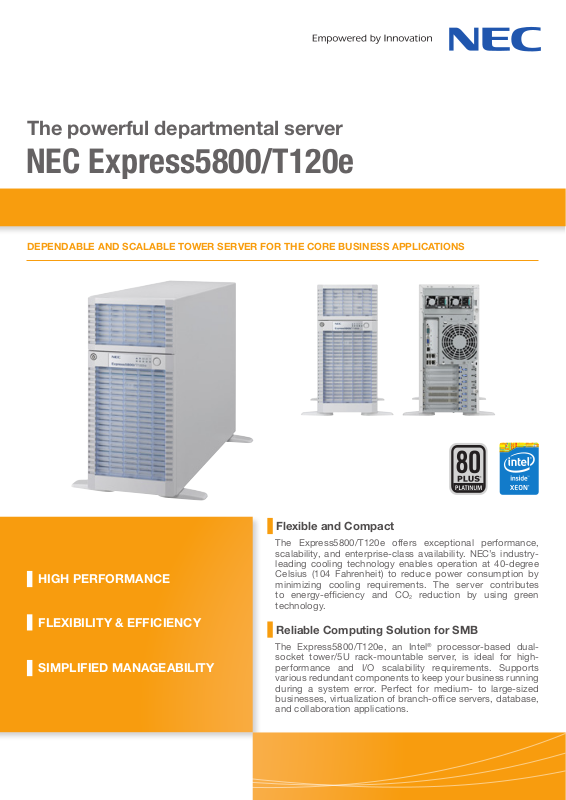

Page 1
The powerful departmental server
NEC Express5800/T120e
DEPENDABLE AND SCALABLE TOWER SERVER FOR THE CORE BUSINESS APPLICATIONS
HIGH PERFORMANCE
FLEXIBILITY & EFFICIENCY
SIMPLIFIED MANAGEABILITY
Flexible and Compact
The Express5800/T120e offers exceptional performance,
scalability, and enterprise-class availability. NEC’s industryleading cooling technology enables operation at 40-degree
Celsius (104 Fahrenheit) to reduce power consumption by
minimizing cooling requirements. The server contributes
to energy-efciency and CO2 reduction by using green
technology.
Reliable Computing Solution for SMB
The Express5800/T120e, an Intel® processor-based dualsocket tower/5U rack-mountable server, is ideal for highperformance and I/O scalability requirements. Supports
various redundant components to keep your business running
during a system error. Perfect for medium- to large-sized
businesses, virtualization of branch-ofce servers, database,
and collaboration applications.
Page 2
NEC Express5800/T120e
High Performance
Supports the Intel® Xeon® E5-2400 v2
product family 10-core processor for
maximum energy efciency and performance
Up to 384 GB memory - perfect for
consolidation of business application servers
or desktop virtualization at SMBs
RAID controller with CacheCade™ technology
and a dual-core I/O processor for signicant
Flexibility & Efciency
80 PLUS® Platinum or Gold certied
power supply
Selectable power supply units (450 Watt or
800 Watt) and cold-standby mode maximize
AC/DC efciency for any size system
NEC’s cooling technology and intelligent
fan control minimize power consumption for
cooling
Simplied Manageability
EXPRESSSCOPE Engine 3 supports
remote management in a secure
communication environment without any
special software
Standard with NEC’s unique setup tool,
the EXPRESSBUILDER, to enable auto OS
installation on a 2-minute manual setting
without technical skills
reduction in I/O latency
HARDWARE SPECIFICATION
MODEL Express5800/T120e
Form factor / height Tower / 5U Rack
Number of processors 1 to 2
Processors Intel
Memory type DDR3-1600 ECC LV RDIMM, DDR3-1333 ECC LV RDIMM
Memory slots 12
Maximum memory 384 GB
Storage type Hot plug 2.5-inch SAS HDD, Hot plug 2.5-inch SATA HDD, Hot plug 2.5-inch SAS SSD
Maximum internal drive bays 8 to 24 2.5-inch with optional drive cage
Maximum internal storage 32 TB
Removable media 1 bay for optical drive, 2 bay for internal 5-inch tape drive
Expansion slots 1 PCIe x16 Gen 3, 1 to 2 PCIe x8 Gen 3, 1 PCIe x4 Gen 2, 1 PCIe x1 Gen 2
Video (VRAM) Integrated in the server management controller (32 MB)
Network 2 1000BASE-T plus 1 100BASE-TX for management
Redundant power supply Optional, hot plug
Redundant cooling fan Optional, hot plug
Power supplies Hot plug power supply 450 Watt, 800 Watt
Systems management EXPRESSSCOPE Engine 3
Interface 1 VGA, 1 to 2 serial, 6 USB 2.0 (plus 3 internal USB 2.0), 2 LAN, 1 management LAN
Dimensions (W x D x H) and maximum weight 200.0 x 599.0 x 438.0 mm / 7.8 x 23.5 x 17.2 in / 33 kg / 72.75 lbs.
Temperature and humidity conditions
(non-condensing)
Operating systems and
virtualization software
Note : For Linux support, go to the NEC website at http://www.nec.com/global/prod/express/linux/, or contact our sales representative
®
Xeon® Processor E5-2403 v2 (1.80 GHz/4-core/10 MB)
®
Intel
Xeon® Processor E5-2407 v2 (2.40 GHz/4-core/10 MB)
®
Xeon® Processor E5-2420 v2 (2.20 GHz/6-core/15 MB)
Intel
®
Intel
Xeon® Processor E5-2430 v2 (2.50 GHz/6-core/15 MB)
®
Xeon® Processor E5-2440 v2 (1.90 GHz/8-core/20 MB)
Intel
Intel® Xeon® Processor E5-2470 v2 (2.40 GHz/10-core/25 MB)
Hot plug 3.5-inch SATA HDD, Non-hot plug 3.5-inch SATA HDD
4 to 8 3.5-inch with optional drive cage
Non-hot plug power supply 700 Watt
Operating: 10 to 40 °C / 50 to 104 °F, 20 to 80%
Non-operating: -10 to 55 °C / 14 to 131 °F, 20 to 80%
®
Microsoft
Microsoft® Windows Server® 2008 R2 Standard / Enterprise
Microsoft® Windows Server® 2012 Standard / Datacenter
Microsoft® Windows Server® 2012 R2 Standard / Datacenter
Red Hat® Enterprise Linux® 5
Red Hat® Enterprise Linux® 6
VMware® ESX™i 5
Windows Server® 2008 Standard / Enterprise
©Copyright 2014 NEC Corporation. The information and specications
contained in this publication are subject to modication without prior
notice. Microsoft and Windows Server are either registered trademarks
or trademarks of Microsoft Corporation in the United States and/or other
countries. Intel, Intel Logo, Pentium, Pentium Inside, Xeon, and Xeon Inside
are trademarks of Intel Corporation in the U.S. and/or other countries. Linux
is a trademark of Linus Torvalds. Red Hat is a registered trademark of Red
Hat, Inc. in the U.S. VMware is a registered trademark or trademark of
VMware, Inc. in the United States and/or other jurisdictions. All other names
of products and brands cited are the property of their respective owners.
NEC is not responsible for photographic or typing errors.
Cat. No. E04-13110009E
T120e January 2014
