NEC Express Server Express5800 Series

Express5800/T110f-S

EXP285A User’s Guide

Model Number: N8100-1983F/1984F

Chapter 1 General Description Chapter 2 Preparations Chapter 3 Setup Chapter 4 Appendix

10.101.01-101.01

July 2013, First Edition

Documents Provided with This Product

Documents for this product are provided as accompanying booklets ( ) and as electronic manuals ( within EXPRESSBUILDER DVD (

Precautions for Use

Getting Started

Describes points of caution to ensure the safe use of this server.

Read these cautions before using this server.

Describes how to use this server, from unpacking to operations. Refer to this guide as you begin for an overview of this server.

EXPRESSBUILDER

PDF

User’s Guide

Chapter 1: General Description Overviews, names, and functions of the server’s parts

Chapter 2: Preparations Installation of additional options, connection of peripheral devices,

and ideal location for this server

Chapter 3: Setup System BIOS configurations and summary of EXPRESSBUILDER

Chapter 4: Appendix Specifications and other information

PDF

) stored

PDF

Installation Guide (Windows)

Chapter 1: Installing Windows Installation of Windows and drivers, and important information for

Chapter 2: Installing the Bundled

PDF

Maintenance Guide

Chapter 1: Maintenance Server maintenance and troubleshooting

Chapter 2: Convenient Features Useful features and the detail of system BIOS settings, RAID

PDF

Notations Used in this Document

Notations used in the text

In addition to safety-related symbols urging caution, 3 other types of notations are used in this document. These notations have the following meanings.

Important Indicates critical items that must be followed when handling the server or operating software. If

the procedures described are not followed, server failure, data loss, and other serious

malfunctions could occur. Note Indicates items that must be confirmed when handling the server or operating software. Tips Indicates information that is helpful to keep in mind when using this server.

Optical disk drives

This server is equipped with one of the following drives, depending on the order at the time of purchase. T hese drives are referred to as optical disk drives in this document.

• DVD-ROM drive

• DVD Super MULTI drive

Hard disk drives

Unless otherwise stated, the hard disk drives (HDD) described in this document refer to the following.

• Hard disk drives (HDD)

• Solid state drive (SSD)

Removable media

Unless otherwise stated, removable media described in this document refer to the following.

• USB memory

• Flash FDD

Express5800/T110f-S User’s Guide

Notations Used in this Document

Abbreviations of Operating Systems

Windows Operating Systems are referred to as follows.

Refer to Chapter 1 (1.2 Supported Windows OS) in Installation Guide (Windows) for detailed information.

Notations in this document Official names of Windows

Widnows Server 2012 Standard

Windows Server 2012

Windows Server 2008 R2

Windows Server 2008 *

* Includes 64-bit and 32-bit Editions unless otherwise stated.

The following appears on EXPRESSBUILDER.

• Windows Server 2008 64-bit Edition: Windows Server 2008 x64

• Windows Server 2008 32-bit Edition: Windows Server 2008 x86

Widnows Server 2012 Datacenter

Windows Server 2012 Foundation

Windows Server 2008 R2 Standard Windows Server 2008 R2 Enterprise Windows Server 2008 Standard Windows Server 2008 Enterprise

Express5800/T110f-S User’s Guide

Trademarks

EXPRESSSCOPE are registered trademarks of NEC Corporation. Microsoft, Windows, Windows Server, Windows Vista, and MS-DOS are registered trademarks or trademarks of Microsoft Corporation in the United States and other countries. Intel, Pentium, and Xeon are registered trademarks of Intel Corporation of the United States. AT is a registered trademark of International Business Machines Corporation of the United States and other countries. Adaptec, its logo, and SCSI Select are registered trademarks or trademarks of Adaptec, Inc. of the United States. LSI and the LSI logo design are trademarks or registered trademarks of LSI Corporation. Adobe, the Adobe logo, and Acrobat are trademarks of Adobe Systems Incorporated. DLT and DLTtape are trademarks of Quantum Corporation of the United States. PCI Express is a trademark of Peripheral Component Interconnect Special Interest Group. Linux is a trademark or registered trademark of Linus Torvalds in Japan and other countries. Red Hat® and Red Hat Enterprise Linux are trademarks or registered trademarks of Red Hat, Inc . in the United States and other countries.

All other product, brand, or trade names used in this publication are the trademarks or registered trademarks of their respecti ve trademark owners.

License Notification

The System BIOS of this product contains open source software for the following license.

EDK FROM TIANOCORE.ORG

following conditions are met:

Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.

- Redistributions in binary form must reproduce the above copyright notice, this list of conditions and th e following

disclaimer in the documentation and/or other materials provided with the distribution. Neither the name of the Intel Corporation nor the names of its contributors may be used to en dorse or promote

products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

Copyright (c) 2004 - 2007, Intel Corporation All rights reserved. This program and the accompanying materials are licensed and made av ailable under the terms and conditions of the BSD License which accompanies this di stribution. The full text of the license may be found at http://opensource.org/licenses/bsd-license.php THE PROGRAM IS DISTRIBUTED UNDER THE BSD LICENSE ON AN "AS IS" BASIS, WITHOUT WARRANTIES OR REPRESENTATIONS OF ANY KIND, EITHER EXPRESS OR IMPLIED.

Express5800/T110f-S User’s Guide

Regulatory Notices

FCC Statement

This equipment has been tested and found to comply with the limits for a Class A digit al devi ce, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

Industry Canada Class A Emission Compliance Statement/ Avis de conformité à la réglementation d'Industrie Canada:

CAN ICES-3(A)/NMB-3(A)

CE / Australia and New Zealand Statement

This is a Class A product. In domestic environment this product may cause radio interference in which case the user may be required to take adequate measures (EN55022).

BSMI Statement

Disposing of your used product

In the European Union

EU-wide legislation as implemented in each Member State requires that used electrical and electronic products carrying the mark (left) must be disposed of separately from normal household waste. This includes Information and Communication Technology (ICT) equipment or electrical accessories, such as cables or DVDs. When disposing of used products, you should comply with applicable legislation or agreements you may have. The mark on the electrical and electronic products only applies to the current European Union Member States.

Outside the European Union

If you wish to dispose of used electrical and electronic products outside the European Union, please contact your local authority and ask for the correct method of disp osal.

Express5800/T110f-S User’s Guide

Turkish RoHS information relevant for Turkish market

EEE Yönetmeliğine Uygundur

CCC声明

部件名称

印刷线路板 ×○○○○○ HDD、DVD等 ×○○○○○ 机箱、支架 ○○○○○○ 电源 ×○○○○○ 键盘 ×○○○○○

其他（电缆、鼠标

○：表示该有毒有害物质在该部件所有均质材料中的含量均在SJ/T11363-2006标准规定的限量要求以下。 ×：表示该有毒有害物质至少在该部件的某一均质材料中的含量超出SJ/T11363-2006标准规定的限量要求。

铅

×○○○○○

汞

有毒有害物质或元素

镉

六价铬

多溴联苯

多溴二苯醚

Regulatory Notices

Vietnam RoHS information relevant for Vietnam market

Complying with "CIRCULAR, No.30/2011/TT-BCT (Hanoi, August 10 2011), Temporary regulations on content limit for certain hazardous substances in electrical products"

Declaration of Conformity

with the requirements of Technical Regulation on the Restriction Of the use of certain Hazardous

Substances in Electrical and Electronic Equipment

(adopted by Order №1057 of Cabinet of Ministers of Ukraine)

The Product is in conformity with the requirements of Technical Regulation on the Restriction Of the use of certain Hazardous Substances in electrical and electronic equipment (TR on RoHS).

The content of hazardous substance with the exemption of the applications listed in the Annex №2 of TR on RoHS:

1. Lead (Pb) – not over 0,1wt % or 1000wt ppm;

2. Cadmium (Cd) – not over 0,01wt % or 100wt ppm;

3. Mercury (Hg) – not over 0,1wt % or 1000wt ppm;

4. Hexavalent chromium (Cr6+) – not over 0,1wt % or 1000wt ppm;

5. Polybrominated biphenyls (PBBs) – not over 0,1wt % or 1000wt ppm;

6. Polybrominated diphenyl ethers (PBDEs) – not over 0,1wt % or 1000wt ppm.

Express5800/T110f-S User’s Guide

Regulatory Notices

Декларація про Відповідність

Вимогам Технічного Регламенту Обмеження Використання деяких Небезпечних Речовин в

електричному та електронному обладнанні

(затвердженого Постановою №1057 Кабінету Міністрів України)

Виріб відповідає вимогам Технічного Регламенту Обмеження Використання деяких Небезпечних Речовин в електричному та електронному обладнанні (ТР ОВНР).

Вміст небезпечних речовин у випадках, не обумовлених в Додатку №2 ТР ОВНР, :

свинець (Pb) – не перевищує 0,1 % ваги речовини або в концентрації до 1000 частин на

мільйон;

кадмій (Cd) – не перевищує 0,01 % ваги речовини або в концентрації до 100 частин на

мільйон;

ртуть (Hg) – не перевищує 0,1 % ваги речовини або в концентрації до 1000 частин на

3. мільйон;

4. шестивалентний хром (Cr6+) – не перевищує 0,1 % ваги речовини або в концентрації до 1000 частин на мільйон;

5. полібромбіфеноли (PBB) – не перевищує 0,1% ваги речовини або в концентрації до 1000 частин на мільйон;

6. полібромдефенілові ефіри (PBDE) – не перевищує 0,1 % ваги речовини або в

концентрації до 1000 ча

стин на мільйон.

Декларация о Соответствии

Требованиям Технического Регламента об Ограничении Использования некоторых Вредных

Веществ в электрическом и электронном оборудовании

(утверждённого Постановлением №1057 Кабинета Министров Украины)

Изделие соответствует требованиям Технического Регламента об Ограничении Использования некоторых Вредных Веществ в электрическом и электронном оборудовании (ТР ОИВВ).

Содержание вредных веществ в случаях, не предусмотренных Дополнением №2 ТР ОИВВ:

1. свине

ц (Pb) – не превышает 0,1 % веса вещества или в концентрации до 1000

миллионных частей;

2. кадмий (Cd) – не превышает 0,01 % веса вещества или в концентрации до 100 миллионных частей;

3. ртуть (Hg) – не превышает 0,1 % веса вещества или в концентрации до 1000 миллионных частей;

4. шестивалентный хром (Cr6+) – не превышает 0,1 % веса вещества или в концентрации до 1000 миллионных частей;

5. полибромбифенолы (PBB) – не превышае

т 0,1 % веса вещества или в концентрации до

1000 миллионных частей;

6. полибромдифеноловые эфиры (PBDE) – не превышает 0,1 % веса вещества или в концентрации до 1000 миллионных частей.

Express5800/T110f-S User’s Guide

Warnings and Additions to this Document

1. Unauthorized reproduction of the contents of this document, in part or in its entirety, is prohibited.

2. The contents of this document may change without prior notice.

3. Do not make copies or alter the document content without permission from NEC Corporation.

4. Every effort has been made to ensure the completeness of this document. However, if you have any concerns, or discover errors or omissions, please contact your retailer.

5. Regardless of these 4 items, NEC Corporation assumes no responsibility for effects resulting from operations.

6. The sample values used in this document are not the actual values.

Keep this document nearby so that you may refer to it as necessary.

Latest editions

This document was created based on the information available at the time of its creation. T he screen images, messages and procedures may differ from the actual screens, messages and p rocedures. appropriate when content has been modified. The most recent version of User’s Guide, as well as other related documents, is als o available for download from the following website.

http://www.nec.com/

Substitute as

Express5800/T110f-S User’s Guide

Precautions for Use (Be Sure to Read)

The following provides information required to use yo ur serv er safely and properl y. For details of names in this section, refer to Names and Functions of Parts in this document.

Safety precautions

Follow the instructions in this document for the safe use of the NEC Express server. This User’s Guide describes hazardous parts of the server, possible haza rds, and how to avoid them. Server components with possible danger are indicated with a warning label placed on or around them (or, in some cases, by printing the warnings on the server). In User’s Guide or on warning labels, WARNING or CAUTION is used to indicate a degree of danger. These terms are defined as follows:

WARNING

Precautions and notices against hazards are presented with one of the following three s ymbols. The individual symbols are defined as follows:

CAUTION

Attention

Indicates there is a risk of death or serious personal injury

Indicates there is a risk of burns, other personal injury, or property damage

This symbol indicates the presence of a hazard if the instruction is ignored. An image in the symbol illustrates the hazard type.

(Example)

(Electric shock risk)

Prohibited Action

Mandatory Action

This symbol indicates prohibited actions. An image in the symbol illustrates a particular prohibited action.

This symbol indicates mandatory actions. An image in the symbol illustrates a mandatory action to avoid a particular hazard.

(Example)

(Do not disassemble)

(Example)

(Disconnect a plug)

Express5800/T110f-S User’s Guide

Precautions for Use (Be Sure to Read)

(A label example used in this User’s Guide)

Symbol to draw

attention

Description of a warning

Term indicating a degree of danger

Use only the specified outlet

Use a grounded outlet with the specified voltage. Use of an improper power source may cause a fire or a power leak.

WARNING

Symbols used in this document and on warning labels

Attentions

Indicates the presence of electric shock hazards.

Indicates the presence of a hot surface or component. Touching this surface could result in bodily injury.

Indicates there is a risk of explosion.

Indicates there is a risk of fire or fumes.

Prohibited Actions

Do not disassemble, repair, or modify the server. Otherwise, an electric shock or fire may be caused.

Do not touch the component specified by this symbol. Otherwise, an electric shock or burn may be caused.

Do not place the server near the fire. Otherwise, a fire may be caused.

Mandatory Actions

Indicates the presence of mechanical parts that can result in bodily injury.

Indicates the presence of mechanical parts that can result in pinching or other bodily injury.

Indicates the presence of laser beam that

cause blindness.

Indicates a general notice or warning that cannot be specifically identified.

Do not touch the server with wet hand. Otherwise, an electric shock may be caused.

Do not use the server in the place where water or liquid may pour. Otherwise, an electric shock or fire may be caused.

Indicates a general prohibited action that cannot be specifically identified.

Unplug the power cord of the server. Otherwise, an electric shock or fire may be caused.

Indicates a mandatory action that cannot be specifically identified. Make sure to follow the instruction.

Make sure equipment is properly grounded. Otherwise, an electric shock or fire may be caused.

Express5800/T110f-S User’s Guide

Precautions for Use (Be Sure to Read)

Safety notes

This section provides notes on using the server safely. Read this section carefully to ensure proper and safe use of the server. For symbols, refer to Safety precautions.

General

Do not use the server for services where human life may be at stake or high reliability is required.

This server is not intended for use in medical, nuclear, aerospace, mass transit or other applications where human life may be at stake or high reliability is required, nor is it intended for use in controlling such applications. We disclaim liability for any personal injury and property damages caused by such use of this server.

Do not use the server if any smoke, odor, or noise is present.

If smoke, odor, or noise is present, immediately turn off the server and disconnect the power plug from the outlet, then contact the store where you purchased the product or your maintenance service company. Using the server in such conditions may cause a fire.

Do not insert needles or metal objects.

Do not insert needles or metal objects into ventilation holes in the server or openings in the optical disk drive. Doing so may cause an electric shock.

WARNING

CAUTION

Keep water or foreign matter away from the server.

Do not let any liquid such as water or foreign materials including pins or paper clips enter the server. Failure to follow this warning may cause an electric shock, a fire, or failure of the server. When such things accidentally enter the server, immediately turn off the power and disconnect the power plug from the outlet. Do not disassemble the server, and contact the store where you purchased the product or your maintenance service company.

Express5800/T110f-S User’s Guide

Power supply and power cord use

Precautions for Use (Be Sure to Read)

Do not hold the power plug with a wet hand.

Do not disconnect/connect the plug while your hands are wet. Failure to follow this warning may cause an electric shock.

Do not connect the ground wire to a gas pipe.

Never connect the ground wire to a gas pipe. Failure to follow this warning may cause a gas explosion.

Plug in to a proper power source.

Use a grounded outlet and observe the specified voltage. Use of an improper power source ma y cause a fire or a power leak.

Do not install the server where yo u need an extension cord. Use of a cord that does not meet the power specifications of the server may heat up the cord and cause a fire.

If you want to use an AC cord set with a ground wire of class OI, be sure to connect the ground wire before inserting the power plug into the outlet. Before disconnecting the ground wire, be sure to disconnect the power plug from the output.

WARNING

CAUTION

Do not connect many cords into a single outlet by using extension cords.

The electric current exceeding the rated flow overheats the outlet, which may cause a fire.

Do not pull out a cable by gripping the cable part.

Pull a cable straight out by gripping the connector part. Pulling a cable by gripping the cable part or applying extra pressure to the connector part may damage the cable part, which may cause a fire or electric shock.

Insert the power plug into the outlet as far as it goes.

Heat generation resulting from a halfway inserted power plug (imperfect contact) may cause a fire. Heat will also be generated if condensation is formed on dusty blades of the halfway inserted plug, increasing the possibility of fire.

Express5800/T110f-S User’s Guide

Precautions for Use (Be Sure to Read)

Do not use any unauthorized interface cable.

Use only the interface cables provided with the server. Electric current that exceeds the amount allowed could cause fire.

Also, observe the following precautions to prevent electrical shock or fire caused by a damaged power cord.

• Do not stretch the cord harness

• Do not bend the power cord.

• Do not twist the power cord

• Do not step on the power cord.

• Uncoil the power cord before use

• Do not secure the power cord with staples or

equivalents

Do not use the attached power cord for any other devices or usage.

The power cord that comes with your server is designed aiming to connect with this server and to use with the server, and its safety has been tested. Do not use the attached power cord for any other purpose. Doing so may cause a fire or an electric shock.

CAUTION

• Do not pinch the power cord

• Keep chemicals away from the power cord

• Do not place any object on the power cord

• Do not alter, modify, or repair the power cord

• Do not use a damaged power cord (replace the

damaged power cord with a power cord of the same standard. For information on replacing the power cord, contact the store where you purchased the product or a maintenance service company)

Express5800/T110f-S User’s Guide

Installation, relocation, storage, and connection

Precautions for Use (Be Sure to Read)

Do not attempt to lift the server by holding the front bezel.

Securely hold the server by the base to move or lift. Do not attempt to lift it by holding the front bezel. Doing so may cause the front bezel to come off, which may cause not only breakage of the server but also cause the server to fall on to persons resulting in personal injury.

Do not install the server in any place other than specified.

Do not install the server in the following places or any place other than specified in this User's Guide. Failure to follow this instruction may cause a fire.

• A dusty place

• A humid place such as near a boiler

• A place exposed to direct sunlight

• An unstable place

Do not use the server in an environment where corrosive gas is present

Do not install the server in a place subject to corrosive gases including sodium chloride, sulfur dioxide, hydrogen sulfide, nitrogen dioxide, chlorine, ammonia, or ozone. Do not install the server in an environment that contains dust, chemicals that accelerate corrosion such as NaCl or sulfur, or conductive materials. Failure to follow this warning may cause the wiring on the printed wiring board to short-circuit, leading to fire. If you have any questions, contact the store where you purchased the product or a maintenance service company.

CAUTION

Do not connect or disconnect any interface cable with the pow er cord of the server plugged to a power source.

Be sure to power off the server and unplug the power cord from a power outlet bef ore installing/removing any optional internal device or connecting/disconnecting any interface cable to/from the server. If the server is off-powered but its power cord is plugged to a power source, touching an internal device, cable, or connector may cause an electric shock or a fire resulted from a short circuit.

Use only the specified interface cable.

Use only interface cables provided by NEC and locate a proper device and connector before connecting a cable. Using an authorized cable or connecting a cable to an improper destination may cause a short circuit, resulting in a fire.

Also, observe the following notes on using and connecting an interface cable.

• Do not use any damaged cable connector.

• Do not step on the cable.

• Do not place any object on the cable.

• Do not use the server with loose cable connections.

• Do not use any damaged cable.

Express5800/T110f-S User’s Guide

Cleaning and working with internal devices

Precautions for Use (Be Sure to Read)

Do not disassemble, repair, or alter the server.

Never attempt to disassemble, repair, or alter the server on any occasion except as described in this document. Failure to follow this warning may cause not only malfunction of the server but also an electric shock or fire.

Do not look into the optical disk drive

A laser beam used in the optical disk is harmful to the eyes. Do not look into or insert a mirror into the drive while the drive is powered on. If a laser beam (which is invisible) enters your eyes, you may lose your eyesight.

Do not attempt to remove lithium, NiMH, or Li-ion batteries.

The server contains the lithium, NiMH, or Li-ion battery (some optional devices have a lithium, NiMH, or Li-ion battery installed). Do not remove the battery. Placing a battery close to a fire or in the water may cause an explosion.

When the server does not operate appropriately due to the dead battery, contact the store you purchased the product or your maintenance service company. Do not attempt to disassemble the server to replace or recharge the battery by yourself.

WARNING

High temperature

Components including internal Hard Disk Drives in the server are extremely hot just after the server is turned off. Allow the surface to cool before installing/removing.

Secure cables or cards in place

Be sure to secure the power cord, interface cables, and cards in place. Incomplete installation causes a loose connection, resulting in smoke or fire

CAUTION

Express5800/T110f-S User’s Guide

During operation

Precautions for Use (Be Sure to Read)

Avoid contact with the server during thunderstorms.

Do not touch any part of the server including the cables when a thunderstorm is approaching. Also, do not connect or disconnect any devices. There may be a risk of electric shock from lightning strike.

Keep animals away from the server.

Keep animals such as pets away from the server. Pet hair or other waste enters the server, which may cause a fire or electric shock.

Do not place any object on top of vertically mounted servers.

Any weight on the server may cause the server to fall, resulting in personal injury or property damage.

Do not place any object that weighs 5 kg or more on top of horizontally mounted servers.

The maximum weight that can be placed on top of the server when it is horizontally mounted is 5 kg. Do not place any object weighing 5 kg or more on top of the server. Failure to observe this limit may deform the server, which could cause a failure.

CAUTION

Do not leave the optical disk drive tray open.

Dust may get in the server when the tray is open, which may result in a malfunction. In addition, bumping the open tray could cause personal injury.

Do not get yourself caught in the fan

Keep your hands and hair away from the cooling fan at the rear of the server during operation. Failure to observe this warning may cause your hands or hair to catch in the fan, resulting in personal injury.

Express5800/T110f-S User’s Guide

Precautions for Use (Be Sure to Read)

Warning labels

Warning label are attached on or near the components with potentia l hazards (This label is either attached or printed on the component.) to draw attention from users to potential hazards involved in handling the server. (Do not remove or black out this label and keep it clean). If no label is attached or printed on the server, or if there is a label coming off or stained, contact the store where you purchased the product.

Express5800/T110f-S User’s Guide

Precautions for Use (Be Sure to Read)

Handling precautions (for proper operations)

Be sure to observe the following precautions for the proper functioning of the server. Ignoring the prec autions may cause server malfunction or failure.

• Do not use any cell phone or PHS and switch off them near the server. Electric waves from such devices can cause server to malfunction.

• Install the server in an appropriate place. For details about the installation location, refer to Chapter 2 Preparations (2. Installation and Connection).

• Before connecting/removing cables to/from peripheral devices, make sure that the server is off and unplug the power cord, if they are non plug-and-play devices.

• Connect the provided p ower cord to a 100 VAC outlet. If an optional cable is used, you may connect to a 100 or 200 VAC power system.

• Make sure that the access LED on the server is off before turning off the power or ejecting an optical disk.

• Wait for at least 30 seconds before turning on the server after turning off the server. If any Uninterruptible

Power Supply unit is connected, set it to wait for at least 30 seconds before turning on the server after power off. If the optional RAID Controller N8103-167 is installed, wait for at least 90 seconds before turning on the server after turning off the power.

• Turn off the server and unplug the po wer cord before moving it.

• Regularly clean the server to prevent various types of failure. (Refer to Chapter 1 Maintenance (2. Daily

Maintenance) in "Maintenance Guide" for details about cleaning.)

• Momentary volt age drop may occur due to lightning strike. To prevent this, use of UPS is recommended.

• We do not guarantee that an y copy-protected CD that does not conform to standards will play on the CD

player.

• In the following cases, check and adjust the system clock before operation.

― After transportation ― After storage ― After the server is used following a period of disuse, in which storage conditions did not conform

to those that guarantee server operations (temperature: 10°C to 40°C; humidity: 20% to 80%).

• Check the system clock approximately once per month. Use of a time server (NTP server) is recommended

if high accuracy timing is required by the system. If you notice that the system clock runs significantly faster or slower over time even after adjustment, contact the store where you purchased the product or your maintenance service company for repair.

• In order to get the server and internal devices to work properly, we recommend you store the server at room temperature. Observe the storage conditions (Temperature: −10°C to 55°C, Humidity: 20% to 80%) to store the server. (No condensation of moisture)

Express5800/T110f-S User’s Guide

Precautions for Use (Be Sure to Read)

• If this server, internal optional devic es, and media set for the backup devices (tape cartridges) are moved from a cold place to a warm place in a short time, condensation will occur and cause malfunctions and failures when these are used in such state. To protect important stored data and property, make sure to wait for a sufficient period to use the server and components in the operating environment. Reference: Time effective at avoiding condensation in winter (10°C or more differences between the room temperature and atmospheric temperature)

― Disk devices: Approximately 2 to 3 hours ― Tape media: Approximately 1 day

• For optional devices, we recommend you use our NEC products. Some memory or Hard Disk Drive manufactured by other companies are supported for use with this server, however, you will be charged to repair failure or damage caused by use of such products even within warranty period.

Express5800/T110f-S User’s Guide

Precautions for Use (Be Sure to Read)

Anti-Static Measures

This product contains static-sensitive electronic components. Follow the measures below to avoid a failure caused by static electricity when installing or uninstalling any optional device.

• Wearing Anti-static Wrist Strap or Anti-static Gloves

Wear a wrist strap on your wrist and connect the wire to the chassis. If there is no wrist strap, touch an unpainted metal surface of the chassis connected to the ground to discharge static electricity from your body before touching the component. Touch the metal part occasionally to discharge the static electricity while working on the component.

• Checking the Workpl ace

− Work on an anti-static floor or concrete floor.

− If you work on a place where static electricity is likely to be generated (e.g. carpet), be sure to provide

anti-static protection.

• Using the Work Table

Place the server on a mat with Electrostatic Discharge (ESD) protection.

• Clothing

− Do not wear wool or synthetic clothes.

− Wear anti-static shoes.

− Remove any kind of metal accessories such as a ring, bracelet or wrist watch.

• Handling of Components

− Keep the component in an anti-static bag until you install it to the server.

− Hold the component by the edges to avoid touching any terminals or mounting parts.

− Place the component in an anti-static bag when storing or moving them.

• Handling of Cables

When connecting a cable (e.g., LAN cable), static electricity may also be charged due to friction against the floor. Connecting the charged cable with an I/O device may cause damage to the devices in the system. It is recommended to use a product such as electrostatic discharge kit to eliminate the static charge before connecting the cable.

• Installing and Uninstalling the Optional Device

− To avoid electric hazard and malfunction, be sure to turn off the power switch of the server and unplug

the power cord from the outlet before installing or uninstalling any optional device. If the device is hot-swappable, you do not need to turn off the power switch and unplug the power cord.

− The device contains static-sensitive electronic components. When installing or uninstalling the optional device, wear an anti-static wrist strap on your wrist to avoid a failure caused by the static electricity. To use the strap, connect the wire to the chassis.

Express5800/T110f-S User’s Guide

Precautions for Use (Be Sure to Read)

Using a computer extensively may affect different parts of your body. Here are tips you should follow while working on a computer to minimize strain on your body.

Keep proper posture

The basic body position for using a computer is sitting straight with your hands on the keyboard parallel with the floor, and your eyes directed slightly downward toward the monitor. With the proper posture described above, no unnecessary strain is applied on any part of your body, in other words when your muscles are most relaxed.

Working on the computer with bad posture such as hunching over or being too close to the monitor could cause fatigue or deteriorated eyesight.

Adjust the angle of your display

Most display units are designed for adjustment of the horizontal and vertical angles. This adjustment is important to prevent the screen from reflecting bright lights and to make the display contents easy to see. Working without adjusting the display to a comfortable angle makes it difficult for you to maintain a proper posture and you will get tired easily. Adjust the viewing angle before use.

Tips for your health and safety

Adjust the brightness and contrast of the display

Display screens have functions to control brightness and contrast. The most suitable brightness/contrast depends on age, individuals, and environment, so adjust it to suit your preferences. A too bright or too dark display is bad for your eyes.

Adjust the angle of keyboard

Some keyboards are ergonomically designed, which allow the angle to be adjusted. Adjusting the angle of the keyboard is effective to reduce tension on your shoulders, arms, and fingers.

Clean your equipment

Keeping your equipment clean is important not only for the appearance but also for functional and safety reasons. A dusty monitor makes it difficult to see the display contents, so clean it regularly.

Take rest breaks

When you feel tired, take a break. Light exercise is also recommended.

Express5800/T110f-S User’s Guide

NEC Express5800 Series Express5800/T110f-S

General Description

This chapter introduces the features of this server and the name of each part.

1. Introduction

2. Accessories

Verify the condition of your server's accessories.

3. Standard Features

Check and maintain the server system by using the functions explained in this section.

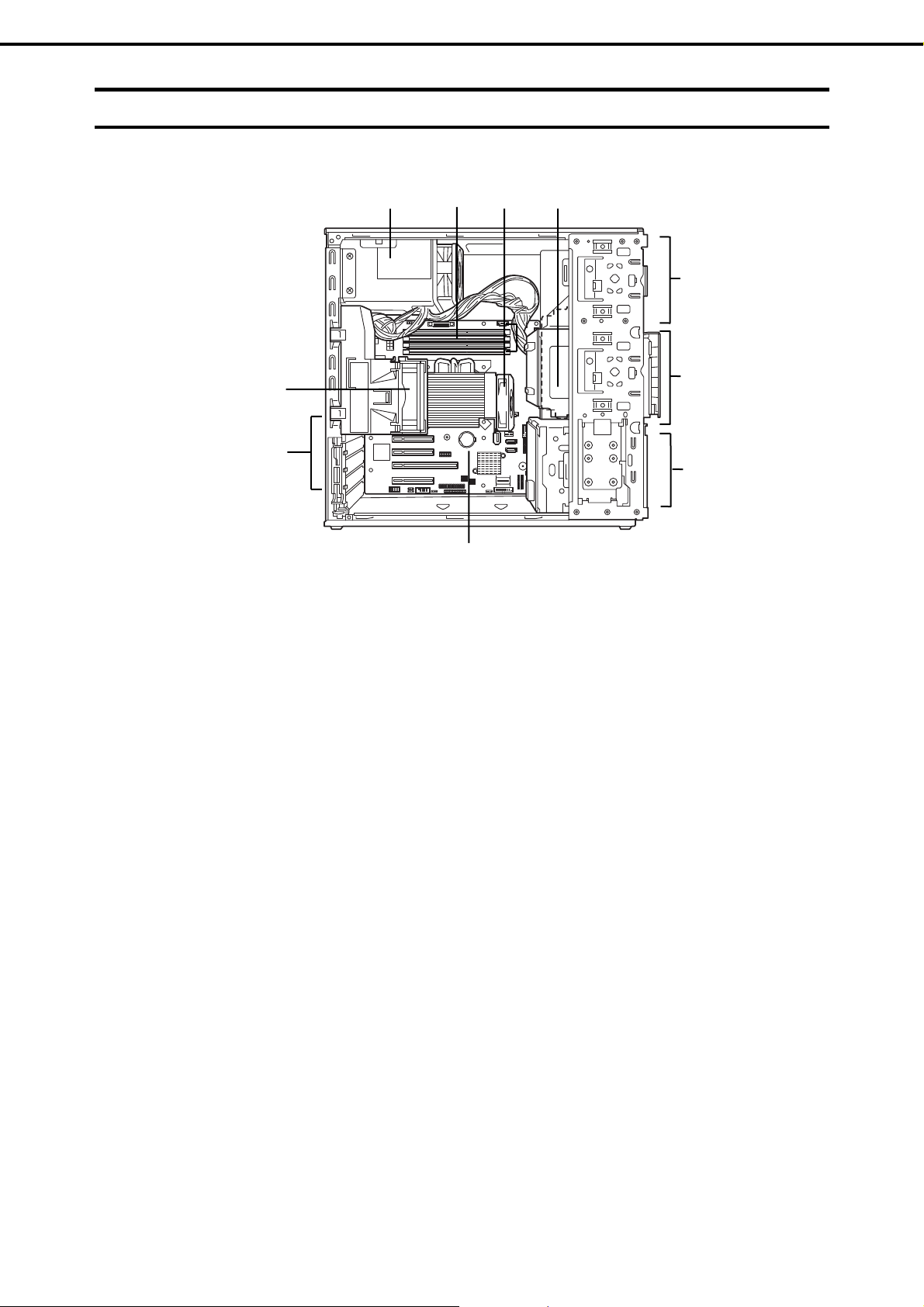

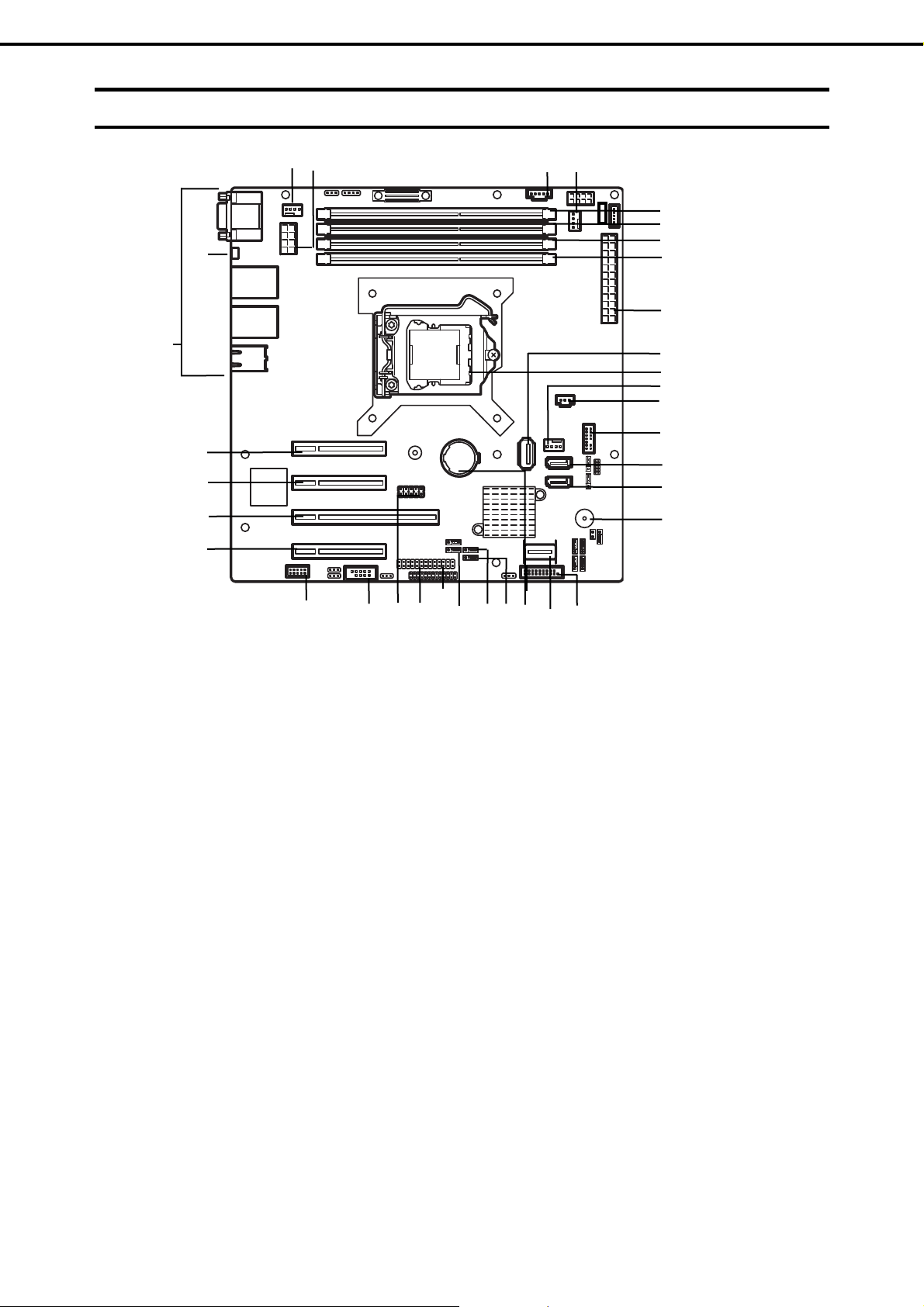

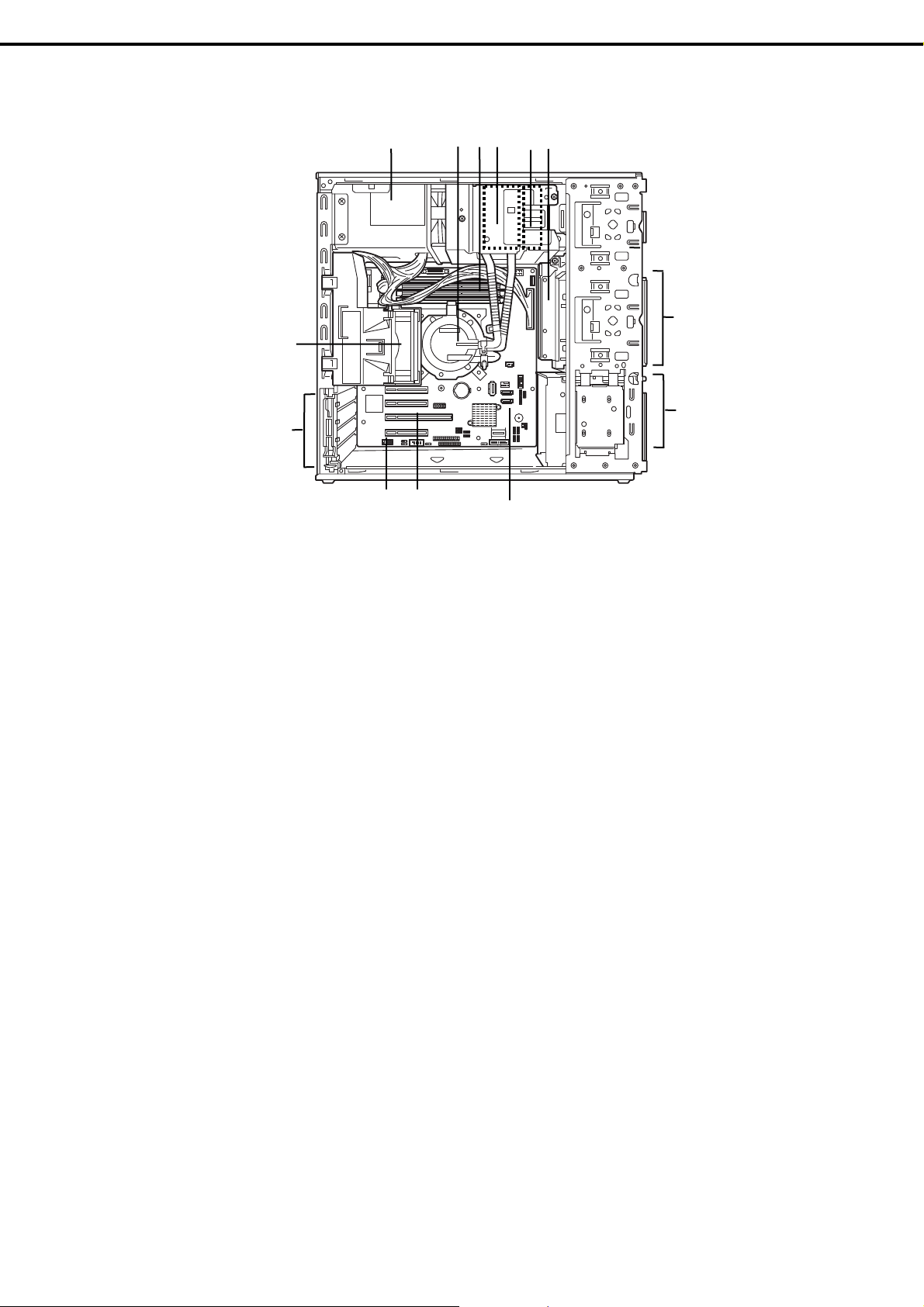

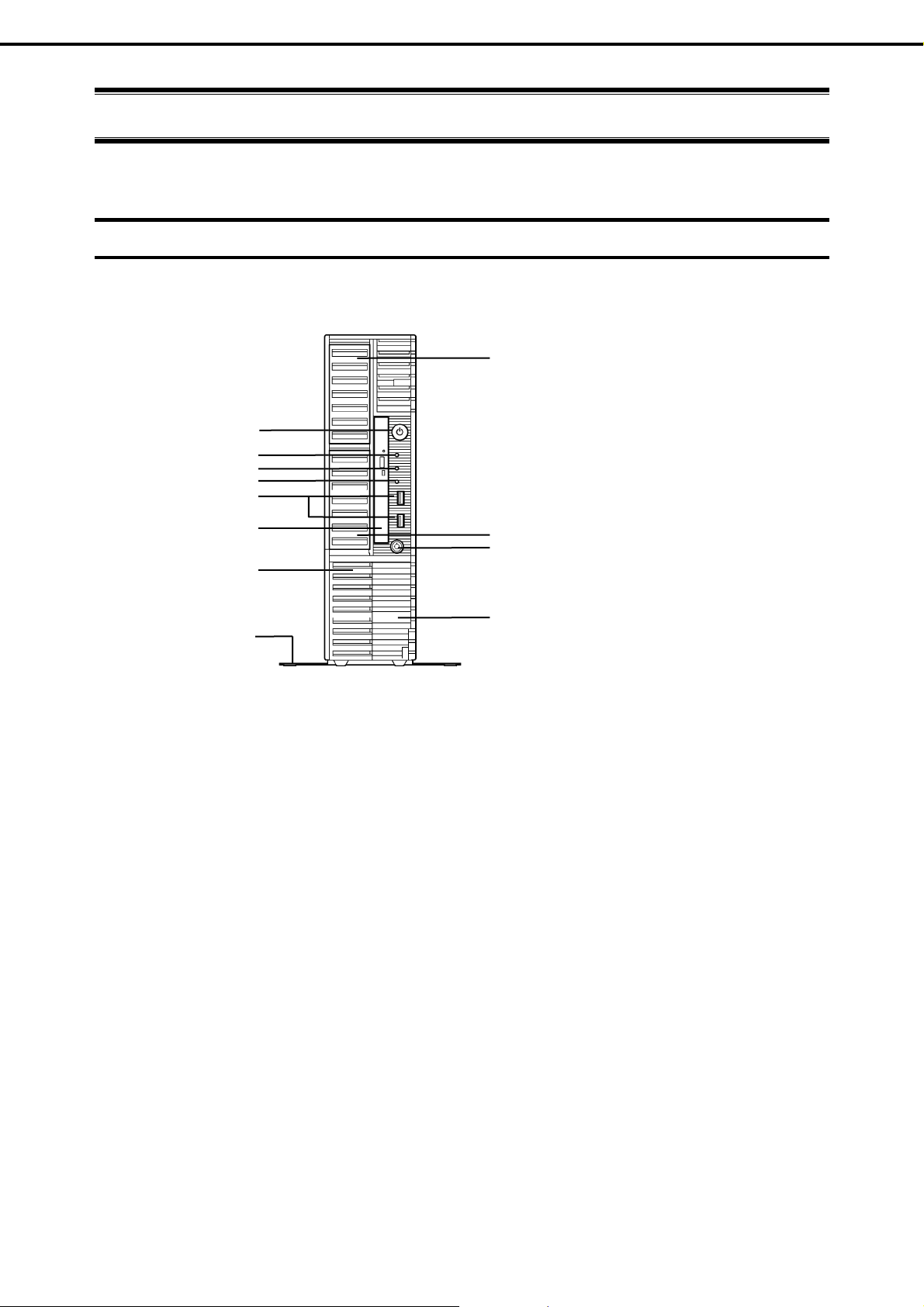

4. Names and Functions of Parts

This section describes the name of each part contained in this server.

Express5800/T110f-S User’s Guide

Chapter 1 General Description

1. Introduction

Introduction

Thank you for purchasing this NEC Express5800 Series product. This high performance server is powered by the latest Intel

NEC’s latest technology and architectures realize high-power and high-speed operation that cannot be matched by existing servers. The server is designed with consideration of not only reliabilit y but also ex pandability, which enables you to use it as a network server. Read this document before using the server thoroughly to fully understand handling of the NEC Express server and appreciate its functions to the maximum extent.

processor "Intel® Xeon® processor".

Express5800/T110f-S User’s Guide

Chapter 1 General Description

2. Accessories

Accessories

The carton box contains various accessories which are required for setup or maintenance. Make sure you have them all for future use.

• Keyboard × 1

• Mouse × 1

• Rubber foot × 4

• Bezel lock key × 2

• Screw set (502) × 1

• EXPRESSBUILDER DVD

• Getting Started × 1

• Power cord × 1

• SDR update CD-ROM × 1

*1 Only when 2.5-inch HDD cage is installed. *2 Documents are stored in EXPRESSBUILDER. Adobe Reader is required to read the docume nts so make

sure you have it installed in your PC.

Make sure you have all accessories and inspect them. If an accessory is missing or d amaged, contact your sales representative.

× 1

Express5800/T110f-S User’s Guide

Chapter 1 General Description

3. Standard Features

Standard Features

The server has the following standard features:

High performance

• Intel

• High-speed memor y access (DDR3 160 0 su pported)

• High-speed disk access (SATA2 6 Gbps, SAS 6 Gbps supported) *2

• High-speed 1000BASE-T (2 ports) interface

High reliability

• Memory monitoring feature (error correction/error detection)

• Memory degeneracy feature (logical isolation of a failed device)

• Bus parity error detection

• Temperature detection

• Error detection

• Internal fan monitoring feature

• Internal voltage monitoring feature

• RAID System (Disk Array) (also available as an option)

• BIOS password feature

Management utilities

• NEC ESMPRO

• ExpressUpdate

• Remote controlling feature (EXPRESSSCOPE Engine 3)

• RAID System management utility (Universal RAID Utility)

• Hard disk drive monitoring

Power saving and noiseless design

• Power monitoring feature

• Power control feature

• High-efficiency power supply supporting 80 PLUS

• Fan control appropriate to environment, work load, and configuration

• Enhanced Intel SpeedSt ep

Expandability

• Many IO option slots

Xeon® processor

(1 Gbps/100 Mbps/10 Mbps supported)

Technology supported

− PCI Express 3.0 (x 16 lanes) : 1 slot (low profile)

− PCI Express 2.0 (x 4 lanes): 1 slot (low profile)

Platinum

− PCI Express 2.0 (x 1 lanes): 2 slots (low profile)

• Large memory of up to 32 GB

• Backup device bay prov ided as standard

• USB 3.0 interface (Only when the OS and USB ports support this interface)

• Three LAN connectors (one for management LAN)

Ready to use

• Hard disk drives can be installed with one-touch setup, which requires no cables (hot swap supported)

Express5800/T110f-S User’s Guide

Chapter 1 General Description

Many built-in features

• El Torito Bootable CD-ROM (no emulation mode) format supported

• Software power-off

• Remote power-on feature

• AC-Link feature

• Remote console feature

• Baseboard Manag ement Controller (BMC) conforming to IPMI v2.0

Self-diagnosis

• Power On Self-Test (POST)

• Test and Diagnosis (T&D) utility

Easy setup

• EXPRESSBUILDER (setup utility)

• SETUP (BIOS SETUP utility)

Maintenance features

• Off-line tool

• Memory dump feature using the DUMP switch

• Feature to back up and restore BIOS/BMC settings using the EXPRESSSCOPE profile key

3. Standard Features

Express5800/T110f-S User’s Guide

Chapter 1 General Description

3. Standard Features

3.1

Management Features

The hardware components of the server provide operation control/reliability features as shown below. Additionally, NEC ESMPRO Agent, which is provided in EXPRESSBUILDER, enables you to collectively manage the state of your systems. You can also monitor the server states from a PC to manage the net work where NEC ESMPRO Manager provided in EXPRESSBUILDER is installed.

The features available on this server are as shown in the table below.

Function Availability Description

Hardware

System

I/O device

System environment

Software Network BIOS Local polling Storage File system RAID System

Others*

Shows physical hardware information. Memory bank Device info CPU

Temperature Fan Voltage Power supply Door

Shows physical memory information.

{

Shows information specific to the server.

{

Shows physical CPU information.

{

Shows logical CPU information and monitors the load factor.

{

Shows logical memory information and monitors the status. Shows information on I/O devices ( serial ports, keyboard, mouse, and

{

video).

Monitors the temperature inside of the chassis.

{

Monitors the fans.

{

Monitors the voltage inside of the chassis.

{

Monitors the power supply unit.

{

Monitors chassis intrusion (open/close of the covers and doors on the

chassis). Shows service, driver, and OS information.

{

Shows network (LAN) information and monitors packets.

{

Shows BIOS information.

{

Monitors the values of an MIB item obtained by NEC ESMPRO Agent.

{

Monitors controllers and storage devices including hard disk drives.

{

Shows the file system configuration and monitors the free space.

{ {

Monitors the following RAID Controllers:

• On-board RAID Controller (LSI Embedded MegaRAID

• Optional RAID Controller

Monitors OS stall using the Watch Dog Timer.

{

Performs alert processing after an OS STOP error occurs.

{

)

{: Supported. U: Partially supported. ×: Unsupported. *: Not displayed on the NEC ESMPRO Manager screen.

Tips

Express5800/T110f-S User’s Guide

NEC ESMPRO Manager and NEC ESMPRO Agent are supplied with the server as standard. For how to install and use each software component, refer to the explanation of the component.

Chapter 1 General Description

3. Standard Features

3.2

Firmware and Software Version Management

By using NEC ESMPRO Manager and ExpressUpdate Agent, you can manage firmware or software on the server and update them by applying an update package.

This function automatically updates multiple modules without stopping the system just by specifying the application of an update package from NEC ESMPRO Manager.

Express5800/T110f-S User’s Guide

Chapter 1 General Description

4. Names and Functions of Parts

Names and Functions of Parts

Names and functions of parts are as follows.

4.1

Front of the server

Air Cooling model

(1) (2)

(3) (4) (5)

(8) (6)

(10)

(9) (11)

(7)

(1) POWER Switch

The switch to turn the server on and off. Press once to turn on the server. The LED lights green when it is on. Press it again to turn off the server. Hold down the switch for 4 seconds or more to forcibly turn off the server.

(3) POWER LED (green/amber)

After the power cord is connected, this LED lights amber during initialization of system. This LED lights green when the power is ON.

(3) Disk Access LED (green/amber)

This LED lights or flashes green when the internal hard disk drive or optical disk drive is being accessed. The LED lights amber if a hard disk drive error occurs. (In RAID System configurations except for an onboard RAID configuration using 3.5-inch hard disk drives.)

(4) STATUS LED (green/amber)

This LED indicates the server status. It lights green when the server is operating normally.

(5) USB connectors (front)

These connectors are used to connect devices that support the USB interface.

Blue connector: for USB 3.0 Black connector: for USB 2.0

(12)

(6) Front Bezel

This cover protects the front part of the server.

(7) Stabilizer

To mount the server vertically, install as shown in the image

(8) Optical disk drive

Either of the following drives can be installed. – DVD-ROM drive – DVD SuperMULTI drive Reads data from (or writes data to) the disk. The drive provides the following: an eject button to eject the tray; an LED that indicates hard disk drive access; and an eject hole for forcibly ejecting the tray

(9) 3.5-inch Expansion Bay 1

The bay which can accommodate 2.5-inch HDD cage (N8154-56F)

(10) 3.5-inch Expansion Bay 2

The bay which can accommodate 3.5-inch backup device.

(11) Key slot Used for inserting a key to lock the front door (only when a

2.5-inch HDD cage is installed).

(12) Front Door

Open this door when handling the 2.5-inch hard disk drive. This door can be locked by using the bezel lock key.

Express5800/T110f-S User’s Guide

Chapter 1 General Description

Liquid Cooling model

(1) (2)

(3)

(4) (5)

4. Names and Functions of Parts

(8) (6)

(7)

(1) POWER Switch

The switch to turn the server on and off. Press once to turn on the server. The Power LED lights green when it is on. Press it again to turn off the server. Hold down the switch for 4 seconds or more to forcibly turn off, the server.

(2) POWER LED (green/amber)

After the power cord is connected, this LED lights green during initialization of system. This LED lights green when the power is ON.

(3) Disk Access LED (green/amber)

(4) STATUS LED (green/amber)

This LED indicates the server status. It lights green when the server is operating normally and lights or flashes ambe when errors occur.

(5) USB connectors (front)

These connectors are used to connect devices that support the USB interface.

Blue connector: for USB 3.0

Black connector: for USB 2.0

(9) (10)

(11)

(6) Front Bezel

This cover protects the front part of the server.

(7) Stabilizer

To mount the server vertically, install as shown in the image

(8) Optical disk drive

Either of the following drives can be installed. – DVD-ROM drive – DVD SuperMULTI drive The drive provides the following: an eject button to eject the tray; an LED that indicates hard disk drive access; and an eject hole for forcibly ejecting the tray.

(9) 3.5-inch Expansion Bay

The bay which can accommodate 3.5-inch device or extra HDD cage.

(10) Key slot

Used for inserting a key to lock the front door (only when a

2.5-inch HDD cage is installed).

(11) Front Door

Open this door to handle the 2.5-inch hard disk drives. This door can be locked by using the Bezel lock key.

Express5800/T110f-S User’s Guide

Chapter 1 General Description

4. Names and Functions of Parts

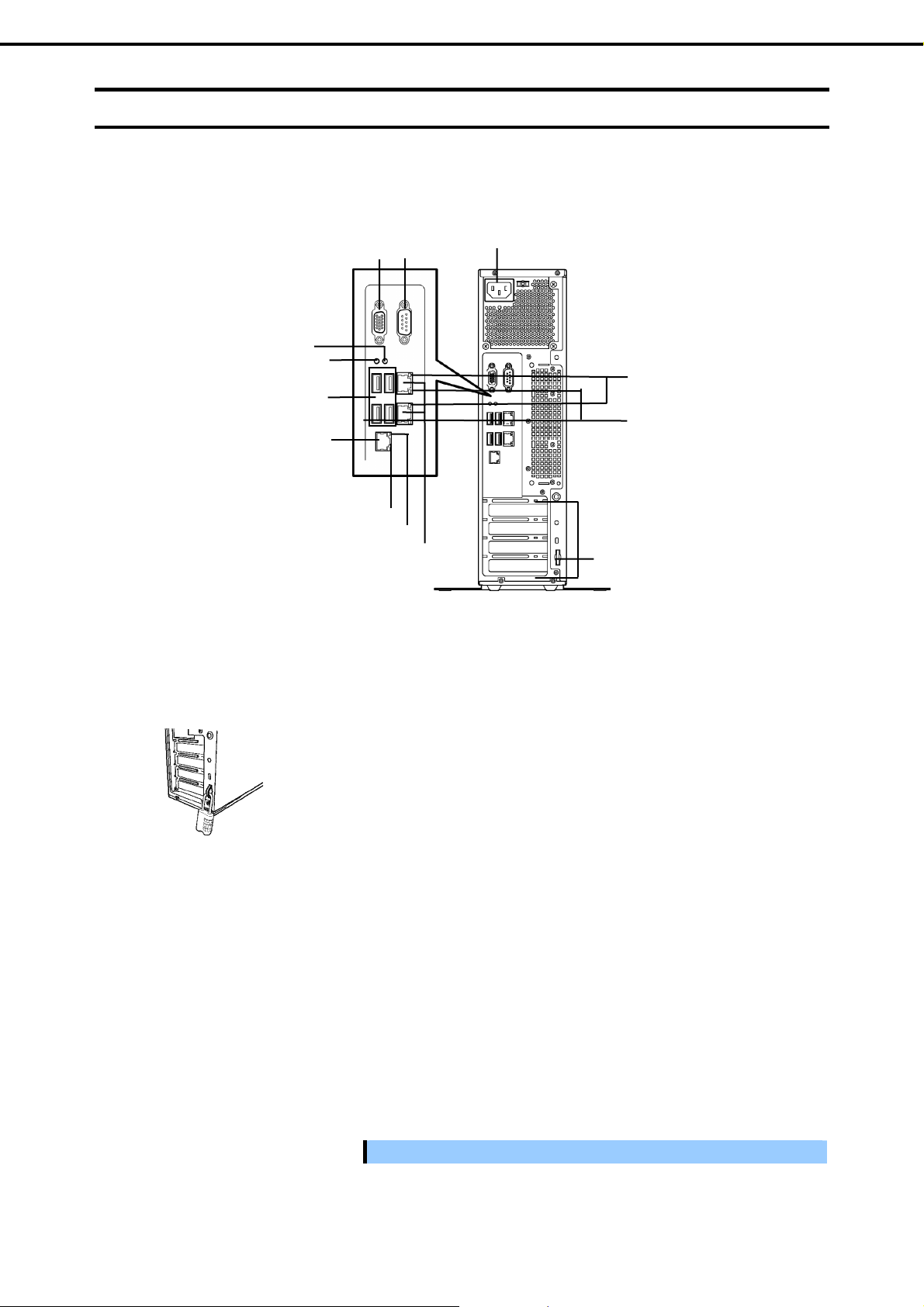

4.2

Rear view

Air Cooling model, liquid Cooling model

(5)

(4)

(7)

(6) (8)

(10)

(13)

(11)

(9)

(1)

(11)

(12)

(2)

(3)

(1) AC Inlet

This socket is used to connect the power cord.

(2) PCI slots (3) Chassis Lock Tab

The lock is provided to protect internal components from theft.

(4) Serial port (COM A) connector

This connector is used to connect devices that support a serial interface. Note that it is not possible to directly connect to a dedicated line. If the N8117-01A additional RS232C connector kit (available as an option), is connected, the connector at N8117-01A will be the serial port B connector.

(5) Display connector

The connector to connect a display

(6) DUMP Switch

Press this switch to obtain a memory dump.

(7) BMC RESET Switch

The switch to reset BMC of this server. Use the switch only when there is something wrong with EXPRESSSCOPE Engine 3 (BMC).

Important

If you press DUMP Switch, the server will stop.

(8) USB connectors

These connectors are used to connect devices that support the USB interface.

Blue connector: for USB 3.0

Black connector: for USB 2.0

(9) LAN connectors

Supports 1000BASE-T interface. If Shared BMC LAN feature is enabled in ROM Utility, LAN connector 1 can also be used as the management LAN connector. However, sharing port is not recommended from the point of performance and security, because LAN connector 1 may receive both data.

(10) Management LAN connector

A LAN connector which supports 100BASE-TX. This port is used for connection with EXPRESSSCOPE Engine 3, and cannot be used as a data transmission port. cannot be used when Shared BMC LAN feature is used.

(11) LINK/ACT LED (green)

The LED indicates the access status of LAN

(12) SPEED LED (green/amber)

The LED indicates the transfer speed of LAN ports

(13) SPEED LED (green)

The LED indicates the transfer speed of the LAN port used for management

This port

Express5800/T110f-S User’s Guide

Chapter 1 General Description

4. Names and Functions of Parts

4.3

Internal view

(10)

(9)

(1)

(3)

(8)

(2)

(5)

(7)

(6)

(4)

(1) Power supply unit (2) Cooling fan (CPU) (3) DIMM slots (4) Hard Disk Drive Bay

Can be equipped with 3.5-inch or 2.5-inch hard disk drives. (The figure shows the view when 2.5-inch hard disk drives are installed.)

(5) Optical disk drive

(6) 3.5-inch Expansion Bay 1

A bay that can accommodate an extra 2.5-inch HDD cage (N8154-56F)

(7) 3.5-inch Expansion Bay 2

A bay that can accommodate a 3.5-inch backup device

(8) Motherboard (9) PCI slot (10) Cooling fan (rear)

Express5800/T110f-S User’s Guide

Chapter 1 General Description

4. Names and Functions of Parts

(11)

(10)

(1) Power supply unit (2) Liquid cooling unit (for cooling CPU) (3) DIMM slots (4) Hard disk drive bay

Can be equipped with 3.5-inch or 2.5-inch hard disk drives. (The figure shows the view when 2.5-inch hard disk drives are installed.)

(5) Optical disk drive (6) 3.5-inch Expansion Bay 1

A bay that can accommodate a 3.5-inch device or an extra

2.5-inch HDD cage

(1)

(2)

(9)

(3)

(9)

(7) Motherboard

(7)

(8) Cooling fan (radiator) (9) Radiator (10) PCI slots (11) Cooling fan (rear)

(8)

(5)

(6)

(4)

Express5800/T110f-S User’s Guide

Chapter 1 General Description

4. Names and Functions of Parts

4.4

Motherboard

(19)

(20)

(18)-1 (18)-2 (18)-3 (18)-4

(12)

(2)

(22)

(21)

(1)-2

(1)-4 (1)-1 (1)-3

(2)

(25) (3)

(4) (5)

(23)

(6)-4 (6)-5

(8)

(1) DIMM slots (the number after hyphen indicates DIMM

number)

(2) Power connector (3) CPU socket (4) CPU cooling fan connector (FAN1) (5) RAID LED cable connector (6) Serial ATA connector (the number after hyphen indicates

connector number)

(7) Lithium battery (8) Buzzer (9) CMOS configuration jumper switch (10) RAID switch jumper (11) Password clear jumper (12) Rear fan connector (FAN2) (13) Internal Flash Memory connector (14) USB connector (for front) (15) LED/SW cable connector

(10)

(9) (11)(13)(15)(17) (16) (24)

(7)

(14)

(16) Serial port (COM B) connector (for N8117-01A)

(17) SPI Flash Mezzanine connector

EXPRESSSCOPE profile key (SPI flash memory) has been installed, where BIOS and BMC configuration data is stored. Move it when replacing MB to keep using the data.

(18) PCI card slots

(18)-1 PCI EXPRESS x1 (x8 connector) (18)-2 PCI EXPRESS x1 (x8 connector) (18)-3 PCI EXPRESS x16 (x16 connector) (18)-4 PCI EXPRESS x4 (x8 connector)

(19) (Upper) BMC RESET switch (Lower) DUMP switch (NMI) (20) External connector (21) Radiator fan connector (FAN3) (22) PMBus connector (23) TPM Mezzanine connector (24) Mini-SAS connector (25) USB connector (for internal)

Express5800/T110f-S User’s Guide

Chapter 1 General Description

4. Names and Functions of Parts

4.5

Status Indicators

This section explains the indication and meanings of the server LEDs.

POWER LED

DISK Access LED

STATUS LED

Optical disk access LED

SPEED LED

LINK/ACT LED

Front view

Rear view

Express5800/T110f-S User’s Guide

Chapter 1 General Description

4. Names and Functions of Parts

4.5.1

4.5.2

POWER LED ( )

POWER LED lights amber during initialization of the system. You can po wer on the server after the amber POWER LED goes off.

POWER LED lights green while the server is on.

STATUS LED ( )

While hardware is operating normally, STATUS LED lights green. STATUS LED is off or lights/flashes amber if there is a problem with hardware.

The following table lists STATUS LED patterns, their explanation and solution.

Tips

STATUS LED pattern Explanation Solution

On (green)

Flashing (green)

Off

On (amber)

The server is operating normally. −

The server is operating with the memory in degraded state.

An uncorrectable memory error has often occurred. The power is off. Turn on the server. POST is in progress. The STATUS LED will turn green after POST completes. Watchdog timer expired. An uncorrectable error in memory is detected. A PCI bus error occurred. Memory dump is being requested.

(e.g. when DUMP switch NMI is pressed) Note It remains green if the dump is caused by

software.

A temperature alarm was detected.

A voltage alarm was detected. A CPU temperature alarm was detected. A CPU error occurred.

SMI timeout is detected Sensor error was detected.

Refer to the system event log (SEL) by using NEC ESMPRO or the offline maintenance utility to view the cause of failure.

Identify the device in degraded state by using the BIOS setup utility SETUP, and replace it as soon as possible.

Turn the power off and then turn it on. If the POST screen displays any error message, take notes of the message, and contact your sales representative.

Wait until the memory dump is completed.

Check the internal fan for dusts. Also check if the fan unit is properly connected. If the LED indication does not change when the fans are normal, contact your sales representative.

Contact your sales representative.

Turn the power off and then turn it on. If the POST screen displays any error message, take notes of the message, and contact your sales representative.

Contact your sales representative.

Express5800/T110f-S User’s Guide

Chapter 1 General Description

STATUS LED pattern Explanation Solution

Flashing (amber)

4. Names and Functions of Parts

Failure of the power supply unit is detected Contact your sales representative. A fan alarm was detected.

A temperature warning was detected.

A voltage warning was detected An error was detected on either of the hard disk

drives. (Only when a 2.5-inch HDD cage is installed and the RAID System is configured.)

Check if the internal fan cable is properly connected. If the LED indication does not change when the fans are normal, contact your sales representative.

Check the internal fan for dusts. Also check if the fan unit is properly connected. If the LED indication does not change when the fans are normal, contact your sales representative.

Contact your sales representative.

4.5.3

4.5.4

4.5.5

Disk Access LED ( )

Disk Access LED lights or flashes green when an internal hard disk drive or the optical disk drive is being accessed.

When RAID System using an optional RAID Controller is configured or RAID System is configured with

2.5-inch hard disk drive, this LED lights amber if hard disk drive error occurs. It lights amber and green alternately if the failed hard disk drive is being rebuilt.

Tips

When 3.5inch HDD cage is used and RAID Controller (N8103-149/150/151) is used, Disk Access LED may lights amber immediately after the server is powered on or reset, however, it is not a failure.

Optical Disk Access LED

The LED lights/flashes when the media set on the optical disk drive is being accessed.

Disk LED

When 2.5-inch HDD cage is installed, each drive has its respective LED. When the hard disk drive is accessed, the LED lights/flashes green. In RAID System, when a hard disk drive failed, the LED lights amber and then flashes amber when it is being rebuilt.

4.5.6

LINK/ACT LED ( 1, 2, M)

This LED indicates the state of the standard LAN port. If the server and HUB is supplied with power and connected properly, the LED is on (LINK). If the LAN port is transmitting/receiving data, the LED flashes (ACT).

If the LED does not turn on in LINK state, check the cable or connection.

Express5800/T110f-S User’s Guide

Chapter 1 General Description

4. Names and Functions of Parts

4.5.7

SPEED LED ( 1, 2, M)

This LED indicates which network interface is used.

− The two LAN connectors for data transmission support 1000BASE-T, 100BASE-TX, and 10BASE-T and the LED indicates which network interface is being used.

• Amber: Operating with 1000BASE-T

• Green: Operating with 100BASE-TX

• OFF: Operating with 10BASE-T

− The management LAN connector supports 100BASE-TX and the LED lights green during the

operation.

Express5800/T110f-S User’s Guide

NEC Express5800 Series Express5800/T110f-S

This chapter describes preparations for using this server.

1. Installing Internal Optional Devices

You can skip this section if you did not purchase any optional devices.

2. Installation and Connection

You must place the server in an ideal location and connect some cables following this section.

Preparations

Express5800/T110f-S User’s Guide

Chapter 2 Preparations

1. Installing Internal Optional Devices

1.1

Installing Internal Optional Devices

This chapter describes the instructions for installing supported optional devices and precautions. If you did not purchase any optional device requiring install ation, you may skip this section.

Important

Safety Precautions

Be sure to observe the following precautions to install and remove optional devices properly and safely.

• We recommend that optional devices be installed by a maintenance

service staff from your maintenance service company, who has specialized knowledge of this server.

• Use only the device s and cables specified by NEC. You will be charged to

repair damages, malfunctions, and failures caused by the use of any devices or cables not specified for use with this server even within the warranty period.

WARNING

Be sure to observe the following precautions to use the server safet y. Failure to observe the precautions may cause death or serious injury. For details, refer to Safety precautions in Precautions for Use.

• Do not disassemble, repair, or modify the server.

• Do not remove the lithium, NiMH, or Li-ion battery.

• Do not handle the server while the power plug is inserted into the outlet.

CAUTION

Be sure to observe the following precautions to use of the server safely. Failure to observe the precautions may cause burns, injury, and propert y damage. For details, refer to Safety precautions in Precautions for Use.

• Do not attempt to lift the server by gripping the front bezel or vent holes

cover.

• Make sure to complete installation.

• Do not get your fingers caught.

• High temperature.

Express5800/T110f-S User’s Guide

Chapter 2 Preparations

1. Installing Internal Optional Devices

1.2

Anti-static Measures

This product contains static-sensitive electronic components. Follow the measures below to avoid a failure caused by static electricity when installing or uninstalling any optional devic e.

• Wearing Anti-static Wrist Strap or Anti-static Gloves Wear a wrist strap on your wrist and connect the wire to the chassis. If there is no wrist strap, touch an unpainted metal surface of the chassis connected to the ground to discharge static electricity from your body before touching the component. Touch the metal part occasionally to discharge the static electricity while working on the component.

• Checking the Workplace

− Work on an anti-static floor or concrete floor.

− If you work on a place where static electricity is likely to be generated (e.g. carpet), be sure to provide

anti-static protection.

• Using the Work Table Place the server on a mat with Electrostatic Discharge (ESD) protection.

• Clothing

− Do not wear wool or synthetic clothes.

− Wear anti-static shoes.

− Remove any kind of metal accessories such as a ring, bracelet or wrist watch.

• Handling of Components

− Keep the component in an anti-static bag until you install it to the server.

− Hold the component by the edges to avoid touching any terminals or mounting parts.

− Place the component in an anti-static bag when storing or moving them.

• Handling of Cables

• Installing and Uninstalling the Optional Device

− To avoid electric hazard and malfunction, be sure to turn off the power switch of the server and unplug

the power cord from the outlet before installing or uninstalling any optional device. If the device is hot-swappable, you do not need to turn off the power switch and unplug the power cord.

Express5800/T110f-S User’s Guide

Chapter 2 Preparations

1. Installing Internal Optional Devices

1.3

Overview of Installation and Removal

Install/remove components by using the following procedure.

1. If the server is ON, turn it off. Refer to Chapter 3 (6. Turning off the Server).

2. Disconnect the power cord from the outlet and the server.

3. Disconnect all cables connected to the connector at the rear.

4. Remove the side cover. Refer to Chapter 2 (1.4. Removing the Side Cover).

5. Remove the front bezel if applicable. Refer to Chapter 2 (1.5 Removing the Front Bezel).

6. Depending on the components to be installed or removed, follow the procedure in order. Refer to Chapter 2 (1.6 Internal Flash Memory to 1.14 Backup devices).

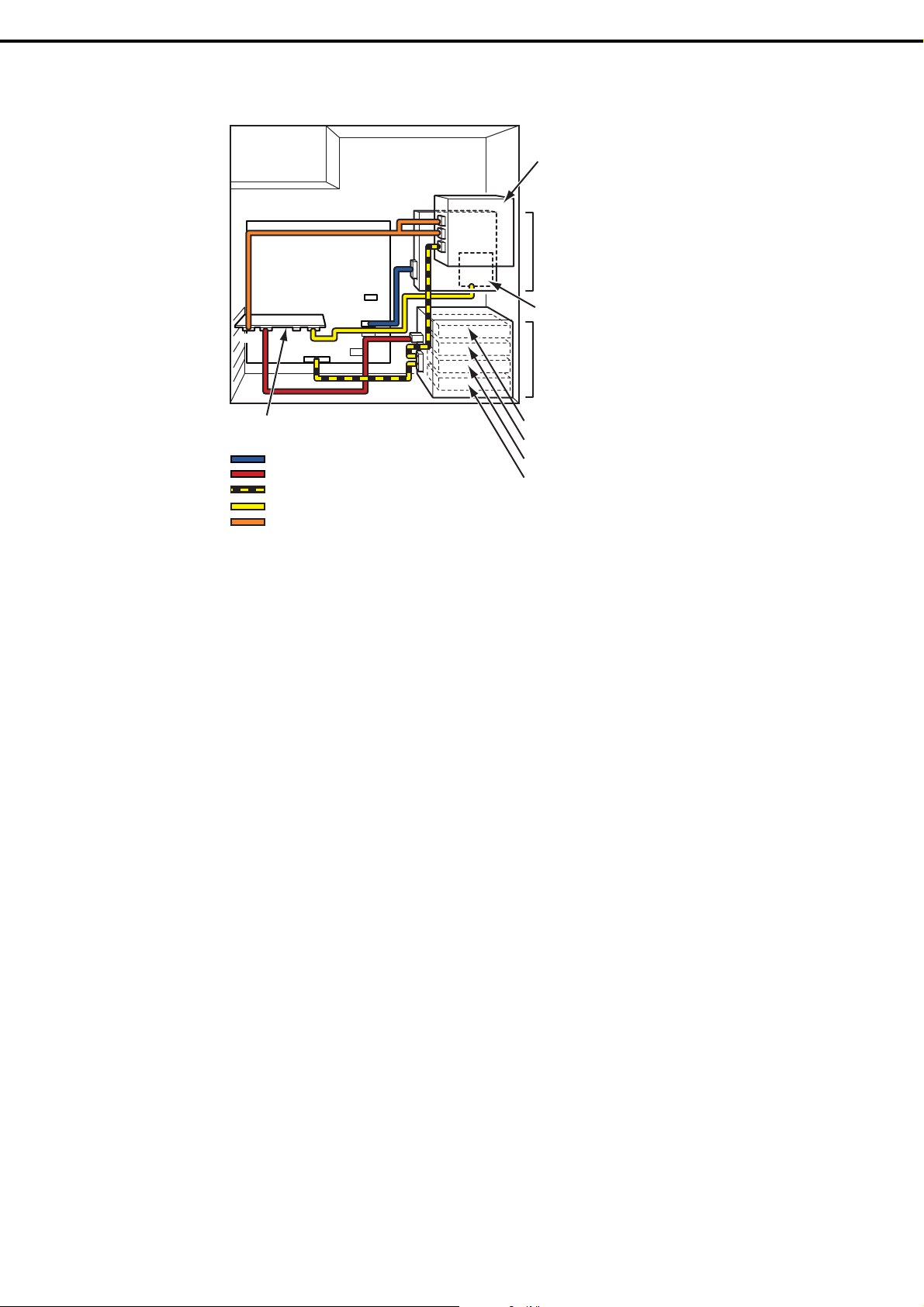

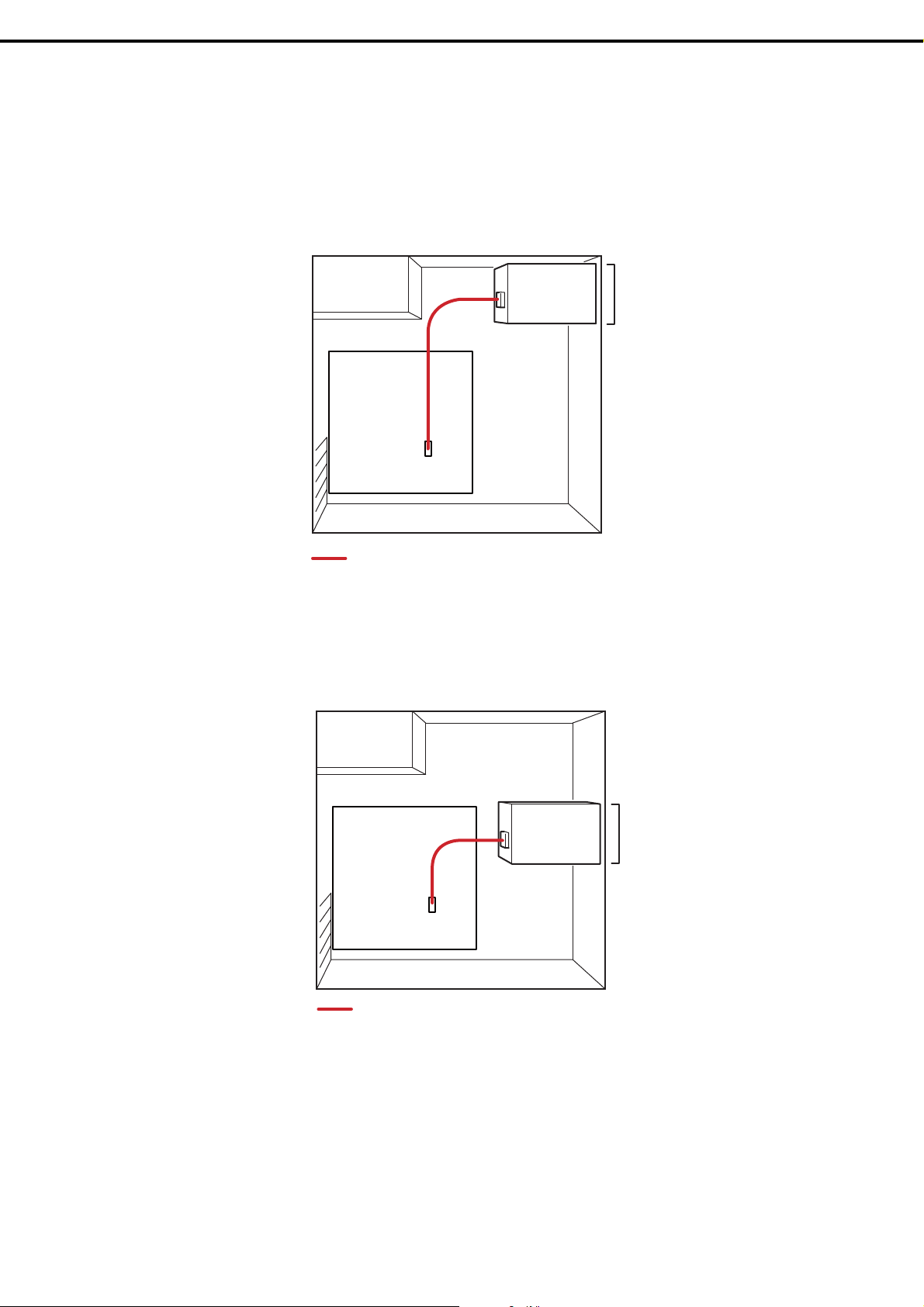

7. Connect cables Refer to Chapter 2 (1.15 Connecting cables).

8. Attach the front bezel. Refer to Chapter 2 (1.16 Attaching the Front Bezel).

9. Attach the side cover. Refer to Chapter 2 (1.17 Installing the Side Cover).

This is the end of the installation or removal procedures for internal optional devices. Continue the setup with reference to Chapter 2 (2.2 Connection).

Express5800/T110f-S User’s Guide

Chapter 2 Preparations

1. Installing Internal Optional Devices

1.4

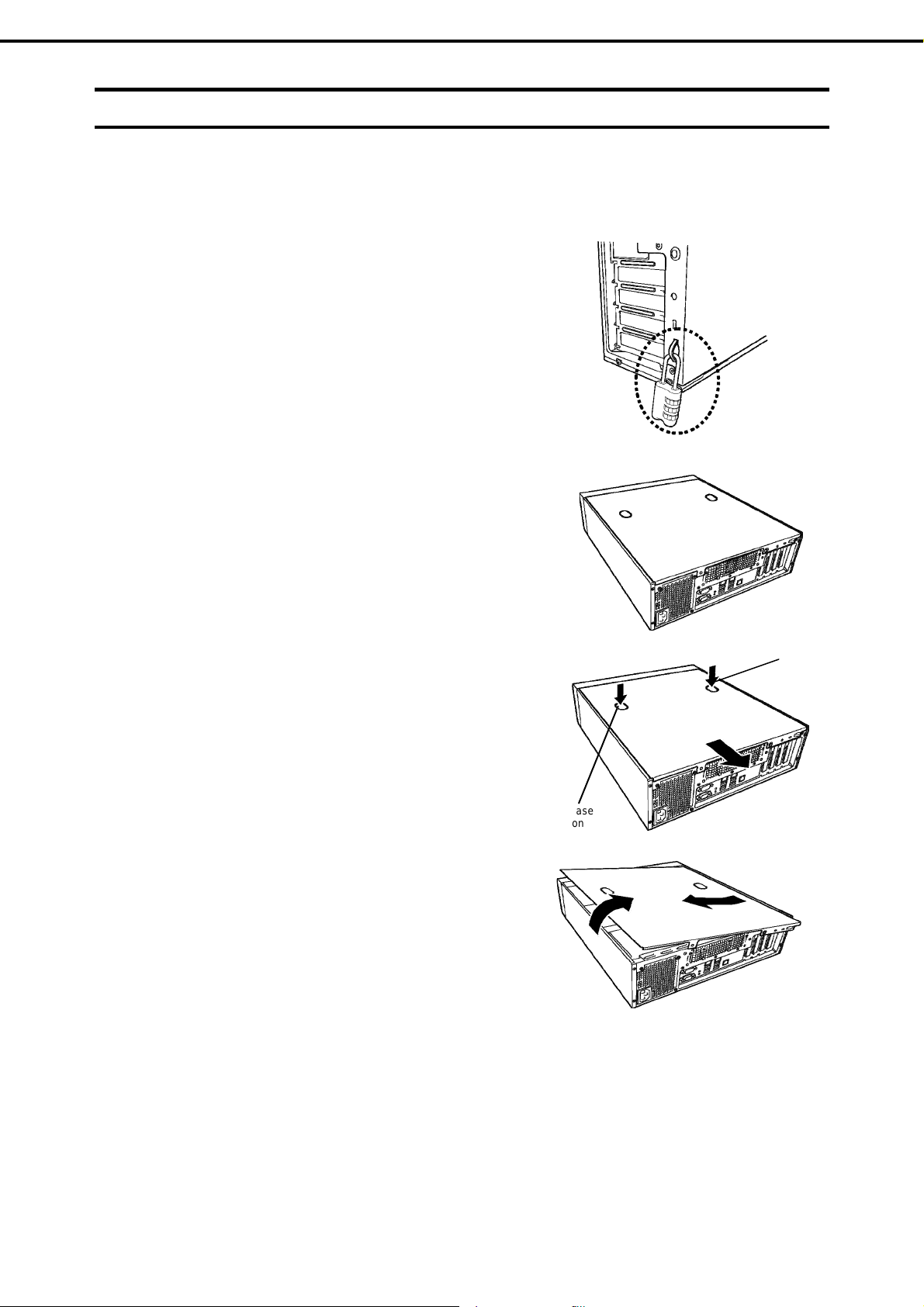

Removing the Side Cover

Remove the side cover by using the following procedure.

1. Refer to steps 1 to 3 in Chapter 2 (1.3 Overview of Installation and Removal) for preparations.

2. Unlock the padlock attached to the chassis if applicable.

3. Lay the server so that the side cover faces upward. Lay it down slowly and gently.

4. While pressing the two release buttons (1), slide the cover toward the rear of the server (2), lift it in the direction shown by the arrow (3), and then remove the cover in the direction shown by the arrow (4).

Release button

(1)

(3)

(4)

(1)

(2)

Release

button

Express5800/T110f-S User’s Guide

Chapter 2 Preparations

1. Installing Internal Optional Devices

1.5

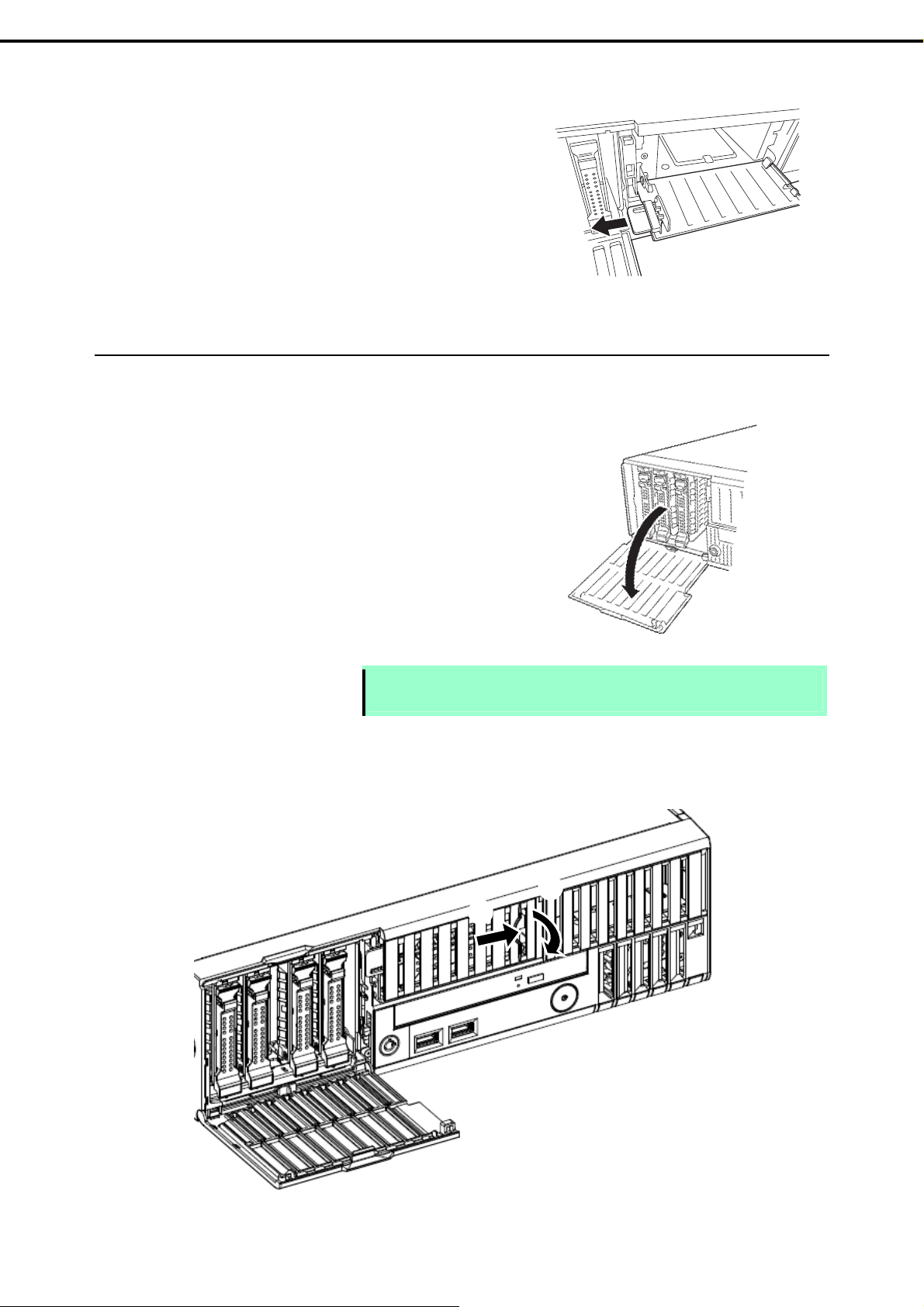

Removing the Front Bezel

Remove the front bezel by using the following procedure.

1. Refer to steps 1 to 3 in Chapter 2 (1.3 Overview of Installation and Removal) for preparations.

2. Remove the screw.

3. Place the server in the direction shown in the figure, and then pull the front bezel slightly toward the front until the tab can be released from the frame.

Important

4. Slide the front bezel forward to release the hooks that engaged with the holes at the front of the server and take it off the server.

If you pull the front bezel forward too much, you will break the fr ont bezel. Gently slide it to prevent damaging the equipment.

Express5800/T110f-S User’s Guide

Chapter 2 Preparations

1. Installing Internal Optional Devices

1.6

1.6.1

Internal Flash Memory

This section describes the procedure for installing the Internal Flash Memory.

Installation

Install the Internal Flash Memory in the following procedure.

Internal Flash Memory connector

1.6.2

Removal

1. Refer to steps 1 to 5 in Chapter 2 (1.3 Overview of Installation and Removal) for preparations.

2. Attach the Internal Flash Memory and fix it with the screw that comes with this product.

To remove the Internal Flash Memory, reverse the installation procedure.

Express5800/T110f-S User’s Guide

Chapter 2 Preparations

1. Installing Internal Optional Devices

1.7

1.7.1

TPM Kit

This section describes the procedure for installing optional TPM Kit.

Installation

TPM kit connector

Install the TPM Kit in accordance with the following procedure.

Note The TPM kit once installed cannot be removed.

1. Refer to steps 1 to 5 in Chapter 2 (1.3 Overview of Installation and Removal) for preparations.

2. Pull the hard disk drive cage toward the front according to the steps in Chapter 2 (1.12 HDD Cages). (For a 3.5-inch hard disk drive cage, only pull the hard disk drive.)

3. Install the TPM Kit and secure it by pushing the nylon rivet that comes with the TPM Kit.

4. Mount the parts that were removed in steps 1 and 2.

Express5800/T110f-S User’s Guide

Chapter 2 Preparations

1. Installing Internal Optional Devices

1.8

DIMM

Install a DIMM (Dual In-line Memory Module) to a DIMM slot on the motherboard in the server. The motherboard provides four slots to install DIMMs.

Up to 32 GB (8 GB × 4) of memory can be installed.

Important

Tips

• Use only the DIMMs specified b y NEC. Installing a DIMM from a third part y

may cause the server to fail. (You will be charged to repair failures or damages caused by the use of such products even within the warranty period.)

• Read through Chapter 2 (1.2 Anti-static Measures) beforehand.

As about 750 MB of memory is used for PCI resources, the available memory size may be less than the mounted memory size.

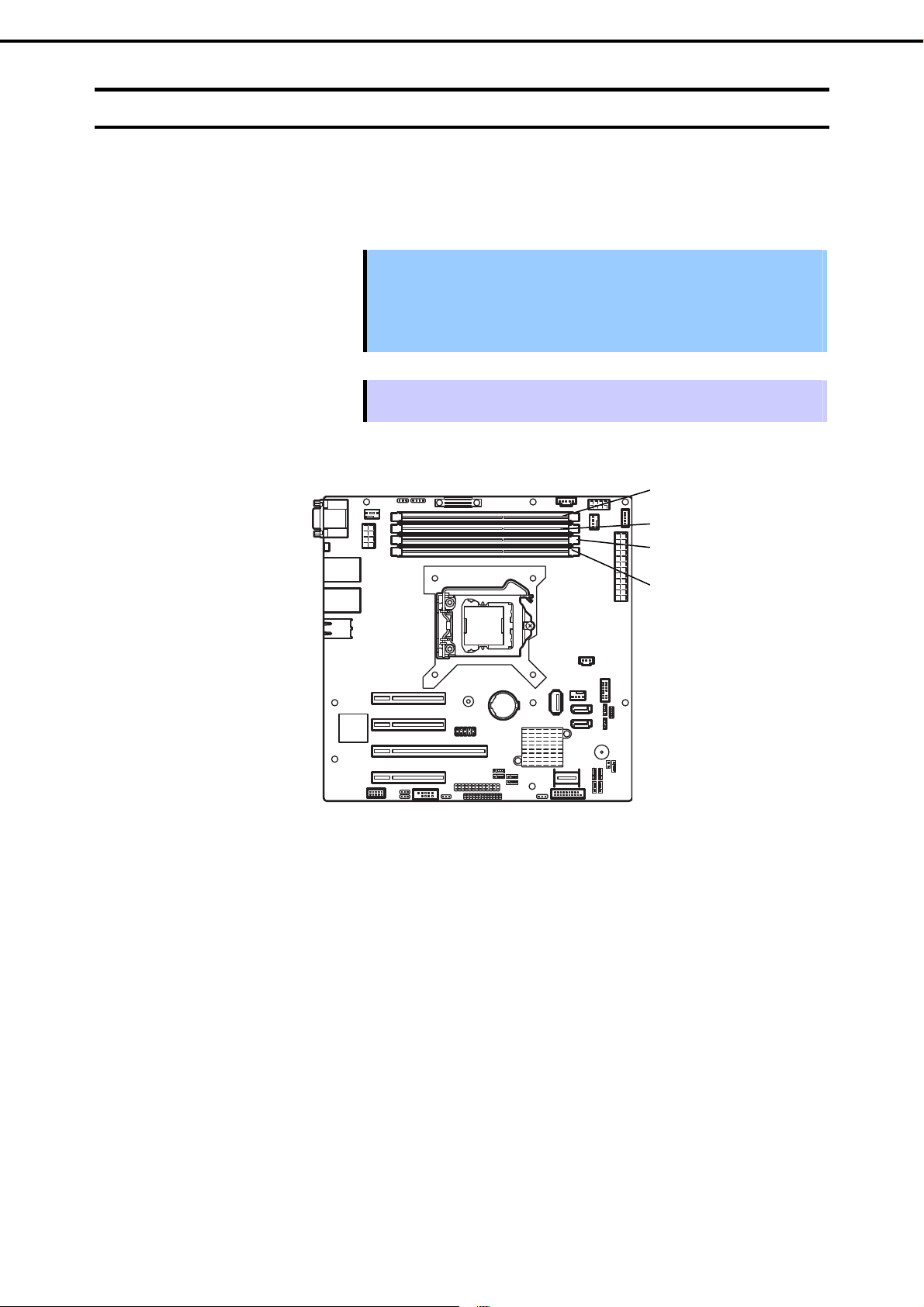

DIMM2

DIMM4 DIMM1

DIMM3

Rear

Motherboard

This server supports 2-way Interleave mode. If you run the server in 2-way Interleave mode, the data transfer speed of the memory doubles.

Front

Express5800/T110f-S User’s Guide

Chapter 2 Preparations

1.8.1

Maximum supported memory size

The maximum available memory size on the server depend s on the architecture (x86 arc hitecture) and OS specs.

1. Installing Internal Optional Devices

A list of maximum memory sizes

Windows Server 2008 Standard 4 GB

Windows Server 2008 R2 Standard (x64) 32 GB Windows Server 2008 Enterprise 64 GB Windows Server 2008 R2 Enterprise 2 TB Windows Server 2012 Standard Windows Server 2012 Datacenter Red Hat Enterprise Linux 5 Red Hat Enterprise Linux 6 Red Hat Enterprise Linux 5 (EM64T) 1 TB Red Hat Enterprise Linux 6 (x86_64) 3 TB VMware ESXi 5.1 2 TB 32 GB

The maximum memory size

supported on each OS

4 GB (If using HW-DEP function) * Default factory settings About 3.5 GB (If not using

HW-DEP function) Note: When Execute Disable Bit

32 GB

4 TB

16 GB 16 GB

32 GB

Up to 1 TB of the main memory is available to each virtual machine.

The maximum memory size

supported on the server

(XD Bit) is set to Disabled in BIOS SETUP.

1.8.2

Installation order

Install DIMMs one by one in order of increasing memory size into slots in the order of DIMM#1, DIMM#2, DIMM#3, and DIMM#4. However, if you want to run the server in 2Way Interleave mode, observe the following when installing the DIMMs:

• Install DIMMs in pairs

• The two DIMMs installed together must be of the same specifications and memory size.

• Install the pairs as DIMM#1 and DIMM#2, or DIMM#3 and DIMM#4 (the installation order between the

pairs does not matter.)

Installation examples

Example 2Way Interleave DIMM#1 DIMM#2 DIMM#3 DIMM#4

1 Runs

2 Runs

3 Does not run

4 Does not run

2 GB DIMM (Standard)

2 GB DIMM Not installed Not installed

2 GB DIMM 2 GB DIMM 2 GB DIMM

2 GB DIMM 2 GB DIMM Not installed

2 GB DIMM Not installed 2 GB DIMM

Express5800/T110f-S User’s Guide

Chapter 2 Preparations

1.8.3

Installation

Install a DIMM by using the following procedure.

1. Refer to steps 1 to 5 in Chapter 2 (1.3 Overview of Installation and Removal) for preparations.

1. Installing Internal Optional Devices

2. Hold the server with both hands and slowly and gently lay it so that the left side faces upward

3. Rotate both levers of the target DIMM slot outward.

4. Hold the DIMM vertically and push it all the way into the slot. When the DIMM is inserted into the slot, the lever automatically closes.

Important

Applying too much pressure on a DIMM or inserting a DIMM at an angle ma y break the DIMM or slot. Gently insert it straight into the slot.

Note Align the notch on the DIMM with the key on the slot.

Notch

Key

5. Firmly close the lever.

6. Continue to install or remove internal optional devices, mount and connect the server, and turn it on.

7. Confirm that no error messages are displayed in POST screen. If any error messages are displayed, refer to Chapter 3 (1. POST Error Message) in "Maintenance Guide".

8. Run the SETUP Utility, go to the Advanced menu, and check the display in Memory Configuration. Confirm that the added DIMM has been recognized in the BIOS (Confirm that the applicable DIMM

Group Status is set to Normal.). (Refer to Chapter 2 (1. Details of System BIOS) in "Maintenance Guide".)

9. Set the paging file size to the recommended value (Total memory size x 1.5) or more. If using a Windows OS, refer to Chapter 1 (7.1 Specifying Memory Dump Settings (Debug Information)) in "Installation Guide (Windows)". For other OS, consult the manual provided with the operation system or contact the store where you purchased it or your maintenance service company.

Express5800/T110f-S User’s Guide

Chapter 2 Preparations

1.8.4

Removal

Remove a DIMM in the following procedure.

1. Installing Internal Optional Devices

Note

1. Refer to steps 1 to 5 in Chapter 2 (1.3 Overview of Installation and Removal for preparations.

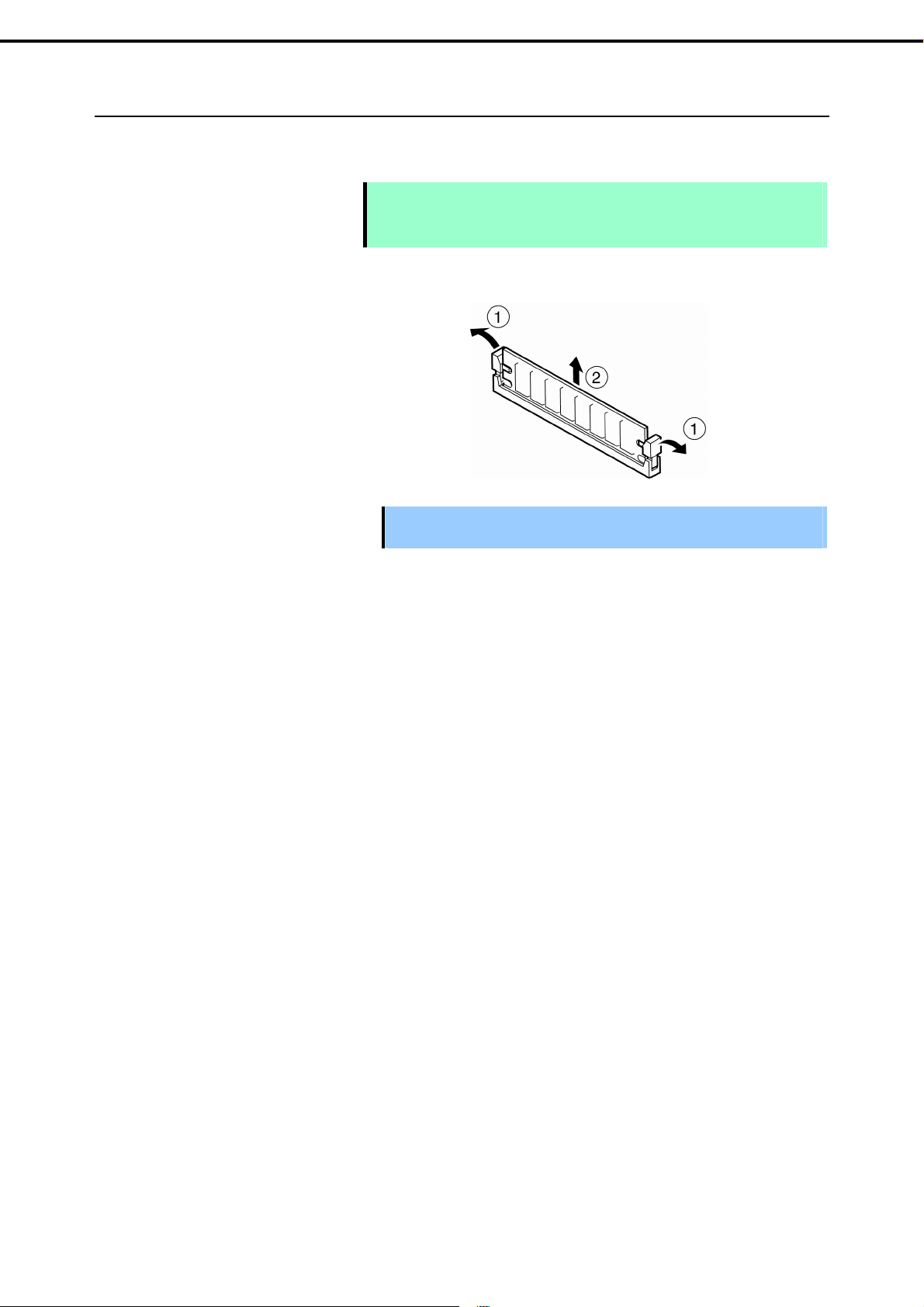

2. Rotate both levers of the target DIMM slot outward. The DIMM is unlocked

3. Remove the DIMM by pulling it out from the slot in a straight direction.

Important

4. Assemble the server.

5. Turn on the server and confirm that no error messages are displayed on POST. If any error message is displayed, refer to Chapter 3 (1. Post Error Message) in "Maintenance Guide".

• When removing a defective DIMM, check error messages displayed at POST or NEC ESMPRO and check the DIMM slot where the defective DIMM is installed.

• At least one DIMM needs to be installed for the server to operate.

Applying too much pressure on a DIMM or pulling a DIMM at an angle may break the DIMM or slot. Gently pull it straight out of the slot.

6. If you replaced a broken DIMM, select Yes in Memory Configuration-Memory Retest of the Advanced menu.

After that, select Save Changes and Exit to reboot.

7. Set the paging file size to the recommended value (Total memory size x 1.5) or more. If using a Windows OS, refer to Chapter 1 (7.1 Specifying Memory Dump Settings (Debug Information)) in "Installation Guide (Windows)". For other OS, consult the manual provided with the operation system or contact the store where you purchased it or your maintenance service company.

Express5800/T110f-S User’s Guide

Chapter 2 Preparations

1. Installing Internal Optional Devices

1.9

Use of Internal Hard Disk Drives in the RAID System

This section describes how to use the Hard Disk Drives installed in the HDD cage at the front of the server in the RAID System.

Important

Note

Tips

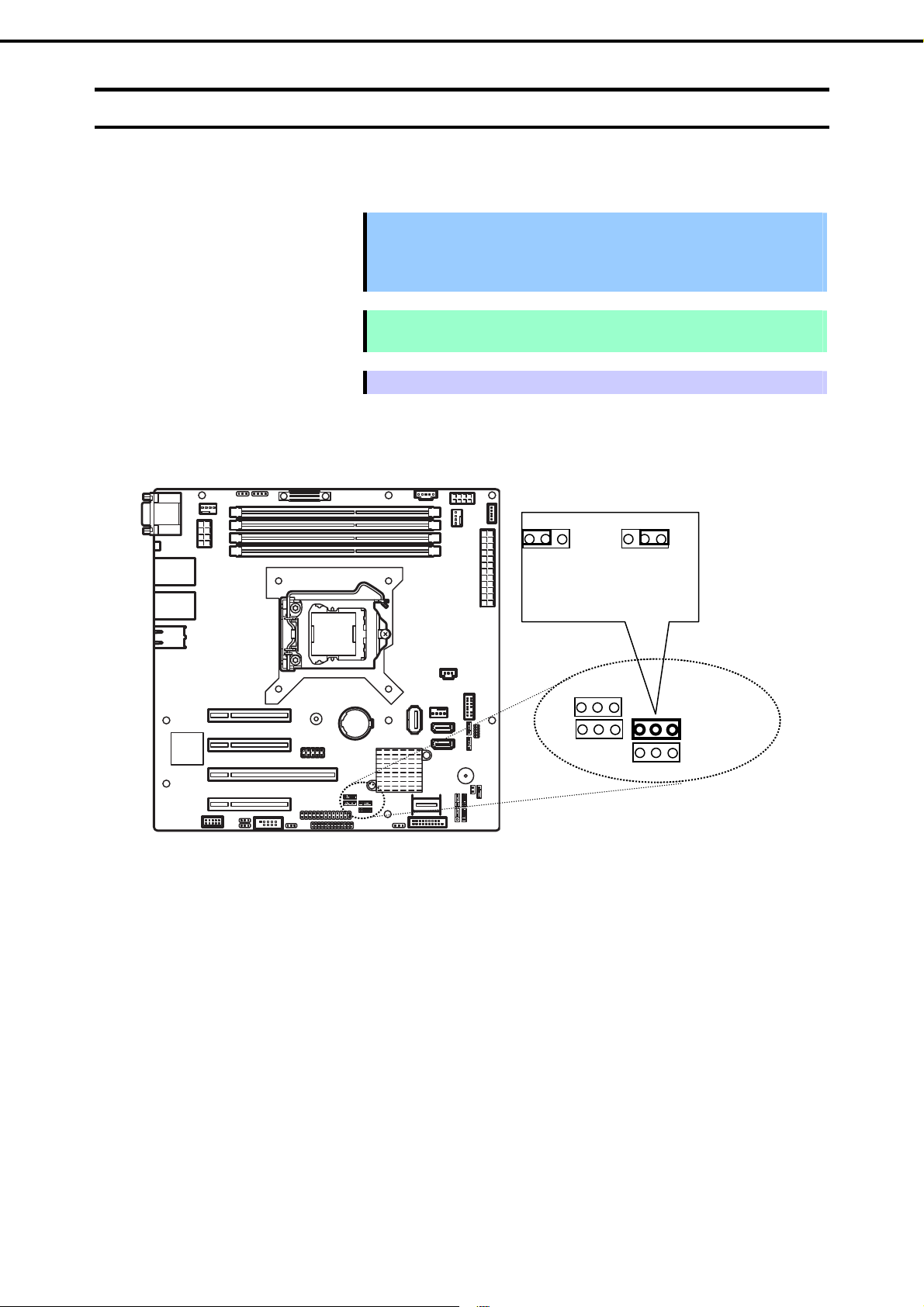

To build a RAID System, change jumper switch settings on motherboard and backplane, as shown below.

If you use Hard Disk Drives in the RAID System or change the RAID level, initialize the Hard Disk Drives. If the Hard Disk Drive used in the RAID System contains valuable data, be sure to backup the Hard Disk Drive before installing the RAID Controller and configuring the RAID System.

In the RAID System, use Hard Disk Drives that have the same specifications (capacity, rotational speed, and standard) for each Disk Array.

Logical Drives can be created even with only one Physical Device.

321 321

Disabled Enabled

SWRAID

Motherboard

Express5800/T110f-S User’s Guide

Chapter 2 Preparations

1. Installing Internal Optional Devices

J7 jumper

Optional RAID Controller

3 2 1 3 2 1

On-board SATA Controller

Backplane for 2.5-inch Hard Disk Drives (when a 2.5-inch HDD cage is installed)

(a) When using on-board RAID Controllers (LSI Embedded MegaRAID

Change jumper switch setting as shown below.

Jumper pins on motherboard (SWRAID)

Change jumper setting to 2-3 (Enabled).

[When using 2.5-inch Hard Disk Drive] Backplane for 2.5-inch Hard Disk Drive (provided with 2.5-inch HDD cage) (J7)

Change jumper setting to 1-2 (Onboard SATA controller).

[When using 3.5-inch Hard Disk Drive]

No setting other than the jumper pin on the motherboard is required.

)

After that, configure the RAID System using LSI Software RAID Configuration Utility. For details, refer to Chapter 2 (4. RAID System Configuration) in "Maintenance Guide".

Tips

If you use the EXPRESSBUILDER DVD supplied with the server for setup, the RAID System is automatically configured. Or, you intend to install Windows OS, OS also can be installed automatically and seamlessly.

Express5800/T110f-S User’s Guide

Chapter 2 Preparations

(b) If an optional RAID Controller is used

Jumper pins on motherboard (SWRAID)

Change jumper setting to 1-2 (Disabled).

Backplane for 2.5-inch Hard Disk Drive (provided with 2.5-inch models) (J7)

Change jumper setting to 2-3 (Optional RAID Controller)

1. Installing Internal Optional Devices

Note

When installing an optional RAID Controller, start the BIOS Setup utility, select PCI Configuration from the Advanced menu, and then make sure that the parameter of PCI Slot xx ROM (xx is PCI slot number) is set to Enabled.

Important

Do not change the mode to hibernate when building a RAID System.

For the instruction of installing the optional RAID Controller, refer to Chapter 2 (1.11 PCI Card).

Important

When connecting a RAID Controller, set the boot priority to 8th or higher in the Boot menu of the BIOS Setup utilit y. If the setting is 9th or lower, the configuration menu for RAID Controllers cannot be launched.

(d) Removal

To remove the optional RAID Controller, reverse the installation procedure. If you intend to use with the card removed, be sure to attach the blank cover attached to the riser card.

Express5800/T110f-S User’s Guide

Chapter 2 Preparations

1.9.1

Notes on setting up a RAID System

Note the following points when setting up a RAID System.

• The number of Hard Disk Drives required varies in each RAID level.

• If an on-board RAID Controller or optional RAID Controller (N8103-128/149) is used, the RAID System

cannot be built in RAID5/RAID6.

RAID level

RAID 0 1 1 RAID 1 2 2 RAID 5 3

RAID 6 3 RAID 10 4 4 RAID 50 6 RAID 60 6

1. Installing Internal Optional Devices

The minimum number of Hard Disk Drives required to set up a RAID System

On-board RAID Controller or

N8103-171/149

N8103-171/151/167

• Use SAS/SATA Hard Disk Drives or SSDs that have the same capacity and rotational speed.

• As the size of Logical Drive cannot be specified in RAID 10 with the on-board RAID Controller, the

Logical Drive size will be at least 4 TB if a Hard Disk Drive of 2 TB or more is used. However, the Logical Drive where the OS is to be installed may be up to 2 TB due to OS restrictions, and therefore RAID 10 using a Hard Disk Drive of 2 TB or more cannot be supported if an on-board RAID Controller is used.

When installing an OS in your RAID System, you can easily complete the setup process, including RAID configuration and OS installation, by using EXPRESSBUILDER. If you are installing the OS manually, use the RAID System configuration utility. The utility can be run during POST which starts immediately after the server is turned on. For details on the procedure of configuring a Logical Drive, refer to Chapter 2 (4. RAID System Configuration) in "Maintenance Guide" or the manual supplied with the optional RAID Control ler.

Important

• Do not change the RAID System mode to hibernate.

• A mix of SAS and SATA drives cannot be used within the RAID System.

Express5800/T110f-S User’s Guide

Chapter 2 Preparations

The insert position number displayed on the server

1. Installing Internal Optional Devices

N8154-65F 3.5-inch HDD cage

<3.5-inch HDD cage>

<2.5-inch HDD cage>

2 1

N8154-59F 2.5-inch HDD cage

<3.5-inch HDD cage and extra 2.5-inch HDD cage>

N8154-65F

3.5-inch HDD cage 1

<2.5-inch HDD cage and extra 2.5-inch HDD cage>

N8154-56F extra 2.5-inch HDD cage

3 2 1

N8154-59F 2.5-inch HDD cage

Express5800/T110f-S User’s Guide

Chapter 2 Preparations

1. Installing Internal Optional Devices

1.10

1.10.1

Handling precautions

Extra Battery for RAID Controller

If a RAID Controller (N8103-149/150/151/167) is installed, use the optional extra battery to avoid dat a loss caused by accidents including temporary blackout during a write-back operation. The model of the extra battery to be used depends on RAID Controller.

• N8103-149/150/151, use N8103-155 extra battery

• For N8103-167, use flash backup unit that comes with N8103-157 RAID controller

Below are the precautions to be observed whenever using the backup battery. Be sure to observe the following, otherwise property such as data or other devices might be destroyed.

• Use the extra battery that supports the RAID Controller used.

• The extra battery is a very delicate electronic device. Before installation, touch the metal frame part of

the server to discharge the static electricity from your body.

• Do not drop or bump the backup battery.

• For recycling and disposing the backup battery, refer to the user’s guide that comes with it.

1.10.2

Installing N8103-155 extra battery

Install an extra battery in the server by using the following procedure.

Note

Filling out the date on the Set up date label

Write down the installation date (year and month) on the S et up date label supplied with the extra battery. Attach the label on the battery cover or somewhere easy to find on the server.

Fill out the Set up date label supplied with the battery

Important

Read through the user’s guide supplied with the RAID Controller before installation.

Write the date. Example:

The shelf life of the battery pack is about two years though actual life depends on the operating environment and conditions. If it has been used for two years or more, the maximum data backup time is not guaranteed. Replace it soon with a new battery pack, referring to the user’s guide for the extra battery.

Y 2013. M 06

Express5800/T110f-S User’s Guide

Chapter 2 Preparations

Connecting the battery control cable

Referring to the image below, connect the battery control cable into the battery pack. Check the orientation of the connector and connect the cable straight into the connector.

1. Installing Internal Optional Devices

The upper portion is wider than that of lower portion.

Important

When installing or removing the extra battery, pay special attention not to apply excessive pressure on the part of the battery cover marked in the image below.

Otherwise, the part may break.

Installing the battery in the server

This section describes how to install this product in the server.

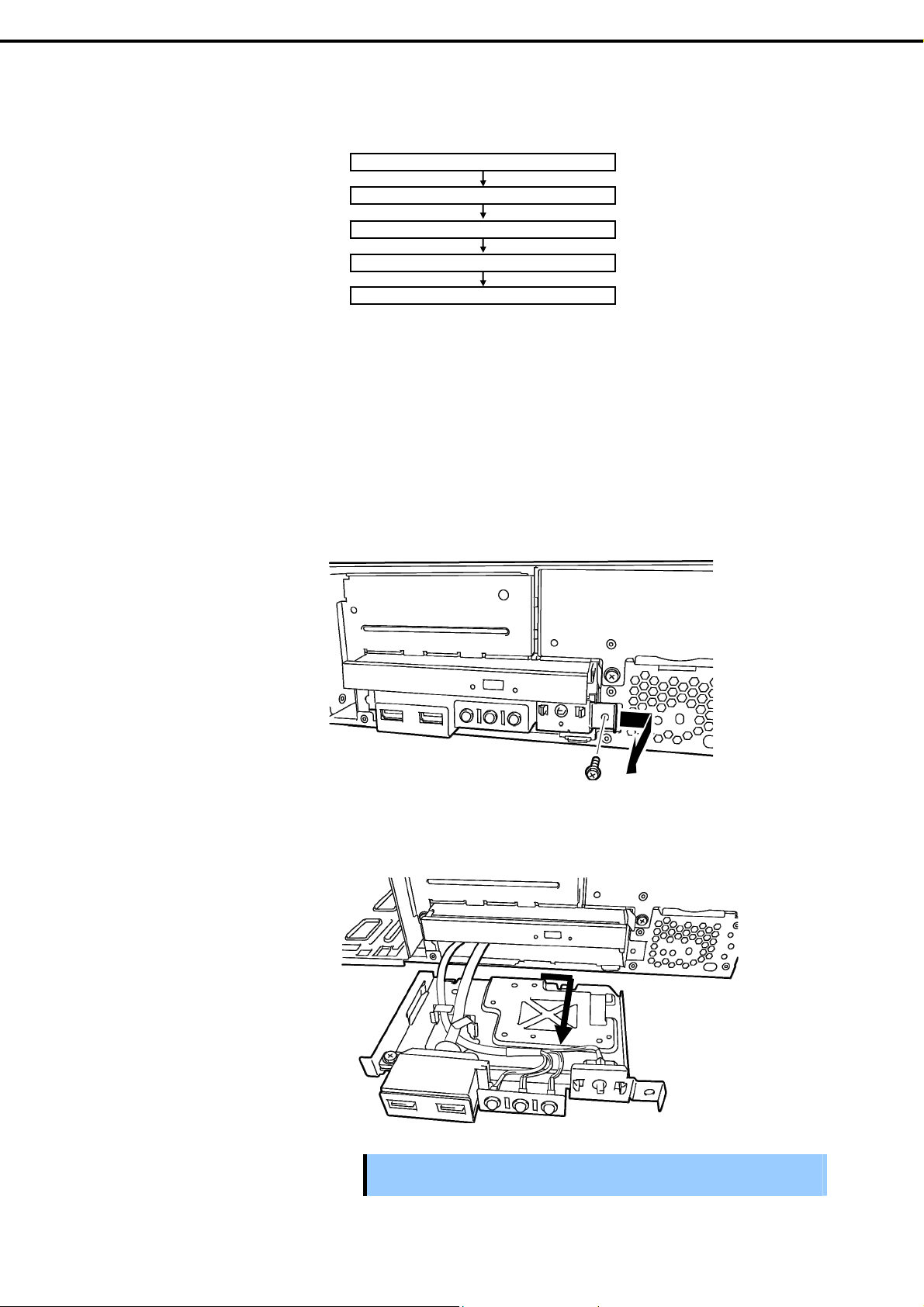

Start

Preparation for installation

Installing the batter

Connecting to RAID Controlle

Finish

Getting ready to install the battery

1. Refer to Chapter 2 (1.3 Overview of Installation and Removal) for preparations.

2. While referring to Chapter 2 (1.4 Remov ing the Side Cover and 1.5 Removing the Front Bezel, remove the side cover and front bezel.

Express5800/T110f-S User’s Guide

Chapter 2 Preparations

Installing the battery pack

1. Remove one screw from the front panel bracket.

2. Slide the front panel br acket slightly toward the right, and then pull the br acket toward the front

1. Installing Internal Optional Devices

to remove it.

Important

Be careful so that the cable does not come out from the connector when pulling the front panel bracket.

3. Mount the battery from the rear side of the front panel bracket by using three screws.

Express5800/T110f-S User’s Guide

Chapter 2 Preparations

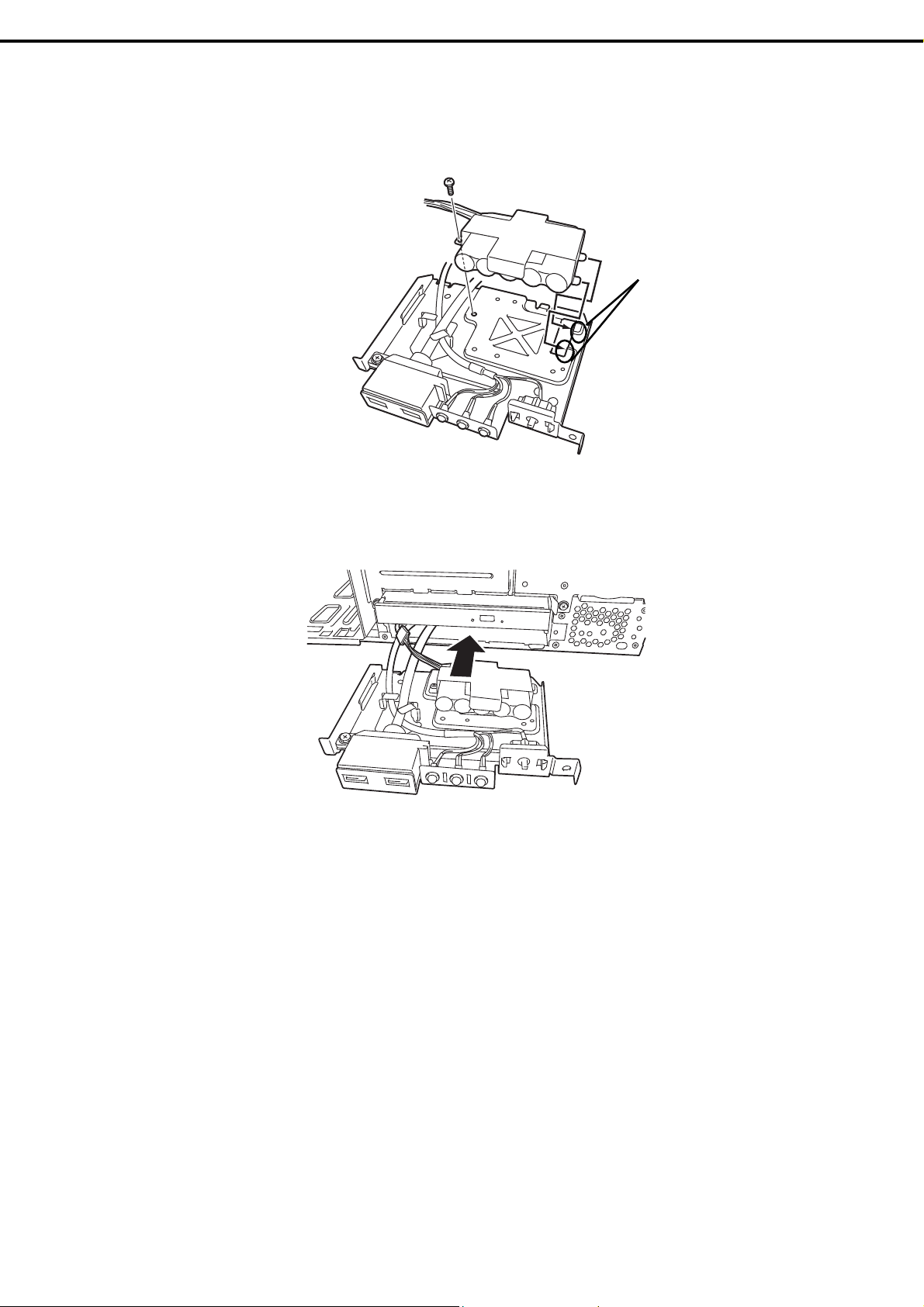

4. Draw the cable into the c hassis and mount the front panel bracket on the server chassis in the

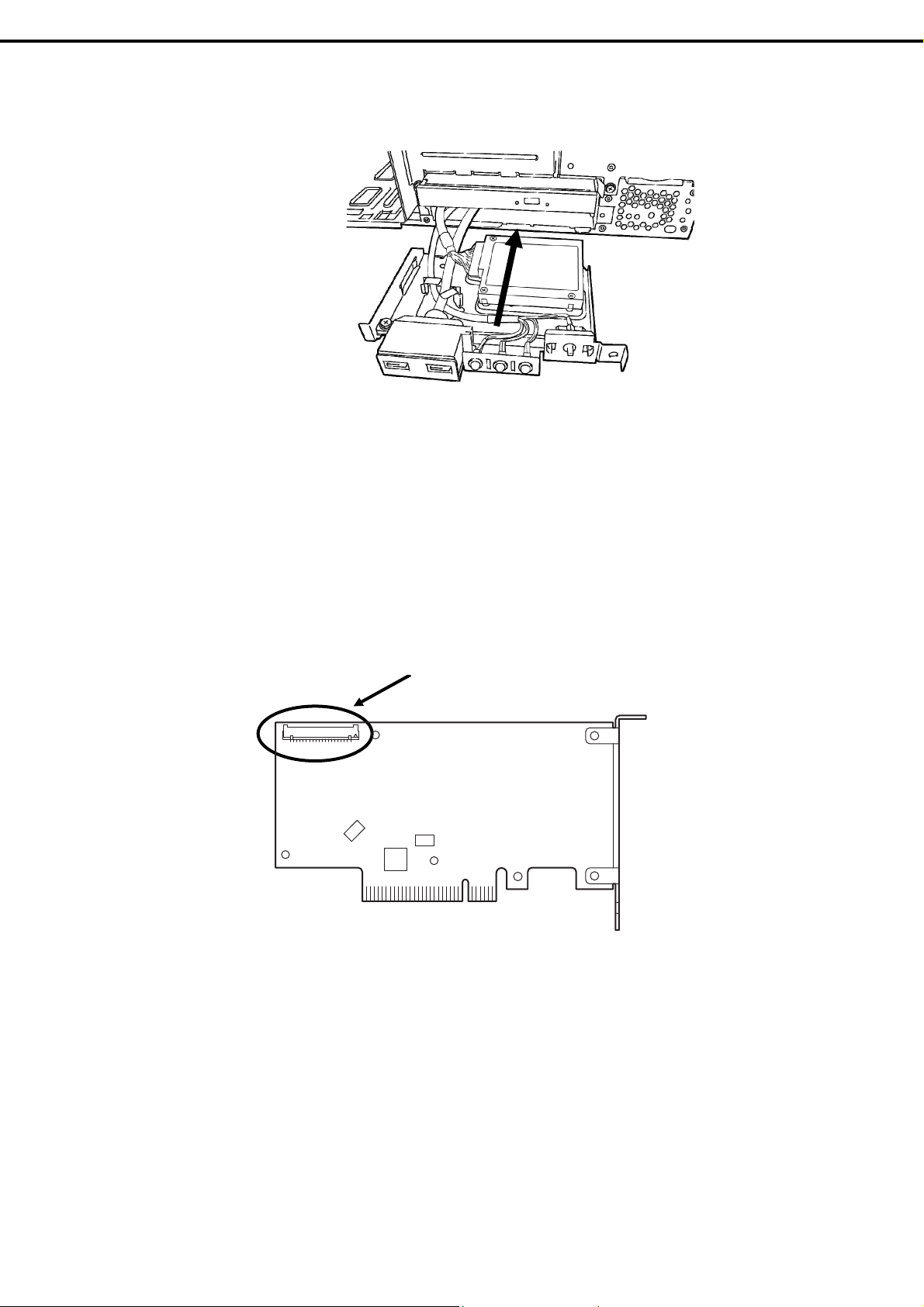

Connecting to a RAID Controller

1. Connect another connector of the flash backup unit control cable to the connector on the RAID

1. Installing Internal Optional Devices

reverse order of the removal procedure.

Controller. Check the orientation of the connector and connect the cable straight into the connector. Be careful not to press it in at an angle when connecting.

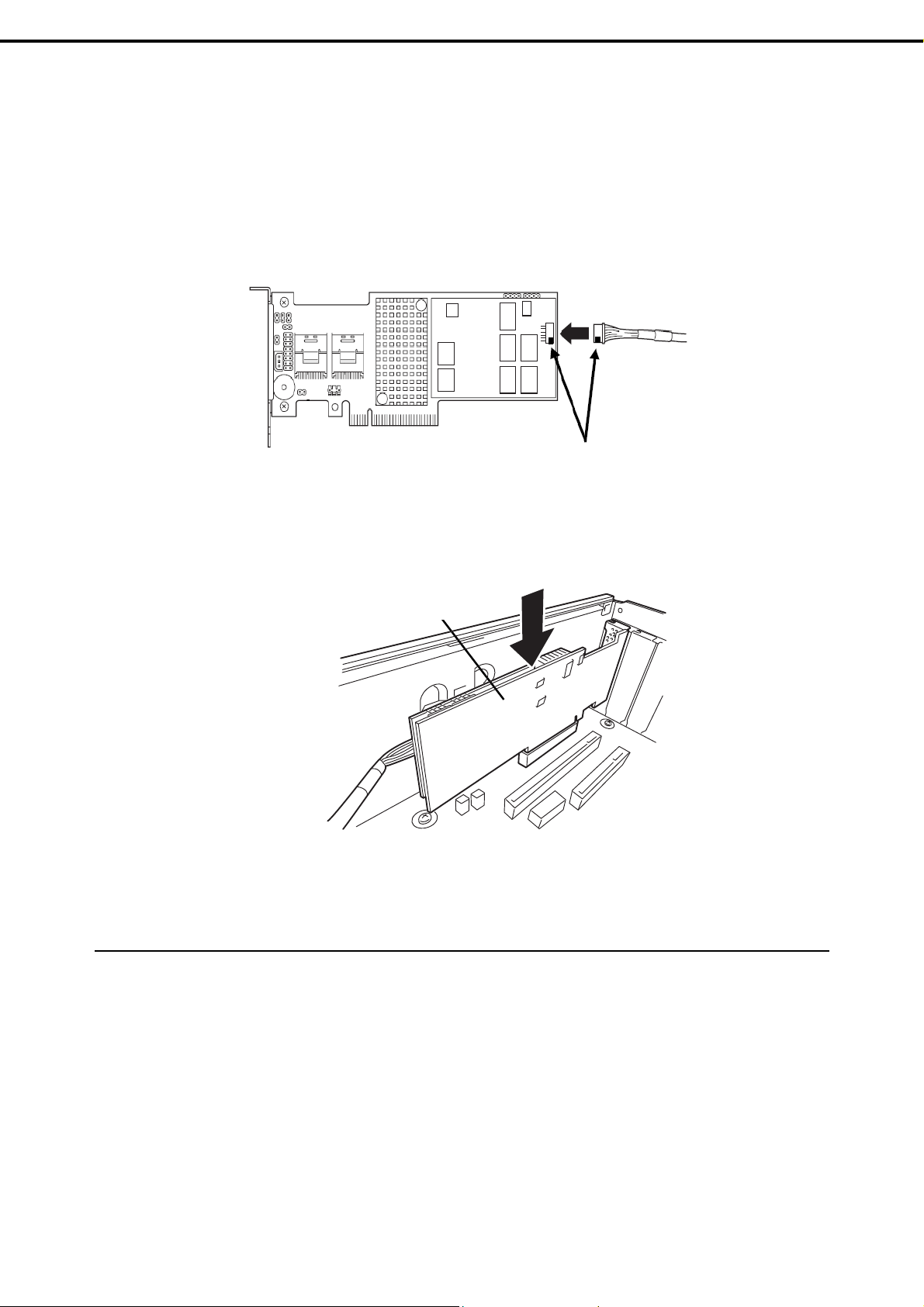

Position of the connector Connect the cable to the connector shown in the figure below.

Connector for battery cable

Rear face of RAID controller

Express5800/T110f-S User’s Guide

Chapter 2 Preparations

2. Install the RAID Controller into the PCI slot #4 and fix it in place. Be careful not to disconnect the

3. Connect the cables and components that you removed earlier.

1. Installing Internal Optional Devices

battery control cable.

RAID Controller

1.10.3

1.10.4

Removal

To remove the extra battery for the RAID Controller, reverse the installation procedure.

Installing the flash backup unit that comes with N8103-167

Install the flash backup unit that comes with N8103-167 RAID Controller the by using the following procedure.

Note Read through the user’s guide supplied with the RAID Controller before installation.

Connecting the flash backup unit control cable

Referring to the image below, connect the flash backup unit control cable into the battery pack. Check the orientation of the connector and connect the cable straight into the connector.

Express5800/T110f-S User’s Guide

Chapter 2 Preparations

Installing the flash backup unit in the server

This section describes how to install this product in the server.

Getting ready to install the battery

1. Refer to Chapter 2 (1.3 Overview of Installation and Removal) for preparations.

2. While referring to Chapter 2 (1.4 Remov ing the Side Cover and 1.5 Removing the Front Bezel,

1. Installing Internal Optional Devices

Start

Preparation for installation

Installing the flash backup unit

Connecting to RAID Controlle

Finish

remove the side cover and front bezel.

Installing the flash backup unit

1. Remove one screw from the front panel bracket.

2. Slide the front panel br acket slightly toward the right, and then pull the br acket toward the front to remove it.

Important

Be careful so that the cable does not come out from the connector when pulling the front panel bracket.

Express5800/T110f-S User’s Guide

Chapter 2 Preparations

3. Mount the flash backup unit on the RAID Controller by us ing the anchoring bracket that comes

1. Installing Internal Optional Devices

with the RAID Controller and secure it by using a single screw.

Screw

Insert the two hooks of the anchoring bracket into the holes on the front panel bracket.

4. Draw the cable into the c hassis and mount the front panel bracket on the server chassis in the reverse order of the removal procedure.

Express5800/T110f-S User’s Guide

Chapter 2 Preparations

Connecting to a RAID Controller

1. Connect another connector of the flash backup unit control cable to the connector on the RAID

Position of the connector

Connect the cable to the connector shown in the figure below.

1. Installing Internal Optional Devices

Controller. Check the orientation of the connector and connect the cable straight into the connector. Be careful not to press it in at an angle when connecting.

Black Marker

RAID Controller

1.10.5

2. Install the RAID Controller into the PCI slot #4 and fix it in place. Be careful not to disconnect the cable.

RAIDController

3. Connect the cables and components that you removed earlier.

Removal

To remove the flash backup unit, reverse the installation procedure.

Express5800/T110f-S User’s Guide

Chapter 2 Preparations

1. Installing Internal Optional Devices

1.11

PCI Card

This server provides four slots where PCI cards can be installed.

Important

• You must avoid static electricity to work with the procedure below. For

details, refer to Chapter 2 (1.2 Anti-static Measures).

• When installing PCI cards, refer to Chapter 2 (1.11.2 List of optional

devices and installation slots) to prevent mistaking slot numbers.

• Configure the Option ROM in [PCI Configuration] according to the

application of the installed PCI card. For the configuration instructions, refer to Chapter 2 (1. Details of system BIOS) in "Maintenance Gui de". Disabling the deployment of Option ROM can not only prevent memory consumption but also shorten the startup time.

PCI#1

PCI#2

PCI#3

PCI#4

Motherboard

Express5800/T110f-S User’s Guide

Chapter 2 Preparations

1. Installing Internal Optional Devices

1.11.1

Notes

Read the following notes when installing or removing a PCI card.

• Do not touch the terminals of cards and the leads of electronic components with your bare hand. Fingerprints and dust left on them cause the server to malfunction due to a connection failure or damage to the leads.

• The search order for PCI bus slot on boot is as follows. Slot 3 → Slot 4 → Slot 1 → Slot 2

• The PCI devices of the same type (including onboard PCI device) may be recognized in different order from that described above, depending on OS or RAID System BIOS utility. Check the slot location of PCI device by PCI bus number, device number and function number shown in the table below.

PCI device PCI bus number Device number Function number Onboard NIC1 Onboard NIC2 Slot 1 Slot 2 Slot 3 Slot 4

• Set Disabled for the optional ROM of a LAN device not to be booted by using the BIOS Setup utility.

3h 0 0

3h 0 1 41h 0 59h 0

1h 0 21h 0 0

× × ×

• If an additiona l bootable PCI card (such as a RAID Controller, SAS controller, or LAN card) is installed,

the boot priority may change. After the installation, set the boot priority in the Boot menu of the BIOS

Setup utility.

• If a bootable device such as a PCI card or USB device is added, the boot order may change. In the BIOS Setup utility, select Hard Drive BBS Priorities from the Boot menu, and then specify a higher priority for the boot device. Boot → Hard Drive BBS Priorities → Check the display If the boot device is an HDD under an optional RAID Controller, the display is (Bus xx Dev 00) PCI RAID Adapter. Note that the value for xx changes depending on the PCI slot where a RAID board is installed.

Express5800/T110f-S User’s Guide

Chapter 2 Preparations

1. Installing Internal Optional Devices

1.11.2

List of optional devices and installation slots

PCI EXPRESS

Model name

N8103-142

N8103-G171

N8103-171

N8103-149

N8103-150*3

N8103-151

N8103-167*3

N8104-138

N8104-132

N8117-01A

Product

name

SAS controller (card performance: PCI EXPRESS 2.0 (x8))

RAID controller (128 MB, RAID 0/1) (card performance: PCI EXPRESS 2.0 (x8))

RAID controller (512 MB, RAID 0/1) (card performance: PCI EXPRESS 2.0 (x8))

RAID controller (512 MB, RAID 0/1/5/6) (card performance: PCI EXPRESS 2.0 (x8))

RAID controller (1 GB, RAID 0/1/5/6) (card performance: PCI EXPRESS 2.0 (x8))

RAID controller (1 GB, RAID 0/1/5/6) (card performance: PCI EXPRESS 3.0 (x8))

1000BASE-T connection board (1ch) (card performance: PCI EXPRESS (x1))

1000BASE-T connection board (2ch) (card performance: PCI EXPRESS (x1))

Expansion RS-232C connector kit*2

PCI slot performance

PCI slot size Low Profile

PCI board socket type*1x8 x8 x16 x8

Size of mountable

board

c Can be installed − Cannot be installed *1 Lane: Indicates the transfer performance (transfer bandwidth).

<e.g.> 1 lane = 2.5 Gbps (unidirectional), 4 lanes = 10 Gbps (unidirectional) Socket: Indicates the connector size. A card up to the number of sockets can be connected.

<e.g.> x4 socket = x1 card, x4 card can be installed. x8 card cannot be installed. *2 The N8117-01A expansion RS-232C connector kit contains two types of cables. This server uses the RS-232C cable (B). *3 3.5-inch HDD is not supported.

• The depth of mountable boards is up to 168 mm (MD2).

• For details of functions of each card, refer to the technical guide.

• The card performance described in the parentheses after the Product name indicates the maximum operation performance

of the card.

• Even if you use PCI cards of a higher performance than the PCI slot, the operation of the device will be that of the PCI slot.

2.0 3.0 2.0

PCI#1 PCI#2 PCI#3 PCI#4

lane

168 mm or less

c c c

−

− − −

x16

lane

c c c c

Remark

For connecting internal/external devices. Cannot be connected to internal hard disk drives.

For connecting internal hard disk drives (dedicated for pre-installation model) Cannot be connected to an extra battery.

For connecting internal hard disk drives Cannot be connected to an extra battery.

For connecting internal hard disk drives Can be connected to an extra battery (N8103-155)

For connecting internal hard disk drives The RAID cache can be backed up by using the flash backup unit that comes with N8103-167.

For additional LAN Card type: PCI Express 2.0(x4)

For additional serial port (RS-232C)

Cannot be used when a 3.5-inch HDD cage is installed together with a 2.5-inch extra HDD cage.

−

Cannot be used when a 3.5-inch HDD cage is installed.

Express5800/T110f-S User’s Guide

Chapter 2 Preparations

About the standard network

You can use functional equivalents of AFT/SFT/ALB teaming and bonding with the standard network and the following LAN

cards:

N8104-132 and N8104-138

1. Installing Internal Optional Devices

Express5800/T110f-S User’s Guide

Chapter 2 Preparations

1. Installing Internal Optional Devices

1.11.3

Installation

Install a PCI card to connect to a PCI slot by using the following procedure.

1. Before installation, make sur e the switch or jumper settings on the card are properly set according to the instruction manual supplied with the card if necessary.

2. Refer to Chapter 2 (1.3 Overview of Installation and Removal) for preparations.

3. Remove the side cover while referring to Chapter 2 (1.4 Removing the Side Cover).

4. Open the PCI slot retention latch.

5. Remove the blank cover aligned with the slot where you are going to install a card.

Important

Keep the removed blank cover for future use.

Express5800/T110f-S User’s Guide

Chapter 2 Preparations

6. Orient the component side of the card toward the b ottom of the server. When the rear panel of the card is firmly engaged with the spring, firmly press the card into the slot so that the component parts of the card securely connect to the slot.

1. Installing Internal Optional Devices

Important

If you have trouble installing the card, remove the card o nce and tr y again. I f you apply excessive pressure on the card, there is a risk of breaking the card.

7. Close the PCI slot retention latch. When it locks, you hear a clicking sound.

8. Assemble the server.

9. Turn on the server and confir m that no error messages are displayed in POST. If an error message is displayed, take notes on the message and ask your maintenance service company for maintenance.

Express5800/T110f-S User’s Guide

Chapter 2 Preparations

1. Installing Internal Optional Devices

1.11.4

1.11.5

Configuration after installing

Depending on the type of card installed, you might need to use a utility (t he BIOS setup utilit y included with this server or a setup utility provided with the card) following installation to modify server settings.

Follow the instructions in the manual provided with the card to specify the correct settings. After turning the server power on, the PCI bus numbers are scanned in ascending order. If the option RO M

installed in the card contains a BIOS utility, the startup message (banner) is displayed in ascending order of the PCI bus numbers.

Removal

Remove a PCI card connected to a PCI slot by using the following procedure.

1. Refer to Chapter 2 (1.3 Overview of Installation and Removal) for preparations.

2. Remove the side cover while referring to Chapter 2 (1.4 Removing the Side Cover).

3. Refer to installation step 4 to open the PCI slot retention.

4. Remove the card.

5. Attach the blank cover, and refer to installation step 7 to close the PCI slot retentio n.

6. Assemble the server.

7. Turn on the server and confir m that no error messages are displayed in POST. If an error message is displayed, take notes on the message and ask your maintenance service company for maintenance.

Express5800/T110f-S User’s Guide

Chapter 2 Preparations

1. Installing Internal Optional Devices

1.11.6

Installing the N8117-01A extra RS-232C connector kit

Install a PCI card to connect to the PCI slot by using the following procedure. For details, refer to the instruction manual supplied with the connector kit.

Important

The component parts for N8117-01A are as follows:

Item no. Item name Specification Amount Remarks

<1>

<2> RS-232C cable (A) 804-063264-020 1 <3> RS-232C cable (B) 804-062746-820 1 <4> PCI bracket (1) 243-112122-001 1 Preinstalled to cable <5> PCI bracket (2) 243-112122-002 1 For full height PCI

RS-232C connector Kit User's Guide

<4>

The N8117-01A extra RS-232C connector kit contains two types of cables. This server uses the RS-232C cable (B).

856-125671-002 1

<5>

<2>

<3>

This product uses a combination of items <3> and <4>. Follow the procedure below to install the kit.

1. Refer to Chapter 2 (1.3 Overview of Installation and Removal) for preparations.

2. Remove the side cover while referring to Chapter 2 (1.4 Removing the Side Cover).

3. Assemble <3> RS-232C cable (B) and <4> PCI bracket (1).

4. Open the PCI slot retention latch while ref erring to Chapter 2 (1.11.3 Installation).

Express5800/T110f-S User’s Guide

Chapter 2 Preparations

5. Remove the expansion blank cover aligned with the slot where you are going to install a card.

1. Installing Internal Optional Devices

Important

Keep the removed blank cover for future use.

6. Make sure that you are properly inserting the bracket edge into the frame guide, and attach it securely.

Express5800/T110f-S User’s Guide

Chapter 2 Preparations

7. Arrange the cable so as not to buffer other PCI cards, and connect to the COM connector used for internal connections in the motherboard. Refer to the following for the position of the COM connector for internal connections.

1. Installing Internal Optional Devices

Important

• If connecting the cable, fit it to the polariz ing key of the connector a nd be careful

not to connect it improperly.

• The N8117-01 A expansion RS-232C connector kit contains two types of cables.

This server uses the RS-232C cable (B).

COM connector for internal connections

8. Make sure tha t remo ved slot co ve rs , tools , sc rews, or other similar objects do not remain inside before assembling.

Express5800/T110f-S User’s Guide

Chapter 2 Preparations

1. Installing Internal Optional Devices

1.12

HDD Cages

In the HDD bay in this server, the N8154-65F 3.5-inch HDD cage that can mount up to two 3.5-inch Hard Disk Drives or N8154-59F 2.5-inch HDD cage that can mount up to four 2.5-inch Hard Disk Drives can b e installed. In 3.5-inch expansion bay 1, the N8154-56F extra 2.5-inch HDD cag e that can mount up to two 2.5-inch Hard Disk Drives can be installed.

Important

Use Hard Disk Drives specified by NEC. Installing a third-party Hard Disk Drive might cause a failure of the server and the Har d D isk Dr i ve. You will be charged for maintenance for failures and damage caused by these pro ducts , even during the maintenance period.

N8154-65F 3.5-inch HDD cage

HDD bay

Second Hard Disk Drive

First Hard Disk Drive

N8154-56F extra

2.5-inch HDD cage

Sixth Hard Disk Drive

Fifth Hard Disk Drive

Fourth Hard Disk Drive

Third Hard Disk Drive

Second Hard Disk Drive

First Hard Disk Drive

N8154-59F 2.5-inch HDD cage

Express5800/T110f-S User’s Guide

Chapter 2 Preparations

1. Installing Internal Optional Devices

1.12.1

Installing a 3.5-inch HDD cage and hard disk drives

Install a 3.5-inch HDD cage in the server by using the following procedure.

1. Refer to Chapter 2 (1.3 Overview of Installation and Removal) for preparations.

2. Remove the side cover and front bezel by referring to Chapter 2 (1.4 Removing the Side Cover and

1.5 Removing the Front Bezel).

3. Insert the HDD cage into the HDD bay.

4. Push the HDD cage so that its protrusions A and B come fit into the grooves on the chassis.

The indication of "C side" must face

5. Insert one side of the lock plate into the groove of the chassis. Push the lock plate in the direction shown by the arrow to lock the HDD cage.

6. Mount the HDD trays that come with the HDD cage from both sides of the 3.5-inch hard disk drive. Mount the tray marked "A" on the right side, and the tray marked "B" on the left side. Mount the hard disk drive so that its control board faces upward.

Express5800/T110f-S User’s Guide

Chapter 2 Preparations

7. Insert the hard disk drive attached to the tray into the slot of the HDD cage. When it is pushed to the end, it locks with a click.

8. Connect the signal cables and power cable to the hard disk drive. Use the signal cables that come with the HDD cage. Use the power cable connected to the motherboard in advance. For details about cable connection, refer to 1.15.1 Internal interface cables.

9. Attach the front bezel and side cover you removed in step 2.

1. Installing Internal Optional Devices

1.12.2

Removing hard disk drives

Remove the hard disk drives by using the following procedure.

Important

1. Refer to Chapter 2 (1.3 Overview of Installation and Removal) for preparations.

2. While referring to Chapter 2 (1.4 Removing the Side Cover and 1.5 Removing the Front Bezel), remove the side cover and front bezel.

3. Disconnect the power cable and signal cable from the Hard Disk Drives.

4. Press the part shown in the figure to unlock the HDD tray, and then remove the hard disk drive out from the HDD cage.

5. Assemble the server.

When disposing of the hard disk drives, follow the instructions describe d in Chapter 1 (1.2 Disposal of consumables and servers) in the Maintenance Guide.

Express5800/T110f-S User’s Guide

Chapter 2 Preparations

1. Installing Internal Optional Devices

1.12.3

Installing a 2.5-inch HDD cage and hard disk drives

If a 2.5-inch HDD cage is installed in this server, four to six SAS/SATA Hard Disk Drives or SSDs (solid state drive) can be installed.

Combining SATA/SAS Hard Disk Drives and SSDs

• Hard Disk Drives (SATA/SAS) and SSDs cannot be combined on BTO servers.

• An optional RAID Controller is required to use SAS Hard Disk Drives together with SSDs.

• An optional RAID Controller is required to install five or more Hard Disk Drives.

• You cannot mix them within the same RAID group (pack).

• You cannot use SAS Hard Disk Drives that have different rotation speeds.

• Mount SATA/SAS Hard Disk Drives in order from slot 0, and mount the SSDs to the remaining slots.

The N8154-59F 2.5-inch HDD cage, which is a required BTO option, can mount a SAS HDD, and the N8154-56F 2.5-inch extra HDD cage can mount a SATA HDD, and vice versa.

Important

Fourth Hard Disk Drive

Third Hard Disk Drive

Second Hard Disk Drive

First Hard Disk Drive

N8154-59F

2.5-inch HDD cage

(When four Hard Disk Drives are installed)

N8154-56F extra

2.5-inch HDD cage

Sixth Hard Disk Drive

Fifth Hard Disk Drive

Fourth Hard Disk Drive

Third Hard Disk Drive

Second Hard Disk Drive

First Hard Disk Drive

N8154-59F

2.5-inch HDD cage

(When six Hard Disk Drives are installed)

Important

Install the hard disk drives sequentially starting from slot 0.

Express5800/T110f-S User’s Guide

Chapter 2 Preparations

Install a 2.5-inch HDD cage in the server by using the following procedure.

1. Refer to Chapter 2 (1.3 Overview of Installation and Removal) for preparations.

2. While referring to Chapter 2 (1.4 Removing the Side Cover and 1.5 Removing the Front Bezel, remove the side cover and front bezel.

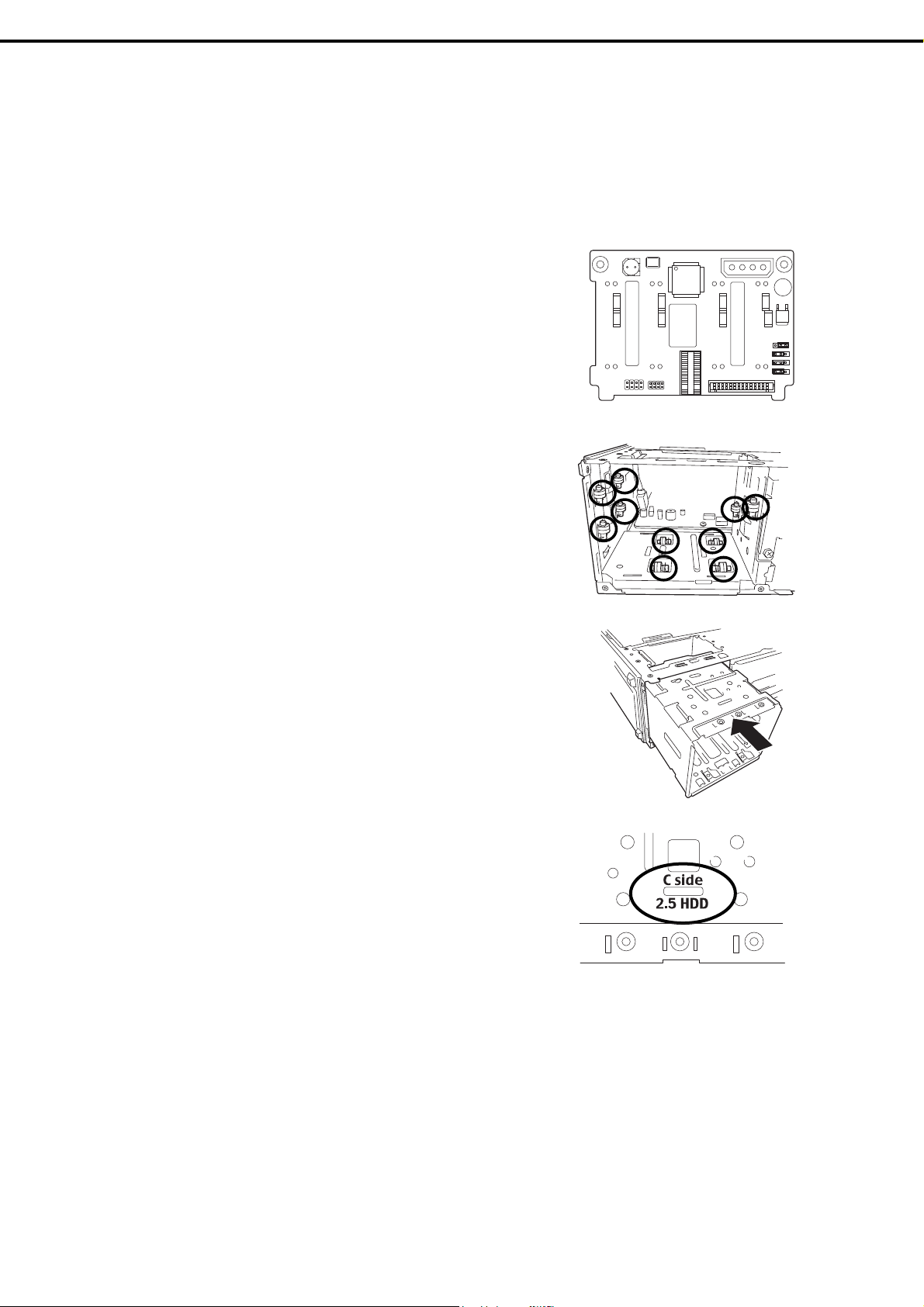

3. Set the jumper for the backplane board installed in the HDD cage. The jumper setting when the onboard SATA Controller (LSI Embedded MegaRAID) is used differs from that when the optional RAID Controller is used. For details, refer to

1.9 Use of Internal Hard Disk Drives in the RAID System.

4. Mount the rollers that come with the HDD cage on the grooves inside the HDD bay (10 places).

1. Installing Internal Optional Devices

5. Insert the HDD cage into the HDD bay. The indication of "C side" must face upward. Do not push the HDD cage to the end, because you need to connect cables later.

Express5800/T110f-S User’s Guide

Chapter 2 Preparations

6. Connect the interface cable and power cable to the HDD cage. Use the interface cable that comes with the HDD cage. Use the power cable connected to the motherboard in advance. For details of cable connection, refer to (2.2.1 Interface cables) described later.

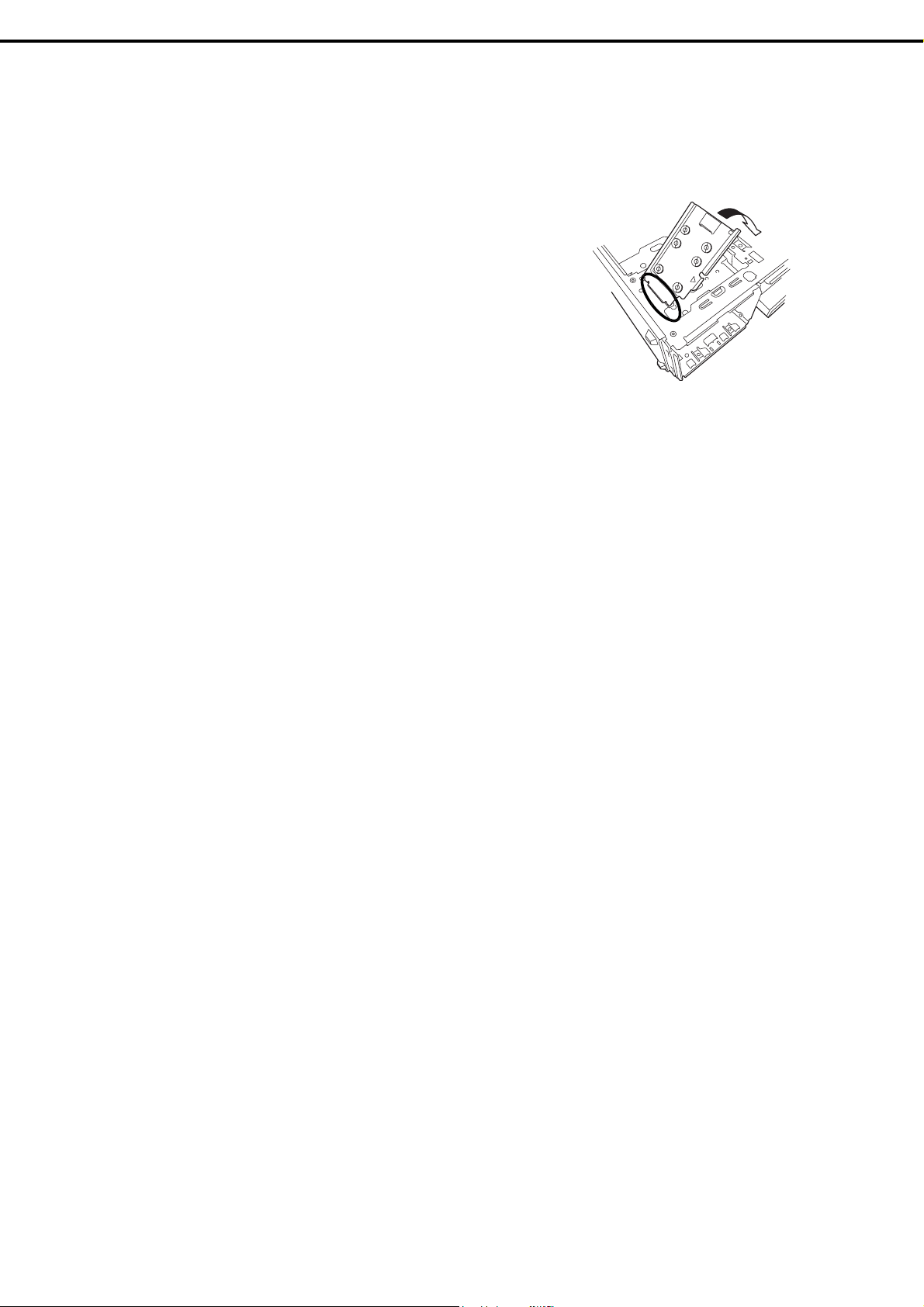

7. Push the HDD cage to the end. Insert one side of the lock plate into the groove of the chassis. Push the lock plate in the direction shown by the arrow to lock the HDD cage.

1. Installing Internal Optional Devices

Express5800/T110f-S User’s Guide

Chapter 2 Preparations

1. Installing Internal Optional Devices

1.12.4

Installing an extra 2.5-inch HDD cage

Two hard disks can be added by using an extra 2.5-inch HDD cage.

Tips

Install an extra 2.5-inch HDD cage in the server by using the following procedur e.

1. Refer to Chapter 2 (1.3 Overview of Installation and Removal) for preparations.

2. While referring to Chapter 2 (1.4 Removing the Side Cover and 1.5 Removing the Front Bezel, remove the side cover and front bezel.

3. Remove one screw and the dummy cover from the

3.5-inch device bay.

With a liquid-cooled server, an extra 2.5-inch HDD cage cannot be used at the same time as a backup device.

Dummy cover

4. Insert an extra 2.5-inch HDD cage into the 3.5-inch device bay. Do not push the HDD cage to the end, because you need to connect cables later.

5. Connect the interface cable that comes with the HDD cage and the power cable on the motherboard. For details, refer to Chapter 2 (1.15 Connecting cables).

6. Push the HDD cage to the end and secure it with two screws.

7. Attach the front bezel and side cover.

Express5800/T110f-S User’s Guide

Chapter 2 Preparations

8. Open the front door of the standard 2.5-inch HDD

cage. Slide the tab on the bezel of the extra

2.5-inch HDD cage in the direction shown by the

arrow, and then remove it from the bezel. Sliding

this tab toward the outside of the bezel allows you

to lock the bezel of the extra 2.5-inch HDD cage

when the front door of the standard 2.5-inch HDD

cage is closed.

1. Installing Internal Optional Devices

1.12.5

How to open the extra 2.5-inch HDD cage door

Open the extra 2.5-inch HDD cage in the server by using the following procedure.

1. Unlock and open the door of the 2.5-inch

hard disk drive bay.

Note

2. Insert your finger into the opening located on the right side of the extra 2.5-inch HDD cage door (if

the server is laid down horizontally) and push the door to the right (see (1) below) to unlock the door.

You need to open the 2.5-inch HDD bay door first to open the extra 2.5-inch HDD

cage door.

Pull the door toward the front (see (2) below) to open.

①

②

Express5800/T110f-S User’s Guide

Chapter 2 Preparations

1. Installing Internal Optional Devices

1.12.6

Installing the hard disk drive

Install a 2.5-inch Hard Disk Drive in the server by using the following procedure.

1. Unlock and open the door of the 2.5-inch

drive bay.

2. Install the hard disk drives in the HDD cage.

Fully open the lever on the hard disk drive

tray, and then insert the hard disk drive until

it comes into contact with back of the HDD

cage (1).

When finished, close the lever to lock the

hard disk drive (2). (You will hear a click.)

Important Use only the hard disk drives recommended by NEC.

Ask your sales agent or service representative for details.

Note

Make sure that the orientation of the hard disk drive (tray) before insertion (see the

figure) is correct. In addition, make sure that the hook of the lever engages with

the frame of the HDD cage when the lever is closed.

Important

If you remove two or more hard disk drives while the server is on, the logical

drive will be damaged. Remove or replace the hard disk drives one by one.

3. Close the door and lock it by using the key.

Express5800/T110f-S User’s Guide

Chapter 2 Preparations

1. Installing Internal Optional Devices

1.13

1.13.1

Replacing drives

Optical Disk Drive

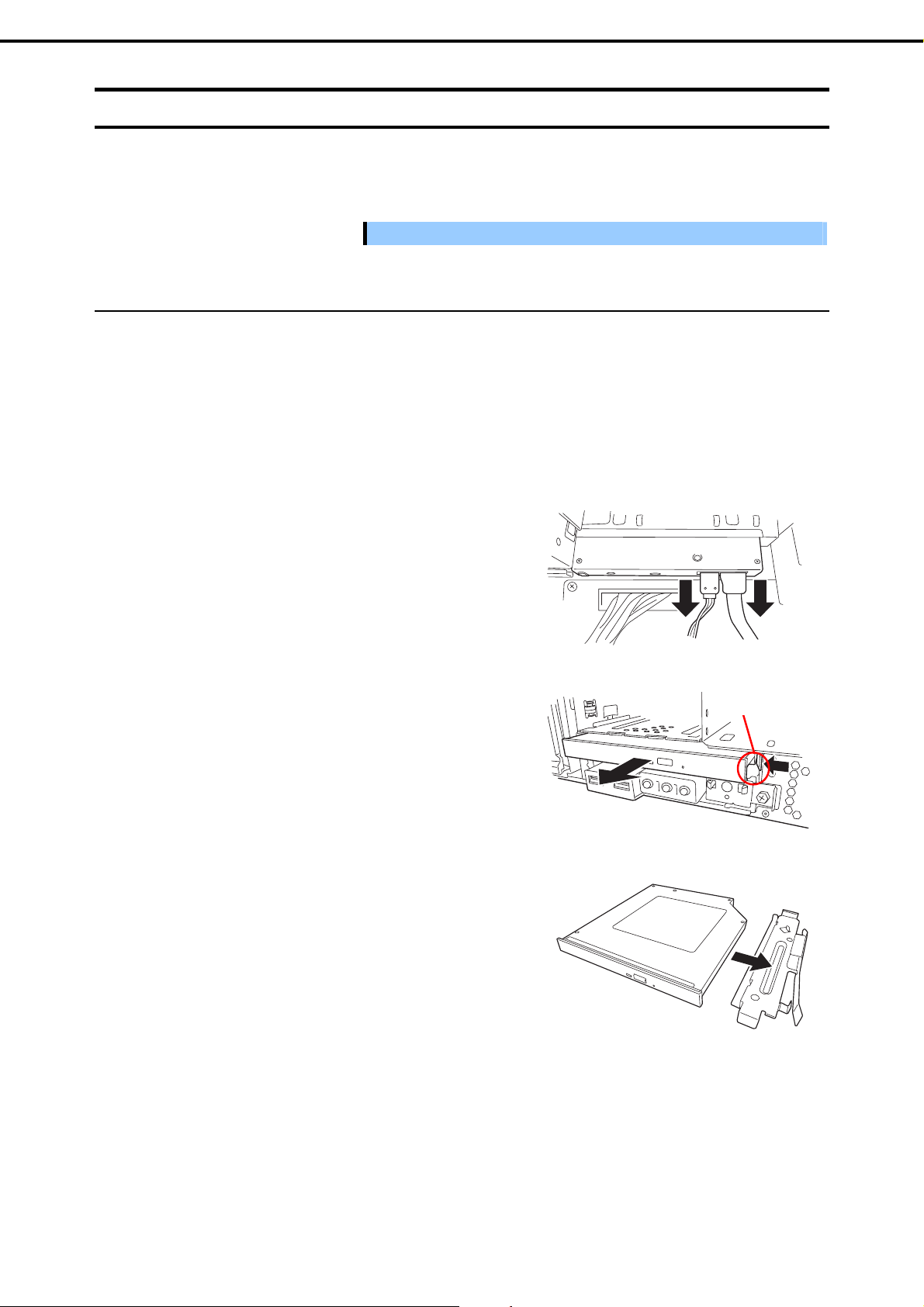

Procedures for replacing the standard optical disk drive with the optional internal DVD SuperMULT I drive are described below.

Important Do not install a drive other than those specified by NEC.

Follow the procedure below to replace your drive with the optional intern al DVD SuperMULTI drive.

1. Refer to Chapter 2 (1.3 Overview of Installation and Removal) for preparations.

2. Remove the side cover and front beze l while referring to Chapter 2 (1.4 Removing the Side Cover and

1.5 Removing the Front Bezel).

3. If a device or an extra 2.5-inc h HDD cag e is installed in the 3.5-inch device bay (1), remove it so that you can access the cable connected to the optical disk drive.

4. Disconnect the SAT A cable and DC power cable from the optical disk drive.

5. Push the stopper on the right side (as viewed from the front) and remove the optical disk drive.

6. Remove the bracket from the optical disk drive.

Stopper

Express5800/T110f-S User’s Guide

Chapter 2 Preparations

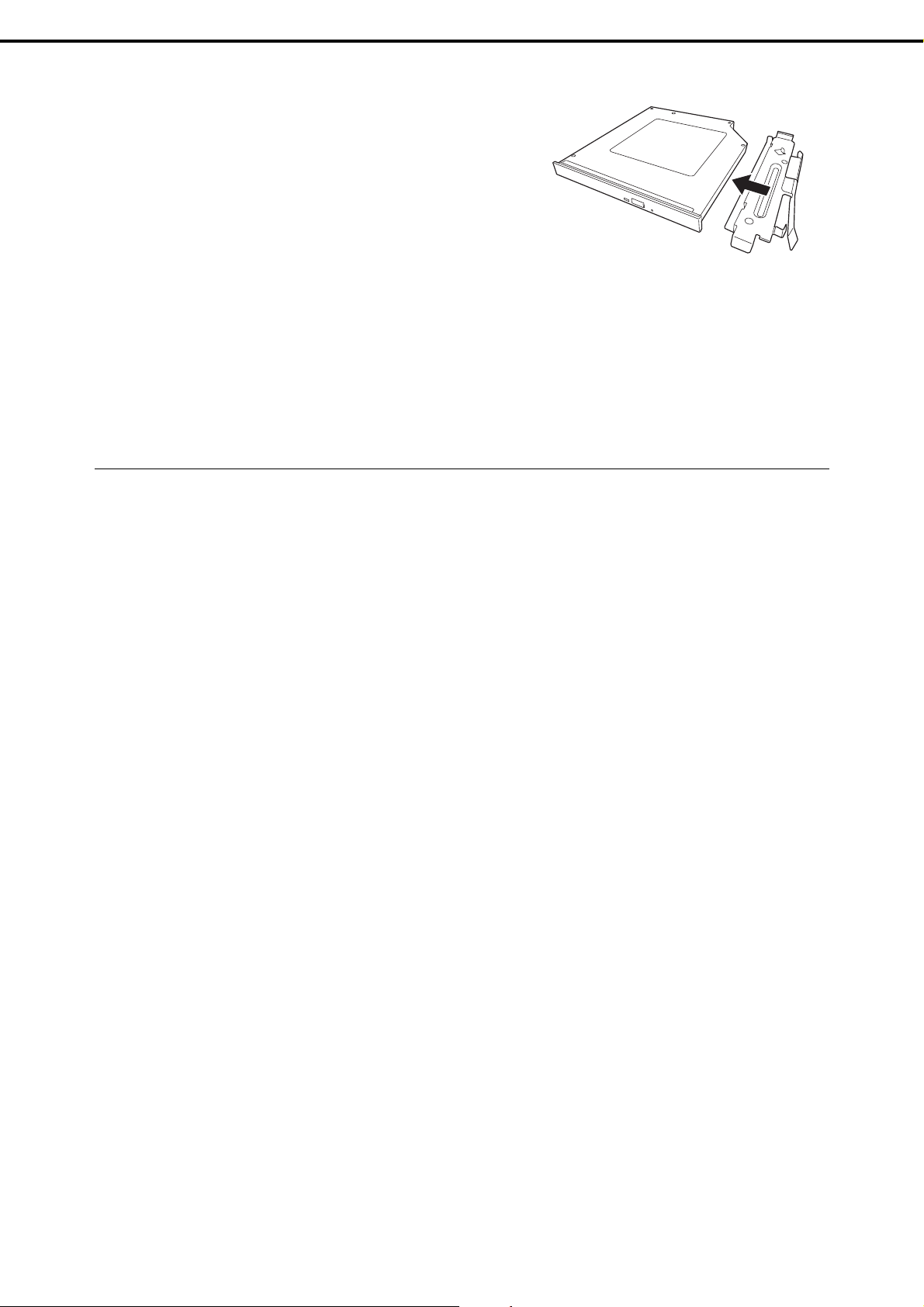

7. Mount the bracket for the optical disk drive on the DVD SuperMULTI drive.

8. Install the bracket with DVD SuperMU LTI drive installed to the server.

9. Connect the SATA cable an d DC power cable you disconnected in step 3 to the server.

This completes the installation procedures.

1. Installing Internal Optional Devices

1.13.2

Removal

You can remove the optical disk drive by reversing the installation procedure.

Express5800/T110f-S User’s Guide

Chapter 2 Preparations

1. Installing Internal Optional Devices

1.14

Backup devices

The 3.5-inch device bay of the server can contain a backup device such as a magnetic tape drive. In an air cooled server, install the backup device in 3.5-inch device bay 2. In a liquid-cooled server, install the backup device in 3.5-inch device bay 1.

Tips

An optional internal USB cable is required to install a backup device.

• K410-276(00) internal USB cable (USB 3.0)

• K410-286(00) internal USB cable (USB 2.0)

Prepare whichever cable is appropriate for your configuration. In a liquid-cooled server, the backup device cannot be used at the same time as

an extra 2.5-inch HDD cage.

3.5-inch expansion bay 2

3.5-inch expansion bay 1

Express5800/T110f-S User’s Guide

Chapter 2 Preparations

1. Installing Internal Optional Devices

1.14.1

Installation

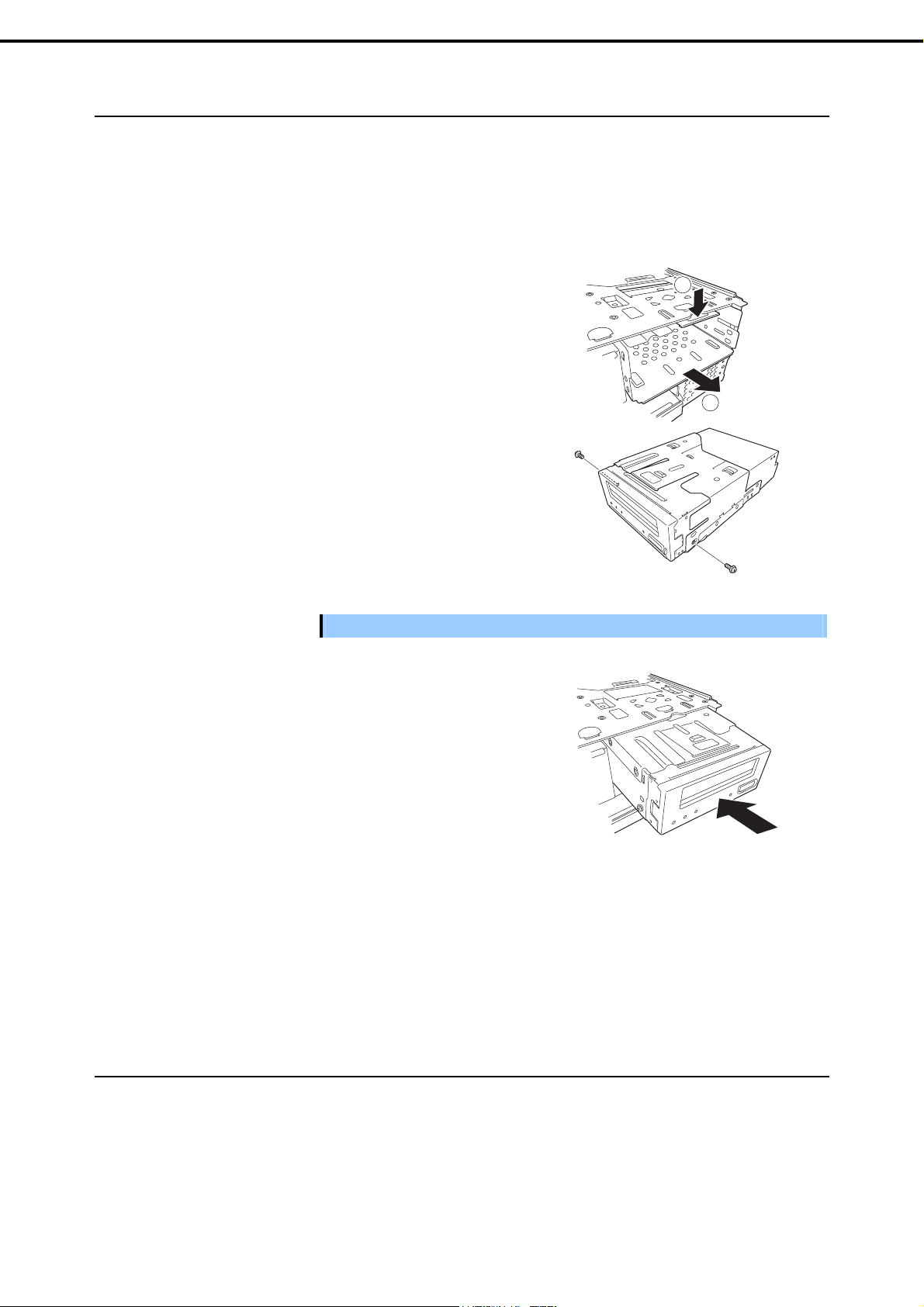

Install a backup device by using the following procedure.

1. Refer to Chapter 2 (1.3 Overview of Installation and Removal) for preparations.

2. Remove the side cover and front beze l while referring to Chapter 2 (1.4 Removing the Side Cover and

1.5 Removing the Front Bezel).

3. Remove the blank cover. Push the tab on th e tray and pull out the device tray from the 3.5-inch device bay.

4. Mount the backup device on the device tray. Secure the backup device on the left and right sides by using the two screws that come with the server.

Important Use screw set 502 supplied with this server to attach the backup device to the tray.

5. Insert the backup device into chassis. Do not push the backup device in completely as the cable has to be connected to the device.

6. Connect the interface cable and power cable to the installed 3.5-inch backup device. For more information, refer to Chapter 2 (1.15 Connecting cables).

7. Push the device all the way until it locks with a clicking sound.

8. Assemble the server.

9. Install device drivers for installed backup device as needed. For more information, refer to the manual provided with the backup device.

1.14.2

Removal

You can remove the backup device by reversing the installation procedure. If the devices are to rem ain removed, attach the stored dummy cover.

Express5800/T110f-S User’s Guide

Chapter 2 Preparations

))

1. Installing Internal Optional Devices

1.15

Connecting cables

This section shows an example of internal device cable connection.

1.15.1

Internal interface cables

This section describes the connection of internal interface cables.

Tips

The figure shown here primarily describes connections. For more information about the connectors on the motherboard, refer to Chapter 1 (5.4 Motherboard).

(1) Connecting Hard Disk Drives

This section describes how to connect additional Hard Disk Drives.

(a) In case of 3.5-inch Hard Disk Drive installed

When adding 3.5-inch Hard Disk Drives, connect the cables as in the following figure. Install the Hard Disk Drives in order from the left side.

Connect the first Hard Disk Drive to SATA0, the second to SATA1.

• When connecting to the miniSAS connector on the motherboard

A dedicated cable (K410-278(00)) is required.

Powe r supply unit

Optical disk drive

Motherboard

SATA 4

MINI SAS1

Slot 0: First Hard Disk Drive

Slot 1: Second Hard Disk Drive

SATA cable (for the optical disk drive)

Internal SATA cable (K410-278 (00

3.5-inch HDD cage (N8154-65F)

You can use the controller on the motherboard to build a RA ID System. For more information on the RAID level you can build and then method for building RAID Systems, see Chapter 2 (4. RAID System Configuration) in "Maintenance Guide".

Express5800/T110f-S User’s Guide

Chapter 2 Preparations

• If a RAID Controller (N8103-171/149) has been added Connecting to a RAID Controller (N8103-171/149) requires a dedic ated cable (K410-277(00)) for use with RAID Controllers. Install the Hard Disk Drives in order from the left side.

Powe r supply unit

1. Installing Internal Optional Devices

Motherboard

HDD LED1

(0 to 3)

RAID controller (

N8103-171/149/151

SATA cable (for the optical disk drive)

Internal SATA cable (K410-277 (00))

RAID LED cable (included with K410-277 (00))

Battery cable (included with the extra battery)

* N8103-171 does not support the extra battery.

SATA 4

)

Slot 1: Second Hard Disk Drive

Slot 0: First Hard Disk Drive

Optical disk drive

Extra battery (N8103-155)

3.5-inch HDD cage (N8154-65F)

Express5800/T110f-S User’s Guide

Chapter 2 Preparations

• When a RAID Controller (N8103-149) is installed and an extra 2.5-inch HDD cage (N8154-56F) is

connected:

When a RAID Controller (N8103-149) is installed and an extra 2.5-inch HD D cage (N81 54-56F ) is con nected, dedicated cables (K410-277(00) and K410-287(00)) are required. Do no t use the cable that comes with the extra 2.5-inch HDD cage (N8154-56F). Install the hard disk drives sequentially starting from the leftmost slot when viewed from the front.

1. Installing Internal Optional Devices

Powe r supply unit

Motherboard

(0 to 3)

(4 to 7)

RAID controller (

N8103-149/151

I-SAS5

I-SAS4

HDD LED1

SATA4

)

SATA cable (for the optical disk drive)

Internal SATA cable (K410-277 (00))

RAID LED cable (included with K410-277 (00))

Battery cable (included with the extra battery)

Internal SAS/SATA cable (K410-287 (00))

Slot 0: First Hard Disk Drive

Slot 1: Second Hard Disk Drive

Extra 2.5-inch HDD cage (N8154-56F)

Slot 4: Third Hard Disk Drive Slot 5: Fourth Hard Disk Driv

Optical disk drive

Extra battery (N8103-155)

3.5-inch HDD cage (N8154-65F)

Tips

Dedicated cables (K410-277(00) and K410-287(00)) are required for connection. Do not use the cable that comes with the extra 2.5-inch HDD cage (N8154-56F)

Express5800/T110f-S User’s Guide

Chapter 2 Preparations

1. Installing Internal Optional Devices

Important

• About RAID LED cables

The DISK access LED on the front of the equipment shows the access status of Hard Disk Drives that are connected to a RAID Controller. To display this status, connect the LED cable that comes with the optional K cord cable K410-277(00). Connect the LED connector on the motherboard to the connector on the RAID Controller.

LED connecto

To the motherboard side

Motherboard

Refer to the figures below and connect the LED cable to the LED connector of the motherboard.

Connect the opposite end of the cable to connect to the RAID Controller.

RAID Controller N8103-149

RAID Controller N8103-171

Connect cables

ケーブルを接続

Red

赤

J1A3

J1A1

グローバル

Global

フォルト

Fault

LED

J2A2

Global

グローバル

Activity

アクティビ

LED

ティLED

Black

黒

Black

Red

Express5800/T110f-S User’s Guide

Chapter 2 Preparations

(b) In case of 3.5-inch Hard Disk Drive installed

When adding 3.5-inch Hard Disk Drives, connect the cables as in the following figure. Install the Hard Disk Drives in order from slot 0.

• When connecting to the miniSAS connector on the motherboard:

Use the cable that comes with the 2.5-inch HDD cage N8154-59F. Install Hard Disk Drives from Slot 0 in ascending order.

Powe r supply unit

1. Installing Internal Optional Devices

Motherboard

SATA4

MINI SAS1

BPB CON

SATA cable (for the optical disk drive)

SAS cable (included with N8154-59F)

SAS BP sigbal cable (included with N8154-59F)

Optical disk drive

2.5-inch HDD cage (N8154-59F)

Slot 3: Fourth Hard Disk Drive

Slot 2: Third Hard Disk Drive

Slot 1: Second Hard Disk Driv

Slot 0: First Hard Disk Drive

Express5800/T110f-S User’s Guide

Chapter 2 Preparations

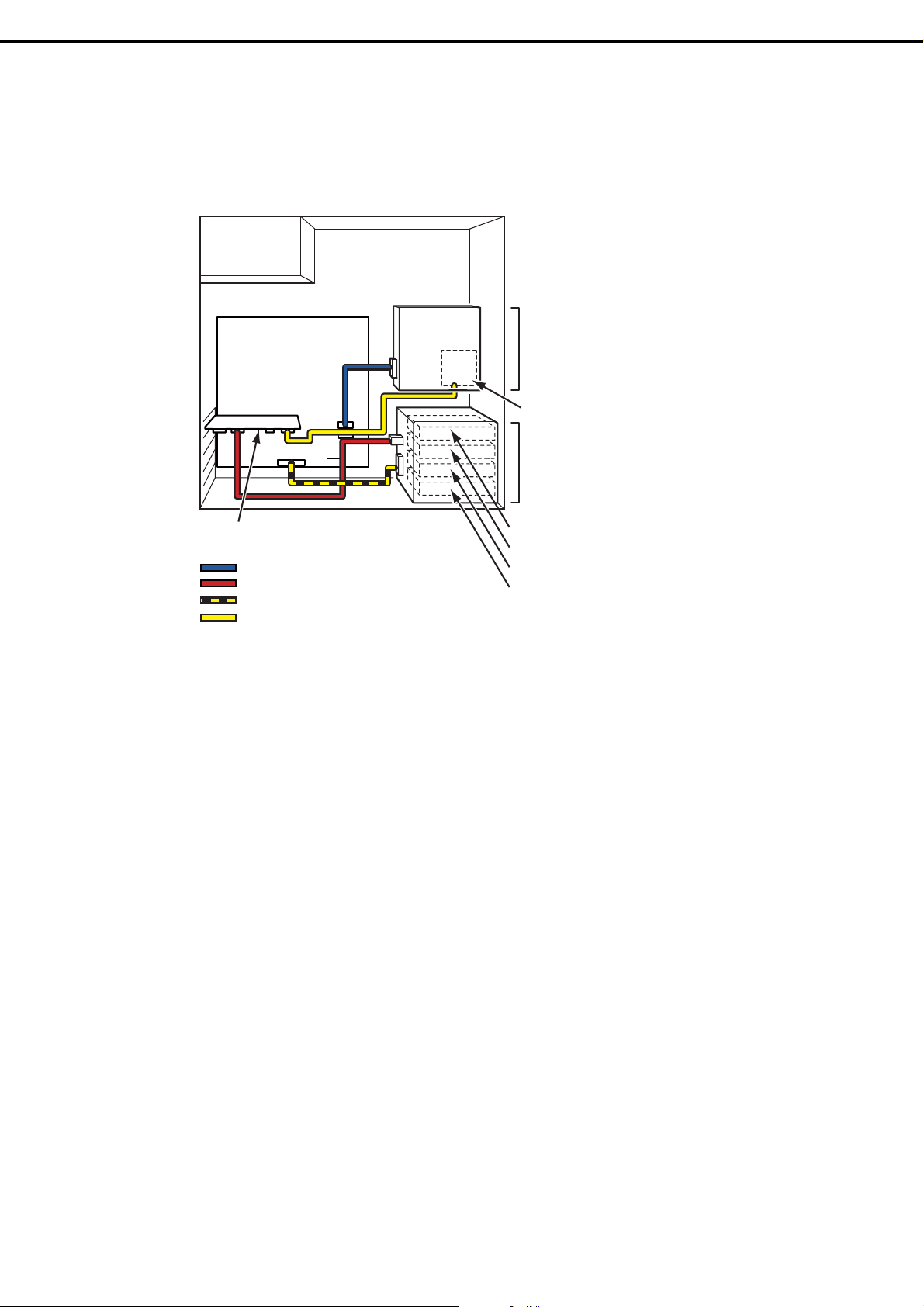

• If a RAID Controller (N8103-171/149/150/151/167) has been added

If SAS or SATA Hard Disk Drives are installed and used in a RAID System with a RAID Controller (N8103-128/149/150/151), the dedicated cable K410-180(00) is required. Install Hard Di sk Drives from Slot 0 in ascending order.

(When four Hard Disk Drives are installed)

(0 to 3)

Powe r supply unit

Motherboard

SATA4

1. Installing Internal Optional Devices

Optical disk drive

Extra battery (N8103-155 or flash backup unit included with M8103-167)

BPB CON

RAID controller

SATA cable (for the optical disk drive)

* N8103-171 does not support the extra battery.

SAS cable (included with N8154-59F)

SAS BP sigbal cable (included with N8154-56F)

Battery cable (included with the extra battery)

MB BPB IF1

2.5-inch HDD cage (N8154-59F)

Slot 3: Fourth Hard Disk Drive

Slot 2: Third Hard Disk Drive

Slot 1: Second Hard Disk Drive

Slot 0: First Hard Disk Drive

Express5800/T110f-S User’s Guide

Chapter 2 Preparations

1. Installing Internal Optional Devices

Powe r supply unit

Motherboard

(0 to 3)

(4 to 7)

* N8103-171 does not support the extra battery.

BPB CON

RAID controller

SATA cable (for the optical disk drive)

SAS cable (included with N8154-59F)

SAS BP sigbal cable (included with N8154-56F)

Battery cable (included with the extra battery)

Internal SAS/SATA cable (included with N8154-56F)

SATA4

MB BPB IF1

I-SAS5

I-SAS4

BP IF1

Extra 2.5-inch HDD cage (N8154-56F)

Slot 4: Fifth Hard Disk Drive Slot 5: Sixth Hard Disk Drive

Optical disk drive

Extra battery (N8103-155 or flash backup unit included with M8103-167)

2.5-inch HDD cage (N8154-59F)

Slot 3: Fourth Hard Disk Drive

Slot 2: Third Hard Disk Drive

Slot 1: Second Hard Disk Drive

Slot 0: First Hard Disk Drive

Express5800/T110f-S User’s Guide

Chapter 2 Preparations

(

))

(

))

(2) Connecting backup devices

The 3.5-inch device bay of the server can mount USB devices (for internal connection).

(a) If mounting an internal USB device (In case of Air Cooling model)

Use the dedicated internal USB cable (for USB 3.0: K410-276(00), for USB 2.0: K410-286(00).

Powe r supply unit

Motherboard

1. Installing Internal Optional Devices

Backup device 2

USB A1

Internal USB cable (USB 3.0) (K410-276 (00)) or internal USB cable

USB 2.0) (K410-286 (00

(b) If mounting an internal USB device (In case of Liquid Cooling model)

Use the dedicated internal USB cable (for USB 3.0: K410-276(00), for USB 2.0: K410-286(00).

Powe r supply unit

Backup device 1

Motherboard

USB A1

Internal USB cable (USB 3.0) (K410-276 (00)) or internal USB cable

USB 2.0) (K410-286 (00

Express5800/T110f-S User’s Guide

Chapter 2 Preparations

1. Installing Internal Optional Devices

1.15.2

Power cables

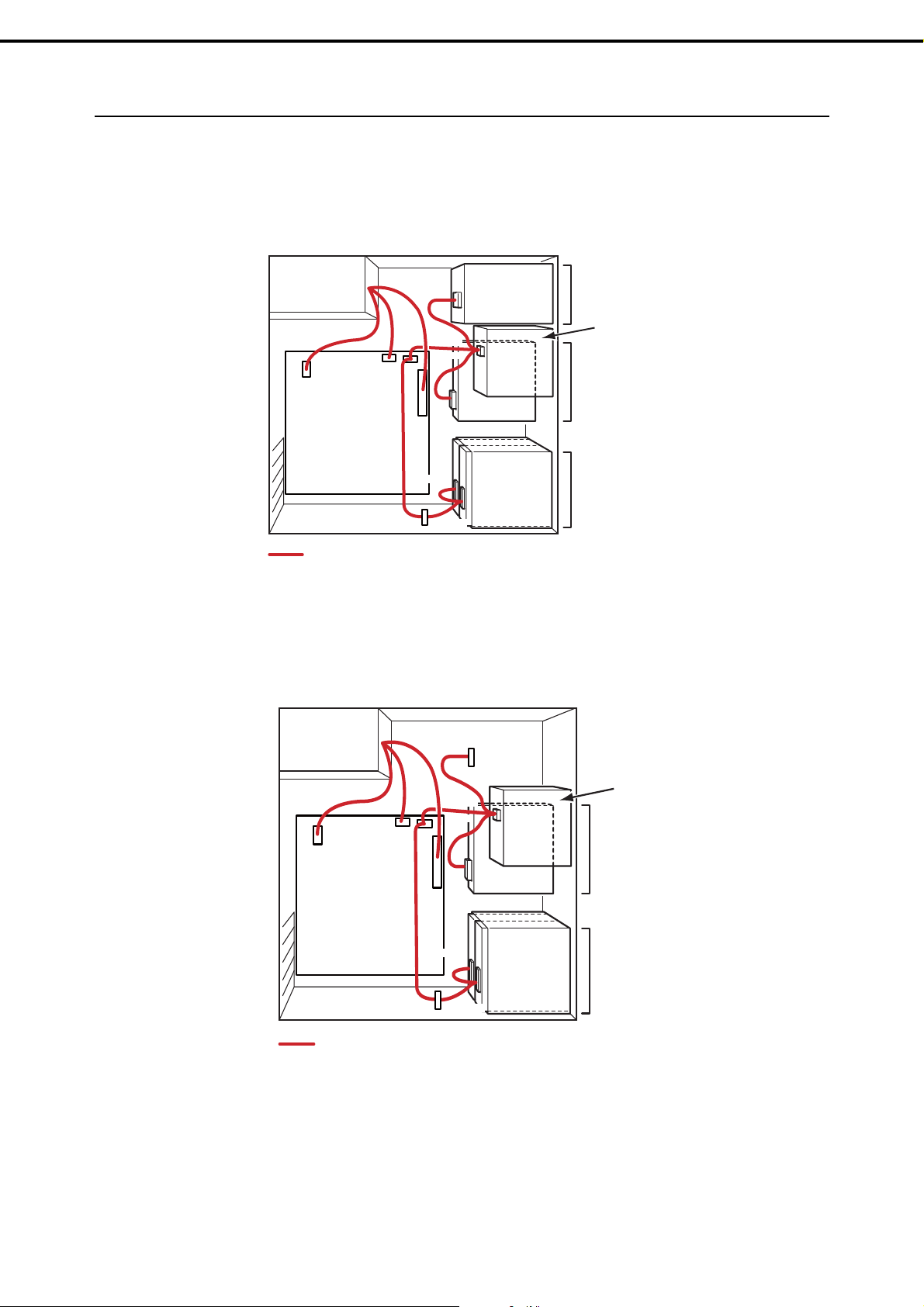

The illustration below shows an example of connecting the power cables. Power cables other than those shown here are not used by the devices.

(1) When using 3.5-inch Hard Disk Drives in air cooling model and an extra 2.5-inch HDD cage and a

backup device are installed

Powe r supply unit

Motherboard

Power cable

PWR DET 1

3.5 Dev.

2.5 x 2HDD

3.5 Dev.

ODD

3.5 HDD 1

3.5 HDD 0

3.5-inch backup device

Extra 2.5-inch HDD cage (N8154-56F)

Optical disk drive

3.5-inch HDD cage (N8154-65F)

(2) When using 3.5-inch Hard Disk Drives in liquid cooling model and an extra 2.5-inch HDD cage is

installed

Powe r supply unit

Extra 2.5-inch HDD cage (N8154-56F)

Optical disk drive

3.5-inch HDD cage (N8154-65F)

Motherboard

Power cable

PWR DET 1

2.5 x 2HDD

3.5 Dev.

ODD

3.5 HDD 1

3.5 HDD 0

100

Express5800/T110f-S User’s Guide

NEC Express5800-T110f-S User Guide

Specifications and Main Features

Frequently Asked Questions

User Manual

Documents Provided with This Product

Contents

Notations Used in this Document

Notations used in the text

Optical disk drives

Hard disk drives

Removable media

Abbreviations of Operating Systems

Trademarks

License Notification

Regulatory Notices

Warnings and Additions to this Document

Latest editions

Precautions for Use (Be Sure to Read)

Safety precautions

Symbols used in this document and on warning labels

Safety notes

General

Power supply and power cord use

Installation, relocation, storage, and connection

Cleaning and working with internal devices

During operation

Warning labels

Handling precautions (for proper operations)

Anti-Static Measures

1. Introduction

2. Accessories

3. Standard Features

Management Features

Firmware and Software Version Management

4. Names and Functions of Parts

Front of the server

Rear view

Internal view

Motherboard

Status Indicators

Optical Disk Access LED

Disk LED

LINK/ACT LED ( 1, 2, M)

SPEED LED ( 1, 2, M)

1. Installing Internal Optional Devices

Safety Precautions

Anti-static Measures

Overview of Installation and Removal

Removing the Side Cover

Removing the Front Bezel

Internal Flash Memory

Installation

Removal

TPM Kit

Installation

DIMM

Maximum supported memory size

Installation order

Installation

Removal

Use of Internal Hard Disk Drives in the RAID System

Notes on setting up a RAID System

Handling precautions

Extra Battery for RAID Controller

Installing N8103-155 extra battery

Removal

Installing the flash backup unit that comes with N8103-167

Removal

PCI Card

Notes

List of optional devices and installation slots

Installation

Configuration after installing

Removal

Installing the N8117-01A extra RS-232C connector kit

HDD Cages

Installing a 3.5-inch HDD cage and hard disk drives

Removing hard disk drives

Installing a 2.5-inch HDD cage and hard disk drives

Installing an extra 2.5-inch HDD cage
