PlasmaSync Plasma Monitor

User’s Manual

NEC Solutions (America), Inc.

Introduction

Introduction to the PlasmaSync 42VP4, 42VP4D Plasma Monitor

NEC’s PlasmaSync™ is a seamless blend of cutting-edge visual technology and sophisticated design. At 42 inches, with a 16:9 aspect ratio, the PlasmaSync™ certainly makes a big impression. However, at a mere 89 mm thin, the monitor’s sleek techno-art lines blend in well with your environment. PlasmaSync’s crisp, vivid image quality will transform data from any graphic medium from PCs to DVD players- into art. NEC has made sure that a host of multimedia resources can be easily connected and displayed as brilliantly as intended on the PlasmaSync™ monitor.

The features you’ll enjoy include:

• 42 inch screen

• 16:9 aspect ratio

• Capsulated Color Filter (CCF) and black matrix

• The enhanced display in red uses a two-stage filtering system where Accucrimson™ is combined with our special CCF .

• 42VP4: Installed AR (Anti-Reflection) Filter 42VP4D: Installed AG (Anti-Glare) Filter

• 42VP4, 42VP4D: 3.5 inch / 89 mm thin

• 42VP4, 42VP4D: 62.8 lbs/ 28.5 kg light

• 42VP4, 42VP4D: 853⳯480 pixels

• Flicker - and warp - free display provides excellent image geometry even in screen corners

• Not affected by magnetic fields, no color drift or edge distortion.

• VGA, SVGA, XGA, SXGA, UXGA computer signal compatibility

• NTSC, PAL, SECAM, composite and S-Video signal compatibility

• 480P, 1080I, 720P and HDTV signal compatibility

• PCs, VCRs, Laser Disc and DVD player source compatibility

• AccuBlend scan conversion automatically converts SVGA, XGA, SXGA and UXGA signals to the panel’s native resolution

• Advanced Mass Area Sampling Progressive Scan method is employed.

• RGB (3*), Video (3), DVD/HD (2*), Audio input (3), External Control input (1)

• AccuColor control system provides user selectable onscreen color temperature settings

• New Drive Technology

• Component video input terminal for DVD, 15.75kHz (Y, C

B, CR )

• Digital broadcasting source compatibility

• OSM menu-driven on screen control system that makes image adjustments a snap

• Seven languages (English, German, French, Italian, Spanish, Swedish, and Chinese)

Contents of the Package

䡺 Plasma monitor 䡺 Power cord 䡺 Remote control with two AAA Batteries 䡺 User’s manual 䡺 Safety metal fittings* 䡺 Screws for safety metal fittings* 䡺 Ferrite core (small⳯2, large⳯2), bands 䡺 Cable clamps

* These are fittings for fastening the unit to a wall to prevent tipping

due to external shock when using the stand (optional). Fasten the safety fittings to the holes in the back of the monitor using the safety fitting mount screws.

Options

• Wall mount unit

• Ceiling mount unit

• Tilt mount unit

• Stand

• Attachable speakers

* Y ou can set the 5BNC input to be used as an RGB or component

input. When the 5BNC input is set for RGB, there are a total of three RGB inputs; when the 5BNC input is set for component there are a total of two DVD/HD inputs (see page 24).

Important Information

Precautions

Please read this manual carefully before using your plasma monitor and keep the manual handy for future reference.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION:

TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. ALSO DO NOT USE THIS UNIT’S POLARIZED PLUG WITH AN EXTENSION CORD RECEPTACLE OR OTHER OUTLETS, UNLESS THE PRONGS CAN BE FULLY INSERTED. REFRAIN FROM OPENING THE CABINET AS THERE ARE HIGH-VOLTAGE COMPONENTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This symbol warns the user that uninsulated voltage within the unit may have sufficient magnitude to cause electric shock. Therefore, it is dangerous to make any kind of contact with any part inside of this unit.

This symbol alerts the user that important literature concerning the operation and maintenance of this unit has been included. Therefore, it should be read carefully in order to avoid any problems.

WARNING

Warning

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

Warnings and Safety Precaution

This plasma monitor is designed and manufactured to provide long, trouble-free service. No maintenance other than cleaning is required. Please see the section “Plasma monitor cleaning procedure” on the next page. The plasma display panel consists of fine picture elements (cells) with more than 99.99 percent active cells. There may be some cells that do not produce light or remain lit. For operating safety and to avoid damage to the unit, read carefully and observe the following instructions. To avoid shock and fire hazards:

1. Provide adequate space for ventilation to avoid internal heat build-up. Do not cover rear vents or install the unit in a closed cabinet or shelves. If you install the unit in an enclosure, make sure there is adequate space at the top of the unit to allow hot air to rise and escape. If the monitor becomes too hot, the overheat protector will be activated and the monitor will be turned off. If this happens, turn off the power to the monitor and unplug the power cord. If the room where the monitor is installed is particularly hot, move the monitor to a cooler location, and wait for 60 minutes to cool the monitor. If the problem persists, contact your dealer for service.

2. Do not use this unit’s polarized plug with extension cords or outlets unless the prongs can be completely inserted.

3. Do not expose the unit to water or moisture.

4. Avoid damage to the power cord, and do not attempt to modify the power cord.

5. Unplug the power cord during electrical storms or if the unit will not be used over a long period.

6. Do not open the cabinet which has potentially dangerous high voltage components inside. If the unit is damaged in this way the warranty will be void. Moreover, there is a serious risk of electric shock.

7. Do not attempt to service or repair the unit. The manufacturer is not liable for any bodily harm or damage caused if unqualified persons attempt service or open the back cover. Refer all service to authorized Service Centers.

NOTE: When you connect a computer to this monitor, use an RGB cable including the ferrite core on both ends of the cable. And regarding DVI and power cable, attach the supplied ferrite cores. If you do not do this, this monitor will not conform to mandatory FCC standards. Attaching the ferrite cores: Set the ferrite cores on both ends of the DVI cable (not supplied), and both ends of the power cable (supplied). Close the lid tightly until the clamps click. Use the band to fasten the ferrite core (supplied) to the DVI cable.

DVI cable (not supplied)

band

core (small)

Power cable (supplied)

core (large)

band

Connector

core (small)

core (large)

To avoid damage and prolong operating life:

1. Use only with 120V 50/60Hz AC power supply. Continued operation at line voltages greater than 120 V olts AC will shorten the life of the unit, and might even cause a fire hazard.

2. Handle the unit carefully when installing it and do not drop.

3. Set the unit away from heat, excessive dust, and direct sunlight.

4. Protect the inside of the unit from liquids and small metal objects. In case of accident, unplug the power cord and have it serviced by an authorized Service Center.

5. Do not hit or scratch the panel surface as this causes flaws on the surface of the screen.

6. For correct installation and mounting it is strongly recommended to use a trained, authorized dealer.

7. As is the case with any phosphor-based display (like a CRT monitor, for example) light output will gradually decrease over the life of a Plasma Display Panel.

8. To avoid sulfurization it is strongly recommended not to place the unit in a dressing room in a public bath or hot spring bath.

Recommendations to avoid or minimize phosphor burn-in:

Like all phosphor-based display devices and all other gas plasma displays, plasma monitors can be susceptible to phosphor burn under certain circumstances. Certain operating conditions, such as the continuous display of a static image over a prolonged period of time, can result in phosphor burn if proper precautions are not taken. T o protect your investment in this plasma monitor, please adhere to the following guidelines and recommendations for minimizing the occurrence of image burn:

* Always enable and use your computer’s screen saver

function during use with a computer input source. * Display a moving image whenever possible. * Change the position of the menu display from time to time. * Always power down the monitor when you are finished

using it.

If the plasma monitor is in long term use or continuous operation take the following measures to reduce the likelihood of phosphor burn:

* Lower the Brightness and Contrast levels as much as

possible without impairing image readability . * Display an image with many colors and color gradations

(i.e. photographic or photo-realistic images). * Create image content with minimal contrast between light

and dark areas, for example white characters on black

backgrounds. Use complementary or pastel color whenever

possible. * Avoid displaying images with few colors and distinct,

sharply defined borders between colors.

Note:

Burn-in is not covered by the warranty.

Contact your dealer for other recommended procedures that will best suit your particular application needs.

Plasma monitor cleaning procedure:

1. Use a soft dry cloth to clean the front panel and bezel area. Never use solvents such as alcohol or thinner to clean these surfaces.

2. Clean plasma ventilation areas with a vacuum cleaner with a soft brush nozzle attachment.

3. To ensure proper ventilation, cleaning of the ventilation areas must be carried out monthly. More frequent cleaning may be necessary depending on the environment in which the plasma monitor is installed.

Recommandations importantes

Précautions

Veuillez lire avec attention ce manuel avant d’utiliser le moniteur à plasma et le conserver accessible pour s’y référer ultérieurement.

ATTENTION

RISQUE D’ELECTROCUTION

NE P AS OUVRIR

MISE EN GARDE: AFIN DE REDUIRE LES RISQUES

D’ELECTRO-CUTION, NE PAS DEPOSER LE COUVERCLE, IL N’Y A AUCUNE PIECE UTILISABLE A L’INTERIEUR DE CET APPAREIL. NE CONFIER LES TRAVAUX D’ENTRETIEN QU’A UN PERSONNEL QUALIFIE.

Ce symbole a pour but de prévenir l’utilisateur de la présence d’une tension dangereuse, non isolée se trouvant à l’intérieur de l’appareil. Elle est d’une intensité suffisante pour constituer un risque d’électrocution. Eviter le contact avec les pièces à l’intérieur de cet appareil.

Ce symbole a pour but de prévenir l’utilisateur de la présence d’importantes instructions concernant l’entretien et le fonctionnement de cet appareil. Par conséquent, elles doivent être lues attentivement afin d’éviter des problèmes.

A VERTISSEMENT

AFIN DE REDUIRE LES RISQUES D’INCENDIE OU D’ELECTROCUTION, NE P AS EXPOSER CET APP AREIL A LA PLUIE OU A L’HUMIDITE. AUSSI, NE P AS UTILISER LA FICHE POLARISEE AVEC UN PROLONGATEUR OU UNE AUTRE PRISE DE COURANT SAUF SI CES LAMES PEUVENT ETRE INSEREES A FOND. NE PAS OUVRIR LE COFFRET , DES COMPOSANTS HAUTE TENSION SE TROUVENT A L’INTERIEUR. LAISSER A UN PERSONNEL QUALIFIE LE SOIN DE REPARER CET

APP AREIL.

DOC avis de conformation

Cet appareil numérigue de la classe A respecte toutes les exigences du Réglement sur le Matériel Brouilleur du Canada.

Mises en garde et précautions de sécurité

Ce moniteur à plasma a été conçu et fabriqué pour une utilisation fiable et durable. Il ne nécessite aucun entretien en dehors du nettoyage. Voir la section “Méthode de nettoyage du moniteur à plasma” plus loin. Le panneau à affichage plasma est constitué de fines particules d’images (cellules) dont plus de 99,99%sont actives. Certaines d’entre elles ne produisent pas de lumière ou restent allumées. Pour des raisons de sécurité et pour éviter d’endommager l’appareil, lire attentivement les instructions suivantes. Pour éviter les risques d’éléctrocution et d’incendie:

1. Laisser suffisament d’espace autour de l’appareil pour la ventilation et éviter toute augmentation excessive de la température interne. Ne pas couvrir les évents ou l’installer dans un endroit trop exigu. Si vous installez l’appareil dans un espace clos, assurezvous qu’il y ait suffisamment d’espace au dessus pour permettre à l’air chaud de s’élever et de s’évacuer. Si la température du moniteur devient excessive, la protection contre les surchauffes entrera en action et coupera l’alimentation. Dans ce cas, éteindre l’appareil et débrancher le câble d’alimentation. Si la température de la pièce dans laquelle se trouve le moniteur est particulièrement élevée, déplacer celui-ci dans un endroit plus frais et attendre environ 60 minutes qu’il refroidisse. Si le problème persiste, prendre contact avec votre revendeur.

2. Ne pas raccorder la prise d’alimentation polarisée de ce périphérique à une rallonge ou une prise murale si les fiches ne peuvent pas être complètement insérées.

3. Ne pas exposer à L ’eau ou à l’humidité.

4. Eviter d’endommager le cordon d’alimentation, et ne pas modifier le cordon d’alimentation.

5. Débrancher le câble d’alimentation électrique pendant les orages ou les longues périodes d’inactivité.

6. Ne pas ouvrir le coffret. Des composants de haute tension se trouvent à l’intérieur. Si l’appareil est endommagé de cette manière, la garantie devient caduque. De plus, il y a risque d’électrocution.

7. Ne pas essayer d’intervenir ou de réparer l’appareil. Le fabricant décline toute responsabilité en cas de blessure corporelle ou de dégâts matériels résultant d’une opération d’entretien quelconque effectuée par des personnes non qualifiées ou résultant de l’ouverture du couvercle arrière. S’adresser aux services après-vente autorisés.

REMARQUE: Pour raccorder un ordinateur à ce moniteur, procéder à l’aide d’un câble RGB à âme de ferrite aux deux extrémités. Sur les câbles DVI et les câbles d’alimentation électrique, fixer les âmes de ferrite fournies aux extrémités. Si vous ne le faîtes, le moniteur ne sera pas en conformité avec les exigences des standards FCC. Fixation des noyaux en ferrite. Monter les tores en ferrite aux deux extrêmités du câble DVI (non fourni) et aux deux extrêmités du câble d’alimentation électrique (fourni). Fermez doucement le couvercle jusqu’à ce que les crans se clipsent. Fixer le tore en ferrite (fourni) au câble DVI à l’aide d’un collier.

Câble DVI (non fourni)

Collier Collier

noyau (petit)

Câble d'alimentation électrique (fourni)

noyau (large)

noyau (petit)

noyau (large)

Connecteur

Pour éviter des dommages et prolonger la durée de service de l’appareil:

1. N’utiliser qu’une source d’alimentation de 120 V 50/ 60 Hz CA. Le fait d’utiliser l’appareil en continu à des tensions de ligne supérieures à 120 Volts CA réduit sa durée de vie et risque de provoquer un incendie.

2. Manipuler l’appareil avec soin pendant son déplacement et ne pas le faire tomber.

3. Eloigner l’appareil des endroits chauds, très poussiéreux et exposés en plein soleil.

4. Eviter que des liquides et des petits objets métalliques pénètrent à l’intérieur de l’appareil. En cas d’incident de ce genre, débrancher le câble d’alimentation électrique et confier le moniteur à un service après-vente agréé.

5. Ne pas frapper ou rayer la surface de la écran plasma, car des défauts risquent de se produire sur la surface de la écran plasma.

6. Pour un montage et une installation correcte, il est fortement recommandé de faire appel à un revendeur agréé et qualifié.

7. Comme c’est le cas pour tout affichage à base de phosphore (comme un moniteur CRT, par exemple), la puissance de lumière baisse graduellement au cours de la vie du Panneau d’Affichage à Plasma.

8. Pour éviter tout risque de sulfuration, il est fortement conseillé de ne pas installer l’appareil dans un vestiaire, un bain public ou un bain de source thermale.

Méthode de nettoyage du moniteur à plasma:

1. Nettoyer le panneau avant et le cadre en procédant à l’aide d’un chiffon doux et sec. Ne jamais utiliser de solvents du type alcool ou diluant pour le nettoyage de ces surfaces.

2. Nettoyer les prises d’aération du plasma en procédant à l’aide d’une brosse à poils doux fixée à un aspirateur.

3. Pour garantir la bonne ventilation du moniteur, nettoyer les prises d’air tous les mois. Un nettoyage plus fréquent peut s’avérer nécessaire selon les conditions environnantes dans lesquelles le moniteur à plasma est utilisé.

Pour éviter les risques de brûlage du luminophore, les mesures suivantes sont recommandées:

Comme tous les périphériques d’affichage à base luminophore et tous les autres affichages gaz plasma, les moniteurs plasma peuvent être sujets au brûlage du luminophore dans certaines circonstances. Certaines conditions d’utilisation, telles que l’affichage continu d’une image statique pour une durée prolongée, peuvent causer le brûlage du luminophore si aucune précaution n’est prise. Pour protéger votre investissement dans ce moniteur à plasma, veuillez suivre les directives et les conseils suivantes pour minimiser l’occurence le marquage de l’écran:

• Assurez-vous de mettre en marche et d’utliser

l’économisateur d’écran chaque fois que c’est possible lorsque vous l’utilisez avec une source d’entrée d’ordinateur.

• Affichez une image en mouvement aussi souvent que

possible.

• Changer la position de l’affichage de menu de temps à autre.

• Coupez toujours l’alimentation lorsque vous avez terminé

d’utiliser la moniteur.

Si le moniteur est en usage continu ou longue durée, prenez les mesures suivantes afin d’éviter l’occurence le brûlage du luminophore:

• Abaissez le niveau de l’image (contraste, luminosité)

autant que possible, sans faire perdre la lisibilité de l’image.

• Affichez une image avec de nombreuses couleurs et

graduations de couleur (par ex. des images photographiques ou photo-réalistes).

• Créez un contenu d’image avec un contraste minimal

entre les zones sombres et les zones claires, par exemple, des caractères blancs sur un fond noir. Utilisez des couleurs complémentaires ou pastels le plus souvent possible.

•Évitez d’afficher des images avec peu de couleurs et des

limites nettes et clairement définies entre les couleurs.

Remarque:

Le brûlage de l’écran n’est pas couvert

par la garantie.

Contactez un revendeur agréé ou un revendeur de marque pour d'autres procédures qui conviendront le mieux à vos besoins particuliers.

Contents

How to Attach Options to the Plasma Monitor .... 1

Part Names and Function .................................. 2

Front View .............................................................. 2

Rear View / Terminal Board ...................................... 3

Remote Control ........................................................ 4

Battery Installation and Replacement .......................... 5

Using the wired remote control mode ......................... 6

Operating Range ..................................................... 6

Handling the remote control ...................................... 6

Installation ...................................................... 7

Connecting Your PC or Macintosh Computer ............... 8

Connections with Equipment that have a Digital Interface ......

Connecting Your Document Camera ........................... 8

Connecting Your VCR or Laser Disc Player.................. 8

Connecting Your DVD Player ..................................... 8

Pin Assignments and Signal Levels

for 15 pin RGB (Analog) ......................................... 9

Pin Configuration and Signal Levels

of the RGB 3 Connector (DVI Connector) ................... 9

Creating a video wall ............................................. 10

Cable Management................................................ 10

Basic Operations ............................................. 11

POWER ................................................................ 11

To turn the unit ON and OFF: .................................... 11

VOLUME .............................................................. 11

To adjust the sound volume:...................................... 11

MUTE ................................................................... 11

To cancel the sound:.................................................. 11

DISPLAY ................................................................ 11

To check the settings:................................................. 11

DIGITAL ZOOM ..................................................... 11

AUTO ADJUST ...................................................... 11

To adjust the size or quality of the picture automatically

OFF TIMER ........................................................... 12

To set the of f timer:................................................... 12

To check the remaining time: .....................................12

To cancel the off timer ...............................................12

.... 11

Option1 Settings Menu ........................................... 23

Setting the on-screen menu ........................................ 23

Setting the BNC connectors ....................................... 24

Checking the signal being transmitted to RGB1 terminal ....

Setting a computer image to the correct RGB

select screen ............................................................. 24

Setting high definition images to the suitable

screen size................................................................ 25

Setting the Input Skip................................................. 25

Resetting to the default values.................................... 26

Option2 Settings Menu ........................................... 26

Setting the power management for computer images ..........

POWER/ST ANDBY indicator ................................... 27

Setting the picture to suit the movie ........................... 27

Reducing burn-in of the screen .................................. 27

Setting the gray level for the sides of the screen ......... 30

Option3 Settings Menu ........................................... 31

Using the timer .......................................................... 31

Setting the power on mode........................................ 32

Enabling/disabling the front panel controls ................ 33

Enabling/disabling remote control wireless

transmission ............................................................. 33

Loop Out setting ........................................................ 34

ID number setting ...................................................... 34

Video Wall setting...................................................... 35

Advanced OSM Settings Menu ................................ 38

Setting the menu mode .............................................. 38

Language Settings Menu ......................................... 38

Setting the language for the menus............................. 38

Color System Settings Menu .................................... 39

Setting the video signal format................................... 39

Source Information Menu ........................................ 39

Checking the frequencies, polarities of input signals,

and resolution .......................................................... 39

External Control ............................................. 40

Table of Signals Supported .............................. 41

42VP4/42VP4D .................................................... 41

Troubleshooting ............................................. 43

WIDE Operations ............................................. 13

Wide Screen Operation (manual) ........................... 13

When viewing videos or digital video discs .............. 13

When viewing a high definition video source ............13

Wide Screen Operation with Computer Signals ......... 14

OSM Controls .................................................. 15

Menu Operations ................................................... 15

Picture Settings Menu.............................................. 18

Adjusting the picture.................................................. 18

Setting the picture mode according to the brightness

of the room ..............................................................18

Reducing noise in the picture ..................................... 19

Setting the color temperature .....................................19

Adjusting the color to the desired level ......................19

Changing the Gamma Curve ......................................20

Making the Low T one adjustments ............................ 20

Adjusting the colors ................................................... 21

Audio Settings Menu .............................................. 21

Adjusting the treble, bass and left/right balance

and audio input select............................................... 21

Setting the allocation of the audio connectors ............22

Image Adjust Settings Menu .................................... 22

Adjusting the Position, Size, Fine Picture, Picture Adj

....... 22

Specifications ................................................. 45

42VP4/42VP4D .................................................... 45

Drawing B

50mm (2")

(2") 50

(2")

Wall

50mm (2")

How to Attach Options to the Plasma Monitor

Y ou can attach your optional mounts or stand to the plasma monitor in one of the following two ways:

* While it is upright. (See Drawing A) * As it is laid down with the screen face down (See Drawing

B). Lay the protective sheet, which was wrapped around the monitor when it was packaged, beneath the screen surface so as not to scratch the screen face.

* Do not touch or hold the screen face when carrying the

unit.

• This device cannot be installed on its own. Be sure to use a stand or original mounting unit. (Wall mount unit, Stand, etc.)

* See the inside of the cover page.

• For correct installation and mounting it is strongly recommended to use a trained, authorized dealer.

Failure to follow correct mounting procedures could result in damage to the equipment or injury to the installer.

Product warranty does not cover damage caused by improper installation.

* Use only the mounting kit or stand provided

by manufacturer and listed under Options.

Drawing A

Ventilation Requirements for enclosure mounting

To allow heat to disperse, leave space between surrounding objects as shown on the diagram below when installing.

Part Names and Function

Front View

INPUT SELECT

VOLUME

MENU/ENTER

DOWN UP LEFT/-RIGHT/+/EXIT

POWER/STANDBY

MENU/ENTER

VOLUME

DOWN UP LEFT/-RIGHT/

q Power

Turns the monitor’s power on and off.

w Remote sensor window

Receives the signals from the remote control.

e POWER/STANDBY indicator

When the power is on ............................. Lights green.

When the power is in the standby mode ... Lights red.

r INPUT SELECT / EXIT

Switches the input, in the following order. The available inputs depend on the setting of “BNC INPUT”. RGB:

COMP.:

→ VIDEO1 → VIDEO2 → VIDEO3 → HD/DVD/DTV RGB/PC3 ← RGB/PC2 ← RGB/PC1←

→VIDEO1 → VIDEO2 → VIDEO3 → HD1/DVD1/DTV1 RGB/PC2 ← RGB/PC1 ← HD2/DVD2/DTV2 ←

INPUT SELECT

/EXIT

t LEFT/– and RIGHT/+

Enlarges or reduces the image. Functions as the



CURSOR (

/ ) buttons in the On-Screen Menu

(OSM) mode.

y VOLUME DOWN and UP

Adjusts the volume. Functions as the CURSOR (▲/ ▼) buttons in the On-Screen Menu (OSM) mode.

u MENU/ENTER

Sets the On-Screen Menu (OSM) mode and displays the main menu.

POWER/STANDBY

Functions as the EXIT buttons in the On-Screen Menu (OSM) mode.

Rear View/ Terminal Board

VIDEO

(

IN/OUT

)

VIDEO

(

MONO

)

(

MONO

)

(

MONO

)

External Control

REMOTE

Y Cb/ Pb Cr/Pr

Cr/Pr Y Cb/ Pb

( IN/OUT

)

DVI

( Digital RGB

)

IN OUT

AUDIO

DVD

/ HD

AUDIO

G/ B/

RGB

/ DVD

/ HD

RGB

AUDIO

RGB

AC IN

RIGHT LEFT

SPEAKERS MUST HAVE MORE THAN 7WATT RATING

IMPEDANCE 6 OHM

SPEAKERS MUST HAVE MORE THAN

7WATT RATING

IMPEDANCE 6 OHM

A AC IN

Connect the included power cord here.

Connect speakers (optional) here. Maintain the correct polarity. Please refer to your speaker’s owner’s manual.

C VIDEO1, 2, 3 (BNC, RCA, S-Video)

Connect VCR’s, DVD’s or Video Cameras, etc. here. VIDEO1 can be used for Input or Output (see page

10).

D AUDIO1, AUDIO2, AUDIO3

These are audio input terminals. The input is selectable. Set which video image to allot them from the audio menu screen.

E DVD1 / HD1

Connect DVD’s, High Definition or Laser Discs, etc. here.

G RGB1 (mini D-Sub 15pin)

Connect an analog RGB signal from a computer, etc. here. This input can be used for Input or Output. (see page 10)

H RGB3

I EXTERNAL CONTROL

J REMOTE IN

K REMOTE OUT

(DVI 24pin)

Connect a digital signal (TMDS) from a source with a DVI output. (see page 8)

This terminal is used when operating and controlling the monitor externally (by external control).

Connect the remote cable* to the remote control’s remote jack to obtain wired remote control.

Connect the remote cable* to the REMOTE IN jack of the other display monitor to obtain wired remote control.

F RGB2/ DVD2/ HD2

RGB2: Y ou can connect an analog RGB signal

and the syncronization signal.

DVD2/ HD2: You can connect DVDs, High

Definition sources, Laser Discs, etc. here. This input can be set for use with an RGB or component source. (see page

24)

* The 1/8 Stereo Mini cable must be purchased separately.

Remote Control

w RGB/PC

Press this button to select RGB/PC as the source. The available sources depend on the setting of “BNC INPUT”. RGB:

→ RGB/PC1 → RGB/PC2 → RGB/PC3

POWER

OFF ON

RGB/PC DVD/HD

VIDEO

POSITION / CONTROL

POINTER

ZOOM

MUTE

WIDE DISPLAY

OFF TIMER

MENU/ENTER

EXIT

VOLUME

COMP. :

→ RGB/PC1 → RGB/PC3

RGB/PC can also be selected using the INPUT SELECT button on the monitor.

e DVD / HD

Press this button to select DVD/HD as the source. The available sources depend on the setting of “BNC INPUT”. RGB:

COMP.:

HD/DVD/DTV

→ HD1/DVD1/DTV1 → HD2/DVD2/DTV2

DVD/HD can also be selected using the INPUT SELECT button on the monitor.

r VIDEO

Press this button to select VIDEO as the source.

→ VIDEO1 → VIDEO2 → VIDEO3

VIDEO can also be selected using the INPUT SELECT button on the monitor.

t MENU/ENTER

Press this button to access the OSM controls. Press this button during the display of the main menu to go to the sub menu.

MULTI SELECT

AUTO ADJUST

ID SELECT CLEAR

q POWER ON/OFF

Switches Power ON/OFF. (This does not operate when POWER/STANDBY indicator of the main unit is off.)

y CURSOR (▲ / ▼ /



/ )

Use these buttons to select items or settings and to adjust settings or switch the display patterns.

u EXIT

Press this button to exit the OSM controls in the main menu. Press this button during the display of the sub menu to return to the previous menu.

i POINTER

Press this button to display the pointer.

o ZOOM (+ /–)

Enlarges or reduces the image.

!0 VOLUME (+ /–)

Adjusts the audio volume.

!1 MUTE

Mutes the sound.

!2 WIDE

Automatically detects the signal and sets the aspect ratio. Wide button is not active for all signals.

!3 DISPLAY

Displays the source settings on the screen.

!4 OFF TIMER

Activates the off timer for the unit.

!5 MULTI

Not functional for the models covered in this manual.

!6 SELECT

Not functional for the models covered in this manual.

!7 AUTO ADJUST

Press this button to adjust Fine Picture, Picture ADJ, Position, and Contrast automatically, or to switch the screen size to ZOOM mode automatically with the superimposed caption displayed fully only when the picture contains dark areas above and below the picture.

!8 ID SELECT

Set the ID number in the remote control. The remote control can then be used only for a display with the same ID number. When several displays are used together they can be controlled individually.

!9 CLEAR

Clears the number set by the ID SELECT button.

@0 Remote control signal transmitter

Transmits the remote control signals.

@1 Remote Jack

Insert the plug of the remote cable (The 1/8 Stereo Mini cable) here when using the supplied remote control in the wired condition.

Battery Installation and Replacement

Insert the 2 “AAA” batteries, making sure to set them in with the proper polarity.

1.Press and open the cover.

2.Align the batteries according to the (+) and (–) indication inside the case.

3.Replace the cover.

Using the wired remote control mode

External Control

IN OUT

REMOTE

Connect the remote cable* to the remote control’s remote jack and the “REMOTE IN” terminal on the monitor. When the cable is connected, the mode automatically switches to wired remote control. When the wired remote control mode is used, the remote control can be operated even if no batteries are loaded.

AUDIO

(

MONO

)

Cr/Pr Y Cb/Pb

G/ B/

RGB

/ DVD

/ HD

( IN/ OUT

RGB

)

AUDIO

(

MONO

)

DVI

(

RGB

Digital RGB

)

External Control

IN OUT

REMOTE

Operating Range

* Use the remote control within a distance of about 7 m/

23ft. from the front of the monitor’s remote control sensor and at horizontal and vertical angles of up to approximately 30°.

* The remote control operation may not function if the

monitor’s remote control sensor is exposed to direct sunlight or strong artificial light, or if there is an obstacle between the sensor and the remote control.

POWER/STANDBY

Remote Control Cable*

To Remote Jack

* The 1/8 Stereo Mini cable must be purchased separately.

Approx.

7m/23ft

Handling the remote control

• Do not drop or mishandle the remote control.

• Do not get the remote control wet. If the remote control

gets wet, wipe it dry immediately.

• Avoid heat and humidity.

• When not using the remote control for a long period,

remove the batteries.

• Do not use new and old batteries together, or use dif ferent types together.

• Do not take apart the batteries, heat them, or throw them into a fire.

• When using the remote control in the wireless condition, be sure to unplug the remote cable from the REMOTE IN terminal on the monitor.

Installation

VIDEO

( IN/OUT

VIDEO 1-3

)

VIDEO

AUDIO

( MONO

)

Y Cb/Pb Cr/Pr

DVD

/ HD

AUDIO

( MONO

)

Cr/Pr Y Cb/Pb

G/ B/

RGB

/ DVD

/ HD

To video inputs on the plasma monitor

VCR or Laser Disc Player

Document Camera

DVD Player

IBM VGA or

Compatibles

( MONO

)

IN /OUT

DVI

(

Digital RGB

)

External Control

REMOTE

(

RGB

)

AUDIO

RGB

Macintosh or Compatibles

(Desk top type)

Monitor adapter for Macintosh

IN OUT

To Mini D-Sub 15 pin connector on the plasma monitor

Personal computer with a digital signal output

Connecting Your PC or Macintosh Computer

Connecting your PC or Macintosh computer to your plasma monitor will enable you to display your computer’s screen image for an impressive presentation. The plasma monitor supports the signals described on page 41. T o connect a PC, Macintosh or compatible graphics adapter, simply:

1. Turn off the power to your plasma monitor and computer .

2. If your PC does not support SXGA/XGA/SVGA/VGA you will need to install an SXGA/XGA/SVGA/VGA graphics board. Consult your computer’s owner’s manual for your SXGA/XGA/SVGA/VGA configuration. If you need to install a new board, see the manual that comes with your new graphics board for installation instructions.

3. This plasma monitor provides signal compatibility up to VESA 16001200 (UXGA). However, it is not recommended to use this resolution due to image readability on the monitor’s native pixel resolution panel.

4. Use the signal cable to connect your PC or Macintosh computer to the plasma monitor. For Macintosh, use the monitor adapter to connect to your computer’s video port, if necessary.

5. Turn on the plasma monitor and the computer.

6. If the plasma monitor goes blank after a period of inactivity, it may be caused by a screen saver installed on the computer you’ve connected to the plasma monitor .

When using a Macintosh with the plasma monitor, the following four display standards are supported using the Macintosh adapter :

13" fixed mode 16" fixed mode 19" fixed mode 21" fixed mode

The 13" fixed mode is recommended for your 42Wide VGA.

Connections with Equipment that have a Digital Interface

Connections can be made with equipment that is equipped with a digital interface compliant with the DVI (Digital Visual Interface) standard. * Use a DVI 24-pin signal cable and the ferrite cores

(supplied) when making connections to the RGB3 (DVI) connector of the main unit. Note that the RGB3 (DVI) terminal does not support analog RGB input source.

Note:

1. Input TMDS signals conforming to DVI standards. The TMDS input corresponds to 1 link.

2. To maintain display quality, use a cable with a quality

prescribed by DVI standar ds that is within 5 meters in length.

Connecting Your Document Camera

You can connect your plasma monitor to a document camera. To do so, simply:

1. Turn off the power to your plasma monitor and document camera.

2. Use a standard video cable to connect your document camera to the Video input on your plasma monitor.

3. Turn on the plasma monitor and the document camera.

Note:

for more information about your camera’s video output requir ements.

Refer to your document camera owner’ s manual

Connecting Your VCR or Laser Disc Player

Use common RCA cables (not provided) to connect your VCR or laser disc player to your plasma monitor. T o make these connections, simply:

1. Turn off the power to your plasma monitor and VCR or laser disc player.

2. Connect one end of your RCA cable to the video output connector on the back of your VCR or laser disc player, connect the other end to the V ideo input on your plasma monitor. Use standard RCA audio patch cords to connect the audio from your VCR or laser disc player to your plasma monitor (if your VCR or laser disc player has this capability). Be careful to keep your right and left channel connections correct for stereo sound.

3. Turn on the plasma monitor and the VCR or laser disc player.

Note:

manual for more information about your equipment’s video output requir ements.

Refer to your VCR or laser disc player owner’s

Connecting Your DVD Player

You can connect your plasma monitor to a DVD player. To do so, simply:

1. Turn off the power to your plasma monitor and DVD player.

2. Use a component video cable to connect your DVD player to the Y, Cb, and Cr inputs on your plasma monitor. Or use the DVD-player’s S-Video output. Use a standard S-Video cable to connect to the S-Video input on the plasma monitor.

3. Turn on the plasma monitor and the DVD player.

Pin Assignments and Signal Levels for 15 pin RGB (Analog)

5 4 3 2 1

10 9 8 7 6

15 14 13 12 11

Pin Configuration and Signal of the RGB 3 Connector (DVI Connector)

The unit is equipped with a type of connector commonly used for digital. (This cannot be used for an analog input.) (TMDS can be used for one link only.)

Pin No.

1 2 3 4 5 6 7 8

9 10 11 12 13 14 15

Signal (Analog)

Red Green or sync-on-green Blue No connection Ground Red ground Green ground Blue ground No connection Sync signal ground No connection Bi-directional DATA (SDA) Horizontal sync or Composite sync Vertical sync Data clock

Pin No.

1 2 3 4 5 6 7 8

9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24

RGB 3

12345678 910111213141516

20191817 21 22 23 24

Signal (Digital)

T.M.D.S Data 2 T.M.D.S Data 2 + T.M.D.S Data 2 Shield No connection No connection DDC Clock DDC Data No connection T.M.D.S Data 1 T.M.D.S Data 1 + T.M.D.S Data 1 Shield No connection No connection +5V Power Ground Hot Plug Detect T.M.D.S Data 0 T.M.D.S Data 0 + T.M.D.S Data 0 Shield No connection No connection T.M.D.S Clock Shield T.M.D.S Clock + T.M.D.S Clock -

Creating a video wall

RGB

/ DVD

/ HD

RGB

G/ B/

( IN/OUT

)

Cr/Pr Y Cb/Pb

IN OUT

REMOTE

BNC connector

RGB signal/ DVD/HD signal

OUT

Remote control

RGB signal/ DVD/HD signal

Remote control

With buit-in matrix display capability, you can create a 2×2 or 3×3 video wall.

• Connect signal cables and remote cables as shown below. Video signal RGB/DVD/HD signal

VIDEO

BNC connector

VIDEO

(

IN/OUT

)

VIDEO 2VIDEO

VIDEO Signal

Remote control

RCA phono plug

AUDIO

(

MONO

)

DVD

IN OUT

REMOTE

Note:

1. The VIDEO1 and RGB1 terminals can be used for either INPUT or OUTPUT. When LOOP OUT is ON, do not connect an OUTPUT signal fr om another unit, that will place an extraor dinary load on the other unit and may damage it.

2. LOOP OUT can not be turned ON while signals are input to RGB1 terminal.

3. LOOP OUT can be turned ON while signals are input to RGB1 terminal if the POWER is switched ON.

Information

• To loop signals out to another plasma display, set the LOOP OUT to ON.

• To create a video wall, set the VIDEO WALL menu items properly.

• To connect monitors, please use a 1~2m (3.3~6.6 feet) BNC cable (any commercially available cable).

• If the image quality is poor, do not use the monitor’s out terminal. Use a distribution amplifier (any commercially

available distribution amplifier) to connect the split signals to the respective monitor INPUT terminals.

• Being used as a video wall function, maximaly 4-screen is rough-standard with lower than 1024768, 60Hz signal.

• A distribution amplifier is particularly recommended when using a 9-screen video wall.

• From the second monitor onward, connections require a BNC-RCA conversion cable or connector, a mini D-Sub

15 pin cable-BNC (5) cable or a conversion connector.

OUT

VIDEO Signal

Remote control

Cable Management

Using the cable-clamps provided with the plasma display, bundle at the back of the unit the signal and audio cables connected to the display.

To attach To detach

1. 2.

clamp

mounting hook

cables

Back of the unit

mounting hooks/mounting holes (in three places)

AC IN

SPEAKERS MUST

RIGHT LEFT

HAVE MORE THAN 7WATT RATING IMPEDANCE 6 OHM

Basic Operations

POWER

To turn the unit ON and OFF:

1. Plug the power cord into an active AC power outlet.

2. Press the POWER ON button (on the remote control or control panel) to turn on the unit.

The monitor’s POWER/ST ANDBY indicator will light up (green) when the unit is on.

3. Press the POWER OFF button (on the remote control or control panel) to turn off the unit.

The monitor’s POWER/ST ANDBY indicator turns red and the standby mode is set (only when turning off the unit with the remote control).

VOLUME

To adjust the sound volume:

1. Press and hold the VOLUME button (on the remote control or the unit) to increase to the desired level.

2. Press and hold the VOLUME control or the unit) to decrease to the desired level.

button (on the remote

MUTE

To cancel the sound:

Press the MUTE button on the remote control to cancel the sound; press again to restore.

DISPLAY

To check the settings:

1. The screen changes each time the DISPLAY button is pressed.

2. If the button is not pressed for approximately three seconds, the menu turns off.

DIGITAL ZOOM

Digital zoom specifies the picture position and enlarges the picture.

1. Press the POINTER button to display the pointer. (

To change the size of the picture:

Press the ZOOM+ button and enlarge the picture. The pointer will change to resemble a magnifying glass. ( A press of the ZOOM- button will reduce the picture and return it to its original size.

To change the picture position:

Select the position with the ▲▼

2. Press the POINTER button to delete the pointer.

)

 

buttons.

AUTO ADJUST

To adjust the size or quality of the picture automatically:

Press the AUTO ADJUST button.

Information

 AUTO ADJUST ON setting

When RGB (still picture) input

is selected......Fine Picture, Picture ADJ, Position,

and Contrast will be adjusted automatically.

When RGB (motion picture), VIDEO, or Y/Pb/Pr (component) input

is selected......The screen size switches to ZOOM

mode automatically with the superimposed caption displayed fully only when the picture contains dark areas above and below the picture.

)

OFF TIMER

To set the off timer:

The off timer can be set to turn the power off after 30, 60, 90 or 120 minutes.

1. Press the OFF TIMER button to start the timer at 30 minutes.

2. Press the OFF TIMER button to the desired time.

3. The timer starts when the menu turns off.

→ 30 → 60 → 90 → 120 → 0

OFF TIMER 30

To check the remaining time:

1. Once the off timer has been set, press the OFF TIMER button once.

To cancel the off timer:

1. Press the OFF TIMER button twice in a row.

2. The off timer is canceled.

OFF TIMER 0

Note:

After the power is turned off with the off timer ... A slight current is still supplied to the monitor. When you are leaving the r oom or do not plan to use the system for a long period of time, turn off the power of the monitor.

2. The remaining time is displayed, then turns off after a few seconds.

3. When five minutes remain the remaining time appears until it reaches zero.

OFF TIMER 28

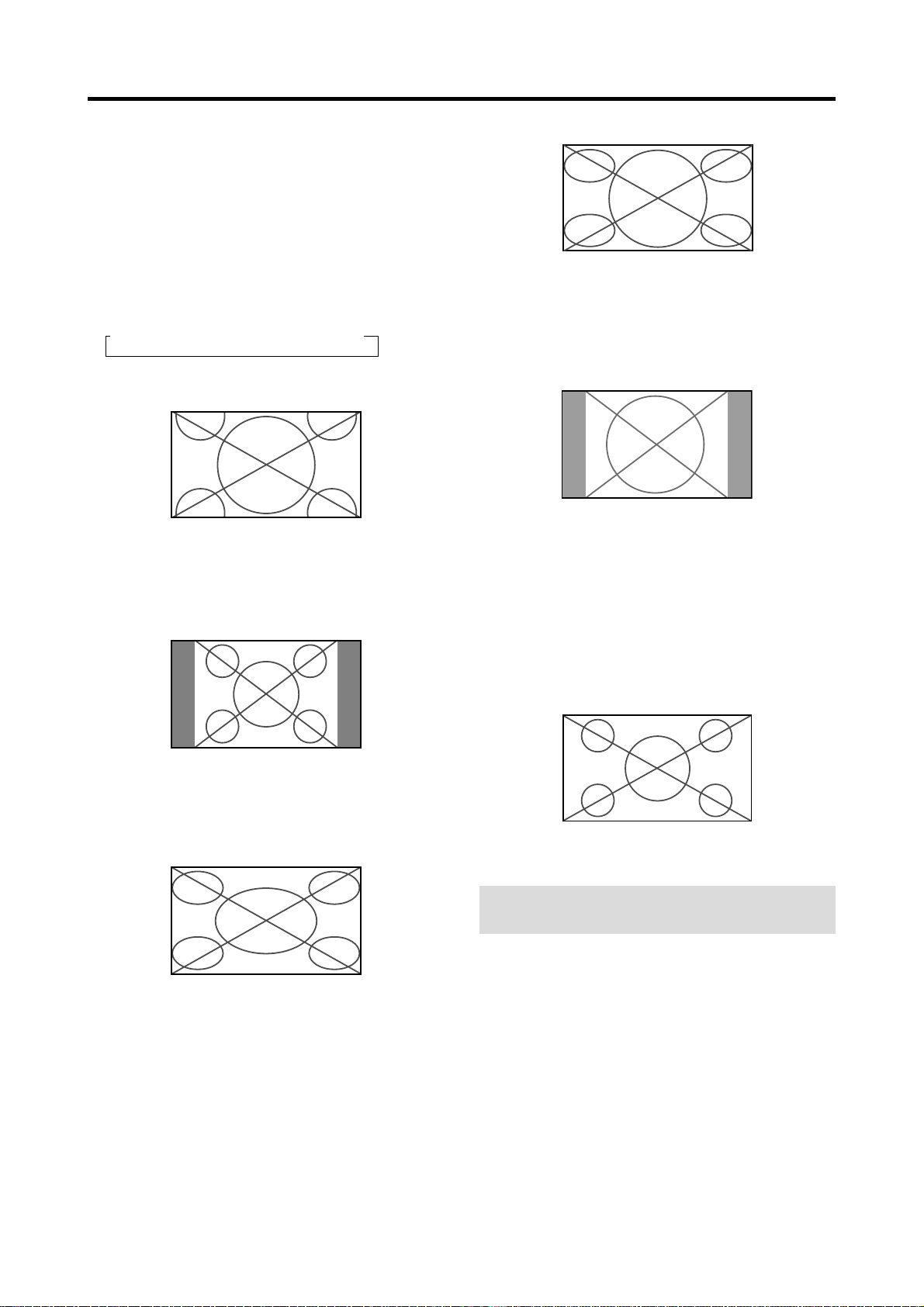

WIDE Operations

Wide Screen Operation

With this function, you can select one of five screen sizes.

(manual)

When viewing videos or digital video discs

1. Press the WIDE button on the remote control.

2. Within 3 seconds ... Press the WIDE button again. The screen size switches as follows:

→ ZOOM → NORMAL → FULL → STADIUM → 14:9

ZOOM size screen

The picture is expanded in the horizontal and vertical direction, maintaining the original proportions. * Use this for theater size (wide) movies, etc.

STADIUM size screen

The picture is expanded in the horizontal and vertical directions at different ratios. * Use this for watching normal video programs (4:3) with a

wide screen.

14:9 size screen

The image is displayed at a 14:9 aspect ratio. * This feature is available when the input signal is video,

component or RGB (525P or 625P signal from a scan converter).

NORMAL size screen (4:3)

The normal size screen is displayed. * The picture has the same size as video pictures with a

4 : 3 aspect ratio.

FULL size screen

The image is expanded in the horizontal direction. * Images compressed in the horizontal direction (“squeezed

images”) are expanded in the horizontal direction and displayed on the entire screen with correct linearity. (Normal images are expanded in the horizontal direction.)

When viewing a high definition video source

1. Press the WIDE button on the remote control.

FULL size screen (16 : 9)

The full size screen is displayed. * The picture has the same size as video pictures (16 : 9).

Note:

extended period. This can cause a phosphor burn-in.

Do not allow the displayed in 4:3 mode for an

Wide Screen Operation with Computer Signals

Switch to the wide screen mode to expand the 4 : 3 image to fill the entire screen.

1.Press the WIDE button on the remote control.

2.Within 3 seconds ...

Press the WIDE button again. The screen size switches as follows:

→ NORMAL → FULL → ZOOM

NORMAL size screen (4:3 or SXGA 5:4)

Information

䡵 Supported resolution

See page 41 for details on the display output of the various VESA signal standards supported by the monitor.

䡵 When 852 (848) dot ⳯ 480 line wide VGA* signals with a vertical frequency of 60 Hz and horizontal frequency of 31.7 (31.0) kHz are input

Select an appropriate setting for RGB SELECT mode referring to the“Table of Signals Supported” on page

41. * “ IBM PC/AT” and “VGA” are registered trademarks

of IBM, Inc. of the United States.

The picture has the same size as the normal computer image.

FULL size screen

The image is expanded in the horizontal direction.

ZOOM size screen

When wide signals are input.

FULL size screen

Note:

extended period. This can cause a phosphor burn-in.

Do not allow the displayed in 4:3 mode for an

OSM(On Screen Menu) Controls

Menu Operations

The OSM window is displayed with respect to the screen as shown on the diagram.

* Depending on the screen’s mode, the OSM may be

displayed differently. In the explanation, the OSM section is shown close up.

: OFF

EXIT

1 / 2

MAIN MENU

1 / 2

MAIN MENU PICTURE AUDIO IMAGE ADJUST OPTION1

ADVANCED OSM NEXT PAGE

MENU/ENTER

SEL.

The following describes how to use the menus and the selected items.

1. Press the MENU/ENTER button on the remote control to display the MAIN MENU.

PICTURE AUDIO IMAGE ADJUST OPTION1

5. The adjustments or the settings that are stored in memory. The change is stored until you change it again.

6. Repeat steps 2 – 5 to adjust an additional item, or press the EXIT button on the remote control to return to the main menu.

Note:

The main menu disappears by pressing the EXIT

button.

Information

 Advanced menu mode

When “ADVANCED OSM” is set to “ON” in the main menu (1/2), full menu items will be shown.

PICTURE AUDIO IMAGE ADJUST OPTION1 OPTION2 OPTION3 ADVANCED OSM NEXT PAGE

SEL.

MENU/ENTER

MAIN MENU

: ON

EXIT

1 / 2

EXIT

ADVANCED OSM NEXT PAGE

PREVIOUS PAGE LANGUAGE COLOR SYSTEM SOURCE INFORMATION

SEL.

MENU/ENTER

MAIN MENU

: OFF

EXIT

2 / 2

EXIT

2. Press the cursor buttons ▲ ▼ on the remote control to

highlight the menu you wish to enter.

3. Press the MENU/ENTER button on the remote control to select a submenu or item.

CONTRAST BRIGHTNESS SHARPNESS COLOR TINT PICTURE MODE NR NEXT PAGE

SEL.


ADJ.

: NORMAL : OFF

EXIT

1 / 2

RETURN

4. Adjust the level or change the setting of the selected

 

item by using the cursor buttons

on the remote

control.

Main menu Sub menu Functions Default Reset

PICTURE CONTRAST Adjusts the contrast. Center Yes

BRIGHTNESS Adjusts the brightness. Center Yes SHARPNESS Adjusts the sharpness. Center Yes COLOR Adjusts the color. Center Yes TINT Adjusts the tint. Center Yes PICTURE MODE Sets the picture mode according to the VIDEO environment and image software. NORMAL Yes NR Reduces noise visible in image. OFF Yes COLOR TEMP Adjusts the color temperature and white balance. Mid Yes WHITE BALANCE GAIN RED Adjusts the red content (signal level). Center Yes

GAIN GREEN Adjusts the green content (signal level). Center Yes GAIN BLUE Adjusts the blue content (signal level). Center Yes BIAS RED Adjusts the red content (black level). Center Yes BIAS GREEN Adjusts the green content (black level). Center Yes BIAS BLUE Adjusts the blue content (black level). Center Yes

RESET Resets WHITE BALANCE settings to the factory default values. OFF Yes GAMMA Adjusts the brightness of midtone areas. 2 Yes LOW TONE Enables high-quality dark area reproduction. AUTO Yes COLOR TUNE RED Adjusts hue and color density of red. Center Yes

GREEN Adjusts hue and color density of green. Center Yes

BLUE Adjusts hue and color density of blue. Center Yes

YELLOW Adjusts hue and color density of yellow. Center Yes

MAGENTA Adjusts hue and color density of magenta. Center Yes

CYAN Adjusts hue and color density of cyan. Center Yes

RESET Resets COLOR TUNE settings to the factory default values. OFF Yes

Main menu Sub menu Functions Default Reset

AUDIO BASS Sets the bass. Center Yes

TREBLE Sets the treble. Center Yes BALANCE Sets the left/right balance. Center Yes AUDIO INPUT1-3 Sets the allocation of the audio connectors. *

Yes

Main menu Sub menu Functions Default Reset

IMAGE ADJUST ASPECT MODE Selects between the different aspect ratio modes. — —

V-POSITION Adjusts the vertical position. Center Yes H-POSITION Adjusts the horizontal position. Center Yes V-HEIGHT Adjusts the vertical size. Min Yes H-WIDTH Adjusts the horizontal size. Min Yes AUTO PICTURE Turn this on to have the monitor automatically adjust “FINE PICTURE” OFF*

and “PICTURE ADJ”. FINE PICTURE Adjusts for flickering on the computer image. Min* PICTURE ADJ. Adjusts for striped patterns on the computer image. Center*

Yes Yes

Main menu Sub menu Functions Default Reset

OPTION1 OSM DISPLAY OSM When set to OFF, the on-screen menu is not displayed. ON Yes

OSM ADJ. Sets the position of the menu. 1 Yes OSM ANGLE Sets the display format as a horizontal or vertical screen. H Yes

OSM ORBITER Sets the OSM not to be displayed at the same position. OFF Yes BNC INPUT Sets the BNC connectors. RGB Yes D-SUB INPUT Checks the signal being transmitted to RGB1 terminal. RGB — RGB SELECT Sets the appropriate mode for the computer image. AUTO Yes

RGB (VGA signals), VIDEO (Moving picture), WIDE (Wide VGA), DTV. HD SELECT Sets the digital broadcasting (1080A,1080B, 1080C) or the High Vision (1035I). 1080B No INPUT SKIP Skips over signals which are not present. OFF Yes ALL RESET Resets all the settings (PICTURE, AUDIO, IMAGE ADJUST, OPTION1~3, etc.) — —

to the factory default values.

Main menu Sub menu Functions Default Reset

OPTION2 PWR. MGT. Sets the monitor for use as an energy-saving display when used with a computer. OFF Yes

Main menu Sub menu Functions Default Reset

OPTION3 TIMER PRESENT TIME Sets the day of the week and the time. — No

Main menu Sub menu Functions Default Reset

ADVANCED OSM Turn this ON to access full menu. OFF Yes LANGUAGE Sets the language of the menus (English, German, French, Swedish, Italian, English No

COLOR SYSTEM Sets the VIDEO format (AUTO, PAL, PAL-M, PAL-N, PAL60, SECAM, AUTO No

SOURCE INFORMATION Used to check the frequency and synchronizing polarities of the active signal ——

CINEMA MODE Sets the picture to suit the movie. ON Yes LONG LIFE PLE Limits screen brightness to reduce burn-in of the display. AUTO Yes

ORBITER Moves the picture intermittently. OFF Yes INVERSE Displays a negative/positive inverse image or an all-white screen. OFF Yes SCREEN WIPER Wipes the screen with a white vertical bar. OFF Yes

GRAY LEVEL In case of 4 : 3, sets the luminance of both sides. 3 Yes

PROGRAM Sets the ON/OFF time for switching on the power and the input mode. OFF Yes PWR. ON MODE Sets the input mode at the time the power is switched on. LAST Yes CONTROL LOCK Disables the function of the front panel buttons. OFF Yes IR REMOTE Disables the transmission of the remote control. ON Yes LOOP OUT When set to ON, the received signal will be looped out. OFF Yes ID NUMBER Sets ID number for the display. ALL Yes VIDEO WALL DIVIDER Creates a 2×2 or 3×3 video wall. OFF Yes

POSITION Sets the position. ——

DISP. MODE Selects the screen mode from between Splitting and Blanking. SPLIT Yes

AUTO ID Automatically sets the ID number of multiple displays. OFF Yes

IMAGE ADJUST Adjusts the position of the image, etc. ——

P. ON DELAY When set to ON, each display turns on after a delay time. OFF Yes

PLE LINK Sets a uniform brightness for each display. OFF Yes

REPEAT TIMER Sets two programmable timers. OFF Yes

Spanish or Chinese).

4.43 NTSC or 3.58 NTSC).

being input.

* Menu items in a ruled box are available when the ADVANCED OSM is set to ON. *1 AUDIO INPUT 1: VIDEO1 AUDIO INPUT 2: HD/DVD1 AUDIO INPUT 3: RGB1 *2 RGB/PC only

Picture Settings Menu

Adjusting the picture

The contrast, brightness, sharpness, color and tint can be adjusted as desired.

Example: Adjusting the contrast

Press the MENU/ENTER button on the remote control to display the MAIN MENU on the screen, then...

1. Use the ▲ and ▼ buttons to select “PICTURE”, then

press the MENU/ENTER button. The “PICTURE” screen appears.

2. Use the ▲ and ▼ buttons to select “CONTRAST”.

CONTRAST BRIGHTNESS SHARPNESS COLOR TINT PICTURE MODE NR NEXT PAGE

SEL.


ADJ.

: NORMAL : OFF

EXIT

3. Use the  and  buttons to adjust the contrast.

1 / 2

RETURN

Setting the picture mode according to the brightness of the room

There are four picture modes that can be used effectively according to the environment in which you are viewing the display.

Example: Setting the “THEAT. 1” mode

Press the MENU/ENTER button on the r emote contr ol to display the MAIN MENU on the screen, then...

1. Use the ▲ and ▼ buttons to select “PICTURE”, then

press the MENU/ENTER button. The “PICTURE” screen appears.

2. Use the ▲ and ▼ buttons to select “PICTURE

MODE”.

CONTRAST BRIGHTNESS SHARPNESS COLOR TINT PICTURE MODE NR NEXT PAGE

SEL.


ADJ.

: NORMAL : OFF

EXIT

1 / 2

RETURN

3. To set to “THEAT. 1” ... Use the The mode switches as follows when the



and  buttons to select “THEAT. 1”.



and



buttons are pressed:

→ NORMAL ↔ THEAT. 1 ↔ THEAT. 2 ↔ DEFAULT ←

CONTRAST

* If neither the  or  button is pressed within 5 seconds,

the current setting is set and the previous screen reappears.

4. Once the adjustment is completed ... Press the EXIT button to return to the main menu. To delete the main menu, press the EXIT button once more.

Note:

If “CAN NOT ADJUST” appears ... When trying to enter the PICTURE submenu, make sure PICTURE MODE is not set to DEFAULT.

Information

 Picture adjustment screen

CONTRAST ....Changes the picture’s white level.

BRIGHTNESS

..Changes the picture’s black level.

SHARPNESS ..Changes the picture’s sharpness.

Adjusts picture detail of VIDEO display.

COLOR ...........Changes the color density.

TINT ................Changes the picture’s tint. Adjust for

natural colored skin, background, etc.

 Adjusting the computer image

Only the contrast and brightness can be adjusted when a computer signal is connected.

 Restoring the factory default settings

Select “DEFAULT” under the “PICTURE MODE” settings.

PICTURE MODE

: THEAT. 1

* If neither the  or  button is pressed within 5 seconds,

the current selection is set and the previous screen reappears.

4. Once the adjustment is completed ... Press the EXIT button to return to the main menu. To delete the main menu, press the EXIT button once more.

Information

 Types of picture modes

THEA T. 1, 2......Set this mode when watching video in

a dark room. This mode provides darker, finer pictures, like the screen in movie theaters. For a darker image, select THEAT. 2.

NORMAL .........Set this mode when watching video in

a bright room. This mode provides dynamic pictures with distinct differences between light and dark sections.

DEFAULT......... Use this to reset the picture to the

factory default settings.

Reducing noise in the picture

Use these settings if the picture has noise due to poor reception or when playing video tapes on which the picture quality is poor.

Example: Setting “NR-3”

Press the MENU/ENTER button on the remote control to display the MAIN MENU on the screen, then...

1. Use the ▲ and ▼ buttons to select “PICTURE”, then

press the MENU/ENTER button. The “PICTURE” screen appears.

2. Use the ▲ and ▼ buttons to select “NR”.

CONTRAST BRIGHTNESS SHARPNESS COLOR TINT PICTURE MODE NR NEXT PAGE

SEL.


ADJ.

: NORMAL :

EXIT

1 / 2

OFF

RETURN

3. Use the  and  buttons to select “NR-3”. The mode switches as follows when the



and



buttons are pressed:

→ OFF ↔ NR-1 ↔ NR-2 ↔ NR-3 ←

Setting the color temperature

Use this procedure to set color tone produced by the plasma display.

Example: Setting “HIGH”

Press the MENU/ENTER button on the remote control to display the MAIN MENU on the screen, then...

1. Use the ▲ and ▼ buttons to select “PICTURE”, then

press the MENU/ENTER button. The “PICTURE” screen appears.

2. Use the ▲ and ▼ buttons to select “COLOR TEMP.”.

3. Use the The mode switches as follows when the



and  buttons to select “HIGH”.



and



buttons are pressed:

→ LOW ↔ MID LOW ↔ MID ↔ HIGH ←

* See below to set “WHITE BALANCE”.

PREVIOUS PAGE COLOR TEMP. GAMMA LOW TONE COLOR TUNE

SEL.


ADJ.

: HIGH : 2 : AUTO

EXIT

2 / 2

RETURN

: NR-3

* If neither the  or  button is pressed within 5 seconds,

the current selection is set and the previous screen reappears.

4. Once the setting is completed ... Press the EXIT button to return to the main menu. To delete the main menu, press the EXIT button once more.

Information

 NR

* “NR” stands for Noise Reduction. * This function reduces noise in the picture.

 Types of noise reduction

There are three types of noise reduction. Each has a different level of noise reduction. The effect becomes stronger as the number increases (in the order NR-1 → NR-2 → NR-3).

OFF ...............Turns the noise reduction function off.

* If neither the  or  button is pressed within 5 seconds,

the current selection is set and the previous screen reappears.

4. Once the setting is completed... Press the EXIT button to return to the main menu. To delete the main menu, press the EXIT button once more.

Information

 Setting the color temperature

LOW................Redder

MID LOW .........Slightly redder

MID ................... Standard (slightly bluer)

HIGH ...............Bluer

 Restoring the factory default settings

Select “ALL RESET” under the OPTION1 menu. Note that this also restores other settings to the factory defaults.

Adjusting the color to the desired level

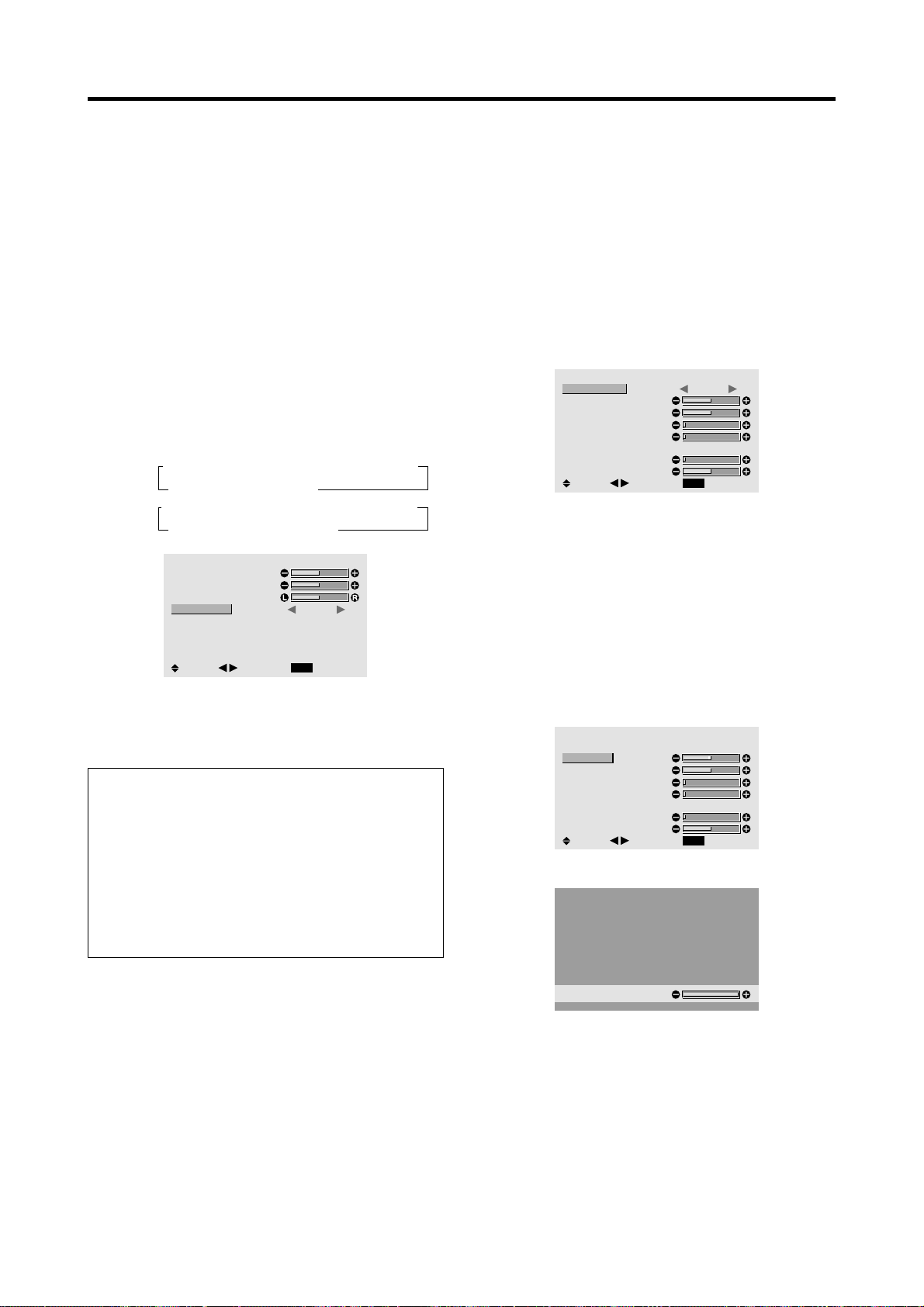

Use this procedure to adjust the white balance for each color temperature to achieve the desired color quality.

Example: Adjusting the “GAIN RED” of “HIGH” color temperature

Set “ADVANCED OSM” to “ON” in the main menu (1/

2), then perform the following operations.

Press the MENU/ENTER button on the remote control to display the MAIN MENU on the screen, then...

Perform Steps 1-3 of COLOR TEMP., then...

4. Press the MENU/ENTER button. The “WHITE BALANCE” screen appears.

5. Use the ▲ and ▼ buttons to select “GAIN RED”.

WHITE BALANCE

SEL.

COLOR TEMP. HIGH

ADJ.

EXIT

RETURN

GAIN RED GAIN GREEN GAIN BLUE BIAS RED BIAS GREEN BIAS BLUE RESET : OFF

6. Adjust the white balance using the  and  buttons.

GAIN RED

* If neither the  or  button is pressed within 5 seconds,

the current setting is set and the previous screen reappears.

7. Once the adjustment is completed... Press the EXIT button to return to the main menu. T o delete the main menu, press the EXIT button once more.

Information

 Adjusting the white balance

GAIN R/G/B.....White balance adjustment for signal

level

BIAS R/G/B .....White balance adjustment for black

level

RESET ............Resets settings to the factory default

values. Use  and  buttons to select “ON”, then press the MENU/ENTER button.

 Restoring the factory default settings Select “RESET” under the WHITE BALANCE menu.

Changing the Gamma Curve

This feature adjusts the brightness of the midtone areas while keeping shadows and highlights unchanged.

Example: Setting “3”

Set “ADVANCED OSM” to “ON” in the MAIN MENU (1/2), then perform the following operations.

Press the MENU/ENTER button on the remote control to display the MAIN MENU on the screen, then...

1. Use the ▲ and ▼ buttons to select “PICTURE”, then press the MENU/ENTER button. The “PICTURE” screen appears.

2. Use the ▲ and ▼ buttons to select “GAMMA”.

3. Use the The mode switches as follows each time the



and  buttons to select “3”.





button is pressed:

→ 1 ↔ 2 ↔ 3 ↔ 4 ←

PREVIOUS PAGE COLOR TEMP. GAMMA LOW TONE COLOR TUNE


: MID : 3 : AUTO

2 / 2

4. Once the setting is completed... Press the EXIT button to return to the main menu. To delete the main menu, press the EXIT button once more.

Information

 GAMMA settings

The picture becomes darker as the number increases (in the sequence of 1, 2, 3, 4).

 Restoring the factory default settings

Select “ALL RESET” under the OPTION1 menu. Note that this also restores other settings to the factory defaults.

Making the Low Tone adjustments

This feature allows more detailed tone to be reproduced especially in the dark area.

Example: Setting “2”

Set “ADVANCED OSM” to “ON” in the MAIN MENU (1/2), then perform the following operations.

Press the MENU/ENTER button on the remote control to display the MAIN MENU on the screen, then...

1. Use the ▲ and ▼ buttons to select “PICTURE”, then press the MENU/ENTER button. The “PICTURE” screen appears.

2. Use the ▲ and ▼ buttons to select “LOW TONE”.

3. Use the The mode switches as follows each time the



and  buttons to select “2”.





button is pressed:

→ AUTO ↔ 1 ↔ 2 ↔ 3 ←

PREVIOUS PAGE COLOR TEMP. GAMMA LOW TONE COLOR TUNE

SEL.


ADJ.

: MID : 2 : 2

EXIT

2 / 2

RETURN

4. Once the setting is completed... Press the EXIT button to return to the main menu. To delete the main menu, press the EXIT button once more.

Information

 LOW TONE settings

AUTO .......Will automatically appraise the picture and

make adjustments.

1 ...............Will apply the dither method suitable for

still pictures.

2 ...............Will apply the dither method suitable for

motion pictures.

3 ...............Will apply the error diffusion method.

 Restoring the factory default settings

Select “ALL RESET” under the OPTION1 menu. Note that this also restores other settings to the factory defaults.

SEL.

ADJ.

EXIT

RETURN

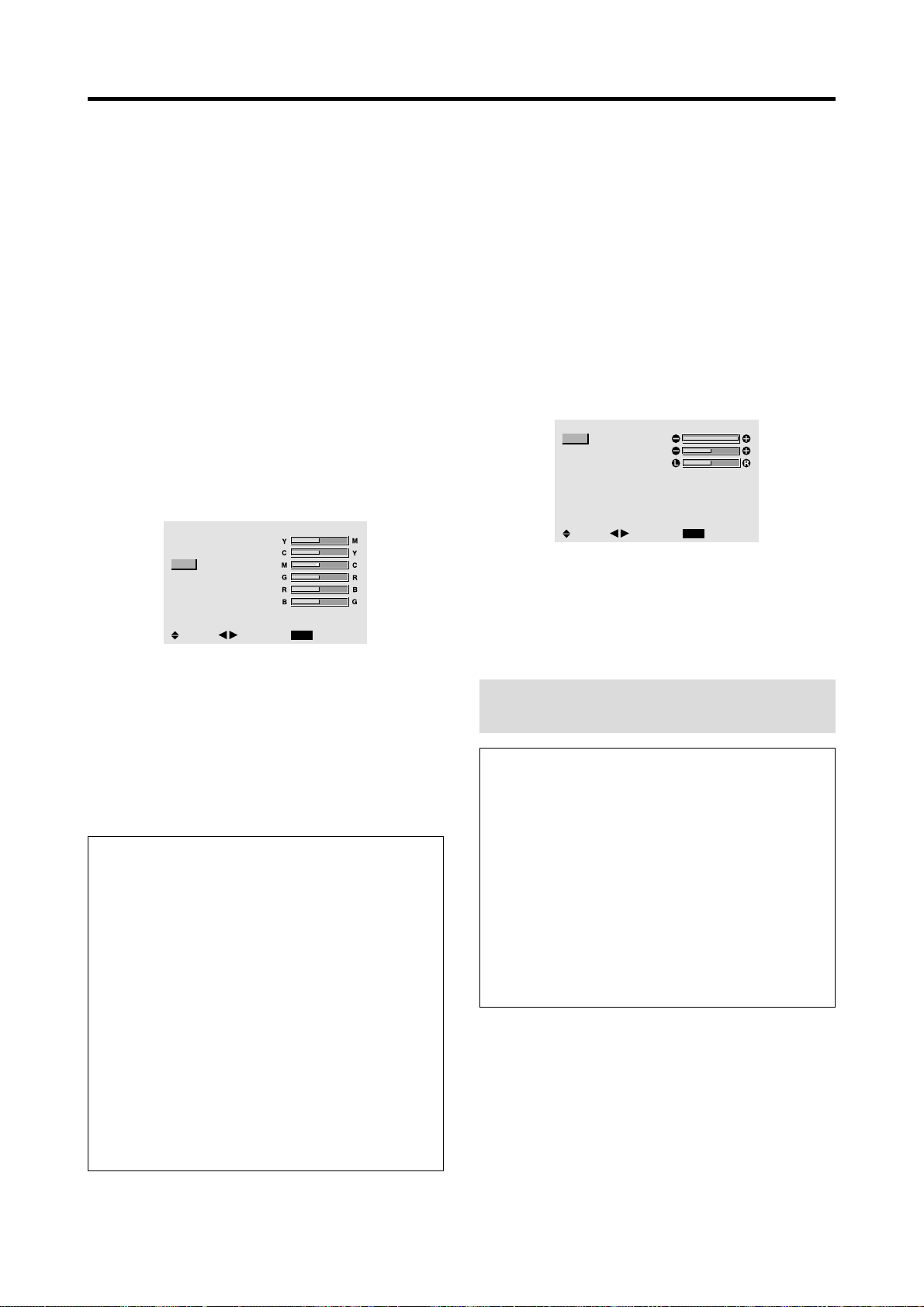

Adjusting the colors

Use this procedure to adjust hue and color density for red, green, blue, yellow, magenta and cyan. Such adjustments will not affect the other colors. You can accentuate the green color of trees, the blue of the sky, etc.

Example: Adjusting the color tune for blue

Set “ADVANCED OSM” to “ON” in the MAIN MENU (1/2), then perform the following operations.

Press the MENU/ENTER button on the remote control to display the MAIN MENU on the screen, then...

1. Use the ▲ and ▼ buttons to select “PICTURE”, then

press the MENU/ENTER button. The “PICTURE” screen appears.

2. Use the ▲ and ▼ buttons to select “COLOR TUNE”,

then press the MENU/ENTER button. The “COLOR TUNE” screen appears.

3. Use the ▲ and ▼ buttons to select “BLUE”.



4. Adjust using the

RED GREEN BLUE YELLOW MAGENTA CYAN RESET : OFF

and  buttons.

SEL.

COLOR TUNE

ADJ.

EXIT

RETURN

* If neither the  or  button is pressed within 5 seconds,

the current selection is set and the previous screen reappears.

To continue making other adjustments...

Repeat from step 3.

5. Once the setting is completed... Press the EXIT button to return to the main menu. To delete the main menu, press the EXIT button once more.

Information

 COLOR TUNE settings

RED ................Makes red’s adjustment

GREEN ...........Makes green’s adjustment

BLUE...............Makes blue’s adjustment

YELLOW .........Makes yellow’s adjustment

MAGENTA ......Makes magenta’s adjustment

CYAN ..............Makes cyan’s adjustment

RESET ............Resets settings to the factory default

value. Use  and  buttons to select “ON”, then press the MENU/ENTER button.

Audio Settings Menu

Adjusting the treble, bass and left/right balance and audio input select

The treble, bass and left/right balance can be adjusted to suit your tastes.

Example: Adjusting the bass

Press the MENU/ENTER button on the remote control to display the MAIN MENU on the screen, then...

1. Use the ▲ and ▼ buttons to select “AUDIO”, then

press the MENU/ENTER button. The “AUDIO” screen appears.

2. To adjust the bass ...

Use the ▲ and ▼ buttons to select “BASS”.

3. Adjust the bass using the  and  buttons.

BASS TREBLE BALANCE AUDIO INPUT1 AUDIO INPUT2 AUDIO INPUT3

SEL.

To continue adjusting the audio ...

Repeat from step 2.

4. Once the adjustment is completed ... Press the EXIT button to return to the main menu. To delete the main menu, press the EXIT button once more.

Note :

If “CAN NOT ADJUST” appears...

Set “AUDIO INPUT” on the AUDIO menu correctly.

Information

 Audio settings menu

BASS ..............Controls the level of low frequency

TREBLE ..........Controls the level of high frequency

BALANCE .......Controls the balance of the left and

 Restoring the factory default settings

Select “ALL RESET” under the OPTION1 menu. Note that this also restores other settings to the factory defaults.

AUDIO

: VIDEO1 : HD/DVD1 : RGB1

ADJ.

sound.

right channels.

EXIT

RETURN

 Restoring the factory default settings

Select “ALL RESET” under the OPTION1 menu. Note that this also restores other settings to the factory defaults.

Setting the allocation of the audio connectors

Setting the AUDIO 1, 2, and 3 connectors to the desired input.

Example: Setting “AUDIO INPUT1” to “VIDEO 2”

Press the MENU/ENTER button on the remote control to display the MAIN MENU on the screen, then...

1. Use the ▲ and ▼ buttons to select “AUDIO”, then press

the MENU/ENTER button. The “AUDIO” screen appears.

2. Use the ▲ and ▼ buttons to select “AUDIO INPUT1”.

3. To set the AUDIO INPUT1 to “VIDEO2”... Use the The mode switches as follows each time the



and  buttons to select “VIDEO2”.





or button is pressed: The available sources depend on the setting of “BNC INPUT”.

RGB:

COMP.:

→ VIDEO1 ↔ VIDEO2 ↔ VIDEO3 ↔ HD/DVD1←

→RGB3 ↔RGB2 ↔RGB1 ←

→ VIDEO1 ↔ VIDEO2 ↔ VIDEO3↔ HD/DVD1←

→RGB3 ↔RGB1 ↔HD/DVD2 ←

ADJ.

AUDIO

: VIDEO2 : HD/DVD1 : RGB1

EXIT

RETURN

BASS TREBLE BALANCE AUDIO INPUT1 AUDIO INPUT2 AUDIO INPUT3

SEL.

4. Once the setting is completed... Press the EXIT button to return to the main menu. To delete the main menu, press the EXIT button once more.

Information

 AUDIO INPUT

A single audio input cannot be selected as the audio channel for more than one input terminal.

 Restoring the factory default settings

Select “ALL RESET” under the OPTION1 menu. Note that this also restores other settings to the factory defaults.

Image Adjust Settings Menu

Adjusting the Position, Size, Fine Picture, Picture Adj

The position of the image can be adjusted and flickering of the image can be corrected.

Example: Adjusting the vertical position in the normal mode

Press the MENU/ENTER button on the remote control to display the MAIN MENU on the screen, then...

1. Use the ▲ and ▼ buttons to select “IMAGE ADJUST”,

then press the MENU/ENTER button. The “IMAGE ADJUST” menu appears.

Default settings (when RGB/PC is selected)

ASPECT MODE V-POSITION H-POSITION V-HEIGHT H-WIDTH AUTO PICTURE FINE PICTURE PICTURE ADJ.

SEL.

* The settings on the IMAGE ADJUST menu are not

preset at the factory .

To select a mode ...



Use the

and  buttons to select a mode. The mode switches as follows when the buttons are pressed:

NORMAL ↔ FULL

* The mode can also be switched by pressing the “WIDE”

button on the remote control.

2. To adjust the vertical position ...

Use the ▲ and ▼ buttons to select “V-POSITION”.

ASPECT MODE V-POSITION H-POSITION V-HEIGHT H-WIDTH AUTO PICTURE FINE PICTURE PICTURE ADJ.

SEL.

3. Adjust using the  and  buttons.

IMAGE ADJUST

ADJ.

IMAGE ADJUST

ADJ.

: NORMAL

: OFF

EXIT

RETURN

: NORMAL

: OFF

EXIT

RETURN



and



V-POSITION

* If neither the  or  button is pressed within 5 seconds,

the current setting is set and the previous screen reappears.

To continue making other computer image adjustments ...

Repeat from step 2.

4. Once all adjustments are completed ... Press the EXIT button to return to the main menu. To delete the main menu, press the EXIT button once more.

Information

 When “AUTO PICTURE” is “OFF”

ASPECT MODE V-POSITION H-POSITION V-HEIGHT H-WIDTH AUTO PICTURE FINE PICTURE PICTURE ADJ.

SEL.

IMAGE ADJUST

ADJ.

: FULL

: OFF

EXIT

RETURN

When Auto Picture is off, the Fine Picture and the Picture ADJ. items are displayed so that you can adjust them.

 Adjusting the Auto Picture

ON...................The Picture ADJ., Fine Picture and

Position adjustments are made automatically. Not available for digital ZOOM.

OFF .................The Picture ADJ., Fine Picture and

Position adjustments are made manually.

* If FINE PICTURE won’t be adjusted, set Auto Picture

to OFF and adjust manually.

Option1 Settings Menu

Setting the on-screen menu

This sets the position of the menu, the display format (horizontal or vertical) etc.

Example: Turning the DISPLAY OSM off

Press the MENU/ENTER button on the remote control to display the MAIN MENU on the screen, then...

1. Use the ▲ and ▼ buttons to select “OPTION1”, then press the MENU/ENTER button. The “OPTION1” menu appears.

2. Use the ▲ and ▼ buttons to select “OSM”, then press the MENU/ENTER button. The “OSM” menu appears.

3. Use the ▲ and ▼ buttons to select “DISPLAY OSM”.

4. To set the DISPLAY OSM to “OFF”... Use the The mode switches as follows each time the button is pressed:

ON ↔ OFF



and  buttons to select “OFF”.

DISPLAY OSM OSM ADJ. OSM ANGLE OSM ORBITER

OSM

: OFF : 1 : H : OFF





 Adjusting the position of the image

V-POSITION ...Adjusts the vertical position of the

image.

H-POSITION ...Adjusts the horizontal position of the

image.

V-HEIGHT.......Adjusts the vertical size of the image.

(Except for STADIUM mode)

H-WIDTH ......... Adjusts the horizontal size of the

image. (Except for ST ADIUM mode)

FINE PICTURE PICTURE ADJ.* ...

*.. Adjusts for flickering.

Adjusts for striped patterns on the image.

* The Picture ADJ. and Fine Picture features are available

only when the “Auto Picture” is off.

* The AUTO PICTURE, FINE PICTURE and PICTURE

ADJ. are available only for RGB signals. But, these features are not available for moving pictures on VIDEO, HD/DVD or RGB.

 Restoring the factory default settings

Select “ALL RESET” under the OPTION1 menu. Note that this also restores other settings to the factory defaults except for Auto Picture.

SEL.

ADJ.

EXIT

RETURN

5. Once the setting is completed... Press the EXIT button to return to the OPTION1 menu. T o return to the main menu, press the EXIT button once more.

Information

 DISPLAY OSM settings

ON............The on-screen menu appears.

OFF ..........The on-screen menu does not appear.

If you press the DISPLA Y button on the remote control for more than 3 seconds the main menu will appear and can be set (although it is not ON).

 OSM ADJUST settings

Adjusts the position of the menu when it appears on the screen. The position can be set between 1 to 6.

 OSM ANGLE settings

Sets the display format (landscape “H” or portrait “V”).

“H”

OSM BNC INPUT D-SUB INPUT RGB SELECT HD SELECT INPUT SKIP ALL RESET NEXT PAGE

SEL.

MENU/ENTER

OPTION1

: RGB : RGB : AUTO : 1080B : OFF : OFF

EXIT

1 / 3

RETURN

“V”

OPTION1

OSM

BNC INPUT

: RGB

D-SUB INPUT

: RGB

RGB SELECT

: AUTO

HD SELECT

: 1080B

INPUT SKIP

: OFF

ALL RESET

: OFF 1024768

SEL.

MENU/ENTER

EXIT

RETURN

Only effective when Advanced OSM is OFF.

Checking the signal being transmitted to RGB1 terminal

Use this to confirm the signal being transmitted to the RGB1 terminal. It is set to RGB and can not be adjusted.

OSM BNC INPUT D-SUB INPUT RGB SELECT HD SELECT INPUT SKIP ALL RESET NEXT PAGE CAN NOT ADJUST

OPTION1

: RGB : RGB : AUTO : 1080B : OFF : OFF

1 / 3

 OSM ORBITER settings

ON........ The position of the menu will be shifted by

eight dots each time OSM is displayed.

OFF...... OSM will be displayed at the same position.

 Restoring the factory default settings

Select “ALL RESET” under the OPTION1 menu. Note that this also restores other settings to the factory defaults except for Auto Picture.

Setting the BNC connectors

Select whether to set the input of the 5 BNC connectors to RGB and component.

Example: Set the BNC INPUT mode to “COMP.”

Press the MENU/ENTER button on the remote control to display the MAIN MENU on the screen, then...

1. Use the ▲ and ▼ buttons to select “OPTION1”, then

press the MENU/ENTER button. The “OPTION1” screen appears.

2. Use the ▲ and ▼ buttons to select “BNC INPUT”.

3. To set the BNC INPUT mode to “COMP.”... Use the The mode switches as follows each time the



and  buttons to select “COMP.”.





button is pressed:

RGB ↔ COMP.

OSM BNC INPUT D-SUB INPUT RGB SELECT HD SELECT INPUT SKIP ALL RESET NEXT PAGE

SEL.

OPTION1

ADJ.

: COMP. : RGB : AUTO : 1080B : OFF : OFF

EXIT

1 / 3

RETURN

Setting a computer image to the correct RGB select screen

With the computer image, select the RGB Select mode for a moving image such as (video) mode, wide mode or digital broadcast.

Example: Setting the “RGB SELECT” mode to “MOTION ”

Press the MENU/ENTER button on the remote control to display the MAIN MENU on the screen, then...

1. Use the ▲ and ▼ buttons to select “OPTION1”, then

press the MENU/ENTER button. The “OPTION1” screen appears.

2. Use the ▲ and ▼ buttons to select “RGB SELECT”.

3. To set the RGB select mode to “MOTION” ... Use the The mode switches as follows each time the



and  buttons to select “MOTION”.





button is pressed:

→ AUTO ↔ STILL ↔ MOTION ↔ WIDE1 ↔ WIDE2 ↔ DTV ←

OSM BNC INPUT D-SUB INPUT RGB SELECT HD SELECT INPUT SKIP ALL RESET NEXT PAGE

SEL.

OPTION1

ADJ.

: RGB : RGB : MOTION : 1080B : OFF : OFF

EXIT

1 / 3

RETURN

4. Once the setting is completed ... Press the EXIT button to return to the main menu. To delete the main menu, press the EXIT button once more.

4. Once the setting is completed... Press the EXIT button to return to the main menu. To delete the main menu, press the EXIT button once more.

Information

 BNC INPUT Settings

RGB .........Use the 5BNC terminals for RGB input.

COMP.......Use the 3BNC terminals for component

input.

 Restoring the factory default settings

Select “ALL RESET” under the OPTION1 menu. Note that this also restores other settings to the factory defaults.

Information

 RGB SELECT modes

One of these 6 modes must be selected in order to display the following signals correctly.

AUTO ..............Select the suitable mode for the

specifications of input signals as listed in the table “Computer input signals supported by this system” on page 41.

STILL ..............To display VESA standard signals.

(Use this mode for a still image from a computer.)

MOTION..........The video signal (from a scan

converter) will be converted to RGB signals to make the picture more easily viewable. (Use this mode for a motion image from a computer.)

WIDE1.............When an 852 dot 480 line signal

with a horizontal frequency of

31.7kHz is input, the image may be compressed horizontally. To prevent this, set RGB SELECT to WIDE1.

WIDE2.............When an 848 dot 480 line signal

with a horizontal frequency of 31.0 kHz is input, the image may be compressed horizontally. To prevent this, set RGB SELECT to WIDE2.

DTV.................Set this mode when watching digital

broadcasting (480P).

See page 41 for the details of the above settings.

 Restoring the factory default settings

Select “ALL RESET” under the OPTION1 menu. Note that this also restores other settings to the factory defaults.

Setting high definition images to the suitable screen size

Use this procedure to set whether the number of vertical lines of the input high definition image is 1035 or 1080.

Example: Setting the “1080B” mode to “1035I”

Press the MENU/ENTER button on the remote control to display the MAIN MENU on the screen, then...

1. Use the ▲ and ▼ buttons to select “OPTION1”, then press the MENU/ENTER button. The “OPTION1” screen appears.

2. Use the ▲ and ▼ buttons to select “HD SELECT”.

3. To set the HD SELECT mode to “1035I” ... Use the The mode switches as follows each time the



and  buttons to select “1035I”.





button is pressed:

→1080B ↔ 1035I ↔ 1080A ←

RETURN

1 / 3 OSM BNC INPUT D-SUB INPUT RGB SELECT HD SELECT INPUT SKIP ALL RESET NEXT PAGE

SEL.

OPTION1

ADJ.

: RGB : RGB : AUTO : 1035 : OFF : OFF

EXIT

4. Once the setting is completed ... Press the EXIT button to return to the main menu. To delete the main menu, press the EXIT button once more.

Information

 HD SELECT modes

These 3 modes are not displayed in correct image automatically.

1080B ...............Standard digital broadcasts

1035I ...............Japanese “High V ision” signal format

1080A ............... Special Digital broadcasts (for

example : DTC100)

Setting the Input Skip

When this is ON, signals which are not present will be skipped over and only pictures whose signals are being transmitted will be displayed. This setting is valid only for the INPUT SELECT button on the unit.

Example: Set to “ON”

Press the MENU/ENTER button on the remote control to display the MAIN MENU on the screen, then...

1. Use the ▲ and ▼ buttons to select “OPTION1”, then press the MENU/ENTER button. The “OPTION1” screen appears.

2. Use the ▲ and ▼ buttons to select “INPUT SKIP”.

3. To set the INPUT SKIP mode to “ON”...



Use the

and  buttons to select “ON”. The mode switches as follows each time the button is pressed:

OFF ↔ ON

OSM BNC INPUT D-SUB INPUT RGB SELECT HD SELECT INPUT SKIP ALL RESET NEXT PAGE

SEL.

OPTION1

ADJ.

: RGB : RGB : AUTO : 1080B : ON : OFF

EXIT

1 / 3

RETURN

4. Once the setting is completed... Press the EXIT button to return to the main menu. To delete the main menu, press the EXIT button once more.

Information

 INPUT SKIP settings

OFF........... Regardless of the presence of the signal,

scan and display all signals.

ON............. If no input signal is present, skip that

signal.

* “SETTING NOW” will appear during the input search.

 Restoring the factory default settings

Select “ALL RESET” under the OPTION1 menu. Note that this also restores other settings to the factory defaults.





Resetting to the default values

Use these operations to restore all the settings (PICTURE, AUDIO, IMAGE ADJUST, OPTION1~3, etc) to the factory default values.

Refer to page 16 for items to be reset. Press the MENU/ENTER button on the remote control to

display the MAIN MENU on the screen, then...

Option2 Settings Menu

Setting the power management for computer images

This energy-saving (power management) function automatically reduces the monitor’s power consumption if no operation is performed for a certain amount of time.

Example:

Turning the power management function on

1. Use the ▲ and ▼ buttons to select “OPTION1”, then

press the MENU/ENTER button. The “OPTION1” screen appears.

2. Use the ▲ and ▼ buttons to select “ALL RESET”.

OSM BNC INPUT D-SUB INPUT RGB SELECT HD SELECT INPUT SKIP ALL RESET NEXT PAGE

SEL.

OPTION1

ADJ.

: RGB : RGB : AUTO : 1080B : OFF :

EXIT

1 / 3

OFF

RETURN

3. Use the 䊴 and 䊳 buttons to select “ON”, then press the MENU/ENTER button.

OSM BNC INPUT D-SUB INPUT RGB SELECT HD SELECT INPUT SKIP ALL RESET NEXT PAGE

SEL.

MENU/ENTER

OPTION1

ALL RESET

SETTING NOW

: RGB : RGB : AUTO : 1080B : OFF :

EXIT

1 / 3

RETURN

Set “ADVANCED OSM” to “ON” in the main menu (1/

2), then perform the following operations. Press the MENU/ENTER button on the remote control to

display the MAIN MENU on the screen, then...

1. Use the ▲ and ▼ buttons to select “OPTION2”, then

press the MENU/ENTER button. The “OPTION2” screen appears.

2. Use the ▲ and ▼ buttons to select “PWR. MGT.”.

3. To turn the power management function on ...

䊴

Use the The mode switches as follows each time the

and 䊳 buttons to select “ON”.

䊴

䊳

button is pressed:

ON ↔ OFF

PREVIOUS PAGE POWER MGT. CINEMA MODE LONG LIFE GRAY LEVEL

SEL.

OPTION2

ADJ.

: ON : ON

: 3

EXIT

2 / 3

RETURN

4. Once the setting is completed ... Press the EXIT button to return to the main menu. To delete the main menu, press the EXIT button once more.

When the “SETTING NOW” screen disappears, then all the settings are restored to the default values.

4. Once the setting is completed ... Press the EXIT button to return to the main menu. To delete the main menu, press the EXIT button once more.

Information

䡵 Power management function

* The power management function automatically reduces

the monitor’s power consumption if the computer’s keyboard or mouse is not operated for a certain amount of time. This function can be used when using the monitor with a computer.

* If the computer’s power is not turned on or if the

computer and selector tuner are not properly connected, the system is set to the off state.

* For instructions on using the computer’s power

management function, refer to the computer’s operating instructions.

䡵 Power management settings

ON........ In this mode the power management function

is turned on.

OFF ...... In this mode the power management function

is turned off.

䡵 Power management function and POWER/ STANDBY indicator

The POWER/ST ANDBY indicator indicates the status of the power management function. See page 27 for indicator status and description.

䡵 Restoring the factory default settings

Select “ALL RESET” under the OPTION1 menu. Note that this also restores other settings to the factory defaults.

POWER/STANDBY indicator

Power management mode

Off

POWER/ STANDBY indicator

Green

Red

Power management operating status

Not activated.

Activated.

Description

Horizontal and vertical synchronizing signals are present from the computer.

Horizontal and/or vertical synchronizing signals are not sent from the computer.

Turning the picture back on

Picture already on.

Operate the keyboard or mouse. The picture reappears.

Setting the picture to suit the movie

The film image is automatically discriminated and projected in an image mode suited to the picture. [NTSC, PAL, PAL60, 480I (60Hz), 525I (60Hz), 576I (50Hz), 625I (50Hz), 1035I (60Hz), 1080I (60Hz) only]

Example: Setting the “CINEMA MODE” to “OFF”

Set “ADVANCED OSM” to “ON” in the main menu (1/

2), then perform the following operations.

Press the MENU/ENTER button on the remote control to display the MAIN MENU on the screen, then...

1. Use the ▲ and ▼ buttons to select “OPTION2”, then press the MENU/ENTER button. The “OPTION2” screen appears.

2. Use the ▲ and ▼ buttons to select “CINEMA MODE”.

3. To set the CINEMA MODE to “OFF” ... Use the The mode switches as follows each time the

䊴

and 䊳 buttons to select “OFF”.

䊴

䊳

button is pressed:

ON ↔ OFF

PREVIOUS PAGE POWER MGT. CINEMA MODE LONG LIFE GRAY LEVEL

SEL.

OPTION2

ADJ.

: OFF : OFF

: 3

EXIT

2 / 3

RETURN

4. Once the setting is completed ... Press the EXIT button to return to the main menu. To delete the main menu, press the EXIT button once more.

Information

䡵 CINEMA MODE

ON...................Automatic discrimination of the

image and projection in cinema mode.

OFF...................Cinema mode does not function.

䡵 Restoring the factory default settings

Select “ALL RESET” under the OPTION1 menu. Note that this also restores other settings to the factory defaults.

Reducing burn-in of the screen

The brightness of the screen, the position of the picture, positive/negative mode and screen wiper are adjusted to reduce burn-in of the screen.

Set “ADVANCED OSM” to “ON” in the main menu (1/

2), then perform the following operations. Press the MENU/ENTER button on the remote control to

display the MAIN MENU on the screen, then...

1. Use the ▲ and ▼ buttons to select “OPTION2”, then

press the MENU/ENTER button. The “OPTION2” screen appears.

2. Use the ▲ and ▼ buttons to select “LONG LIFE”, then

press the MENU/ENTER button. The “LONG LIFE” screen appears.

PLE ORBITER INVERSE SCREEN WIPER

SEL.

LONG LIFE

ADJ.

: AUTO : OFF : OFF : OFF

EXIT

RETURN

3. Set the LONG LIFE mode using ▲▼䊴 and 䊳 buttons.

See page 27 to set PLE. See page 28 to set ORBITER. See page 28 to set INVERSE. See page 29 to set SCREEN WIPER.

4. Once the setting is completed... Press the EXIT button to return to the OPTION2 screen. T o return to the main menu, press the EXIT button once more.

Information

䡵 Restoring the factory default settings

Select “ALL RESET” under the OPTION1 menu. Note that this also restores other settings to the factory defaults.

PLE (Peak Luminance Enhancement)

Use this to activate the brightness limiter.

Example: Setting “PLE” to “LOCK1”

Perform Steps 1-2 of LONG LIFE, then...

3. Use the ▲ and ▼ buttons to select “PLE”.

4. Use the The mode switches as follows each time the

䊴

and 䊳 buttons to select “LOCK1”.

䊴

䊳

button is pressed:

→AUTO ↔ LOCK1 ↔ LOCK2 ↔ LOCK3←

PLE ORBITER INVERSE SCREEN WIPER

SEL.

LONG LIFE

ADJ.

: LOCK1 : OFF : OFF : OFF

EXIT

RETURN

Information

䡵 PLE settings

AUTO ..............The brightness of the screen is

adjusted automatically to suit the picture quality.

LOCK1, 2, 3 .... Sets maximum brightness.

The brightness level decreases in the order of LOCK 1, 2, 3. LOCK 3 provides minimum brightness.

ORBITER

Use this to set the picture shift.

Example: Setting “ORBITER” to “AUTO1”

• H-DOT

→1 DOT ↔ 2 DOT ↔ ..... ↔ 19 DOT ↔ 20 DOT←

• V-LINE

→1 LINE ↔ 2 LINE ↔ ..... ↔ 19 LINE ↔ 20 LINE←

• TIME

→1 M ↔ 2 M ↔ 3 M ↔ 4 M ↔ 5 M←

H-DOT V-LINE TIME

ORBITER

: 2 DOT : 4 LINE : 3 M

Perform Steps 1-2 of LONG LIFE, then...

3. Use the ▲ and ▼ buttons to select “ORBITER”.

4. Use the The mode switches as follows each time the

䊴

and 䊳 buttons to select “AUTO1”.

䊴

䊳

button is pressed:

→OFF ↔ AUTO1 ↔ AUTO2 ↔ MANUAL←

PLE ORBITER INVERSE SCREEN WIPER

SEL.

LONG LIFE

ADJ.

: AUTO : AUTO1 : OFF : OFF

EXIT

RETURN

Information

䡵 ORBITER settings

OFF ..............Orbiter mode does not function.

AUTO1 .........The picture moves around the screen

intermittently, making the picture smaller.

AUTO2 .........The picture moves around the screen

intermittently, making the picture bigger.

MANUAL ......User can adjust the orbiter function

(Horizontal Dot, Vertical Line and Time) manually. See the following explanation.

Adjust the ORBITER function manually

Set the amount of shift and the time between movement.

Example: Setting so that the picture moves 2 dots horizontally and 3 lines vertically every 3 minutes.

Perform Steps 1-3 of ORBITER, then...

4. Use the

䊴

and 䊳 buttons to select “MANUAL”, then press the MENU/ENTER button. THE “ORBITER” screen appears.

䊴

5. Adjust the items using the ▲▼

The mode switches as follows each time the

and 䊳 buttons.

䊴

䊳

button is pressed:

SEL.

ADJ.

EXIT

RETURN

Information

䡵 ORBITER Function settings

H-DOT..........Moves from 1 to 20 dots in the

horizontal direction.

V-LINE..........Moves from 1 to 20 lines in the vertical

direction.

TIME ............Interval of 1~5 minutes.

INVERSE

Use this to set the inverse mode or to display a white screen.

Example: Setting “INVERSE” to “WHITE”

Perform Steps 1-2 of LONG LIFE, then...

3. Use the ▲ and ▼ buttons to select “INVERSE”.

4. Use the The mode switches as follows each time the

䊴

and 䊳 buttons to select “WHITE”.

䊴

䊳

button is pressed:

→OFF ↔ ON ↔ WHITE←

PLE ORBITER INVERSE SCREEN WIPER

SEL.

LONG LIFE

ADJ.

: AUTO : OFF : WHITE : OFF

EXIT

RETURN

Information

䡵 INVERSE Settings

ON......... The picture is displayed alternately between

positive image and negative image. Y ou can set the time by pressing the MENU/ ENTER button while “ON” is set.

OFF ....... Inverse mode does not function.

WHITE ...The entire screen turns white.

Y ou can set the time by pressing the MENU/ ENTER button while “ON” is set.

Setting the time for INVERSE/WHITE

Set a time duration.

Example: Setting to that the INVERSE mode starts in 2 hours and proceeds for one hour and a half.

Perform Steps 1-3 of INVERSE, then...

4. Use the

䊴

and 䊳 buttons to select “ON”, then press the MENU/ENTER button. THE “INVERSE/WHITE” screen appears.

5. Adjust the time using the ▲▼

The mode switches as follows each time the

䊴

and 䊳 buttons.

䊴

䊳

button is pressed:

• WORKING TIME

→ON ↔ 00H03M ↔ 00H06M ↔ ..... ↔ 12H42M ↔ 12H45M←

• WAITING TIME

→00H03M ↔ 00H06M ↔ 00H09M ↔ ... ↔ 12H42M ↔ 12H45M←

SCREEN WIPER

When this is set to ON, a white vertical bar moves repeatedly from the left and of the screen to the right end at a constant speed.

Example: Setting “SCREEN WIPER” to “ON”

Perform Steps 1-2 of LONG LIFE, then...

3. Use the ▲ and ▼ buttons to select “SCREEN WIPER”.

䊴

4. Use the The mode switches as follows each time the

and 䊳 buttons to select “ON”.

䊴

䊳

button is pressed:

OFF ↔ ON

PLE ORBITER INVERSE SCREEN WIPER

LONG LIFE

: AUTO : OFF : OFF : ON

WORKING TIME WAITING TIME

SEL.

INVERSE/WHITE

ADJ.

: 01H30M : 02H00M

EXIT

RETURN

6. Once the setting is completed... Press the EXIT button to return to the LONG LIFE screen.

Information

䡵 Setting the time

WORKING TIME .....

Set the time duration for “INVERSE/WHITE”. When the WORKING TIME is set to “ON” the mode will stay on.

WAITING TIME

......Set the standby time until the

“INVERSE/WHITE” mode starts.

* The “WAITING TIME” can not be set when the

“WORKING TIME” is ON.

* THE “WORKING TIME” and “W AITING TIME” can

be set for up to 12 hours and 45 minutes in units of 3 minutes.

* Ending a WORKING TIME function, the monitor will

be STAND BY.

[Example]

WORKING TIME: 01H30M WAITING TIME: 02H00M

←−−−− 2 H −−−−→←−− 1.5 H −−→←−−−−

Start INVERSE/WHITE Start STAND BY

SEL.

ADJ.

EXIT

RETURN

Information

䡵 SCREEN WIPER

ON......... The white vertical bar appears.

Y ou can set the time by pressing the MENU/ ENTER button while “ON” is set.

OFF ....... Screen wiper mode does not function.

Setting the time for SCREEN WIPER

Set a time duration and the speed.

Example: Setting to that the SCREEN WIPER mode starts in 30 minutes and proceeds for one hour and a half.

Perform Steps 1-3 of SCREEN WIPER, then...

䊴

4. Use the

and 䊳 buttons to select “ON”, then press the MENU/ENTER button. THE “SCREEN WIPER” screen appears.

Adjust the time and speed using the ▲▼䊴 and 䊳 buttons. The mode switches as follows each time the 䊴 or

䊳

button is pressed:

• WORKING TIME

→ON ↔ 00H03M ↔ 00H06M ↔ ..... ↔ 12H42M ↔ 12H45M←

• WAITING TIME

→00H03M ↔ 00H06M ↔ 00H09M ↔ ... ↔ 12H42M ↔ 12H45M←

• SPEED

→1 ↔ 2 ↔ 3 ↔ 4 ↔ 5←

䡵 To select “ON” for the “WORKING TIME”...

Set the hours of the working time to 0H and the minutes to 0M. “ON” will be displayed.

WORKING TIME WAITING TIME SPEED

SEL.

SCREEN WIPER

ADJ.

: 01H30M : 00H30M : 3

EXIT

RETURN

6. Once the setting is completed... Press the EXIT button to return to the LONG LIFE screen.

Information

䡵 Setting the time

WORKING TIME .....

Set the time duration for “SCREEN WIPER”. When the WORKING TIME is set to “ON” the mode will stay on.

WAITING TIME

......Set the standby time until the

“SCREEN WIPER” mode starts.

SPEED

................Set the moving speed for the

“SCREEN WIPER”. The speed decreases as the number increases.

* The “WAITING TIME” can not be set when the

“WORKING TIME” is ON.

* THE “WORKING TIME” and “W AITING TIME” can

be set for up to 12 hours and 45 minutes in units of 3 minutes.

Setting the gray level for the sides of the screen

Use this procedure to set the gray level for the parts on the screen on which nothing is displayed when the screen is set to the 4:3 size.

Example: Adjusting the “GRAY LEVEL”

Set “ADVANCED OSM” to “ON” in the main menu (1/

2), then perform the following operations.

Press the MENU/ENTER button on the remote control to display the MAIN MENU on the screen, then...

1. Use the ▲ and ▼ buttons to select “OPTION2”, then press the MENU/ENTER button. The “OPTION2” screen appears.

2. Use the ▲ and ▼ buttons to select “GRAY LEVEL”.

3. To adjust the “GRAY LEVEL”... Use the 䊴 and 䊳 buttons to adjust the GRAY LEVEL.

PREVIOUS PAGE POWER MGT. CINEMA MODE LONG LIFE GRAY LEVEL

OPTION2

: OFF : ON

2 / 3

SEL.

ADJ.

EXIT

RETURN

4. Once the setting is completed ... Press the EXIT button to return to the main menu. To delete the main menu, press the EXIT button once more.

Information

䡵 GRAY LEVEL settings

This adjusts the brightness of the black (the gray level) for the sides of the screen. The standard is 0 (black). The level can be adjusted from 0 to 15. The factory setting is 3 (dark gray).

䡵 Restoring the factory default settings

Select “ALL RESET” under the OPTION1 menu. Note that this also restores other settings to the factory defaults.

Option3 Settings Menu

Using the timer

This function sets the monitor to turn ON/OFF automatically at a set time.

Set “ADVANCED OSM” to “ON” in the main menu (1/

2), then perform the following operations. Press the MENU/ENTER button on the remote control to

display the MAIN MENU on the screen, then...

1. Use the ▲ and ▼ buttons to select “OPTION3”, then

press the MENU/ENTER button. The “OPTION3” screen appears.

2. Use the ▲ and ▼ buttons to select “TIMER”, then press

the MENU/ENTER button. The “TIMER” screen appears.

PRESENT TIME PROGRAM : OFF

SEL.

3. Set the TIMER using ▲▼䊴 and 䊳 buttons.

See page 31 to set PRESENT TIME. See page 32 to set PROGRAM.

4. Once the setting is completed ... Press the EXIT button to return to the OPTION3 screen. T o return to the main menu, press the EXIT button once more.

Information

䡵 Restoring the factory default settings

Select “ALL RESET” under the OPTION1 menu. Note that this also restores other settings to the factory defaults.

PRESENT TIME

This sets the day of the week and present time.

Example: Setting “WEDNESDAY”, “22:05”

Perform Steps 1-2 of TIMER, then...

3. Use the ▲ and ▼ buttons to select “PRESENT TIME”, then press the MENU/ENTER button. The “PRESENT TIME” screen appears.

RETURN DAYLIGHT SAVING TIME

TIMER

MENU/ENTER

PRESENT TIME

WEDNESDAY

13 : 00 : 00

EXIT

: OFF

RETURN

4. Use the ▲ and ▼ buttons to select the item, then adjust

using the

The mode switches as follows each time the 䊴 or

䊴

and 䊳 buttons.

RETURN DAYLIGHT SAVING TIME

SEL.

PRESENT TIME

WEDNESDAY

22 : 05 : 00

ADJ.

: OFF

EXIT

RETURN

䊳

button is pressed:

• DAYLIGHT SAVING TIME

ON ↔ OFF

• Day

→SUNDAY ↔ MONDAY ↔ ..... ↔ FRIDAY ↔ SATURDAY←

• Hour/Minutes

→ 00:00 ↔ 00:01 ↔ 00:02 ↔ ..... ↔ 23:58 ↔ 23:59←

5. Once the setting is completed...

Use the ▲ and ▼ buttons to select “SET”, then press the MENU/ENTER button. The adjustments are stored and return to the TIMER menu.

RETURN DAYLIGHT SAVING TIME

SET

SEL.

PRESENT TIME

WEDNESDAY

22 : 05 : 00

MENU/ENTER

: OFF

EXIT

RETURN

Information

䡵 PRESENT TIME settings

DAYLIGHT SAVING TIME

........................ Use to set DAYLIGHT SAVING

TIME. ON: The present time + 1 hour. OFF: Cancelled

Day................Set the day of the week (e.g. Sunday).

Hour ..............Set the hour in the 24-hour format

(range 00 to 23).

Minutes .........Set the minutes (range 00 to 59).

* If you press the EXIT button instead of the MENU/

ENTER button in step 5, the settings can not be mode.

SEL.

ADJ.

EXIT

RETURN

PROGRAM TIMER

This sets the day and time at which the power will be switched ON/OFF as well as the input mode.

Example: Setting so that the power will be switched on at 8:30 A.M., Monday, displaying RGB2 source, and switched off at 10:30 A.M.

Perform Steps 1-2 of TIMER, then...

3. Use the ▲ and ▼ buttons to select “PROGRAM”.

PRESENT TIME PROGRAM : OFF

TIMER

OFF (hour, minutes)

...Set the time at which the power

will be turned off in the 24-hour format.

INPUT ..................... Set the input mode that will be

displayed when the timer is on.

FUNCTION .............Set the LONG LIFE function.

䡵 To reset the program

Align the cursor with the DATE field that you wish to reset, then press the CLEAR button.

䡵 To reset the data

Align the cursor with the field (ON/OFF/INPUT/ FUNCTION) that you wish to reset, then press the CLEAR button.

SEL.

ADJ.

EXIT

RETURN

4. Use the 䊴 and 䊳 buttons to select “ON”, then press the MENU/ENTER button. The “PROGRAM TIMER” screen appears.

5. Adjust using the ▲▼

䊴

and 䊳 buttons and ZOOM Ⳮ/

ⳮ button.

DATE

MON

— — — — — —

SEL.

08 : 30

- - : - -

PROGRAM TIMER

OFF

10 : 30

- - : - -

- - : - ADJ.ZOOM

INPUT RGB2

— — — — — —

EXIT

FUNCTION

INVERSE

— — — — — —

RETURN

The mode switches as follows each time the ZOOM Ⳮ/ⳮ button is pressed:

• Date

→ — ↔ SUN ↔ MON ↔ ... ↔ SAT ↔ * ↔ *SUN ↔ *MON ↔ ... ↔ *SAT←

• ON/OFF Hour

→ 00 ↔ 01 ↔ 02 ↔ ..... ↔ 21 ↔ 22 ↔ 23←

• Minute

→ 00 ↔ 01 ↔ 02 ↔ ..... ↔ 57 ↔ 58 ↔ 59←

• INPUT

→ — ↔ LAST ↔ VIDEO1 ↔ VIDEO2 ↔ VIDEO3 ↔ HD/DVD1 ← → RGB3 ↔ RGB2 ↔ RGB1 ↔ HD/DVD2 ←

• FUNCTION

→ — ↔ ORBITER ↔ INVERSE ↔ WHITE ↔ WIPER←

䡵 Special characters in the PROGRAM TIMER

screen

DATE MON

TUE SAT

*FRI

—

SAT

SEL.

08 : 30

- - : - 08 : 30 08 : 30

- - : - 08 : 30 15 : 30

PROGRAM TIMER

OFF

10 : 30 18 : 15 12 : 15 10 : 00

- - : - 12 : 15 16 : 00

ADJ.ZOOM

INPUT RGB2

—

VIDEO1

HD/DVD1

—

VIDEO1

RGB1

EXIT

FUNCTION

INVERSE

—

WHITE

— —

WHITE

—

RETURN

• An asterisk “*” in the DATE field An asterisk “*” means “every”. For example, “*FRI” means every Friday and “*” means everyday.

• A hyphen “-” in the ON field or OFF field If any hyphen remains in the ON field or OFF field, the FUNCTION can not be set.

• A hyphen “-” in the FUNCTION field A hyphen “-” means last mode (the mode that was last selected at the time the power was switched off).

Setting the power on mode

This function sets the input mode at the time the power is switched on.

Example: Setting “VIDEO2”

Set “ADVANCED OSM” to “ON” in the main menu (1/

2), then perform the following operations. Press the MENU/ENTER button on the remote control to

display the MAIN MENU on the screen, then ...

1. Use the ▲ and ▼ buttons to select “OPTION3”, then

press the MENU/ENTER button. The “OPTION3” screen appears.

2. Use the ▲ and ▼ buttons to select “PWR. ON MODE”.

6. Once the setting is completed... Press the EXIT button. The programs are stored, and return to the TIMER screen.

Information

䡵 PROGRAM TIMER settings

DATE.......................Set the day of the week (e.g.

Sunday).

ON (hour, minutes)

....Set the time at which the power

will be turned on in the 24-hour format.

3. To set the PWR. ON MODE to “VIDEO2”...

䊴

Use the

and 䊳 buttons to select “VIDEO2”. The mode switches as follows each time the button is pressed: The available inputs depend on the setting of “BNC INPUT”. RGB:

COMP:

→ LAST ↔ VIDEO1 ↔ VIDEO2 ↔ VIDEO3 ← → RGB3 ↔ RGB2 ↔ RGB1 ↔ HD/DVD1 ←

→ LAST ↔ VIDEO1 ↔ VIDEO2 ↔ VIDEO3 ← → RGB3 ↔ RGB1 ↔ HD/DVD2 ↔ HD/DVD1 ←

䊴

䊳

PREVIOUS PAGE TIMER PWR. ON MODE CONTROL LOCK IR REMOTE LOOP OUT ID NUMBER VIDEO WALL

SEL.

OPTION3

ADJ.

: VIDEO2 : OFF : ON : OFF : ALL

EXIT

3 / 3

RETURN

4. Once the setting is completed... Press the EXIT button return to the main menu. To delete the main menu, press the EXIT button once more.

Information

䡵 PWR. ON MODE settings

LAST ................Last mode (the mode that was last

selected at the time the power was switched off).

VIDEO1, 2, 3....VIDEO input mode.

RGB1, 2, 3 .......RGB input mode.

HD/DVD1, 2 .....HD/DVD input mode.

䡵 Restoring the factory default settings

Select “ALL RESET” under the OPTION1 menu. Note that this also restores other settings to the factory defaults.

Enabling/disabling the front panel controls

This function enables/disables the front panel controls.

Example: Setting “ON”

Set “ADVANCED OSM” to “ON” in the main menu (1/

2), then perform the following operations.

Press the MENU/ENTER button on the remote control to display the MAIN MENU on the screen, then...

1. Use the ▲ and ▼ buttons to select “OPTION3”, then press the MENU/ENTER button. The “OPTION3” screen appears.

2. Use the ▲ and ▼ buttons to select “CONTROL LOCK”.

3. To set the CONTROL LOCK to “ON”... Use the

䊴

and 䊳 buttons to select “ON”, then press the

MENU/ENTER button.

䊴

䊳

The mode switches as follows each time the

button is pressed:

OFF ↔ ON

PREVIOUS PAGE TIMER PWR. ON MODE CONTROL LOCK IR REMOTE LOOP OUT ID NUMBER VIDEO WALL

SEL.

OPTION3

ADJ.

: LAST : ON : ON : OFF : ALL

EXIT

3 / 3

RETURN

4. Once the setting is completed... Press the EXIT button to return to the main menu. To delete the main menu, press the EXIT button once more.

Information

䡵 CONTROL LOCK settings

ON...... Disables the buttons on the front panel.

OFF .... Enables the buttons on the front panel.

* Even when the CONTROL LOCK is set, the POWER

switch will not be locked.

* This becomes effective when the on-screen menu goes

out.

䡵 Restoring the factory default settings

Select “ALL RESET” under the OPTION1 menu. Note that this also restores other settings to the factory defaults.

Enabling/disabling remote control wireless transmission

This function enables/disables remote control wireless transmission.

Example: Setting “OFF”

Set “ADVANCED OSM” to “ON” in the main menu (1/

2), then perform the following operations. Press the MENU/ENTER button on the remote control to

display the MAIN MENU on the screen, then...

1. Use the ▲ and ▼ buttons to select “OPTION3”, then

press the MENU/ENTER button. The “OPTION3” screen appears.

2. Use the ▲ and ▼ buttons to select “IR REMOTE”.

3. To set the IR REMOTE to “OFF”... Use the

䊴

and 䊳 buttons to select “OFF”, then press

the MENU/ENTER button.

䊴

䊳

The mode switches as follows each time the

button is pressed:

OFF ↔ ON

PREVIOUS PAGE TIMER PWR. ON MODE CONTROL LOCK IR REMOTE LOOP OUT ID NUMBER VIDEO WALL

SEL.

OPTION3

ADJ.

: LAST : OFF : OFF : OFF : ALL

EXIT

3 / 3

RETURN

4. Once the setting is completed... Press the EXIT button to return to the main menu. To delete the main menu, press the EXIT button once more.

Information

䡵 IR REMOTE settings

ON...... Enables remote control wireless transmission.

OFF .... Disables remote control wireless transmission.

Set “OFF” to avoid unwanted control from other remote controls.

䡵 Restoring the factory default settings

Select “ALL RESET” under the OPTION1 menu. Note that this also restores other settings to the factory defaults.

Loop Out setting

When this feature is set to ON, the received signal will be looped out.

Example: Setting “ON”

Set “ADVANCED OSM” to “ON” in the main menu (1/

2), then perform the following operations. Press the MENU/ENTER button on the remote control to

display the MAIN MENU on the screen, then...

1. Use the ▲ and ▼ buttons to select “OPTION3”, then

press the MENU/ENTER button. The “OPTION3” screen appears.

2. Use the ▲ and ▼ buttons to select “LOOP OUT”.

3. To set the LOOP OUT to “ON”...

䊴

Use the The mode switches as follows each time the

and 䊳 buttons to select “ON”.

䊴

䊳

button is pressed:

OFF ↔ ON

PREVIOUS PAGE TIMER PWR. ON MODE CONTROL LOCK IR REMOTE LOOP OUT ID NUMBER VIDEO WALL

SEL.

OPTION3

ADJ.

: LAST : OFF : ON : ON : ALL

EXIT

3 / 3

RETURN

4. Once the setting is completed... Press the EXIT button to return to the main menu. To delete the main menu, press the EXIT button once more.

Information

䡵 LOOP OUT settings

ON...... The received signal will be looped out via PC1

terminal or VIDEO1 terminal.

OFF .... The received signal will not loop out.

* Even if LOOP OUT is ON, signals won’t be sent out if

POWER is being turned off.

䡵 To connect another display...

See page 10.

䡵 If the RGB/PC1 signal is present at the time the power switched on...

The RGB/PC1 input will be displayed regardless of the setting of LOOP OUT.

䡵 Restoring the factory default settings

Select “ALL RESET” under the OPTION1 menu. Note that this also restores other settings to the factory defaults.

ID number setting

When using more than one of these displays, this function sets ID numbers so that operation of the remote control does not cause multiple monitors to operate at the same time.

Example: Setting “2”

Set “ADVANCED OSM” to “ON” in the main menu (1/

2), then perform the following operations.

Press the MENU/ENTER button on the remote control to display the MAIN MENU on the screen, then...

1. Use the ▲ and ▼ buttons to select “OPTION3”, then

press the MENU/ENTER button. The “OPTION3” screen appears.

2. Use the ▲ and ▼ buttons to select “ID NUMBER”.

3. To set the ID NUMBER to “2”... Use the

䊴

and 䊳 buttons to select “2”. The mode switches as follows each time the button is pressed:

→ALL ↔ 1 ↔ 2 ↔ ..... ↔ 255 ↔ 256←

PREVIOUS PAGE TIMER PWR. ON MODE CONTROL LOCK IR REMOTE LOOP OUT ID NUMBER VIDEO WALL

SEL.

OPTION3

ADJ.

: LAST : OFF : ON : OFF : 2

EXIT

3 / 3

RETURN

* To reset back to ALL

Press the CLEAR button.

4. Once the setting is completed... Press the EXIT button to return to the main menu. To delete the main menu, press the EXIT button once more.

Information

䡵 ID NUMBER settings

ALL...........ID NUMBER will not be set.

1 to 256 ....ID NUMBER will be set.

䡵 When the ID NUMBER have been set

You can also set ID NUMBER for each remote control to operate the plasma display individually. To do so, see below.

䡵 Restoring the factory default settings

Select “ALL RESET” under the OPTION1 menu. Note that this also restores other settings to the factory defaults.

To set the ID number for the remote control

Example: Setting “2”

1. Press the ID SELECT button on the remote control. The “ID SELECT” screen appears.

2. Use the ▲ and ▼ buttons to select “ID NUMBER”.

3. To set the ID NUMBER to “2”... Use the

䊴

and 䊳 buttons to select “2”. The mode switches as follows each time the button is pressed:

→ALL ↔ 1 ↔ 2 ↔ ..... ↔ 255 ↔ 256←

ID SELECT

ADJ.

: 2

EXIT

RETURN

ID NUMBER

POSITION : 1

* To reset back to ALL

Press the CLEAR button.

4. Once the setting is completed...

Press the EXIT button to delete the ID SELECT screen.

䊴

䊳

䊴

䊳

Video Wall setting

Use this feature to configure a 2×2 or 3×3 video wall.

Set “ADVANCED OSM” to “ON” in the main menu (1/

2), then perform the following operations. Press the MENU/ENTER button on the remote control to

display the MAIN MENU on the screen, then...

1. Use the ▲ and ▼ buttons to select “OPTION3”, then

press the MENU/ENTER button. The “OPTION3” screen appears.

2. Use the ▲ and ▼ buttons to select “VIDEO WALL”,

then press the MENU/ENTER button. The “VIDEO WALL” screen appears.

DIVIDER POSITION DISP. MODE AUTO ID IMAGE ADJUST P. ON DELAY PLE LINK REPEAT TIMER

SEL.

VIDEO WALL

ADJ.

: 1

: SPLIT : OFF

: OFF : OFF : OFF

EXIT

RETURN

3. Set the VIDEO WALL using ▲▼ 䊴 and 䊳 buttons.

See page 35 to set DIVIDER. See page 35 to set POSITION. See page 36 to set DISP. MODE. See page 36 to set AUTO ID. See page 36 to set IMAGINE ADJUST. See page 37 to set P. ON DELAY. See page 37 to set PLE LINK. See page 38 to set REPEAT TIMER.

4. Once the setting is completed... Press the EXIT button to return to the OPTION3 menu.

DIVIDER POSITION DISP. MODE AUTO ID IMAGE ADJUST P. ON DELAY PLE LINK REPEAT TIMER

SEL.

VIDEO WALL

ADJ.

: 4

: SPLIT : OFF

: OFF : OFF : OFF

EXIT

RETURN

Information

䡵 DIVIDER settings

OFF, 1 .......1 Screen (Matrix display function does not

work)

4 ................4 Screens (2×2 video wall)

9 ................9 Screens (3×3 video wall)

* When you select “4” or “9”, set the VIDEO WALL

POSITION.

VIDEO WALL POSITION

Set the position of each display.

Example: Setting “4”

Perform Steps 1-2 of VIDEO WALL, then...

3. Use the ▲ and ▼ buttons to select “POSITION”, then

press the MENU/ENTER button. The “VIDEO WALL POSITION” screen appears.

4. Use the The mode switches as follows each time the

䊴

and 䊳 buttons to select “NO. 4”.

䊴

䊳

button is pressed:

• 4 Screens

→ NO. 1 ↔ NO. 2 ↔ NO. 3 ↔ NO. 4 ←

5. Press the EXIT button to return to the main menu. To delete the main menu, press the EXIT button once more.

Note:

A contingency method of shutting off the electric power should be used in cases of emergency during video wall setup.

Information

䡵 Restoring the factory default settings

Select “ALL RESET” under the OPTION1 menu. Note that this also restores other settings to the factory defaults.

DIVIDER

Set the 2×2 or 3×3 video wall.

Example: Setting “4”

Perform Steps 1-2 of VIDEO WALL, then...

3. Use the ▲ and ▼ buttons to select “DIVIDER”.

䊴

4. Use the The mode switches as follows each time the

and 䊳 buttons to select “4”.

䊴

button is pressed:

→ OFF ↔ 1 ↔ 4 ↔ 9 ←

• 9 Screens

→ NO. 7 ↔ NO. 8 ↔ ....... ↔ NO. 14 ↔ NO. 15 ←

VIDEO WALL POSITION

POSITION NO.

ADJ.

EXIT

RETURN

5. Press the EXIT button to return to the VIDEO WALL screen.

Information

䡵 VIDEO WALL POSITION settings

1 Screen.....There is no need to set POSITION.

4 Screens

NO. 1

NO. 4

䊳

9 Screens

NO. 7

NO. 10

NO. 8

NO. 11

NO. 2

NO. 3

NO. 9

NO. 12

NO. 13

NO. 14

NO. 15

DISP. MODE

Select the screen mode from between two options (Splitting, Blanking).

Example: Setting “BLANK”

Perform Steps 1-2 of VIDEO WALL, then...

3. Use the ▲ and ▼ buttons to select “DISP. MODE”.

4. Use the The mode switches as follows each time the

䊴

and 䊳 buttons to select “BLANK”.

䊴

䊳

button is pressed:

SPLIT ↔ BLANK

DIVIDER POSITION DISP. MODE AUTO ID IMAGE ADJUST P. ON DELAY PLE LINK REPEAT TIMER

SEL.

VIDEO WALL

ADJ.

: 1

: BLANK : OFF

: OFF : OFF : OFF

EXIT

RETURN

Information

䡵 DISP. MODE settings

SPLIT .........Combines enlarged screens and creates

multiple screens.

BLANK .......

Corrects misalignment of combined screen portions and creates multiple screens

Information

䡵 AUTO ID settings

ON...... Enables Auto ID function. In the case shown

below, display 1 will be set as ID 1, display 2 as ID2, etc.

REMOTE

OUT

No.2 No.3No.4

OUT

REMOTE

REMOTE IN

No.1

Display 1

No.1

Display 4

OUT

No.1

No.2

REMOTE OUT

No.3No.4

Display 2

No.1

No.2

REMOTE

No.3No.4

Display 3

OFF .... Disables Auto ID function.

IMAGE ADJUST

The position of the image can be adjusted and flickering of the image can be corrected.

Example: Adjusting the vertical position

Perform Steps 1-2 of VIDEO WALL, then...

3. Use the ▲ and ▼ buttons to select “IMAGE ADJUST”,

then press the MENU/ENTER button. The “IMAGE ADJUST” screen appears.

AUTO ID

This feature automatically sets the ID numbers of multiple displays connected to each other.

Example: Setting “ON”

Set the ID number for the No. 1 display on ID NUMBER menu.

Perform Steps 1-2 of VIDEO WALL, then...

3. Use the ▲ and ▼ buttons to select “AUTO ID”.

4. Use the

䊴

and 䊳 buttons to select “ON”, then press the

MENU/ENTER button.

䊴

䊳

The mode switches as follows each time the

button is pressed:

OFF ↔ ON

AUTO ID : ON

AUTO ID

WIRED CABLE CONNECTION TURN

ADJ.

EXIT

RETURN

4. Use the ▲ and ▼ buttons to select “V-POSITION”.

ASPECT MODE V-POSITION H-POSITION V-HEIGHT H-WIDTH AUTO PICTURE FINE PICTURE PICTURE ADJ.

SEL.

IMAGE ADJUST

ADJ.

: NORMAL

: OFF

EXIT

RETURN

5. Adust using the 䊴 and 䊳 buttons.

V-POSITION

* If neither the 䊴 or 䊳 button is pressed within 5 seconds,

the current setting is set and the previous screen reappears.

6. Once the setting is completed... Press the EXIT button to return to the VIDEO WALL screen.

Information

䡵 IMAGE ADJUST settings

These are the same functions as the IMAGE ADJUST menu on page 22.

P. ON DELAY (Power on delay)

Use this function to activate power-on delay. Turn on the AUTO ID before the following operations.

Example: Setting “ON”

Perform Steps 1-2 of VIDEO WALL, then...

3. Use the ▲ and ▼ buttons to select “P. ON DELAY”.

4. Use the The mode switches as follows each time the

䊴

and 䊳 buttons to select “ON”.

䊴

button is pressed:

OFF ↔ ON

DIVIDER POSITION DISP. MODE AUTO ID IMAGE ADJUST P. ON DELAY PLE LINK REPEAT TIMER

SEL.

VIDEO WALL

ADJ.

: 1

: SPLIT : OFF

: ON : OFF : OFF

EXIT

RETURN

Information

䡵 P. ON DELAY settings

ON...... Turns on the main power of each display after

a delay time.

OFF .... Turns on the main power of all displays at the

same time.

* Once this function has been set to “ON”, POWER ON/

OFF button on the remote control does not function except for the No.1 monitor. By pressing the POWER ON button on the remote control the No.1 monitor will turn on and the others will be turned on one by one automatically.

* From the second monitor onward, neither the POWER

button on the unit nor the POWER ON button on the remote control does function. However, by pressing and holding the POWER ON button for more than 3 seconds, the monitor will be turned on.

PLE LINK

Use this function to set a uniform brightness for each display. Turn on the AUTO ID before the following operations.

Example: Setting “ON”

Perform Steps 1-2 of VIDEO WALL, then...

3. Use the ▲ and ▼ buttons to select “PLE LINK”.

䊳

4. Use the

䊴

and 䊳 buttons to select “ON”, then press the

MENU/ENTER button.

䊴

䊳

The mode switches as follows each time the

button is pressed:

OFF ↔ ON

DIVIDER POSITION DISP. MODE AUTO ID IMAGE ADJUST P. ON DELAY PLE LINK REPEAT TIMER

SEL.

VIDEO WALL

ADJ.

: 1

: SPLIT : OFF

: OFF : ON : OFF

EXIT

RETURN

Information

䡵 PLE LINK settings

ON...... Sets a uniform brightness for each screen in a

2×2 video wall.

OFF .... Sets the individual screen brightness for each

screen in a 2×2 video wall.

* Set “OFF” in a 3×3 video wall. * When this function is set “ON”, connect your plasma

displays with the remote cable (optional) in the order of the position numbers for the 2×2 video wall. See the drawing below.

* If there are changes in the DIVIDER or POSITION,

the PLE LINK will automatically turn OFF .

REMOTE

No.1

No.2 No.3No.4

Display 1

OUT

REMOTE

No.1

No.2 No.3No.4

Display 2

REMOTE OUT

REMOTE

Note:

No.1

OUT

Display 4

The remote control can be operated unless the

IR REMOTE is set to “OFF”.

No.2 No.3No.4

REMOTE

REMOTE IN

OUT

No.1

Display 3

No.2

No.3No.4

REMOTE IN

REPEA T TIMER

Use this to set two timers. Each timer can use the DIVIDER, SOURCE and WORK TIME functions. Turn on the AUTO ID before the following operations.

Example: TIMER1...VIDEO1 will be displayed for 3 minutes.

TIMER2...RGB1 will be displayed for 6 minutes in a

2×2 video wall.

Perform Steps 1-2 of VIDEO WALL, then...

3. Use the ▲ and ▼ buttons to select “REPEA T TIMER”.

DIVIDER POSITION DISP. MODE AUTO ID IMAGE ADJUST P. ON DELAY PLE LINK REPEAT TIMER

SEL.

VIDEO WALL

ADJ.

: 1

: SPLIT : OFF

: OFF : OFF : OFF

EXIT

RETURN

4. Use the 䊴 and 䊳 buttons to select “ON”, then press the MENU/ENTER button. The “REPEAT TIMER” screen appears.

䊴

5. Adust using the ▲▼ The mode switches as follows each time the

and 䊳 buttons.

䊴

䊳

button is pressed:

1 DIVIDER SOURCE WORK TIME

2 DIVIDER SOURCE WORK TIME

SEL.

REPEAT TIMER

ADJ.

: 1 : VIDEO1 : 00H03M

: 4 : RGB1 : 00H06M

EXIT

RETURN

• DIVIDER

→ 1 ↔ 4 ↔ 9

←

• SOURCE

The available sources depend on the setting of “BNC INPUT”.

→

VIDEO1 ↔ VIDEO2 ↔ VIDEO3 ↔ HD/DVD1 ←

→ RGB3 ↔ RGB2 ↔ RGB1 ↔ HD/DVD2

←

• WORK TIME

→ 00H01M ↔ 00H02M ↔ 00H03M ↔ ..... ↔ 04H14M ↔ 04H15M ←

Advanced OSM Settings Menu

Setting the menu mode

This allows you to access full menu items. When P. ON DELAY or PLE LINK is ON, this won’t be turned OFF.

Example: Setting “ON”

Press the MENU/ENTER button on the remote control to display the MAIN MENU on the screen, then ...

1. Use the ▲ and ▼ buttons to select “ADVANCED

OSM”.

OFF

EXIT

1 / 2

䊴

䊳

PICTURE AUDIO IMAGE ADJUST OPTION1

ADVANCED OSM NEXT PAGE

SEL.

MAIN MENU

ADJ.

EXIT

2. To set the ADVANCED OSM to “ON”...

䊴

Use the

and 䊳 buttons to select “ON”. The mode switches as follows each time the button is pressed:

OFF ↔ ON

PICTURE AUDIO IMAGE ADJUST OPTION1 OPTION2 OPTION3 ADVANCED OSM NEXT PAGE

SEL.

MAIN MENU

ADJ.

EXIT

3. Once the setting is completed... Press the Exit button to delete the main menu.

Information

䡵 ADVANCED OSM settings

ON...... All of the main menu items are available for

advanced users.

OFF .... Some of the main menu items are not available

(e.g. OPTION2, OPTION3).

䡵 Restoring the factory default settings

Select “ALL RESET” under the OPTION1 menu. Note that this also restores other settings to the factory defaults.

6. Once the setting is completed... Press the EXIT button to return to the VIDEO WALL screen.

Information

䡵 REPEAT TIMER settings

If you set both timers, Timer 1 and Timer 2 run consecutively. In the case of the V ideo wall, timer No.1 can be used to control all the displays simultaneously.

* This becomes effective when the on-screen menu goes

out.

Language Settings Menu

Setting the language for the menus

The menu display can be set to one of seven languages: English, German, French, Swedish, Italian, Spanish or Chinese.

Example: Setting the menu display to “DEUTSCH”

Press the MENU/ENTER button on the remote control to display the MAIN MENU on the screen, then...

1. Use the ▲ and ▼ buttons to select “LANGUAGE”,

then press the MENU/ENTER button. The “LANGUAGE” screen appears.

2. To select “DEUTSCH” ... Use the The mode switches as follows when the

buttons are pressed:

䊴

and 䊳 buttons to select “ DEUTSCH”.

䊴

and

䊳

→ ENGLISH ↔ DEUTSCH ↔ FRANÇAIS ← →

↔ SVENSKA ↔ ITALIANO ↔ ESPAÑOL ←

LANGUAGE

ADJ.

MENU/ENTER

: DEUTSCH

EXIT

RETURN

3. Once the setting is completed ... Press the MENU/ENTER button to store the setting and return to the main menu. To delete the main menu, press the EXIT button.

Information

䡵 Language settings

ENGLISH ........English

DEUTSCH.......German

FRANÇAIS...... French

ESPAÑOL .......Spanish

ITALIANO ........ Italian

SVENSKA .......Swedish

...................Chinese

Information

䡵 Video signal formats

Different countries use different formats for video signals. Set to the color system used in your current country.

AUTO ..............The color systems are automatically

identified and the format is set accordingly.

PAL..................This is the standard format used

mainly in the United Kingdom and Germany.

SECAM.............This is the standard format used

mainly in France and Russia.

4.43 NTSC,

PAL60 .............This format is used for videos in

countries using PAL and SECAM video signals.

3.58 NTSC ......This is the standard format used

mainly in the United States and Japan.

PAL-M .............This is the standard format used

mainly in Brazil.

PAL-N..............This is the standard format used

mainly in Argentina.

Color System Settings Menu

Setting the video signal format

Use these operations to set the color systems of composite video signals or Y/C input signals.

Example: Setting the color system to “3.58 NTSC”

Press the MENU/ENTER button on the remote control to display the MAIN MENU on the screen, then...

1. Use the ▲ and ▼ buttons to select “COLOR SYSTEM”, then press the MENU/ENTER button. The “COLOR SYSTEM” screen appears.

2. To select “ 3.58NTSC ” ...

䊴

Use the The mode switches as follows when the buttons are pressed:

→ AUTO ↔ 3.58NTSC ↔ 4.43NTSC ← → SECAM ↔ PAL-M ↔ PAL-N ↔ PAL60 ↔ PAL ←

3. Once the setting is completed ... Press the EXIT button to return to the main menu. To delete the main menu, press the EXIT button once more.

and 䊳 buttons to select “ 3.58NTSC ”.

䊴

and

COLOR SYSTEM

ADJ.

: 3.58NTSC

EXIT

RETURN

䊳

Source Information Menu

Checking the frequencies, polarities of input signals, and resolution

Use this function to check the frequencies and polarities of the signals currently being input from a computer, etc.

Press the MENU/ENTER button on the remote control to display the MAIN MENU on the screen, then...

1. Use the ▲ and ▼ buttons to select “SOURCE

INFORMATION”, then press the MENU/ENTER button.

2. The “SOURCE INFORMATION” is displayed.

SOURCE INFORMATION H. FREQ V. FREQ

H. POLARITY V. POLARITY

MEMORY RESOLUTION

PC: MEMORY will be displayed. Others: MODE will be displayed.

3. Once you have checked the frequency ... Press the EXIT button to return to the main menu. To delete the main menu, press the EXIT button once more.

: 48.4KHZ : 60.0KHZ

: NEG. : NEG.

: 24 : 1024×768

EXIT

RETURN

External Control

Application

These specifications cover the communications control of the plasma monitor by external equipment.

Connections

Connections are made as described below.

External equipment e.g., Personal computer

Display

Connector on the plasma monitor side: EXTERNAL CONTROL connector. Use a crossed (reverse) cable.

Type of connector: D-Sub 9-pin male

Pin No.

1 2 3 4 5 6 7 8 9

No Connection RXD (Receive data) TXD (Transmit data) DTR (DTE side ready) GND DSR (DCE side ready) RTS (Ready to send) CTS (Clear to send) No connection

Pin Name

External Control Codes (Reference)

FUNCTION CODE DATA Power ON 9FH 80H 60H 4EH 00H CDH

OFF 9FH 80H 60H 4FH 00H CEH

Input Switch Video1 (BNC) DFH 80H 60H 47H 01H 01H 08H

Audio Mute ON 9FH 80H 60H 3EH 00H BDH

Picture Mode NORMAL DFH 80H 60H OAH 01H 01H CBH

Screen Mode STADIUM DFH 80H 60H 51H 01H 02H 13H

Auto Picture ON DFH 80H 60H 7FH 03H 03H 09H 00H 4DH

Cinema Mode ON DFH 80H 60H C1H 01H 01H 82H

Video2 (RCA) DFH 80H 60H 47H 01H 02H 09H Video3 (S-Video) DFH 80H 60H 47H 01H 03H 0AH DVD1/HD1 (RCA) DFH 80H 60H 47H 01H 05H 0CH DVD2/HD2 (BNC) DFH 80H 60H 47H 01H 06H 0DH RGB1 (mini D-sub 15-pin) DFH 80H 60H 47H 01H 07H 0EH RGB2 (5BNC) DFH 80H 60H 47H 01H 08H 0FH RGB3 (DVI) DFH 80H 60H 47H 01H 0CH 13H

OFF 9FH 80H 60H 3FH 00H BEH

THEAT. 1 DFH 80H 60H OAH 01H 02H CCH THEAT. 2 DFH 80H 60H OAH 01H 03H CDH DEFAULT DFH 80H 60H OAH 01H 04H CEH

ZOOM DFH 80H 60H 51H 01H 03H 14H NORMAL DFH 80H 60H 51H 01H 04H 15H FULL DFH 80H 60H 51H 01H 05H 16H 14 : 9 DFH 80H 60H 51H 01H 09H 1AH

OFF DFH 80H 60H 7FH 03H 03H 09H 01H 4EH

OFF DFH 80H 60H C1H 01H 02H 83H

Note:

Contact your local dealer for a full list of the

External Control Codes if needed.

Communication Parameters

(1) Communication system Asynchronous (2) Interface RS-232C (3) Baud rate 9600 bps (4) Data length 8 bits (5) Parity Odd (6) Stop bit 1 bit (7) Communication code Hex

Table of Signals Supported

 42VP4/42VP4D Supported resolution

• When the screen mode is NORMAL, each signal is converted to a 640 dots480 lines signal (42VP4/42VP4D). (Except for *

• When the screen mode is FULL, each signal is converted to a 853 dots480 lines signal (42VP4/42VP4D). (Except

)

for *

Computer input signals supported by this system

Model

Signal Type

*IBM PC/AT compatible computers

*Apple Macintosh*

Work Station (EWS4800)

Work Station (HP) Work Station (SUN)

Work Station (SGI) IDC-3000G

PAL625P

NTSC525P

2, *4

Dots  lines

640400 640480

848480

852480*

800600

1024768

1152864 1280768

1360765 1360768 1376768

12801024

16001200

640480

832624 1024768 1152870

12801024

1152900

12801024

1024768

12801024

768576

640480

)

Vertical frequency (Hz)

100.4

120.4

120.0

100.6

100.1

70.1

59.9

72.8

75.0

85.0

60.0

56.3

60.3

72.2

75.0

85.1

99.8

60.0

70.1

75.0

85.0

75.0

56.2

59.8

60.0

59.9

60.0

75.0

85.0

60.0

65.0

70.0

75.0

85.0

66.7

74.6

74.9

75.1

60.0

71.2

72.0

66.0

76.0

76.1

60.0

50.0

59.9

Horizontal frequency (kHz)

31.5

37.9

37.5

43.3

51.1

61.3

31.0

31.7

35.2

37.9

48.1

46.9

53.7

63.0

75.7

48.4

56.5

60.0

68.7

80.5

67.5

45.1

48.0

47.7

48.3

64.0

80.0

91.1

108.5

75.0

81.3

87.5

93.8

106.3

35.0

49.7

60.2

68.7

64.6

75.1

78.1

61.8

71.7

81.1

49.7

63.9

31.4

31.5

Sync Polarity

Horizontal

NEG NEG NEG NEG NEG NEG NEG POS NEG POS POS POS POS POS POS POS NEG NEG POS POS NEG POS POS POS POS POS NEG POS POS POS POS POS POS POS POS POS

Sync on G Sync on G Sync on G Sync on G

NEG NEG

– –

C Sync C Sync C Sync

– – – –

NEG NEG

Vertical

NEG NEG NEG NEG NEG NEG NEG POS NEG POS POS POS POS POS POS POS NEG NEG POS POS NEG POS POS NEG POS POS POS POS POS POS POS POS POS POS POS POS

Sync on G Sync on G Sync on G Sync on G

NEG NEG

– –

C Sync C Sync C Sync

– – – –

NEG NEG

Presence

Horizontal

YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES

– – – – – –

– – YES YES

– –

YES YES

Vertical

YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES

– – – – – –

– – YES YES

– –

YES YES

Screen mode

NORMAL

(4:3)

YES*

YES* YES* YES* YES* YES* YES*

– – – –

FULL

(16:9)

2*3

3 3 3 3 3 3

YES*

YES* YES YES YES YES YES YES YES YES YES YES YES YES YES

– – – – – – – – – –

YES*

YES YES YES YES YES

YES*

YES YES YES

YES*

YES YES

YES*

YES

YES*

YES* YES*

YES*

YES YES YES YES YES YES YES

YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES

3 3

7 7

RGB

select*

– –

STILL

– –

STILL

– – – –

– – WIDE2 WIDE1

STILL STILL

– –

STILL

– –

STILL

– –

STILL WIDE1 WIDE3 WIDE1 WIDE1 WIDE2

STILL

– – – – – – – – – – – – – – – – – –

– – WIDE1 WIDE1

– –

MOTION

DVI

NO YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES

NO YES

NO YES YES YES

NO YES

NO YES YES

Memory

4 5 7 8

9 41 42 19 17 11 12 13 14 15 43 44 24 25 26 27 45 51 52 80 22 22 53 29 30 40 47 54 55 56 57 58

6 16 28 39 29 48 59 60 61 30 62 29

31 32

*1 Only when using a graphic accelerator board that is capable of displaying 852480. *2 Display only 400 lines (42VP4/42VP4D) with the screen center of the vertical orientation located at the center. *3 42VP4/42VP4D: The picture is displayed in the original resolution. The picture will be compressed for other signals. *4 Aspect ratio is 5:4. This signal is converted to the following signal (42VP4/42VP4D: 600 dots480 lines). *5 Normally the RGB select mode suite for the input signals is set automatically. If the picture is not displayed properly , set the

RGB mode prepared for the input signals listed in the table above. *6 To connect the monitor to Macintosh computer , use the monitor adapter (D-Sub 15-pin) to your computer's video port. *7 Other screen modes (ZOOM and STADIUM) are available as well.

NOTE:

• While the input signals comply with the resolution listed in the table above, you may have to adjust the position and size

of the picture or the fine picture because of errors in synchronization of your computer.

• This monitor has a resolution of 853 dots480 lines. It is recommended that the input signal be VGA, wide VGA or

equivalent for 42VP4/42VP4D.

• With digital input some signals are not accepted.

• The sync may be disturbed when a nonstandard signal other than the aforementioned is input.

• If you are connecting a composite sync signal, use the HD terminal.

* “IBM PC/AT” and “VGA” are registered trademarks of International Business Machines, Inc. of the United States. * “Apple Macintosh” is a registered trademark of Apple Computer, Inc. of the United States.

Troubleshooting

If the picture quality is poor or there is some other problem, check the adjustments, operations, etc., before requesting service.

Symptom

Picture is disturbed. Sound is noisy. Remote control operates erroneously.

The remote control does not work.

Monitor’s power does not turn on when the remote control’s power button is pressed.

Monitor does not operate when the remote control’s buttons are pressed.

The front panel buttons of the main unit do not function.

No sound or picture is produced.

Picture appears but no sound is produced.

Poor picture with VIDEO signal input.

Poor picture with RGB signal input.

Tint is poor or colors are weak. Nothing appears on screen.

Part of picture is cut off or picture is not centered.

Image is too large or too small.

Picture is unstable.

POWER/STANDBY indicator is lighted in red.

POWER/STANDBY indicator is blinking in red.

POWER/STANDBY indicator is blinking in green and red, or green.

Checks

• Is a connected component set directly in front or at the side of the display?

• Are the remote control’s batteries worn out?

• Is IR REMOTE set to ON?

• Has an ID number been set for the main

unit?

• Is the monitor’s power cord plugged into a power outlet?

• Are all the monitor’s indicators off?

• Are the remote control’s batteries worn

out?

• Is IR REMOTE set to ON?

• Has an ID number been set for the main

unit?

• Is the remote control pointed at the monitor, or is there an obstacle between the remote control and the monitor?

• Is direct sunlight or strong artificial light shining on the monitor’s remote control sensor?

•

Are the remote control’s batteries worn out?

• The remote cable is plugged into the REMOTE IN terminal (Wired).

• The front panel buttons do not function during Control Lock.

• Is the monitor’s power cord plugged into a power outlet?

• Is the volume set at the minimum?

• Is the mute mode set?

• Are the speakers properly connected?

• Is AUDIO INPUT set correctly?

•Improper control setting.

Local interference. Cable interconnections. Input impedance is not correct level.

• Improper control setting. Incorrect 15 PIN connector pin connections.

• Are the tint and colors properly adjusted?

• Is the computer’s power turned on?

• Is a source connected?

• Is the power management function in the

standby or off mode?

• Is LOOP OUT set to ON?

• Is the position adjustment appropriate?

• Is the screen size adjustment

appropriate?

• Is the computer’s resolution setting appropriate?

• Horizontal and / or vertical sync signal is not present when the Intelligent Power Manager control is on.

• The temperature inside the main unit has become too high and has activated the protector.

——————

Remedy

• Leave some space between the display and the connected components.

• Replace both batteries with new ones.

• Set IR REMOTE OFF on OPTION3 menu.

• Set an ID number with the ID SELECT

button, or set the ID number to ALL.

• Plug the monitor’s power cord into a power outlet.

• Press the power button on the monitor to turn on the power.

• Replace both batteries with new ones.

• Set IR REMOTE OFF.

• Set an ID number with the ID SELECT

button, or set the ID number to ALL.

• Point the remote control at the monitor’s remote control sensor when pressing buttons, or remove the obstacle.

• Eliminate the light by closing curtains, pointing the light in a different direction, etc.

• Replace both batteries with new ones.

• Unplug the remote cable from the monitor.

• Set the Control Lock to OFF.

• Plug the monitor’s power cord into a power

outlet.

• Increase the volume.

•

Press the remote control’s MUTE button.

• Connect the speakers properly .

• Set AUDIO INPUT on the AUDIO menu

correctly.

• Adjust picture control as needed. Try another location for the monitor . Be sure all connections are secure.

• Adjust picture controls as needed. Check pin assignments and connections.

• Adjust the tint and color (under PICTURE).

• Turn on the computer’s power.

• Connect source to the monitor.

• Operate the computer (move the mouse,

etc.).

• Set LOOP OUT OFF.

• Adjust the IMAGE ADJUST properly.

• Press the WIDE button on the remote

control and adjust properly.

• Set to the proper resolution.

• Check the input signal.

• Promptly switch off the power of the main

unit and wait until the internal temperature drops. See*1.

• Prompty switch off the power of the main unit. See *2.

*1 Overheat protector

If the monitor becomes too hot, the overheat protector will be activated and the monitor will be turned off. If this happens, turn off the power to the monitor and unplug the power cord. If the room where the monitor is installed is particularly hot, move the monitor to a cooler location and wait for the monitor to cool for 60 minutes. If the problem persists, contact your dealer.

*2 In the following case, power off the monitor immediately and contact your dealer or authorized Service Center.

The monitor turns off 5 seconds after powering on and then the POWER/STANDBY indicator blinks. It indicates that the power supply circuit, plasma display panel or temperature sensor have been damaged.

Specifications

 42VP4/42VP4D

Screen Size 36.3"(H)20.4"(V) inches

921(H)518(V) mm diagonal 42" 42VP4: Installed AR (Anti-Reflection) Filter 42VP4D: Installed AG (Anti-Glare) Filter

Aspect Ratio 16 : 9 Resolution 853(H)480(V) pixels Pixel Pitch 0.04"(H)0.04"(V) inches

Color Reproduction 256 levels, 16,770,000 colors Signals

Synchronization Range Horizontal : 15.5 to 110 kHz

Input Signals RGB, NTSC (3.58/4.43), PAL (B,G,M,N),

Input Terminals (VIDEO1 and RGB1 can also be used as OUTPUT terminals)

RGB

Visual 1 (Analog) mini D-sub 15-pin1 Visual 2 (Analog) BNC (R, G, B, H/CS, V)1* Visual 3 (Digital) DVI-I 24-pin1*

Video

Visual 1 BNC1 Visual 2 RCA-pin1 Visual 3 S-Video: DIN 4-pin1

DVD/HD/DTV

Visual 1 RCA-pin (Y, PB[CB], PR[CR])1* Visual 2 BNC (Y, PB[CB], PR[CR])1*

Audio Stereo RCA3(Selectable)

External Control D-sub 9-pin1(RS-232C) Sound output 8W+8W at 6 ohm Power Supply AC120V 50/60Hz Current Rating 3.7A (maximum) Power Consumption 270W (typical) Dimensions 40 (W)24 (H)3.5 (D) inches

Weight 62.8 lbs / 28.5 kg (without stand) Environmental Considerations

Operating Temperature 0°C to 40°C / 32°F to 104°F

Humidity 20 to 80% (no condensation) Altitude 0 to 9180 feet / 0 to 2800 m

Storage Temperature -10°C to 50°C / 14°F to 122°F

Humidity 10 to 90% (no condensation) Altitude 0 to 9840 feet / 0 to 3000 m

Front Panel User Controls Power on/off, Input source select,

Remote Control Functions

OSM Functions

1.08(H)1.08(V) mm

(automatic : step scan) Vertical : 50.0 to 120 Hz (automatic : step scan)

P AL60, SECAM, HD*

, DVD*1 , DTV*

(Not compatible with analog input)

1, *2

1018 (W)610 (H)89(D) mm

Volume up/down, OSM control Power on/off, Input source select, OSM

control,Volume up/down, Cursor (UP, DOWN,LEFT , RIGHT), Pointer, Zoom up/ down, Off timer, Wireless/ Wired remote control

Picture (Contrast/Brightness/Sharpness/ Color/Tint/Picture mode/Noise reduction/ Color temperature/White balance/Gamma/ Low tone/Color tune), Audio (Bass/Treble/ Balance/Audio input), Image Adjust (Aspect mode/V-Position /H-Position/V-Height /HWidth/Auto Picture/Fine picture/Picture adjustment), Option1 (OSM/BNC Input/DSub Input/RGB Select/HD Select/Input Skip/ All Reset), Option2 (Power management/ Cinema mode/Long life [PLE, Orbiter, Inverse, White, Screen wiper]/Gray level), Option3 (Timer/Power on mode/Control lock/IR Remote/Loop out/ID number/Video wall [Divider, Position, Disp. mode, Auto ID, Image adjust, Power on delay, PLE link,

1.18"

40" (1018)

36.3" (921)

20.4" (518)

(30)

24" (610)

Units are in inch

The features and specifications may be subject to change without notice.

*1HD/DVD/DTV input signals supported on this

system

480P (60 Hz) 480I (60 Hz) 525P (60 Hz) 525I (60 Hz) 576P (50 Hz) 576I (50 Hz) 625P (50 Hz) 625I (50 Hz) 720P (60 Hz) 1035I (60 Hz) 1080I (50 Hz) 1080I (60 Hz)

The 5-BNC connectors are used as RGB/PC2 and

HD/DVD2 input. Select one of them under “BNC INPUT”.

Not compatable with HDCP.

Timer]), Advanced OSM, Language*, Color system, Source information *English, German, French, Italian, Spanish, Swedish, Chinese

Other Features Motion compensated 3D Scan Converter

(NTSC, PAL, 480I, 576I, 525I, 625I, 1035I, 1080I), 2-3 pull down Converter (NTSC, 480I, 525I, 1035I, 1080I), 2-2 pull down Converter (P AL, 576I, 625I, NTSC, 480I, 525I), Digital Zoom Function (100-900% Selectable), Video Wall 2×2/3×3 multi screen, Self Diagnosis, Anti Image Burn (PLE LOCK1~3, INVERSE, WHITE, ORBITER (Auto1,2/Manual), SCREEN WIPER), Color T emperature select (high/ mid/mid low/low, user has 4 memories), Control lock (Except power SW), Auto Picture, Input Skip, Color Tune, Low Tone (3 mode), Auto ID, Programmable Timer, Gamma Correction (4 mode), Loop through interface, Plug and play (DDC1, DDC2b, RGB3: DDC2b only)

Accessories Remote control with two AAA batteries,

Regulations UL Approved (UL 60950/ CSA 60950)

Power cord, User’s Manual, Safety metal fittings, Screw for Safety metal fittings, Ferrite cores, Bands, Cable clamps

DOC Canada requirements Meets FCC class A requirements

3.5"

(89)

2.32" (59)

(mm)

Limited Warranty Plasma Monitors

NEC Solutions, Inc. (hereinafter NEC Solutions) warrants this product to be free from defects in material and workmanship under the following terms and, subject to the conditions set forth below, agrees to repair or replace (at NEC Solutions’ sole option) any part of the enclosed unit which proves defective. Replacement parts or products may be new or refurbished and will meet specifications of the original parts or products.

HOW LONG IS THE WARRANTY?

Parts and labor are warranted for (1) one year from the date of the first customer purchase.

WHO IS PROTECTED?

This warranty may be enforced only by the first purchaser.

WHA T IS COVERED AND WHAT IS NOT COVERED

Except as specified below, this warranty covers all defects in material or workmanship in this product. The following are not covered by the warranty:

1. Any product which is not distributed in the U.S.A. or Canada by

NEC Solutions or which is not purchased in the U.S.A. or Canada from an authorized NEC Solutions dealer.

2. Any product of which the serial number has been defaced,

modified or removed.

3. Damage, deterioration or malfunction resulting from:

a. Accident, misuse, abuse, neglect, fire, water, lightning or other

acts of nature, unauthorized product modification, or failure to follow instructions supplied with the product.

b. Repair or attempted repair by anyone not authorized by NEC

Solutions.

c. Any shipment of the product (claims must be presented to the

carrier). d. Removal or installation of the product. e. Any other cause which does not relate to a product defect. f. Burns or residual images upon the phosphor of the panel.

4. Cartons, carrying cases, batteries, external cabinets, magnetic tapes, or any accessories used in connection with the product.

5. Service outside of the U.S.A. and Canada.

WHAT WE WILL PAY FOR AND WHAT WE WILL NOT PAY FOR

W e will pay labor and material expenses for covered items, but we will not pay for the following:

1. Removal or installation charges.

2. Costs of initial technical adjustments (set-up), including

adjustment of user controls. These costs are the responsibility of the NEC Solutions dealer from whom the product was purchased.

HOW YOU CAN GET WARRANTY SERVICE

1. To obtain service on your product, consult the dealer from whom you purchased the product.

2. Whenever warranty service is required, the original dated invoice (or a copy) must be presented as proof of warranty coverage. Please also include in any mailing your name, address and a description of the problem(s).

3. For the name of the nearest NEC Solutions authorized service center, call NEC Solutions at 800-836-0655.

LIMITATIONS OF LIABILITY

Except for the obligations specifically set forth in this warranty statement, we will not be liable for any direct, indirect, special, incidental, consequential, or other types of damages, whether based on contract, tort, or any other legal theory, whether or not we have been advised of the possibility of such damages. This warranty is in lieu of all other warranties expressed or implied, including, but not limited to, the implied warranties of merchantability or fitness for a particular purpose.

EXCLUSION OF DAMAGES

NEC Solutions’ liability for any defective product is limited to the repair or replacement of the product at our option. NEC Solutions shall not be liable for:

1. Damage to other property caused by any defects in this product, damages based upon inconvenience, loss of use of the product, loss of time, commercial loss; or

2. Any other damages whether incidental, consequential or otherwise. Some states do not allow limitation on how long an implied warranty lasts and/or do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations and exclusions may not apply to you.

HOW ST A TE LA W RELATES TO THE WARRANTY

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

FOR MORE INFORMATION, TELEPHONE 800-836-0655 NEC SOLUTIONS (AMERICA), INC. 1250 N. Arlington Heights Road, Suite 500 Itasca, Illinois 60143-1248

Note:

All products r eturned to NEC Solutions (America), Inc. for service MUST have prior approval. To get approval, call NEC Solutions (America), Inc. at 800-836-

0655.

3. Shipping charges.

NEC and the NEC logo are registered trademarks of NEC Corporation

igh

ois

1248

NEC Solutions (America), Inc.

ngton

tasca,n

Printed on recycled paper

Printed in Japan 7S800941

Nec 42vp4d, px-42vp4a, 42vpda User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
