Nec 42RESI User Manual

Operation Manual

For the specifications of your plasma monitor ,

refer to “Model Information”.

NEC Solutions (America), Inc.

Important Information

Precautions

Please read this manual carefully before using your plasma
monitor and keep the manual handy for future reference.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION:

TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE
THIS UNIT TO RAIN OR MOISTURE. ALSO DO NOT USE
THIS UNIT’S POLARIZED PLUG WITH AN EXTENSION CORD
RECEPTACLE OR OTHER OUTLETS, UNLESS THE
PRONGS CAN BE FULLY INSERTED. REFRAIN FROM
OPENING THE CABINET AS THERE ARE HIGH-VOLTAGE
COMPONENTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.

TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER. NO
USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.

This symbol warns the user that uninsulated
voltage within the unit may have sufficient
magnitude to cause electric shock.
Therefore, it is dangerous to make any kind
of contact with any part inside of this unit.

This symbol alerts the user that important
literature concerning the operation and
maintenance of this unit has been included.
Therefore, it should be read carefully in
order to avoid any problems.

WARNING

Warnings and Safety Precaution

This plasma monitor is designed and
manufactured to provide long, trouble-free service.
No maintenance other than cleaning is required.
Please see the section “Plasma monitor cleaning
procedure” on the next page.
The plasma display panel consists of fine picture
elements (cells) with more than 99.99 percent active
cells. There may be some cells that do not produce
light or remain lit.
For operating safety and to avoid damage to the unit,
read carefully and observe the following instructions.
To avoid shock and fire hazards:

1. Provide adequate space for ventilation to avoid internal
heat build-up. Do not cover rear vents or install the unit
in a closed cabinet or shelves.
If you install the unit in an enclosure, make sure there
is adequate space at the top of the unit to allow hot air
to rise and escape. If the monitor becomes too hot, the
overheat protector will be activated and the monitor will
be turned off. If this happens, turn off the power to the
monitor and unplug the power cord. If the room where
the monitor is installed is particularly hot, move the
monitor to a cooler location, and wait for 60 minutes to
cool the monitor. If the problem persists, contact your
dealer for service.

2. Do not use this unit’s polarized plug with extension cords
or outlets unless the prongs can be completely inserted.

3. Do not expose the unit to water or moisture.

4. Avoid damage to the power cord, and do not attempt to
modify the power cord.

5. Unplug the power cord during electrical storms or if
the unit will not be used over a long period.

6. Do not open the cabinet which has potentially dangerous
high voltage components inside. If the unit is damaged in
this way the warranty will be void. Moreover, there is a
serious risk of electric shock.

7. Do not attempt to service or repair the unit. The
manufacturer is not liable for any bodily harm or damage
caused if unqualified persons attempt service or open
the back cover. Refer all service to authorized Service
Centers.

To avoid damage and prolong operating life:

1. Use only with 100-240V 50/60Hz AC power supply.
Continued operation at line voltages greater than 100­240 Volts AC will shorten the life of the unit, and might
even cause a fire hazard.

2. Handle the unit carefully when installing it and do not
drop.

3. Set the unit away from heat, excessive dust, and direct
sunlight.

4. Protect the inside of the unit from liquids and small
metal objects. In case of accident, unplug the power
cord and have it serviced by an authorized Service
Center.

5. Do not hit or scratch the panel surface as this causes
flaws on the surface of the screen.

6. For correct installation and mounting it is strongly
recommended to use a trained, authorized dealer.

7. As is the case with any phosphor-based display (like a
CRT monitor, for example) light output will gradually
decrease over the life of a Plasma Display Panel.

8. To avoid sulfurization it is strongly recommended not to
place the unit in a dressing room in a public bath or hot
spring bath.

9. Do not use in a moving vehicle, as the unit could drop or
topple over and cause injuries.

10. Do not place the unit on its side, upside-down or with the
screen facing up or down, to avoid combustion or electric
shock.

Plasma monitor cleaning procedure:

1. Use a soft dry cloth to clean the front panel and bezel
area. Never use solvents such as alcohol or thinner to
clean these surfaces.

2. Clean plasma ventilation areas with a vacuum cleaner
with a soft brush nozzle attachment.

3. To ensure proper ventilation, cleaning of the ventilation
areas must be carried out monthly. More frequent cleaning
may be necessary depending on the environment in which
the plasma monitor is installed.

Recommendations to avoid or minimize phosphor burn-in:

Like all phosphor-based display devices and all other gas
plasma displays, plasma monitors can be susceptible to
phosphor burn under certain circumstances. Certain
operating conditions, such as the continuous display of a
static image over a prolonged period of time, can result in
phosphor burn if proper precautions are not taken. T o protect

2

your investment in this plasma monitor, please adhere to the
following guidelines and recommendations for minimizing
the occurrence of image burn:

* Always enable and use your computer’s screen saver

function during use with a computer input source.
* Display a moving image whenever possible.
* Change the position of the menu display from time to time.
* Always power down the monitor when you are finished

using it.

* Lower the Brightness and Contrast levels as much as

possible without impairing image readability .

* Display an image with many colors and color gradations

(i.e. photographic or photo-realistic images).

* Create image content with minimal contrast between light

and dark areas, for example white characters on black
backgrounds. Use complementary or pastel color whenever
possible.

* Avoid displaying images with few colors and distinct,

sharply defined borders between colors.

If the plasma monitor is in long term use or continuous
operation take the following measures to reduce the
likelihood of phosphor burn:

Note:

*

Contact your dealer for other recommended procedures that
will best suit your particular application needs.

Burn-in is not covered by the warranty.

Recommandations importantes

Précautions

Veuillez lire avec attention ce manuel avant d’utiliser le
moniteur à plasma et le conserver accessible pour s’y référer
ultérieurement.

ATTENTION

RISQUE D’ELECTROCUTION

NE P AS OUVRIR

MISE EN GARDE: AFIN DE REDUIRE LES RISQUES

D’ELECTRO-CUTION, NE PAS
DEPOSER LE COUVERCLE, IL N’Y A
AUCUNE PIECE UTILISABLE A
L’INTERIEUR DE CET APPAREIL. NE
CONFIER LES TRAVAUX D’ENTRETIEN
QU’A UN PERSONNEL QUALIFIE.

Ce symbole a pour but de prévenir l’utilisateur
de la présence d’une tension dangereuse, non
isolée se trouvant à l’intérieur de l’appareil.
Elle est d’une intensité suffisante pour
constituer un risque d’électrocution. Eviter le
contact avec les pièces à l’intérieur de cet
appareil.

Ce symbole a pour but de prévenir l’utilisateur
de la présence d’importantes instructions
concernant l’entretien et le fonctionnement de
cet appareil. Par conséquent, elles doivent être
lues attentivement afin d’éviter des problèmes.

A VERTISSEMENT

AFIN DE REDUIRE LES RISQUES D’INCENDIE OU
D’ELECTROCUTION, NE P AS EXPOSER CET APP AREIL
A LA PLUIE OU A L’HUMIDITE. AUSSI, NE P AS UTILISER
LA FICHE POLARISEE AVEC UN PROLONGATEUR OU
UNE AUTRE PRISE DE COURANT SAUF SI CES LAMES
PEUVENT ETRE INSEREES A FOND. NE PAS OUVRIR
LE COFFRET , DES COMPOSANTS HAUTE TENSION SE
TROUVENT A L ’INTERIEUR. LAISSER A UN PERSONNEL

QUALIFIE LE SOIN DE REPARER CET APPAREIL.

Mises en garde et précautions de
sécurité

Ce moniteur à plasma a été conçu et fabriqué pour
une utilisation fiable et durable. Il ne nécessite aucun
entretien en dehors du nettoyage. Voir la section
“Méthode de nettoyage du moniteur à plasma” plus loin.
Le panneau à affichage plasma est constitué de fines
particules d’images (cellules) dont plus de 99,99%sont
actives. Certaines d’entre elles ne produisent pas de
lumière ou restent allumées.
Pour des raisons de sécurité et pour éviter
d’endommager l’appareil, lire attentivement les
instructions suivantes.

Pour éviter les risques d’éléctrocution et d’incendie:

1. Laisser suffisament d’espace autour de l’appareil pour
la ventilation et éviter toute augmentation excessive de
la température interne. Ne pas couvrir les évents ou
l’installer dans un endroit trop exigu.
Si vous installez l’appareil dans un espace clos,
assurezvous qu’il y ait suffisamment d’espace au dessus
pour permettre à l’air chaud de s’élever et de s’évacuer.
Si la température du moniteur devient excessive, la
protection contre les surchauffes entrera en action et
coupera l’alimentation. Dans ce cas, éteindre l’appareil
et débrancher le câble d’alimentation. Si la température
de la pièce dans laquelle se trouve le moniteur est
particulièrement élevée, déplacer celui-ci dans un endroit
plus frais et attendre environ 60 minutes qu’il refroidisse.
Si le problème persiste, prendre contact avec votre
revendeur.

2. Ne pas raccorder la prise d’alimentation polarisée de ce
périphérique à une rallonge ou une prise murale si les
fiches ne peuvent pas être complètement insérées.

3. Ne pas exposer à L ’eau ou à l’humidité.

4. Eviter d’endommager le cordon d’alimentation, et ne pas
modifier le cordon d’alimentation.

5. Débrancher le câble d’alimentation électrique pendant les
orages ou les longues périodes d’inactivité.

6. Ne pas ouvrir le coffret. Des composants de haute
tension se trouvent à l’intérieur. Si l’appareil est
endommagé de cette manière, la garantie devient
caduque. De plus, il y a risque d’électrocution.

7. Ne pas essayer d’intervenir ou de réparer l’appareil. Le

3

fabricant décline toute responsabilité en cas de blessure
corporelle ou de dégâts matériels résultant d’une opération
d’entretien quelconque effectuée par des personnes non
qualifiées ou résultant de l’ouverture du couvercle arrière.
S’adresser aux services après-vente autorisés.

Pour éviter des dommages et prolonger la durée de
service de l’appareil:

1. N’utiliser qu’une source d’alimentation de 100-240 V
50/60 Hz CA. Le fait d’utiliser l’appareil en continu à
des tensions de ligne supérieures à 100-240 Volts CA
réduit sa durée de vie et risque de provoquer un incendie.

2. Manipuler l’appareil avec soin pendant son
déplacement et ne pas le faire tomber.

3. Eloigner l’appareil des endroits chauds, très poussiéreux
et exposés en plein soleil.

4. Eviter que des liquides et des petits objets métalliques
pénètrent à l’intérieur de l’appareil. En cas d’incident de
ce genre, débrancher le câble d’alimentation électrique
et confier le moniteur à un service après-vente agréé.

5. Ne pas frapper ou rayer la surface de la écran plasma,
car des défauts risquent de se produire sur la surface
de la écran plasma.

6. Pour un montage et une installation correcte, il est
fortement recommandé de faire appel à un revendeur
agréé et qualifié.

7. Comme c’est le cas pour tout affichage à base de
phosphore (comme un moniteur CRT, par exemple), la
puissance de lumière baisse graduellement au cours de
la vie du Panneau d’Affichage à Plasma.

8. Pour éviter tout risque de sulfuration, il est fortement
conseillé de ne pas installer l’appareil dans un vestiaire,
un bain public ou un bain de source thermale.

9. Ne pas utiliser dans un véhicule en marche car l’unité
pourrait tomber ou glisser et provoquer des blessures.

10. Pour éviter l ‘inflammation ou les chocs électriques, ne
pas placer l’unité sur la tranche, à l’envers ou avec l’écran
vers le bas ou vers le haut.

• Assurez-vous de mettre en marche et d’utliser
l’économisateur d’écran chaque fois que c’est possible
lorsque vous l’utilisez avec une source d’entrée
d’ordinateur.

• Affichez une image en mouvement aussi souvent que
possible.

• Changer la position de l’affichage de menu de temps à autre.

• Coupez toujours l’alimentation lorsque vous avez terminé

d’utiliser la moniteur.

Si le moniteur est en usage continu ou longue durée, prenez
les mesures suivantes afin d’éviter l’occurence le brûlage
du luminophore:

• Abaissez le niveau de l’image (contraste, luminosité)
autant que possible, sans faire perdre la lisibilité de
l’image.

• Affichez une image avec de nombreuses couleurs et
graduations de couleur (par ex. des images
photographiques ou photo-réalistes).

• Créez un contenu d’image avec un contraste minimal
entre les zones sombres et les zones claires, par exemple,
des caractères blancs sur un fond noir. Utilisez des
couleurs complémentaires ou pastels le plus souvent
possible.

•Évitez d’afficher des images avec peu de couleurs et des
limites nettes et clairement définies entre les couleurs.

Remarque:

*

par la garantie.

Contactez un revendeur agréé ou un revendeur de marque
pour d'autres procédures qui conviendront le mieux à vos
besoins particuliers.

Le brûlage de l’écran n’est pas couvert

Méthode de nettoyage du moniteur à plasma:

1. Nettoyer le panneau avant et le cadre en procédant à l’aide
d’un chiffon doux et sec. Ne jamais utiliser de solvents
du type alcool ou diluant pour le nettoyage de ces surfaces.

2. Nettoyer les prises d’aération du plasma en procédant à
l’aide d’une brosse à poils doux fixée à un aspirateur.

3. Pour garantir la bonne ventilation du moniteur, nettoyer
les prises d’air tous les mois. Un nettoyage plus fréquent
peut s’avérer nécessaire selon les conditions
environnantes dans lesquelles le moniteur à plasma est
utilisé.

Pour éviter les risques de brûlage du luminophore, les
mesures suivantes sont recommandées:

Comme tous les périphériques d’affichage à base luminophore
et tous les autres affichages gaz plasma, les moniteurs plasma
peuvent être sujets au brûlage du luminophore dans certaines
circonstances. Certaines conditions d’utilisation, telles que
l’affichage continu d’une image statique pour une durée
prolongée, peuvent causer le brûlage du luminophore si
aucune précaution n’est prise. Pour protéger votre
investissement dans ce moniteur à plasma, veuillez suivre
les directives et les conseils suivantes pour minimiser
l’occurence le marquage de l’écran:

4

Contents

Installation ...................................................... 6

Ventilation Requirements for enclosure mounting .......... 6

How to use the safety metal fittings and the screws for

safety metal fittings ................................................ 6

Cable Management.................................................. 7

How to use the remote control.................................... 7

Battery Installation and Replacement ...........................7

Operating Range .......................................................... 7

Handling the remote control......................................... 7

Part Names and Function .................................. 8

Front View .............................................................. 8

Rear View/ Terminal Board ....................................... 9

Remote Control ...................................................... 10

Basic Operations ............................................. 11

POWER ................................................................ 11

To turn the unit ON and OFF: .................................... 11

VOLUME .............................................................. 11

To adjust the sound volume:....................................... 11

MUTE ................................................................... 11

To mute the audio: ..................................................... 11

DISPLAY ................................................................ 11

To check the settings:................................................. 11

DIGITAL ZOOM ..................................................... 11

OFF TIMER ............................................................ 11

To set the of f timer:.................................................... 11

To check the remaining time: ..................................... 11

To cancel the off timer: ..............................................11

WIDE Operations ............................................. 12

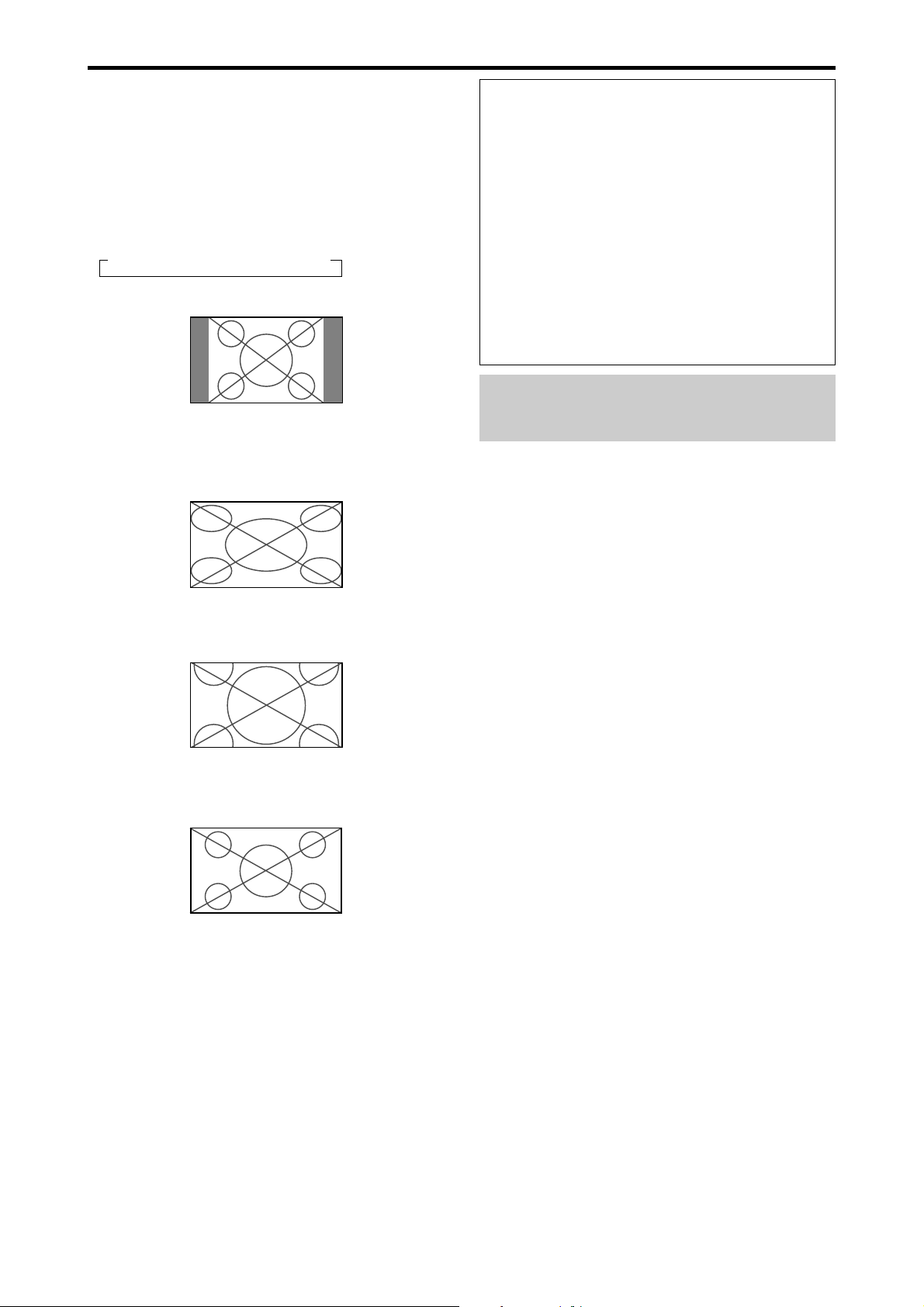

Wide Screen Operation (manual) ............................ 12

When viewing videos or digital video discs ...............12

Wide Screen Operation with Computer Signals ......... 13

OSM (On Screen Menu) Controls ....................... 14

Menu Operations ................................................... 14

Menu Tree ............................................................. 15

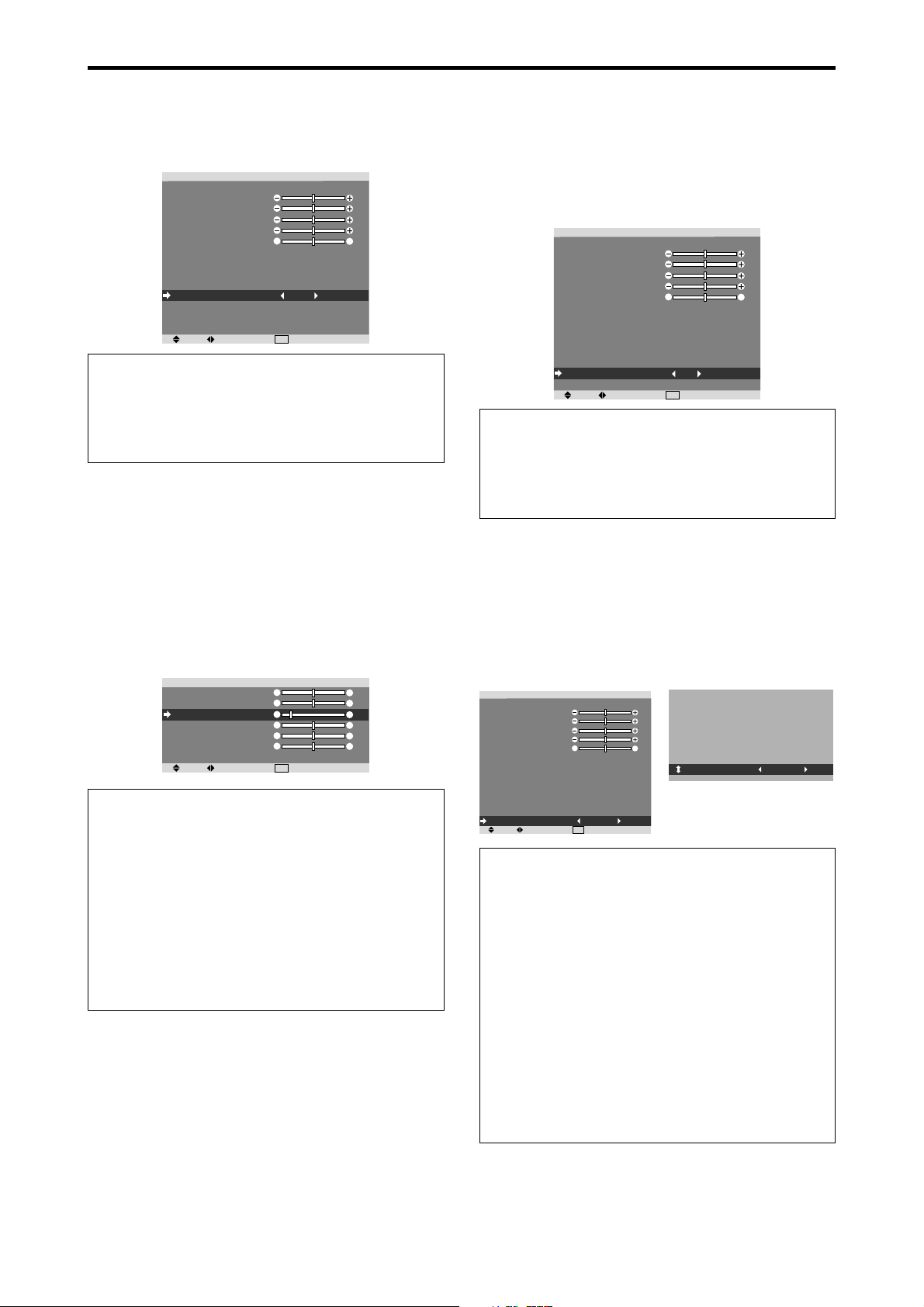

Picture Settings Menu.............................................. 17

Storing picture settings............................................... 17

Adjusting the picture.................................................. 17

Reducing noise in the picture ..................................... 17

Setting the color temperature .....................................18

Adjusting the color to the desired level ......................18

Changing the Gamma Curve ......................................18

Making the Low T one adjustments ............................ 18

Adjusting the pedestal level (black level) ................... 19

Adjusting the colors ................................................... 19

Setting the picture to suit the movie ........................... 19

Setting the picture mode according to the brightness

of the room ..............................................................19

Audio Settings Menu .............................................. 20

Adjusting the treble, bass and left/right balance and

audio input select..................................................... 20

Setting the allocation of the audio connectors ............20

Image Adjust Settings Menu .................................... 20

Adjusting the Position, Size, Fine Picture, Picture Adj .....

SET UP Settings Menu ............................................. 21

Setting the language for the menus............................. 21

Setting the BNC connectors ....................................... 21

Checking the signal being transmitted to RGB1 terminal ....

Setting high definition images to the suitable screen size ....

Setting a computer image to the correct RGB select

screen ...................................................................... 21

Setting the signal and black level for DVI signal........ 22

Setting the video signal format................................... 22

Setting the background color when no signal is being

input ........................................................................ 22

Setting the gray level for the sides of the screen ......... 23

Setting the screen size for S1/S2 video input .............. 23

Turning on/off the menu display ................................ 23

Setting the position of the menu ................................. 23

Resetting to the default values.................................... 23

20

21
21

Function Settings Menu ........................................... 24

Setting the power management for computer images .....

POWER/ST ANDBY indicator ................................... 24

Setting the Input Skip................................................. 24

Reducing burn-in of the screen ..................................24

Setting Closed Caption ..............................................26

Reducing the brightness of Closed Caption ................26

Signal Information Menu ......................................... 26

Checking the frequencies, polarities of input signals,

and resolution .......................................................... 26

24

External Control ............................................. 27

Application ........................................................... 27

Connections .......................................................... 27

Type of connector: D-Sub 9-pin male ........................ 27

Communication Parameters ..................................... 27

External Control Codes (Reference) .......................... 27

Pin Assignments ............................................. 27

mini D-Sub 15-pin connector (Analog) ..................... 27

DVI-D 24-pin connector (Digital) .............................. 27

Troubleshooting .............................................. 28

Contents of the Package

䡺 Plasma monitor
䡺 Power cord
䡺 Remote control with two AAA Batteries
䡺 Manuals (Model Information and Operation)
䡺 Safety metal fittings
䡺 Ferrite cores, bands
䡺 Cable clamps
䡺 HDMI-DVI cable

* These are fittings for fastening the unit to a wall to prevent

tipping due to external shock when using the stand
(optional). Fasten the safety fittings to the holes in the
back of the monitor using the safety fitting mount screws
(see page 6).

Options

• Wall mount unit

• Ceiling mount unit

• T ilt mount unit

• Stand

• Attachable speakers

5

Installation

You can attach your optional mounts or stand to the plasma monitor in one of the following two ways:
* While it is upright. (See Drawing A)
* As it is laid down with the screen face down (See Drawing B). Lay the protective sheet, which was wrapped around the

monitor when it was packaged, beneath the screen surface so as not to scratch the screen face.

* Do not touch or hold the screen face when carrying the unit.

• This device cannot be installed on its own. Be sure to use a stand or original mounting unit. (Wall
mount unit, Stand, etc.)

* See page 5.

• For correct installation and mounting it is strongly recommended to use a trained, authorized
dealer.

Failure to follow correct mounting procedures could result in damage to the equipment or injury
to the installer.

Product warranty does not cover damage caused by improper installation.

* Use only the mounting kit or stand provided by manufacturer and listed under Options.

Drawing A

Drawing B

Ventilation Requirements for
enclosure mounting

T o allow heat to disperse, leave space between surrounding
objects as shown on the diagram below when installing.

Wall

50mm (2")

50mm (2")

(2")

mm

Wall

How to use the safety metal fittings
and the screws for safety metal
fittings

These are fittings for fastening the unit to a wall to prevent
tipping due to external shock when using the stand
(optional). Fasten the safety fittings to the holes in the
back of the monitor using the safety fitting mount screws.

Screw hole

Screw or Hook etc.
(Not supplied)

Safty metal fittings

50mm (2")

(2") 50

mm

50

Screw for Safty metal

fittings

Metal chain

(Not supplied)

Table Top

Wall

6

clamp

mounting hook

Cable Management

Using the cable clamps provided with the plasma display,
bundle at the back of the unit the signal and audio cables
connected to the display.

Back of the unit

mounting hooks

Operating Range

* Use the remote control within a distance of about 7 m/

23ft. from the front of the monitor’s remote control sensor
and at horizontal and vertical angles of up to approximately
30°.

* The remote control operation may not function if the

monitor’s remote control sensor is exposed to direct
sunlight or strong artificial light, or if there is an obstacle
between the sensor and the remote control.

To attach

1. 2.

cables

To detach

How to use the remote control

Battery Installation and Replacement

Insert the 2 “AAA” batteries, making sure to set them in
with the proper polarity.

1.Press and open the cover.

Approx.

7m/23ft

Handling the remote control

• Do not drop or mishandle the remote control.

• Do not get the remote control wet. If the remote control
gets wet, wipe it dry immediately.

• Avoid heat and humidity.

• When not using the remote control for a long period,
remove the batteries.

• Do not use new and old batteries together, or use different
types together.

• Do not take apart the batteries, heat them, or throw them
into a fire.

2.Align the batteries according to the (+) and (–) indication

3.Replace the cover.

inside the case.

7

Part Names and Function

Front View

INPUT SELECT

VOLUME

MENU/ENTER

DOWN UP LEFT/-RIGHT/+/EXIT

MENU/ENTER

7

VOLUME

DOWN UP LEFT/-RIGHT/

6

5

q Power

Turns the monitor’s power on and off.

w Remote sensor window

Receives the signals from the remote control.

e POWER/STANDBY indicator

When the power is on ............................. Lights green.

When the power is in the standby mode ... Lights red.

r INPUT SELECT / EXIT

Switches the input.
The available inputs depend on the setting of “BNC
INPUT”, “RGB SELECT” and “DVI SET UP”.
Functions as the EXIT buttons in the On-Screen Menu
(OSM) mode.

INPUT SELECT

+

/EXIT

4

1

2

3

t LEFT/– and RIGHT/+

Enlarges or reduces the image. Functions as the
CURSOR (



/ ) buttons in the On-Screen Menu

(OSM) mode.

y VOLUME DOWN and UP

Adjusts the volume. Functions as the CURSOR (▲/
▼) buttons in the On-Screen Menu (OSM) mode.

u MENU/ENTER

Sets the On-Screen Menu (OSM) mode and displays
the main menu.

WARNING

The Power on/off switch does not disconnect the plasma
display completely from the supply mains.

8

Rear View/ Terminal Board

G

C

D

E

F

H

I

A AC IN

Connect the included power cord here.

B EXT SPEAKER L and R

Connect speakers (optional) here. Maintain the correct
polarity. Connect the

EXT SPEAKER terminal and the (negative)
speaker wire to the
both LEFT and RIGHT channels.
Please refer to your speaker’s owner’s manual.

C VIDEO1, 2, 3 (BNC, RCA, S-Video)

Connect VCR’s, DVD’s or Video Cameras, etc. here.

D AUDIO1, AUDIO2, AUDIO3

These are audio input terminals.
The input is selectable. Set which video image to allot
them from the audio menu screen.

E DVD1 / HD1

Connect DVD’s, High Definition or Laser Discs, etc.
here.

(positive) speaker wire to the

EXT SPEAKER terminal on

AB

F DVD2/ HD2, RGB2

DVD2/ HD2: You can connect DVDs, High

Definition sources, Laser Discs, etc.
here.
This input can be set for use with an
RGB or component source. (see page

21)

RGB2: Y ou can connect an analog RGB signal

and the syncronization signal.

G RGB1 (D-Sub)

Connect an analog RGB signal from a computer, etc.
here.

H DVD3/HD3, RGB3 (DVI)

Connect a digital signal (TMDS) from a source with a
DVI output.
This input can be set for use with an RGB3 or DVD3/
HD3 source. (see page 22)

I EXTERNAL CONTROL (D-Sub)

This terminal is used when operating and controlling
the monitor externally (by external control).

9

Remote Control

i MUTE

Mutes the audio.

o VOLUME (+ /–)

Adjusts the audio volume.

!0 ZOOM (+ /–)

Enlarges or reduces the image.

!1 CONTRAST

Press this button to adjust contrast directly.

!2 BRIGHTNESS

Press this button to adjust brightness directly.

!3 PICTURE MODE

Press this button to adjust picture mode directly.

!4 COLOR TEMP

Press this button to adjust color tone directly.

!5 VIDEO1, 2, 3

Press this button to select VIDEO as the source.
VIDEO can also be selected using the INPUT SELECT
button on the monitor.

!6 DVD/HD1, 2, 3

Press this button to select DVD/HD as the source.
DVD/HD can also be selected using the INPUT
SELECT button on the monitor.

!7 PC/RGB

Press this button to select PC/RGB as the source.
PC/RGB can also be selected using the INPUT
SELECT button on the monitor.

!8 PICTURE MEMORY

Switches sequentially between picture memory settings
1 to 6.

!9 Remote control signal transmitter

Transmits the remote control signals.

q POWER ON/STANDBY

Switches the power on/standby.
(This does not operate when POWER/STANDBY
indicator of the main unit is off.)

w OFF TIMER

Activates the off timer for the unit.

e DISPLAY

Displays the source settings on the screen.

r WIDE

Automatically detects the signal and sets the aspect
ratio.
Wide button is not active for all signals.

t MENU/ENTER

Press this button to access the OSM controls.
Press this button during the display of the main menu
to go to the sub menu.



y CURSOR (▲ / ▼ /

Use these buttons to select items or settings and to
adjust settings or switch the display patterns.

u EXIT

Press this button to exit the OSM controls in the main
menu. Press this button during the display of the sub
menu to return to the previous menu.

/ )

10

Basic Operations

POWER

To turn the unit ON and OFF:

1. Plug the power cord into an active AC power outlet.

2. Press the Power button (on the unit).
The monitor’s POWER/STANDBY indicator turns red
and the standby mode is set.

3. Press the POWER ON button (on the remote control) to
turn on the unit.
The monitor’s POWER/STANDBY indicator will light
up (green) when the unit is on.

4. Press the POWER STANDBY button (on the remote
control) or the Power button (on the unit) to turn off the
unit.
The monitor’s POWER/STANDBY indicator turns red
and the standby mode is set (only when turning off the
unit with the remote control).

VOLUME

To adjust the sound volume:

1. Press and hold the VOLUME button (on the remote
control or the unit) to increase to the desired level.

2. Press and hold the VOLUME
control or the unit) to decrease to the desired level.

button (on the remote

MUTE

To mute the audio:

Press the MUTE button on the remote control to mute the
audio; press again to restore.

DISPLAY

To check the settings:

1. The screen changes each time the DISPLAY button is
pressed.

2. If the button is not pressed for approximately three seconds,
the menu turns off.

DIGITAL ZOOM

Digital zoom specifies the picture position and enlarges
the picture.

1. Press the ZOOM (+ or -) button to display magnifying
glass. (

To change the size of the picture:

Press the ZOOM+ button and enlarge the picture.
A press of the ZOOM- button will reduce the picture
and return it to its original size.

To change the picture position:

Select the position with the ▲▼

2. Press the EXIT button to delete the pointer .

)

 

buttons.

OFF TIMER

To set the off timer:

The off timer can be set to turn the power off after 30, 60,
90 or 120 minutes.

1. Press the OFF TIMER button to start the timer at 30
minutes.

2. Press the OFF TIMER button to the desired time.

3. The timer starts when the menu turns off.

→ 30 → 60 → 90 → 120 → 0

OFF TIMER 30

To check the remaining time:

1. Once the off timer has been set, press the OFF TIMER
button once.

2. The remaining time is displayed, then turns off after a few
seconds.

3. When five minutes remain the remaining time appears
until it reaches zero.

OFF TIMER 28

To cancel the off timer:

1. Press the OFF TIMER button twice in a row.

2. The off timer is canceled.

OFF TIMER 0

Note:

After the power is turned off with the off timer ...
A slight current is still supplied to the monitor. When you
are leaving the r oom or do not plan to use the system for a
long period of time, turn off the power of the monitor.

11

WIDE Operations

Wide Screen Operation

With this function, you can select one of six screen sizes.

(manual)

When viewing videos or digital video discs

1. Press the WIDE button on the remote control.

2. Within 3 seconds ...
Press the WIDE button again.
The screen size switches as follows:

→ NORMAL → ANAMORPHIC → STADIUM → ZOOM → 2.35:1 → 14:9

When a 720P or 1080I signal is input:

ANAMORPHIC ↔ 2.35:1

NORMAL size screen (4:3)

The normal size screen is displayed.
* The picture has the same size as video pictures with a 4 : 3

aspect ratio.

2.35:1 size screen



Original image

Information is lost on both sides.

The squeezed film image is expanded to fulfill the entire
screen at a ratio of 2.35:1. Black bands do not appear at
the top and bottom but information is lost on the left and
right margins.

• This feature is available when the input signal is video,
component (480I, 480P, 576I, 576P, 720P, 1080I) or RGB
(525P or 625P signal from a scan converter).

* If black bands appear on the top and bottom in the full size

screen, select the 2.35:1 size screen to avoid phosphor burn­in.

14:9 size screen

ANAMORPHIC size screen

The image is expanded in the horizontal direction.
* Images compressed in the horizontal direction (“squeezed

images”) are expanded in the horizontal direction and
displayed on the entire screen with correct linearity.
(Normal images are expanded in the horizontal direction.)

STADIUM size screen

The picture is expanded in the horizontal and vertical
directions at different ratios.
* Use this for watching normal video programs (4:3) with a

wide screen.

The image is displayed at a 14:9 aspect ratio.
* This feature is available when the input signal is video,

component (480I, 480P , 576I, 576P) or RGB (525P or 625P
signal from a scan converter).

Note:

Do not allow the displayed in 4:3 mode for an extended
period. This can cause a phosphor burn-in.

ZOOM size screen

The picture is expanded in the horizontal and vertical
direction, maintaining the original proportions.
* Use this for theater size (wide) movies, etc.

12

Wide Screen Operation with
Computer Signals

Switch to the wide screen mode to expand the 4 : 3 image
to fill the entire screen.

1.Press the WIDE button on the remote control.

2.Within 3 seconds ...
Press the WIDE button again.

The screen size switches as follows:

→ NORMAL → ANAMORPHIC → ZOOM

NORMAL size screen (4:3 or SXGA 5:4)

The picture has the same size as the normal computer
image.

ANAMORPHIC size screen

Information

 Supported resolution

See page 7 of Model Information for details on the
display output of the various VESA signal standards
supported by the monitor.

 When 852 (848) dot  480 line wide VGA*
signals with a vertical frequency of 60 Hz and
horizontal frequency of 31.7 (31.0) kHz are in­put

Select an appropriate setting for RGB SELECT mode
referring to the“T able of Signals Supported” on page 7
of Model Information.

* “VGA”, “SVGA” and “SXGA” are registered

trademarks of IBM, Inc. of the United States.

Note:

Do not allow the displayed in 4:3 mode for an extended
period. This can cause a phosphor burn-in.

The image is expanded in the horizontal direction.

ZOOM size screen

When wide signals are input.

ANAMORPHIC size screen

13

OSM (On Screen Menu) Controls

Menu Operations

The following describes how to use the menus and the
selected items.

1. Press the MENU/ENTER button on the remote control to

display the MAIN MENU.

MAIN MENU


AUDIO

IMAGE ADJ.

SEL.

MENU/ENTER

2. Press the cursor buttons ▲ ▼ on the remote control to

highlight the menu you wish to enter.

3. Press the MENU/ENTER button on the remote control to

select a sub menu or item.

ADJ.


MENU/ENTER

PICTURE MEMORY
CONTRAST
BRIGHTNESS
SHARPNESS
COLOR
TINT
NR
COLOR TEMP.
GAMMA
LOW TONE
SET UP LEVEL
COLOR TUNE
CINEMA MODE
PICTURE MODE

SEL.

4. Adjust the level or change the setting of the selected item

by using the cursor buttons

SET UP

FUNCTION

SIGNAL INFO.

EXIT

OK

: OFF

R

: OFF
: MIDDLE
: 2.2
: AUTO
: 0%

: ON
: NORMAL

 

EXIT

G

EXIT

OK

RETURN

on the remote control.

CONTRAST

10

5. The adjustments or the settings that are stored in memory.

The change is stored until you change it again.

6. Repeat steps 2 – 5 to adjust an additional item, or press

the EXIT button on the remote control to return to the
main menu.

* When adjusting using the bar at the bottom of the screen,

press the  or  button within 5 seconds. If not, the current
setting is set and the previous screen appears.

Note:

The main menu disappears by pressing the EXIT

button.

14

Menu Tree

:Shaded areas indicate the default value.

←→

: Press the



or  button to adjust. The default value is at the center.

Main menu Sub menu Sub menu 2 Sub menu 3 Sub menu 4 RESET

PICTURE PICTURE MEMORY OFF/MEMORY1-6 YES 17

CONTRAST ←→ 0←52→72 YES 17
BRIGHTNESS ←→ 0←32→64 YES 17
SHARPNESS ←→ 0←16→32 YES 17
COLOR ←→ 0←32→64 YES 17
TINT R←→G 0←32→64 YES 17
NR OFF/NR-1/NR-2/NR-3 YES 17
COLOR TEMP. LOW/MIDDLE LOW/MIDDLE/HIGH YES 18
WHITE BALANCE GAIN RED ←→ 0←→70 YES 18

GAIN GREEN ←→ 0←→70 YES 18
GAIN BLUE ←→ 0←→70 YES 18
BIAS RED ←→ 0←→70 YES 18
BIAS GREEN ←→ 0←→70 YES 18
BIAS BLUE ←→ 0←→70 YES 18

RESET OFF←→ON YES 18
GAMMA 2.1←2.2←2.3→2.4 YES 18
LOW TONE AUTO←→1←…→3 YES 18
SET UP LEVEL 0%←→3.75%←→7.5% YES 19
COLOR TUNE RED Y←→M0←→64 YES 19

GREEN C←→Y0←→64 YES 19

BLUE M←→C0←→64 YES 19

YELLOW G←→R0←→64 YES 19

MAGENTA R←→B0←→64 YES 19

CYAN B←→G0←→64 YES 19

RESET OFF←→ON YES 19
CINEMA MODE ON←→OFF YES 19
PICTURE MODE DEFAULT/THEATER1/THEATER2/NORMAL/BRIGHT YES 19

Main menu Sub menu Sub menu 2 Sub menu 3 Sub menu 4 RESET

AUDIO BASS ←→ 0←13→26 YES 20

TREBLE ←→ 0←13→26 YES 20
BALANCE L←→R -22←0→+22 YES 20
AUDIO INPUT1 VIDEO 1-3 / HD/DVD 1-3 / RGB 1-3 YES 20
AUDIO INPUT2 VIDEO 1-3 / HD/DVD 1-3 / RGB 1-3 YES 20
AUDIO INPUT3 VIDEO 1-3 / HD/DVD 1-3 / RGB 1-3 YES 20

REFERENCE

REFERENCE

Main menu Sub menu Sub menu 2 Sub menu 3 Sub menu 4 RESET

IMAGE ADJUST ASPECT MODE ZOOM/NORMAL/ANAMORPHIC/STADIUM/14:9/2.35:1 NO 20

V-POSITION ←→ -64←0→+64 YES 20
H-POSITION ←→ -128←0→+127 YES 20
V-HEIGHT ←→ 0←→64 YES 20
H-WIDTH ←→ 0←→64 YES 20
AUTO PICTURE ON←→OFF*
FINE PICTURE*
PICTURE ADJ.*

Main menu Sub menu Sub menu 2 Sub menu 3 Sub menu 4 RESET

SET UP LANGUAGE ENGLISH/DEUTSCH/FRANÇAIS/ESPAÑOL/ITALIANO/SVENSKA/ /У NO 21

BNC INPUT RGB←→COMPONENT YES 21
D-SUB INPUT RGB YES 21
HD SELECT 1080I/1035I/540P NO 21
RGB SELECT AUTO/STILL/MOTION/WIDE1/WIDE2/WIDE3/DTV YES 21
DVI SET UP PLUG/PLAY PC←→STB/DVD NO 22

COLOR SYSTEM AUTO/PAL/PAL-M/PAL-N/PAL 60/SECAM/4.43 NTSC/3.58NTSC NO 22
BACK GROUND BLACK/GRAY YES 22
GRAY LEVEL 0←…→3←…→15 YES 23
S1/S2 AUTO←→OFF YES 23
DISPLAY OSM ON←→OFF YES 23
OSM ADJ. TOP LEFT←→TOP CENTER←→TOP RIGHT←→BTM LEFT←→BTM CENTER←→BTM RIGHT YES 23
ALL RESET ON←→OFF —23

1

←→*2 0←→64 YES 20

1

←→*2 0←→128 YES 20

BLACK LEVEL LOW←→HIGH NO 22

2

NO 20

REFERENCE

REFERENCE

15

Main menu Sub menu Sub menu 2 Sub menu 3 Sub menu 4 RESET

FUNCTION POWER MGT. ON←→OFF YES 24

INPUT SKIP ON←→OFF YES 24
PDP SAVER MANUAL/AUTO YES 24

PEAK BRIGHT 100%/75%/50%/25% YES 25

ORBITER OFF/AUTO1/AUTO2 YES 25

INVERSE/WHITE OFF/INVERSE/WHITE YES 25

SCREEN WIPER ON/OFF YES 25

SOFT FOCUS OFF/LEVEL1-4 YES 25

OSM ORBITER ON/OFF YES 26

OSM CONTRAST LOW/NORMAL YES 26
CLOSED CAPTION OFF/CAPTION1-4/TEXT1-4 YES 26
CAPTION CONT LOW/NORMAL YES 26

REFERENCE

Main menu Sub menu Sub menu 2 Sub menu 3 Sub menu 4 RESET

SIGNAL INFO. — 26

REFERENCE

*1 Only when AUTO PICTURE is OFF.
*2 RGB/PC only

Information

 Restoring the factory default settings

Select “ALL RESET” under the SET UP menu. Note that this also restores other settings to the factory defaults.

16

Picture Settings Menu

Storing picture settings

This function allows you to store in memory the current
input signal and PICTURE menu settings and to recall
these settings when necessary.
There are six picture memories, and notes of up to 15
characters can be added to each.

Example: Storing picture settings at MEMORY1

On “PICTURE MEMORY” of “PICTURE” menu, select
“MEMOR Y1”, then press the MENU/ENTER button.

The “PICTURE MEMOR Y” screen appears.

EXIT



2/2

RETURN

and

PICTURE MEMORY

MEMORY1 SET RESET

INPUT : DVD/HD1
SIGNAL : 480P
NOTE : DVD/STAR WARS

MEMORY2

INPUT : —
SIGNAL : —
NOTE : —

MEMORY3

INPUT : —
SIGNAL : —
NOTE : —

NEXT PAGE

SEL.

ADJ.

MENU/ENTER

OK

EXIT

RETURN

1/2

PICTURE MEMORY

PREVIOUS PAGE

MEMORY4 SET RESET

INPUT : —
SIGNAL : —
NOTE : —

MEMORY5

INPUT : —
SIGNAL : —
NOTE : —

MEMORY6

INPUT : —
SIGNAL : —
NOTE : —

SEL.

ADJ.

MENU/ENTER

OK

Information

 PICTURE MEMORY Settings

OFF: Picture memory not used.
MEMORY1 to 6: Picture memory with the specified

number used. Maximum memories are 6, not depending
on inputs.

 Setting the memory

• Use the ▲ and ▼ button to select the desired memory

place, MEMORY1 to MEMORY6.



• Use the

and  buttons to select “SET”, then press

the MENU/ENTER button.

• If necessary, input a note.

 Resetting the memory

Use the ▲ and ▼ button to select the desired memory
place, MEMORY1 to MEMORY6, then use the



buttons to select “RESET”, and finally press the
MENU/ENTER button.
The memory is cleared, and “—” is displayed in the
“INPUT”, “SIGNAL” and “NOTE” columns.

 Inputting notes



• Use the

and  buttons to select “NOTE”, then press

the MENU/ENTER button.

• Input the note.

Use the ▲ and ▼ button to select the character.

Use the



and  buttons to move the cursor.
Use the EXIT button to delete the character at the
cursor position.

• When you have finished inputting the note, press the
MENU/ENTER button.

Adjusting the picture

The contrast, brightness, sharpness, color and tint can be
adjusted as desired.

Example: Adjusting the contrast

On “CONTRAST” of “PICTURE” menu, adjust the contrast.


PICTURE MEMORY
CONTRAST
BRIGHTNESS
SHARPNESS
COLOR
TINT
NR
COLOR TEMP.
GAMMA
LOW TONE
SET UP LEVEL
COLOR TUNE
CINEMA MODE
PICTURE MODE

SEL.

ADJ.

Note:

: OFF

R

: OFF
: MIDDLE
: 2.2
: AUTO
: 0%

: ON
: NORMAL

EXIT

RETURN

G

CONTRAST

If “CAN NOT ADJUST” appears ...

10

When trying to enter the PICTURE submenu, make sure
PICTURE MODE is not set to DEFAULT.

Information

 Picture adjustment screen

CONTRAST: Changes the picture’s white level.
BRIGHTNESS: Changes the picture’s black level.
SHARPNESS: Changes the picture’s sharpness.

Adjusts picture detail of VIDEO display.

COLOR: Changes the color density.
TINT: Changes the picture’s tint. Adjust for natural

colored skin, background, etc.

 Adjusting the computer image

Only the contrast and brightness can be adjusted when
a computer signal is connected.

 Restoring the factory default settings

Select “DEFAULT” under the “PICTURE MODE”
settings.

Reducing noise in the picture

Use these settings if the picture has noise due to poor
reception or when playing video tapes on which the picture
quality is poor.

Example: Setting “NR-3”

On “NR” of “PICTURE” menu, select “NR-3”.


PICTURE MEMORY
CONTRAST
BRIGHTNESS
SHARPNESS
COLOR
TINT
NR
COLOR TEMP.
GAMMA
LOW TONE
SET UP LEVEL
COLOR TUNE
CINEMA MODE
PICTURE MODE

SEL.

ADJ.

: OFF

R

: OFF
: MIDDLE
: 2.2
: AUTO
: 0%

: ON
: NORMAL

EXIT

RETURN

G

NR

: NR-3

Information

 NR

* “NR” stands for Noise Reduction.
* This function reduces noise in the picture.

 Types of noise reduction

There are three types of noise reduction. Each has a
different level of noise reduction.
The effect becomes stronger as the number increases
(in the order NR-1 → NR-2 → NR-3).

OFF: Turns the noise reduction function off.

17

Setting the color temperature

Use this procedure to set color tone produced by the plasma
display.

Example: Setting “HIGH”

On “COLOR TEMP .” of “PICTURE” menu, select “HIGH”.


PICTURE MEMORY
CONTRAST
BRIGHTNESS
SHARPNESS
COLOR
TINT
NR
COLOR TEMP.
GAMMA
LOW TONE
SET UP LEVEL
COLOR TUNE
CINEMA MODE
PICTURE MODE

SEL.

ADJ.

: OFF

R

: OFF
: HIGH
: 2.2
: AUTO
: 0%

: ON
: NORMAL

EXIT

RETURN

G

Changing the Gamma Curve

This feature adjusts the brightness of the midtone areas
while keeping shadows and highlights unchanged.

Example: Setting “2.3”

On “GAMMA” of “PICTURE” menu, select “2.3”.


PICTURE MEMORY
CONTRAST
BRIGHTNESS
SHARPNESS
COLOR
TINT
NR
COLOR TEMP.
GAMMA
LOW TONE
SET UP LEVEL
COLOR TUNE
CINEMA MODE
PICTURE MODE

SEL.

ADJ.

: OFF

R

: OFF
: MIDDLE
: 2.3
: AUTO
: 0%

: ON
: NORMAL

EXIT

RETURN

G

Information

 Setting the color temperature

LOW: Redder
MIDDLE LOW: Slightly red
MIDDLE: Standard (slightly bluer)
HIGH: Bluer

Adjusting the color to the desired level

Use this procedure to adjust the white balance for each
color temperature to achieve the desired color quality.

Example: Adjusting the “GAIN RED” of “HIGH” color
temperature

On “COLOR TEMP .” of “PICTURE” menu, select “HIGH”,
then press the MENU/ENTER button.
The “WHITE BALANCE” screen appears.

On “GAIN RED”, adjust the white balance.

WHITE BALANCE

COLOR TEMP. HIGH

GAIN RED
GAIN GREEN
GAIN BLUE
BIAS RED
BIAS GREEN
BIAS BLUE
RESET

SEL.

ADJ.

: OFF

EXIT

RETURN

GAIN RED

20

Information

 Adjusting the white balance

GAIN R/G/B: White balance adjustment for white level
BIAS R/G/B: White balance adjustment for black level
RESET: Resets settings to the factory default values.



Use

and  buttons to select “ON”, then press the

MENU/ENTER button.
 Restoring the factory default settings
Select “RESET” under the WHITE BALANCE menu.

Information

 GAMMA settings

The picture becomes darker as the number increases
(in the sequence of 2.1, 2.2, 2.3, 2.4).

* These values are approximate.

Making the Low Tone adjustments

This feature allows more detailed tone to be reproduced
especially in the dark area.

Example: Setting “2”

On “LOW TONE” of “PICTURE” menu, select “2”.


PICTURE MEMORY
CONTRAST
BRIGHTNESS
SHARPNESS
COLOR
TINT
NR
COLOR TEMP.
GAMMA
LOW TONE
SET UP LEVEL
COLOR TUNE
CINEMA MODE
PICTURE MODE

SEL.

ADJ.

: OFF

R

: OFF
: MIDDLE
: 2.2
: 2
: 0%

: ON
: NORMAL

EXIT

RETURN

G

Information

 LOW TONE settings

AUTO: Will automatically appraise the picture and
make adjustments.

1: W ill apply the dither method suitable for still pictures.
2: Will apply the dither method suitable for motion

pictures.

3: Will apply the error diffusion method.

18

Adjusting the pedestal level (black level)

This feature adjusts the video black level in a video image.

Example: Setting “3.75%”

On “SET UP LEVEL” of “PICTURE” menu, select “3.75%”.


PICTURE MEMORY
CONTRAST
BRIGHTNESS
SHARPNESS
COLOR
TINT
NR
COLOR TEMP.
GAMMA
LOW TONE
SET UP LEVEL
COLOR TUNE
CINEMA MODE
PICTURE MODE

SEL.

ADJ.

: OFF

R

: OFF
: MIDDLE
: 2.2
: AUTO
: 3.75%

: ON
: NORMAL

EXIT

RETURN

G

Information

 SET UP LEVEL settings

0%: Normal status

3.75%: 3.5% lower than normal

7.5%: 7.5% lower than normal

Adjusting the colors

Use this procedure to adjust hue and color density for red,
green, blue, yellow, magenta and cyan.
You can accentuate the green color of trees, the blue of
the sky, etc.

Example: Adjusting the color tune for blue

On “PICTURE” menu, select “COLOR TUNE”, then press
the MENU/ENTER button.
The “COLOR TUNE” screen appears.

On “BLUE” of “COLOR TUNE”, adjust the color tune.

RED
GREEN
BLUE
YELLOW
MAGENTA
CYAN
RESET

SEL.

ADJ.

Y
C
M
G
R
B

: OFF

EXIT

RETURN

M
Y
C
R
B
G

COLOR TUNE

Information

 COLOR TUNE settings

RED: Makes red’s adjustment
GREEN: Makes green’s adjustment
BLUE: Makes blue’s adjustment
YELLOW: Makes yellow’s adjustment
MAGENTA: Makes magenta’s adjustment
CYAN: Makes cyan’s adjustment
RESET: Resets settings to the factory default value.



and  buttons to select “ON”, then press the

Use
MENU/ENTER button.

Setting the picture to suit the movie

The film image is automatically discriminated and
projected in an image mode suited to the picture.
[NTSC, PAL, PAL60, 480I (60Hz), 525I (60Hz), 576I
(50Hz), 625I (50Hz), 1035I (60Hz), 1080I (60Hz) only]

Example: Setting the “CINEMA MODE” to “OFF”

On “CINEMA MODE” of “PICTURE” menu, select “OFF”.


PICTURE MEMORY
CONTRAST
BRIGHTNESS
SHARPNESS
COLOR
TINT
NR
COLOR TEMP.
GAMMA
LOW TONE
SET UP LEVEL
COLOR TUNE
CINEMA MODE
PICTURE MODE

SEL.

ADJ.

: OFF

R

: OFF
: MIDDLE
: 2.2
: AUTO
: 0%

: OFF
: NORMAL

EXIT

RETURN

G

Information

 CINEMA MODE

ON: Automatic discrimination of the image and
projection in cinema mode.
OFF: Cinema mode does not function.

Setting the picture mode according to the
brightness of the room

There are four picture modes that can be used effectively
according to the environment in which you are viewing
the display.

Example: Setting the “THEATER1” mode

On “PICTURE MODE” of “PICTURE” menu, select
“THEATER1”.


PICTURE MEMORY
CONTRAST
BRIGHTNESS
SHARPNESS
COLOR
TINT
NR
COLOR TEMP.
GAMMA
LOW TONE
SET UP LEVEL
COLOR TUNE
CINEMA MODE
PICTURE MODE

SEL.

ADJ.

: OFF

R

: OFF
: MIDDLE
: 2.2
: AUTO
: 0%

: ON
: NORMAL

EXIT

RETURN

G

PICTURE MODE

: THEATER1

Information

 Types of picture modes

THEA TER1, 2: Set this mode when watching video in a
dark room.
This mode provides darker, finer pictures, like the screen
in movie theaters.
For a darker image, select THEATER2.
NORMAL: Set this mode when watching video in a bright
room.
This mode provides dynamic pictures with distinct
differences between light and dark sections.
BRIGHT: This mode provides brighter pictures than
NORMAL.
DEFAULT : Use this to reset the picture to the factory
default settings.

19

Audio Settings Menu

Adjusting the treble, bass and left/right
balance and audio input select

The treble, bass and left/right balance can be adjusted to
suit your tastes.

Example: Adjusting the bass

On “BASS” of “AUDIO” menu, adjust the bass.

ADJ.

ADJ.

AUDIO

AUDIO

: VIDEO1
: HD/DVD1
: RGB1

EXIT

RETURN

: VIDEO2
: HD/DVD1
: RGB1

EXIT

RETURN

BASS
TREBLE
BALANCE
AUDIO INPUT1
AUDIO INPUT2
AUDIO INPUT3

SEL.

Note :

If “CAN NOT ADJUST” appears...

Set “AUDIO INPUT” on the AUDIO menu correctly.

Information

䡵 Audio settings menu

BASS: Controls the level of low frequency sound.
TREBLE: Controls the level of high frequency sound.
BALANCE: Controls the balance of the left and right

channels.

Setting the allocation of the audio connectors

Setting the AUDIO 1, 2, and 3 connectors to the desired
input.

Example: Setting “AUDIO INPUT1” to “VIDEO 2”

On “AUDIO INPUT1” of “AUDIO” menu, select
“VIDEO2”.

The available sources depend on the settings of input.

BASS
TREBLE
BALANCE
AUDIO INPUT1
AUDIO INPUT2
AUDIO INPUT3

SEL.

Information

䡵 AUDIO INPUT

A single audio input cannot be selected as the audio
channel for more than one input terminal.

Image Adjust Settings Menu

Adjusting the Position, Size, Fine Picture, Picture Adj

The position of the image can be adjusted and flickering
of the image can be corrected.

Example: Adjusting the vertical position in the normal
mode

On “V -POSITION” of “IMAGE ADJUST” menu, adjust the
position.

䊴

The mode switches as follows each time the
pressed:

NORMAL ↔ ANAMORPHIC

* The mode can also be switched by pressing the WIDE

button on the remote control.

* The settings on the IMAGE ADJUST menu are not preset

at the factory.

IMAGE ADJUST

ASPECT MODE
V-POSITION
H-POSITION
V-HEIGHT
H-WIDTH
AUTO PICTURE
FINE PICTURE
PICTURE ADJ.

SEL.

ADJ.

: NORMAL

: OFF

EXIT

RETURN

V-POSITION

Information

䡵 When “AUTO PICTURE” is “OFF”

IMAGE ADJUST

ASPECT MODE
V-POSITION
H-POSITION
V-HEIGHT
H-WIDTH
AUTO PICTURE
FINE PICTURE
PICTURE ADJ.

SEL.

ADJ.

: ANAMORPHIC

: OFF

EXIT

RETURN

When Auto Picture is off, the Fine Picture and the
Picture ADJ. items are displayed so that you can adjust
them.

䡵 Adjusting the Auto Picture

ON: The Picture ADJ., Fine Picture and Position
adjustments are made automatically.
Not available for digital ZOOM.
OFF: The Picture ADJ., Fine Picture and Position
adjustments are made manually.

* If FINE PICTURE can’t be adjusted, set Auto Picture

to OFF and adjust manually.

䡵 Adjusting the position of the image

V-POSITION: Adjusts the vertical position of the
image.
H-POSITION: Adjusts the horizontal position of the
image.
V-HEIGHT: Adjusts the vertical size of the image.
(Except for STADIUM mode)
H-WIDTH: Adjusts the horizontal size of the image.
(Except for STADIUM mode)

FINE PICTURE*: Adjusts for flickering.
PICTURE ADJ.*: Adjusts for striped patterns on the

image.
* The Picture ADJ. and Fine Picture features are available

only when the “Auto Picture” is off.

* The AUTO PICTURE, FINE PICTURE and PICTURE

ADJ. are available only for RGB signals.
But, these features are not available for moving pictures
on VIDEO, HD/DVD or RGB.

or 䊳 button is

-30

20

SET UP Settings Menu

Setting the language for the menus

The menu display can be set to one of eight languages.

Example: Setting the menu display to “DEUTSCH”

On “LANGUAGE” of “SET UP” menu, select “DEUTSCH”.

SET UP

LANGUAGE
BNC INPUT
D-SUB INPUT
HD SELECT
RGB SELECT
DVI SET UP
COLOR SYSTEM
BACK GROUND
GRAY LEVEL
S1/S2
DISPLAY OSM
OSM ADJ.
ALL RESET

SEL.

ADJ.

Information

䡵 Language settings

ENGLISH ........English

DEUTSCH.......German

FRANÇAIS...... French

ESPAÑOL .......Spanish

Setting the BNC connectors

Select whether to set the input of the 5 BNC connectors to
RGB and component.

Example: Set the BNC INPUT mode to “RGB”

On “BNC INPUT” of “SET UP” menu, select “RGB”.

LANGUAGE
BNC INPUT
D-SUB INPUT
HD SELECT
RGB SELECT
DVI SET UP
COLOR SYSTEM
BACK GROUND
GRAY LEVEL
S1/S2
DISPLAY OSM
OSM ADJ.
ALL RESET

SEL.

ADJ.

Information

䡵 BNC INPUT Settings

RGB: Use the 5BNC terminals for RGB input.
COMPONENT: Use the 3BNC terminals for

component input.

: DEUTSCH
: COMPONENT
: RGB
: 1080I
: AUTO

: AUTO
: GRAY
: 3
: OFF
: ON
: TOP LEFT
: OFF

EXIT

RETURN

ITALIANO ........Italian

SVENSKA .......Swedish

...................Chinese

У ............Russian

SET UP

: ENGLISH
: RGB
: RGB
: 1080I
: AUTO

: AUTO
: GRAY
: 3
: OFF
: ON
: TOP LEFT
: OFF

EXIT

RETURN

Checking the signal being transmitted to
RGB1 terminal

Use this to confirm the signal being transmitted to the
RGB1 terminal.
It is set to RGB and can not be adjusted.

SET UP

LANGUAGE
BNC INPUT
D-SUB INPUT
HD SELECT
RGB SELECT
DVI SET UP
COLOR SYSTEM
BACK GROUND
GRAY LEVEL
S1/S2
DISPLAY OSM
OSM ADJ.
ALL RESET

CAN NOT ADJUST

: ENGLISH
: COMPONENT
: RGB
: 1080I
: AUTO

: AUTO
: GRAY
: 3
: OFF
: ON
: TOP LEFT
: OFF

Setting high definition images to the suitable
screen size

Use this procedure to set whether the number of vertical
lines of the input high definition image is 1080I or 1035I
or 540P.

Example: Setting the “HD SELECT” mode to “1035I”

On “HD SELECT” of “SET UP” menu, select “1035I”.

SET UP

LANGUAGE
BNC INPUT
D-SUB INPUT
HD SELECT
RGB SELECT
DVI SET UP
COLOR SYSTEM
BACK GROUND
GRAY LEVEL
S1/S2
DISPLAY OSM
OSM ADJ.
ALL RESET

SEL.

ADJ.

: ENGLISH
: COMPONENT
: RGB
: 1035I
: AUTO

: AUTO
: GRAY
: 3
: OFF
: ON
: TOP LEFT
: OFF

EXIT

RETURN

Information

䡵 HD SELECT modes

These 3 modes are not displayed in correct image
automatically.

1080I: Standard digital broadcasts
1035I: Japanese “High Vision” signal format
540P: Special Digital broadcasts (for example :

DTC100)

Setting a computer image to the correct RGB
select screen

With the computer image, select the RGB Select mode
for a moving image such as (video) mode, wide mode or
digital broadcast.

Example: Setting the “RGB SELECT” mode to
“MOTION ”

On “RGB SELECT” of “SET UP” menu, select “MOTION”.

SET UP

LANGUAGE
BNC INPUT
D-SUB INPUT
HD SELECT
RGB SELECT

DVI SET UP

COLOR SYSTEM
BACK GROUND
GRAY LEVEL
S1/S2
DISPLAY OSM
OSM ADJ.
ALL RESET

SEL.

ADJ.

: ENGLISH
: COMPONENT
: RGB
: 1080I
: MOTION

: 1024ⴒ768

: AUTO
: GRAY
: 3
: OFF
: ON
: TOP LEFT
: OFF

EXIT

RETURN

21

Information

䡵 RGB SELECT modes

One of these 7 modes must be selected in order to
display the following signals correctly.
AUTO: Select the suitable mode for the specifications
of input signals as listed in the table “Computer input
signals supported by this system” on page 7 of Model
Information.
STILL: To display VESA standard signals. (Use this
mode for a still image from a computer.)
MOTION: The video signal (from a scan converter)
will be converted to RGB signals to make the picture
more easily viewable. (Use this mode for a motion
image from a computer.)
WIDE1: When an 852 dot⳯ 480 line signal with a
horizontal frequency of 31.7kHz is input, the image may
be compressed horizontally. To prevent this, set RGB
SELECT to WIDE1.
WIDE2: When an 848 dot⳯ 480 line signal with a
horizontal frequency of 31.0 kHz is input, the image
may be compressed horizontally. To prevent this, set
RGB SELECT to WIDE2.
WIDE3: When an 1920 dot⳯ 1200 line signal with a
horizontal frequency of 74.0 kHz is input, the image
may be compressed horizontally. To prevent this, set
RGB SELECT to WIDE3.
DTV: Set this mode when watching digital broadcasting
(480P).

See page 7 of Model Information for the details of the
above settings.

Setting the signal and black level for DVI
signal

Choose the signal for the DVI connector (PC or STB/
DVD) and set the black level.

Example: Setting the “PLUG/PLAY” mode to “STB/
DVD”

On “SET UP” menu, select “DVI SET UP”, then press the
MENU/ENTER button.

The “DVI SET UP” screen appears.
On “PLUG/PLAY” of “DVI SET UP” menu, select “STB/

DVD”.

DVI SET UP

PLUG/PLAY
BLACK LEVEL

SEL.

ADJ.

: STB/DVD
: HIGH

EXIT

RETURN

Information

䡵 PLUG/PLAY settings

PC: When connected to the PC signal.
BLACK LEVEL is set to “LOW” automatically.
STB/DVD: When connected to the SET TOP BOX,
DVD etc.
BLACK LEVEL is set to “HIGH” automatically.

䡵 BLACK LEVEL settings

LOW: When connected to the PC signal.
HIGH: When connected to the SET TOP BOX, DVD

etc. Change “HIGH” into “LOW” if the black level
appears gray.

Setting the video signal format

Use these operations to set the color systems of composite
video signals or Y/C input signals.

Example: Setting the color system to “3.58 NTSC”

On “COLOR SYSTEM” of “SET UP” menu, select
“3.58NTSC”.

SET UP

LANGUAGE
BNC INPUT
D-SUB INPUT
HD SELECT
RGB SELECT
DVI SET UP
COLOR SYSTEM
BACK GROUND
GRAY LEVEL
S1/S2
DISPLAY OSM
OSM ADJ.
ALL RESET

SEL.

ADJ.

: ENGLISH
: COMPONENT
: RGB
: 1080I
: AUTO

: 3.58NTSC
: GRAY
: 3
: OFF
: ON
: TOP LEFT
: OFF

EXIT

RETURN

Information

䡵 Video signal formats

Different countries use different formats for video signals.
Set to the color system used in your current country .
AUTO: The color systems are automatically identified
and the format is set accordingly.
PAL: This is the standard format used mainly in the
United Kingdom and Germany.
SECAM: This is the standard format used mainly in
France and Russia.

4.43 NTSC, P AL60: This format is used for videos in
countries using PAL and SECAM video signals.

3.58 NTSC: This is the standard format used mainly
in the United States and Japan.
PAL-M: This is the standard format used mainly in
Brazil.
PAL-N: This is the standard format used mainly in
Argentina.

Setting the background color when no signal
is being input

The color displayed on the background when there is no
signal can be set to gray.

Example: Setting “BACK GROUND” to “BLACK”

On “BACK GROUND” of “SET UP” menu, select
“BLACK”.

SET UP

LANGUAGE
BNC INPUT
D-SUB INPUT
HD SELECT
RGB SELECT
DVI SET UP
COLOR SYSTEM
BACK GROUND
GRAY LEVEL
S1/S2
DISPLAY OSM
OSM ADJ.
ALL RESET

SEL.

ADJ.

: ENGLISH
: COMPONENT
: RGB
: 1080I
: AUTO

: AUTO
: BLACK
: 3
: OFF
: ON
: TOP LEFT
: OFF

EXIT

RETURN

Information

䡵 BACK GROUND Settings

BLACK: Sets the background color to black.
GRAY: Sets the background color to gray.

Setting this makes it easier to see that there is no signal.

22

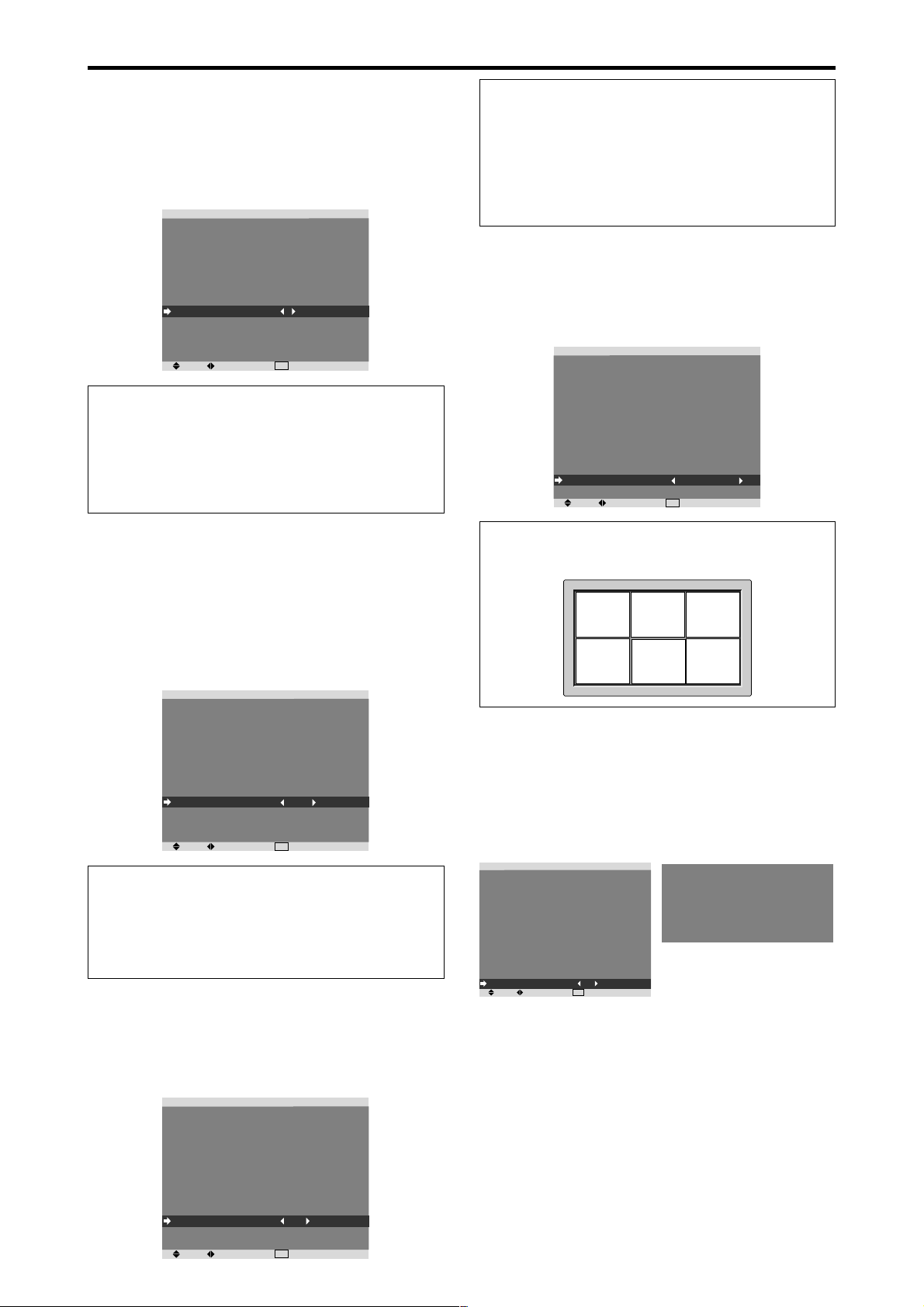

Setting the gray level for the sides of the screen

Use this procedure to set the gray level for the parts on the
screen on which nothing is displayed when the screen is
set to the 4:3 size.

Example: Setting “GRAY LEVEL” to “5”

On “GRAY LEVEL” of “SET UP” menu, select “5”.

SET UP

LANGUAGE
BNC INPUT
D-SUB INPUT
HD SELECT
RGB SELECT
DVI SET UP
COLOR SYSTEM
BACK GROUND
GRAY LEVEL
S1/S2
DISPLAY OSM
OSM ADJ.
ALL RESET

SEL.

ADJ.

: ENGLISH
: COMPONENT
: RGB
: 1080I
: AUTO

: AUTO
: GRAY
: 5
: OFF
: ON
: TOP LEFT
: OFF

EXIT

RETURN

Information

䡵 GRAY LEVEL settings

This adjusts the brightness of the black (the gray level)
for the sides of the screen.
The standard is 0 (black). The level can be adjusted
from 0 to 15. The factory setting is 3 (dark gray).

Information

䡵 DISPLAY OSM settings

ON: The on-screen menu appears.
OFF: The on-screen menu does not appear.

If you press the DISPLAY button on the remote control
for more than 3 seconds the main menu will appear
and can be set (although it is not ON).

Setting the position of the menu

Adjusts the position of the menu when it appears on the
screen.

Example: Set the position to “TOP CENTER”

On “OSM ADJ.” of “SET UP” menu, select “TOP CENTER”.

SET UP

LANGUAGE
BNC INPUT
D-SUB INPUT
HD SELECT
RGB SELECT
DVI SET UP
COLOR SYSTEM
BACK GROUND
GRAY LEVEL
S1/S2
DISPLAY OSM
OSM ADJ.
ALL RESET

SEL.

ADJ.

: ENGLISH
: COMPONENT
: RGB
: 1080I
: AUTO

: AUTO
: GRAY
: 3
: OFF
: ON
: TOP CENTER
: OFF

EXIT

RETURN

Setting the screen size for S1/S2 video input

If the S-video signal contains screen size information, the
image will be automatically adjusted to fit the screen when
this S1/S2 is set to AUTO.
This feature is available only when an S-video signal is
input via the VIDEO3 terminal.

Example: Setting “S1/S2” to “AUTO”

On “S1/S2” of “SET UP” menu, select “AUTO”.

SET UP

LANGUAGE
BNC INPUT
D-SUB INPUT
HD SELECT
RGB SELECT
DVI SET UP
COLOR SYSTEM
BACK GROUND
GRAY LEVEL
S1/S2
DISPLAY OSM
OSM ADJ.
ALL RESET

SEL.

ADJ.

: ENGLISH
: COMPONENT
: RGB
: 1080I
: AUTO

: AUTO
: GRAY
: 3
: AUTO
: ON
: TOP LEFT
: OFF

EXIT

RETURN

Information

䡵 S1/S2 settings

AUTO: Adjusts the screen size automatically according
to the S1/S2 video signal.
OFF: Turns the S1/S2 function off.

T urning on/off the menu display

When this is set to OFF , the menu will not displayed even
if you press the MENU/ENTER button.

Example: Turning the DISPLAY OSM off

On “DISPLAY OSM” of “SET UP” menu, select “OFF”.

SET UP

LANGUAGE
BNC INPUT
D-SUB INPUT
HD SELECT
RGB SELECT
DVI SET UP
COLOR SYSTEM
BACK GROUND
GRAY LEVEL
S1/S2
DISPLAY OSM
OSM ADJ.
ALL RESET

SEL.

ADJ.

: ENGLISH
: COMPONENT
: RGB
: 1080I
: AUTO

: AUTO
: GRAY
: 3
: OFF
: OFF
: TOP LEFT
: OFF

EXIT

RETURN

Information

䡵 OSM ADJUST settings

TOP

LEFT

BTM

LEFT

TOP

CENTER

BTM

CENTER

TOP

RIGHT

BTM

RIGHT

Resetting to the default values

Use these operations to restore all the settings (PICTURE,
AUDIO, IMAGE ADJUST, SET UP, etc) to the factory
default values.

Refer to page 15 for items to be reset.

On “ALL RESET” of “SET UP” menu, select “ON”, then
press the MENU/ENTER button.

LANGUAGE
BNC INPUT
D-SUB INPUT
HD SELECT
RGB SELECT
DVI SET UP
COLOR SYSTEM
BACK GROUND
GRAY LEVEL
S1/S2
DISPLAY OSM
OSM ADJ.
ALL RESET

SEL.

ADJ.

SET UP

: ENGLISH
: COMPONENT
: RGB
: 1080I
: AUTO

: AUTO
: GRAY
: 3
: OFF
: ON
: TOP LEFT
: ON

EXIT

RETURN

ALL RESET

SETTING NOW

When the “SETTING NOW” screen disappears, then all the
settings are restored to the default values.

23

Function Settings Menu

Setting the power management for computer
images

This energy-saving (power management) function
automatically reduces the monitor’s power consumption
if no operation is performed for a certain amount of time.

Example:

On “POWER MGT .” of “FUNCTION” menu, select “ON”.

Turning the power management function on

FUNCTION

POWER MGT.
INPUT SKIP
PDP SAVER
CLOSED CAPTION
CAPTION CONT

SEL.

ADJ.

: ON
: OFF
: MANUAL
: OFF
: LOW

EXIT

RETURN

Setting the Input Skip

When this is ON, signals which are not present will be
skipped over and only pictures whose signals are being
transmitted will be displayed.
This setting is valid only for the INPUT SELECT button
on the unit.

Example: Set to “ON”

On “INPUT SKIP” of “FUNCTION” menu, select “ON”.

FUNCTION

POWER MGT.
INPUT SKIP
PDP SAVER
CLOSED CAPTION
CAPTION CONT

SEL.

ADJ.

: OFF
: ON
: MANUAL
: OFF
: LOW

EXIT

RETURN

Information

䡵 Power management function

* The power management function automatically reduces

the monitor’s power consumption if the computer’s
keyboard or mouse is not operated for a certain amount
of time. This function can be used when using the
monitor with a computer.

* If the computer’s power is not turned on or if the

computer and selector tuner are not properly connected,
the system is set to the off state.

* For instructions on using the computer’s power

management function, refer to the computer’s operating
instructions.

䡵 Power management settings

ON: In this mode the power management function is
turned on.
OFF: In this mode the power management function is
turned off.

䡵 Power management function and POWER/
STANDBY indicator

The POWER/ST ANDBY indicator indicates the status
of the power management function. See below for
indicator status and description.

POWER/STANDBY indicator

Power
management
mode

On

Off

POWER/
STANDBY
indicator

Green

Red

Power
management
operating status

Not activated.

Activated.

Description

Horizontal and vertical
synchronizing signals
are present from the
computer.

Horizontal and/or
vertical synchronizing
signals are not sent
from the computer.

Turning the picture
back on

Picture already on.

Operate the keyboard or
mouse. The picture
reappears.

Information

䡵 INPUT SKIP settings

OFF: Regardless of the presence of the signal, scan
and display all signals.
ON: If no input signal is present, skip that signal.

* “SETTING NOW” will appear during the input search.

Reducing burn-in of the screen

The brightness of the screen, the position of the picture,
positive/negative mode and screen wiper are adjusted to
reduce burn-in of the screen.

On “PDP SAVER” of “FUNCTION” menu, select
“MANUAL”, then press the MENU/ENTER button.
The “PDP SAVER” screen appears.

PDP SAVER

PEAK BRIGHT
ORBITER
INVERSE/WHITE
SCREEN WIPER
SOFT FOCUS
OSM ORBITER
OSM CONTRAST

SEL.

ADJ.

: 100%
: OFF
: OFF
: OFF
: OFF
: ON
: LOW

EXIT

RETURN

Information

䡵 When set to AUTO

Set automatically, as described below.

PEAK BRIGHT: 100%
ORBITER: ON
INVERSE/WHITE: OFF
SCREEN WIPER: OFF
SOFT FOCUS: OFF
OSD ORBITER: ON
OSD CONTRAST: LOW

24

PEAK BRIGHT

Use this to activate the brightness limiter.

Example: Setting “PEAK BRIGHT” to “75%”

On “PEAK BRIGHT” of “PDP SA VER” menu, select “75%”.

PDP SAVER

PEAK BRIGHT
ORBITER
INVERSE/WHITE
SCREEN WIPER
SOFT FOCUS
OSM ORBITER
OSM CONTRAST

SEL.

ADJ.

: 75%
: OFF
: OFF
: OFF
: OFF
: ON
: LOW

EXIT

RETURN

Information

䡵 PEAK BRIGHT settings

100%: The brightness of the screen is adjusted
automatically to suit the picture quality.
75%, 50%, 25%: Sets maximum brightness.
The brightness level decreases in the order of 75%,
50%, 25%. 25% provides minimum brightness.

* These values are approximate.

ORBITER

Use this to set the picture shift.

Example: Setting “ORBITER” to “AUTO1”

On “ORBITER” of “PDP SAVER” menu, select “AUTO1”.

PDP SAVER

PEAK BRIGHT
ORBITER
INVERSE/WHITE
SCREEN WIPER
SOFT FOCUS
OSM ORBITER
OSM CONTRAST

SEL.

ADJ.

: 100%
: AUTO1
: OFF
: OFF
: OFF
: ON
: LOW

EXIT

RETURN

Information

䡵 ORBITER settings

OFF: Orbiter mode does not function.
This is the default setting when RGB is input.
AUTO1: The picture moves around the screen
intermittently, making the picture smaller. This is the
default setting when a V ideo or a DVD/HD/DTV signal
is input. Set to “OFF” when these signals are not used.
AUTO2: The picture moves around the screen
intermittently, making the picture bigger.

* When a Video or a DVD/HD/DTV signal is input, the

AUTO1 and 2 functions will affect only the moving
picture and will not make the screen smaller or bigger.

INVERSE/WHITE

Use this to set the inverse mode or to display a white
screen.

Example: Setting “INVERSE/WHITE” to “WHITE”

On “INVERSE/WHITE” of “PDP SAVER” menu, select
“WHITE”.

PDP SAVER

PEAK BRIGHT
ORBITER
INVERSE/WHITE
SCREEN WIPER
SOFT FOCUS
OSM ORBITER
OSM CONTRAST

SEL.

ADJ.

: 100%
: OFF
: WHITE
: OFF
: OFF
: ON
: LOW

EXIT

RETURN

Information

䡵 INVERSE/WHITE Settings

OFF: Inverse/white mode does not function.
INVERSE: The picture is displayed alternately between

positive image and negative image.

WHITE: The entire screen turns white.

SCREEN WIPER

When this is set to ON, a white vertical bar moves
repeatedly from the left and of the screen to the right end
at a constant speed.

Example: Setting “SCREEN WIPER” to “ON”

On “SCREEN WIPER” of “PDP SAVER” menu, select
“ON”.

PDP SAVER

PEAK BRIGHT
ORBITER
INVERSE/WHITE
SCREEN WIPER
SOFT FOCUS
OSM ORBITER
OSM CONTRAST

SEL.

ADJ.

: 100%
: OFF
: OFF
: ON
: OFF
: ON
: LOW

EXIT

RETURN

Information

䡵 SCREEN WIPER

ON: The white vertical bar appears.
OFF: Screen wiper mode does not function.

SOFT FOCUS

Reduces edges and softens the image.

Example: Setting “SOFT FOCUS” to “LEVEL2”

On “SOFT FOCUS” of “PDP SAVER” menu, select
“LEVEL2”.

PDP SAVER

PEAK BRIGHT
ORBITER
INVERSE/WHITE
SCREEN WIPER
SOFT FOCUS
OSM ORBITER
OSM CONTRAST

SEL.

ADJ.

: 100%
: OFF
: OFF
: OFF
: LEVEL2
: ON
: LOW

EXIT

RETURN

Information

䡵 SOFT FOCUS settings

OFF: Turns the SOFT FOCUS function off.
LEVEL1, 2, 3, 4: Activates the SOFT FOCUS setting.

The higher numbers create a softer image.

“SHARPNESS” can not be adjusted on the
“PICTURE” menu.

25

OSM ORBITER

Use this to set OSM menu shift.

Example: Setting “OSM ORBITER” to “OFF”

On “OSM ORBITER” of “PDP SAVER” menu, select
“OFF”.

PDP SAVER

PEAK BRIGHT
ORBITER
INVERSE/WHITE
SCREEN WIPER
SOFT FOCUS
OSM ORBITER
OSM CONTRAST

SEL.

ADJ.

: 100%
: OFF
: OFF
: OFF
: OFF
: OFF
: LOW

EXIT

RETURN

Information

䡵 OSM ORBITER settings

ON: The position of the menu will be shifted by eight
dots each time OSM is displayed.

OFF: OSM will be displayed at the same position.

OSM CONTRAST

Use this to reduce the brightness of OSM menu.

Example: Setting “OSM CONTRAST” to “NORMAL”

On “OSM CONTRAST” of “PDP SAVER” menu, select
“NORMAL”.

PDP SAVER

PEAK BRIGHT
ORBITER
INVERSE/WHITE
SCREEN WIPER
SOFT FOCUS
OSM ORBITER
OSM CONTRAST

SEL.

ADJ.

: 100%
: OFF
: OFF
: OFF
: OFF
: ON
: NORMAL

EXIT

RETURN

Information

䡵 OSM CONTRAST settings

NORMAL: OSM brightness is set to normal.
LOW: OSM brightness is set to lower.

Setting Closed Caption

This function sets several closed caption modes that allows
text to be superimposed on display.

Example: Setting “CAPTION2”

On “CLOSED CAPTION” of “FUNCTION” menu, select
“CAPTION2”.

FUNCTION

POWER MGT.
INPUT SKIP
PDP SAVER
CLOSED CAPTION
CAPTION CONT

SEL.

ADJ.

: OFF
: OFF
: MANUAL
: CAPTION2
: LOW

EXIT

RETURN

Information

䡵 CLOSED CAPTION settings

OFF: This exits the closed caption mode.
CAPTION1~4: Text is superimposed.
TEXT1~4: Text is displayed in full screen.

A closed caption signal may not be decoded in the
following signature;

1. when a video tape has been dubbed.

2. when the signal reception is weak.

3. when the signal reception is nonstandard.
When using closed captioned channel or the text mode,
the text screen always appears.
When there is no signal, however, the text screen will
not display text characters.

Reducing the brightness of Closed Caption

Use this to reduce the brightness of Closed Caption.

Example: Setting “NORMAL”

On “CAPTION CONT” of “FUNCTION” menu, select
“NORMAL”.

FUNCTION

POWER MGT.
INPUT SKIP
PDP SAVER
CLOSED CAPTION
CAPTION CONT

SEL.

ADJ.

: OFF
: OFF
: MANUAL
: OFF
: NORMAL

EXIT

RETURN

Information

䡵 CAPTION CONT settings

NORMAL: Closed Caption brightness is set to normal.
LOW: Closed Caption brightness is set to lower.

Signal Information Menu

Checking the frequencies, polarities of input
signals, and resolution

Use this function to check the frequencies and polarities
of the signals currently being input from a computer, etc.

On “MAIN MENU”, select “SIGNAL INFO.”, then press
the MENU/ENTER button.

The “SIGNAL INFORMATION” is displayed.

SIGNAL INFORMATION

H. FREQUENCY
V. FREQUENCY

H. POLARITY
V. POLARITY

MEMORY
RESOLUTION

SEL.

ADJ.

PC: MEMORY will be displayed.
Others: MODE will be displayed.

: 48.4KHz
: 60.0Hz

: NEGATIVE
: NEGATIVE

: 24
: 1024ⴒ768

EXIT

RETURN

26

External Control

Pin Assignments

Application

These specifications cover the communications control of
the plasma monitor by external equipment.

Connections

Connections are made as described below.

External equipment
e.g., Personal computer

Display

Connector on the plasma monitor side: EXTERNAL
CONTROL connector.
Use a crossed (reverse) cable.

Type of connector: D-Sub 9-pin male

Pin No.

1
2
3
4
5

Pin Name

No Connection
RXD (Receive data)
TXD (Transmit data)
DTR (DTE side ready)
GND

2

1

6

34

7

Pin No.

6

DSR (DCE side ready)

7

RTS (Ready to send)

8

CTS (Clear to send)

9

No connection

5

8

9

Pin Name

mini D-Sub 15-pin connector
(Analog)

RGB 1

5 4 3 2 1

10 9 8 7 6

15 14 13 12 11

Pin No.

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15

Red
Green or sync-on-green
Blue
No connection
Ground
Red ground
Green ground
Blue ground
No connection
Sync signal ground
No connection
Bi-directional DATA (SDA)
Horizontal sync or Composite sync
Vertical sync
Data clock

Signal (Analog)

DVI-D 24-pin connector (Digital)

The unit is equipped with a type of connector commonly
used for digital.
(This cannot be used for an analog input.)
(TMDS can be used for one link only.)

RGB 3

Communication Parameters

(1) Communication system Asynchronous
(2) Interface RS-232C
(3) Baud rate 9600 bps
(4) Data length 8 bits
(5) Parity Odd
(6) Stop bit 1 bit
(7) Communication code Hex

External Control Codes (Reference)

FUNCTION CODE DATA
Power ON 9FH 80H 60H 4EH 00H CDH

OFF 9FH 80H 60H 4FH 00H CEH

Input Switch Video1 (BNC) DFH 80H 60H 47H 01H 01H 08H

Audio Mute ON 9FH 80H 60H 3EH 00H BDH

Picture Mode NORMAL DFH 80H 60H OAH 01H 01H CBH

Screen Mode STADIUM DFH 80H 60H 51H 01H 02H 13H

Auto Picture ON DFH 80H 60H 7FH 03H 03H 09H 00H 4DH

Cinema Mode ON DFH 80H 60H C1H 01H 01H 82H

Video2 (RCA) DFH 80H 60H 47H 01H 02H 09H
Video3 (S-Video) DFH 80H 60H 47H 01H 03H 0AH
DVD1/HD1 (RCA) DFH 80H 60H 47H 01H 05H 0CH
DVD2/HD2 (BNC) DFH 80H 60H 47H 01H 06H 0DH
DVD3/HD3 (DVI) DFH 80H 60H 47H 01H 0EH 15H
RGB1 (mini D-sub 15-pin) DFH 80H 60H 47H 01H 07H 0EH
RGB2 (5BNC) DFH 80H 60H 47H 01H 08H 0FH
RGB3 (DVI) DFH 80H 60H 47H 01H 0CH 13H

OFF 9FH 80H 60H 3FH 00H BEH

THEATER 1 DFH 80H 60H OAH 01H 02H CCH
THEATER 2 DFH 80H 60H OAH 01H 03H CDH
DEFAULT DFH 80H 60H OAH 01H 04H CEH
BRIGHT DFH 80H 60H OAH 01H 05H CFH

ZOOM DFH 80H 60H 51H 01H 03H 14H
NORMAL DFH 80H 60H 51H 01H 04H 15H
ANAMORPHIC DFH 80H 60H 51H 01H 05H 16H
14 : 9 DFH 80H 60H 51H 01H 09H 1AH

2.35 : 1 DFH 80H 60H 51H 01H 0AH 1BH

OFF DFH 80H 60H 7FH 03H 03H 09H 01H 4EH

OFF DFH 80H 60H C1H 01H 02H 83H

Pin No.

1

2

3

4

5

6

7

8

9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24

12345678
910111213141516

20191817 21 22 23 24

Signal (Digital)

T.M.D.S Data 2 ­T.M.D.S Data 2 +
T.M.D.S Data 2 Shield
No connection
No connection
DDC Clock
DDC Data
No connection
T.M.D.S Data 1 ­T.M.D.S Data 1 +
T.M.D.S Data 1 Shield
No connection
No connection
+5V Power
Ground
Hot Plug Detect
T.M.D.S Data 0 ­T.M.D.S Data 0 +
T.M.D.S Data 0 Shield
No connection
No connection
T.M.D.S Clock Shield
T.M.D.S Clock +
T.M.D.S Clock -

Note:

Contact your local dealer for a full list of the

External Control Codes if needed.

27

Troubleshooting

If the picture quality is poor or there is some other problem, check the adjustments, operations, etc., before requesting service.

Symptom

Mechanical sound is heard.
The unit emits a crackling sound.

Picture is disturbed.
Sound is noisy.
Remote control operates erroneously.

The remote control does not work.
Monitor’s power does not turn on when the

remote control’s power button is pressed.

Monitor does not operate when the remote
control’s buttons are pressed.

No sound or picture is produced.

Picture appears but no sound is produced.

Poor picture with VIDEO signal input.

Poor picture with RGB signal input.

Tint is poor or colors are weak.
Nothing appears on screen.

Part of picture is cut off or picture is not
centered.

Image is too large or too small.

Picture is unstable.
POWER/STANDBY indicator is lighted in red.

POWER/STANDBY indicator is blinking in
red.

POWER/STANDBY indicator is blinking in
green and red, or green.

Checks

• Maybe the sound from the cooling fans used to prevent over heating.

• Are the image and sound normal?

• Is a connected component set directly in front or at
the side of the display?

• Are the remote control’s batteries worn out?

• Is the monitor’s power cord plugged into a power
outlet?

• Are all the monitor’s indicators off?

• Are the remote control’s batteries worn out?

• Is the remote control pointed at the monitor, or is
there an obstacle between the remote control and
the monitor?

• Is direct sunlight or strong artificial light shining on
the monitor’s remote control sensor?

•

Are the remote control’s batteries worn out?

• Is the monitor’s power cord plugged into a power
outlet?

• Is the volume set at the minimum?

• Is the mute mode set?

• Are the speakers properly connected?

• Is AUDIO INPUT set correctly?

• Improper control setting.
Local interference.
Cable interconnections.
Input impedance is not correct level.

• Improper control setting.
Incorrect 15 PIN connector pin connections.

• Are the tint and colors properly adjusted?

• Is the computer’s power turned on?

• Is a source connected?

• Is the power management function in the standby
or off mode?

• Is the position adjustment appropriate?

• Is the screen size adjustment appropriate?

• Is the computer’s resolution setting appropriate?

• Horizontal and / or vertical sync signal is not
present when the Intelligent Power Manager
control is on.

• The temperature inside the main unit has become
too high and has activated the protector.

——————

• If there are no abnormalities in the image and sound,
the noise is caused by the cabinet reacting to
changes in temperature. This will not affect
performance.

• Leave some space between the display and the
connected components.

• Replace both batteries with new ones.

• Plug the monitor’s power cord into a power outlet.

• Press the power button on the monitor to turn on the
power.

• Replace both batteries with new ones.

• Point the remote control at the monitor’s remote
control sensor when pressing buttons, or remove the
obstacle.

• Eliminate the light by closing curtains, pointing the
light in a different direction, etc.

• Replace both batteries with new ones.

• Plug the monitor’s power cord into a power outlet.

• Increase the volume.

• Press the remote control’s MUTE button.

• Connect the speakers properly.

• Set AUDIO INPUT on the AUDIO menu correctly.

• Adjust picture control as needed.
Try another location for the monitor.
Be sure all connections are secure.

• Adjust picture controls as needed.
Check pin assignments and connections.

• Adjust the tint and color (under PICTURE).

• Turn on the computer’s power.

• Connect source to the monitor.

• Operate the computer (move the mouse, etc.).

• Adjust the IMAGE ADJUST properly.

• Press the WIDE button on the remote control and
adjust properly.

• Set to the proper resolution.

• Check the input signal.

• Promptly switch off the power of the main unit and
wait until the internal temperature drops. See*1.

• Prompty switch off the power of the main unit. See
*2.

Remedy

*1 Overheat protector

If the monitor becomes too hot, the overheat protector will be activated and the monitor will be turned off. If this happens, turn off the power to the monitor
and unplug the power cord. If the room where the monitor is installed is particularly hot, move the monitor to a cooler location and wait for the monitor
to cool for 60 minutes. If the problem persists, contact your dealer.

*2 In the following case, power off the monitor immediately and contact your dealer or authorized Service Center.

The monitor turns off 5 seconds after powering on and then the POWER/STANDBY indicator blinks. It indicates that the power supply circuit, plasma
display panel, temperature sensor, or one or more fans have been damaged.

28

29

30

Limited Warranty Residential Entertainment Plasma Monitors

NEC Solutions, Inc. (hereinafter NEC Solutions) warrants
this product to be free from defects in material and
workmanship under the following terms and, subject to the
conditions set forth below, agrees to repair or replace (at
NEC Solutions’ sole option) any part of the enclosed unit
which proves defective. Replacement parts or products may
be new or refurbished and will meet specifications of the
original parts or products.

HOW LONG IS THE WARRANTY?

Parts and Labor: Parts and Labor (Excluding the PDP) are
warranted for (3) three years from the date of the first
customer purchase.

PDP (Plasma Display Panel): The PDP is warranted for
(1) one year from the date of the first customer purchase.

WHO IS PROTECTED?

This warranty may be enforced only by the first purchaser.

WHAT IS COVERED AND WHAT IS NOT COVERED

Except as specified below, this warranty covers all defects in
material or workmanship in this product. The following are
not covered by the warranty:

1. Any product which is not distributed in the U.S.A. or Canada by
NEC Solutions or which is not purchased in the U.S.A. or Canada
from an authorized NEC Solutions dealer.

2. Any product of which the serial number has been defaced,
modified or removed.

3. Damage, deterioration or malfunction resulting from:
a. Accident, misuse, abuse, neglect, fire, water, lightning or other
acts of nature, unauthorized product modification, or failure to
follow instructions supplied with the product.
b. Repair or attempted repair by anyone not authorized by NEC
Solutions.
c. Any shipment of the product (claims must be presented to the
carrier).
d. Removal or installation of the product.
e. Any other cause which does not relate to a product defect.
f. Burns or residual images upon the phosphor of the panel.

4. Cartons, carrying cases, batteries, external cabinets, magnetic
tapes, or any accessories used in connection with the product.

5. Service outside of the U.S.A. and Canada.

HOW YOU CAN GET WARRANTY SERVICE

1. To obtain service on your product, consult the dealer from whom
you purchased the product.

2. Whenever warranty service is required, the original dated invoice
(or a copy) must be presented as proof of warranty coverage.
Please also include in any mailing your name, address and a
description of the problem(s).

3. For the name of the nearest NEC Solutions authorized service
center, call NEC Solutions at 800-836-0655.

LIMITATIONS OF LIABILITY

Except for the obligations specifically set forth in this
warranty statement, we will not be liable for any direct,
indirect, special, incidental, consequential, or other types of
damages, whether based on contract, tort, or any other legal
theory, whether or not we have been advised of the
possibility of such damages. This warranty is in lieu of all
other warranties expressed or implied, including, but not
limited to, the implied warranties of merchantability or
fitness for a particular purpose.

EXCLUSION OF DAMAGES

NEC Solutions’ liability for any defective product is limited
to the repair or replacement of the product at our option.
NEC Solutions shall not be liable for:

1. Damage to other property caused by any defects in this product,
damages based upon inconvenience, loss of use of the product, loss
of time, commercial loss; or

2. Any other damages whether incidental, consequential or
otherwise. Some states do not allow limitation on how long an
implied warranty lasts and/or do not allow the exclusion or
limitation of incidental or consequential damages, so the above
limitations and exclusions may not apply to you.

HOW STATE LAW RELATES TO THE WARRANTY

This warranty gives you specific legal rights, and you may
also have other rights which vary from state to state.

FOR MORE INFORMATION,
TELEPHONE [phone]
NEC SOLUTIONS (AMERICA), INC.
1250 N. Arlington Heights Road, Suite 400
Itasca, Illinois 60143-1248

WHAT WE WILL PAY FOR AND WHAT WE WILL
NOT PAY FOR

We will pay labor and material expenses for covered items,
but we will not pay for the following:

1. Removal or installation charges.

2. Costs of initial technical adjustments (set-up), including
adjustment of user controls. These costs are the
responsibility of the NEC Solutions dealer from whom the
product was purchased.

3. Shipping charges.

Note: All products returned to NEC Solutions (America),
Inc. for service MUST have prior approval. To get approval,
call NEC Solutions (America), Inc. at 800-836-0655.
