N-CHANNEL SILICON JUNCTION FIELD EFFECT TRANSISTOR
FOR IMPEDANCE CONVERTER OF ECM
DESCRIPTION
The 2SK660 is suitable for converter of ECM.
FEATURES
• Compact package
• High forward transfer admittance
fs
| = 1200 µS TYP. (VDS = 5 V, ID = 0 µA)
| y
• Low capacitance
iss
C
= 4.5 pF (V
• Includes diode and high resistance at G - S
DS
= 5 V, V
GS
= 0 V, f = 1 MHz)
DATA SHEET
JUNCTION FIELD EFFECT TRANSI STO R
2SK660
ORDERING INFORMATION
PART NUMBER PACKAGE
2SK660 SST
ABSOLUTE MAXIMUM RATINGS (TA = 25°C)
Drain to Source Voltage
Gate to Drain Voltage V
Drain Current I
Gate Current I
Total Power Dissipation P
Junction Temperature T
Storage Temperature T
Note
Remark
GS
= –1.0 V
V
Please take care of ESD (Electro Static Discharge) when you handle the device in this document.
Note
V
DSX
GDO
D
G
T
j
stg
20 V
–20 V
10 mA
10 mA
100 mW
125 °C
–55 to +125 °C

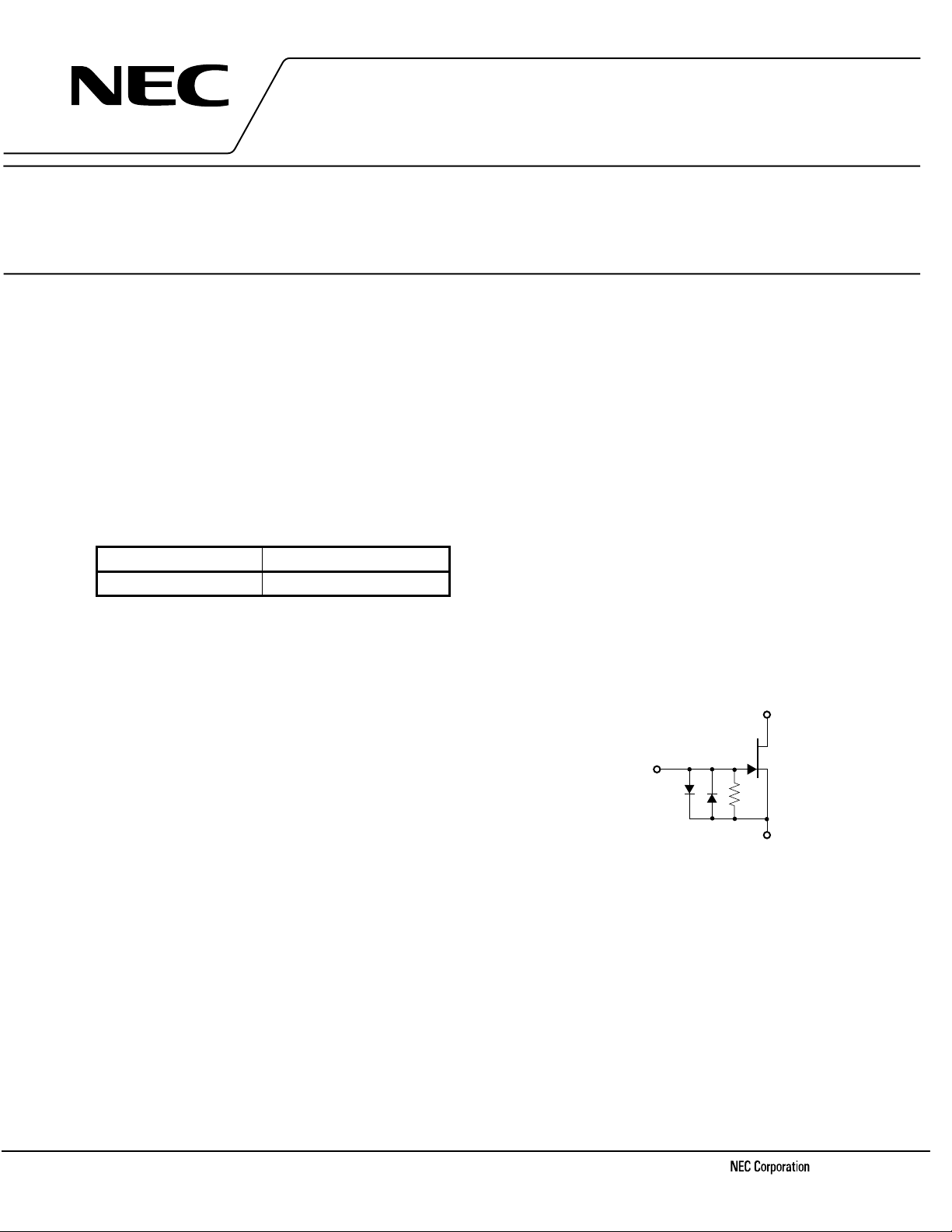

EQUIVALENT CIRCUIT
Drain
Gate
Source
The information in this document is subject to change without notice. Before using this document, please
confirm that this is the latest version.
Not all devices/types available in every country. Please check with local NEC representative for
availability and additional information.
Document No. D10753EJ2V0DS00 (2nd edition)
Date Published January 2002 NS CP(K)
Printed in Japan
©
2002
Page 2

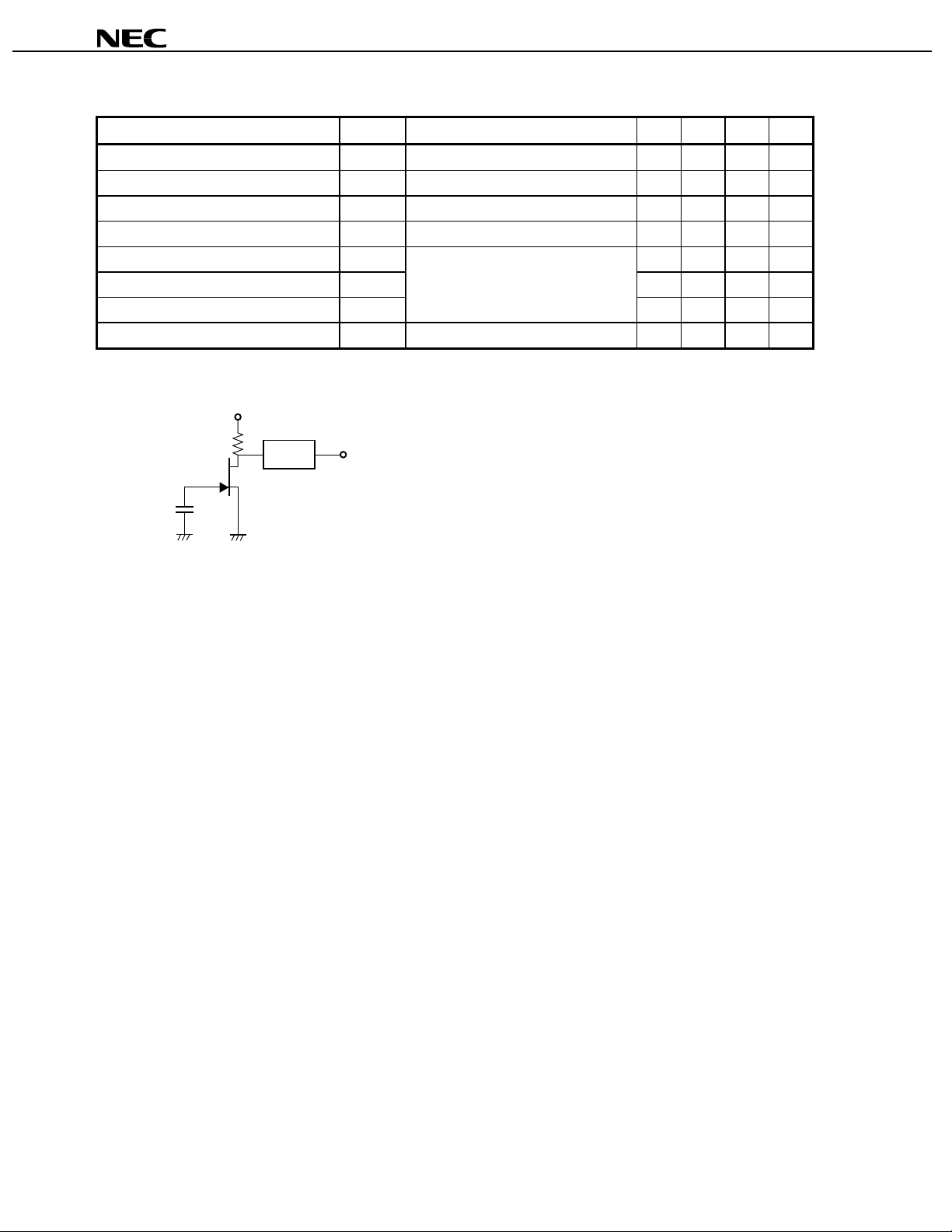

ELECTRICAL CHARACTERISTICS (TA = 25°C)
CHARACTERISTICS SYMBOL TEST CONDITIONS MIN. TYP. MAX. UNIT
2SK660
Zero Gate Voltage Drain Cut-off Current I
Gate Cut-off Voltage V
Forward Transfer Admittance | y
Forward Transfer Admittance | y
Input Capacitance C
Output Capacitance C
Reverse Transfer Capacitance C
DSS
VDS = 5.0 V, VGS = 0 V 60 500
GS(off)VDS
fs1
|VDS = 5.0 V, ID = 30 µA, f = 1.0 kHz 150
fs2
|VDS = 5.0 V, VGS = 0 V, f = 1.0 kHz 150 1200
iss
oss
rss
= 5.0 V, ID = 1.0 µA
VDS = 5.0 V
GS
= 0 V
V
f = 1.0 MHz
1.0 V
−
4.5 6.0 pF
1.5 3.0 pF
1.2 3.0 pF
Noise Voltage NV See Test Circuit 1.0 3.0
NOISE VOLTAGE TEST CIRCUIT
+4.5 V
NV (r.m.s)
C = 10 pF
R = 1 kΩ
JIS A
A
µ
S
µ
S
µ
V
µ
2
Data Sheet D10753EJ2V0DS
Page 3

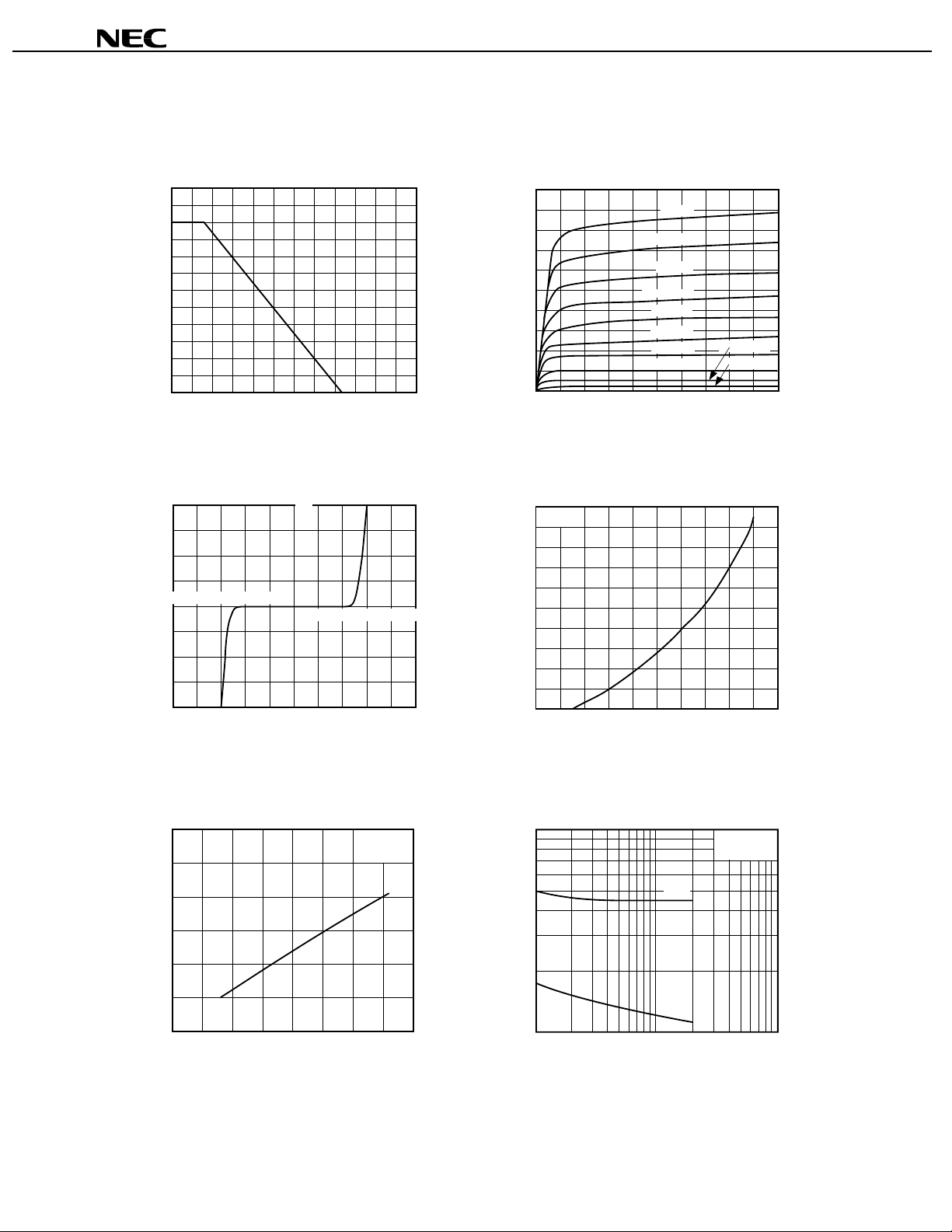

TYPICAL CHARACTERISTICS (TA = 25°C)
2SK660
TOTAL POWER DISSIPATION vs.
AMBIENT TEMPERATURE
120
100
80
60
40
- Total Power Dissipation - mW
20
T
P
0
0 306090 150120 180
TA - Ambient Temperature - ˚C
GATE TO SOURCE CURRENT vs.
GATE TO SOURCE VOLTAGE
40
30
µ
20
10
0
−0.2−0.4−0.6−0.8−1.0
−10
IG - Gate Current - A
−20
−30
−40
VGS - Gate to Source Voltage - V
DRAIN CURRENT vs.
DRAIN TO SOURCE VOLTAGE
500
0.15 V
400
µ
300
0.10 V
0.05 V
VGS = 0 V
200
- Drain Current - A
D
I
100
0
DS
V
- Drain to Source Voltage - V
−0.05 V
−0.10 V
−0.15 V
−0.20 V
−0.25 V
−0.30 V
1002468
DRAIN CURRENT vs.
GATE TO SOURCE VOLTAGE
1.0
VDS = 5 V
0.8
0.6
1.00.80.60.40.2
0.4
- Drain Current - mA
D
I
0.2
−0.4 −0.2 0 0.2 0.4
GS
- Gate to Source Voltage - V
V
FORWARD TRANSFER ADMITTANCE vs.
GATE TO SOURCE VOLTAGE
3.0
2.5
2.0
1.5
1.0
0.5
| - Forward Transfer Admittance - mS
fs
0
| y
−0.4 −0.2−0.3 −0.1
GS
V
- Gate to Source Voltage -
0 0.2 0.40.1 0.3
VDS = 5 V
V
Data Sheet D10753EJ2V0DS
INPUT AND FEEDBACK CAPACITANCE vs.
DRAIN TO SOURCE VOLTAGE
10
8
C
5
3
- Capacitance - pF
OSS
2
, C
iSS
C
1
152
DS
- Drain to Source Voltage - V
V
ISS
C
OSS
10 20 50 100
VDS = 0 V
f = 1.0 kHz
3
Page 4

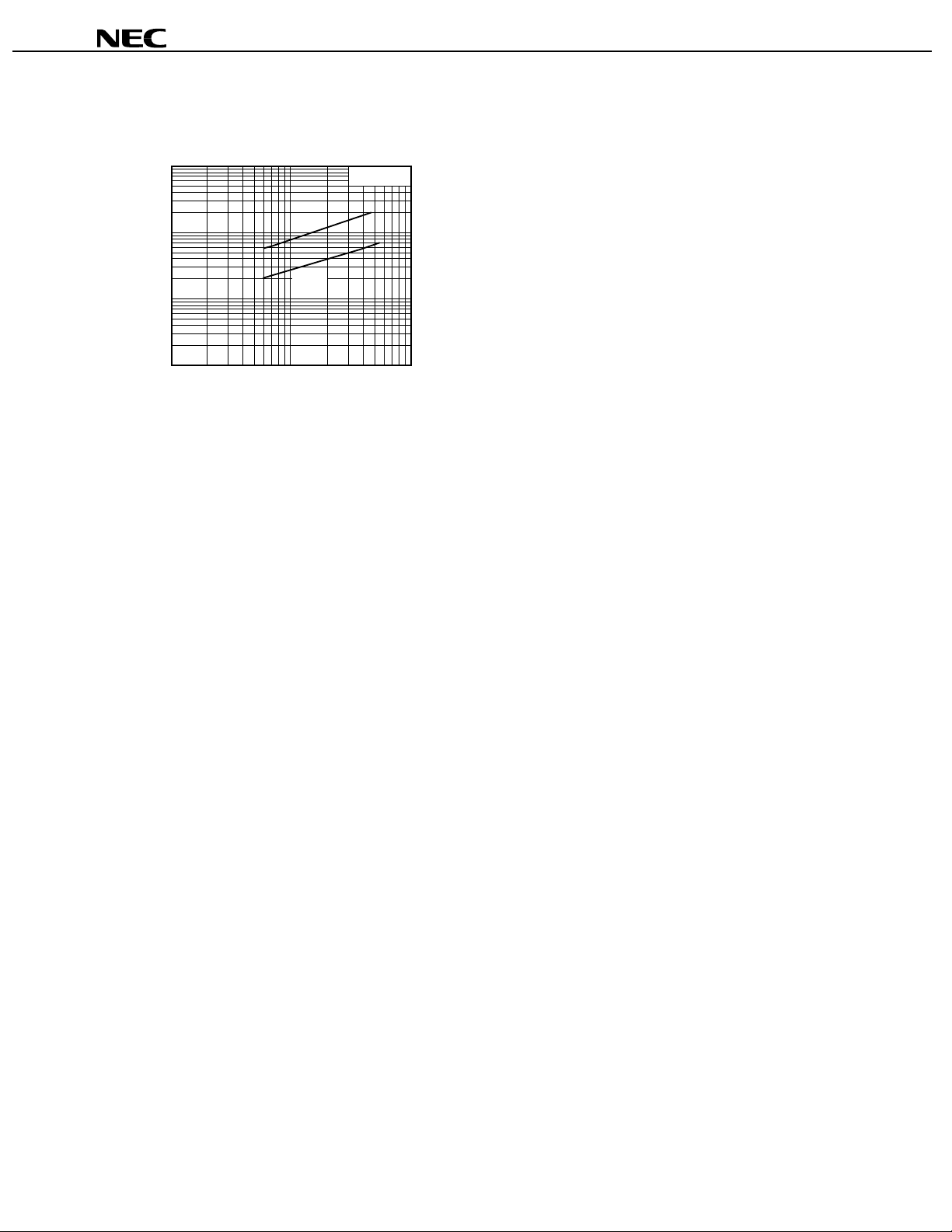

FORWARD TRANSFER ADMITTANCE AND
GATE TO SOURCE CUT-OFF VOLTAGE vs. ZEROGATE VOLTAGE DRAIN CURRENT CO-RELATION
10.0
5.0
2.0
1.0
0.5
| yfs |
VDS = 5 V
2SK660
0.2
0.1
0.05
0.02
0.01
| yfs | - Forward Transfer Admittance - mS
VGS (off) - Gate to Source Cut-off Voltage - V
20 50 100 200 500 1000
10
Zero-Gate Voltage Drain Current - A
VGS (off)
µ
4
Data Sheet D10753EJ2V0DS
Page 5

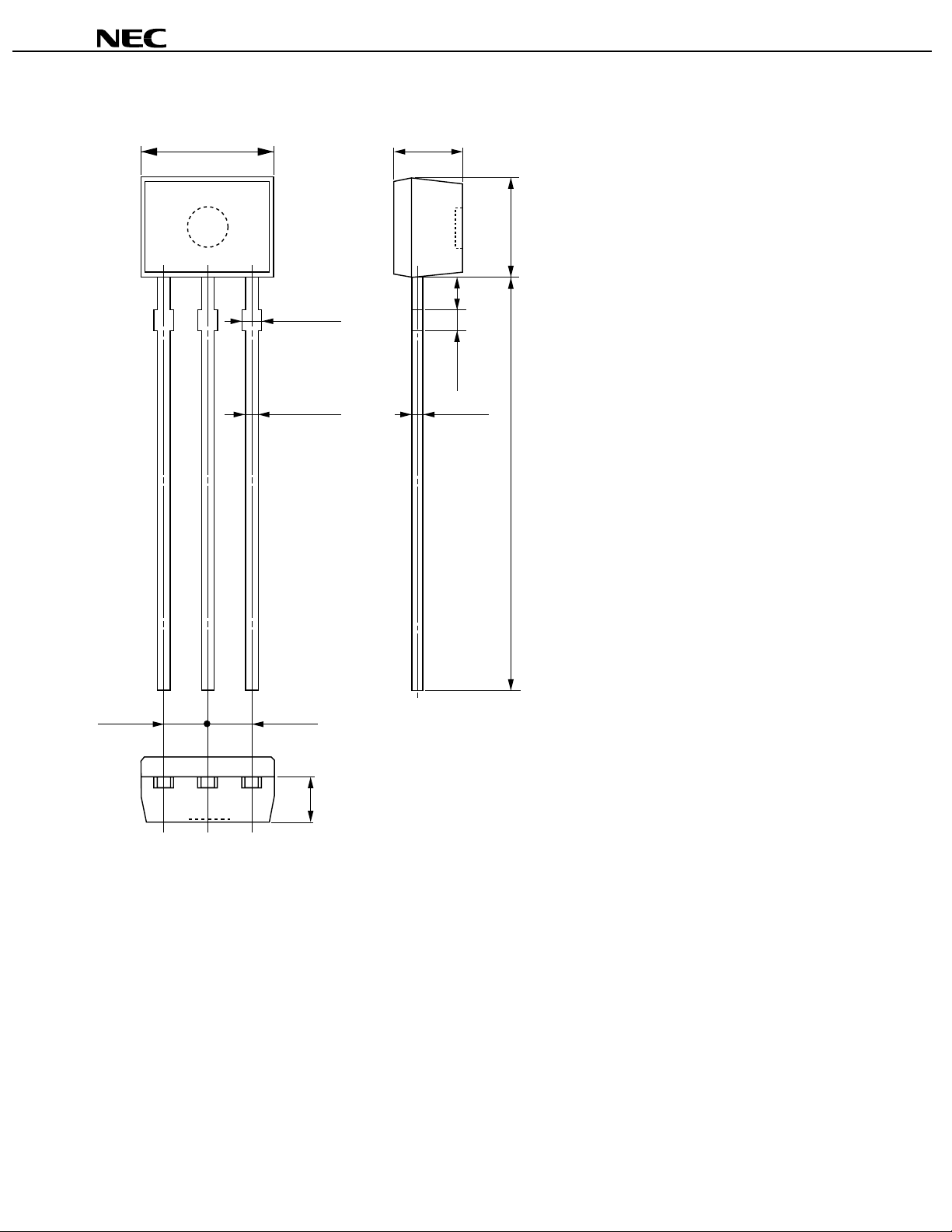

PACKAGE DRAWING (Unit: mm)
4.0±0.2 2.0±0.2
0.50 TYP.
0.45 TYP.
1.0
TYP.
0.6 TYP.
0.42 TYP.
2SK660
3.0±0.2
12.5 MIN.
DGS
1.27 TYP.
1.27 TYP.
1.35
TYP.
Data Sheet D10753EJ2V0DS
5
Page 6
[MEMO]
2SK660
6
Data Sheet D10753EJ2V0DS
Page 7
[MEMO]
2SK660
Data Sheet D10753EJ2V0DS
7
Page 8
2SK660
•
The information in this document is current as of January, 2002. The information is subject to
change without notice. For actual design-in, refer to the latest publications of NEC's data sheets or
data books, etc., for the most up-to-date specifications of NEC semiconductor products. Not all
products and/or types are available in every country. Please check with an NEC sales representative
for availability and additional information.
•
No part of this document may be copied or reproduced in any form or by any means without prior
written consent of NEC. NEC assumes no responsibility for any errors that may appear in this document.
•
NEC does not assume any liability for infringement of patents, copyrights or other intellectual property rights of
third parties by or arising from the use of NEC semiconductor products listed in this document or any other
liability arising from the use of such products. No license, express, implied or otherwise, is granted under any
patents, copyrights or other intellectual property rights of NEC or others.
•
Descriptions of circuits, software and other related information in this document are provided for illustrative
purposes in semiconductor product operation and application examples. The incorporation of these
circuits, software and information in the design of customer's equipment shall be done under the full
responsibility of customer. NEC assumes no responsibility for any losses incurred by customers or third
parties arising from the use of these circuits, software and information.
•
While NEC endeavours to enhance the quality, reliability and safety of NEC semiconductor products, customers
agree and acknowledge that the possibility of defects thereof cannot be eliminated entirely. To minimize
risks of damage to property or injury (including death) to persons arising from defects in NEC
semiconductor products, customers must incorporate sufficient safety measures in their design, such as
redundancy, fire-containment, and anti-failure features.
•
NEC semiconductor products are classified into the following three quality grades:
"Standard", "Special" and "Specific". The "Specific" quality grade applies only to semiconductor products
developed based on a customer-designated "quality assurance program" for a specific application. The
recommended applications of a semiconductor product depend on its quality grade, as indicated below.
Customers must check the quality grade of each semiconductor product before using it in a particular
application.
"Standard": Computers, office equipment, communications equipment, test and measurement equipment, audio
and visual equipment, home electronic appliances, machine tools, personal electronic equipment
and industrial robots
"Special": Transportation equipment (automobiles, trains, ships, etc.), traffic control systems, anti-disaster
systems, anti-crime systems, safety equipment and medical equipment (not specifically designed
for life support)
"Specific": Aircraft, aerospace equipment, submersible repeaters, nuclear reactor control systems, life
support systems and medical equipment for life support, etc.
The quality grade of NEC semiconductor products is "Standard" unless otherwise expressly specified in NEC's
data sheets or data books, etc. If customers wish to use NEC semiconductor products in applications not
intended by NEC, they must contact an NEC sales representative in advance to determine NEC's willingness
to support a given application.
(Note)
(1) "NEC" as used in this statement means NEC Corporation and also includes its majority-owned subsidiaries.
(2) "NEC semiconductor products" means any semiconductor product developed or manufactured by or for
NEC (as defined above).
M8E 00. 4
