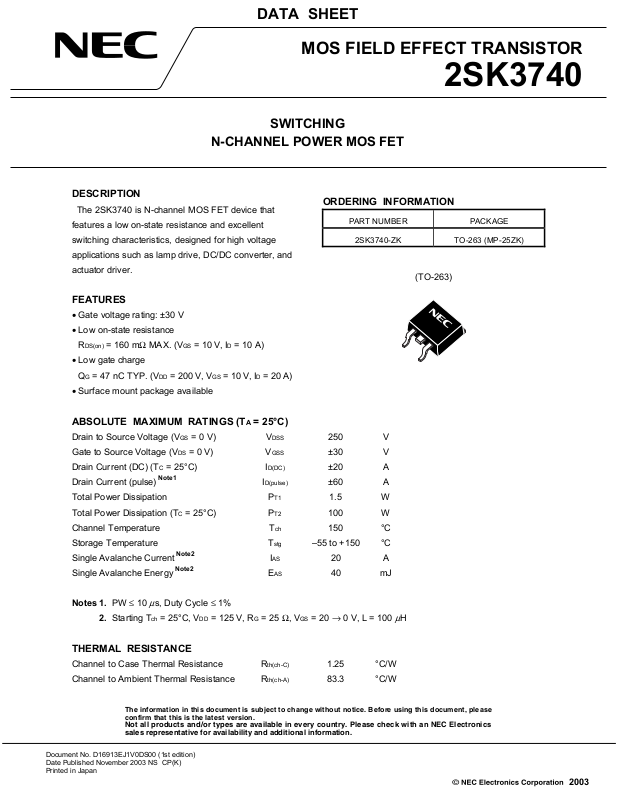

DATA SHEET

MOS FIELD EFFECT TRANSISTOR

SWITCHING

N-CHANNEL POWER MOS FET

DESCRIPTION

The 2SK3740 is N-channel MOS FET device that

features a low on-state resistance and excellent

switching characteristics, designed for high voltage

applications such as lamp drive, DC/DC converter, and

actuator driver.

FEATURES

• Gate voltage rating: ±30 V

• Low on-state resistance

DS(on) = 160 mΩ MAX. (VGS = 10 V, ID = 10 A)

R

• Low gate charge

G = 47 nC TYP. (VDD = 200 V, VGS = 10 V, ID = 20 A)

Q

• Surface mount package available

ABSOLUTE MAXIMUM RATINGS (TA = 25°C)

Drain to Source Voltage (VGS = 0 V) VDSS 250 V

Gate to Source Voltage (V

Drain Current (DC) (T

Drain Current (pulse)

Total Power Dissipation P

Total Power Dissipation (T

Channel Temperature T

Storage Temperature T

Single Avalanche Current

Single Avalanche Energy

DS = 0 V) VGSS ±30 V

C = 25°C) ID(DC) ±20 A

Note1

C = 25°C) PT2 100 W

Note2

ID(pulse) ±60 A

T1 1.5 W

ch 150 °C

stg –55 to +150 °C

IAS 20 A

EAS 40 mJ

Notes 1. PW ≤ 10 µs, Duty Cycle ≤ 1%

2. Starting T

ch = 25°C, VDD = 125 V, RG = 25 Ω, VGS = 20 → 0 V, L = 100

THERMAL RESISTANCE

Channel to Case Thermal Resistance Rth(ch-C) 1.25 °C/W

Channel to Ambient Thermal Resistance R

The information in this document is subject to change without notice. Before using this document, please confirm that this is the latest version.

Not all products and/or types are available in every country. Please check with an NEC Electronics sales representative for availability and additional information.

th(ch-A) 83.3 °C/W

ORDERING INFORMATION

PART NUMBER PACKAGE

2SK3740-ZK TO-263 (MP-25ZK)

(TO-263)

µ

H

2SK3740

Document No. D16913EJ1V0DS00 (1st edition) Date Published November 2003 NS CP(K) Printed in Japan

2003

2SK3740

ELECTRICAL CHARACTERISTICS (TA = 25°C)

CHARACTERISTICS SYMBOL TEST CONDITIONS MIN. TYP. MAX. UNIT

µ

Zero Gate Voltage Drain Current IDSS VDS = 250 V, VGS = 0 V 10

Gate Leakage Current IGSS

GS = ±30 V, VDS = 0 V

±10

V

Gate Cut-off Voltage VGS(off) VDS = 10 V, ID = 1.0 mA 2.5 3.5 4.5 V

Forward Transfer Admittance

Drain to Source On-state Resistance

Note

| y

fs | VDS = 10 V, ID = 10 A 7.0 15 S

RDS(on) VGS = 10 V, ID = 10 A 0.12 0.16

Input Capacitance Ciss VDS = 10 V 1720 pF

Output Capacitance Coss VGS = 0 V 330 pF

Reverse Transfer Capacitance Crss f = 1.0 MHz 170 pF

Turn-on Delay Time td(on) VDD = 125 V, ID = 10 A 17 ns

Rise Time tr VGS = 10 V 17 ns

R

Turn-off Delay Time td(off)

G = 0 Ω

49 ns

Fall Time tf 9 ns

Total Gate Charge QG VDD = 200 V 47 nC

Gate to Source Charge QGS VGS = 10 V 7 nC

Gate to Drain Charge QGD ID = 20 A 25 nC

Body Diode Forward Voltage

Note

V

F(S-D) IF = 20 A, VGS = 0 V 0.91 V

Reverse Recovery Time trr IF = 20 A, VGS = 0 V 210 ns

Reverse Recovery Charge Qrr

di/dt = 100 A/

µ

s

1.4

A

µ

A

Ω

µ

C

Note Pulsed

TEST CIRCUIT 1 AVALANCHE CAPABILITY

D.U.T.

L

V

DD

PG.

RG = 25 Ω

50 Ω

VGS = 20 → 0 V

DSS

BV

I

AS

V

I

D

V

DD

DS

Starting T

ch

TEST CIRCUIT 3 GATE CHARGE

D.U.T.

PG.

IG = 2 mA

50 Ω

R

L

V

DD

TEST CIRCUIT 2 SWITCHING TIME

D.U.T.

L

R

PG.

V

GS

0

τ = 1 s Duty Cycle ≤ 1%

G

V

DD

τ

µ

GS

V

Wave Form

I

D

Wave Form

V

GS

10%

0

I

90%

D

10%

0

t

d(on)

r

t

on

t

90%

V

GS

90%

I

D

10%

t

d(off)

t

f

t

off

2

Data Sheet D16913EJ1V0DS

TYPICAL CHARACTERISTICS (TA = 25°C)

µ

DERATING FACTOR OF FORWARD BIAS SAFE OPERATING AREA

120

2SK3740

TOTAL POWER DISSIPATION vs.

CASE TEMPERATURE

120

dT - Percentage of Rated Power - %

100

80

60

40

20

0

0 25 50 75 100 125 150 175

T

C - Case Temperature - °C

100

80

60

40

20

0

PT - Total Power Dissipation - W

0 25 50 75 100 125 150 175

T

C - Case Temperature - °C

FORWARD BIAS SAFE OPERATING AREA

100

10

I

D(DC)

I

D(pulse)

R

DS(on)

1

Limited

= 10 V)

(at V

GS

Power Dissipation Limited

PW = 100

ｓ

1 ms

10 ms

0.1

ID - Drain Current - A

0.01

0.1 1 10 100 1000

VDS - Drain to Source Voltage - V

TRANSIENT THERMAL RESISTANCE vs. PULSE WIDTH

1000

th(ch-A)

R

= 83.3°C/W

100

10

1

R

th(ch-C)

= 1.25°C/W

0.1

0.01

0.001

rth(t) - Transient Thermal Resistance - °C/W

µ

1 m 10 m 100 m 1 10 100 1000

100

PW - Pulse Width - s

Data Sheet D16913EJ1V0DS

3

C

Ω

2SK3740

70

60

50

40

30

20

10

ID - Drain Current - A

DRAIN CURRENT vs. DRAIN TO SOURCE VOLTAGE

VGS = 10 V Pulsed

0

0 5 10 15 20 25 30 35 40

VDS - Drain to Source Voltage - V

GATE CUT-OFF VOLTAGE vs. CHANNEL TEMPERATURE

4.5 VDS = 10 V

D

= 1.0 mA

I

4

FORWARD TRANSFER CHARACTERISTICS

100

VDS= 10 V

10

Pulsed

1

0.1

TA = 150°C

0.01

0.001

ID - Drain Current - A

0.0001 0123456789101112

FORWARD TRANSFER ADMITTANCE vs.

VGS - Gate to Source Voltage - V

DRAIN CURRENT

100

VDS= 10 V Pu ls e d

10

125°C

75°C 25°C 40°C

−

3.5

1

3

0.1

2.5

TA = −40°

25°

75° 125° 150°

2

VGS(off) - Gate Cut-off Voltage - V

-50 -25 0 25 50 75 100 125 150 175

T

ch - Channel Temperature - °C

DRAIN TO SOURCE ON-STATE RESISTANCE vs. DRAIN CURRENT

500

VGS = 10 V

450

Pulsed

400

350

300

250

200

150

100

50

0

RDS(on) - Drain to Source On-state Resistance - m

1 10 100

I

D - Drain Current - A

0.01

0.01 0.1 1 10 100

| yfs | - Forward Transfer Admittance - S

DRAIN TO SOURCE ON-STATE RESISTANCE vs. GATE TO SOURCE VOLTAGE

I

D - Drain Current - A

400

Pulsed

350

300

ID = 20 A

10 A

250

4 A

200

150

100

50

0

RDS(on) - Drain to Source On-state Resistance - mΩ

3456789101112

V

GS - Gate to Source Voltage - V

4

Data Sheet D16913EJ1V0DS

Ω

s

r

f

2SK3740

RDS(on) - Drain to Source On-state Resistance - m

1000

DRAIN TO SOURCE ON-STATE RESISTANCE vs. CHANNEL TEMPERATURE

350

VGS = 10 V

300

Pulsed

250

200

150

ID = 20 A

10 A

100

50

0

-50 -25 0 25 50 75 100 125 150 175

T

ch - Channel Temperature - °C

SWITCHING CHARACTERISTICS

VDD = 125 V

GS

= 10 V

V

G

= 0

R

Ω

100

10

t

d(on)

t

d(off)

t

CAPACITANCE vs. DRAIN TO SOURCE VOLTAGE

10000

VGS = 0 V f = 1.0 MHz

C

1000

100

C

10

Ciss, Coss, Crss - Capacitance - pF

0.1 1 10 100 1000

V

DS - Drain to Source Voltage - V

is

C

os

rs

DYNAMIC INPUT/OUTPUT CHARACTERISTICS

350

14

ID = 20 A

300

12

VDD = 200 V

250

125 V

10

50 V

200

150

100

50

GS

V

DS

V

8

6

4

2

1

td(on), tr, td(off), tf - Switching Time - ns

0.1 1 10 100

I

D - Drain Current - A

0

VDS - Drain to Source Voltage - V

0 1020304050

QG - Gate Charge - nC

0

SOURCE TO DRAIN DIODE FORWARD VOLTAGE REVERSE RECOVERY TIME vs.

DIODE FORWARD CURRENT

100

Pulsed

1000

VGS = 0 V di/dt = 100 A/µs

10

VGS = 10 V

1

100

0 V

0.1

IF - Diode Forward Current - A

0.01

00.511.5

V

F(S-D) - Source to Drain Voltage - V

10

trr - Reverse Recovery Time - ns

0.1 1 10 100

I

F - Diode Forward Current - A

VGS - Gate to Source Voltage - V

Data Sheet D16913EJ1V0DS

5

C

SINGLE AVALANCHE CURRENT vs.

INDUCTIVE LOAD

100

IAS = 20 A

10

EAS = 40 mJ

VDD = 125 V

= 25

R

G

Ω

= 20 → 0 V

V

GS

Starting T

= 25°

ch

1

IAS - Single Avalanche Current - A

0.01 0.1 1 10

L - Inductive Load - mH

SINGLE AVALANCHE ENERGY

DERATING FACTOR

100

80

60

40

20

0

Energy Derating Factor - %

25 50 75 100 125 150

Starting T

ch - Starting Channel Temperature - °C

VDD = 125 V

G

= 25

R V I

GS

= 20 →0 V

AS

≤ 20 A

Ω

2SK3740

6

Data Sheet D16913EJ1V0DS

PACKAGE DRAWING (Unit: mm)

TO-263 (MP-25ZK)

2SK3740

No plating

10.0±0.3

7.88 MIN.

4

8.0 TYP.

0.75±0.2

2.54

123

EQUIVALENT CIRCUIT

Drain

Body

Gate

Diode

1.35±0.3

9.15±0.3

2.5

15.25±0.5

0.5±0.2

4.45±0.2

0.025 to

0.25

0 to 8

o

0.25

1.Gate

2.Drain

3.Source

4.Fin (Drain)

1.3±0.2

2.54±0.25

Gate Protection Diode

Source

Remark The diode connected between the gate and source of the transistor serves as a protector against ESD.

When this device actually used, an additional protection circuit is externally required if a voltage exceeding

the rated voltage may be applied to this device.

Data Sheet D16913EJ1V0DS

7

2SK3740

•
