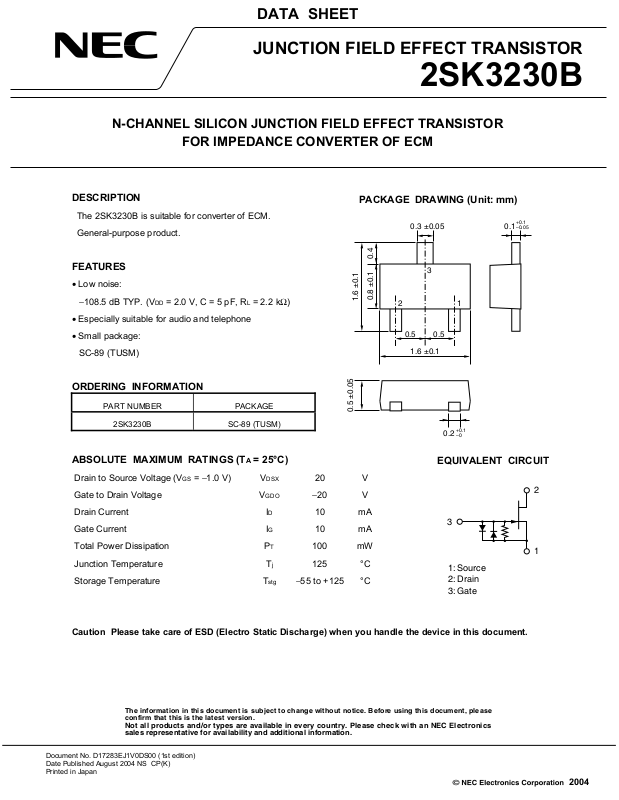

DATA SHEET

JUNCTION FIELD EFFECT TRANSISTOR

2SK3230B

N-CHANNEL SILICON JUNCTION FIELD EFFECT TRANSISTOR

FOR IMPEDANCE CONVERTER OF ECM

DESCRIPTION

PACKAGE DRAWING (Unit: mm)

The 2SK3230B is suitable for converter of ECM.

General-purpose product.

FEATURES

• Low noise:

0.8 ±0.1 0.4

−108.5 dB TYP. (V

DD = 2.0 V, C = 5 pF, RL = 2.2 kΩ)

1.6 ±0.1

• Especially suitable for audio and telephone

• Small package:

SC-89 (TUSM)

ORDERING INFORMATION

PART NUMBER PACKAGE

2SK3230B SC-89 (TUSM)

0.5 ±0.05

ABSOLUTE MAXIMUM RATINGS (TA = 25°C)

Drain to Source Voltage (VGS = −1.0 V) VDSX 20 V

Gate to Drain Voltage V

GDO −20 V

0.3 ±0.05

2

1.6 ±0.1

3

1

0.50.5

+0.1

0.2

–0

0.1

+0.1
–0.05

EQUIVALENT CIRCUIT

2

Drain Current I

Gate Current I

Total Power Dissipation P

Junction Temperature T

Storage Temperature T

D 10 mA

G 10 mA

T 100 mW

j 125 °C

stg −55 to +125 °C

3

1: Source
2: Drain
3: Gate

Caution Please take care of ESD (Electro Static Discharge) when you handle the device in this document.

The information in this document is subject to change without notice. Before using this document, please
confirm that this is the latest version.

Not all products and/or types are available in every country. Please check with an NEC Electronics
sales representative for availability and additional information.

Document No. D17283EJ1V0DS00 (1st edition)
Date Published August 2004 NS CP(K)
Printed in Japan

1

2004

ELECTRICAL CHARACTERISTICS (TA = 25°C)

CHARACTERISTICS SYMBOL TEST CONDITIONS MIN. TYP. MAX. UNIT

2SK3230B

Zero Gate Voltage Drain Cut-off Current

Gate Cut-off Voltage

Forward Transfer Admittance

Input Capacitance

Voltage Gain

Noise Voltage

I

DSS VDS = 2.0 V, VGS = 0 V 90 200 430

V

GS(off) VDS = 2.0 V, I D = 1.0

| y

fs1 | VDS = 2.0 V, ID = 30

| y

fs2 | VDS = 2.0 V, VGS = 0 V, f = 1.0 kHz 750 1300

C

iss VDS = 2.0 V, VGS = 0 V, f = 1.0 MHz 4.0 pF

G

V VDD = 2.0 V, C = 5 pF, RL = 2.2 kΩ, −1.0 dB

V

NV V

A-curve

IN = 10 mV, f = 1 kHz

DD = 2.0 V, C = 5 pF, RL = 2.2 kΩ, −108.5 dB

µ

A −0.37 −1.0 V

µ

A, f = 1.0 kHz 300 480

IDSS CLASSIFICATION

MARKING CE CF CH CJ

IDSS (µA) 90 to 180 150 to 240 210 to 350 320 to 430

VOLTAGE GAIN TEST CIRCUIT

V

DD

µ

A

µ

S

µ

S

L

R

Out

C

NOISE VOLTAGE TEST CIRCUIT

VDD

L

R

NV (r.m.s)JIS A

C

2

Data Sheet D17283EJ1V0DS

TYPICAL CHARACTERISTICS (TA = 25°C)

V

DERATING FACTOR OF POWER DISSIPATION DRAIN CURRENT vs.

120

2SK3230B

DRAIN TO SOURCE VOLTAGE

1000

100

dT - Derating Factor - %

80

60

40

20

0

0 25 50 75 100 125 150 175

T

A - Ambient Temperature - °C

800

A

µ

−0.2 V

−0.3 V

600

400

200

ID - Drain Current -

0

0246810

V

DS - Drain to Source Voltage - V

VGS = 0.2 V

0.1 V

0 V

−0.1 V

A

µ

IGS - Gate to Source Current -

GATE TO SOURCE CURRENT vs.
GATE TO SOURCE VOLTAGE

40

30

20

10

−

−

−

−

0.6

0.8

0.4

0.2

−10

−20

−30

−

40

0

0.2 0.4 0.6 0.8

V

GS - Gate to Source Voltage - V

DRAIN CURRENT vs.

GATE TO SOURCE VOLTAGE

1600

VDS= 2.0

1400

A

µ

1200

1000

800

600

400

200

ID - Drain Current -

0

-0.8 -0.6 -0.4 -0.2 0 0.2 0.4 0.6 0.8 1

V

GS - Gate to Source Voltage - V

INPUT CAPACITANCE vs.
DRAIN TO SOURCE VOLTAGE

FORWARD TRANSFER ADMITTANCE AND GATE
CUT-OFF VOLTAGE vs. ZERO GATE VOLTAGE
DRAIN CURRENT

10

VGS = 0 V

10

VDS= 2.0 V

f = 1.0 MHz

| yfs |

1

GS(off)

V

Ciss - Input Capacitance - pF

1

110100

V

DS - Drain to Source Voltage - V

GS(off) - Gate Cut-off Voltage - V

V

0.1

| yfs | - Forward Transfer Admittance - mS

10 100 1000

I

DSS - Zero Gate Voltage Drain Current -

µ

A

Data Sheet D17283EJ1V0DS

3

2SK3230B

VOLTAGE GAIN vs. DRAIN CURRENT

3

VDD = 2.0 V
C = 5 pF

2

L

= 2.2 kΩ

R

1

IN

= 10 mV

V
f = 1 kHz

0

−1

−2

−3

−4

GV - Voltage Gain - dB

−5
10 100 1000

I

DSS - Drain Current -

NOISE VOLTAGE vs. DRAIN CURRENT

−103

−105

VDD = 2.0 V
C = 5 pF

L

= 2.2 kΩ

R

−107

−109

−111

−113

NV - Noise Voltage - dB

−115

µ

A

10 100 1000

I

DSS - Drain Current -

µ

A

4

Data Sheet D17283EJ1V0DS

2SK3230B

•
