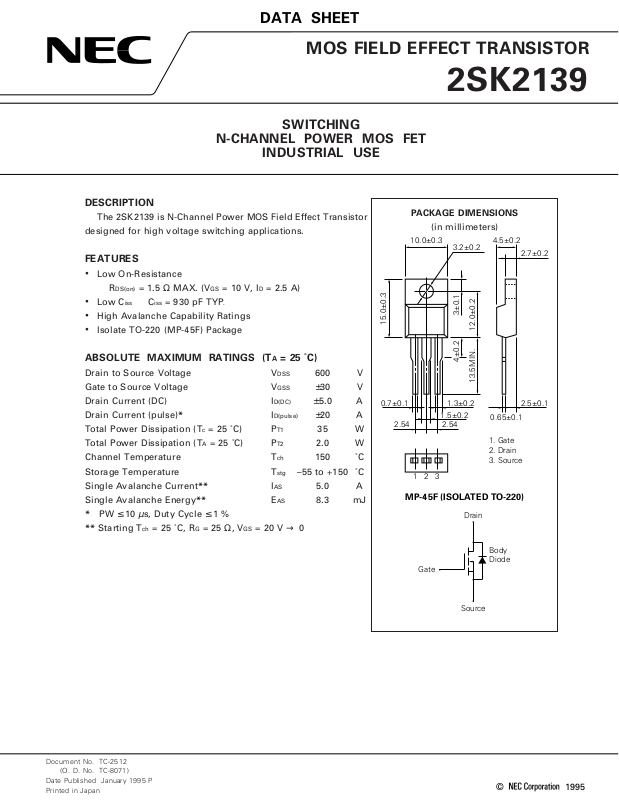

DATA SHEET
MOS FIELD EFFECT TRANSISTOR
SWITCHING
N-CHANNEL POWER MOS FET
INDUSTRIAL USE
2SK2139
DESCRIPTION
The 2SK2139 is N-Channel Power MOS Field Effect Transistor
designed for high voltage switching applications.
FEATURES
• Low On-Resistance
RDS(on) = 1.5 Ω MAX. (VGS = 10 V, ID = 2.5 A)
• Low Ciss Ciss = 930 pF TYP.
• High Avalanche Capability Ratings
• Isolate TO-220 (MP-45F) Package
ABSOLUTE MAXIMUM RATINGS (TA = 25 ˚C)
Drain to Source Voltage VDSS 600 V
Gate to Source Voltage V
Drain Current (DC) ID(DC) ±5.0 A
Drain Current (pulse)* ID(pulse) ±20 A
Total Power Dissipation (Tc = 25 ˚C) PT1 35 W
Total Power Dissipation (T
Channel Temperature Tch 150 ˚C
Storage Temperature Tstg –55 to +150 ˚C
Single Avalanche Current** I
Single Avalanche Energy** EAS 8.3 mJ
* PW ≤ 10 µs, Duty Cycle ≤ 1 %
** Starting T
ch = 25 ˚C, RG = 25 Ω, VGS = 20 V → 0
A = 25 ˚C) PT2 2.0 W
GSS ±30 V
AS 5.0 A
PACKAGE DIMENSIONS
(in millimeters)
10.0±0.3 4.5±0.2
15.0±0.3
0.7±0.1
2.54
123
MP-45F (ISOLATED TO-220)
3.2±0.2
3±0.14±0.2
1.5±0.2
2.54
Drain
2.7±0.2
12.0±0.213.5MIN.
2.5±0.11.3±0.2
0.65±0.1
1. Gate
2. Drain
3. Source
Document No. TC-2512
(O. D. No. TC-8071)
Date Published January 1995 P
Printed in Japan
Gate
Source
Body
Diode
©
1995
Page 2
ELECTRICAL CHARACTERISTICS (TA = 25 ˚C)
2SK2139
CHARACTERISTIC SYMBOL MIN. TYP. MAX. TEST CONDITIONS
Drain to Source On-state Resistance RDS(on) 1.1 1.5 VGS = 10 V, ID = 2.5 A
Gate to Source Cutoff Voltage VGS(off) 2.5 3.5 VDS = 10 V, ID = 1 mA
Forward Transfer Admittance | yfs | 1.5 VDS = 10 V, ID = 2.5 A
Drain Leakage Current IDSS 100 VDS = 600 V, VGS = 0
Gate to Source Leakage Current IGSS ±100 VGS = ±30 V, VDS = 0
Input Capacitance Ciss 930 VDS = 10 V
Output Capacitance Coss 200 VGS = 0
Reverse Transfer Capacitance Crss 40 f = 1 MHz
Turn-On Delay Time td(on) 20 VGS = 10 V
Rise Time tr 10 VDD = 150 V
Turn-Off Delay Time td(off) 60
Fall Time tf 12 R
Total Gate Charge QG 30 VGS = 10 V
Gate to Source Charge QGS 6.0 ID = 5.0 V
Gate to Drain Charge QGD 15 VDD = 450 V
Diode Forward Voltage VF(S-D) 1.0 IF = 5.0 A, VGS = 0
Reverse Recovery Time trr 320 IF = 5.0 A
Reverse Recovery Charge Qrr 1.4 di/dt = 50 A/µs
UNIT
Ω
V
S
µ
nA
pF
pF
pF
ns
ns
ns
ns
nC
nC
nC
V
ns
µ
A
C
ID = 2.5 A, R
= 60 Ω
L
= 10 Ω
G
Test Circuit 1 Avalanche Capability
D.U.T.
G = 25 Ω
R
PG
VGS = 20 - 0 V
50 Ω
BVDSS
IAS
ID
VDS
VDD
Starting Tch
Test Circuit 3 Gate Charge
D.U.T.
I
G = 2 mA
PG.
50 Ω
L
V
RL
VDD
Test Circuit 2 Switching Time
D.U.T.
L
R
DD
PG.
RG
G = 10 Ω
R
VDD
VGS
0
t
t = 1us
Duty Cycle ≤ 1 %
VGS
Wave Form
ID
Wave Form
VGS
10 %
0
ID
90 %
10 %
0
td (on) tr td (off) tf
ton toff
90 %
GS (on)
V
90 %
ID
10 %
The application circuits and their parameters are for references only and are not intended for use in actual design-in's.
2
Page 3
TYPICAL CHARACTERISTICS (TA = 25 ˚C)
g
2SK2139
DERATING FACTOR OF FORWARD BIAS
SAFE OPERATING AREA
100
80
60
40
20
dT - Percentage of Rated Power - %
0
20 140 160
6040 80 100 120
T
C - Case Temperature - ˚C
FORWARD BIAS SAFE OPERATING AREA
100
ID (pulse)
= 20 V)
10
Limited (at V
DS (on)
R
GS
ID (DC)
Power Dissipation Limited
100 ms
1.0
ID - Drain Current - A
1 ms
10 ms
PW = 10 s
100 s
µ
µ
TOTAL POWER DISSIPATION vs.
CASE TEMPERATURE
80
60
40
20
PT - Total Power Dissipation - W
0
20 140 160
6040 80 100 120
T
C - Case Temperature - ˚C
DRAIN CURRENT vs.
DRAIN TO SOURCE VOLTAGE
10
5
ID - Drain Current - A
VGS = 20 V
Pulsed
10 V
8 V
6 V
TC = 25 ˚C
Single Pulse
0.1
DS - Drain to Source Voltage - V
V
DRAIN CURRENT vs.
GATE TO SOURCE VOLTAGE
50
Tch = 125 ˚C
10
ID - Drain Current - A
1.0
0
GS - Gate to Source Volta
V
10 100 1 000
75 ˚C
25 ˚C
–25 ˚C
VDS = 10 V
Pulsed
510
e - V
01
DS - Drain to Source Voltage - V
V
105
3
Page 4
2SK2139
p
1 000
100
10
1
0.1
0.01
0.001
rth (ch-c) (t) - Transient Thermal Resistance - ˚C/W
10 100 1 m 10 m 100 m 1 10 100 1 000
µµ
FORWARD TRANSFER ADMITTANCE vs.
DRAIN CURRENT
10
Tch = –25 ˚C
25 ˚C
75 ˚C
125 ˚C
TRANSIENT THERMAL RESISTANCE vs. PULSE WIDTH
Rth (ch-a) = 62.5 (˚C/W)
Rth (ch-c) = 3.57 (˚C/W)
C = 25 ˚C
T
Single Pulse
PW - Pulse Width - s
DRAIN TO SOURCE ON-STATE RESISTANCE vs.
GATE TO SOURCE VOLTAGE
2.0
Pulsed
ID = 5 A
2.5 A
1.0
VDS = 10 V
Pulsed
| yfs | - Forward Transfer Admittance - S
0.1
I
1.0 100
D - Drain Current - A
DRAIN TO SOURCE ON-STATE
RESISTANCE vs. DRAIN CURRENT
4.0
2.0
VGS = 10 V
20 V
1.0
RDS (on) - Drain to Source On-State Resistance - Ω
I
10 100
D - Drain Current - A
Pulsed
1.0
0
RDS (on) - Drain to Source On-State Resistance - Ω
420
V
GS - Gate to Source Voltage (V)
81216
GATE TO SOURCE CUTOFF VOLTAGE
vs. CHANNEL TEMPERATURE
4.0
3.0
2.0
1.0
VDS = 10 V
V
DS = 10 V
ID = 1mA
ID = 1mA
VGS (off) - Gate to Source Cutoff Voltage - V
0
–50 0 50 100 150
T
ch - Channel Tem
erature - ˚C
4
Page 5
2SK2139
DRAIN TO SOURCE ON-STATE RESISTANCE vs.
CHANNEL TEMPERATURE
2.0
ID = 2.5 A
1.0
0
–50 0 50 100
RDS (on) - Drain to Source On-State Resistance - Ω
T
ch - Channel Temperature - ˚C
CAPACITANCE vs. DRAIN TO
SOURCE VOLTAGE
10 000
1 000
VGS = 10 V
Pulsed
VGS = 0 V
f = 1 MHz
Ciss
150
SOURCE TO DRAIN DIODE
FORWARD VOLTAGE
100
Pulsed
10
10 V
1.0
ISD - Diode Forward Current - A
0.1
0
V
SD - Source to Drain Voltage - V
SWITCHING CHARACTERISTICS
1 000
100
VGS = 0 V
1.5
2.01.00.5
tr
tf
100
10
Coss
Crss
Ciss, Coss, Crss - Capacitance - pF
1
0.1
1.0 1 000
DS - Drain to Source Voltage - V
V
10 100
DYNAMIC INPUT CHARACTERISTICS
800
ID = ID (DC)
VDS = 450 V
600
300 V
150 V
400
VGS
200
VDS - Drain to Source Voltage - V
VDS
0 10203040
Qg - Gate Charge - nC
16
14
12
10
8
6
4
VGS - Gate to Source Voltage - V
2
0
10
VDD = 150 V
VGS = 10 V
td (on), tr, td (off), tf - Switching Time - ns
RG = 10 Ω
1.0
1.0
D - Drain Current - A
I
REVERSE RECOVERY TIME vs.
DIODE FORWARD CURRENT
800
600
400
200
trr - Reverse Recovery Time - ns
0
0.1
0.1
1.0 10 100
D - Drain Current - A
I
td (on)
td (off)
10 100
di/dt = 50 A/ s
µ
VGS = 0
10 100
5
Page 6
2SK2139
SINGLE AVALANCHE CURRENT vs.
INDUCTIVE LOAD
10
IAS = 5A
1.0
RG = 25 Ω
V
DD = 150 V
V
GS = 20 V →0
IAS - Single Avalanche Current - A
0.1
Starting T
100
ch
µ
1 m 10 m 100 m
L - Inductance - H
E
AS
= 8.3 mJ
SINGLE AVALANCHE ENERGY vs.
STARTING CHANNEL TEMPERATURE
12
10
ID (peak)= ID (DC)
VDD = 150 V
8
6
4
2
EAS - Single Avalanche Energy - mJ
0
25 50
75 100 125 150
Starting Tch - Starting Channel Temperature - ˚C
6
Page 7
2SK2139
REFERENCE
Document Name Document No.
NEC semiconductor device reliability/quality control system. TEI-1202
Quality grade on NEC semiconductor devices. IEI-1209
Semiconductor device mounting technology manual. IEI-1207
Semiconductor device package manual. IEI-1213
Guide to quality assurance for semiconductor devices. MEI-1202
Semiconductor selection guide. MF-1134
Power MOS FET features and application switching power supply. TEA-1034
Application circuits using Power MOS FET. TEA-1035
Safe operating area of Power MOS FET. TEA-1037
The diode connected between the gate and source of the transistor serves as a protector against ESD. When
this device is actually used, an additional protection circuit is externally required if a voltage exceeding the
rated voltage may be applied to this device.
7
Page 8
2SK2139
[MEMO]
