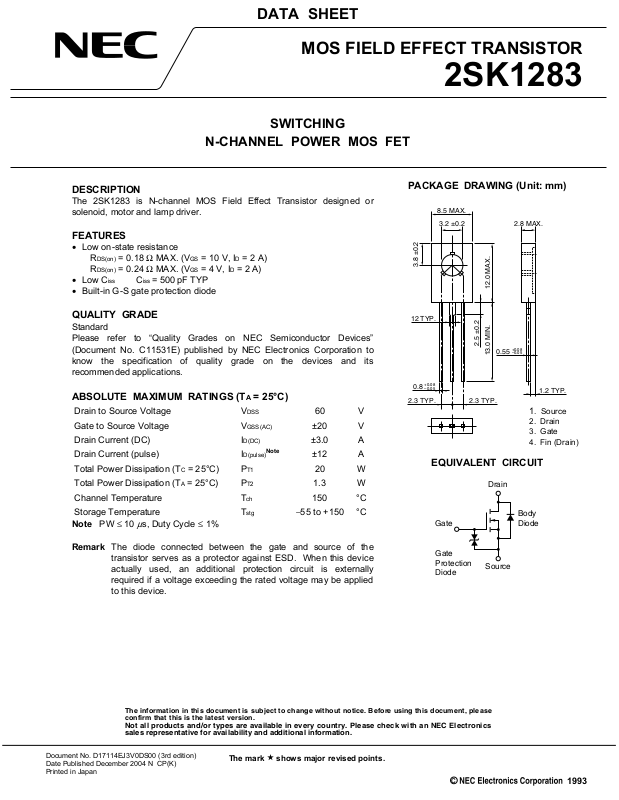

DATA SHEET
MOS FIELD EFFECT TRANSISTOR
SWITCHING
N-CHANNEL POWER MOS FET
DESCRIPTION
The 2SK1283 is N-channel MOS Field Effect Transistor designed or
solenoid, motor and lamp driver.
FEATURES
• Low on-state resistance
RDS(on) = 0.18 Ω MAX. (VGS = 10 V, ID = 2 A)
DS(on) = 0.24 Ω MAX. (VGS = 4 V, ID = 2 A)
R
• Low C
iss Ciss = 500 pF TYP
• Built-in G-S gate protection diode
QUALITY GRADE
Standard
Please refer to “Quality Grades on NEC Semiconductor Devices”
(Document No. C11531E) published by NEC Electronics Corporation to
know the specification of quality grade on the devices and its
recommended applications.
ABSOLUTE MAXIMUM RATINGS (TA = 25°C)
Drain to Source Voltage VDSS 60 V
Gate to Source Voltage VGSS(AC) ±20 V
Drain Current (DC) I
Drain Current (pulse)
Total Power Dissipation (TC = 25°C) PT1 20 W
Total Power Dissipation (TA = 25°C) PT2 1.3 W
Channel Temperature T
Storage Temperature Tstg −55 to +150 °C
µ
Note PW ≤ 10
s, Duty Cycle ≤ 1%
Remark The diode connected between the gate and source of the
transistor serves as a protector against ESD. When this device
actually used, an additional protection circuit is externally
required if a voltage exceeding the rated voltage may be applied
to this device.
D(DC) ±3.0 A
Note
I
D(pulse)
ch 150 °C
±12 A
PACKAGE DRAWING (Unit: mm)
12 TYP.
0.8
2SK1283
2.3 TYP.2.3 TYP.
12.0 MAX.13.0 MIN.
2.5 ±0.2
0.55
Drain
Source
2.8 MAX.
+0.08
–0.05
Body
Diode
8.5 MAX.
3.2 ±0.2
3.8 ±0.2
+0.08
–0.05
EQUIVALENT CIRCUIT
Gate
Gate
Protection
Diode
1.2 TYP.
1
. Source
2. Drain
3. Gate
4. Fin (Drain)
