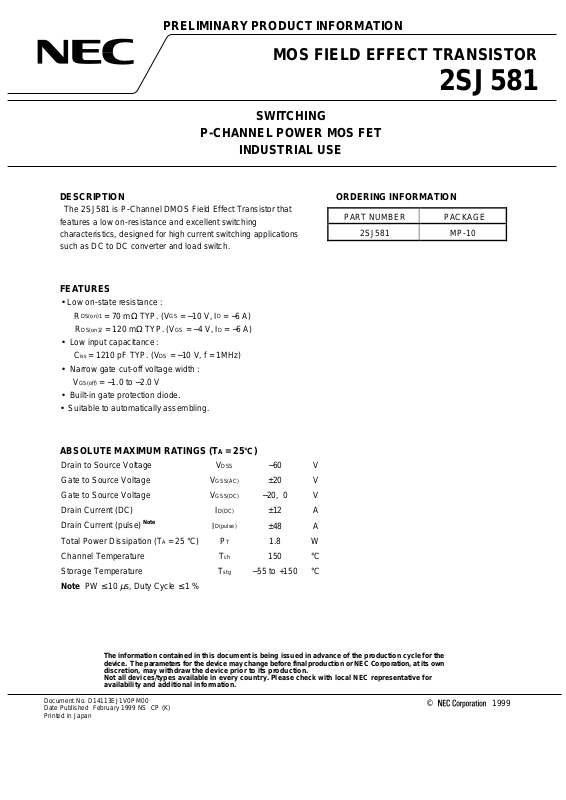

PRELIMINARY PRODUCT INFORMATION
MOS FIELD EFFECT TRANSISTOR
2SJ581
SWITCHING
P-CHANNEL POWER MOS FET
INDUSTRIAL USE
DESCRIPTION ORDERING INFORMATION
The 2SJ581 is P-Channel DMOS Field Effect Transistor that
features a low on-resistance and excellent switching
characteristics, designed for high current switching applications
such as DC to DC converter and load switch.
FEATURES
• Low on-state resistance :
DS(on)1
R
R
• Low input capacitance :
Ciss
• Narrow gate cut-off voltage width :
V
• Built-in gate protection diode.
• Suitable to automatically assembling.
= 70 mΩ TYP. (VGS = −10 V, ID = −6 A)
DS(on)2
= 120 mΩ TYP. (VGS = −4 V, ID = −6 A)
= 1210 pF TYP. (VDS = −10 V, f = 1MHz)
GS(off)
= −1.0 to −2.0 V
PART NUMBER PACKAGE
2SJ581 MP-10
ABSOLUTE MAXIMUM RATINGS (TA = 25°C)
Drain to Source Voltage V
Gate to Source Voltage V
Gate to Source Voltage V
Drain Current (DC) I
Drain Current (pulse)
Total Power Dissipation (T
Note
A
= 25 °C) P
Channel Temperature T
Storage Temperature T
Note
PW ≤ 10
Document No. D14113EJ1V0PM00
Date Published February 1999 NS CP (K)
Printed in Japan
µ
s, Duty Cycle ≤ 1 %
The information contained in this document is being issued in advance of the production cycle for the
device. The parameters for the device may change before final production or NEC Corporation, at its own
discretion, may withdraw the device prior to its production.
Not all devices/types available in every country. Please check with local NEC representative for
availability and additional information.
GSS(AC)
GSS(DC)
D(pulse)
I
DSS
D(DC)
T
ch
stg
−60 V
±20 V
−20, 0 V
±12 A
±48 A
1.8 W
150 °C
−55 to +150 °C
©
1999
Page 2
ELECTRICAL CHARACTERISTICS(TA = 25°C)
CHARACTERISTICS SYMBOL TEST CONDITIONS MIN. TYP. MAX. UNIT
2SJ581
Drain Leakage Current I
Gate Leakage Current I
Gate Cut-off Voltage V
DSS
VDS = −60 V, VGS = 0 V
GSS
VGS = ±10 V, VDS = 0 V ±10
GS(off)VDS
= −10 V, ID = −1.0 mA
10
−
1.0
−
2.0 V
−
Forward Transfer Admittance | yfs |VDS = −10 V, ID = −6 A 5.0 S
DS(on)1VGS
Drain to Source On-state Resistance
R
R
Input Capacitance C
Output Capacitance C
Reverse Transfer Capacitance C
Turn-on Delay Time t
Rise Time t
Turn-off Delay Time t
Fall Time t
Total Gate Charge Q
Gate to Source Charge Q
Gate to Drain Charge Q
Diode Forward Voltage V
Reverse Recovery Time t
Reverse Recovery Charge Q
DS(on)2VGS
iss
oss
rss
d(on)
r
d(off)
f
G
GS
GD
F(S-D)IF
rr
rr
= −10 V, ID = −6 A 70 100 m
= −4 V, ID = −6 A 120 185 m
VDS = −10 V, VGS = 0 V, f = 1 MHz
1210 pF
520 pF
180 pF
ID = −6 A, V
DD
V
= −30 V,
G
= 10
R
Ω
GS(on)
= −10 V,
15 ns
130 ns
95 ns
80 ns
ID = −12 A, VDD = −48 V,
GS(on)
= −10 V
V
42 nC
8.0 nC
10 nC
= −12 A, VGS = 0 V 1.0 V
IF = −12 A, VGS = 0 V,
di/dt = 100 A/
s
µ
120 ns
230 nC
A
µ
A
µ
Ω
Ω
TEST CIRCUIT 1 SWITCHING TIME TEST CIRCUIT 2 GATE CHARGE
PG.
V
GS
(−)
0
τ
τ = 1 s
µ
Duty Cycle ≤ 1 %
D.U.T.
G
R
RG = 10 Ω
V
GS
0
(−)
10 %
V
GS(on)
90 %
PG.
I
90 %
D
(−)
0
10 %
t
d(on)
t
r
t
on
90 %
I
D
t
d(off)
10 %
t
f
t
off
R
L
GS
V
Wave Form
V
DD
I
D
Wave Form
IG = −2 mA
50 Ω
D.U.T.
R
L
V
DD
2
Preliminary Product Information D14113EJ1V0PM00
Page 3
PACKAGE DRAWING (Unit : mm)
2SJ581
MP-10 (Isolated TO-220 class Package
for Automatically Assembling)
4.5±0.2
8.0±0.2
Gate
13.0±0.22.5±0.2
1.4±0.2
132
1.4±0.2
0.5±0.1 0.5±0.10.5±0.1
1.Gate
2.Drain
3.Source
Gate
Protection
Diode
EQUIVALENT CIRCUIT
Drain
Body
Diode
Source
Remark
When this device actually used, an additional protection circuit is externally required if a voltage exceeding the
The diode connected between the gate and source of the transistor serves as a protector against ESD.
rated voltage may be applied to this device.
Preliminary Product Information D14113EJ1V0PM00
3
Page 4
