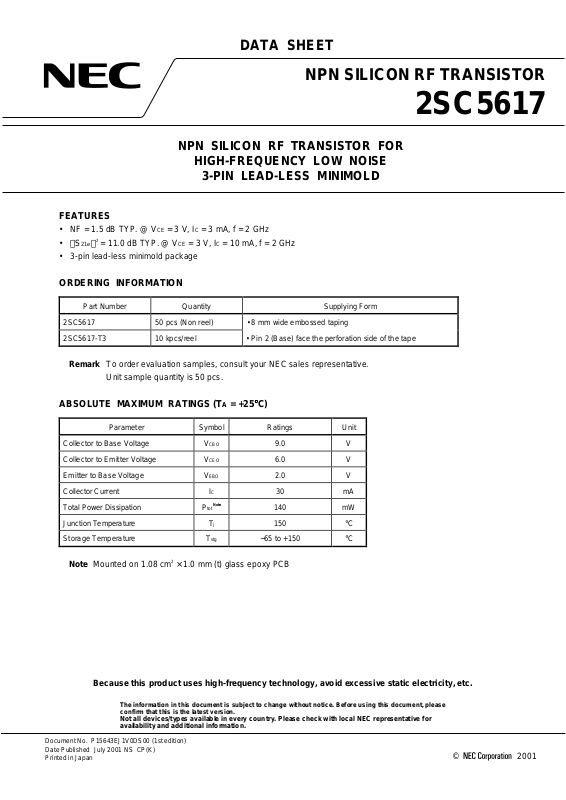

• NF = 1.5 dB TYP. @ VCE = 3 V, IC = 3 mA, f = 2 GHz
•S
• 3-pin lead-less minimold package
ORDERING INFORMATION
2SC561750 pcs (Non reel)• 8 mm wide embossed taping
2SC5617-T310 kpcs/reel• Pin 2 (Base) face the perforat i on side of the tape
2
21e
= 11.0 dB TYP. @ VCE = 3 V, IC = 10 mA, f = 2 GHz
Part NumberQuantitySupplying Form
2SC5617
Remark
To order evaluation samples, consult your NEC sales representative.
Unit sample quantity is 50 pcs.
ABSOLUTE MAXIMUM RATINGS (TA = +25°°°°C)
ParameterSymbolRatingsUnit
Collector to Base VoltageV
Collector to Emitter VoltageV
Emitter to Base VoltageV
Collector CurrentI
Total Power Dissipation
Junction TemperatureT
Storage TemperatureT
2
Mounted on 1.08 cm
Note
× 1.0 mm (t) glass epoxy PCB
CBO
CEO
EBO
C
Note
tot
P
j
stg
−
9.0V
6.0V
2.0V
30mA
140mW
150
65 to +150
°
C
°
C
Because this product uses high-frequency technology, avoid excessive static electricity, etc.
The information in this document is subject to change without notice. Before using this document, please
confirm that this is the latest version.
Not all devices/types available in every country. Please check with local NEC representative for
availability and additional information.
Document No. P15643EJ1V0DS00 (1st edition)
Date Published July 2001 NS CP(K)
Printed in Japan
2001
Page 2
ELECTRICAL CHARACTERISTICS (TA = +25°°°°C)
ParameterSymbolTest ConditionsMIN.TYP.MAX.Unit
DC Characteristics
Collector Cut-off CurrentI
Emitter Cut-off CurrentI
DC Current Gain
RF Characteristics
Gain Bandwidth Productf
Insertion Power Gain
Noise FigureNF
Reverse Transfer Capacitance
CBO
VCB = 5 V, IE = 0 mA––100nA
EBO
VBE = 1 V, IC = 0 mA––100nA
Note 1
FE
h
S
C
VCE = 3 V, IC = 10 mA75–140–
T
VCE = 3 V, IC = 10 mA, f = 2 GHz–12.0–GHz
2
21e
VCE = 3 V, IC = 10 mA, f = 2 GHz7.011.0–dB
CE
= 3 V, IC = 3 mA, f = 2 GHz,
V
S
opt
Z
= Z
Note 2
re
VCB = 3 V, IE = 0 mA, f = 1 MHz–0.40.7pF
2SC5617
–1.52.5dB
Notes 1.
Pulse measurement: PW ≤ 350
Collector to base capacitance when the emitter grounded
2.
hFE CLASSIFICATION
RankEBFB
MarkingY1Y2
hFE Value75 to 11095 to 140
s, Duty Cycle ≤ 2%
µ
2
Data Sheet P15643EJ1V0DS
Page 3
TYPICAL CHARACTERISTICS (Unless otherwise specified, TA = +25°°°°C)
2SC5617
TOTAL POWER DISSIPATION
vs. AMBIENT TEMPERATURE
300
250
(mW)
tot
200
150
140
100
50
Total Power Dissipation P
0
255075100125150
Mounted on Glass Epoxy PCB
(1.08 cm
Ambient Temperature TA (˚C)
COLLECTOR CURRENT vs.
BASE TO EMITTER VOLTAGE
30
VCE = 1 V
25
(mA)
C
20
2
× 1.0 mm (t) )
REVERSE TRANSFER CAPACITANCE
vs. COLLECTOR TO BASE VOLTAGE
0.6
(pF)
re
0.5
0.4
0.3
0.2
0.1
Reverse Transfer Capacitance C
0124567839
Collector to Base Voltage VCB (V)
f = 1 MHz
COLLECTOR CURRENT vs.
BASE TO EMITTER VOLTAGE
30
VCE = 2 V
25
(mA)
C
20
15
10
Collector Current I
5
00.40.20.60.81.0
Base to Emitter Voltage VBE (V)
COLLECTOR CURRENT vs.
BASE TO EMITTER VOLTAGE
30
VCE = 3 V
25
(mA)
C
20
15
10
Collector Current I
5
00.40.20.60.81.0
Base to Emitter Voltage VBE (V)
15
10
Collector Current I
5
00.40.20.60.81.0
Base to Emitter Voltage VBE (V)
COLLECTOR CURRENT vs.
COLLECTOR TO EMITTER VOLTAGE
40
300 A
30
(mA)
C
20
10
Collector Current I
024
Collector to Emitter Voltage VCE (V)
µ
270 A
µ
240 A
210 A
180 A
150 A
120 A
90 A
60 A
IB = 30 A
6
µ
µ
µ
µ
µ
µ
µ
µ
8
Data Sheet P15643EJ1V0DS
3
Page 4
2SC5617
DC CURRENT GAIN vs.
COLLECTOR CURRENT
1 000
FE
100
DC Current Gain h
10
DC CURRENT GAIN vs.
COLLECTOR CURRENT
1 000
FE
VCE = 1 V
1100.1100
Collector Current IC (mA)
VCE = 3 V
DC CURRENT GAIN vs.
COLLECTOR CURRENT
1 000
FE
100
DC Current Gain h
10
VCE = 2 V
1100.1100
Collector Current IC (mA)
100
DC Current Gain h
10
1100.1100
Collector Current IC (mA)
4
Data Sheet P15643EJ1V0DS
Page 5
2SC5617
GAIN BANDWIDTH PRODUCT
vs. COLLECTOR CURRENT
16
VCE = 1 V
f = 2 GHz
14
(GHz)
T
12
10
8
6
4
2
Gain Bandwidth Product f
0
Collector Current IC (mA)
GAIN BANDWIDTH PRODUCT
vs. COLLECTOR CURRENT
16
VCE = 3 V
f = 2 GHz
14
(GHz)
T
12
101100
GAIN BANDWIDTH PRODUCT
vs. COLLECTOR CURRENT
16
VCE = 2 V
f = 2 GHz
14
(GHz)
T
12
10
8
6
4
2
Gain Bandwidth Product f
0
Collector Current IC (mA)
101100
10
8
6
4
2
Gain Bandwidth Product f
0
Collector Current IC (mA)
101100
Data Sheet P15643EJ1V0DS
5
Page 6
2SC5617
INSERTION POWER GAIN vs. FREQUENCY
35
30
(dB)
2
|
21e
25
20
15
10
5
Insertion Power Gain |S
0
0.1110
Frequency f (GHz)
VCE = 1 V
C
= 10 mA
I
INSERTION POWER GAIN vs. FREQUENCY
(dB)
2
|
21e
35
30
25
20
VCE = 3 V
C
= 10 mA
I
INSERTION POWER GAIN vs. FREQUENCY
35
30
(dB)
2
|
21e
25
20
15
10
5
Insertion Power Gain |S
0
0.1110
Frequency f (GHz)
VCE = 2 V
C
= 10 mA
I
15
10
5
Insertion Power Gain |S
0
0.1110
Frequency f (GHz)
6
Data Sheet P15643EJ1V0DS
Page 7
2SC5617
INSERTION POWER GAIN, MAG, MSG
vs. COLLECTOR CURRENT
20
VCE = 1 V
f = 1 GHz
15
(dB)
2
|
21e
|S
10
5
Insertion Power Gain |S
110100
0
Maximum Available Power Gain MAG (dB)
Maximum Stable Power Gain MSG (dB)
Collector Current IC (mA)
INSERTION POWER GAIN, MAG, MSG
vs. COLLECTOR CURRENT
20
VCE = 1 V
f = 2 GHz
15
(dB)
2
|
21e
10
5
MSG
MAG
|S
21e
21e
INSERTION POWER GAIN, MAG, MSG
vs. COLLECTOR CURRENT
20
MAGMSG
VCE = 2 V
f = 1 GHz
15
2
|
(dB)
2
|
21e
MAGMSG
2
|S
21e
|
10
5
Insertion Power Gain |S
110100
0
Maximum Available Power Gain MAG (dB)
Maximum Stable Power Gain MSG (dB)
Collector Current IC (mA)
INSERTION POWER GAIN, MAG, MSG
vs. COLLECTOR CURRENT
