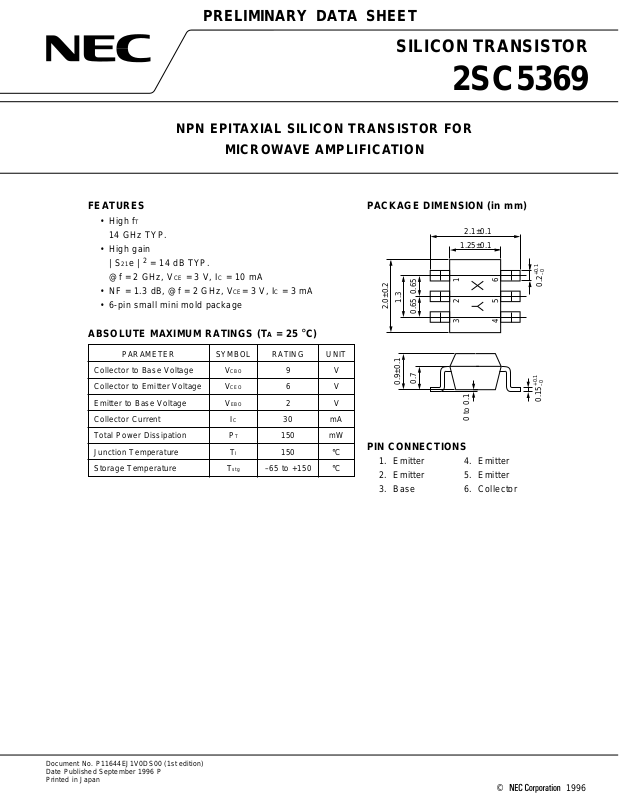

PRELIMINARY DATA SHEET

SILICON TRANSISTOR

2SC5369

NPN EPITAXIAL SILICON TRANSISTOR FOR

MICROW AVE AMPLIFICATION

FEATURES

• High fT
14 GHz TYP.

• High gain
| S21e | 2 = 14 dB TYP.
@f = 2 GHz, V

• NF = 1.3 dB, @f = 2 GHz, VCE= 3 V, IC = 3 mA

• 6-pin small mini mold package

CE = 3 V, IC = 10 mA

ABSOLUTE MAXIMUM RATINGS (TA = 25 °C)

PARAMETER SYMBOL RATING UNIT
Collector to Base Voltage VCBO 9V
Collector to Emitter Voltage VCEO 6V
Emitter to Base Voltage VEBO 2V
Collector Current IC 30 mA
Total Power Dissipation PT 150 mW
Junction Temperature TI 150 °C
Storage Temperature Tstg –65 to +150 °C

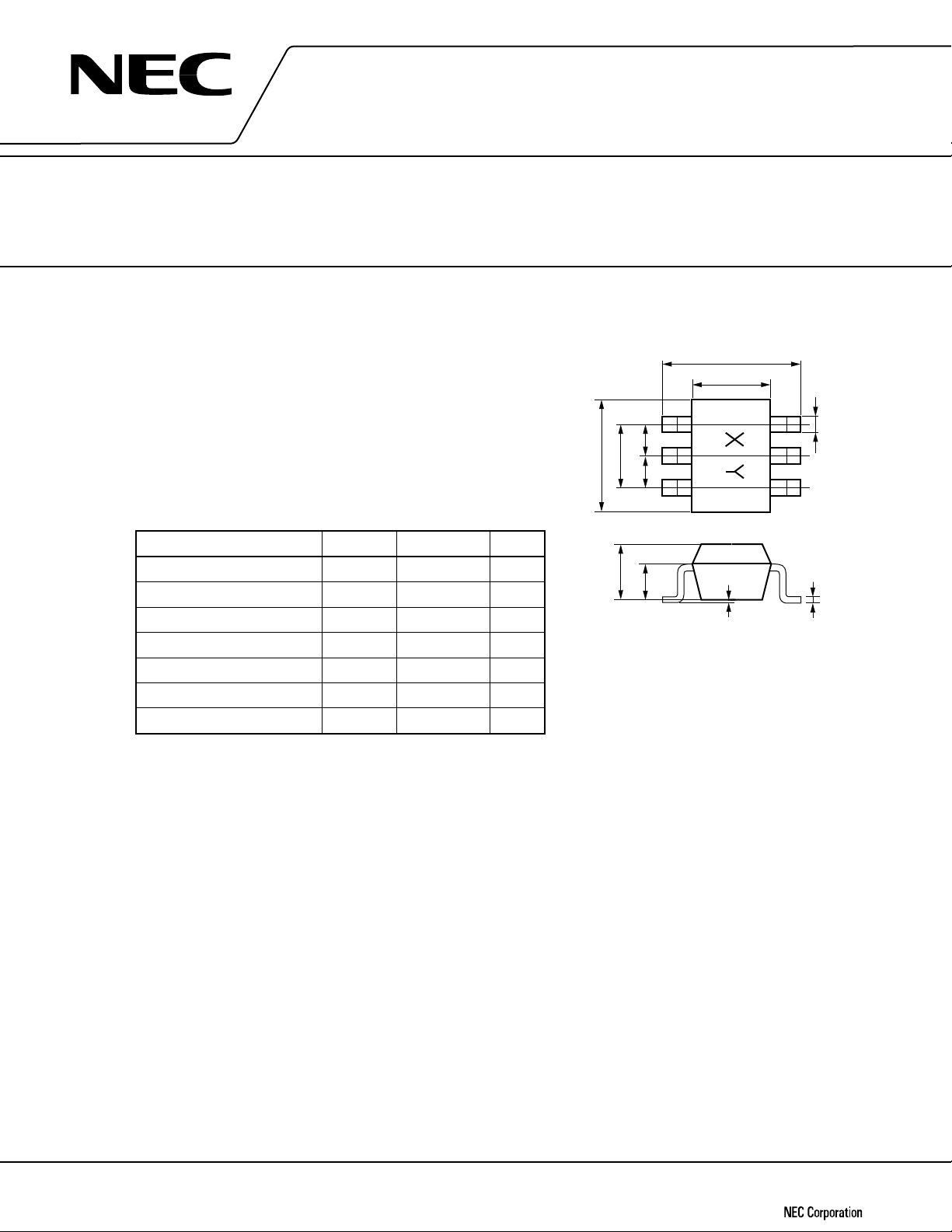

PACKAGE DIMENSION (in mm)

2.1±0.1

1.25±0.1

1.3

2.0±0.2

0.9±0.1

123

0.65 0.65

0.7

654

0 to 0.1

PIN CONNECTIONS

1. Emitter 4. Emitter

2. Emitter 5. Emitter

3. Base 6. Collector

+0.1

+0.1

–0

0.2

–0

0.15

Document No. P11644EJ1V0DS00 (1st edition)
Date Published September 1996 P
Printed in Japan

©

1996

2SC5369

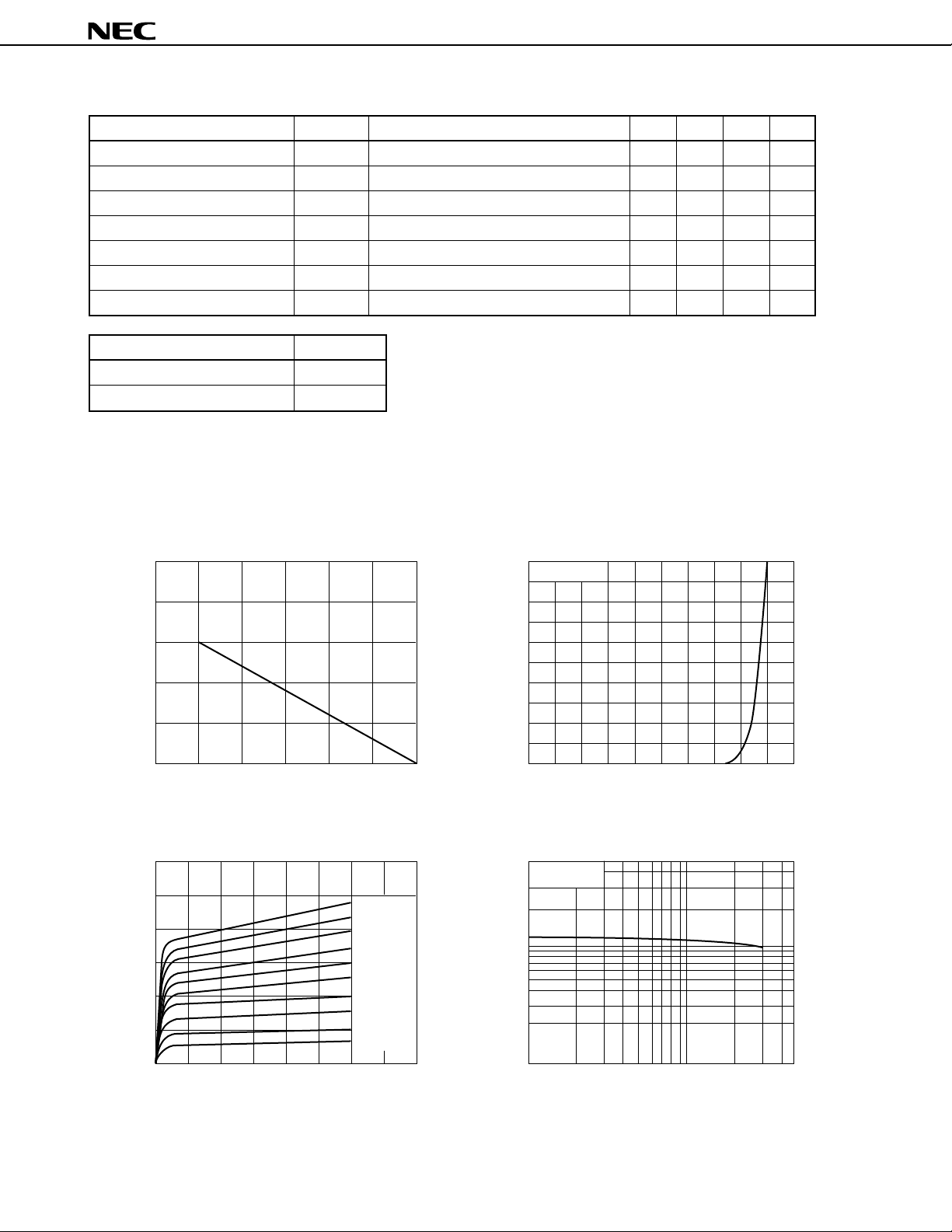

ELECTRICAL CHARACTERISTICS (TA = 25 °C)

PARAMETER SYMBOL TEST CONDITIONS MIN. TYP. MAX. UNIT
Collector Cut-off Current ICBO VCB = 5 V, IE = 0 0.1
Emitter Cut-off Current IEBO VEB = 1 V, IC = 0 0.1
DC Current Gain hFE VCE = 3 V, IC = 10 mA
Gain Bandwidth Product fT VCE = 3 V, IC = 10 mA, f = 2.0 GHz 14 GHz
Feed-back Capacitance Cre VCB = 3 V, IE = 0, f = 1 MHz
Insertion Gain | S21e | 2VCE = 3 V, IC = 10 mA, f = 2.0 GHz 12 14 dB
Noise Figure NF VCE = 3 V, IC = 3 mA, f = 2.0 GHz 1.3 2.3 dB

STANDARD SPECIFICATION FB

Marking T95

hFE 80 to 160

Notes 1. Pulse measurement: PW ≤ 350 µs, Duty cycle ≤ 2 %, Pulsed

2. Measure by using 3-terminal bridge with emitter pin connected to guard terminal of bridge.

Note 1

Note 2

80 160

0.15 0.25 pF

µ

A

µ

A

TYPICAL CHARACTERISTICS (TA = 25 °C)

T

- TA CHARACTERISTICS

P

200

(mW)

T

100

Total Power Dissipation P

0 50 100 150

Ambient Temperature T

I

C

- VCE CHARACTERISTICS

30

(mA)

C

20

10

Collector Current I

02 68

4

Collector to Emitter Voltage V

A

(°C)

Ie = 200 A

CE

(V)

µ
µ

180 A

µ

160 A

µ

140 A

µ

120 A

µ

100 A

µ

80 A

µ

60 A

µ

40 A

µ

20 A

C

- VBE CHARACTERISTICS

I

50

VCE = 3 V

40

(mA)

C

30

20

10

Collector Current I

0 0.5 1.0

DC Base Voltage V

FE

- IC CHARACTERISTICS

h

BE

(V)

500

VCE = 3 V

200

FE

100

50

DC Current Gain h

20

10

12 5 20

Collector Current I

10 50

C

(mA)

2

2SC5369

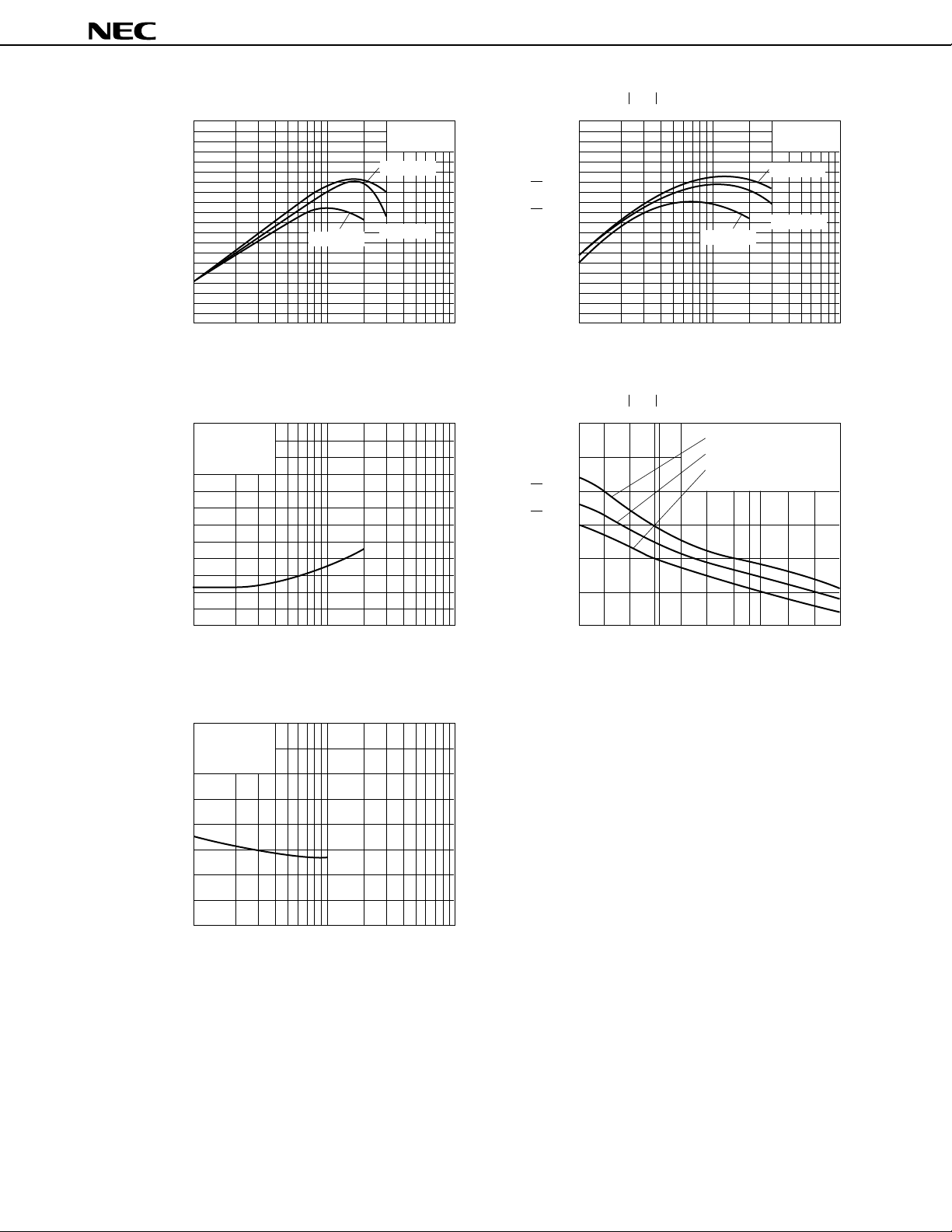

f

T

- IC CHARACTERISTICS

20

(GHz)

T

15

10

VCE = 1 V

5

Gain Bandwidth Product f

0

1 10 100

C

Collector Current I

N

F

- IC CHARACTERISTICS

6

V

CE

= 3 V

(mA)

f = 2 GHz

(dB)

4

F

f = 2 GHz

VCE = 3 V

VCE = 2 V

S

21

e 2 - IC CHARACTERISTICS

20

(dB)

2

15

e

21

10

VCE = 1 V

5

Insertion Gain S

0

1 10 100

C

(mA)

CE

= 3 V, IC = 10 mA

V
V

CE

= 2 V, IC = 5 mA

V

CE

= 1 V, IC = 3 mA

(dB)

2

e

21

30

20

Collector Current I

S

21

e 2 - f CHARACTERISTICS

10

f = 2 GHz

VCE = 3 V

VCE = 2 V

2

Noise Figure N

0

1 10 100

C

Collector Current I

C

re

- V

(mA)

CB

4

f = 1 MHz

(pF)

re

3

2

1

Feed-back Capacitance C

0

0 10 100

Collector to Base Voltage VCB (V)

0

Insertion Gain S

0.1 1.0 3.0

2.0

Frequency f (GHz)

3

S PARAMETER

CE = 1 V, IC = 1 mA

V

FREQUENCY S11 S21 S12 S22

f (MHz) MAG ANG MAG ANG MAG ANG MAG ANG

100.00 0.963 –8.3 3.846 172.1 0.013 74.6 0.913 –7.1

200.00 0.950 –16.3 3.745 164.4 0.026 73.7 0.907 –12.4

300.00 0.930 –24.1 3.656 156.0 0.037 69.1 0.911 –17.6

400.00 0.910 –31.4 3.531 148.9 0.050 64.7 0.908 –23.0

500.00 0.888 –38.6 3.428 143.4 0.060 60.4 0.911 –27.4

600.00 0.866 –45.2 3.272 137.3 0.070 55.7 0.911 –31.7

700.00 0.845 –51.3 3.144 131.8 0.078 51.0 0.899 –35.6

800.00 0.824 –57.0 2.999 126.6 0.085 46.9 0.883 –38.7

900.00 0.803 –62.4 2.880 121.3 0.089 42.7 0.874 –41.9

1000.00 0.779 –67.8 2.769 116.8 0.097 39.8 0.853 –44.9

1100.00 0.757 –72.6 2.654 112.4 0.101 36.8 0.833 –46.9

1200.00 0.731 –77.3 2.546 108.0 0.105 33.2 0.820 –49.5

1300.00 0.706 –81.8 2.467 103.9 0.109 30.1 0.806 –52.5

1400.00 0.682 –86.1 2.376 100.5 0.112 27.3 0.789 –54.4

1500.00 0.656 –90.6 2.295 96.6 0.114 24.8 0.776 –56.8

1600.00 0.633 –95.2 2.249 93.2 0.116 22.4 0.765 –59.2

1700.00 0.609 –100.1 2.195 89.7 0.119 20.3 0.751 –61.0

1800.00 0.588 –105.2 2.151 85.9 0.120 17.9 0.744 –63.0

1900.00 0.566 –111.0 2.123 81.8 0.122 15.3 0.732 –65.6

2000.00 0.547 –117.5 2.093 77.8 0.124 12.9 0.714 –67.5

2100.00 0.530 –124.4 2.045 73.6 0.125 9.8 0.706 –69.7

2200.00 0.512 –131.6 1.994 68.7 0.123 7.2 0.685 –72.5

2300.00 0.496 –139.4 1.941 64.0 0.124 4.9 0.668 –75.5

2400.00 0.485 –146.6 1.875 59.7 0.121 2.7 0.653 –78.0

2500.00 0.475 –153.4 1.795 55.6 0.118 0.1 0.641 –81.6

2600.00 0.469 –159.7 1.717 51.6 0.115 –1.7 0.621 –85.2

2700.00 0.469 –165.0 1.652 48.0 0.113 –3.2 0.622 –88.2

2800.00 0.469 –169.9 1.586 45.1 0.110 –4.9 0.618 –92.4

2900.00 0.471 –173.9 1.510 41.9 0.107 –6.2 0.615 –95.9

3000.00 0.477 –177.5 1.466 38.6 0.103 –7.6 0.622 –99.2

2SC5369

VCE = 1 V, IC = 3 mA

FREQUENCY S11 S21 S12 S22

f (MHz) MAG ANG MAG ANG MAG ANG MAG ANG

100.00 0.906 –12.6 9.595 169.0 0.013 72.7 0.888 –9.8

200.00 0.879 –24.3 9.124 158.8 0.024 70.1 0.869 –17.6

300.00 0.837 –35.6 8.660 148.3 0.035 64.4 0.856 –24.7

400.00 0.796 –45.9 8.156 139.6 0.044 59.6 0.830 –32.8

500.00 0.755 –55.7 7.668 133 0.053 53.3 0.816 –37.1

600.00 0.718 –64.0 7.087 126.2 0.059 48.9 0.800 –42.1

700.00 0.683 –71.6 6.629 120.2 0.064 44.7 0.769 –46.3

800.00 0.649 –78.3 6.17 114.8 0.068 41.2 0.736 –48.9

900.00 0.619 –84.5 5.773 109.3 0.071 38.5 0.722 –51.8

1000.00 0.586 –91.1 5.405 104.9 0.075 35.7 0.690 –55.0

1100.00 0.557 –96.2 5.085 100.7 0.078 33.6 0.661 –56.3

1200.00 0.528 –101.4 4.789 96.6 0.080 31.6 0.648 –58.4

1300.00 0.500 –106.7 4.553 92.6 0.081 29.2 0.626 –61.6

1400.00 0.476 –111.7 4.320 89.5 0.082 27.6 0.607 –62.4

1500.00 0.452 –116.8 4.106 85.9 0.082 26.4 0.597 –64.5

1600.00 0.429 –122.6 3.954 82.5 0.084 25.1 0.584 –66.9

1700.00 0.410 –128.6 3.801 79.3 0.086 24.6 0.570 –68.1

1800.00 0.393 –135.0 3.661 75.7 0.086 23.8 0.563 –69.6

1900.00 0.377 –142.4 3.545 72.0 0.087 22.5 0.549 –72.4

2000.00 0.367 –150.0 3.42 68.4 0.088 21.9 0.530 –73.7

2100.00 0.361 –157.8 3.290 65.0 0.088 20.4 0.521 –75.7

2200.00 0.356 –165.9 3.156 60.9 0.089 19.3 0.502 –78.5

2300.00 0.356 –173.4 3.023 57.4 0.088 18.7 0.483 –81.3

2400.00 0.363 179.8 2.893 54.0 0.088 18.1 0.471 –83.6

2500.00 0.364 174.0 2.759 50.9 0.088 17.2 0.463 –87.6

2600.00 0.373 169.4 2.629 48.0 0.086 17.1 0.444 –91.3

2700.00 0.384 165.3 2.528 45.1 0.086 16.9 0.447 –94.1

2800.00 0.391 161.9 2.434 42.9 0.086 16.9 0.447 –98.8

2900.00 0.401 159.0 2.319 40.4 0.086 16.7 0.445 –102.2

3000.00 0.412 156.3 2.254 37.4 0.086 17.0 0.455 –105.3

4

S PARAMETER

CE = 1 V, IC = 5 mA

V

FREQUENCY S11 S21 S12 S22

f (MHz) MAG ANG MAG ANG MAG ANG MAG ANG

100.00 0.854 –16.4 14.321 166.4 0.012 71.0 0.870 –12.1

200.00 0.814 –31.4 13.342 154.2 0.023 67.0 0.839 –21.6

300.00 0.756 –45.1 12.322 142.3 0.032 61.4 0.811 –30.2

400.00 0.707 –57.6 11.306 132.6 0.041 55.8 0.773 –38.7

500.00 0.651 –69.0 10.34 125.5 0.047 50.4 0.742 –43.7

600.00 0.611 –78.5 9.368 118.6 0.052 46.0 0.712 –48.6

700.00 0.575 –86.8 8.582 112.8 0.055 42.3 0.676 –52.4

800.00 0.538 –93.6 7.849 107.5 0.058 39.7 0.640 –54.9

900.00 0.509 –100.2 7.236 102.2 0.059 37.3 0.620 –56.9

1000.00 0.479 –107.2 6.681 98.2 0.063 36.4 0.588 –59.9

1100.00 0.454 –112.5 6.221 94.3 0.064 35.0 0.562 –60.9

1200.00 0.426 –117.9 5.802 90.5 0.066 33.8 0.547 –62.5

1300.00 0.403 –123.4 5.473 86.8 0.067 32.8 0.528 –65.0

1400.00 0.385 –129 5.168 83.8 0.069 31.9 0.510 –65.6

1500.00 0.364 –134.6 4.881 80.5 0.070 31.7 0.503 –67.2

1600.00 0.348 –140.9 4.658 77.3 0.071 31.4 0.493 –69.4

1700.00 0.335 –147.7 4.452 74.2 0.072 31.0 0.481 –70.0

1800.00 0.325 –154.7 4.259 70.9 0.074 30.5 0.477 –71.9

1900.00 0.317 –162.5 4.083 67.4 0.075 30.0 0.465 –74.3

2000.00 0.315 –170.3 3.923 64.2 0.077 29.7 0.447 –75.8

2100.00 0.318 –177.6 3.750 61.1 0.078 29.2 0.440 –77.5

2200.00 0.322 175.1 3.576 57.6 0.078 29.0 0.423 –80.3

2300.00 0.331 168.2 3.414 54.4 0.080 28.6 0.407 –83.2

2400.00 0.341 163.0 3.257 51.4 0.080 28.3 0.396 –85.7

2500.00 0.350 158.3 3.105 48.8 0.081 27.9 0.388 –90.0

2600.00 0.362 154.5 2.957 46.2 0.082 28.1 0.373 –94.0

2700.00 0.375 151.9 2.847 43.6 0.083 28.2 0.376 –96.9

2800.00 0.386 149.2 2.742 41.7 0.084 27.9 0.378 –101.9

2900.00 0.396 146.8 2.615 39.3 0.086 28.0 0.378 –105.6

3000.00 0.408 145.1 2.542 36.6 0.086 28.1 0.389 –108.5

2SC5369

VCE = 1 V, IC = 10 mA

FREQUENCY S11 S21 S12 S22

f (MHz) MAG ANG MAG ANG MAG ANG MAG ANG

100.00 0.744 –24.6 22.615 161.3 0.012 68.1 0.826 –16.3

200.00 0.682 –46.1 20.113 145.6 0.021 62.6 0.769 –28.7

300.00 0.610 –64.7 17.536 132.0 0.028 57.4 0.710 –38.7

400.00 0.551 –79.7 15.292 121.5 0.033 49.1 0.654 –47.6

500.00 0.502 –93.2 13.319 114.5 0.038 47.6 0.610 –52.1

600.00 0.469 –104.1 11.724 107.9 0.041 44.6 0.573 –56.1

700.00 0.443 –112.5 10.485 102.8 0.043 43.3 0.538 –59.0

800.00 0.416 –119.8 9.391 98.1 0.045 41.4 0.506 –60.3

900.00 0.392 –126.2 8.510 93.3 0.046 41.3 0.491 –61.4

1000.00 0.375 –133.6 7.749 89.8 0.049 41.5 0.463 –63.6

1100.00 0.357 –138.8 7.146 86.5 0.050 41.7 0.441 –64.0

1200.00 0.338 –144.3 6.605 83.2 0.054 42.0 0.433 –64.9

1300.00 0.324 –150.3 6.181 79.9 0.055 41.7 0.419 –66.9

1400.00 0.314 –156.1 5.801 77.1 0.057 41.4 0.405 –66.9

1500.00 0.302 –162.0 5.450 74.1 0.058 41.3 0.404 –68.1

1600.00 0.295 –168.6 5.169 71.3 0.061 42.0 0.397 –70.2

1700.00 0.293 –175.3 4.902 68.4 0.064 41.5 0.390 –71.1

1800.00 0.293 178.1 4.662 65.4 0.065 41.9 0.388 –72.3

1900.00 0.296 170.9 4.445 62.2 0.067 41.6 0.382 –74.8

2000.00 0.304 164.5 4.234 59.3 0.069 41.5 0.366 –76.1

2100.00 0.313 158.7 4.031 56.6 0.071 41.0 0.361 –77.9

2200.00 0.323 153.4 3.828 53.5 0.073 40.7 0.348 –80.9

2300.00 0.339 148.6 3.639 50.7 0.076 40.3 0.333 –83.9

2400.00 0.352 145.3 3.470 48.1 0.077 40.7 0.323 –86.7

2500.00 0.363 141.9 3.312 45.9 0.079 40.1 0.319 –91.7

2600.00 0.378 139.9 3.151 43.7 0.081 40.6 0.306 –96.4

2700.00 0.392 138.2 3.036 41.4 0.084 39.6 0.310 –99.6

2800.00 0.404 136.5 2.930 39.8 0.085 39.3 0.317 –105.0

2900.00 0.414 134.9 2.798 37.6 0.088 38.9 0.317 –108.9

3000.00 0.426 133.6 2.723 35.0 0.089 38.7 0.330 –112.1

5

S PARAMETER

CE = 1 V, IC = 15 mA

V

FREQUENCY S11 S21 S12 S22

f (MHz) MAG ANG MAG ANG MAG ANG MAG ANG

100.00 0.653 –33.1 27.337 156.8 0.011 68.9 0.789 –18.9

200.00 0.584 –60.3 23.208 138.8 0.019 60.2 0.707 –32.8

300.00 0.515 –82.1 19.335 124.9 0.024 53.7 0.632 –42.7

400.00 0.469 –99.2 16.289 114.6 0.029 48.3 0.569 –54.0

500.00 0.435 –112.6 13.817 107.9 0.032 47.2 0.519 –54.2

600.00 0.416 –123.1 11.97 101.7 0.035 45.4 0.502 –56.7

700.00 0.398 –131.1 10.579 97.1 0.037 46.6 0.468 –59.8

800.00 0.378 –138 9.386 92.7 0.039 45.9 0.439 –58.5

900.00 0.362 –144.1 8.451 88.3 0.040 45.7 0.442 –59.7

1000.00 0.354 –151.1 7.653 85.3 0.043 46.9 0.411 –62.5

1100.00 0.339 –156.1 7.023 82.1 0.046 47.0 0.396 –61.2

1200.00 0.325 –161.5 6.475 79.1 0.048 47.6 0.396 –62.6

1300.00 0.317 –167.1 6.041 76.0 0.050 47.8 0.379 –64.9

1400.00 0.311 –172.3 5.649 73.3 0.053 47.4 0.373 –63.9

1500.00 0.304 –178.0 5.304 70.5 0.054 47.5 0.376 –65.7

1600.00 0.302 175.6 5.012 67.8 0.057 47.9 0.370 –67.9

1700.00 0.304 170 4.745 65.0 0.060 47.8 0.365 –68.2

1800.00 0.307 164.1 4.500 62.1 0.062 47.7 0.367 –69.8

1900.00 0.314 158.0 4.276 59.2 0.065 47.4 0.358 –72.4

2000.00 0.325 152.9 4.068 56.3 0.068 47.4 0.346 –73.3

2100.00 0.335 148.2 3.864 53.8 0.069 47.1 0.345 –75.4

2200.00 0.347 143.9 3.666 50.8 0.072 46.3 0.329 –78.7

2300.00 0.362 140.2 3.481 48.3 0.074 46.3 0.317 –81.4

2400.00 0.375 137.6 3.318 45.8 0.077 45.8 0.311 –84.5

2500.00 0.386 135.1 3.159 43.7 0.079 45.5 0.304 –89.9

2600.00 0.402 133.7 3.010 41.7 0.081 44.8 0.292 –94.3

2700.00 0.416 132.5 2.901 39.5 0.084 44.7 0.299 –97.8

2800.00 0.427 131.2 2.801 37.9 0.086 44.4 0.303 –104.0

2900.00 0.439 129.8 2.676 35.9 0.089 43.4 0.304 –107.7

3000.00 0.449 128.7 2.603 33.3 0.091 42.7 0.319 –111.0

2SC5369

VCE = 2 V, IC = 1 mA

FREQUENCY S11 S21 S12 S22

f (MHz) MAG ANG MAG ANG MAG ANG MAG ANG

100.00 0.965 –7.7 3.924 172.5 0.010 73.8 0.913 –6.6

200.00 0.953 –15.2 3.823 165.1 0.019 73.5 0.904 –11.6

300.00 0.935 –22.6 3.733 157.0 0.028 71.0 0.908 –16.1

400.00 0.916 –29.3 3.631 150.0 0.037 65.6 0.897 –23.3

500.00 0.897 –36.1 3.522 145.2 0.045 62.1 0.904 –24.6

600.00 0.877 –42.3 3.381 139.4 0.053 57.2 0.922 –28.6

700.00 0.859 –48.2 3.256 134.4 0.060 53.5 0.907 –31.9

800.00 0.839 –53.5 3.108 129.5 0.065 49.8 0.892 –33.9

900.00 0.820 –58.7 2.999 124.1 0.069 46.2 0.896 –37.6

1000.00 0.796 –64.0 2.901 119.7 0.075 43.1 0.874 –40.6

1100.00 0.775 –68.5 2.791 115.6 0.079 40.2 0.860 –41.7

1200.00 0.751 –72.9 2.674 111.4 0.081 36.9 0.852 –44.6

1300.00 0.726 –77.3 2.604 107.2 0.085 33.5 0.836 –47.6

1400.00 0.702 –81.4 2.514 104.0 0.087 31.4 0.824 –48.9

1500.00 0.677 –85.6 2.430 100.1 0.089 28.5 0.815 –51.4

1600.00 0.653 –89.9 2.383 96.7 0.090 26.4 0.800 –53.9

1700.00 0.629 –94.5 2.332 93.4 0.092 24.4 0.790 –55.2

1800.00 0.607 –99.3 2.289 89.9 0.093 22.6 0.788 –57.1

1900.00 0.584 –104.7 2.263 85.8 0.094 19.9 0.772 –59.7

2000.00 0.564 –110.6 2.237 82.0 0.095 17.7 0.759 –61.2

2100.00 0.545 –117.4 2.194 77.8 0.095 15.8 0.755 –63.4

2200.00 0.526 –124.3 2.145 73.0 0.095 13.1 0.732 –66.0

2300.00 0.508 –131.7 2.099 68.4 0.094 11.0 0.719 –68.6

2400.00 0.495 –139.3 2.032 64.0 0.092 9.1 0.706 –71.1

2500.00 0.481 –145.9 1.951 59.9 0.090 7.1 0.692 –74.6

2600.00 0.476 –152.2 1.869 55.8 0.087 5.0 0.673 –77.9

2700.00 0.471 –158.2 1.801 52.0 0.086 4.3 0.676 –80.9

2800.00 0.469 –162.9 1.733 49.1 0.083 2.7 0.669 –85.1

2900.00 0.472 –167.3 1.647 45.7 0.080 2.7 0.664 –88.4

3000.00 0.476 –171.4 1.602 42.3 0.077 1.6 0.672 –92.0

6

S PARAMETER

CE = 2 V, IC = 3 mA

V

FREQUENCY S11 S21 S12 S22

f (MHz) MAG ANG MAG ANG MAG ANG MAG ANG

100.00 0.911 –11.3 9.673 169.8 0.010 71.9 0.897 –8.5

200.00 0.887 –21.9 9.244 160.1 0.018 70.9 0.879 –15.2

300.00 0.850 –32.2 8.830 150.1 0.026 66.0 0.871 –21.4

400.00 0.814 –41.3 8.390 141.6 0.034 60.2 0.849 –29.3

500.00 0.776 –50.5 7.920 135.5 0.041 56.0 0.838 –31.9

600.00 0.741 –58.3 7.389 129.0 0.046 52.4 0.835 –36.3

700.00 0.708 –65.5 6.948 123.4 0.050 47.8 0.806 –39.9

800.00 0.675 –71.6 6.492 118.1 0.053 44.6 0.778 –41.9

900.00 0.645 –77.5 6.113 112.5 0.055 42.3 0.772 –45.1

1000.00 0.610 –83.8 5.754 108.0 0.060 39.1 0.739 –48.0

1100.00 0.583 –88.8 5.437 103.9 0.061 37.5 0.716 –48.7

1200.00 0.552 –93.5 5.127 99.8 0.063 35.1 0.705 –51.0

1300.00 0.523 –98.5 4.899 95.7 0.064 33.2 0.684 –53.8

1400.00 0.497 –103.2 4.663 92.6 0.065 32.2 0.669 –54.5

1500.00 0.470 –107.8 4.431 88.9 0.065 30.8 0.660 –56.4

1600.00 0.445 –112.9 4.267 85.7 0.066 30.2 0.646 –58.7

1700.00 0.421 –118.7 4.112 82.5 0.067 30.0 0.634 –59.7

1800.00 0.402 –124.5 3.974 79.2 0.068 29.0 0.630 –61.1

1900.00 0.382 –131.2 3.854 75.4 0.068 28.1 0.615 –63.6

2000.00 0.368 –138.7 3.734 72.0 0.069 27.3 0.601 –64.6

2100.00 0.356 –146.3 3.605 68.5 0.070 26.5 0.593 –66.4

2200.00 0.348 –154.2 3.462 64.5 0.069 25.9 0.574 –68.9

2300.00 0.344 –162.6 3.340 60.7 0.070 26.0 0.558 –71.1

2400.00 0.346 –169.5 3.200 57.3 0.070 25.7 0.548 –73.4

2500.00 0.347 –175.9 3.058 54.1 0.069 25.1 0.535 –76.9

2600.00 0.354 178.6 2.919 50.9 0.068 25.5 0.517 –80.0

2700.00 0.363 174.0 2.810 48.0 0.070 26.0 0.520 –83.0

2800.00 0.370 170.2 2.709 45.7 0.070 25.9 0.516 –87.4

2900.00 0.379 166.7 2.580 42.9 0.070 27.0 0.512 –90.6

3000.00 0.390 163.8 2.511 40.0 0.070 26.7 0.523 –94.0

2SC5369

VCE = 2 V, IC = 5 mA

FREQUENCY S11 S21 S12 S22

f (MHz) MAG ANG MAG ANG MAG ANG MAG ANG

100.00 0.863 –14.2 14.231 167.6 0.009 73.5 0.883 –10.1

200.00 0.829 –27.3 13.388 156.2 0.017 70.1 0.854 –18.2

300.00 0.775 –39.8 12.53 144.8 0.025 62.3 0.834 –25.1

400.00 0.726 –50.9 11.653 134.8 0.031 58.0 0.797 –34.7

500.00 0.679 –61.2 10.679 128.6 0.036 53.6 0.770 –36.4

600.00 0.638 –70.1 9.807 122.0 0.041 49.6 0.763 –40.6

700.00 0.604 –77.9 9.125 116.6 0.044 46.2 0.727 –44.2

800.00 0.570 –84.3 8.384 111.4 0.046 43.5 0.697 –45.1

900.00 0.536 –90.2 7.775 105.7 0.047 41.5 0.690 –48.1

1000.00 0.501 –97.3 7.215 101.4 0.050 39.5 0.653 –51.0

1100.00 0.474 –102.2 6.753 97.5 0.051 39.1 0.633 –51.1

1200.00 0.445 –107 6.294 93.6 0.052 38.0 0.624 –53.1

1300.00 0.418 –112.0 5.954 89.8 0.054 36.6 0.600 –55.7

1400.00 0.396 –117.3 5.634 86.8 0.055 36.1 0.588 –55.8

1500.00 0.372 –122.3 5.328 83.5 0.056 35.9 0.582 –57.6

1600.00 0.351 –128.1 5.089 80.3 0.056 36.0 0.568 –59.6

1700.00 0.334 –134.5 4.875 77.2 0.059 35.6 0.559 –60.3

1800.00 0.318 –141.0 4.672 74.0 0.060 36.6 0.559 –61.7

1900.00 0.305 –148.6 4.493 70.6 0.060 35.3 0.543 –64.0

2000.00 0.298 –156.9 4.327 67.3 0.061 35.3 0.531 –64.7

2100.00 0.296 –164.7 4.145 64.2 0.063 35.2 0.527 –66.6

2200.00 0.295 –172.5 3.970 60.6 0.063 35.5 0.507 –69.1

2300.00 0.300 179.7 3.806 57.4 0.065 35.1 0.493 –71.0

2400.00 0.309 173.5 3.644 54.3 0.066 36.2 0.484 –73.4

2500.00 0.316 167.8 3.483 51.5 0.066 35.5 0.471 –77.2

2600.00 0.329 163.7 3.324 48.7 0.068 35.4 0.455 –80.4

2700.00 0.341 160.0 3.200 46.0 0.069 36.0 0.457 –83.3

2800.00 0.352 156.9 3.083 44.0 0.069 36.4 0.455 –88.0

2900.00 0.362 154.2 2.942 41.4 0.072 36.7 0.453 –91.3

3000.00 0.374 152 2.859 38.6 0.073 36.8 0.464 –94.6

7

S PARAMETER

CE = 2 V, IC = 10 mA

V

FREQUENCY S11 S21 S12 S22

f (MHz) MAG ANG MAG ANG MAG ANG MAG ANG

100.00 0.760 –20.5 22.891 163.4 0.009 68.3 0.850 –13.1

200.00 0.707 –38.8 20.801 149.0 0.016 65.3 0.802 –23.2

300.00 0.635 –55.2 18.567 135.9 0.022 59.9 0.755 –31.3

400.00 0.573 –68.8 16.493 125.5 0.027 55.4 0.701 –41.4

500.00 0.525 –81.1 14.602 118.5 0.029 51.6 0.661 –42.3

600.00 0.487 –91.1 12.974 111.7 0.033 48.2 0.646 –45.6

700.00 0.454 –99.3 11.679 106.3 0.035 47.4 0.608 –48.6

800.00 0.423 –106.0 10.503 101.4 0.036 45.6 0.578 –48.3

900.00 0.394 –112.2 9.577 96.4 0.037 45.2 0.578 –50.4

1000.00 0.372 –119.9 8.728 92.8 0.040 45.4 0.541 –52.9

1100.00 0.350 –124.7 8.056 89.3 0.042 45.3 0.525 –52.1

1200.00 0.327 –130.0 7.452 85.9 0.044 45.0 0.522 –53.7

1300.00 0.309 –135.6 6.989 82.6 0.045 45.1 0.502 –55.7

1400.00 0.294 –141.1 6.557 79.8 0.046 46.3 0.494 –55.2

1500.00 0.278 –147.1 6.163 76.8 0.048 46.6 0.494 –57.0

1600.00 0.266 –153.7 5.857 74 0.050 46.6 0.484 –58.8

1700.00 0.258 –160.8 5.563 71.1 0.052 46.4 0.478 –59.2

1800.00 0.253 –168.0 5.301 68.2 0.054 47.4 0.480 –60.6

1900.00 0.250 –176.1 5.062 65.1 0.055 47.1 0.469 –62.8

2000.00 0.256 176.5 4.840 62.3 0.057 46.6 0.459 –63.4

2100.00 0.261 169.5 4.619 59.5 0.059 47.6 0.457 –65.1

2200.00 0.272 163 4.396 56.4 0.061 48.0 0.439 –67.8

2300.00 0.284 157.2 4.200 53.7 0.063 47.2 0.426 –69.7

2400.00 0.298 153.0 4.008 51.0 0.065 47.1 0.419 –72.2

2500.00 0.310 149.0 3.831 48.6 0.067 46.8 0.408 –76.2

2600.00 0.327 146.5 3.667 46.2 0.068 47.8 0.391 –79.6

2700.00 0.341 144.5 3.531 43.9 0.071 46.6 0.396 –82.8

2800.00 0.354 142.3 3.411 42.1 0.073 46.7 0.394 –87.9

2900.00 0.365 140.4 3.261 39.7 0.076 46.6 0.392 –91.4

3000.00 0.377 139.0 3.170 37.0 0.077 46.0 0.404 –94.9

2SC5369

VCE = 2 V, IC = 15 mA

FREQUENCY S11 S21 S12 S22

f (MHz) MAG ANG MAG ANG MAG ANG MAG ANG

100.00 0.679 –25.8 28.477 160.2 0.008 72.4 0.827 –15.3

200.00 0.616 –48.2 25.048 143.8 0.015 63.0 0.760 –26.4

300.00 0.543 –67.2 21.555 130 0.020 59.2 0.697 –34.5

400.00 0.485 –82.1 18.572 119.4 0.024 54.7 0.638 –45.2

500.00 0.443 –95.5 16.03 112.6 0.026 52.2 0.592 –44.4

600.00 0.413 –106.3 14.018 106.1 0.028 50.1 0.581 –46.9

700.00 0.388 –114.4 12.469 101.2 0.031 49.1 0.545 –49.5

800.00 0.362 –121.0 11.102 96.6 0.032 49.8 0.521 –48.2

900.00 0.340 –127.1 10.046 91.8 0.034 49.3 0.526 –50.1

1000.00 0.327 –135.1 9.107 88.7 0.037 50.3 0.490 –52.3

1100.00 0.308 –139.8 8.375 85.5 0.039 50.0 0.479 –51.0

1200.00 0.289 –145.3 7.719 82.2 0.039 51.0 0.480 –52.6

1300.00 0.276 –151.2 7.219 79.0 0.041 49.4 0.462 –54.7

1400.00 0.267 –156.7 6.754 76.5 0.044 51.9 0.458 –53.9

1500.00 0.255 –162.9 6.336 73.6 0.046 52.0 0.460 –55.6

1600.00 0.248 –169.6 5.997 70.9 0.047 52.5 0.452 –57.5

1700.00 0.246 –176.4 5.681 68.1 0.050 52.5 0.449 –57.7

1800.00 0.245 176.8 5.397 65.4 0.052 53.1 0.452 –59.1

1900.00 0.249 169.4 5.148 62.4 0.054 52.9 0.443 –61.5

2000.00 0.259 163.0 4.910 59.7 0.056 52.7 0.432 –62.1

2100.00 0.268 157.1 4.675 57.1 0.059 52.7 0.433 –63.8

2200.00 0.279 151.8 4.445 54.2 0.061 52.5 0.416 –66.5

2300.00 0.295 147.2 4.237 51.7 0.063 51.9 0.404 –68.4

2400.00 0.309 144.4 4.048 49.1 0.066 52.5 0.397 –71.0

2500.00 0.323 141.1 3.865 46.8 0.068 51.3 0.386 –75.4

2600.00 0.339 139.2 3.696 44.6 0.070 50.9 0.372 –79.0

2700.00 0.353 137.8 3.564 42.4 0.073 51.4 0.375 –82.1

2800.00 0.366 136.1 3.444 40.7 0.076 50.7 0.373 –87.7

2900.00 0.378 134.7 3.292 38.4 0.078 49.8 0.373 –91.2

3000.00 0.391 133.6 3.204 35.8 0.080 49.4 0.385 –94.8

8

S PARAMETER

CE = 3 V, IC = 1 mA

V

FREQUENCY S11 S21 S12 S22

f (MHz) MAG ANG MAG ANG MAG ANG MAG ANG

100.00 0.966 –7.5 3.757 172.7 0.009 75.8 0.915 –6.3

200.00 0.956 –14.6 3.683 165.5 0.017 75.1 0.907 –11.1

300.00 0.938 –21.7 3.614 157.6 0.024 72.4 0.911 –15.3

400.00 0.923 –28.3 3.504 150.5 0.034 68.1 0.903 –21.7

500.00 0.904 –34.8 3.399 146.0 0.040 62.9 0.912 –23.6

600.00 0.885 –40.9 3.283 140.4 0.047 58.2 0.929 –27.4

700.00 0.869 –46.6 3.171 135.6 0.054 54.7 0.915 –30.6

800.00 0.850 –51.8 3.024 130.6 0.058 51.5 0.902 –32.6

900.00 0.833 –56.9 2.920 125.3 0.061 46.7 0.907 –36.2

1000.00 0.809 –62.0 2.842 121.0 0.068 44.7 0.887 –39.0

1100.00 0.789 –66.5 2.731 117.0 0.071 41.1 0.873 –40.0

1200.00 0.765 –70.8 2.627 112.7 0.074 38.4 0.867 –42.8

1300.00 0.741 –75.1 2.561 108.4 0.076 35.1 0.852 –45.8

1400.00 0.718 –79.3 2.475 105.3 0.079 32.4 0.841 –47.2

1500.00 0.692 –83.3 2.395 101.5 0.079 30.0 0.832 –49.6

1600.00 0.668 –87.4 2.345 98.1 0.081 27.6 0.819 –52.1

1700.00 0.645 –91.9 2.306 94.8 0.083 25.8 0.810 –53.3

1800.00 0.622 –96.6 2.266 91.2 0.084 24.5 0.807 –55.2

1900.00 0.601 –101.6 2.238 87.4 0.085 21.8 0.793 –57.7

2000.00 0.579 –107.7 2.219 83.4 0.085 19.3 0.782 –59.2

2100.00 0.560 –114.0 2.178 79.3 0.086 17.1 0.778 –61.3

2200.00 0.540 –121.0 2.139 74.4 0.085 14.8 0.757 –63.9

2300.00 0.520 –128.3 2.097 69.7 0.085 13.0 0.743 –66.5

2400.00 0.507 –135.6 2.036 65.4 0.082 11.1 0.733 –68.9

2500.00 0.492 –142.6 1.955 61.1 0.081 9.0 0.718 –72.4

2600.00 0.483 –148.9 1.876 56.9 0.078 7.9 0.698 –75.7

2700.00 0.479 –154.8 1.809 53.1 0.075 6.5 0.701 –78.4

2800.00 0.476 –159.9 1.736 50.0 0.074 5.5 0.695 –82.8

2900.00 0.475 –164.4 1.658 46.6 0.071 6.0 0.690 –86.1

3000.00 0.480 –168.4 1.610 43.1 0.067 4.2 0.699 –89.7

2SC5369

VCE = 3 V, IC = 3 mA

FREQUENCY S11 S21 S12 S22

f (MHz) MAG ANG MAG ANG MAG ANG MAG ANG

100.00 0.913 –10.8 9.727 170.1 0.009 74.5 0.901 –8.1

200.00 0.891 –21.0 9.304 160.6 0.016 72.6 0.883 –14.5

300.00 0.853 –31.0 8.914 150.8 0.024 65.6 0.877 –20.2

400.00 0.818 –39.9 8.480 142.2 0.031 62.3 0.854 –27.9

500.00 0.783 –48.7 8.034 136.4 0.036 56.5 0.846 –30.2

600.00 0.750 –56.4 7.520 129.9 0.041 53.3 0.845 –34.4

700.00 0.718 –63.3 7.095 124.4 0.045 48.8 0.819 –37.9

800.00 0.685 –69.3 6.629 119.1 0.048 46.0 0.792 –39.6

900.00 0.656 –75.2 6.256 113.4 0.050 43.9 0.789 –42.9

1000.00 0.620 –81.4 5.911 109.0 0.054 40.7 0.757 –45.7

1100.00 0.592 –86.1 5.585 104.9 0.054 38.8 0.735 –46.2

1200.00 0.561 –90.8 5.267 100.8 0.056 37.0 0.725 –48.6

1300.00 0.531 –95.5 5.035 96.8 0.058 34.7 0.704 –51.1

1400.00 0.506 –100.1 4.793 93.6 0.058 33.6 0.690 –51.9

1500.00 0.477 –104.7 4.567 90.1 0.059 33.2 0.682 –53.9

1600.00 0.451 –109.5 4.400 86.7 0.059 31.5 0.667 –56.0

1700.00 0.428 –115.1 4.240 83.5 0.060 31.8 0.657 –56.8

1800.00 0.406 –120.6 4.099 80.2 0.061 30.9 0.653 –58.3

1900.00 0.384 –127.0 3.979 76.5 0.062 30.8 0.639 –60.6

2000.00 0.368 –134.5 3.859 72.9 0.063 29.3 0.625 –61.4

2100.00 0.356 –141.8 3.729 69.5 0.063 29.7 0.622 –63.4

2200.00 0.345 –149.7 3.587 65.6 0.062 29.4 0.601 –65.6

2300.00 0.339 –158.2 3.465 61.8 0.063 29.4 0.587 –67.8

2400.00 0.339 –165.2 3.328 58.3 0.063 28.7 0.576 –70.1

2500.00 0.340 –171.8 3.181 55.0 0.063 28.5 0.563 –73.4

2600.00 0.346 –177.5 3.042 51.9 0.062 29.1 0.546 –76.5

2700.00 0.354 177.5 2.933 48.8 0.063 29.8 0.548 –79.2

2800.00 0.362 173.3 2.821 46.5 0.064 30.9 0.544 –83.7

2900.00 0.369 169.7 2.692 43.6 0.064 31.4 0.539 –87.0

3000.00 0.380 166.7 2.613 40.5 0.064 32.6 0.551 –90.5

9

S PARAMETER

CE = 3 V, IC = 5 mA

V

FREQUENCY S11 S21 S12 S22

f (MHz) MAG ANG MAG ANG MAG ANG MAG ANG

100.00 0.868 –13.6 14.304 168 0.008 73.3 0.888 –9.5

200.00 0.836 –26.0 13.488 157.0 0.016 70.0 0.862 –16.9

300.00 0.787 –37.8 12.686 145.9 0.022 63.4 0.844 –23.5

400.00 0.739 –48.9 11.834 136.5 0.029 58.7 0.810 –31.9

500.00 0.692 –58.4 10.961 130.0 0.032 55.3 0.789 –34.2

600.00 0.652 –66.9 10.065 123.3 0.037 50.6 0.780 –38.3

700.00 0.615 –74.5 9.332 117.6 0.040 47.6 0.748 –41.6

800.00 0.577 –80.8 8.595 112.3 0.041 45.4 0.717 –42.7

900.00 0.547 –86.7 7.987 106.7 0.042 43.0 0.715 –45.7

1000.00 0.511 –93.5 7.433 102.6 0.045 41.8 0.677 –48.2

1100.00 0.482 –98.2 6.951 98.6 0.047 40.8 0.656 –48.3

1200.00 0.452 –102.8 6.498 94.7 0.048 39.4 0.647 –50.1

1300.00 0.425 –107.9 6.154 91 0.049 38.6 0.626 –52.5

1400.00 0.402 –112.7 5.820 88.0 0.050 37.6 0.614 –52.9

1500.00 0.376 –117.5 5.501 84.6 0.050 38.4 0.609 –54.5

1600.00 0.354 –122.9 5.268 81.6 0.052 38.1 0.595 –56.4

1700.00 0.335 –129.2 5.044 78.5 0.053 37.7 0.587 –57.0

1800.00 0.318 –135.3 4.835 75.4 0.055 38.5 0.585 –58.5

1900.00 0.302 –142.7 4.654 71.9 0.055 38.4 0.573 –60.6

2000.00 0.293 –150.7 4.493 68.7 0.056 38.9 0.560 –61.2

2100.00 0.287 –158.7 4.312 65.7 0.056 38.2 0.557 –62.9

2200.00 0.285 –166.8 4.132 62.0 0.058 38.8 0.538 –65.3

2300.00 0.288 –175.0 3.971 58.7 0.059 39.3 0.524 –67.1

2400.00 0.295 178.6 3.805 55.7 0.061 39.2 0.515 –69.4

2500.00 0.302 172.5 3.635 52.9 0.061 40.1 0.502 –72.8

2600.00 0.314 167.9 3.473 50.0 0.062 40.3 0.486 –75.9

2700.00 0.326 164.0 3.352 47.3 0.063 40.5 0.489 –78.8

2800.00 0.337 160.6 3.227 45.2 0.065 40.6 0.487 –83.4

2900.00 0.348 157.8 3.083 42.6 0.066 41.4 0.482 –86.6

3000.00 0.359 155.3 2.995 39.6 0.066 40.9 0.493 –90.4

2SC5369

VCE = 3 V, IC = 10 mA

FREQUENCY S11 S21 S12 S22

f (MHz) MAG ANG MAG ANG MAG ANG MAG ANG

100.00 0.770 –19.0 23.007 164.0 0.008 71.6 0.859 –12.3

200.00 0.720 –36.3 21.033 150.1 0.014 65.7 0.815 –21.4

300.00 0.651 –51.8 18.926 137.2 0.020 60.5 0.772 –29.0

400.00 0.591 –65.4 16.929 126.9 0.023 58.0 0.723 –38.1

500.00 0.538 –76.5 15.047 119.9 0.028 51.9 0.688 –39.5

600.00 0.497 –86.2 13.422 113.1 0.030 50.0 0.671 –42.7

700.00 0.463 –94.1 12.12 107.8 0.032 48.7 0.635 –45.4

800.00 0.429 –100.5 10.911 102.9 0.034 46.7 0.607 –45.5

900.00 0.403 –107.3 9.888 97.6 0.034 47.1 0.607 –47.6

1000.00 0.373 –113.7 9.117 94.1 0.037 47.7 0.571 –49.7

1100.00 0.351 –118.4 8.414 90.6 0.038 46.7 0.554 –49.0

1200.00 0.326 –123.5 7.788 87.2 0.040 47.4 0.550 –50.5

1300.00 0.306 –128.9 7.309 83.8 0.041 47.0 0.533 –52.4

1400.00 0.289 –134.2 6.86 81.1 0.043 48.2 0.525 –52.1

1500.00 0.271 –139.8 6.445 78.1 0.044 48.0 0.525 –53.7

1600.00 0.256 –146.1 6.125 75.3 0.046 48.5 0.515 –55.4

1700.00 0.246 –153.3 5.819 72.5 0.048 49.4 0.510 –55.7

1800.00 0.238 –160.4 5.547 69.7 0.049 49.4 0.510 –56.9

1900.00 0.233 –168.9 5.312 66.7 0.051 49.7 0.501 –59.1

2000.00 0.236 –176.9 5.081 63.8 0.053 50.3 0.490 –59.7

2100.00 0.240 175.4 4.848 61.1 0.056 50.7 0.490 –61.2

2200.00 0.248 168.4 4.625 58.0 0.056 50.8 0.472 –63.7

2300.00 0.262 162.0 4.422 55.3 0.059 50.3 0.460 –65.5

2400.00 0.274 157.6 4.233 52.6 0.061 50.6 0.452 –67.9

2500.00 0.287 153.4 4.048 50.2 0.063 50.4 0.441 –71.7

2600.00 0.304 150.2 3.878 47.7 0.064 51.0 0.425 –74.9

2700.00 0.319 147.9 3.739 45.2 0.066 50.6 0.428 –77.9

2800.00 0.330 145.6 3.604 43.5 0.069 49.5 0.425 –82.8

2900.00 0.343 143.7 3.449 41.0 0.072 49.9 0.423 –86.2

3000.00 0.355 142.1 3.352 38.3 0.073 49.9 0.434 –90.1

10

S PARAMETER

CE = 3 V, IC = 15 mA

V

FREQUENCY S11 S21 S12 S22

f (MHz) MAG ANG MAG ANG MAG ANG MAG ANG

100.00 0.695 –23.5 28.64 161.2 0.008 70.9 0.837 –13.9

200.00 0.636 –44.1 25.451 145.4 0.013 66.1 0.779 –24.0

300.00 0.558 –62.4 22.15 131.7 0.018 61.3 0.723 –31.8

400.00 0.506 –77.0 19.259 121.3 0.022 54.9 0.669 –40.9

500.00 0.453 –88.8 16.721 114.4 0.024 53.0 0.628 –41.3

600.00 0.419 –99.1 14.679 107.9 0.027 51.4 0.612 –44.0

700.00 0.390 –107.2 13.085 102.9 0.028 51.2 0.578 –46.2

800.00 0.363 –113.5 11.684 98.2 0.030 50.2 0.553 –45.7

900.00 0.341 –119.5 10.582 93.3 0.031 49.9 0.558 –47.7

1000.00 0.320 –127.1 9.608 90.2 0.034 52.1 0.524 –49.2

1100.00 0.301 –131.8 8.839 87.0 0.036 51.6 0.512 –48.2

1200.00 0.281 –137.3 8.148 83.7 0.037 52.7 0.510 –49.4

1300.00 0.264 –142.8 7.617 80.6 0.039 51.8 0.494 –51.3

1400.00 0.253 –148.4 7.143 78.0 0.041 54.4 0.490 –50.7

1500.00 0.239 –154.1 6.694 75.2 0.043 54.1 0.493 –52.3

1600.00 0.230 –161.3 6.345 72.5 0.045 53.4 0.484 –54.0

1700.00 0.225 –168.5 6.013 69.9 0.046 54.5 0.481 –54.4

1800.00 0.222 –175.5 5.711 67.1 0.049 55.4 0.484 –55.8

1900.00 0.223 176.4 5.455 64.2 0.050 55.4 0.474 –57.7

2000.00 0.230 169.3 5.211 61.5 0.052 55.5 0.466 –58.3

2100.00 0.239 162.7 4.965 59.0 0.055 55.1 0.466 –60.1

2200.00 0.251 156.7 4.733 56.1 0.057 55.2 0.449 –62.4

2300.00 0.266 151.6 4.517 53.5 0.060 54.6 0.439 –64.4

2400.00 0.281 148.1 4.313 51.0 0.063 56.0 0.430 –66.8

2500.00 0.293 145.0 4.130 48.7 0.063 54.9 0.419 –70.8

2600.00 0.310 142.7 3.952 46.5 0.066 55.3 0.404 –74.0

2700.00 0.326 141.1 3.807 44.2 0.068 54.7 0.408 –77.2

2800.00 0.338 139.3 3.680 42.4 0.070 54.0 0.404 –82.2

2900.00 0.350 137.8 3.517 40.2 0.073 53.7 0.403 –85.7

3000.00 0.364 136.6 3.430 37.5 0.075 53.3 0.412 –89.3

2SC5369

11

2SC5369

[MEMO]

No part of this document may be copied or reproduced in any form or by any means without the prior written
consent of NEC Corporation. NEC Corporation assumes no responsibility for any errors which may appear in
this document.
NEC Corporation does not assume any liability for infringement of patents, copyrights or other intellectual property
rights of third parties by or arising from use of a device described herein or any other liability arising from use
of such device. No license, either express, implied or otherwise, is granted under any patents, copyrights or other
intellectual property rights of NEC Corporation or others.
While NEC Corporation has been making continuous effort to enhance the reliability of its semiconductor devices,
the possibility of defects cannot be eliminated entirely. To minimize risks of damage or injury to persons or
property arising from a defect in an NEC semiconductor device, customers must incorporate sufficient safety
measures in its design, such as redundancy, fire-containment, and anti-failure features.
NEC devices are classified into the following three quality grades:
"Standard", "Special", and "Specific". The Specific quality grade applies only to devices developed based on a
customer designated "quality assurance program" for a specific application. The recommended applications of
a device depend on its quality grade, as indicated below. Customers must check the quality grade of each device
before using it in a particular application.

Standard: Computers, office equipment, communications equipment, test and measurement equipment,

audio and visual equipment, home electronic appliances, machine tools, personal electronic
equipment and industrial robots

Special: Transportation equipment (automobiles, trains, ships, etc.), traffic control systems, anti-disaster

systems, anti-crime systems, safety equipment and medical equipment (not specifically designed
for life support)

Specific: Aircrafts, aerospace equipment, submersible repeaters, nuclear reactor control systems, life

support systems or medical equipment for life support, etc.
The quality grade of NEC devices is "Standard" unless otherwise specified in NEC's Data Sheets or Data Books.
If customers intend to use NEC devices for applications other than those specified for Standard quality grade,
they should contact an NEC sales representative in advance.
Anti-radioactive design is not implemented in this product.

12

M4 96.5
