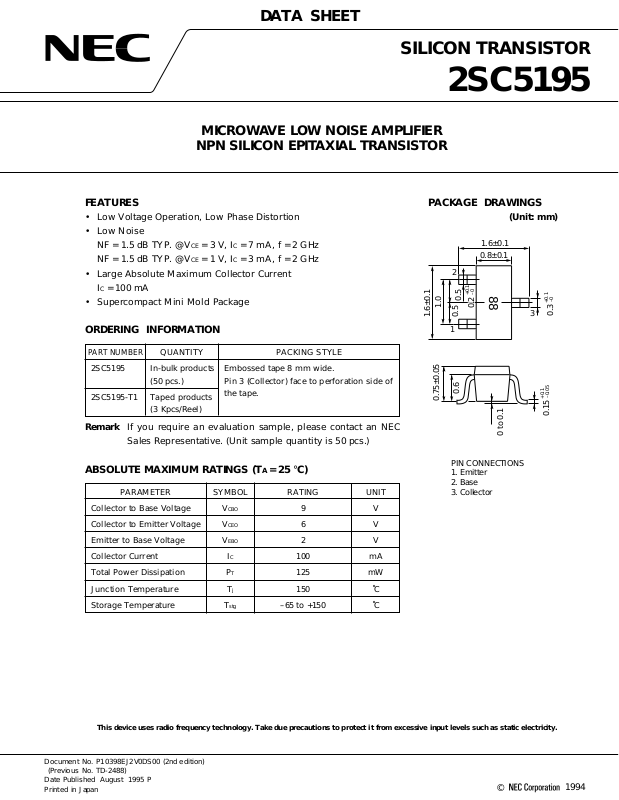

DATA SHEET

SILICON TRANSISTOR

2SC5195

MICROWAVE LOW NOISE AMPLIFIER

NPN SILICON EPITAXIAL TRANSISTOR

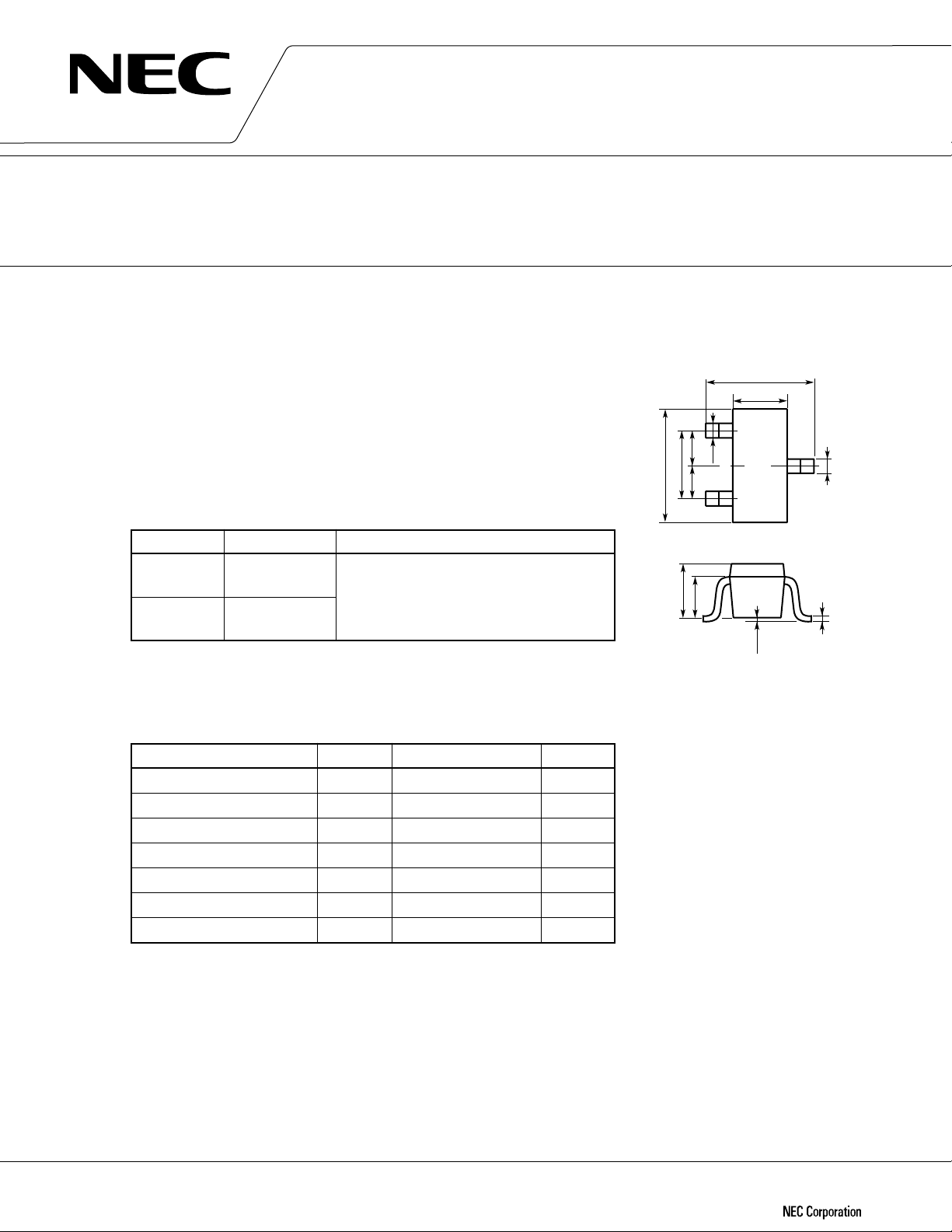

FEATURES PACKAGE DRAWINGS

• Low Voltage Operation, Low Phase Distortion (Unit: mm)

• Low Noise NF = 1.5 dB TYP. @VCE = 3 V, IC = 7 mA, f = 2 GHz NF = 1.5 dB TYP. @V

CE = 1 V, IC = 3 mA, f = 2 GHz

• Large Absolute Maximum Collector Current IC = 100 mA

• Supercompact Mini Mold Package

ORDERING INFORMATION

1.0

1.6±0.1

0.8±0.1

–0

+0.1

0.5

0.2

+0.1

–0

0.3

PART NUMBER

2SC5195 In-bulk products Embossed tape 8 mm wide.

2SC5195-T1 Taped products

QUANTITY PACKING STYLE

(50 pcs.) Pin 3 (Collector) face to perforation side of

the tape.

(3 Kpcs/Reel)

Remark If you require an evaluation sample, please contact an NEC

Sales Representative. (Unit sample quantity is 50 pcs.)

ABSOLUTE MAXIMUM RATINGS (TA = 25 °C)

PARAMETER SYMBOL RATING UNIT Collector to Base Voltage VCBO 9V Collector to Emitter Voltage VCEO 6V Emitter to Base Voltage VEBO 2V Collector Current IC 100 mA Total Power Dissipation PT 125 mW Junction Temperature Tj 150 ˚C Storage Temperature Tstg –65 to +150 ˚C

0.6

0.75±0.05

PIN CONNECTIONS

1. Emitter

2. Base

3. Collector

0 to 0.1

–0.05

+0.1

0.15

This device uses radio frequency technology. Take due precautions to protect it from excessive input levels such as static electricity.

Document No. P10398EJ2V0DS00 (2nd edition)

(Previous No. TD-2488) Date Published August 1995 P Printed in Japan

1994

Page 2

ELECTRICAL CHARACTERISTICS (TA = 25 °C)

PARAMETER SYMBOL CONDITION MIN. TYP. MAX. UNIT Collector Cutoff Current ICBO VCB = 5 V, IE = 0 100 nA Emitter Cutoff Current IEBO VEB = 1 V, IC = 0 100 nA DC Current Gain hFE VCE = 1 V, IC = 3 mA Insertion Power Gain |S21e|2VCE = 1 V, IC = 3 mA, f = 2.0 GHz 3 4 dB Insertion Power Gain (1) |S21e|2VCE = 3 V, IC = 20 mA, f = 2.0 GHz 8 dB Noise Figure (2) NF VCE = 1 V, IC = 3 mA, f = 2.0 GHz 1.7 2.5 dB Noise Figure (1) NF VCE = 3 V, IC = 7 mA, f = 2.0 GHz 1.5 dB Gain Bandwidth Product (2) fT VCE = 1 V, IC = 3 mA, f = 2.0 GHz 4.5 5 GHz Gain Bandwidth Product (1) fT VCE = 3 V, IC = 20 mA, f = 2.0 GHz 9.5 GHz Collector Capacitance Cre VCB = 1 V, IE = 0, f = 1.0 MHz

Notes 1. Pulse Measurement: PW ≤ 350 µs, Duty cycle ≤ 2 %, Pulsed

2. Measured with 3-pin bridge, emitter and case should be connected to guard pin of bridge.

FE Classification

Note 1

Note 2

80 160

0.7 0.8 pF

2SC5195

Rank FB

Marking 88

hFE 80 to 160

Page 3

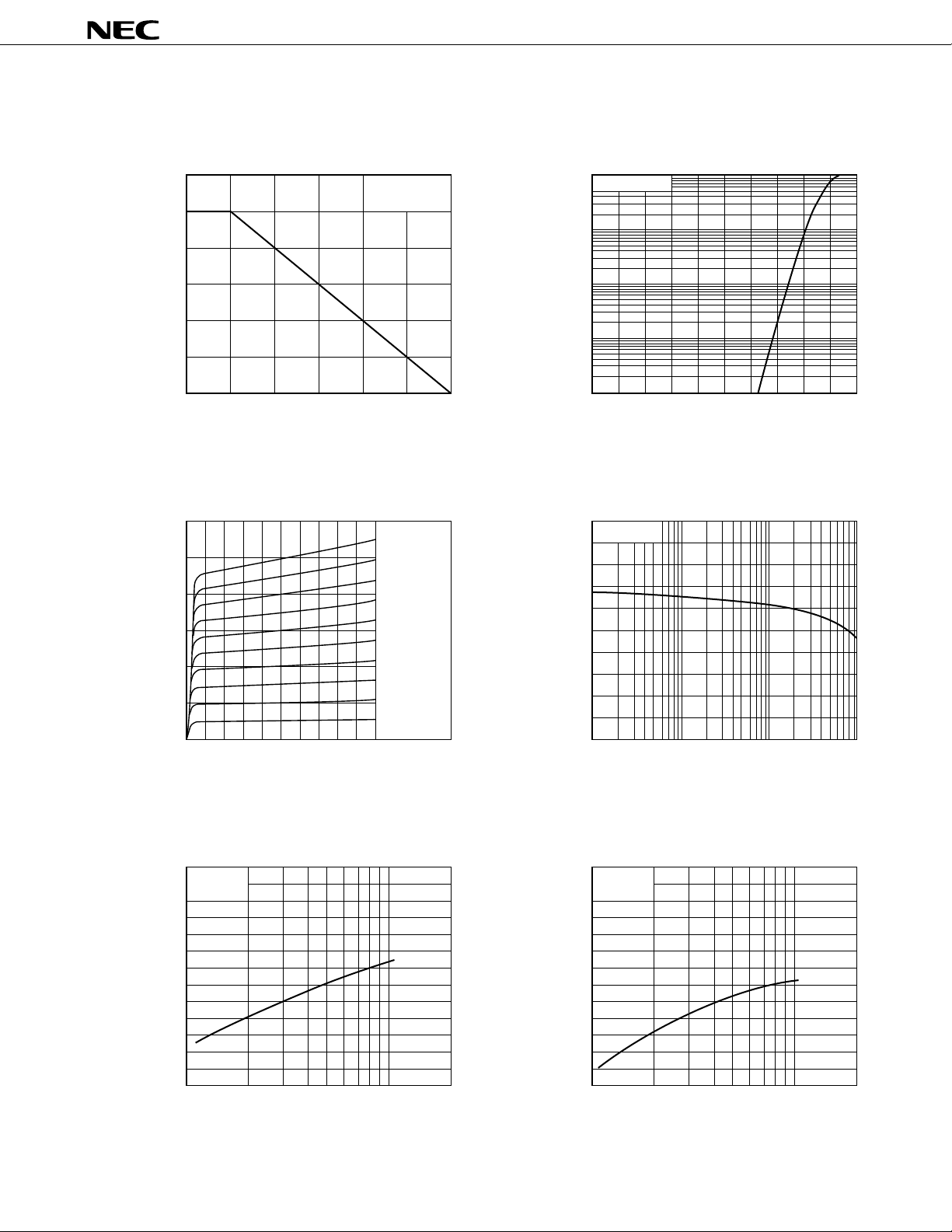

TYPICAL CHARACTERISTICS (TA = 25 °C)

2SC5195

TOTAL POWER DISSIPATION vs. AMBIENT TEMPERATURE

150

(mW)

100

Total Power Dissipation P

050

Ambient Temperature T

COLLECTOR CURRENT vs. COLLECTOR TO EMITTER VOLTAGE

(mA)

Collector Current I

0 2.5

Collector to Emitter Voltage V

Free Air

100 150

(°C)

200 A

180 A

160 A

140 A

120 A

100 A

80 A

60 A

40 A

IB = 20 A

(V)

COLLECTOR CURRENT vs. BASE TO EMITTER VOLTAGE

100

= 1 V

(mA)

0.1

Collector Current I

0.01 0 0.5

Base to Emitter Voltage V

200

= 1 V

100

DC Current Gain h

0.1 10.2 2 20 5050.5

DC CURENT GAIN vs. COLLECTOR CURRENT

10 100

Collector Current IC (mA)

(V)

GAIN BANDWIDTH PRODUCT vs. COLLECTOR CURRENT

= 1 V

f = 2 GHz

(GHz)

Gain Bandwidth Product f

Collector Current I

723 5 10 20

(mA)

INSERTION GAIN vs. COLLECTOR CURRENT

= 1 V

f = 2 GHz

(dB)

21e

Insertion Power Gain |S

Collector Current I

723 5 10 20

(mA)

Page 4

2SC5195

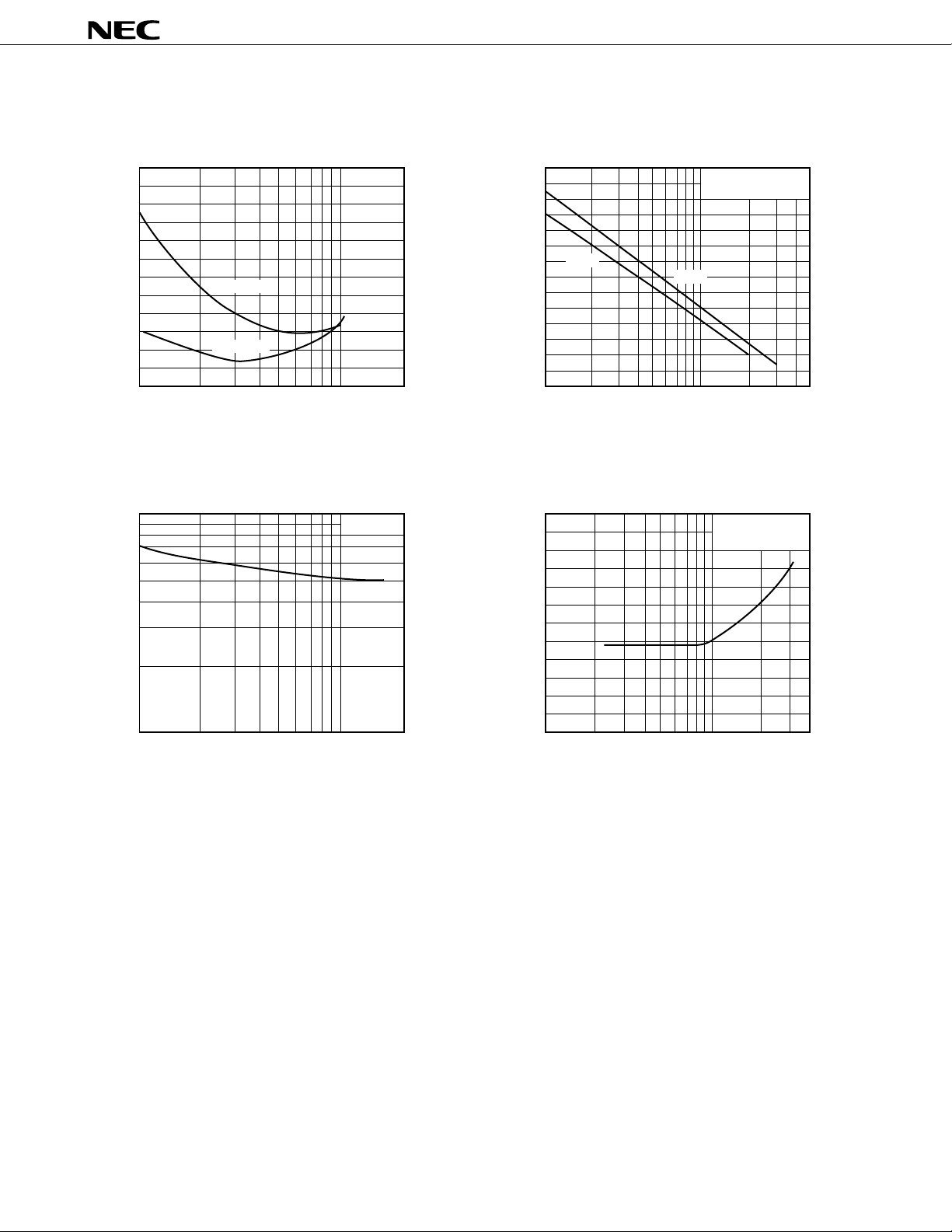

NOISE FIGURE vs. COLLECTOR CURRENT

3

= 1 V

2

Noise Figure NF (dB)

1

FEED-BACK CAPACITANCE vs. COLLECTOR TO BASE VOLTAGE

1.0

(pF)

0.5

f = 2 GHz

f = 1 GHz

Collector Current I

72 3 5 10 20

(mA)

f = 1 MHz

MAXIMUM AVAILABLE GAIN / INSERTION POWER GAIN vs. FREQUENCY

30

(dB)

21e

20

2

21e

MAG

10

0

Maximum Available Power Gain MAG (dB)

Insertion Power Gain |S

0.2 0.5 1 5

0.1 Frequency f (GHz)

NOISE FIGURE vs. FREQUENCY

1.5

= 1 V

V I

= 5 mA

= 1 V

Feed-back Capacitance C

0.1 1

Collector to Base Voltage V

1.0

Noise Figure NF (dB)

202 5 10

(V)

0.5

0.1

0.2 0.5 1 2 Frequency f (GHz)

Page 5

S-PARAMETERS

VCE = 1 V, IC = 1 mA, ZO = 50 Ω

FREQUENCY S11 S21 S12 S22

(MHz) MAG ANG MAG ANG MAG ANG MAG ANG

100.00 0.996 –19.0 3.632 166.2 0.039 66.4 0.989 –7.6

200.00 0.960 –37.5 3.266 153.8 0.096 63.3 0.944 –17.9

300.00 0.959 –35.2 3.200 140.1 0.141 56.6 0.884 –27.3

400.00 0.934 –69.6 3.015 128.0 0.172 48.5 0.837 –33.3

500.00 0.848 –83.7 2.686 119.0 0.187 40.4 0.785 –38.9

600.00 0.768 –92.1 2.409 113.0 0.200 36.4 0.748 –40.8

700.00 0.763 –104.0 2.226 105.1 0.216 30.6 0.710 –46.6

800.00 0.733 –116.4 2.025 97.7 0.219 25.8 0.637 –47.7

900.00 0.697 –124.6 1.848 90.5 0.220 23.2 0.604 –51.2

1000.00 0.678 –137.7 1.703 86.1 0.218 21.1 0.361 –52.7

1100.00 0.667 –138.0 1.560 80.4 0.218 17.3 0.534 –57.6

1200.00 0.673 –147.0 1.510 75.9 0.212 13.7 0.514 –62.6

1300.00 0.676 –153.6 1.359 71.8 0.209 10.7 0.492 –64.8

1400.00 0.689 –160.2 1.270 70.0 0.207 9.7 0.478 –63.7

1500.00 0.671 –166.1 1.265 61.1 0.214 8.2 0.483 –69.4

1600.00 0.644 –170.8 1.240 55.7 0.213 8.9 0.471 –73.4

1700.00 0.649 –176.4 1.174 51.7 0.205 9.2 0.460 –75.1

1800.00 0.605 176.0 1.183 49.6 0.197 11.7 0.450 –79.2

1900.00 0.633 171.5 1.100 47.0 0.192 12.1 0.440 –82.6

2000.00 0.640 165.5 1.034 45.8 0.184 13.3 0.442 –86.1

2SC5195

VCE = 1 V, IC = 3 mA, ZO = 50 Ω

FREQUENCY S11 S21 S12 S22

(MHz) MAG ANG MAG ANG MAG ANG MAG ANG

100.00 0.901 –31.1 9.543 159.0 0.034 54.0 0.961 –16.2

200.00 0.830 –59.6 8.103 141.0 0.086 54.4 0.833 –34.0

300.00 0.784 –82.6 7.226 124.9 0.114 47.5 0.713 –48.5

400.00 0.715 –99.4 6.213 113.7 0.129 42.1 0.612 –56.1

500.00 0.643 –114.2 4.933 106.2 0.134 38.1 0.526 –61.0

600.00 0.600 –125.5 4.331 101.2 0.141 36.4 0.481 –62.6

700.00 0.590 –136.3 3.869 94.3 0.149 33.6 0.437 –69.4

800.00 0.568 –147.0 3.448 88.3 0.151 32.7 0.368 –72.6

900.00 0.536 –153.2 3.051 83.5 0.153 32.9 0.332 –75.3

1000.00 0.535 –160.4 2.791 80.1 0.157 33.4 0.304 –77.1

1100.00 0.571 –166.9 2.349 73.8 0.160 32.5 0.299 –81.3

1200.00 0.536 –173.3 2.398 72.1 0.161 31.8 0.280 –88.2

1300.00 0.547 179.9 2.211 68.4 0.164 31.3 0.255 –91.3

1400.00 0.536 178.2 2.098 65.8 0.169 31.6 0.241 –95.0

1500.00 0.550 172.3 2.031 60.4 0.180 31.2 0.236 –95.7

1600.00 0.528 169.3 1.920 56.3 0.189 32.1 0.231 –100.8

1700.00 0.534 163.8 1.840 32.8 0.194 33.4 0.217 –105.1

1800.00 0.517 158.2 1.740 51.4 0.198 35.5 0.214 110.3

1900.00 0.541 154.5 1.654 47.4 0.202 36.2 0.211 –115.4

2000.00 0.550 150.2 1.558 48.0 0.203 36.7 0.216 –118.6

Page 6

VCE = 1 V, IC = 5 mA, ZO = 50 Ω

FREQUENCY S11 S21 S12 S22

(MHz) MAG ANG MAG ANG MAG ANG MAG ANG

100.00 0.812 –40.5 13.835 153.5 0.036 51.3 0.914 –22.7

200.00 0.733 –74.9 11.096 132.3 0.078 48.7 0.742 –43.0

300.00 0.672 –99.8 8.862 116.3 0.097 45.0 0.599 –61.4

400.00 0.604 –117.1 7.167 106.1 0.106 42.9 0.489 –69.5

500.00 0.539 –131.2 5.890 100.2 0.111 41.1 0.404 –74.3

600.00 0.540 –142.3 5.131 95.6 0.119 41.2 0.361 –75.8

700.00 0.532 –151.5 4.515 89.5 0.126 40.0 0.329 –83.5

800.00 0.513 –160.7 3.985 84.6 0.130 40.3 0.274 –89.3

900.00 0.498 –165.9 3.496 80.4 0.136 41.3 0.242 –93.2

1000.00 0.493 –172.6 3.196 77.4 0.144 42.1 0.220 –95.3

1100.00 0.483 –179.2 2.924 73.5 0.150 41.9 0.219 –99.1

1200.00 0.501 176.0 2.736 70.2 0.154 41.7 0.211 –107.3

1300.00 0.510 170.3 2.514 66.8 0.160 41.1 0.192 –112.5

1400.00 0.519 169.4 2.390 64.2 0.168 41.2 0.178 –117.6

1500.00 0.518 164.2 2.296 59.6 0.180 40.5 0.173 –119.2

1600.00 0.498 161.6 2.164 56.0 0.193 40.4 0.175 –125.0

1700.00 0.506 136.6 2.066 52.7 0.201 41.3 0.168 –132.1

1800.00 0.496 131.7 1.942 51.7 0.209 42.7 0.172 –137.9

1900.00 0.518 148.3 1.848 49.3 0.215 42.9 0.174 –143.2

2000.00 0.526 144.5 1.751 48.6 0.220 42.8 0.181 –145.3

2SC5195

VCE = 1 V, IC = 7 mA, ZO = 50 Ω

FREQUENCY S11 S21 S12 S22

(MHz) MAG ANG MAG ANG MAG ANG MAG ANG

100.00 0.723 –48.8 17.674 148.0 0.040 43.6 0.869 –27.4

200.00 0.656 –88.8 13.024 125.3 0.069 46.3 0.656 –54.8

300.00 0.396 –114.3 10.093 110.2 0.082 44.9 0.510 –71.8

400.00 0.338 –131.1 7.935 101.3 0.092 44.8 0.406 –80.4

500.00 0.514 –143.7 6.491 96.3 0.098 45.6 0.327 –86.1

600.00 0.509 –153.9 5.611 92.0 0.107 46.7 0.288 –87.8

700.00 0.502 –161.6 4.884 86.5 0.115 46.3 0.269 –96.1

800.00 0.488 –169.7 4.301 82.1 0.121 46.7 0.226 –104.6

900.00 0.465 –174.3 3.766 78.5 0.129 47.9 0.200 –110.2

1000.00 0.473 179.6 3.446 75.7 0.139 48.5 0.181 –112.9

1100.00 0.467 173.2 3.139 72.1 0.147 48.3 0.183 –115.7

1200.00 0.485 169.4 2.924 69.1 0.154 47.8 0.184 –174.5

1300.00 0.494 164.3 2.690 65.9 0.161 47.1 0.170 –131.3

1400.00 0.502 164.1 2.561 63.4 0.171 46.8 0.160 –137.7

1500.00 0.504 159.1 2.445 59.0 0.184 45.7 0.155 –140.4

1600.00 0.485 156.9 2.307 53.7 0.198 45.1 0.163 –145.6

1700.00 0.493 152.2 2.200 52.6 0.207 45.6 0.162 –153.3

1800.00 0.487 147.7 2.063 51.8 0.217 46.3 0.172 –158.2

1900.00 0.509 144.7 1.964 50.0 0.224 46.4 0.176 –162.6

2000.00 0.517 141.1 1.854 48.9 0.230 46.0 0.184 –163.6

Page 7

VCE = 1 V, IC = 10 mA, ZO = 50 Ω

FREQUENCY S11 S21 S12 S22

(MHz) MAG ANG MAG ANG MAG ANG MAG ANG

100.00 0.639 –61.3 20.675 147.3 0.035 48.8 0.804 –36.3

200.00 0.590 –102.5 14.774 119.3 0.061 44.7 0.574 –63.1

300.00 0.541 –127.6 10.985 105.4 0.073 46.2 0.440 –81.7

400.00 0.498 –143.4 8.497 97.6 0.082 48.6 0.345 –91.1

500.00 0.487 –154.2 6.903 93.3 0.090 50.6 0.273 –98.0

600.00 0.492 –163.1 5.954 89.4 0.100 52.1 0.239 –100.0

700.00 0.485 –169.6 5.156 84.3 0.109 51.9 0.230 –108.6

800.00 0.473 –176.8 4.503 80.3 0.117 52.2 0.202 –119.4

900.00 0.451 179.1 3.934 77.1 0.126 53.0 0.181 –126.3

1000.00 0.462 173.5 3.602 74.4 0.138 53.2 0.165 –129.6

1100.00 0.459 167.6 3.283 71.1 0.148 52.9 0.168 –131.0

1200.00 0.477 164.4 3.050 68.3 0.156 52.2 0.175 –139.3

1300.00 0.484 160.0 2.814 65.2 0.164 51.3 0.167 –147.1

1400.00 0.491 160.0 2.674 62.8 0.175 50.5 0.160 –154.1

1500.00 0.496 155.4 2.551 58.7 0.188 49.2 0.157 –157.1

1600.00 0.477 153.3 2.401 55.4 0.203 48.1 0.167 –161.0

1700.00 0.486 149.0 2.287 52.5 0.213 48.4 0.172 –168.2

1800.00 0.482 144.7 2.141 51.8 0.224 48.9 0.185 –171.8

1900.00 0.503 141.9 2.042 50.1 0.231 48.7 0.190 –175.4

2000.00 0.512 138.5 1.927 49.1 0.238 48.0 0.198 –175.5

2SC5195

VCE = 3 V, IC = 1 mA, ZO = 50 Ω

FREQUENCY S11 S21 S12 S22

(MHz) MAG ANG MAG ANG MAG ANG MAG ANG

100.00 1.007 –16.8 3.616 167.8 0.022 69.7 1.001 –5.4

200.00 0.975 –32.9 3.279 157.4 0.071 63.6 0.963 –13.4

300.00 0.977 –48.7 3.255 145.0 0.104 59.0 0.913 –20.9

400.00 0.962 –62.1 3.126 133.6 0.131 55.2 0.886 –25.4

500.00 0.881 –75.6 2.830 124.9 0.145 45.7 0.845 –30.3

600.00 0.797 –83.0 2.349 119.3 0.155 41.8 0.816 –31.5

700.00 0.792 –94.6 2.374 112.1 0.169 36.4 0.792 –36.4

800.00 0.756 –107.0 2.164 105.0 0.172 31.3 0.726 –37.0

900.00 0.721 –115.7 1.995 97.8 0.175 28.9 0.696 –39.7

1000.00 0.699 –123.7 1.839 93.4 0.174 27.0 0.652 –40.1

1100.00 0.688 –129.2 1.679 88.0 0.173 23.4 0.648 –44.7

1200.00 0.687 –138.5 1.636 83.5 0.169 20.0 0.597 –48.6

1300.00 0.685 –147.5 1.478 80.0 0.168 17.3 0.583 –50.2

1400.00 0.694 –153.3 1.419 78.7 0.166 16.4 0.568 –53.8

1500.00 0.674 –159.1 1.376 69.5 0.171 15.0 0.579 –54.5

1600.00 0.647 –164.2 1.352 63.9 0.170 15.9 0.567 –57.9

1700.00 0.654 –169.9 1.253 60.0 0.165 16.5 0.558 –58.9

1800.00 0.599 –177.9 1.296 57.1 0.158 19.6 0.546 –61.9

1900.00 0.630 177.0 1.199 54.8 0.156 20.8 0.533 –63.7

2000.00 0.630 170.4 1.129 53.0 0.149 22.6 0.533 –67.2

Page 8

VCE = 3 V, IC = 3 mA, ZO = 50 Ω

FREQUENCY S11 S21 S12 S22

(MHz) MAG ANG MAG ANG MAG ANG MAG ANG

100.00 0.917 –25.8 9.668 161.9 0.022 49.8 0.976 –11.1

200.00 0.852 –49.6 8.385 146.2 0.064 56.6 0.883 –24.7

300.00 0.808 –70.7 7.736 130.9 0.088 52.8 0.778 –36.0

400.00 0.742 –86.4 6.482 119.3 0.103 47.0 0.695 –41.4

500.00 0.657 –101.0 5.525 111.8 0.109 43.1 0.621 –45.2

600.00 0.594 –111.4 4.878 106.9 0.114 42.0 0.579 –45.6

700.00 0.578 –122.9 4.396 100.2 0.121 39.2 0.537 –50.4

800.00 0.553 –134.5 3.948 94.4 0.123 37.7 0.469 –51.0

900.00 0.517 –141.4 3.515 89.0 0.127 38.1 0.434 –52.3

1000.00 0.506 –149.2 3.201 85.6 0.130 38.6 0.402 –52.1

1100.00 0.491 –155.4 2.930 81.2 0.133 38.0 0.396 –55.7

1200.00 0.499 –163.1 2.760 77.5 0.134 37.5 0.364 –60.4

1300.00 0.507 –170.8 2.539 74.0 0.137 37.2 0.342 –61.6

1400.00 0.513 –173.8 2.423 71.7 0.141 37.7 0.328 –63.8

1500.00 0.505 –179.5 2.346 66.3 0.150 37.4 0.327 –64.1

1600.00 0.485 176.9 2.233 62.1 0.157 38.5 0.320 –67.3

1700.00 0.490 171.1 2.118 58.7 0.163 39.7 0.306 –68.6

1800.00 0.468 164.9 2.017 56.9 0.167 42.2 0.295 –71.9

1900.00 0.492 160.6 1.907 53.0 0.172 43.2 0.283 –74.2

2000.00 0.499 155.6 1.804 53.5 0.175 44.1 0.285 –77.3

2SC5195

VCE = 3 V, IC = 5 mA, ZO = 50 Ω

FREQUENCY S11 S21 S12 S22

(MHz) MAG ANG MAG ANG MAG ANG MAG ANG

100.00 0.844 –32.2 14.254 157.1 0.026 43.6 0.949 –15.0

200.00 0.757 –62.0 11.790 138.2 0.059 51.0 0.806 –32.6

300.00 0.687 –85.1 9.852 122.3 0.077 49.6 0.674 –45.0

400.00 0.609 –101.4 8.167 111.7 0.086 47.2 0.575 –30.2

500.00 0.544 –116.0 6.786 105.3 0.093 45.6 0.496 –52.9

600.00 0.502 –127.4 5.941 100.6 0.098 46.1 0.436 –52.3

700.00 0.489 –137.9 5.275 94.6 0.105 45.0 0.418 –57.1

800.00 0.470 –148.2 4.669 89.6 0.108 44.8 0.358 –57.9

900.00 0.441 –154.3 4.119 85.1 0.113 46.0 0.325 –58.8

1000.00 0.437 –161.6 3.749 82.0 0.120 47.0 0.300 –58.2

1100.00 0.423 –168.4 3.443 78.2 0.126 46.9 0.297 –61.3

1200.00 0.437 –174.3 3.209 74.9 0.130 46.8 0.274 –66.8

1300.00 0.446 178.9 2.964 71.7 0.135 46.5 0.253 –68.2

1400.00 0.453 176.9 2.806 69.3 0.142 46.7 0.238 –70.0

1500.00 0.448 171.6 2.696 64.8 0.152 46.1 0.236 –70.3

1600.00 0.434 168.9 2.552 61.0 0.163 46.3 0.231 –74.0

1700.00 0.440 163.3 2.434 57.9 0.171 47.0 0.217 –76.1

1800.00 0.428 157.8 2.291 56.5 0.178 48.6 0.208 –80.2

1900.00 0.451 154.0 2.178 54.8 0.185 49.2 0.199 –83.4

2000.00 0.459 149.5 2.056 53.5 0.190 49.4 0.201 –86.7

Page 9

VCE = 3 V, IC = 7 mA, ZO = 50 Ω

FREQUENCY S11 S21 S12 S22

(MHz) MAG ANG MAG ANG MAG ANG MAG ANG

100.00 0.770 –40.0 18.346 132.6 0.023 36.3 0.939 –20.0

200.00 0.666 –73.3 14.212 131.4 0.054 48.3 0.733 –39.5

300.00 0.588 –97.6 11.480 116.0 0.068 48.8 0.585 –32.1

400.00 0.516 –114.1 9.252 106.4 0.077 49.5 0.483 –56.7

500.00 0.471 –128.3 7.604 100.8 0.083 49.7 0.406 –58.3

600.00 0.446 –139.5 6.608 96.4 0.089 51.0 0.372 –57.1

700.00 0.436 –148.8 5.788 91.0 0.097 50.8 0.341 –61.9

800.00 0.422 –158.0 5.104 86.6 0.102 50.9 0.287 –63.3

900.00 0.398 –163.6 4.477 82.8 0.109 52.1 0.256 –64.2

1000.00 0.398 –170.5 4.074 79.8 0.117 52.9 0.233 –62.9

1100.00 0.391 –177.1 3.744 76.3 0.125 52.8 0.233 –65.9

1200.00 0.404 177.9 3.472 73.4 0.131 32.5 0.218 –72.5

1300.00 0.413 172.1 3.212 70.3 0.138 52.0 0.198 –74.5

1400.00 0.420 170.7 3.041 68.0 0.146 51.8 0.184 –76.2

1500.00 0.419 165.7 2.904 63.8 0.157 50.9 0.181 –76.5

1600.00 0.407 163.4 2.752 60.4 0.169 50.6 0.179 –81.1

1700.00 0.414 158.2 2.621 57.4 0.178 50.8 0.165 –84.2

1800.00 0.408 153.0 2.462 56.5 0.187 51.9 0.159 –89.7

1900.00 0.429 149.8 2.340 54.7 0.194 52.1 0.152 –93.8

2000.00 0.437 143.6 2.212 53.5 0.200 52.0 0.155 –97.4

2SC5195

VCE = 3 V, IC = 10 mA, ZO = 50 Ω

FREQUENCY S11 S21 S12 S22

(MHz) MAG ANG MAG ANG MAG ANG MAG ANG

100.00 0.686 –46.4 21.798 147.0 0.027 33.4 0.895 –23.1

200.00 0.580 –84.7 16.506 125.3 0.048 47.1 0.657 –45.9

300.00 0.506 –109.6 12.733 110.8 0.060 50.4 0.506 –58.0

400.00 0.447 –126.2 10.027 102.2 0.069 52.6 0.408 –62.1

500.00 0.420 –139.2 8.183 97.3 0.076 54.4 0.336 –63.5

600.00 0.408 –149.9 7.058 93.3 0.084 56.0 0.306 –61.2

700.00 0.401 –157.8 6.167 88.4 0.092 55.7 0.283 –66.1

800.00 0.391 –166.1 5.399 84.4 0.099 56.1 0.235 –68.5

900.00 0.370 –171.1 4.744 81.0 0.107 57.0 0.206 –69.5

1000.00 0.373 –177.6 4.311 78.2 0.117 57.3 0.188 –67.6

1100.00 0.369 176.0 3.939 75.0 0.126 57.0 0.191 –70.4

1200.00 0.383 171.9 3.667 72.3 0.132 56.6 0.178 –78.4

1300.00 0.392 166.9 3.381 69.4 0.140 55.9 0.159 –81.3

1400.00 0.399 165.9 3.207 67.1 0.149 53.3 0.146 –83.4

1500.00 0.400 161.2 3.064 63.2 0.161 54.2 0.143 –83.7

1600.00 0.390 139.2 2.884 60.0 0.173 53.4 0.143 –89.1

1700.00 0.397 154.5 2.741 57.1 0.183 53.4 0.131 –94.0

1800.00 0.394 149.5 2.584 56.2 0.193 54.1 0.127 –101.0

1900.00 0.414 146.5 2.457 54.6 0.201 54.1 0.123 –106.2

2000.00 0.423 142.7 2.314 53.6 0.208 53.7 0.128 –109.6

Page 10

2SC5195

No part of this document may be copied or reproduced in any form or by any means without the prior written consent of NEC Corporation. NEC Corporation assumes no responsibility for any errors which may appear in this document. NEC Corporation does not assume any liability for infringement of patents, copyrights or other intellectual property rights of third parties by or arising from use of a device described herein or any other liability arising from use of such device. No license, either express, implied or otherwise, is granted under any patents, copyrights or other intellectual property rights of NEC Corporation or others. While NEC Corporation has been making continuous effort to enhance the reliability of its semiconductor devices, the possibility of defects cannot be eliminated entirely. To minimize risks of damage or injury to persons or property arising from a defect in an NEC semiconductor device, customer must incorporate sufficient safety measures in its design, such as redundancy, fire-containment, and anti-failure features. NEC devices are classified into the following three quality grades: “Standard“, “Special“, and “Specific“. The Specific quality grade applies only to devices developed based on a customer designated “quality assurance program“ for a specific application. The recommended applications of a device depend on its quality grade, as indicated below. Customers must check the quality grade of each device before using it in a particular application.

Standard: Computers, office equipment, communications equipment, test and measurement equipment,

audio and visual equipment, home electronic appliances, machine tools, personal electronic equipment and industrial robots

Special: Transportation equipment (automobiles, trains, ships, etc.), traffic control systems, anti-disaster

systems, anti-crime systems, safety equipment and medical equipment (not specifically designed for life support)

Specific: Aircrafts, aerospace equipment, submersible repeaters, nuclear reactor control systems, life

support systems or medical equipment for life support, etc. The quality grade of NEC devices in “Standard“ unless otherwise specified in NEC's Data Sheets or Data Books. If customers intend to use NEC devices for applications other than those specified for Standard quality grade, they should contact NEC Sales Representative in advance. Anti-radioactive design is not implemented in this product.

M4 94.11
