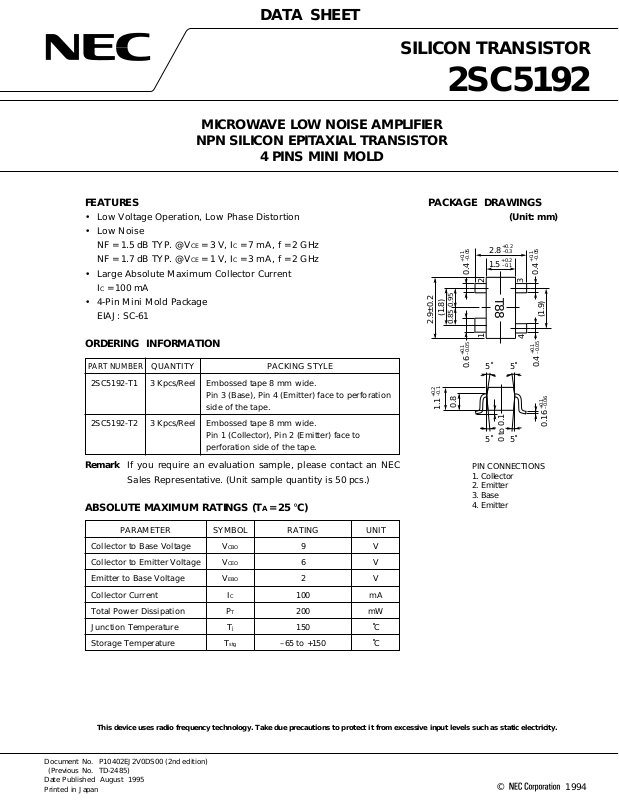

DATA SHEET

SILICON TRANSISTOR

2SC5192

MICROWAVE LOW NOISE AMPLIFIER

NPN SILICON EPITAXIAL TRANSISTOR

4 PINS MINI MOLD

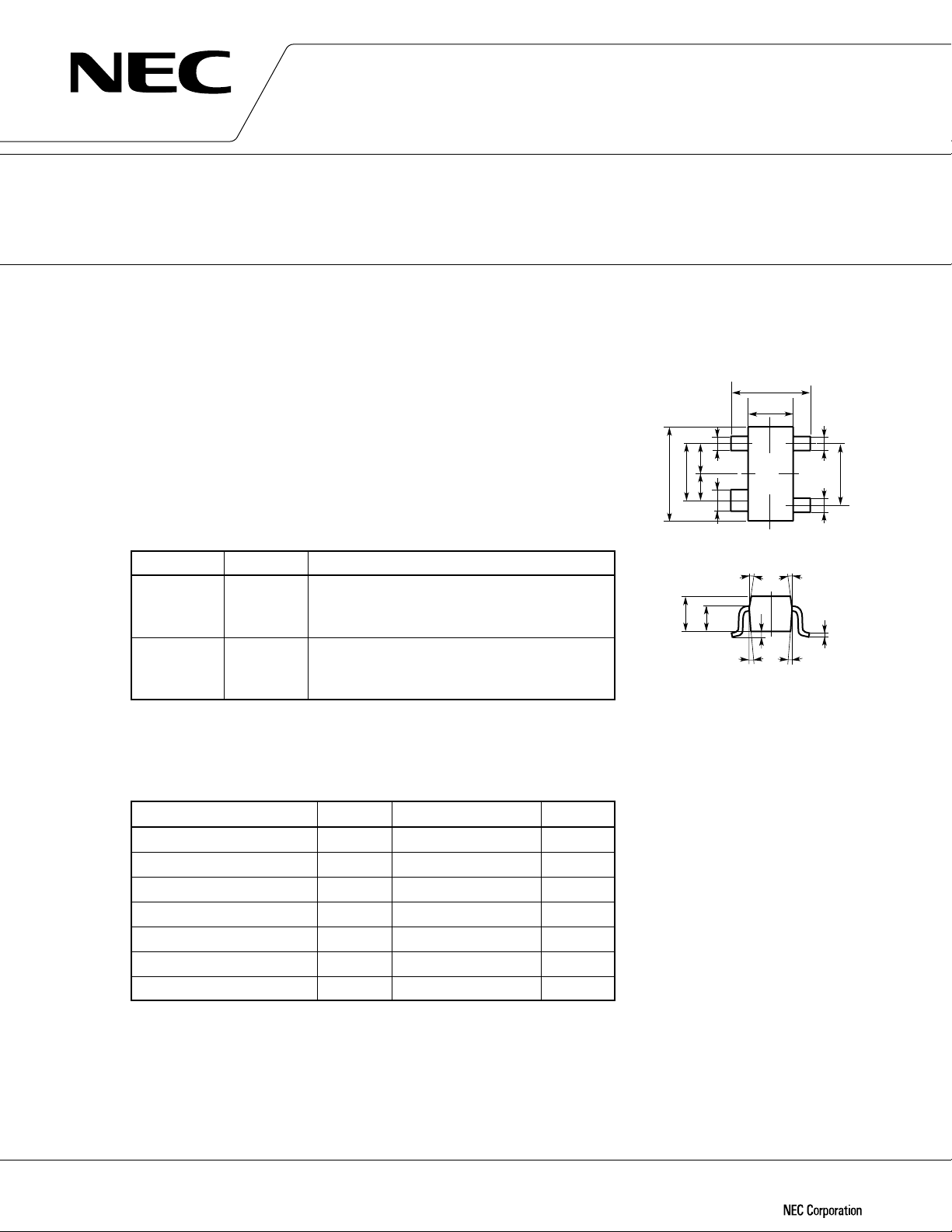

FEATURES PACKAGE DRAWINGS

• Low Voltage Operation, Low Phase Distortion (Unit: mm)

• Low Noise NF = 1.5 dB TYP. @VCE = 3 V, IC = 7 mA, f = 2 GHz NF = 1.7 dB TYP. @V

CE = 1 V, IC = 3 mA, f = 2 GHz

• Large Absolute Maximum Collector Current IC = 100 mA

• 4-Pin Mini Mold Package EIAJ: SC-61

ORDERING INFORMATION

PART NUMBER

2SC5192-T1 3 Kpcs/Reel Embossed tape 8 mm wide.

2SC5192-T2 3 Kpcs/Reel Embossed tape 8 mm wide.

QUANTITY PACKING STYLE

Pin 3 (Base), Pin 4 (Emitter) face to perforation side of the tape.

Pin 1 (Collector), Pin 2 (Emitter) face to perforation side of the tape.

(1.8)

2.9±0.2

–0.1

+0.2

1.1

0.950.85

0.8

+0.1

–0.05

0.4

–0.05

0.6

+0.2

2.8

–0.3 +0.2

1.5

–0.1

21

T88

5˚ 5˚

0 to 0.1

–0.05

+0.1

0.4

3

(1.9)

4

–0.05

+0.1

0.4

–0.06

+0.1

0.16

Remark If you require an evaluation sample, please contact an NEC

Sales Representative. (Unit sample quantity is 50 pcs.)

ABSOLUTE MAXIMUM RATINGS (TA = 25 °C)

PARAMETER SYMBOL RATING UNIT Collector to Base Voltage VCBO 9V Collector to Emitter Voltage VCEO 6V Emitter to Base Voltage VEBO 2V Collector Current IC 100 mA Total Power Dissipation PT 200 mW Junction Temperature Tj 150 ˚C Storage Temperature Tstg –65 to +150 ˚C

This device uses radio frequency technology. Take due precautions to protect it from excessive input levels such as static electricity.

PIN CONNECTIONS

1. Collector

2. Emitter

3. Base

4. Emitter 

Document No. P10402EJ2V0DS00 (2nd edition)

(Previous No. TD-2485) Date Published August 1995 Printed in Japan

1994

Page 2

ELECTRICAL CHARACTERISTICS (TA = 25 °C)

PARAMETER SYMBOL CONDITION MIN. TYP. MAX. UNIT Collector Cutoff Current ICBO VCB = 5 V, IE = 0 100 nA Emitter Cutoff Current IEBO VEB = 1 V, IC = 0 100 nA DC Current Gain hFE VCE = 1 V, IC = 3 mA Insertion Power Gain (1) |S21e|2VCE = 1 V, IC = 3 mA, f = 2.0 GHz 3 4.0 dB Insertion Power Gain (2) |S21e|2VCE = 3 V, IC = 20 mA, f = 2.0 GHz 8 dB Noise Figure (1) NF VCE = 1 V, IC = 3 mA, f = 2.0 GHz 1.7 2.5 dB Noise Figure (2) NF VCE = 3 V, IC = 7 mA, f = 2.0 GHz 1.5 dB Gain Bandwidth Product (1) fT VCE = 1 V, IC = 3 mA, f = 2.0 GHz 4 4.5 GHz Gain Bandwidth Product (2) fT VCE = 3 V, IC = 20 mA, f = 2.0 GHz 9 GHz Collector Capacitance Cre VCB = 1 V, IE = 0, f = 1.0 MHz

Notes 1. Pulse Measurement: PW ≤ 350 µs, Duty cycle ≤ 2 %, Pulsed

2. Measured with 3-pin bridge, emitter and case should be connected to guard pin of bridge.

FE Classification

Note 1

Note 2

80 160

0.65 0.8 pF

2SC5192

Rank FB

Marking T88

hFE 80 to 160

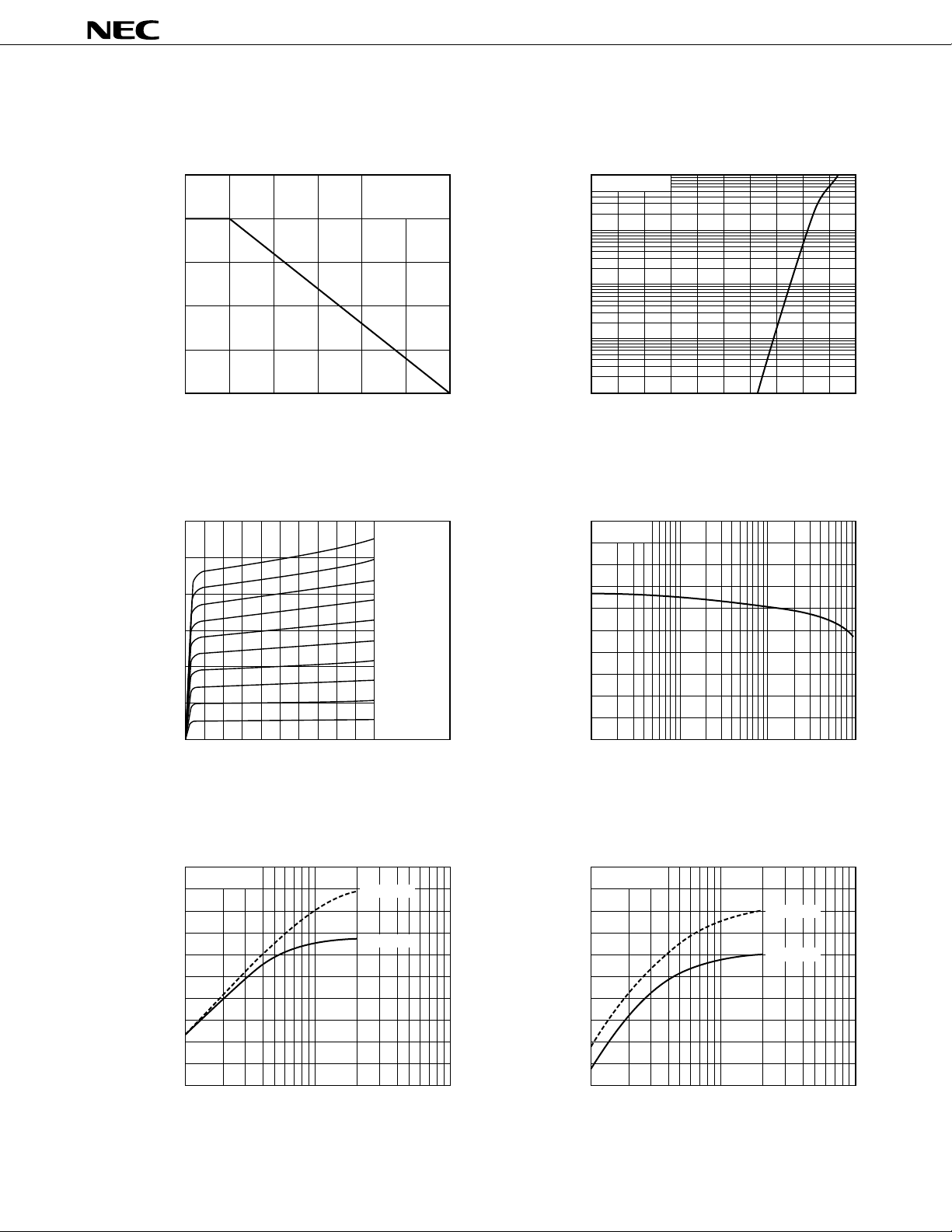

Page 3

050

Ambient Temperature T

(°C)

TOTAL POWER DISSIPATION vs. AMBIENT TEMPERATURE

Free Air

Total Power Dissipation P

(mW)

100 150

100

200

Collector to Emitter Voltage V

(V)

COLLECTOR CURRENT vs. COLLECTOR TO EMITTER VOLTAGE

Collector Current I

(mA)

200 A

180 A

160 A

140 A

120 A

100 A

80 A

60 A

40 A

IB = 20 A

0 0.5

Base to Emitter Voltage V

(V)

COLLECTOR CURRENT vs. BASE TO EMITTER VOLTAGE

= 1 V

Collector Current I

(mA)

0.01

0.02

0.05

0.1

0.2

0.5

100

0.1 10.2 2 20 5050.5 Collector Current I

(mA)

DC Current Gain h

10 100

100

200

= 1 V

DC CURENT GAIN vs. COLLECTOR CURRENT

Collector Current I

(mA)

GAIN BANDWIDTH PRODUCT vs. COLLECTOR CURRENT

f = 2 GHz

Gain Bandwidth Product f

(GHz)

10 20 502 5 100

11020502 5 100

Collector Current IC (mA)

INSERTION GAIN vs. COLLECTOR CURRENT

Insertion Power Gain |S

21e

(dB)

VCE = 3 V

VCE = 1 V

f = 2 GHz

VCE = 3 V

VCE = 1 V

TYPICAL CHARACTERISTICS (TA = 25 °C)

2SC5192

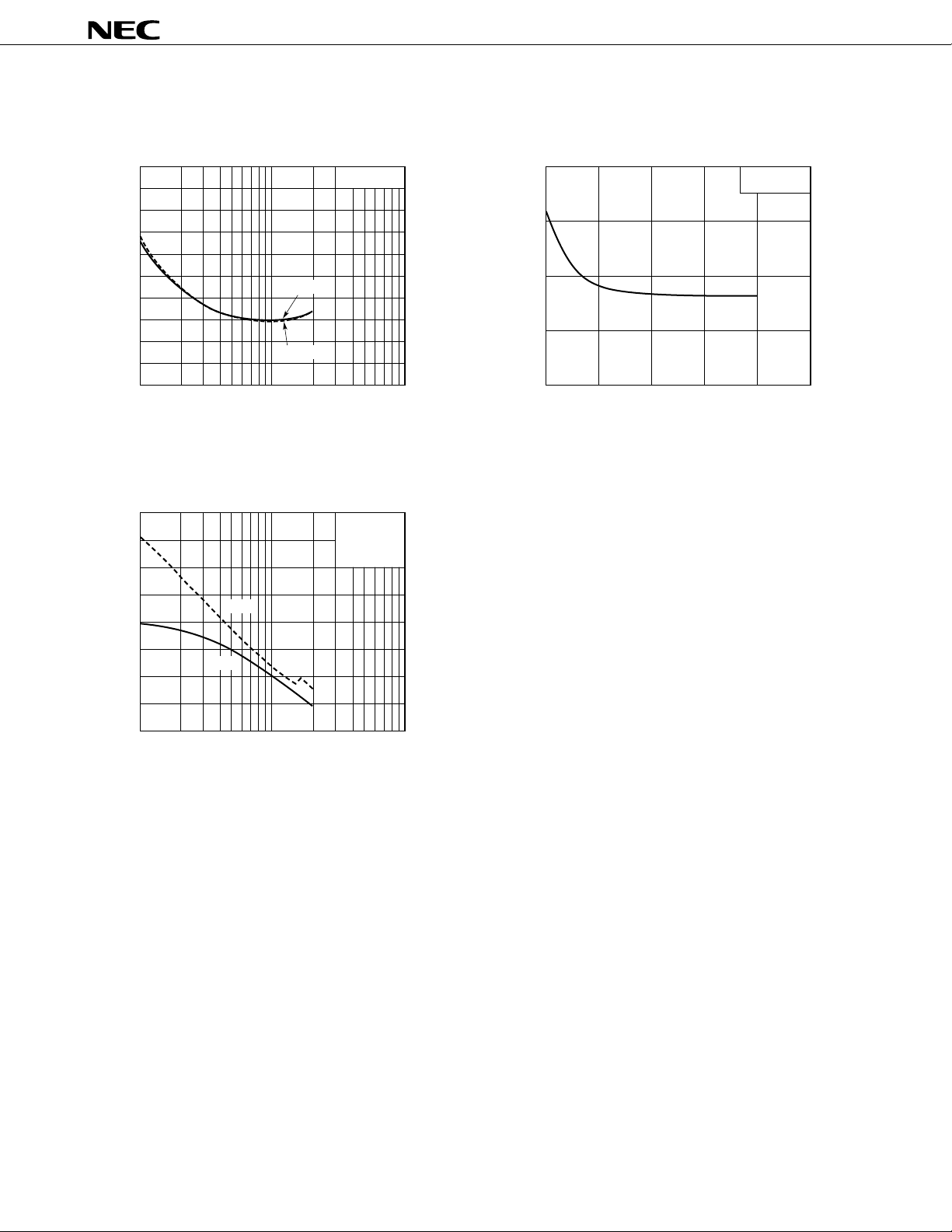

Page 4

2SC5192

NOISE FIGURE vs. COLLECTOR CURRENT

5

4

3

2

Noise Figure NF (dB)

1

0

1 10 20 502 5 100

Collector Current I

VCE = 3 V

VCE = 1 V

(mA)

MAXIMUM AVAILABLE GAIN / INSERTION POWER GAIN vs. FREQUENCY

40

30

(dB)

21e

MAG

20

f = 2 GHz

= 1 V

= 3 mA

FEED-BACK CAPACITANCE vs. COLLECTOR TO BASE VOLTAGE

1.0

(pF)

0.8

0.6

0.4

Feed-back Capacitance C

0.2 0

Collector to Base Voltage V

f = 1 MHz

8.0 10.04.02.0 6.0

(V)

2

21e

10

0

Maximum Available Power Gain MAG (dB)

Insertion Power Gain |S

0.1

1 2 50.2 0.5 10

Frequency f (GHz)

Page 5

S-PARAMETERS

VCE = 1 V, IC = 1 mA, ZO = 50 Ω

FREQUENCY S11 S21 S12 S22

(MHz) MAG ANG MAG ANG MAG ANG MAG ANG

100.00 0.963 –17.1 3.502 166.5 0.048 79.4 0.983 –8.7

200.00 0.934 –34.1 3.413 154.0 0.087 69.6 0.957 –17.1

300.00 0.890 –49.7 3.238 142.6 0.130 60.0 0.906 –25.2

400.00 0.850 –65.3 3.026 131.1 0.156 50.7 0.851 –31.8

500.00 0.806 –79.9 2.825 120.8 0.178 41.8 0.801 –38.3

600.00 0.760 –92.6 2.598 111.3 0.198 37.0 0.744 –43.5

700.00 0.722 –104.8 2.419 103.0 0.209 31.0 0.702 –47.8

800.00 0.695 –116.4 2.238 95.5 0.221 25.2 0.646 –51.5

900.00 0.670 –127.6 2.102 87.9 0.223 20.9 0.615 –55.8

1000.00 0.643 –137.1 1.932 81.4 0.224 18.6 0.575 –58.7

1100.00 0.631 –147.2 1.820 75.3 0.230 14.2 0.544 –62.1

1200.00 0.626 –155.6 1.695 69.8 0.222 10.8 0.520 –66.3

1300.00 0.627 –164.2 1.611 64.4 0.222 8.4 0.497 –69.0

1400.00 0.623 –172.5 1.518 58.6 0.217 7.0 0.482 –72.9

1500.00 0.628 –179.3 1.432 54.0 0.217 2.9 0.468 –75.9

1600.00 0.630 175.7 1.364 49.7 0.212 2.0 0.450 –80.1

1700.00 0.625 168.3 1.280 45.0 0.202 1.0 0.442 –82.8

1800.00 0.629 162.8 1.223 41.3 0.201 0.0 0.433 –88.1

1900.00 0.629 157.5 1.168 37.2 0.190 –1.6 0.417 –89.2

2000.00 0.634 152.4 1.112 33.4 0.189 –0.7 0.419 –94.2

2SC5192

VCE = 1 V, IC = 3 mA, ZO = 50 Ω

FREQUENCY S11 S21 S12 S22

(MHz) MAG ANG MAG ANG MAG ANG MAG ANG

100.00 0.886 –28.0 9.515 159.3 0.044 74.9 0.943 –17.6

200.00 0.809 –54.2 8.567 141.9 0.078 64.0 0.847 –32.1

300.00 0.734 –75.4 7.425 128.1 0.103 52.3 0.734 –44.8

400.00 0.661 –94.8 6.367 116.2 0.122 44.4 0.630 –53.5

500.00 0.608 –110.6 5.529 106.7 0.130 39.1 0.547 –61.0

600.00 0.568 –124.2 4.813 98.7 0.136 35.6 0.484 –66.5

700.00 0.544 –136.4 4.278 92.0 0.144 33.4 0.434 –70.6

800.00 0.531 –147.4 3.841 86.0 0.145 30.7 0.381 –76.2

900.00 0.520 –157.3 3.473 80.1 0.152 30.1 0.350 –78.8

1000.00 0.517 –165.2 3.151 75.3 0.160 29.5 0.316 –83.6

1100.00 0.506 174.0 2.905 70.6 0.163 27.3 0.293 –89.0

1200.00 0.511 179.5 2.670 66.4 0.166 26.0 0.270 –92.9

1300.00 0.520 172.5 2.506 61.9 0.168 26.8 0.253 –98.5

1400.00 0.526 166.5 2.330 57.6 0.170 26.3 0.250 –101.9

1500.00 0.533 161.0 2.181 53.8 0.173 25.8 0.233 –106.6

1600.00 0.532 157.2 2.054 50.6 0.177 26.1 0.228 –112.2

1700.00 0.543 151.0 1.921 47.0 0.181 23.7 0.219 –117.6

1800.00 0.553 146.8 1.834 43.6 0.187 22.5 0.223 –124.8

1900.00 0.563 143.0 1.734 40.4 0.191 24.6 0.201 –127.3

2000.00 0.566 138.0 1.661 37.2 0.192 24.9 0.208 –133.2

Page 6

VCE = 1 V, IC = 5 mA, ZO = 50 Ω

FREQUENCY S11 S21 S12 S22

(MHz) MAG ANG MAG ANG MAG ANG MAG ANG

100.00 0.823 –37.1 13.981 153.6 0.044 70.4 0.904 –25.0

200.00 0.715 –68.3 11.672 133.5 0.073 56.9 0.762 –43.3

300.00 0.633 –92.2 9.511 119.4 0.086 48.9 0.612 –58.0

400.00 0.566 –112.0 7.794 108.2 0.103 43.7 0.508 –66.4

500.00 0.525 –127.9 6.574 99.7 0.106 41.1 0.427 –74.9

600.00 0.504 –141.1 5.620 92.7 0.114 39.9 0.367 –81.4

700.00 0.487 –152.3 4.927 86.7 0.121 39.5 0.331 –86.5

800.00 0.483 –161.7 4.373 81.5 0.132 37.8 0.286 –93.8

900.00 0.477 –171.1 3.928 76.6 0.132 36.2 0.261 –99.0

1000.00 0.482 –177.9 3.550 72.3 0.141 37.9 0.240 –101.7

1100.00 0.483 174.7 3.252 68.1 0.144 36.4 0.222 –110.7

1200.00 0.487 169.3 2.984 64.5 0.153 36.8 0.210 –115.2

1300.00 0.496 163.0 2.794 60.3 0.161 36.4 0.190 –121.5

1400.00 0.504 157.9 2.590 56.4 0.169 35.1 0.199 –127.7

1500.00 0.521 152.8 2.420 52.8 0.175 35.4 0.188 –132.5

1600.00 0.524 150.2 2.282 49.9 0.181 33.1 0.184 –139.9

1700.00 0.529 144.0 2.127 46.6 0.191 32.0 0.174 –146.3

1800.00 0.540 141.0 2.031 43.5 0.201 30.6 0.199 –152.2

1900.00 0.547 137.1 1.913 40.5 0.204 30.3 0.180 –161.7

2000.00 0.551 133.2 1.829 37.7 0.202 31.4 0.184 –163.4

2SC5192

VCE = 1 V, IC = 7 mA, ZO = 50 Ω

FREQUENCY S11 S21 S12 S22

(MHz) MAG ANG MAG ANG MAG ANG MAG ANG

100.00 0.741 –46.4 17.962 148.1 0.038 63.9 0.844 –31.3

200.00 0.630 –81.9 13.958 126.6 0.064 55.5 0.671 –53.0

300.00 0.554 –106.4 10.862 112.9 0.077 47.6 0.524 –68.1

400.00 0.506 –126.3 8.635 102.7 0.087 44.3 0.416 –77.7

500.00 0.475 –141.7 7.161 95.2 0.096 43.7 0.352 –86.7

600.00 0.465 –153.6 6.072 88.9 0.105 43.5 0.303 –95.3

700.00 0.462 –163.4 5.283 83.6 0.111 43.4 0.267 –100.2

800.00 0.458 –172.3 4.672 78.9 0.121 43.2 0.233 –108.2

900.00 0.462 –179.7 4.168 74.3 0.127 42.7 0.214 –113.6

1000.00 0.465 173.6 3.769 70.5 0.135 44.4 0.199 –120.9

1100.00 0.466 167.5 3.443 66.6 0.139 41.7 0.190 –129.1

1200.00 0.477 162.8 3.161 63.2 0.156 42.0 0.195 –136.0

1300.00 0.490 156.6 2.954 59.3 0.161 42.1 0.181 –142.3

1400.00 0.501 152.0 2.728 55.6 0.171 40.3 0.181 –147.5

1500.00 0.509 147.8 2.551 52.4 0.184 38.7 0.190 –153.3

1600.00 0.516 145.1 2.398 49.4 0.183 39.4 0.188 –162.7

1700.00 0.520 140.0 2.235 46.3 0.198 36.7 0.188 –165.2

1800.00 0.530 137.3 2.133 43.4 0.202 36.3 0.205 –173.6

1900.00 0.547 133.1 2.014 40.4 0.208 34.6 0.196 –178.2

2000.00 0.546 129.5 1.912 37.6 0.212 34.8 0.199 –179.5

Page 7

VCE = 1 V, IC = 10 mA, ZO = 50 Ω

FREQUENCY S11 S21 S12 S22

(MHz) MAG ANG MAG ANG MAG ANG MAG ANG

100.00 0.676 –56.3 21.704 142.6 0.038 66.7 0.798 –38.5

200.00 0.561 –95.4 15.685 120.5 0.058 54.2 0.593 –62.6

300.00 0.498 –120.2 11.740 107.7 0.069 50.1 0.443 –78.3

400.00 0.467 –138.8 9.163 98.5 0.077 46.5 0.350 –88.7

500.00 0.453 –152.8 7.523 91.7 0.085 48.5 0.304 –99.0

600.00 0.452 –163.7 6.335 86.0 0.094 48.3 0.260 –107.8

700.00 0.449 –172.6 5.494 81.2 0.106 49.4 0.231 –114.9

800.00 0.452 179.8 4.847 76.8 0.119 47.6 0.213 –123.1

900.00 0.451 172.9 4.318 72.6 0.123 47.7 0.194 –131.3

1000.00 0.458 167.1 3.891 69.1 0.136 47.0 0.188 –135.6

1100.00 0.467 161.4 3.550 65.3 0.146 46.9 0.189 –145.9

1200.00 0.476 157.5 3.251 62.2 0.155 45.1 0.187 –152.3

1300.00 0.482 152.5 3.045 58.5 0.164 45.0 0.185 –158.8

1400.00 0.502 148.6 2.809 54.8 0.173 44.0 0.198 –161.4

1500.00 0.507 144.6 2.638 51.8 0.181 43.0 0.194 –170.2

1600.00 0.512 142.1 2.471 49.0 0.191 41.3 0.205 –174.3

1700.00 0.527 137.6 2.310 45.9 0.197 39.2 0.212 –178.3

1800.00 0.527 133.8 2.196 43.6 0.209 38.1 0.228 177.2

1900.00 0.543 130.8 2.065 40.6 0.217 37.3 0.224 169.1

2000.00 0.545 126.7 1.974 38.1 0.223 35.5 0.234 168.6

2SC5192

VCE = 3 V, IC = 1 mA, ZO = 50 Ω

FREQUENCY S11 S21 S12 S22

(MHz) MAG ANG MAG ANG MAG ANG MAG ANG

100.00 0.965 –14.8 3.499 168.1 0.034 82.6 0.987 –6.7

200.00 0.944 –29.7 3.439 157.3 0.066 72.1 0.969 –13.1

300.00 0.916 –43.8 3.305 147.1 0.093 64.7 0.940 –19.3

400.00 0.868 –57.8 3.130 136.5 0.116 55.3 0.898 –24.8

500.00 0.831 –71.2 2.978 126.8 0.136 48.8 0.855 –29.8

600.00 0.785 –83.5 2.769 117.8 0.150 41.7 0.816 –34.8

700.00 0.742 –95.4 2.610 109.8 0.167 37.0 0.778 –37.8

800.00 0.712 –106.8 2.435 102.4 0.172 32.5 0.728 –41.7

900.00 0.685 –117.6 2.307 95.0 0.180 26.4 0.703 –44.6

1000.00 0.656 –127.8 2.133 88.3 0.183 22.1 0.667 –47.4

1100.00 0.641 –137.8 2.029 82.3 0.182 19.2 0.637 –50.3

1200.00 0.631 –146.7 1.881 76.7 0.180 16.9 0.609 –53.6

1300.00 0.625 –155.8 1.801 71.4 0.179 13.1 0.592 –56.1

1400.00 0.622 –164.7 1.703 65.7 0.176 9.9 0.577 –59.2

1500.00 0.627 –172.0 1.605 61.0 0.176 9.6 0.561 –61.7

1600.00 0.622 –177.2 1.520 56.3 0.170 9.2 0.543 –64.7

1700.00 0.623 174.5 1.434 51.9 0.167 6.5 0.531 –67.1

1800.00 0.615 168.2 1.369 48.1 0.166 7.6 0.516 –71.0

1900.00 0.621 162.9 1.310 44.2 0.159 6.4 0.505 –73.2

2000.00 0.618 157.0 1.257 39.8 0.157 6.8 0.505 –74.4

Page 8

VCE = 3 V, IC = 3 mA, ZO = 50 Ω

FREQUENCY S11 S21 S12 S22

(MHz) MAG ANG MAG ANG MAG ANG MAG ANG

100.00 0.898 –23.3 9.607 162.0 0.033 75.5 0.956 –13.1

200.00 0.834 –45.3 8.890 146.4 0.059 65.2 0.892 –24.3

300.00 0.758 –64.2 7.932 133.5 0.081 54.5 0.801 –33.8

400.00 0.682 –82.0 6.964 121.9 0.095 49.4 0.711 –40.6

500.00 0.623 –97.2 6.174 112.4 0.105 44.9 0.636 –46.5

600.00 0.570 –110.9 5.436 104.2 0.110 41.7 0.573 –50.9

700.00 0.533 –122.3 4.874 97.3 0.120 37.4 0.522 –54.1

800.00 0.511 –134.8 4.398 91.2 0.122 35.7 0.474 –56.7

900.00 0.493 –145.1 4.012 85.4 0.127 33.8 0.443 –59.2

1000.00 0.477 –153.9 3.648 80.2 0.132 31.9 0.407 –61.6

1100.00 0.477 –163.5 3.380 75.5 0.136 33.6 0.383 –64.3

1200.00 0.471 –170.6 3.099 71.2 0.137 31.5 0.357 –66.9

1300.00 0.479 –178.8 2.915 66.9 0.141 32.2 0.337 –69.8

1400.00 0.486 174.1 2.724 62.7 0.149 30.1 0.325 –72.3

1500.00 0.492 167.4 2.554 58.6 0.149 30.6 0.311 –75.4

1600.00 0.493 164.1 2.399 55.3 0.152 29.4 0.298 –79.1

1700.00 0.498 156.6 2.247 51.7 0.164 31.3 0.290 –80.7

1800.00 0.503 152.4 2.144 48.2 0.165 29.4 0.274 –89.1

1900.00 0.513 148.8 2.032 44.9 0.169 30.0 0.253 –88.2

2000.00 0.519 143.3 1.944 41.8 0.170 29.8 0.250 –91.9

2SC5192

VCE = 3 V, IC = 5 mA, ZO = 50 Ω

FREQUENCY S11 S21 S12 S22

(MHz) MAG ANG MAG ANG MAG ANG MAG ANG

100.00 0.839 –29.8 14.278 157.2 0.031 77.2 0.935 –17.7

200.00 0.736 –56.5 12.457 138.9 0.053 65.0 0.819 –31.9

300.00 0.651 –77.6 10.528 125.1 0.071 56.2 0.694 –42.5

400.00 0.568 –96.3 8.837 113.9 0.081 48.5 0.594 –48.9

500.00 0.515 –111.8 7.559 105.1 0.091 46.6 0.515 –54.8

600.00 0.471 –125.7 6.524 97.8 0.094 44.8 0.452 –58.9

700.00 0.445 –137.6 5.768 91.7 0.101 41.4 0.408 –61.3

800.00 0.436 –148.3 5.134 86.4 0.107 41.0 0.363 –64.6

900.00 0.422 –158.6 4.637 81.3 0.112 40.5 0.335 –66.8

1000.00 0.421 –166.4 4.199 76.8 0.120 40.8 0.308 –69.0

1100.00 0.416 175.0 3.864 72.8 0.123 40.9 0.281 –71.7

1200.00 0.422 178.6 3.540 68.9 0.136 41.3 0.263 –75.9

1300.00 0.430 171.7 3.320 64.9 0.142 40.1 0.245 –80.3

1400.00 0.439 165.9 3.085 61.1 0.145 40.3 0.241 –81.6

1500.00 0.451 159.6 2.888 57.6 0.154 40.3 0.227 –86.3

1600.00 0.457 156.3 2.718 54.6 0.157 38.4 0.211 –90.4

1700.00 0.464 149.7 2.539 51.2 0.164 37.3 0.202 –92.0

1800.00 0.467 145.7 2.410 48.2 0.170 36.8 0.194 –102.8

1900.00 0.483 141.5 2.286 45.1 0.173 36.1 0.172 –102.5

2000.00 0.485 137.6 2.183 42.0 0.181 35.6 0.173 –107.3

Page 9

VCE = 3 V, IC = 7 mA, ZO = 50 Ω

FREQUENCY S11 S21 S12 S22

(MHz) MAG ANG MAG ANG MAG ANG MAG ANG

100.00 0.769 –35.8 18.610 152.6 0.026 73.9 0.890 –22.5

200.00 0.658 –66.3 15.310 132.5 0.051 59.8 0.743 –38.5

300.00 0.561 –88.8 12.331 118.8 0.061 53.2 0.604 –49.4

400.00 0.485 –107.9 10.032 108.3 0.071 51.0 0.504 –55.6

500.00 0.444 –124.0 8.438 100.3 0.076 48.0 0.423 –60.5

600.00 0.411 –137.7 7.186 93.6 0.084 49.0 0.371 –64.1

700.00 0.397 –148.5 6.299 88.2 0.093 46.8 0.327 –66.8

800.00 0.395 –158.2 5.583 83.4 0.101 47.6 0.290 –70.2

900.00 0.386 –167.9 5.020 78.8 0.106 48.0 0.268 –73.3

1000.00 0.389 –175.7 4.526 74.7 0.118 44.9 0.245 –75.7

1100.00 0.392 176.0 4.151 70.8 0.126 44.6 0.226 –79.4

1200.00 0.396 170.9 3.801 67.5 0.131 45.8 0.203 –83.8

1300.00 0.404 164.8 3.555 63.7 0.140 44.1 0.195 –87.1

1400.00 0.417 158.7 3.304 60.1 0.150 45.1 0.189 –92.1

1500.00 0.426 153.6 3.091 56.6 0.157 45.6 0.177 –96.9

1600.00 0.432 151.9 2.906 53.9 0.162 42.7 0.168 –103.4

1700.00 0.443 145.2 2.712 50.6 0.173 41.8 0.160 –106.6

1800.00 0.446 141.4 2.588 48.1 0.179 41.6 0.157 –115.7

1900.00 0.466 137.6 2.435 45.2 0.182 41.7 0.141 –120.9

2000.00 0.470 133.4 2.339 42.2 0.192 37.3 0.146 –125.3

2SC5192

VCE = 3 V, IC = 10 mA, ZO = 50 Ω

FREQUENCY S11 S21 S12 S22

(MHz) MAG ANG MAG ANG MAG ANG MAG ANG

100.00 0.698 –42.9 22.901 147.9 0.025 67.3 0.849 –26.9

200.00 0.570 –77.2 17.709 126.7 0.042 60.5 0.666 –44.8

300.00 0.482 –100.1 13.726 113.5 0.055 53.5 0.527 –55.1

400.00 0.424 –119.5 10.922 103.8 0.066 52.4 0.424 –60.8

500.00 0.391 –134.8 9.033 96.5 0.073 52.7 0.359 –66.2

600.00 0.370 –147.6 7.653 90.6 0.083 52.2 0.307 –69.7

700.00 0.364 –158.4 6.669 85.5 0.090 53.4 0.276 –72.5

800.00 0.361 –167.4 5.894 81.1 0.097 52.7 0.243 –75.0

900.00 0.363 –176.0 5.278 76.9 0.107 51.5 0.223 –79.0

1000.00 0.366 177.1 4.764 73.1 0.113 50.6 0.201 –79.3

1100.00 0.368 170.5 4.356 69.6 0.123 50.9 0.182 –85.7

1200.00 0.378 165.3 3.992 66.4 0.129 50.8 0.174 –94.5

1300.00 0.391 159.7 3.733 62.8 0.138 49.8 0.156 –96.1

1400.00 0.402 154.4 3.461 59.4 0.151 47.6 0.158 –101.5

1500.00 0.417 150.4 3.221 56.2 0.162 47.2 0.149 –107.4

1600.00 0.420 147.3 3.035 53.6 0.164 46.2 0.138 –117.4

1700.00 0.431 142.1 2.831 50.6 0.172 44.9 0.135 –120.2

1800.00 0.434 138.4 2.703 47.7 0.179 44.2 0.142 –130.9

1900.00 0.454 135.4 2.547 45.0 0.189 43.0 0.126 –137.6

2000.00 0.461 130.8 2.434 42.1 0.196 40.8 0.127 –143.0

Page 10

2SC5192

[MEMO]

No part of this document may be copied or reproduced in any form or by any means without the prior written consent of NEC Corporation. NEC Corporation assumes no responsibility for any errors which may appear in this document. NEC Corporation does not assume any liability for infringement of patents, copyrights or other intellectual property rights of third parties by or arising from use of a device described herein or any other liability arising from use of such device. No license, either express, implied or otherwise, is granted under any patents, copyrights or other intellectual property rights of NEC Corporation or others. While NEC Corporation has been making continuous effort to enhance the reliability of its semiconductor devices, the possibility of defects cannot be eliminated entirely. To minimize risks of damage or injury to persons or property arising from a defect in an NEC semiconductor device, customer must incorporate sufficient safety measures in its design, such as redundancy, fire-containment, and anti-failure features. NEC devices are classified into the following three quality grades: “Standard“, “Special“, and “Specific“. The Specific quality grade applies only to devices developed based on a customer designated “quality assurance program“ for a specific application. The recommended applications of a device depend on its quality grade, as indicated below. Customers must check the quality grade of each device before using it in a particular application.

Standard: Computers, office equipment, communications equipment, test and measurement equipment,

audio and visual equipment, home electronic appliances, machine tools, personal electronic equipment and industrial robots

Special: Transportation equipment (automobiles, trains, ships, etc.), traffic control systems, anti-disaster

systems, anti-crime systems, safety equipment and medical equipment (not specifically designed for life support)

Specific: Aircrafts, aerospace equipment, submersible repeaters, nuclear reactor control systems, life

support systems or medical equipment for life support, etc. The quality grade of NEC devices in “Standard“ unless otherwise specified in NEC's Data Sheets or Data Books. If customers intend to use NEC devices for applications other than those specified for Standard quality grade, they should contact NEC Sales Representative in advance. Anti-radioactive design is not implemented in this product.

M4 94.11
