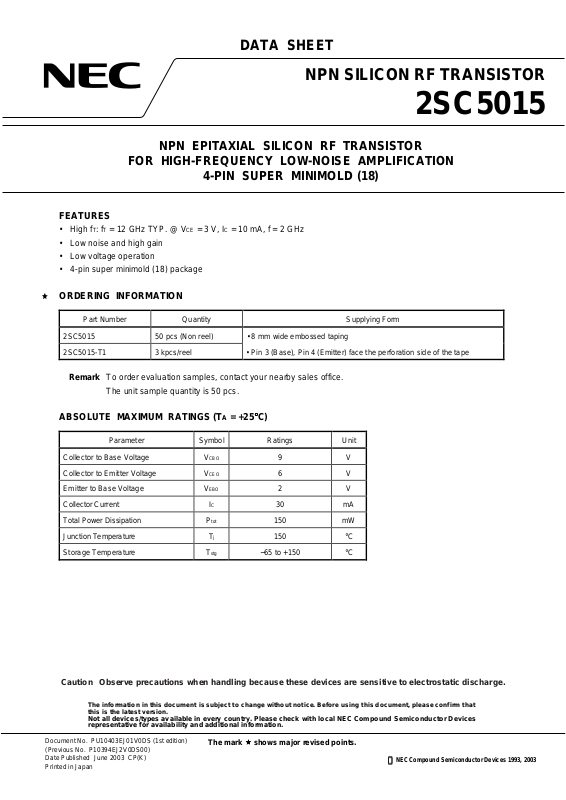

DATA SHEET

NPN SILICON RF TRANSISTOR

NPN EPITAXIAL SILICON RF TRANSISTOR

FOR HIGH-FREQUENCY LOW-NOISE AMPLIFICATION

4-PIN SUPER MINIMOLD (18)

FEATURES

• High fT: fT = 12 GHz TYP. @ VCE = 3 V, IC = 10 mA, f = 2 GHz

• Low noise and high gain

• Low voltage operation

• 4-pin super minimold (18) package

ORDERING INFORMATION

Part Number Quantity Supplying Form

2SC5015

2SC5015 50 pcs (Non reel) • 8 mm wide embossed taping
2SC5015-T1 3 kpcs/reel • Pin 3 (Base), Pin 4 (Emitter) face the perforation si de of the tape

Remark

To order evaluation samples, contact your nearby sales office.
The unit sample quantity is 50 pcs.

ABSOLUTE MAXIMUM RATINGS (TA = +25°°°°C)

Parameter Symbol Ratings Unit
Collector to Base Voltage V
Collector to Emitter Voltage V
Emitter to Base Voltage V
Collector Current I
Total Power Dissipation P
Junction Temperature T
Storage Temperature T

CBO

CEO

EBO

C

tot

stg

9V
6V
2V

30 mA

150 mW

j

150

−

65 to +150

°

C

°

C

Caution Observe precautions when handling because these devices are sensitive to electrostatic discharge.

The information in this document is subject to change without notice. Before using this document, please confirm that
this is the latest version.

Not all devices/types available in every country. Please check with local NEC Compound Semiconductor Devices
representative for availability and additional information.

Document No. PU10403EJ01V0DS (1st edition)
(Previous No. P10394EJ2V0DS00)
Date Published June 2003 CP(K)
Printed in Japan

The mark

••••

shows major revised points.

NEC Compound Semiconductor Devices 1993, 2003



ELECTRICAL CHARACTERISTICS (TA = +25°°°°C)

Parameter Symbol Test Conditions MIN. TYP. MAX. Unit
DC Characteristics
Collector Cut-off Current I
Emitter Cut-off Current I
DC Current Gain
RF Characteristics
Gain Bandwidth Product f
Insertion Power Gain
Noise Figure NF VCE = 3 V, IC = 3 mA, f = 2 GHz
Reverse Transfer Capacitance

CBO

VCB = 5 V, IE = 0 mA

EBO

VEB = 1 V, IC = 0 mA

Note 1

FE

h



S

C

VCE = 3 V, IC = 10 mA 75

T

VCE = 3 V, IC = 10 mA, f = 2 GHz

2



21e

VCE = 3 V, IC = 10 mA, f = 2 GHz 9 11

Note 2

re

VCB = 3 V, IE = 0 mA, f = 1 MHz

−−

−−

−

−

−

−

12

1.5 2.5 dB

0.3 0.5 pF

2SC5015

0.1

0.1

150

−

−

µ

A

µ

A

−

GHz

dB

Notes 1.

Pulse measurement: PW ≤ 350

Collector to base capacitance when the emitter grounded

2.

hFE CLASSIFICATION

Rank KB

Marking T83

hFE Value 75 to 150

s, Duty Cycle ≤ 2%

µ

2

Data Sheet PU10403EJ01V0DS

TYPICAL CHARACTERISTICS (TA = +25°°°°C, unless otherwise specified)

2SC5015

TOTAL POWER DISSIPATION
vs. AMBIENT TEMPERATURE

250

200

(mW)

tot

150

100

50

Total Power Dissipation P

0 25 50 75 100 125 150

Ambient Temperature TA (˚C)

COLLECTOR CURRENT vs.
BASE TO EMITTER VOLTAGE

100

VCE = 1 V

10

(mA)

C

1

REVERSE TRANSFER CAPACITANCE

vs. COLLECTOR TO BASE VOLTAGE

2

(pF)

f = 1 MHz

re

1

0.5

0.2

Reverse Transfer Capacitance C

0.1
1510220

Collector to Base Voltage VCB (V)

COLLECTOR CURRENT vs.
BASE TO EMITTER VOLTAGE

100

VCE = 2 V

10

(mA)

C

1

0.1

0.01

Collector Current I

0.001

0.0001

Base to Emitter Voltage VBE (V)

COLLECTOR CURRENT vs.
BASE TO EMITTER VOLTAGE

100

VCE = 3 V

10

(mA)

C

1

0.1

0.01

Collector Current I

0.001

0.0001

Base to Emitter Voltage VBE (V)

0.60.50.4 0.7 0.8 1.0

0.60.50.4 0.7 0.8 1.0

0.9

0.9

0.1

0.01

Collector Current I

0.001

0.0001

0.60.50.4 0.7 0.8 1.0

Base to Emitter Voltage VBE (V)

0.9

COLLECTOR CURRENT vs.
COLLECTOR TO EMITTER VOLTAGE

30

25

(mA)

C

20

15

10

Collector Current I

5

02 648

Collector to Emitter Voltage VCE (V)

200 A

µ

180 A

µ

160 A

µ

140 A

µ

120 A

µ

100 A

µ

80 A

µ

60 A

µ

40 A

µ

IB = 20 A

µ

Data Sheet PU10403EJ01V0DS

3

2SC5015

DC CURRENT GAIN vs.
COLLECTOR CURRENT

1 000

FE

100

DC Current Gain h

10

DC CURRENT GAIN vs.
COLLECTOR CURRENT

1 000

FE

VCE = 1 V

10.1 10 100

Collector Current IC (mA)

VCE = 3 V

DC CURRENT GAIN vs.

COLLECTOR CURRENT

1 000

FE

100

DC Current Gain h

10

GAIN BANDWIDTH PRODUCT
vs. COLLECTOR CURRENT

14

CE

= 3 V

V
f = 2 GHz

12

(GHz)

T

10

VCE = 2 V

10.1 10 100

Collector Current IC (mA)

100

DC Current Gain h

10

10.1 10 100

Collector Current IC (mA)

INSERTION POWER GAIN, MAG

vs. FREQUENCY

50

VCE = 3 V
I

C

= 10 mA

40

(dB)

2

|

30

21e

20

10

0

Maximum Available Power Gain MAG (dB)

Insertion Power Gain |S

0.1 0.2 0.5 1 2 5
Frequency f (GHz)

MAG

|S

21e

8

6

4

2

Gain Bandwidth Product f

0

2 5 10 20150

Collector Current IC (mA)

INSERTION POWER GAIN

vs. COLLECTOR CURRENT

12

VCE = 3 V
f = 2 GHz

10

(dB)

2

|

21e

8

6

4

2

|

2

Insertion Power Gain |S

0

1 5 10 20250

Collector Current I

C

(mA)

4

Data Sheet PU10403EJ01V0DS

NOISE FIGURE vs.

COLLECTOR CURRENT

5

VCE = 3 V
f = 2 GHz

4

3

2

Noise Figure NF (dB)

1

0

110205250

Collector Current I

C

(mA)

2SC5015

Remark

The graphs indicate nominal characteristics.

S-PARAMETERS

S-parameters/Noise parameters are provided on the NEC Compound Semiconductor Devices Web site in a form

(S2P) that enables direct import to a microwave circuit simulator without keyboard input.

Click here to download S-parameters.
[RF and Microwave] → [Device Parameters]
URL http://www.csd-nec.com/

Data Sheet PU10403EJ01V0DS

5

PACKAGE DIMENSIONS
4-PIN SUPER MINIMOLD (18) (UNIT: mm)

–0.05

+0.1

0.3

0.650.60

1.25

2.0±0.2

–0.05

+0.1

0.4

0.3

0.9±0.1

2.1±0.2

1.25±0.1

21

T83

2SC5015

–0.05

+0.1

0.3

3

0.650.65

1.30

4

–0.05

+0.1

0.3

–0.05

+0.1

0.15

0 to 0.1

PIN CONNECTIONS

1. Collector

2. Emitter

3. Base

4. Emitter

6

Data Sheet PU10403EJ01V0DS

2SC5015

•
