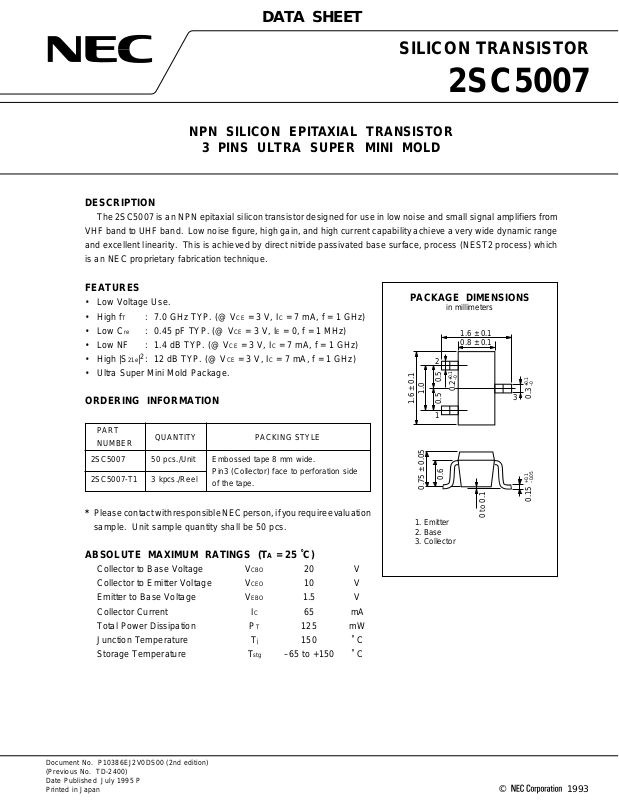

DATA SHEET
SILICON TRANSISTOR
2SC5007
NPN SILICON EPITAXIAL TRANSISTOR
3 PINS ULTRA SUPER MINI MOLD
DESCRIPTION
The 2SC5007 is an NPN epitaxial silicon transistor designed for use in low noise and small signal amplifiers from
VHF band to UHF band. Low noise figure, high gain, and high current capability achieve a very wide dynamic range
and excellent linearity. This is achieved by direct nitride passivated base surface, process (NEST2 process) which
is an NEC proprietary fabrication technique.
FEATURES
• Low Voltage Use.
• High fT : 7.0 GHz TYP. (@ VCE = 3 V, IC = 7 mA, f = 1 GHz)
• Low Cre : 0.45 pF TYP. (@ VCE = 3 V, IE = 0, f = 1 MHz)
• Low NF : 1.4 dB TYP. (@ V
CE = 3 V, IC = 7 mA, f = 1 GHz)
• High |S21e|2: 12 dB TYP. (@ VCE = 3 V, IC = 7 mA, f = 1 GHz)
• Ultra Super Mini Mold Package.
ORDERING INFORMATION
PART
NUMBER
2SC5007 50 pcs./Unit
2SC5007-T1 3 kpcs./Reel
* Please contact with responsible NEC person, if you require evaluation
sample. Unit sample quantity shall be 50 pcs.
QUANTITY PACKING STYLE
Embossed tape 8 mm wide.
Pin3 (Collector) face to perforation side
of the tape.
ABSOLUTE MAXIMUM RATINGS (TA = 25 ˚C)
Collector to Base Voltage VCBO 20 V
Collector to Emitter Voltage VCEO 10 V
Emitter to Base Voltage V
Collector Current IC 65 mA
Total Power Dissipation PT 125 mW
Junction Temperature T
Storage Temperature Tstg –65 to +150 ˚ C
EBO 1.5 V
j 150 ˚ C

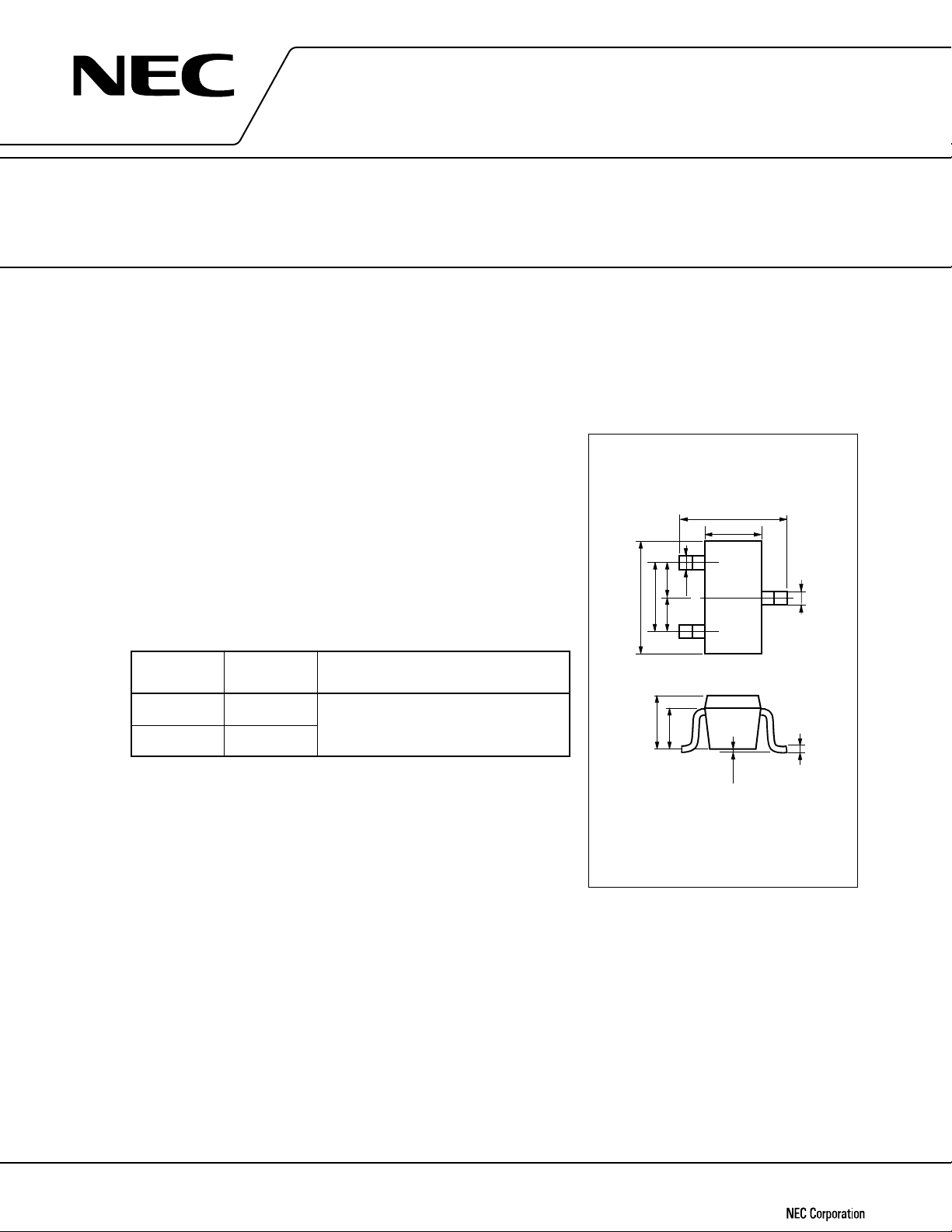

PACKAGE DIMENSIONS
in millimeters
1.6 ± 0.1
0.8 ± 0.1
2
+0.1
–0
0.5 0.5
1.0
1.6 ± 0.1
0.75 ± 0.05
1. Emitter
2. Base
3. Collector
0.2
1
0.6
3
0 to 0.1
+0.1
–0
0.3
+0.1
–0.05
0.15
Document No. P10386EJ2V0DS00 (2nd edition)
(Previous No. TD-2400)
Date Published July 1995 P
Printed in Japan
©
1993
Page 2
2SC5007
ELECTRICAL CHARACTERISTICS (TA = 25 ˚C)
CHARACTERISTIC SYMBOL MIN. TYP. MAX. UNIT TEST CONDITIONS
Collector Cutoff Current ICBO 0.8
Emitter Cutoff Current IEBO 0.8
DC Current Gain hFE 80 160 VCE = 3 V, IC = 7 mA
Gain Bandwidth Product fT 4.5 7.0 GHz VCE = 3 V, IC = 7 mA, f = 1 GHz
Feed-Back Capacitance Cre 0.45 0.9 pF VCB = 3 V, IE = 0, f = 1 MHz
Insertion Power Gain |S21e|
Noise Figure NF 1.4 2.7 dB VCE = 3 V, IC = 7 mA, f = 1 GHz
2
10.0 12.0 dB VCE = 3 V, IC = 7 mA, f = 1 GHz
*1 Pulse Measurement PW ≤ 350 µs, Duty Cycle ≤ 2 %
*2 The emitter terminal and the case shall be connected to the guard terminal of the three-terminal capacitance
bridge.
FE Classification
h
µ
AVCB = 10 V, IE = 0
µ
AVEB = 1 V, IC = 0
*1
*2
RANK FB
Marking 34
hFE 80 to 160
2
Page 3

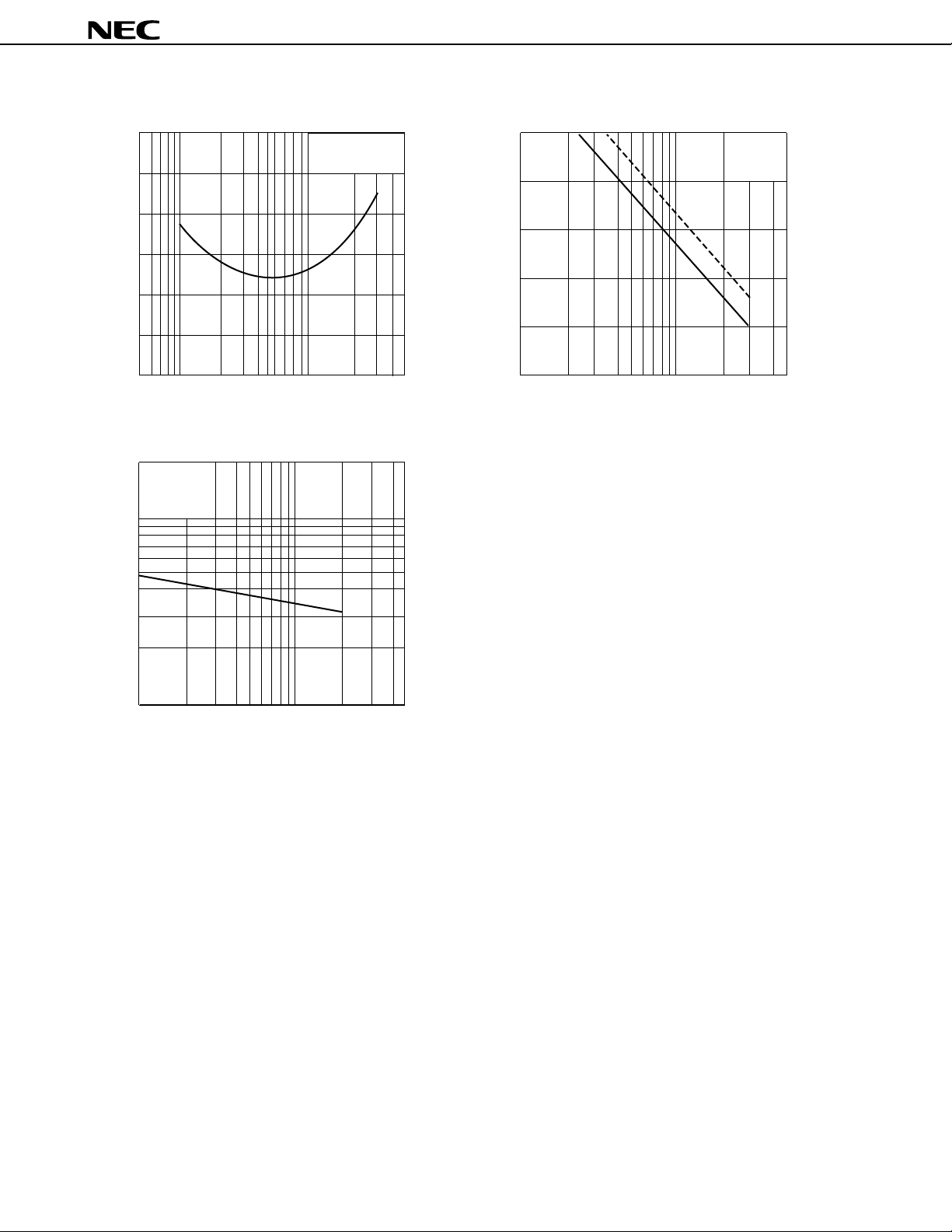

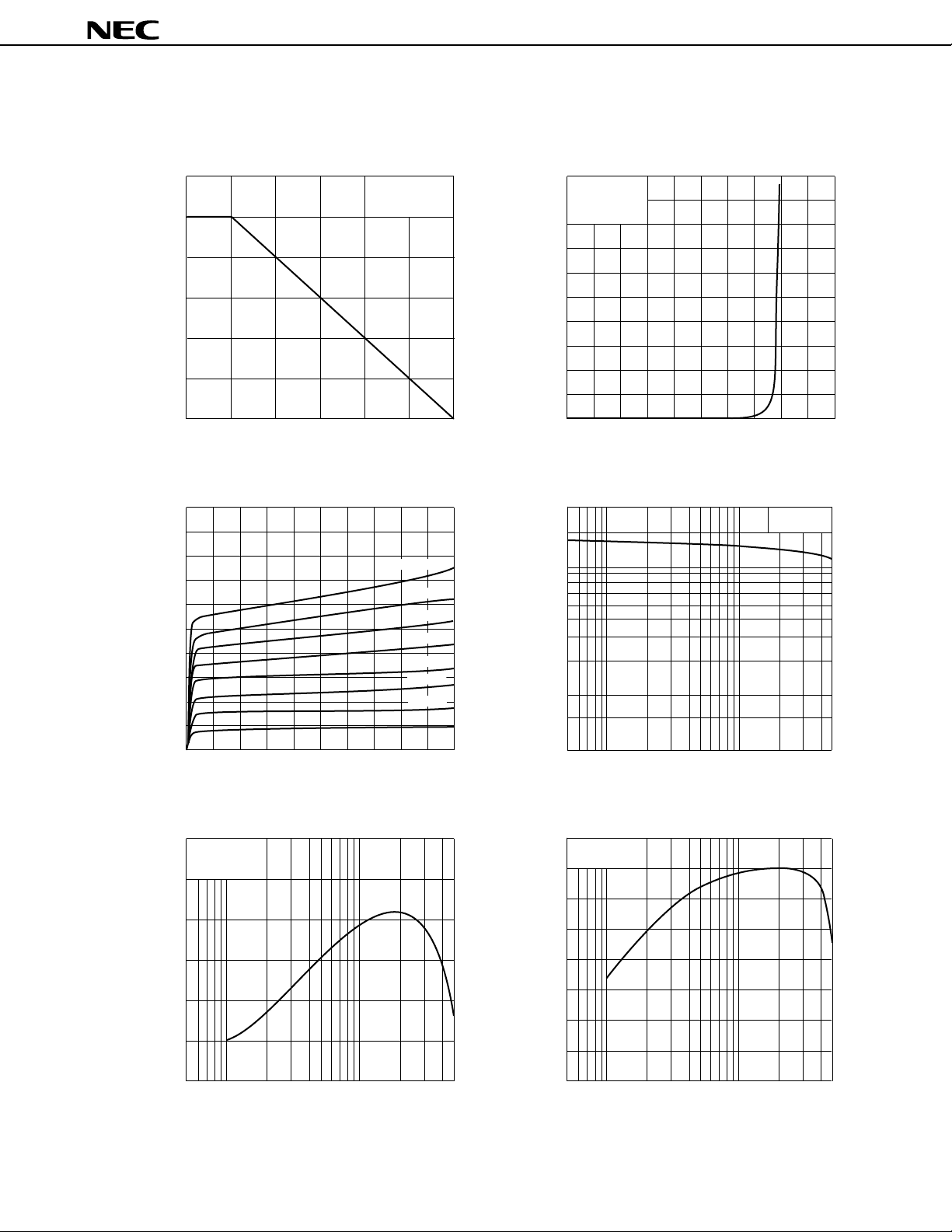

TYPICAL CHARACTERISTICS (TA = 25 ˚C)
2SC5007
TOTAL POWER DISSIPATION vs.
AMBIENT TEMPERATURE
150
100
50
PT – Total Power Dissipation – mW
0
TA – Ambient Temperature – ˚C
COLLECTOR CURRENT vs.
COLLECTOR TO EMITTER VOLTAGE
25
20
Free Air
IB = 160 A
µ
COLLECTOR CURRENT vs.
BASE TO EMITTER VOLTAGE
20
VCE = 3 V
10
IC – Collector Current – mAhFE – DC Current Gain
15010050
0
1.00.5
VBE – Base to Emitter Voltage – V
DC CURRENT GAIN vs.
200
COLLECTOR CURRENT
VCE = 3 V
100
15
10
C – Collector Current – mA
I
5
0
CE – Collector to Emitter Voltage – V IC – Collector Current – mA
V
510
GAIN BANDWIDTH PRODUCT vs.
COLLECTOR CURRENT
12
VCE = 3 V
10
f = 1 GH
Z
8
6
4
2
T – Gain Bandwidth Product – GHz
f
0
0.5
140 A
µ
120 A
µ
100 A
µ
80 A
µ
60 A
µ
µ
40 A
20 A
µ
50
20
10
0.5
201021
505
INSERTION POWER GAIN vs.
COLLECTOR CURRENT
16
14
VCE = 3 V
f = 1 GH
Z
12
10
8
6
4
– Insertion Power Gain – dB
2
21e|
2
|S
0
502010512
0.5
I
C – Collector Current – mAIC – Collector Current – mA
201021
505
3
Page 4
2SC5007
NOISE FIGURE vs. COLLECTOR CURRENT
3
2
1
NF – Noise Figure – dB
0
C – Collector Current – mA
I
FEED-BACK CAPACITANCE vs.
COLLECTOR TO BASE VOLTAGE
2.0
f = 1 MHZ
1.0
VCE = 3 V
f = 1 GH
2010510.5
MAXIMUM AVAILABLE GAIN, INSERTION
POWER GAIN vs. FREQUENCY
25
CE = 3 V
Z
V
I
C = 7 mA
20
MAG
15
10
2
|S
21e|
– Insertion Power Gain – dB
5
2
MAG – Maximum Available Gain – dB
|S21e|
0
502
0.1 0.2 1.0 2.0
5.00.5
f – Frequency – GHz
0.5
0.2
Cre – Feed-Back Capacitance – pF
0.1
1
250
51020
VCB – Collector to Base Voltage – V
4
Page 5
S-PARAMETER
VCE = 3 V, IC = 10 mA, ZO = 50 Ω
FREQUENCY S11 S21 S12 S22
MHz MAG ANG MAG ANG MAG ANG MAG ANG
100.00 .800 –29.5 16.411 147.9 .023 69.0 .860 –22.4
200.00 .650 –60.0 14.666 126.3 .037 56.1 .684 –34.9
300.00 .533 –86.2 12.707 109.0 .047 50.1 .551 –40.9
400.00 .449 –106.2 10.607 96.1 .055 46.0 .465 –42.6
500.00 .401 –122.0 9.070 85.5 .063 43.6 .410 –44.1
600.00 .372 –134.1 7.714 76.9 .071 41.4 .366 –44.0
700.00 .353 –144.4 6.770 69.3 .079 38.9 .340 –43.9
800.00 .342 –153.2 5.990 62.1 .087 36.3 .314 –44.2
900.00 .337 –160.8 5.409 55.4 .094 33.5 .298 –44.0
1000.00 .334 –167.5 4.888 49.0 .104 30.9 .279 –45.1
1100.00 .334 –173.4 4.489 43.2 .111 27.5 .266 –44.4
1200.00 .337 –179.3 4.145 37.1 .120 24.9 .255 –46.1
1300.00 .339 176.0 3.844 31.3 .128 21.2 .241 –46.2
1400.00 .344 171.5 3.606 25.7 .138 17.9 .236 –48.0
1500.00 .348 167.4 3.375 20.0 .146 14.6 .222 –48.9
1600.00 .356 163.6 3.202 14.7 .155 10.9 .215 –50.0
1700.00 .362 159.9 3.021 9.1 .164 7.1 .204 –52.8
1800.00 .373 156.9 2.868 4.0 .172 3.2 .193 –53.9
1900.00 .385 152.7 2.743 –1.6 .180 –.9 .181 –56.9
2000.00 .394 148.8 2.599 –7.2 .187 –4.2 .168 –57.5
2100.00 .401 145.6 2.500 –12.6 .194 –8.0 .161 –59.8
2200.00 .408 143.0 2.390 –17.8 .202 –11.9 .149 –62.3
2300.00 .419 139.9 2.308 –23.0 .211 –15.4 .141 –64.4
2400.00 .425 137.3 2.211 –28.2 .218 –19.7 .128 –68.6
2500.00 .436 135.1 2.138 –33.1 .227 –23.1 .119 –70.5
2600.00 .444 132.2 2.065 –38.5 .235 –27.3 .109 –76.7
2700.00 .453 130.2 1.997 –43.3 .242 –30.8 .096 –80.7
2800.00 .464 127.7 1.937 –48.5 .251 –35.0 .090 –87.7
2900.00 .474 125.5 1.870 –53.4 .259 –39.0 .077 –93.9
3000.00 .486 123.5 1.824 –58.4 .266 –43.0 .074 –102.4
2SC5007
VCE = 3 V, IC = 7 mA, ZO = 50 Ω
FREQUENCY S11 S21 S12 S22
MHz MAG ANG MAG ANG MAG ANG MAG ANG
100.00 .874 –24.1 12.285 152.5 .025 69.7 .903 –18.4
200.00 .747 –49.0 11.419 132.2 .041 56.9 .760 –30.7
300.00 .642 –71.8 10.461 115.9 .053 48.9 .632 –37.6
400.00 .549 –91.7 9.215 102.4 .061 43.5 .541 –40.6
500.00 .482 –108.8 8.182 90.7 .069 39.9 .479 –43.0
600.00 .437 –121.7 7.076 81.3 .076 36.5 .428 –43.6
700.00 .406 –133.2 6.308 72.9 .083 34.3 .397 –44.2
800.00 .386 –143.2 5.628 65.0 .090 31.5 .365 –44.8
900.00 .374 –151.7 5.094 57.9 .097 29.2 .344 –44.8
1000.00 .367 –159.3 4.645 51.2 .105 26.5 .323 –46.1
1100.00 .363 –166.0 4.264 45.2 .112 23.6 .308 –45.7
1200.00 .361 –172.4 3.947 38.6 .119 21.1 .296 –47.2
1300.00 .362 –178.0 3.657 32.7 .127 18.0 .282 –47.5
1400.00 .364 177.1 3.430 26.9 .134 14.7 .272 –49.1
1500.00 .367 172.5 3.223 20.9 .143 11.6 .257 –50.0
1600.00 .374 168.2 3.064 15.5 .151 8.2 .252 –51.3
1700.00 .379 163.9 2.884 9.8 .159 4.7 .241 –53.6
1800.00 .388 160.5 2.748 4.6 .168 1.1 .230 –55.0
1900.00 .400 156.2 2.624 –1.3 .174 –3.1 .216 –57.7
2000.00 .408 152.0 2.501 –6.8 .180 –6.3 .205 –58.6
2100.00 .415 148.5 2.399 –12.2 .188 –9.8 .196 –60.9
2200.00 .421 145.7 2.283 –17.4 .196 –13.2 .185 –63.4
2300.00 .432 142.3 2.217 –22.9 .204 –16.7 .177 –65.3
2400.00 .437 139.5 2.124 –28.2 .212 –20.6 .164 –69.0
2500.00 .448 137.0 2.055 –33.1 .219 –24.0 .155 –71.3
2600.00 .456 133.9 1.986 –38.6 .227 –28.0 .145 –76.1
2700.00 .465 131.7 1.920 –43.5 .234 –31.5 .133 –79.7
2800.00 .476 129.2 1.862 –48.8 .243 –35.4 .127 –85.3
2900.00 .485 127.0 1.798 –53.7 .251 –39.3 .115 –90.1
3000.00 .497 124.6 1.753 –58.7 .260 –43.1 .111 –95.9
5
Page 6
S-PARAMETER
VCE = 3 V, IC = 5 mA, ZO = 50 Ω
FREQUENCY S11 S21 S12 S22
MHz MAG ANG MAG ANG MAG ANG MAG ANG
100.00 .911 –21.8 9.295 155.2 .026 72.9 .934 –14.9
200.00 .821 –41.2 8.756 136.9 .045 58.4 .824 –26.3
300.00 .733 –60.9 8.333 121.6 .059 49.0 .709 –33.6
400.00 .650 –79.2 7.605 108.6 .068 42.2 .620 –37.8
500.00 .575 –96.1 7.040 96.7 .076 37.7 .554 –40.8
600.00 .521 –109.4 6.212 86.3 .082 33.3 .499 –42.4
700.00 .475 –122.0 5.673 77.2 .089 29.8 .461 –43.5
800.00 .445 –132.9 5.129 68.6 .094 26.7 .426 –44.4
900.00 .425 –142.3 4.684 60.9 .100 24.4 .401 –44.9
1000.00 .410 –150.8 4.305 53.7 .106 21.7 .378 –46.2
1100.00 .402 –158.1 3.970 47.0 .113 19.1 .360 –46.3
1200.00 .395 –165.2 3.691 40.6 .120 15.8 .346 –47.5
1300.00 .393 –171.3 3.437 34.4 .126 13.1 .329 –48.0
1400.00 .395 –176.8 3.225 28.3 .132 10.5 .319 –49.8
1500.00 .394 177.8 3.026 22.1 .139 7.6 .304 –50.8
1600.00 .400 173.3 2.877 16.6 .148 4.8 .296 –51.9
1700.00 .402 168.5 2.711 10.6 .155 1.6 .285 –54.3
1800.00 .411 164.8 2.585 5.1 .163 –2.0 .273 –55.8
1900.00 .421 160.0 2.476 –.9 .169 –5.6 .260 –58.0
2000.00 .428 155.5 2.356 –6.3 .174 –8.7 .248 –59.4
2100.00 .435 151.7 2.262 –11.9 .181 –11.7 .240 –61.5
2200.00 .440 148.5 2.165 –17.4 .188 –14.9 .229 –64.1
2300.00 .451 145.0 2.099 –22.9 .196 –18.4 .221 –66.1
2400.00 .455 141.9 2.012 –28.2 .203 –21.8 .209 –69.1
2500.00 .466 139.2 1.949 –33.3 .210 –25.1 .200 –71.4
2600.00 .473 135.9 1.882 –38.8 .219 –28.8 .190 –76.0
2700.00 .481 133.6 1.825 –43.8 .225 –32.3 .179 –79.0
2800.00 .491 130.9 1.768 –49.2 .233 –35.8 .171 –83.7
2900.00 .500 128.4 1.708 –54.1 .241 –39.2 .161 –88.1
3000.00 .511 126.0 1.667 –59.3 .250 –43.0 .155 –92.9
2SC5007
VCE = 3 V, IC = 3 mA, ZO = 50 Ω
FREQUENCY S11 S21 S12 S22
MHz MAG ANG MAG ANG MAG ANG MAG ANG
100.00 .966 –15.9 5.685 159.8 .027 75.8 .964 –10.8
200.00 .900 –32.9 5.646 142.9 .050 61.9 .897 –20.1
300.00 .842 –48.9 5.582 128.9 .067 50.8 .813 –27.0
400.00 .774 –64.5 5.257 116.6 .079 42.0 .737 –32.0
500.00 .717 –79.4 5.097 105.5 .089 35.8 .674 –35.9
600.00 .662 –92.0 4.613 94.7 .096 28.7 .618 –38.5
700.00 .607 –104.8 4.379 84.9 .102 24.7 .575 –40.4
800.00 .565 –116.7 4.097 75.2 .107 20.3 .535 –42.3
900.00 .530 –127.3 3.843 66.7 .112 17.3 .505 –43.2
1000.00 .505 –136.9 3.598 58.5 .116 13.3 .477 –44.8
1100.00 .484 –145.1 3.359 51.2 .120 10.7 .456 –45.4
1200.00 .472 –153.4 3.164 43.9 .124 7.8 .439 –47.0
1300.00 .463 –160.3 2.952 37.2 .129 5.4 .420 –47.8
1400.00 .458 –166.7 2.796 30.8 .133 2.7 .407 –49.5
1500.00 .454 –172.7 2.631 24.4 .137 .2 .392 –51.0
1600.00 .455 –178.2 2.508 18.2 .143 –2.4 .383 –52.2
1700.00 .455 176.3 2.382 11.8 .148 –5.2 .369 –54.2
1800.00 .461 171.8 2.275 6.0 .155 –7.9 .359 –56.0
1900.00 .468 166.5 2.182 –.1 .159 –11.9 .345 –58.2
2000.00 .472 161.5 2.077 –5.9 .162 –14.1 .335 –59.9
2100.00 .479 157.3 2.009 –11.6 .168 –16.4 .326 –62.1
2200.00 .481 153.7 1.926 –17.3 .173 –19.3 .315 –64.1
2300.00 .490 149.6 1.864 –22.9 .180 –21.9 .306 –66.6
2400.00 .494 146.0 1.784 –28.5 .186 –24.8 .295 –69.4
2500.00 .504 143.0 1.731 –33.7 .193 –27.2 .286 –71.9
2600.00 .510 139.4 1.677 –39.4 .199 –30.3 .277 –75.6
2700.00 .517 136.7 1.625 –44.6 .206 –33.5 .267 –78.6
2800.00 .529 133.6 1.576 –50.0 .214 –36.6 .260 –82.4
2900.00 .534 130.9 1.524 –55.1 .221 –39.8 .250 –86.6
3000.00 .546 128.3 1.489 –60.3 .229 –43.1 .245 –90.5
6
Page 7
S-PARAMETER
VCE = 3 V, IC = 1 mA, ZO = 50 Ω
FREQUENCY S11 S21 S12 S22
MHz MAG ANG MAG ANG MAG ANG MAG ANG
100.00 1.007 –11.6 2.002 164.1 .028 78.0 .990 –5.7
200.00 .983 –23.4 2.020 151.1 .055 68.0 .972 –11.2
300.00 .964 –34.8 2.079 139.1 .078 57.4 .939 –16.0
400.00 .930 –46.9 2.041 127.5 .097 47.8 .906 –20.3
500.00 .903 –57.8 2.051 117.5 .116 39.3 .872 –24.3
600.00 .868 –68.6 1.913 106.4 .129 30.3 .838 –27.7
700.00 .831 –78.8 1.883 96.8 .139 23.2 .804 –30.7
800.00 .803 –89.6 1.845 86.7 .146 15.7 .772 –33.4
900.00 .764 –99.6 1.813 77.8 .150 9.6 .740 –35.8
1000.00 .737 –110.2 1.803 68.6 .155 3.4 .712 –38.1
1100.00 .704 –119.5 1.761 60.2 .156 –1.7 .691 –39.9
1200.00 .683 –128.7 1.729 51.8 .158 –6.9 .671 –42.2
1300.00 .662 –136.9 1.647 43.9 .157 –11.7 .652 –43.9
1400.00 .649 –144.6 1.602 36.5 .157 –15.5 .637 –46.2
1500.00 .633 –152.1 1.534 28.8 .155 –19.4 .622 –48.1
1600.00 .626 –158.9 1.487 22.0 .154 –22.0 .609 –50.1
1700.00 .616 –166.0 1.444 14.5 .153 –25.3 .595 –52.3
1800.00 .611 –171.6 1.389 8.1 .154 –27.7 .586 –54.4
1900.00 .612 –178.0 1.351 1.4 .153 –31.6 .574 –56.9
2000.00 .608 176.1 1.305 –5.1 .148 –33.6 .565 –59.1
2100.00 .612 170.5 1.271 –11.3 .147 –35.4 .556 –61.6
2200.00 .612 165.7 1.221 –17.3 .145 –36.8 .550 –64.3
2300.00 .616 160.7 1.198 –23.5 .145 –37.8 .540 –67.1
2400.00 .617 156.1 1.149 –29.5 .144 –38.6 .533 –70.0
2500.00 .623 152.2 1.120 –34.9 .146 –39.1 .525 –73.0
2600.00 .627 147.6 1.091 –41.0 .149 –39.6 .518 –76.6
2700.00 .630 144.1 1.060 –46.3 .153 –40.1 .509 –80.0
2800.00 .638 140.1 1.031 –52.1 .159 –40.5 .504 –83.7
2900.00 .640 136.6 .999 –57.3 .165 –41.8 .495 –87.5
3000.00 .650 133.4 .977 –62.6 .173 –42.8 .494 –91.5
2SC5007
VCE = 1 V, IC = 5 mA, ZO = 50 Ω
FREQUENCY S11 S21 S12 S22
MHz MAG ANG MAG ANG MAG ANG MAG ANG
100.00 .897 –25.2 9.052 153.5 .035 70.1 .907 –20.1
200.00 .786 –49.2 8.496 133.0 .058 54.3 .764 –34.9
300.00 .696 –72.2 7.939 116.9 .073 44.3 .630 –44.6
400.00 .619 –92.7 7.110 103.4 .083 37.3 .530 –50.1
500.00 .563 –111.0 6.461 91.2 .092 32.9 .456 –54.7
600.00 .521 –124.5 5.626 81.2 .098 28.7 .397 –57.1
700.00 .491 –136.8 5.074 72.3 .107 25.9 .356 –59.2
800.00 .473 –147.0 4.547 63.8 .112 22.5 .317 –61.2
900.00 .461 –155.5 4.141 56.3 .119 19.8 .291 –62.2
1000.00 .455 –163.1 3.787 49.2 .126 17.4 .265 –64.6
1100.00 .452 –169.6 3.476 42.7 .134 14.3 .245 –65.4
1200.00 .451 –176.0 3.232 36.1 .140 11.2 .227 –67.7
1300.00 .451 178.7 2.996 30.0 .148 8.5 .210 –68.9
1400.00 .454 173.6 2.815 23.8 .156 5.7 .199 –71.8
1500.00 .456 169.0 2.632 17.6 .163 2.7 .183 –74.2
1600.00 .465 165.0 2.508 12.0 .171 –.6 .174 –76.4
1700.00 .467 160.7 2.366 5.9 .180 –4.0 .161 –80.6
1800.00 .475 157.3 2.250 .4 .187 –7.6 .149 –83.4
1900.00 .486 153.1 2.155 –5.7 .195 –11.6 .140 –88.6
2000.00 .493 149.3 2.053 –11.1 .200 –14.7 .127 –91.8
2100.00 .501 145.6 1.971 –16.7 .208 –17.9 .121 –97.4
2200.00 .506 142.8 1.892 –22.1 .215 –21.2 .111 –103.1
2300.00 .517 139.5 1.822 –27.7 .223 –24.7 .106 –109.2
2400.00 .521 136.6 1.746 –33.1 .230 –28.4 .099 –118.1
2500.00 .532 134.2 1.692 –38.2 .238 –31.7 .092 –125.0
2600.00 .540 131.1 1.633 –43.7 .247 –35.6 .093 –135.3
2700.00 .548 128.9 1.581 –48.6 .253 –39.3 .091 –145.0
2800.00 .556 126.2 1.532 –54.0 .261 –42.9 .096 –154.4
2900.00 .563 124.0 1.479 –59.0 .268 –46.5 .098 –164.4
3000.00 .575 121.6 1.443 –64.1 .277 –50.5 .104 –171.2
7
Page 8
S-PARAMETER
VCE = 1 V, IC = 3 mA, ZO = 50 Ω
FREQUENCY S11 S21 S12 S22
MHz MAG ANG MAG ANG MAG ANG MAG ANG
100.00 .958 –19.0 5.665 158.3 .036 73.2 .949 –14.2
200.00 .881 –37.7 5.548 139.7 .064 58.2 .861 –26.3
300.00 .814 –56.1 5.432 124.9 .086 46.9 .754 –35.1
400.00 .746 –73.3 5.049 112.0 .100 37.5 .665 –41.2
500.00 .691 –90.2 4.841 100.3 .110 31.1 .593 –46.3
600.00 .639 –103.5 4.339 89.4 .117 24.7 .528 –49.8
700.00 .594 –117.0 4.078 79.6 .124 20.3 .481 –52.5
800.00 .561 –129.0 3.769 70.0 .129 15.6 .437 –54.7
900.00 .538 –139.1 3.500 61.5 .133 12.2 .404 –56.2
1000.00 .521 –148.6 3.250 53.6 .139 8.7 .373 –58.6
1100.00 .507 –156.1 3.021 46.3 .142 6.0 .349 –59.5
1200.00 .502 –164.0 2.829 39.2 .147 2.6 .330 –61.8
1300.00 .496 –170.1 2.639 32.3 .152 –.3 .310 –63.0
1400.00 .495 –176.0 2.493 25.8 .158 –2.7 .296 –65.4
1500.00 .494 178.4 2.336 19.5 .162 –5.6 .279 –67.3
1600.00 .500 173.6 2.227 13.2 .168 –8.1 .267 –69.5
1700.00 .498 168.6 2.113 7.0 .174 –11.2 .253 –72.3
1800.00 .505 164.5 2.016 1.1 .180 –14.4 .242 –74.7
1900.00 .515 159.8 1.935 –5.0 .185 –17.8 .229 –78.1
2000.00 .520 155.5 1.841 –10.8 .188 –20.2 .218 –80.9
2100.00 .526 151.3 1.776 –16.7 .194 –23.2 .208 –84.4
2200.00 .531 148.1 1.698 –22.3 .200 –25.9 .198 –88.0
2300.00 .541 144.3 1.648 –27.9 .206 –28.9 .190 –92.0
2400.00 .544 141.0 1.578 –33.5 .213 –31.8 .181 –97.1
2500.00 .554 138.3 1.532 –38.7 .218 –34.9 .173 –101.2
2600.00 .561 134.9 1.483 –44.5 .226 –38.2 .168 –107.7
2700.00 .567 132.3 1.434 –49.5 .232 –41.1 .160 –113.5
2800.00 .578 129.3 1.392 –55.2 .240 –44.5 .159 –120.3
2900.00 .584 126.8 1.343 –60.1 .247 –47.7 .153 –127.4
3000.00 .595 124.3 1.314 –65.3 .255 –51.2 .155 –133.9
2SC5007
VCE = 1 V, IC = 1 mA, ZO = 50 Ω
FREQUENCY S11 S21 S12 S22
MHz MAG ANG MAG ANG MAG ANG MAG ANG
100.00 1.003 –12.8 1.999 162.5 .037 77.9 .986 –7.2
200.00 .976 –25.7 2.006 148.6 .071 65.8 .960 –14.1
300.00 .953 –38.3 2.059 135.7 .103 54.9 .917 –20.1
400.00 .915 –51.0 2.007 123.2 .127 44.2 .875 –25.3
500.00 .885 –63.1 2.009 112.8 .147 35.2 .829 –30.2
600.00 .847 –74.4 1.873 101.4 .163 25.8 .786 –34.2
700.00 .809 –85.4 1.843 91.3 .174 18.4 .747 –37.7
800.00 .778 –96.8 1.794 80.9 .182 10.5 .706 –41.1
900.00 .744 –107.2 1.752 71.8 .187 4.5 .672 –43.8
1000.00 .718 –117.9 1.727 62.3 .191 –2.0 .638 –46.5
1100.00 .689 –127.2 1.678 53.8 .193 –7.3 .613 –48.6
1200.00 .672 –136.5 1.632 45.4 .195 –12.5 .590 –51.1
1300.00 .656 –144.3 1.551 37.5 .193 –17.5 .571 –53.3
1400.00 .646 –151.8 1.501 30.1 .193 –21.6 .553 –55.9
1500.00 .634 –159.1 1.431 22.3 .190 –26.1 .536 –58.1
1600.00 .630 –165.5 1.389 15.6 .188 –29.0 .523 –60.8
1700.00 .623 –172.3 1.345 8.4 .186 –32.4 .506 –63.3
1800.00 .620 –177.5 1.291 1.8 .185 –35.4 .494 –65.8
1900.00 .624 176.3 1.253 –5.1 .184 –39.4 .481 –68.9
2000.00 .622 170.9 1.206 –11.4 .178 –42.1 .473 –71.5
2100.00 .628 165.8 1.174 –17.7 .176 –44.2 .464 –74.8
2200.00 .628 161.4 1.128 –23.8 .173 –46.2 .456 –78.0
2300.00 .636 156.6 1.104 –29.8 .172 –47.3 .445 –81.5
2400.00 .636 152.2 1.059 –35.9 .170 –48.7 .440 –85.3
2500.00 .644 148.6 1.033 –41.3 .172 –49.2 .430 –88.9
2600.00 .648 144.2 1.003 –47.3 .173 –50.4 .425 –93.3
2700.00 .652 140.9 .972 –52.7 .174 –51.0 .418 –97.6
2800.00 .660 137.2 .946 –58.4 .179 –51.9 .412 –102.2
2900.00 .663 134.0 .917 –63.5 .184 –53.0 .407 –107.1
3000.00 .673 130.8 .896 –68.7 .192 –54.1 .406 –112.1
8
Page 9
[MEMO]
2SC5007
9
Page 10
2SC5007
No part of this document may be copied or reproduced in any form or by any means without the prior written
consent of NEC Corporation. NEC Corporation assumes no responsibility for any errors which may appear in this
document.
NEC Corporation does not assume any liability for infringement of patents, copyrights or other intellectual
property rights of third parties by or arising from use of a device described herein or any other liability arising
from use of such device. No license, either express, implied or otherwise, is granted under any patents,
copyrights or other intellectual property rights of NEC Corporation or others.
While NEC Corporation has been making continuous effort to enhance the reliability of its semiconductor devices,
the possibility of defects cannot be eliminated entirely. To minimize risks of damage or injury to persons or
property arising from a defect in an NEC semiconductor device, customer must incorporate sufficient safety
measures in its design, such as redundancy, fire-containment, and anti-failure features.
NEC devices are classified into the following three quality grades:
“Standard“, “Special“, and “Specific“. The Specific quality grade applies only to devices developed based on
a customer designated “quality assurance program“ for a specific application. The recommended applications
of a device depend on its quality grade, as indicated below. Customers must check the quality grade of each
device before using it in a particular application.
Standard: Computers, office equipment, communications equipment, test and measurement equipment,
audio and visual equipment, home electronic appliances, machine tools, personal electronic
equipment and industrial robots
Special: Transportation equipment (automobiles, trains, ships, etc.), traffic control systems, anti-disaster
systems, anti-crime systems, safety equipment and medical equipment (not specifically designed
for life support)
Specific: Aircrafts, aerospace equipment, submersible repeaters, nuclear reactor control systems, life
support systems or medical equipment for life support, etc.
The quality grade of NEC devices in “Standard“ unless otherwise specified in NEC's Data Sheets or Data Books.
If customers intend to use NEC devices for applications other than those specified for Standard quality grade,
they should contact NEC Sales Representative in advance.
Anti-radioactive design is not implemented in this product.
10
M4 94.11
Loading...
