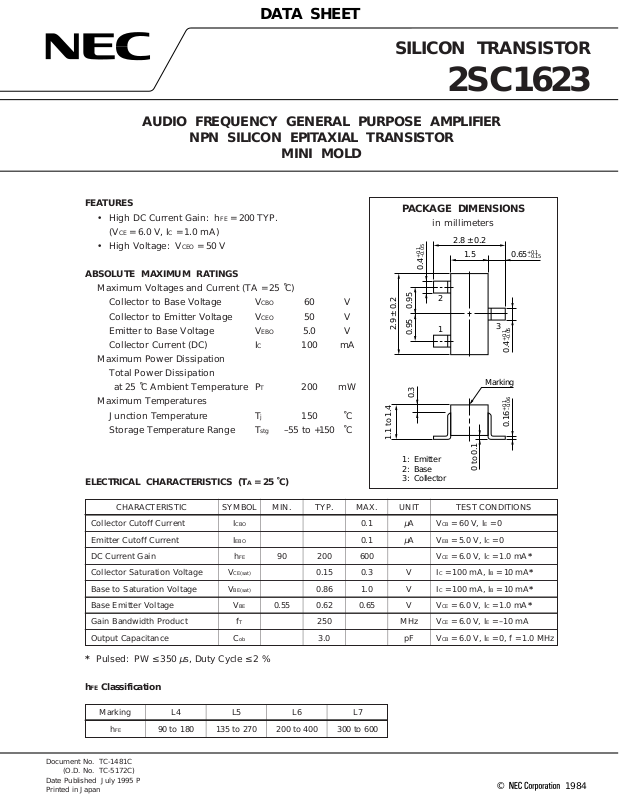

DATA SHEET

SILICON TRANSISTOR

2SC1623

AUDIO FREQUENCY GENERAL PURPOSE AMPLIFIER

NPN SILICON EPITAXIAL TRANSISTOR

MINI MOLD

FEATURES

• High DC Current Gain: h

CE = 6.0 V, IC = 1.0 mA)

(V

• High Voltage: V

CEO = 50 V

FE = 200 TYP.

ABSOLUTE MAXIMUM RATINGS

Maximum Voltages and Current (TA = 25 ˚C)

Collector to Base Voltage VCBO 60 V
Collector to Emitter Voltage V
Emitter to Base Voltage V
Collector Current (DC) I

CEO 50 V
EBO 5.0 V

C 100 mA

Maximum Power Dissipation

Total Power Dissipation

at 25 ˚C Ambient Temperature P

T 200 mW

Maximum Temperatures

Junction Temperature Tj 150 ˚C
Storage Temperature Range T

stg –55 to +150 ˚C

ELECTRICAL CHARACTERISTICS (TA = 25 ˚C)

PACKAGE DIMENSIONS

in millimeters

2.8 ± 0.2

1.5

2

1

Marking

0 to 0.1

2.9 ± 0.2

0.95 0.95

0.3

1.1 to 1.4

1: Emitter
2: Base
3: Collector

+0.1

–0.05

0.4

+0.1

0.65

–0.15

3

–0.05

+0.1

0.4

–0.06

+0.1

0.16

CHARACTERISTIC SYMBOL MIN. TYP. MAX. UNIT TEST CONDITIONS
Collector Cutoff Current ICBO 0.1
Emitter Cutoff Current IEBO 0.1
DC Current Gain hFE 90 200 600 VCE = 6.0 V, IC = 1.0 mA*
Collector Saturation Voltage V CE(sat) 0.15 0.3 V IC = 100 mA, IB = 10 mA*
Base to Saturation Voltage VBE(sat) 0.86 1.0 V IC = 100 mA, IB = 10 mA*
Base Emitter Voltage VBE 0.55 0.62 0.65 V VCE = 6.0 V, IC = 1.0 mA*
Gain Bandwidth Product fT 250 MHz VCE = 6.0 V, IE = –10 mA
Output Capacitance Cob 3.0 pF VCB = 6.0 V, IE = 0, f = 1.0 MHz

* Pulsed: PW ≤ 350 µs, Duty Cycle ≤ 2 %

hFE Classification

Marking L4 L5 L6 L7

hFE 90 to 180 135 to 270 200 to 400 300 to 600

Document No. TC-1481C

(O.D. No. TC-5172C)
Date Published July 1995 P
Printed in Japan

µ

A VCB = 60 V, IE = 0

µ

A VEB = 5.0 V, IC = 0

©

1984

TYPICAL CHARACTERISTICS (TA = 25 ˚C)

2SC1623

TOTAL POWER DISSIPATION vs.
AMBIENT TEMPERATURE

200
180
160
140
120
100

80
60
40
20

PT - Total Power Dissipation - mW

0

–20 0 20 40 60 80 100 120 140 160 180

T

A - Ambient Temperature - ˚C

COLLECTOR CURRENT vs.
COLLECTOR TO EMITTER VOLTAGE

100

1.0

0.9

0.8

80

0.7

0.6

0.5

60

0.4

0.3

40

20

IC - Collector Current - mA

0

0 0.4 0.8 1.2 1.6 2.0

0.2

IB = 0.1 mA

0

VCE - Collector to Emitter Voltage - V

Free air

NORMALIZED COLLECTOR CUTOFF
CURRENT vs. AMBIENT TEMPERATURE

10000

5000
2000

1000

500
200

100

50
20

- Normalized Collector Cutottt Current

10

5
2

1

CBO (TA)

I

0 20 40 60 80 100 120 140 160

CBO (TA = 25 ˚C)

I

T

A - Ambient Temperature - ˚C

COLLECTOR CURRENT vs.
COLLECTOR TO EMITTER VOLTAGE

10

45

40

8

35

30

6

25
20

4

15

2

IC - Collector Current - mA

0

0 1020304050

10

= 5.0 A

B

I

0

µ

VCE - Collector to Emitter Voltage - V

1000

500
300

100

50
30

hFE - DC Current Gain

10

5
3

0.1

0.2 0.5 1.0 2.0 5.0 10 20 50 100

2

DC CURRENT GAIN vs.
COLLECTOR CURRENT

IC - Collector Current - mA

VCE = 6.0 V

1.0 V

0.5 V

1000

500
300

100

50
30

hFE - DC Current Gain

10

5
3

0.1

0.2 0.5 1.0 2.0 5.0 10 20 50 100

DC CURRENT GAIN vs.
COLLECTOR CURRENT

TA = 75 ˚C

25 ˚C

–25 ˚C

IC - Collector Current - mA

VCE = 6.0 V
Pulsed

2SC1623

COLLECTOR CURRENT vs.
BASE TO EMITTER VOLTAGE

100

VCE = 6.0 V
Pulsed

50
20
10

5
2
1

0.5

= 75 ˚C

A

T

25 ˚C

–25 ˚C

0.2

0.1

- Collector Current - mA

C

I

0.05

0.02

0.01

0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0

BE

- Base to Emitter Voltage - V

V

GAIN BANDWIDTH PRODUCT vs.
EMITTER CURRENT

10000

5000
2000

1000

500
200

100

VCE =10 V

2 V

1 V

50

- Gain Bandwidth Product - MHz

T

20

f

10

–0.1 –0.2 –0.5 –1 –2 –5 –10 –20 –50 –100

IE - Emitter Current - mA

6 V

COLLECTOR AND BASE SATURATION
VOLTAGE vs. COLLECTOR CURRENT

10

5
2

1

V

BE(sat)

0.5

0.2
V

0.1

0.05

- Base Saturation Voltage - V

- Collector Saturation Voltage - V

0.02

BE(sat)

CE(cat)

V

V

0.01

0.1 0.2 10.5 2 5 10 20 50 100

CE(sat)

I

C

- Collector Current - mA

IC = 50 · I

INPUT AND OUTPUT CAPACITANCE
vs. REVERSE VOLTAGE

100

50
20

10

5

C

ib

(I

C

= 0)

C

ob

(I

2
1

- Output Capacitance - pF

0.5

- Input Capacitance - pF

ib

ob

C

C

0.2

0.1

0.1 0.2 0.5 1 2 5 10 20 50 100
VCB - Collector to Base Voltage - V

EB

- Emittor to Base Voltage - V

V

Pulsed

IC = 50 · I

10

B

20

B

20

10

f = 1.0 MHz

E

= 0)

SMALL SIGNAL CURRENT GAIN vs.
DC CURRENT GAIN

1000

800

V

CE

= 6.0 V

C

= 1.0 mA

I
f = 1.0 kHz

600

400

- Small Signal Current Gain

200

fe

h

0

0 200 400 600 800 1000

hFE - DC Current Gain

INPUT IMPEDANCE VOLTAGE FEEDBACK
RATIO AND OUTPUT ADMITTANCE vs.
SMALL SIGNAL CURRENT GAIN

50

50

100

–4

µ

80

60

40

- Output Admittance - S

oe

20

h

0

- Voltage Feedback Ratio - ×10

re

h

40

30

20

10

40

30

20

- Input Impedance - kΩ

ie

h

10

0

0

VCE = 6.0 V

C

= 1.0 mA

I
f = 1.0 kHz

h

oe

h

re

h

ie

200 400 600 800 1000

hfe - Small Signal Current Gain

3

2SC1623

NORMALIZED h-PARAMETER vs.
COLLECTOR CURRENT

10

hie

5

hre

2

1

hfe

0.5

hoe

0.2

He - Normalized h - Parameter

0.1

0.1 0.2 0.5 1 2 5 10
IC - Collector Current - mA

VCE = 6.0 V
f = 1.0 kHz

e =

H

he(IC = 1.0 mA)

h

e(IC)

hoe

hfe

hre

hie

NORMALIZED h-PARAMETER vs.
COLLECTOR TO EMITTER VOLTAGE

3

2

hoe

hre

1

hfe hie

He - Normalized h - Parameter

0

VCE - Collector to Emitter Voltage - V

10 20 30

ICE = 1.0 V
f = 1.0 kHz

he(VCE)

He =

he(VCE = 6 V)

hfe hie

hoe

hre

4
