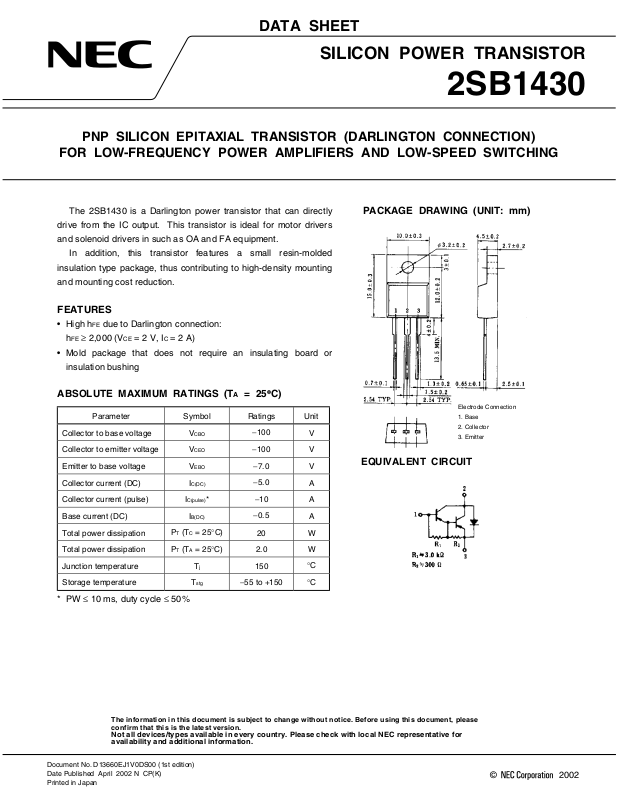

Page 1
DATA SHEET
SILICON POWER TRANSISTOR
2SB1430
PNP SILICON EPITAXIAL TRANSISTOR (DARLINGTON CONNECTION)
FOR LOW-FREQUENCY POWER AMPLIFIERS AND LOW-SPEED SWITCHING
The 2SB1430 is a Darlington power transistor that can directly
drive from the IC output. This transistor is ideal for motor drivers
and solenoid drivers in such as OA and FA equipment.
In addition, this transistor features a small resin-molded
insulation type package, thus contributing to high-density mounting
and mounting cost reduction.
FEATURES
• High hFE due to Darlington connection:
h
≥ 2,000 (VCE = 2 V, IC = 2 A)
FE
• Mold package that does not require an insulating board or
insulation bushing
ABSOLUTE MAXIMUM RATINGS (TA = 25°°°°C)
Parameter Symbol Ratings Unit
Collector to base voltage V
Collector to emitter voltage V
Emitter to base voltage V
Collector current (DC) I
Collector current (pulse) I
Base current (DC) I
(TC = 25°C)
P
Total power dissipation
Total power dissipation
Junction temperature T
Storage temperature T
T
(TA = 25°C)
P
T
*PW ≤ 10 ms, duty cycle ≤ 50%
CBO
CEO
EBO
C(DC)
C(pulse)
B(DC)
stg
*
j
−100
−100
−7.0
−5.0
−10
−0.5
20 W
2.0 W
150
−55 to +150 °C
°C
V
V
V
A
A
A
PACKAGE DRAWING (UNIT: mm)
Electrode Connection
1. Base
2. Collector
3. Emitter
EQUIVALENT CIRCUIT
The information in this document is subject to change without notice. Before using this document, please
confirm that this is the latest version.
Not all devices/types available in every country. Please check with local NEC representative for
availability and additional information.
Document No. D13660EJ1V0DS00 (1st edition)
Date Published April 2002 N CP(K)
Printed in Japan
2002
1998©
Page 2
ELECTRICAL CHARACTERISTICS (TA = 25°°°°C)
Parameter Symbol Conditions MIN. TYP. MAX. Unit
Collector cutoff current I
DC current gain h
DC current gain h
Collector saturation voltage V
Base saturation voltage V
Gain bandwidth product f
Collector capacitance C
Turn-on time t
Storage time t
Fall time t
CE(sat)
BE(sat)
CBO
FE1
FE2
stg
VCB = −100 V, IE = 0 −1.0
= −2.0 V, IC = −2.0 A
V
CE
*
= −2.0 V, IC = −4.0 A
V
CE
*
= −2.0 A, IB = −2.0 mA −1.5
I
C
*
= −2.0 A, IB = −2.0 mA −2.0
I
C
*
VCE = −5.0 V, IC = −0.5 A
T
VCB = −10 V, IE = 0, f = 1.0 MHz
ob
IC = −2.0 A, IB1 = −IB2 = −2.0 mA,
on
R
= 25 Ω, VCC ≅ 50 V
L
Refer to the test circuit.
f
* Pulse test PW ≤ 350 µs, duty cycle ≤ 2%
hFE CLASSIFICATION
Marking M L K
2,000 20,000
500
80 MHz
60 pF
0.5
1.0
1.0
2SB1430
A
µ
V
V
s
µ
s
µ
s
µ
h
FE1
2,000 to 5,000 4,000 to 10,000 8,000 to 20,000
SWITCHING TIME (ton, t
, tf) TEST CIRCUIT
stg
Base current
waveform
Collector current
waveform
2
Data Sheet D13660EJ1V0DS
Page 3

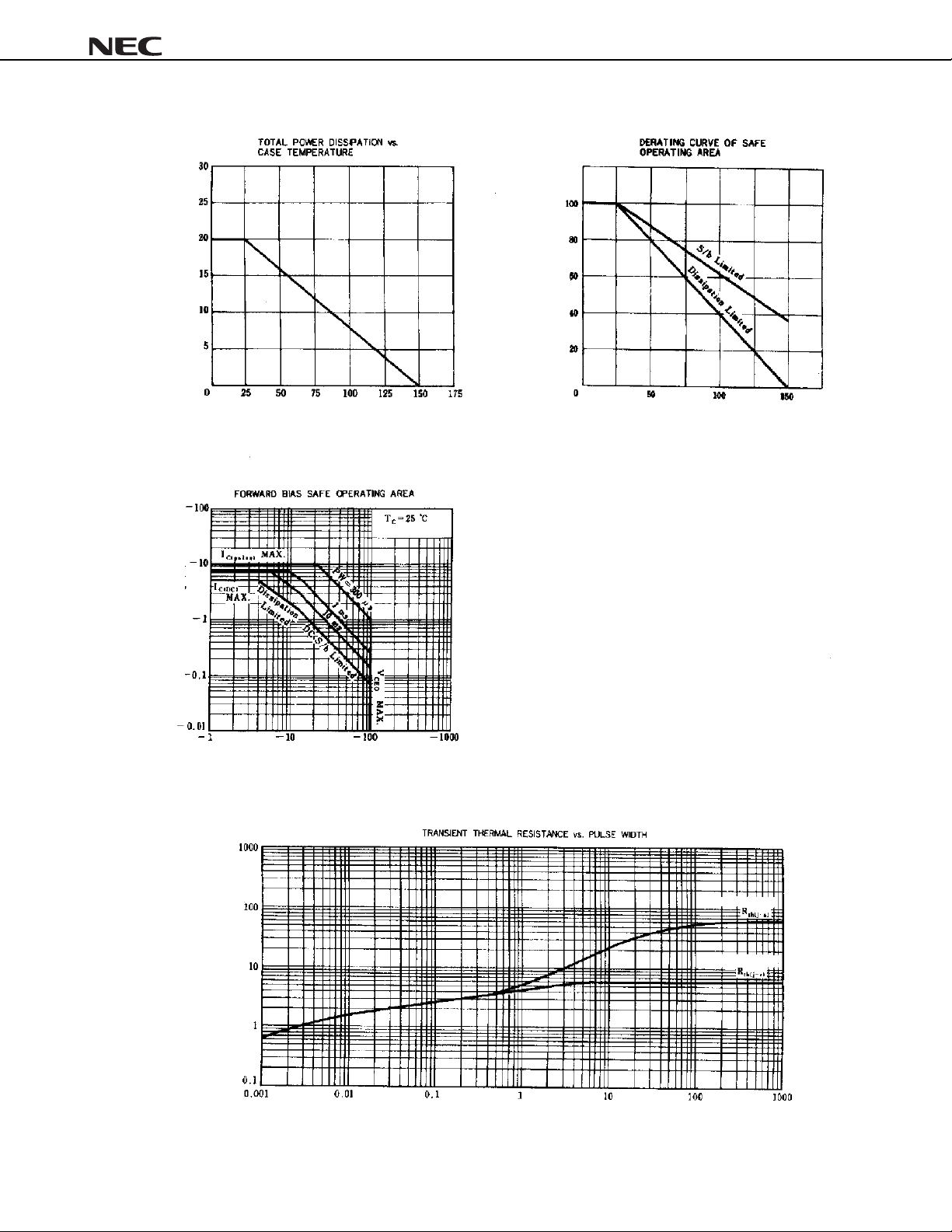

TYPICAL CHARACTERISTICS (TA = 25°°°°C)
(W)
T
Total Power Dissipation P
2SB1430
Derating dT (%)
C
I
Case Temperature TC (°C)
Single pulse
(A)
C
Case Temperature TC (°C)
Collector Current I
Collector to Emitter Voltage VCE (V)
Without heatsink
With infinite heatsink
Transient Thermal Resistance r(t) (°C/W)
Pulse Width PW (s)
Data Sheet D13660EJ1V0DS
3
Page 4

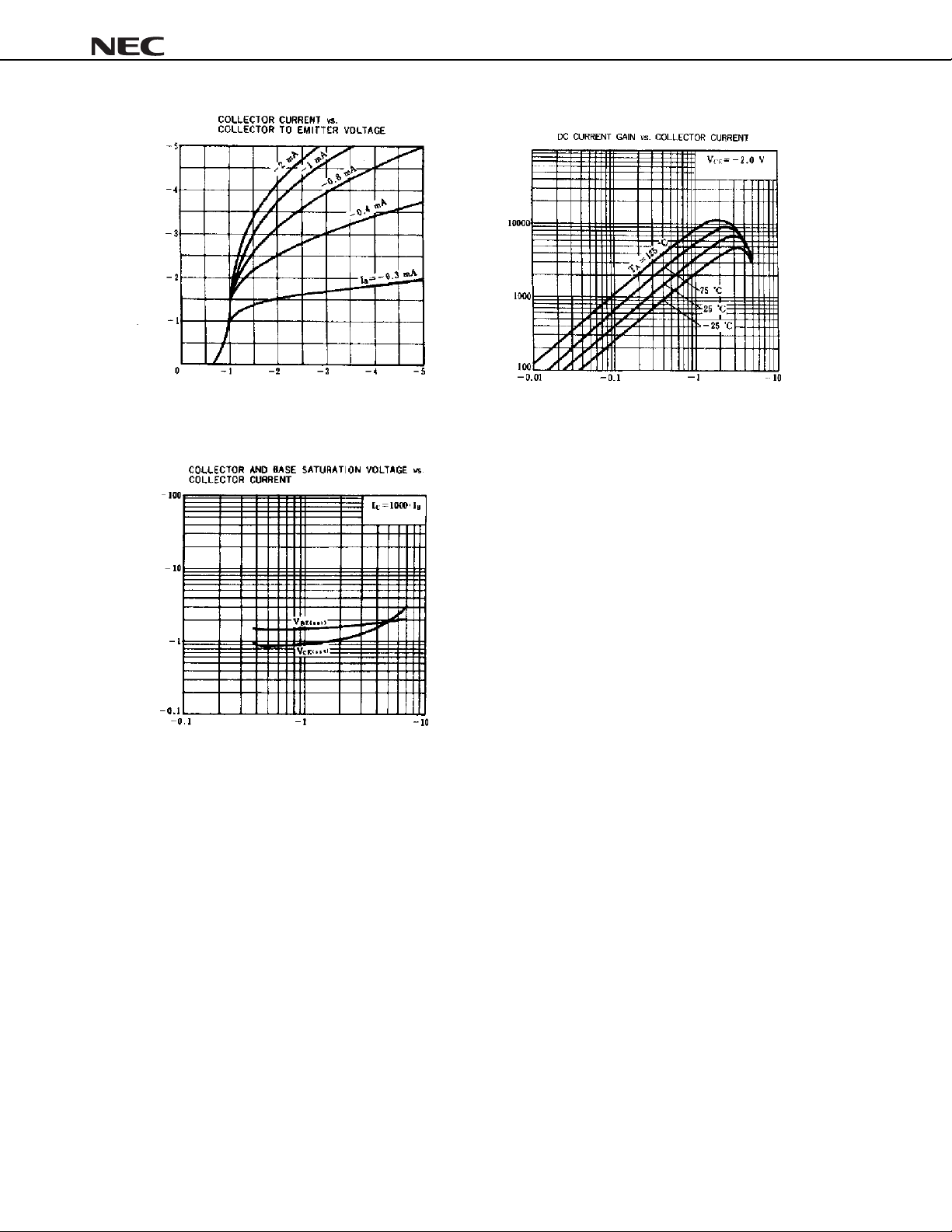

Pulse test
2SB1430
(A)
C
Collector Current I
Collector to Emitter Voltage VCE (V)
(V)
(V)
CE(sat)
BE(sat)
Pulse test
FE
DC Current Gain h
Collector Current IC (A)
Base Saturation Voltage V
Collector Saturation Voltage V
Collector Current IC (A)
4
Data Sheet D13660EJ1V0DS
Page 5
[MEMO]
2SB1430
Data Sheet D13660EJ1V0DS
5
