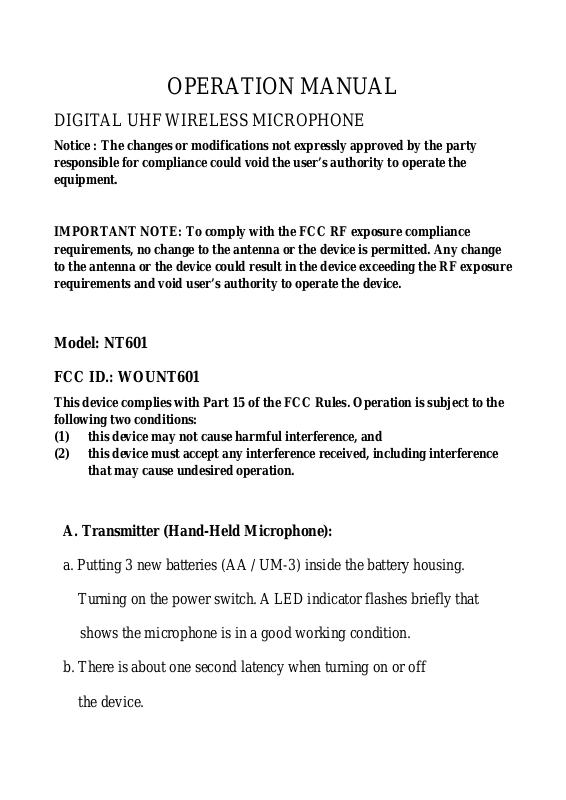

OPERATION MANUAL

DIGITAL UHF WIRELESS MICROPHONE

Notice : The changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate the
equipment.

IMPORTANT NOTE: To comply with the FCC RF exposure compliance
requirements, no change to the antenna or the device is permitted. Any change
to the antenna or the device could result in the device exceeding the RF exposure
requirements and void user’s authority to operate the device.

Model: NT601
FCC ID.: WOUNT601

This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference

that may cause undesired operation.

A. Transmitter (Hand-Held Microphone):

a. Putting 3 new batteries (AA / UM-3) inside the battery housing.

Turning on the power switch. A LED indicator flashes briefly that

shows the microphone is in a good working condition.

b. There is about one second latency when turning on or off

the device.

c. Pushing button + or – to increase or decrease the volume ranging from

0 to 15.

d. Using push-button “CH” for altering the channel ranging from 1 to 36.

e. Batteries are going to be exhausted out in a short period of time and

need to be replaced when the LED indicator continuously flashes

B Receiver :

a. Installing vertically two antennas at the rear of the device.
b. Using Main Power switch at the rear for

opening/shutting the main power source.

Plugging the power connector of the attached AC/DC Adapter

into the “DC IN” socket at the rear of the device.

Turning on the Main Power switch, the front panel will then

lights up.

c. Using Power button at the front for turning on/off the

signal of the device.

Pushing the Power button at the front panel, the OLED

screen lights up that shows the receiver is in a
good working condition.
