USER MANUAL
Rev. D 2014-10-11
DECLARATION OF CONFORMITY
The manufacturer
Neatech.it
4/A, A. de Curtis, 80040, Cercola (NA), Italy
under its responsibility, states that
the wheelchair EVO3
satisfies the conditions laid down by the European Directive 93/42
and its subsequent updates;
according to the criteria for classification of Annex IX of this directive,
the EVO3 is classified as
class I medical device
It also complies with the requirement of the harmonized standards:
UNI EN 12182 – Technical aids for disabled person
UNI EN 12184 – Electrically powered wheelchairs, scooters and their
chargers
1 WHEELCHAIR PRESENTATION .................................................12
2 STARTING UP .........................................................................13
2.1 Checks to be made on delivery .......................................13
2.2 Unpacking ......................................................................14
2.2.1 Remove the EVO3 from the pallet ...........................15
2.3 Assembly operation ........................................................16
2.4 Transport and storage ....................................................16
3 ADJUSTMENTS .......................................................................17
3.1 Armrests.........................................................................17
3.2 Legrest ...........................................................................20
3.2.1 Height .....................................................................20
3.2.1 Footrest width and angle ........................................22
3.3 Backrest .........................................................................24
3.4 Seat depth ......................................................................25
3.5 Drive profile ...................................................................26
4 USE OF THE WHEELCHAIR ......................................................27
4.1 Rnet control console .......................................................27
4.2 Using the wheelchair ......................................................31
4.3 Manual brake release lever ............................................36
4.4 Powered function ...........................................................37
4.4.1 Seat lift ...................................................................37
4.4.2 Seat tilt ...................................................................38
4.4.3 Backrest biomechanical recline ...............................39
4.4.4 Legrest biomechanical elevation .............................40
4.5 Battery charging .............................................................41
4.6 Use as seat in motor vehicle ...........................................43
5 MAINTENANCE.......................................................................46
5.1 Tire puncture ..................................................................47
5.2 Checks to be made on the wheelchair ............................49
5.3 Troubleshooting .............................................................50
5.3.1 Rnet system fault ....................................................51
5.4 Specification ...................................................................52
5.5 Dimensions.....................................................................54
5.6 Magneto hydraulic protection ........................................55
5.7 Spare part list .................................................................56
5.8 Instruction for replacing parts ........................................58
5.8.1 Antitip castor ..........................................................58
5.8.2 Front cover for FWD wheelchair (back cover for RWD
wheelchair) ............................................................................59
5.8.3 Back cover for FWD wheelchair (back cover for RWD
wheelchair) ............................................................................60
5.8.4 Legrest cover ..........................................................61
5.8.5 Backrest cover ........................................................61
5.8.6 Tire of traction (with tube) ......................................62
5.8.7 Tire of castor wheel (with tube) ..............................63
5.8.8 Armrest pad ............................................................64
5.8.9 Joystick ...................................................................65
5.8.10 Seat cushion ...........................................................65
5.8.11 Backrest cushion .....................................................65
6 WARRANTY TERMS ................................................................66
6.1 SERIAL NUMBER .............................................................66
6.2 INCIDENT REPORTING .....................................................66
TIPPING HAZARD
Any transport on a slope greater than the
maximum security slope can be dangerous.
ELECTROMAGNETIC RADIATION DANGER
The behavior of the wheelchair while driving
may be affected by electromagnetic fields
created by transceivers such as: Citizens
band (CB) radios, walkie-talkies, fire and
police radios, cellular phones, lap-top
computers, two-way radios, and commercial
radio and television broadcast antennas.
PLEASE USE CAUTION in the presence of
these devices.
EMI can cause your chair, without warning, to:
• Release its brakes
• Move by itself
• Move in unintended directions
If any of these occur, it could result in severe injury to you or
others. EMI can damage the control system of your chair.
There is no way to know the effect on EMI if you add accessories
or modify this chair. Any change to your chair may increase the risk
of EMI. Parts from other suppliers have unknown EMI properties.
The wheelchair might disturb the operation of devices in its
environment that emit electromagnetic fields
TEMPERATURE
The temperature of some surfaces may
increase when the chair is exposed to
external heat sources as sunlight.
Do not install, maintain or operate your wheelchair without reading
all warnings and this entire user’s manual.
Always keep this manual in connection with your wheelchair.
NOTICE TO RIDER—WARNING
Do not use your wheelchair on stairs or escalators. Do not lift or move the
wheelchair by any of its removable parts.
The wheelchair should be turned off prior to entering or exiting the
wheelchair.
The wheelchair may come to a sudden stop at any time during operation.
Do not operate the wheelchair if it is behaving abnormally or erratically.
Do not operate the wheelchair with low batteries, to minimize risk of
becoming stranded.
Don’t use the wheelchair if your weight exceed the maximum user weight
written in the specification of this user manual.
Do not carry passengers on the wheelchair independently of the age of the
passenger.
PINCH HAZARDS – WARNING
Make sure your feet do not “hang up” or get caught in the space between
the footrests. In general, make sure you have proper space in areas you will
travel through to minimize pinching or entrapment of body parts.
Do not use an escalator to move the wheelchair between floors. Serious
bodily injury may occur.
Do not lean over the top of the back upholstery to reach objects from behind
as this may cause the wheelchair to tip over.
Do not shift your weight or sitting position toward the direction you are
reaching as the wheelchair may tip over backwards or sideways
Do not tip or wheel the wheelchair with wheel locks. Wheel locks are not
brakes.
Do not stand on the frame of the wheelchair.
Always use caution when transferring in or out of the wheelchair. Every
precaution should be taken to reduce the transfer distance. Also be certain
the wheel locks are engaged to prevent the wheels from moving.
Caution—Obstacles
Riding over curbs or obstacles can cause tipping and serious bodily
harm. If you have any doubt that you can safely cross any curb or
obstacle, ALWAYS ASK FOR HELP. Be aware of your riding skills and
personal limitations. Develop new driving skills only with the help of
a companion.
Caution—Anti-Tippers
Using anti-tippers substantially reduces your risk of falling over
backwards, which can cause serious injury. The Anti-Tippers will keep
you from falling over, but they will limit your ability to be pulled up
curbs and some other maneuvers. IT IS NOT POSSIBLE TO HAVE THIS
WHEELCHAIR WITHOUT ANTI TIPPERS.
The wheelchair is not designed for weight training and is unsafe for
use as a seat while weight training. Weight training from the
wheelchair substantially changes the stability of the chair and cause
tipping.
The wheelchair is not intended to be dismantled. There is no parts of
the wheelchair expected to be handled during normal use of it.
It is recommended to not use the wheelchair near public way
without lights turned on.
MODIFICATIONS
Any unauthorized modifications to the wheelchair may increase the
risk of personal injury and damage to the wheelchair. All
modifications should be done by an authorized service center.
Do not use any unauthorized accessories or spare parts on the
wheelchair. Do not use the wheelchair in combination with other
medical devices without first having considered any risk due to
combination of more product.
AUTHORIZED SERVICE CENTER
For any need not expressly explained in this manual, please contact
an authorized service center.
For a list of authorized service center please contact the
manufacturer:
Neatech.it
4/A, A. de Curtis, 80040, Cercola (NA), Italy
www.neatech.it – info@neatech.it - +39 081 555 1946

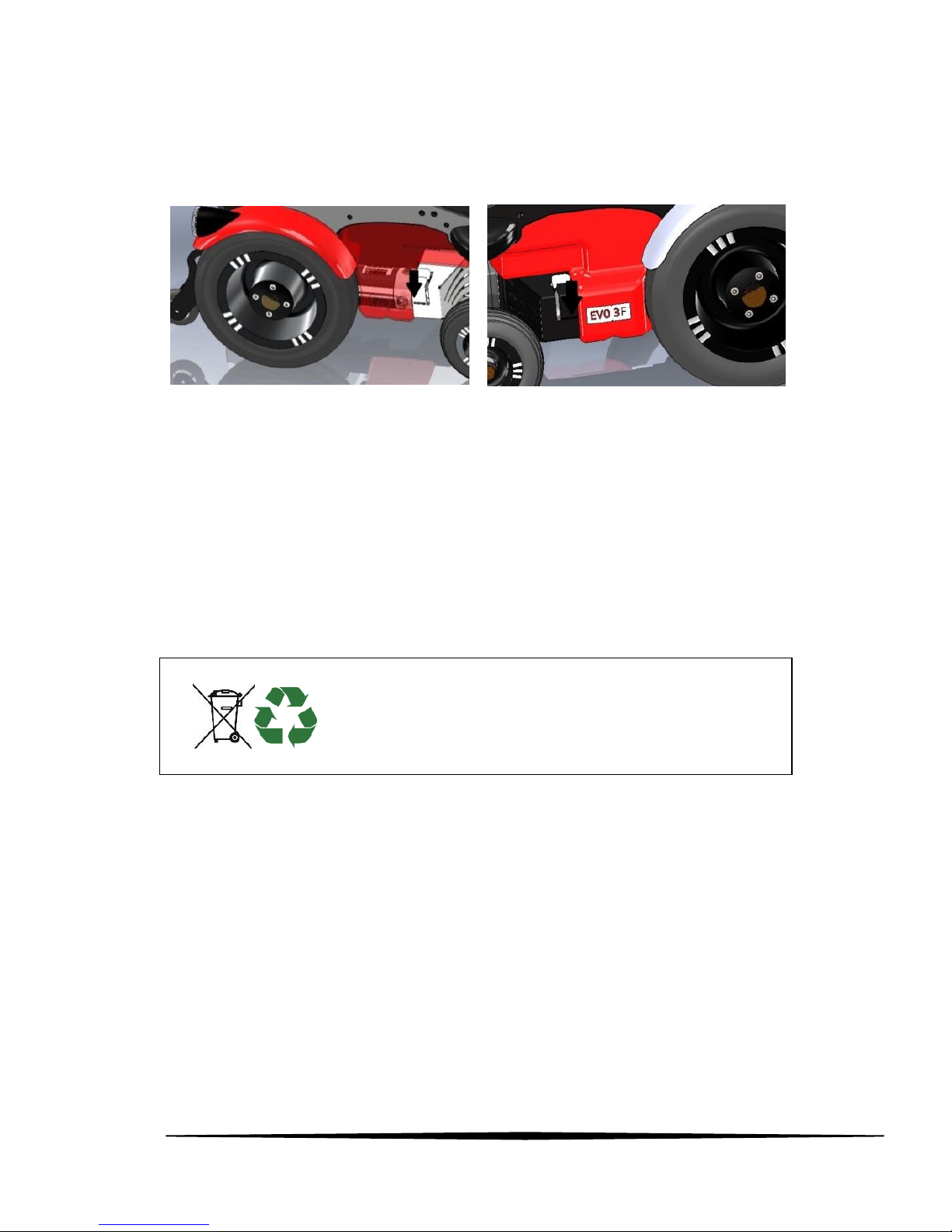

DISPOSING
This product and all its components can not
be treated as household waste. For more
detailed information on how recycling and
disposal this product contact your local waste
disposal service.
www.neatech.it
12
1 WHEELCHAIR PRESENTATION

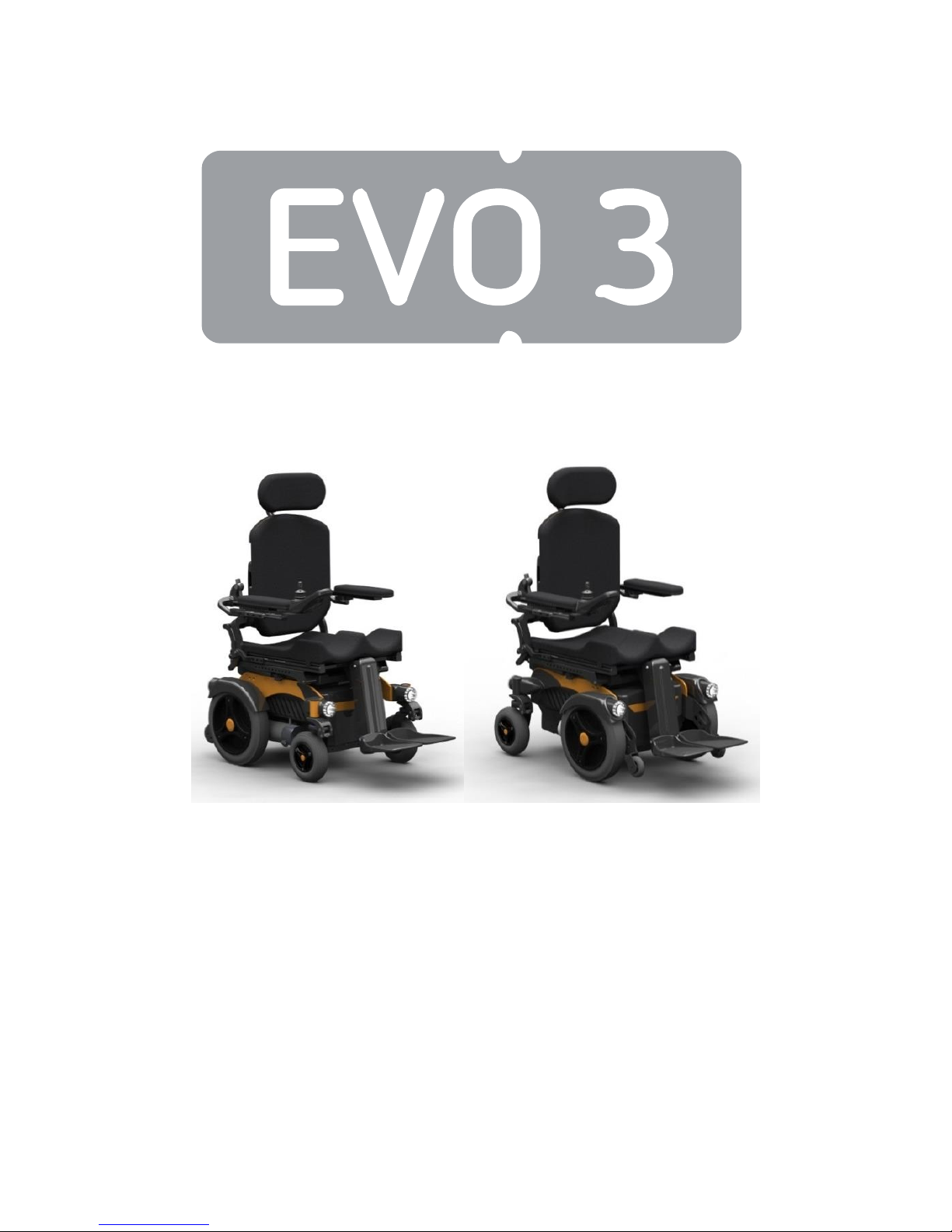

Thank you for purchasing EVO3 electronic wheelchair.
EVO3 is a battery powered wheelchair. Its intended use is to provide
indoor mobility to person limited to seated position that are capable
to operate and drive an electronic wheelchair. Though EVO3 was
designed to be used mainly indoors it is possible to have lights and to
use the wheelchair even in some outdoor environments.
Motors
2x 220 W
Batteries
2x55Ah 12V
Electronic Tilt (45°) + Electronic Negative Tilt (45°)
Electronic Lift (30 cm)
Electronic Reclining Backrest (0-170°)
Electronic Elevating Central Mounted Footrest
WARNING: It is prohibited to use wheelchair or its parts for any purpose
other than that indicated. For a correct use please follow the instructions
given in this manual. NEATECH.IT disclaims any responsibility for
damages caused by improper use of aids.
NEATECH.IT disclaims any responsibility for inappropriate selections of
wheelchair models
The information in this manual may be subject to change without
notice. All information, pictures and specifications are based upon the
product information that was available at the time of printing. They
are representative examples and not intended to be exactly as the
actual wheelchair
www.neatech.it
13
2 STARTING UP
2.1 Checks to be made on delivery
Check for the integrity of the original packaging.
Check for any anomalies on the shipping documents.
Check for the functionality and integrity of the device in all
its parts, at the time of delivery or immediately thereafter, to
ensure that no damage has resulted from a careless
transport.
Make sure the surface of the device is not damaged,
scratched, bent, etc.
Any fault or damage found must be immediately reported on
the shipping documents and promptly communicated to the
carrier. For any other questions, please contact the
manufacturer.
www.neatech.it
14
2.2 Unpacking
Be sure to put the package of the EVO3 on a stable and secure surface

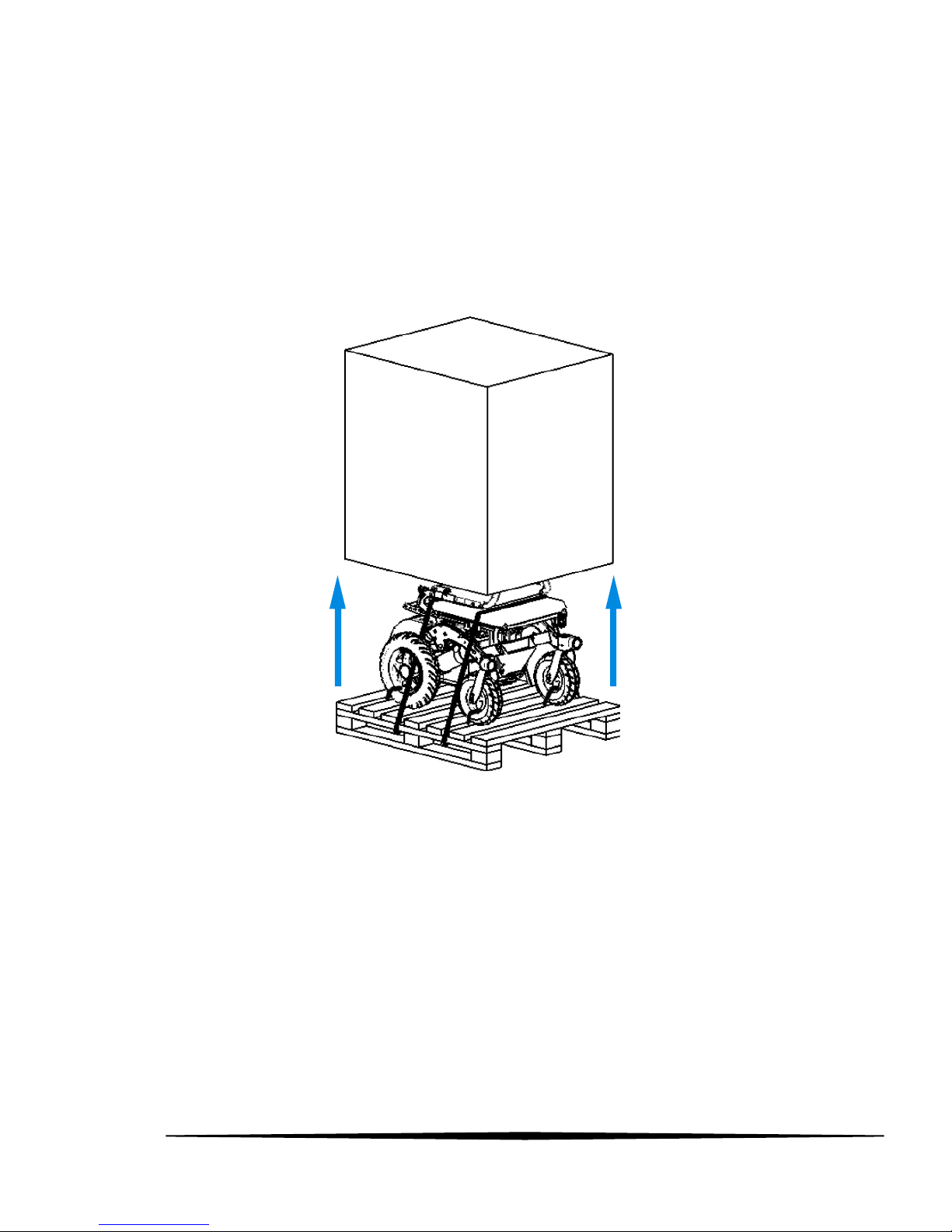

and remove straps with scissors. Pull away the box as shown in Figure
1.
Figure 1
Inside the box there is:
EVO3 wheelchair
N. 1 Charger
Documentation and manuals
www.neatech.it
15

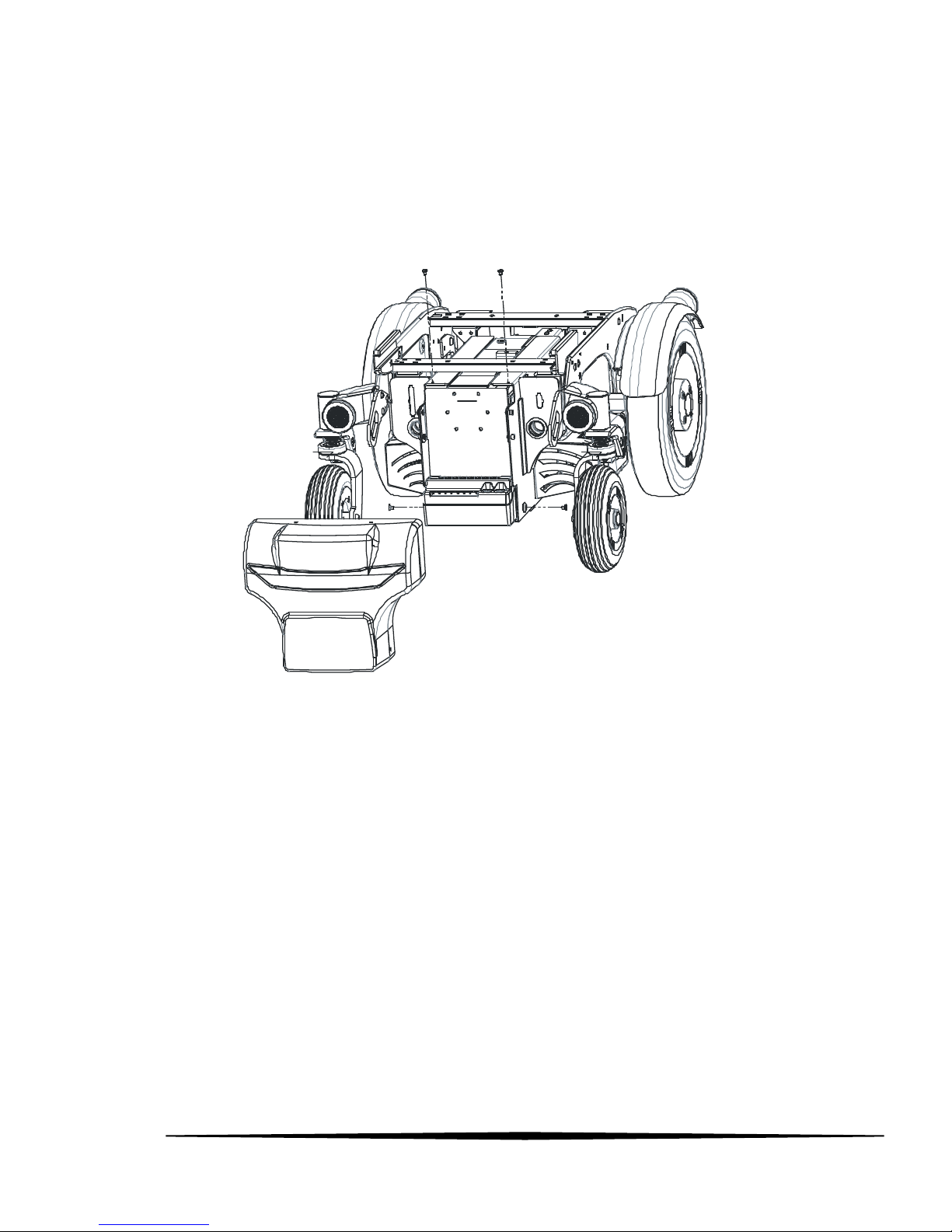

2.2.1 Remove the EVO3 from the pallet

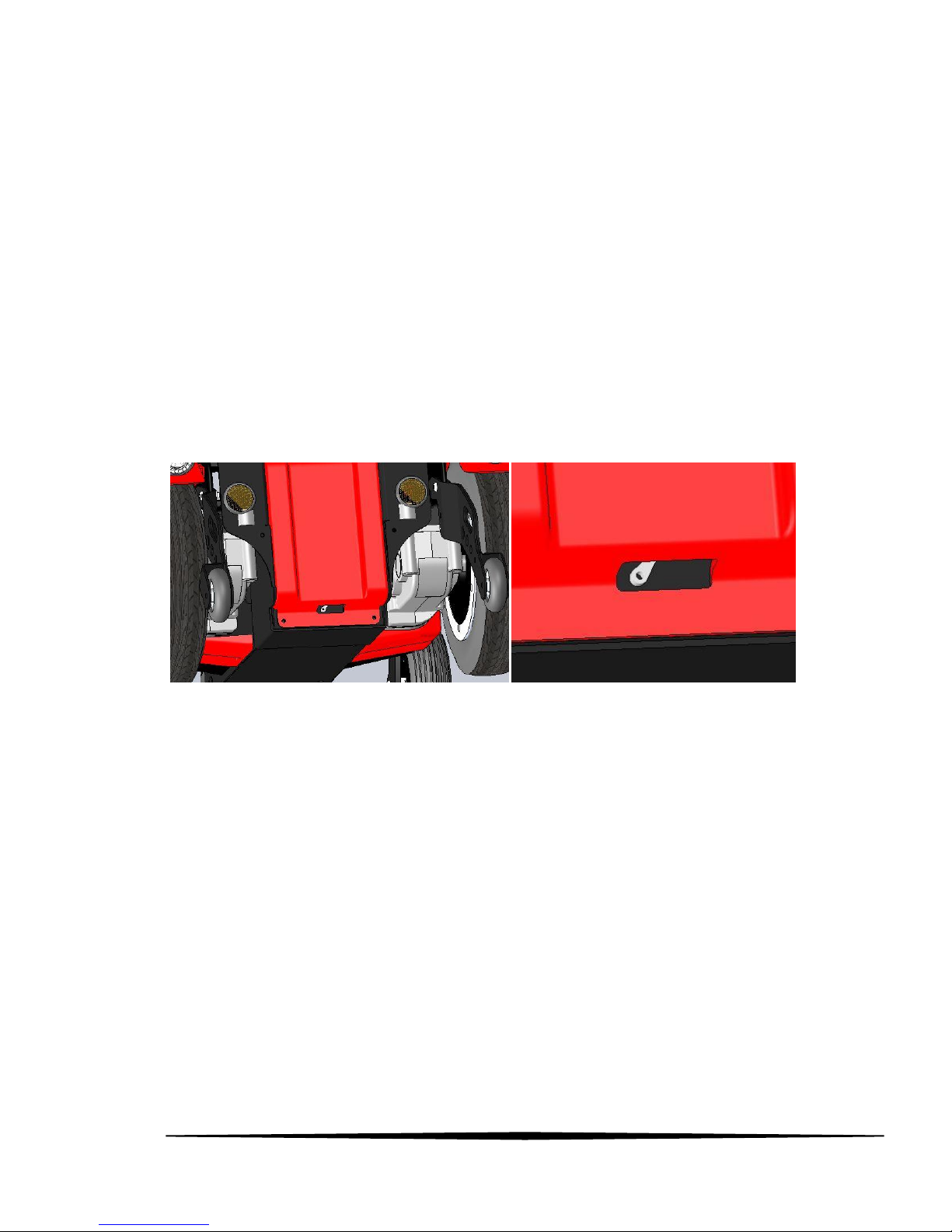

Figure 2
Figure 3

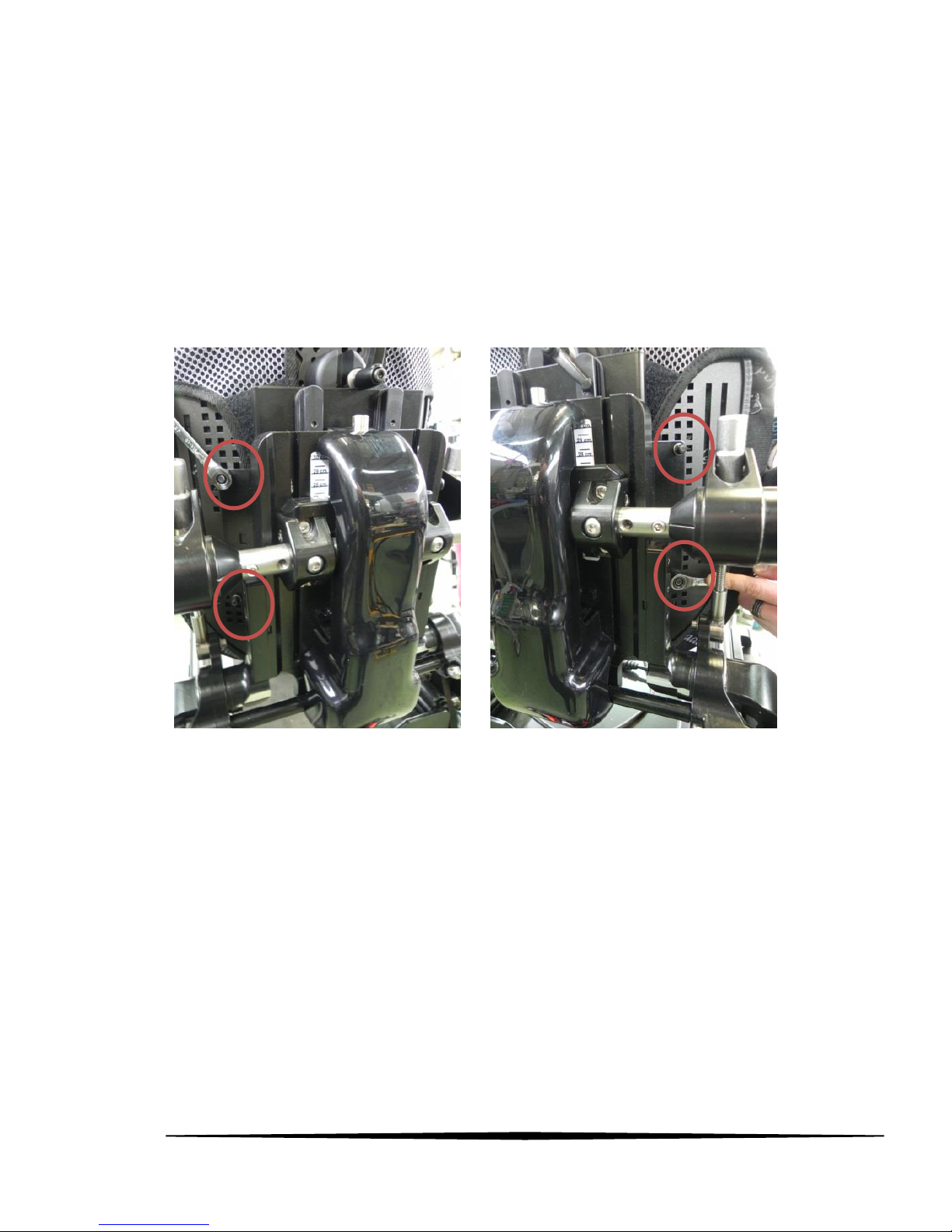

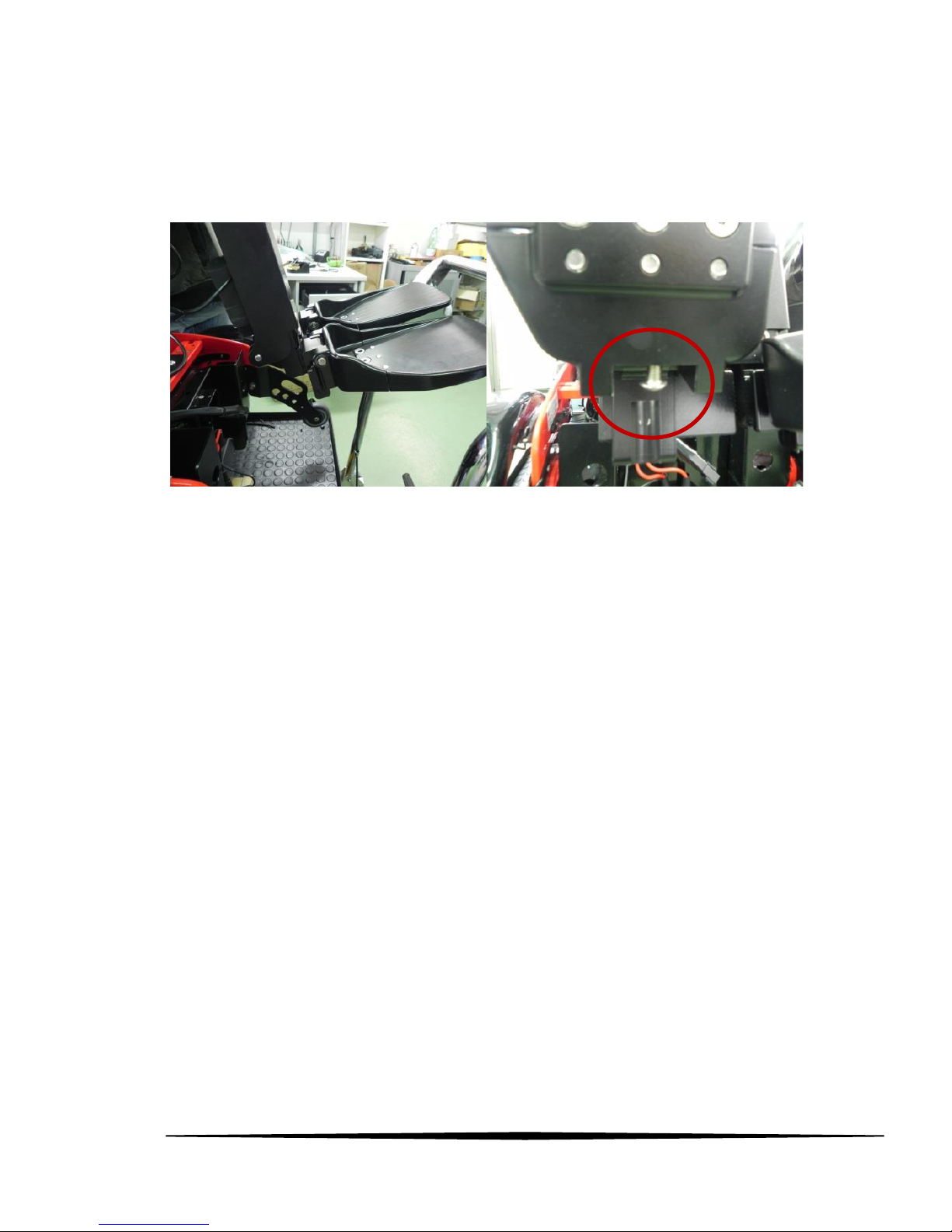

Unlock the engine with the lever on the left and right side as shown
in Figure 2 and Figure 3 and slide gently down the EVO3 from the
pallet.
After positioning the EVO3 in a safe place, return the lever to its
original position.
PACKAGING DIASPOSAL
To properly recycle the packaging materials
follow the instructions provided by your local
waste disposal service.
www.neatech.it
16
2.3 Assembly operation
Mount the backrest on the wheelchair as it is described in section 3 ADJUSTMENTS.
2.4 Transport and storage

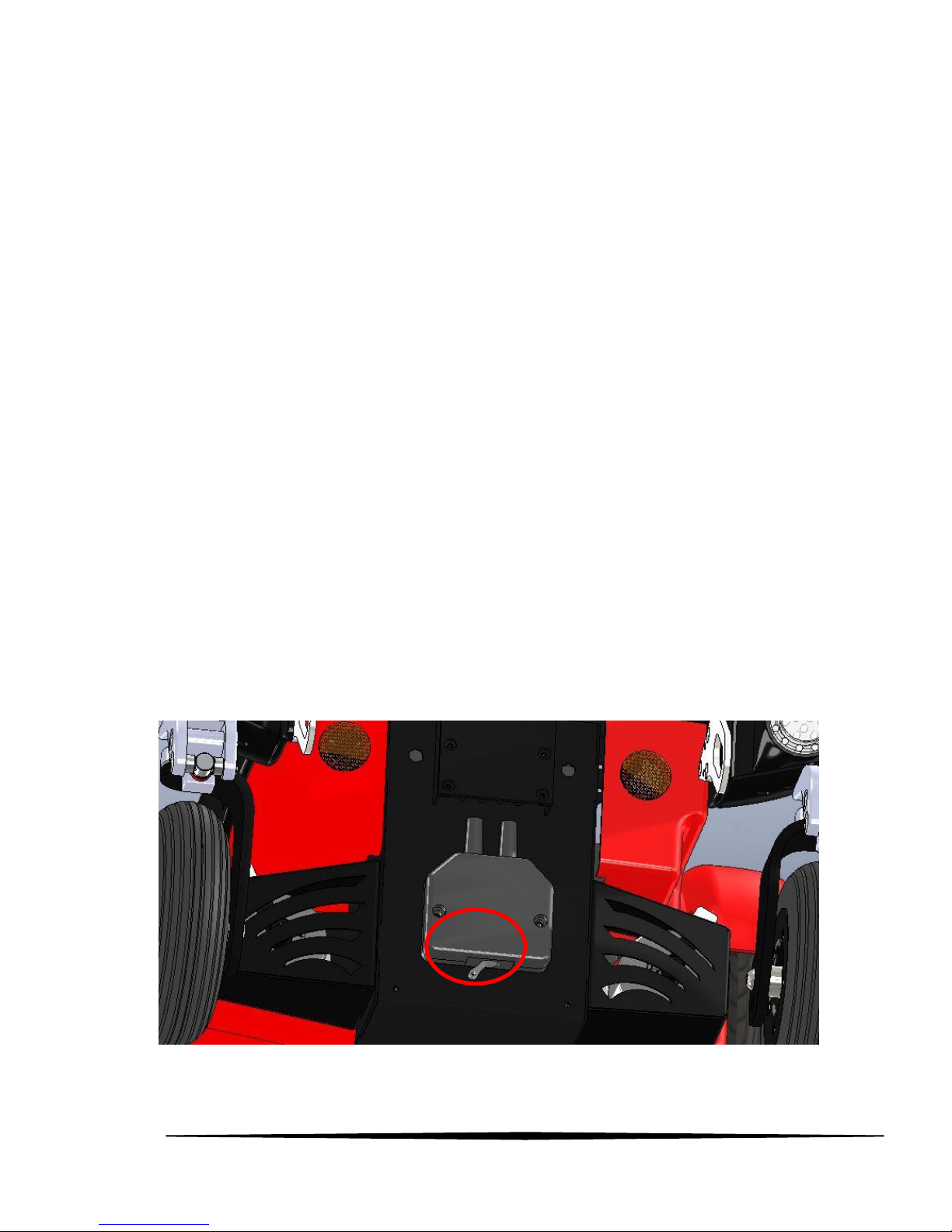

If you do not use your EVO3 for a long time make sure that you set
the switch OFF as shown in Figure 4. You should keep the EVO3 in a
place free from dust and moisture and away from heat sources.
If you need to transport the EVO3, turn off the switch.
For the transport be sure that the vehicle is approved for this purpose
and set the brake release levers in right position (UP, brakes
engaged).
The wheelchair isn’t intended to be dismantled for storage or
transport.
Figure 4
www.neatech.it
17
3 ADJUSTMENTS
EVO 3 wheelchair has the possibility of many adjustments to best suit
the specific user.
To perform these adjustments they are required a 4 mm allen
wrench, a 5 mm allen wrench and a 8 mm open-end wrench.
These adjustments can be made by the vendor or by an assistant of
the user.
3.1 Armrests
The available adjustments are in height and angle; these need to be
made on the same order as they are presented.

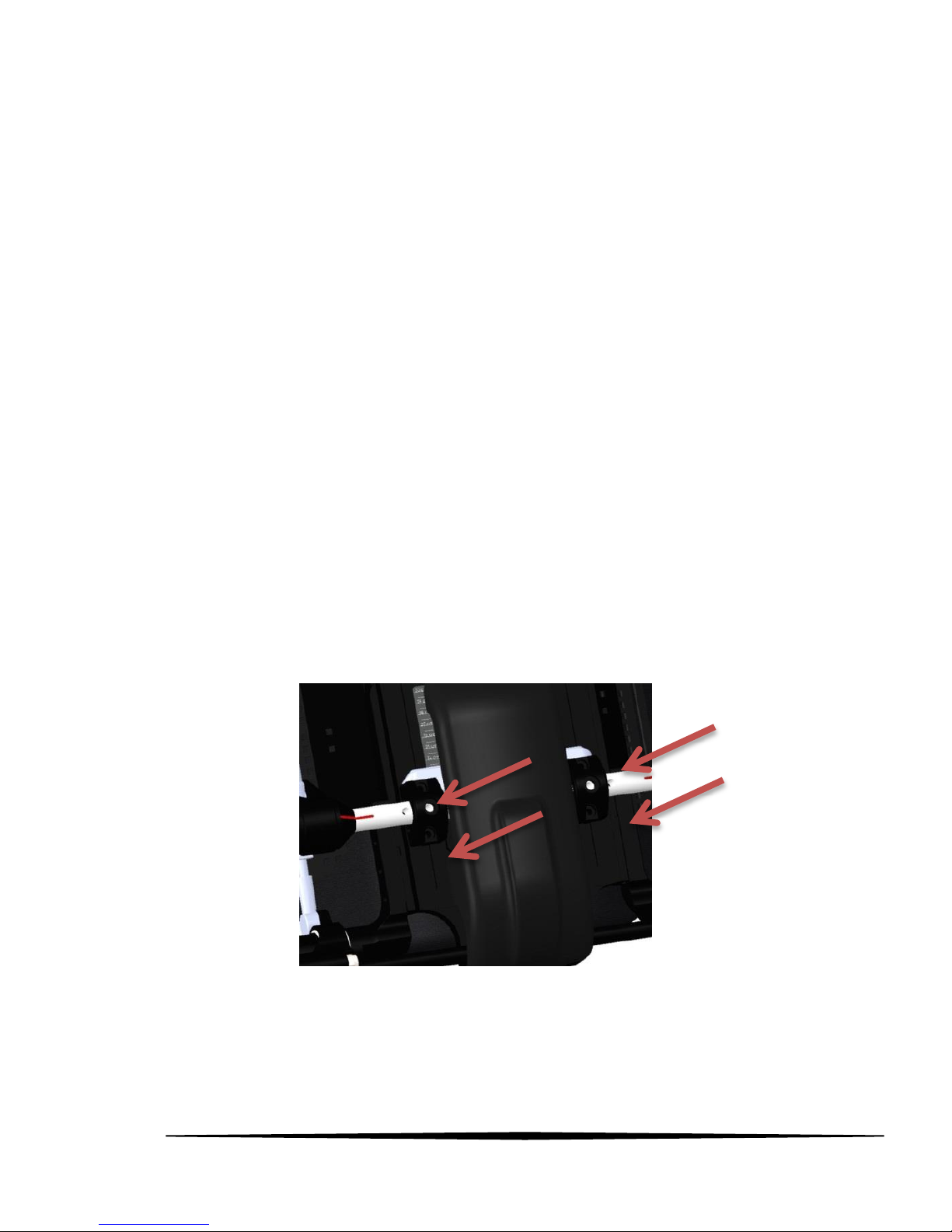

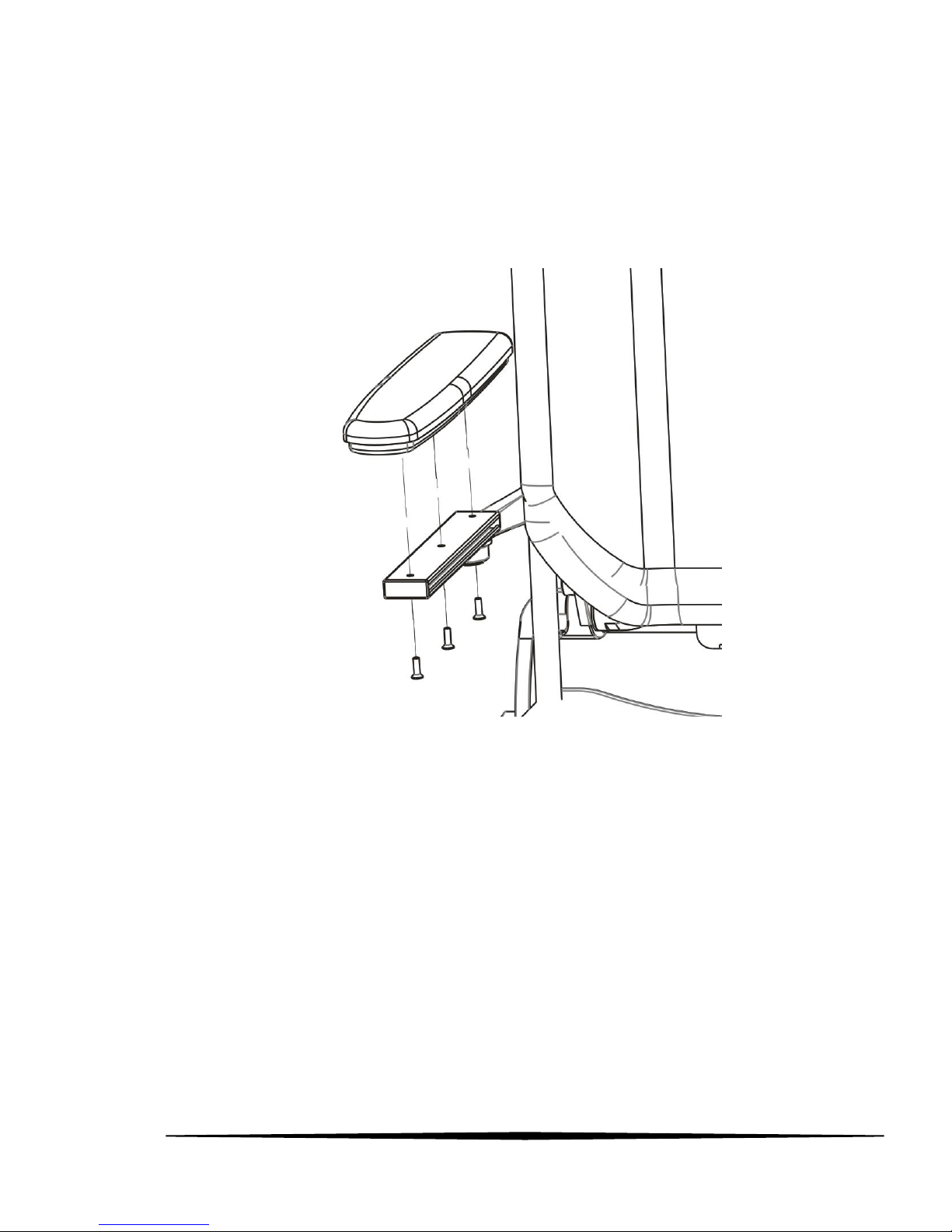

For the armrest height loosen the four bolts shown in Figure 5 and
adjust the height with the single bolt located upon the support shown
in Figure 6. For this operation use the 5 mm allen wrench
Figure 5
www.neatech.it
18
Figure 6

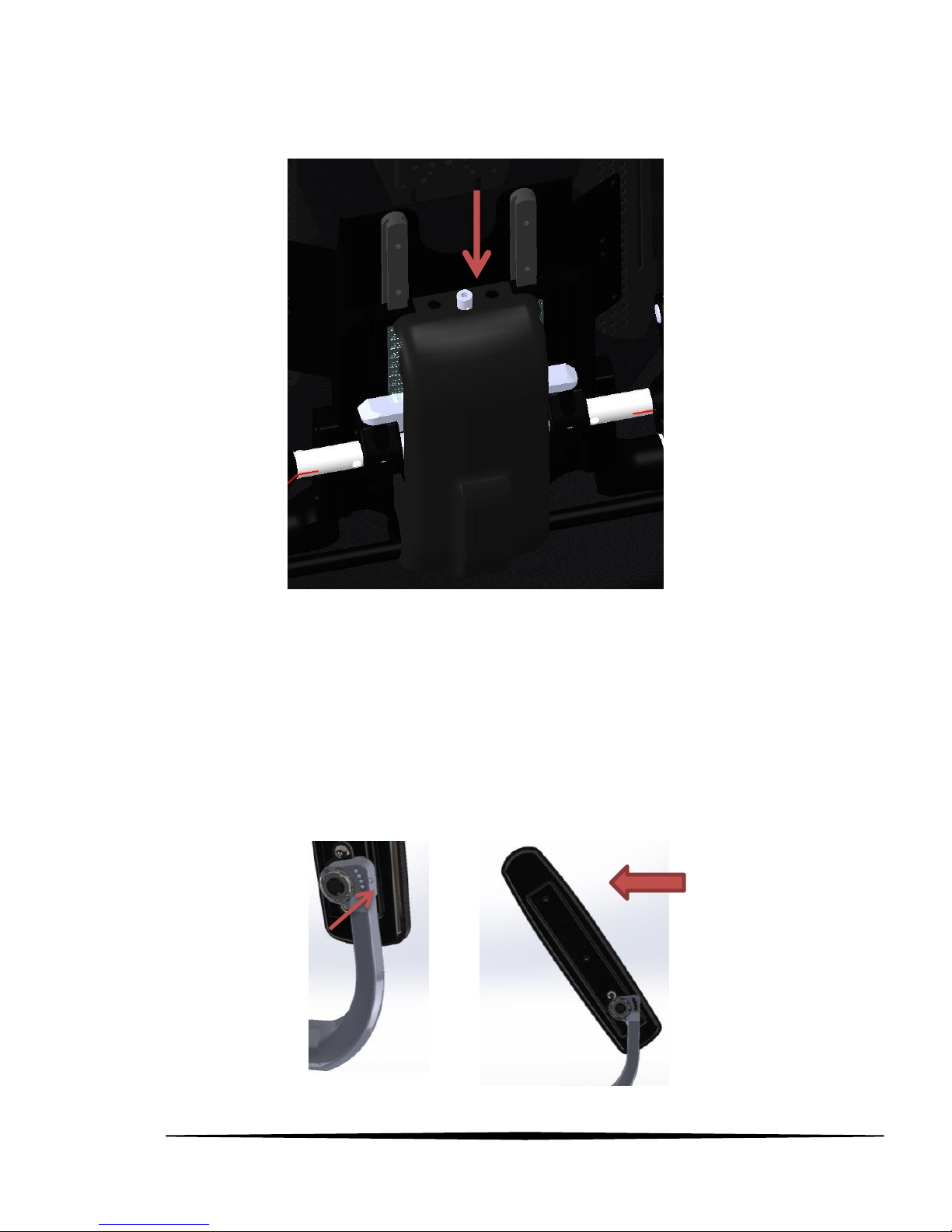

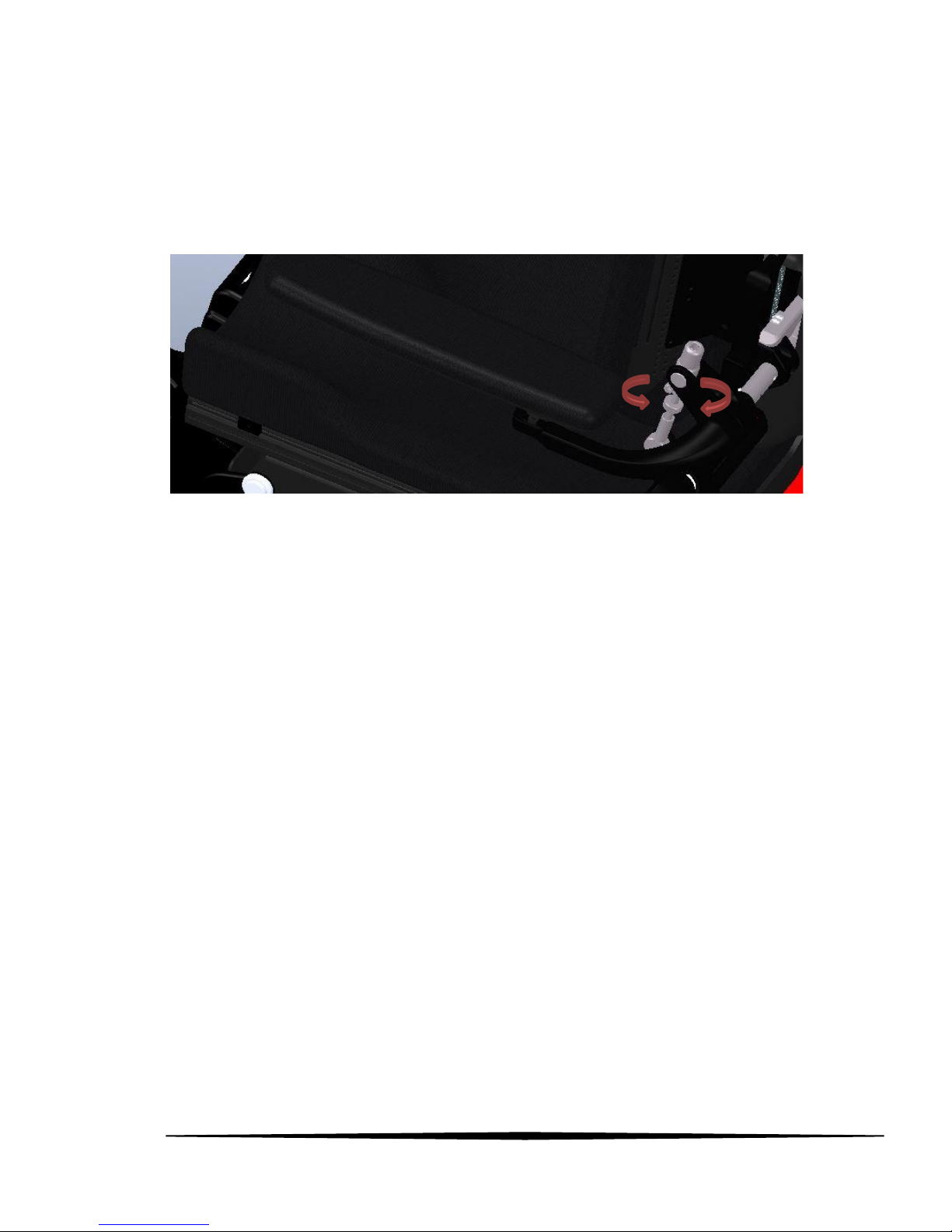

For the armrest angle, you can decide to adjust the horizontal and
vertical angle.
For the horizontal angle, lift the armrest that you want to modify and
unscrew the bolt indicated in Figure 7; after this you can set the right
armrest angle, screwing the bolt to fixing the correct angle. For this
operation use the 4 mm allen wrench
Figure 7
www.neatech.it
19
For the vertical angle rotate clockwise the screw shown in Figure 8 to
lower the armrest, rotate counterclockwise the screw to let up the
armrest.
Figure 8
www.neatech.it
20
3.2 Legrest
3.2.1 Height

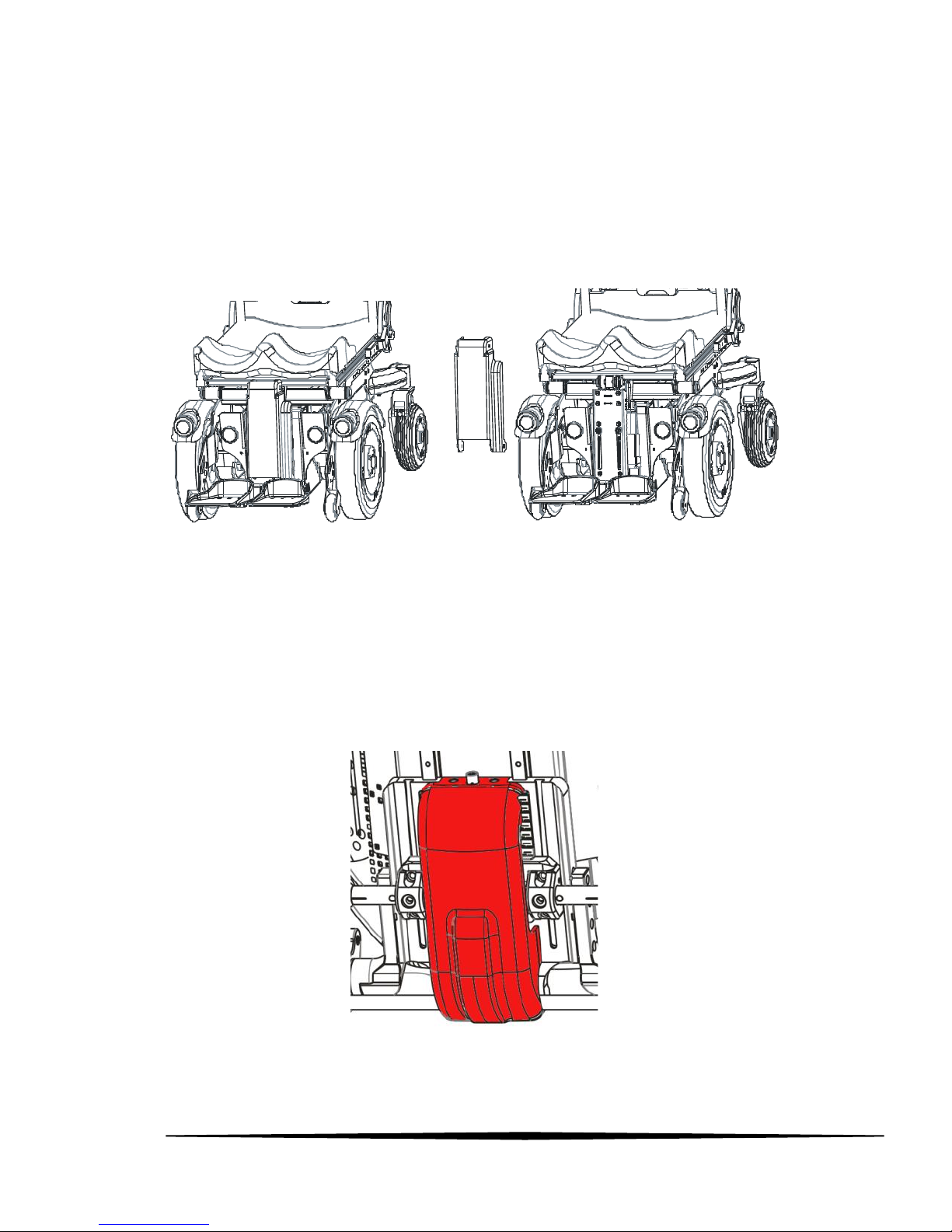

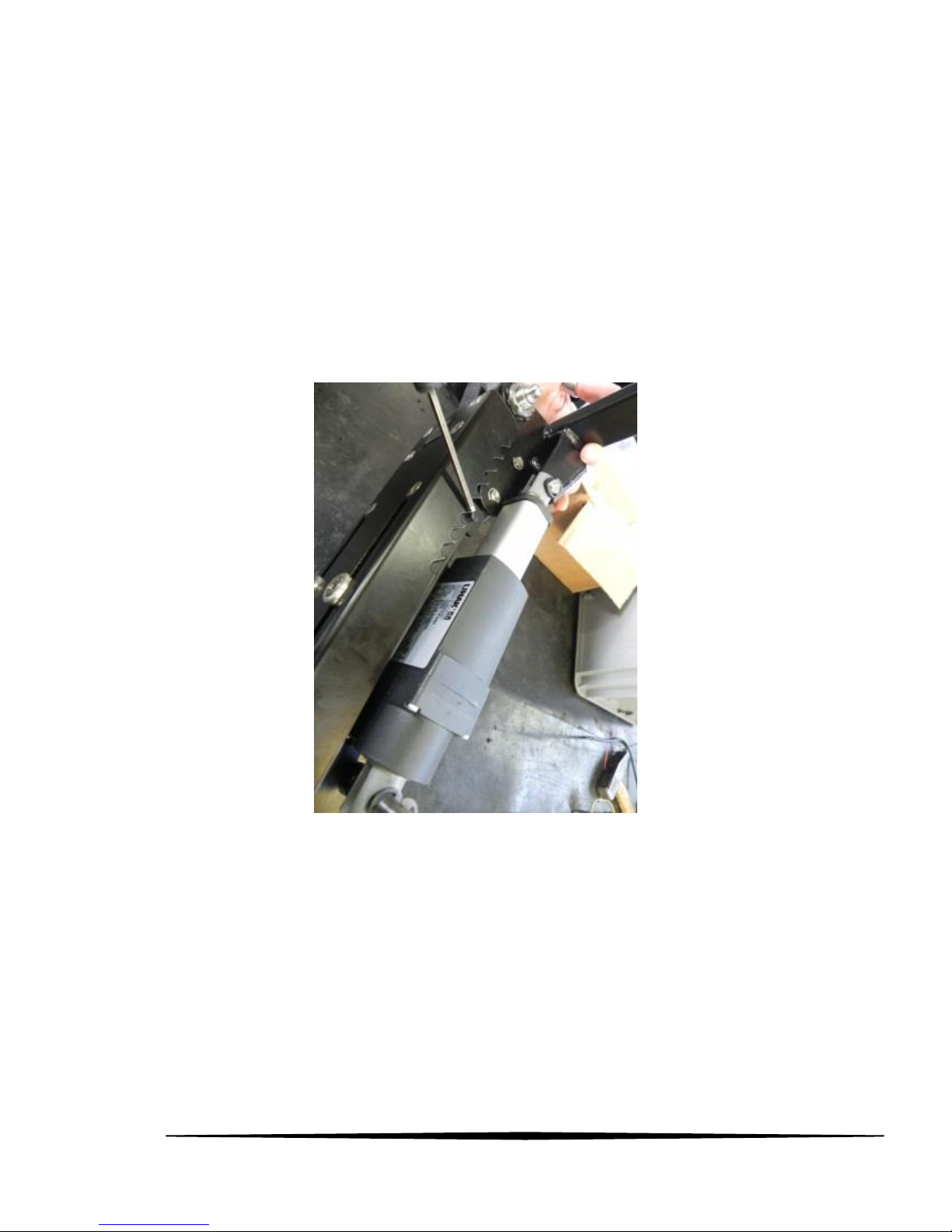

To adjust the legrest height, remove the cover (Figure 9) and loosen
the bolts shown in Figure 10 with the 4 mm allen wrench;
Figure 9
Figure 10
www.neatech.it
21
It is possible to adjust separately the height of right and left footrest.
After loosen the bolts you can adjust the height of footrest, moving
it up or down.
To move it down it is required to push it towards the chassis and that
push it down as it is shown in the Figure 11.
After this adjustment you have to screw again the bolts loosen to fix
the legrest position.
Figure 11
www.neatech.it
22

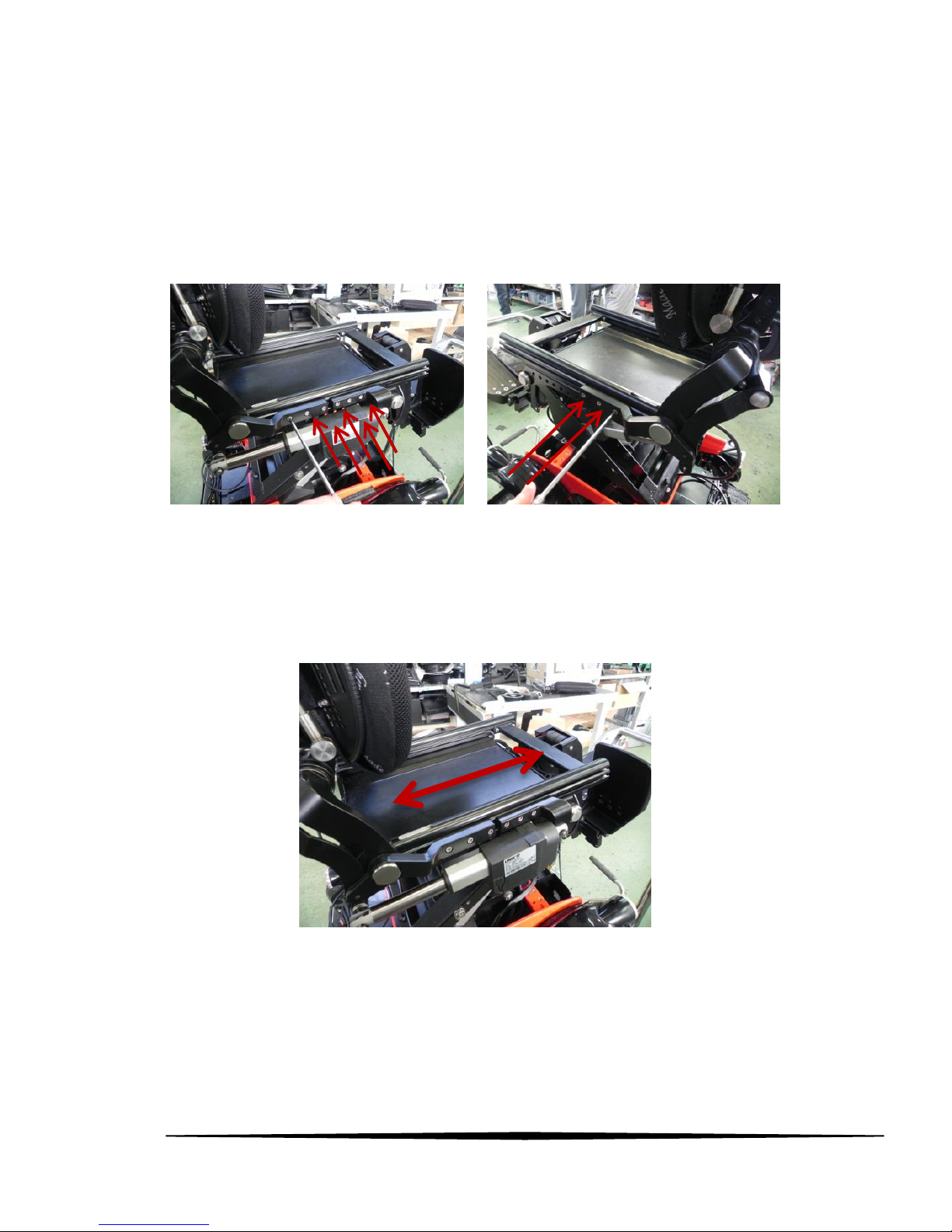

3.2.1 Footrest width and angle
You can adjust separately right and left paddle.

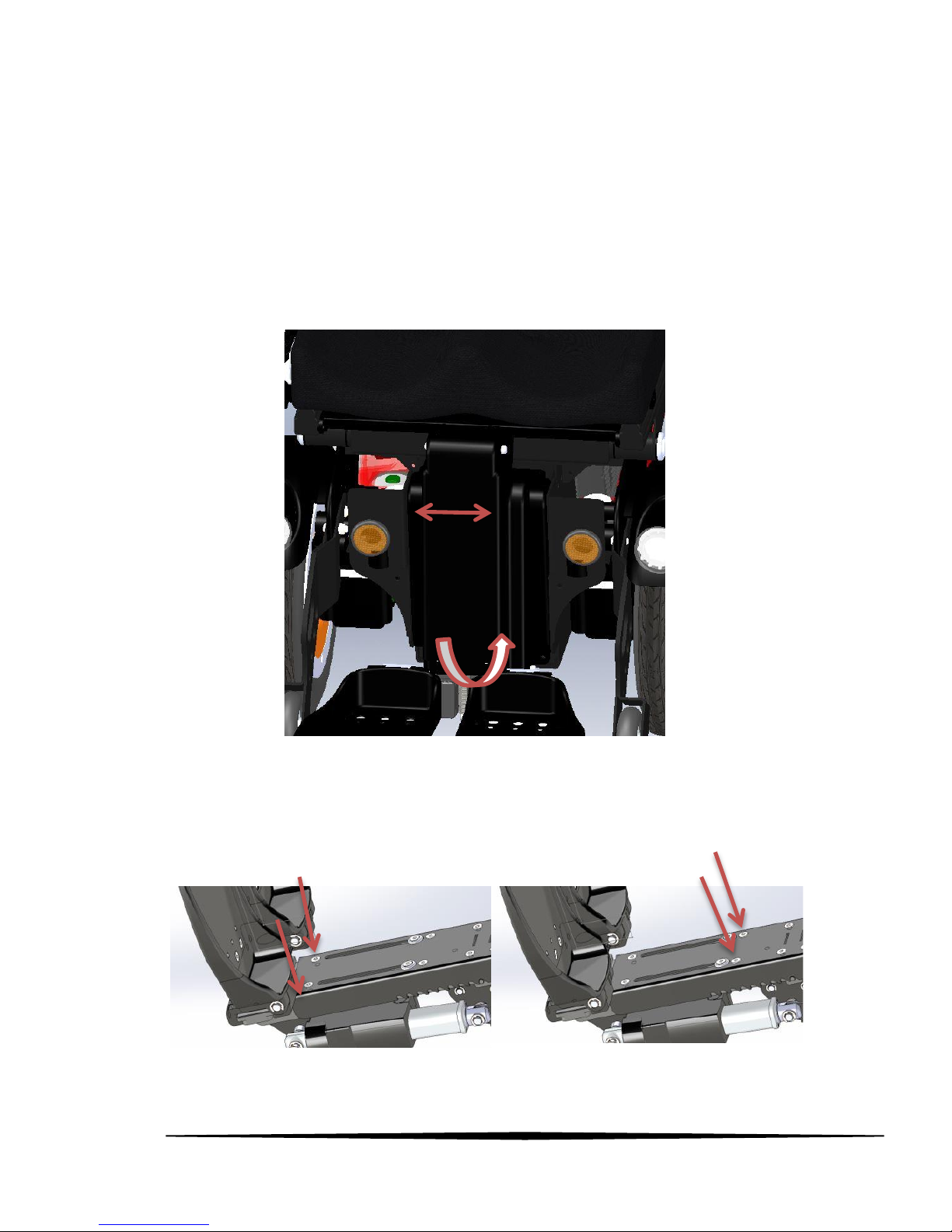

Loosening two bolts for one paddle as shown in Figure 12 (with the 4
mm allen wrench) you can move it in the chosen position as shown
in Figure 13.
Figure 12
Figure 13
www.neatech.it
23
Loosening the bolt shown in Figure 14 (with the 4 mm allen wrench),
under the paddle, it is possible to modify the angle of paddle.
Figure 14
www.neatech.it
24
3.3 Backrest
To perform the adjustment of the backrest for different type of
height, you have to screw off the nuts positioned over the four
different bolts as it is possible to see in Figure 15.
To screw off the nuts, it is necessary a 8 mm open-end wrench.
Figure 15
After screwed off the nuts it is possible to adjust in height the
backrest.
To facilitate the mounting of the backrest up the support it may be
useful to remove the upholstery of the backrest.
www.neatech.it
25
3.4 Seat depth

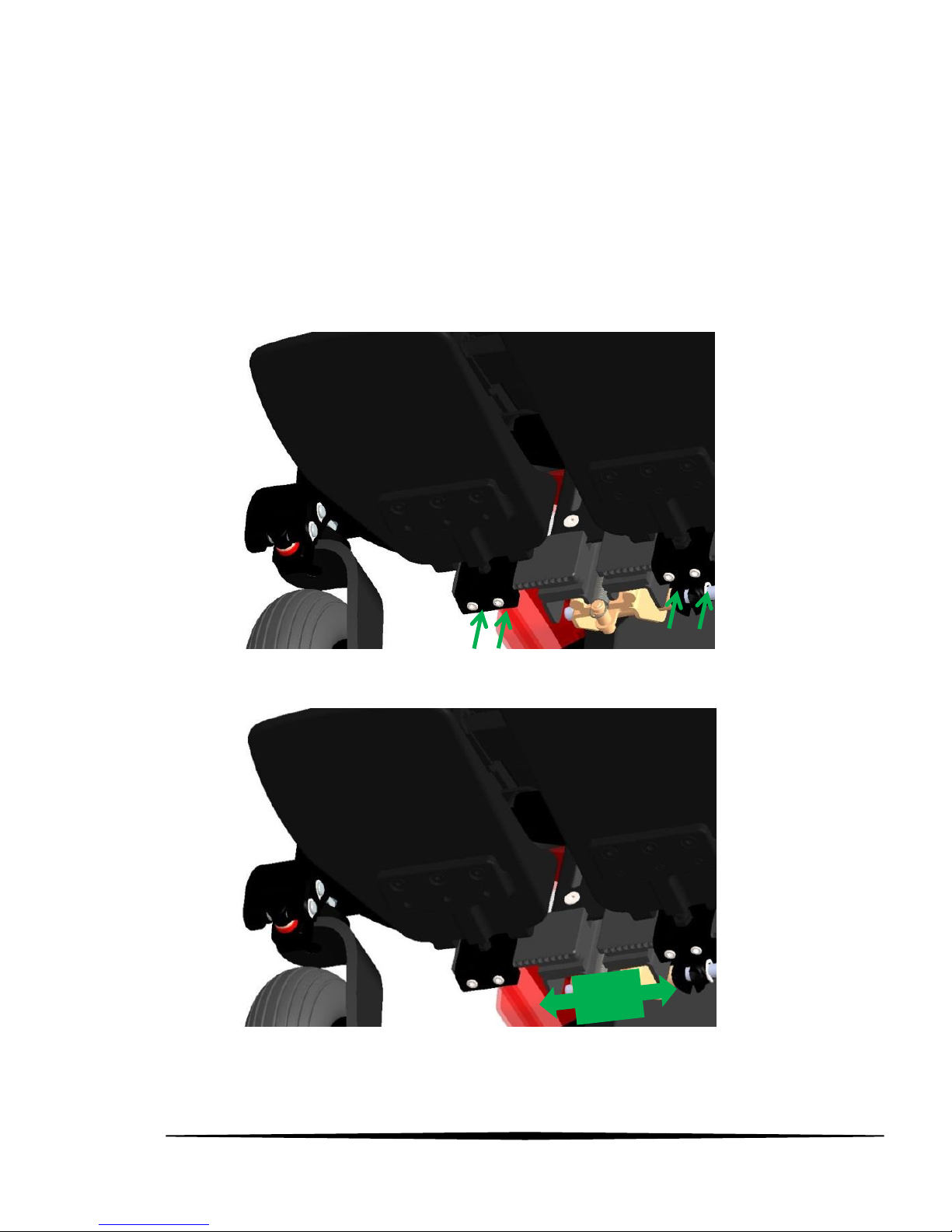

To adjust the seat depth, loosen the 6 bolts on the right side and the
3 bolts on the left side of the seat, as it is shown in Figure 16.
Figure 16
In this way you can move forward and backward the seat.
When the chosen position is reached it is necessary to screw again
the bolts.
Figure 17
www.neatech.it
26
3.5 Drive profile
As default in the wheelchair they are saved some different drive
profile for the use indoor and outdoor.
Additional profiles should be the result of customization for the
individual user.
Use the button “PROFILE” of the joystick to change different types of
profiles: they are sorted from the more indoor one to the more
outdoor one.
For each profiles it is possible to change the speed.
INDOOR PROFILES
When these profiles are activated most of the parameters of the
wheelchair are cut off. For example the maximum speed and the
acceleration are limited.
In this way the handling is really improved and there is more margin
for mistake on the lever of the joystick.
In this way it is comfortable to use the wheelchair in indoor
environments.
OUTDOOR PROFILES
When these profiles are activated most of the parameters of the
wheelchair are at the maximum value. For example the maximum
speed and the acceleration are not limited.
In this way it is comfortable to use the wheelchair in outdoor
environments.
However remember that the wheelchair EVO3 was designed for
use mostly in indoor environments.
www.neatech.it
27
4 USE OF THE WHEELCHAIR
4.1 Rnet control console

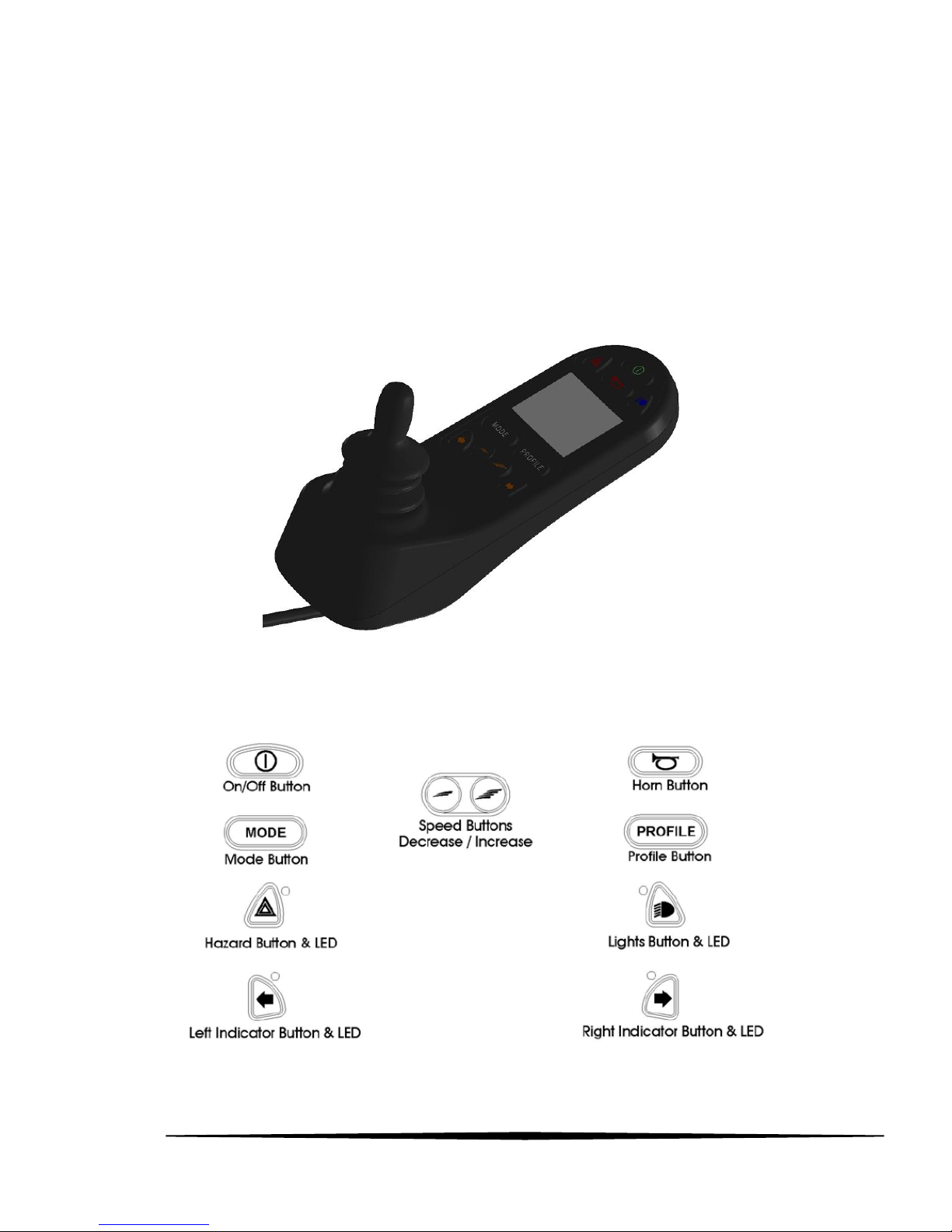

The user interface is a joystick with a lever, buttons and a display.
Figure 18
For the use of joystick please refer to the following instructions.
Figure 19
www.neatech.it
28
On-Off Button
This button turns on and off the
wheelchair.
Don’t use this button to stop the
wheelchair unless it is an
emergency.
Horn Button
When this button is pressed the
horn will sound
Mode Button
This button allow the user to
navigate through the available
function of the wheelchair (drive,
actuators, preloaded movements)
Profile Button
This button allow the user to
navigate through the available
driving profiles for the wheelchair
Speed Buttons
These buttons decrease/increase
the maximum speed setting
Hazard Button + Led
This button activates and
deactivates the wheelchair’s
hazard lights. When activated the
Led will flash.
Lights Button + Led
This button activates and
deactivates the wheelchair’s
lights. When activated the Led will
illuminate
Left-Right Indicator Button +
Led
These buttons activates and
deactivates the wheelchair’s
indicators. When activated the Led
will flash
Use the controller of the joystick to get in gear. Its proportional
functionality allows you to adjust speed and direction according to
the intensity with which you act on the controller.
Releasing the lever of the controller automatically activates the
electromagnetic brake that locks the wheels of the EVO3.
www.neatech.it
29
Figure 20

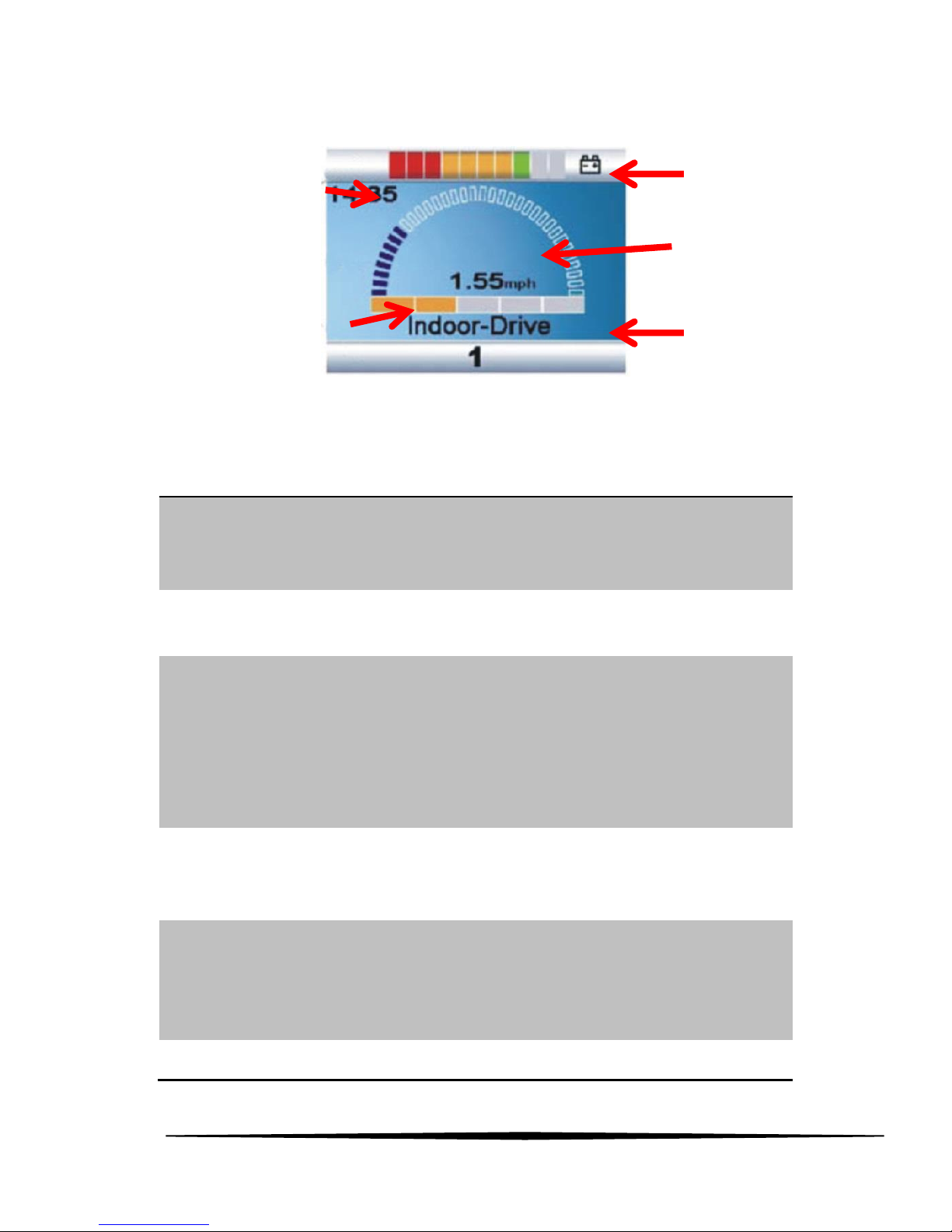

The installation menu allows the user to access a range of setting:
Set Time
A right joystick inclination
will enter the menu for the
clock adjustment
Display Time
Left and right the joystick to
change between 12h, 24h, off
Distance
You can enter a screen where
you can see the total distance
driven using the wheelchair,
the distance driven from last
reset and you can reset this
distance
Backlight
You can adjust the intensity of
the LCD screen from 0 to 100
% in step of 10%
Background
You can choose the color of
the background of the LCD
screen between blue and
white.
Exit
Exit this menu
BATTERY INDICATOR
SPEED INDICATOR
PROFILE IN USE
SPEED LIMIT
INDICATOR
TIME
www.neatech.it
30
www.neatech.it
31
4.2 Using the wheelchair
Do not drive your wheelchair for the first time without the presence
of an assistant near to you.
At the beginning always use INDOOR profiles.
Do not let children use the wheelchair without supervision.
Do not drive your wheelchair under the influence of alcohol.
Some pathologies may limit your ability to drive your wheelchair
safely. Be sure to consult with a doctor about your physical
limitations. Avoid sudden stops or starts. To stop the wheelchair use
the lever of the joystick and don’t suddenly turn off the joystick
unless it is an emergency.
Don’t turn the wheelchair at high speed.
When driving downhill, select the slowest speed.
When driving uphill, try to keep moving at a stable speed.
Anyway avoid driving on ramps without any edge protection.
Do not drive up or down slopes with a slope greater than one
indicated in the technical specifications of this manual.

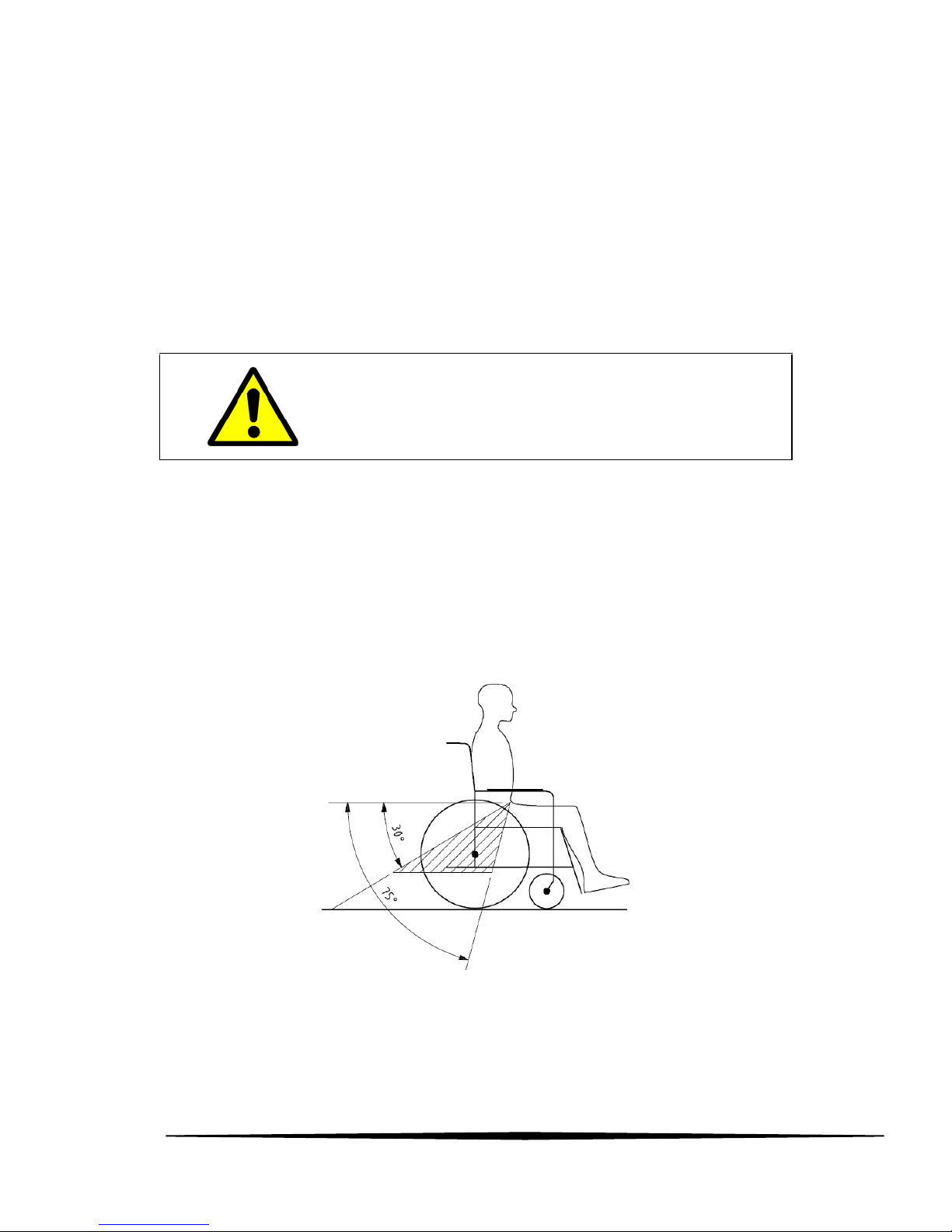

Center of balance of the wheelchair and so its stability cab be
affected by:
Lifting of the seat
User position
Us of a backpack
Tilting of the seat
WARNING
If your wheelchair begins to behave in an
unexpected manner, immediately release the
joystick to stop the wheelchair and turn it off.
www.neatech.it
32
DEFAULT POSITION
Default position mean a safe position for the seat system of the
wheelchair:
o Height of the seat = 0 cm
o Angle of seat = 0°
o Angle of legrest = 90°
o Angle of backrest = 90°
Obstacle climbing
When facing with an obstacle it is recommended to set the
position of the seat in the “default position”.
In order to riding over higher obstacles it is strongly
recommended to take a run up of almost 500 mm when
facing the obstacle first with castors.
Dealing with uphill
When facing an uphill road it is recommended to set the
position of the seat in the “default position”.
In order to best come over an uphill it is strongly
recommended to use an outdoor profile at maximum speed
with the wheelchair facing forward.
WARNING
Stopping and starting the chair while moving
up an incline makes the wheelchair more
difficult to control
www.neatech.it
33
Dealing with downhill
When facing a downhill road it is recommended to set the
position of the seat in the “default position”.
In order to best come over a downhill it is strongly
recommended to use an indoor profile at minimum speed
with the wheelchair facing forward.
WARNING
Don’t drive up or down slopes with a gradient
than indicated in section 5.4.
WARNING
Don’t drive up or down ramps that are not
equipped with proper edge protection to
prevent the wheelchair from falling down.
WARNING
Don’t drive down or up a hazardous incline if
the surface is covered with snow, ice or the
surface is uneven.
Driving on side slopes
When facing with side slopes, always drive the wheelchair with great
caution and at minimum speed
www.neatech.it
34
Turning with the wheelchair
Don’t turn with the wheelchair at high speed.
Driving in dark environments
Driving in dark environments can only be done if the wheelchair has
functioning lights

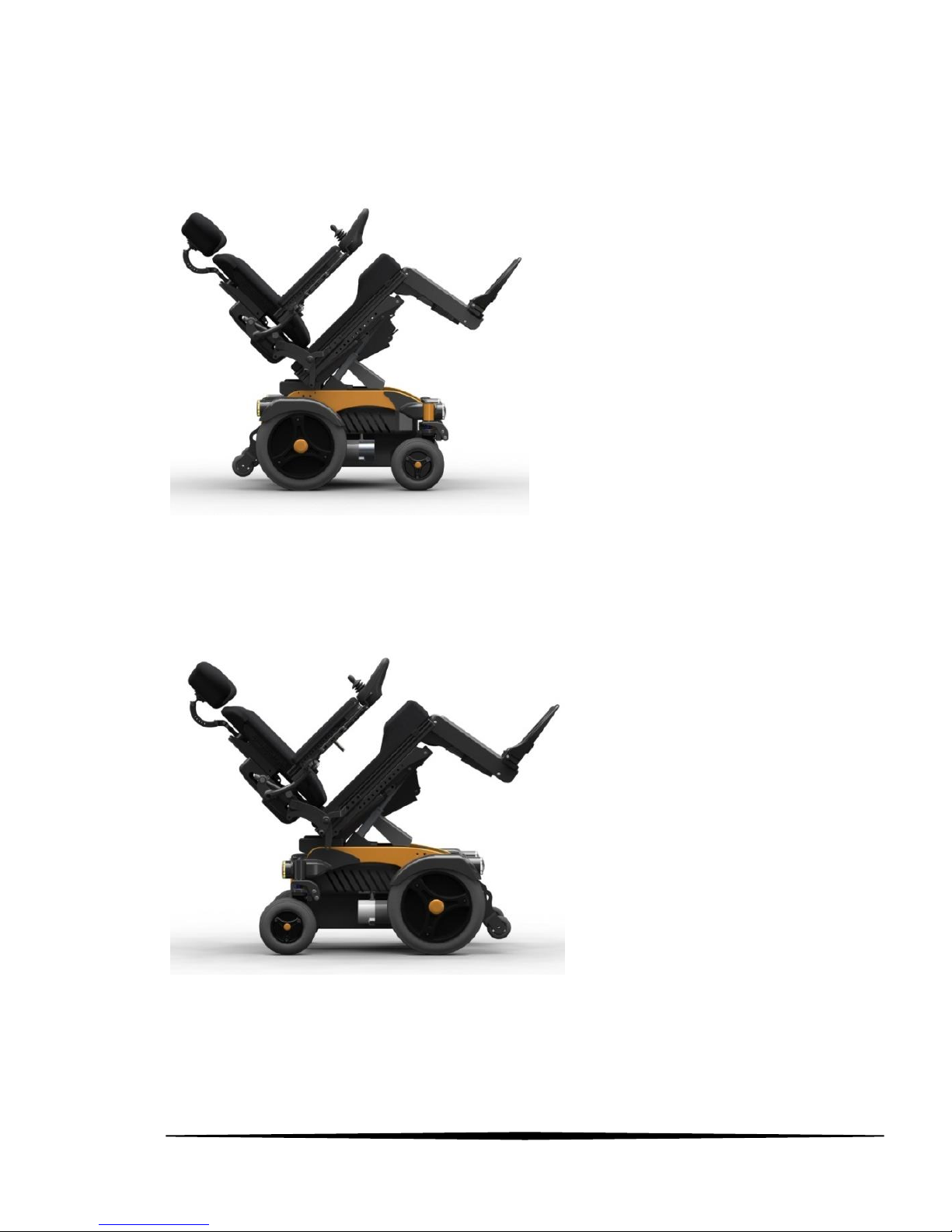

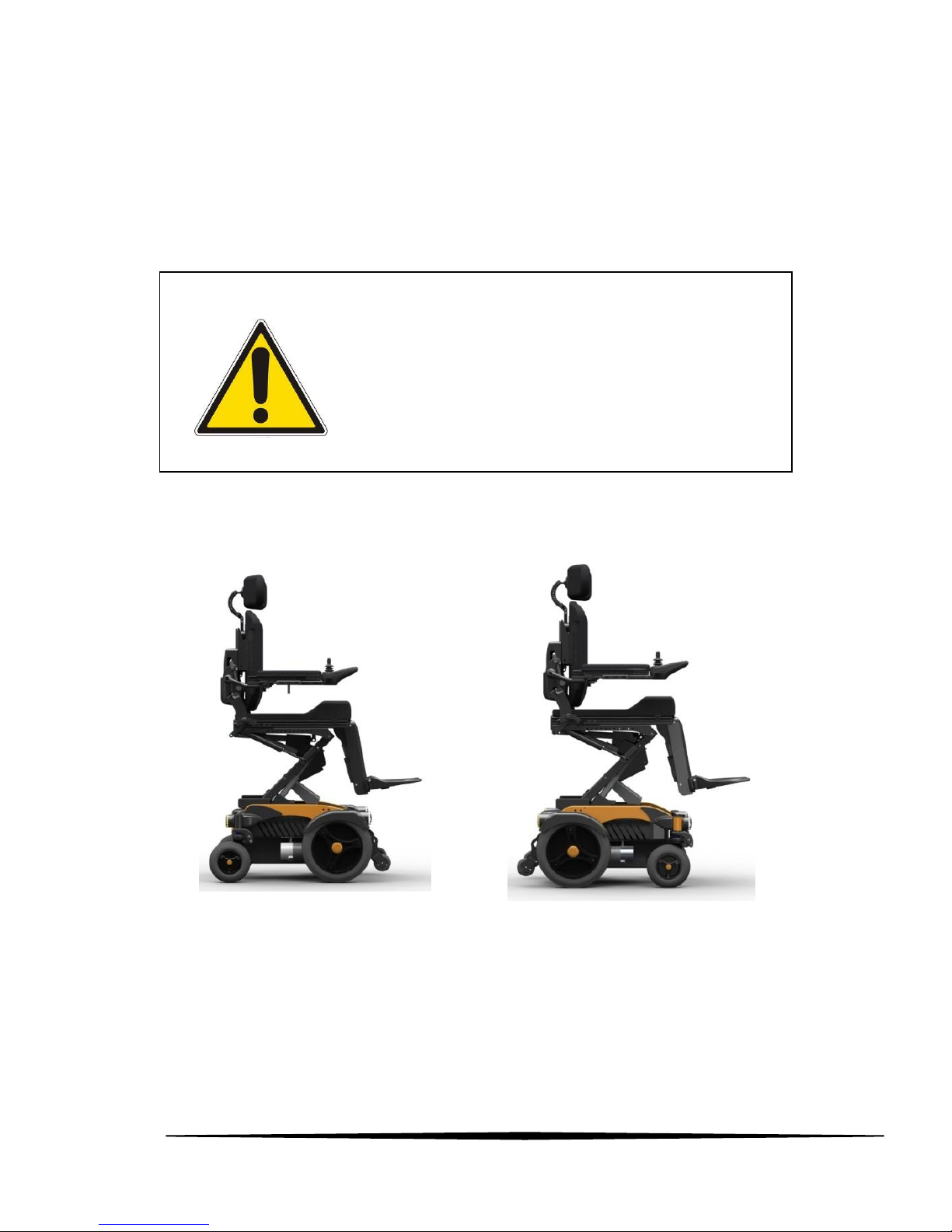

DRIVE WITH SEAT SYSTEM NOT IN DEFAULT
POSITION
Operating seat lift, tilt, backrest recline and
legrest elevation may change the center of
gravity and increase the risk of tipping
over.
Always drive in low speed and only use
these functions on level surface.
Safety belt
Evo3 wheelchair has the predisposition for a pelvic belt, that can be
purchased as an accessory.
Pelvic belt is only designed to position the user and not for any
protection in case of accident
www.neatech.it
35
Transfer into and out the wheelchair
Before entering or leaving the wheelchair turn it OFF.
Users transfer is recommended with the assistance of an attendant.
Don’t use the joystick as a hanrhold or point of support.
Don’t use footrests or armrests as support.
www.neatech.it
36
4.3 Manual brake release lever
In case of necessity it is possible to manually move the wheelchair.
First of all you have to turn off the wheelchair acting on the specific
button of the joystick, see Figure 20.
Then you can act on the release lever shown in Figure 21 and Figure
22.
When the brakes are released, it is not be possible to drive the
wheelchair.

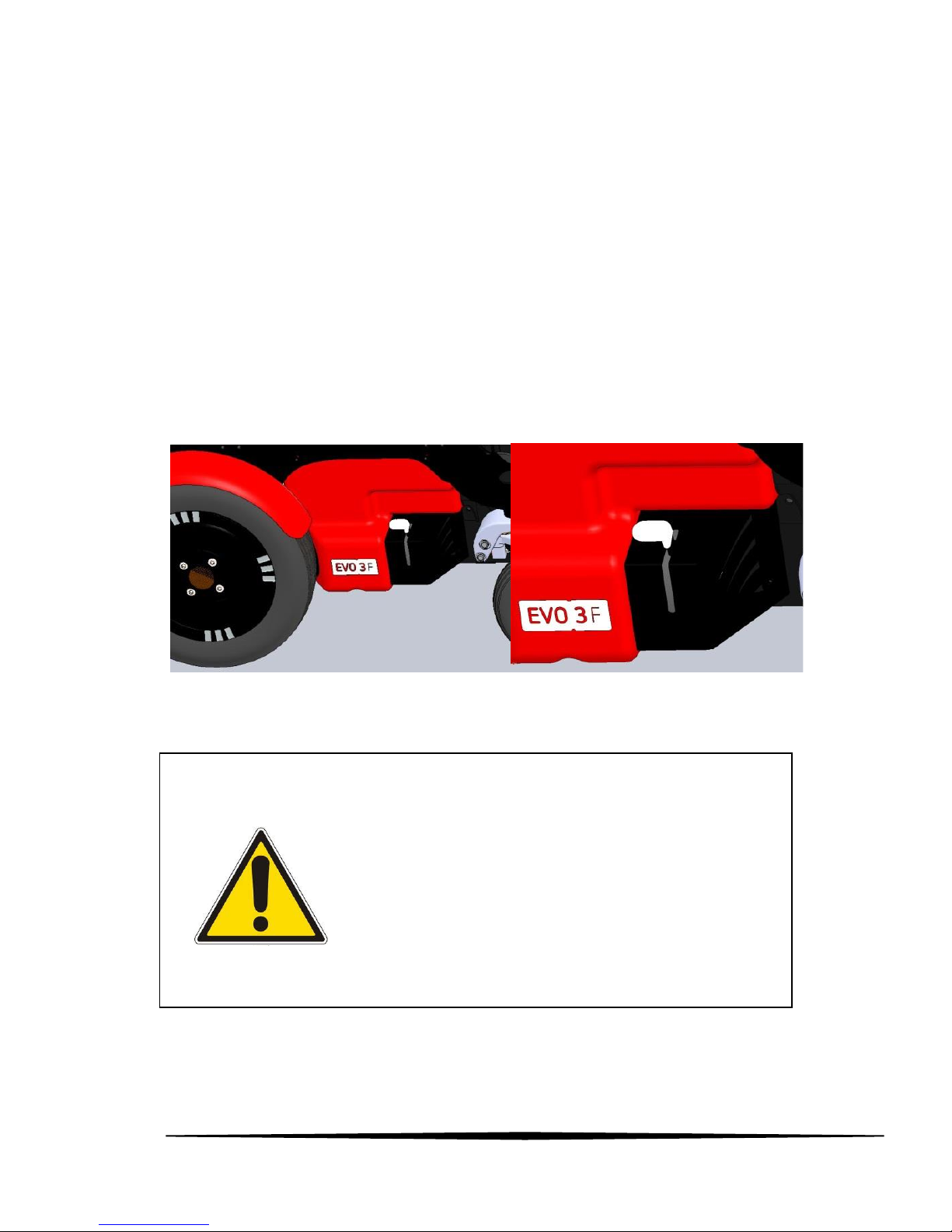

Figure 21
Figure 22
WARNING
When the brakes are released never use
the wheelchair on a slope or a wet
surface.
Don’t operate the brake release without
the presence of an assistant
www.neatech.it
37
4.4 Powered function
Depending on the configuration of your own EVO3 some of this
function should be not available or different.
WARNING
Operating these functions changes the
center of gravity and increases the risk of
tipping over.
Always drive in low speed and only use
these functions on horizontal plane.
4.4.1 Seat lift
Figure 23
Figure 24
A maximum lift of 30 cm allows the user to have more independence.
www.neatech.it
38

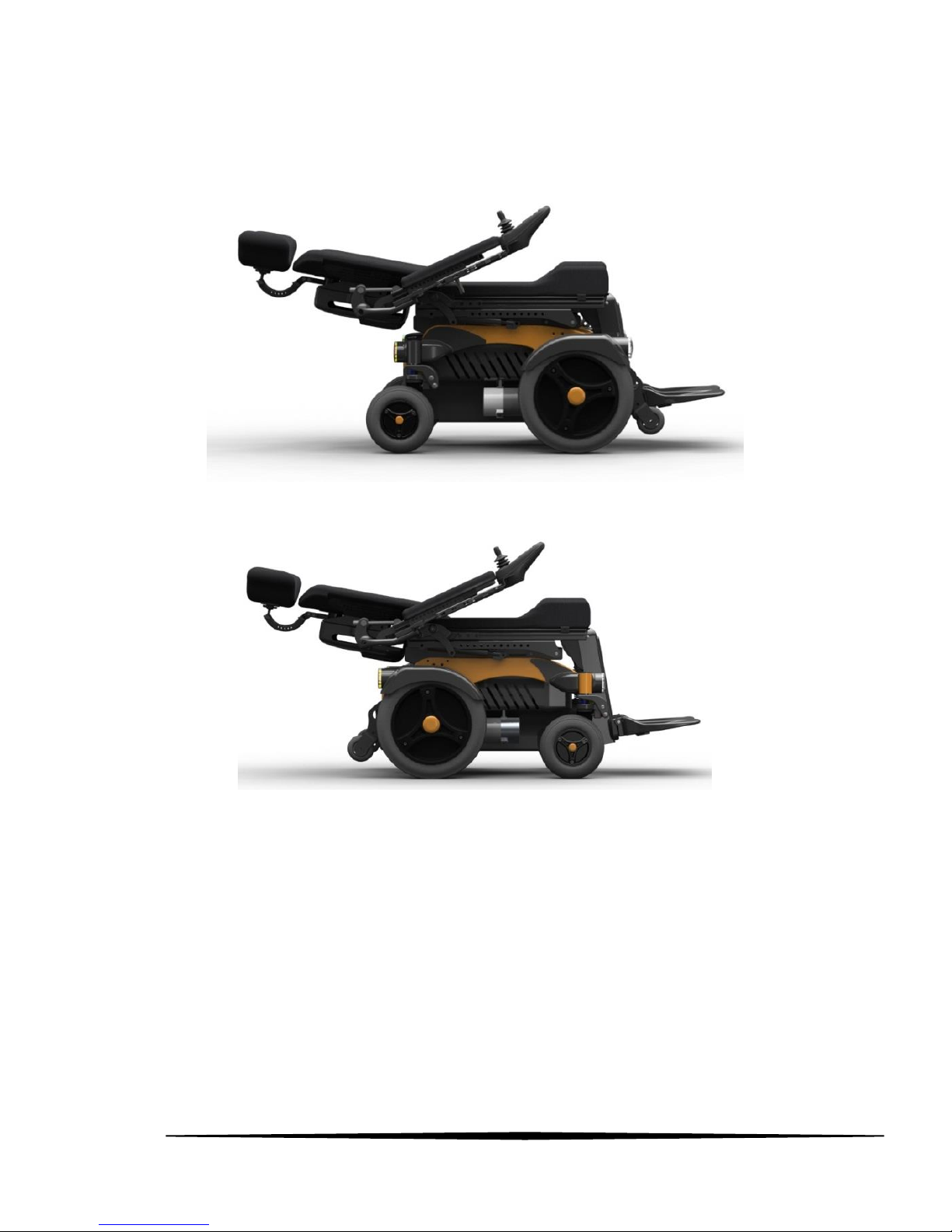

4.4.2 Seat tilt
Figure 25
Adjusting the tilt of the
wheelchair (45°)
causes a better
distribution of
pressure on the body
of the user.
This helps to reduce
the incidence of all
problems due to
punctual localization
of loads.
Moreover tilting helps
you to avoid retention
of fluids in the lower
leg, make it easier to
sit on the wheelchair.
Figure 26
www.neatech.it
39

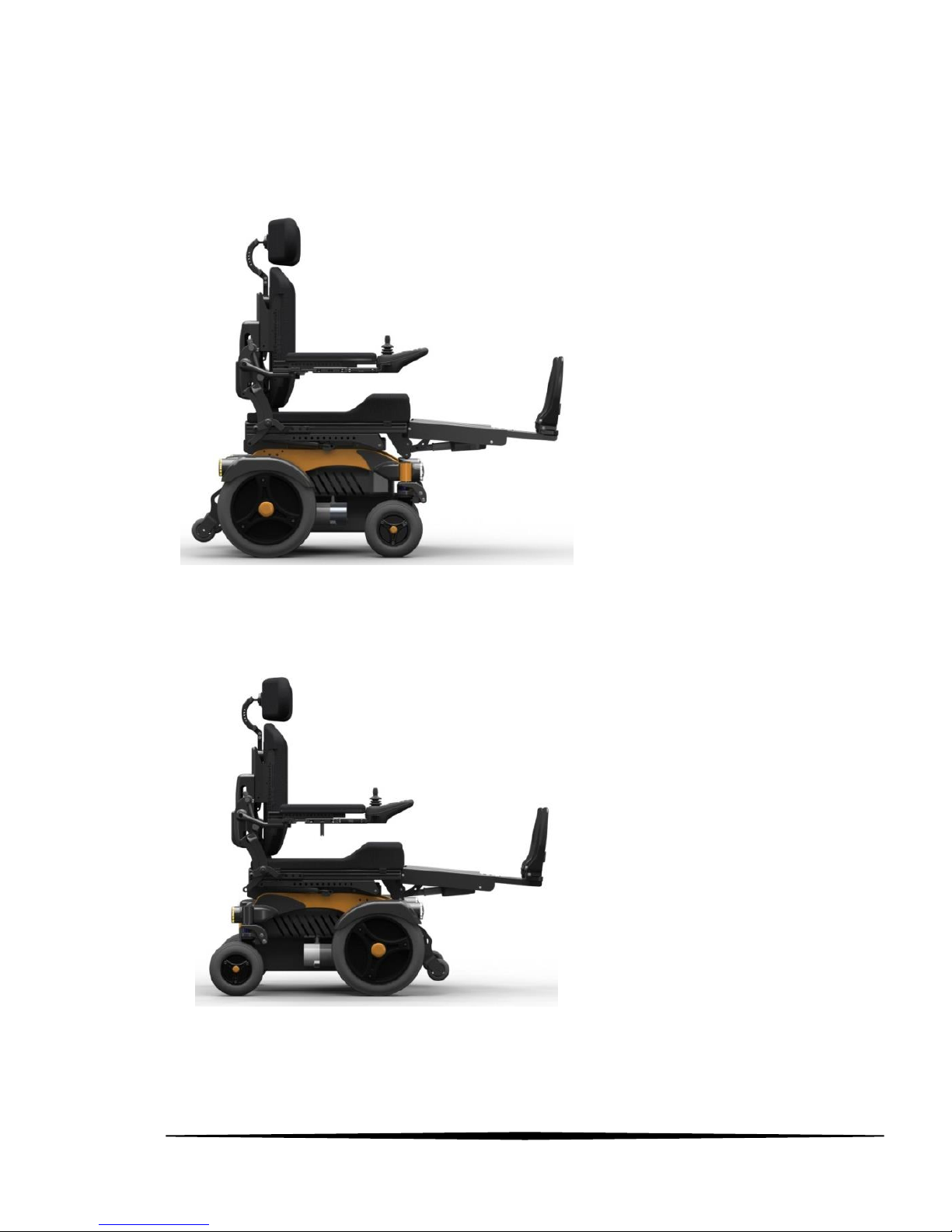

4.4.3 Backrest biomechanical recline
Figure 27
Figure 28
Powered reclining of the backrest (range 90°-170°) helps to improve
the posture. It is also useful to facilitate personal care. To best fit
physiological movement as the backrest recline, it also slides down.
The point of rotation of the backrest can’t coincide with the human’s
anatomical point of rotation of the back. The biomechanical reclining
is the best way to solve this and make the backrest and the headrest
to remain in the same position in relation to the back.
www.neatech.it
40
4.4.4 Legrest biomechanical elevation
Figure 29
A central
mounted legrest
takes up less
space than
separated legrest
making it easier
to move with the
wheelchair.
In this way even
lateral transfer
will be easier.
The knee that is
the point of
rotation of the
lower leg can’t
coincide with the
point of rotation
for the elevation
of the footrest.
EVO3 legrest has
an innovative
way to
compensate this
and assure that
the knee and the
thighs remain
firmly on the
wheelchair.
Figure 30
www.neatech.it
41
4.5 Battery charging
To recharge the batteries use only the provided charger or one
recommended by Neatech.it. The manufacturer is not responsible
for damage to person or property resulting from the use of nonoriginal product.
For a list of recommended charger please contact your vendor.
Connect the power cord to a power supply 230 V.

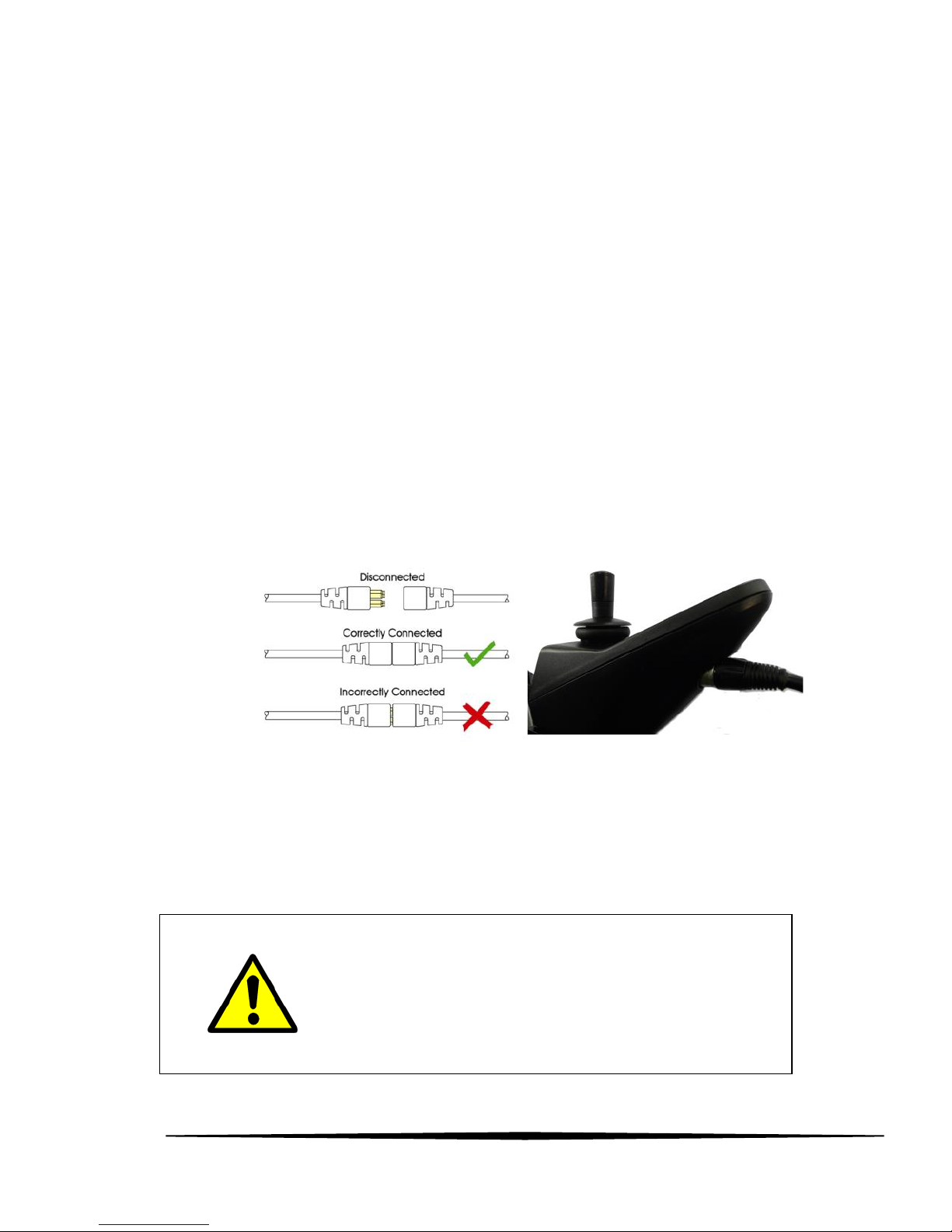

Connect the cable to the joystick as shown in Figure 31 and
Figure 32.
Figure 31
Figure 32
When batteries are loaded unplug the power cord and the
battery cable.
Battery charging should be done in well
ventilated environments. Never charge in
bathroom or wet room.
When the charger is connected it is not
possible to drive the wheelchair
www.neatech.it
42
Each battery is subject to a normal “self-discharge”, so batteries that
are not used for long time will discharge by itself.
Charging time is influenced by multiple factors such as remaining
battery power, battery state of aging and temperature. However the
approximate charging time is about 7-9 hours. If the charge duration
was reduced (about 1 hour), that is a sign of failure: contact the
vendor for a possible replacement of batteries.
Don’t use the wheelchair during the charge.
SHOCK HAZARD
Check if charger data sheet matches with
the network power (voltage, frequency).
Only use the charger supplied with the
wheelchair.
RELEASE DANGER
Any impact to the batteries could cause a
loss of fluids. Pay attention
ENVIRONMENTAL HAZARD
It is recommended to properly recycle used
batteries. Contact your local agency for
waste disposal for more information.
www.neatech.it
43
4.6 Use as seat in motor vehicle
Hooks for local travel (four-point tie-down)
The wheelchair was tested when used as a front-facing seat in a
motor vehicle, meeting the requirements of ISO 7176-19
The way of access to the motor vehicle and
handling within it is influenced by the size
of the wheelchair.

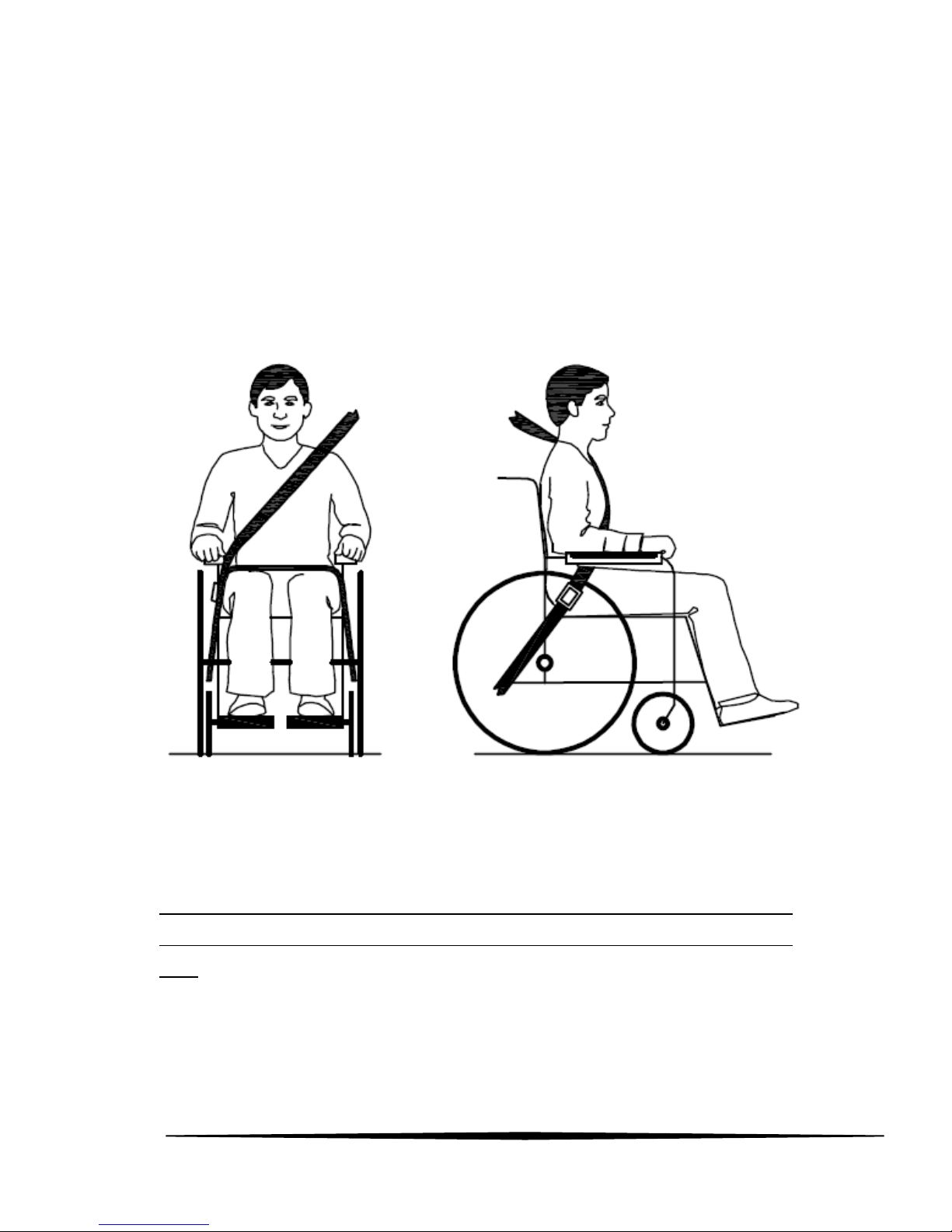

It is recommended to use the pelvic seat belt along the front of the
pelvic area, so that the angle of the belt is between 30° and 75° from
the horizontal, as shown in Figure 33; a greater angle, always in the
expected range, is preferable.
Figure 33
www.neatech.it
44
You should keep your seat belts as tight as possible to the body, but
without affecting the comfort
Make sure that the belts are not twisted during use.
It is recommended to use both the pelvic belt and the shoulder belt
to reduce the possibility of impact of the head and chest with vehicle
components.
Figure 34
Remove and assure inside the vehicle any not essential accessory
from the wheelchair in order to reduce the potential risk of injury.
If the wheelchair has been involved in some type of collision
between vehicles, it must be tested by the manufacturer before re-
use.
Don’t make any alteration or tampering on point of safety or
structural parts.
www.neatech.it
45
Use extreme care when positioning the wheelchair, so that the
release button of the seat belt can not be pressed by its components
in case of impact.

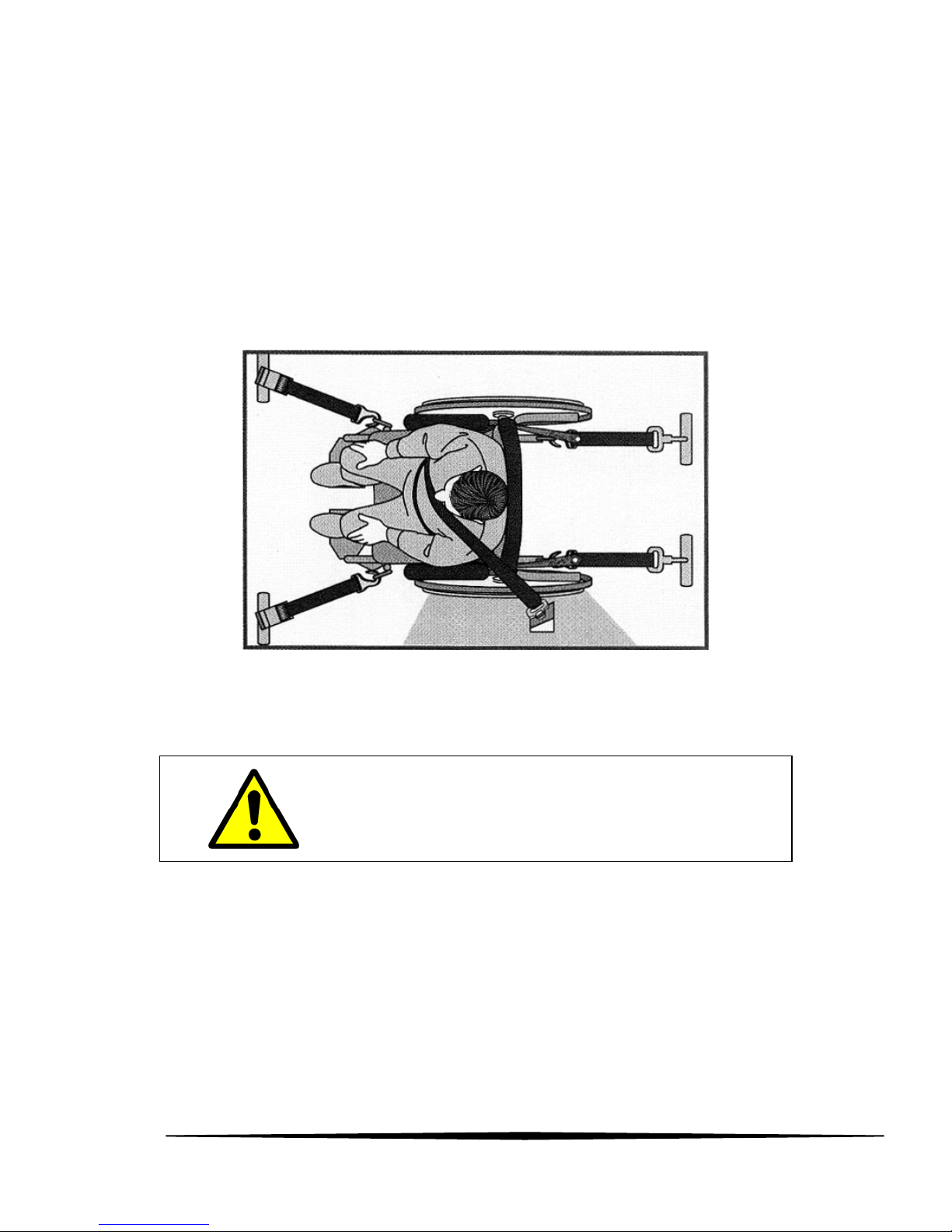

The hooks that can be used with the wheelchair are “Four-Point Tie-
Down” type. The wheelchair will be hooked up inside the motor
vehicle in 4 points: 2 front and 2 rear, as shown in Figure 35.
Figure 35
Don’t use any postural systems in a motor
vehicle unless they are conform to
ISO 7176-19.
www.neatech.it
46
5 MAINTENANCE
Regular maintenance help to preserve functionality and safety of the
Evo3. The lack or inadequacy of care and maintenance implies a
limitation of the warranty from the manufacturer.
To clean the chair don’t use any device to spray water at high
pressure and in any case protect the control device from water and
humidity. For plastic or metal parts use a soft cloth moistened with a
non-aggressive detergent. For pads and covers use warm water and
mild detergent.
Do not use chemical cleaners, solvents, acids, etc.
Tires can be cleaned with water and detergent.
CAUTION
All interventions on the
wheelchair’s systems must be
performed by an authorized service
center
SHOCK HAZARD
The main switch must always be switched
off when batteries are replaced or you are
doing any maintenance of the wheelchair.
Always turn off the joystick before
interrupting the power with the main
switch.
www.neatech.it
47
5.1 Tire puncture
In case of tire puncture please see following instruction:

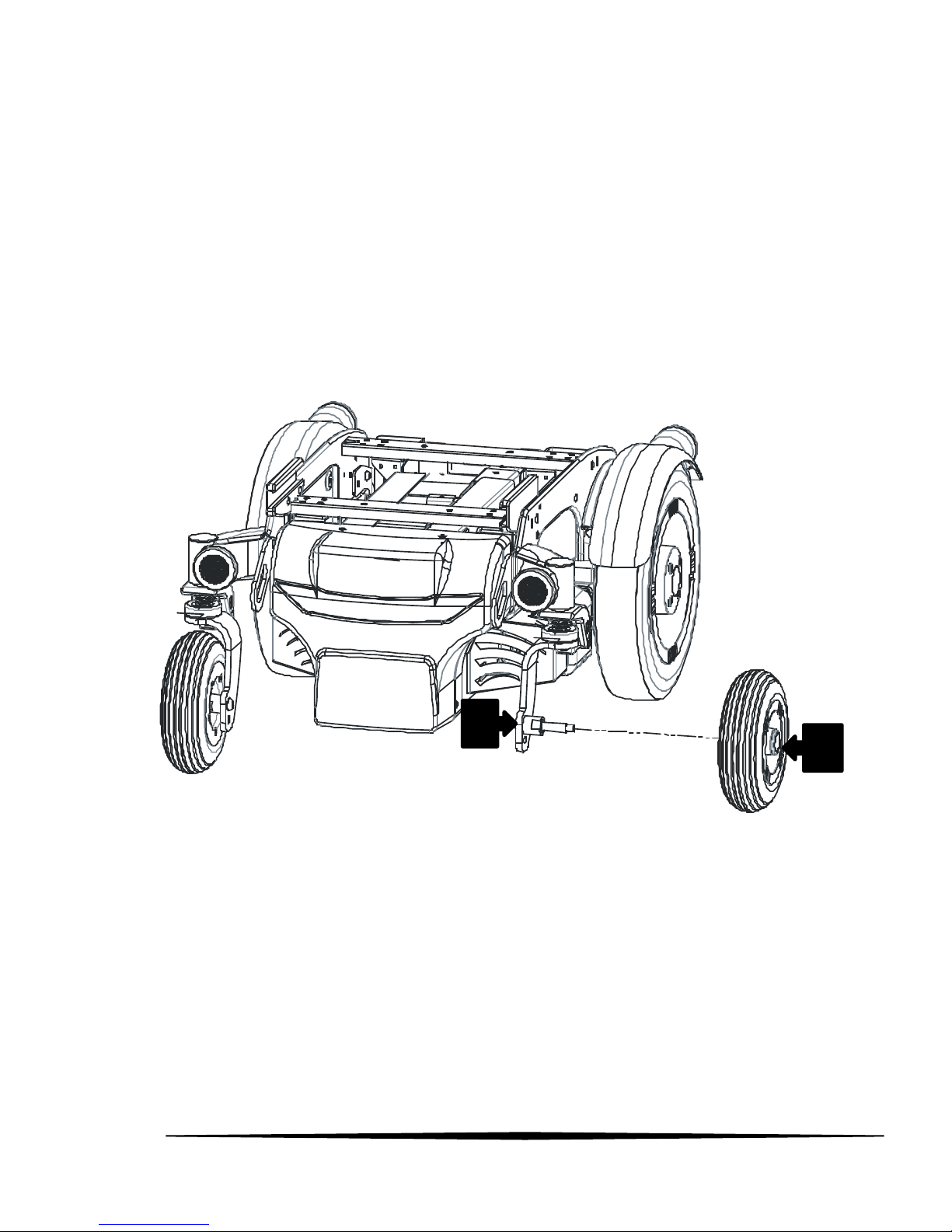

CASTERS PUNCTURE
Disassemble the punctured caster unscrewing the bolt shown in
Figure 36 by locking the nut (1) with an open-end wrench of 13 mm
and unscrew the bolt (2) with an allen wrench of 6 mm.
Figure 36
Contact an authorized service center to repair the punctured wheel.
When the authorized service center returns to you a repaired wheel,
mount it following the instructions in reverse order.
1
2
www.neatech.it
48

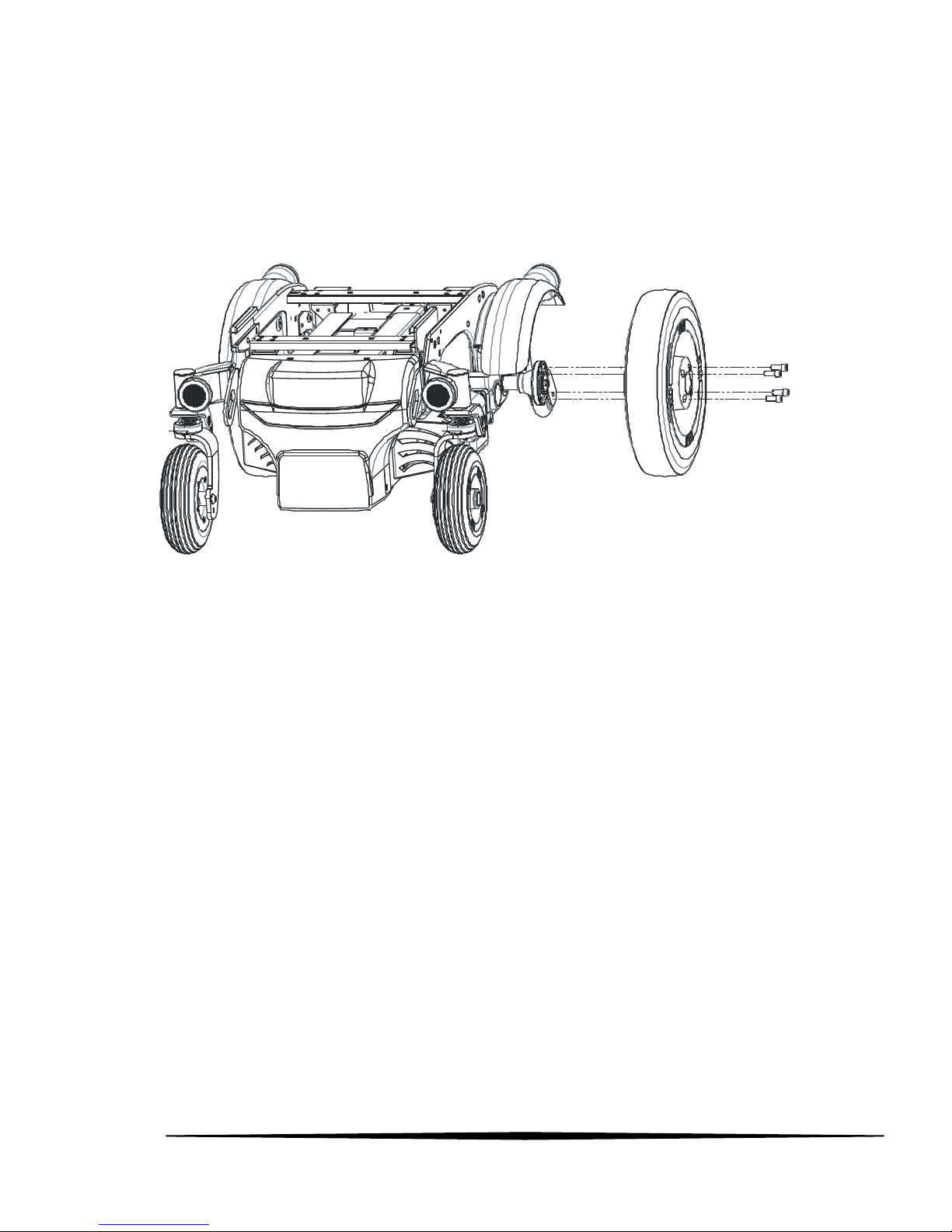

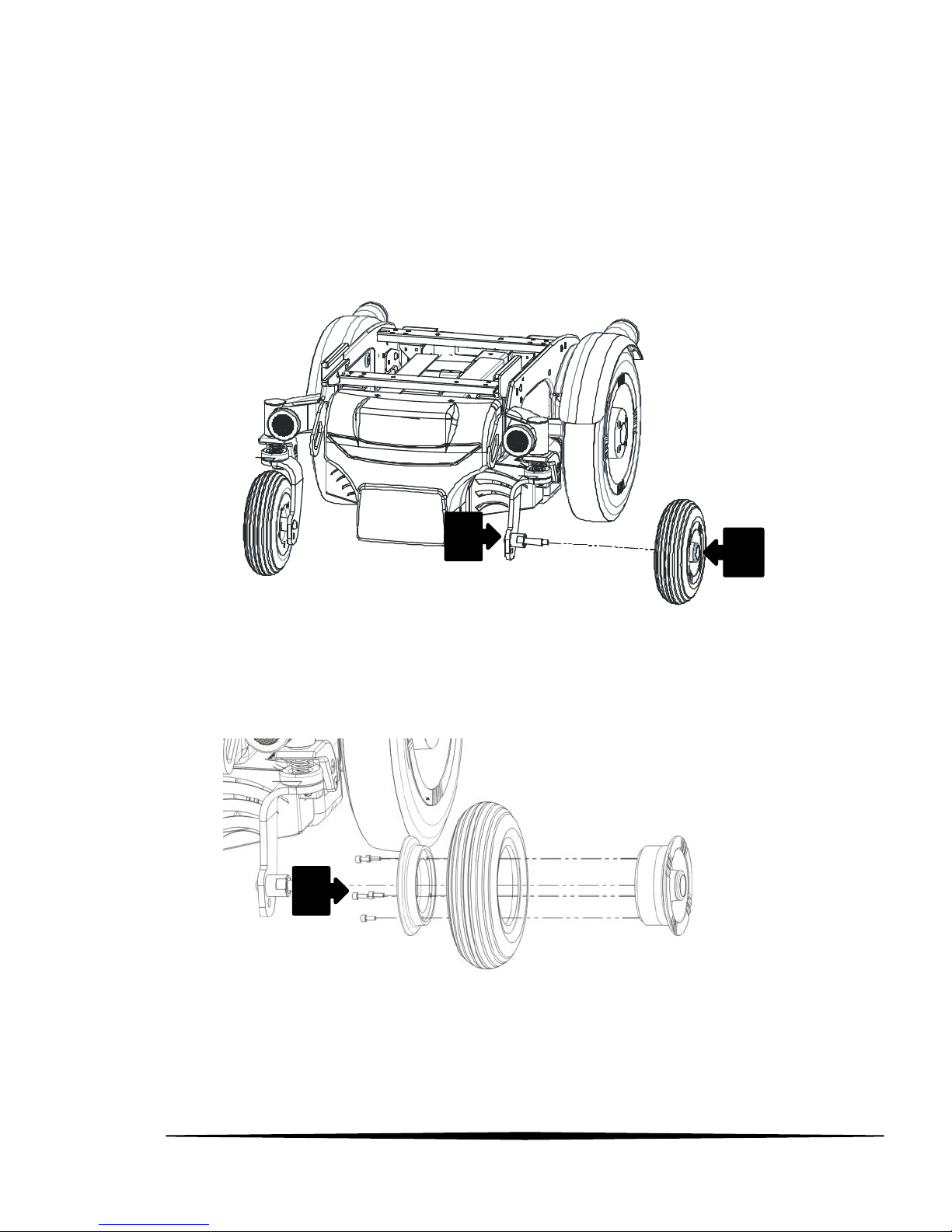

TRACTION WHEELS PUNCTURE
Disassemble the punctured wheel unscrewing the four bolts
indicated in Figure 37 with a 6 mm allen wrench.
Figure 37
Pay attention when unscrewing the bolts and pulling away the wheel
because in case of incorrect procedure it is possible to damage the
hub motor.
Contact an authorized service center to repair the punctured wheel.
When the authorized service center returns to you a repaired wheel,
mount it following the instructions in reverse order.
www.neatech.it
49
5.2 Checks to be made on the wheelchair
CHECK
PERIOD
NOTE
Battery charge
level
Before each utilize
Check the battery charge level
on the indicator located on
the joystick. (see Figure 20)
Electric cables
obstacle
Before each utilize
Check that the wires do not
interface with the movements
of the wheelchair.
Tightening of
removable
parts
Before each utilize
Ensure all removable parts
are securely locked in place.
Tire pressure
Weekly
Verify that the tire pressure is
consistent with the given
values:
DRIVE WHEELS: 280 kPa
CASTOR WHEELS: 250 kPA
Overfilling can cause a risk
of explosion
Lights check
Weekly
Verify that all lights and
indicators work properly and
are clean.
This point can apply only if
you have lights on your
wheelchair
Cleaning of
wheelchair
Monty
Clean the wheelchair and the
upholstery according to the
instructions of this manual
Brake release
lever check
Monty
Check that the brake release
is working properly
Tire usury
Monty
Check for the tire usury and if
necessary contact an
authorized service center for
the replacement
Checking
tightness of
chassis screws
Annual
For this operation please
contact an authorized service
center
www.neatech.it
50
5.3 Troubleshooting
EVENT
POSSIBLE CAUSE
REMEDY
The wheelchair
can not be
started
Batteries
discharged
Charge the batteries
Joystick cable not
connected or
badly connected
Properly insert the joystick cable
Main switch is set
to OFF
Turn the main switch to ON. If the
problem continues, it means that
there are some electric problems.
Please don’t use your wheelchair
and contact an authorized service
center
The wheelchair
is turned on
but the chair
does not drive
Batteries in
charging
Wait that the batteries are
completed charged
Brake release
lever in wrong
position
Set properly the brake release lever
as it is shown in section 4.3
The wheelchair
stops while
driving
Magneto –
hydraulic
protection switch
has triggered
Turn the main switch to ON. If the
problem continues, it means that
there are some electric problems.
Please don’t use your wheelchair
and contact a qualified technician
Joystick cable not
connected or
badly connected
Properly insert the joystick cable
The wheelchair
can only be
driven at low
speed
Seat lift is too
high or anyway
the position of the
seat is such that
the speed need to
be limited for
safety reasons
Adjust the position of the seat
Wheelchair
makes noise
Release lever not
properly inserted
Insert the release lever correctly as
it is shown in section 4.3
Tire puncture
Tire puncture
See section 5.1
Problems with
the seat
system
Broken actuator
or software fault
Contact an authorized service
center
www.neatech.it
51
5.3.1 Rnet system fault
When the control system is triggered and the wheelchair can’t be
used, a diagnostic screen is displayed in the display of the joystick.
First switch off the wheelchair and leave it off for some minutes. Then
reboot the wheelchair. If the fault still continues, contact an
authorized service center.

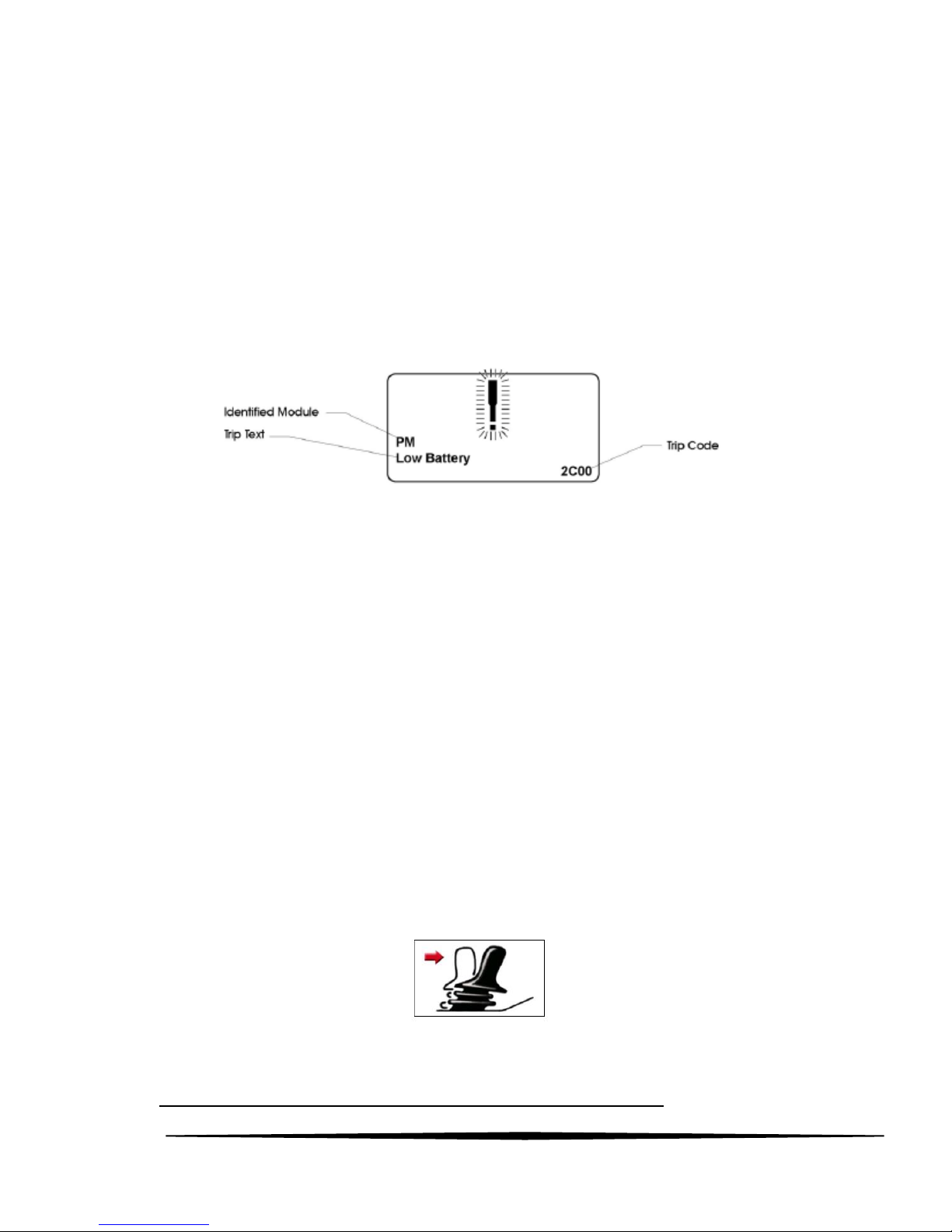

Figure 38
Identified Module indicates the module that had the problem
For example: PM= Power Module, JSM= Joystick, ISM= Light
Module, CxSM= Seating Module
The Trip Text is a brief description of the problem
The Trip Code is a four digit code that allow an authorized service
center to identify the problem
Joystick Error
If the joystick is moved from the central position during or
immediately after turning on an error will be displayed, see Figure 39.
To enable the wheelchair to drive again set the joystick in the central
position and reboot the wheelchair.
Figure 39
For any other need, please contact the manufacturer.
www.neatech.it
52
5.4 Specification
General Feature
Value
Product code - name
S042 – Evo3
Class (EN 12184)
Class B
Enclosure class
IPX4
Performance Feature
Value
Maximum user weight
80 kg
Range
25 km
Obstacles climbing
50 mm
Maximum safe slope
Static stability
6°
9°
Maximum speed
RWD: 10 km/h
FWD: 6 km/h
Batteries
55Ah 12V Sealed Type
Motors
2x220W
Main circuit breaker
80 A
Control force
Joystick 3N
Environmental temperature
-10 °C - +50 °C
Level of resistance to ignition
The wheelchair is compliant
with EN 12184:2014 point 9.5
Expected lifetime
5 years
www.neatech.it
53
Dimensions
Value
Weight
Maximum 125 kg
Seat Width Min-Max
280-460 mm
Seat Depth Min-Max
M1 340-420 mm
M2 380-460 mm
M3 420-500 mm
M4 440-520 mm
Seat Height without cushion
410 mm
Seat Height: with cushion
470 mm
Total Width chassis incl. seat
M1 570 mm chassis - 480
mm including seat and armrests
M2 570 mm chassis - 520
mm including seat and armrests
M3 570 mm chassis - 560
mm including seat and armrests
M4 570 mm chassis - 600 ,m
including seat and armrests
Total Length chassis incl. seat
FWD 880 mm without footrest
FWD 1120 mm con with footrest
RWD 800 mm without footrest
RWD 1090 mm con with footrest
Clearance floor-chassis
66 mm
Minimum turning radius
RWD 850 mm
FWD 655 mm
Tire pressure
DRIVE WHEELS: 280 kPa
CASTOR WHEELS: 250 kPA
www.neatech.it
54

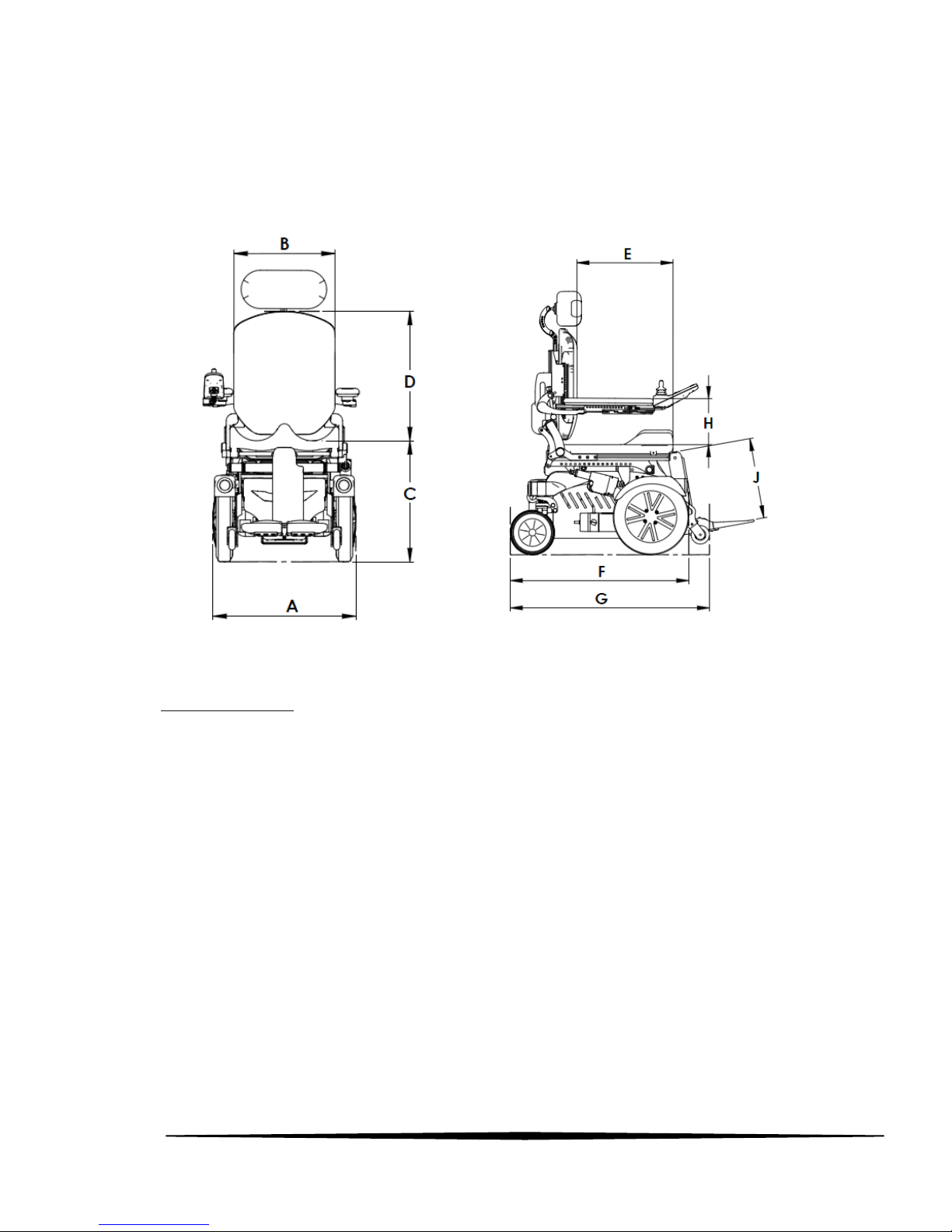

5.5 Dimensions
Dimensions
A F
G
H
J
C
B
560 mm 780 mm
870 mm
200-300 mm
470 mm
M1 280-300 mm
M2 320-340 mm
M3 360-380 mm
M4 400-420 mm
D
E
M1 340-390 mm
M2 390-440 mm
M3 440-490 mm
M4 440-490 mm
M1 340-420 mm
M2 380-460 mm
M3 420-500 mm
M4 440-520 mm
M1 300-380 mm
M2 300-380 mm
M3 380-440 mm
M4 380-440 mm
www.neatech.it
55
5.6 Magneto hydraulic protection
Use the switch, see Figure 40 and Figure 41 to turn on and off the
EVO3.
The switch also has the function of protecting the wheelchair from
overloaded current and short circuit.
If the power chair suddenly stops, use the switch to turn on the chair.
If the problem still continues, it means that there are some electric
problems, please contact technical support.
Figure 40
Figure 41
www.neatech.it
56
5.7 Spare part list
Code
Description
Type of
service
Note
R042-001
Antitip castor
A
R042-002
Backrest actuator
B
R042-003
Legrest actuator
B
R042-004
Front cover
A
R042-005
Rh cover
B
R042-006
Lh cover
B
R042-007
Back cover
A
R042-008
Legrest cover
A
R042-009
Backrest cover
A
R042-010
Traction wheel
B
R042-011
Tire of traction
wheel (with tube)
A
R042-012
Castor wheel
B
R042-013
Tire of castor
wheel (with tube)
A
R042-014
Rh motor
B
R042-015
Lh motor
B
R042-016
Armrest pad
A
R042-017
Rh armrest (with
bracket)
B
R042-018
Lh armrest (with
bracket)
B
R042-019
Battery set
B
R042-020
Charger
A
R042-021
Front lights
B
R042-022
Back lights
B
R042-023
Joystick
A
R042-024
Rh joystick support
B
www.neatech.it
57
R042-025
Lh joystick support
B
R042-026
Power module
B
R042-027
Light module
B
R042-028
Seating module
B
R042-029
Advanced seating
module
B
R042-030
Footplate
B
R042-031
Complete legrest
B
R042-032
Legrest belt
B
R042-033
Rnet cable 2.5 m
B
R042-034
Rnet cable 1.5 m
B
R042-035
Rnet cable 0.5 m
B
R042-036
Rnet cable 1.0 m
B
R042-037
Actuator cable
B
R042-038
Advanced seating
module cable
B
R042-039
Seat cushion
A
R042-040
Backrest cushion
A
Type of service
Code
A
Parts that the final user can buy
at an authorized service center
and substitute by himself.
B
Parts that need the intervention
of an authorized service center
for the maintenance
Use of unapproved aftermarket accessories
and parts may make the wheelchair unstable
or uncontrollable
For any other need, please contact the
manufacturer.
www.neatech.it
58
5.8 Instruction for replacing parts
5.8.1 Antitip castor
Unscrew the screw indicated in Figure 42 using a PH2 star head
screwdriver positioned from the internal side of the castor. Remove
the castor.
Figure 42
To mount the new part screw again the screw using the same tool
still positioned from the internal side of the castor.
www.neatech.it
59
5.8.2 Front cover
Unscrew the screws indicated in Figure 43 and remove the cover. For
this operation use a 4 mm allen wrench.

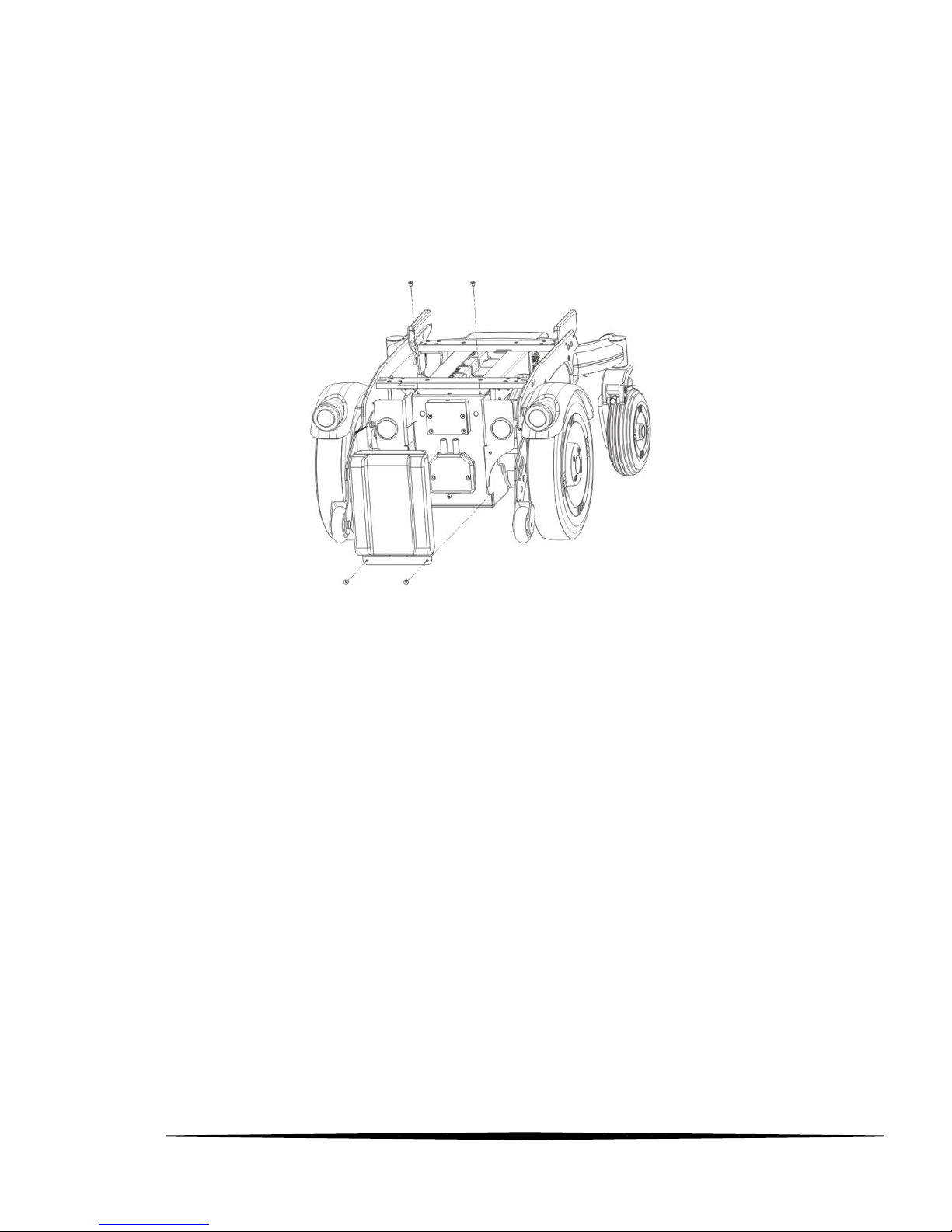

Figure 43
To mount the new part repeat the operations in reverse order.
www.neatech.it
60
5.8.3 Back cover
Unscrew the screws indicated in Figure 44 and remove the cover. For
this operation use a 3 mm allen wrench.
Figure 44
To mount the new part repeat the operations in reverse order.
www.neatech.it
61
5.8.4 Legrest cover
Take the two lower side of the legrest cover and pull them out. Then
you have to take two higher side of the cover and pull them out. In
this way you are able to take away the legrest cover
Figure 45
Figure 46
To mount the new part repeat the operations in reverse order.
5.8.5 Backrest cover
Remove the backrest cover first removing the lower part and then
pulling it upward.
Figure 47
To mount the new part repeat the operations in reverse order.
www.neatech.it
62
5.8.6 Tire of traction (with tube)
Remove the screws (1) shown in Figure 48 with a 6 mm allen wrench
and remove the wheel of traction. Then remove the screws (2)
indicated in Figure 49 and take away the rim; after that it is possible
to remove the tire with its tube.
Figure 48
Figure 49
To mount the new part repeat the operations in reverse order.
1
2
www.neatech.it
63
5.8.7 Tire of castor wheel (with tube)
Disassemble the castor unscrewing the bolt shown in Figure 50 by
locking the nut (1) with an open-end wrench of 13 mm and unscrew
the bolt (2) with an allen wrench of 6 mm.
Figure 50
Remove the screws (1) shown in Figure 51 and take away the rim;
after that it is possible to remove the tire with its tube.
Figure 51
To mount the new part repeat the operations in reverse order.
1
2
1
www.neatech.it
64
5.8.8 Armrest pad
Unscrew the screws indicated in Figure 52 and substitute the armrest
pad with a 4 mm allen wrench.
Figure 52
To mount the new part repeat the operations in reverse order.
www.neatech.it
65
5.8.9 Joystick
Switch off the wheelchair using the power button on the joystick, see
Figure 19. Switch off the main circuit breaker, see section 5.6. Unplug

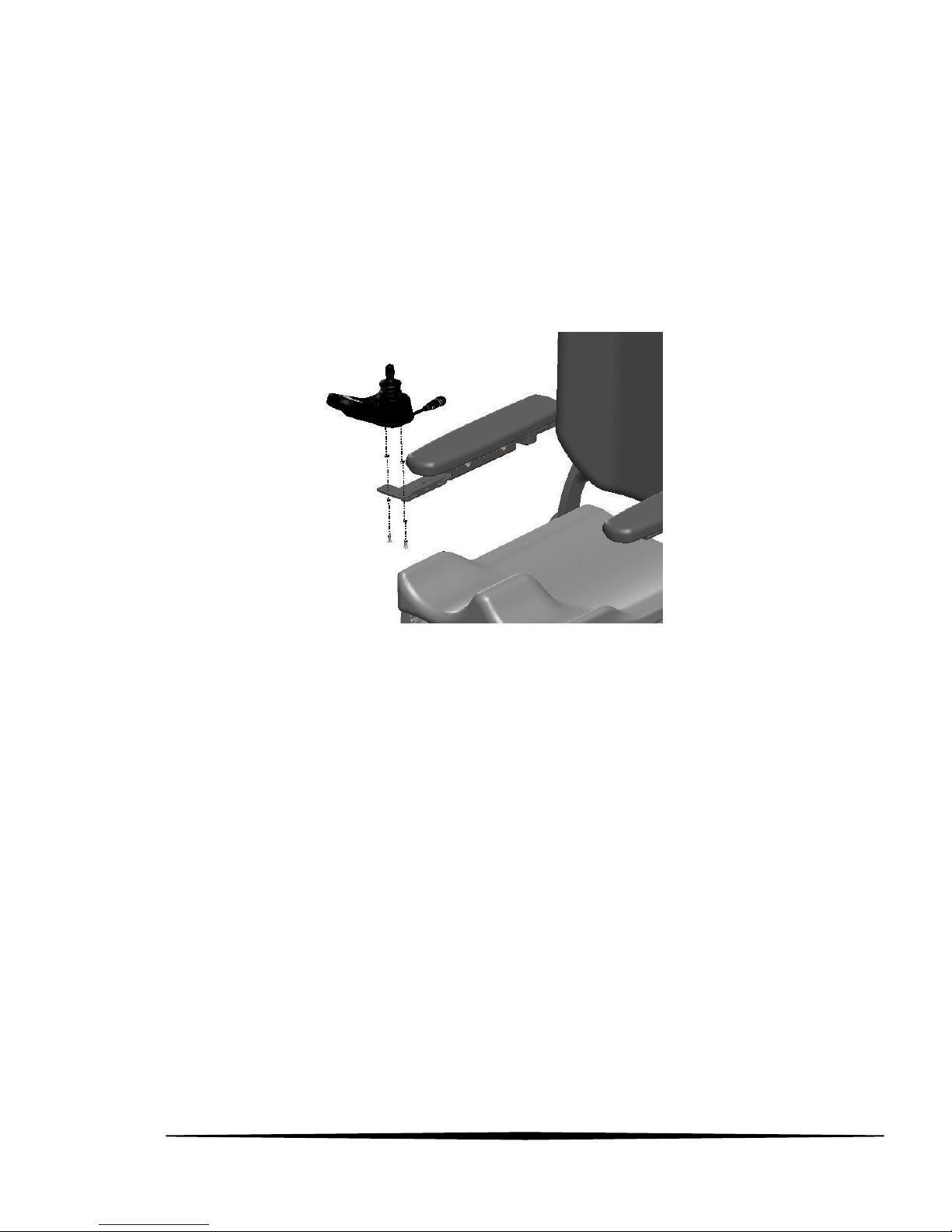

the joystick cable. Seeing Figure 53 unscrew the two screws below
the joystick to remove it.
Figure 53
Substitute the joystick, screw the two screws and plug the cable
again. After mounting the new joystick reboot the wheelchair. Ensure
that the cable is properly connected.
5.8.10 Seat cushion
Remove the seat cushion pulling it up. Place the new cushion on the
straps and ensure it is correctly got it right
5.8.11 Backrest cushion
Remove the backrest cushion pulling it forward. Place the new
cushion on the straps and ensure it is correctly got it right
www.neatech.it
66
6 WARRANTY TERMS
Evo3 is a product globally guaranteed for 24 months with the
exception of batteries that are guaranteed for six months. The
warranty covers defects in materials or workmanship. The warranty
doesn’t cover parts subject to usury or damaged parts by: overload,
misuse, alterations and repairs made by unauthorized third parties.
The warranty expires in case of tampering, improper storage,
unauthorized or incorrect maintenance.
6.1 SERIAL NUMBER
For any report or assistance request communicate the unique
identification code on the chassis of each Evo3 as shown in Figure 54
Figure 54
6.2 INCIDENT REPORTING
If an incident occurs please contact an authorized service center. For
a list of authorized service center please contact the manufacturer:
Neatech.it
4/A, A. de Curtis, 80040, Cercola (NA), Italy
www.neatech.it – info@neatech.it - +39 081 555 1946
www.neatech.it
67
MODEL:
EVO3
SERIAL NUMBER:
YEAR OF
CONTRUCTION:
MAXIMUM USER
WEIGHT:
MADE IN:
USER MANUAL
EVO3
www.neatech.it
Loading...
