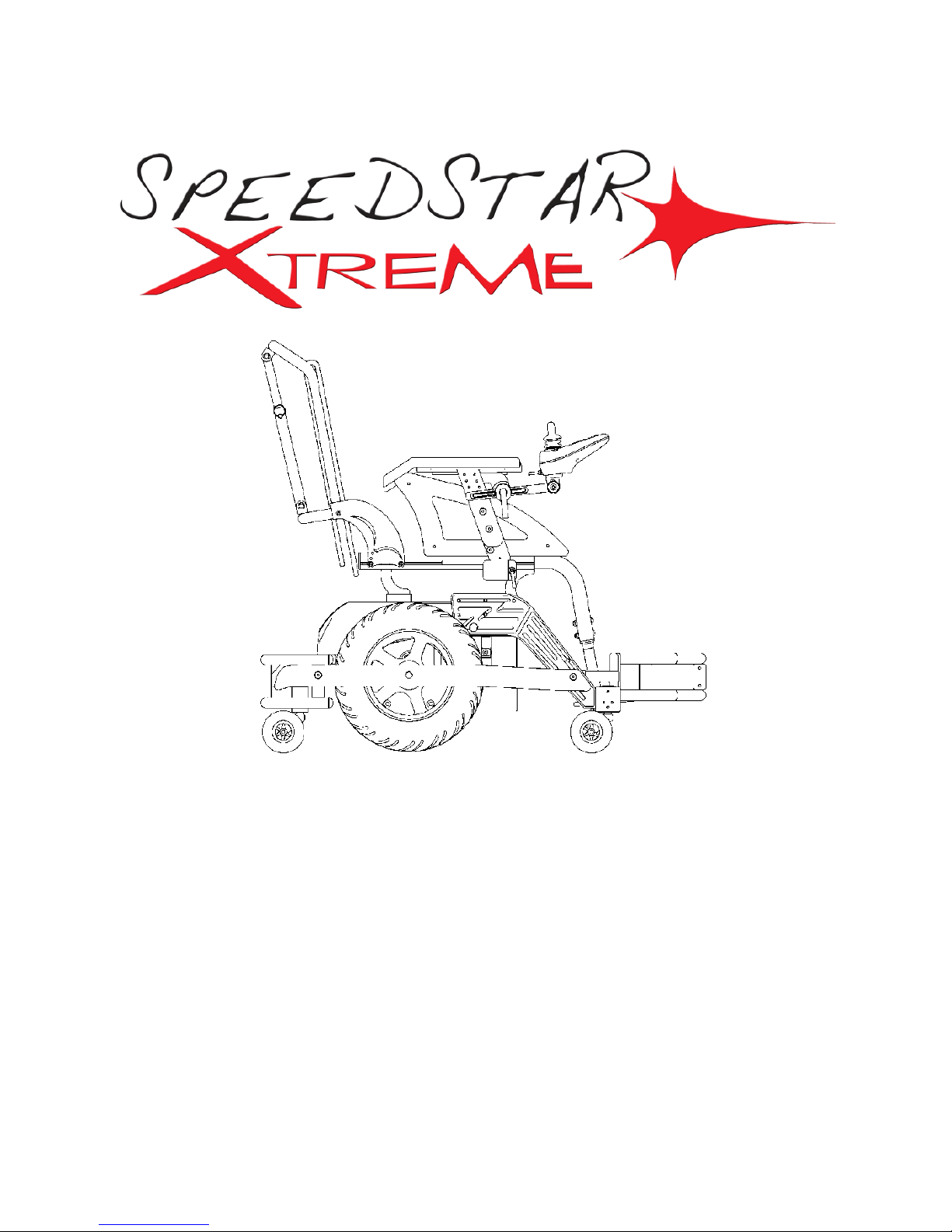

Neatech speedstar xtreme User Manual

USER MANUAL

with CE Mark Statement

DECLARATION OF CONFORMITY

The manufacturer

Neatech.it

4/A A. De Curtis St. 80040 Cercola (NA), Italy

under its responsibility, states that

the wheelchair Speedstar Xtreme

satisfies the conditions laid down by European Directive 93/42;

according to the criteria for classification of annex IX of this Directive, the Speedstar

Xtreme is classified as

class I medical device

It also complies with the requirements of the harmonized standards:

UNI EN 12182 Ausili tecnici per persone disabili

UNI EN 12184 Sedie a rotelle a propulsione elettrica, motorette e loro sistemi di

carica

Table of contents

WHEELCHAIR PRESENTATION ........................................................................... 1

STARTING UP ..................................................................................................... 2

USE OF THE WHEELCHAIR ................................................................................. 4

ADJUSTMENTS ................................................................................................ 10

ACCESSORIES ................................................................................................... 14

CONTROL AND MAINTENANCE ....................................................................... 26

FAULT, REPAIR AND ASSISTANCE .................................................................... 18

TIPPING HAZARD

Any transport on a slope greater than the maximum
security slope can be dangerous.

ELECTROMAGNETIC RADIATION DANGER

The behavior of the wheelchair while driving may be
affected by electromagnetic fields such as mobile
phones and other devices.

It is recommended to avoid the use of the wheelchair
in the presence of such devices.

TEMPERATURE

The temperature of some surfaces may increase
when the chair is exposed to external heat sources as
sunlight.

DISPOSING

This product and all its components can not be
treates as household waste. For more detailed
information on how recycling and disposal this
product contact your local waste disposal service.

1. WHEELCHAIR PRESENTATION

www.neatech.it

1

Thank you for purchasing the electronic wheelchair Speedstar
Xtreme. Speedstar Xtreme is designed to be used mainly for
competition use.
The aeronautical technology, used to manufacture all Neatech.IT
products, made possible to create rigid and foldable frame highly
customizable and reliable. Frame and canvas are available in
different colors.

Characteristic

Pair of engines of 350W
Mechanical electromagnetic

parking brake

Custom colors
Adjustable armrests
Adjustable backrest
Maximum speed 15 km/h

Joystick
360 mm wheel drive with

increased section

Range of 45 km
Fully charged in 7 ore
Maximum slope 22%

WARNING: It is prohibited to use wheelchair or its parts for any
purpose other than that indicated; for a correct use please follow
the instructions given in this manual. NEATECH.IT disclaims any

responsibility for damages caused by improper use of aids

2. STARTING UP

www.neatech.it

2

Checks to be made on delivery

Check the integrity of the original packaging.

Check for any anomalies on the shipping documents.
Check the functionality and integrity of the device in all of its

parts, at the time of or immediately thereafter, to ensure that no
damage is caused by a careless transport.

Make sure the surface of the device is not damaged, scratched,
bended, etc.

Any fault or damage found must be immediately reported on the
shipping documents and promptly communicated to the carrier.
For any other questions, please contact the manufacturer.

If you don’t want to use the Speedstar Xtreme for a long time,
store it in a safe place fre from dust and moisture.

Inside the box there is:

Speedstar Xtreme wheelchair
N. 1 pair of armrests
N. 1 joystick

N. 1 Charger
Documentation and manuals

PACKAGING DIASPOSAL

To properly recycle the packaging materials follow the
instructions provided by your local waste disposal
service.

2. STARTING UP

www.neatech.it

3

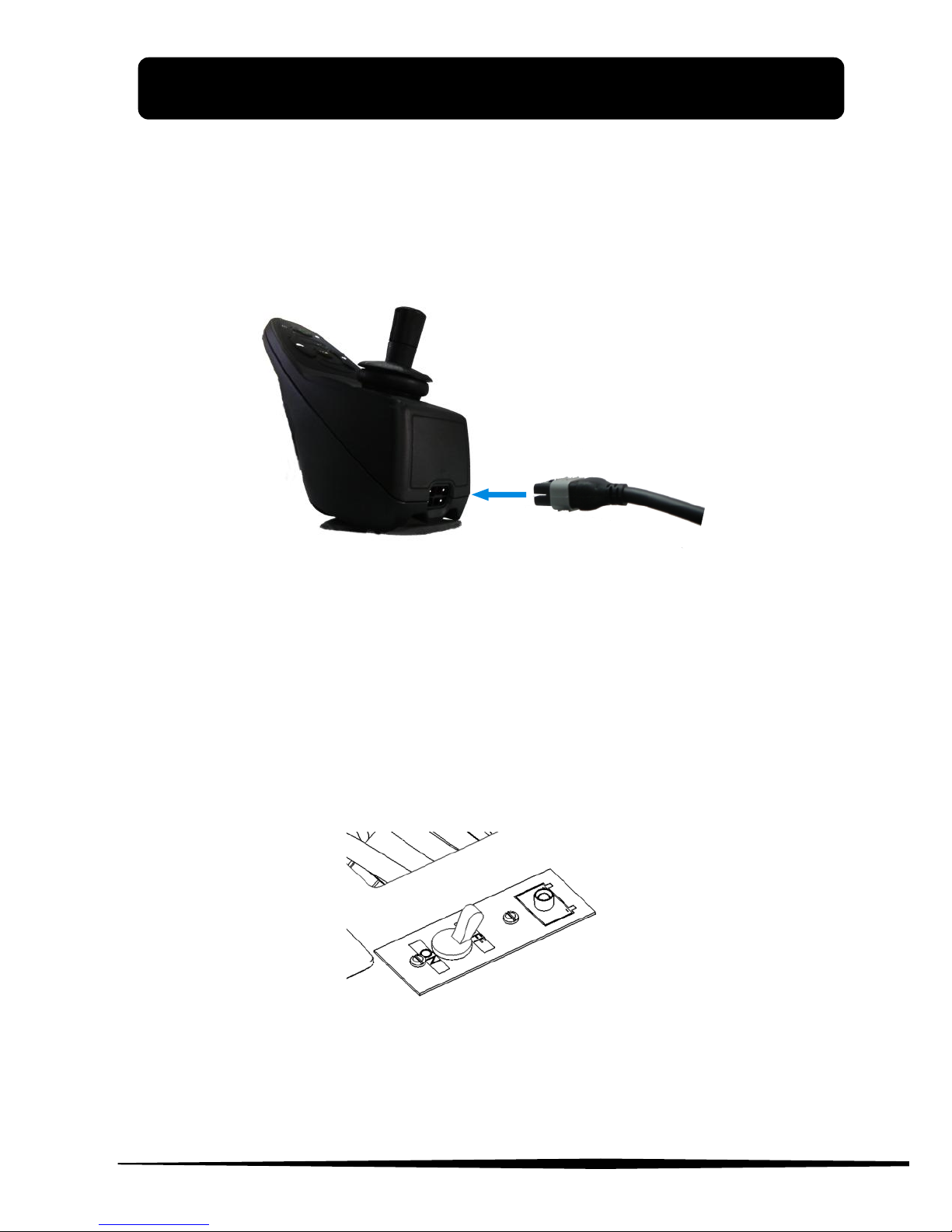

Connection of the Joystick

Connect the cable of the joystick as shown in Figure 1. Make sure it
is fully engaged. If it appears difficult to insert the connector try to
invert and reinsert

Figure 1

Trasporto e immagazzinamento

If you don’t use the Speedstar Xtreme for a long time make sure you
set the switch (I) OFF You should keep the Speedstar in a place free
from dust and moisture and away from heat sources.

If you must ship the Speedstar Xtreme, turn off the switch (I),
unplug the joystick and remove the footrests and armrests.

Figure 2

3. USE OF THE WHEELCHAIR

www.neatech.it

4

Checks before use

For a safe use and to avoid any situations of risk
to the user before using the product perform the
following checks .

Checking tire pressure
Verify that the tire pressure is consistent with the values
given in table

Front wheels

3,0 bar

Rear wheels

1,5 bar

Checking battery charge level

Check the battery charge level on the indicator located on
the joystick.
Check of electric cables

Check that the wires don’t constitute a hindrance to the

movements of the wheelchair.

3. USE OF THE WHEELCHAIR

www.neatech.it

5

Consolle di comando

Figure 3

Figure 4

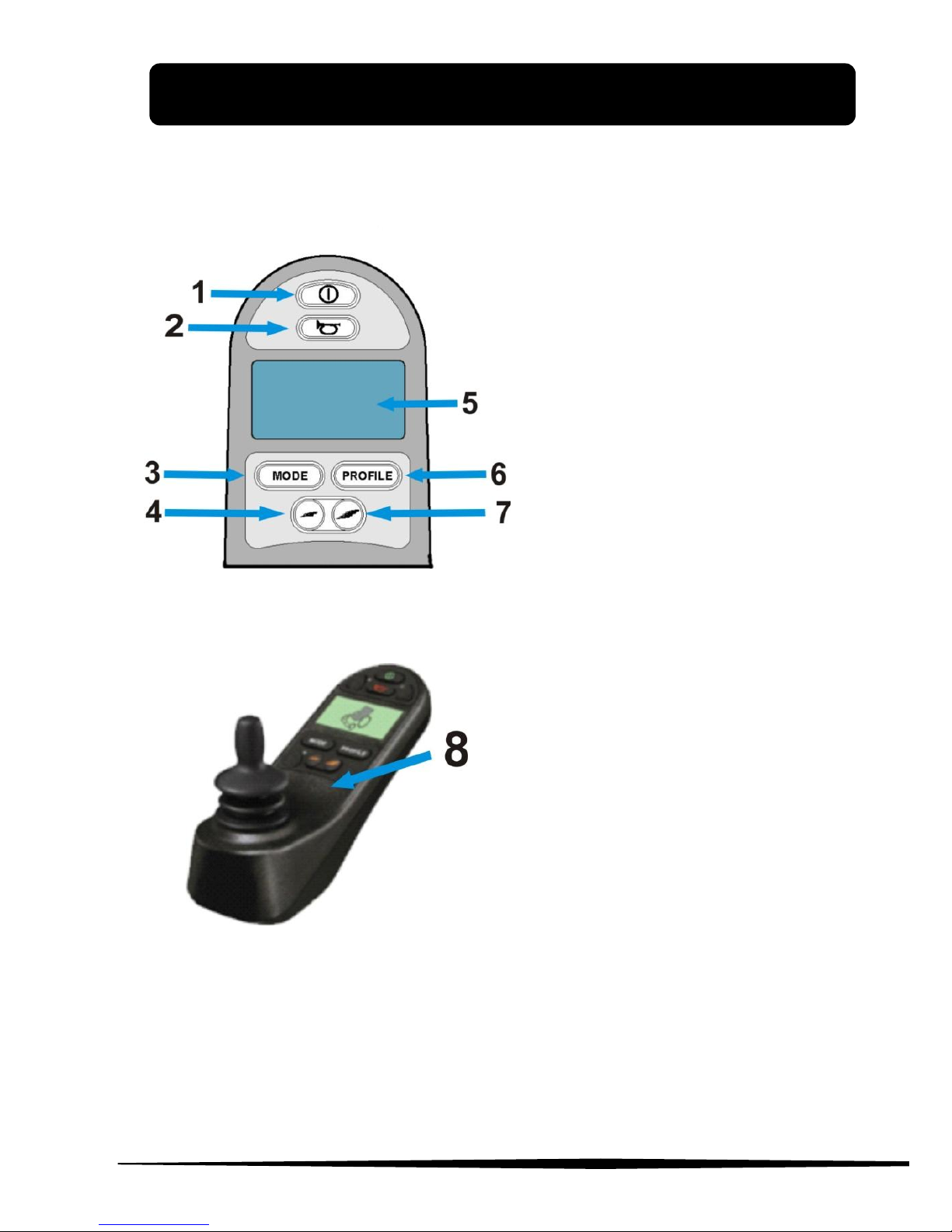

1. On-Off button

2. Beeper

3. MODE button

4. MIN speed selector

5. Display LCD a colori

6. PROFILES button

7. MAX speed selector

8. Controller

NOTE: it is possible that the control console of the Speedstar is different depending
on the accessories chosen. Main controls remain unchanged .

3. USE OF THE WHEELCHAIR

www.neatech.it

6

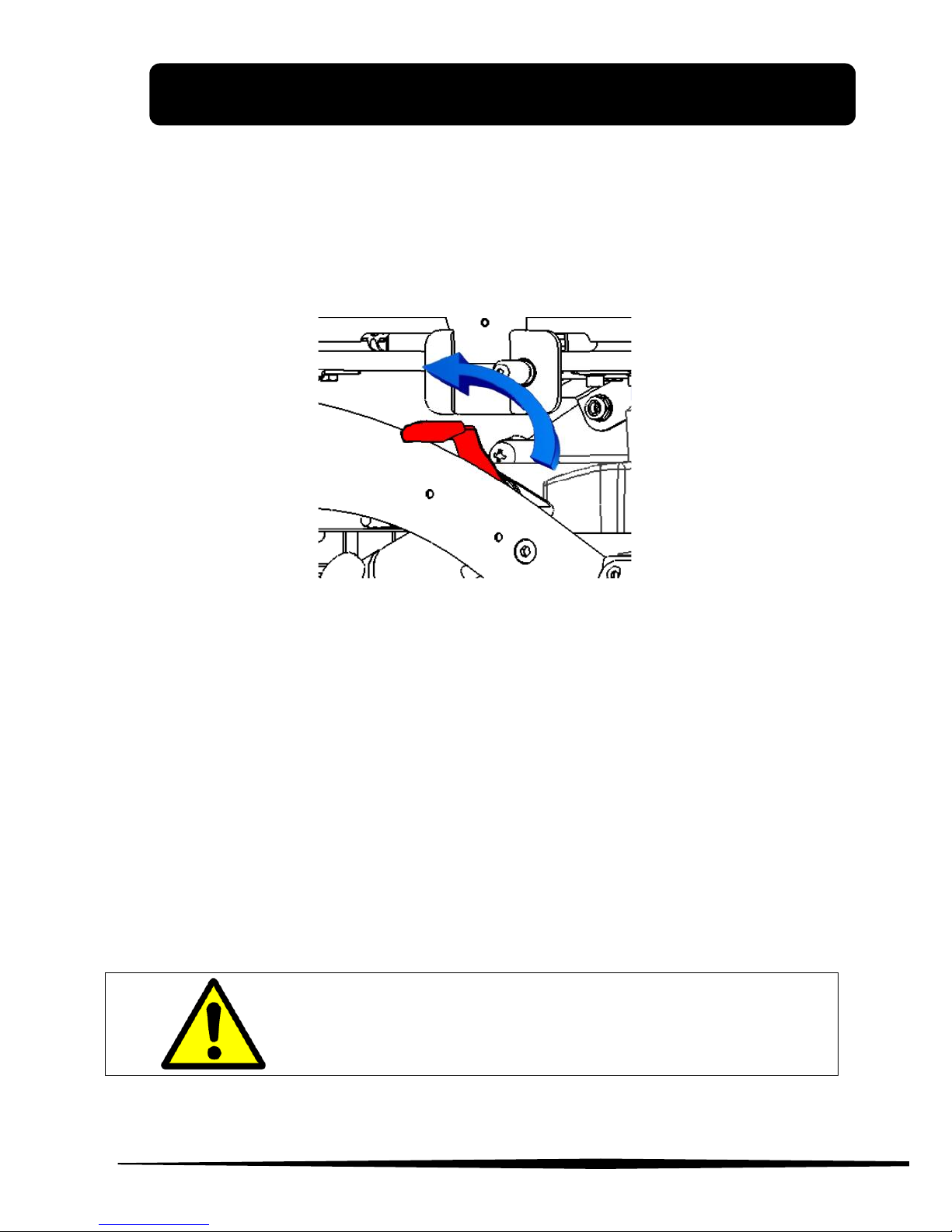

Powered mode

Set the release engine lever as shown in Figure 5. In this
conFiguretion, wheels are normally brake.
Use the switch (I), see Figure 2, to turn on and turn off the
Speedstar.

Figure 5

Seing Figure 3 and Figure 4 use the button 1 to turn on the
command console. Use button 4 and 7 to select the travel speed.
Use the controller 8 to get in gear. Its proportional functionality
allows you to adjust speed and direction according to the intensity
with which you act on the controller.
By re leasing the lever of the controller automatically starts the
electromagnetic brake that looks the wheels of the Speedstar
Xtreme.

Use button 3 to navigate between the driving modes set during
programming of the console. Use button 6 to navigate between
profiles set during programming of the console.

Don’t turn on or turn off the console while
wheelchair is moving

3. USE OF THE WHEELCHAIR

www.neatech.it

7

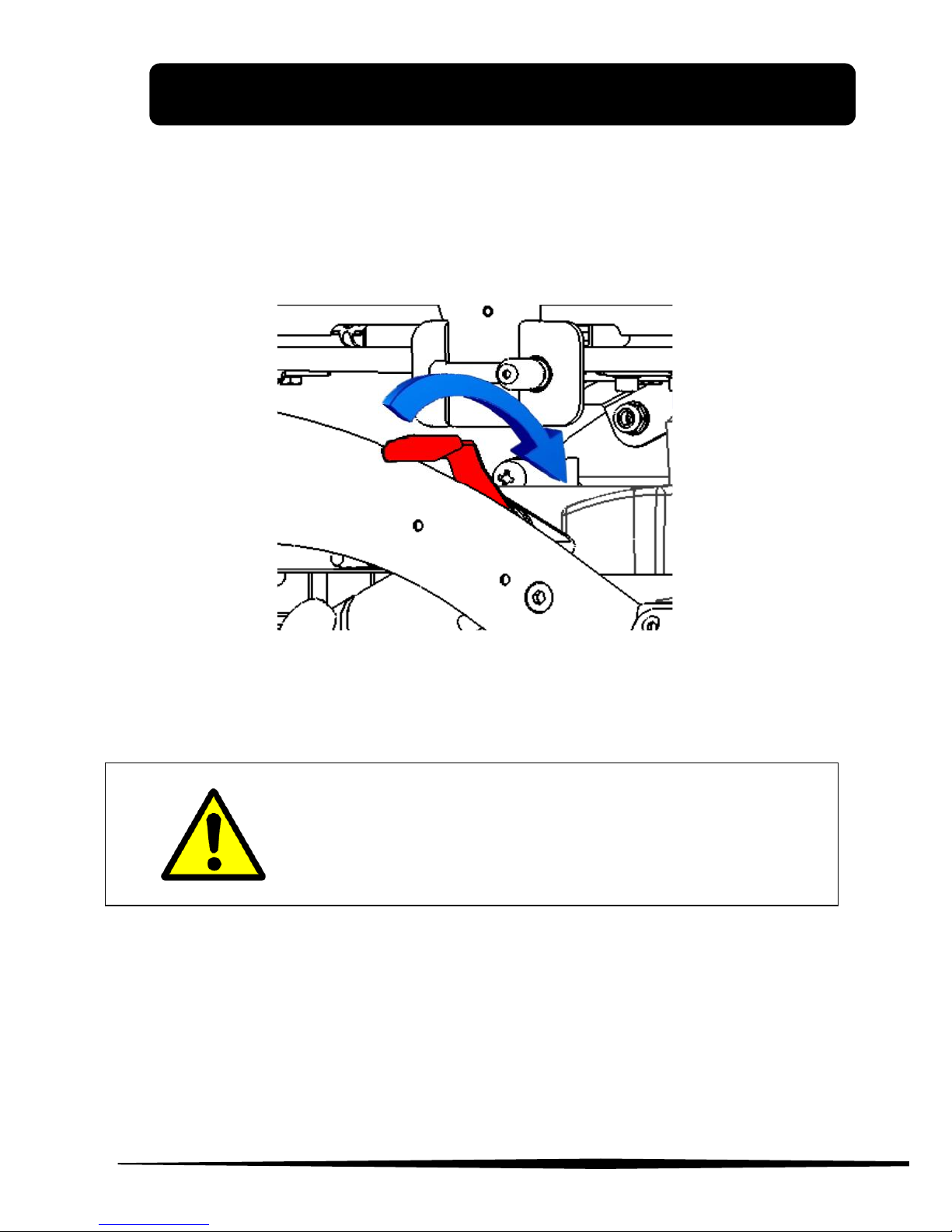

Push mode

If you need to use the push mode use switch (I), Figure 2, to turn
off the Speedstar and set the release engine lever as shown in
Figure 6.

Figure 6

In the push mode electromechanical brakes
are off and therefore use of the Speedstar
Xtreme in presence of slopes may be
dangerous.

3. USE OF THE WHEELCHAIR

www.neatech.it

8

Charge of the batteries

To recharge the batteries use only the provided charger. The
manufacturer is not responsible for damage to person or property
resulting from the use of non original product

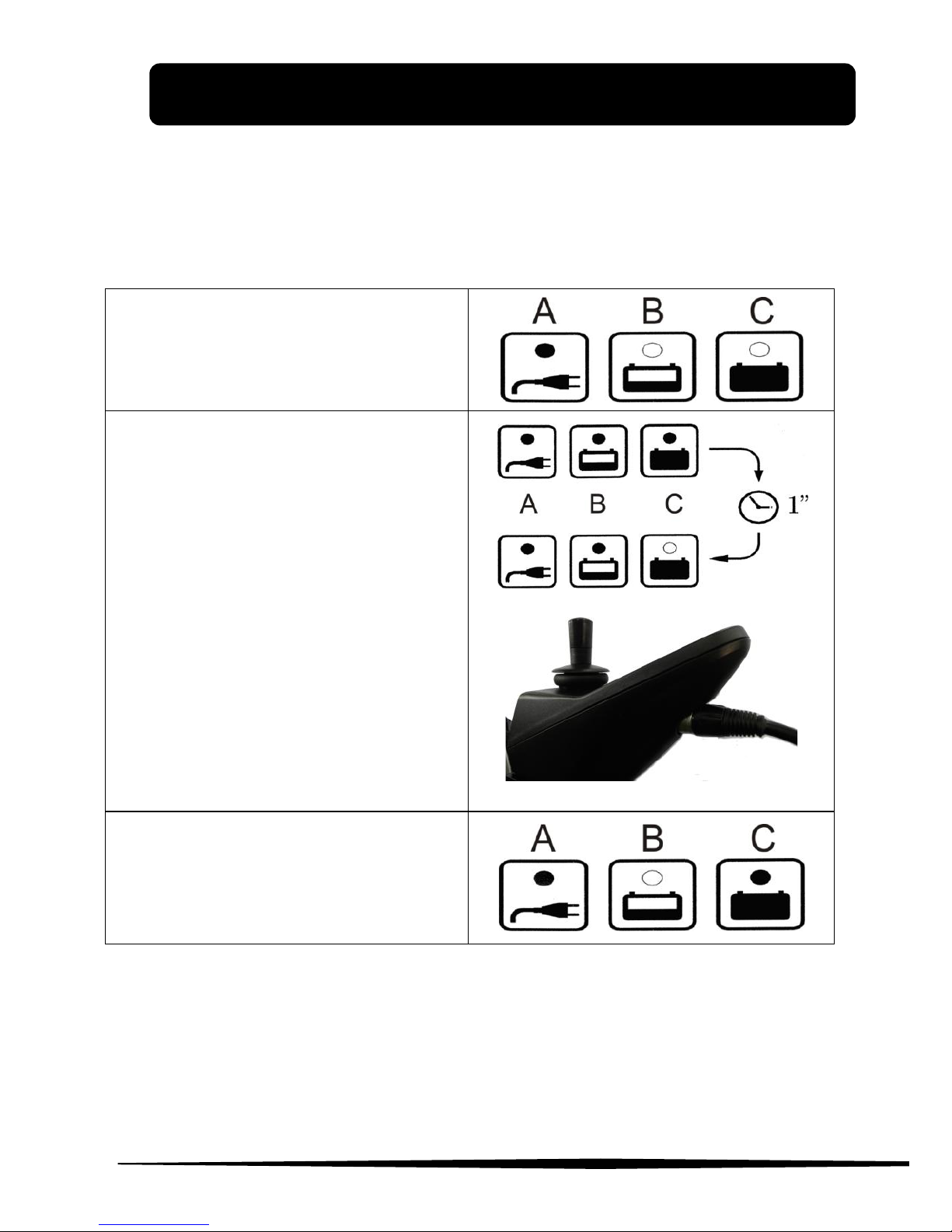

Connect the power cord to a power
supply 230 V.
If the led A doesn’t turn on check the
voltage and the fuse inside the
charger.

Connect the cable to the joystick as
shown in figure.
All led of the charger light up and after
a second led C turns off and the charge
starts. If not, check the connections
made.

Battery correctly loaded.
Unplug the power cord and the
battery cable.

3. USE OF THE WHEELCHAIR

www.neatech.it

9

It is recommend to charge the batteries when the il display
indicates that they are almost discharged. Each battery is subject to
a normal “self discharge”, so batteries that are not used for long
time will discharge by itself.
Charging time is influenced by multiple factors such as remaining
battery power, battery state of aging and temperature. However the
approximate charging time is about 7-9 hours. If the charge
duration was reduced (about 1 hour), that is a sign of failure:
contact the vendor for a possible replacement of batteries.
Don’t use the wheelchair during the charge.

SHOCK HAZARD

Check if charger data sheet matches with the
network power (voltage, frequency).

RELEASE DANGER

Any impact to the batteries could cause a loss of
fluids. Pay attention

ENVIRONMENTAL HAZARD

It is recommended to properly recycle used
batteries. Contact your local agency for waste
disposal for more information.

4. ADJUSTMENTS

www.neatech.it

10

Armrest

It is possible to make several adjustments on the armrests: height,
width and depth of the aid and position of the joystick. Shown
operations can be performed on both armrests.

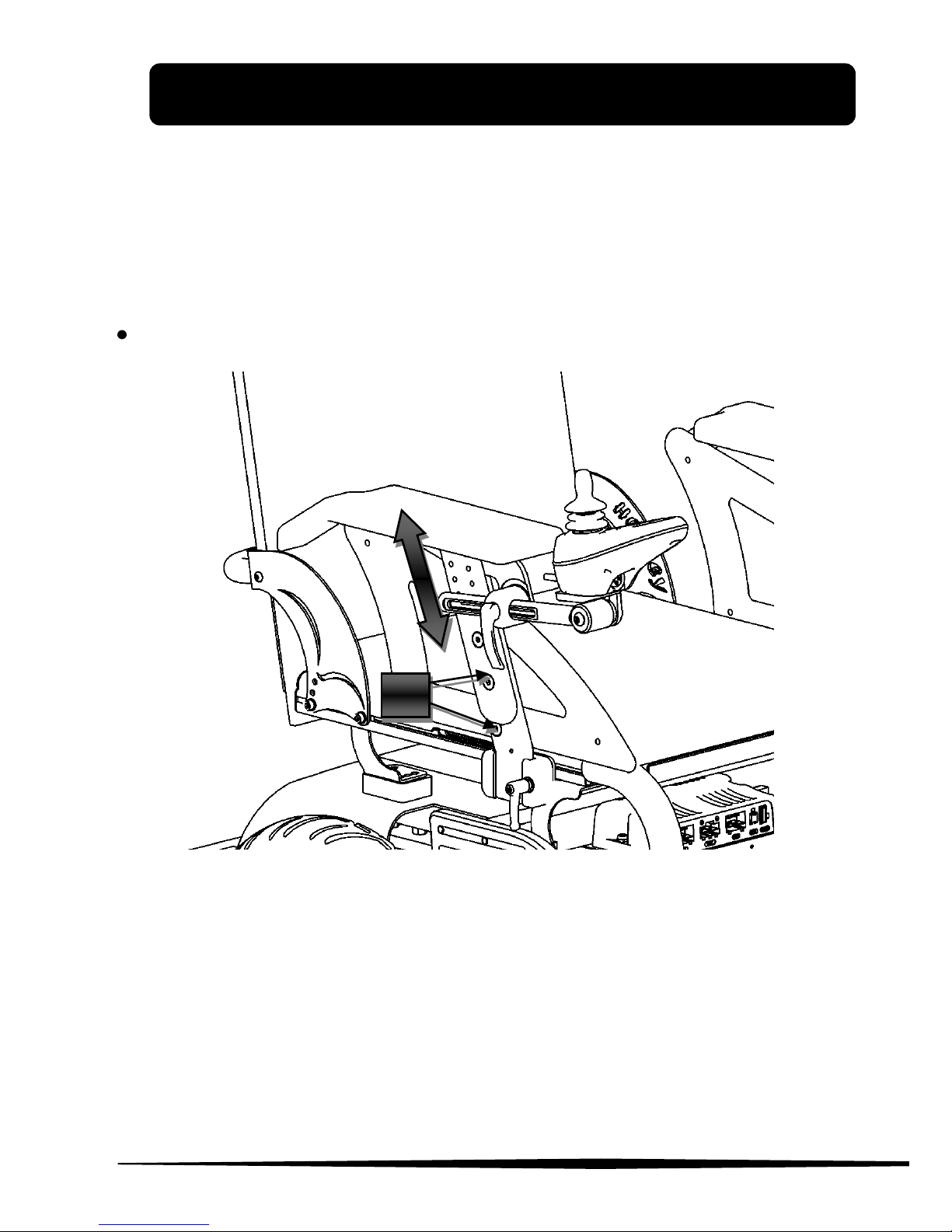

Height

Figure 7

Seeing Figure 7 loosen the screws (A), and set armrests height to
desired value and retighten the screws (A).
NOTE: for this operation use a 6 mm allen wrench.

A

4. ADJUSTMENTS

www.neatech.it

11

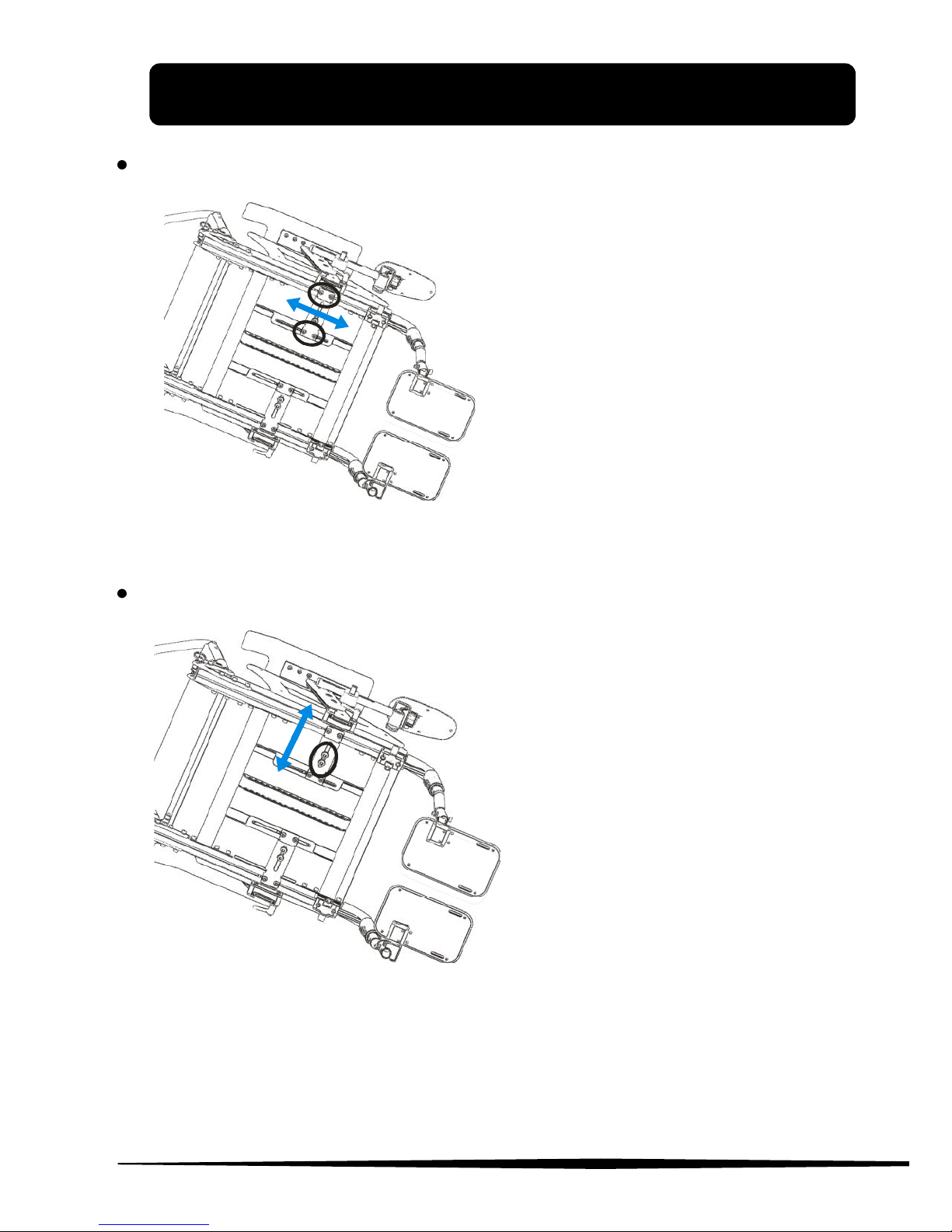

Profondità

C

Figure 8

To adjust armrests depth act
under the seating floor.
Loosen the 4 screws indicated
in Errore. L'origine

riferimento non è stata
trovata. and move the

armrest till the desired
position; tighten the screws
again. Be sure that the armrest
can’t move at all.
NOTE: for this operation use a
10 mm open-end wrench.

Width

C

Figure 9

To adjust armrests width act
under the seating floor.
Loosen the 2 screws
indicated in Figure 9 and
move the armrest in
accordance with the
directions indicated to reach
the desired position and
tighten the screws again.
NOTE: for this operation use
a 6 mm allen wrench.

4. ADJUSTMENTS

www.neatech.it

12

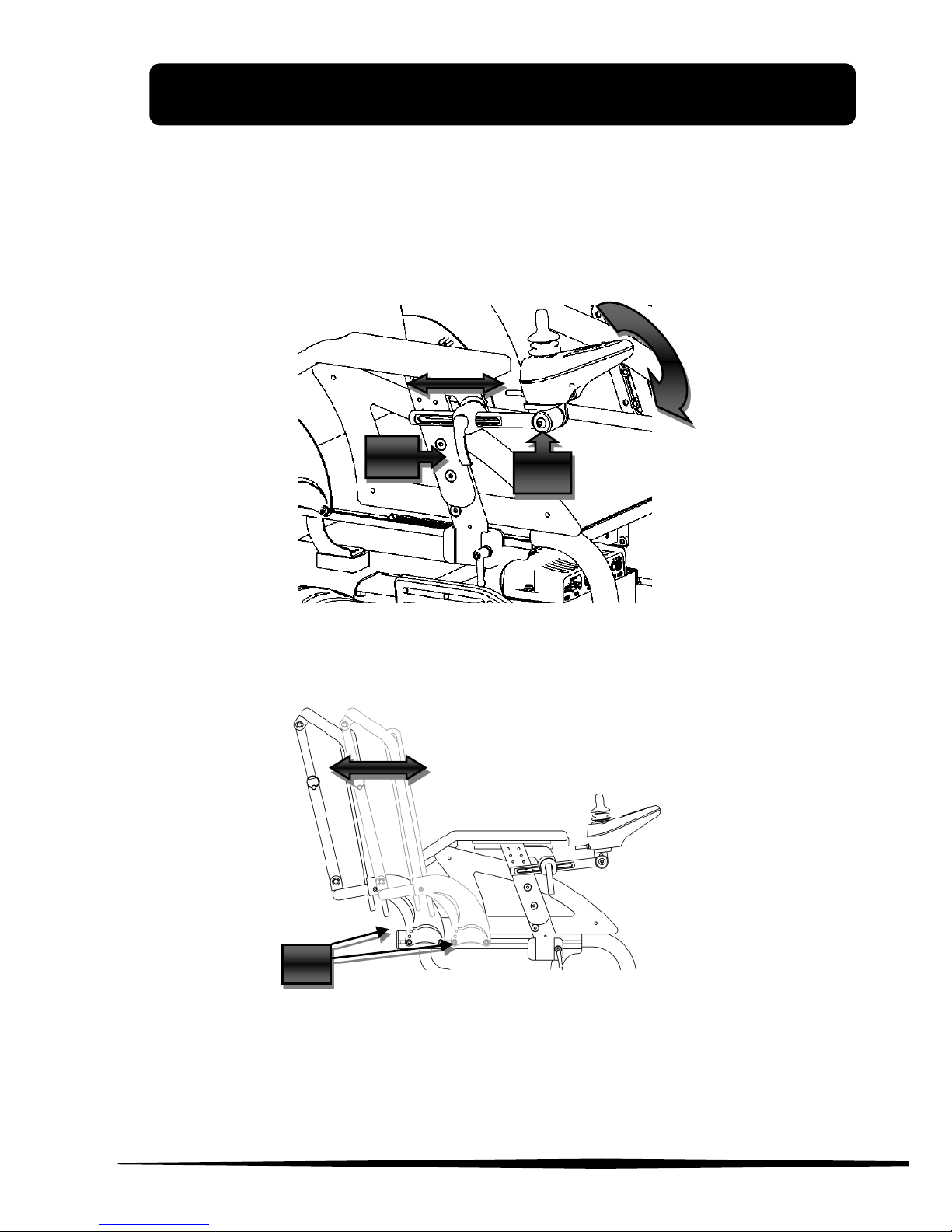

Joystick

Loosen the lever (L), as shown in Figure 10, so it is possible to move
the joystick in depth to reach the desired position. Retighten the
lever. To adjust the angle of the joystick you must act on the screw
(V)

Figure 10

Backrest depth

Figure 11

Seeing Figure 11 Loosen the screws (V), move back up to the
desired position and retighten the screws
NOTE: for this operation use a 4 mm allen wrench.

L

V

4. ADJUSTMENTS

www.neatech.it

13

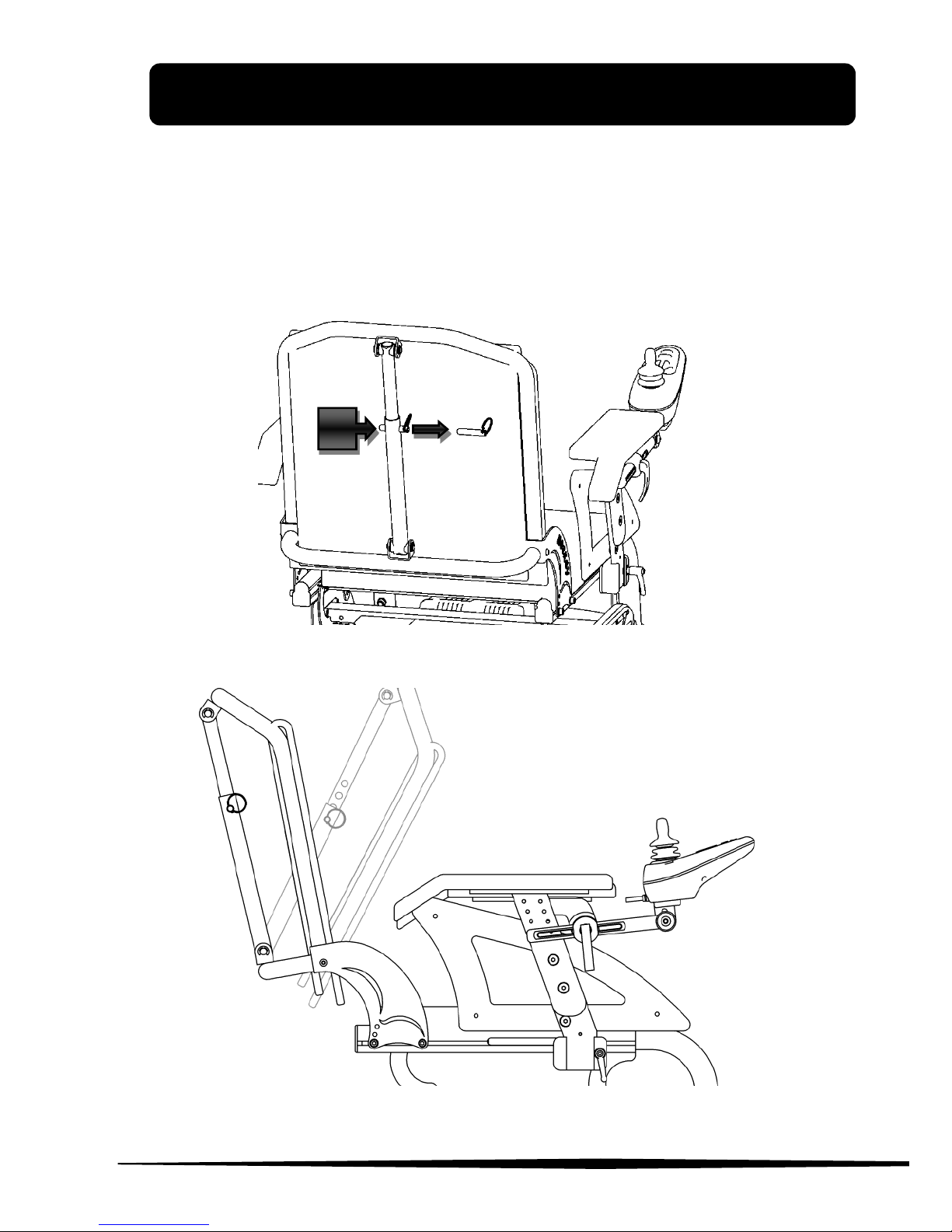

Backrest inclination

To adjust the backrest angle it is necessary to remove the insert (I)
and replace it once you get the desired angle as shown in Figure 12
Figure 13.

Figure 12

Figure 13

I

5. ACCESSORIES

www.neatech.it

14

Speedstar Xtreme can be equipped with many accessories that
NEATECH make available to meet different customer’s needs. There
is the possibility that the joystick changes depending on desired
accessories.

X

Figure 14

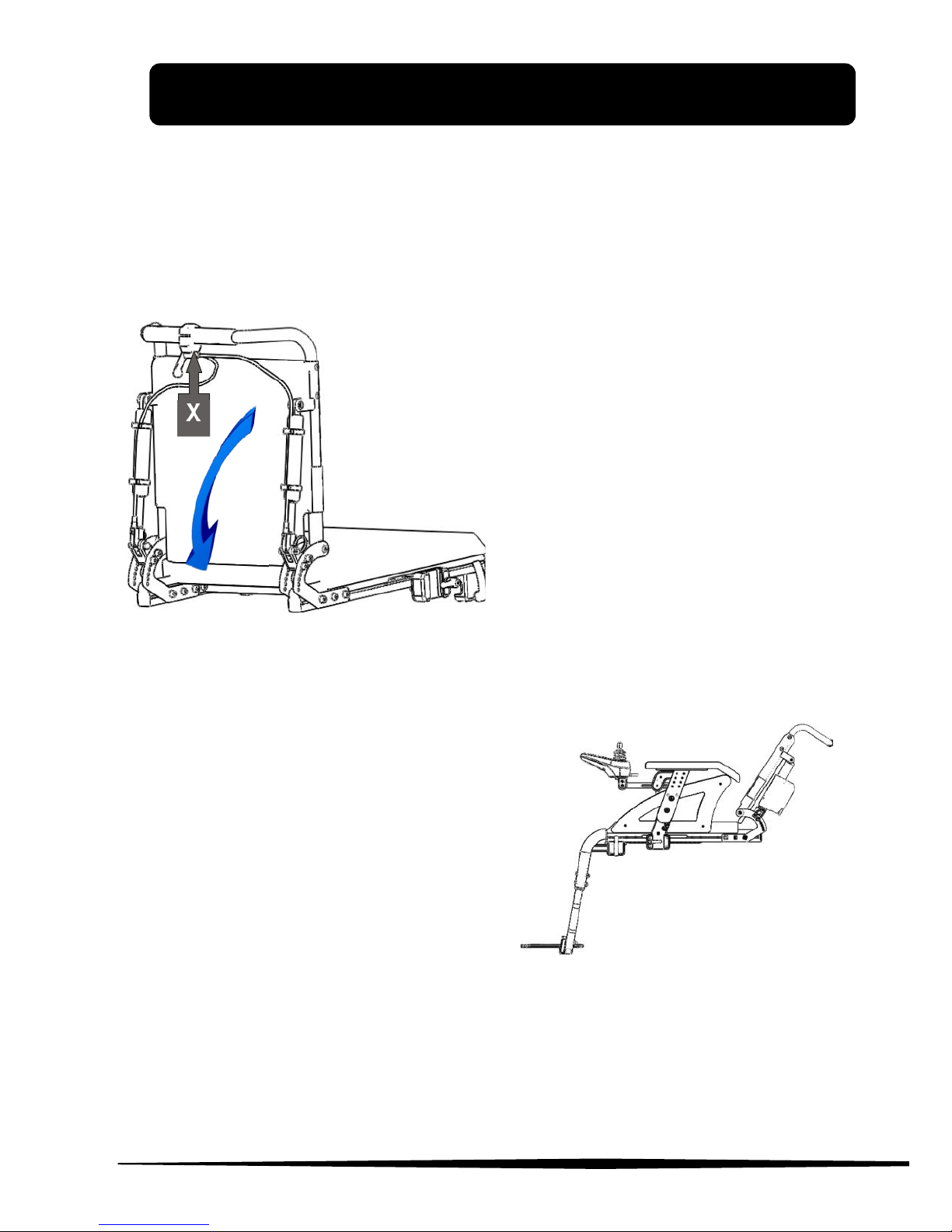

Dynamic reclining backrest
This equipment allows you to
recline the backrest with the
help of a lever installed on
the back. Pull the lever (X)
and recline the backrest to
the desired inclination, so
release the lever (X).

Powered reclining backrest

With the aid of two electronic
pistons user can recline the
backrest with the joystick

Figure 15

5. ACCESSORIES

www.neatech.it

15

Figure 16

Side pad right - left

It is an adjustable support
thath acts laterally on the
chest of the user to keep the
desired position. It can be
mounted either in pairs or
individually.

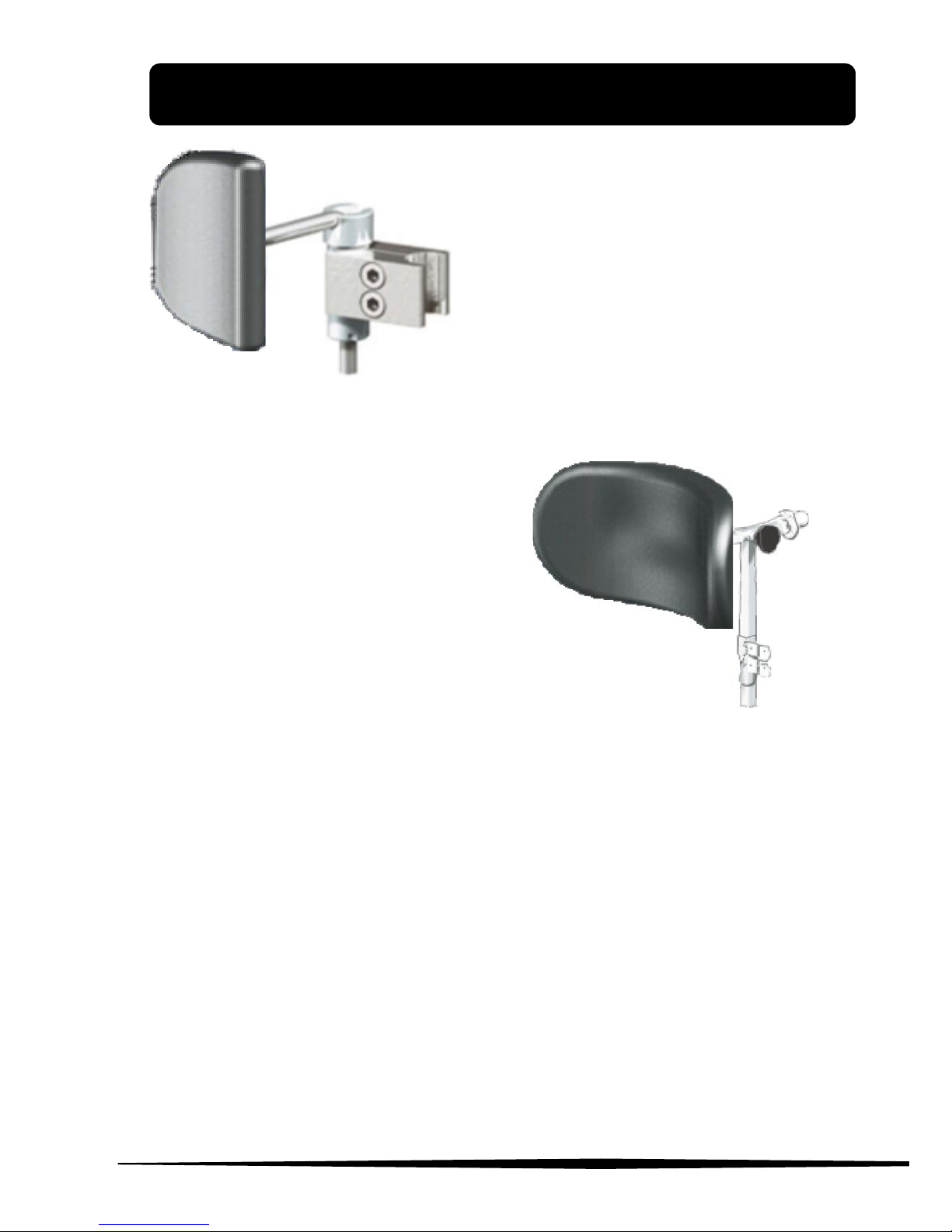

Adjustable headrest

It is a headrest mounted on the
back; you can adjust either height
and inclination. With a pin you can
also rotate it.

Figure 17

Seat belt

Speedstar Xtreme has the predisposition for the installation of a
seat belt that can be mounted on request.

You can also request: heel straps, calf straps and foot straps.

6. CONTROL AND MAINENANCE

www.neatech.it

16

Specifications

Maximum allowed mass

150 kg

Intended use

Speedstar Xtreme is intended for all those
groups of users that are confined to a sitting
position who have the opportunity and the
need not only to travel autonomously but even
to carry out a true sport activity.

The wheelchair can’t be used as a seat in La

sedia non deve essere utilizzata come sedile su
motor vehicles.

Temperatura di utilizzo

from -10 °C to 40 °C

Class
(UNI EN 12184)

Class C

Dimensions [mm]

width 73cm
length 90cm
height 90cm

Empty weights [kg]

81kg

Maximum safe slope [°]

22%

Maximum height of the
platform from which the
chair can descend safely
[mm]

100mm

Range [km]

45km

Batteries

2 batteries ZGL 12054

12 V 80Ah

6. CONTROL AND MAINENANCE

www.neatech.it

17

Maintenance and cleaning

Regular maintenance help to preserve functionality and safety of
the Speedstar. The lack or inadequacy of care and maintenance
implies a limitation of the warranty from the manufacturer.

To clean the chair don’t use any device to spray water at high
pressure and in any case protect the control device from water and
humidity. For plastic or metal parts use a soft cloth moistened with
a non-aggressive detergent. For pads, linings and covers of the seat
and backrest use warm water and mild detergent.
Do not use chemical cleaners, solvents, acids, etc
Tires can be cleaned with water and detergent.

OPERATION

PERIODICITY

Checking tightness of chassis screws

For this operation contact your

vendor

Annual

Replacing the batteries

For this operation contact your

vendor

Biennial

Tire pressure monitoring

Weekly

Checking of tire usury

Monthly

Complete cleaning

Monthly

Serial number

For any report or requests for assistance communicate the unique
identification code on the frame of each Speedstar Xtreme.

7. FAULT, REPAIR AND ASSISTANCE

www.neatech.it

18

POSSIBLE FAULT

PROBABLE CAUSE

ACTION

Joystick does not turn

on

power button is set to OFF

set power button to ON

(see Figure 2)

joystick cable not

properly inserted

insert properly joystick

cable

electrical fault

contact assistance

il cavo della joystick non è

inserito correttamente

inserire il cavo joystick

guasto all'impianto

elettrico

contattare il fornitore

Joystick is turned on but

the chair doesn’t drive

wheelchair in push mode

set the lever as shown in

Figure 5

mechanical failure

contact assistance

wheelchair in push mode

set the lever as shown in

Figure 5

Wheelchair makes noise

release lever not properly

inserted

insert correctly the

release lever

mechanical failure

contact assistance

Wheelchair doesn’t have

a good grip

Tires are not set to the

correct value of pressure

Set the tires pressure to

the correct value

Low autonomy of batteries

end of the life cycle of the

batteries

contact assistance for the

replacement of the batteries

7. FAULT, REPAIR AND ASSISTANCE

www.neatech.it

19

Spare parts list

DESCRIPTION

NOTES

Tire wheel

Specify seat size, front wheel or rear
wheel, right or left wheel

Inner tube wheel

Specify seat size,
front wheel or rear wheel

Cover

Specify seat size

Motor

Specify left or right

Backrest canvas

Specify seat width and backrest height

Seat canvas

Specify seat width and depth

Headrest

Specify left or right

Bearing pair for front
forks

Front forks

Specify Speedstar version (66 - 55)

Lights

Specify if position light, directions light or
headlights

NOTE: For any other problem, contact the manufacturer.

7. FAULT, REPAIR AND ASSISTANCE

www.neatech.it

20

Condizioni di garanzia

Speedstar is a product globally guaranteed for 24 months with the
exception of batteries that are guaranteed for six months. The
warranty covers defects in materials or workmanship. The

warranty doesn’t cover parts subject to usury or damaged parts by:

overload, misuse, alterations and repairs made by unauthorized
third parties.
The warranty expires in case of tampering, improper storage,
unauthorized or incorrect maintenance.

MODEL:

Speedstar Xtreme

SERIAL NUMBER:

DATE OF
CONSTRUCTION:

GUASTI, RIPARAZIONI E ASSISTENZA

GUASTI, RIPARAZIONI E ASSISTENZA

USER MANUAL

SPEEDSTAR XTREME

NEATECH.IT

Our Mission is transfer technology and solution from the

aerospace industry to disability sector. We are proud to

offer the highest quality products and solution on the

market.

www.neatech.it
