Neatech LEVIA KID User Manual

USER MANUAL

With CE Mark Statement

DECLARATION OF CONFORMITY

The manufacturer

Neatech.it

4/A, A. De Curtis St. 80040 Cercola (NA) Italy

under its responsibility, states that

the wheelchair Levia Basculante Kid

satisfies the conditions laid down by European Directive 93/42;

according to the criteria for classification of annex IX of this Directive, the Levia

Basculante Kid is classified as

class I medical device

It also complies with the requirements of the harmonized standards:

UNI EN 12182 Ausili tecnici per persone disabili

UNI EN 12183 Sedie a rotelle a propulsione manuale

TABLE OF CONTENTS

WHEELCHAIR PRESENTATION. .......................................................................... 1

STARTING UP ..................................................................................................... 2

ADJUSTMENTS .................................................................................................. 9

ACCESSORIES ................................................................................................... 20

MAINTENANCE AND ASSISTANCE ................................................................... 29

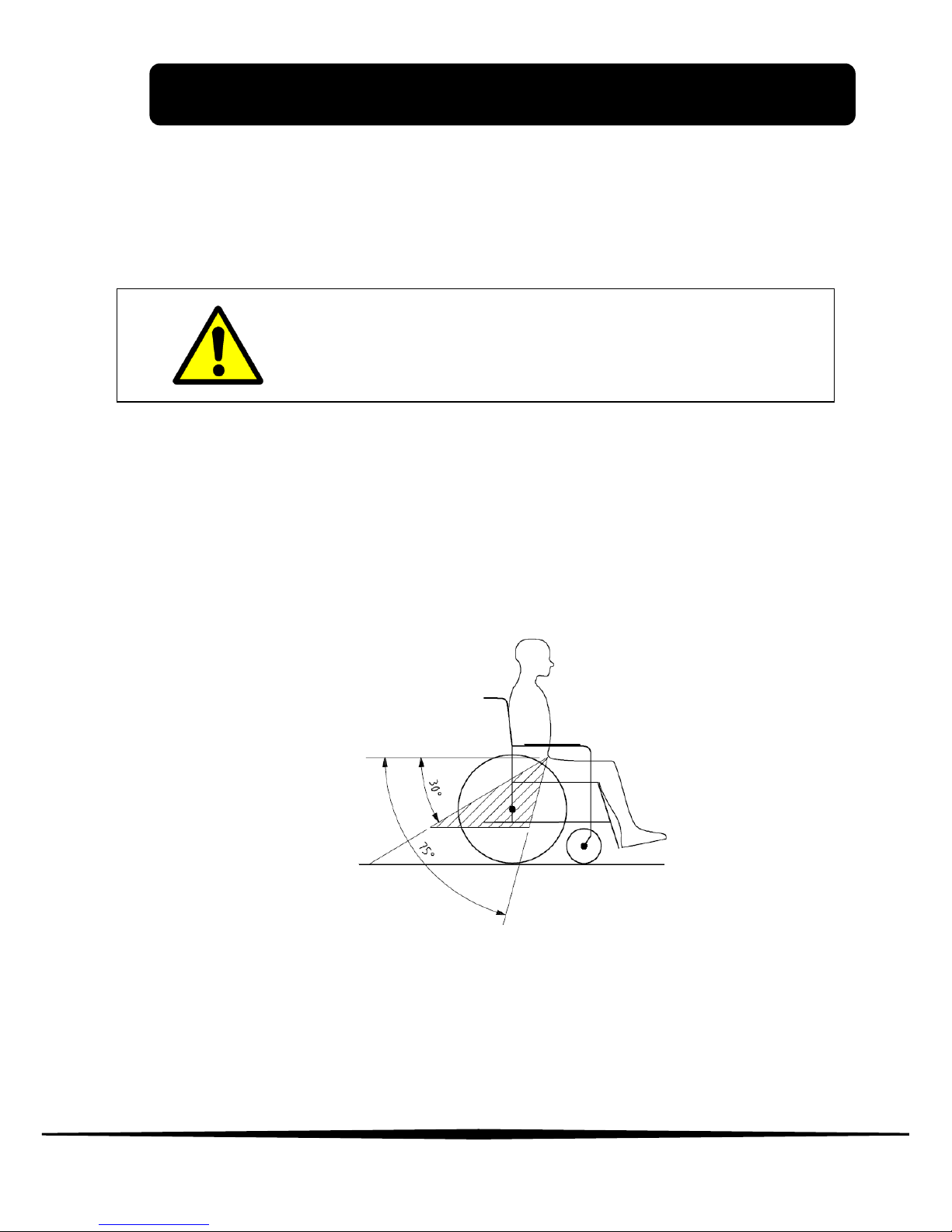

TIPPING HAZARD

Any transport on a slope greater than the maximum
security slope can be dangerous.

TEMPERATURE

The temperature of some surfaces may increase
when the chair is exposed to external heat sources
as sunlight

DISPOSING

This product and all its components cannot be treated
as household waste. For more detailed information
on how recycle this product contact your local waste
disposal service

1. WHEELCHAIR PRESENTATION

www.neatech.it

1

Thank you for choosing our product.
The aeronautical technology, used to manufacture all Neatech.it
products, made possible to create rigid and foldable frame highly
customizable and reliable.
Frame and canvas are available in different colors.

Features

 Aluminum alloy structure
 Folding frame

Opening and closing of the wheelchair are performed with a
crossbar patented system

 Adjustable brakes

Brakes are adjustable according to wheel’s diameter



Adjustable armrests

 Removable footrests

 Dynamic tilting

The angle between the seat and the backrest remains fixed while
tilting

 Customizable colors

WARNING: It is prohibited to use the wheelchair or its parts for any
purpose other than that indicated; for a correct use please follow
the instructions given in this manual. NEATECH.IT disclaims any

responsibility for damages caused by improper use of aids.

WARNING: The information contained in this manual may be
subject to change and without prior notice.

2. STARTING UP

www.neatech.it

2

Checks to be made on delivery



Check for the integrity of the original packaging

INSIDE THE BOX THERE IS:

Wheelchair Levia Basculante Kid
Footrest
N. 2 armrests
Documentation



Check for any anomalies on the shipping documents.



Check the functionality and integrity of the device in all of its
parts, at the time of or immediately thereafter, to ensure that no
damage is caused by a careless transport.



Make sure the surface of the device is not damaged, scratched,
bended, etc.



Any fault or damage found must be immediately reported on the
shipping documents and promptly communicated to the carrier.
For any other questions, please contact the manufacturer.



If you don’t want to use the Levia Basculante Kid for a long time,
store it in a safe place free from dust and moisture

2. STARTING UP

www.neatech.it

3

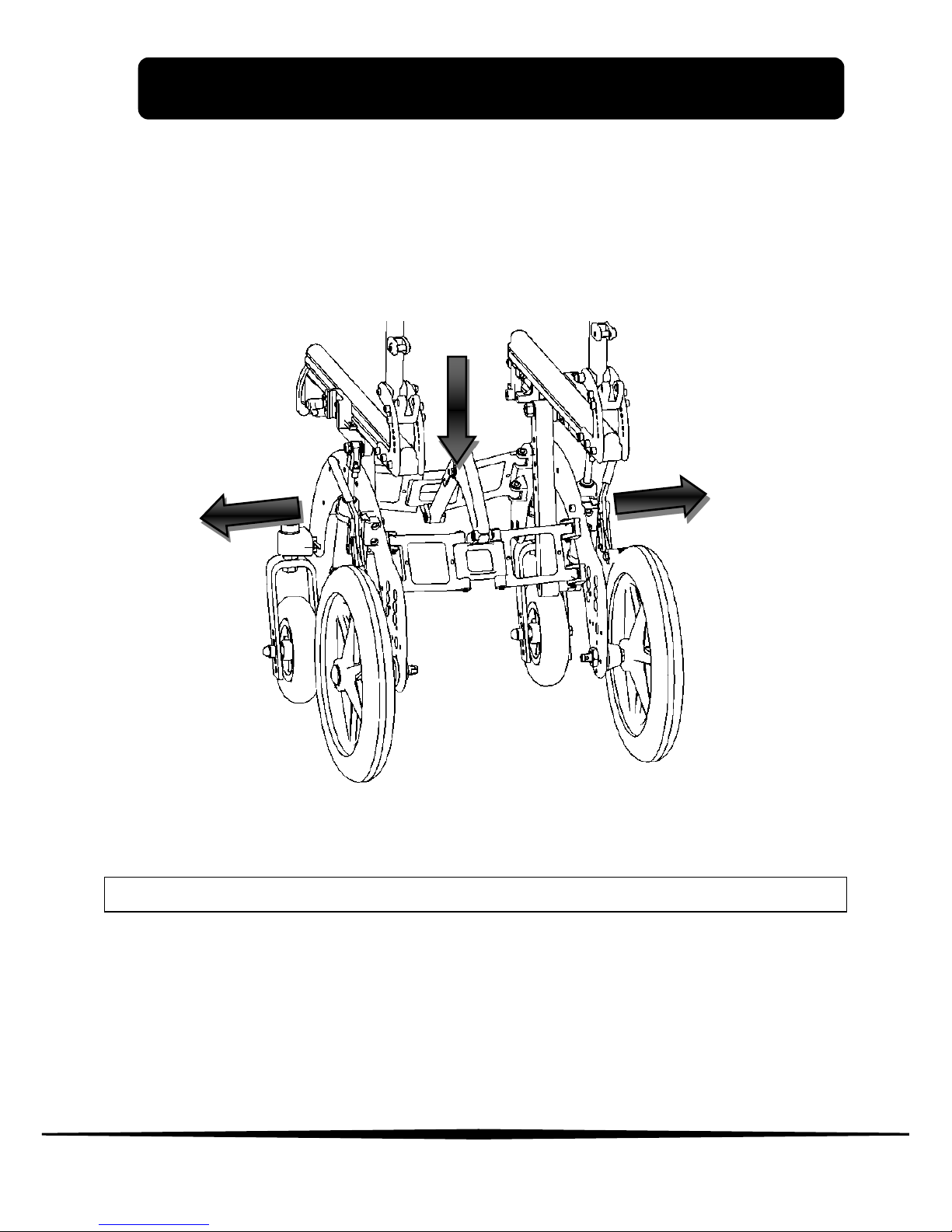

The wheelchair is shipped already assembled with closed frame.
For the opening it will be sufficient to remove the sides of seat and
apply a slight pressure on the handle placed on the element that joins
the cruises as shown in Figure 1.
The wheelchair has reached the maximum opening when you can
hear a snap.

Figure 1

WARNING: A wrong grip of the handle can cause injury to hands

2. STARTING UP

www.neatech.it

4

Once opened, the frame you need to assemble the tube for the
headrest and the footrest. Regarding the tube for the headrest it is
necessary to introduce it in the tubular as shown in Figure 2. To
facilitate the operation slightly dilate the tubes of the seat.
Then tighten the locking levers saddle (L1).

Figure 2

To assemble the footrest introduce the extension in the housing as
shown in Figure 2 and tighten the locking levers saddle (L2).

L2

2. STARTING UP

www.neatech.it

5

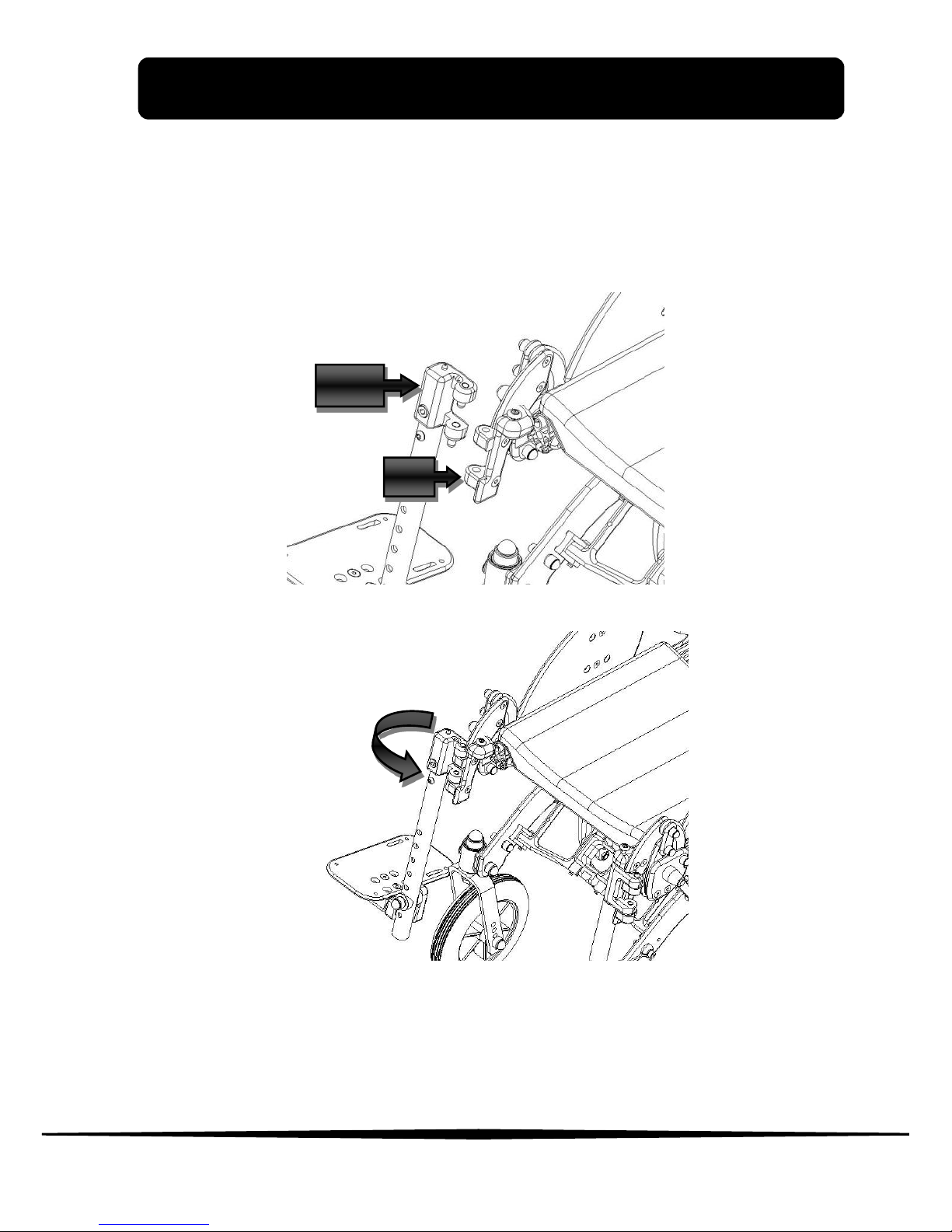

If you have ortho extensible footrest the assembly is different.
Ensure the engagement of the footrest (AP) in the appropriate
housing (S) as shown in Figure 3 and then rotate towards up to the
next step of the pin as in Figure 4.

Figure 3

Figure 4

AP

2. STARTING UP

www.neatech.it

6

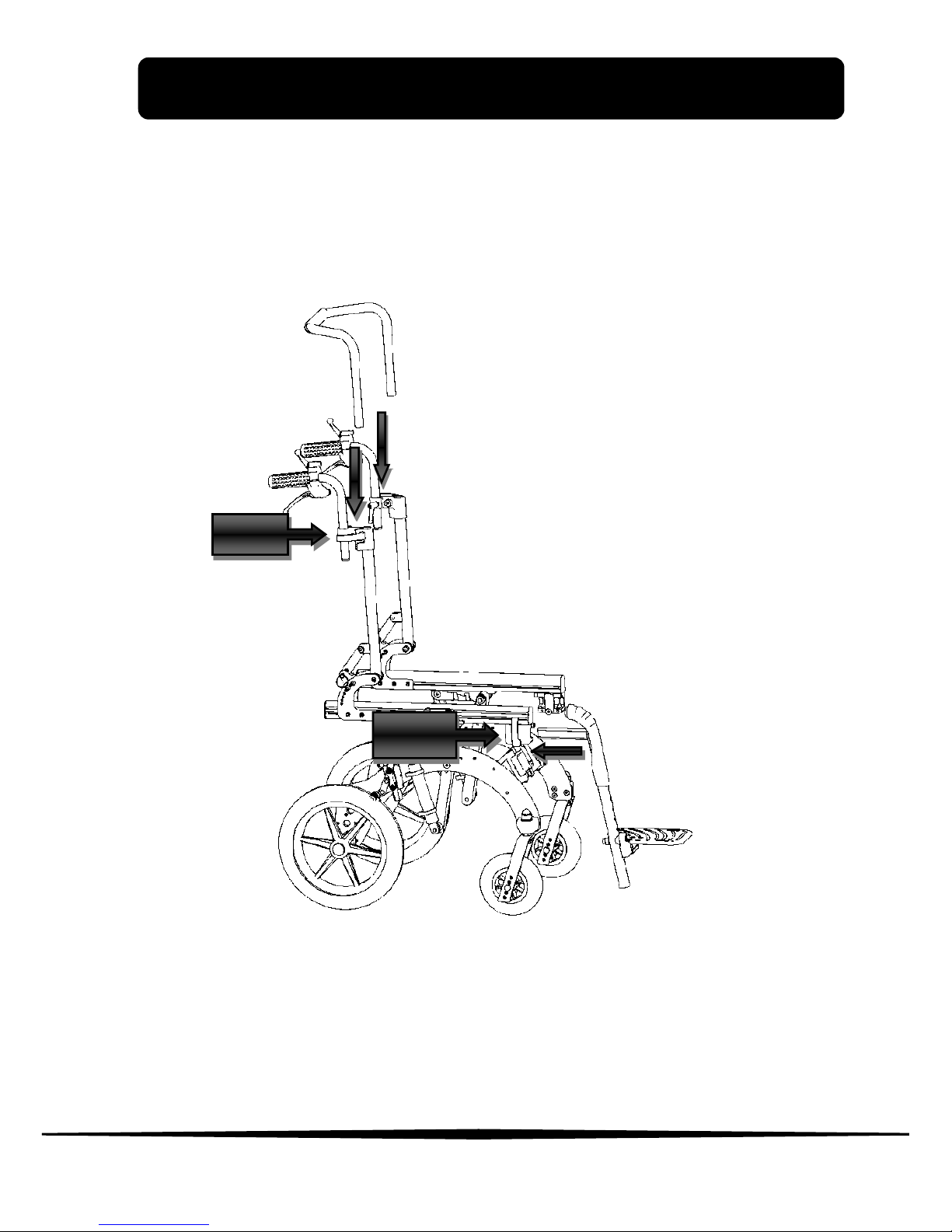

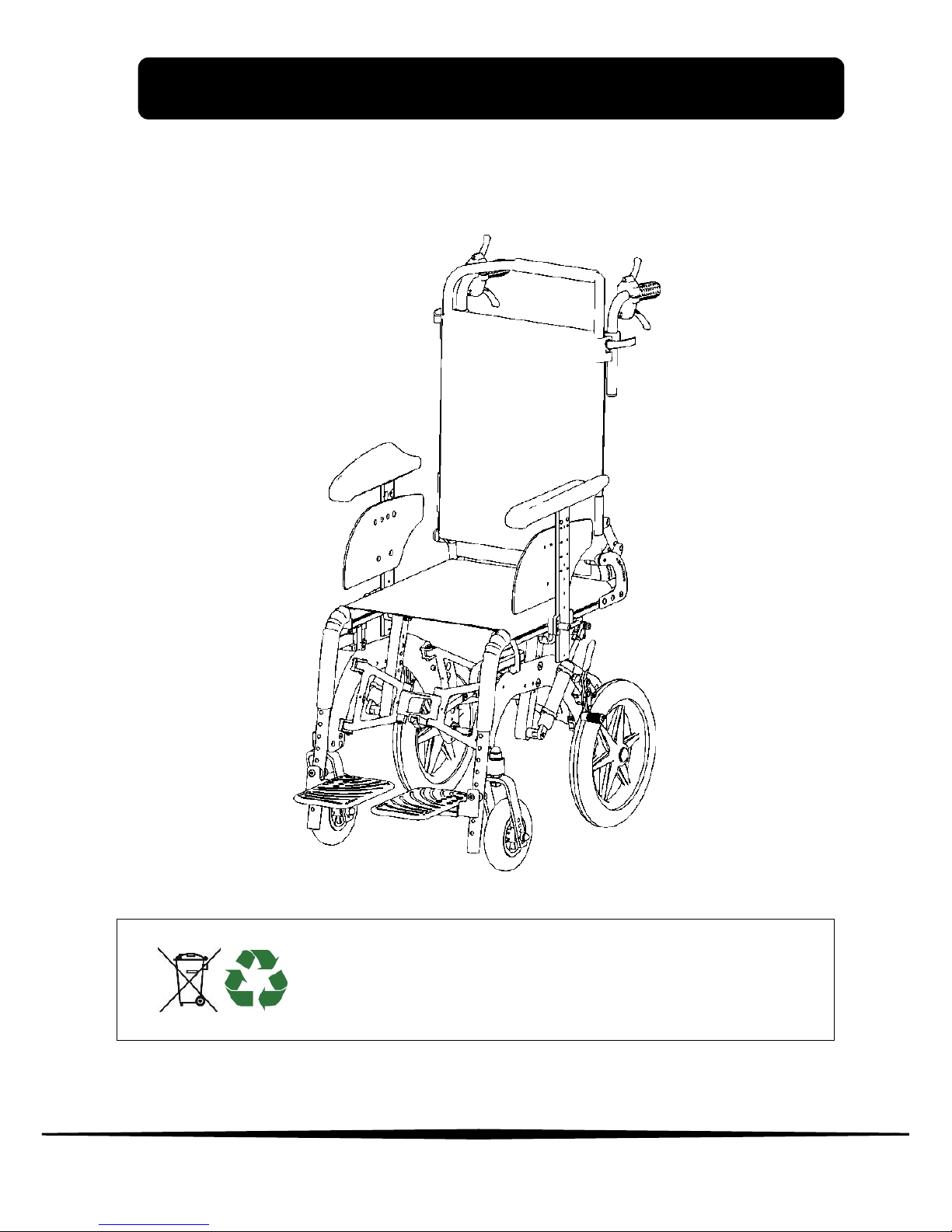

Assembled wheelchair – standard version

Figure 5

DISPOSAL OF PACKAGING

To correctly recycle the packaging materials of Levia
Basculante Kid follow the instructions provided by the
local waste disposal service.

2. STARTING UP

www.neatech.it

7

Checks to be made before use

Here are some checks to be made to safely use the wheelchair.



Frame check
Check for the proper opening of the frame before each use of
the chair

WEEK CHECKS



Pressure control
If mounted wheels are pneumatic verify that their pressure is
equal to the value indicated on the tire.



Brake check
Check that the brakes are working correctly



Gas spring check

Check that the two gas spring for the tilting don’t leak oil

MONTHLY CHECKS



Tighten screws of the frame
Check the tightness of all screws of the frame.
For this operation please contact your supplier.

2. STARTING UP

www.neatech.it

8

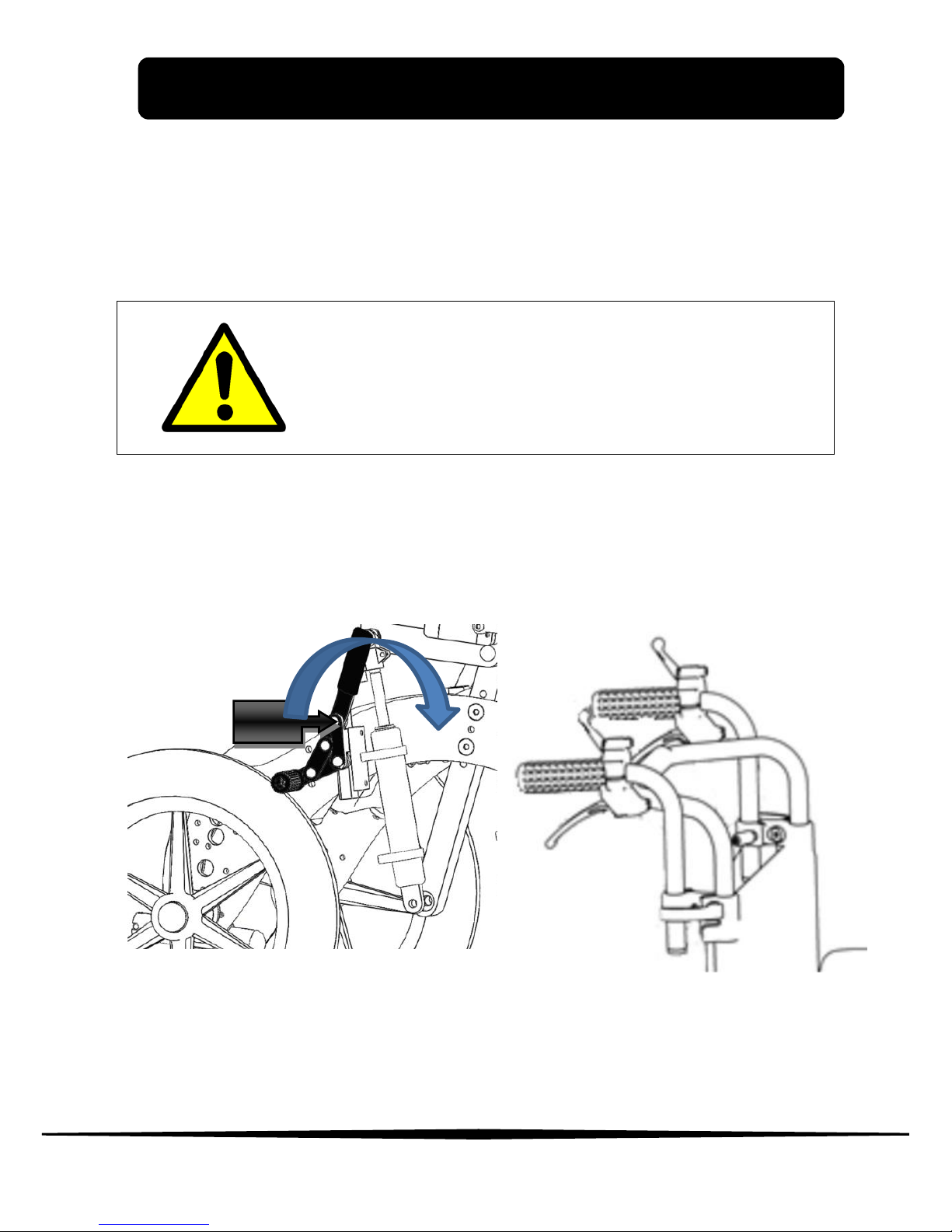

Use of the brake

To lock the brakes use the lever (L) shown in Figure 6. In this way
the wheelchair is blocked against any involuntary movement. Repeat
this operation for both rear wheels.

WARNING

When operating the brake, act always on both the
right lever and the left lever. The use of the
wheelchair with only one locked wheel may result
dangerous.

On request the Levia Basculante Kid can be equipped, in addition to
the normal brake described above, with drum brakes.

In this case to operate them, act on the lever normally placed over
the backrest (see Figure 7)

Figure 6

Figure 7

L

3. ADJUSTMENTS

www.neatech.it

9

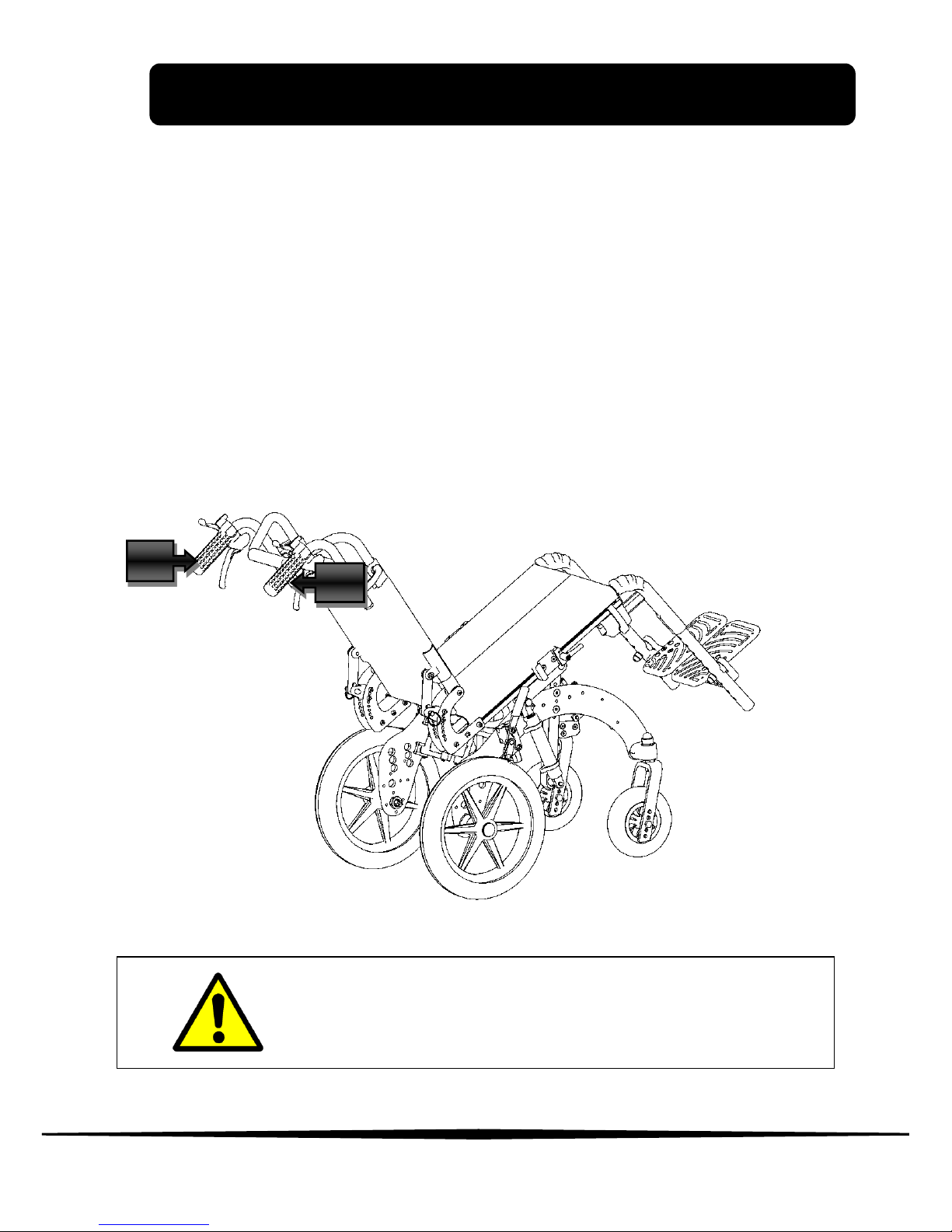

Tilting

The tilting of the seat is controlled by two gas spring. They allow you
to vary the inclination of the seat in a continuous way and choose the
most suitable position for the user.
To perform the tilting just make a pressure upward simultaneously
on the two levers (M) located under the push handles (see Figure 8)
and push down these one.
When you reached the desired angle of inclination, just leave the
levers. The seat will lock in the chosen position.

Figure 8

During the operations of tilting make sure that the
elbows are resting on the appropriate armrests to
eliminate the risk of entrapment

Armrests

3. ADJUSTMENTS

www.neatech.it

10

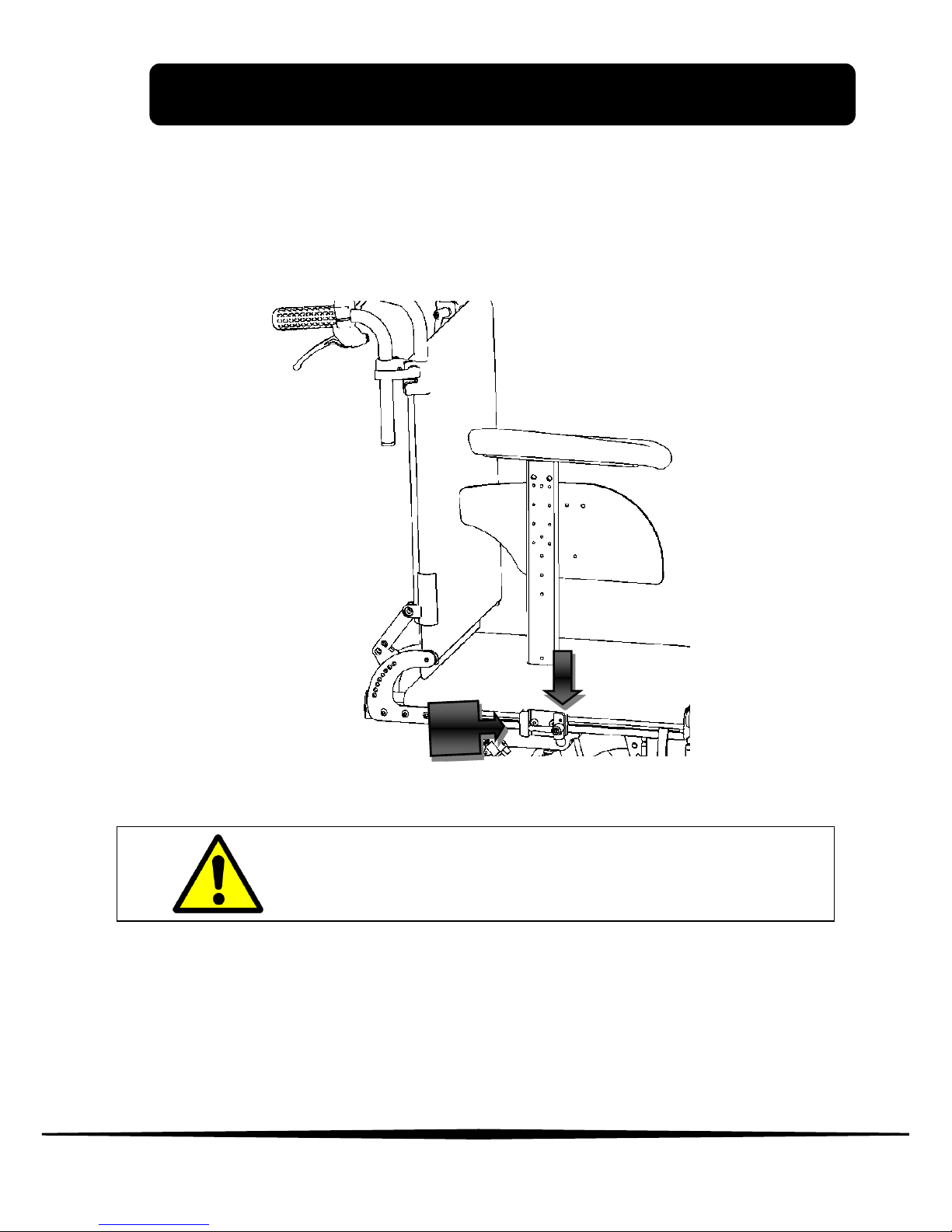

For the armrests you can make two different adjustments: height and

depth. Let’s begin to see how to assemble the armrest. It is sufficient

to introduce it in the housing as shown in Figure 9 below and fix it
by turning the lever (L).

Figure 9

Never sit on the arms

3. ADJUSTMENTS

www.neatech.it

11

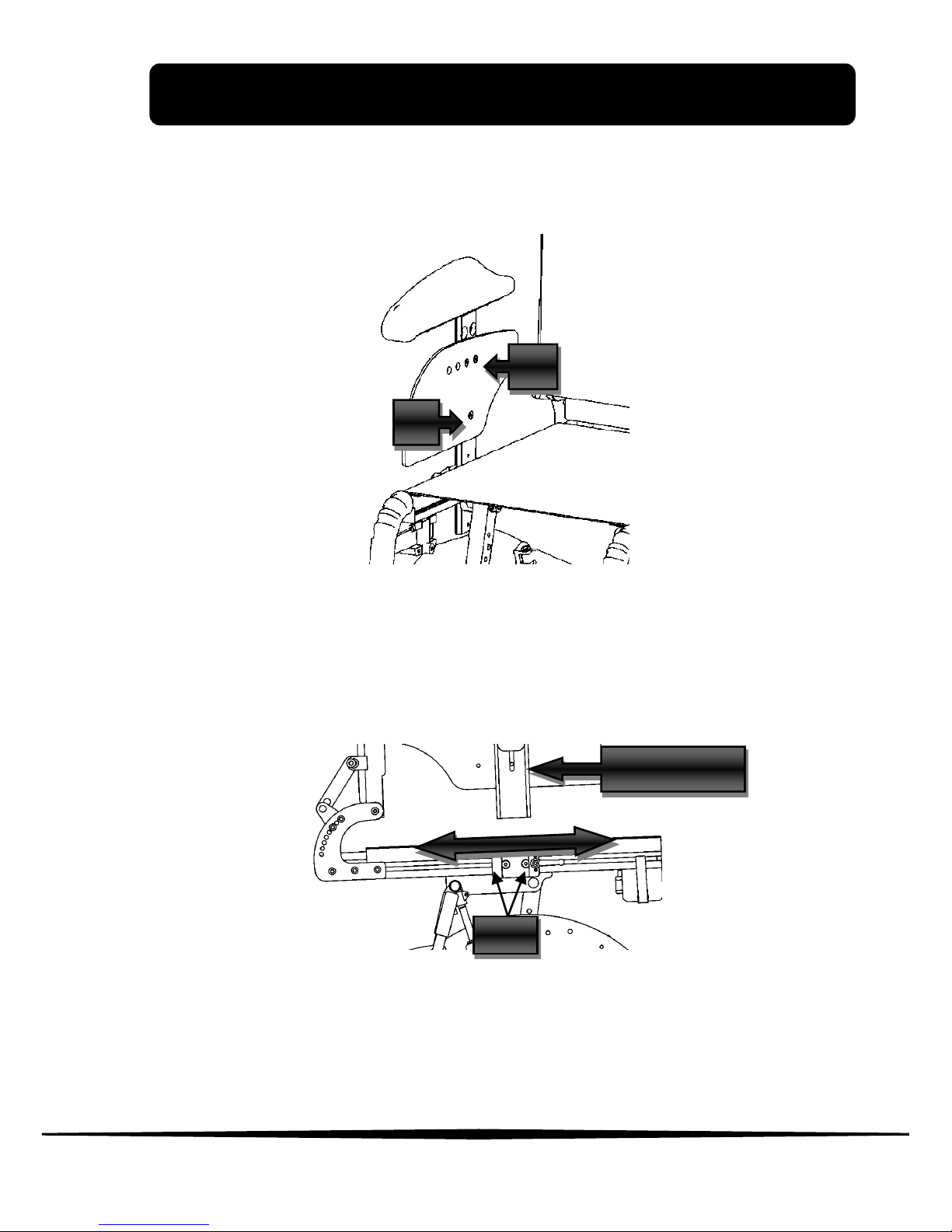

For the adjustment of the armrests in height it is necessary to
intervene on 3 screws shown in Figure 10 to adjust the side panel to
the desired height and then act on the lever (L) indicated in Figure 9.

Figure 10

As for the depth adjustment it is necessary to remove the armrest
and act on the screws shown in Figure 11.
Then mount again the armrest.

Figure 11

V

V

Armrest

3. ADJUSTMENTS

www.neatech.it

12

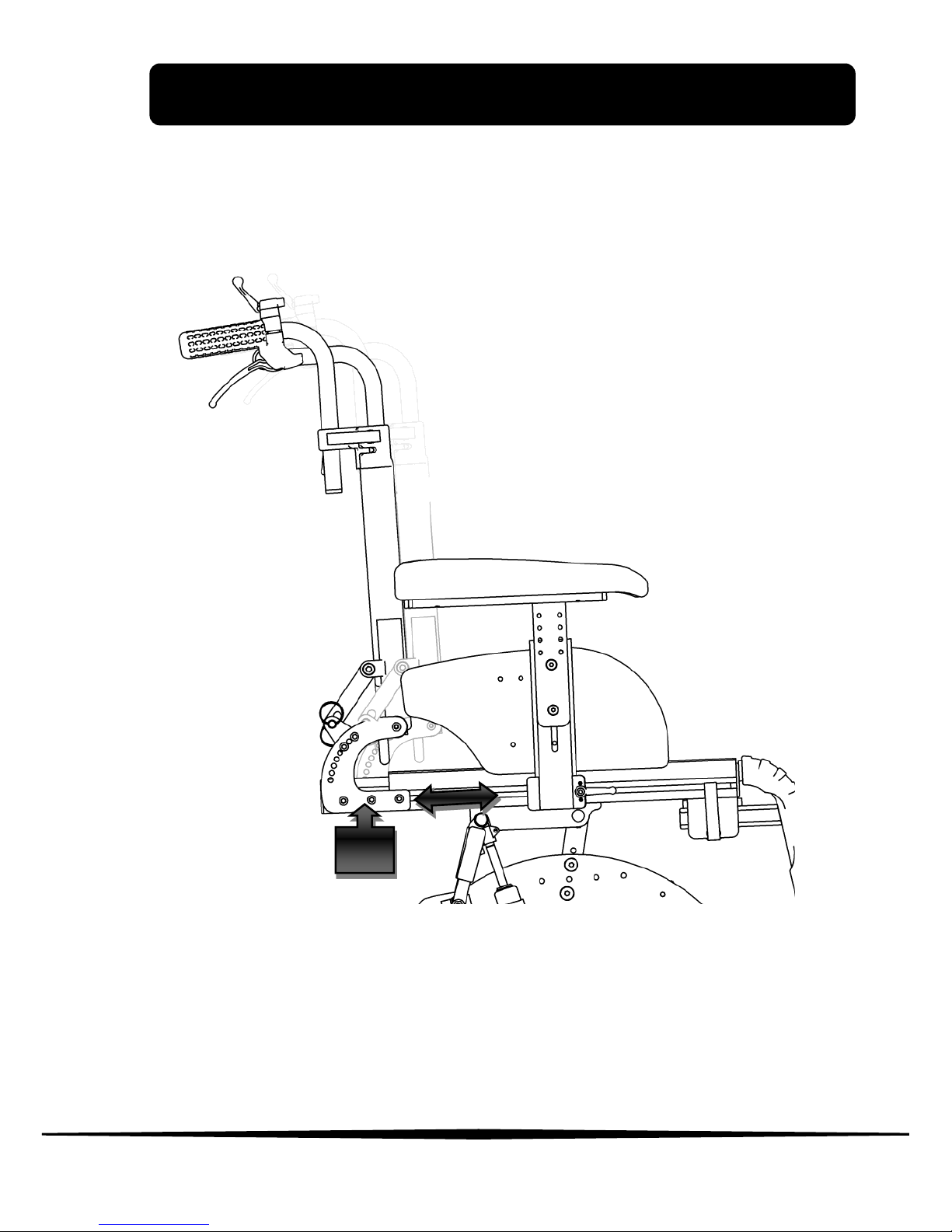

Fixed backrest

For the best comforts you can adjust the backrest depth as shown in
Figure 12 using the screws (V).

Figure 12

V

3. ADJUSTMENTS

www.neatech.it

13

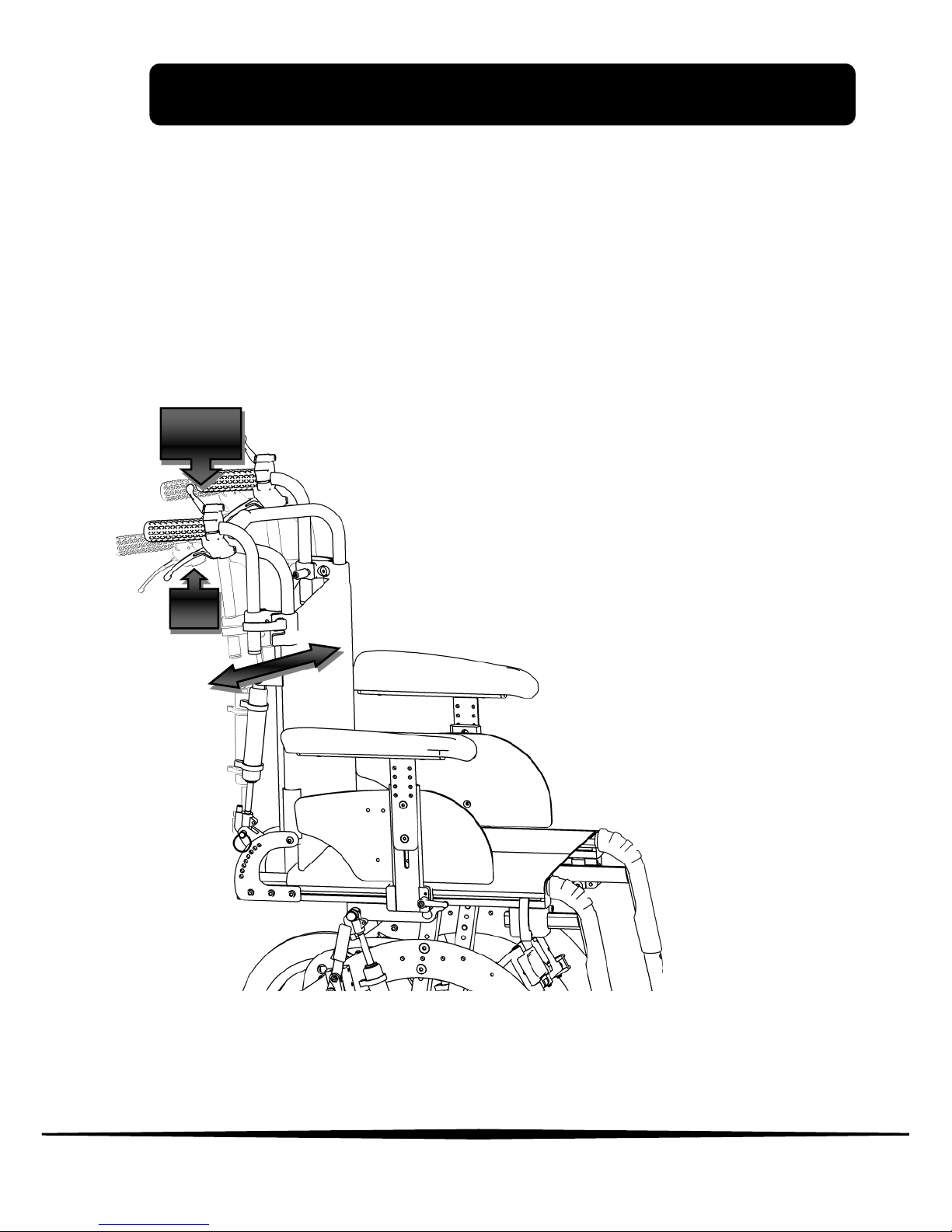

Dynamic reclining backrest with gas springs

With the dynamic reclining backrest with gas spring you can vary the
angle of inclination acting on the levers (L) located above push
handles shown in Figure 13.
Apply a slight downward pressure and release when you reach the
desired angle.

Figure 13

3. ADJUSTMENTS

www.neatech.it

14

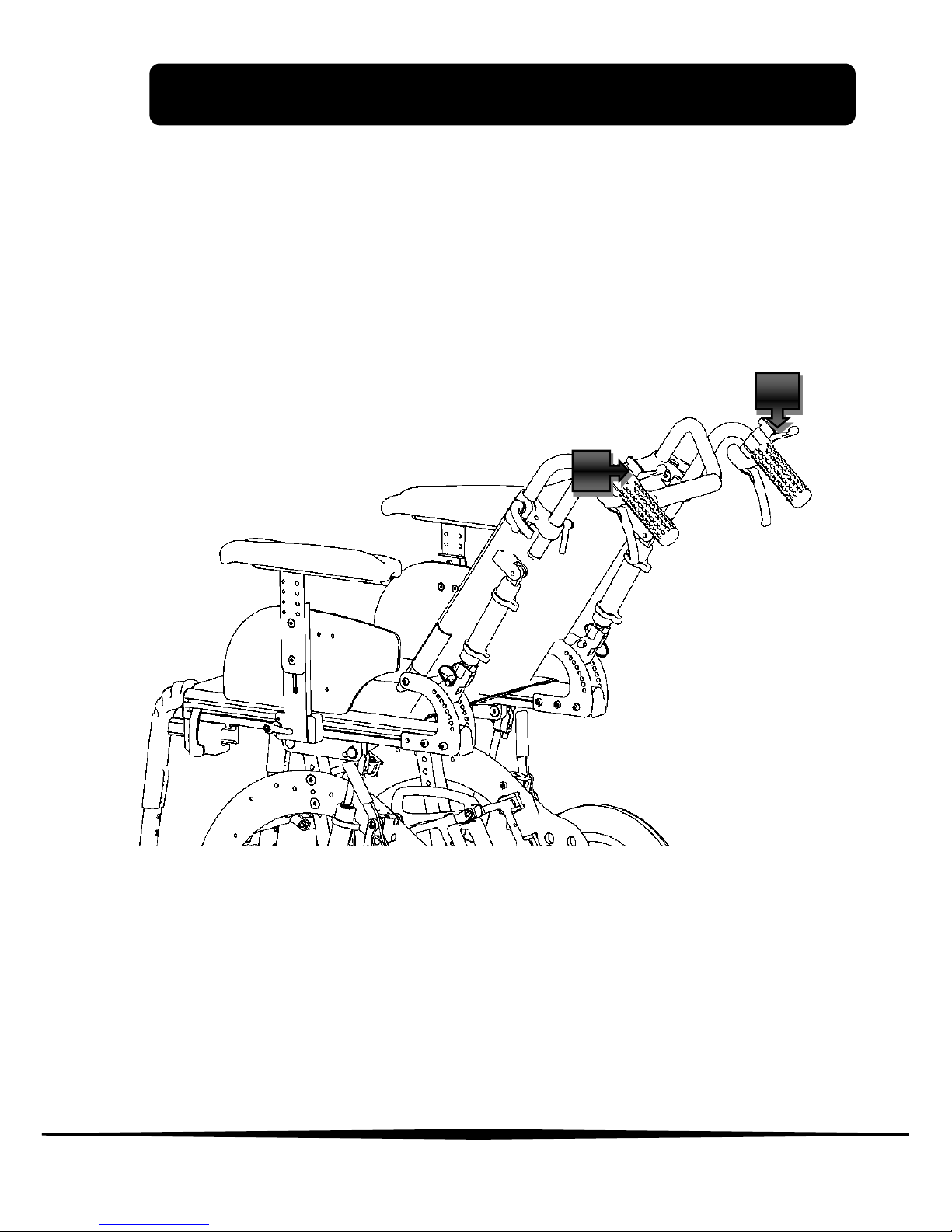

Spring backrest

To activate the springs in the backrest it is necessary to apply some
upward pressure on the levers (I) placed under the handles as shown
in Figure 14.
WARNING: in this configuration the tilting can be realized by acting
on the levers (L), shown in Figure 14, placed above the push handles.

Figure 14

L

3. ADJUSTMENTS

www.neatech.it

15

Splitted footrests



Inclination

By loosening the screws shown in Figure 15 it is possible to adjust
the tilt of the footrest: simply rotate it until it reaches the desired
position.
Tighten again the screws.



Depth

To adjust the depth of the footrest unscrew the screws shown in
Figure 15, place the footrest in one of three designated locations.
Tighten again the screws

Figure 15

3. ADJUSTMENTS

www.neatech.it

16



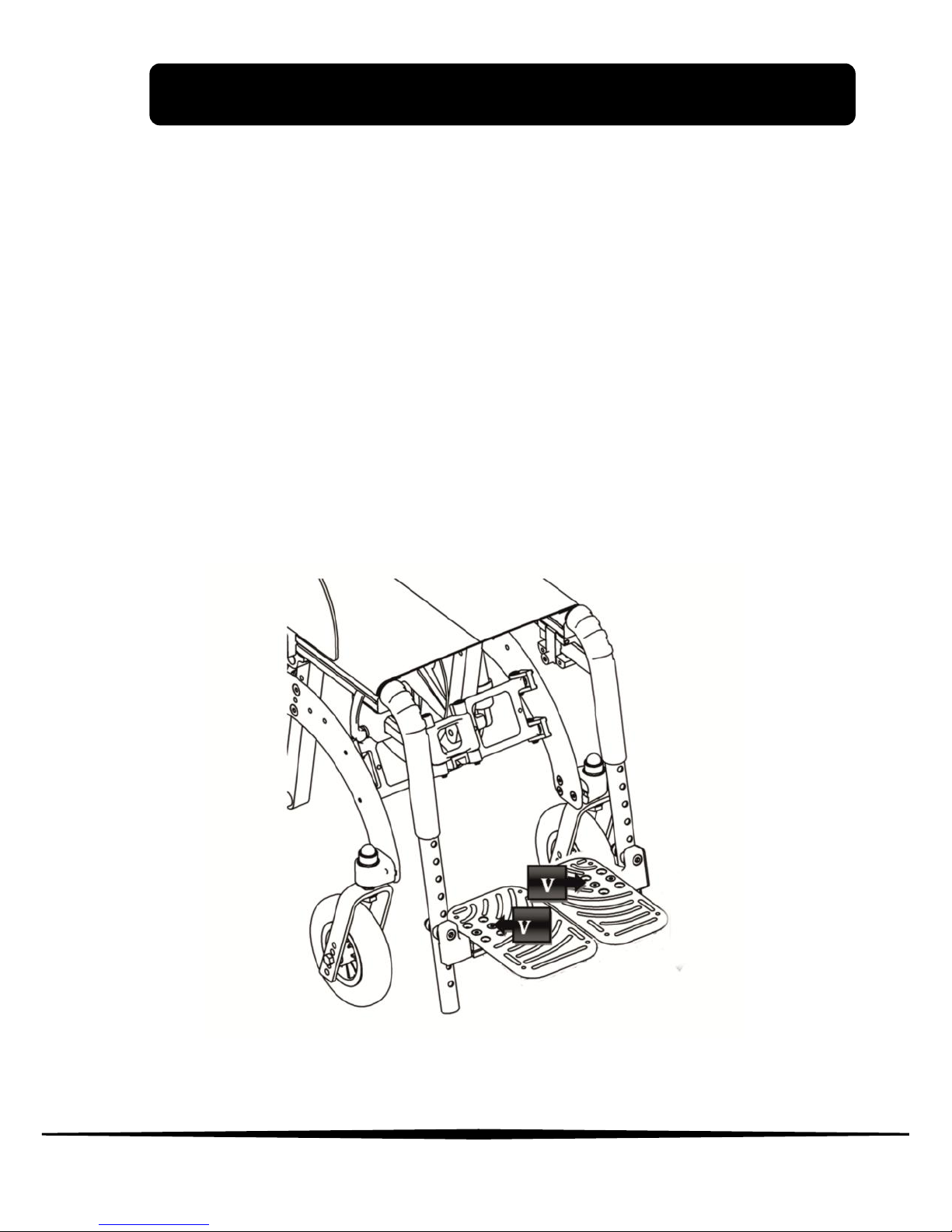

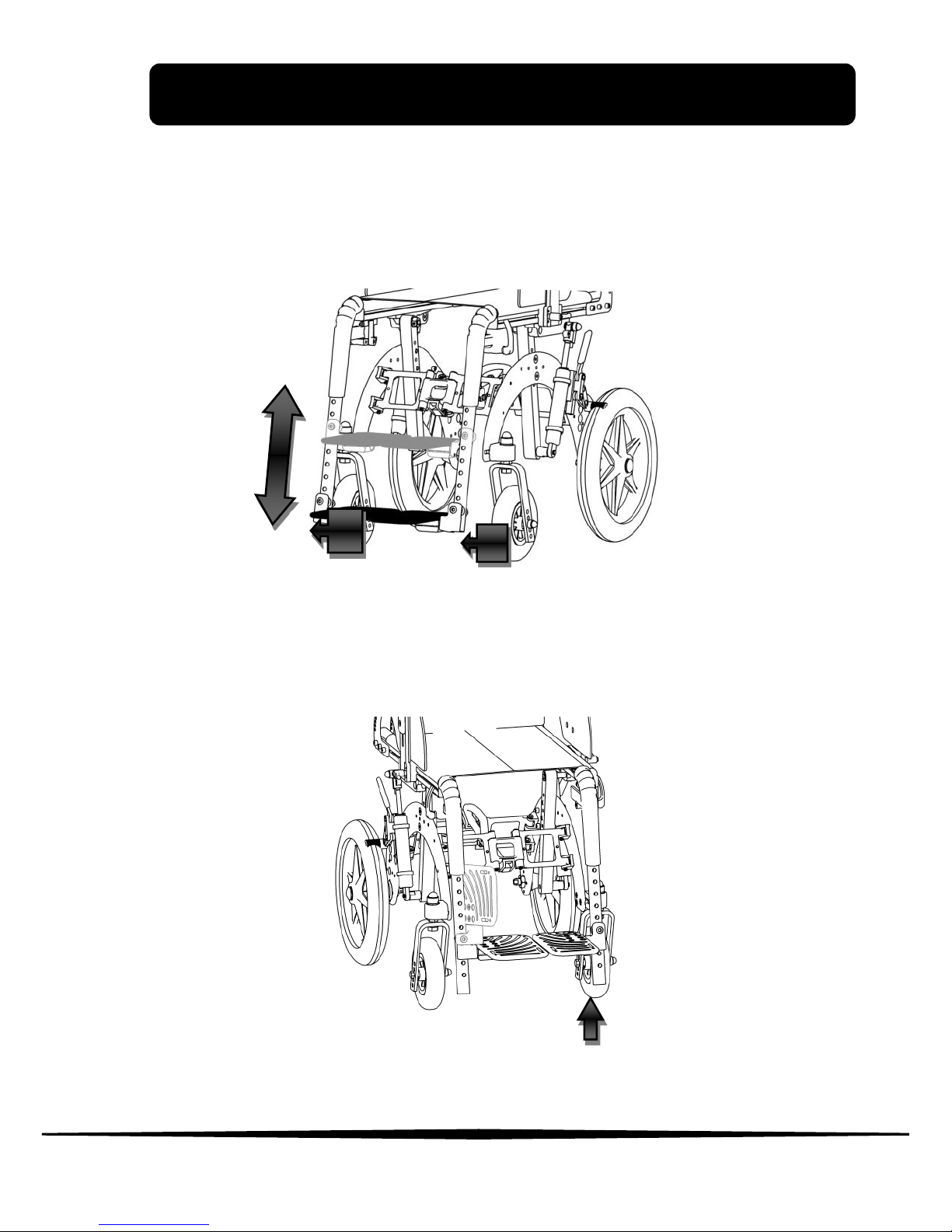

Height

To make an adjustment in height of the footrest it is necessary to act
on the screws (V) shown in Figure 16 and fix them to the desired
height.

Figure 16



Folding

Furthermore, the footrest can be easily folded as shown in Figure 17.

Figure 17

V

3. ADJUSTMENTS

www.neatech.it

17

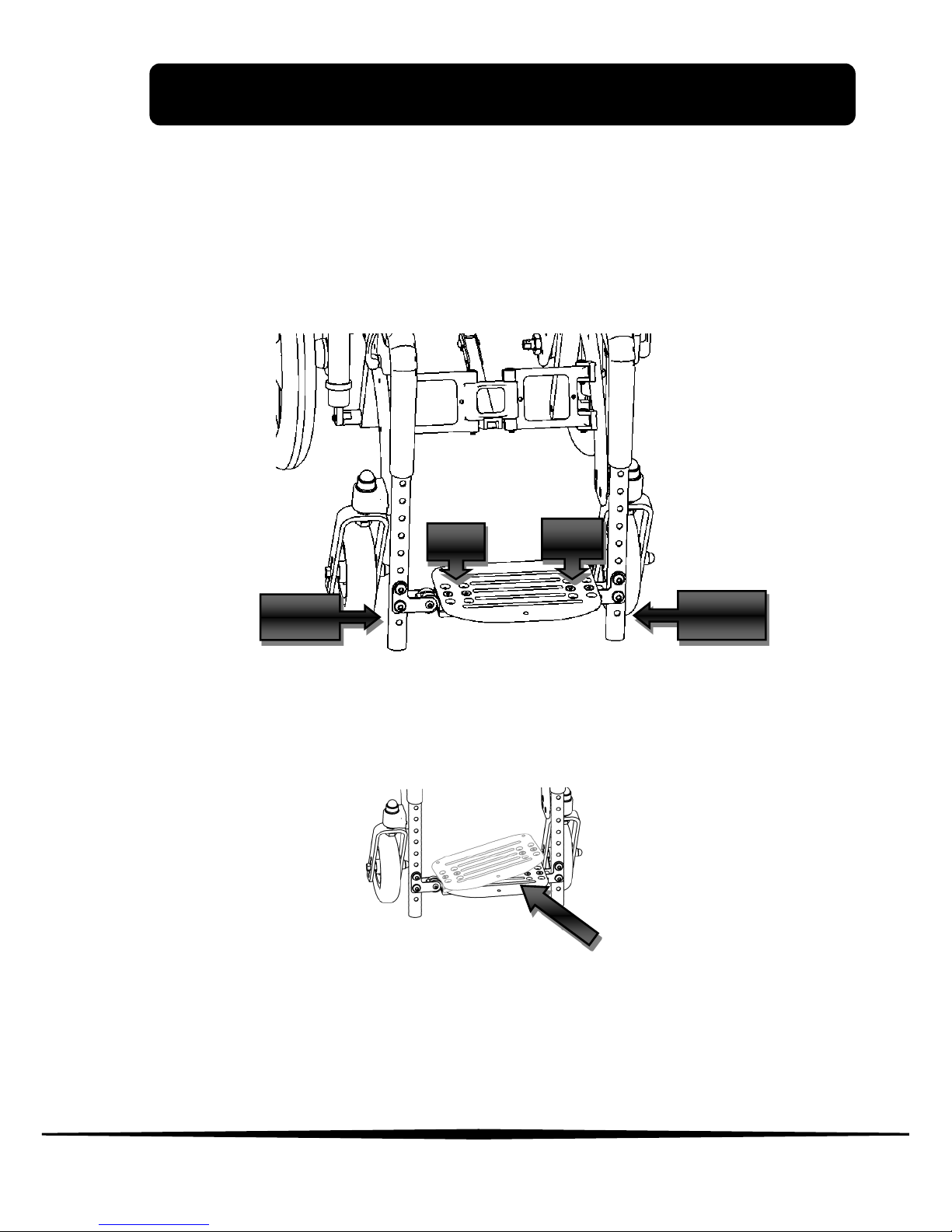

Single footrest

For the single footrest the way to make adjustments is the same. Act
on the four screws (V) to guide the angle and depth of the footrest
and on four screws (V1) to adjust height as shown in Figure 18.

Figure 18

To reverse the footrest push it upwards as indicated by the arrow in
Figure 19.

Figure 19

V1

V1

3. ADJUSTMENTS

www.neatech.it

18

Wheelchair height adjustment

It is possible to make height adjustment of the seat simply by acting
on the two screws (V) shown in Figure 20 on both sides.
You can even get an asymmetric position of the seat adjust
independently the two sides.

Figure 20

V

3. ADJUSTMENTS

www.neatech.it

19

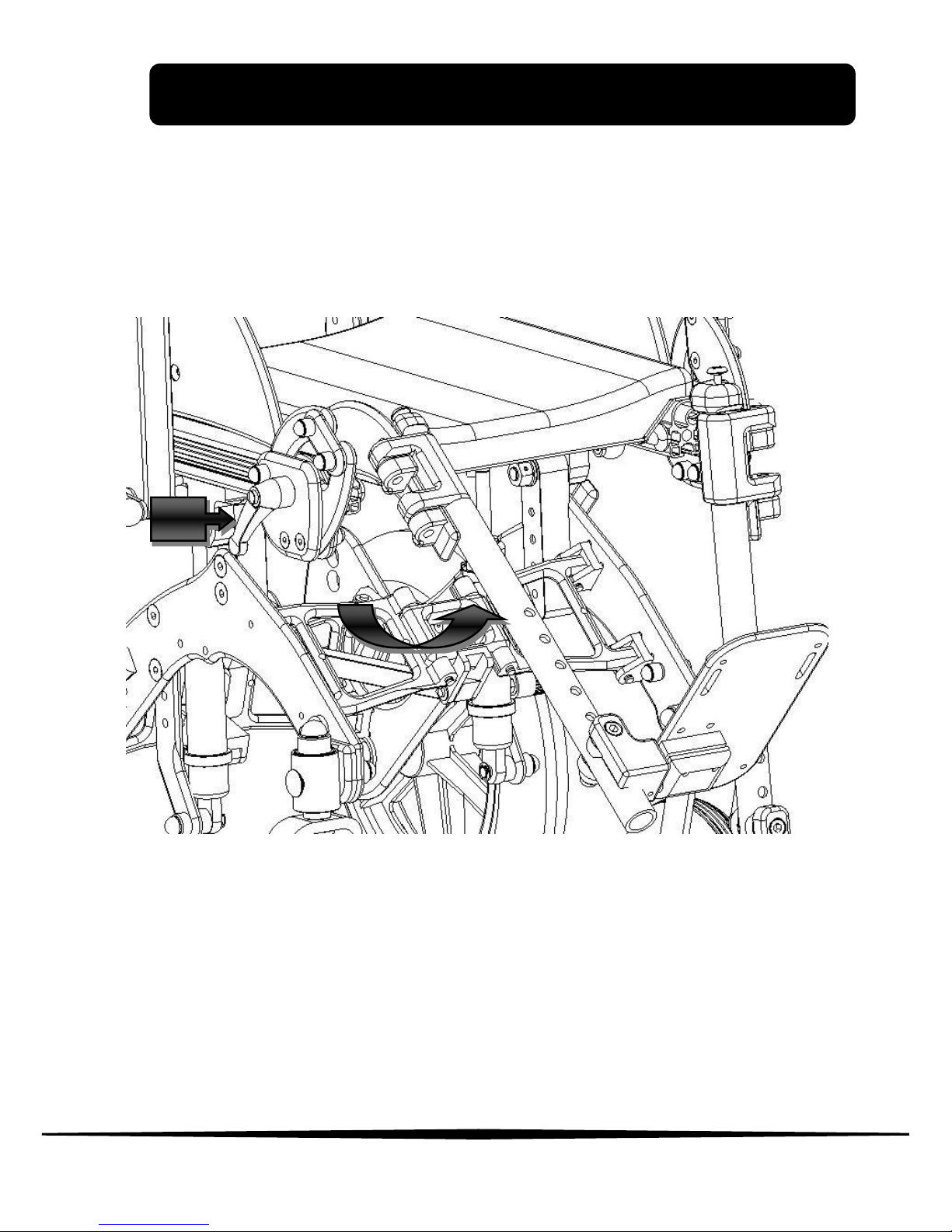

Elevation of ortho extensible footrest

The elevation of the footrest can be performed by acting on the lever
(L) and rotating the footrest as shown in Figure 21.

Figure 21

L

4. ACCESSORIES

www.neatech.it

20

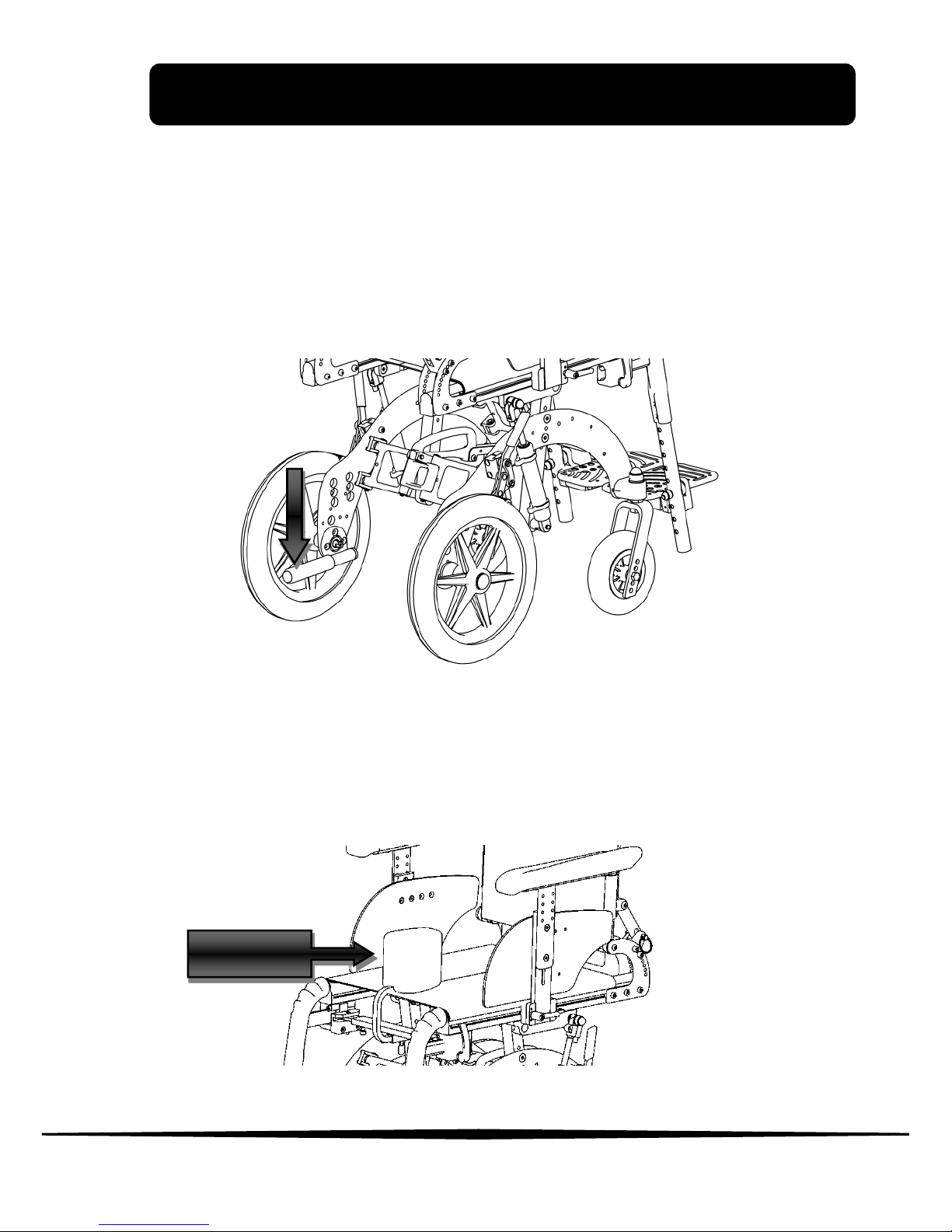

The Levia Basculante Kid can be supplied with a series of accessories
that enhance the usability by the user.

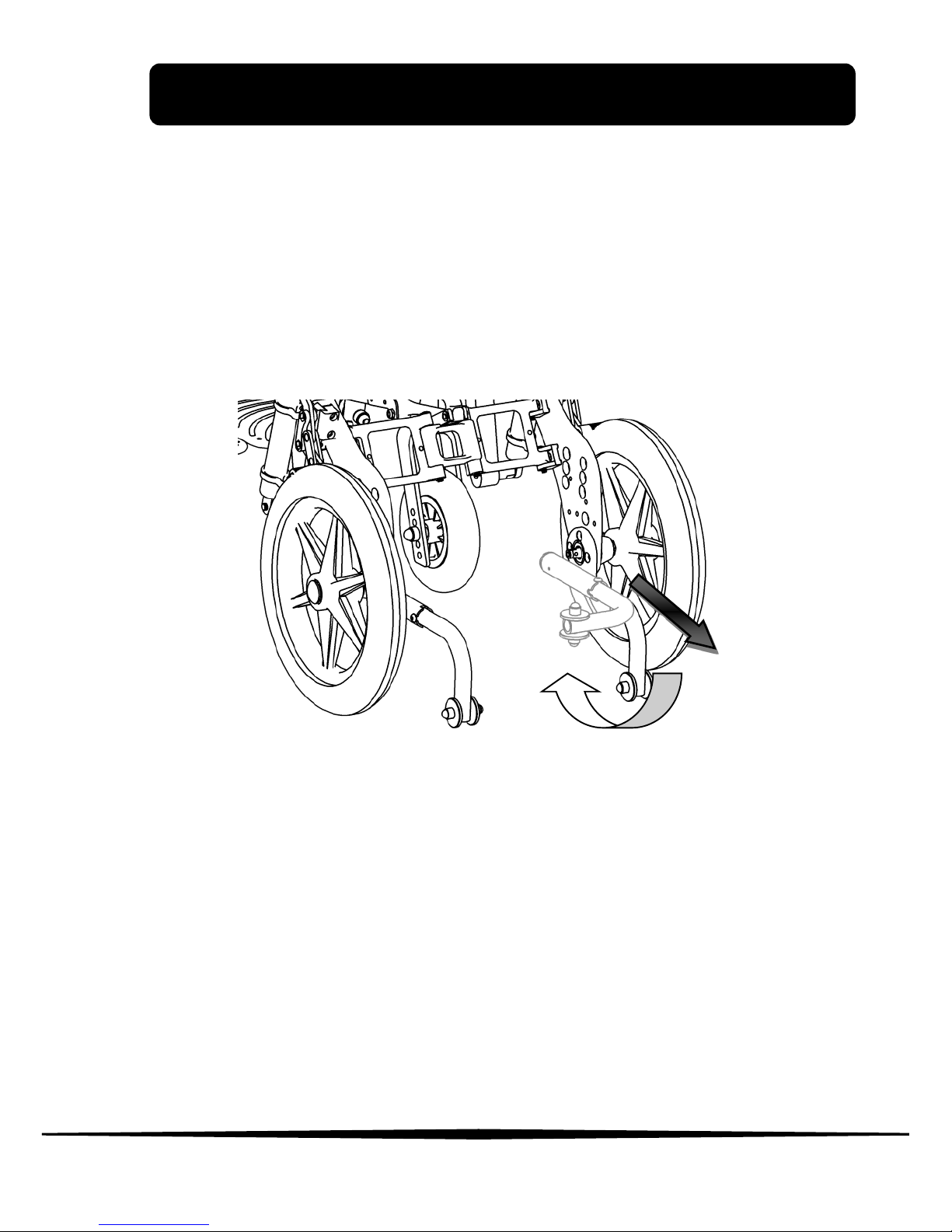

Anti-tip device

You can buy the wheelchair with anti-tip device. These can be turned
in presence of a slope or other.
You have to pull the tube and rotate it as shown in Figure 22.

Figure 22

4. ACCESSORIES

www.neatech.it

21

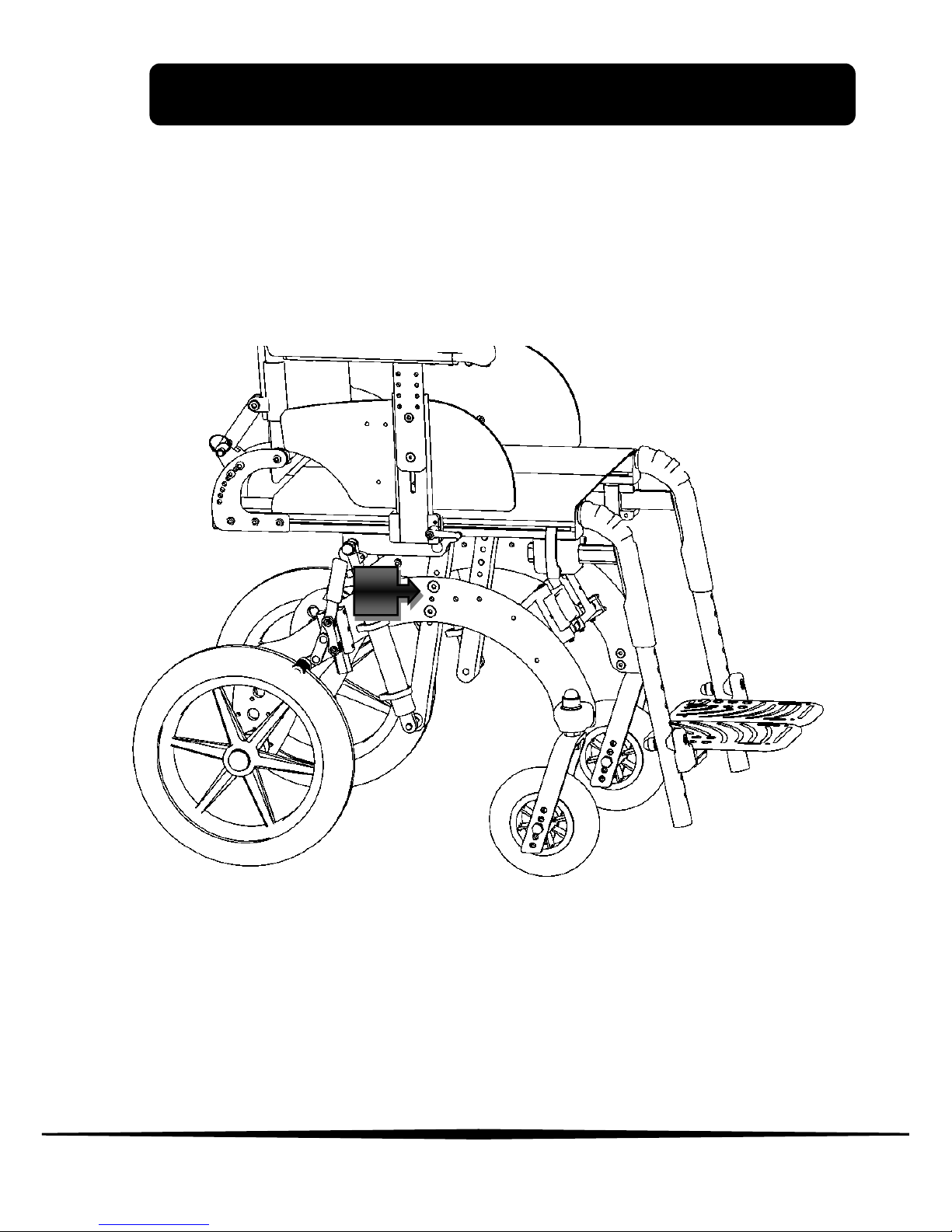

Unbalancing lever

You can buy the wheelchair including unbalancing lever, which is
useful to facilitate overcoming any obstacles (such as a sidewalk).
It is sufficient the companion simply apply a force with a foot on the
unbalancing lever as shown in Figure 23 allowing front wheels to
rise and overcome the obstacle.

Figure 23

Pommel

You can buy the wheelchair with the pommel. As you can see in
Figure 24 it is useful for a correct positioning of leg.

Figure 24

Pommel

4. ACCESSORIES

www.neatech.it

22

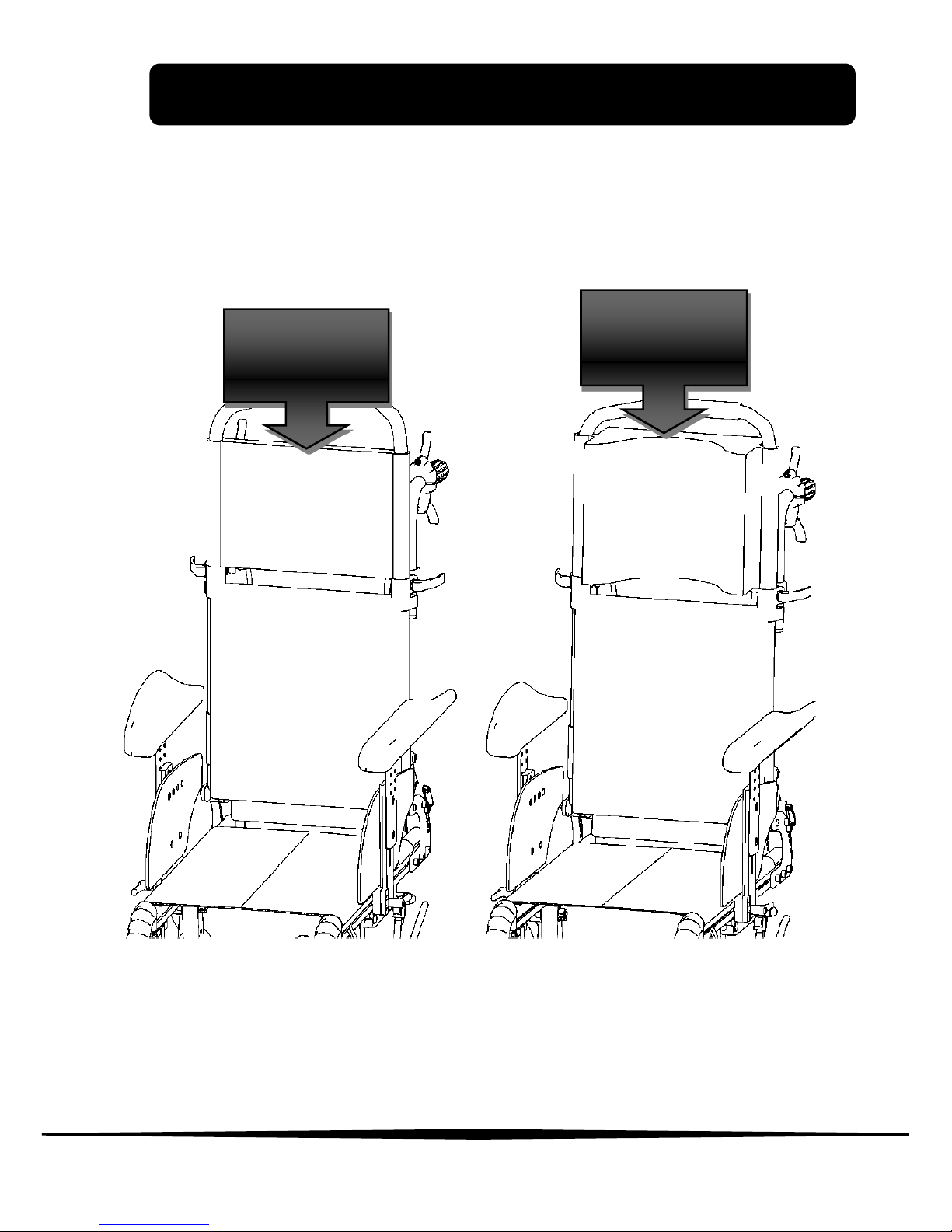

Headrest

The wheelchair can be fitted with 3 different headrest: one in fabric,
one padded and one adjustable and orientable.
You can see first two of these in Figure 25.

Figure 25

Fabric

Headrest

Padded

Headrest

4. ACCESSORIES

www.neatech.it

23

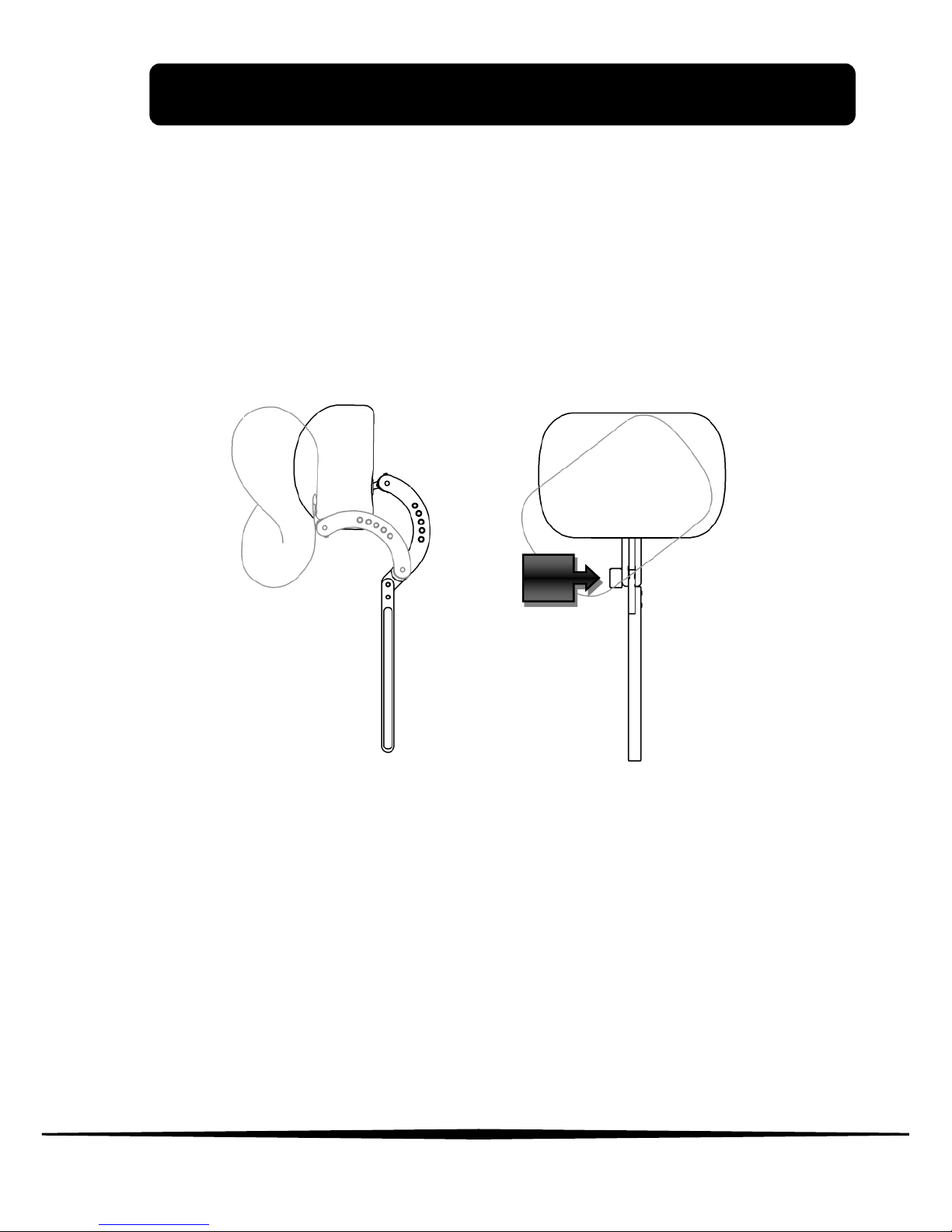

With adjustable headrest you can make different types of
adjustments:



Height adjustment



Cushion rotation: acting on the cushion you can orient it as
shown in Figure 26



Depth adjustments: acting on the handle (M) indicated in
Figure 26 it is possible to make the headrest more or less
protruding.

Figure 26

M

4. ACCESSORIES

www.neatech.it

24

Rear wheels

The dimensions for rear wheels are: Ø300, 20”, 22”, 24”.
Only with 20”, 22” and 24” wheels you can also have the handrail.

Check the correct placement of the rear wheels

The locking system of the wheels, when it is
correctly inserted, it make a click.

Front wheels

Available dimensions for front wheels are:: Ø100 (polyurethane),
Ø125 (polyurethane), Ø150 (polyurethane), Ø175 (polyurethane or
pneumatic).

4. ACCESSORIES

www.neatech.it

25

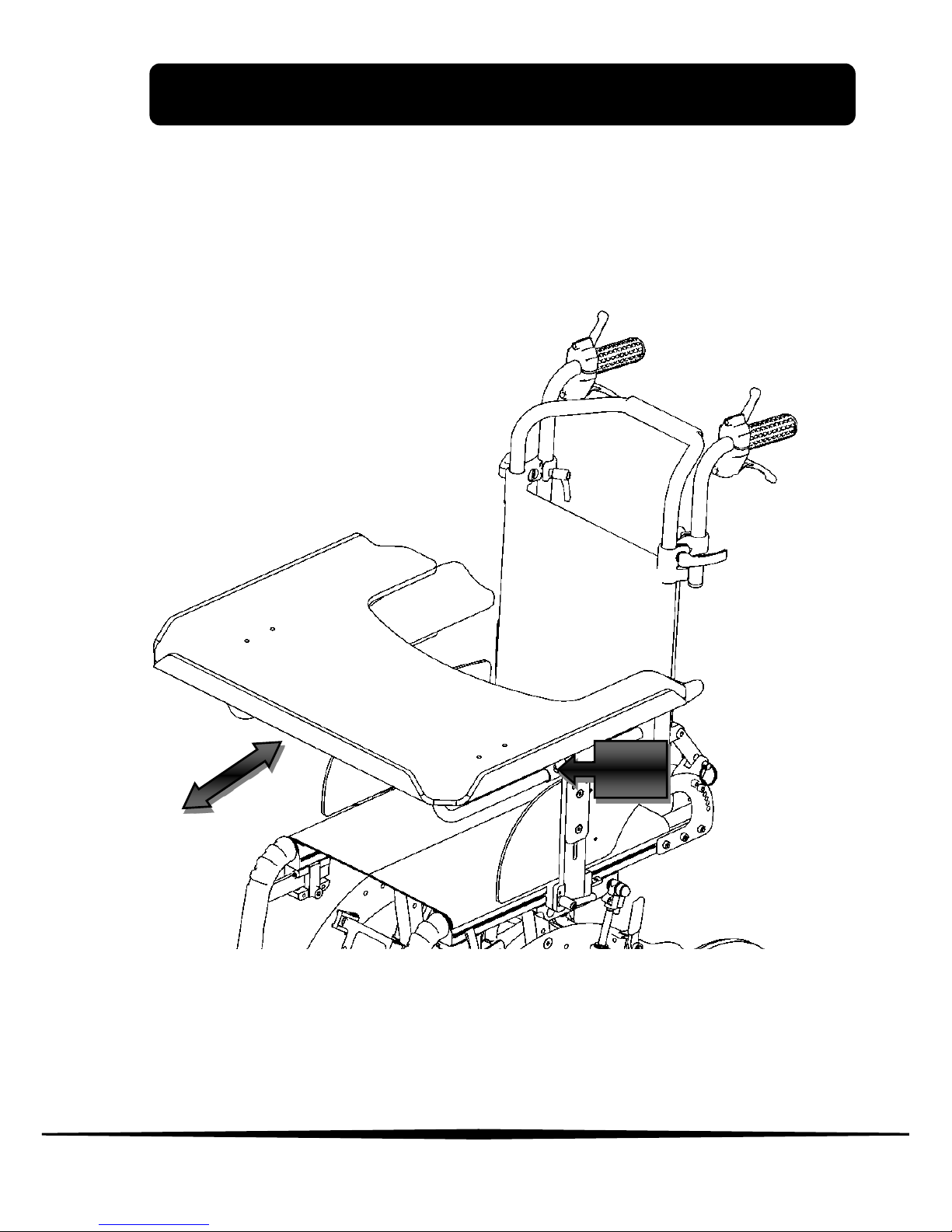

Plexiglas transparent tray

The wheelchair can be equipped with a Plexiglas transparent tray. It
is removable.
To remove it act on the handle (M) shown in Figure 27.

Figure 27

M

4. ACCESSORIES

www.neatech.it

26

Hooks for local travel (four-point tie-down)

The wheelchair was tested when used as a front-facing seat in a
motor vehicle, meeting the requirements of ISO 7176-19

The way of access to the motor vehicle and
handling within it is influenced by the size of
the wheelchair.

For a safe use of the wheelchair as a seat in a motor vehicle please
follow this instructions:



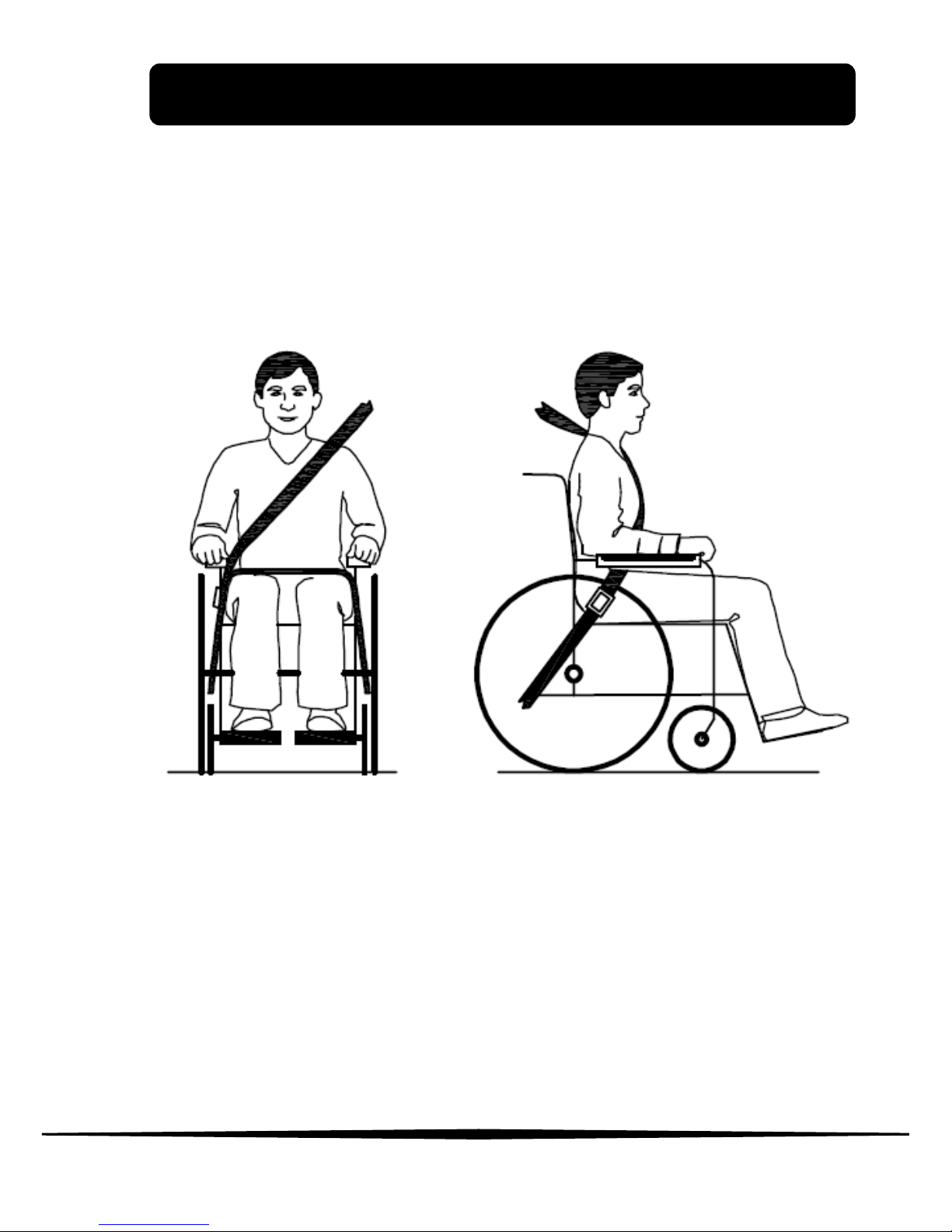

It is recommended to use the pelvic seat belt along the front
of the pelvic area, so that the angle of the belt is between 30° and
75° from the horizontal, as shown in Figure 28; a greater angle,
always in the expected range, is preferable.



Figure 28

4. ACCESSORIES

www.neatech.it

27



You should keep your seat belts as tight as possible to the
body, but without affecting user’s comfort



Make sure that the belts are not twisted during use



It is recommended to use both the pelvic belt and the

shoulder belt to reduce the possibility of impact of the head

and chest with vehicle components.

Figure 29



Remove and assure inside the vehicle any accessory from the
wheelchair, for example the Plexiglas tray, in order to reduce
the potential risk of injury.

4. ACCESSORIES

www.neatech.it

28



If the wheelchair has been involved in some type of collision
between vehicles, it must be tested by the manufacturer
before re-use.



Don’t make any alteration or tampering on point of safety or
structural parts.



Use extreme care when positioning the wheelchair, so that
the release button of the seat belt can not be pressed by its
components in case of impact.



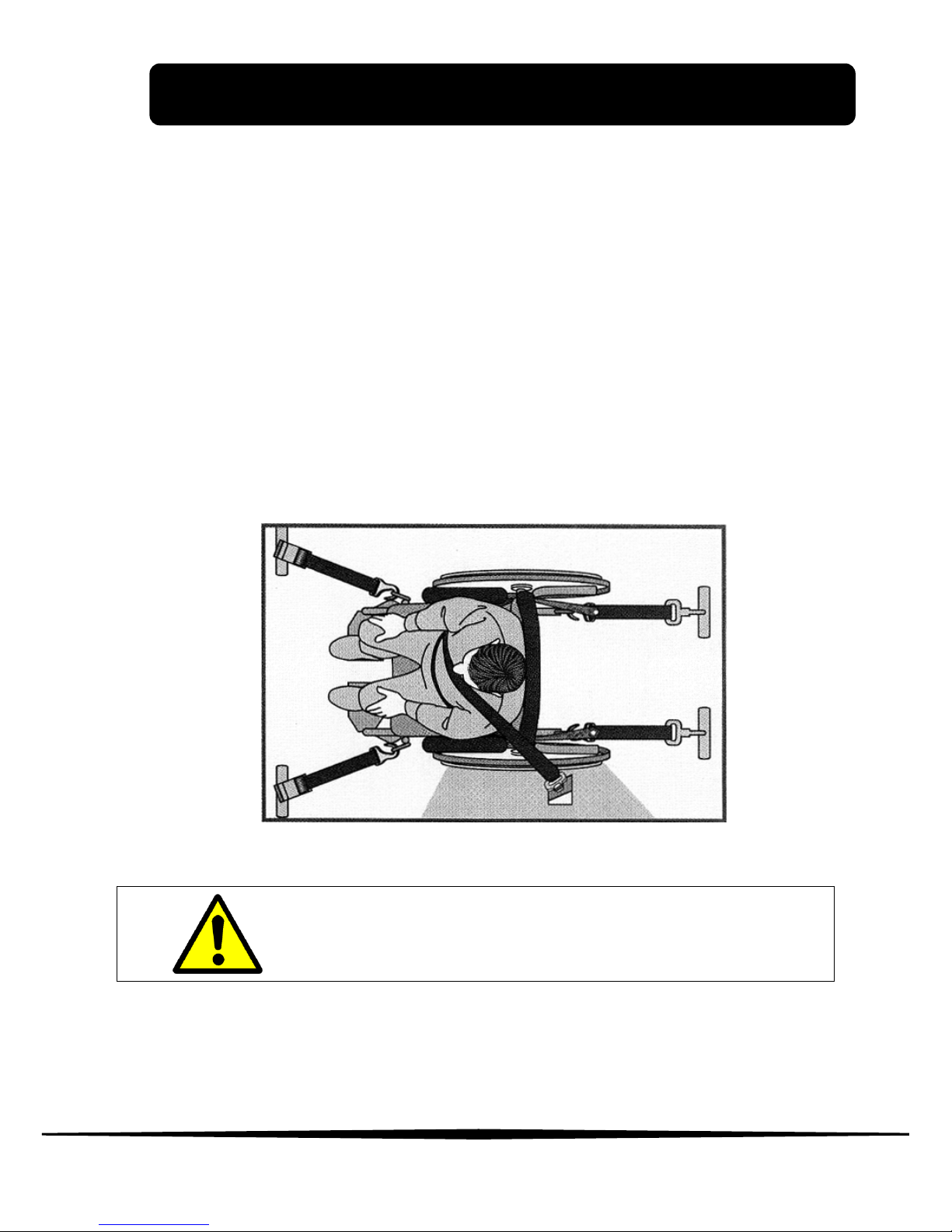

The hooks that can be used with the wheelchair are of the

type “Four-Point Tie-Down”. The wheelchair will be hooked

up inside the motor vehicle in 4 points: 2 front and 2 rear, as

shown in Figure 30.

Figure 30

Don’t use any postural support in a motor

vehicle unless they are conform to ISO
7176-19.

5. MAINTENANCE AND ASSISTANCE

www.neatech.it

29

Remember that the wheelchair is intended exclusively for the
transport of seated people and should be used with footrests and
armrests mounted. Here are some suggested precautions for a safe
and long duration of the wheelchair.



Avoid prolonged contact of the wheelchair with the water. It
may determine oxidation of metal parts



Don’t sit on the armrests.



Avoid long exposure of the wheelchair to sunlight.



Don’t expose the wheelchair at temperatures below -5°C and
above +40°C



The headband also has a structural function, so it is forbidden
to use the wheelchair without it.



Check before using the wheelchair the correct engagement of
rear wheels, making sure that the button of the axis is
completely protruding.



Keep the pressure of wheels to recommended values. With
flat tires the brake loses its effectiveness.



Don’t lift the wheelchair with a person by grabbing footrest.

If you really need to do this, it is suggested to lift the
wheelchair through the lateral sides.



Don’t carry the wheelchair on too steep slopes without anti­tip device.



Check that the gas springs don’t leak oil.

5. MAINTENANCE AND ASSISTANCE

www.neatech.it

30

Maintenance and cleaning

Regular maintenance helps to preserve functionality and safety of
the wheelchair. The lack or inadequacy of care and maintenance
implies a limitation of the warranty from the manufacturer.

To clean the wheelchair don’t use any device to spray water at high
pressure. For plastic or metal parts use a soft cloth moistened with a
non-aggressive detergent.

Don’t use chemical cleaners, solvents, acids, etc.

Tires can be cleaned with water and detergent.

Serial number

For any report or assistance request communicate the unique
identification code that is on the frame of each Levia Basculante Kid.

Spare part list



Front wheels.



Armrests



Rear wheels



Bushing for driving
wheel



Footrest



Bearings.



Backrest canvas



Front forks.



Seat canvas



Side panels



Handles

.

NOTE: for any other problem, contact the manufacturer

5. MAINTENANCE AND ASSISTANCE

www.neatech.it

31

Specifications

Maximum allowed
mass

100 kg

Working
temperature

da -10 °C a 40 °C

Intended use

The wheelchair Levia Basculante Kid is
intended for those group of users that are
limited to a sitting position and have the
possibility and the need to move in areas
predominantly inside.

Dimensions

width from 48 cm to 54 cm

length 64 cm
height 97 cm

Empty weight

16 kg

Maximum safety
slope

17°

5. MAINTENANCE AND ASSISTANCE

www.neatech.it

32

Warranty terms

The Levia Basculante Kid is a product globally guaranteed for 24
months. The warranty covers defects in materials or workmanship.

The warranty doesn’t cover parts subject to usury or damaged parts

by: overload, misuse, alterations and repairs made by unauthorized
third parties.
The warranty expires in case of tampering, improper storage,
unauthorized or incorrect maintenance.

MODEL:

Levia Basculante Kid

SERIAL NUMBER:

DATE OF
CONSTRUCTION:

GUASTI, RIPARAZIONI E ASSISTENZA

GUASTI, RIPARAZIONI E ASSISTENZA

USER MANUAL

LEVIA BASCULANTE KID

NEATECH.IT

Our Mission is transfer technology and solution

from the aerospace industry to disability sector.

We are proud to offer the highest quality

products and solution on the market

www.neatech.it
