USER MANUAL
ND-FM-12/16/32
Flexible Matrix Switchers
ND Audio Visual
WWW.NDAV.IO
ND Audio Visual
WWW.NDAV.IO
Page 2 of 17
Contents
Contents ........................................................................................................................................2
1. Introduction ...........................................................................................................................3
2. Application Diagram ...............................................................................................................3
3. Operation ..............................................................................................................................4
3.1 Video Switching Menu ..................................................................................................5
3.2 Configuration Menu - Input Port ...................................................................................5
3.3 Configuration Menu - Output Port ....................................................................................6
3.4 Scene Saving Menu ...........................................................................................................6
3.5 Scene Recall Menu ............................................................................................................6
3.6 EDID Copy Menu ...............................................................................................................7
3.7 System Setup Menu ..........................................................................................................7
3.8 Control Command .........................................................................................................8
3.9 PC Control Software ................................................................................................... 10
4.Signal board introduction ....................................................................................................... 12
4.1 VGA signal Seamless input / output card ................................................................ 12
4.3 DVI signal Seamless input / output card ................................................................. 13
4.5 HDBaseT signal Seamless input / output card ....................................................... 15
5. Common faults ....................................................................................................................... 17
ND Audio Visual
WWW.NDAV.IO
Page 3 of 17
1. Introduction
ND-FM-12 is a high-performance SEAMLESS AV modular matrix switcher with 12 flexible
PCI-E slots for single HDMI, VGA, CVBS, YPBPR, DVI /SDI or HDBaseT input and output
cards.
Its advanced modularization design allows the Flexible Matrix inputs and outputs can be
freely configured such 11x1, 6x6 or 1x11 and can be comprised of HDMI, VGA, DVI, SDI
and HDBaseT. ND-FM-Series will auto-detect the inputs and outputs cards. It features
plug-and-play, and seamless switching of different video signals. Additionally, HDBaseT
cards support PoH function simplifying system installation.
2. Application Diagram
ND-FM-Series inputs and outputs can be populated to suit most popular video interface
formats on the market as shown in the diagram below CVBS, 3G SDI, HDBaseT, HDMI,
YPBPR, VGA, DVI video sources to various display devices. The matrix can also be controlled
via RS232 or TCP/IP. The Matrix could them be controlled via PC control, Web Browser, IPAD
or Third Party Control System.
ND Audio Visual
WWW.NDAV.IO
Page 4 of 17
3. Operation
The Matrix supports a variety of control methods such as front panel touch screen control,
RS232, TCP/IP control protocol, WEB page control, PC-side software, third-party control.
The system uses a common user interface design across the touch screen, WEB and PC
software making it easy to learn. This chapter mainly introduces the operation via the WEB
interface.
The matrix has default IP address is 192.168.0.178. The ip address can be viewed and
changed via the Front Touch LCD.
To connect ensure your PCs ipaddress is in the same range as the Matrix, open the browser
and enter 192.168.0.178 into the address bar and press the Enter key the WEB server page
should be then displayed. As shown below
The default user login details are as below
User: user
Password: 123456
Press Login
ND Audio Visual
WWW.NDAV.IO
Page 5 of 17
The function menu is divided into three sections Video Switching, EDID Distribution, and
System Settings.

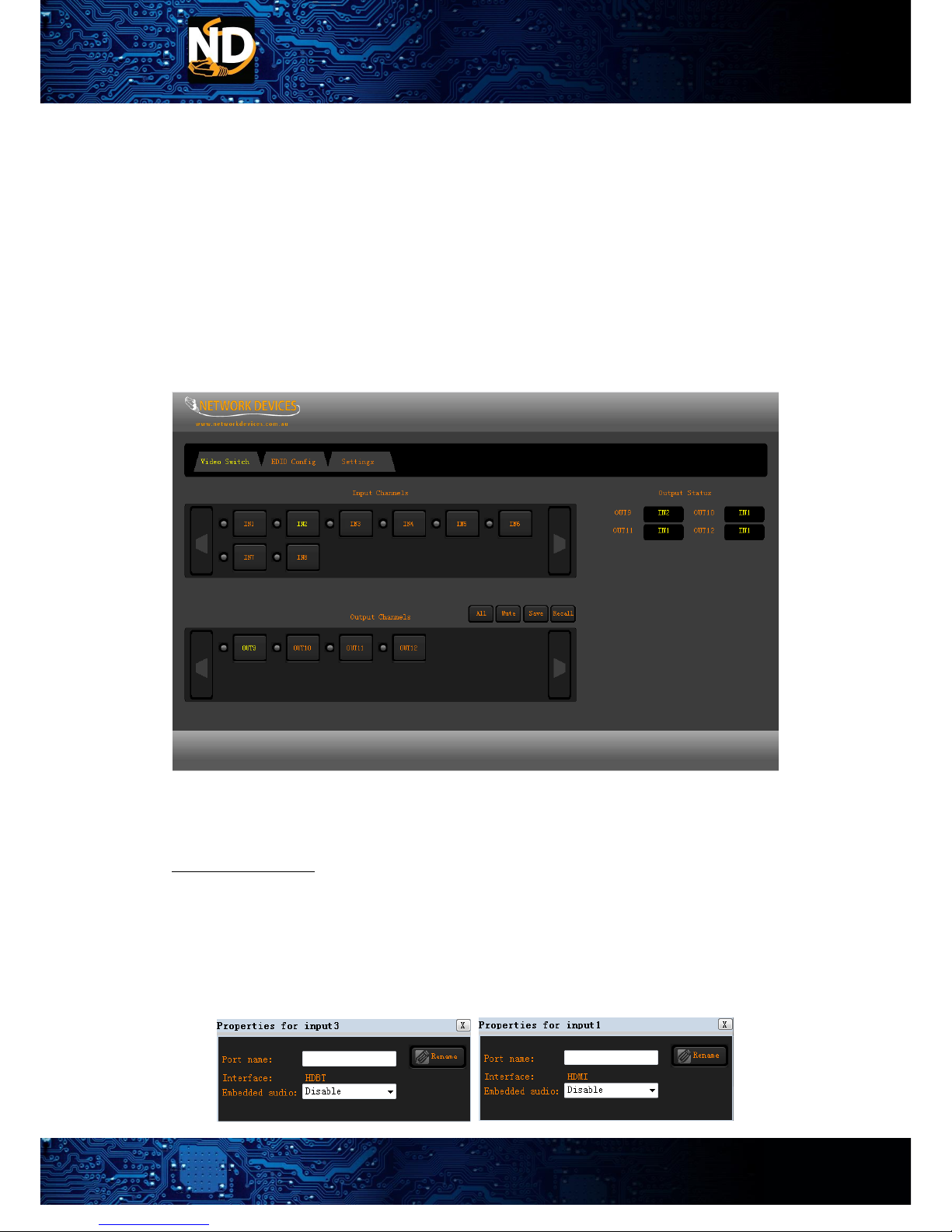

3.1 Video Switching Menu
Features Video Switching, Scene Saving and Recall, plus Input and Output board settings.
Click on the corresponding Input buttone and Output button to switch video, click on the Input
button with All button to switch to all the output operation.
Click the Mute button, and then click the corresponding output will turn off the corresponding
output channel.
As shown in the figure below, the highlighted yellow color is for the selected one, the output
status show at the right side.
3.2 Configuration Menu - Input Port
Click on circular button to the left side of input button. A pop up configuration menu will appear.
Different input boards will have different properties.
Input board properties
Port name: Enter a meaningful name and click rename button. This name will displayed on
the input button.
Embedded audio input: used to select embedded external analog audio, if the analog audio is
not connected, no sound.
Interface Type: The system automatically recognizes the signal type of the board.
ND Audio Visual
WWW.NDAV.IO
Page 6 of 17
3.3 Configuration Menu - Output Port
Click on circular button to left of output button. A pop up configuration menu will appear. Different
output boards will have different properties.
Output Board Properties
Port name: Enter a meaningful name and click rename button, it will be displayed on the output
button.
Port type: the system will automatically identify the type of board.
Analog audio output: used to turn on the analog audio extra output.
Resolution settings: used to set the output image resolution, please refer to the card
introduction for output resolution info, the default 1080P @ 60hz.
HDCP settings: you can choose to turn HDCP on or off.
Output Mode: you can choose HDMI or DVI, DVI format is without audio.
3.4 Scene Saving Menu
The menu is for saving the current input and output corresponding to the switching state, the
system supports 32 groups of scenes saved.
3.5 Scene Recall Menu
Menu is for recall the switching status from the system memory.
ND Audio Visual
WWW.NDAV.IO
Page 7 of 17
3.6 EDID Copy Menu
The EDID assignment menu is used to copy EDIDs from outputs connected to displays to
inputs. When the HDMI / DVI / HDBaseT digital board is connected to a display device, the
display EDID is ready to be captured and stored to and input board.
The left side is the output channel EDID, the right is the input channel EDID, select the
corresponding output channel and input channel, EDID will be copied from the corresponding
output port to the input port.
3.7 System Setup Menu
System setup menu is for setting the system control parameters, including serial port settings,
network settings, device information, software version.
Serial port settings include baud rate, data bits, stop bits, parity bit settings
Network settings Include:
DHCP on / off.
IP address, factory default 192.168.0.178.
TCP protocol refers to whether the matrix works in server mode or client mode.
The server IP address is the server address when the matrix working in client mode.
Server IP port is a port number that works on a server.
Device information: The device name box can be used to define the model of the device.
Factory default function is to restore all the factory settings of the board, the user will not
ND Audio Visual
WWW.NDAV.IO
Page 8 of 17
change the data, such as on-site preservation, callback, the system EDID unchanged, click
on the application must be re-power to start the machine before the normal work.
System Software: Displays the software version number of the current system.
3.8 Control Command
The matrix supports third party control system control through RS232 and LAN the protocol is
defined below.
* Is the start character for a set command.
# Is the start character for a get command.
. Is the terminating character.
Video Switching Command
1 to 1 *V1to5.
1 to many *V1to1,2,3,4.
1 to all *V1All.
Mute output *V0to1.
Mute many output *V0to1,2,3,4.
Mute all *V0All.
Save to scene *S1. (1 to 32)
Recall scene *R1. (1 to 32)
Status Querying Command
Output port Querying #V1. *V3to1.
Querying all output #VAll. *V2,4,6,7,8,12.
Input audio select *Audio:IN1,ON. (ON/OFF)
Output extra audio on/off *Audio:OUT1,OFF. (ON/OFF)
Turn on/off HDCP *HDCP:OUT1,OFF. (ON/OFF)
Output DVI Format on/off *DVI:OUT1,ON. (ON/OFF)
ND Audio Visual
WWW.NDAV.IO
Page 9 of 17
Output resolution setting *Resolution:OUT1,720x480@60.
Output resolution query #Resolution:OUT1.
Port type query #Port:IN1.
Output lock *Lock:OUT1.
Output Analog format selection *VGA:OUT1,YPBPR. (VGA/YPBPR/CVBS)
EDID Copy Command
3 to 1 *E3to1.
1 to many *E1to2,3,5.
1 to many *E1All.
RS232 Setup Command
*Rs232:115200,8,1,None
Baud Rate 9600/19200/38400/115200
Data Bit 8/9
Stop Bit 1/2
Check Bit None/Odd/Even
RS232 Query #Rs232.
LAN Setup Command
DHCP on/off *DHCP:ON. (ON/OFF)
IP address setting *IP:192.168.0.1.
Server IP address setting *ServerIP:192.168.0.200.
TCP setup *TCP Protcocol:Server. (Server/Client)
TCP Port setting *TCP Port:4001.
LAN Querying Command
DHCP on/off #DHCP. *DHCP:ON.
IP Query #IP. *IP:192.168.0.1.
Server IP Query #ServerIP. *ServerIP:192.168.0.1.
TCP Query #Protcocol. *Protcocol:Server.
Device name setup *DeviceName:ND-FM-12.
Device name Querying #DeviceName.
Firmware Version Query #FM. *FM:V0.01.
ND Audio Visual
WWW.NDAV.IO
Page 10 of 17
3.9 PC Control Software
Connected matrix to the PC via a serial port or local area network. Install the matrix control
software and run it.
Select the Ethernet Device, enter the port number of matrix. The default is 1001, click on the Refresh
button, the matrix on the LAN will be displayed in the device list, click the connection button.
Serial Device is for the serial port connection,set the corresponding baud rate and serial port.
Run into the matrix control menu interface, including video switching, EDID configure, system settings,
As UI with the same design with WEB, here is no longer a detailed introduction, the following is the
video switch menu.
ND Audio Visual
WWW.NDAV.IO
Page 11 of 17

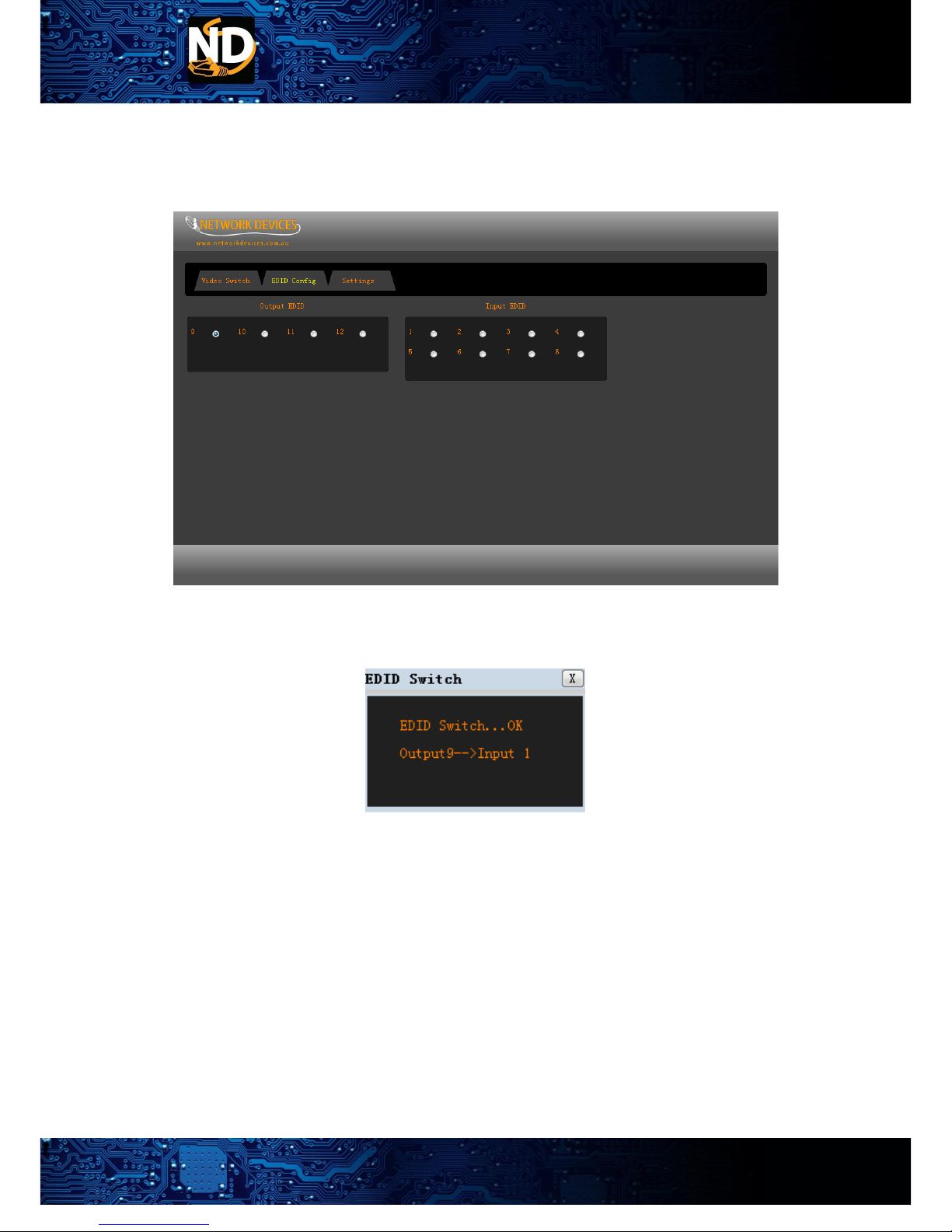

EDID Configure Menu
System settings menu includes updating the matrix by LAN, click load button select the software bin
file, click the upgrade button, the matrix will then start the update process.
ND Audio Visual
WWW.NDAV.IO
Page 12 of 17
4.Signal board introduction
4.1 VGA signal Seamless input / output card
• Scaler up output resolution to 1080p or 1920 x 1200.
• Support manually change the type of signal: VGA , YPbPr , CVBS.
• Each output resolution of the output signal could setup provided by the
card WEB menu: 720x480i @ 60Hz, 720x576i @ 50Hz , 720x480p @ 60Hz, 720x576p
@ 50Hz, 1280x720p @ 60Hz, 1280x720p @ 59Hz, 1280x720p @ 50Hz, 1280x720p
@ 30Hz, 1280x720p @ 25Hz , 1280x720p @ 24Hz, 1920x1080i @ 60Hz , 1920x1080i
@ 59Hz, 1920x1080i @ 50Hz, 1920x1080p @ 60Hz, 1920x1080p @ 59Hz,
1920x1080p @ 50Hz, 1920x1080p @ 30 Hz, 1920x1080p @ 29Hz, 1920x1080p @
25Hz, 1920x1080p @ 24Hz, 640x480p @ 60Hz, 640x480p @ 75Hz, 800x600p @
60Hz, 800x600p @ 75Hz, 1024x768p @ 60Hz, 1024x768p @ 75Hz, 1280x1024p @
60Hz, 1280x1024p @ 75Hz, 1360x768p @ 60Hz, 1366x768p @ 60Hz, 1400x1050p
@ 60Hz, 1600x1200p @ 60Hz, 1440x900p @ 60Hz, 1440x900p @ 75Hz, 1680x1050p
@ 60Hz, 1920x1200p @ 60Hz.
• Input card stereo audio input ON / OFF setting is on WEB audio menu , default is off.
• Output card supports audio extra output.
• Output cards can work with other seamless input card to fulfil seamless switching
VGA signal seamless input card
VGA signal seamless output card
Note: Also supports YPbPr, CVBS format, using the corresponding VGA adapter cable.
Pin
Signal name
Pin
Signal name
1
RED
9
KEY / PWR
2
GREEN
10
GND
3
BLUE
11
ID0 / RES
4
ID2 / RES
12
ID1 / SDA
5
GND
13
HSync
6
RED_RTN
14
VSync
7
GREEN_RTN
15
ID3 / SCL
8
BLUE_RTN
ND Audio Visual
WWW.NDAV.IO
Page 13 of 17
4.2 SDI signal seamless input / output card
• Input card: one SDI input with the loop output.
• Output card: two SDI output.
• Signal format supports SDI, HD-SDI, 3G- SDI.
• Input resolution automatic recognition.
• Input resolution scaler up to 1080P output.
• SDI output can support transmission using a coaxial
cable 70 m - 100 m. (1080P signal) transmission distance.
• Output card resolution set to 1280x720p @ 60Hz, 1280x720p @ 50Hz, 1920x1080i
@ 60Hz, 1920x1080i @ 50Hz, 1920x1080p @ 60Hz, 1920x1080p @ 50Hz, 1920
x1080p @ 30 Hz by WEB menu.
• Output cards can work with other seamless input card to fulfil seamless switching.
SDI signal seamless input
card
SDI signal seamless output
card
4.3 DVI signal Seamless input / output card
• Compatible HDMI1.3 and HDCP1.4 standards..
• Input and output ports support DVI, HDMI format.
• Input resolution scaler up to 1080P output.
• Output signal format set by WEB menu.
• Output card resolution set to: 720x480i @ 60Hz, 720x576i @ 50Hz , 720x480p @
60Hz, 720x576p @ 50Hz, 1280x720p @ 60Hz, 1280x720p @ 59Hz, 1280x720p @
50Hz, 1280x720p @ 30Hz, 1280x720p @ 25Hz , 1280x720p @ 24Hz, 1920x1080i
@ 60Hz , 1920x1080i @ 59Hz, 1920x1080i @ 50Hz, 1920x1080p @ 60Hz,
1920x1080p @ 59Hz, 1920x1080p @ 50Hz, 1920x1080p @ 30 Hz, 1920x1080p @
29Hz, 1920x1080p @ 25Hz, 1920x1080p @ 24Hz, 640x480p @ 60Hz, 640x480p @
75Hz, 800x600p @ 60Hz, 800x600p @ 75Hz, 1024x768p @ 60Hz, 1024x768p @
75Hz, 1280x1024p @ 60Hz, 1280x1024p @ 75Hz, 1360x768p @ 60Hz, 1366x768p
@ 60Hz, 1400x1050p @ 60Hz, 1600x1200p @ 60Hz, 1440x900p @ 60Hz,
1440x900p @ 75Hz, 1680x1050p @ 60Hz, 1920x1200p @ 60Hz by WEB menu.
• EDID management.
• Output cards can work with other seamless input card to fulfil seamless switching.
DVI signal seamless input card
DVI signal seamless output card
ND Audio Visual
WWW.NDAV.IO
Page 14 of 17

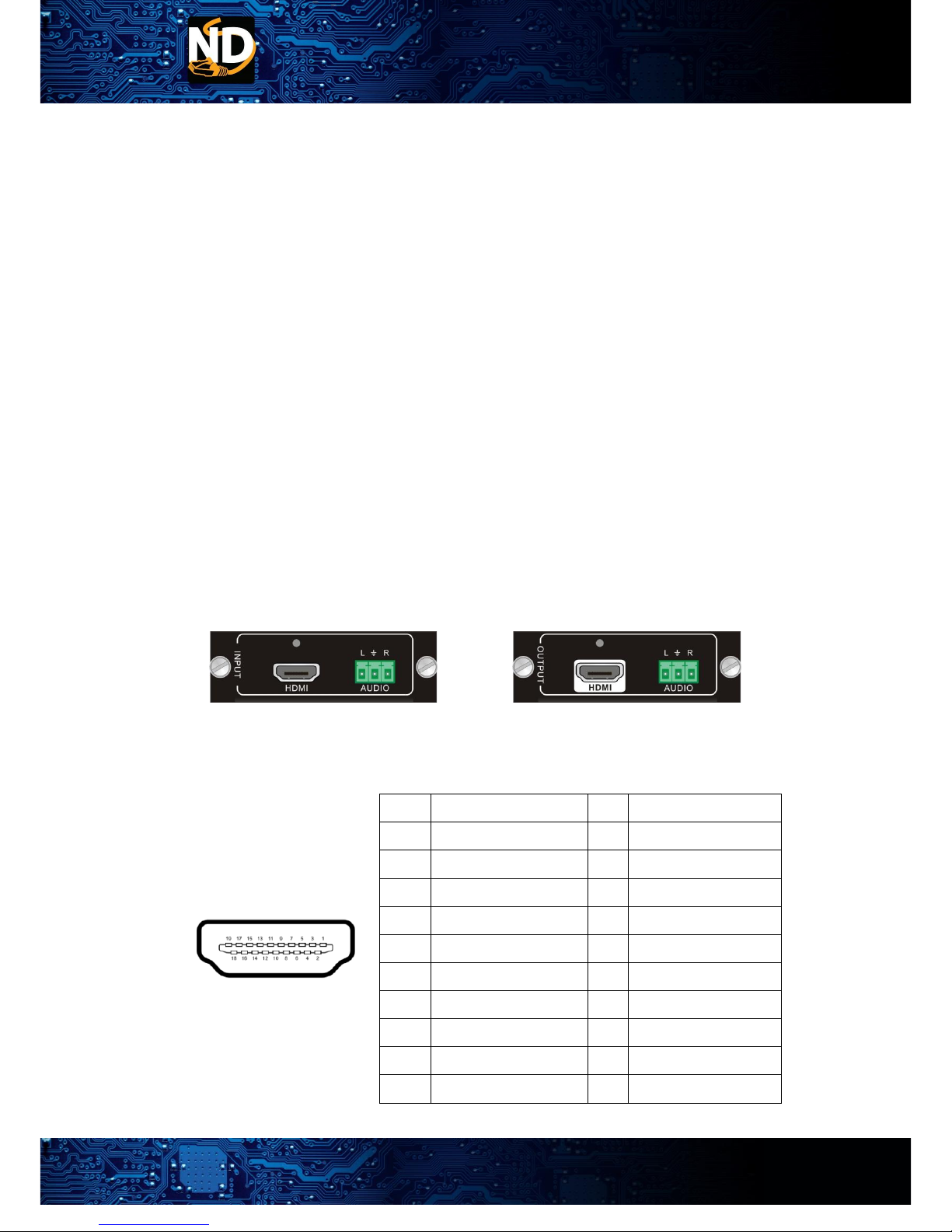

4.4 HDMI signal Seamless input / output card
• Compatible HDMI1.3 and HDCP1.4 standards..
• Input and output ports support DVI, HDMI format.
• Input resolution scaler up to 1080P output.
• Output signal format set by WEB menu.
• Input card stereo audio input ON / OFF setting is on WEB audio menu , default is off.
• Output card supports audio extra output.
• Output card resolution set to: 720x480i @ 60Hz, 720x576i @ 50Hz , 720x480p @
60Hz, 720x576p @ 50Hz, 1280x720p @ 60Hz, 1280x720p @ 59Hz, 1280x720p @
50Hz, 1280x720p @ 30Hz, 1280x720p @ 25Hz , 1280x720p @ 24Hz, 1920x1080i @
60Hz , 1920x1080i @ 59Hz, 1920x1080i @ 50Hz, 1920x1080p @ 60Hz, 1920x1080p
@ 59Hz, 1920x1080p @ 50Hz, 1920x1080p @ 30 Hz, 1920x1080p @ 29Hz,
1920x1080p @ 25Hz, 1920x1080p @ 24Hz, 640x480p @ 60Hz, 640x480p @ 75Hz,
800x600p @ 60Hz, 800x600p @ 75Hz, 1024x768p @ 60Hz, 1024x768p @ 75Hz,
1280x1024p @ 60Hz, 1280x1024p @ 75Hz, 1360x768p @ 60Hz, 1366x768p @ 60Hz,
1400x1050p @ 60Hz, 1600x1200p @ 60Hz, 1440x900p @ 60Hz, 1440x900p @ 75Hz,
1680x1050p @ 60Hz, 1920x1200p @ 60Hz by WEB menu.
• EDID management.
• Output cards can work with other seamless input card to fulfil seamless switching.
HDMI signal seamless input card
HDMI signal seamless output card
Pin out of female HDMI connector :
Pin
Signal Name
Pin
Signal Name
1
TMDS Data 2+
11
TMDS Clock Shield
2
TMDS Data 2 Shield
12
TMDS Clock-
3
TMDS Data 2-
13
CEC
4
TMDS Data 1+
14
No Connect
5
TMDS Data 1 Shield
15
DDC Clock
6
TMDS Data 1-
16
DDC Data
7
TMDS Data 0+
17
Ground
8
TMDS Data 0 Shield
18
+5V Power
9
TMDS Data 0-
19
Hot Plug Detect
10
TMDS Clock+
20
SHELL
ND Audio Visual
WWW.NDAV.IO
Page 15 of 17
4.5 HDBaseT signal Seamless input / output card
• Compatible HDMI1.3 and HDCP1.4 standards..
• Input and output ports support DVI, HDMI format.
• Input resolution scaler up to 1080P output.
• Output signal format set by WEB menu.
• Input card stereo audio input ON / OFF setting is on WEB audio menu , default is off.
• Output card supports audio extra output.
• Output card resolution set to: 720x480i @ 60Hz, 720x576i @ 50Hz , 720x480p @
60Hz, 720x576p @ 50Hz, 1280x720p @ 60Hz, 1280x720p @ 59Hz, 1280x720p @
50Hz, 1280x720p @ 30Hz, 1280x720p @ 25Hz , 1280x720p @ 24Hz, 1920x1080i @
60Hz , 1920x1080i @ 59Hz, 1920x1080i @ 50Hz, 1920x1080p @ 60Hz, 1920x1080p
@ 59Hz, 1920x1080p @ 50Hz, 1920x1080p @ 30 Hz, 1920x1080p @ 29Hz,
1920x1080p @ 25Hz, 1920x1080p @ 24Hz, 640x480p @ 60Hz, 640x480p @ 75Hz,
800x600p @ 60Hz, 800x600p @ 75Hz, 1024x768p @ 60Hz, 1024x768p @ 75Hz,
1280x1024p @ 60Hz, 1280x1024p @ 75Hz, 1360x768p @ 60Hz, 1366x768p @ 60Hz,
1400x1050p @ 60Hz, 1600x1200p @ 60Hz, 1440x900p @ 60Hz, 1440x900p @ 75Hz,
1680x1050p @ 60Hz, 1920x1200p @ 60Hz by WEB menu.
• EDID management.
• Output cards can work with other seamless input card to fulfil seamless switching.
• HDBaseT signal input / output card work with transmitter / receiver.
• HDBT port indicator status: yellow ligh flashing mean card working normally, once
connect transceiver by cat cable green light solid on.
• Transmission distance can be up to 6 0 m (CAT6) and power up the transceiver.
• Each port include 1 RS232 control signal work with transceiver.
HDBaseT signal seamless input card
HDBaseT signal seamless output card
ND Audio Visual
WWW.NDAV.IO
Page 16 of 17
Video port for the RJ45, the use Class A or B-type straight-through twisted pair connection,
suggest to use Class B straight line, the following is A / B type of direct line reference standard:
TIA / EIA 568A
TIA / EIA 568B
Pin
Wire color
Pin
Wire color
1
Green and white
1
Orange white
2
green
2
Orange
3
Orange white
3
Green and white
4
blue 4 blue
5
Blue and white
5
Blue and white
6
Orange
6
green
7
Brown white
7
Brown white
8
Brown
8
Brown
Each color and its corresponding half white line to form a pair
Note：
HDBaseT RS232 support 2400、4800、9600、19200、38400、57600、115200 baud
rate.
ND Audio Visual
WWW.NDAV.IO
Page 17 of 17
5.Common faults
Fault phenomenon
Cause
Analysis
Method of exclusion
Color loss or no video signal
output
The signal lines are not
connected at both ends
Check the signal line at both ends of the interface to ensure
that the connection is correct
Output connection
display with low
resolution
Adjust the input signal source resolution or replace the high
resolution display
Peripheral display device
image has ghosting
Input and output
connection wire quality
is not up to standard or
damaged
Replace the regular standard wire
Poor connection
between input and
output devices
Check the connection with the interface
The output image is disturbed
The input and output
are not properly
grounded
Grounding the input and output in the correct way
Plug the audio and video
interface has obvious static
electricity
The machine is not well
grounded
Connect the grounding terminal of the unit to ground
When the signal is switched,
there is no corresponding
image output
The input wiring is loose
or damaged
Use related instruments (such as multimeter) to exclude
The output wiring is
loose or damaged
Use related instruments (such as multimeter) to exclude
HDCP band
signalsource, and the
systemis not set to be
compatible HDCP
Transmission instruction HDCPON.HDCP protocol opening
The console can not control
the unit
Control terminal
communication port is
damaged
Carefully check whether the communication serial port is
loose or damaged
Communication
protocol is not set up
Check whether the following: Baud rate: 115200 Data
bits: 8 Stop bits: 1 Parity: None
Loading...
