Page 1
Cirrus LT
User Guide
TZ-241G
Computing Innovations.
v2.3 January 4, 2017
Page 2
Contents
Icon Glossary .............................................................................................................................................5
Conventions .....................................................................................................................................................5
Safety Instructions ...................................................................................................................................6
Battery Safety and Tips ........................................................................................................................... 7
Introduction ..............................................................................................................................................8
Chapter 1: Before you start .....................................................................................................................9
Package contents .............................................................................................................................................9
Components ....................................................................................................................................................10

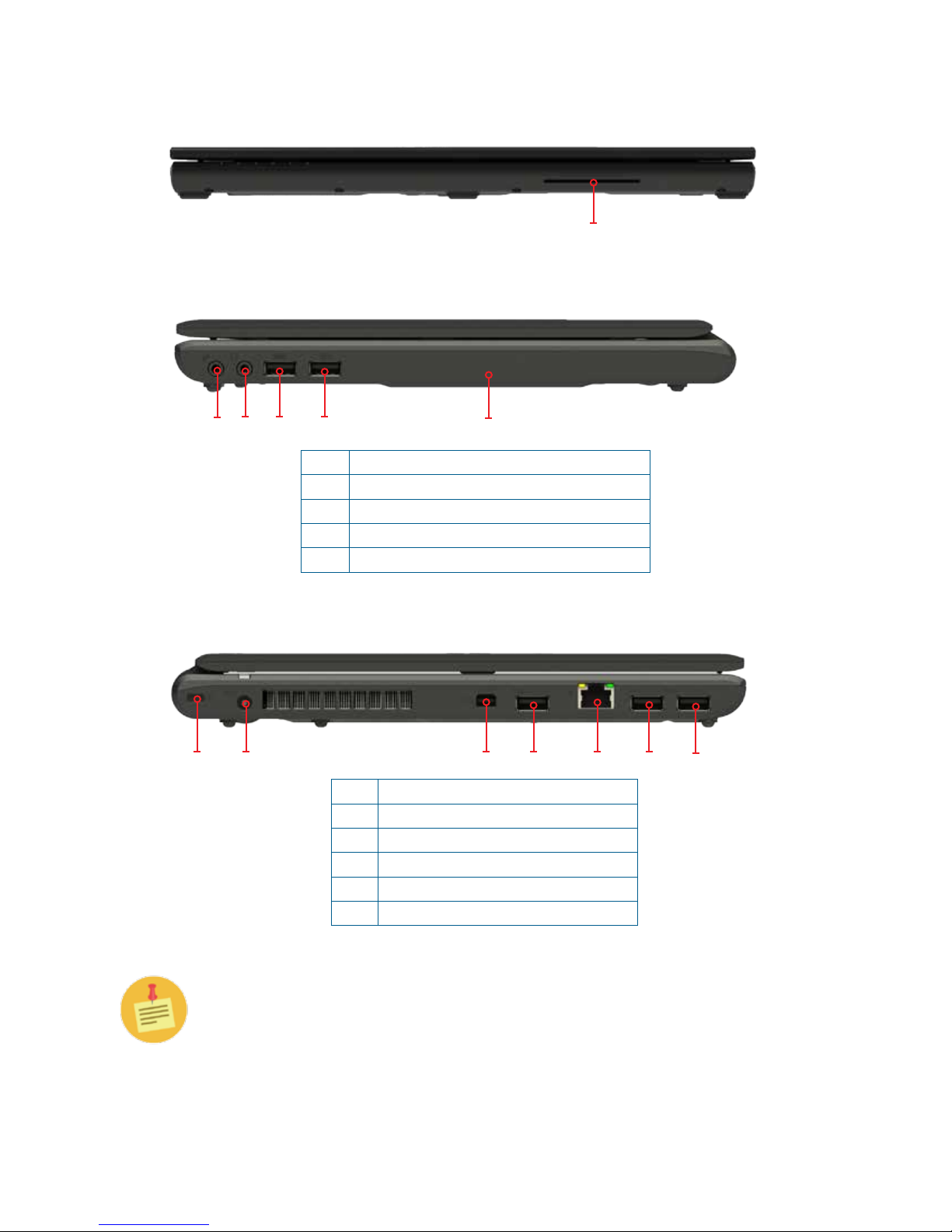

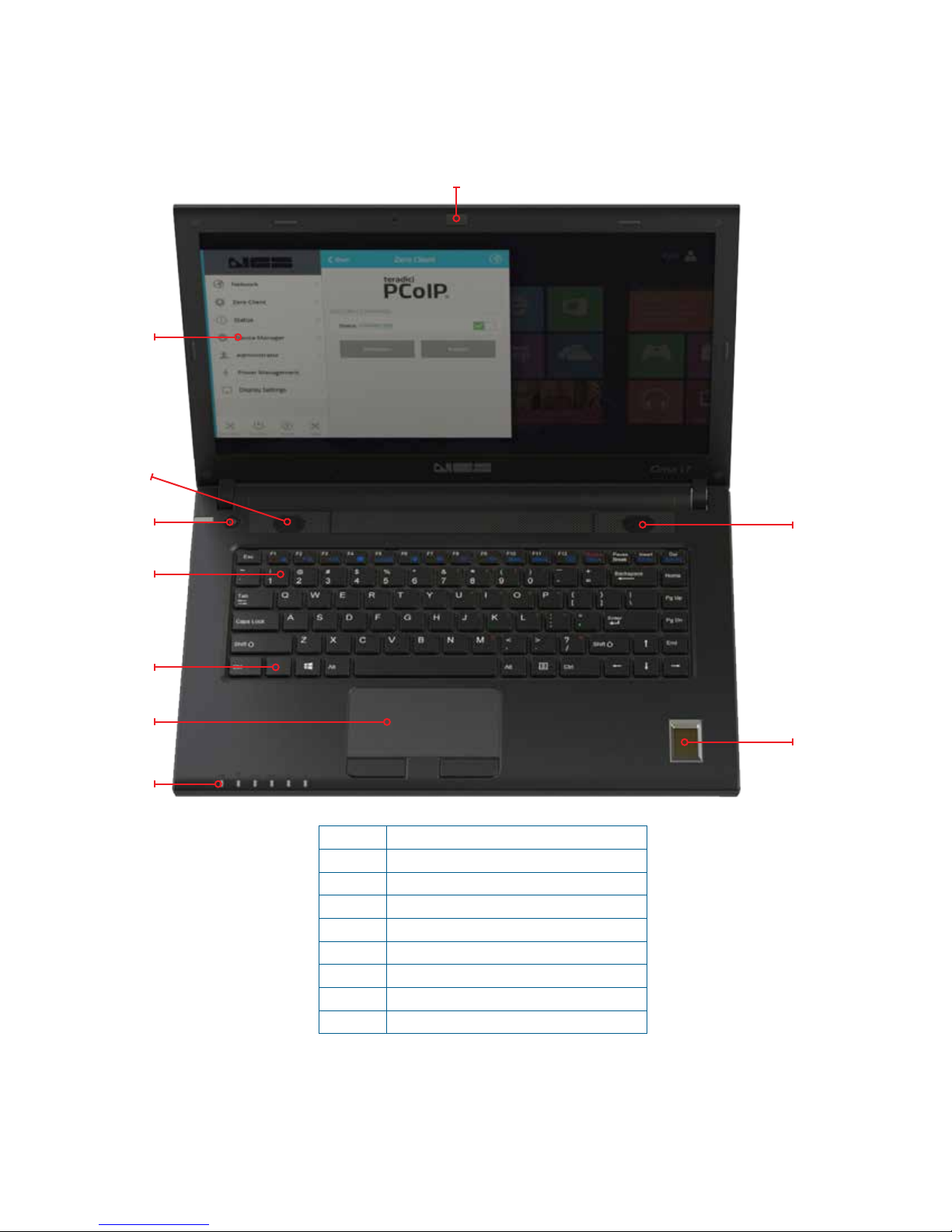

Front view ................................................................................................................................................ 11
Right view .................................................................................................................................................11
Left view ................................................................................................................................................... 11

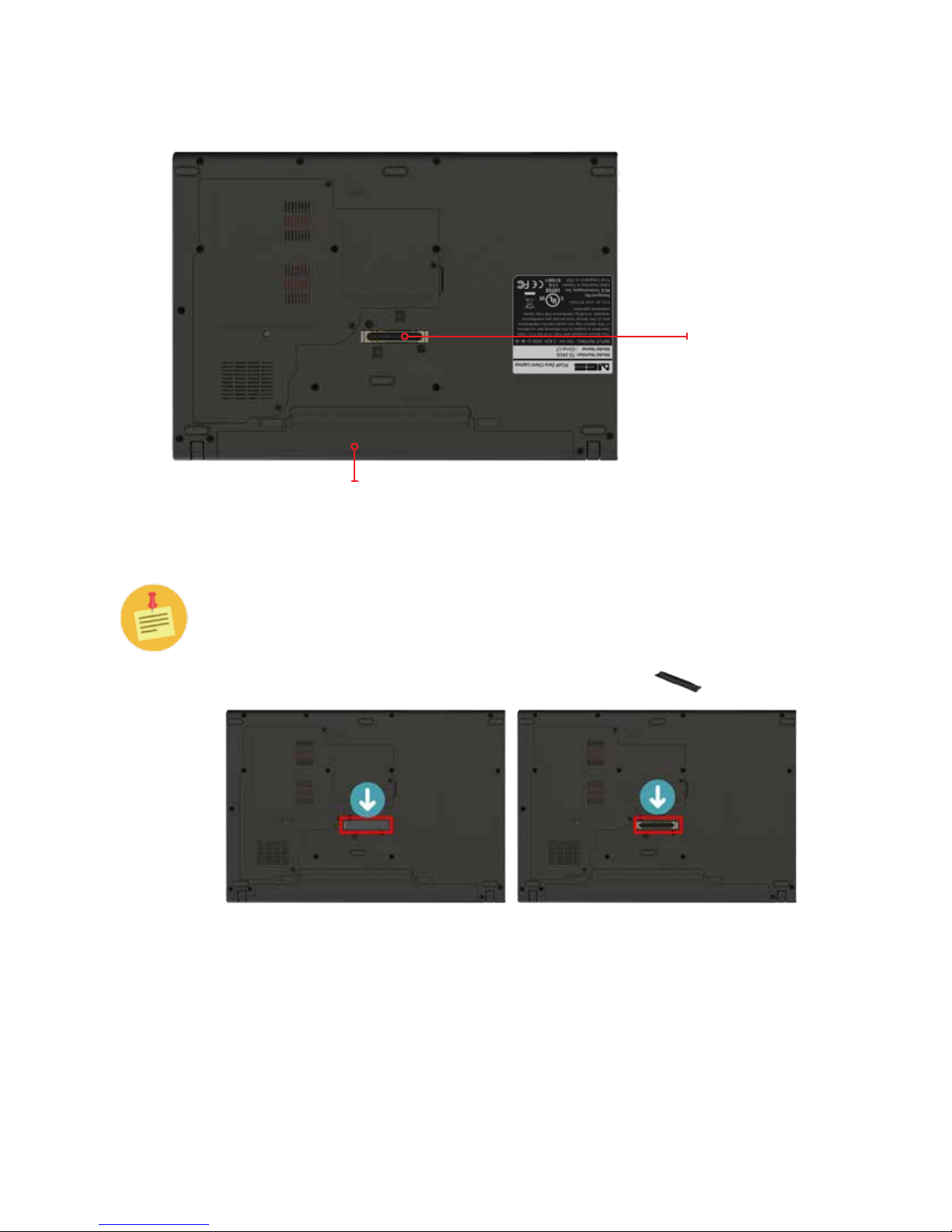

Bottom view .............................................................................................................................................12

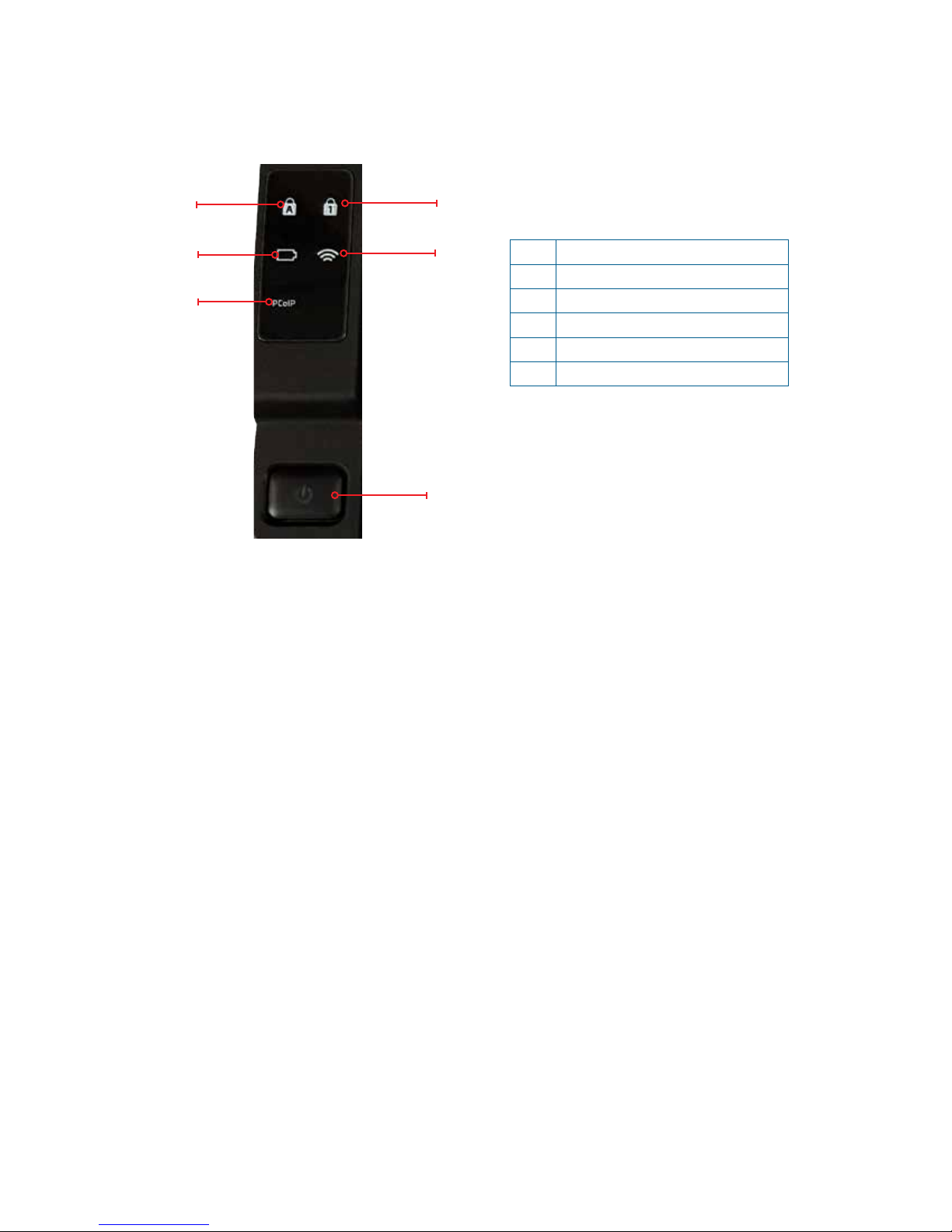

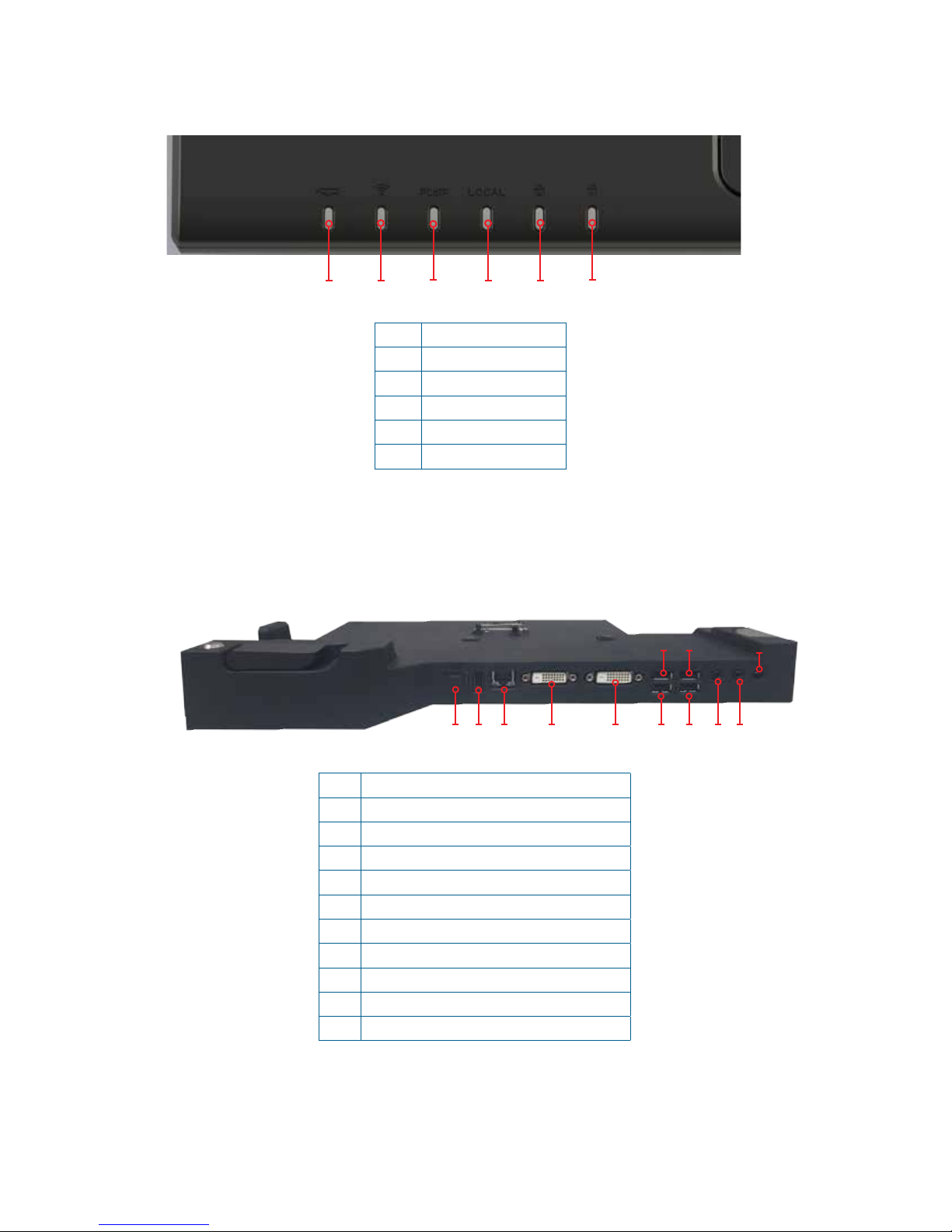

Notebook LEDs ........................................................................................................................................13
Docking station rear view ......................................................................................................................13
Docking station LEDs ............................................................................................................................14
Laptop and docking station LED status light indicators ................................................................. 15
Chapter 2: Getting started .....................................................................................................................16
Powering up your notebook ........................................................................................................................16
Connecting the AC adapter ...................................................................................................................16

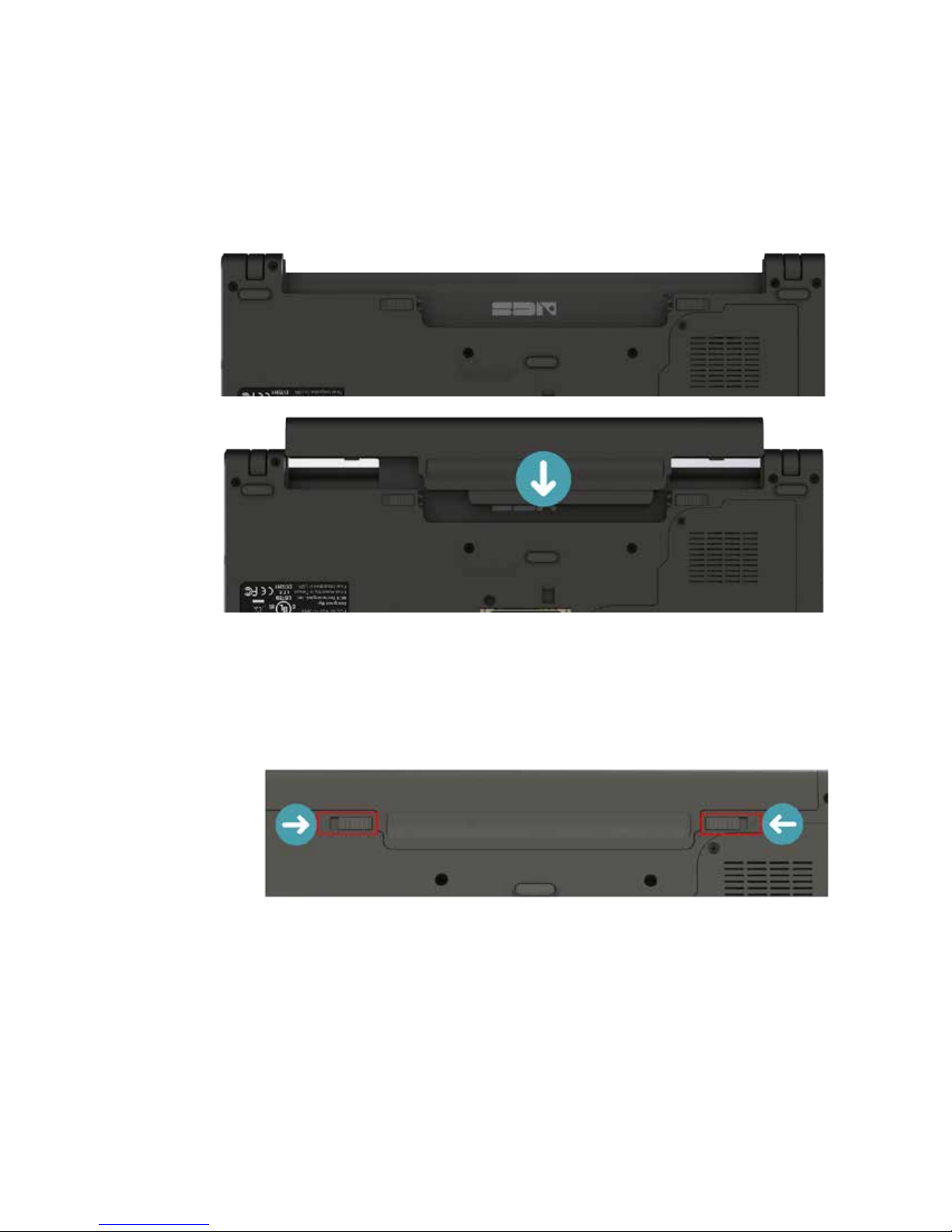

Removable battery installation ............................................................................................................17
Starting your notebook .................................................................................................................................19

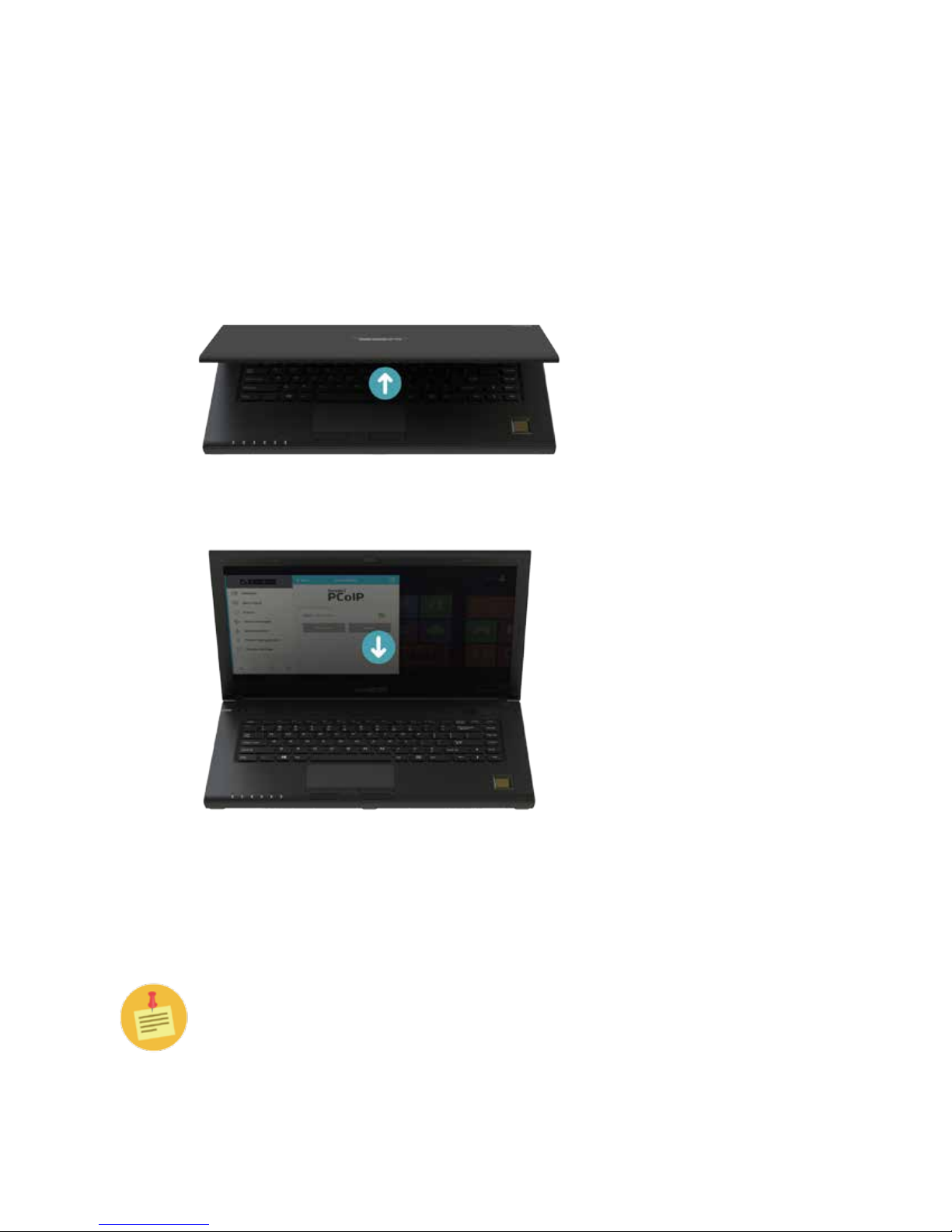

Opening the display panel .....................................................................................................................19
Turning on your notebook .....................................................................................................................19
Using the keyboard ....................................................................................................................................... 20

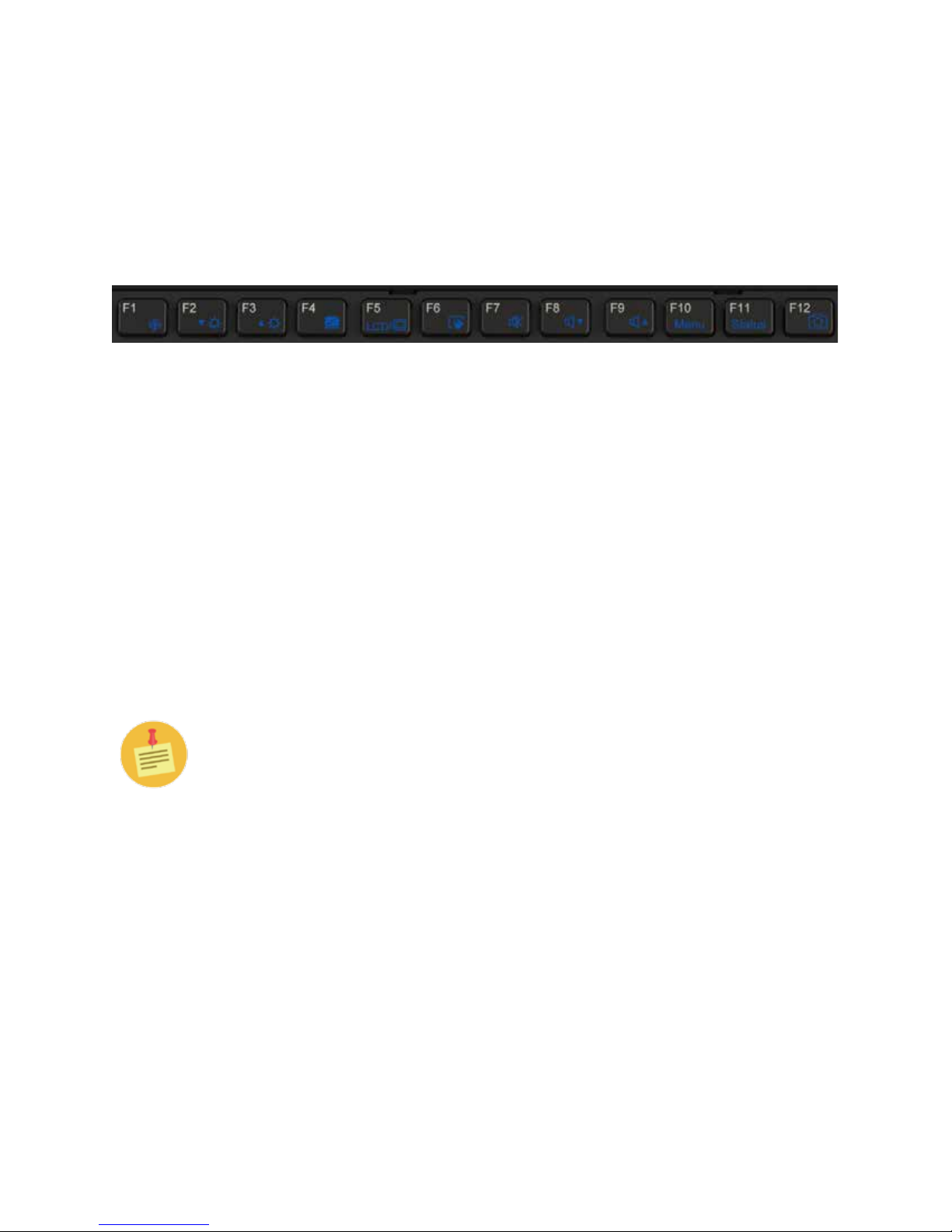

Function keys .......................................................................................................................................... 20
Touchpad .........................................................................................................................................................21
Point ..........................................................................................................................................................21
Click ...........................................................................................................................................................21
Double-click .............................................................................................................................................21
Drag ...........................................................................................................................................................21

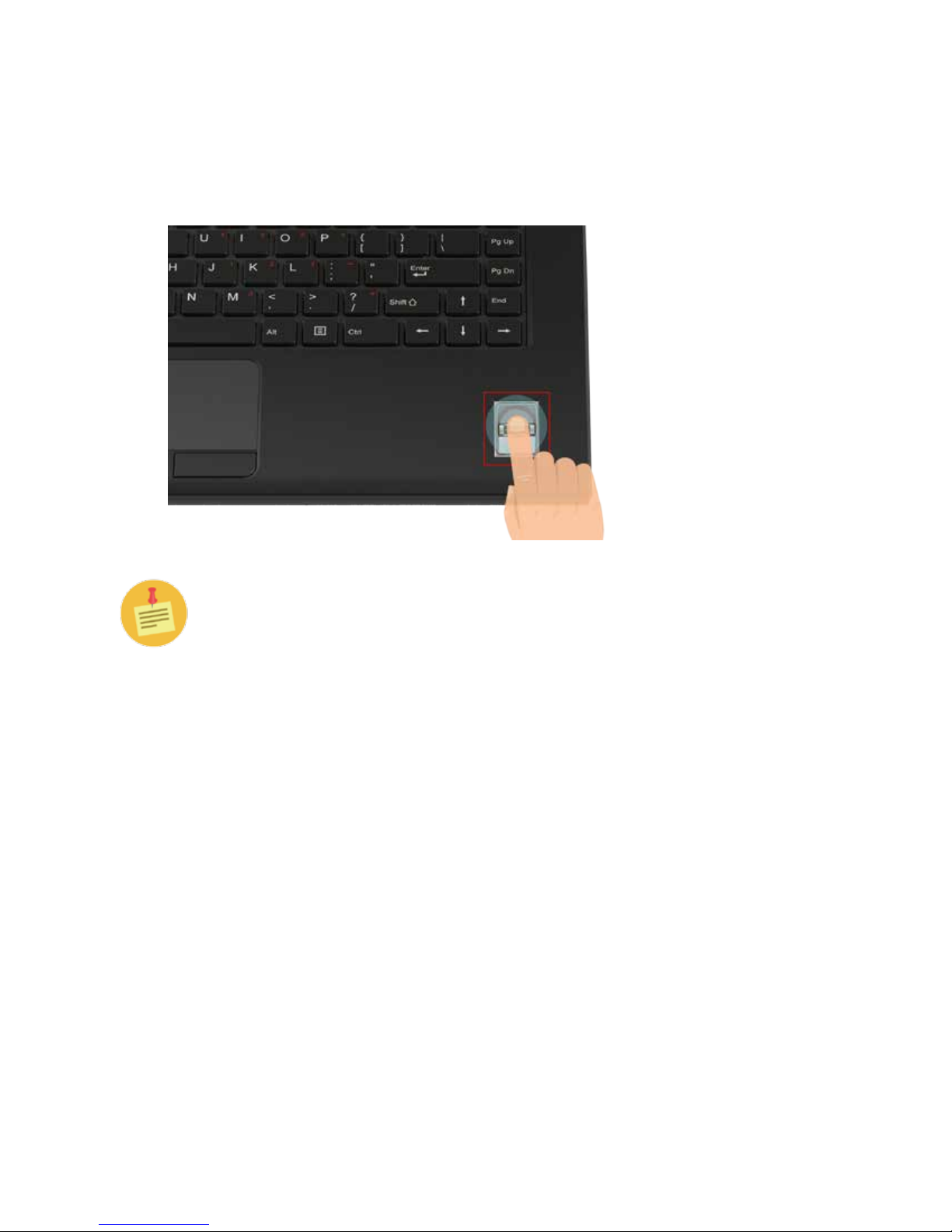

Using the fingerprint reader ........................................................................................................................22
Chapter 3: Making connections ............................................................................................................23
Connecting external display devices .........................................................................................................23
Connecting a projector or display monitor .........................................................................................23

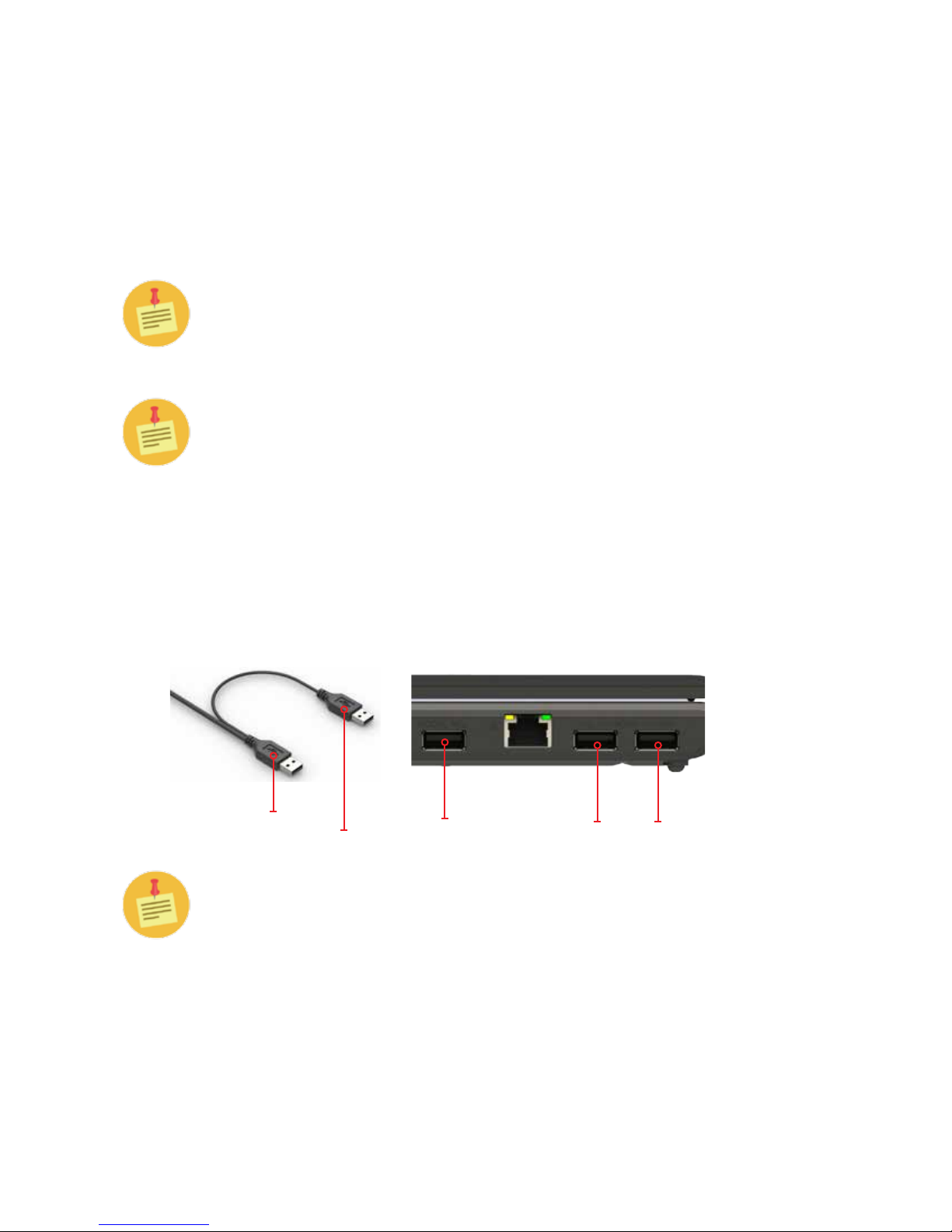

Connecting to USB devices......................................................................................................................... 24

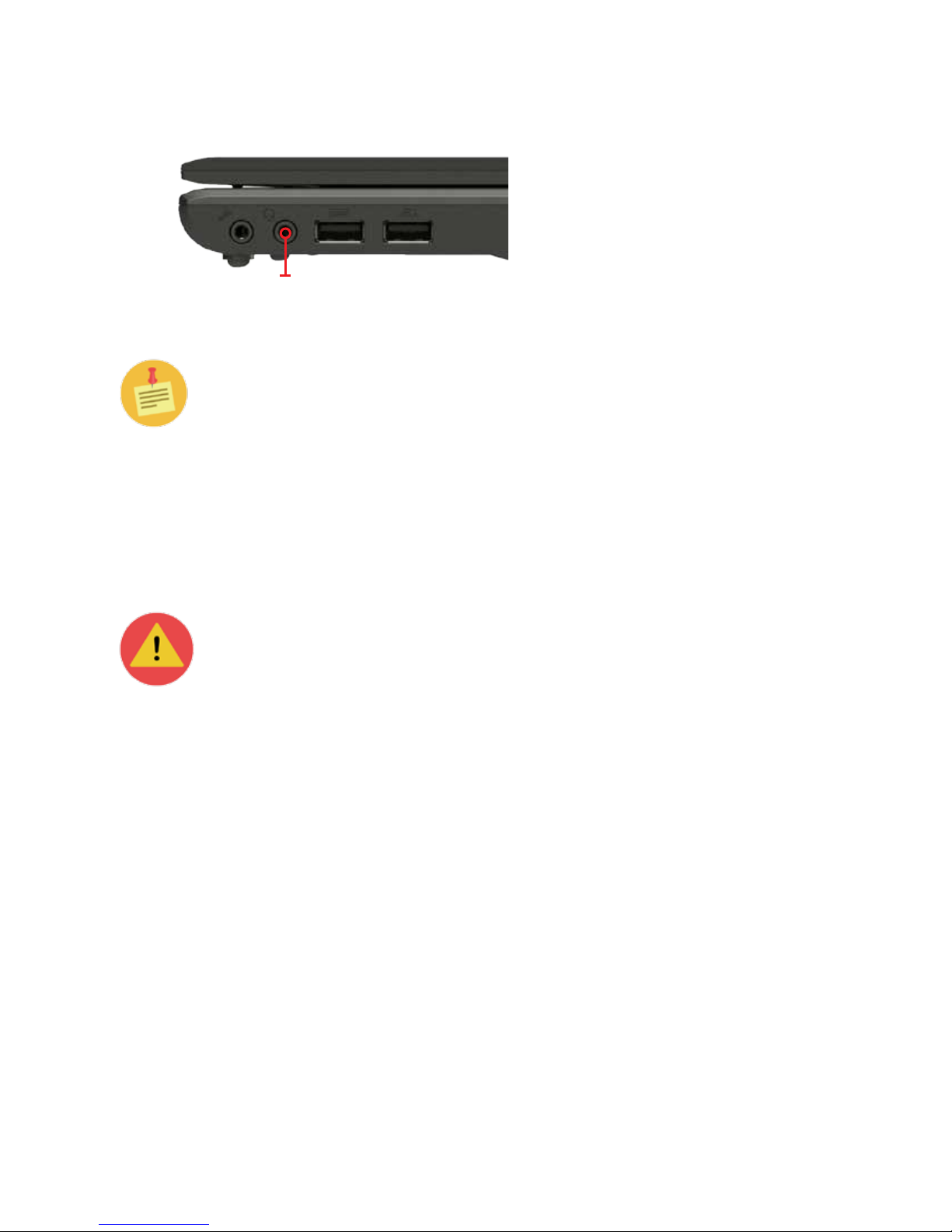

Connecting headphones ...............................................................................................................................25
Audio subsystem ......................................................................................................................................25
Connecting an external microphone ........................................................................................................ 26
External webcam support ........................................................................................................................... 26

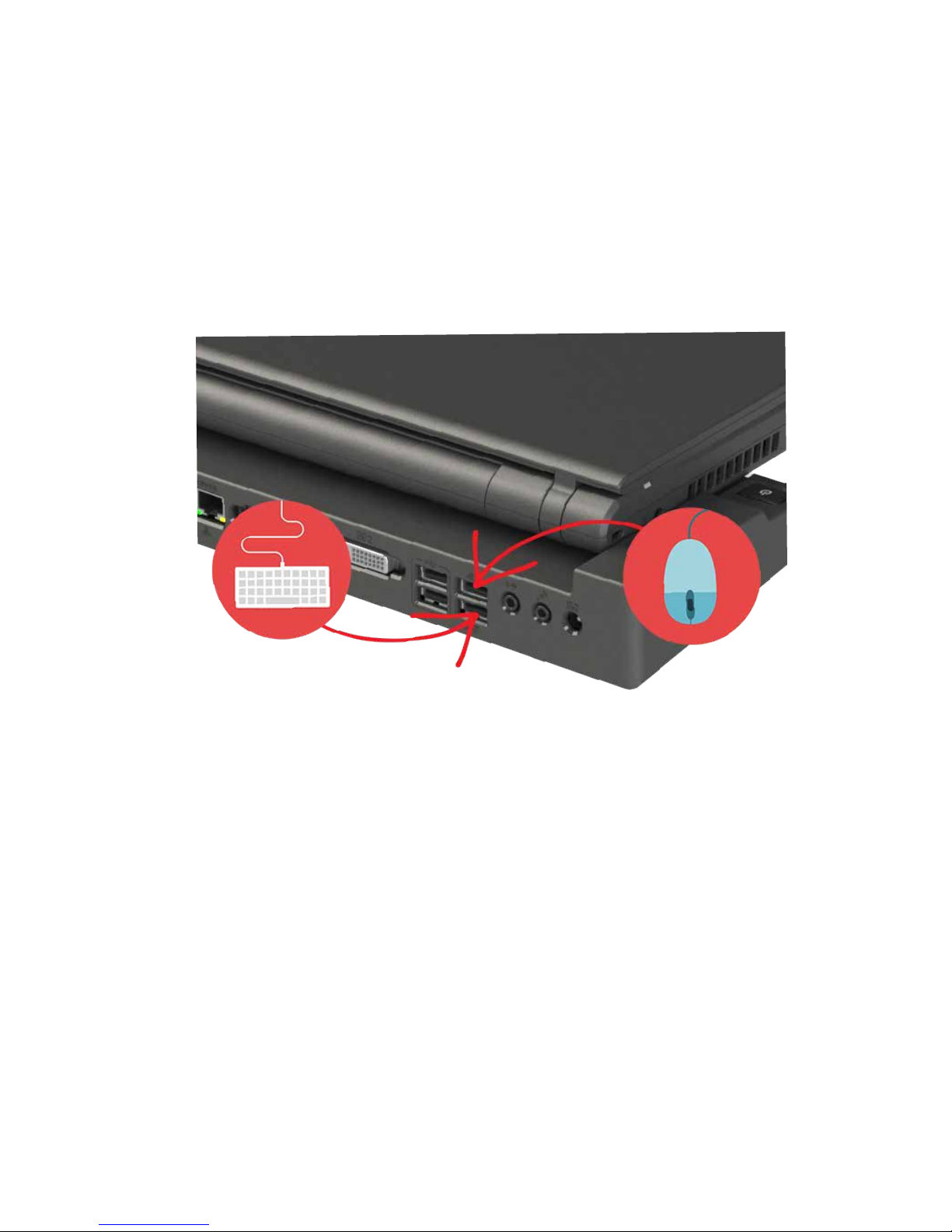

Connecting to a mouse and keyboard .......................................................................................................27

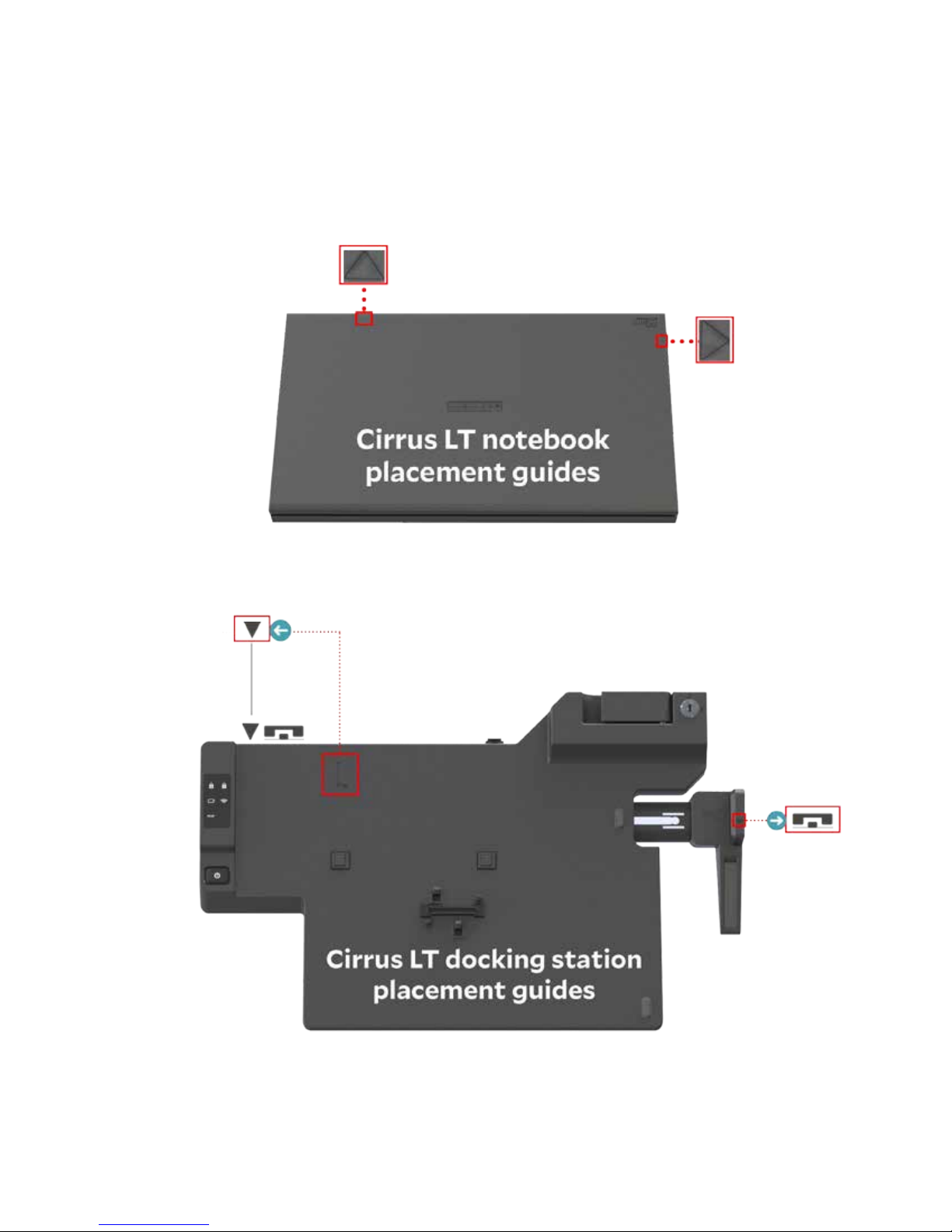

Connecting to the docking station ............................................................................................................ 28

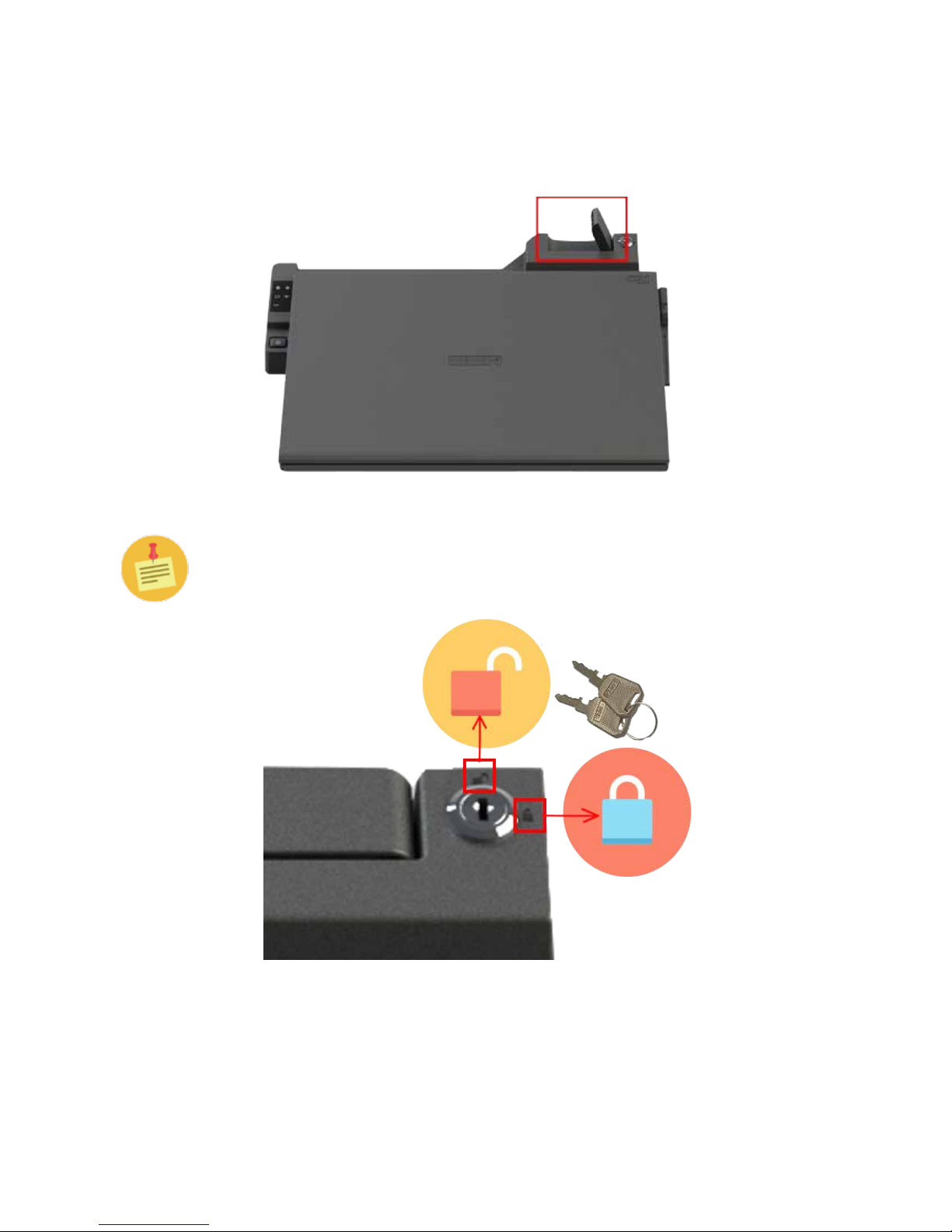

Connecting the docking station ............................................................................................................28
Disconnecting from the docking station..............................................................................................32
USB port functionality while notebook is docked ..............................................................................33
Hotdocking ...............................................................................................................................................33
Page 3

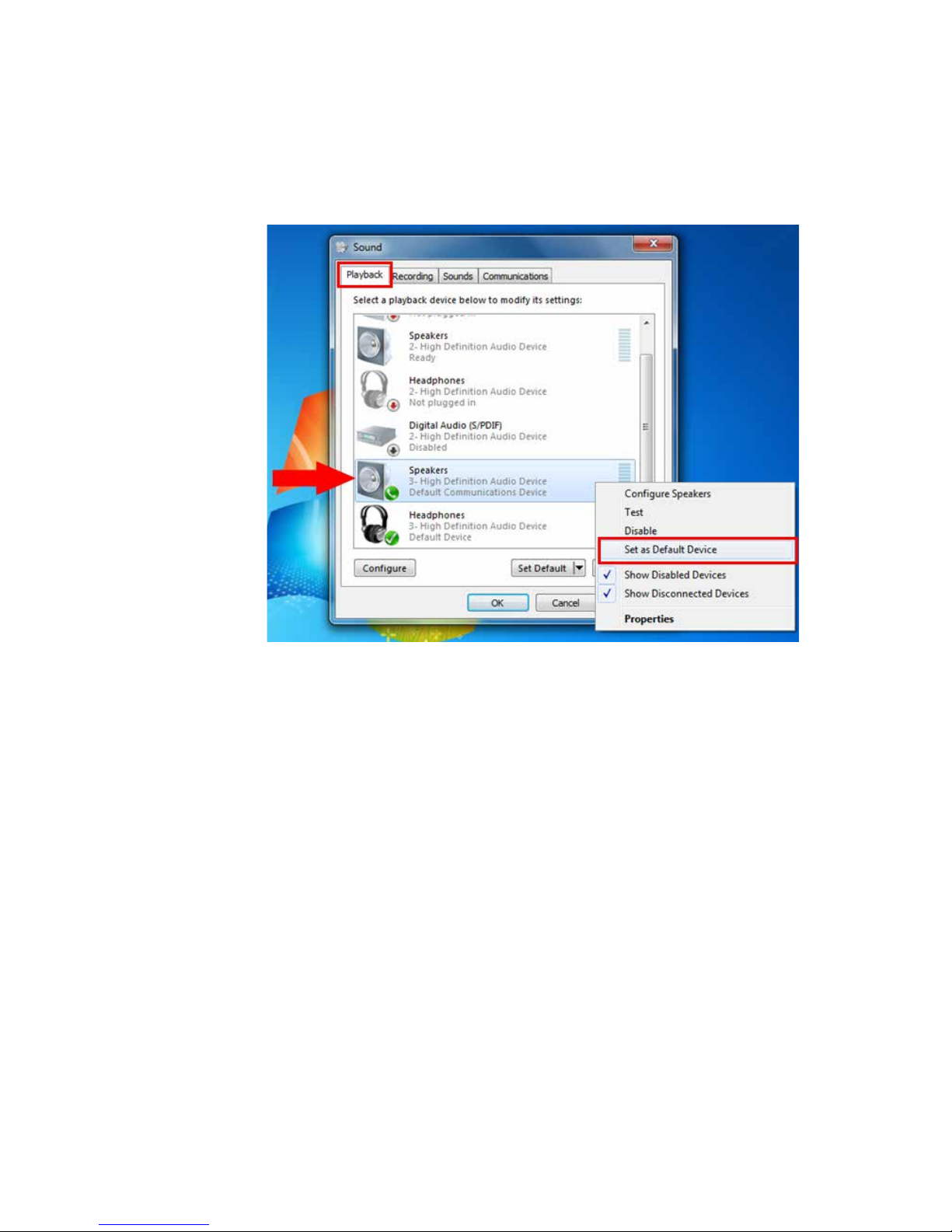

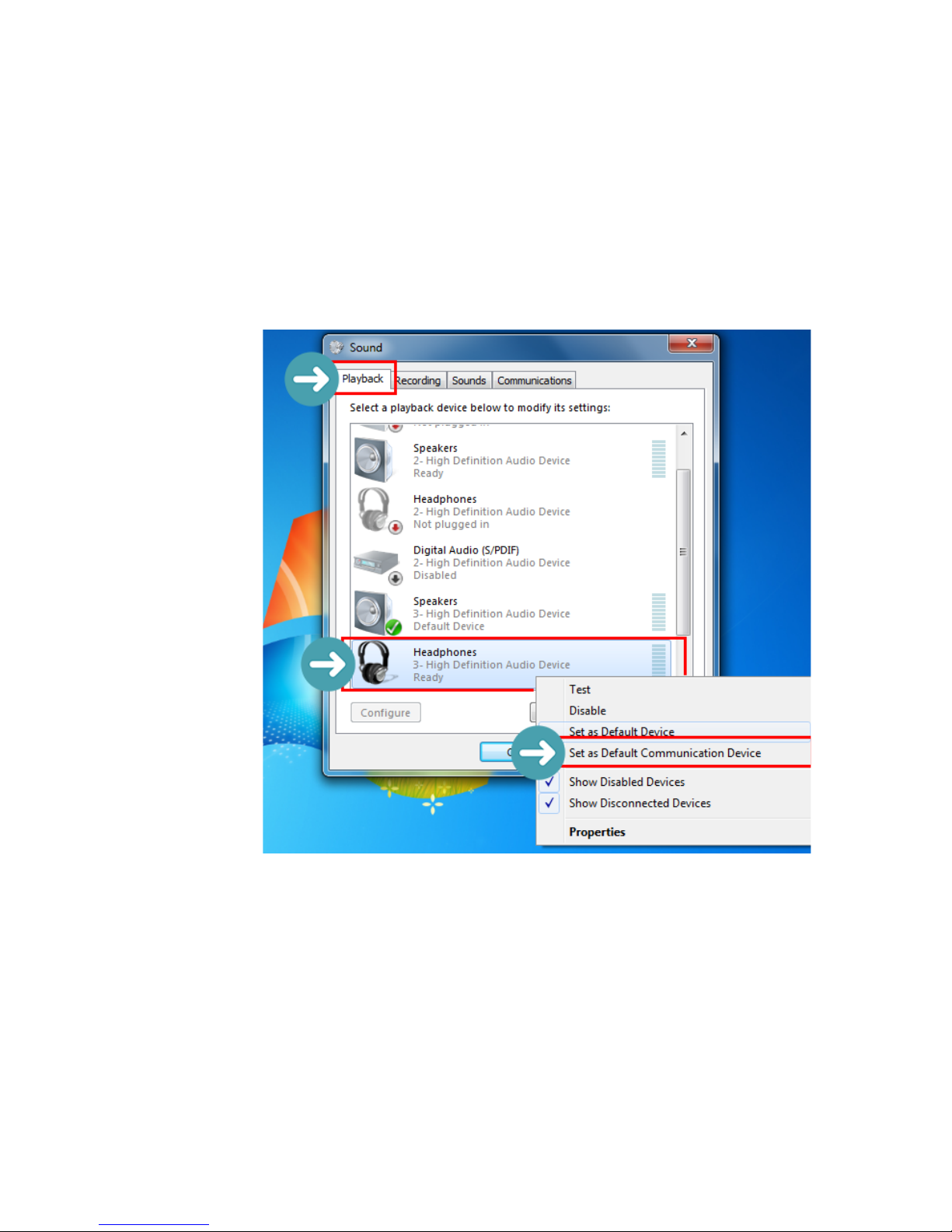

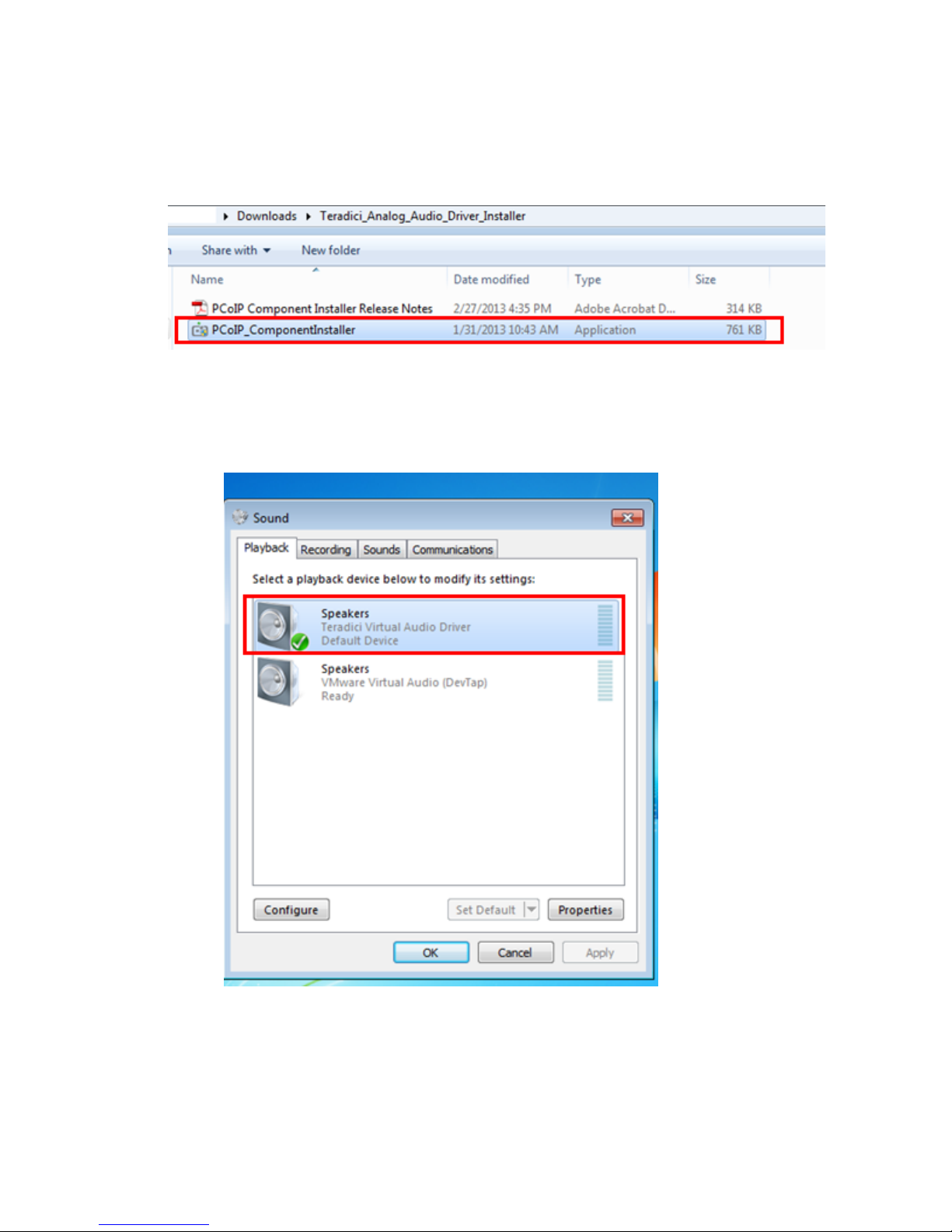

Configuring the audio for remote hosts ................................................................................................... 34
Connecting to the Teradici host PC......................................................................................................34
Connecting to VMHost ..........................................................................................................................36

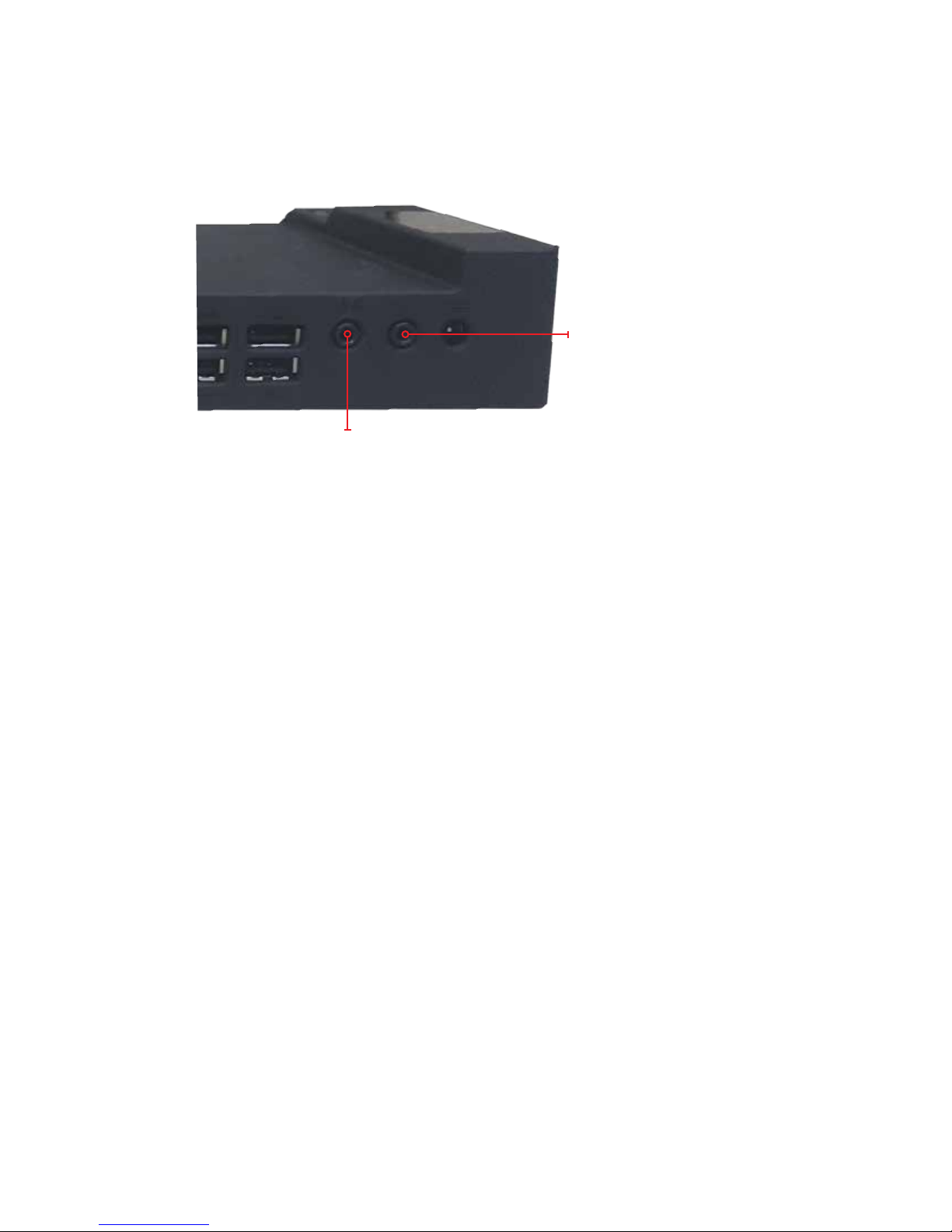

Docking station audio subsystem .........................................................................................................37

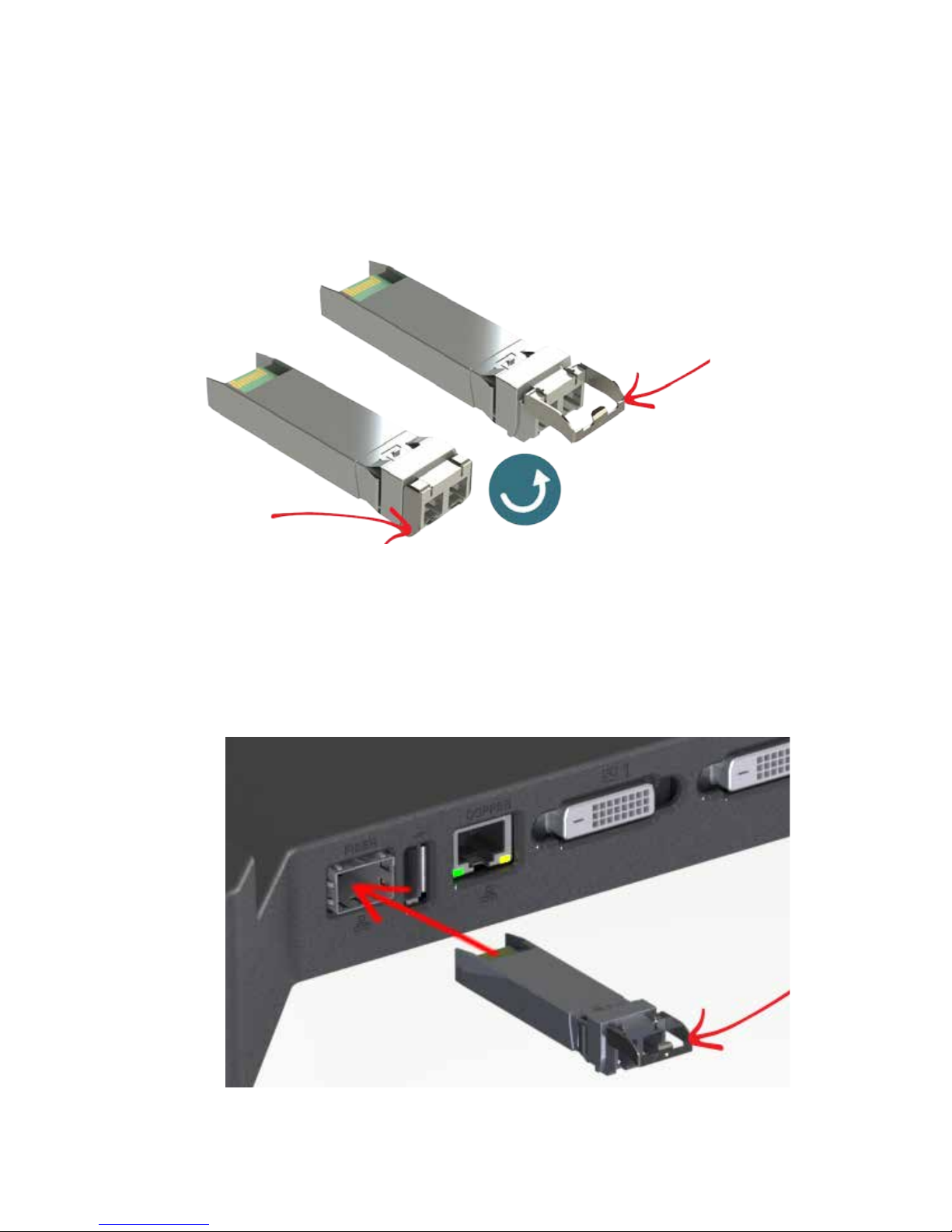

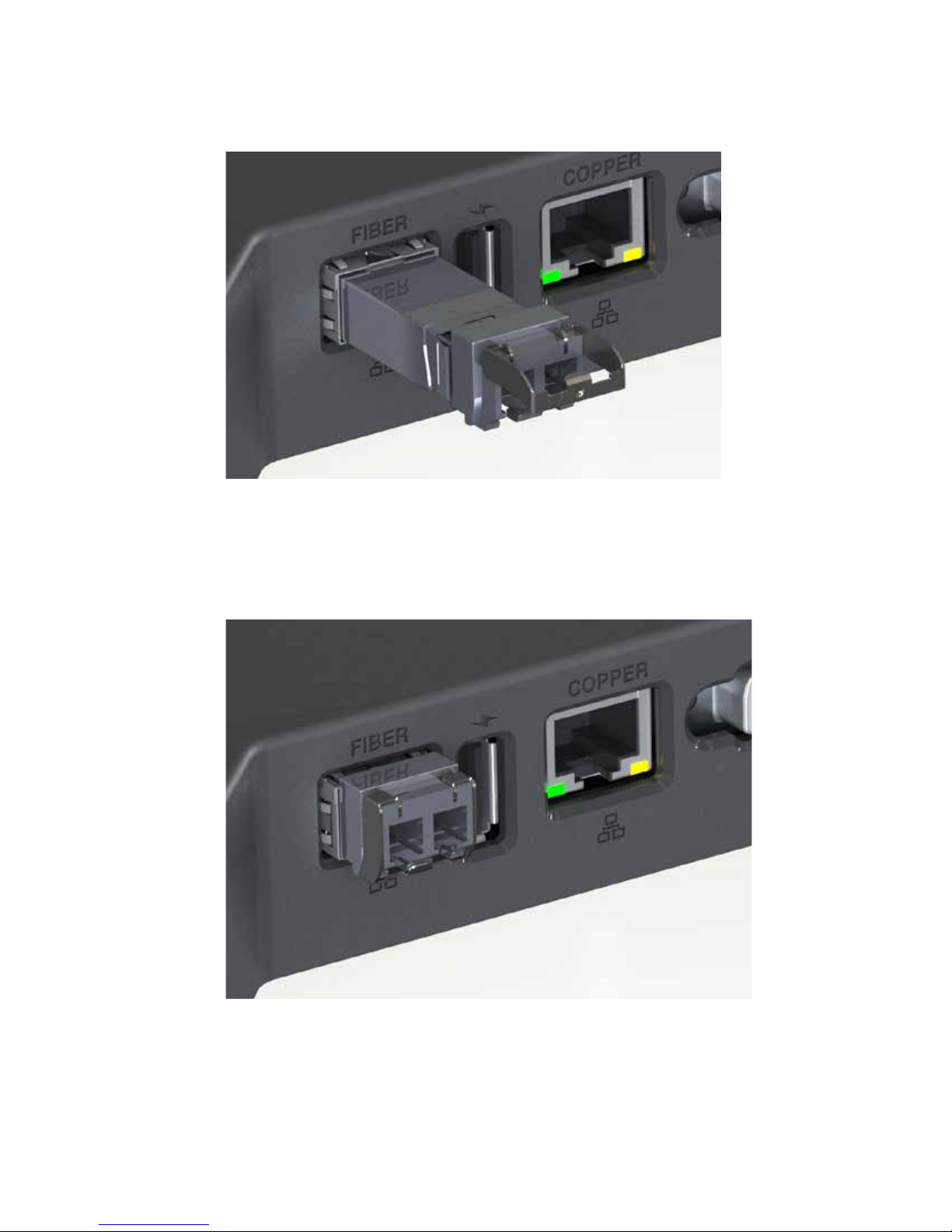

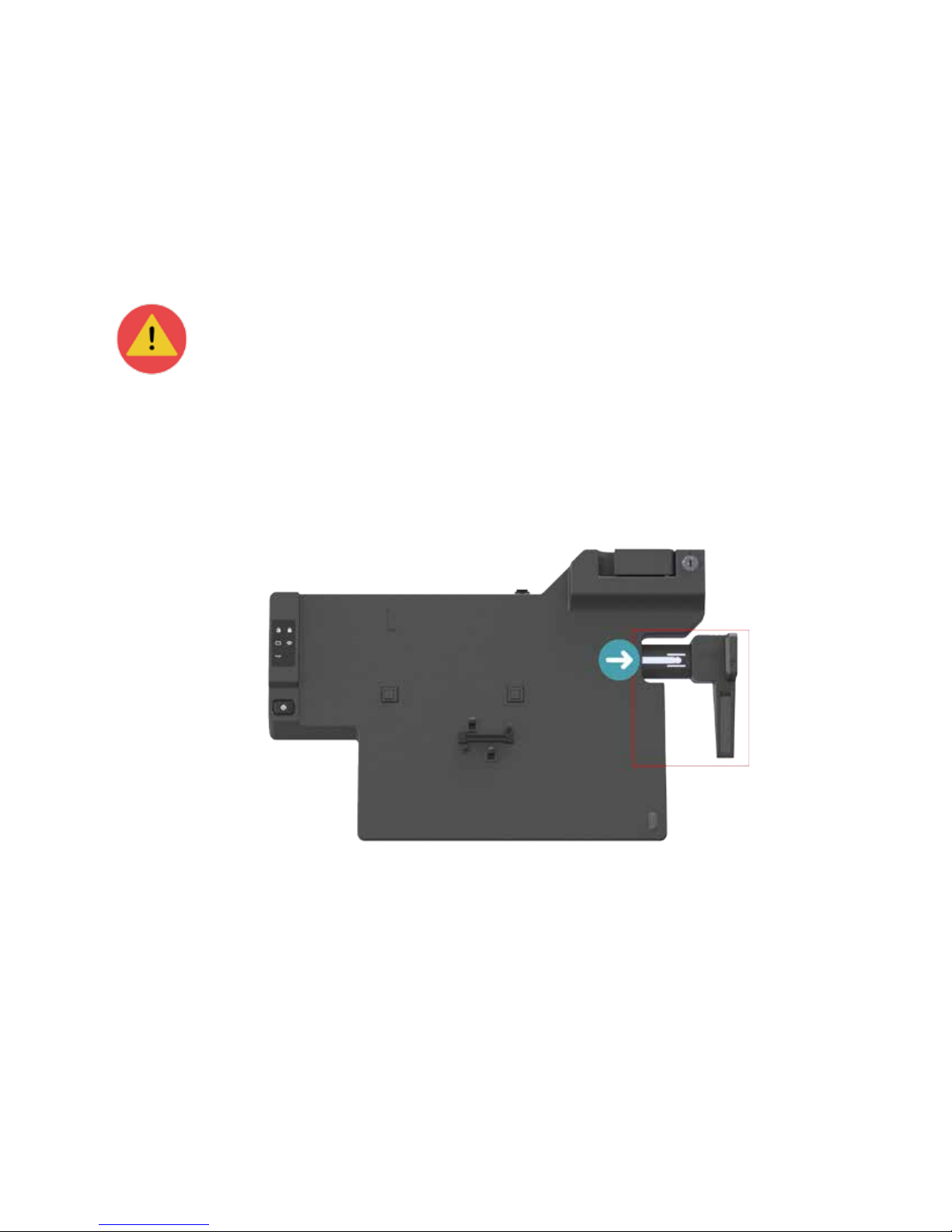

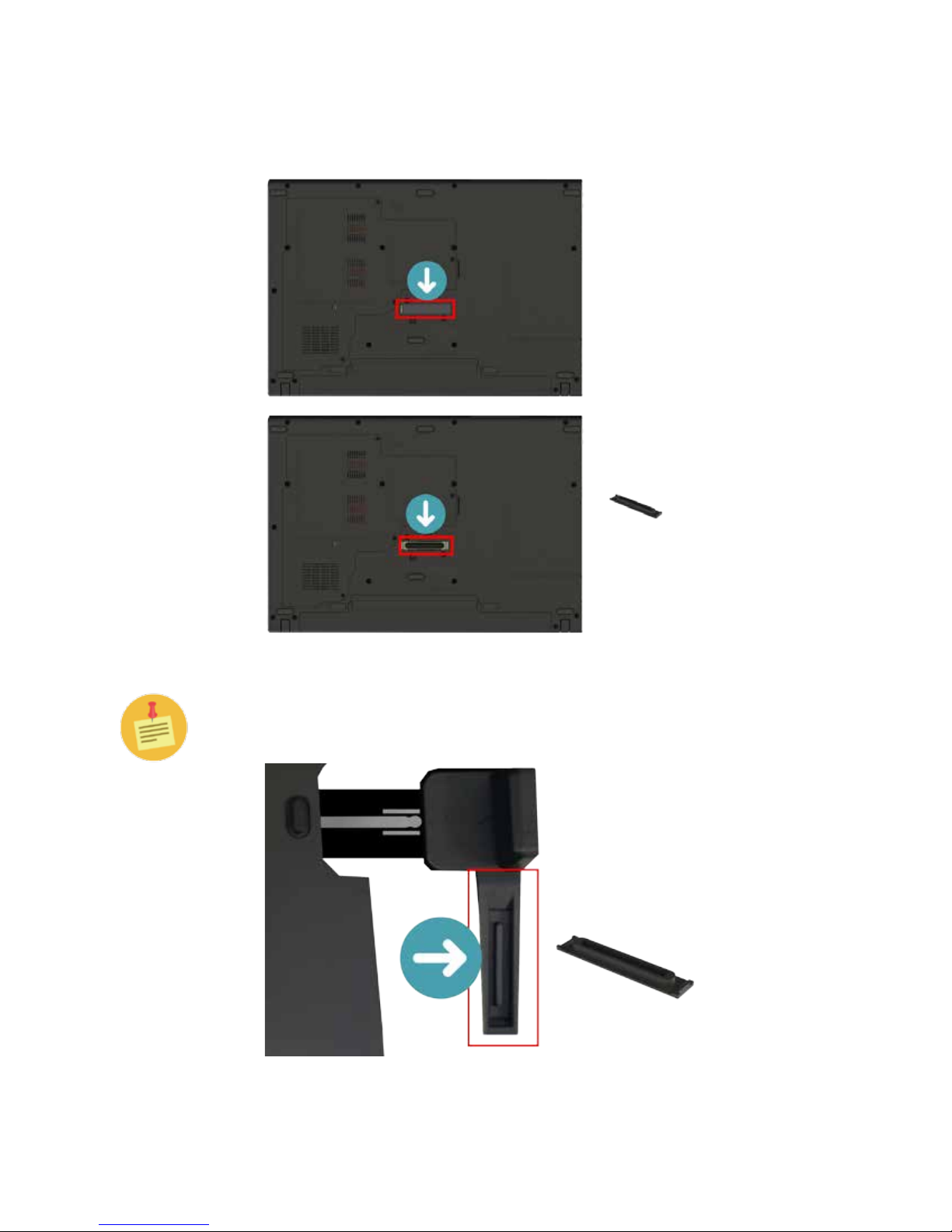

Installing a SFP module ...............................................................................................................................38
Chapter 4: Navigating the OnScreen Menu .........................................................................................40
OnScreen Menu (OSM) structure ............................................................................................................. 40

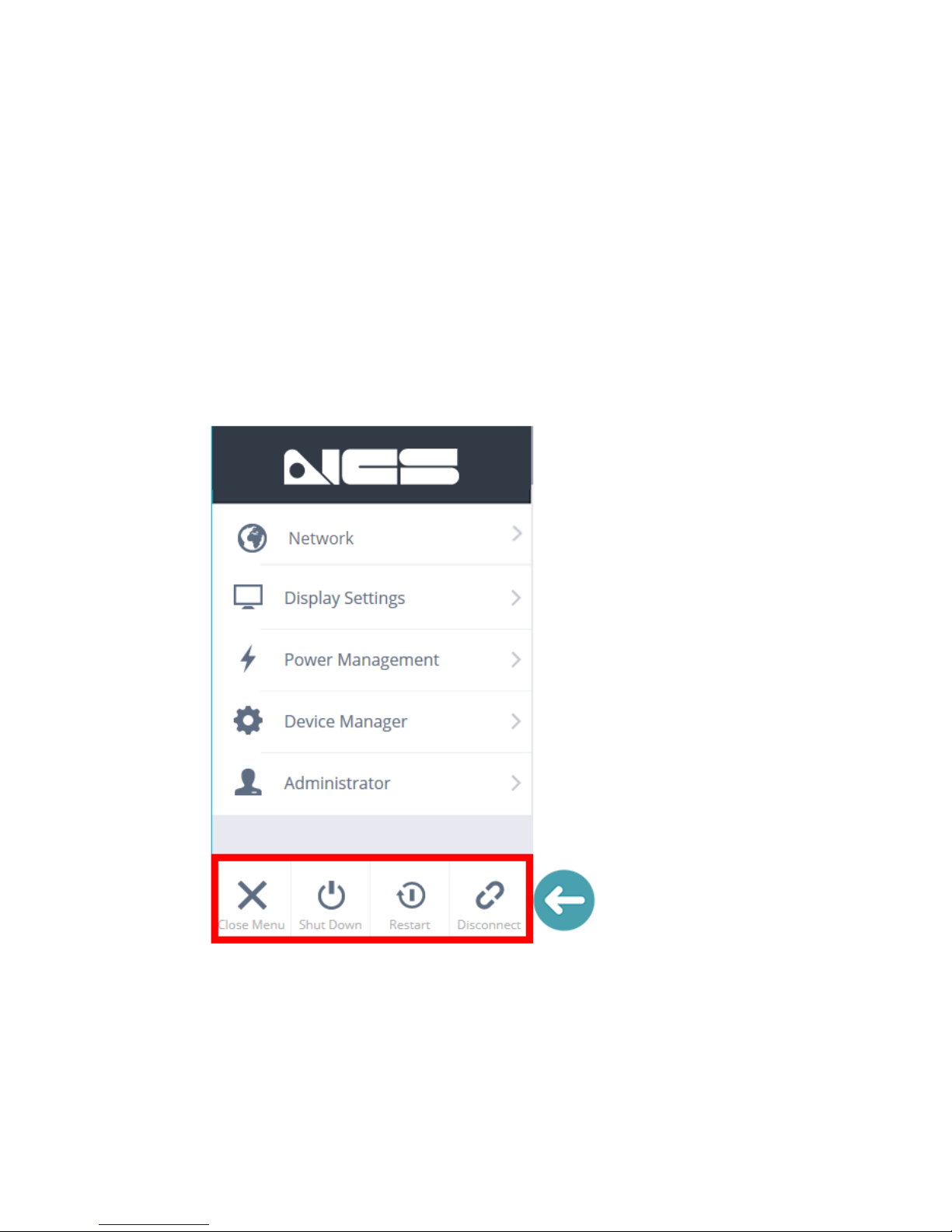

Main Menu ......................................................................................................................................................41

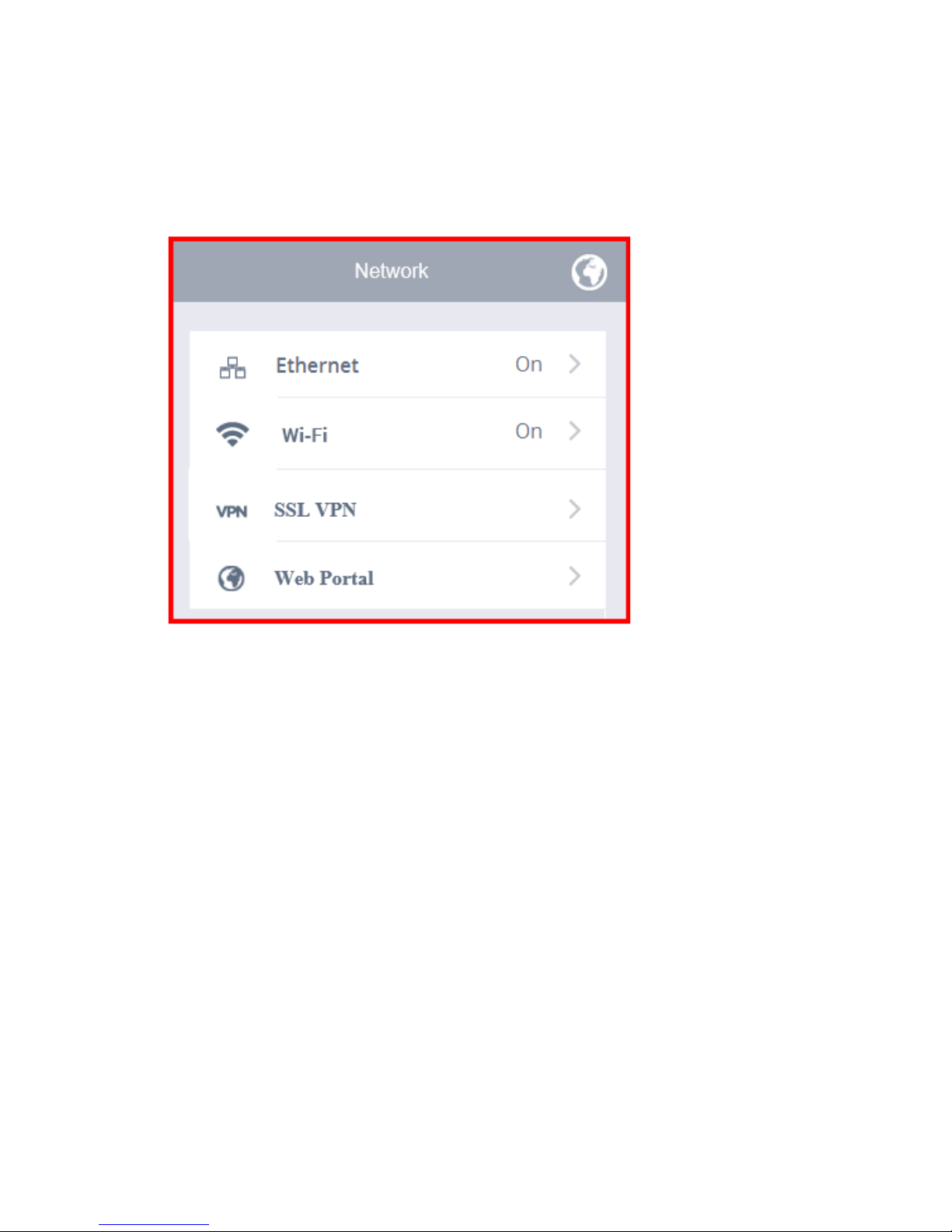

Network .......................................................................................................................................................... 42

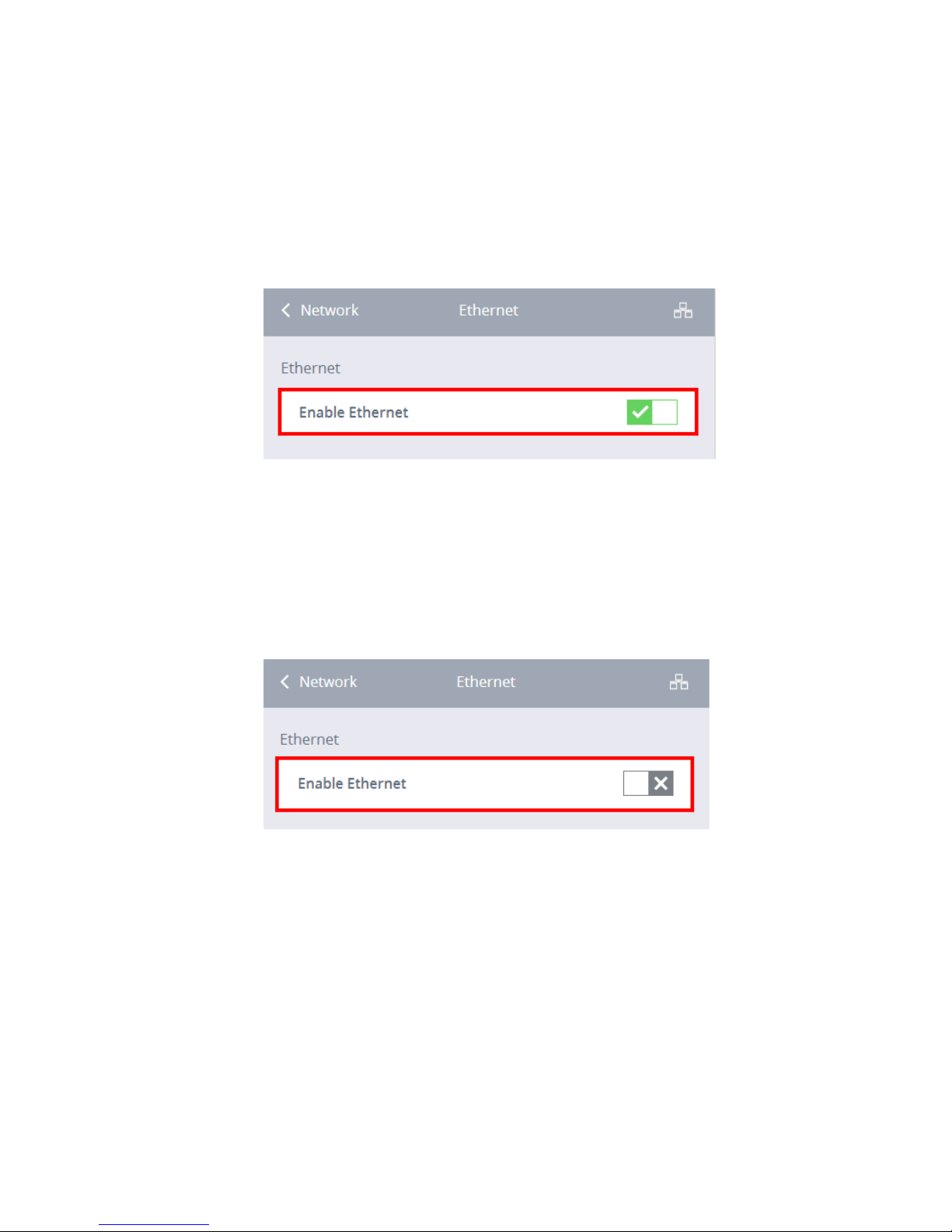

Ethernet ....................................................................................................................................................43

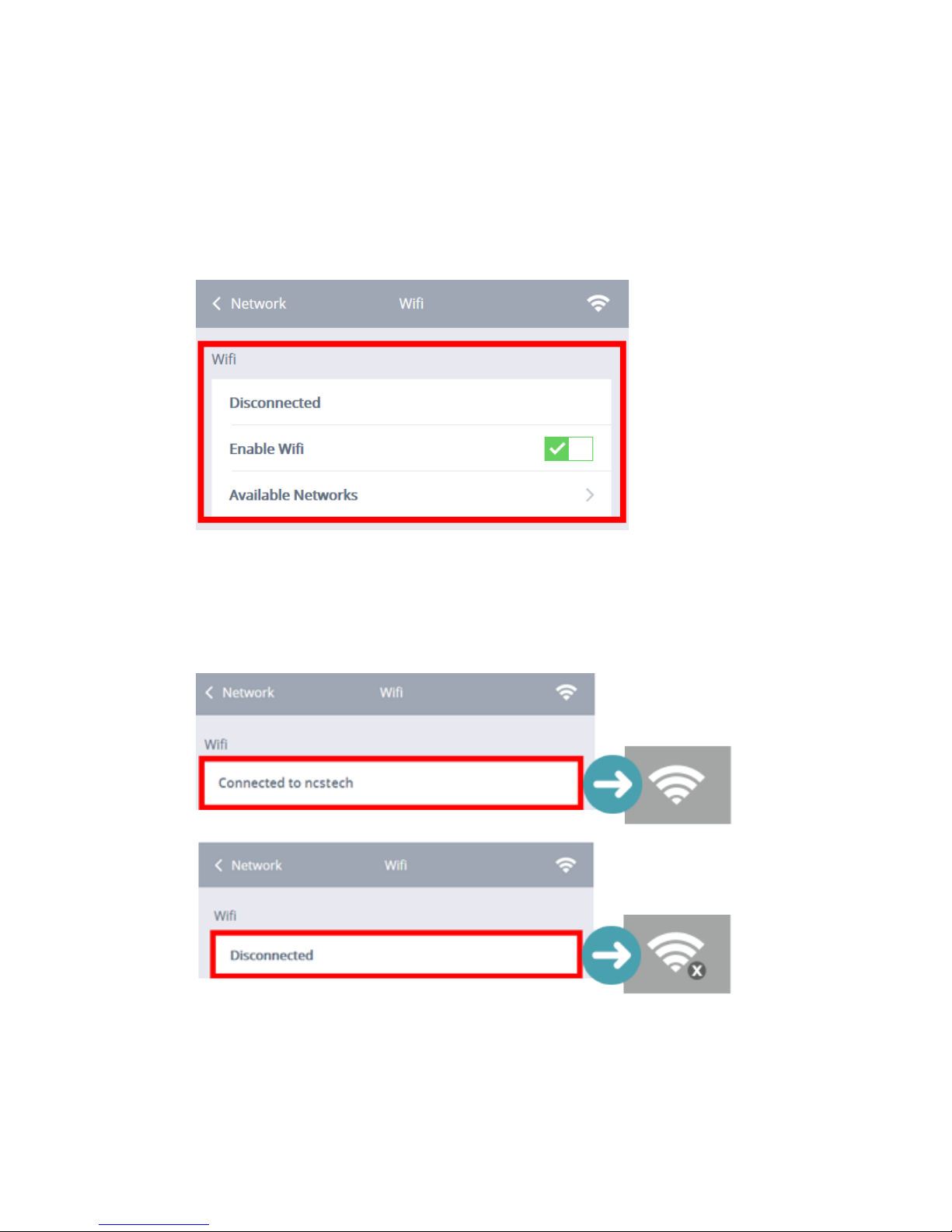

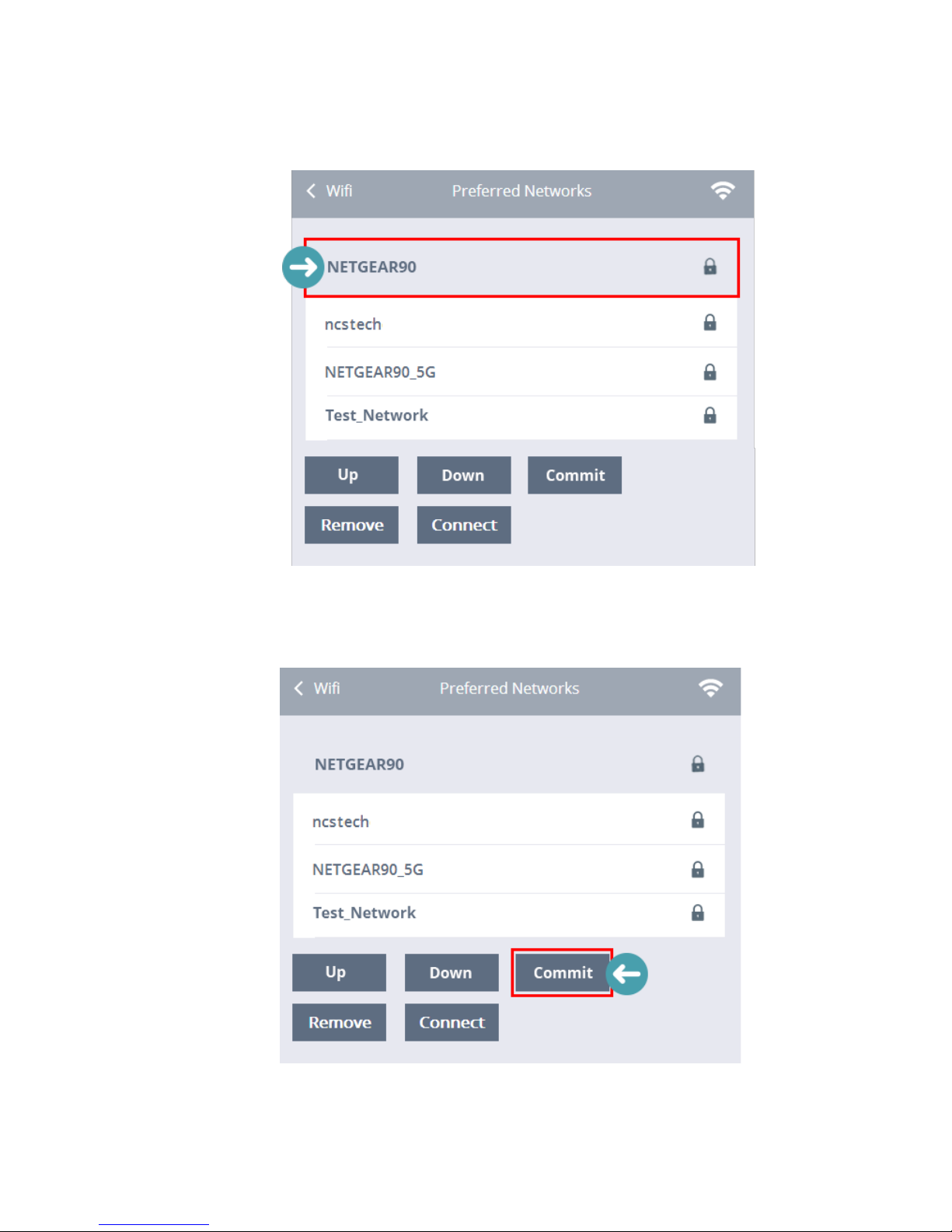

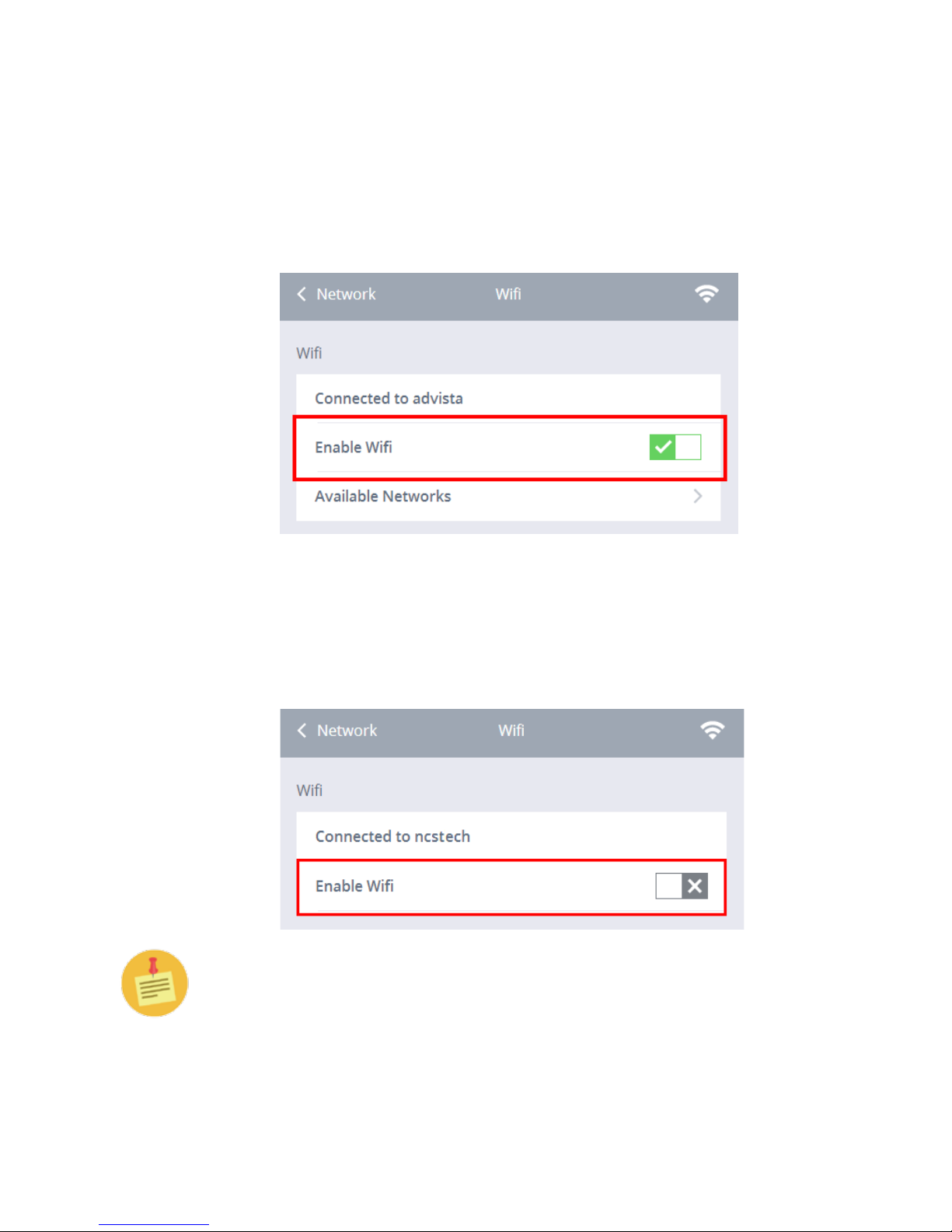

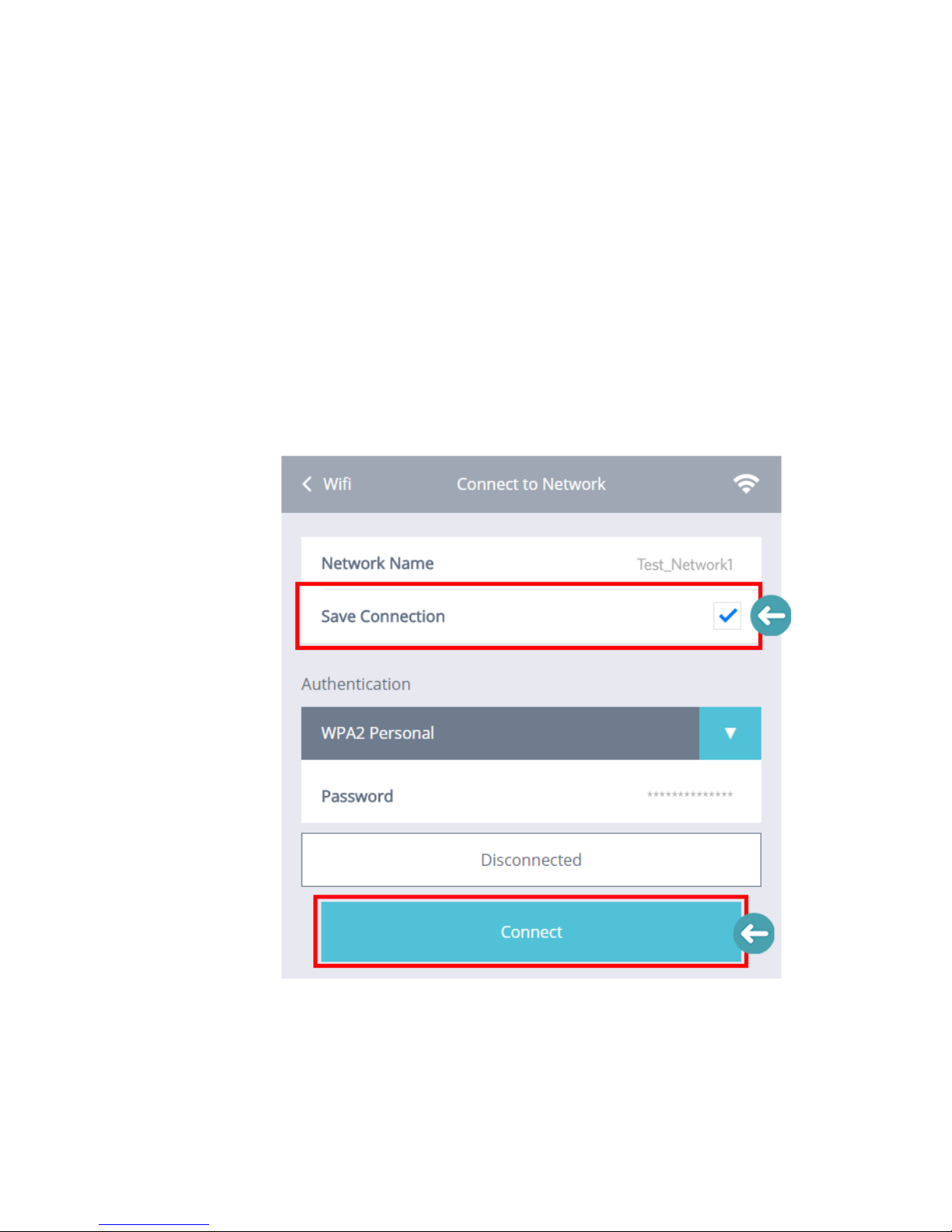

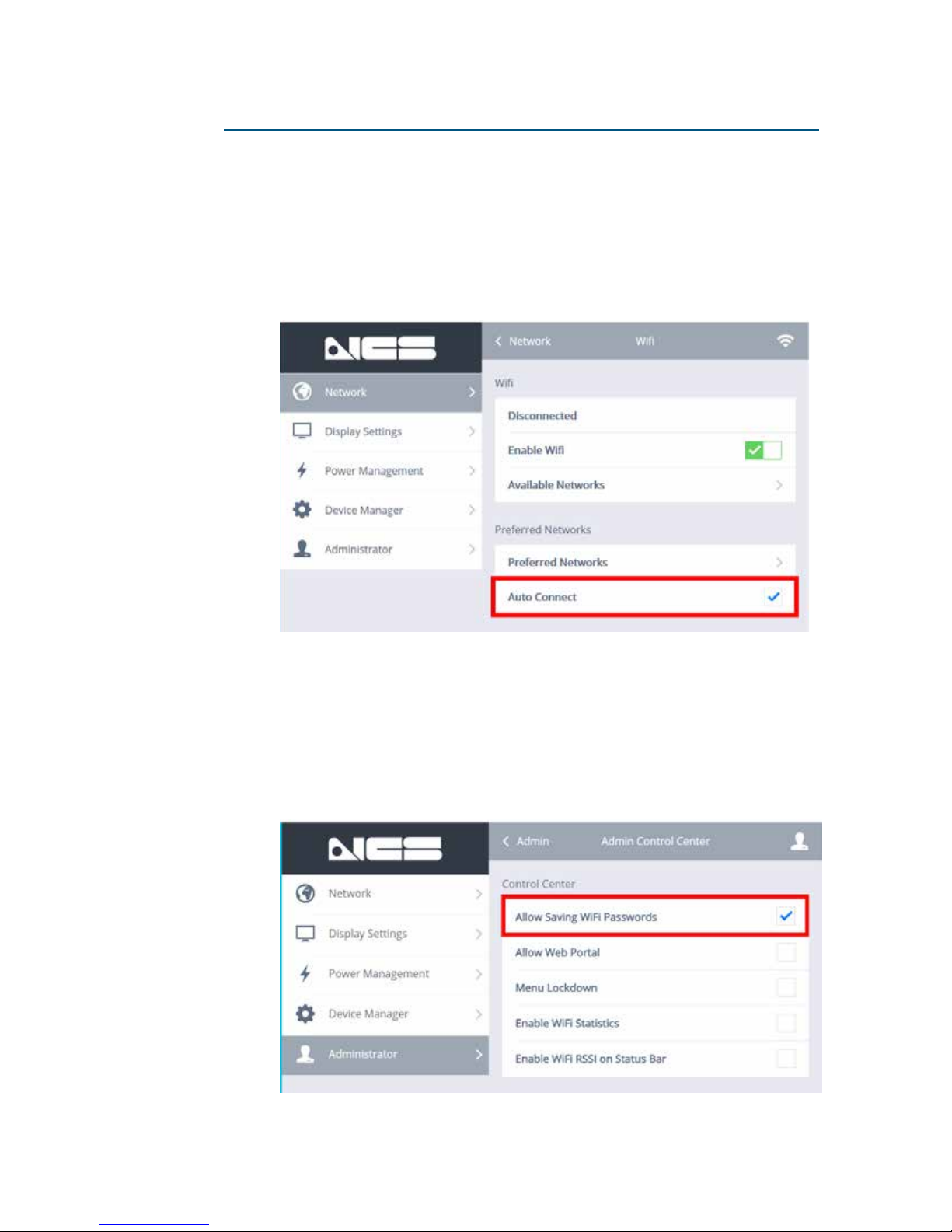

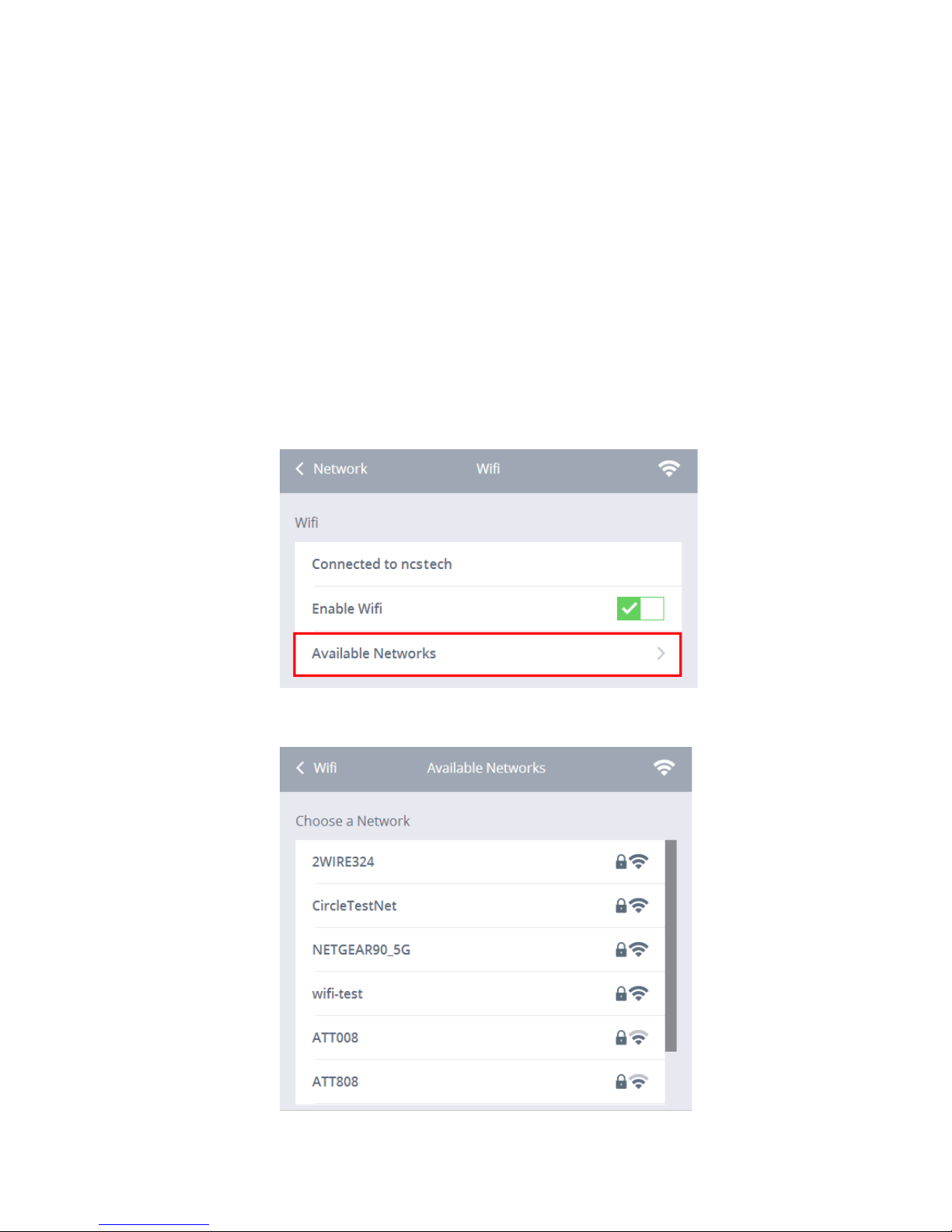

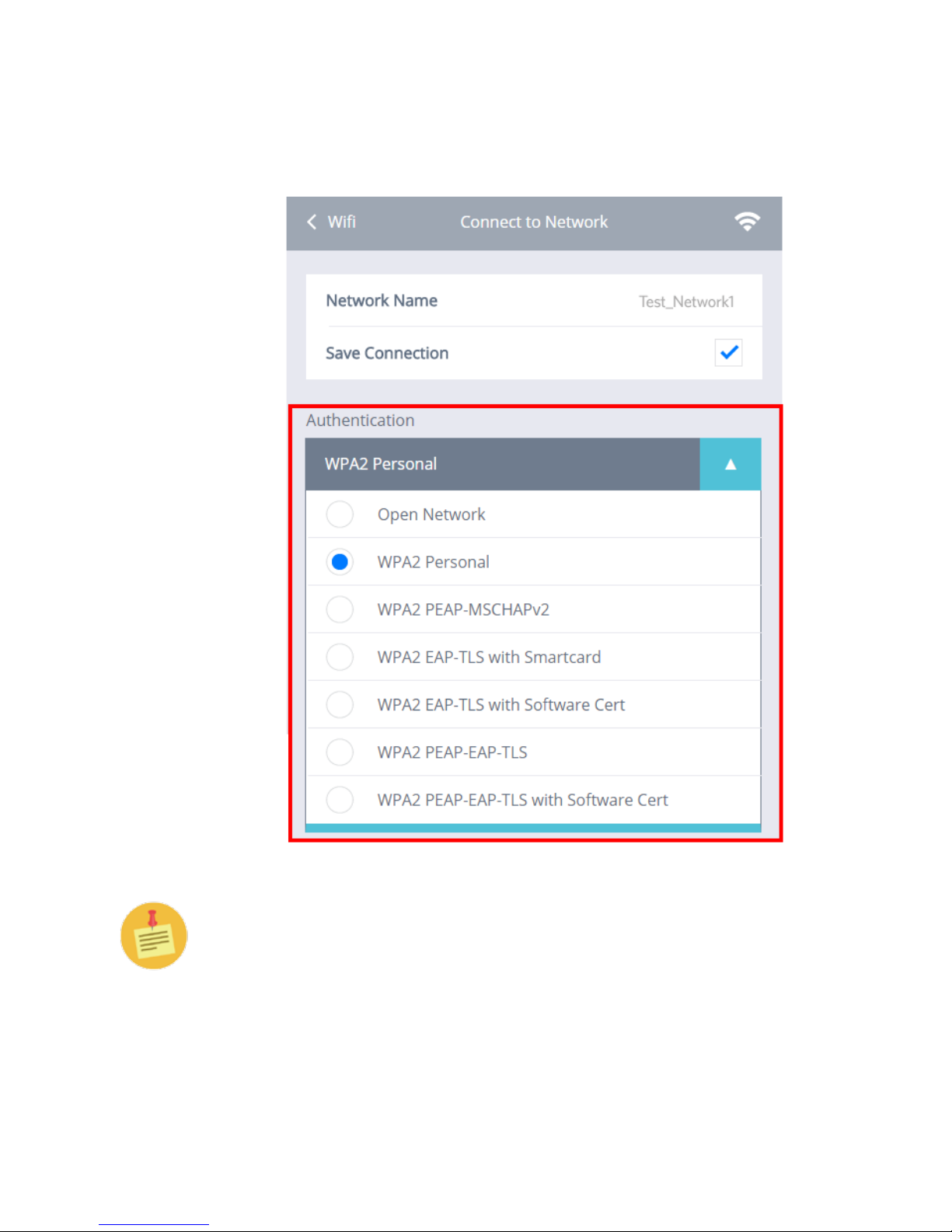

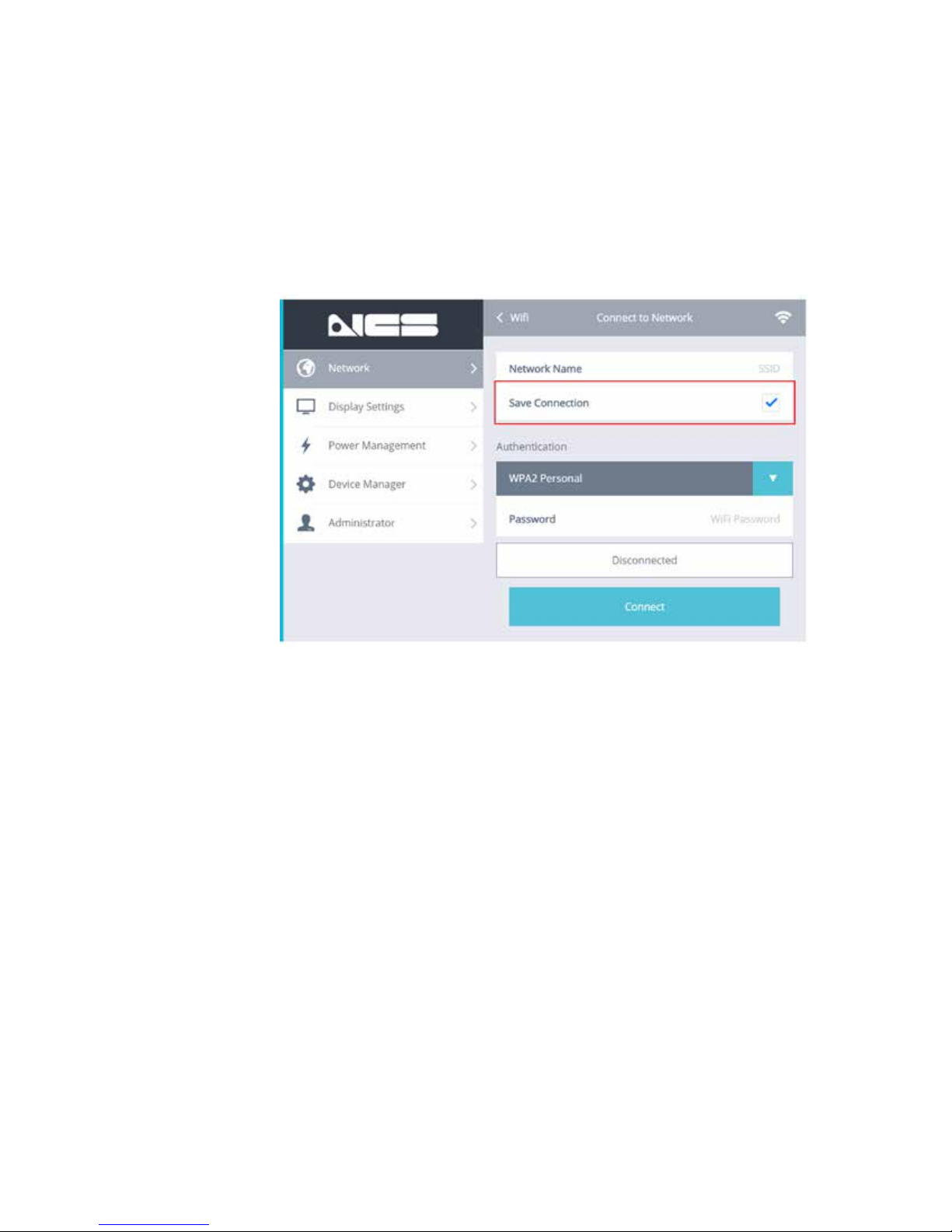

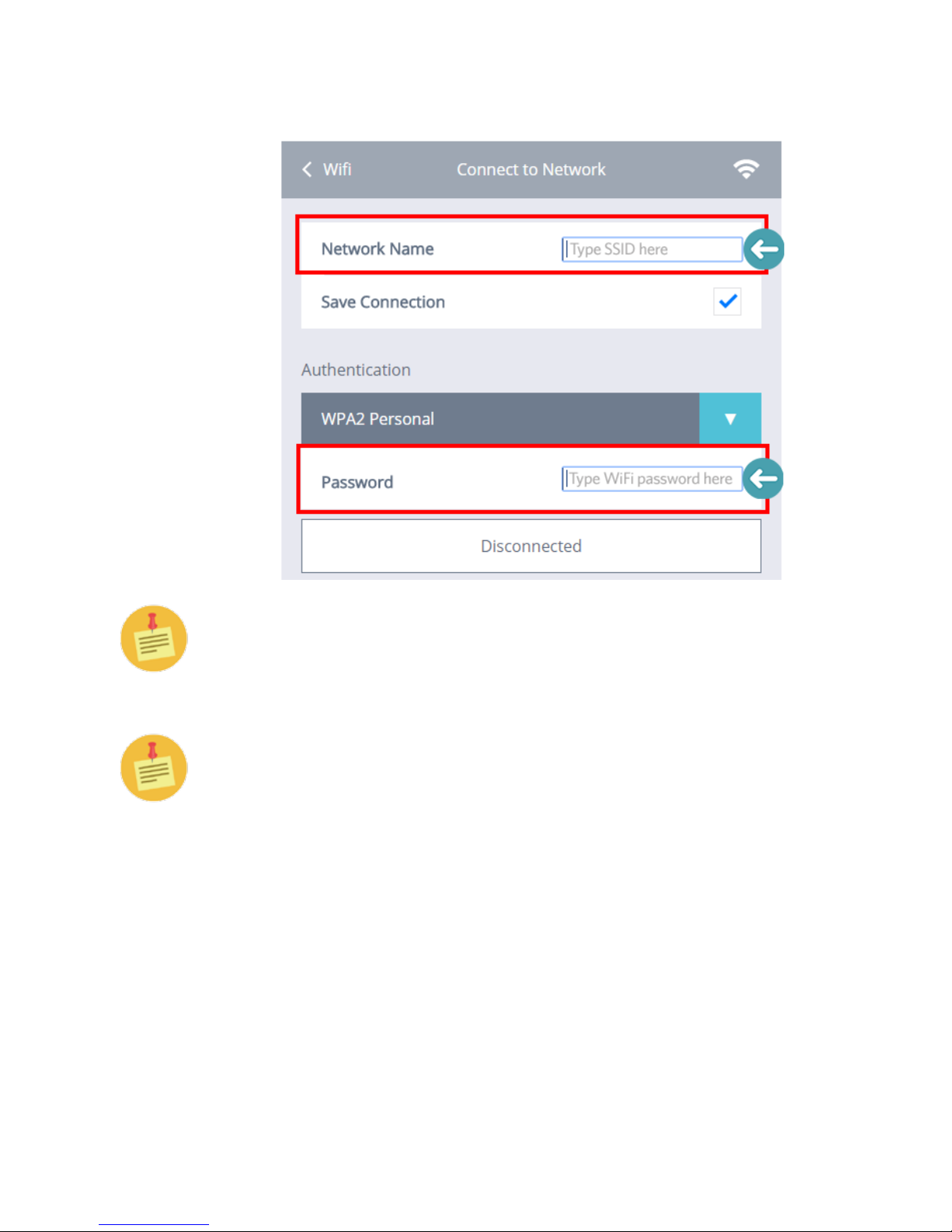

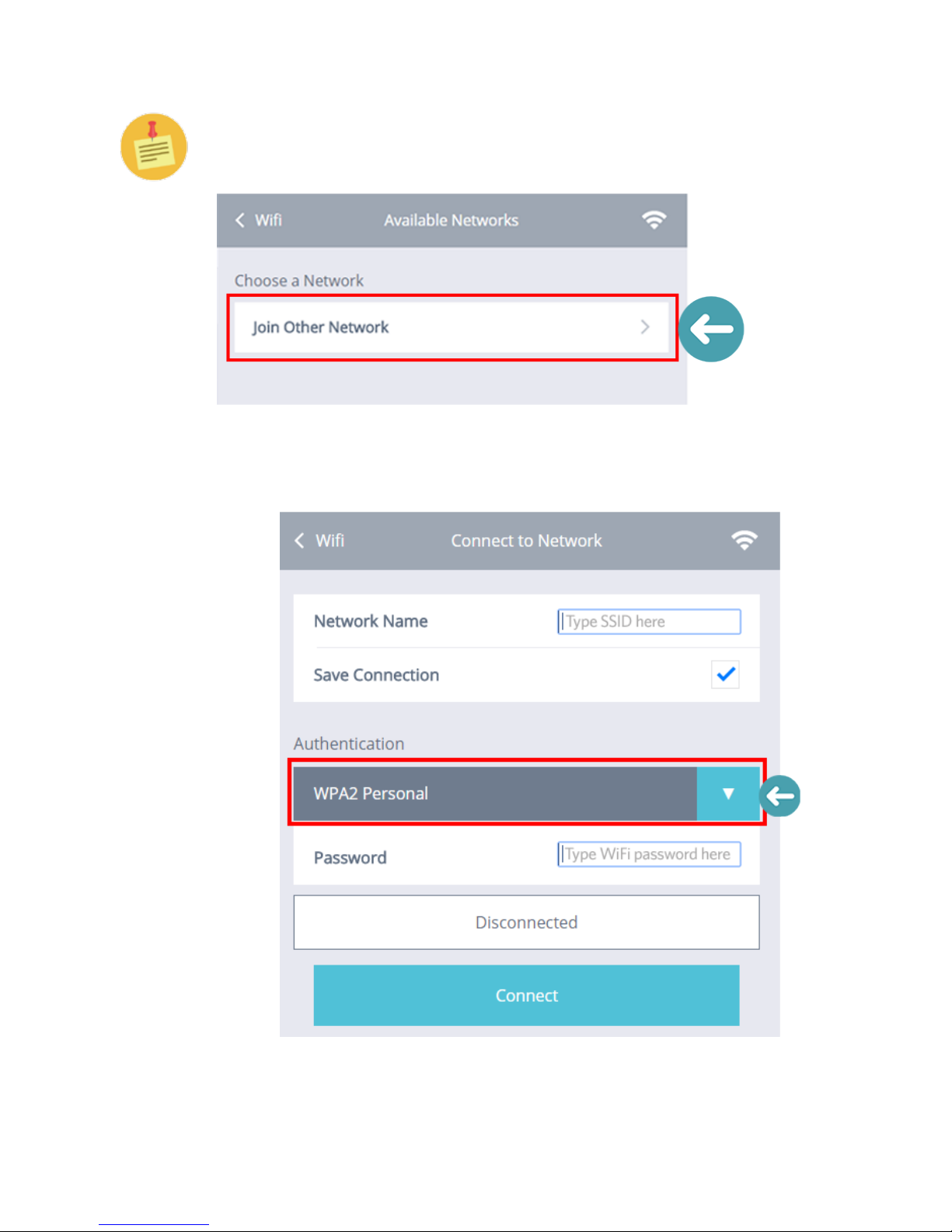

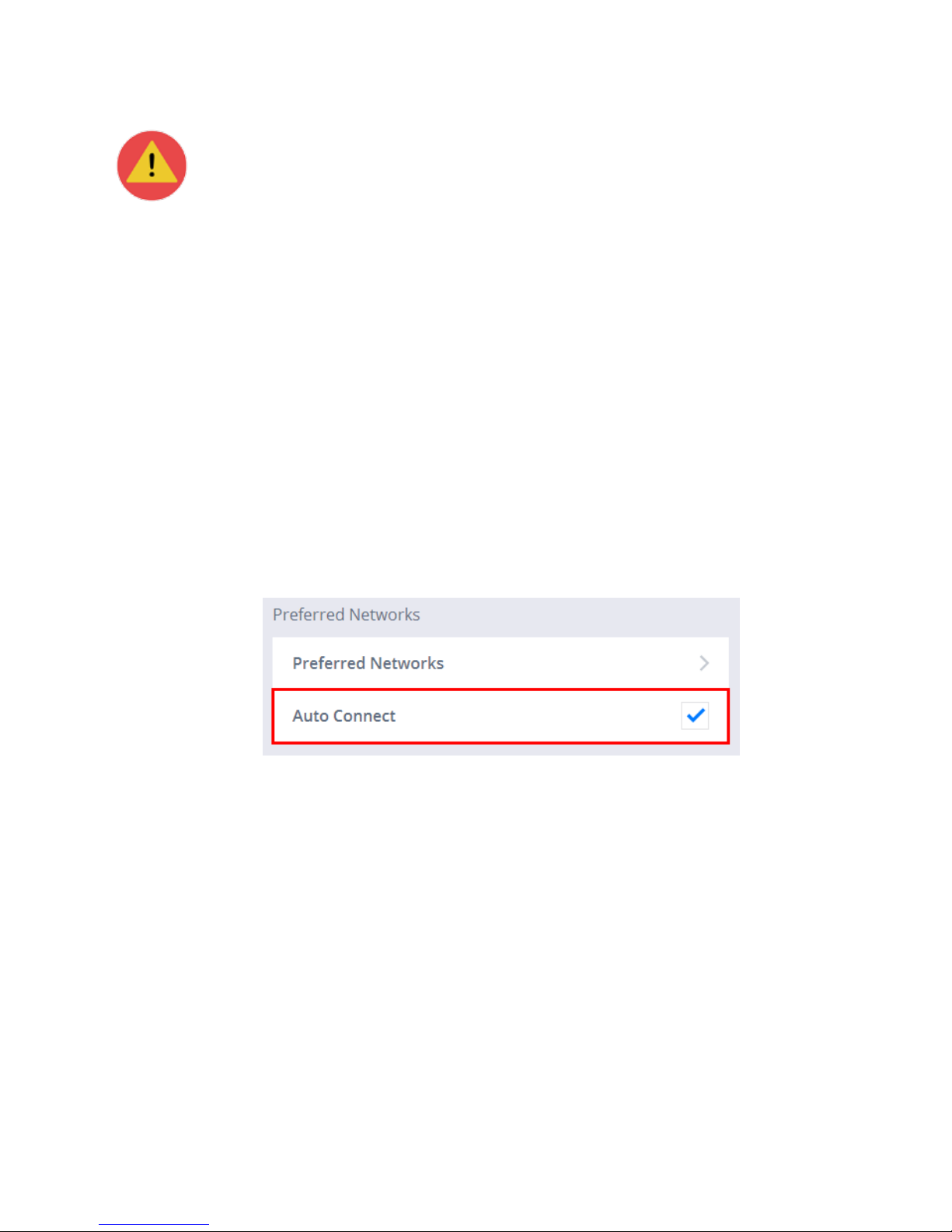

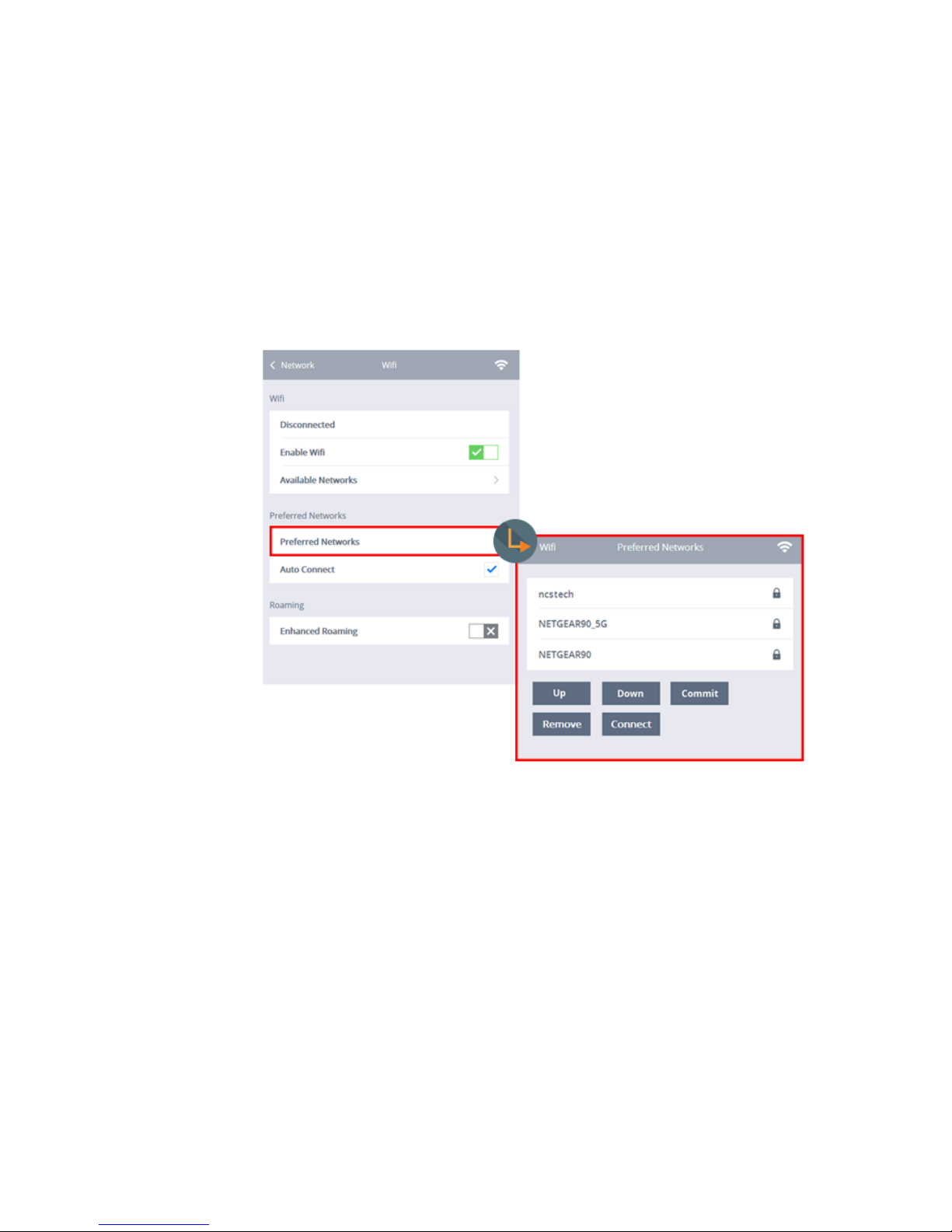

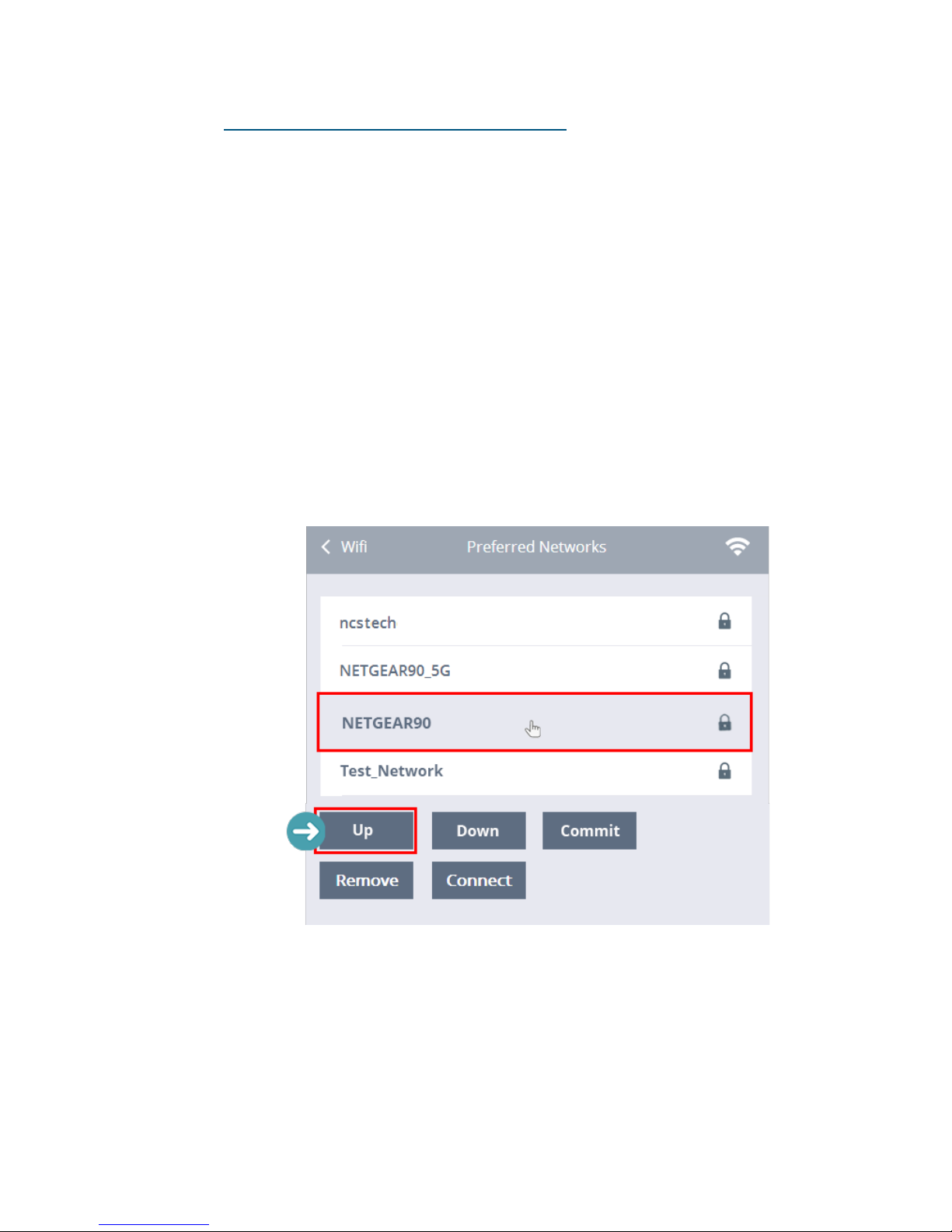

WiFi .......................................................................................................................................................... 44

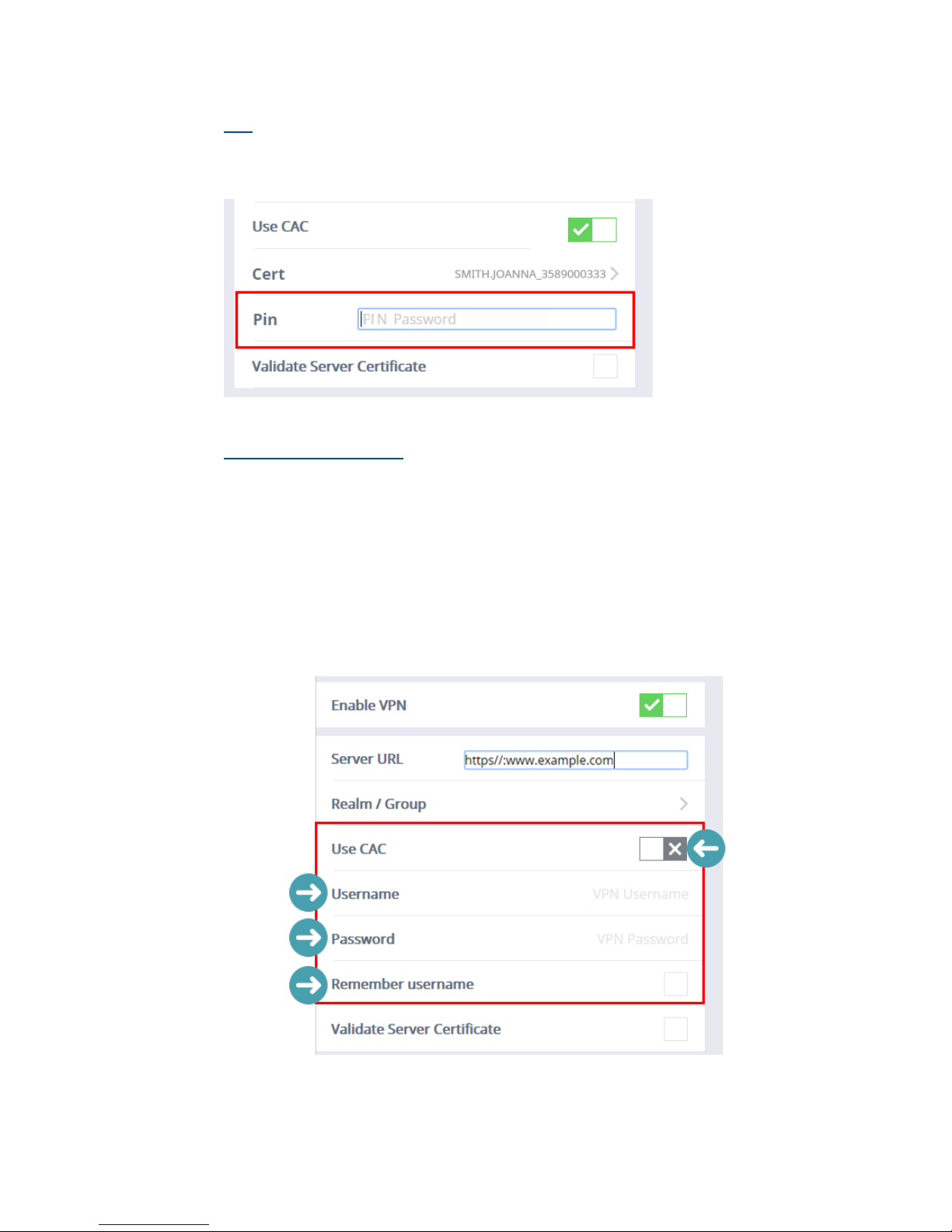

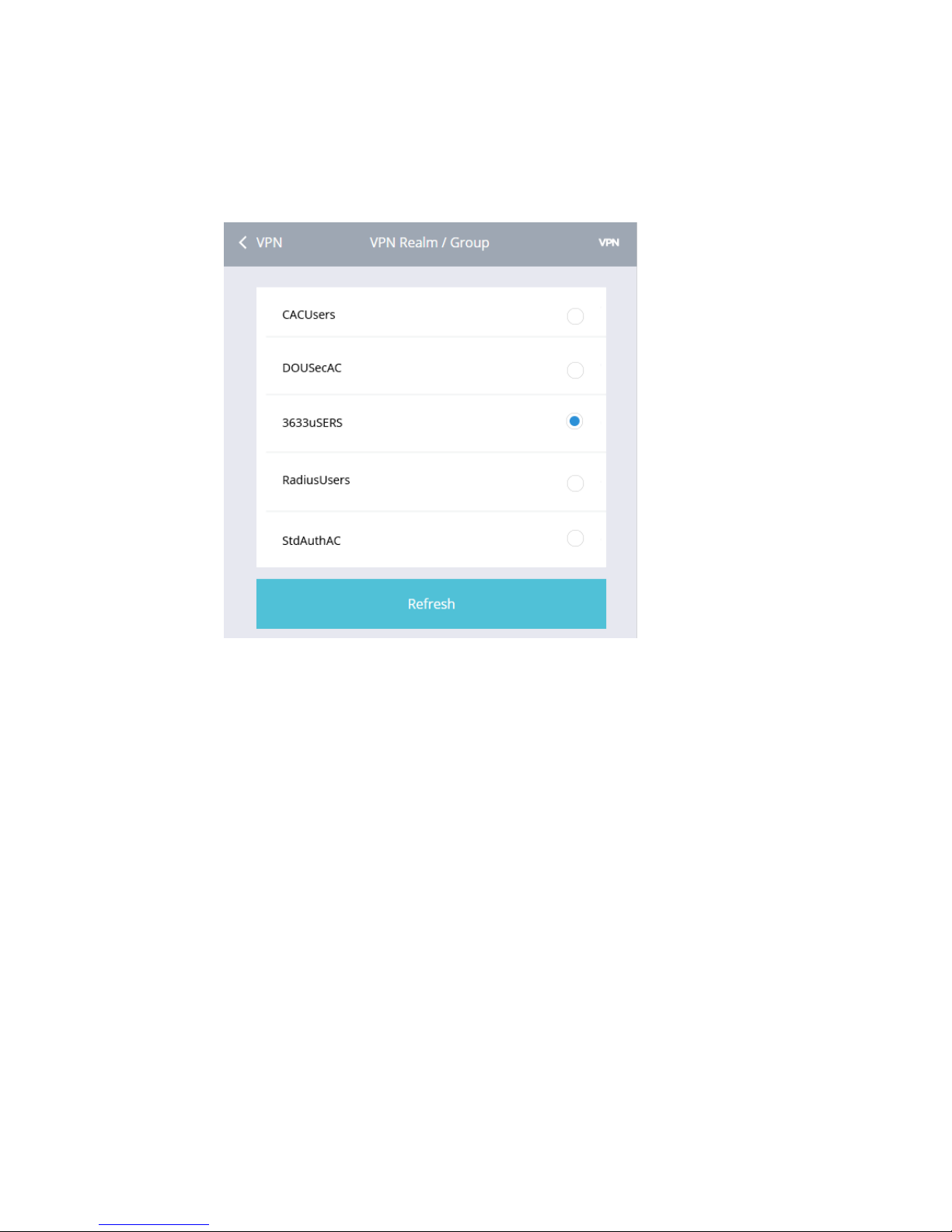

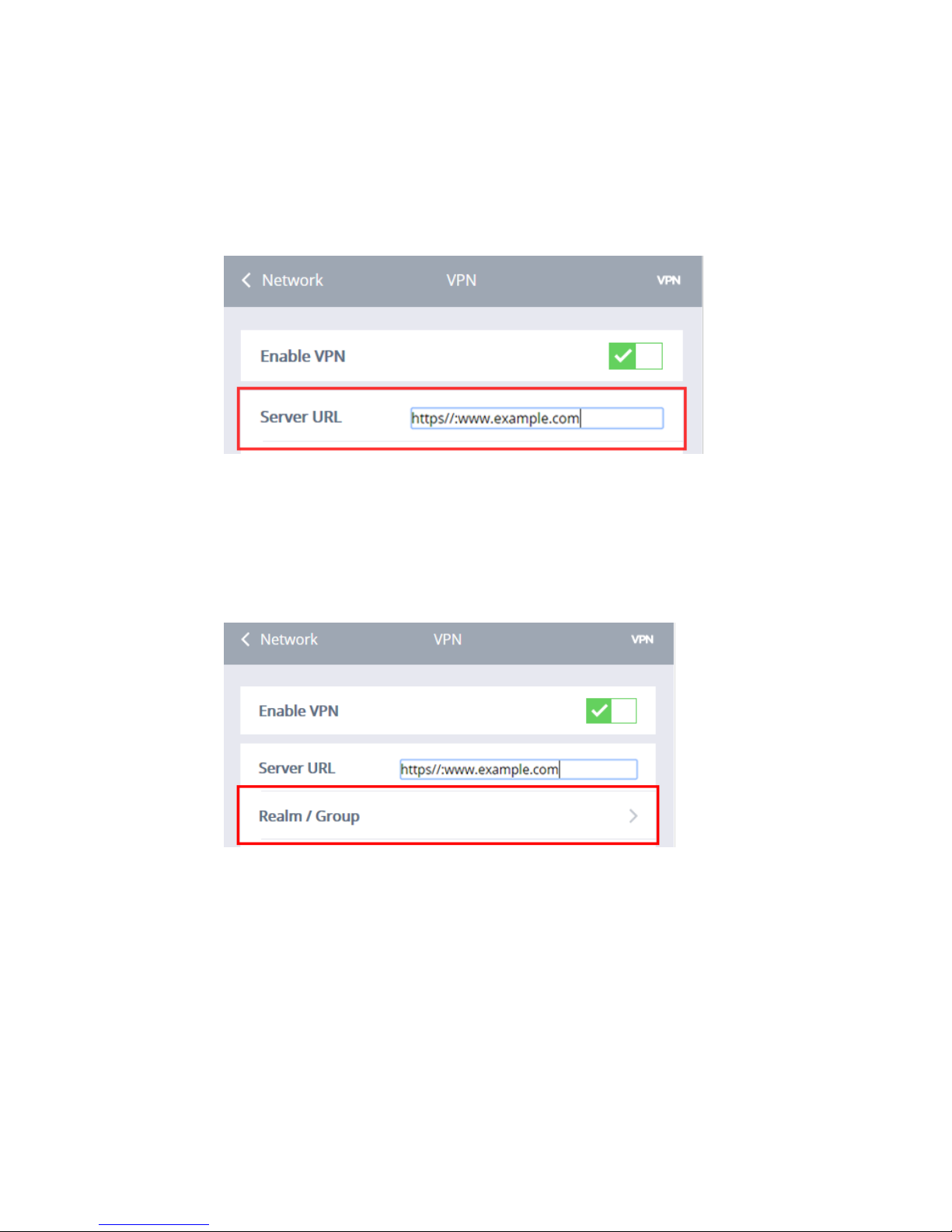

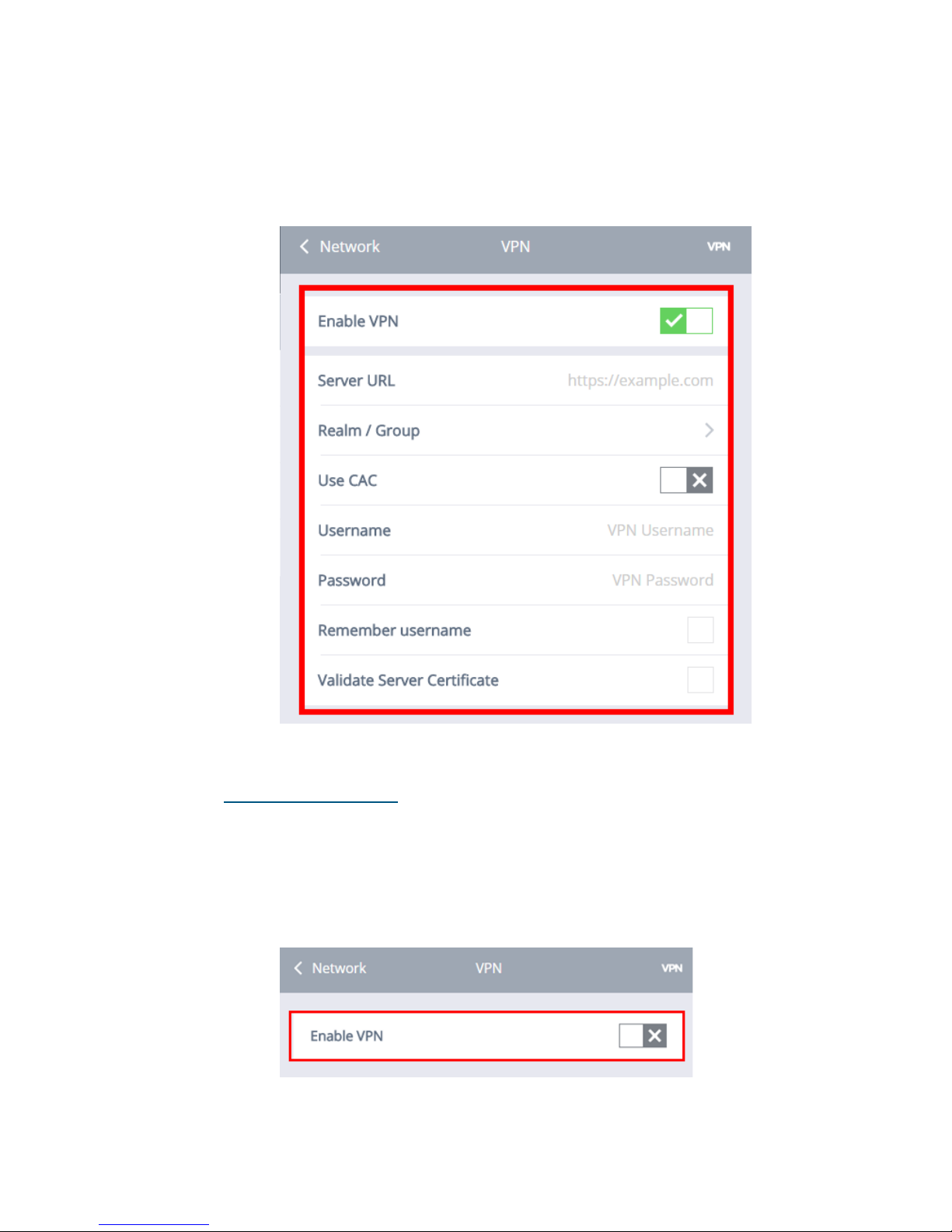

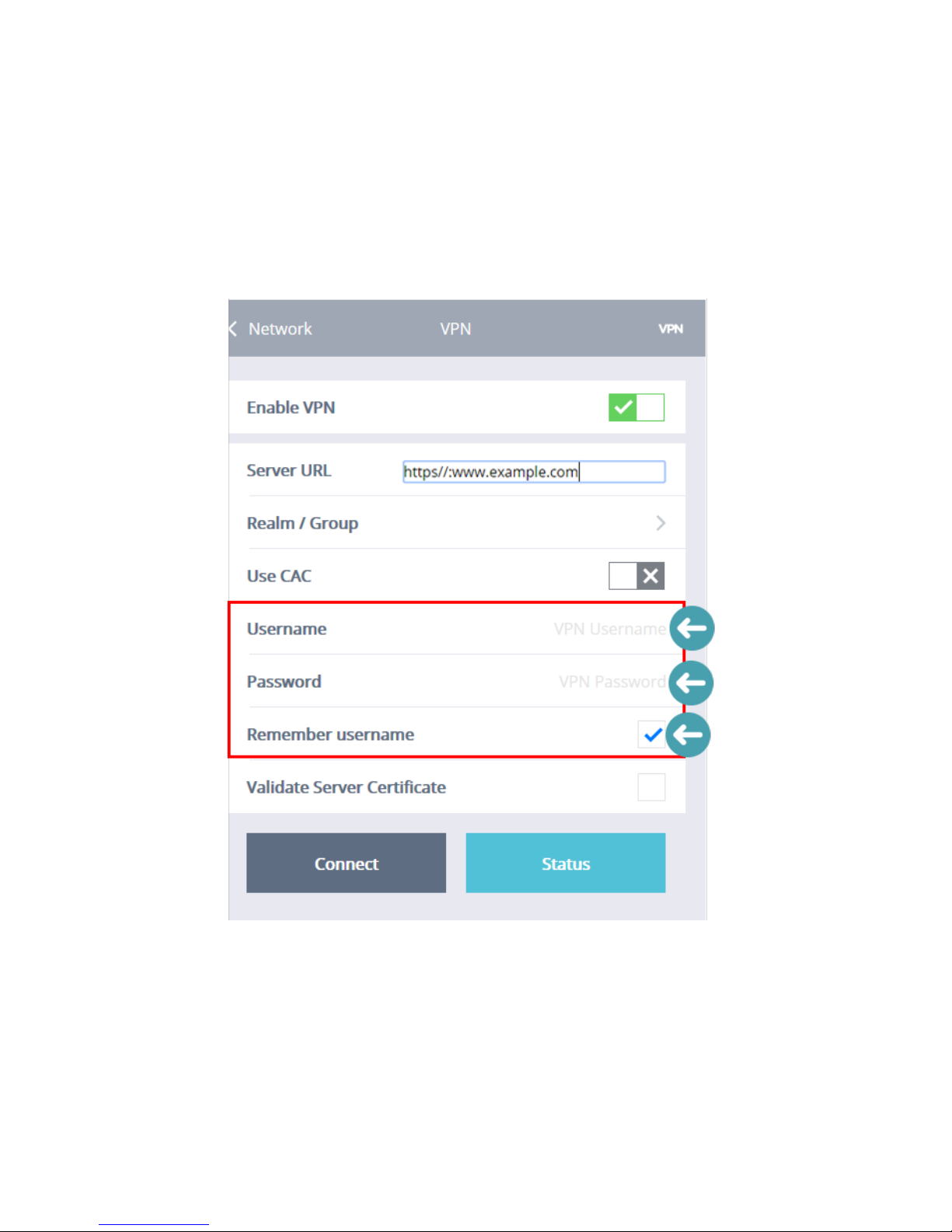

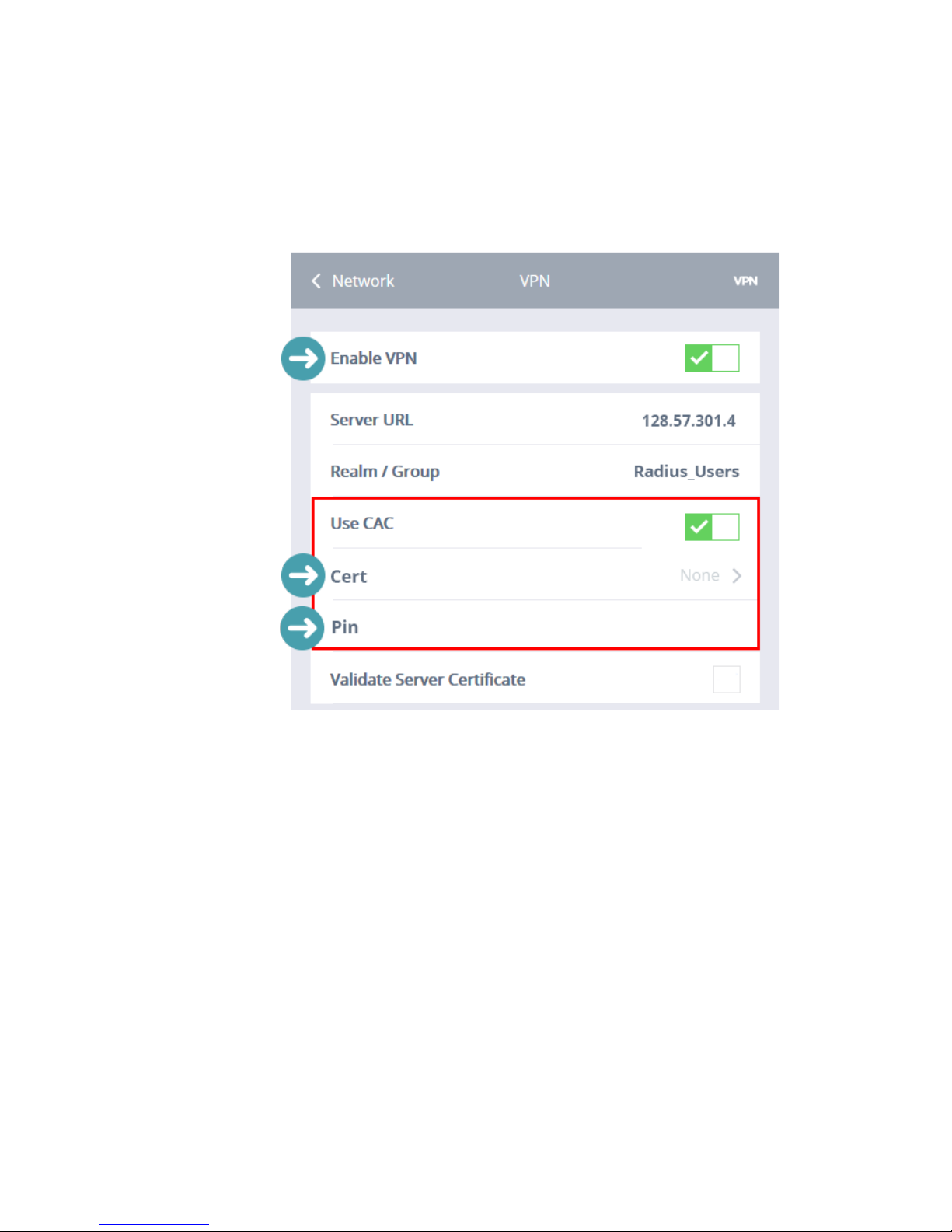

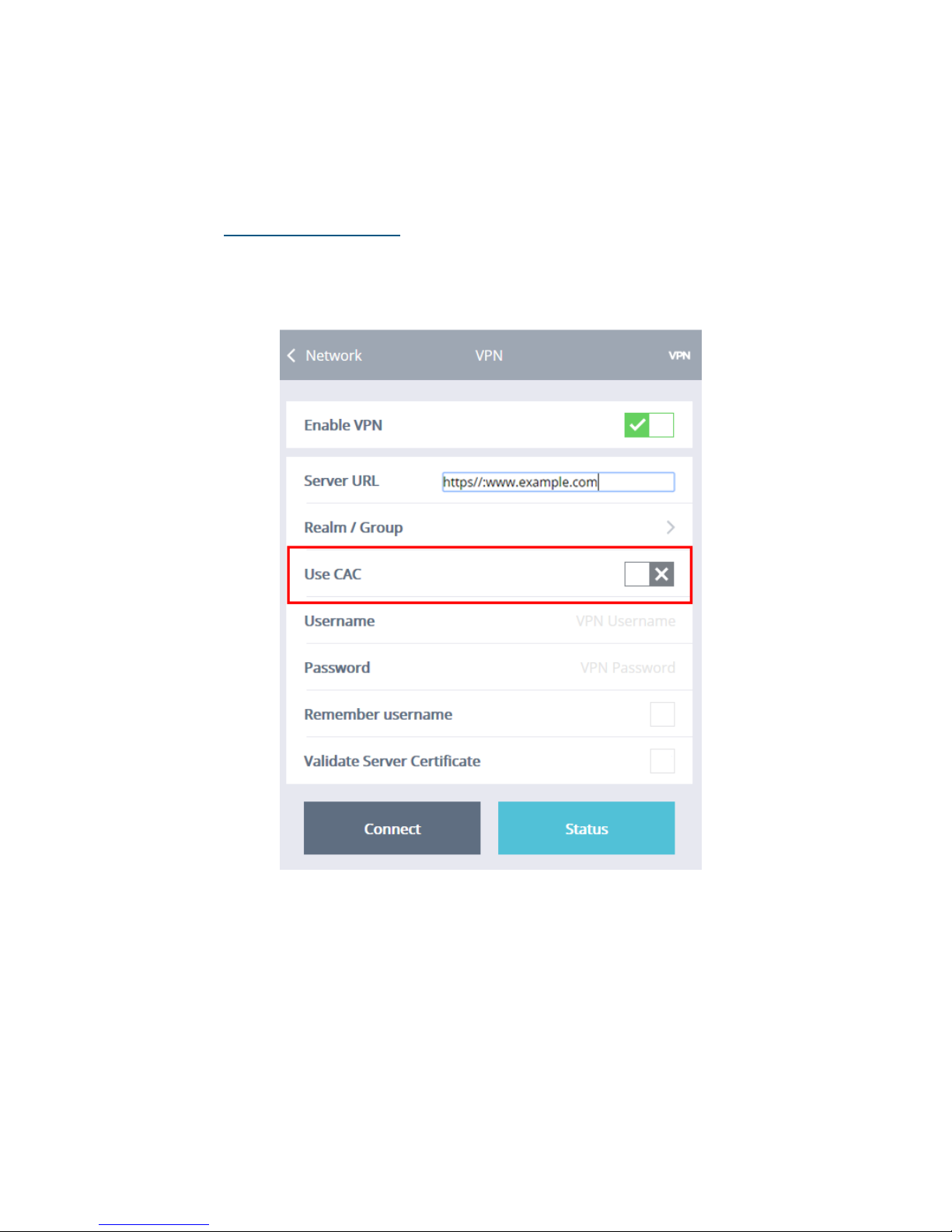

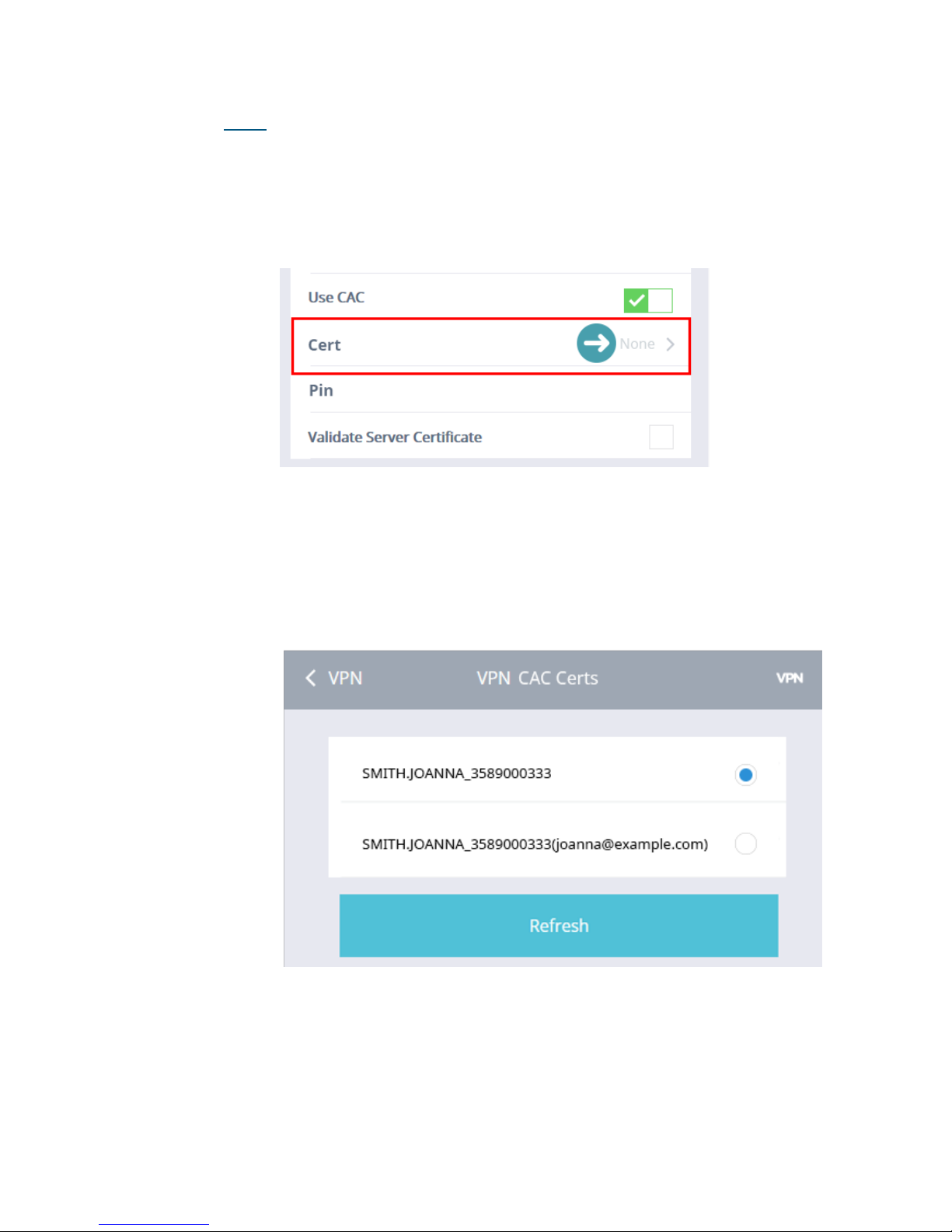

SSL VPN ...................................................................................................................................................58
Web Portal ................................................................................................................................................68

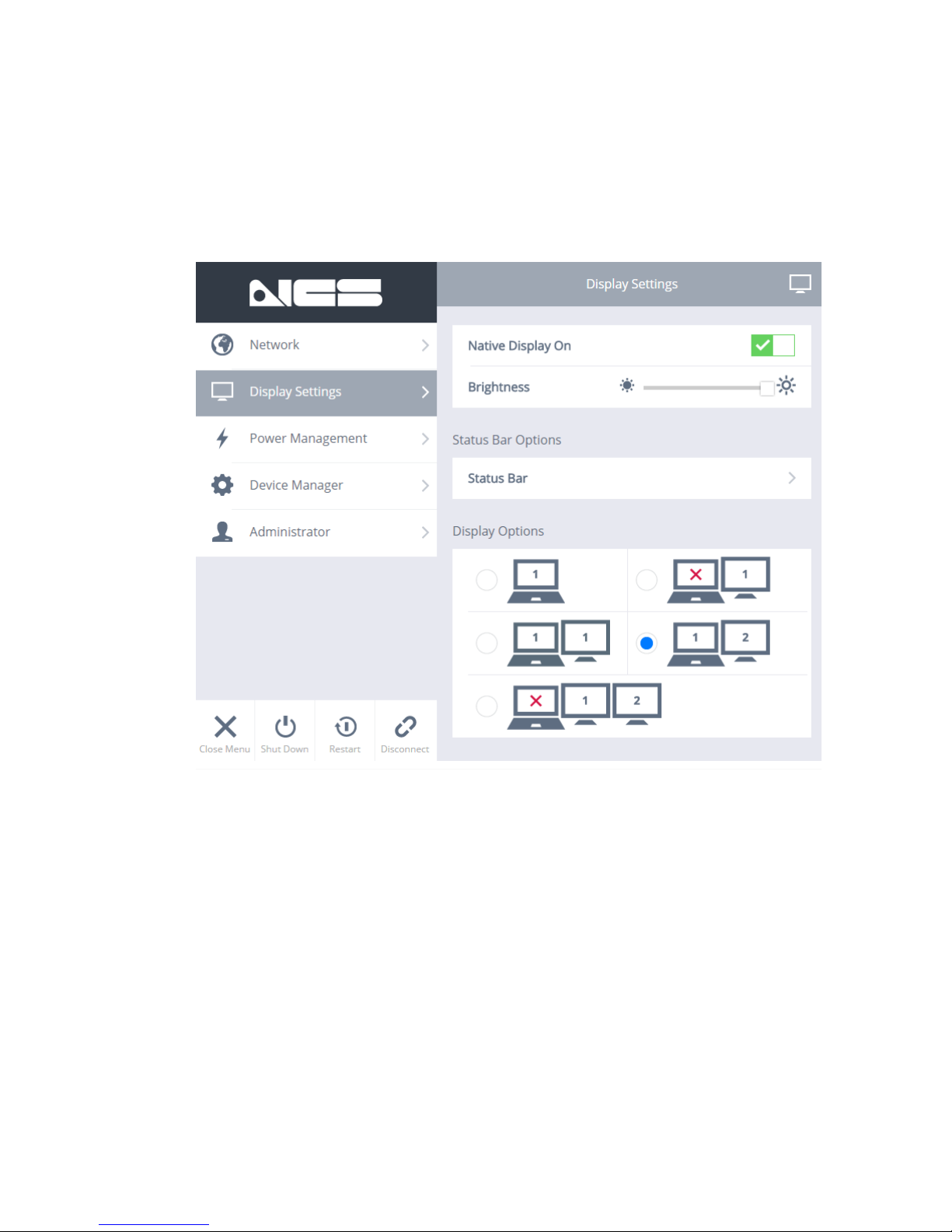

Display Settings ............................................................................................................................................ 70

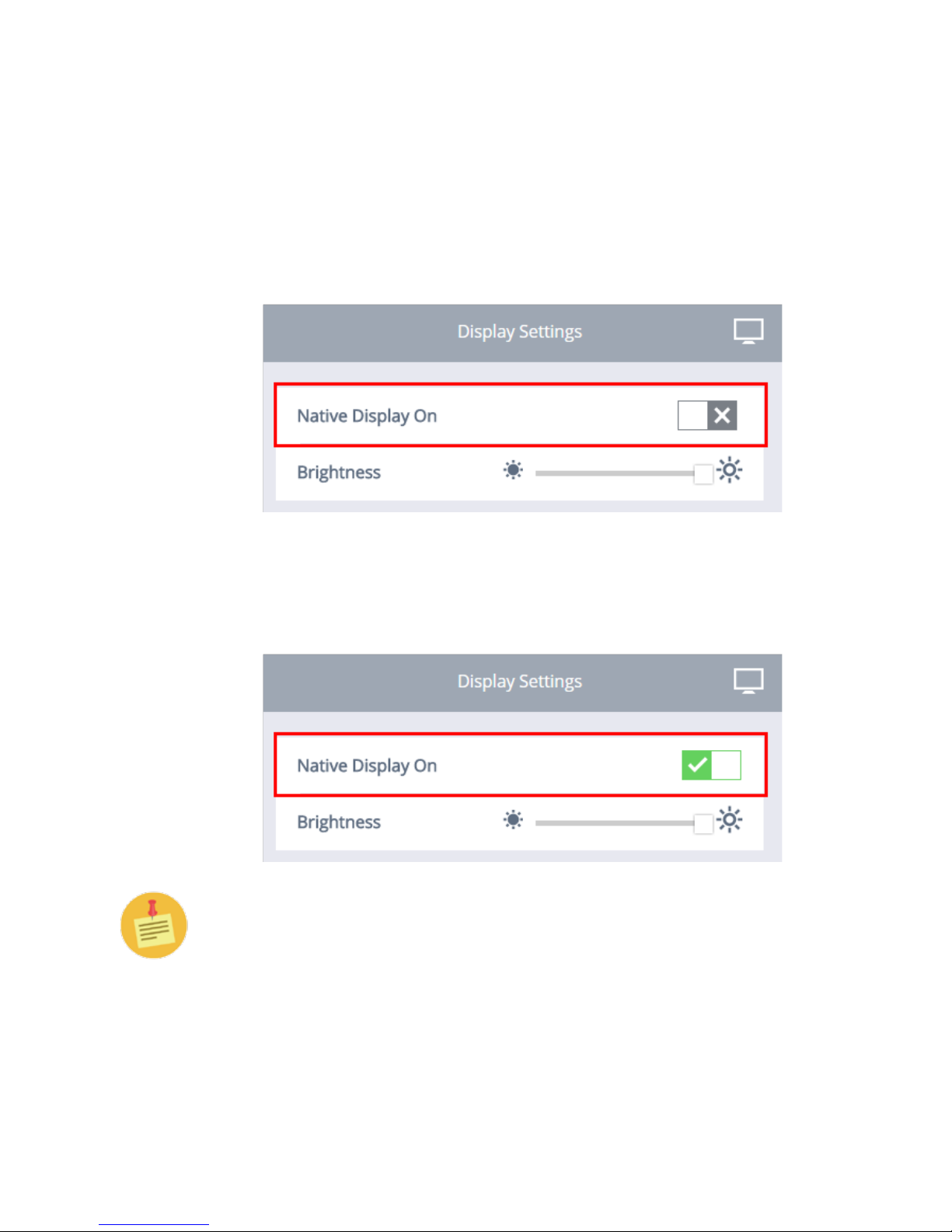

Native Display Off ..................................................................................................................................71
Brightness .................................................................................................................................................72

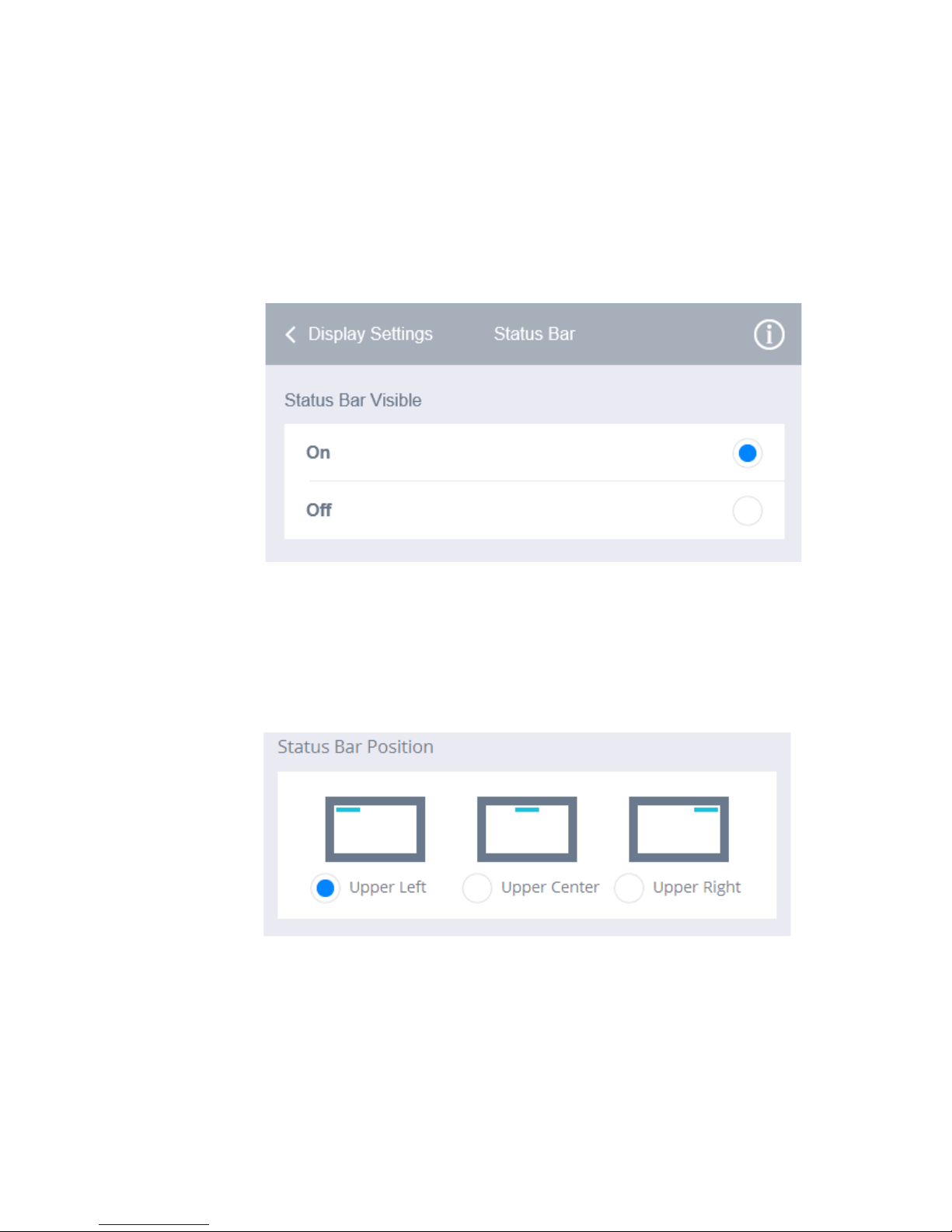

Status Bar .................................................................................................................................................73

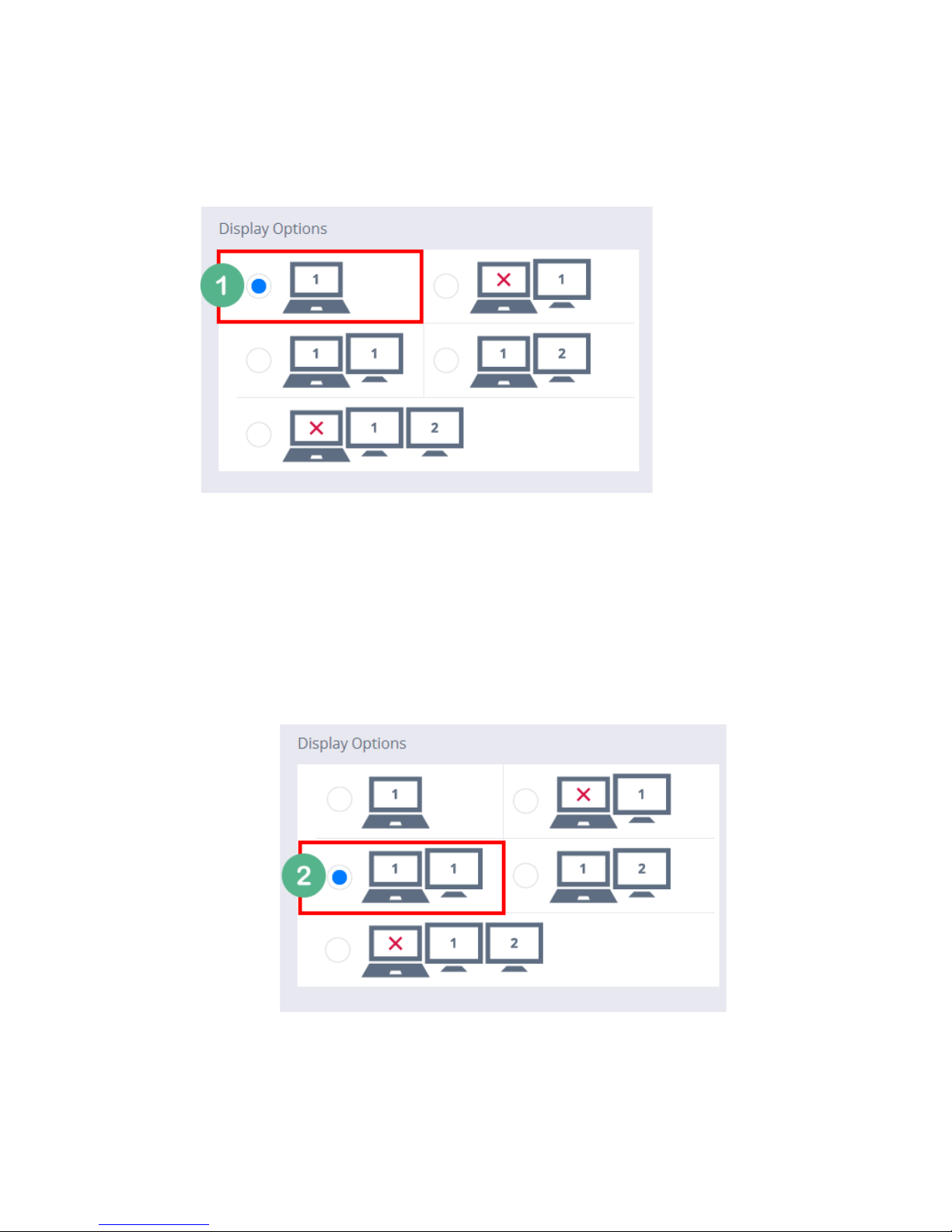

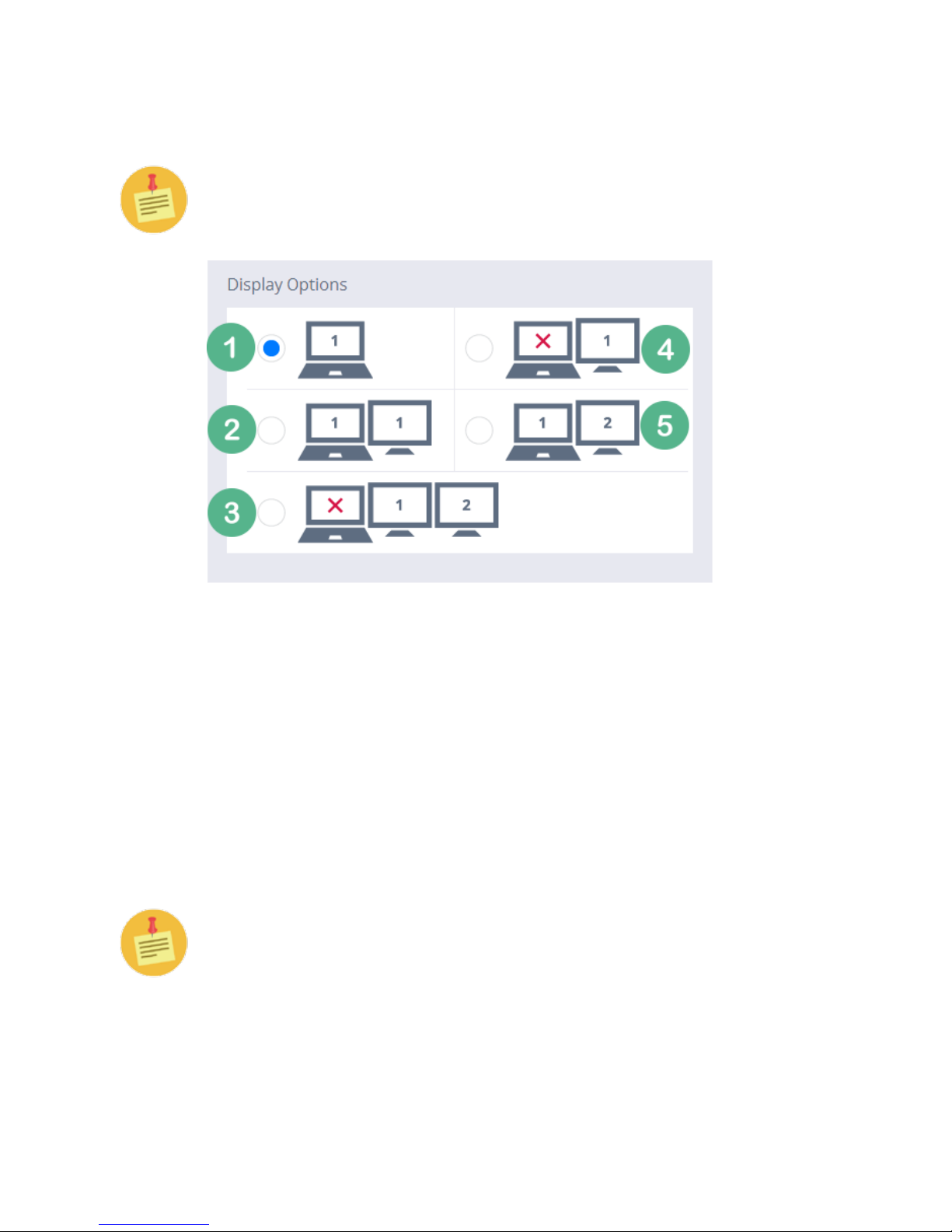

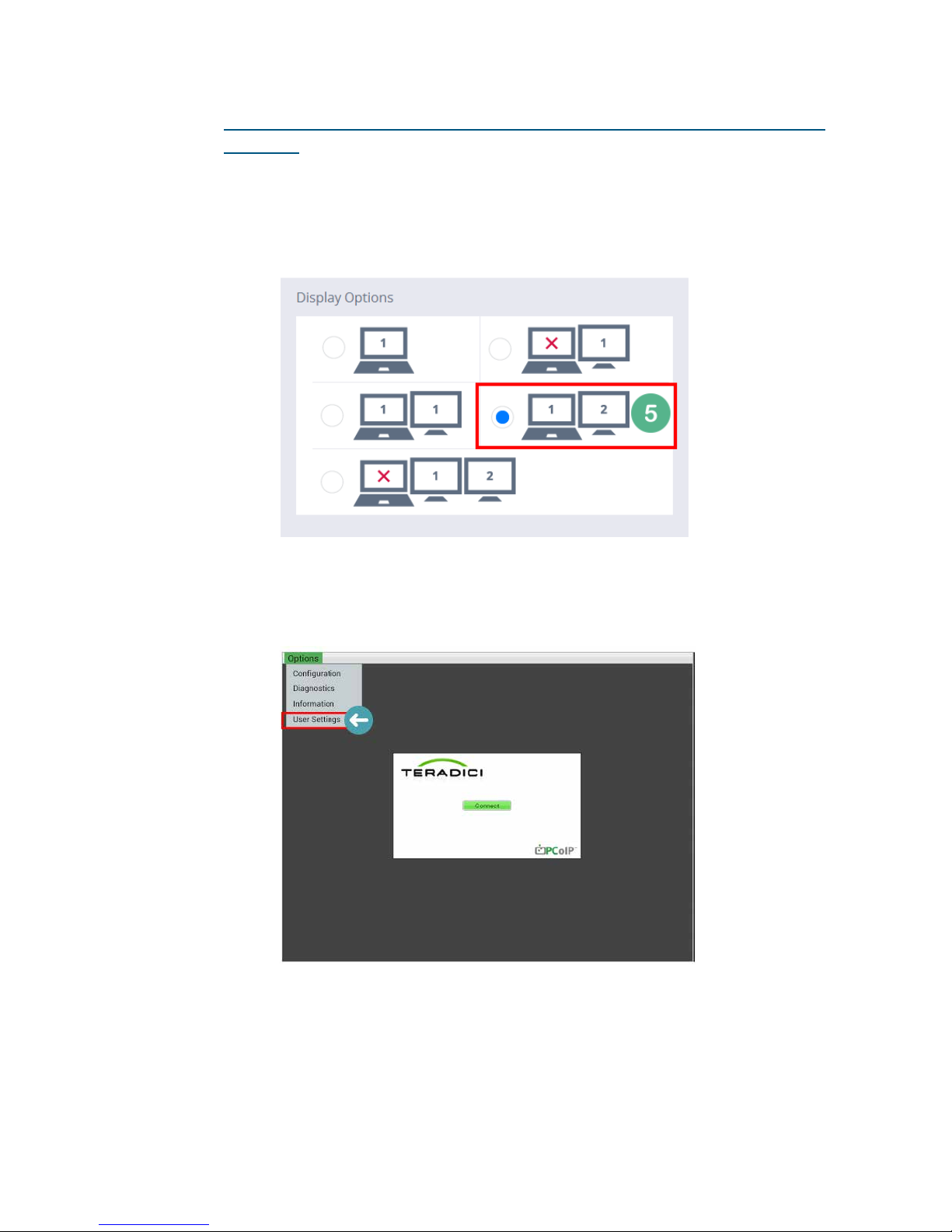

Display Options .......................................................................................................................................74

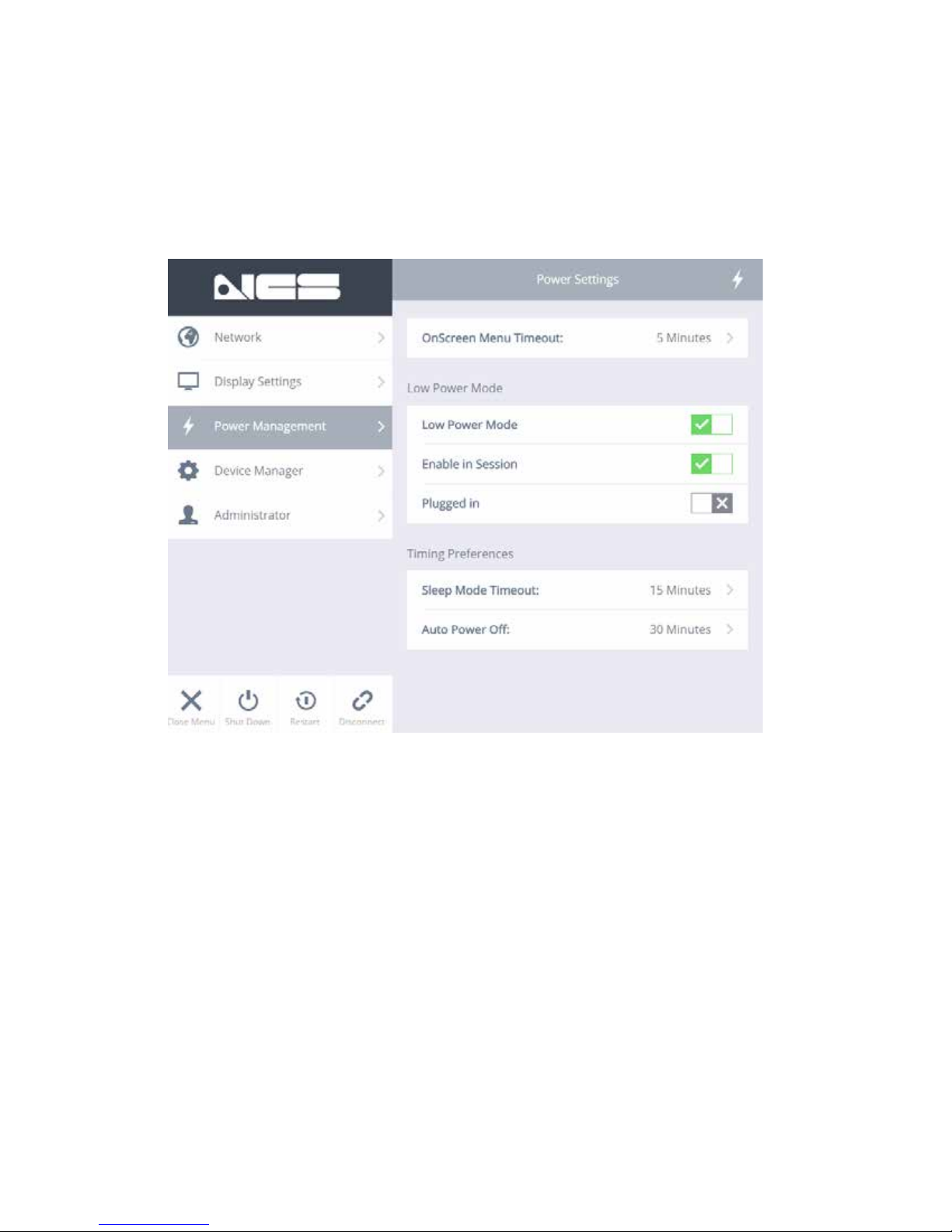

Power Management ......................................................................................................................................81

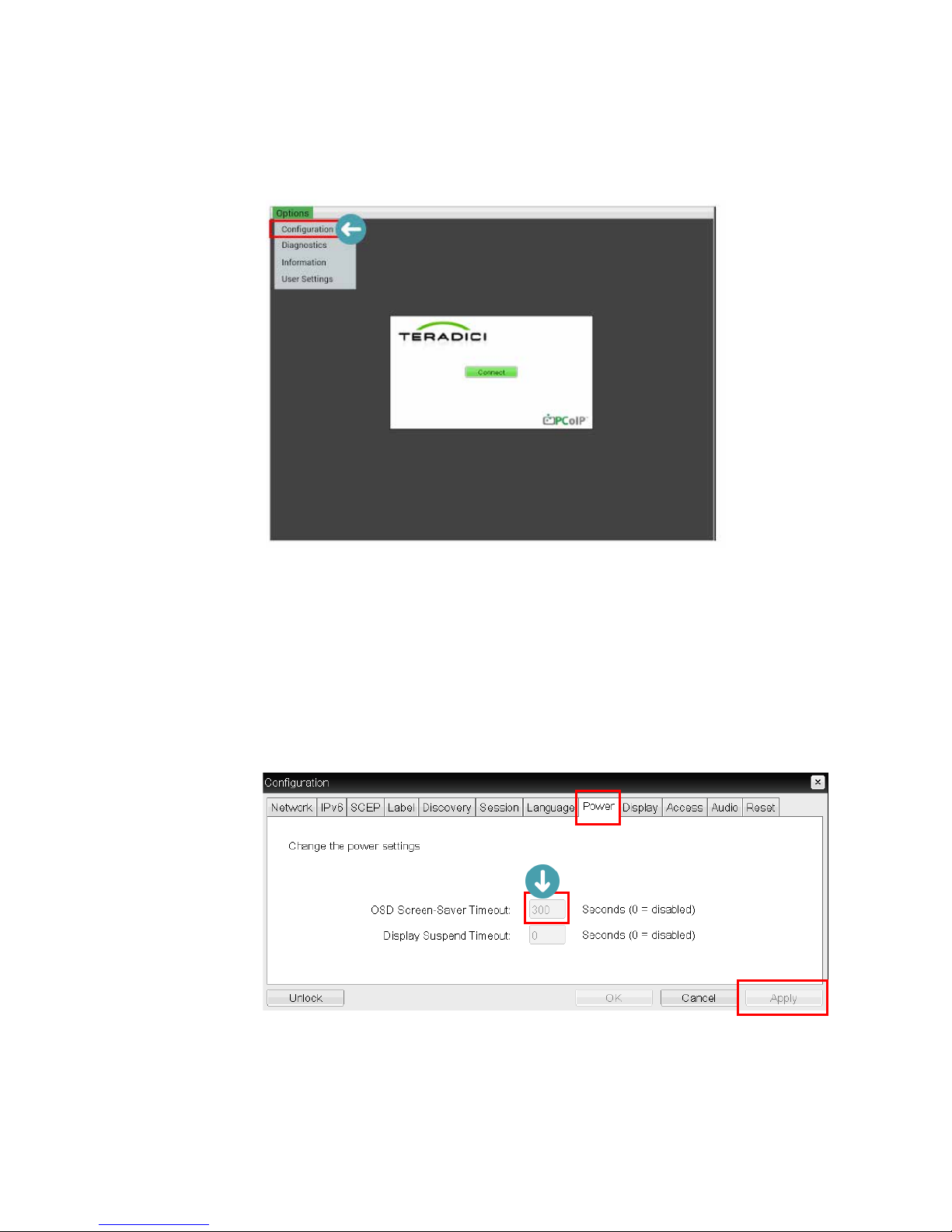

Setting the duration of the OnScreen Menu (OSM) Timeout .........................................................81
How the Cirrus LT power management modes are all related ...................................................... 84

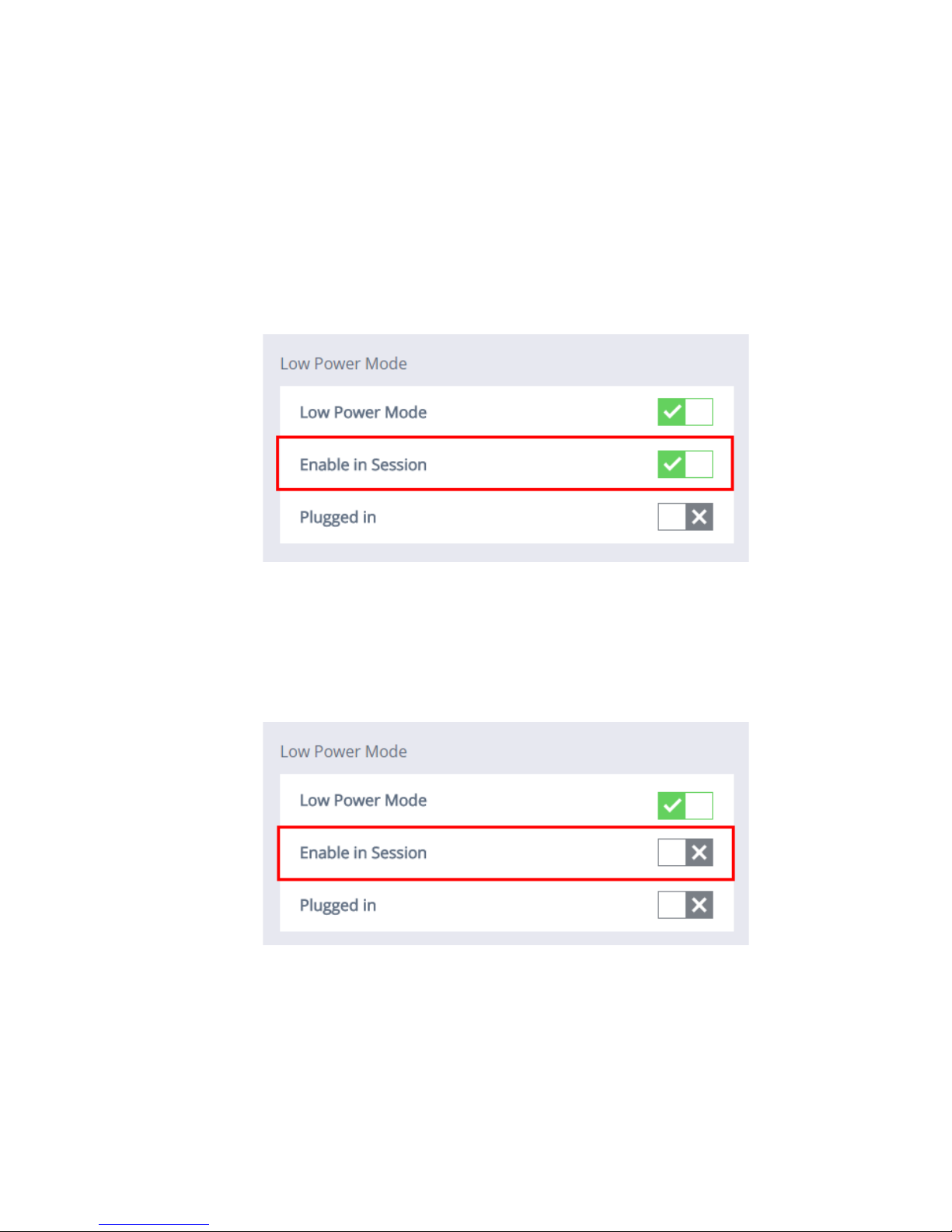

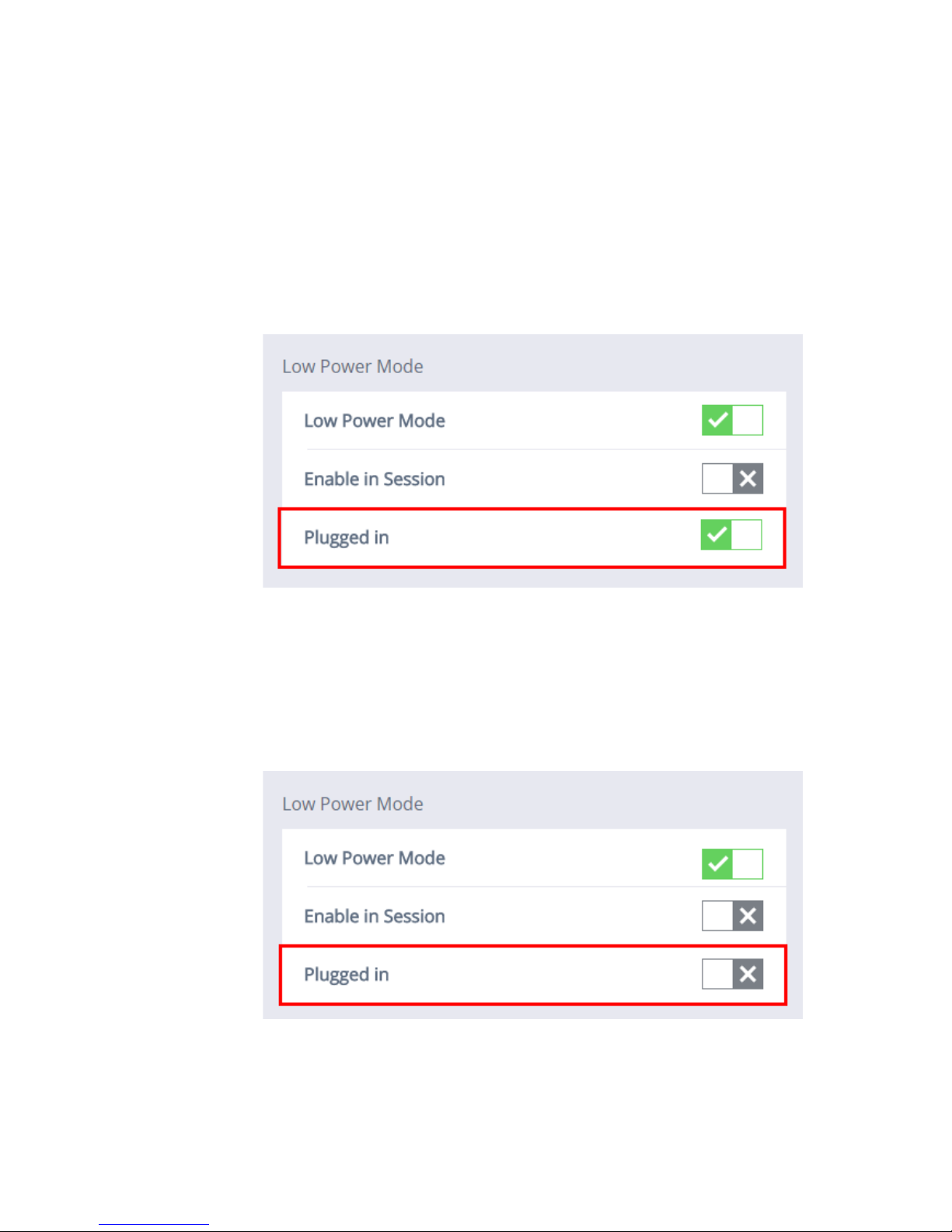

Low Power Mode ....................................................................................................................................86

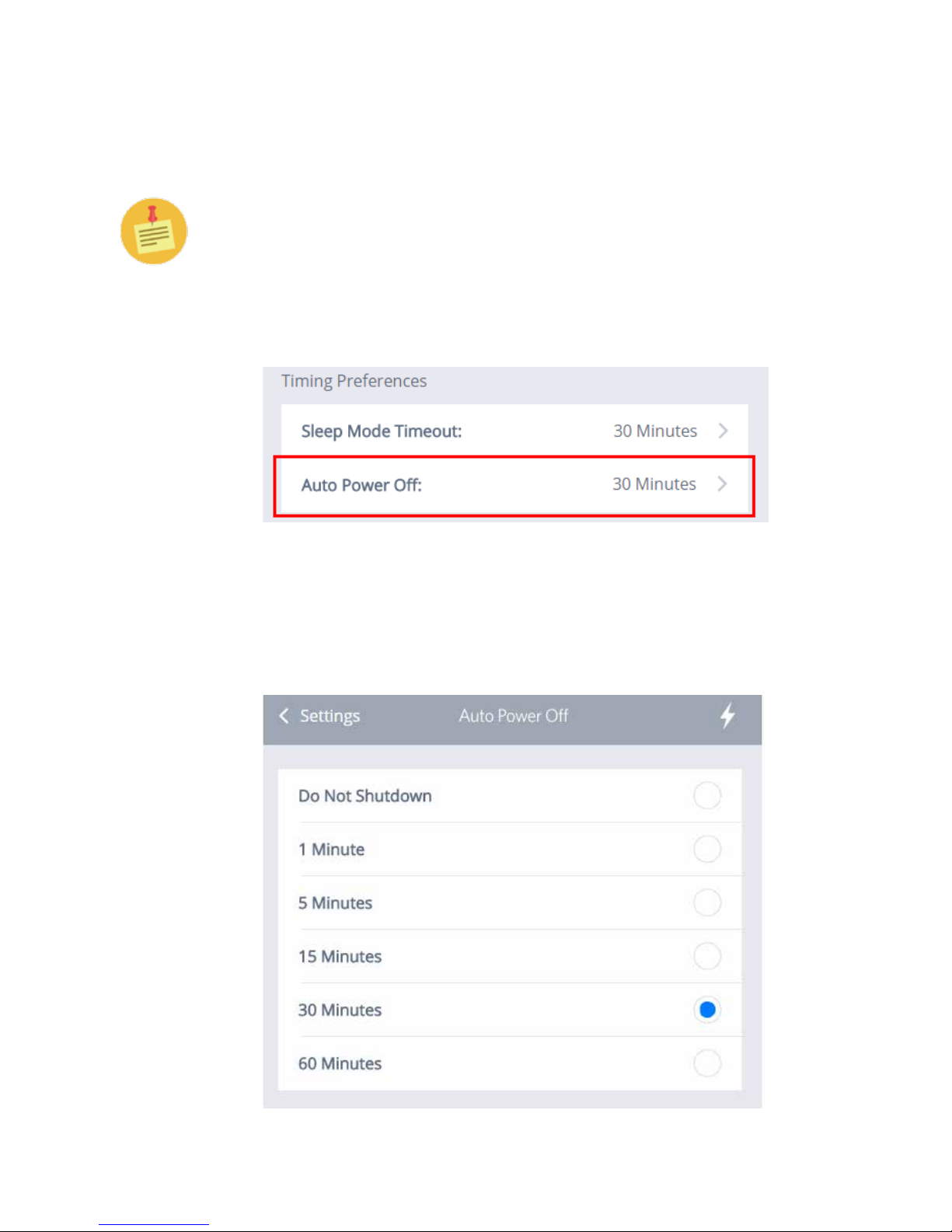

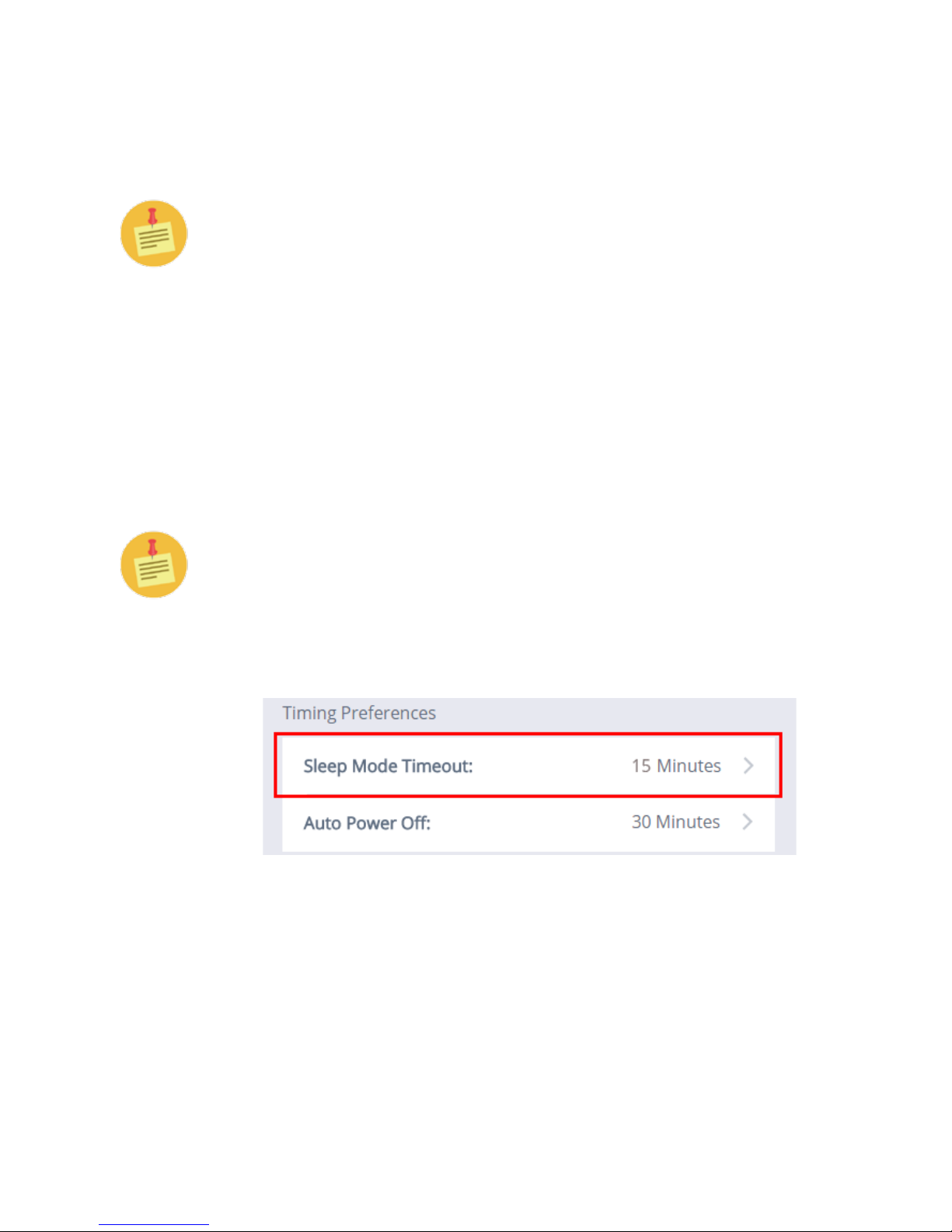

Timing Preferences .................................................................................................................................89
Device Manager ............................................................................................................................................ 92
Speakers ....................................................................................................................................................92

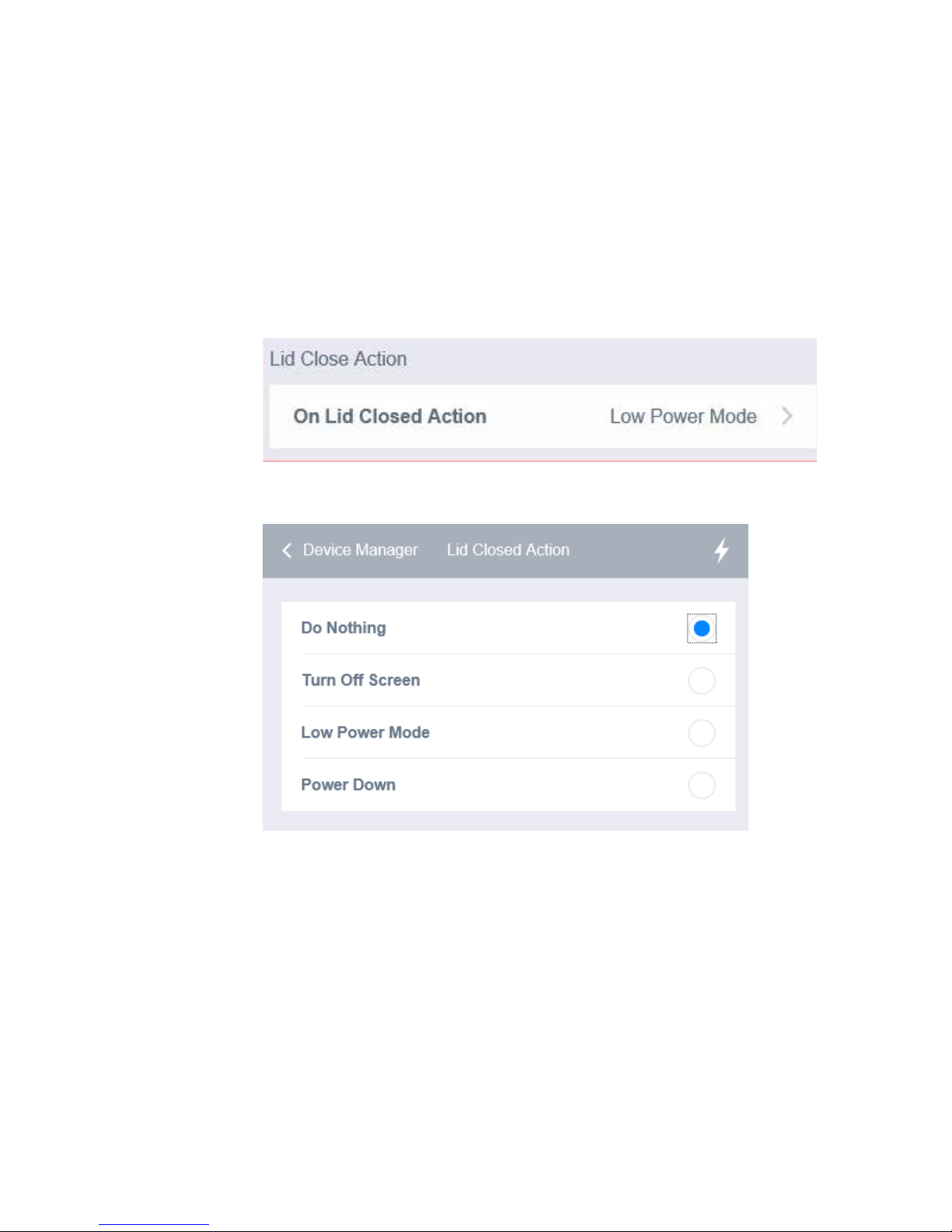

On Lid Close Actions ..............................................................................................................................93

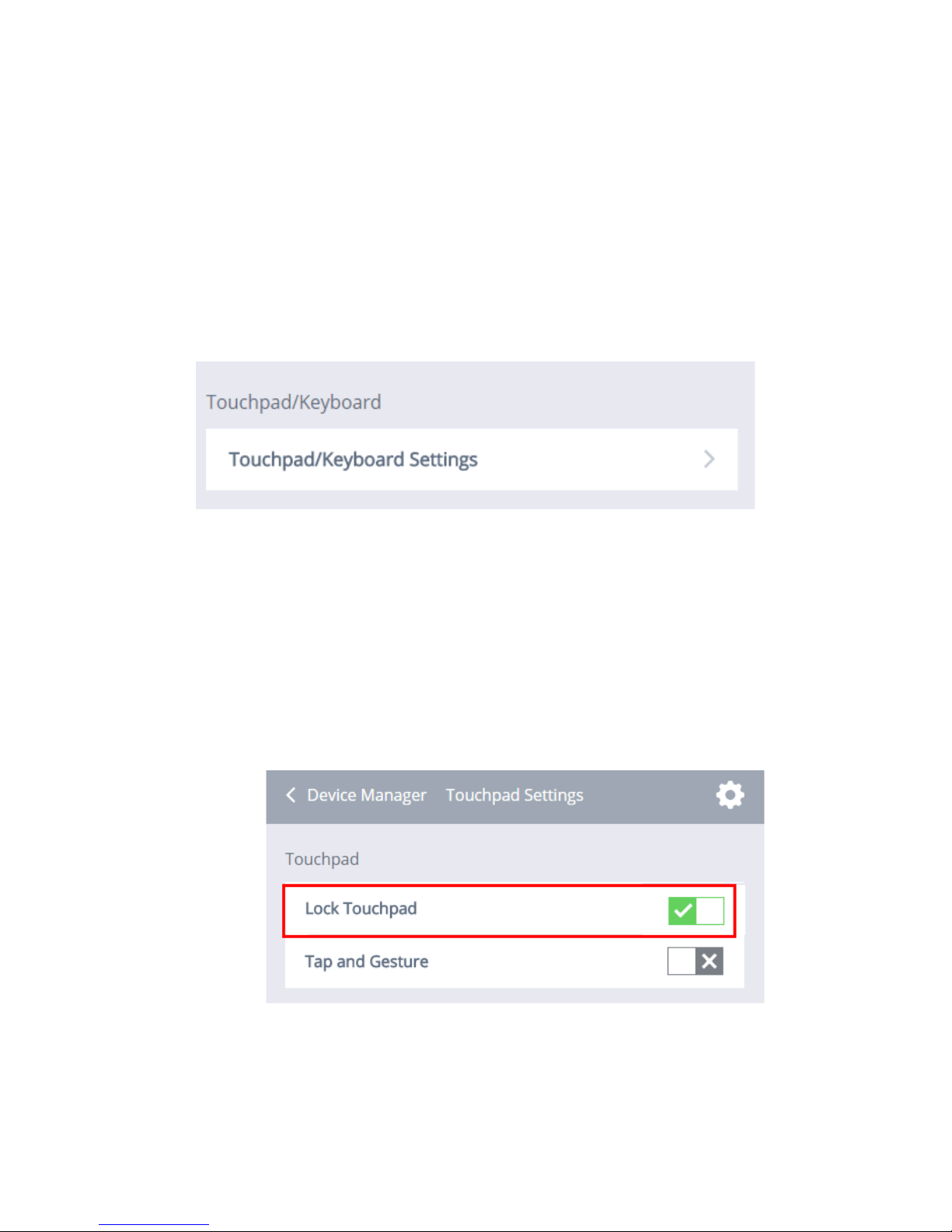

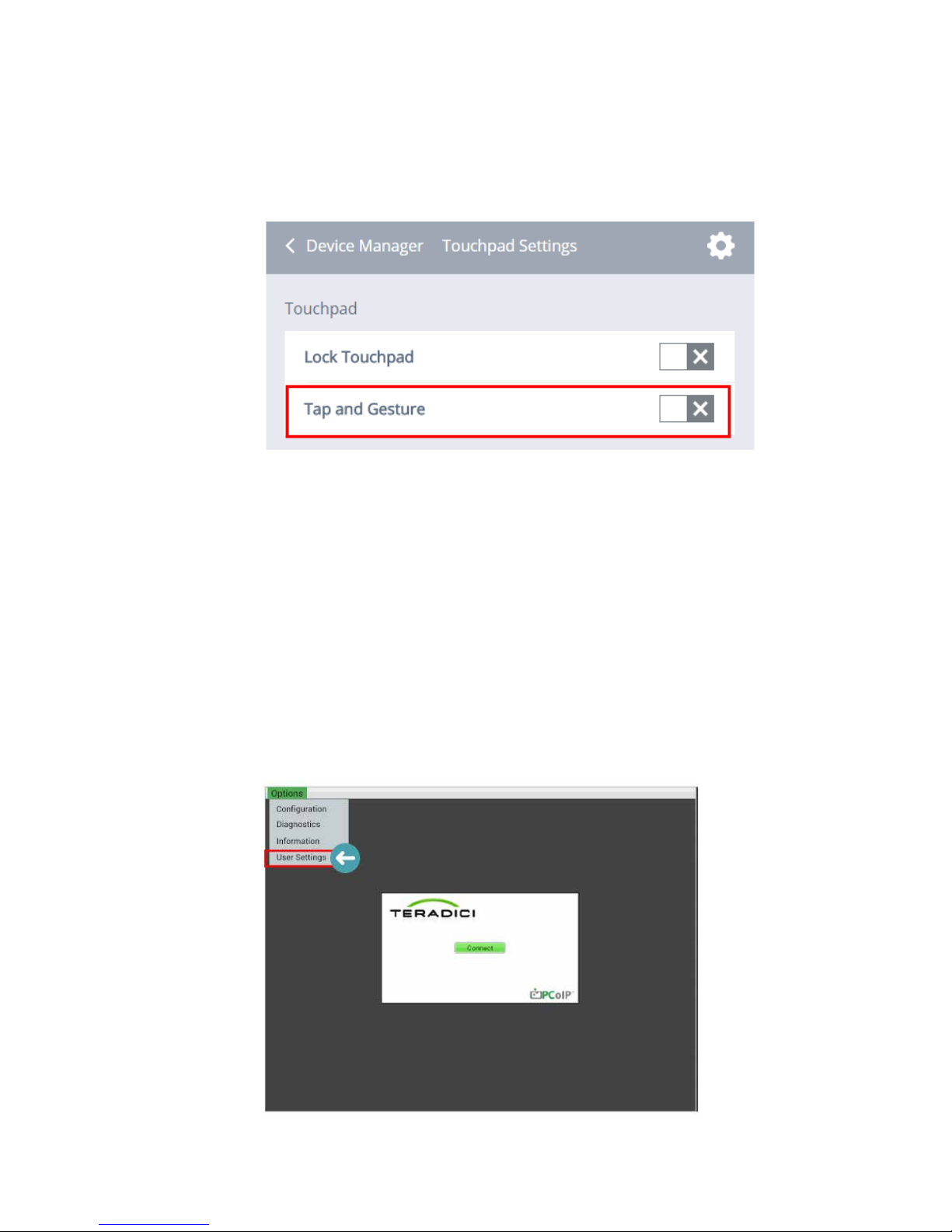

Touchpad/Keyboard settings ................................................................................................................94

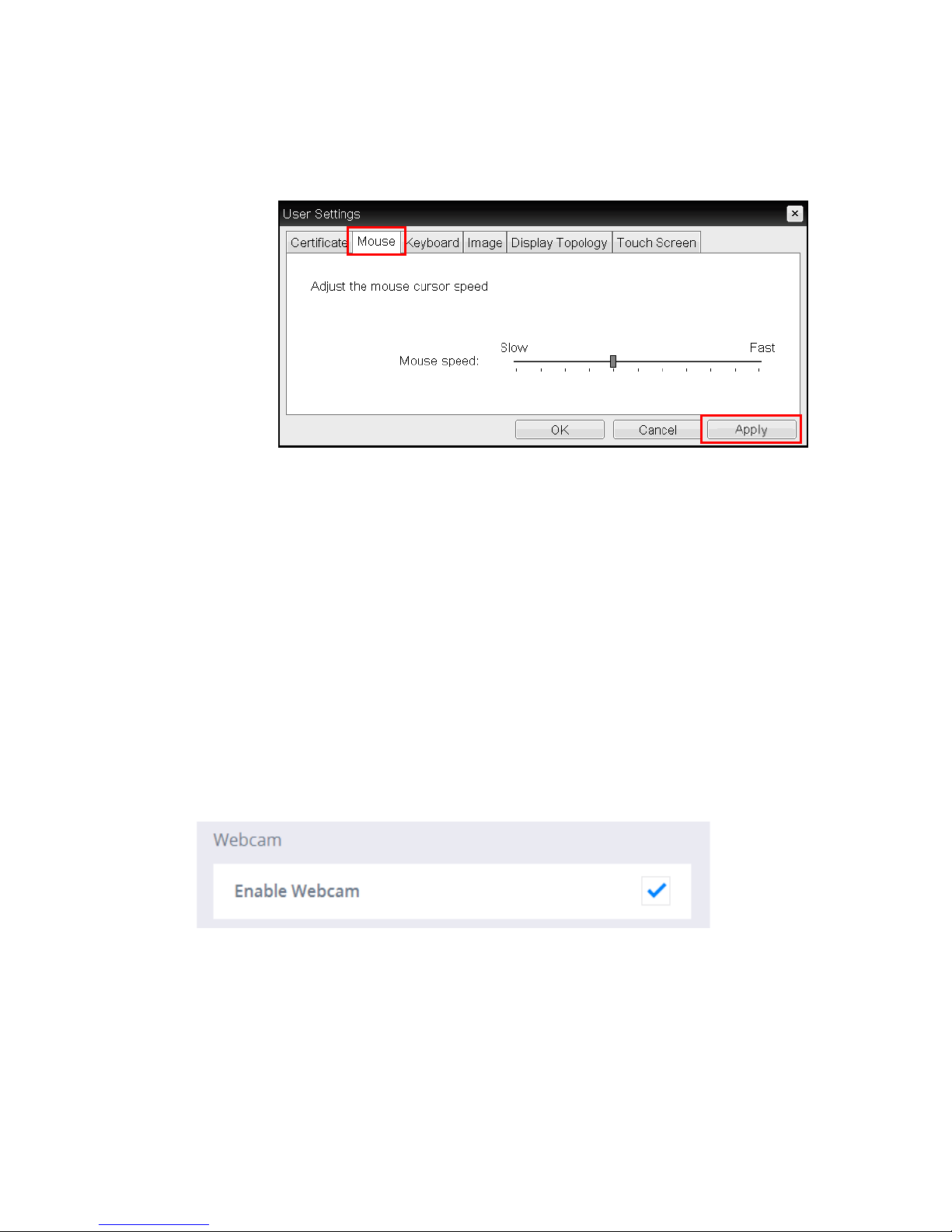

Webcam ....................................................................................................................................................97
Administrator ................................................................................................................................................ 98

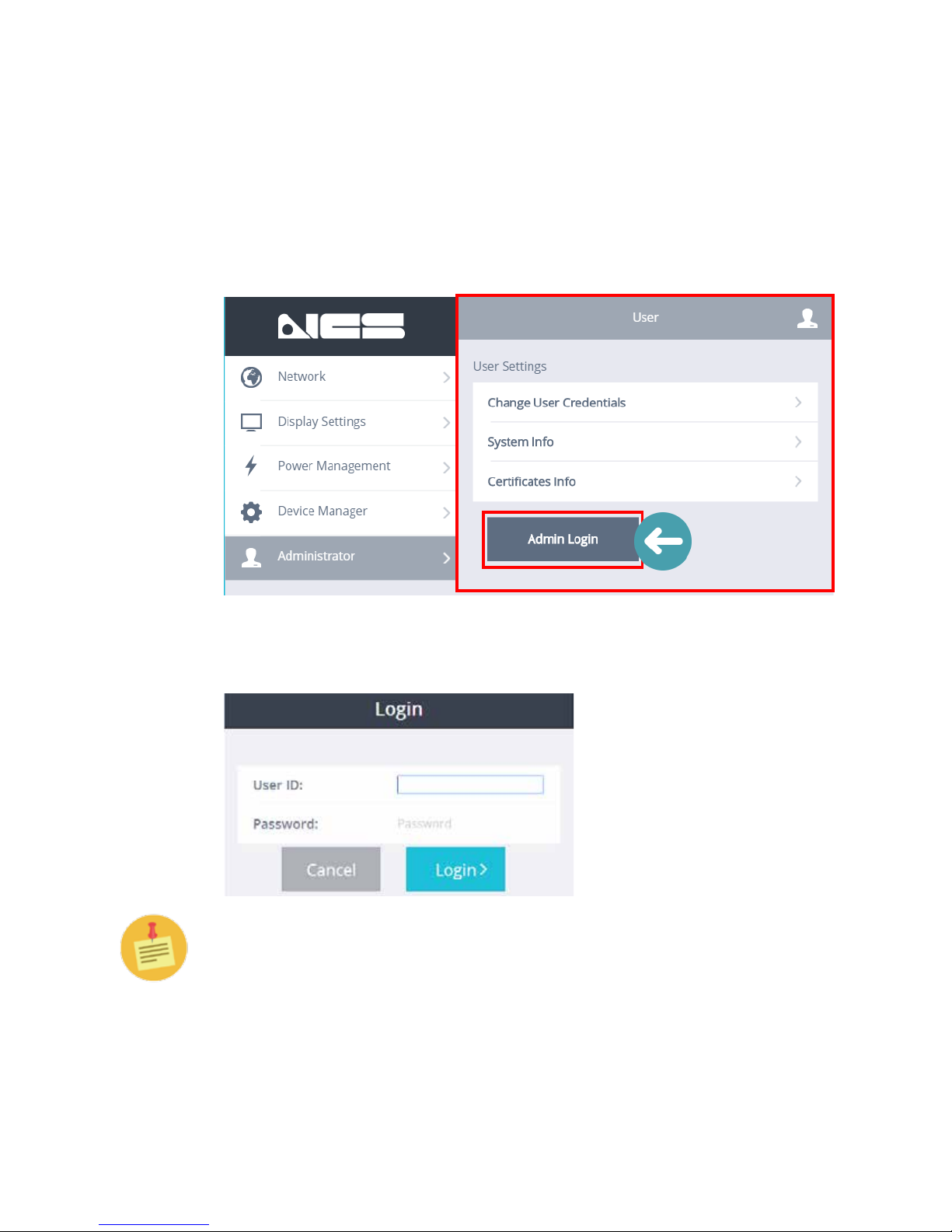

Admin Login ............................................................................................................................................98

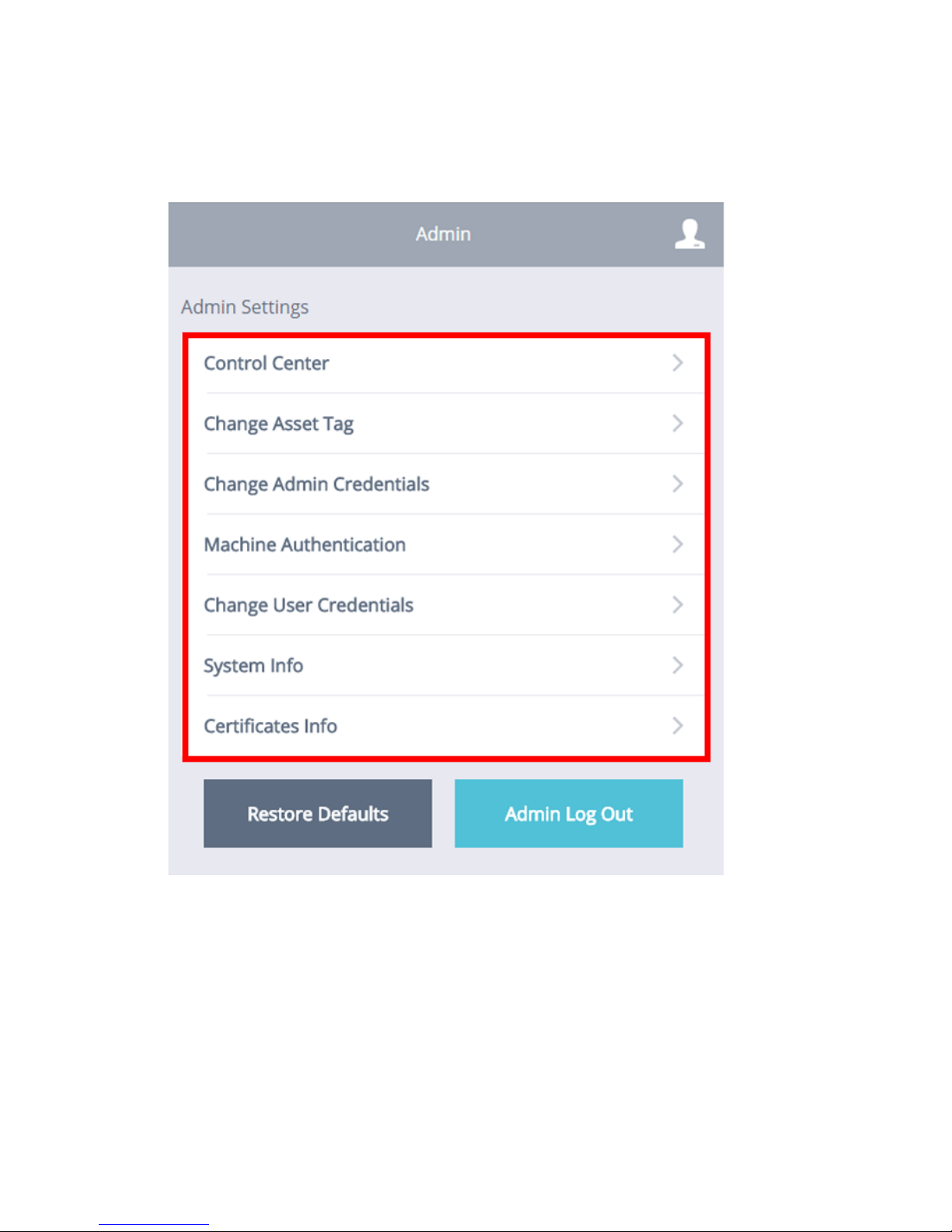

Admin Settings ........................................................................................................................................99

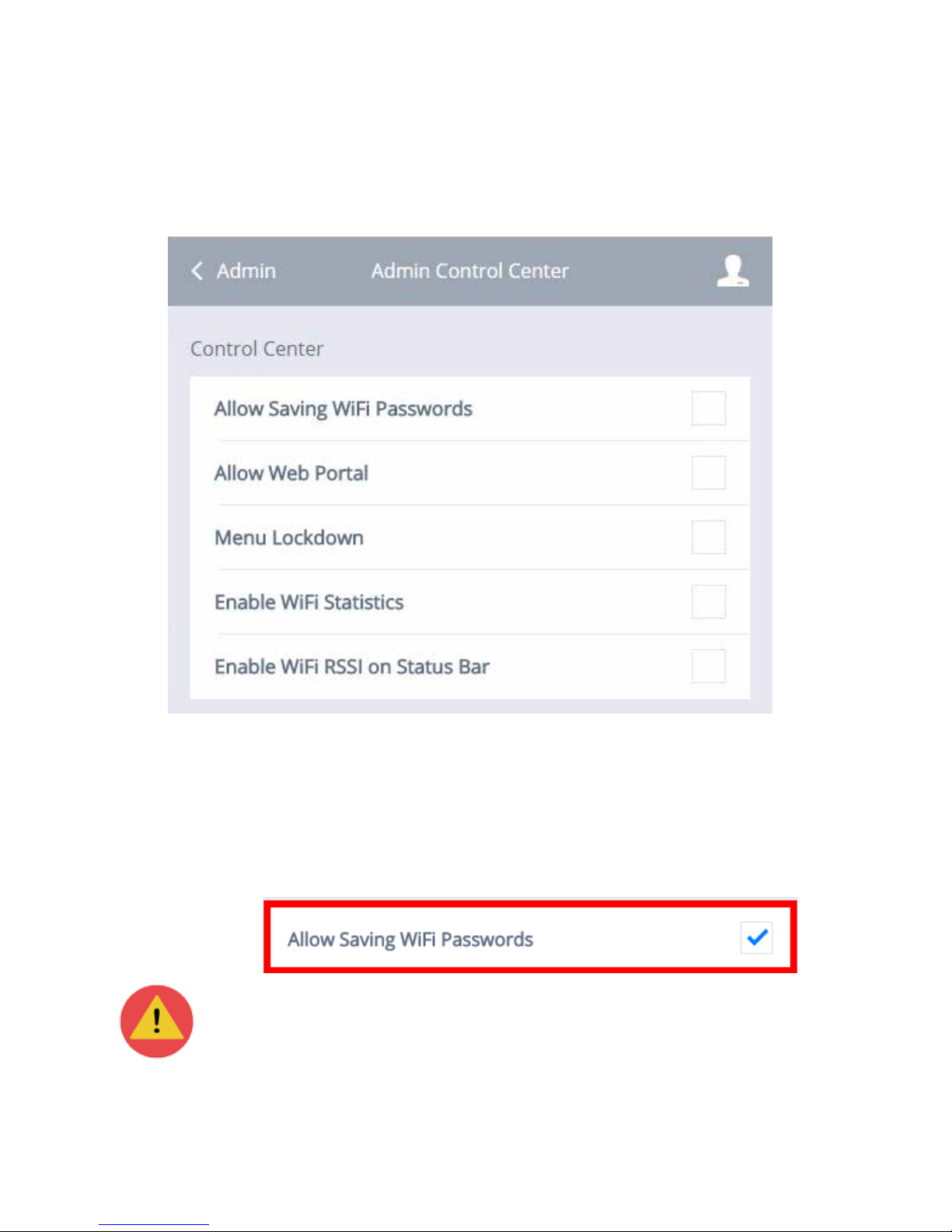

Control Center ....................................................................................................................................... 100
Change Asset Tag ...................................................................................................................................103
Change Admin Credentials ..................................................................................................................103
Machine Authentication .......................................................................................................................104
Change User Credentials ......................................................................................................................105
System Information ...............................................................................................................................106
Certificates Info ......................................................................................................................................107
Admin Log Out .......................................................................................................................................107

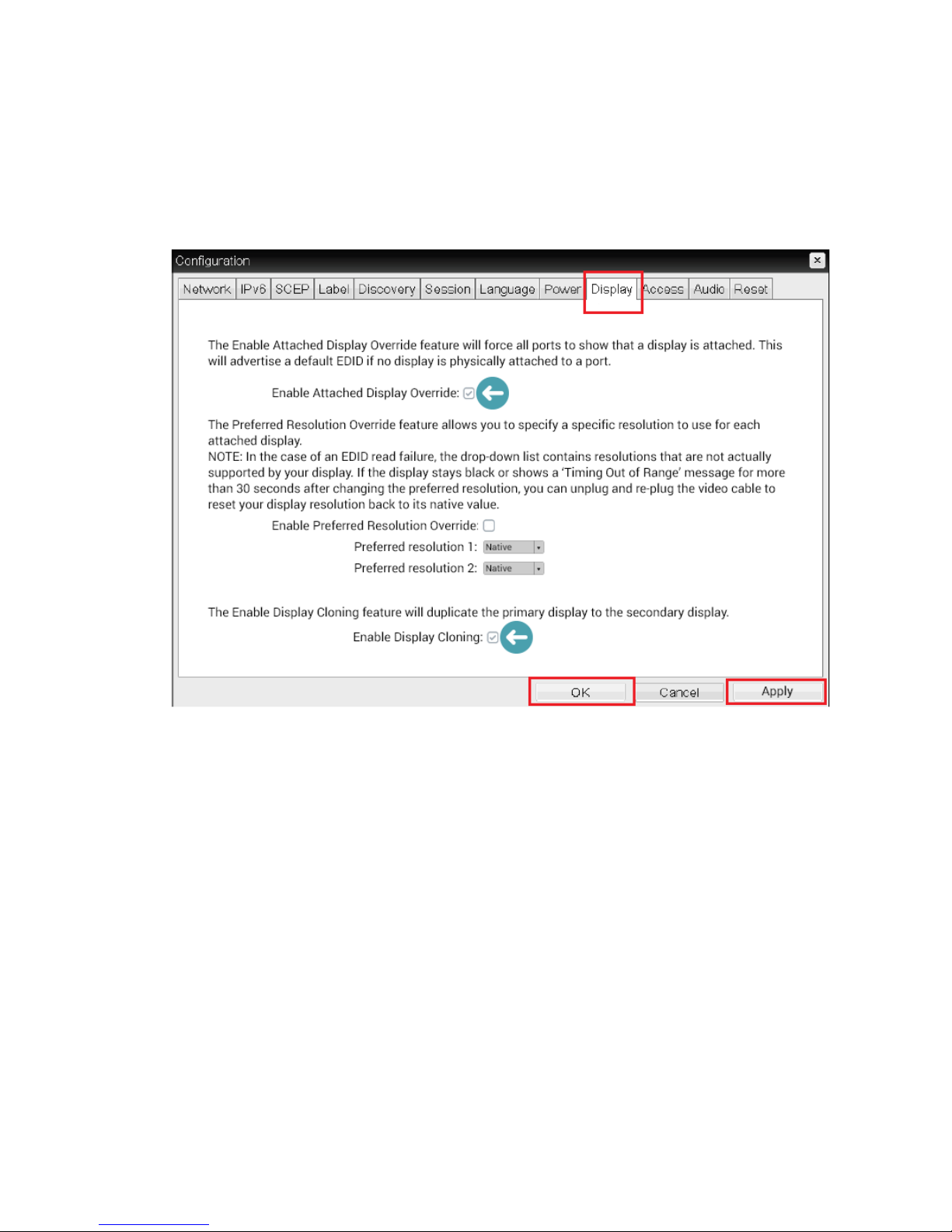

Chapter 5: Opening and configuring the Teradici Firmware menu .............................................108
Assigning a Static IP Address .....................................................................................................................110
Chapter 6: Making remote connections ............................................................................................ 111
Connecting to remote machines with Teradici host cards ..................................................................111
Important Teradici host software settings ........................................................................................ 112
Page 4
Chapter 7: Using the Cirrus Web Portal ............................................................................................. 113
Admin password recovery .......................................................................................................................... 113
Updating the NCS Firmware ......................................................................................................................115
Chapter 8: Accessing the Cirrus Management Console ..................................................................120
Installing the Cirrus Management Console............................................................................................120
Logging onto the Cirrus Management Console .....................................................................................123
Logging onto the Cirrus Management Console .....................................................................................125
Chapter 9: How to load and unload certificates on the Cirrus LT ................................................127
Loading a certificate .....................................................................................................................................128
Unloading a certificate ................................................................................................................................135
Chapter 10: Configuring advanced WiFi roaming ............................................................................ 137

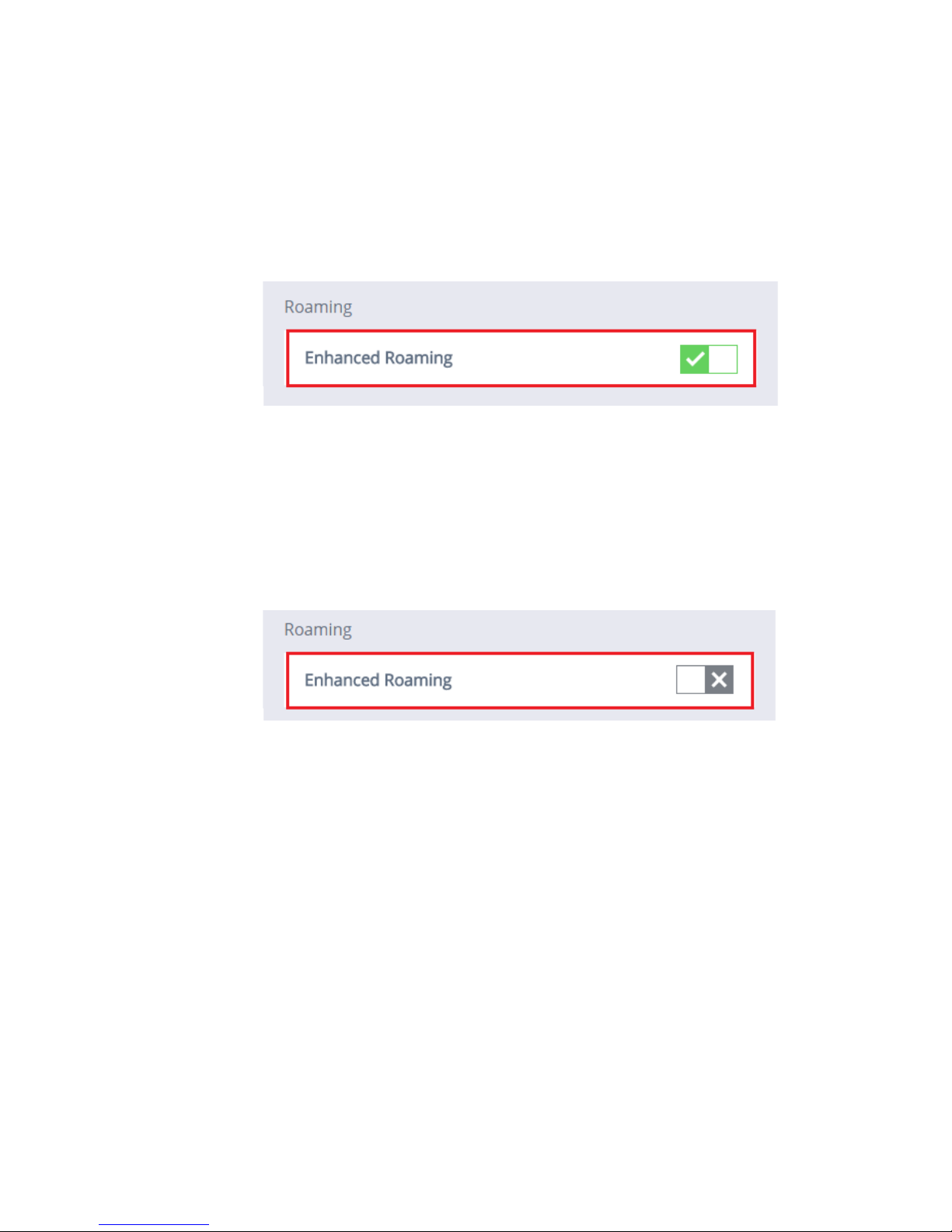

Enabling/disabling Enhanced Roaming via the OSM Main Menu ...................................................138
Enabling Enhanced Roaming ...............................................................................................................138
Disabling Enhanced Roaming ..............................................................................................................139
Checking WiFi channels that are being scanned/used via the OSM Main Menu .........................140
Configuring Enhanced Roaming via the Management Console (MC) .............................................141
Chapter 11: Wake-on-LAN (WOL) .......................................................................................................148
Chapter 12: Troubleshooting ................................................................................................................149
General troubleshooting tips .....................................................................................................................149
Conflicts between Teradici and NCS Firmware ....................................................................................152
NCS Help ...................................................................................................................................................153
Appendix A: Specifications ...................................................................................................................154
Appendix B: Regulatory and legal information ................................................................................ 155
FCC compliance information .....................................................................................................................155
Notice ..............................................................................................................................................................156
Warranty provisions .....................................................................................................................................156
FCC Test Report ............................................................................................................................................157
Page 5
Icon Glossary
2
Conventions
The following text conventions are used in this document:
Convention Meaning
boldface
italic
monospace
Cirrus LT User Manual v2.3
Boldface type highlights important information in the text
(e.g., Notes).
Italic type indicates book titles, emphasis, or submenu
navigation paths within the software applications.
Monospace type indicates commands within a paragraph,
URLs, text that appears on the screen, or text that you
enter.
5
Page 6
Safety Instructions
DO NOT block the opening vents provided for ventilation. Blocking these vents may cause
the computer processor to overheat.
• DO NOT place your notebook on an unstable or uneven surface.
• DO NOT place or drop heavy objects on your notebook.
• DO NOT apply heavy pressure on your notebook.
• DO NOT press or touch the display panel.
• DO NOT use your notebook under harsh conditions.
• DO NOT subject your notebook to magnetic fields.
• DO NOT use or store your notebook in extreme temperatures.
• DO NOT place your notebook near fire or other sources of heat.
• DO NOT expose to dust or corrosive materials.
• DO NOT spray water or any other cleaning fluids directly on the display panel.
• DO NOT expose your notebook to rain or moisture.
• DO NOT tamper with the battery. Keep this away from children.
• DO NOT slam your notebook shut and never pick up or hold your notebook by the
display.
• DO NOT expose your notebook to sudden changes in temperature or humidity. Keep
your notebook away from air conditioners and heating vents.
• DO NOT check your notebook in as baggage. If you are traveling, carry it on instead.
6 Cirrus LT User Manual v2.3
Page 7
Battery Safety and Tips
There is a risk of explosion if the battery is replaced with an incorrect
battery. Dispose of used battery according to the instructions.
• Do not disassemble, heat, or incinerate.
• Do not dispose of battery in a fire. It may explode. Check with local authorities for
disposal instructions.
• Keep away from children.
• Store unused battery in a normal room temperature range.
• To optimize battery life, make sure to let the battery drain before plugging it in to
charge.
• Leaving the notebook constantly plugged in will result in a deteriorating battery
life.
• This product is intended to be supplied by a Listed Information Technology Equip-
ment AC adapter rated 19 VDC, 3.42A.
Cirrus LT User Manual v2.3
7
Page 8
Introduction
The Cirrus LT is a zero client notebook that allows you to securely connect to any kind of
network, remote host, or virtual machine. The Cirrus LT has no local storage, so there is no
vulnerability to viruses or malware, and no files or information will be compromised if the
notebook is lost or stolen.
The Cirrus LT is based on Teradici’s high performance TERA2321 processor, which uses
the PCoIP protocol. PCoIP compresses, encrypts, and encodes the entire computing experience at the data center and transmits it as pixels across the IP network to a zero client.
Remote users have effortless access to a fully functional, even HD, computing experience-and now secure computing functionality is available for the first time on a zero client
laptop.
Compact, lightweight, and engineered for high performance, Cirrus LT using PCoIP technology is optimized for VMWare Horizon View for a highly efficient IT administrative experience and low cost of ownership. Cirrus LT supports copper, fiber, and WiFi. It delivers
state of the security using AES 128/256 bit encryption/decryption and Suite B ciphers.
The Cirrus LT breaks the last security barrier and sets a new performance standard for
computing practicality.
Since the Firmware may be updated at a later date, screenshots contained in this document of the NCS GUI may be subject to changes without notice.
8 Cirrus LT User Manual v2.3
Page 9
Chapter 1: Before you start
Package contents
• Cirrus LT notebook
• Lithium-ion battery
• 65 Watt power adapter
• Cirrus LT Quick Start Guide
Cirrus LT User Manual v2.3 - Chapter 1
9
Page 10
Components
2
3
1
4
5
6
7
8
1 Optional built-in PC webcam
2 LCD screen
3 Speakers
4 Power button/LED
5 Keyboard
6 Function (Fn) key
7 Touchpad & buttons
8 LED indicators
9 Optional ngerprint reader
3
9
10 Cirrus LT User Manual v2.3 - Chapter 1
Page 11
Front view
Right view
Optional secondary
smart card reader
2
1
3
Left view
1
2
4
1 Microphone jack
2 Headphnes/headset jack
3 Dedicated keyboard USB port
4 Dedicated mouse USB port
5 Primary smart card reader
1 Security key lock
2 DC-in jack
3 Mini DisplayPort
4 Charging USB port*
5 RJ-45 LAN jack
6 PCoIP USB ports
5
3
4
5
6
6
*This port is labeled “Local” on the notebook, but it functions as a USB
charging port for certain devices. Devices plugged into this port will not
be seen in the remote session.
Cirrus LT User Manual v2.3 - Chapter 1
11
Page 12
Bottom view
Battery
Docking
Station
Connector
The docking station port may be covered with a rubber cover (shown
below) to keep dust and debris out of the connector when not in the
dock.
12 Cirrus LT User Manual v2.3 - Chapter 1
Page 13
Notebook LEDs
1
2
3 4
1 Battery
2 WiFi
3 PCoIP
4 Local
5 Caps Lock
6 Num Lock
Docking station rear view
2
1
3 4 5 6 8 9 10
5
6
7
6
11
Cirrus LT User Manual v2.3 - Chapter 1
1 Fiber SFP port
2 Charging USB port
3 RJ-45 LAN jack
4 DVI-1 port
5 DVI-2 port
6 PCoIP USB 2.0 ports
7 Dedicated mouse USB port
8 Dedicated keyboard USB port
9 Speaker/line out
10 Microphone
11 DC-in jack
13
Page 14
Docking station LEDs
1
2
3
4
5
6
1 CapsLock
2 Battery
3 PCoIP Session Status
4 NumLock
5 WiFi Status LED
6 Power/Connect Button
14 Cirrus LT User Manual v2.3 - Chapter 1
Page 15
Laptop and docking station LED status light
indicators
• Green LED – Normal Operation – unit is powered on
• Amber LED – Wake On LAN is enabled/unit is OFF
Power LED
Battery LED
Wireless LED
PCoIP LED
Caps Lock LED
NumLock LED
• No LED – unit is o (Wake on LAN is disabled)
• Blinking Green LED – Host PC is in low power (sleep state)
• Blinking Green and Amber - unit is in the process of upgrad-
ing BIOS (DO NOT TURN OFF)
• Green LED – Battery is full or AC adapter is plugged IN
• Blinking Green LED – Battery is charging
• Blinking Amber LED - Low Battery, Battery is under 10%
charge, or battery is not present
• Amber LED – charging error
• NO LED – normal operation, battery discharging
• Green LED – Wireless is enabled (this can be on when not
connected to a wireless LAN)
• NO LED – Wireless is disabled
• Green LED – Connected to a remote host
• NO LED – no connection present
• Green LED – CAPS LOCK Enabled
• NO LED – CAPS LOCK Disabled
• Green LED – NumLock Enabled
• NO LED – NumLock Disabled
Cirrus LT User Manual v2.3 - Chapter 1
15
Page 16
Chapter 2: Getting started
This chapter will guide you on how to use your notebook.
It covers the following sections:
• Powering up your notebook
• Battery installation
• Installing/uninstalling a SIM card
• Opening the display panel
• Starting your notebook
• Using the keyboard
• Using the touchpad
• Navigating the OnScreen Menu (OSM)
Powering up your notebook
Your notebook can be powered up using the AC adapter, a removable lithium-ion
battery, or an optional factory installed dual battery configuration.
Connecting the AC adapter
The AC adapter powers up your notebook and charges the battery.
• Connect the AC adapter to the DC-in jack of your notebook.
• Connect the AC adapter to the power cord.
• Plug the power cord to an electrical outlet.
16 Cirrus LT User Manual v2.3 - Chapter 2
Page 17

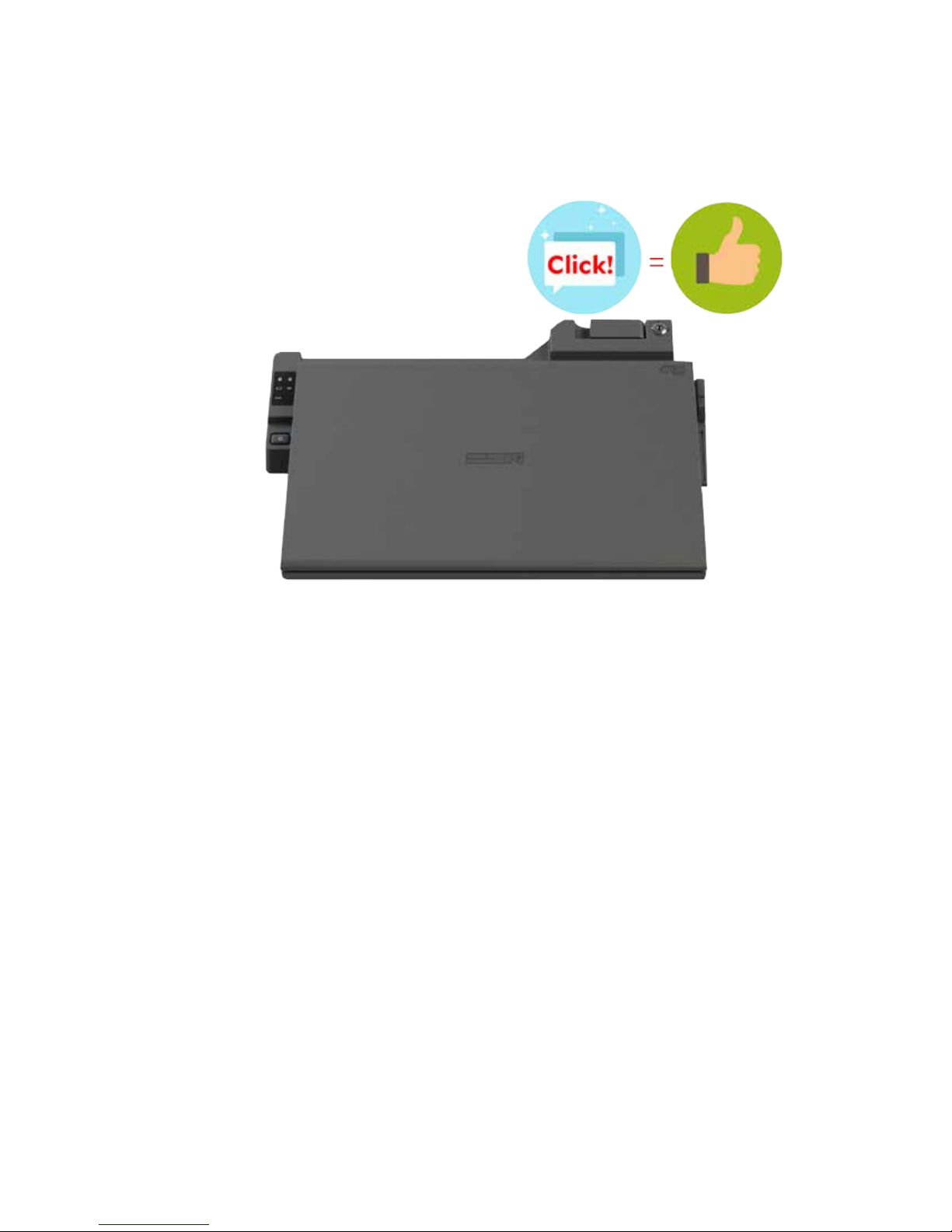

Removable battery installation
Installing the removable battery
To install the battery, follow the steps below:
1. Align and slide the battery into the battery compartment.
2. Push the battery into the compartment until the battery locks into place,
and make sure the latches are locked into position. The left latch will
automatically go into the locked position when you push the battery in
place, but you must manually lock the right latch, as shown.
Cirrus LT User Manual v2.3 - Chapter 2
17
Page 18
Charging the removable battery
The removable lithium-ion battery is not fully charged upon purchase. To
charge the battery, follow the steps below:
1. Install the battery to your notebook. See procedure above.
2. Connect the AC adapter to the DC-in jack of your notebook.
3. Connect the AC adapter to the power cord.
4. Plug the power cord into an electrical outlet.
Charging the removable battery while the Cirrus LT is powered off will shorten
the charging time to two hours. If the Cirrus LT is on, it will take approximately
four hours to charge the unit.
Using battery power
Install the charged battery in the battery compartment by removing the AC
adapter (if plugged in). Your notebook will automatically use the battery power.
Recalibrating the battery
If you notice your removable battery pack is not lasting as long over time, you
may need to recalibrate it. Over time, the 100% charge level can get skewed so
it may only charge to actually 85% or lower. You can fix this by removing the
battery from the notebook, then putting it back in. This will reset its circuitry to
start relearning where the 100% charge level is again.
18 Cirrus LT User Manual v2.3 - Chapter 2
Page 19
Starting your notebook
Opening the display panel
The notebook lid is secured with small magnets while closed and is easily
opened.
• To open, simply lift the cover lid up to the upright position.
• To close, carefully place the cover lid down. Do not slam it shut.
Turning on your notebook
• Press the Power button until the Power LED lights up.
To force a hard shut down, press and hold the Power button for more
than four seconds.
Cirrus LT User Manual v2.3 - Chapter 2
19
Page 20
Using the keyboard
Function keys
The function keys allow you perform certain tasks on your notebook. Below is a
list of the function keys and their actions:
Fn-F1: Turns WiFi on and off
Fn-F2: Decreases screen brightness
Fn-F3: Increases screen brightness
Fn-F4: Turns Native Display on and off
Fn-F5: Toggles between various available display modes
Fn-F6: Enables and disables the touchpad
Fn-F7: Turns sound on and off
Fn-F8: Decreases volume
Fn-F9: Increases volume
Fn-F10: Brings up OnScreen Menu (OSM)
Fn-F11: Turns status bar on and off
Fn-F12: Enables or disables webcam (webcam optional)
Wherever Fn-F10 is used from here on out in the document you can also
use SHIFT-F10 when using an external USB keyboard.
20 Cirrus LT User Manual v2.3 - Chapter 2
Page 21
Touchpad
The touchpad is a cursor-pointing device. You can point, select, or drag items or objects on the screen. For more details on configuring the touchpad, see Device Man-
ager Section in Chapter 4.
Point
Slide your finger on the touchpad to point the cursor to an item or object on the
screen.
Click
To left-click, move the cursor to the item or object on the screen, then lightly tap

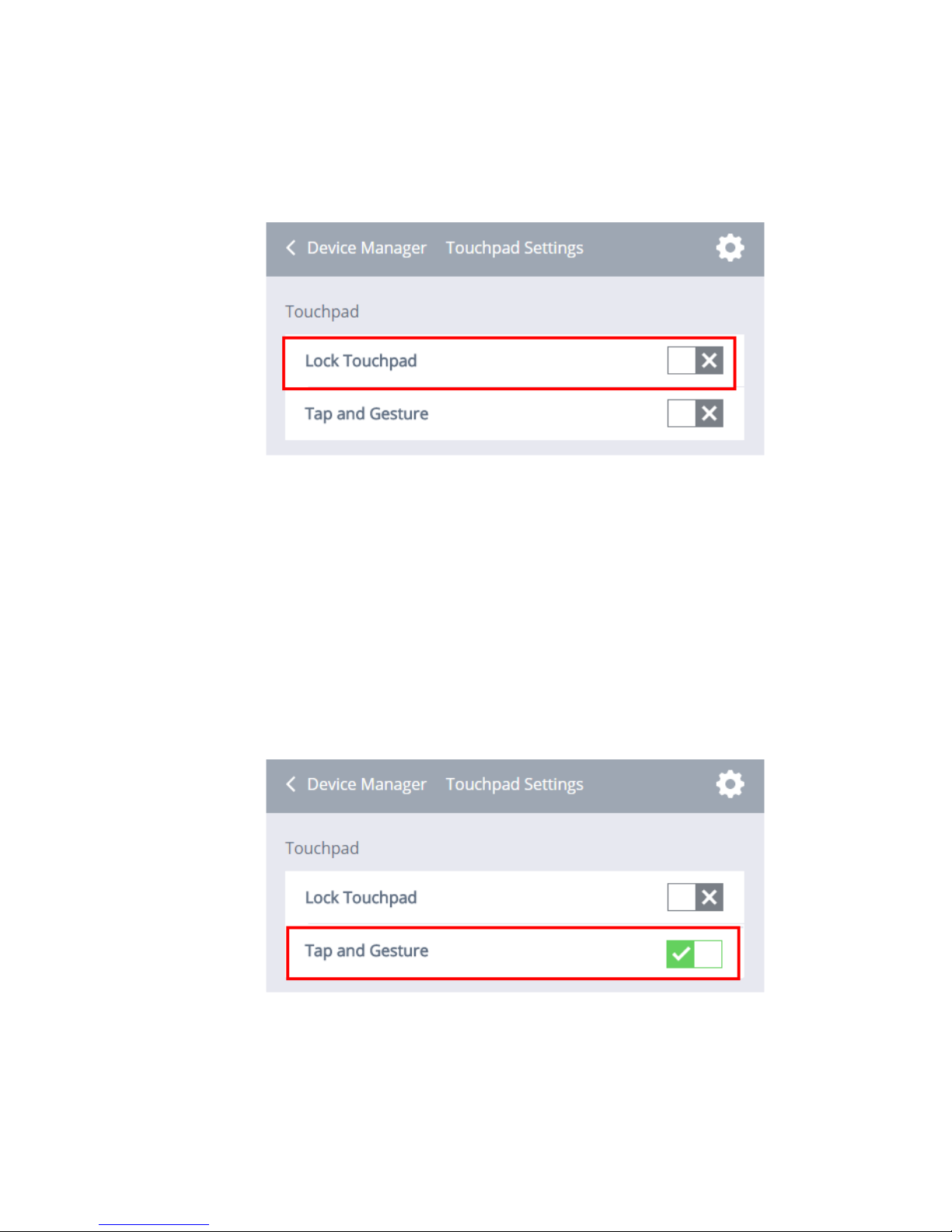

the touchpad or press the left button (by default this tapping feature is disabled
in NCS Firmware to prevent unwanted cursor movements while typing; refer to
Chapter 4’s Device Manager section to enable this feature).
To right-click, move the cursor to the item or object on the screen, then press
the right button.
Double-click
To double-click, move the cursor to the item or object on the screen, then tap
the touchpad twice or press the left button twice (by default this tapping feature
is disabled in NCS Firmware to prevent unwanted cursor movements while typing; refer to Chapter 4’s Device Manager section to enable this feature).
Drag
To drag an item or object, press and hold the left button then slide your finger on
the touchpad to move the item or object.
The Cirrus LT does not support advanced touchpad features such as
scrolling, pinching, and multi-touch.
Cirrus LT User Manual v2.3 - Chapter 2
21
Page 22
Using the fingerprint reader
Shown below is the optional scanning fingerprint reader. There is also an option for
a swipe fingerprint reader or for no fingerprint reader at all.
You will need to load your appropriate drivers on your virtual machine
or remote host to support this device. Drivers can be downloaded from
our NCS website at:
http://www.ncst.com/content/downloads-0.
22 Cirrus LT User Manual v2.3 - Chapter 2
Page 23
Chapter 3: Making
connections
This chapter will guide you on installing peripheral devices to maximize the use of your
notebook. It covers the following sections:
• Connecting External Display Devices
• Connecting USB Devices
• Connecting Headphones
• Connecting External Microphone
Connecting external display devices
You can connect your notebook to other display devices, such as a projector or
another display monitor. Your notebook is equipped with a mini DisplayPort which
provides digital video signals.
The DisplayPort cable is not included in the package. It is sold separately
or it may come with your external display device.
The Cirrus LT is designed to support both passive and active mini DP to
DVI adapters. The Cirrus LT is compatible with most new adapters but
there are a few older adapters that will not work. NCS sells a variety of
adapters for most modern LCDs out in the market today, i.e. Mini DP to
DP, Mini DP to DVI, Mini DP to VGA, etc. You may purchase these mini
DP adapters from NCS to ensure complete compatibility for your Cirrus
LT. Additionally, due to the nature of converting mini DP to VGA, all of
these adapters are considered active adapters.
Connecting a projector or display monitor
1. Connect one end of a DisplayPort cable to the mini DisplayPort of your
notebook.
2. Connect the other end to a projector or display monitor.
Cirrus LT User Manual v2.3 - Chapter 3
23
Page 24
Connecting to USB devices
You can connect your notebook to other USB devices, such as a mouse, keyboard,
digital camera, printer, or an external hard disk drive. Connect one end of a USB cable to the USB port of your notebook, then connect the other end to the USB device.
The USB cable is not included in the package. It is sold separately or it
may come with your USB device.
USB devices (including, but not limited to, printers, optical drives, and
hard drives) that do not have their own power sources are not officially
supported. Most of these devices tend to draw too much power from the
USB port. You can still connect these devices to the Cirrus LT. If the
device only has one USB port, use one of the two PCoIP USB ports on the
left side of the notebook. If the device has two USB ports (one for enumeration and one for auxiliary power), use one PCoIP USB port for the
enumeration plug and the charging USB port (also located on the left
side of the notebook) for the auxiliary power plug. Refer to the image
below. As a reminder, these USB devices that are plugged in may need
drivers to be loaded on the remote session.
Enumeration
Plug
Auxiliary
The aforementioned ports are located on the left side of the notebook.
24 Cirrus LT User Manual v2.3 - Chapter 3
Plug
Charging
USB Port
PCoIP USB Ports
Page 25
Connecting headphones
Headphones/
headset port
The headphones/headset port is located on the right side of the notebook.
You can connect either headphones or external speakers to the Cirrus LT Notebook
via its headphones/headset port (see above). This headphone/headset port also
supports combo headsets (headphone/mic) which come with a single plug (for example, on the iPhone® headphone), as well as CTIA and OMTP Headsets.
Headsets are not compatible with the headphone port on the docking
station or with the microphone jacks on the notebook or the docking
station.
Audio subsystem
By default, audio will be output to the Cirrus LT’s built-in speakers when the
headphones/headset port is not used. If a webcam is installed, the webcam microphone can be used for applications like Skype.
When a headset (e.g. an Apple® headset) is plugged in, audio will be output to
this headset. Also, the headset microphone will get priority if a dedicated microphone is also connected to the Cirrus LT microphone jack.
Cirrus LT User Manual v2.3 - Chapter 3
25
Page 26
Connecting an external microphone
You can connect your notebook to an external microphone by plugging the audio
jack of the microphone to the microphone jack of your notebook.
If you want to use the docking station microphone jack while on a virtual
machine, you must install a driver. You can download this driver at
http://www.ncst.com/content/downloads-0.
If you have a USB headphone and microphone device, plug these into the
PCoIP USB ports.
External webcam support
This section applies to only EXTERNAL USB webcams. The Cirrus LT already has
support for an optional internal USB webcam.
Using an external USB webcam with the Cirrus LT is limited to what is supported
natively by the Teradici Firmware. Teradici only supports webcams that utilize
the older USB 1.1 specification. Newer webcams that utilize higher resolutions and
require USB 2.0 or greater are not supported by Teradici at this time. Given the data
throughput limitations available with USB 1.1 devices, the webcam experience is
acceptable, but the quality is highly dependent on network bandwidth. At best, you
can expect to see a webcam display resolution of 640 x 480.
Known external USB webcams found to work:
• HP Deluxe Webcam KQ246AA (RMN:DC8870)
• Logitech Webcam 5000 M/N: V-UAX16
• Logitech C170
Known external USB webcams found NOT to work:
• Logitech C920
• Logitech B910
26 Cirrus LT User Manual v2.3 - Chapter 3
Page 27
Connecting to a mouse and keyboard
Using a mouse in the dedicated mouse port ensures full functionality when connected to a remote host and when you pull up the OnScreen Menu. The same applies
for the dedicated keyboard port.
To connect to an external mouse:
• Plug the mouse into the USB port with the picture of a mouse over it.
To connect to an external keyboard:
• Plug the keyboard into the USB port with the picture of the keyboard over it.
The mouse and keyboard are not included in the package. They are sold
separately.
When using an external keyboard in the dedicated USB keyboard port
you can press SHIFT-F10 to bring up the Cirrus LT OnScreen Menu.
Certain special multifunction or Bluetooth combo mouse and keyboards will work
in the dedicated keyboard port. Not all of these special devices have been tested. As
a general rule, you can try different keyboards without harming the Cirrus LT. Special keyboards should be plugged into the dedicated USB keyboard port on the right
hand side for compatibility. Combo Bluetooth keyboard and mouse dongles should
be plugged into the dedicated USB keyboard port.
If for some reason these special keyboards do not work in the dedicated keyboard
port, try them on the PCoIP USB ports on the left hand side of the notebook. You
may need to load drivers once the device is detected in the remote OS. Please contact NCS Help Desk if you identify a USB keyboard that does not work correctly
in the dedicated USB keyboard port. We are always looking to make our products
compatible with the latest peripherals.
Cirrus LT User Manual v2.3 - Chapter 3
27
Page 28
Connecting to the docking station
You can connect your notebook to a docking station. The docking station has many
of the same ports as the notebook, but also features two DVI-D ports and a Fiber
SFP port.
The notebook and docking station use different AC adapters. You must
connect the 90 Watt AC Adapter (19V, 4.74A) to the docking station in
order for the Cirrus LT to function correctly while in the docking station.
Connecting the docking station
To connect your notebook to the docking station:
1. Pull out the extender on the right side of the docking station.
28 Cirrus LT User Manual v2.3 - Chapter 3
Page 29
2. Ensure the notebook docking station port cover (highlighted below) is
removed before you try to dock the notebook onto the docking station.
There is also a handy storage location for this port cover located on the
docking station lever. See the highlighted area shown below.
Cirrus LT User Manual v2.3 - Chapter 3
29
Page 30
3. Note the following highlighted guides below on both the notebook and
the docking station for correct placement when connecting the notebook
to the docking station.
• There are two small triangle guides on the notebook lid.
• There are also two guides on the docking station.
30 Cirrus LT User Manual v2.3 - Chapter 3
Page 31
4. Line these up, and then firmly press down on the lid of the notebook. You
should hear a click, and then the notebook is properly docked into the
docking station.
Cirrus LT User Manual v2.3 - Chapter 3
31
Page 32
Disconnecting from the docking station
To disconnect your notebook from the docking station:
1. Pull up the black lever on the top right side of the docking station.
If the black lever won’t lift up, you will need to unlock the docking station with the included keys (shown below) to remove the notebook. The
release lever will not lift up if locked.
2. Lift the notebook out of the docking station.
32 Cirrus LT User Manual v2.3 - Chapter 3
Page 33
USB port functionality while notebook is
docked
While the Cirrus LT is docked with the docking station, the notebook’s dedicated USB keyboard and mouse ports will not work; only the corresponding ports
of the docking station remain active (highlighted below) while docked. These
ports are labeled with an icon of a mouse and a keyboard. However, the two
PCoIP and charging ports on the notebook will still work giving you a total of 6
working USB Ports when using the docking station and two charging USB ports.
Hotdocking
Hot-docking (placing the Cirrus LT on the docking station while the Cirrus LT
has power) is fully supported with the Cirrus LT.
Cirrus LT User Manual v2.3 - Chapter 3
33
Page 34
Configuring the audio for remote hosts
Connecting to the Teradici host PC
Headset port or built-in speaker configuration:
1. Open the Control Panel > Sound > Playback tab.
2. In the Playback tab, select Headphones: 3-High Definition Audio Device
as the Default Communication Device.
34 Cirrus LT User Manual v2.3 - Chapter 3
Page 35
Docking station line out port:
1. Open the Control Panel > Sound > Playback tab.
2. In the Playback tab, select Headphones: 3-High Definition Audio Device
as the Default Device.
Cirrus LT User Manual v2.3 - Chapter 3
35
Page 36
Connecting to VMHost
1. Download and install the latest PCoIP Audio Driver provided by Teradici
(PCoIP_ComponentInstaller.exe).
2. Open the Control Panel > Sound > Playback tab.
3. Ensure that the Teradici Virtual Audio Driver is selected as the default
driver.
The Speakers setting will work for both the Headset Port and Dock Line-out
Port.
36 Cirrus LT User Manual v2.3 - Chapter 3
Page 37
Docking station audio subsystem
The Cirrus LT docking station has a line-out port (located on the rear right side)
which is intended to be connected to desktop speakers (see below).
Microphone jack
Speaker jack
The docking station microphone jack is a replica of the Cirrus LT microphone
jack which supports traditional analog microphones only.
Priority of the audio plugs while docked are as follows:
• By default, audio will be output to the built-in speakers when the headset/lineout port is not used. If a webcam is installed, the webcam mic can be used for applications like Skype.
• When the line-out port on the docking station is connected to an external speaker,
this port will get priority and internal speakers will not produce sound. Similarly,
the docking station microphone port will get priority when used over the ports
on the Cirrus LT.
• When the docking station ports are not used, the Cirrus LT audio ports and speakers will have priority.
Cirrus LT User Manual v2.3 - Chapter 3
37
Page 38
Installing a SFP module
The SFP module goes into the Fiber SFP port on the docking station and allows you
to use fiber optic cable for more secure networking. You will need to pull the tab
lever out prior to installation, as shown below.
To install the SFP module:
1. Place the SFP module into the Fiber SFP port (refer to Chapter 1, rear view
port #1 for exact location). Make sure the side with the green tab is facing up,
and the tab lever is pulled out, as shown below.
38 Cirrus LT User Manual v2.3 - Chapter 3
Page 39
2. Push the module all the way into the port.
3. You will know the module is securely installed when you hear a click as you
push it into place. Pull the lever down back into place, as shown below.
Cirrus LT User Manual v2.3 - Chapter 3
39
Page 40
Chapter 4: Navigating the
OnScreen Menu
Use the OnScreen Menu (OSM) to configure various parameters on your Cirrus LT. To
invoke the OSM you press Fn-F10. You can navigate through the OSM with the touchpad
or with an external mouse connected to the dedicated USB Mouse Port located on the right
side of your notebook.
When using an external USB keyboard that is connected to the dedicated USB keyboard
port (on the right side of the notebook) you can also invoke the OSM by pressing SHIFT-
F10. This is handy when using the notebook with the lid closed. Since most external
keyboards do not have a function key, pressing SHIFT-F10 will bring up the OSM for your
convenience.
OnScreen Menu (OSM) structure
The OnScreen Menu (OSM) is based on a tree structure moving from left to right
as you drill deeper into the menu system. Each level of the tree will have a title and
various options to choose from; either click an option to move down the tree or to
make a selection with the mouse pointer. You can also click any option higher in the
tree structure to select that menu. Finally, to exit the OSM either click the X on the
bottom left corner of the menu or press Fn-F10 again.
When you open the OSM, a second cursor will appear. This cursor operates within the OSM only. When you close the OSM, the cursor will
disappear.
As you are clicking through the settings in the OSM, you will not have to
“confirm” any changes except in critical situations such as shutting
down the notebook or changing your password. All other changes will
save automatically.
40 Cirrus LT User Manual v2.3 - Chapter 4
Page 41
Main Menu
The main menu has the following items:
• Network: For changing network connectivity settings

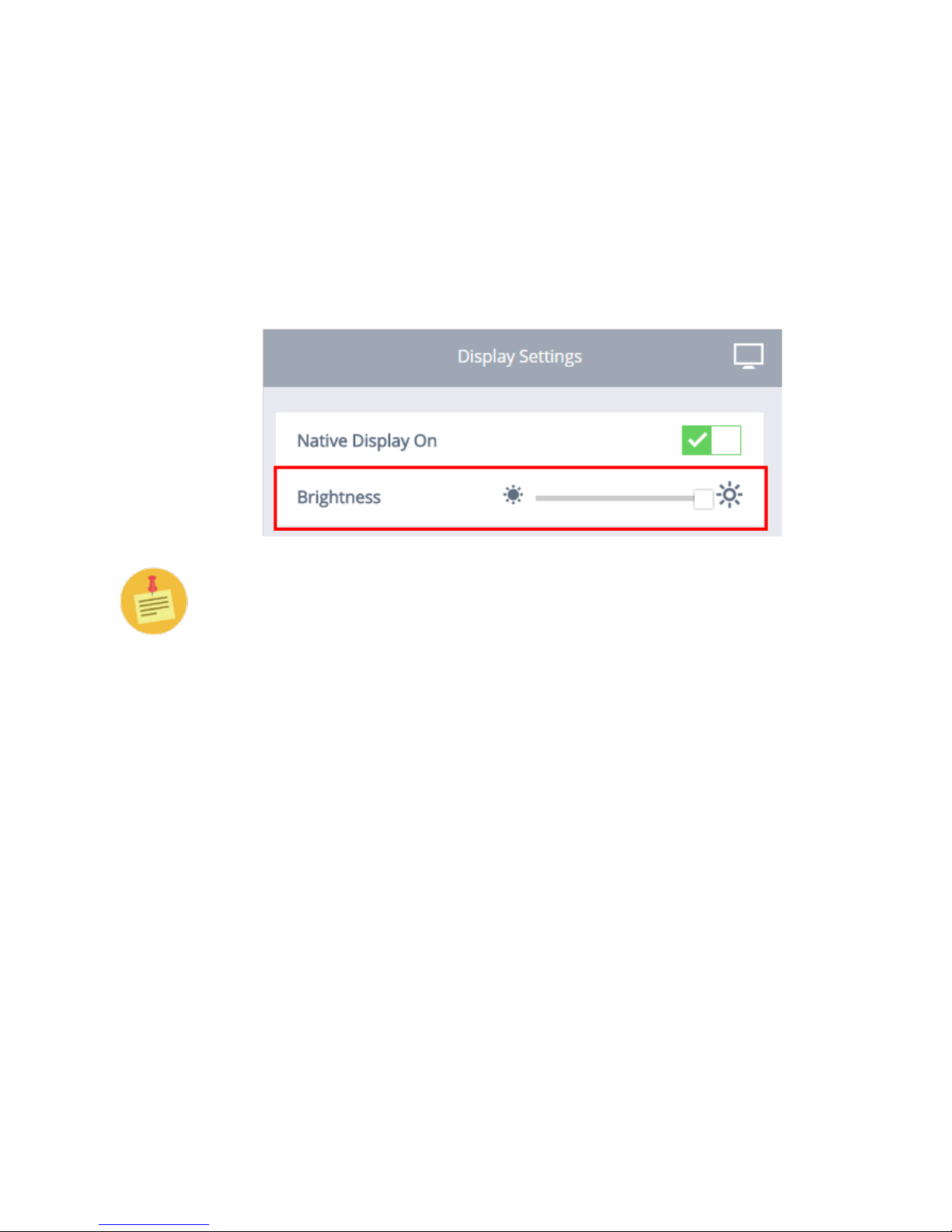

• Display: For changing the display options and modes

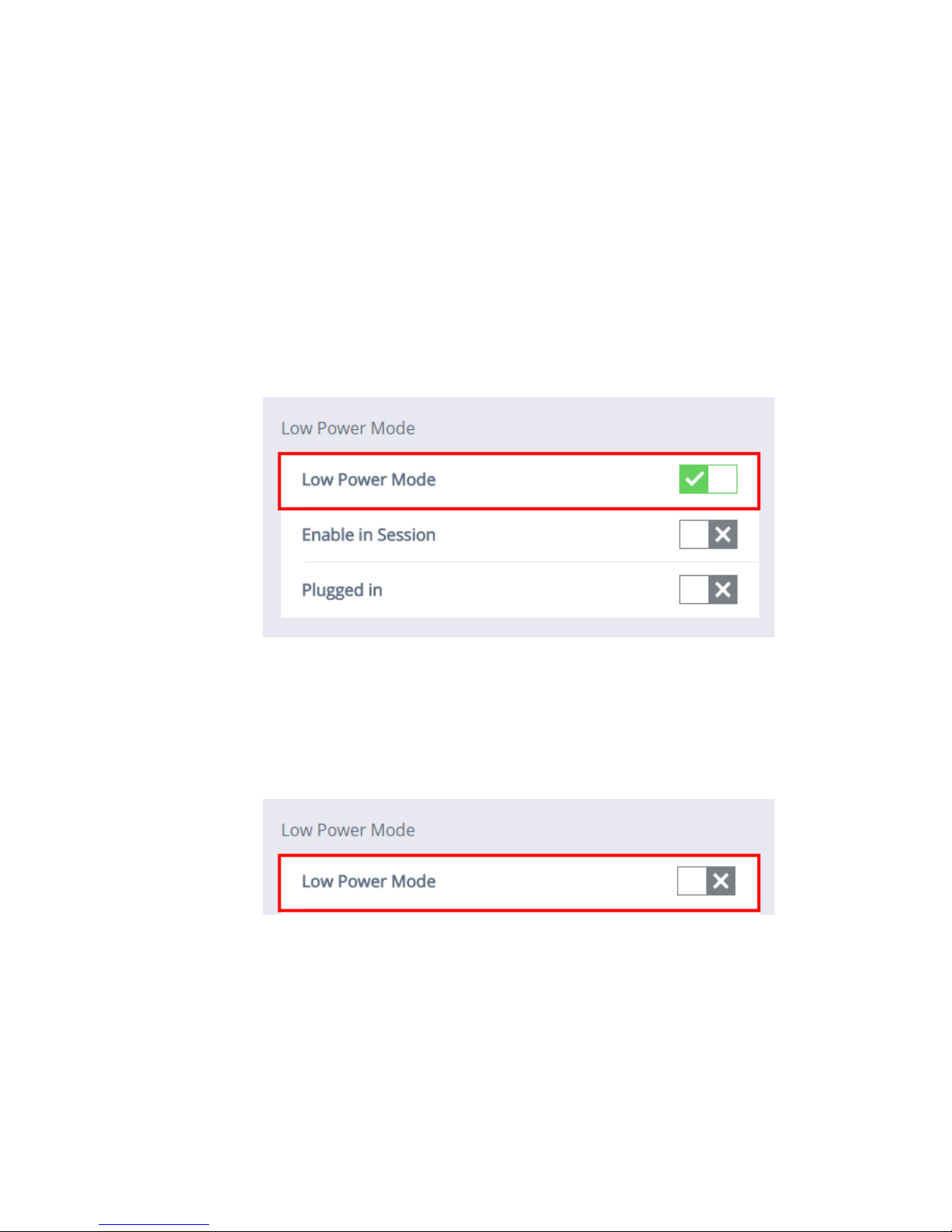

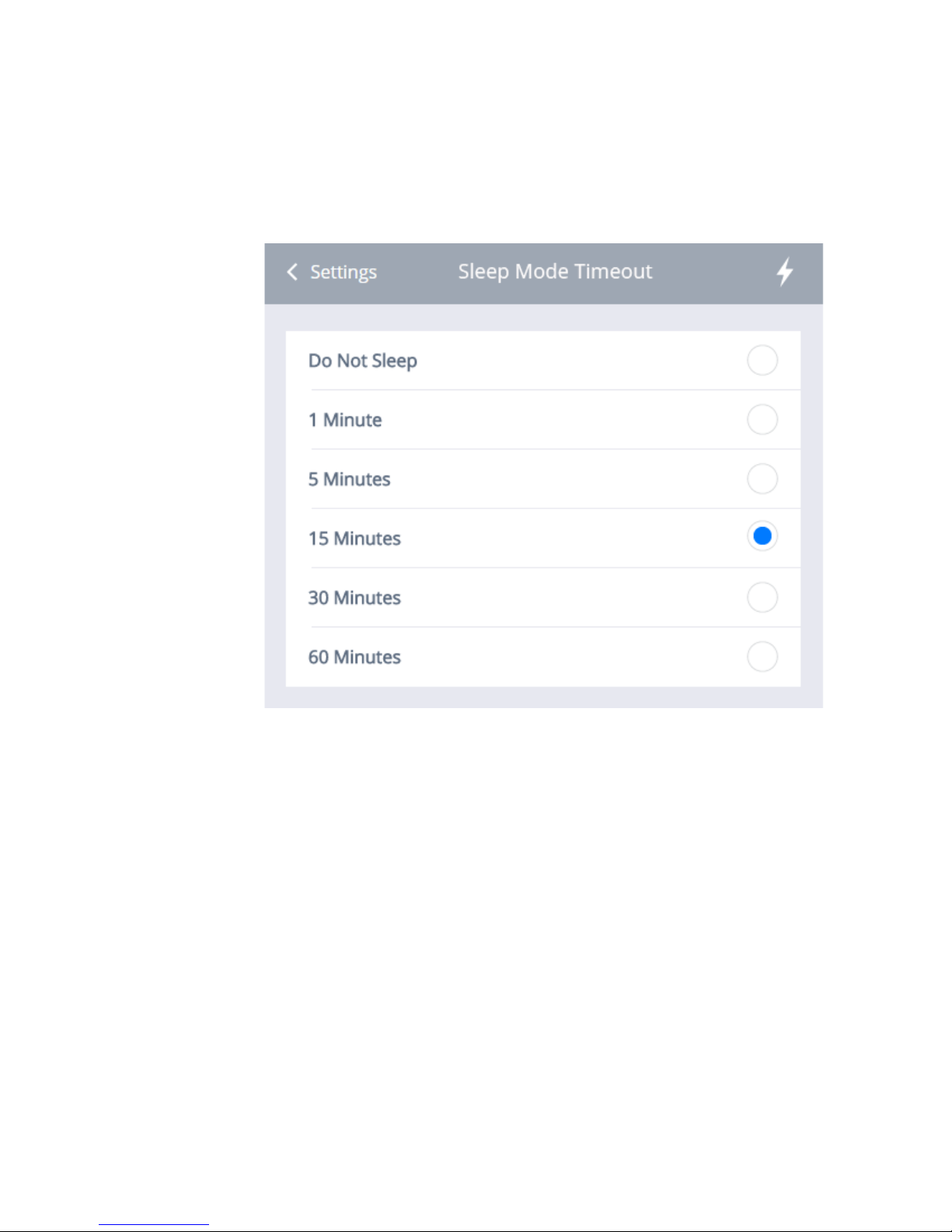

• Power Management: For configuring OSM, Low Power Mode, and Sleep Timing
Preferences

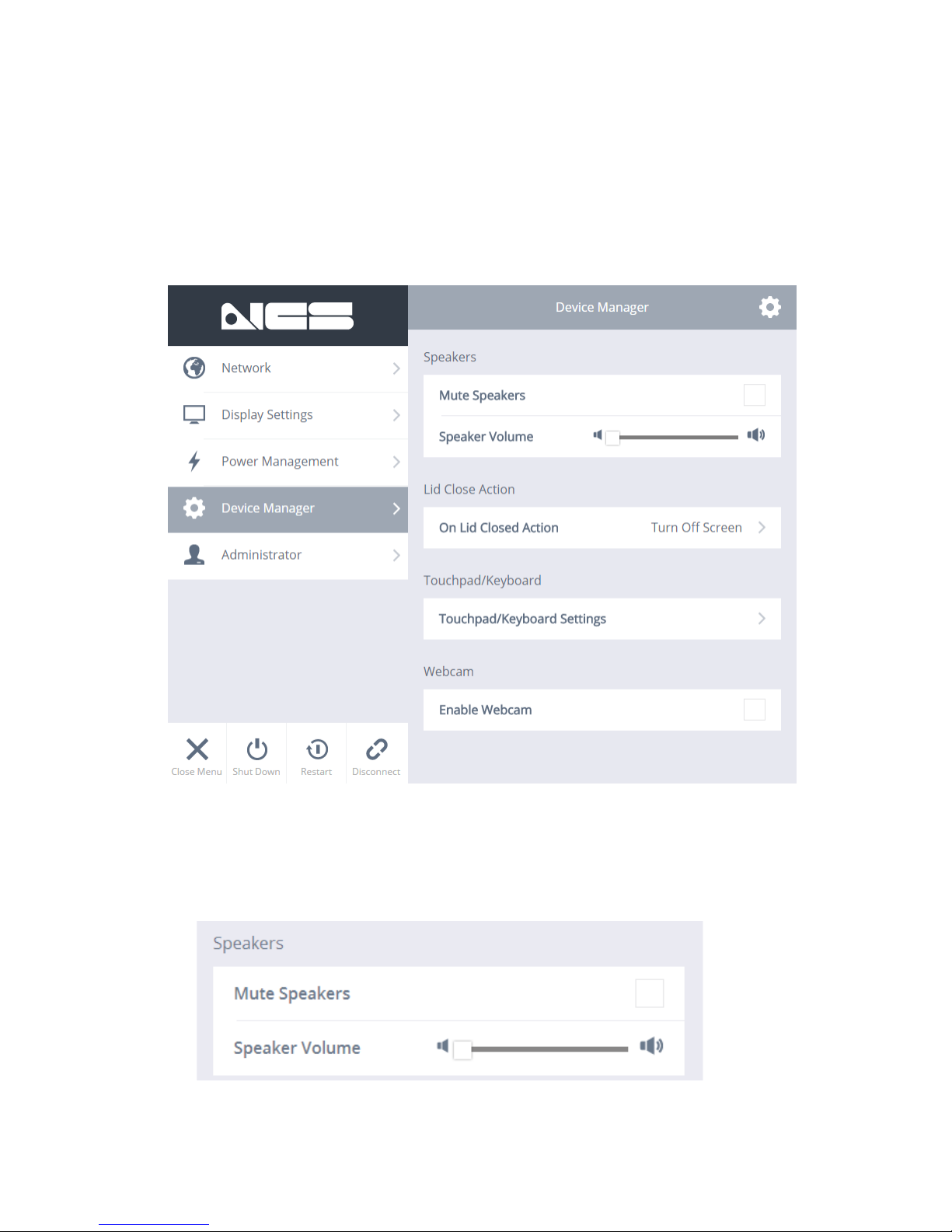

• Device Manager: For configuring speaker volume, webcam, and touchpad
settings
• Administrator: For configuring authentication credentials of local and
administrator accounts and other administrator settings
The bottom left of the main menu (highlighted above) also allows you to close
the menu, shut down the system, restart the system, and connect/disconnect
from the remote session.
Cirrus LT User Manual v2.3 - Chapter 4
41
Page 42
Network
This Network submenu lets you configure wired and wireless settings and allows
you to enable and disable both Ethernet and WiFi connections.
42 Cirrus LT User Manual v2.3 - Chapter 4
Page 43
Ethernet
To enable the Ethernet:
1. Click the Network submenu.
2. Select Ethernet.
3. Click the Enable Ethernet selection box. A green check mark signifies that
Ethernet has been enabled, as shown below.
To disable the Ethernet:
1. Click the Network submenu.
2. Select Ethernet.
3. Click the Enable Ethernet selection box. A gray “X” signifies that Ethernet
has been disabled.
Cirrus LT User Manual v2.3 - Chapter 4
43
Page 44
WiFi
All wireless configuration is done in these menus. You can enable or disable
wireless entirely. If you want to auto connect to the same set of wireless LANs
(WLANs) you can save those for auto connection at a later time (this can also be
disabled in the Administrator menu). Once connected to a WLAN, you can see
signal strength and the IP Address obtained.
Disconnected
This tells you if WiFi is connected (and if so, which Network) or disconnected.
44 Cirrus LT User Manual v2.3 - Chapter 4
Page 45
Enabling and Disabling Wireless
To enable wireless:
1. Click the Network submenu.
2. Select WiFi.
3. Click the Enable WiFi selection box. A green check mark signifies that
WiFi has been enabled.
To disable wireless:
1. Click the Network submenu.
2. Select WiFi.
3. Click the Enable WiFi selection box. A gray “X” signifies that WiFi has
been disabled.
If both a wired and a wireless network are present, wired will take priority based on its better performance over WiFi.
Cirrus LT User Manual v2.3 - Chapter 4
45
Page 46
Available Networks
You can see all the available WiFi networks with this option. You can click
on the WLAN you would like to connect to and then enter the password for
the WLAN. Remember to check the Save Connection check box if you would
like to save this information for future convenience (you can disable this feature in the Administrator Menu). Available wireless networks are sorted by
signal strength. WLANs that have higher signal strength are at the top of the
list, while low signal strength WLANs can be found at the bottom of the list.
To see Available Networks:
1. Click the Network submenu.
2. Select WiFi.
3. Click Available Networks.
4. Choose the network you wish to connect to.
46 Cirrus LT User Manual v2.3 - Chapter 4
Page 47
Networks that do not broadcast their SSID will be placed at the bottom
of the list and labeled as “Join Other Network”, as shown below. You will
then have to provide the SSID, password, and security protocol.
5. Choose the Network Type from the top drop down list highlighted
below.
Cirrus LT User Manual v2.3 - Chapter 4
47
Page 48
When selecting a network from the available networks list, the OSM
will automatically detect the proper network type. You only need to
select the network type of hidden networks.
When making wireless connections the Cirrus LT only supports WPA2
and higher levels of security. This system does not support WEP due to
its many security flaws.
48 Cirrus LT User Manual v2.3 - Chapter 4
Page 49
6. Type in your authentication credentials, as shown below.
IMPORTANT: The maximum password length is 64 characters.
IMPORTANT: you cannot use certain characters in the wireless network
name (SSID) and you cannot use certain characters in your password. See
below for a list of supported and unusable characters:
Supported SSID Characters: letters, numbers, space, symbols including:
~ ` ! @ $ % ^ * ( ) - _ = [ { ] } | ; : ’ , < . > / ?
Symbols printed on the English keyboard that are not supported in SSID
are:
& # + \ “
Cirrus LT User Manual v2.3 - Chapter 4
49
Page 50
Supported Password Characters: letters, numbers, space, symbols including:
` ~ ! @ # $ % ^ & * ( ) - _ = + [ { ] } | ; : ’ , < . > / ?
Symbols printed on English keyboard that are not supported in password
are:
\ “
Unicode and non-English letters haven’t been tested, and will probably not
be supported.
7. If you wish to save this connection, click the box next to Save Connection. When you are ready, click Connect.
50 Cirrus LT User Manual v2.3 - Chapter 4
Page 51
Preferred Networks
Your preferred wireless networks are shown in this list. You can remove or connect to one of these networks by clicking on the chosen network and then either
clicking Remove or Connect.
To see your preferred networks:
1. Click the Network submenu.
2. Select WiFi.
3. Click Preferred Networks.
Cirrus LT User Manual v2.3 - Chapter 4
51
Page 52
Configuring your Preferred Networks to automatically connect
Setting up a network to automatically connect as a preferred network can
provide a more efficient and productive user experience.
To configure your preferred networks to automatically connect:
1. You need to enable Auto Connect for Preferred Networks. In the OSM,
navigate to the Network > WiFi > Preferred Networks submenu.
a. Click the box next to Auto Connect. When the blue ‘check
mark’ is selected, Auto Connect will be enabled.
2. Next, you need to enable Allow Saving WiFi Passwords. In the OSM,
navigate to the Administrator > Admin Settings > Control Center sub-
menu.
a. Click the box next to Allow Saving WiFi Passwords. When the
blue ‘check mark’ is selected, Allow Saving WiFi Passwords
will be enabled.
52 Cirrus LT User Manual v2.3 - Chapter 4
Page 53
3. Finally, when you add a new WiFi connection (by navigating to the
Network > WiFi > Available Networks > Join Other Network > Connect to Network submenu), you will see a new check box (highlighted
below) labeled Save Connection.
a. Click the box next to Save Connection. When the blue ‘check
mark’ is selected, you will be adding this WiFi network as a
preferred network.
Cirrus LT User Manual v2.3 - Chapter 4
53
Page 54
Prioritizing Your Preferred Networks
Your preferred wireless networks are shown in this list. You can move them
up and down in order to prioritize them.
To prioritize your preferred networks:
1. Click the Network submenu.
2. Select WiFi.
3. Click Preferred Networks.
4. Use the mouse cursor (shown below) to select the Network you wish
to move up or down the list. Once you click on the Network, the selected row will be highlighted in grey. Click the Up or Down button
the number of times it will take to move the highlighted server to the
desired position on the list.
5. In the example below, ‘NETGEAR90’ (now in 3rd position) is to be
moved to first on the list. Select it and then click the Up button two
times.
54 Cirrus LT User Manual v2.3 - Chapter 4
Page 55
6. Note that ‘NETGEAR90’ is now in 1st position. You can select other
Networks to be moved up or down the list as needed.
7. Once you are done prioritizing your preferred networks, click the
Commit button to finalize the changes.
Cirrus LT User Manual v2.3 - Chapter 4
55
Page 56
If Auto Connect is enabled, hitting the Commit button will temporarily
disconnect you from your current network in order to apply the changes
made in Preferred Networks. The Cirrus LT will then attempt to connect
you to the network with the highest priority in the list. If this option is
used during a session, you may be disconnected from your session; NCS
suggests making any changes to your wireless settings outside of a
session as a general practice. If Auto Connect is not enabled, you will not
be disconnected and the changes made to Preferred Networks will not
take effect until after you have disconnected from your current network.
Auto Connect
If you would like to auto connect to a network, you must select the auto connect
check box. To enable an automatic connection:
1. Click the Network submenu.
2. Select WiFi.
3. Click the box next to Auto Connection. A blue check mark indicates that
an automatic connection has been enabled.
56 Cirrus LT User Manual v2.3 - Chapter 4
Page 57
Enhanced Roaming
To enable Enhanced Roaming:
1. Click the Network submenu.
2. Select WiFi.
3. Click the Enable Enhanced Roaming selection box. A green check mark
signifies that WiFi has been enabled.
To disable Enhanced Roaming:
1. Click the Network submenu.
2. Select WiFi.
3. Click the Enable Enhanced Roaming selection box. A gray “X” signifies
that WiFi has been disabled.
Cirrus LT User Manual v2.3 - Chapter 4
57
Page 58
SSL VPN
Enabling SSL VPN will put your Cirrus LT into a special VPN mode, allowing
you to connect back to your office’s network through a VPN server. It is impor-
tant to note that while in “VPN MODE” the Cirrus LT will be only able to
make remote connections via VPN. Normal connections that do not require a VPN will not be possible. To connect again to remote connections
that do not require VPN (e.g. when you are at your corporate office), you
will need to DISABLE this feature. Cirrus LT currently only supports Cisco
and Juniper VPN connections.
Enabling and Disabling SSL VPN
Enabling SSL VPN
To enable SSL VPN:
1. Click the Network submenu.
2. Select SSL VPN.
3. Click the Enable VPN selection box.

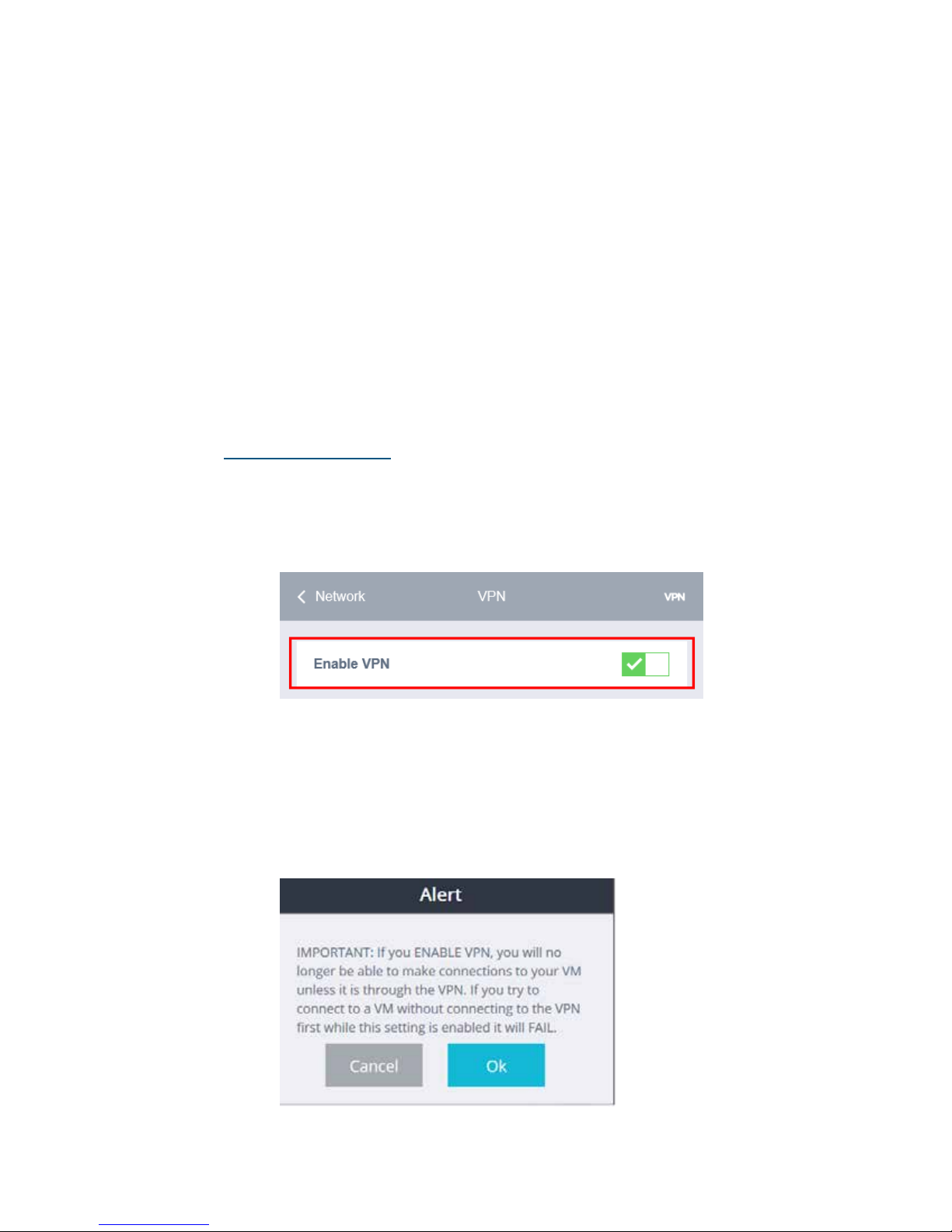

4. An alert (shown below) will then appear. It states that while Enable
VPN is active, the Cirrus LT can only make remote connections via
VPN. Normal connections that don’t need VPN (e.g. when you are at
your corporate office) won’t be possible. To allow remote connections
that don’t require VPN, turn off Enable VPN mode.
58 Cirrus LT User Manual v2.3 - Chapter 4
Page 59
5. Click ‘OK’. The green check mark signifies that VPN has been enabled.
6. Once Enable VPN is turned on, the Network > SSL VPN submenu will
look like this.
Disabling SSL VPN
To disable SSL VPN:
1. Click the Network submenu.
2. Select SSL VPN.
3. Click the Enable VPN selection box. A gray “X” signifies that VPN has
been turned off, as shown below.
Cirrus LT User Manual v2.3 - Chapter 4
59
Page 60
Server URL

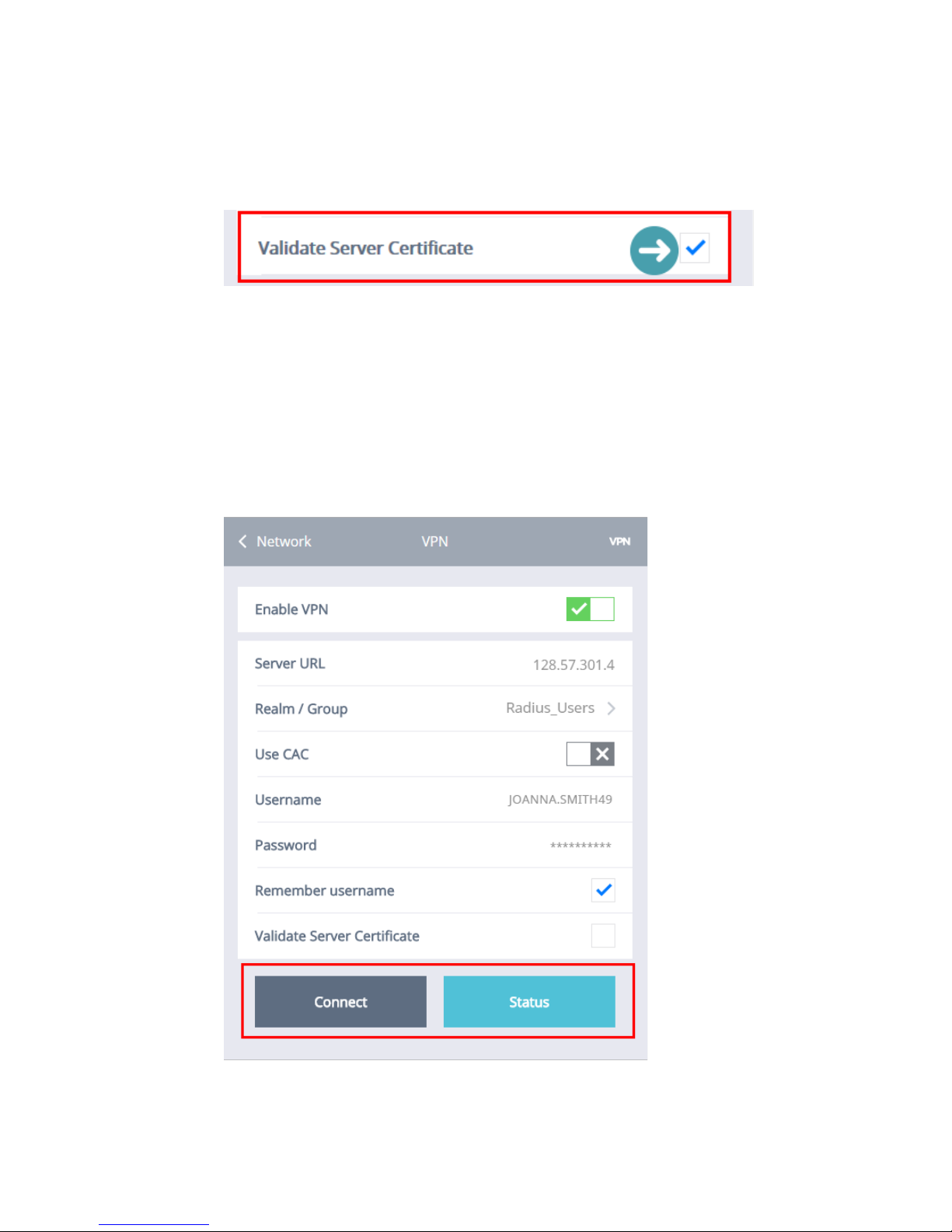

In order to connect to a VPN Server, type in its URL or IP Address in the
Server URL field (as shown below), then click the Connect button. For convenience, once a VPN server address is entered it will remain in this field until
changed. Only one VPN server can be stored at this time.
Realm/Group
Once a VPN connection is made, the Cirrus LT will poll the VPN server for
any stored realms or groups.
60 Cirrus LT User Manual v2.3 - Chapter 4
Page 61
Clicking on Realm/Group will take you to another screen (shown below) that
lists the reported realms/groups on the VPN server. Select your realm/group
as per instructions from your system administrator. If you don’t see the correct realm/group on the list, click the Refresh button.
2nd Factor Authentication
Two factor authentication is becoming more and more popular to further
secure remote connections. Cirrus LT supports a number of 2nd factor
authentication methods. If you are using any of the following 2nd factor
authentication methods, the Cirrus LT will ask you additional questions after
you initially submit your logon credentials.
Currently supported 2nd factor authentication methods include:
• DuoSecurity - https://www.duosecurity.com/
• Entrust Grid Cards (with Juniper VPN only) - http://www.entrust.
com/gridcard/
• CAC Cards
Cirrus LT User Manual v2.3 - Chapter 4
61
Page 62
Enabling and Disabling Use CAC
If you are required to use your CAC card to make your VPN connection, you
need to enable this feature.
Enabling Use CAC
To enable Use CAC:
1. Click the Network submenu.
2. Select Use CAC.
62 Cirrus LT User Manual v2.3 - Chapter 4
Page 63
3. Click the Use CAC selection box. A green check mark signifies that
Use CAC has been enabled.
4. When Use CAC is enabled, the highlighted portion (shown below) of
the Network > SSL VPN submenu will display additional fields named
Certificate and Pin.
Cirrus LT User Manual v2.3 - Chapter 4
63
Page 64
Cert
1. Since there can be many different certificates on a CAC card, you will
need to tell Cirrus LT which certificate to use to connect to the VPN.
If you are unsure which certificate to use, you can ask your system administrator. To view a list of certificates to choose from, click on Cert,
as shown below.
2. Once you click on Cert, it will take you to another screen (shown
below) that lists the available certificates for you on the CAC card.
Select the Certificate as per instructions from your system administrator. If you don’t see the correct Certificate on the list, click the Refresh
button.
64 Cirrus LT User Manual v2.3 - Chapter 4
Page 65
Pin
Once you have selected a certificate, return to the Network > SSL VPN submenu and enter the PIN number in the field labeled Pin, as shown below.
Disabling Use CAC
To disable Use CAC:
1. Click the Network submenu.
2. Select SSL VPN.
3. Click the Use CAC selection box. A gray “X” signifies that Use CAC
has been turned off, as shown below.
4. When Use CAC is disabled, the highlighted portion (shown below)
of the Network > SSL VPN submenu will display fields named User
Name, Password, and Remember username.
Cirrus LT User Manual v2.3 - Chapter 4
65
Page 66
Username/Password and Remember Password
Here is where you will enter your logon credentials. These fields can change
depending on your connection method. For example, if you are using CAC
you will be asked for a PIN instead.
If you would like the GUI to retain your username for convenience, check
the Remember username to enable this feature.
66 Cirrus LT User Manual v2.3 - Chapter 4
Page 67
Validate Server Certificate
If your VPN requires the client to validate a server certificate, enable this
feature.
Connect/Status Buttons
Once you are done configuring the SSL VPN setup, click the Connect button
to connect to your VPN Server. Clicking the Status button gives you more
information about your current VPN connection, which may be useful for
troubleshooting and/or admins.
Cirrus LT User Manual v2.3 - Chapter 4
67
Page 68
Web Portal

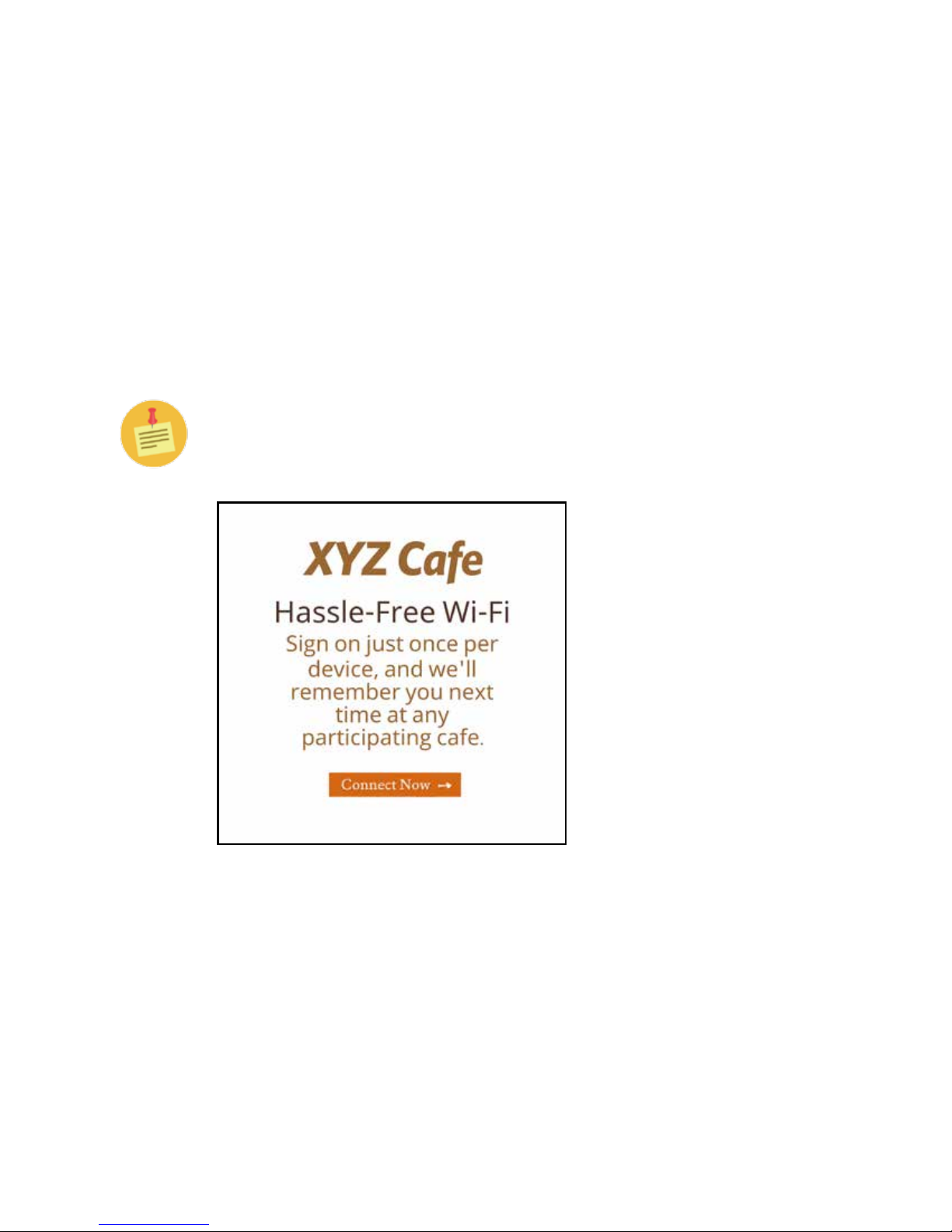

Some public WiFi networks will require you to confirm or authenticate to the
WiFi network via a web page. If this is the case you need to enable the Web
Portal (also known as a Captive Portal) feature under the administrator settings
in order for another window to pop up for you to interact with that WiFi network’s web interface. To connect to a Public WiFi Open Network, you are often
presented with a web page to accept a usage agreement, like the example shown
below. In these cases, Cirrus LT supports most of these types of authentication
web pages.
The Cirrus LT’s Network Settings enable Web Portal by default. If for
added security you want to disable this feature, you can in the Administrator submenu, described later in Chapter 4, under the “Administrator”
section.
• Ensure you have connected to the open WiFi network and have been assigned
an IP address. Once this is done, click on the Web Portal selection in the Network
Menu.

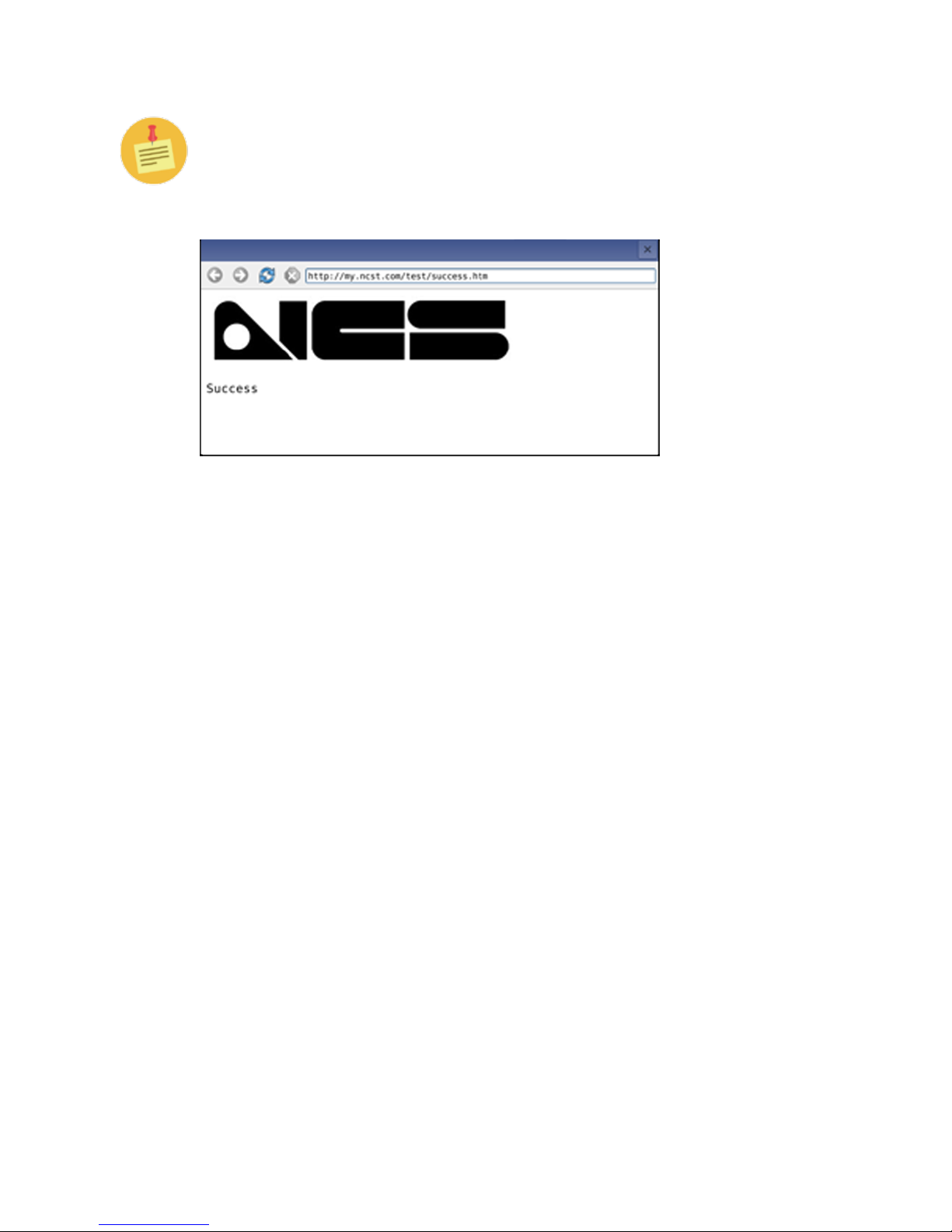

• If for some reason the network you are on does not have a web portal, the Cirrus
LT will take you to a default web page on ncst.com to confirm everything is
working properly and you should be able to do a remote session.
68 Cirrus LT User Manual v2.3 - Chapter 4
Page 69
You may need to click REFRESH on the web portal to display the web
page. If for added security you want to disable this feature, you can in
the Administrator submenu, described later in Chapter 4, under the
“Administrator” section.
NCS strives to support many different types of web portal pages, but unfortunately incompatibilities will arise. In these cases, please enter a support ticket
on NCS’s Support Page with the web page or location that you were not able to
connect to and we will investigate why you were unable to connect.
Cirrus LT User Manual v2.3 - Chapter 4
69
Page 70
Display Settings
In the Display Settings Menu, you can select the display configuration of the
notebook and adjust display brightness. You can also disable the native LCD,
which you may want to do if you are using a docking station or miniDP for video.
70 Cirrus LT User Manual v2.3 - Chapter 4
Page 71
Native Display Off
This feature allows you to turn off the Native Display.
To turn off the Native Display:
1. Click the Display Settings submenu.
2. Click the box next to Native Display On. The Native Display will then
turn off.
To turn on the Native Display:
1. To turn on the Native Display select the green check mark, as shown be-
low.
You can also toggle the Native Display on and off by pressing Fn-F4.
Cirrus LT User Manual v2.3 - Chapter 4
71
Page 72
Brightness
To increase or decrease screen brightness:
1. Click the Display Settings submenu.
2. Toggle the Brightness slide left or right until you reach your desired
screen brightness. Moving the slide to the right will increase the brightness while moving the slide to the left will decrease the brightness. Alternatively, you can decrease screen brightness by pressing Fn-F2 or increase it by pressing Fn-F3.
Lowering the screen brightness can save battery life!
72 Cirrus LT User Manual v2.3 - Chapter 4
Page 73
Status Bar
The Status Bar submenu allows you to control the visibility and position of the
status bar.
To change the status bar visibility:
1. Click the Status Bar submenu.
2. Under the Status Bar Visible section, choose On or Off.
To change the status bar position:
1. Click the Status Bar submenu.
2. Under the Status Bar Position section, choose Upper Left, Upper Center,
or Upper Right.
Cirrus LT User Manual v2.3 - Chapter 4
73
Page 74
Display Options
IMPORTANT – These settings are to enable the ports to support the
following display modes. Further configuration is done with the Teradici
Firmware.
The image above corresponds to the numbered configurations below.
Here are the following display configurations you can select:
1. Use Native LCD Display Only
2. Clone Native LCD on Display 1 of docking station
3. Turn off Native LCD; Use Display 1 of docking station, and Display 2 of
the Mini DP port or docking station
4. Use Display 1 on docking station only
5. Use LCD and Display2 of the Mini DP port or docking station
The OSM will only appear on the native display and displays connected
to DVI-1 on the docking station. It cannot be shown on a display attached
to the mini DP Port.
74 Cirrus LT User Manual v2.3 - Chapter 4
Page 75
Option 1: Use Native LCD Display Only
This is the Cirrus LT’s default setting and allows sole use of the Cirrus LT’s
notebook display.
Option 2: Clone Native LCD on Display 1 of Docking Station
1. In order to Clone your display with a docking station you will need to
connect your laptop into the docking station and then connect an external display to PCoIP1/Local (DVI1) Port. You then select the following
option in the OnScreen Menu, as shown below:
2. This cloning method will duplicate the same display resolution of the
Cirrus LT LCD and is locked to this resolution.
Cirrus LT User Manual v2.3 - Chapter 4
75
Page 76

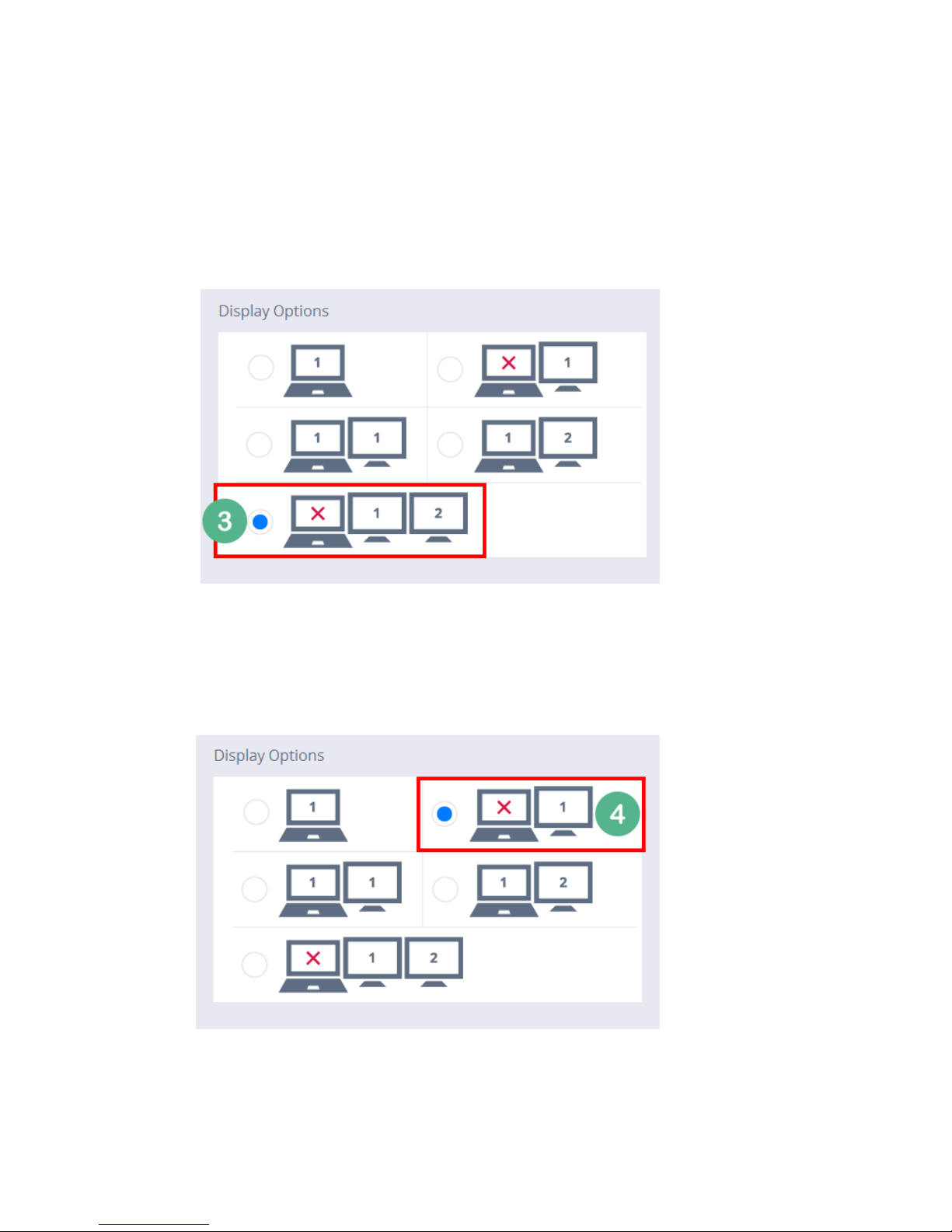

Option 3: Turn Off Native LCD; Use Display 1 of Docking
Station, and Display 2 of the Mini DP Port or the Docking
Station
This option allows you to close the notebook lid and use Display 2, or have one
display plugged into the docking station and a second mini DP Port for another
screen for an extended desktop.
Option 4: Use Display 1 on Docking Station Only
Choose this option if you wish to use Display 1 on the docking station only.
76 Cirrus LT User Manual v2.3 - Chapter 4
Page 77
Option 5: Use LCD and Display2 of the Mini DP Port or
Docking Station
By default, this option will extend the primary display to Display2. To change
the resolution of Display2 in this configuration, you should alter the settings
present in the Operating System during your session. If you are not using a docking station, you may also use this mode to clone your display and to make mini
DP the primary display by following the steps below.

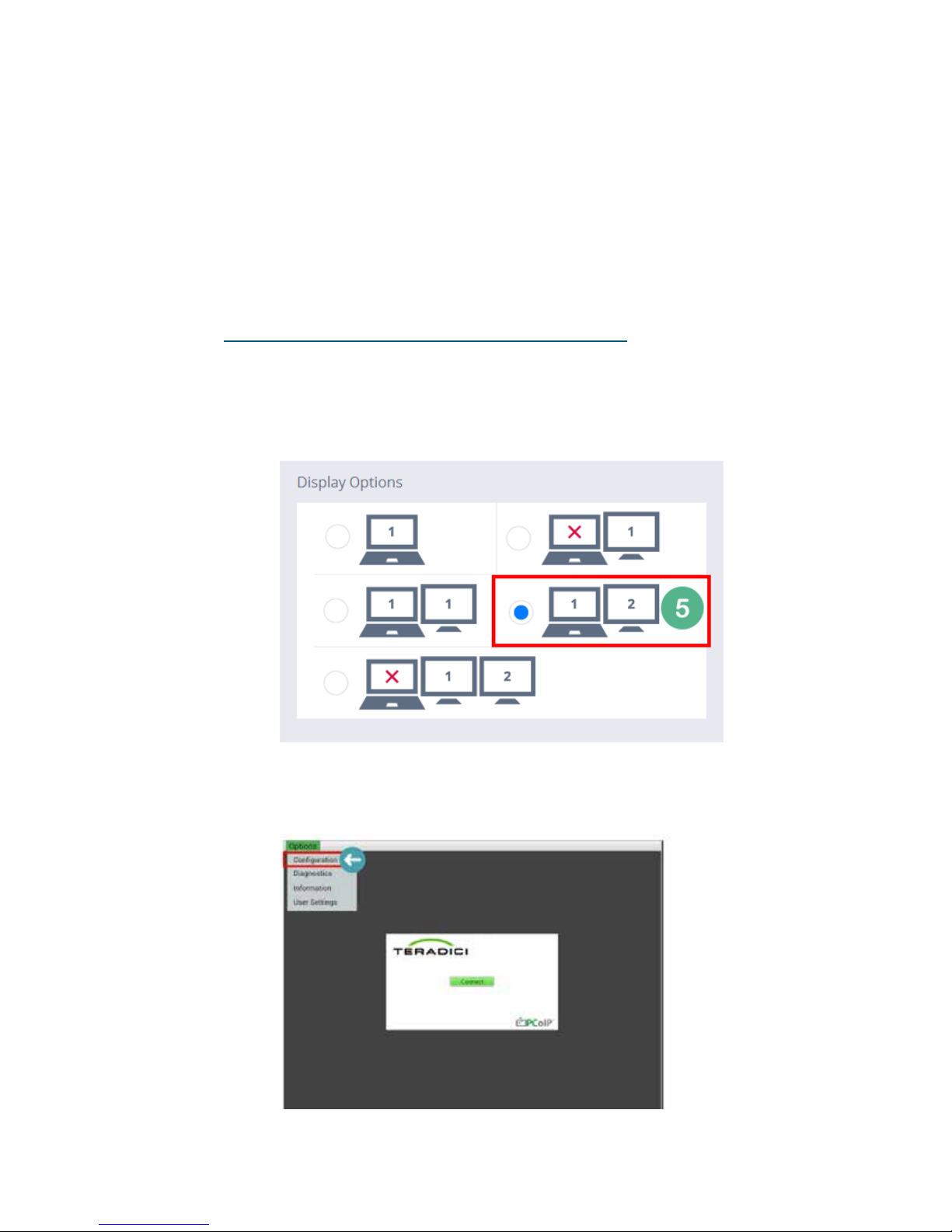

Cloning displays without a docking station
1. In order to clone two displays without the use of a docking station
you must first attach a display to the mini DP port on the notebook. In
the OSM Menu, navigate to Display Settings and select the following
option, as shown below.
2. Access the Teradici Firmware Configuration Menu, and click Options >
Configuration.
Cirrus LT User Manual v2.3 - Chapter 4
77
Page 78
3. Navigate to the Display Tab (shown below) and check the following
boxes:
• Enable Attached Display Override
• Enable Display Cloning
4. Next, Click Apply and then OK.
78 Cirrus LT User Manual v2.3 - Chapter 4
Page 79
How to make mini DP the Primary Display (without the docking
station)
1. In order to make the mini DP the primary display without the use of
a docking station you must first attach a display to the mini DP port
on the notebook. In the OSM Menu, navigate to Display Settings and
select the following option, as shown below.
2. Access the Teradici Firmware Configuration Menu, and click Options >
User Settings.
Cirrus LT User Manual v2.3 - Chapter 4
79
Page 80

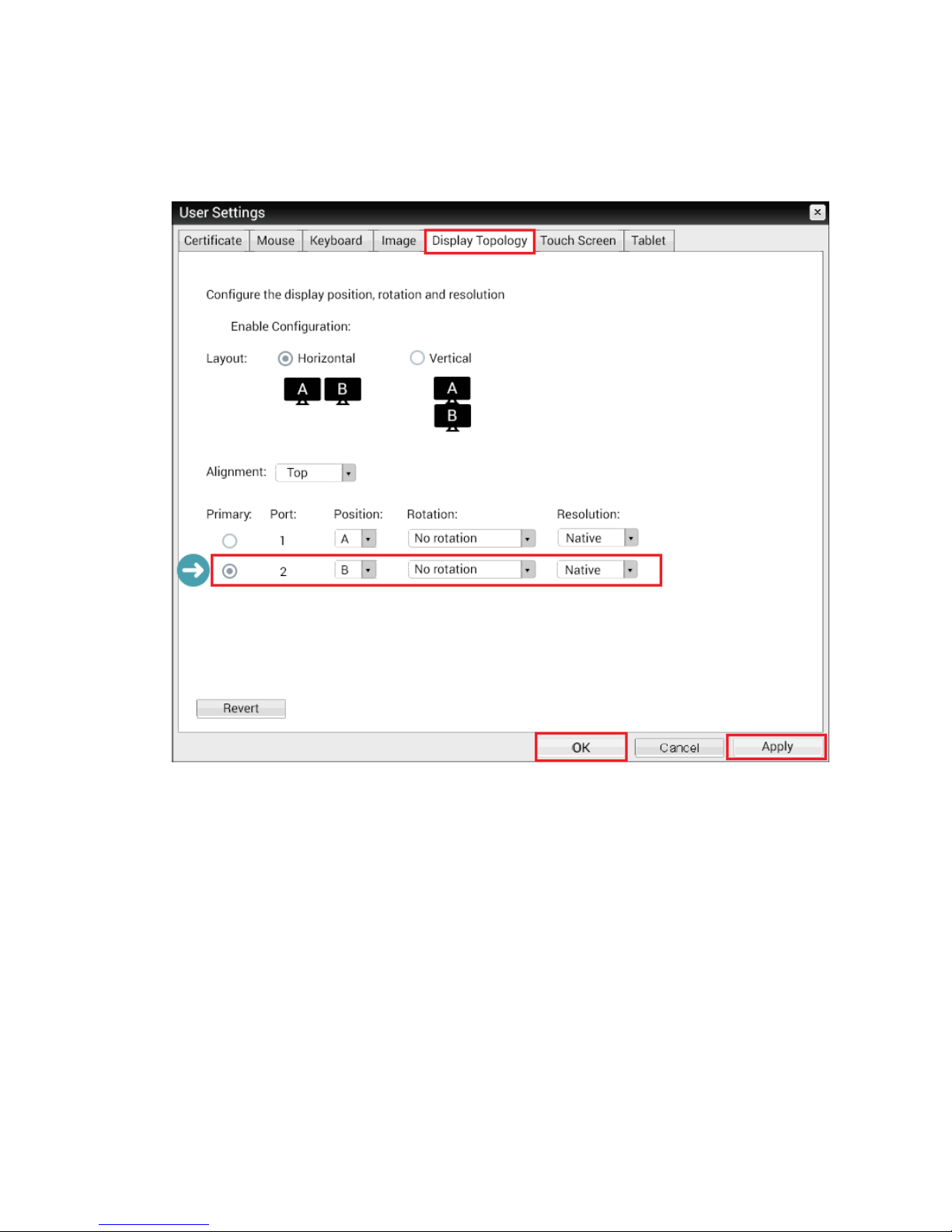

3. Navigate to the Display Topology tab. Check the Primary Port #2.
4. Click ‘Apply’ and then ‘OK’ to close the Teradici Firmware, as shown
below.
80 Cirrus LT User Manual v2.3 - Chapter 4
Page 81
Power Management
The Power Management Section allows you to customize the Cirrus LT’s OnScreen
Menu (OSM) Timeout, determine when Low Power Mode should be enabled, and to
choose when Sleep Mode should be enabled.
Setting the duration of the OnScreen Menu
(OSM) Timeout
There are two OSM Timeout settings present on the Cirrus LT. The first setting dictates the OSM Timeout when using the NCS OSM. This is set within the
OSM, under Power Management > Power Settings >OSM Timeout. The second
setting dictates the display timeout while using Teradici’s Firmware. The OSM
Timeout value set in the NCS menu will only apply when the NCS OSM is open.
Cirrus LT User Manual v2.3 - Chapter 4
81
Page 82
Via the OSM Power Management > Power Settings > OSM
Timeout

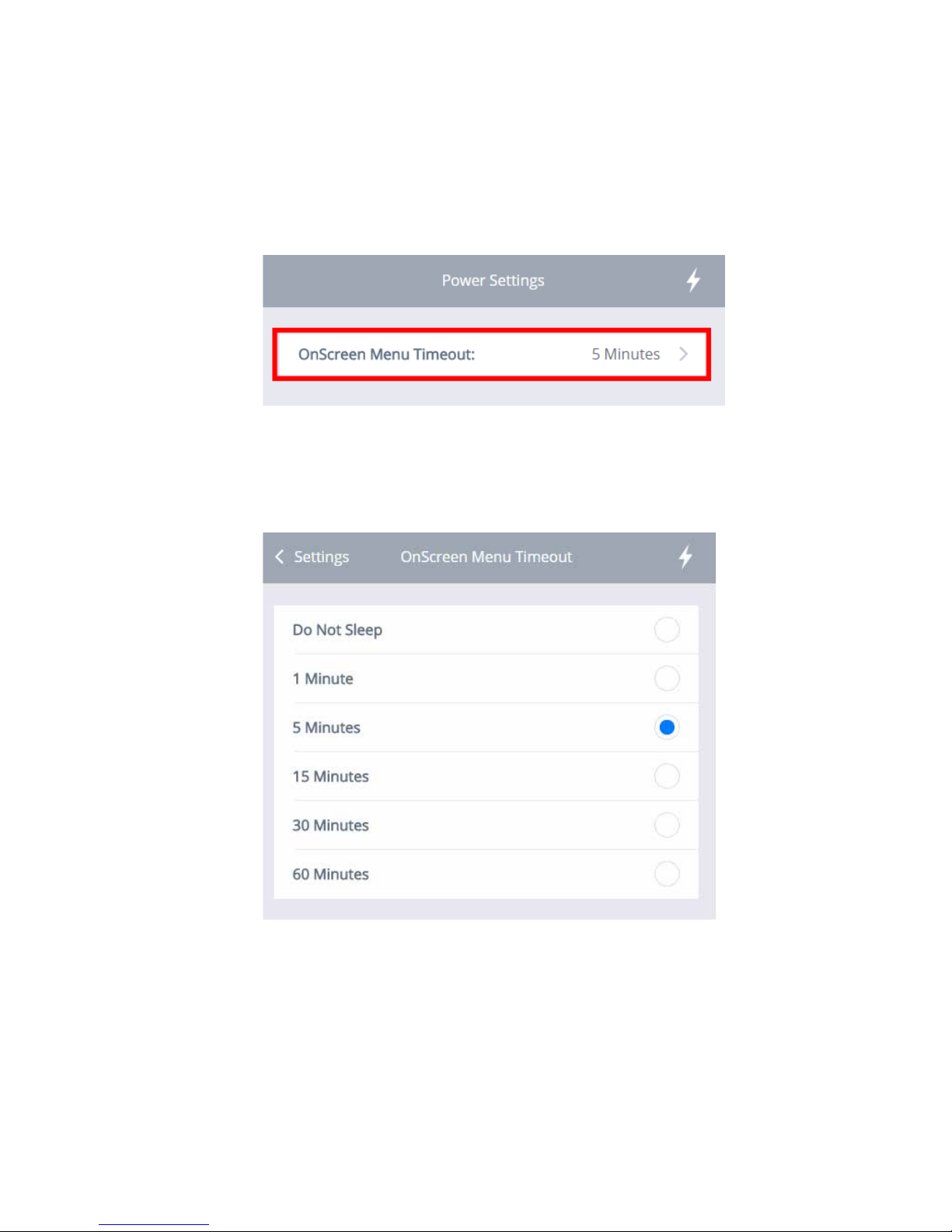

To change the timeout duration for the OnScreen Menu Timeout:
1. Click the Power Management submenu, and then click the OnScreen
Menu Timeout bar, as shown below.
2. The Menu Display Time Out Section will appear, as shown below. You
may choose between Do Not Sleep, 1 Minute, 5 Minutes, 15 Minutes, 30
Minutes, or 60 Minutes (5 Minutes is the default setting).
3. Select the desired interval and click on Settings to return to the Power
Savings Menu.
82 Cirrus LT User Manual v2.3 - Chapter 4
Page 83
Via Teradici’s Firmware Menu
To change the timeout duration for the Teradici menu:
1. From the Teradici main window, select Options > Configuration.
2. Click on the Power Tab.
3. Enter the new duration of the OSM Screen-Saver Timeout in seconds, not
minutes. For example, if you wanted to set the duration to 10 minutes,
you would enter 600 seconds (Teradici’s Firmware OSM Screen-Saver
Timeout default is set to 300 seconds, or 5 minutes). If you enter ‘0’ Seconds, the OSM Screen-Saver Timeout will only be disabled in the Teradi-
ci Firmware.
4. Click the ‘Apply’ button when you are done.
Cirrus LT User Manual v2.3 - Chapter 4
83
Page 84
How the Cirrus LT power management modes
are all related
No matter how you customize the Cirrus LT’s Power Management Modes via
the OnScreen Menu Timeout and the Teradici OSD Timeout, the Cirrus LT fol-
lows a pre-determined ‘chain of events’ in certain situations. Familiarizing yourself with this ‘chain of events’ can help you keep the Cirrus LT Power Management Modes at their optimal settings.
Chain of events
1. After a certain amount of user inactivity the LCD will turn off to conserve power. This is controlled via the OnScreen Menu Timeout AND/OR
the Teradici OSD Timeout. The OnScreen Menu Timeout controls when
the screen will timeout while the NCS OSM is being used, while the
Teradici OSD Timeout controls when the screen will timeout while using
Teradici’s Firmware. The Operating System settings will dictate when
the screen times out while in session unless the NCS OnScreen Menu is
open during your session.
2. Next, if the Low Power modes are enabled, the Sleep mode will activate
after the duration specified.
3. Auto Power Off is the lowest setting available. When Auto Power Off is
configured, the machine will shut off completely after the duration of
this setting has elapsed. However, this duration doesn’t start until after
the machine has entered low power mode/gone to sleep. If Wake-on-LAN
is also enabled, it will draw some power to keep the Ethernet port active.
In this Wake-on-LAN mode the Power LED will be solid amber, other-
wise all LEDs will be off.
Teradici has an auto-power off function of their own. It cannot be controlled in the local Firmware options, but can be set in both their Man-
agement Console and their Web Portal for clients. This overrides all
other settings - if it’s set to 60 seconds, the device will turn off in 60
seconds after inactivity regardless of other settings in place.
84 Cirrus LT User Manual v2.3 - Chapter 4
Page 85
How the Cirrus LT detects inactivity
Cirrus LT only detects inactivity by the LCD turning off (not by user inactivity).
There are three ways that the LCD will turn off due to inactivity.
1. If the OSM ‘Menu Display Timeout’ Menu is set to a value of X minutes,
and the OSM is left open and there is no mouse or keyboard activity for a
duration greater than X, the LCD will turn off.
2. If the Teradici ‘OSM Screen Saver Timeout’ Menu is set to X seconds, and
there is no mouse or keyboard activity while in Teradici’s Firmware for a
duration greater than X seconds the LCD will turn off.
3. If the VM OS is set to turn the display off after a value of X minutes, and
there is inactivity in a VM session for a duration greater than X, the LCD
will turn off.
Cirrus LT User Manual v2.3 - Chapter 4
85
Page 86
Low Power Mode
Enabling Low Power Mode
Turning on Low Power Mode will enable the two low power modes (Sleep Mode
and Auto Power Off). If Low Power Mode is turned off, Sleep Mode and Auto
Power Off will turn off and the unit will not enter sleep mode.
To turn on Low Power Mode:
1. Click the Power Management submenu.
2. Click the box next to Low Power Mode. When the green ‘check mark’ is
selected, Low Power Mode will then be enabled.
To turn off Low Power Mode:
1. Click the Power Management submenu.
2. Click the box next to Low Power Mode. When the gray ‘X’ is selected, Low
Power Mode will be disabled.
86 Cirrus LT User Manual v2.3 - Chapter 4
Page 87
Enable in Session
Enabling this mode will put the unit to sleep within the selected amount of time
of inactivity even if in a remote session.
To Enable In Session Mode:
1. Click the Power Management submenu.
2. Click the box next to Enable In Session. When the green ‘check mark’ is
selected, Enable In Session Mode will then be turned on.
To Disable In Session Mode:
1. Click the Power Management submenu.
2. Click the box next to Enable In Session. When the gray ‘X’ is selected, En-
able In Session Mode will be turned off.
Cirrus LT User Manual v2.3 - Chapter 4
87
Page 88
Enabling Plugged In Mode
With this mode enabled, the unit will go to sleep in the selected time of inactivity even with the power cord plugged into an AC outlet.
To Enable Plugged In Mode:
1. Click the Power Management submenu.
2. Click the box next to Plugged In. When the green ‘check mark’ is selected,
Plugged In Mode will be enabled.
To Disable Plugged In Mode:
1. Click the Power Management submenu.
2. Click the box next to Plugged In Mode. When the gray ‘X’ is selected,
Plugged In Mode will be disabled.
88 Cirrus LT User Manual v2.3 - Chapter 4
Page 89
Timing Preferences
Sleep Mode Timeout
Please read the caution above in the ‘How the Cirrus LT Power Management Modes Are All Related’ section above before customizing this
mode.
Enabling Sleep Mode Timeout will save considerable power by turning off both
the LCD and Teradici processor. It will also put other components into a lower
power state. The Power LED will blink green and amber and then finally just
blink amber when it has gone into low power mode. You will need to press the
power button to wake up the device (moving the mouse or typing on the keyboard will not wake it up).
To change duration of the Sleep Mode Timeout:
The duration of time chosen for Sleep Mode Timeout will only begin
AFTER the LCD has timed out from inactivity. The duration chosen will
not begin until this occurs.
1. Click the Power Management submenu, and then click the Sleep Mode
Timeout submenu, as shown below.
Cirrus LT User Manual v2.3 - Chapter 4
89
Page 90
2. The Sleep Mode Timeout section will appear, as shown below. You may
choose between Do Not Sleep, 1 Minute, 5 Minutes, 15 Minutes, 30 Min-
utes, or 60 Minutes (15 Minutes is the default setting).
3. Select the desired interval and click on ‘Settings’ to return to the Power
Savings Menu.
4. If the user enables all sleep modes and keeps the default values. The LCD
will black out at 5 minutes. After a total of 20 minutes (5 + 15), the System
will go into sleep mode. After 50 minutes (5+15+30), the unit will autopower off.
90 Cirrus LT User Manual v2.3 - Chapter 4
Page 91
Auto Power Off
To change duration of the Auto Power Off Mode:
The duration of time chosen for Auto Power Off Mode will only begin AF-
TER the unit has entered Sleep Mode. The duration chosen will not
begin until after the unit has already entered Sleep Mode due to inactivity.
1. Click the Power Management submenu, then click the Auto Power Off
submenu, as shown below.
2. The Auto Power Off Menu will appear, as shown below. You may choose
between Do Not Shutdown, 1 Minute, 5 Minutes, 15 Minutes, 30 Minutes,
or 60 Minutes (30 Minutes is the default setting).
3. Select the desired interval and click on ‘Settings’ to return to the Power
Savings Menu.
Cirrus LT User Manual v2.3 - Chapter 4
91
Page 92
Device Manager
The Device Manager allows you to do a number of things, including muting or
controlling the speaker volume, determine what the notebook does when you close
the lid, turning the touchpad on or off, enabling or disabling Tap and Gesture, and
enabling or disabling the webcam.
Speakers
You can mute the speakers or adjust the speaker volume.
92 Cirrus LT User Manual v2.3 - Chapter 4
Page 93
On Lid Close Actions
You can determine what the notebook does when you close the lid. You can set
your notebook to turn off the screen, enter sleep mode, or power down once the
lid has been closed.
To configure the On Lid Close settings:
1. Click the Display Settings submenu.
2. Select On Lid Closed Action.
3. Select one of the options below.
Cirrus LT User Manual v2.3 - Chapter 4
93
Page 94
Touchpad/Keyboard settings
You can lock/unlock the touchpad, which can be useful if you want to use a
mouse (or any other pointer device) instead of the touchpad. Locking the touchpad can also help prevent unwanted cursor movement that may occur by inadvertently touching the pad while you are typing.
Touchpad Settings lets you toggle the ability to tap the touchpad to simulate the
left button click and use other touchpad gestures to zoom in on the screen (aka
tap and gesture).
Locking the Touchpad
With this mode enabled, the unit’s touchpad will be disabled.
To Lock the Touchpad:
1. Click the Device Manager submenu > Touchpad/Keyboard Settings.
2. Click the box next to Lock Touchpad. When the green ‘check mark’ is se-
lected, the Touchpad will be disabled.
94 Cirrus LT User Manual v2.3 - Chapter 4
Page 95
To Unlock the Touchpad:
1. Click the Device Management submenu > Touchpad/Keyboard Settings.
2. Click the box next to Lock Touchpad. When the gray ‘X’ is selected, the
Touchpad will be enabled.
Tap and Gesture
When this feature is enabled you will be able to tap the touchpad to simulate the
left button click and use other touchpad gestures to zoom in on the screen.
To enable Tap and Gesture:
1. Click the Device Management submenu > Touchpad/Keyboard Settings.
2. Click the box next to Tap and Gesture. When the green ‘check mark’ is
selected, Tap and Gesture is enabled.
Cirrus LT User Manual v2.3 - Chapter 4
95
Page 96
To Disable Tap and Gesture:
1. Click the Device Management submenu > Touchpad/Keyboard Settings.
2. Click the box next to Tap and Gesture. When the gray ‘X’ is selected, Tap
and Gesture is disabled.
Adjusting touchpad sensitivity/mouse cursor speed settings
You can adjust the sensitivity of the Cirrus LT’s Touchpad (referred to here
as mouse speed cursor settings) for the OSM sessions via Teradici’s Options
Menu. You can access this page from the Options > User Settings > Mouse Menu.
To change the touchpad sensitivity (aka mouse cursor speed) via the Teradici
Power Menu:
1. From the Teradici Main Window, select Options in the upper left hand
corner to open the Teradici Firmware Options menu, then User Settings.
96 Cirrus LT User Manual v2.3 - Chapter 4
Page 97
2. Click on the Mouse Tab.
3. Use the slider to decrease or increase the Cirrus LT’s touchpad sensitivity.
4. When you are done click the ‘Apply’ button, then ‘OK’ to exit back to the
Teradici Main Window.
You can also configure the mouse cursor speed through the PCoIP host software. For more information, see the PCoIP® Host Software for Windows User
Guide (TER1008001).
Webcam
You can enable or disable the webcam by clicking the box next to Enable Webcam or by pressing Fn-F12.
Cirrus LT User Manual v2.3 - Chapter 4
97
Page 98
Administrator
Admin Login
To access Admin Settings, follow these steps to login as an administrator:
1. Click the Administrator submenu.
2. Click Admin Login.
3. The following popup window will appear. Type in your user ID and password and click Login.
The default user ID is “admin” and the default password is “password”.
98 Cirrus LT User Manual v2.3 - Chapter 4
Page 99
Admin Settings
Once you have logged in, the Admin Settings submenu lets you adjust the adminis-
trator settings and view the system information.
Cirrus LT User Manual v2.3 - Chapter 4
99
Page 100
Control Center
The Control Center submenu lets you allow or disallow saving WiFi passwords,
enable/disable Web Portal functionality, control Menu Lockdown, enable/disable
WiFi Statistics, and dictate whether to display WiFi RSSI on the status bar.
Allow Saving WiFi Passwords
To allow or disallow the saving of WiFi passwords:
1. Click the Administrator > Control Center submenu.
2. Click the box next to Allow Saving WiFi Passwords.
Allowing the saving of WiFi passwords will make the system less secure.
100 Cirrus LT User Manual v2.3 - Chapter 4
