N-Com R, B601 User Instructions And Safety
EN
B601
Fw 1.1 - 20/04/2018
USER INSTRUCTIONS AND SAFETY
Congratulations on your purchase of an N-Com product.
N-Com B601 was made using the most advanced technologies and the best materials.
Long-running tests and thorough system development have allowed the highest audio
quality to be achieved.
For additional information about B601, and to download high-definition instructions as
well as the latest Firmware version, visit the website www.n-com.it
Firmware version: 1.0
REFERENCE STANDARDS
The products of the N-Com line are in compliance with standards as per the table below:
B601
The Bluetooth system complies with the main safety requirements and
other applicable provisions of Directive RED 2014/53/EU, Directive
2009/65/EC, Directive 2011/65/CE, Directive 2012/19/EU
Battery
charger
Directive 2014/35/EU LVD, 2014/30/EU EMC, 2009/125/CE ErP,
2011/65/EU RoHS, 2012/19/EU WEEE
Battery
Directive 2001/95/CE – GPSD, 2013/56/UE BAT, 2014/30/EU
The Declarations of Compliance can be downloaded from the website www.n-com.it (Download
section).
FCC ID: Y6MNCOM18 IC: 9455A-NCOM18
R-NZ
The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc.
and any use of such marks by N-Com is under license. Other trademarks and trade names are those
of their respective owners.
Contents
1. WARNINGS AND SAFETY .................................................................................................................... 3
1.1.Road safety ......................................................................................................................................................................................... 3
1.2.Switching on the system in safe environments ................................................................................................................ 3
1.3.Interferences ...................................................................................................................................................................................... 3
1.4.Appropriate use ............................................................................................................................................................................... 4
1.5.Qualified personnel ........................................................................................................................................................................ 4
1.6.Accessories and batteries ............................................................................................................................................................ 4
1.7.Disposal ................................................................................................................................................................................................ 5
2. CONTENT OF THE PACKAGING ......................................................................................................... 5
3. INSTALLATION ON THE HELMET ...................................................................................................... 6
3.1.Installing the B601 system on the helmet........................................................................................................................... 7
3.2.Removing the B601 system from the helmet ................................................................................................................. 11
4. BASIC FUNCTIONS ............................................................................................................................. 12
4.1.Volume adjustment ..................................................................................................................................................................... 12
4.2.N-Com EASYSET ........................................................................................................................................................................... 12
5. CONFIGURATION MENU................................................................................................................... 13
6. PAIRING UP WITH MOBILE PHONES OR OTHER BLUETOOTH DEVICES ................................ 14
7. MOBILE PHONE ................................................................................................................................... 14
7.1.Speed dial ........................................................................................................................................................................................ 14
7.2.Conference call function ........................................................................................................................................................... 15
8. MANAGING TWO MOBILE PHONES (OR BLUETOOTH DEVICES)............................................. 16
9. SMART NAVI SYSTEM ........................................................................................................................ 16
10. MUSIC VIA BLUETOOTH .................................................................................................................... 16
10.1.Sharing music via Bluetooth (A2DP Sharing)............................................................................................................... 17
11. SATELLITE NAVIGATOR FOR MOTORCYCLES ............................................................................... 17
12. N-COM INTERCOM ............................................................................................................................ 17
12.1.N-Com “900” / “600” Series Intercom pairing up ...................................................................................................... 17
12.2.N-Com “900” / “600” Intercom function (one-to-one connection) .................................................................. 18
13. “UNIVERSAL INTERCOM” INTERCOM ............................................................................................ 18
13.1.Pairing up the UNIVERSAL INTERCOM ........................................................................................................................... 18
13.2.Universal Intercom Function ................................................................................................................................................ 18
14. BATTERY AND RECHARGE ................................................................................................................ 20
14.1.Low battery signal ..................................................................................................................................................................... 20
14.2.Checking the Battery Level ................................................................................................................................................... 20
14.3.Charging the system ................................................................................................................................................................ 20
15. SUMMARY TABLE OF CONTROLS ................................................................................................... 21
16. LIMITED WARRANTY .......................................................................................................................... 22
16.1.Warranty coverage.................................................................................................................................................................... 22
16.2.Exclusions and limitations of the coverage .................................................................................................................. 22
16.3.Validity of this limited warranty.......................................................................................................................................... 23
16.4.Procedure for the forwarding of claims ......................................................................................................................... 23
16.5.Product identification .............................................................................................................................................................. 23
17. WARRANTY REGISTRATION FORM ................................................................................................. 24
B601
3
1. WARNINGS AND SAFETY
Read this User Manual carefully, as well as the simple rules listed below. Failure to comply with these
rules may lead to dangerous situations.
Caution: The product cannot be used in official or non-official competitions, motordromes, circuits,
racing tracks and the like.
Caution: Installation of the N-Com B601 system results in a weight increase of approximately 107g,
which is added to the weight of the helmet and of the other accessories.
Warning: The electronic components of the N-Com system mounted inside the helmet are not
waterproof. Consequently, make sure the inside of the helmet, including the comfort padding,
does not get wet in order to avoid damage to the system. If it does, remove the N-Com system
and the helmet comfort padding and let it air dry. Remove the battery from its housing and let it
dry.
1.1. Road safety
Always obey all Traffic Regulations in force. While riding the motorcycle, your hands should always be
engaged in actually riding the vehicle. Any operation to the N-Com system must be carried out with
the vehicle stopped.
Specifically:
Set your cell phone on automatic answer (see the cell phone instructions to do this).
If your cell phone is not equipped with this function, first stop your vehicle in a safe area, in
compliance with Traffic Regulations and then answer the call.
Do not make any calls while riding. Stop your vehicle in a safe place in compliance with Traffic
Regulations, and then make the call.
Adjust the volume so that it does not cause a disturbance or distraction while riding and at the
same time allows you to distinctively hear background noises.
Do not operate your cell phone or other devices connected to N-Com while riding your
motorcycle.
In all cases, obey the Traffic Regulations and remember that riding the motorcycle has absolute
priority over any other manoeuvre.
1.2. Switching on the system in safe environments
When using the N-Com system, comply with all limitations and instructions related to the use of
cell phones.
Do not turn on your cell phone or the N-Com system whenever their use is forbidden or when the
devices can cause interference or dangerous situations.
Turn off while refuelling. Do not use the N-Com system in filling stations. Do not use the device
near combustible materials or chemical products.
Turn off in proximity to explosive materials.
1.3. Interferences
All phones and devices with wireless signal transmission are subject to interferences that may affect
the performance of the device connected to them. These interferences are not ascribable to a defect
of the N-Com system.
EN
4
1.4. Appropriate use
Use the device only in the normal position, as described in the product documentation. Do not
attempt to disassemble, tamper with or modify any part of the N-Com system.
Caution: Adjust the volume of the N-Com system (where provided) and of the audio sources
connected to it before you use the system on the road.
Caution: Adjusting the volume to very high levels may cause damage to your hearing.
Caution: Adjust the volume of the N-Com system (where provided) and of the audio sources
connected to it so as to avoid audio reproduction at high volumes. Constant exposure to high
audio volumes may damage your hearing.
Caution: An incorrect installation of the system in the helmet may alter the aerodynamic and safety
characteristics of the helmet itself, thus creating dangerous conditions. Install the N-Com system
according to the instructions provided in the product documentation. In case of doubt, please
contact your local N-Com dealer.
Warning: Listening to other equipment should not interfere with driving the vehicle, which must be
the top priority at all times. Carry out all operations on the electronic equipment and on the NCom system with the vehicle stopped, in compliance with Traffic Regulations.
Caution: The N-Com system allows reception of the FM radio signal. Any radio licence fees are to the
user’s charge.
1.5. Qualified personnel
Only qualified personnel can carry out technical assistance on this product. In case of any
malfunction, always turn to your local dealer.
The helmet is a safety device. Tampering with it and/or with the electronic system inside the
helmet, in addition to invalidating the product warranty, can also lead to dangerous situations.
1.6. Accessories and batteries
Only use the type of batteries, battery chargers and accessories approved by Nolangroup for the
specific model.
The use of a battery type different from the recommended one may lead to dangerous situations
and invalidate the warranty.
Contact your local dealer to see about the availability of approved accessories.
When disconnecting the power supply cable of any accessory or of the battery charger, always
grab and pull the plug not the cable.
Do not use batteries for purposes other than the prescribed ones.
Never use batteries or battery chargers that turn out to be damaged.
Do not short-circuit the battery.
Keep the battery at a temperature between 0° / +32°C (charging): -20° / +55°C (in use).
Danger of fire or explosion: do not throw the batteries into a fire nor expose them to high
temperatures!
Do not throw out batteries together with household refuse. The batteries should be disposed of in
compliance with local regulations
Do not wear the helmet while the battery is recharging.
The helmet should never be left within the reach of unsupervised children in order to prevent
damage to their health caused by access to the batteries.
Battery
Li-Po 523450P Lithium 3,7V – 1000 mah
Battery charger
S-TR-009L 100/240V – 50/60 Hz 5V - 0.5 A
B601
5
1.7. Disposal
Refer to this user manual and to manuals related to other parts of the N-Com system in order to
disassemble the system from the helmet. Once the system has been disassembled, dispose of it
according to the following instructions:
The presence of a crossed-out wheelie bin indicates that in the European Union the
product is subject to separate collection at the end of its useful life.
Do not dispose of these products together with undifferentiated urban waste.
The proper disposal of obsolete equipment contributes to preventing possible negative
consequences on people’s health and on the environment.
For more detailed information on the disposal of obsolete equipment, contact your municipality, a
waste disposal service or the store where the product was purchased.
2. CONTENT OF THE PACKAGING
The N-Com B601 package contains:
N-Com B601 system
Mini USB
wire
Keypad adapters for N87, N100-5
Key
Microphone foam
EN
6
3. INSTALLATION ON THE HELMET
Important: Prior to installing the N-Com system, it is recommended to write down the identification
code affixed to the product (see chapter 19.5).
You can download the installation video from www.n-com.it N-Com / Download section.
Before you install the B601 system on the helmet, make sure it turns on properly. Press the “ON”
key for about 2 seconds, until the blue LED on the key pad lights up and you hear a beep in the
headset. Proceed with the installation.
Remove the cheek padding (see helmet instructions).

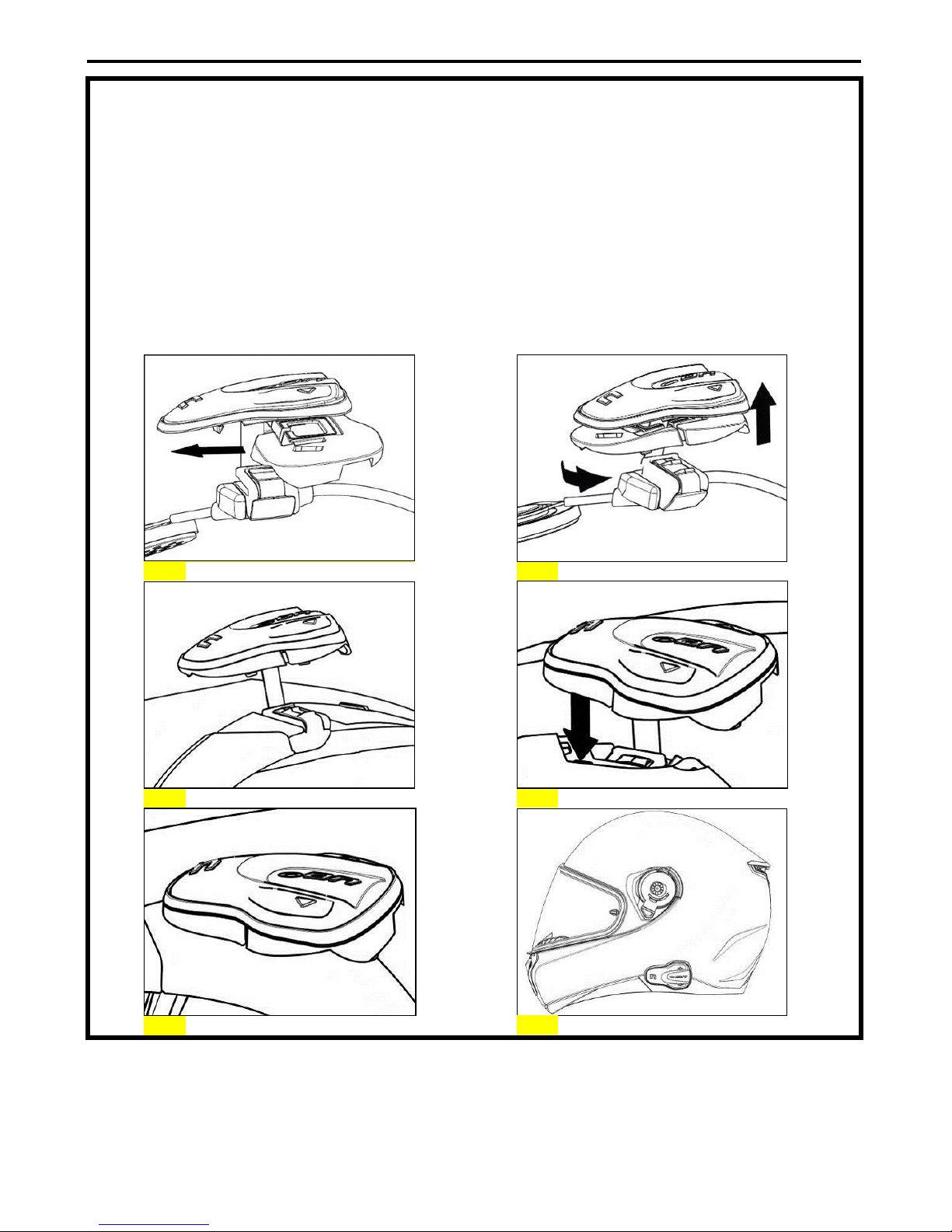

Remove the helmet edge gasket using the special tool (Fig. 1).
Completely remove the gasket as shown in Fig. 1; by doing so you also remove the padding.
Remove the “N-Com” plugs found at the back of the shell gasket and on the left side of the
helmet.
Fig. 1
Fig. 1 – ONLY FOR N87 – N100-5 HELMET
Prior to installing the N-Com system, remove any filling foam material, if present, from the helmet
(refer to the user manual for your specific helmet).
Option 1
Option 2
N.B.: Keep the filling material in case you wish to use the helmet without the N-Com system in the
future.
B601
7
3.1. Installing the B601 system on the helmet
Fig. 2
Place the system in the special housing in the
back of the helmet, pushing it all the way
into the groove (Fig. 2).
Fold the antenna back inside the shell.
Fig. 3
N.B.: For positioning of the wiring and of the
microphone in the N100-5 helmet, follow the
instructions provided in the dedicated box.
Fix the cable inside the helmet and make
sure the right fixing clip snaps into its
housing (Fig. 3).
Fig. 4
Position the microphone in the housing on
the left of the helmet, inserting the metal
boom in the groove found in the chin guard
coupling frame (Fig. 4).
Caution: make sure that the side of the
microphone support with the writing “NCom” is facing inward.
Fig. 5
Fix the cable inside the helmet and make
sure the left fixing clip snaps into its housing.
Hook up the keypad to the helmet by
clicking in the relevant hooks.
N.B.: For positioning of the keypad in helmets
N87 and N100-5, follow the instructions provided
in the dedicated box.
Open the rubber cap of the B601 system.
Reassemble the gasket and secure it with the
specific screw.
EN
8
ONLY FOR HELMET N100-5 – positioning of wiring and microphone
Positioning the right side wiring and the microphone:
Lift up the plastic lining of the cheek padding (Fig. 6).
Insert the microphone into the eyelet (Fig. 7) and position it in the special housing, then
inserting the metal boom in the groove found in the chin guard coupling frame (Fig. 8).
Caution: make sure that the side of the microphone support with the writing “N-Com” is facing
inward.
Fix the cable inside the helmet and make sure the right fixing clip snaps into its housing (Fig. 9).
Reposition the plastic lining of the cheek padding, arranging it behind the two small stop hooks
(Fig. 10).
Fig. 6
Fig. 7
Fig. 8
Fig. 9
Fig. 10
B601
9
ONLY FOR HELMET N100-5 – positioning of wiring and microphone
Positioning the left side wiring:
Lift up the plastic lining of the cheek padding (Fig. 11).
Fix the cable inside the helmet and make sure the left fixing clip snaps into its housing (Fig. 12).
Reposition the plastic lining of the cheek padding, arranging it behind the two small stop hooks
(Fig. 13).
Fig. 11
Fig. 12
Fig. 13
Loading...
