SAFETY AND INSTRUCTIONS FOR USE
V.04
Congratulations on your purchase of an N-Com product.
The N-Com MCS II was built adopting the latest technologies
and the best materials. Long tests and thorough system
development have made it possible to achieve the highest
sound quality.
The MCS II system can only be assembled on Nolan helmets
pre-set for N-Com.
The MCS II system allows you to listen to audio devices
installed on the motorcycles; it CANNOT be used in
conjunction with other audio systems for helmets.
Table of contents
1. WARNINGS AND SAFETY...............................................4
1.1. Reference standards..................................................... 4
1.2. Appropriate use........................................................... 4
1.3. Disposal ..................................................................... 6
2. CONTENTS OF THE PACKAGING ....................................7
3. INSTALLING THE MCS II SYSTEM .................................8
3.1. Removing the MCS II system from the helmet .................13
4. OPERATION OF THE MCS II SYSTEM ...........................14
5. MAINTENANCE............................................................14
6. LIMITED WARRANTY ..................................................15
6.1. Warranty coverage......................................................15
6.2. Exclusions and limitations of the coverage.......................15
6.3. Validity of this limited warranty.....................................16
6.4. Procedure for the forwarding of claims............................17
6.5. Product identification...................................................18
7. WARRANTY REGISTRATION FORM..............................19
4
1. WARNINGS AND SAFETY
Read this user manual carefully and the simple rules listed below. Failure to
comply with these rules may lead to dangerous situation.
Caution: The product cannot be used in official or unofficial competitions,
motordromes, circuits, racing tracks and the like.
Caution: Installation of the MCS II system results in a weight increase of
approximately 70g, which is added to the weight of the helmet and of the
other accessories.
Warning: The electronic components of the N-Com mounted inside the
helmet are not waterproof. Consequently, make sure the inside of the
helmet, including the comfort padding, does not get wet in order to avoid
damage to the system. If it does, remove the N-Com system and comfort
padding and let it air dry.
Warning: Helmet speakers may not be legal in all jurisdictions. Check your
local laws BEFORE using this product.
1.1. Reference standards
The MCS II product of the N-Com line complies with EEC Directive.
EMC 2004/108
1.2. Appropriate use
Always obey all Traffic Regulations in force. While riding your motorcycle,
your hands should always be engaged in the actual riding. Any
5
operation to the N-Com system must be carried out with the vehicle
stopped.
In all cases, obey the Traffic Regulations and remember that riding your
motorcycle has absolute priority over any other manoeuvre.
Adjust the volume to a level that does not disturb or distract you while
riding and at the same time allows you to distinctly heal background
noises.
Caution: Adjust the volume of the N-Com system (where provided) and of
the audio sources connected to it before you use it on the road.
Caution: Adjusting the volume to very high levels may cause damage to
your hearing
Caution: Adjust the volume of the N-Com system (where provided) and of
the audio sources connected to it so as to avoid audio reproduction at high
volumes. Constant exposure to high volumes may damage your hearing.
Caution: Improperly installing the system in the helmet may alter the
aerodynamic and safety properties of the helmet itself, thus creating
dangerous conditions. Install the N-Com system according to the
instructions provided in the product documentation. In case of doubt,
contact our local N-Com dealer.
All telephones and devices with wireless signal transmission are subject to
interferences that may affect the performance of the device connected
to them. These interferences are not ascribable to a defect of the NCom system.
6
Use the device in the normal position only, as described in the product
documentation. Do not attempt to disassemble, tamper with or modify
any part of the N-Com system.
Only qualified personnel can carry out technical assistance on this product.
In case of any malfunction, always turn to your local dealer. The helmet
is a safety device. Tampering with it and/or with the electronic system
inside the helmet can lead to dangerous situations, in addition to
invalidating the product warranty.
1.3. Disposal
Refer to this user manual when disassembling the system from the helmet.
Once the system has been disassembled, dispose of it according to the
instructions provided here below.
The presence of a crossed-out wheelie bin indicates that in the
European Union the product must be disposed of separately at the
end of its useful life (European Directive 2002/96/EC).
Do not dispose of these products together with undifferentiated
urban waste.
Proper disposal of obsolete equipment contributes to preventing possible
negative consequences on people’s health and on the environment.
For more detailed information on the disposal of obsolete equipment,
please contact your municipality, a waste disposal service or the store
where the product was purchased.
7

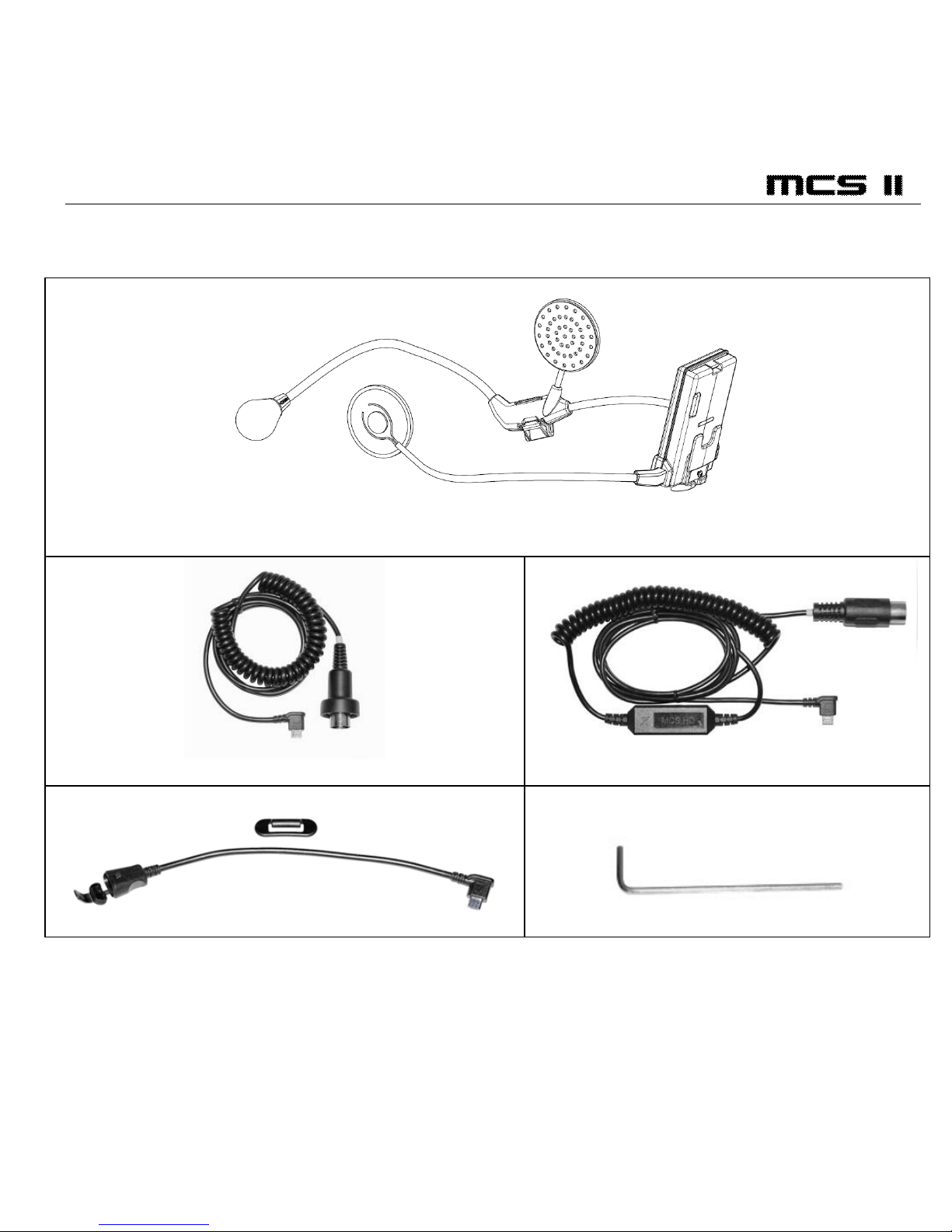

2. CONTENTS OF THE PACKAGING
MCS II system v.04
Honda Goldwing connection cable
Harley Davidson connection cable
Extension and fixing clip
Key
8
3. INSTALLING THE MCS II SYSTEM
Remove the cheek padding (see helmet instructions).
Fig. 1
Remove the helmet edge gasket
using the special tool (Fig. 1).
Remove the “N-Com” plug
found at the back of the shell
gasket (Fig. 1).
Fig. 2
Completely remove the gasket
as shown in Fig. 2; by doing so
you also remove the padding.
9
Prior to installing the N-Com system, remove any filling foam material
found in the helmet.
Option 1: remove the bottom element in foam material and the filling
materials in the housings of the N-Com earpieces located in the EPS cheek
pads.
Option 2: remove the left and right side filling material as well as the filling
material in the housings of the N-Com earpieces located in the EPS cheek
pads.
Option 1
Option 2
N.B.: Keep the filling material in case you wish to use the helmet without the
N-Com system in the future.
10
Fig. 3
Place the system in the special
housing in the back of the
helmet, pushing it all the way
into the groove (Fig. 3).
Fig. 4
Fix the cable inside the helmet
and make sure the right fixing
clip snaps into its housing (Fig.
4)
11
Fig. 5
Position the microphone in the
housing on the left of the
helmet, inserting the metal
boom in the groove found in the
chin guard coupling frame (Fig.
5).
Caution: make sure that the side of
the microphone support with the
writing “N-Com” is facing inward.
Position the left and right speakers in the respective housing obtained in
the polystyrene cheek padding.
Reassemble the gasket and secure it with the specific screw
Reassemble the cheek padding.
The motorcycle connection cable must be positioned into the micro-usb
connector in the rear part of the helmet.
12
Use of the extension cable (optional)
In case of need, it is possible to use the Extension Cable included in the
package to make the connection via cable to the motorcycle easier, moving
forward the micro USB connector on the left side of the helmet.
Fig. 6
Remove the protective film and
apply the plastic clip on the
helmet shell gasket, on the left
side. Position the clip as shown
in Fig. 6.
Note: It takes up to 24 hours for the
adhesive to stick completely.
During this time, do not expose the
helmet to atmospheric agents.
Fig. 7
Connect the Extension Cable to
the micro USB connector of the
helmet. Fix the Extension Cable
inside the clip. Connect the
Extension Cable to the
motorcycle connection cable.
13
Fig. 8
If not used, the
extension can be
positioned behind
the comfort cheek
pad.
WARNING: Please
carefully check that the
extension cable does
not prevent the correct
sliding of the VPS inner
visor mechanism.
3.1. Removing the MCS II system from the helmet
Proceed as follows to remove the MCS II system from the helmet:
Remove the cheek padding and the shell gasket;
Fig. 9
Unhook the right clip from the
shell, levering upward using a
flat head screw (or a similar
tool), as shown in figure 9.
Completely remove the MCS II system from the helmet and re-install the
cheek padding and the gasket.
14
4. OPERATION OF THE MCS II SYSTEM
Hook up the cable to the motorcycle, then to the MCS II system. The audio of
the system installed on the motorcycle is now transferred to the helmet.
You can use the interphone system on the motorcycle by connecting both the
pilot’s helmet and the passenger’s to the motorcycle. Each helmet must be
equipped with the MCS II system.
Volume levels of the radio and of intercom have to be set from the
motorbike’s audio system, as desired.
When using the INTERCOM function, the volume has to be set at a
comfortable level for conversation. Do not increase the volume too much to
avoid background interference.
For all audio settings and adjustments, please read your motorbike manual.
Warning: Connect the cables so that they are free and do not hinder riding
nor reduce the freedom of movement, and do not wind them around the
limbs, bust or neck. Do not lock the connectors so that, if necessary, they
can be easily disconnected.
Warning: While using the connection cable, always use helmets provided
with a visor, and keep the visor in lowered position
5. MAINTENANCE
The N-Com does not require any special maintenance tasks.
In case you use the kit when it rains, dry off the wet parts of the helmet.
15
6. LIMITED WARRANTY
With this LIMITED WARRANTY CERTIFICATE, Nolangroup warrants this Product to be
free from defects in material and workmanship at the time of its original purchase by
the buyer.
We invite you to:
- Read the cautions pertaining to safety and proper use.
- Read the warranty terms and conditions.
- Keep the originals sales receipt. This must be shown in case of repairs
covered by warranty. In these cases, the product has to be taken back to the dealer
where it was purchased.
6.1. Warranty coverage
If any defect covered by this limited warranty certificate is discovered within 2 (two)
years from the purchase date shown on the tax receipt, Nolangroup shall repair or
replace the defective product through its distribution network after having verified the
defect. Nolangroup shall supply all the material and labor that is reasonably required to
remedy the defect, except in those cases where the damage is caused by one of the
items listed in the following paragraph “Exclusions and limitations of the Coverage”.
6.2. Exclusions and limitations of the coverage
This warranty only covers defects in materials and manufacturing. Nolangroup shall not
be considered responsible for product defects that can be attributed, either partially or
in full, to any other cause, including but not limited to:
Defects or damages resulting from using the Product in conditions that differ from the
usual ones.
Damages caused by improper use not conforming with normal operation in accordance
with the product operating and maintenance instructions provided by Nolangroup.
Negligence and normal wear of internal and external parts.
Any damage caused by an accident;
Any change or modification made to the helmet or to the N-com system by the user or
by third parties.
Color changes or damages caused by exposure to harmful chemical products.
The use of incompatible accessories that are not part of the N-Com product range.
16
Moreover, the warranty does not cover product defects caused by fortuitous events,
modifications or adjustments, causes of force majeur or damages deriving from the
product coming in contact with liquids.
The internal helmet components are not and cannot be waterproof. Consequently, any
improper exposure to rain, humidity, food spillages or other liquids can result in
damages to the N-Com electronic devices, damages for which Nolan shall not be
responsible.
This warranty does not include those parts subject to wear and tear such as, for
example, the rechargeable battery and the cables used for connection between the
various N-Com systems or between the N-Com systems and other devices.
Since Nolangroup does not supply the system on which the cell phones work, it shall
not be responsible for the operation, availability, coverage, services or range
pertaining to the aforementioned system.
Whenever the product is used in conjunction with accessories or equipment not
supplied by Nolangroup, Nolangroup shall not guarantee proper operation of the
product/device combination, nor will it accept requests for repairs or replacements
under warranty in case the product is used in such a way.
Nolangroup shall not be responsible in case the product presents limited capabilities
due to the operating mode of cell phones or of other accessories or equipment not
supplied by Nolangroup.
Tampering with the internal electronic card or with other parts of the N-Com system
shall invalidate the warranty.
Moreover, the defects covered by this warranty do not include all those specific and
subjective situations that may come up during the active use of the helmet such as, for
example, comfort problems while riding or aerodynamic noises.
Nolangroup shall not be held responsible in any case for incidental or consequential
damages (including, without any limitation whatsoever, damages to one or more
persons) resulting from non-fulfillment of the obligations arising from this warranty as
it pertains to Nolangroup products.
6.3. Validity of this limited warranty
This warranty is valid only if the enclosed warranty form is duly and completely filled
out with the following information:
Product identification code
17
Name and stamp of the authorized dealer.
Product purchase date.
Buyer’s name and address.
Nolangroup reserves itself the right to not carry out repairs under warranty if the
aforementioned information is removed or modified after the original purchase of the
product from the dealer.
6.4. Procedure for the forwarding of claims
To forward a claim covered by this warranty, the buyer has to directly notify the dealer
where the helmet was purchased with regards to the defect, presenting at the same
time the defective product, a copy of the sales receipt and the Warranty registration
form, duly filled out as instructed above.
PRIOR TO CONTACTING THE DEALER, WE RECOMMEND THAT YOU READ CAREFULLY
THE USER MANUAL ENCLOSED WITH THE PRODUCT.
AFTER 2 (TWO) YEARS FROM THE DATE OF PURCHASE, THIS LIMITED WARRANTY IS
VOID FOR ALL EFFECTS AND PURPOSES.
Repairs or maintenance under warranty do not extend the period of the warranty itself.
Therefore, in case the product or one of its components is replaced, this does not
initiate a new warranty period, as the purchase date of the original product shall be
taken into account for warranty purposes.
Only for repairs or replacement of electronic components, in the event that Nolangroup
proceeds to repairing or replacing the product, said product shall enjoy a warranty
period equal to the residual portion of the original warranty or ninety (90) days from
the repair date (the longer period being considered).
The repair or replacement can be carried out even with regenerated components with
equivalent functions.
The replaced parts or components shall become property of Nolangroup.
THIS WARRANTY VOIDS AND REPLACES ANY OTHER WRITTEN OR VERBAL
WARRANTIES PROVIDED FOR BY THE LAW THAT CAN BE DEROGATED AT THE
PARTIES’ WILL; SPECIFICALLY, NOLANGROUP DOES NOT GRANT SPECIFIC WARRANTS
OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO CASE SHALL
NOLAN BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES INCLUDING BUT
18
NOT LIMITED TO LOST PROFITS OR COMMERCIAL DAMAGES, TO THE FULL EXTENT
THOSE DAMAGES CAN BE DISCLAIMED BY THE LAW.
NOLANGROUP RESERVES ITSELF THE RIGHT TO MODIFY, AT ANY TIME AND WITHOUT
ADVANCE NOTICE, THE PRODUCT CHARACTERISTICS, FUNCTIONS, COMPATIBILITY
AND SOFTWARE.
Some Countries do not allow the exclusion or limitation of incidental or consequential
damages, or the limitation of the duration of implied warranties; as a result of this, the
previous limitations and exclusions may not be applicable to you.
This warranty does not have any effect on the customer’s legal rights under the
national jurisdiction in force or on the consumer’s rights towards the dealer sanctioned
by the purchase/sale contract.
This warranty is valid throughout the European territory, and it represents the only
express warranty provided by Nolangroup in relation to the sale of its own products.
This warranty does not affect the rights to which the buyer is entitled and which are
expressly provided for by Directive 1999/44/CE.
This warranty does not affect the consumer’s rights provided for by the law, and
specifically by the provisions of Legislative Decree 2 February 2002 n. 24
6.5. Product identification
N-Com products are identified by means of a code
that allows product traceability and identification.
The identification code is found underneath the bar
code printed on the product packaging.
7. WARRANTY REGISTRATION FORM
Product name: MCS II v.04
Identification code
Buyer’s Information
Name
Last name
Address
Phone
e-mail
Dealer’s stamp
Date of purchase
Printed on recycled paper.
MCS II v.04 - 07/03/2016 16:34:00
Loading...
