N-Com B901 User Instructions And Safety
EN
B901 “S” - Fw 1.0x - 19/05/2017
USER INSTRUCTIONS AND SAFETY
Congratulations on your purchase of an N-Com product.
N-Com B901 was made using the most advanced technologies and the best
materials. Long-running tests and thorough system development have allowed
the highest audio quality to be achieved.
For additional information about B901 visit the website www.n-com.it
Firmware version: 1.0x
REFERENCE STANDARDS
The products of the N-Com line are in compliance with standards as per the table below:
B901
The Bluetooth system complies with the main safety requirements and
other applicable provisions of Directive 99/5/CE, Directive 2009/65/EC,
Directive 2011/65/CE, Directive 2012/19/EU
Battery
charger
Directive 2006/95, 2004/108, 2009/65/EC, 2011/65/CE, 2012/19/EU,
2009/125/CE
Battery
Directive 2006/66/CE
The Declarations of Compliance can be downloaded from the website www.n-com.it (Download
section).
FCC ID: Y6MNCOM17 IC: 9455A-NCOM17
R-NZ
The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth
SIG, Inc. and any use of such marks by N-Com is under license. Other trademarks and
trade names are those of their respective owners.
Contents
1. WARNINGS AND SAFETY ................................................................................................................... 4
1.1.Road safety ................................................................................................................................................................ 4
1.2.Switching on the system in safe environments ......................................................................................... 4
1.3.Interferences.............................................................................................................................................................. 4
1.4.Appropriate use ....................................................................................................................................................... 4
1.5.Qualified personnel ................................................................................................................................................ 5
1.6.Accessories and batteries .................................................................................................................................... 5
1.7. Disposal ..................................................................................................................................................................... 5
2. CONTENT OF THE PACKAGING ........................................................................................................ 6
3. INSTALLATION ...................................................................................................................................... 7
3.1.Installing the microphone ................................................................................................................................... 9
3.2.Installing the system on the helmet ............................................................................................................. 10
4. REMOVING THE SYSTEM .................................................................................................................. 13
5. BASIC FUNCTIONS ............................................................................................................................. 14
5.1.Volume adjustment .............................................................................................................................................. 14
5.2.Auto On / Off function ....................................................................................................................................... 14
5.3.N-Com EASYSET .................................................................................................................................................... 14
6. CONFIGURATION MENU .................................................................................................................. 15
7. PAIRING UP WITH MOBILE PHONES OR OTHER BLUETOOTH DEVICES ................................ 16
8. MOBILE PHONE .................................................................................................................................. 16
8.1.Speed dialling ......................................................................................................................................................... 16
8.2.Conference call function .................................................................................................................................... 17
9. MANAGING TWO MOBILE PHONES (OR BLUETOOTH DEVICES) ............................................ 18
10. MUSIC VIA BLUETOOTH ................................................................................................................... 18
10.1.Sharing music via Bluetooth (
A2DP Sharing
) ......................................................................................... 18
11. MUSIC VIA CABLE .............................................................................................................................. 19
12. SATELLITE NAVIGATOR FOR MOTORCYCLES .............................................................................. 19
13. FM RADIO ............................................................................................................................................ 19
14. N-COM INTERCOM (SERIES “900”) ................................................................................................ 20
14.1.Intercom pairing up ........................................................................................................................................... 20
14.2.Intercom function (one-to-one connection) .......................................................................................... 20
14.3.

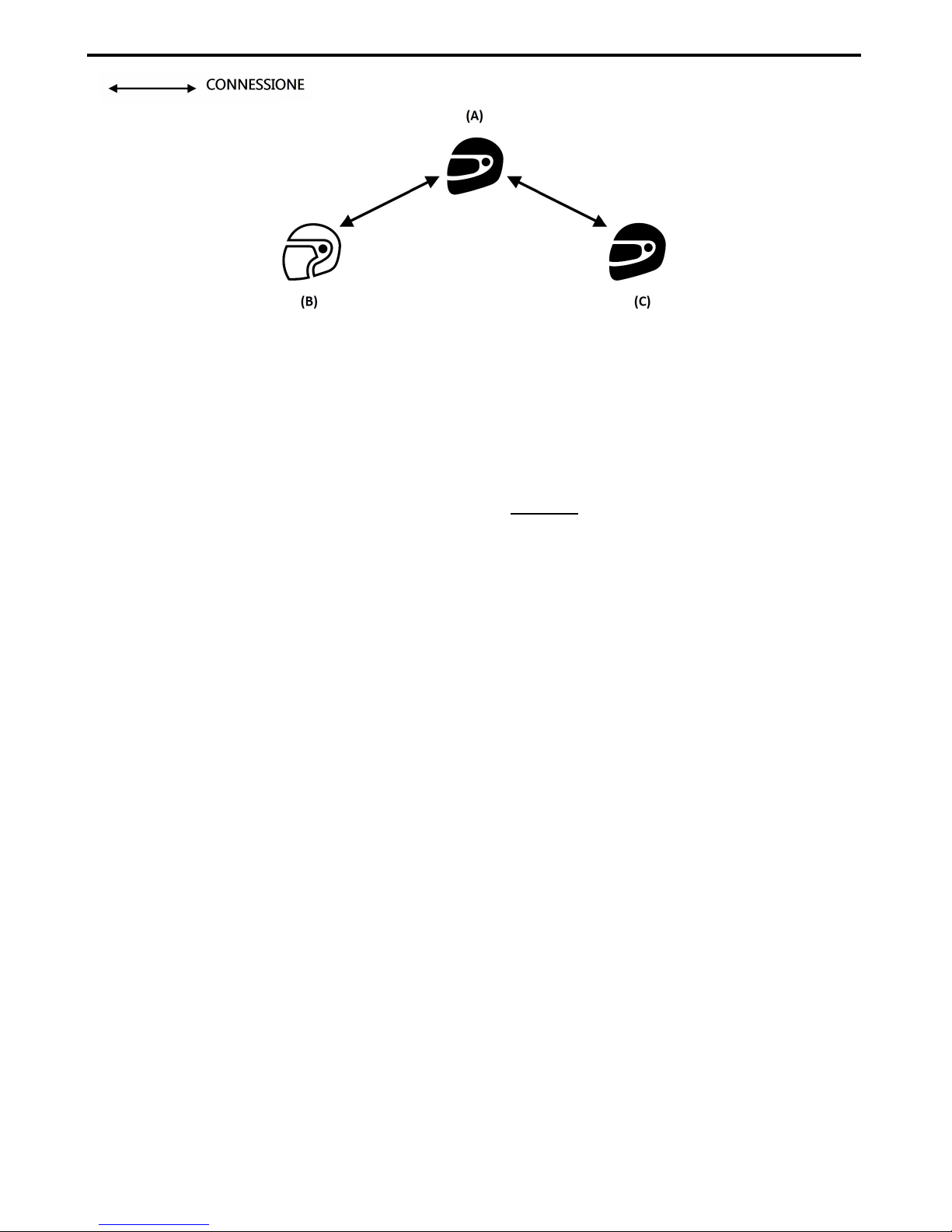

Smart Conference
(Group Intercom) ......................................................................................................... 21
15. “UNIVERSAL INTERCOM” INTERCOM ............................................................................................ 22
15.1.Pairing up the UNIVERSAL INTERCOM ..................................................................................................... 22
15.2.Universal Intercom Function.......................................................................................................................... 22
15.3.Universal Conference (chain intercom)..................................................................................................... 23
16. REMOTe control ................................................................................................................................. 25
17. BATTERY ............................................................................................................................................... 25
17.1.Low battery signal .............................................................................................................................................. 25
17.2.Charging the system ......................................................................................................................................... 25
18. SUMMARY TABLE OF CONTROLS .................................................................................................. 26
19. LIMITED WARRANTY ......................................................................................................................... 28
19.1.Warranty coverage............................................................................................................................................. 28
19.2.Exclusions and limitations of the coverage ............................................................................................ 28
19.3.Validity of this limited warranty ................................................................................................................... 29
19.4.Procedure for the forwarding of claims ................................................................................................... 29
19.5.Product identification ....................................................................................................................................... 29
20. WARRANTY REGISTRATION FORM ................................................................................................ 30
EN
4
1. WARNINGS AND SAFETY
Read this User Manual carefully, as well as the User Manuals for other N-Com kits that you will be using with the NCom B901. Read the simple rules listed below. Failure to comply with these rules may lead to dangerous situations.
Caution: The product cannot be used in official or non-official competitions, motordromes, circuits, racing tracks and
the like.
Caution: Installation of the N-Com B901 system results in a weight increase of approximately 110g, which is added
to the weight of the helmet and of the other accessories.
Warning: The electronic components of the N-Com system mounted inside the helmet are not waterproof.
Consequently, make sure the inside of the helmet, including the comfort padding, does not get wet in order to
avoid damage to the system. If it does, remove the N-Com system and the helmet comfort padding and let it
air dry. Disconnect the battery connector and let it dry as well.
1.1. Road safety
Always obey all Traffic Regulations in force. While riding the motorcycle, your hands should always be engaged in
actually riding the vehicle. Any operation to the N-Com system must be carried out with the vehicle stopped.
Specifically:
Set your cell phone on automatic answer (see the cell phone instructions to do this).
If your cell phone is not equipped with this function, first stop your vehicle in a safe area, in compliance with
Traffic Regulations and then answer the call.
Do not make any calls while riding. Stop your vehicle in a safe place in compliance with Traffic Regulations, and
then make the call.
Adjust the volume so that it does not cause a disturbance or distraction while riding and at the same time allows
you to distinctively hear background noises.
Do not operate your cell phone or other devices connected to N-Com while riding your motorcycle.
In all cases, obey the Traffic Regulations and remember that riding the motorcycle has absolute priority over any
other maneuver.
1.2. Switching on the system in safe environments
When using the N-Com system, comply with all limitations and instructions related to the use of cell phones.
Do not turn on your cell phone or the N-Com system whenever their use is forbidden or when the devices can
cause interference or dangerous situations.
Turn off while refueling. Do not use the N-Com system in filling stations. Do not use the device near combustible
materials or chemical products.
Turn off in proximity to explosive materials.
1.3. Interferences
All phones and devices with wireless signal transmission are subject to interferences that may affect the
performance of the device connected to them. These interferences are not ascribable to a defect of the N-Com
system.
1.4. Appropriate use
Use the device only in the normal position, as described in the product documentation. Do not attempt to
disassemble, tamper with or modify any part of the N-Com system.
Caution: Adjust the volume of the N-Com system (where provided) and of the audio sources connected to it before
you use the system on the road.
Caution: Adjusting the volume to very high levels may cause damage to your hearing.
Caution: Adjust the volume of the N-Com system (where provided) and of the audio sources connected to it so as to
avoid audio reproduction at high volumes. Constant exposure to high audio volumes may damage your
hearing.
B901
5
Caution: An incorrect installation of the system in the helmet may alter the aerodynamic and safety characteristics of
the helmet itself, thus creating dangerous conditions. Install the N-Com system according to the instructions
provided in the product documentation. In case of doubt, please contact your local N-Com dealer.
Warning: Listening to other equipment should not interfere with driving the vehicle, which must be the top priority
at all times. Carry out all operations on the electronic equipment and on the N-Com system with the vehicle
stopped, in compliance with Traffic Regulations.
Caution: B901 allows radio reception. Any radio licence fees are to the user’s charge.
1.5. Qualified personnel
Only qualified personnel can carry out technical assistance on this product. In case of any malfunction, always
turn to your local dealer.
The helmet is a safety device. Tampering with it and/or with the electronic system inside the helmet, in addition
to invalidating the product warranty, can also lead to dangerous situations.
1.6. Accessories and batteries
Only use the type of batteries, battery chargers and accessories approved by Nolan for the specific model.
The use of a battery type different from the recommended one may lead to dangerous situations and invalidate
the warranty.
Contact your local dealer to see about the availability of approved accessories.
When disconnecting the power supply cable of any accessory or of the battery charger, always grab and pull the
plug not the cable.
Do not use batteries for purposes other than the prescribed ones.
Never use batteries or battery chargers that turn out to be damaged.
Do not short-circuit the battery.
Keep the battery at a temperature between 0° / +45°C (charging); -20° / +60 °C (in use).
Danger of fire or explosion: do not throw the batteries into a fire nor expose them to high temperatures!
Do not throw out batteries together with household refuse. The batteries should be disposed of in compliance
with local regulations
Do not wear the helmet while the battery is recharging.
The helmet should never be left within the reach of unsupervised children in order to prevent damage to their
health caused by access to the batteries.
Battery
Li-Po PL053448P 3,7V – 1000 mAh
Battery charger
S-TR-009L
100/240V – 50/60 Hz 5V - 0.5 A
1.7. Disposal
Refer to this user manual and to manuals related to other parts of the N-Com system in order to disassemble the
system from the helmet. Once the system has been disassembled, dispose of it according to the following
instructions:
The presence of a crossed-out wheelie bin indicates that in the European Union the product is
subject to separate collection at the end of its useful life (European Directive 2002/96/EC).
Do not dispose of these products together with undifferentiated urban waste.
The proper disposal of obsolete equipment contributes to preventing possible negative consequences on
people’s health and on the environment.
For more detailed information on the disposal of obsolete equipment, contact your municipality, a waste disposal
service or the store where the product was purchased.
EN
6
2. CONTENT OF THE PACKAGING
The N-Com B901 package contains:
e-box B901
Electronic plate
Microphone
Rechargeable battery
Battery charger
PC connection
cable
Battery holder
Key, screw, clamp
Microphone-Stop
Adhesive Velcro pads
B901
7
3. INSTALLATION
You can download the installation video from www.n-com.it N-Com / Download section.
Fig. 1
Fig. 2
Fig. 3
Remove the “N-Com” protection plate located
on the helmet shell (Fig. 1) and open the
helmet chin guard (flip up helmets).
Remove the right and left cheek pads from the
helmet (see specific instructions provided in
the user manual of the helmet).
Remove the Noise Reducers from the two
cheek pads, and tear off the pre-cut plastic (if
equipped).
Fig. 4
Fig. 5
EN
8
Fig. 6
Remove the back of the comfort padding by
pulling on the neck roll until it separates from
the shell (Fig. 4).
Temporarily put the padding on the outside of
the helmet (Fig. 5).
Remove the N-Com cover from the helmet
border gasket. Push from the inside of the
helmet to facilitate the removal (Fig. 6).
Fig. 7
ONLY FOR FULL-FACE HELMETS
Remove the chin guard by pulling on the
special red tab.
Fig. 8
Remove the right and left polystyrene cheek
pads by gently pulling them out of the helmet.
The helmet shell can be opened slightly to
facilitate the removal of the cheek pad.
Caution: In case the polystyrene cheek pad is
damaged during this operation, turn to your
local dealer for its replacement.
B901
9
3.1. Installing the microphone
JET HELMETS OR FLIP-UP HELMETS
Fig. 9
Fig. 10
Fig. 11
Fig. 12
Prepare the microphone by inserting the microphone
clamp, being careful to position it properly (Fig. 9)
Note: the flat part of the clamp must be facing upward
when the microphone is positioned as shown in figure 11.
Position the microphone in its support as shown in
figure 10, being careful that the fluorescent clamp is
facing toward the inside of the helmet.
Insert screw in the microphone clamp; use the key to
screw in the microphone securing screw to the shell
frame.
FULL-FACE HELMETS
Take the polystyrene cheek pad (left-hand side) and position the microphone in its housing, as
shown in fig. 13, making sure that the fluorescent band stays facing the inside of the helmet. (Fig.
14)
Fig. 13
Fig. 14
EN
10
3.2. Installing the system on the helmet
Fig. 15
Position the system inside the helmet as shown
in figure 15, next to the N-Com housing in the
shell.
Fig. 16
Looking at the helmet from the outside, slide
the rear positioning tab into groove A as
shown in the figure;
Press in the area marked PUSH from inside the
helmet until the fastening clasp B clicks (Fig.
16).
Fig. 17
Pull out the connectors area from the helmet
gasket: the gasket will have to be slightly
deformed to facilitate the insertion.
B901
11
Insert the microphone connector in the micro USB electronic plate.
Before you place the speaker in its housing, apply the Velcro pad to the polystyrene cheek pad (Fig.
19).
Fig. 18
Fig. 19
Fig. 20
Position the loudspeaker in the special
housing obtained in the polystyrene cheek
pad (Fig. 20).
Fig. 21
Replace the polystyrene cheek pad (left side),
positioning the cable in the groove that you
see in the cheek pad (Fig. 20).
Note: Make sure the cheek pad is properly
positioned in its housing, pushing in the
lined corner underneath the ribbing on the
shell (Fig. 21).
Loading...
