USER INSTRUCTIONS AND SAFETY
Congratulations on your purchase of an N-Com product.
N-Com B5 was made using the most advanced technologies and the best
materials. Long-running tests and thorough system development have allowed
the highest audio quality to be achieved.
For additional information about B5, and to download high-definition
instructions as well as the latest Firmware version, visit the website www.n-com.it
Firmware version: 1.0x
REFERENCE STANDARDS
The products of the N-Com line are in compliance with standards as per the table
below:
B5
The Bluetooth system complies with the main safety
requirements and other applicable provisions of Directive
99/5/CE, Directive 2009/65/EC, Directive 2011/65/CE, Directive
2012/19/EU
Battery
charger
Directive 2006/95, 2004/108, 2009/65/EC, 2011/65/CE,
2012/19/EU, 2009/125/CE
Battery Directive 2006/66/CE
The Declarations of Compliance can be downloaded from the website www.ncom.it (Download section).
FccID: Y6MNCOM8
R-NZ
Bluetooth is a registered trademark property of Bluetooth SIG, Inc.
Contents
1. WARNINGS AND SAFETY.................................................................................................4
1.1.Road safety ................................................................................................................................................................4
1.2.Switching on the system in safe environments.........................................................................................4
1.3.Interferences..............................................................................................................................................................4
1.4.Appropriate use .......................................................................................................................................................4
1.5.Qualified personnel ................................................................................................................................................5
1.6.Accessories and batteries....................................................................................................................................5
1.7. Disposal .....................................................................................................................................................................5
2. CONTENT OF THE PACKAGING ......................................................................................6
3. INSTALLATION....................................................................................................................7
3.1.Removing the B5 system from the helmet................................................................................................10
4. BASIC FUNCTIONS...........................................................................................................11
4.1.Auto On / Off function .......................................................................................................................................11
4.2.N-Com Wizard and N-Com App....................................................................................................................11
4.3.Pairing up with Bluetooth devices.................................................................................................................12
5. MOBILE PHONE................................................................................................................12
5.1.Friend Number .......................................................................................................................................................13
5.2.Managing two mobile phones (or Bluetooth devices).........................................................................13
6. MUSIC VIA BLUETOOTH – A2DP BLUETOOTH PROTOCOLL ..................................13
7. MUSIC VIA CABLE ............................................................................................................13
8. SATELLITE NAVIGATOR FOR MOTORCYCLES............................................................14
8.1.Navigators on Smartphone (Smart Navi System)...................................................................................14
9. FM RADIO..........................................................................................................................14
10. RIDER-PASSENGER INTERCOM.....................................................................................15
10.1.Rider-Passenger intercom pairing up .......................................................................................................15
10.2.Rider-Passenger intercom function............................................................................................................15
11. BIKE TO BIKE INTERCOM................................................................................................16
11.1.Bike-to-Bike Intercom Affiliation (Standard configuration) ............................................................16
11.2.Bike to bike intercom function .....................................................................................................................17
12. “UNIVERSAL INTERCOM” INTERCOM..........................................................................18
12.1.Pairing up the UNIVERSAL INTERCOM.....................................................................................................18
12.2.Universal Intercom Function..........................................................................................................................18
13. SETTING MODE ................................................................................................................19
14. BATTERY AND RECHARGE..............................................................................................19
14.1.Low battery signal..............................................................................................................................................19
14.2.Charging the system .........................................................................................................................................19
15. SUMMARY TABLE OF CONTROLS – STANDARD CONFIGURATION.....................20
16. LIMITED WARRANTY.......................................................................................................22
16.1.Warranty coverage.............................................................................................................................................22
16.2.Exclusions and limitations of the coverage ............................................................................................22
16.3.Validity of this limited warranty ...................................................................................................................23
16.4.Procedure for the forwarding of claims ...................................................................................................23
16.5.Product identification .......................................................................................................................................23
17. WARRANTY REGISTRATION FORM..............................................................................24
EN
4
1. WARNINGS AND SAFETY
Read this User Manual carefully, as well as the simple rules listed below. Failure to comply with these rules may lead
to dangerous situations.
Caution: The product cannot be used in official or non-official competitions, motordromes, circuits, racing tracks and
the like.
Caution: Installation of the N-Com B5 system results in a weight increase of approximately 107g, which is added to
the weight of the helmet and of the other accessories.
Warning: The electronic components of the N-Com system mounted inside the helmet are not waterproof.
Consequently, make sure the inside of the helmet, including the comfort padding, does not get wet in order to
avoid damage to the system. If it does, remove the N-Com system and the helmet comfort padding and let it
air dry. Remove the battery from its housing and let it dry.
1.1. Road safety
Always obey all Traffic Regulations in force. While riding the motorcycle, your hands should always be engaged in
actually riding the vehicle. Any operation to the N-Com system must be carried out with the vehicle stopped.
Specifically:
Set your cell phone on automatic answer (see the cell phone instructions to do this).
If your cell phone is not equipped with this function, first stop your vehicle in a safe area, in compliance with
Traffic Regulations and then answer the call.
Do not make any calls while riding. Stop your vehicle in a safe place in compliance with Traffic Regulations,
and then make the call.
Adjust the volume so that it does not cause a disturbance or distraction while riding and at the same time
allows you to distinctively hear background noises.
Do not operate your cell phone or other devices connected to N-Com while riding your motorcycle.
In all cases, obey the Traffic Regulations and remember that riding the motorcycle has absolute priority over
any other manoeuvre.
1.2. Switching on the system in safe environments
When using the N-Com system, comply with all limitations and instructions related to the use of cell phones.
Do not turn on your cell phone or the N-Com system whenever their use is forbidden or when the devices
can cause interference or dangerous situations.
Turn off while refuelling. Do not use the N-Com system in filling stations. Do not use the device near
combustible materials or chemical products.
Turn off in proximity to explosive materials.
1.3. Interferences
All phones and devices with wireless signal transmission are subject to interferences that may affect the
performance of the device connected to them. These interferences are not ascribable to a defect of the N-Com
system.
1.4. Appropriate use
Use the device only in the normal position, as described in the product documentation. Do not attempt to
disassemble, tamper with or modify any part of the N-Com system.
Caution: Adjust the volume of the N-Com system (where provided) and of the audio sources connected to it before
you use the system on the road.
Caution: Adjusting the volume to very high levels may cause damage to your hearing.
Caution: Adjust the volume of the N-Com system (where provided) and of the audio sources connected to it so as to
avoid audio reproduction at high volumes. Constant exposure to high audio volumes may damage your
hearing.
Caution: An incorrect installation of the system in the helmet may alter the aerodynamic and safety characteristics of
the helmet itself, thus creating dangerous conditions. Install the N-Com system according to the instructions
provided in the product documentation. In case of doubt, please contact your local N-Com dealer.
B5
5
Warning: Listening to other equipment should not interfere with driving the vehicle, which must be the top priority
at all times. Carry out all operations on the electronic equipment and on the N-Com system with the vehicle
stopped, in compliance with Traffic Regulations.
Caution: The N-Com system allows reception of the FM radio signal. Any radio licence fees are to the user’s charge.
1.5. Qualified personnel
Only qualified personnel can carry out technical assistance on this product. In case of any malfunction, always
turn to your local dealer.
The helmet is a safety device. Tampering with it and/or with the electronic system inside the helmet, in
addition to invalidating the product warranty, can also lead to dangerous situations.
1.6. Accessories and batteries
Only use the type of batteries, battery chargers and accessories approved by Nolan for the specific model.
The use of a battery type different from the recommended one may lead to dangerous situations and
invalidate the warranty.
Contact your local dealer to see about the availability of approved accessories.
When disconnecting the power supply cable of any accessory or of the battery charger, always grab and pull
the plug not the cable.
Do not use batteries for purposes other than the prescribed ones.
Never use batteries or battery chargers that turn out to be damaged.
Do not short-circuit the battery.
Keep the battery at a temperature between 0° / +32°C (charging); -20° / +55°C (in use).
Danger of fire or explosion: do not throw the batteries into a fire nor expose them to high temperatures!
Do not throw out batteries together with household refuse. The batteries should be disposed of in
compliance with local regulations
Do not wear the helmet while the battery is recharging.
The helmet should never be left within the reach of unsupervised children in order to prevent damage to
their health caused by access to the batteries.
Battery Li-Po 523450P Lithium 3,7V – 1000 mAh
Battery charger S-TR-009L 100/240V – 50/60 Hz 5V - 0.5 A
1.7. Disposal
Refer to this user manual and to manuals related to other parts of the N-Com system in order to disassemble the
system from the helmet. Once the system has been disassembled, dispose of it according to the following
instructions:
The presence of a crossed-out wheelie bin indicates that in the European Union the product is
subject to separate collection at the end of its useful life.
Do not dispose of these products together with undifferentiated urban waste.
The proper disposal of obsolete equipment contributes to preventing possible negative consequences on
people’s health and on the environment.
For more detailed information on the disposal of obsolete equipment, contact your municipality, a waste
disposal service or the store where the product was purchased.
EN
6
2. CONTENT OF THE PACKAGING
The N-Com B5 package contains:
N-Com B5 system
Mini USB wire Battery charger
Key Microphone foam
B5
7
3. INSTALLATION

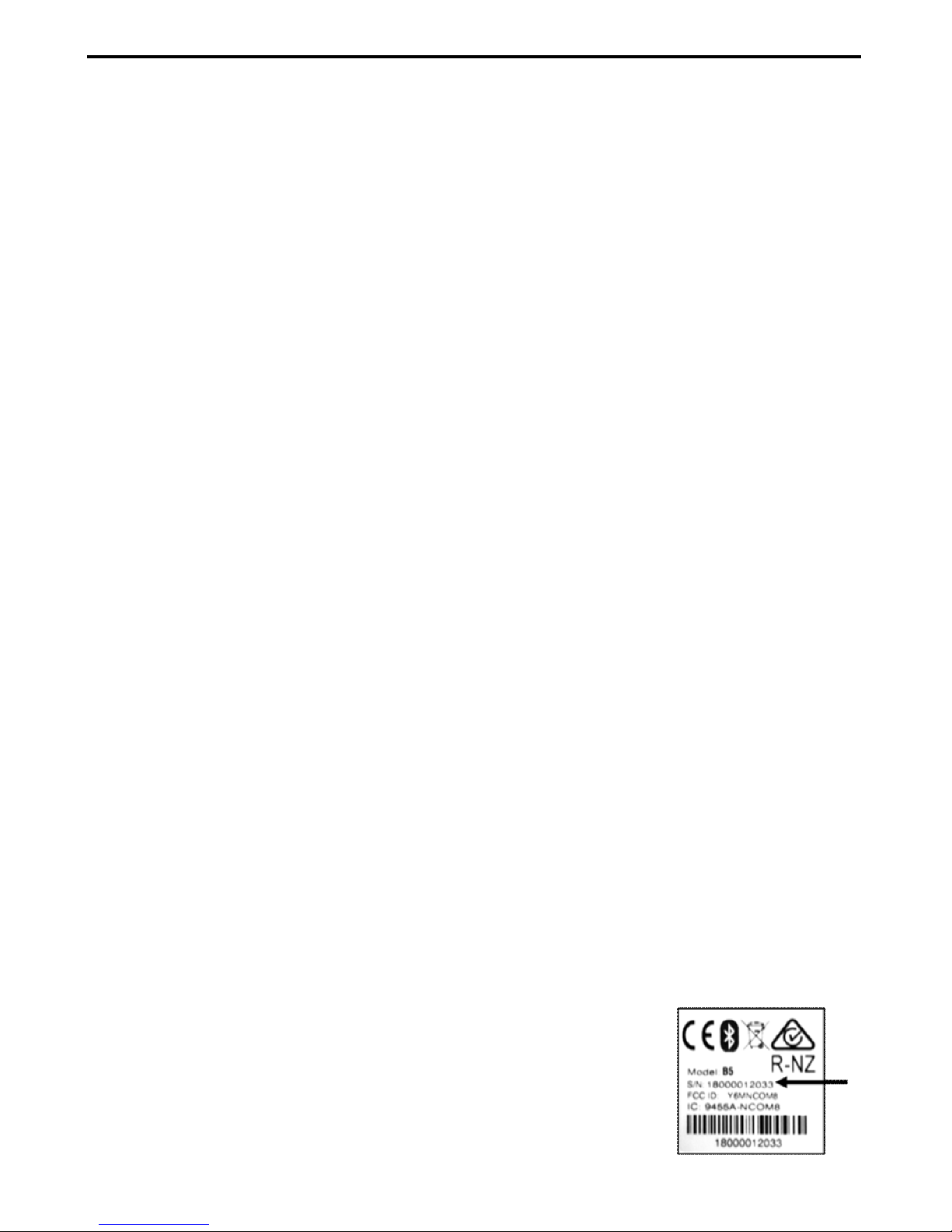

Important: Prior to installing the N-Com system, it is recommended to write down the identification
code affixed to the product (see chapter 16.5).
You can download the installation video from www.n-com.it N-Com / Download section.
Before you install the B5 system on the helmet, make sure it turns on properly. Press the “on” key
for about 2 seconds, until the LED lights up and you hear a beep in the headset. Proceed with
the installation.
Remove the cheek padding (see helmet instructions).
Remove the helmet edge gasket using the special tool (Fig. 1).
Completely remove the gasket as shown in Fig. 1; by doing so you also remove the padding.
Remove the “N-Com” plugs found at the back of the shell gasket and on the left side of the
helmet.
Fig. 1
Fig. 1 – ONLY FOR N87 HELMET
Prior to installing the N-Com system, remove any filling foam material found in the helmet.
Option 1
Option 2
N.B.: Keep the filling material in case you wish to use the helmet without the N-Com system in the
future.
EN
8

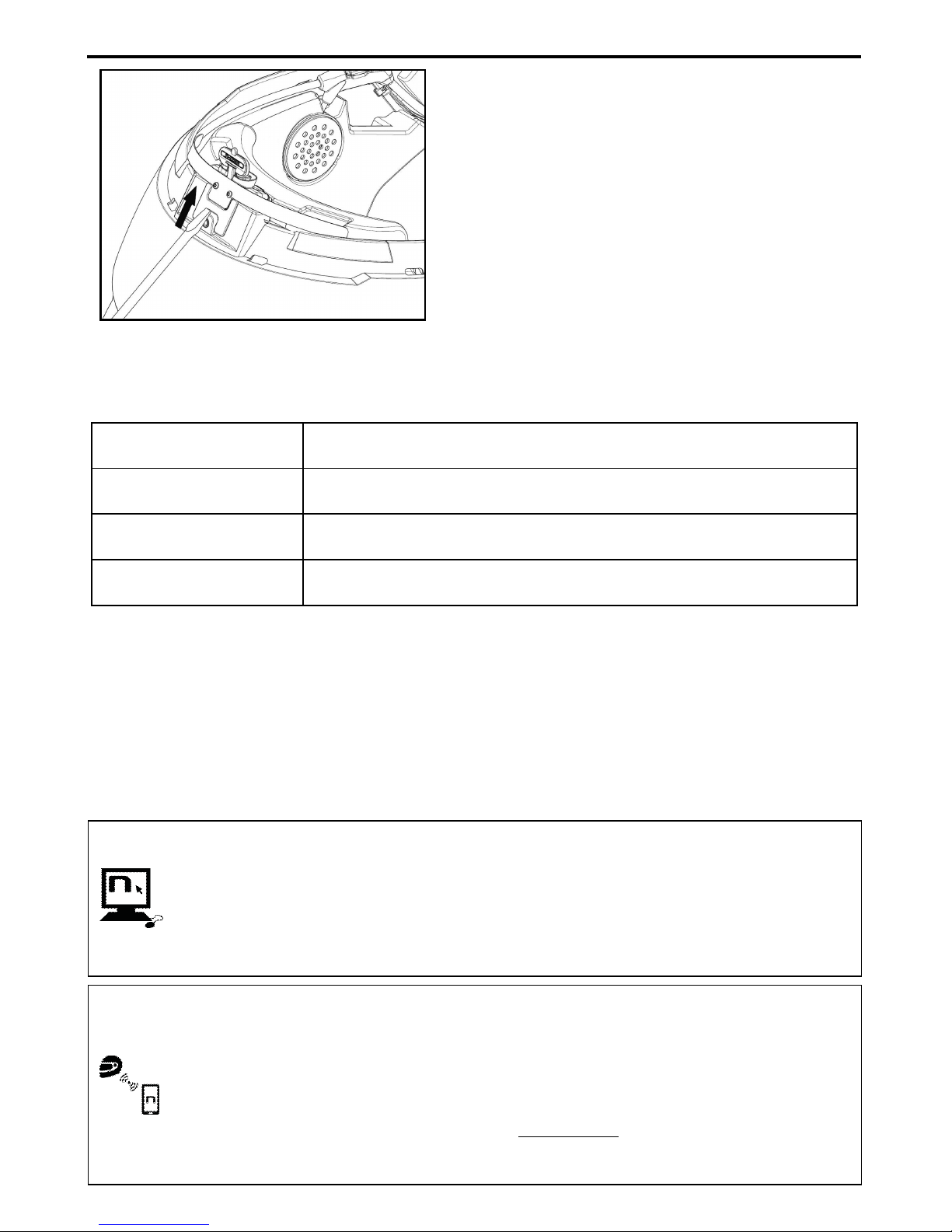

Fig. 2
Place the system in the special housing in the
back of the helmet, pushing it all the way into
the groove (Fig. 2).
Fold the antenna back inside the shell.
Fig. 3
Fix the cable inside the helmet and make sure
the right fixing clip snaps into its housing (Fig. 3)
Fig. 4
Position the microphone in the housing on the
left of the helmet, inserting the metal boom in
the groove found in the chin guard coupling
frame (Fig. 4).
Caution: make sure that the side of the
microphone support with the writing “N-Com” is
facing inward.
Fig. 5
Fix the cable inside the helmet and make sure
the left fixing clip snaps into its housing.
Hook up the keypad to the helmet by clicking in
the relevant hooks.
NB:
Only for the N87 helmet, follow the instructions
in the paragraph below.
Reassemble the gasket and secure it with the
specific screw.
