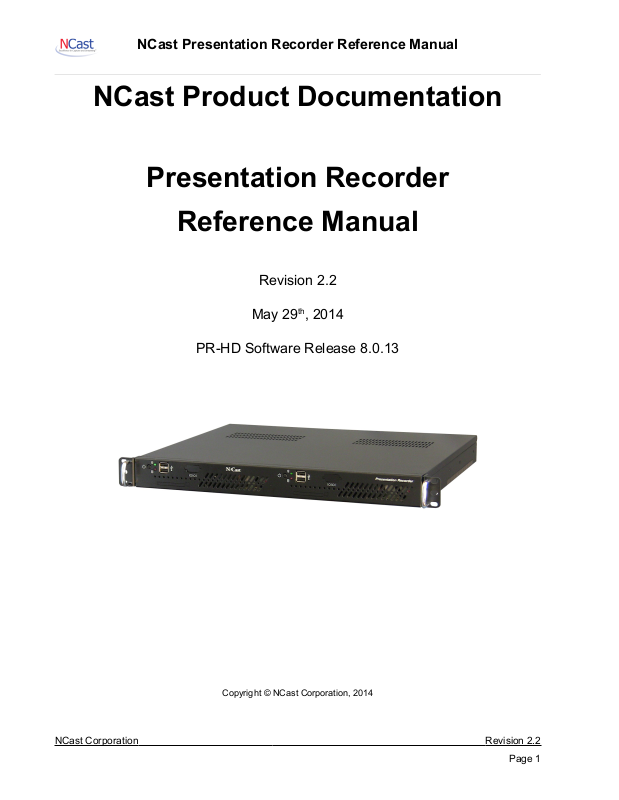

NCast PR-HD User Manual

NCast Presentation Recorder Reference Manual
NCast Product Documentation
Presentation Recorder
Reference Manual
Revision 2.2
May 29th, 2014
Copyright © NCast Corporation, 2014
NCast Corporation Revision 2.2
Page 1
NCast Presentation Recorder Reference Manual
Table of Contents
1. Introduction ................................................................................................................................................... 6
1.1. Purpose .................................................................................................................................................. 6
1.2. Document Overview ............................................................................................................................... 6
1.3. Presentation Recorders – Basic Models ................................................................................................ 6
1.4. Presentation Recorders – Extreme Models ............................................................................................ 7
1.5. Presentation Recorders – Ultra Models ................................................................................................. 7
1.6. Presentation Recorders – Connector Options ........................................................................................ 8
1.7. Presentation Recorders – Generation 1 vs. Generation 2 .................................................................... 10
1.8. Presentation Recorders – Phoenix Connector Wiring .......................................................................... 10
1.9. Presentation Recorders – Installation .................................................................................................. 11
2. Quick Start .................................................................................................................................................. 12
2.1. Startup ................................................................................................................................................. 12
2.2. Presentation Recorder Modes of Operation ......................................................................................... 14
3. Theory of Operation .................................................................................................................................... 17
3.1. Presentation Recorder Component Block Diagram ............................................................................. 17
3.2. Capture Module Function ..................................................................................................................... 17
3.3. Compression ........................................................................................................................................ 18
3.4. Transmission ........................................................................................................................................ 18
3.5. Decompression .................................................................................................................................... 18
3.6. Display Function ................................................................................................................................... 18
3.7. Audio Subsystem ................................................................................................................................. 18
3.8. Archive Flash Disk ............................................................................................................................... 18
4. Quick Start Configuration and Setup .......................................................................................................... 19
4.1. Quick Start Page Organization ............................................................................................................. 19
4.2. Channel Selection ................................................................................................................................ 20
4.3. Source Selection .................................................................................................................................. 21
4.4. Streaming Start/Stop ............................................................................................................................ 22
4.5. Recording ............................................................................................................................................. 23
4.6. Status Bar ............................................................................................................................................ 23
4.7. Control Icons ........................................................................................................................................ 23
5. The Channel Table ..................................................................................................................................... 26
5.1. Channel Settings .................................................................................................................................. 26
5.2. Edit Channel – General ........................................................................................................................ 27
5.3. Edit Channel – Frame Size .................................................................................................................. 29
5.4. Edit Channel – Layout .......................................................................................................................... 30
5.5. Edit Channel – Profile .......................................................................................................................... 33
5.6. Edit Channel – Customized Profile Settings ......................................................................................... 34
5.7. Edit Channel – Network ....................................................................................................................... 37
5.8. Edit Channel – RTMP Streaming ......................................................................................................... 39
5.9. Edit Channel – Automatic Unicast ........................................................................................................ 40
5.10. Edit Channel – Recording .................................................................................................................. 42
5.11. Edit Channel – Upload ....................................................................................................................... 45
5.12. Edit Channel – Notifications ............................................................................................................... 51
6. Archives ...................................................................................................................................................... 53
6.1. Archive Settings ................................................................................................................................... 53
7. Configuration .............................................................................................................................................. 57
7.1. Personal ............................................................................................................................................... 57
7.2. Time ..................................................................................................................................................... 58
7.3. Network ................................................................................................................................................ 59
NCast Corporation Revision 2.2
Page 2
NCast Presentation Recorder Reference Manual
7.4. Web ...................................................................................................................................................... 63
7.5. Display ................................................................................................................................................. 64
7.6. Telnet Settings ..................................................................................................................................... 66
7.7. Scheduler ............................................................................................................................................. 67
7.8. Presentation Server ............................................................................................................................. 72
7.9. Notifications .......................................................................................................................................... 74
7.10. Custom ............................................................................................................................................... 76
8. Status ......................................................................................................................................................... 79
8.1. System ................................................................................................................................................. 79
8.2. Network ................................................................................................................................................ 80
8.3. Event Logs ........................................................................................................................................... 80
8.4. Serial logs ............................................................................................................................................ 81
9. Sources ...................................................................................................................................................... 82
9.1. Video .................................................................................................................................................... 82
9.2. Audio .................................................................................................................................................... 83
9.3. Advanced ............................................................................................................................................. 84
9.4. Overlays ............................................................................................................................................... 86
9.5. Previews ............................................................................................................................................... 86
10. Viewer Interface and Media Players ......................................................................................................... 87
10.1. View Stream ....................................................................................................................................... 87
10.2. VLC Media Player .............................................................................................................................. 88
10.3. Media Players .................................................................................................................................... 89
10.4. Closed-Caption Support ..................................................................................................................... 90
11. Custom Layouts ........................................................................................................................................ 93
11.1. Frame Layouts and Presets ............................................................................................................... 93
12. Presentation Recorder Interfaces ............................................................................................................. 99
12.1. Serial Interface ................................................................................................................................... 99
12.2. Telnet Interface .................................................................................................................................. 99
12.3. REST Interface – Archive Download ................................................................................................ 100
12.4. REST Interface – Image and Thumbnail Capture ............................................................................ 100
12.5. REST Interface – Graphics Overlay Upload ..................................................................................... 100
12.6. REST Interface – Reference Manual ............................................................................................... 101
13. Techniques for Presentation Capture .................................................................................................. 102
13.1. Webcasting, Podcasting and Archiving ............................................................................................ 102
13.2. Capturing Graphics, Video and Audio .............................................................................................. 102
13.3. Conference Day Problems and Issues ............................................................................................. 104
13.4. Video Post-Production ..................................................................................................................... 106
14. PR-HD First Generation .......................................................................................................................... 108
14.1. Backpanel Connectors ..................................................................................................................... 108
14.2. Main/PIP Input Compatibility Chart .................................................................................................. 109
15. Terms and Definitions ............................................................................................................................. 110
15.1. Audio and Video Terms and Definitions ........................................................................................... 110
16. References ............................................................................................................................................. 112
16.1. MPEG Compression ........................................................................................................................ 112
16.2. Packet Transmission ........................................................................................................................ 112
16.3. Multicast ........................................................................................................................................... 112
17. Revision History ...................................................................................................................................... 113
NCast Corporation Revision 2.2
Page 3
NCast Presentation Recorder Reference Manual
Regulatory Compliance Information
Equipment Label
The Presentation Recorder meets all applicable FCC, CE and ICAN radiation and emission standards:
Report 3054-1
Electromagnetic Compatibility Test Report
47 CFR Part 2 Subpart J Paragraph 2.906
Report 3054-2
44366 S. Grimmer Blvd. Fremont, CA 94538
Electromagnetic Compatibility Test Report
ECD 2004/108/EC, LVD 2006/95/EC
(510) 490-4307 (510) 490-3441 Fax
(1) Connections between peripherals of this equipment may be made with low voltage non-
shielded computer data cables.
(2) Network connections may consist of non-shielded CAT 5 cable.
Warnings
(1) A non-shielded power cord may be used to connect AC power to every component and
peripheral of the system.
FCC NOTICE
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
FCC NOTICE – INFORMATION FOR THE USER
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: (1)Reorient or relocate the receiving antenna. (2)Increase the separation between the equipment and receiver. (3)Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected. (4)Consult the dealer or an experienced radio/TV technician for help. The user may find the following publication prepared by the Federal Communications Commission helpful:
“How to Identify and Resolve Radio-TV Interference Problems” Stock Number 004-000-00345-4, available exclusively from the Superintendent of Documents, Government Printing Office, Washington, DC 20402 (telephone +1-202-512-1800).
FCC WARNING
Changes or modification not expressly approved by the party responsible for compliance to Part 15 of the FCC Rules could void the user’s authority to operate the equipment.
CE NOTICE – INFORMATION FOR THE USER
NCast Corporation Revision 2.2
Page 4
NCast Presentation Recorder Reference Manual
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to EN 55022 Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at the expense of the user. The user may find the following publication prepared by the Federal Communication Commission helpful:
“How to Identify and Resolve Radio-TV Interference Problems” Stock Number 004-000-00345-4, available exclusively from the Superintendent of Documents, Government Printing Office, Washington, DC 20402 (telephone +1-202-512-1800).
WARNING
Changes or modifications not expressly approved by the party responsible for compliance to EN 55022 Rules could void the user’s authority to operate the equipment.
ICAN Class A Digital Equipment
This Class A digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations. Cet appareil numérique de la classe A respecte toutes les exigencies due Réglement sur le matériel brouilleur du Canada.
NCast Corporation Revision 2.2
Page 5
NCast Presentation Recorder Reference Manual

1. Introduction

1.1. PURPOSE

The NCast Presentation Recorder Reference Manual is intended for the Audio/Video or Network engineer who will be tasked with the job of installing and setting up a Presentation Recorder or a system of multiple Presentation Recorders. This guide is designed to cover topics in depth and to assist in optimizing the performance of a Presentation Recorder.

1.2. DOCUMENT OVERVIEW

This document is divided into two major sections: the theory of operation and a discussion of parameter settings.

1.3. PRESENTATION RECORDERS – BASIC MODELS

The Presentation Recorder is a stand-alone network communications appliance which captures RGB (VGA), Composite, Component, DVI, HDMI, Displayport and optionally 3G-SDI signals from a desktop or laptop, compresses the image with an industry standard compression algorithm, records the capture to a file, packetizes and transmits the imagery as an internet media stream, receives a media stream from the internet, decompresses the imagery, and presents the received information to a viewing audience through use of a large-screen monitor or via a room projector. Presentation Recorders are able to archive the media stream in real-time while simultaneously webcasting, allowing for playback by the recipient at a later date.
The following Presentation Recorder models are covered by this documentation:
PR-HD-Basic-R – A rack-mounted unit with streaming and archiving capabilities. The PR-HD-Basic-R
introduces support for up to WUXGA (1920x1200) input resolutions with up to 1080p (1920x1080) capture resolutions and PiP (Picture In Picture) video and graphics overlay.
PR-HD-Basic-D – A rack-mounted unit with streaming and archiving capabilities. The PR-HD-Basic-D
introduces support for up to WUXGA (1920x1200) input resolutions with up to 1080p (1920x1080) capture resolutions and PiP (Picture In Picture) video and graphics overlay. This unit has two independent and identical encoders in a single 1U rack-mount chassis (each encoder and its power supply occupy ½ rack).
The dual-encoding capabilities of this model enables many different applications, for example:
NCast Corporation Revision 2.2
Page 6
NCast Presentation Recorder Reference Manual
• Two independent HD encoders – With identical inputs, one encoder may be setup to stream and record a high-bandwidth, high-resolution stream and the second encoder provides for a reduced resolution, reduced bandwidth stream.
• Dual wide-screen delivery – One encoder transmits a hi-def camera stream, and the second transmits a wide-screen presentation. Telepresence at a budget price!
• Synchronized Encoders – Two HD wide-screens side by side, giving a dual-HD panorama, or a 3D left-right image.
• Two-way Interactive – One encoder is configured for streaming send, and the second is setup for streaming receive.
• Fail-Safe System – Each encoder independently transmitting the same material. Should one fail, the receivers can switch to the other.
• Hot Standby – A spare unit for critical applications.
PR-HD-Basic-P - A flange-mounted unit with streaming and archiving capabilities. This is a very small form-factor chassis suitable for mounting on the walls of a podium, on top of or underneath a podium shelf, in a mobile cart, or on a wall in an equipment room.
PR-HD-Basic-M - A desktop unit with streaming and archiving capabilities. This is a very small form-factor case suitable for desktop or mobile cart applications.
All PR-HD Series units share a core operating system and base set of features. The mainboard and connector set is similar for all units. Please review the product spec sheets for further details.

1.4. PRESENTATION RECORDERS – EXTREME MODELS

The Presentation Recorder Extreme has all the features of the Basic model but in addition will record in 1080 definition, stream in 1080 (but simultaneous recording and streaming at this resolution is not allowed). There is also an HDMI output connector for an all-digital connection to a display monitor.

1.5. PRESENTATION RECORDERS – ULTRA MODELS

The Presentation Recorder Ultra has all the features of the Extreme (except HDMI Out) and in addition supports 3G-SDI digital input.
NCast Corporation Revision 2.2
Page 7
NCast Presentation Recorder Reference Manual

1.6. PRESENTATION RECORDERS – CONNECTOR OPTIONS

The following diagram describes the back-panel connectors available:
Backpanel for PR-HD-Basic-M, PR-HD-Basic-P
• Serial Control – Wired control from a touch panel, such as Crestron or AMX
• Ethernet – Connection to the Internet
• XLR Audio – Balanced XLR input connector and additionally a balanced 0.25” connector
• VGA – Input from the presenter's PC
• VGA Loopback – VGA output, usually to the room projector
• VGA/Component Out – RGBHV or Y-Pb-Pr output to the local display
• USB – For specifying a static IP connection with a USB drive or saving an archive file
• Line-In, Line-Out, Mic-In - Unbalanced 3.5 mm. audio connections. Stereo for Line-In, Line-Out
• HDMI – Video input from cameras or computers, audio not supported
• DVI-D – Digital input
• DVI-A – Analog RGBHV input or Y-Pb-Pr component from a camera source
• Displayport – Input from the Displayport output of a computer
• SDI – 3G-SDI Serial Digital Input
• Composite – NTSC or PAL input
Note: Conversion of HDMI or DVI signals to Displayport requires an active (not passive) adapter.
NCast Corporation Revision 2.2
Page 8
NCast Presentation Recorder Reference Manual
Backpanel for PR-HD-Basic-R, PR-HD-Basic-D
Backpanel for PR-HD-Extreme-M, PR-HD-Extreme-P
Backpanel for PR-HD-Extreme-R, PR-HD-Extreme-D
NCast Corporation Revision 2.2
Page 9
NCast Presentation Recorder Reference Manual
Backpanel for PR-HD-Ultra-M, PR-HD-Ultra-P
Backpanel for PR-HD-Ultra-R, PR-HD-Ultra-D

1.7. PRESENTATION RECORDERS – GENERATION 1 VS. GENERATION 2

Earlier versions of the PR-720 and PR-HD Presentation Recorders had a different backpanel and connector lineup. Documentation on these first generation units is found in Chapter 14.

1.8. PRESENTATION RECORDERS – PHOENIX CONNECTOR WIRING

The Presentation Recorder rack mount models come with a Phoenix balanced audio connector.
NCast Corporation Revision 2.2
Page 10
NCast Presentation Recorder Reference Manual

1.9. PRESENTATION RECORDERS – INSTALLATION

The diagram below shows a typical room installation:
NCast Corporation Revision 2.2
Page 11
NCast Presentation Recorder Reference Manual

2. Quick Start

2.1. STARTUP

2.1.1. A Really Short Start
Here’s a very short description on how to get started:
1. Plug the unit into a network with DHCP, plug in a display to the VGA Out, plug your laptop into the VGA In, a camera (if you have one) into a video connector and turn on the power.
2. When you see the bootup screen with the IP network address, log into the unit at http://ipaddress using “admin” as the user and “ncast” as the password.
3. On the Quick Start page select your Channel Layout, your Video Sources, your Audio Sources and then press Streaming Start.
4. Click on the Streaming View button, press “Launch Quicktime Player in Window” and you’re done!
2.1.2. Mini Start
This is a short introduction on how to get started with a Presentation Recorder:
1. Plug the unit into a network, plug in a display to the VGA Out, plug your laptop into the VGA In, a camera (if you have one) into a video connector and turn on the power. If you aren’t using DHCP and need to enter static IP addresses, edit a “ntwkconf.txt” file onto a USB stick and plug it into a USB port. See the Configuration → Network tab (7.3.16.) for details on this file.
2. When you see the bootup screen with the IP network address, log into the unit at http://ipaddress using “admin” as the user and “ncast” as the password.
3. Go to the Configuration → Personal tab and fill in all the information required.
NCast Corporation Revision 2.2
Page 12
NCast Presentation Recorder Reference Manual
4. On the Quick Start page select the Channel Layout you desire. The icons represent the composition of the frame which will be recorded and allow for many different combinations of video inputs, graphics inputs and graphical overlays.
5. The dialog box allows you to choose one of the unit's standard video profiles and permits you to upload a custom graphical overlay to replace the factory default.
6. Select the Video and Audio sources you have connected to the recorder. The “Main” input is normally associated with graphics capture and the PIP input usually contains the video camera. You should see your captured graphics and video on the local display screen. Check your audio levels on the meter.
7. Press the Streaming Start button to activate the stream.
8. Click on the Streaming View button, press “Launch Quicktime Player in Window”. This dialog box allows you to connect different media desktop players using multicast protocol. If your network is not multicast enabled you must be on the same LAN segment as the encoder. Your client player should launch and you should see your captured graphics and video. For other client players, try clicking on the “SDP” link.
9. You’re done!
2.1.3. Long Start
Read this whole manual from cover to cover (RTFM). There are hundreds of different configuration options for a Presentation Recorder, allowing the setup and composition of many different formats, resolutions, PIP options, layouts, bit-rates, frame-rates, start and stop and scheduling options and the like. You can automatically upload your archives to a video server. You can tag your archives automatically with course numbers and notes. You can add your own customized graphic overlays to the captured graphics and video. Transmission can be automated so that all that is required is to press the power-on button.
Please feel free to contact NCast Corporation if you have any questions about the use or configuration of the Presentation Recorder.
NCast Corporation Revision 2.2
Page 13
NCast Presentation Recorder Reference Manual

2.2. PRESENTATION RECORDER MODES OF OPERATION

The Presentation Recorders have eight major modes of operation:
Record to File – The Presentation Recorder only records the file to storage. Once the Session has ended the file may be automatically uploaded to a video-on-demand server for later playback by client PCs or mobile devices.
Send a Unicast or Multicast Stream – In this mode of operation one of the Presentation Recorders is designated as the “Sender” and all of the other units are designated as “Receivers”. The media streams originate from the Sender and are decoded by one or more Receivers or desktop client media players. The transmission is strictly one-way, and no feedback or interactivity is provided for. The one-to-many operation is enabled via use of multicast connected networks. The unit is able to stream and record simultaneously.
NCast Corporation Revision 2.2
Page 14
NCast Presentation Recorder Reference Manual
Send a Unicast or Multicast Stream and Record to File – This mode of operation is the
same as “Send a Unicast or Multicast Stream” with the addition of simultaneous recording an archiving of the captured Session. The archive is first stored internally in local storage and once the Session is finished the archive may be uploaded to a distribution server or to a locally attached USB drive.
Send a Stream to an RTMP Server – For live streaming the Presentation Recorder sends an RTMP protocol stream to a streaming server, CDN or Presentation Server where fanout occurs and the media is distributed to multiple receiving PC's or mobile devices. The server MUST be located at a high-bandwidth point on the network to provide for multiple outbound unicast streams, one for each attached receiver.
Send a Stream to an RTMP Server and Record to File – Supports live streaming using the RTMP streaming protocol and in addition simultaneously records to create a local archive. See the diagram and description above.
Send a Stream to an RTSP Server – For live streaming the Presentation Recorder sends an RTSP protocol stream to a streaming server, CDN or Presentation Server where fanout occurs and the media is distributed to multiple receiving PC's or mobile devices. The server MUST be located at a high-bandwidth point on the network to provide for multiple outbound unicast streams, one for each attached receiver. See diagram above. The RTSP protocol has been displaced by RTMP for most content distribution networks.
Send a Stream to an RTSP Server and Record to File – Supports live streaming using the RTSP streaming protocol and in addition simultaneously records to create a local archive. See the diagram and description above. The RTSP protocol has been displaced by RTMP for most content distribution networks.
NCast Corporation Revision 2.2
Page 15
NCast Presentation Recorder Reference Manual
Receive a Unicast or Multicast Stream – In this mode of operation the Presentation
Recorder is configured to receive a stream from another unit acting as a sender. The receiving unit decodes and renders the composite image created by the sender and displays it on the attached monitor. This configuration is frequently used to supply a display to an overflow room or satellite classrom.
NCast Corporation Revision 2.2
Page 16
NCast Presentation Recorder Reference Manual

3. Theory of Operation

3.1. PRESENTATION RECORDER COMPONENT BLOCK DIAGRAM

The Presentation Recorder consists of these main hardware functions:
Capture Hardware – A custom designed, high-performance module is used to grab and digitize the RGB or video signals created by the presenter or media source. This module accepts VGA, Y-Pr-Pb, DVI-I, HDMI, PAL/NTSC composite or PAL/NTSC S-Video connections and converts those signals to YUV digital format. Two of these inputs may be active simultaneously for generation of a picture-in-picture (PIP) display.
Central CPU – A general-purpose ARM processor is used to compress and decompress audio streams, to encapsulate and decapsulate outgoing and incoming packets streams, to enable the web interface, serial interface and telnet interface, and to prepare data for display on the attached monitor. A highly secure open­source operating system underlies and supports all of this functionality.
DSP – A custom DSP is used to compress and decompress YUV video and graphics images to H.264 streams.
Display Output Sub-system – Media streams, which are received and decoded, are presented on the attached display for viewing. Both RGBHV and component output (Y-Pb-Pr) are supported.
Audio Sub-system – A sound system with stereo input-output capabilities and with support for microphone and line-level inputs and line-level outputs is used to create the AAC audio streams transmitted in conjunction with the associated graphics or video imagery. Balanced XLR inputs are also supported
Ethernet Interface – Industry-standard ethernet connectors are used to connect the Presentation Recorder with the Internet network used for communications.

3.2. CAPTURE MODULE FUNCTION

The capture module selects one of the available six inputs (VGA, DVI-D, DVI-A, HDMI, Composite, S-Video) and locks onto the signal. The signal is converted into the appropriate digital formats, and each pixel in the image is stored in a local memory buffer on the module. Any required sizing and re-scaling is done in the module. At an appropriate time the pixels in module are transferred to the DSP where they are processed and compressed.
NCast Corporation Revision 2.2
Page 17
NCast Presentation Recorder Reference Manual
If PIP mode is enabled, two signals may be selected (exceptions: Composite and S-video share one video decoding chip and are the same signal, VGA and DVI-A share one input chip and are the same signal).

3.3. COMPRESSION

The digitized RGB signals are converted in format from an {R,G,B} representation to {Y,U,V}. Industry­standard compression algorithms implemented in the DSP are then used to reduce the source data to a more manageable size, and to generate sequences of I-P-B frames found in MPEG-4 media streams.

3.4. TRANSMISSION

The MPEG media stream is split into segments, which are then encapsulated into RTP packets according to the protocol standards set forth in IETF RFC 3016 or RFC 3984 (H.264). These packets are presented to the Ethernet hardware interface for subsequent transmission on the attached IP network.

3.5. DECOMPRESSION

The received packet stream is decompressed and the resulting image is placed into a video frame buffer. At that instant it will become visible to the receiving viewers.

3.6. DISPLAY FUNCTION

The display will output imagery from two different sources. If the unit is configured as the sending unit, a local copy of the captured image (prior to compression, but after capture and conversion to digital format) will be displayed. If the unit is a receiving unit, the displayed image will be from the remote sender.

3.7. AUDIO SUBSYSTEM

Each Presentation Recorder supports an audio subsystem consisting of an high-quality codec and associated input/output connectors. The unit has microphone and line-level input signals, and a line-level output signal. Each line-level connector supports stereo signals. An XLR connector provides for mono balanced audio input. Audio input via the HDMI connector is not currently supported.

3.8. ARCHIVE FLASH DISK

A flash memory card in the Presentation Recorder is available for recording transmitted sessions. The file format is standard MPEG-4 Part 10 (H.264, .mp4), which can be played on a variety of desktop client players, or these same files can be installed on a video-streaming server for on-demand playback over the Internet. All unit come with 32 GB of storage standard, and an additional 32 GB of storage may be purchased as an option.
NCast Corporation Revision 2.2
Page 18
NCast Presentation Recorder Reference Manual

4. Quick Start Configuration and Setup

4.1. QUICK START PAGE ORGANIZATION

The Quick Start page is the primary control page for the Presentation Recorder and has six distinct functional areas:
• Channel Selection – A Channel is a preset or template containing all layout and startup parameters
• Source Selection – Input connectors are assigned to the active windows in a video frame
• Streaming Control – Streaming session activity on a Channel is started or stopped
• Recording Control – Recording of a session on a Channel is started, paused or stopped
• Status Bar – A real-time display of session activity and input signal status
• Control Icons – Special controls to power-off the unit, reboot and several other functions
Control Icons
Channel Presets/Templates
Video/Audio Source Selection
Streaming Controls
Recording Controls
Status Bar
With the Quick Start page the sequence of operations required to activate a streaming/recording session may be summarized as follow:
1. Select a Channel layout.
2. Select the appropriate video and audio sources.
3. Start a streaming session.
4. Start recording.
5. Stop recording.
6. Stop the streaming session.
NCast Corporation Revision 2.2
Page 19
NCast Presentation Recorder Reference Manual

4.2. CHANNEL SELECTION

A Channel is a preset containing all the layout and startup parameters needed for a streaming or recording session. There are seven categories of channel parameters:
• General – The Channel name and the type of Channel operation desired.
• Layout – The frame size, aspect ratio, position of the Main and PIP windows and graphical overlays.
• Quality – The video and audio quality desired and respective bit-rates.
• Network – The Channel's multicast or unicast addresses.
• Recording – Archive filenames and other recording parameters.
• Upload – Disposition of the archive file once the recording has completed.
• Notifications – Email messages to the administrator of the Channel.
The Quick Start page allows for a limited selection of factory default settings. More comprehensive modifications to a Channel are done from the Channels tab.
The first dialog box allows selection of a number of standard bit-rates and the upload of custom graphics for overlay.
Select the lower speeds for material that is mainly graphics and the higher bit-rates for video material.
NCast Corporation Revision 2.2
Page 20
NCast Presentation Recorder Reference Manual
Graphical overlays are JPEG, GIF or PNG images that may be used to fill in or overlay areas of the frame being captured. Create a custom graphic in your favorite photo editing program and upload it to the Channel by selecting “Customize Overlays”. Make sure the dimensions are correct as the Recorder does not do any scaling of the incoming picture.
When all selections have been made the new Channel will be ready for use and the new layout will appear on the locally attached monitor.

4.3. SOURCE SELECTION

The selection of which input signal (connector) to use for the Main and the PIP windows is accomplished by clicking the Video button in the Sources area. This selection may be changed at any time during a recording. The Swap button will exchange the Main and PIP window settings. The “Main Full” or “PIP Full” will expand the Main or PIP window to fullscreen.
Similarly, the audio inputs are selected by the audio button. Choices include:
• Mic – Microphone jack input
• Line-in – Line jack input
• XLR – Balanced audio input
• Input gain – Input level adjustment for the above inputs
• Output gain – Speaker output level
NCast Corporation Revision 2.2
Page 21
NCast Presentation Recorder Reference Manual
• Loopback gain – Controls the feed from the input signal to the output. Watchout for feedback!
The other buttons on this line control these functions:
• Advanced – Fine adjustment and positioning of the images.
• Overlays – Shows or hides the graphical or text overlays, allows edit of text overlays.
• Preview – Creates a static image of the frame being captured.

4.4. STREAMING START/STOP

The Streaming Start button activates a streaming/recording session based on the Channel parameters and the selected video and audio sources.
Once activated the View button allows reception of the transmitted stream using an appropriate media player.
NCast Corporation Revision 2.2
Page 22
NCast Presentation Recorder Reference Manual

4.5. RECORDING

The Recording button starts the recording and archiving of the video/graphics/audio media being presented. A recording may be Paused and Resumed, and if Stopped and then Started a second file will be created.
The Title button allows entry of metadata for the recorded file (Title, Presenter, Description).

4.6. STATUS BAR

The Status Bar at the bottom of the page creates a real-time report of the activity underway and has indicators for Streaming and Recording operations and the state of the selected Main and PIP input signals.
Clicking the righthand grey panel collapses the Bar and hides it from view.

4.7. CONTROL ICONS

The upper righthand corner of the page contains two Control Icons:
NCast Corporation Revision 2.2
Page 23
NCast Presentation Recorder Reference Manual
Clicking the green arrow expands the slider to reveal an additional set of Icons:
The function of these Icons (left to right) is listed below.
4.7.1. Reboot
Restarts the unit and reinitializes all processes. This operation may be needed to clear problems after a power brownout or other unexpected glitch
4.7.2. Shutdown
Powers down the encoder. It is HIGHLY recommended to power off the equipment with this Icon rather than simply pulling the plug. All operating parameters will be properly saved and restored.
4.7.3. Factory Defaults
Restores all Channels and other settings to their factory default. All configuration information will be lost. Nothing is saved and the reset is irreversible.
4.7.4. Export Settings
Once a recorder has been setup and configured, it's highly recommended to export all settings to save the configuration of the unit for easy restore or repair.
Clicking the Export button will create and download a .zip file with all of the checked information.
4.7.5. Import Settings
To restore an encoder to a previously configured state, press Import Settings and locate the previously exported .zip file.
NCast Corporation Revision 2.2
Page 24
NCast Presentation Recorder Reference Manual
4.7.6. Software Update
NCast regularly releases new software revisions for its encoders with many updated features, new functionality and bug fixes. The Software Update Icon brings up a dialog box with these choices:
• Network – The update will use the Internet to reach NCast's update server.
• USB Disk – The encoder is “off net” and a USB thumb drive will supply the required files.
The Network option is normally used to update the encoder, and in the case of a closed or secure network requiring USB drive files, please contact a customer support person at NCast for assistance in doing a USB update.
To do an Update, first use the Status tab to determine what release the encoder is currently using. Then click on the Software Update Control Icon and select “Network”.
After the Network selection is made, the dialog panel displays the update revision levels available:
If the encoder is not on the latest release, select the desired revision and click “Update”. All necessary update files will be downloaded over the net and the encoder will reboot once the new firmware has been installed.
The Support section on NCast's website contains Release Notes outlining what features or fixes have been implemented in the latest firmware.
The Software Update dialog box lists the current release(s) of software available for this Presentation Recorder. If no information is listed then there is a problem reaching the update server. The network Update Tool requires HTTP access to the external Internet to function correctly. If this access is fire-walled or if the HTTP proxy settings are not correctly employed, then update listings and software updates are not available. There may also be a problem with the settings for the DNS servers as well.
Once the “Update” button is pressed the Presentation Recorder downloads a list of required files and their timestamps. Files which are missing or out-of-date are downloaded and installed. The unit will then reboot and becomes ready for service again with the new software release.
Configuration files are not altered during this process. All Unit, Channel, Source and other settings should remain intact through this update.
File system verification and new file download may take some time, so allow the unit to reboot on its own and do not prematurely hit the reset switch as that could damage the filesystem and cause the unit to fail to restart.
NCast Corporation Revision 2.2
Page 25
NCast Presentation Recorder Reference Manual

5. The Channel Table

5.1. CHANNEL SETTINGS

A “Channel” is a preset or template, a collection of parameter settings that defines the operating characteristics for a streaming webcast or a recording session. Just as Channel 2 on your TV defines the video carrier to be “55.25 MHz.”, Channel 2 on a Presentation Recorder might define the graphics multicast address to be “239.192.0.1”. There are many parameters associated with a Channel, items like the video and audio multicast or unicast addresses, port numbers, MTU’s, codecs, bit rates, layouts, overlays and modes of operation. Think of a Channel as a type of “preset” for all of those parameters. There are 25 Channels allowed, so 25 different presets are available for definition.
By default, the encoder comes with 25 factory-defined Channel layouts for the most commonly used inputs and compositions. These layouts are not “fixed” permanently, but simply examples of commonly used arrangements. Any Channel may be completely customized by the customer simply by overriding the factory default settings.
Once the Channel settings have been established, typically by the administrator of the Presentation Recorder, or maybe the IT or Network department within an organization, they will not be changed by ordinary users of the Presentation Recorder. The user is instructed to “Use Channel 2” and no further detailed instructions are required.
When a Channel is started the Presentation Recorder begins its broadcast or recording Session. All of the many Channel parameters are transferred to the working Session parameters and the encoding and layout parameters defined by the Channel become the current encoding mode and layout of the Presentation
NCast Corporation Revision 2.2
Page 26
NCast Presentation Recorder Reference Manual
Recorder. Any changes or updates to the Channel Table have no effect on the Session until the next Session start.
Session parameters which may be changed or updated appear on the Quick Start page and on the Custom page. Windows and Overlays may be altered during a Session, but the initial Frame size and aspect ratio may not change. The Frame size MUST remain fixed during a Session.
5.1.1. Channel Initiation
At the left edge of each channel icon is a Start button. Pressing this button activates all the parameters for the Channel and a new Session based on these settings is started.
5.1.2. Channel Modification
Setup of a Channel, started by pressing the “Edit” key, is divided into seven parts:
• General – Channel name, description and the type of operation
• Layout – Frame size and placement of the Main and PIP windows
• Profile – Bit-rate, frame-rate and quality settings
• Network – Setup of multicast and unicast addresses, MTU's and TTL
• Recording – Recording filename, title and description
• Upload – FTP or Secure FTP server names and passwords, USB or Presentation Server
• Notifications – E-mail reports of important Channel events
The paragraphs which follow describe in detail each of these parts.
5.1.3. Channel Export/Import
A Channel's setup with all required parameters and settings may be exported to a .zip file. This provides for off-line backup. Use of the Import button allows restoration of the channel, or copying of the parameters from one channel to another.

5.2. EDIT CHANNEL – GENERAL

5.2.1. Set Channel Name
Each channel can be assigned a name, and these names can reflect the functional use of the channel. The factory default settings name the channels in correspondence with their layout properties. Another example might be “International Sales Team Update” for corporate usage, “Engineering Collaboration” in the case of departmental usage, “San Francisco” designating some geographical assignments, or “Chemistry 101” designating course related usage. Additional descriptive text may be added in the “description” field.
NCast Corporation Revision 2.2
Page 27
NCast Presentation Recorder Reference Manual
As a specific example, a Presentation Recorder might set up the following 3 channel assignments:
Channel 1 – The PR-HD unit transmits using multicast address 239.192.0.0
Channel 2 – The PR-HD unit receives using multicast address 239.192.0.0
Channel 3 – The PR-HD unit initiates an Automatic Unicast to the required CDN.
Enter a descriptive name for the channel that makes sense to the administrators or users.
5.2.2. Select Channel Scenario
The PR-HD has eight basic modes of operation:
• Recording – The unit is placed into record-only mode. No stream for internet use is generated.
This mode enables the highest quality capture at the highest frame rates.
• Streaming Send – The unit will be transmitting in a one-way, one-to-many (multicast only)
session to other units or remote desktops.
• Streaming Send with Recording – The unit will be transmitting in a one-way, one-to-many
(multicast only) session to other units or remote desktops. Simultaneous recording is enabled.
• Streaming with RTMP - The unit will utilize the services of a streaming server for rebroadcast
(reflection) of the incoming stream. Through use of the RTMP protocol live streaming to CDN's, Adobe FMS, Wowza, Evostream and other reflecting servers becomes possible.
• Streaming with RTMP and Recording – Same as above but simultaneous recording is enabled.
• Automatic Unicast using RTSP – The unit will utilize the services of a streaming server for
rebroadcast (reflection) of the incoming stream. Through use of the RTSP protocol an announcement is sent to the server indicating a new streaming session is starting.
NCast Corporation Revision 2.2
Page 28
NCast Presentation Recorder Reference Manual
• Automatic Unicast using RTSP and Recording – Same as above but simultaneous recording is
enabled.
• Streaming Receive – The unit will be receiving a transmission from some other source on this
network.
5.2.3. Select Media
The media choices:
◦ Video & Audio – Record with all media, video and sound
◦ Video – Create a video recording with no sound
◦ Audio – Create an audio recording with no video
5.2.4. Auto Start Session
If the “Auto-Start” checkbox is enabled on a Channel, then Session activity for that Channel will automatically resume when the unit is rebooted or restarted after a power failure.
5.2.5. Auto Start Recording
Recording starts and stops when the Session starts and stops.

5.3. EDIT CHANNEL – FRAME SIZE

5.3.1. Set Frame Size
The Frame Size defines the dimensions of the Frame, a surface (capture surface or “the canvas”) which is the primary imaging surface on which the composite image (Main window + PIP window + Overlays) is drawn. The resolution and aspect ratio of the transmitted or archived media stream aligns exactly with the resolution and aspect ratio of the Frame. Consequently, selection of one of the default frame sizes and aspect ratios, or definition of a custom Frame Size and possibly a custom Aspect Ratio is the first step in defining the format of the media stream which will be produced by the Presentation Recorder. The Frame
NCast Corporation Revision 2.2
Page 29
NCast Presentation Recorder Reference Manual
can have any dimension or aspect ratio, with the limitation that the maximum dimensions are 1280 x 720 for the PR-HD-Basic model.
Once the frame is defined, the next step is the (X,Y) placement and (W,H) sizing of the primary or “Main” image window/stream. Typically the “Main” stream is sized at “Full-screen” which means that the primary stream is scaled to the full dimensions of the frame. It is useful to note, however, that the primary stream can be dimensioned to a smaller size than the full frame size. The unused space might then be reserved for the secondary image stream (the PIP image, but placed outside the boundaries of the Main image) and possibly an overlay graphic. A “Main” and “PIP” side-by-side composition would also dictate that the Main image only occupies one-half of the capture surface area.
5.3.2. Set Aspect Ratio
The aspect ratio of an image is the visual width divided by the visual height. For most computer systems “square pixels” are displayed, so the aspect ratio of the image is the pixel width divided by the pixel height. In video systems, however, often “non-square’ pixels are displayed and the aspect ratio differs from the pixel width to height ratio. The Frame Size (see 5.3.1. above) only determines the pixel dimensions of an image. For proper display the aspect ratio must be specified and used to render the final image.

5.4. EDIT CHANNEL – LAYOUT

5.4.1. PIP
If the “PIP” window is enabled, its (X,Y) placement and (W,H) dimensions are overlaid on the frame. Typically this might be in the upper-right or lower-right corner of the frame. The PR-HD Series user has the option of determining if the PIP window obscures any portion of the Main window. It can be placed on top of or outside of the Main image.
5.4.2. PIP Border
If this control is selected a small border is drawn around the PIP window.
NCast Corporation Revision 2.2
Page 30
Loading...
+ 83 hidden pages
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
