Assembly Instructions - Please keep for future reference
Cat No.
WT417

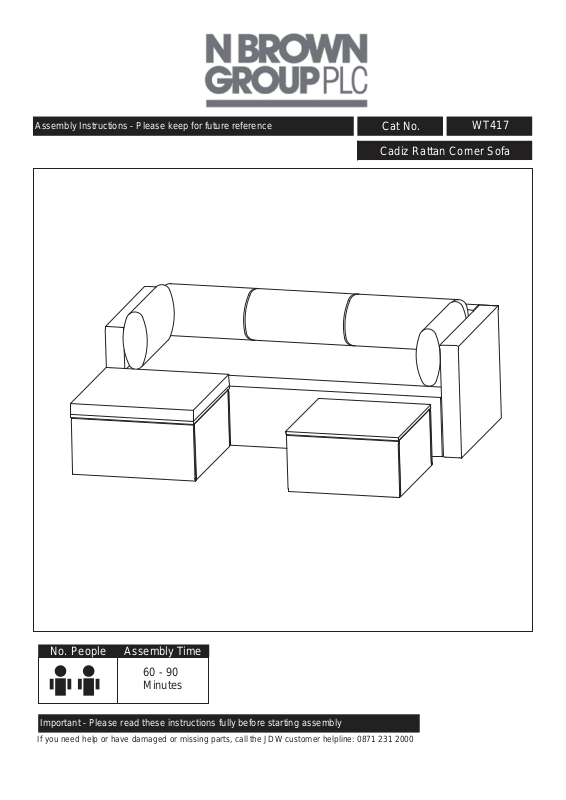

Cadiz Rattan Corner Sofa
No. People Assembly Time
60 - 90
Minutes
Important - Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the JDW customer helpline: 0871 231 2000
Page 2
Safety and Care Advice
Important - Please read these instructions fully before starting assembly
• Check you have all the
components and tools
listed on the next pages.
•
plastic bags and seperate
them into their groups.
• Keep children and animals
away from the work area,
small parts could choke if
swallowed.
Care and Maintenance
• Please clean using cloth
with glass cleaner, do not
use bleach or abrasive
cleaners.
• Make sure you have
enough space to lay out
the parts before starting.
• Do not stand or put weight
on the product, this could
cause damage.
• Assemble the item as close
same room) as possible.
• Assemble on a soft, level
surface to avoid damaging
• From time to time check
that there are no loose
screws on this unit.
• We do not recommend the
use of power
drills/drivers
for inserting
screws as this
could damage
the unit. Only use hand
screwdrivers.
• This product should not be
discarded with household
waste. Take to your local
authority waste disposal
centre.
Warning
Important - In order to help prevent overturning, this product must be used with the wall anti-tip
strap/device provided.
• To help prevent product toppling over please follow the below steps:
• Use the anti-tip strap/device provided.
• Do not allow children to climp or hang on the furniture.
• Do not place heavy items on top of the furniture, unless the furniture has been designated for
this purpose.
Please note that only the anti-tip strap/devices and screw are provided, you will need to provide
wall plugs and screws applicable for your wall type.
If you need help or have damaged or missing parts, call the JDW
customer helpline: 0871 231 2000
If you are unhappy with the product and wish to return it,
please follow the retailer’s returns procedure.
Page 3
Exploded View
K
H
I
J
I
J
G
F
S
E
G
F
A
R
R
B
Q
R
C
R
R
D
Page 4
Components - Panels
Please check that you have all the components listed below before constructing your item.
Part No Description Qty
A 1
B 1
C 1
D 1
E 1
F 2
G 2
H 1
I 2
J 2
K 1
Q 1
R 5
S 1
Page 5
Components - Fixings
Please check that you have all the components listed below before constructing your item.
L 8
M 7
N 32
O 47
P 1

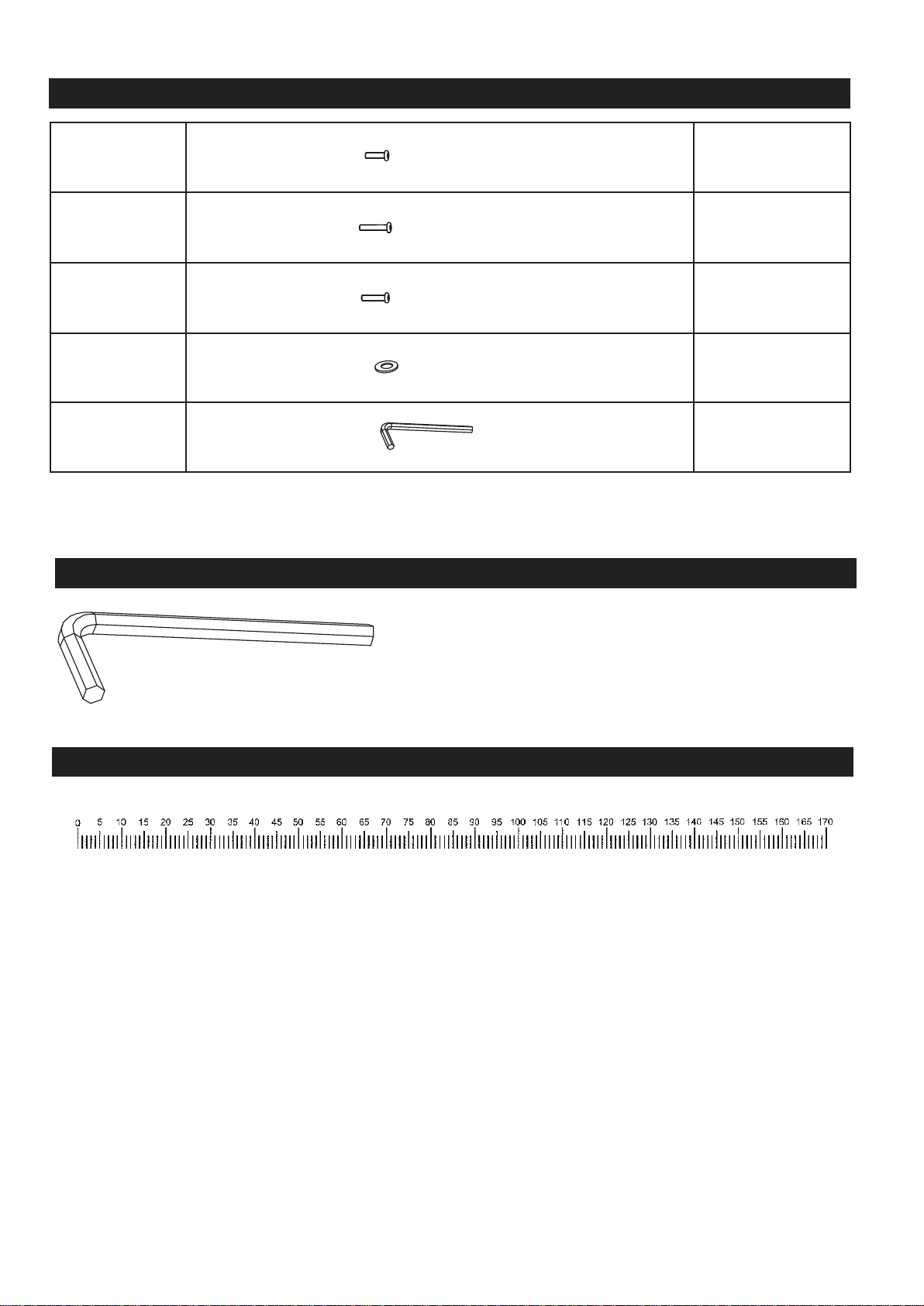

Tools Required
M6x25mm
M6x35mm
M6x30mm
M6
Allan Key
Ruler - Use this to measure your screws (mm)
Page 6
Assembly Instructions
Note: All Bolt Head Caps and Nut Caps should not be attached before finally
tightening all Bolts with the Allen Key.
Only tighten all bolts when you are satisfied with the alignment of all components.

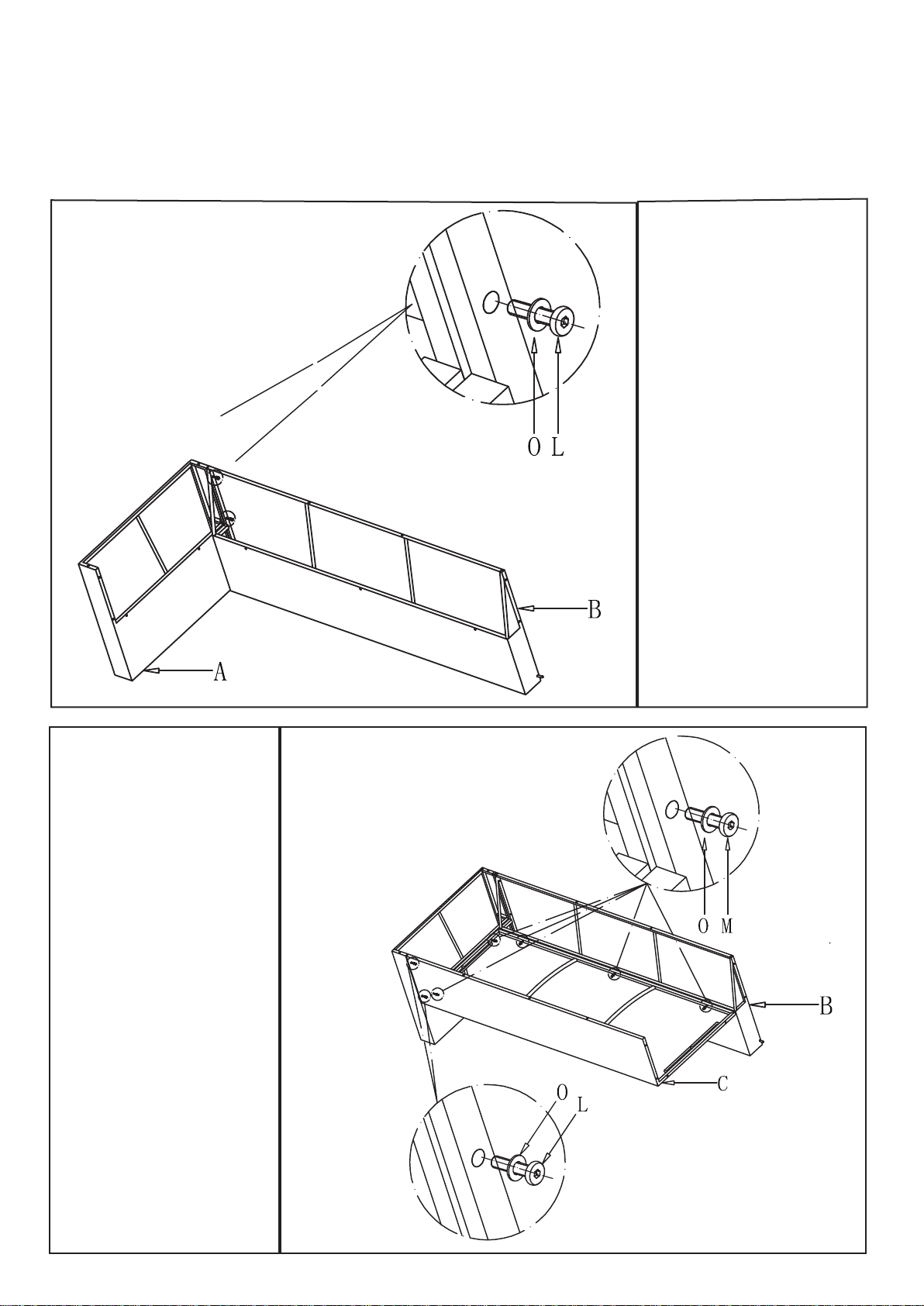

Step 1
Connect the sofa
•
back part (Part B)
with the left
armrest part
(Part A), fasten
them together by
bolts (Part L) and
washers (Part O).

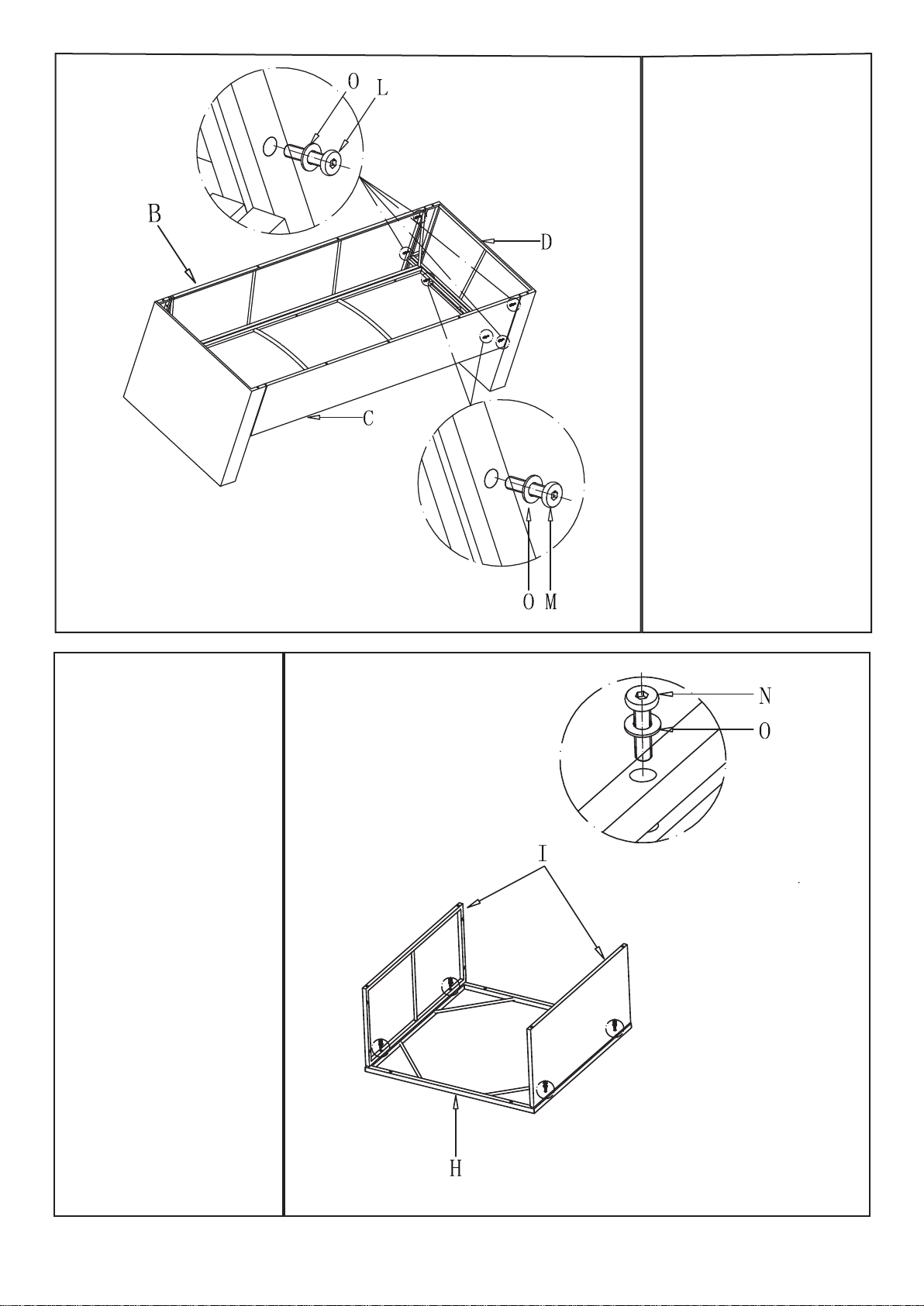

Step 2
• Connect the sofa
back part (Part B)
with the seat part
(Part C), fasten
them together by
bolts (Part M) and
washers (Part O).
• Fasten the seat
front with the left
armrest part by
bolts (Part L) and
washers (Part O).
Page 7
Step 3
Connect the sofa
•
right armrest part
(Part D) with the
back part (Part B)
and seat front,
fasten them
together by bolts
(Part L) and
washers (Part O).
• Fasten the seat
part (Part C) with
the right armrest
part (Part D) by
bolts (Part M) and
Step 4
• Connect the table
top part (Part H)
with the leg part
(Part I), fasten
them together by
bolts (Part N) and
washers (Part O).
washers (Part O).
Page 8
Step 5
• Connect the other
leg part (Part J)
with table top,
fasten them by
bolts (Part N) and
washers (Part O).
Fasten the leg
part (Part J) with
the leg part
(Part I) by
bolts (Part N) and
washers (Part O).

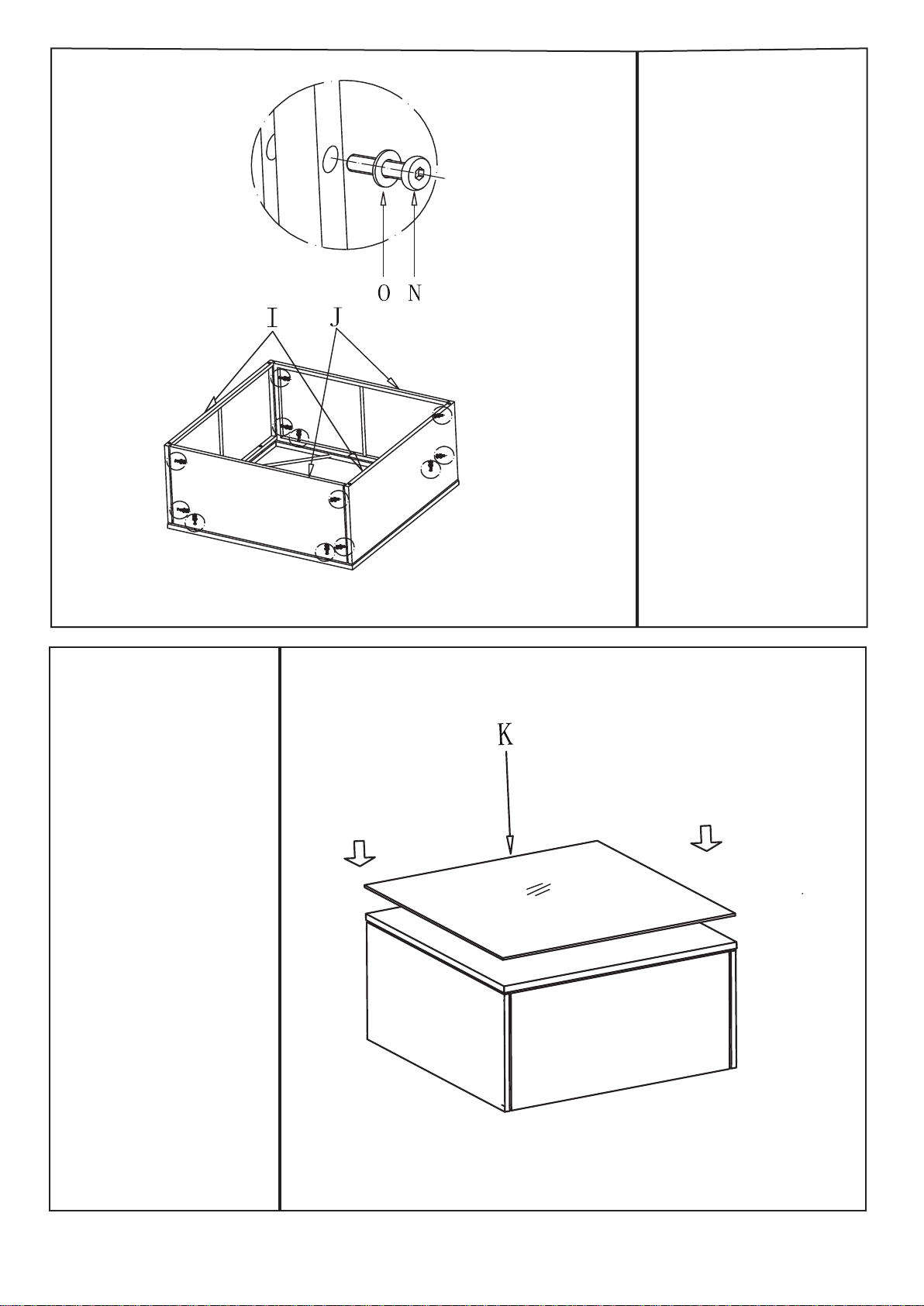

Step 6
• Put the table
glass (Part K) on
the table top.
Page 9

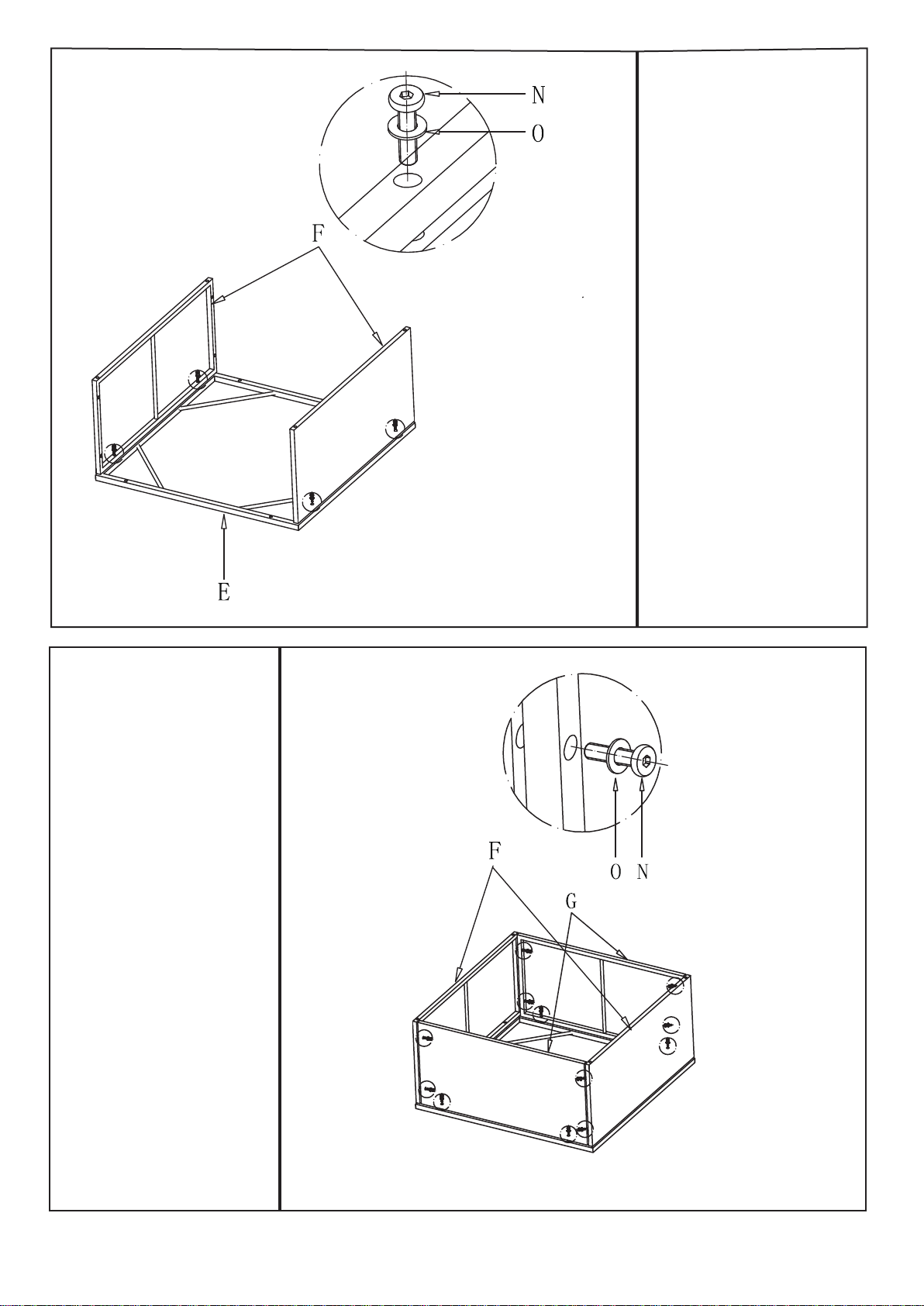

Step 7
• Connect the
ottoman seat
part (Part E)
with the leg part
(Part F), Fasten
them together by
bolts (Part N) and
washers (Part O).
Step 8
• Connect the other
leg part (Part G)
with ottoman seat
part(Part E),
fasten them by
bolts (Part N) and
washers (Part O).
Fasten the leg
part (Part F) with
the leg part
(Part G) by
bolts (Part N) and
washers (Part O).
Page 10

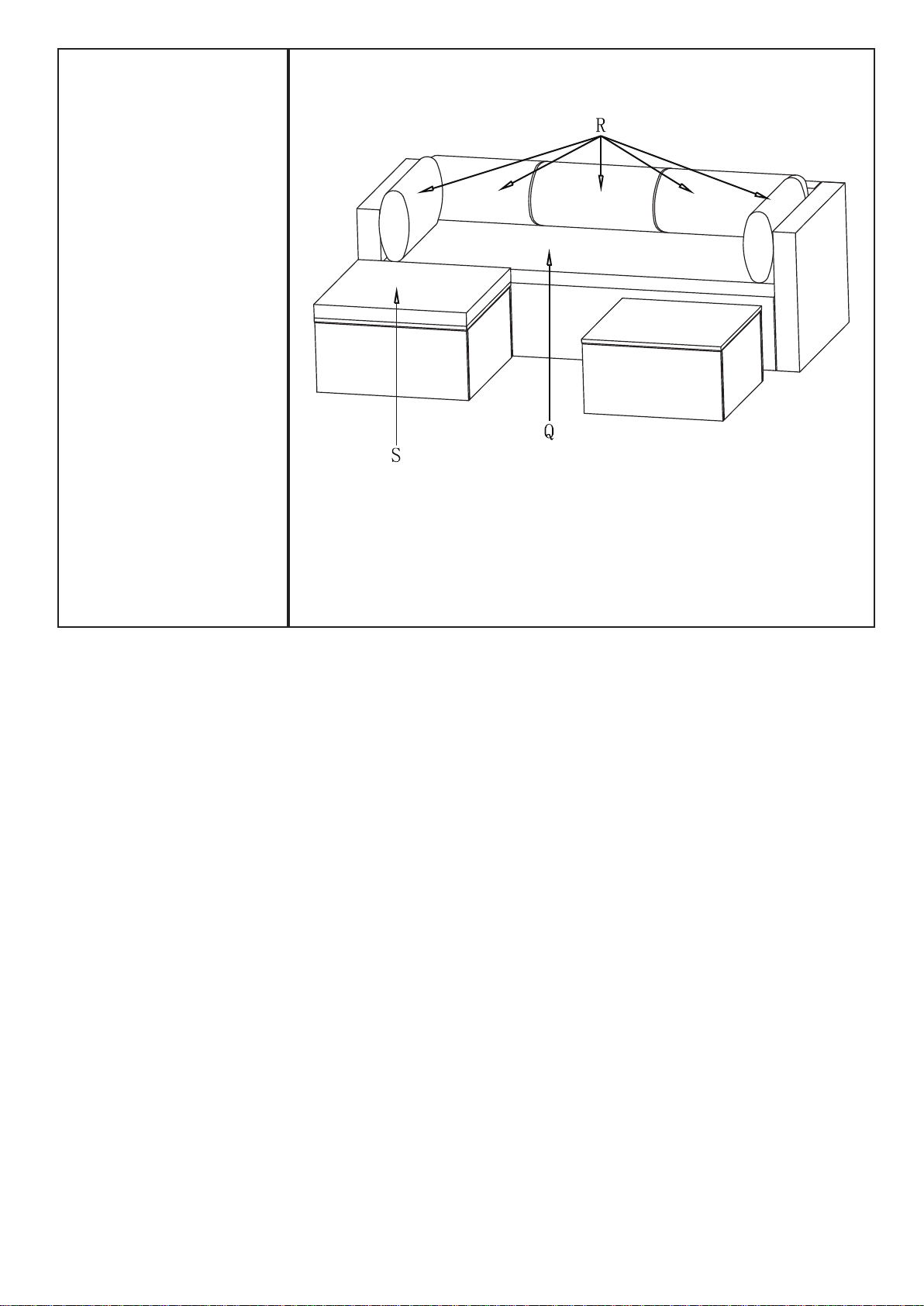

Step 9
• Put the cushions
(Part Q, Part R
and Part S)
on the seat.
CARE AND CLEANING:
1. TO CLEAN,WIPE WITH DAMP CLOTH.DO NOT USE BLEACH,ACID SOLVENTS OR ABRASIVE CLEANERS
OR FRAME PARTS.
2. DURING VARYING WEATHER CONDITIONS AND WINTER PERIOD,WE STRONGLY RECOMMEND THAT
IT CAN BE.STORED IN A DRY AREA
WITH A SUITABLE COVER BEFORE STORAGE,PLS INSURE IT IS CLEAN AND DRY.
3
.
PERIODICALLY CHECK AND ENSURE THAT ALL THE SCREWS ARE COMPLETELY TIGHTEN.
4
A MATCHING FURNITURE COVER IS STRONGLY RECOMMENDED TO EXTEND THE USAGE LIFE-SPAN.
.
