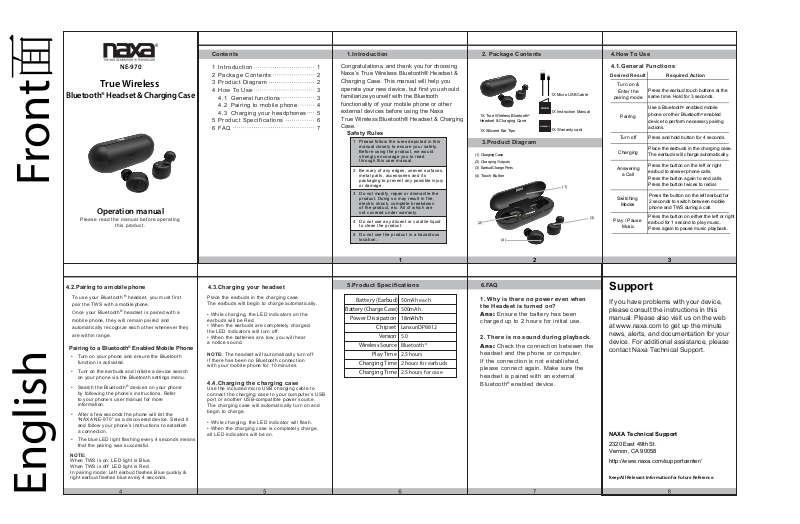

NAXA NE-970 User Manual

NE-970

True Wireless

Bluetooth® Headset & Charging Case

Front面

Operation manual

Pleas e read the manual before operat ing

this product.

Content s

In troduction

Pa ckage Content s

Product Diagram

How To Use

4. 1 G eneral functions

4. 2 P airing to mobile phone

4. 3 Charging y our headphones

Product Spec if ications

FAQ

1.Introduction 2. Package Content s

Congratulations, and thank you f or choosing

Naxa’s True Wireless Bluetooth® Headset &

Charging Case. This manual will help you

operate your new device, but first you should

familiarize yourself with t he Bluetooth

functionality o f your mobile phone or other

external devices before using the Naxa

True Wireless Bluetooth® Headset & Charging

Case.

Safety R ules

1 Please follow t he rules depicted in t his

manual closely to ensure your safet y. Bef ore using the produc t, we would strongly encourage you to read through this user manual.

2 Be wary of any edges, unev en surfaces,

metal parts, a ccessories and its packaging to prevent any possible injury or damage.

Do not modify, repair or dismantle th e

product. Doing so may result in fire, electric shock, complete breakdown of the product, e tc. All of whic h are not covered under warranty.

Do not us e any diluent or v olatile liquid

to c lean the product.

Do not us e the product in a hazardous

location.

1 2 3

1X True Wireless Bluetooth Headset & Charging Case

1X Silicone Ear Tips

3.Product Diag ram

(1) Charging Case

(2) Charging Outputs

(3) Earbud Charge Ports

(4) Touch Button

(2)

(4)

4.H ow To Use

4.1 .General Functions

Desired Result Required Action

Turn on &

1X Micro USB Cable

1X Instruction Manual

WARRANTY

1X Warranty card

(1)

Enter the

pairing mode

Turn off

Charging

Answering

Switching Modes

(3)

Play / Pause

Press the earbud touch buttons at the same time. Hold for 3 seconds.

Use a Bluetooth phone or other Bluetooth® enabled

Pairing

device to perform necessary pairing actions.

Press and hold button for 4 seconds.

Place the earbuds in the charging case. The earbuds will charge automatically.

Press the button on the left or right earbud to answer phone calls.

a Call

Press the button again to end calls. Press the button twices to redial.

Press the button on the left earbud for 2 seconds to switch between mobile phone and TWS during a call.

Press the button on either the left or right earbud for 1 second to play music.

Mus

Press again to pause music playback.

enabled mobile

4.2.Pairing to a mobile phone

To us e your Bluet ooth

pair the TWS with a mobile phone.

Onc e your Bluetooth® headset is paired with a

mobile phone, they will remain paired and

automati cally recognize each other whenever they

are within range.

Pairing to a Bluetooth

Turn on your phone and ensure the Bluetooth

•

function is a ctivated.

• Tunr on the earbuds and initiate a device search on your phone via the Bluetooth settings menu.

• Search the Bluet ooth by following the phone’ s instructions. Ref er to your phone’s user manual for more information.

• After a few seconds the phone will list the “NAXA NE-970” as a disc overed device. Select i t and follow your phone’s instructions to establish a connecton.

• The blue LED light flashing every 4 seconds means that the pairing was successful.

NOTE:

When TWS is on: LED light is Blue. When TWS is off: LED light is Red. In pairing mode: Left earbud flashes Blue quickly & right earbud flashes blue every 4 seconds.

headset, you must first

Enabled Mobile Phone

devices on your phone

English

4.3 .Charging your headset

Place the earbuds in the charging case. The earbuds will begin to charge automatically.

• While charging, the LED indicators on the

earbuds will be Red.

• When the earbuds are completely charged,

the LED indicators will turn off.

• When the batteries are low, you will hear

a notice sound.

NOTE: The headset will automatically turn off if there has been no Bluetooth connection with your mobile phone for 10 minutes.

4.4 .Charging the charging case

Use the included micro USB charging cable to connect the charging case to your computer’s USB port or another USB-compatible power source. The charging case will automatically turn on and begin to charge.

• While charging, the LED indicator will flash.

• When the charging case is completely charge,

all LED indicators will be on.

5.Product Specifications 6.FAQ

Battery (Earbud)

Battery (Charge Case)

Power Dissipation

Chipset

Version

Wireless Source

Play Time

Charging Time

50mAh each

500mAh

18mAh/h

LanxunDP8812

5.0

Bluetooth®

2.5 hours

2 hours for earbuds

2.5 hours for case

1. Why is th ere no power even when the Headset is t urne d on?

Ans: E nsure the battery has been charged up to 2 hours for init ial use.

2. There is no sound during playback.

Ans: Check t headset and the phone or comput er. If the connection is not est ablished, please connect again. Make sure the headset is paired with an external Bluetoot h

he connection between th e

enabled device.

Support

If you have problems with your device, please consult the instructions in this manual. Please also visit us on the web at www.naxa.com to get up the minute news, alerts, and documentation for your device. For additional assistance, please contact Naxa Technical Support.

NAXA Technical Support

2320 East 49th St. Vernon, CA 90058

http://www.naxa.com/supportcenter/

Keep All Relevant Information for Future Reference.
