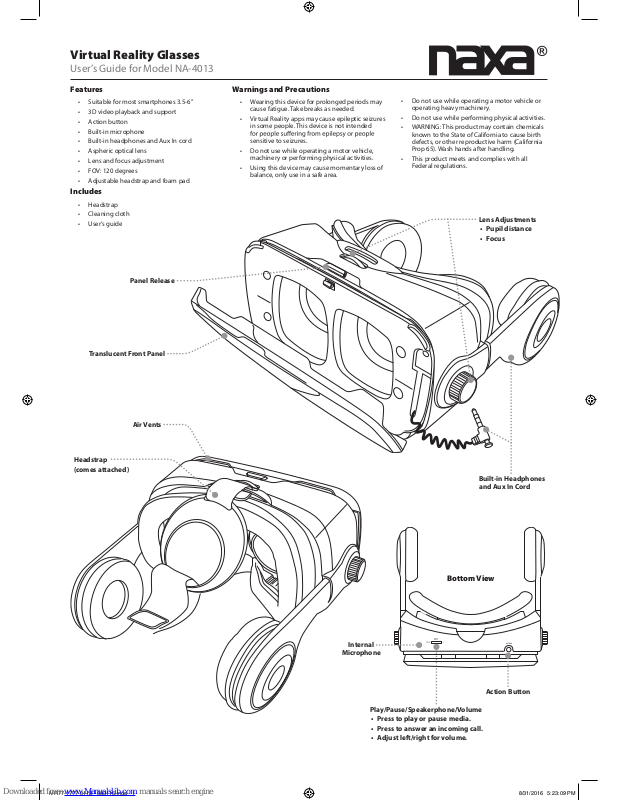

Virtual Reality Glasses
User’s Guide for Model NA-4013
Headstrap
(comes attached)
Air Vents
Action Button
Internal
Microphone
Bottom View
Translucent Front Panel
Built-in Headphones
and Aux In Cord
Panel Release
Features
• Suitable for most smartphones 3.5-6”
• 3D video playback and support
• Action button
• Built-in microphone
• Built-in headphones and Aux In cord
• Aspheric optical lens
• Lens and focus adjustment
• FOV: 120 degrees
• Adjustable headstrap and foam pad
Includes
• Headstrap
• Cleaning cloth
• User’s guide
Warnings and Precautions
• Wearing this device for prolonged periods may
cause fatigue. Take breaks as needed.
• Virtual Reality apps may cause epileptic seizures
in some people. This device is not intended
sensitive to seizures.
• Do not use while operating a motor vehicle,
machinery or performing physical activities.
• Using this device may cause momentary loss of
balance, only use in a safe area.
• Do not use while operating a motor vehicle or
operating heavy machinery.
• Do not use while performing physical activities.
• WARNING: This product may contain chemicals
known to the State of California to cause birth
defects, or other reproductive harm (California
Prop 65). Wash hands after handling.
• This product meets and complies with all
Federal regulations.
Lens Adjustments
• Pupil distance
• Focus
Play/Pause/Speakerphone/Volume
• Press to play or pause media.
• Press to answer an incoming call.
• Adjust left/right for volume.
IVR77-1777-01-IB - 083116.indd 1 8/31/2016 5:23:09 PM
Specifications Support
NAXA Technical Support
Optical Adjustments Diopter (up to 600 degrees)
IPD (Interpupillary Distance)
DIf you have problems with your device, please consult the instructions in this manual. Please
also visit us on the web at www.naxa.com to get up to the minute news, alerts, and
documentation for your device. For additional assistance, please contact Naxa Technical Support.
2320 East 49th St.
Vernon, CA 90058
http://www.naxa.com/supportcenter/
Naxa Electronics
Weight 15.70 oz
Controller (NA-4013
only)
Power: 2 x AAA batteries (not
included)
Smartphone
compatibility
iPhone or Android OS
Screen sizes: 4 to 6 inches
Maximum phone width: 3.35 in (85mm)
Maximum phone height: 6.30 in (160mm)
Note: Product are improved continuously. We reserve the right to modify the product and
specifications without prior notice.
Controls: thumbstick, 6 buttons + 2
triggers
Wireless technology: Bluetooth® 3.0
Field of View 90-100 degrees
