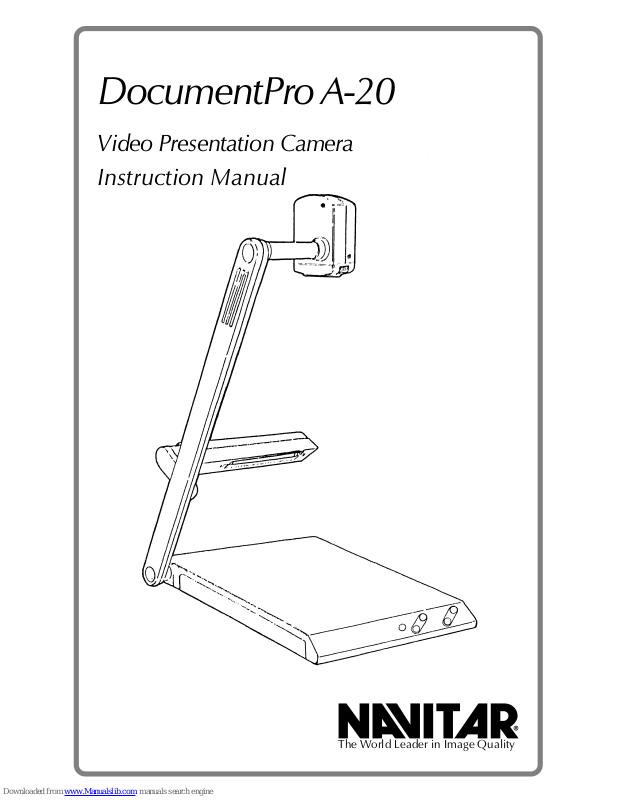

DocumentPro A-20
Video Presentation Camera
Instruction Manual
The World Leader in Image Quality
2
3
Table of Contents
4 Safety Precautions
6 Features and Benefits
7 System Diagrams
9 Operation
10 Specifications
11 Warranty
4
Safety Precautions
Safety Precautions
T o prevent damage to the equipment and operating
personnel, please observe the following precautions:
Make sure that the voltage source contains a satisfactory
path to ground.
Do not operate the unit where fluids can come into
contact with the electrical components.
When changing the bulb:
• Disconnect the electrical supply.
• Allow the unit to cool.
• Use a 4 watt fluorescent lamp, which you can purchase
from your authorized Navitar dealer .
There are no user serviceable components (other than
changing the lamp). Opening the unit will expose
dangerous voltage levels and sensitive electronic
components. A qualified technician should perform all
repairs.
T o prevent the unit from damaging condensation and
thermal shock, certain procedures must be followed:
• In cold weather, always put the unit in a moisture proof
container or enclosure before transporting.
• Either keep the unit warm during transportation, or allow
sufficient time for it to warm up at the destination. Keep
the unit in the original moisture proof package while it
warms up. (The goal is to prevent warm, moist air from
striking the cold electronic and optical components,
which will cause damaging condensation.)
5
Safety Precautions
Safety Precautions
• Unplug this unit from the wall outlet when it is not being
used for a long period of time. To disconnect the cord,
pull it out by grasping the plug. Never pull it out by the
cord itself.
• The fluorescent lamps can get hot during operation. Do
not touch the lamp during operation or when collapsing
the arm.
• Clean the lens and LCD monitor screen with an air
spray or soft dry cloth.
• Clean the cabinet with a soft cloth, lightly moistened
with a mild detergent solution. Never use any type of
solvent such as alcohol or benzene, which will damage
the finish.
6
Features and Benefits
Features and Benefits
High Resolution:
The Navitar DocumentPro A-20 lets you easily capture
and present typed documents with its 470 TV line
camera. It is possible to display documents, as well as
other small items, including 2-D and 3-D objects.
Analog Composite Video and S-Video Outputs:
The analog Composite Video features Composite Video
and S-Video outputs, allowing the user to output to a color
monitor , projector or VCR.
18X Zoom Lens and 12X Digital Zoom Lens:
The built-in 18X power zoom lens plus 12X digital zoom
lens, offers high-powered zoom magnification. It is easy
to operate with push button controls and auto focus.
Compact and Lightweight:
Its small, lightweight design makes the DocumentPro
extremely portable. After use, the streamlined unit folds
down flat for easy and compact storage.
Other Features:
• RS-232 Control
• Open table area provides flexibility when placing and
moving documents or objects on the stand.
• Built-in auxiliary light illuminates and enhances
detail.
• Camera head tilts 90 degrees and the close-up lens
flips down for use of the unit as a videoconference or
room camera.
• Built-in push button image frame memory .
7
System Diagrams
Front View
Rear Panel
Right Side View
1. Camera
2. Lens
3. Arm light
4. Stage
5. Zoom controls
6. Iris controls (Step up/
step down)
7. Image memory switch
8. Power switch
9. AC inlet
10. S-Video output terminal
1 1. Composite Video
output terminal
12. RS-232 output connector
System Diagrams
Controls
1. Camera: The camera can be tilted upwards as much
as 90 degrees so it can also be used as a room
camera for videoconferencing.
2. Lens: A close-up lens is attached to the bottom of
the camera. To detach, pull the knob of the close-up
lens.
3. Arm light: When the power is on, the arm light
automatically turns on.
4. Stage: Place an object or document on this for
viewing.
5. Zoom control: For zooming in or out on a document
or object while viewing the image on a monitor or
screen.
6. Iris controls: These are step up and step down
controls. Tap the button repeatedly to adjust
brightness up or down.
7. Image memory switch: This can be used to capture
a frame and freeze view it.
8. Power switch: On/off.
9. AC inlet: Connects the product to a power supply
with the AC adapter.
10. S-Video output terminal: You can use this if your
monitor has an S-Video input terminal to produce a
higher quality image.
11. Composite V ideo output terminal: This
connector supplies a Composite Video signal to
a color monitor , projector or VCR.
12. RS-232 output connector
8
The camera arm is moveable so that 3-D objects can be
viewed from different angles.
Shooting a Three-dimensional Object
Operation
Operation
When the power is on, the unit automatically turns on the
arm light and LCD monitor . Both the arm light and LCD
monitor remain lit until the unit is turned off.
Zoom the Image on the Screen
Press and hold the “wide” button to zoom out and view a
full page. Press and hold the “tele” button to zoom in.
Tap the iris control several times to adjust the brightness
up or down. (Pressing the button and holding it down will
not change the iris setting.) This allows the user to
incrementally adjust the brightness setting.
Adjusting Brightness
Changing the Camera Direction
This unit allows you to flip up the camera 90 degrees. If
you remove the close-up lens, the camera can be used at
infinity or as a room camera. Y ou can shoot materials
attached to walls or even yourself.
9
Camera Element 1/4-inch CCD
Resolution 470 TV lines
Number of Pixels 752(H) x 582(V)
Video Frame Refresh Rate Live video
TV System NTSC or P AL
Lens 18X optical zoom, 12X digital
Focus Auto focus
Iris Step up/step down control
White Balance Auto
Shutter Not available
Camera Flip Up Y es 90° - can be used as room camera
Image Output Composite Video and S-Video (analog only)
RS-232 Control Yes
Other
Image Memory Y es, 1 frame - push to freeze image, push to
view live image
Pickup Area 8 1/4 x 11 3/4” (A-4 size)
Lighting Fluorescent light, 4 W
Controls Power on/off, camera head rotation, focus, iris,
zoom, field frame memory
Power Input 100 ~ 120 v, 220 ~ 240, 50 / 60 Hz
Power Consumption 13 W
Dimensions Useable: 335 (W) x 324 (D) x 525 (H) mm
13.2 (W) x 12.8 (D) x 20.7 (H) in
Folded: 335 (W) x 553 (D) x 83 (H) mm
13.2 (W) x 21.8 (D) x 3.5 (H) in
Ambient Operating
Temperature 5 ~ 35°C
Weight 4.4 kg
9.6 lbs.
Standard Accessories AC power cable and S-Video cable
Safety Approval CE, UL
Available Models
1-14252 DocumentPro A-20 NTSC
1-14253 DocumentPro A-20 PAL
8-14417 Extra bulb
The design and specifications are subject to change without notice.
Specifications
Camera and Video
10
Warranty
5 Year Parts / 5 Year Labor
This product is warranted to be free from defects in
material and workmanship for a period of five years from
the date of invoice to the original purchaser .
If during the warranty period the product is found to be
defective, it will be repaired or replaced at the facilities of
Navitar. However , Navitar reserves the right to refund the
purchase price if the replacement or repair is not
commercially practical or timely . Parts not manufactured
by Navitar carry only the warranty of their manufacturer .
Lamps and fuses carry no warranty .
This warranty does not cover damage caused in transit;
damage caused by misuse, neglect or carelessness; or
damage resulting from either improper servicing or
modification by someone other than Navitar . Further, this
warranty does not cover any routine maintenance work
that is reasonably expected to be performed by the
purchaser .
No responsibility is assumed for unsatisfactory operating
performance due to environmental conditions such as
humidity , dust, corrosive chemicals, deposition of oil or
other foreign matter , spillage or other conditions beyond
the control of Navitar .
For service, repair or return procedures under this
warranty , contact your distributor , your local Navitar field
officer or Navitar direct at (716) 359-4000 or
(800) 828-6778 in the United States.
Except as stated herein, Navitar makes no other
warranties, expressed or implied by law, whether of
merchantability , fitness for a particular purpose or
otherwise. Further , Navitar shall not, under any
circumstances, be liable for incidental, consequential or
other damages.
This warranty applies only to those original purchasers
(non-dealers) returning the product warranty card within 30
days of purchase date. For purchasers who do not return
the warranty card within 30 days, or for items sold to
dealers for their own use or rental use, our standard 90
day parts and 1 year labor warranty will apply .
11
Navitar , Inc.
200 Commerce Drive
Rochester, NY 14623
(716) 359-4000 phone
(716) 359-4999 fax
Internet http://navitar.com/
e-mail info@navitar.com
