Introduction
PMX Models
Minimum
Computing
Requirements
(See, also, Addendum 1)
Congratulations! Your Ripwave MX PC Card (PMX) is a userfriendly, easy-to-install device that helps you connect wirelessly to
the Internet using the PCMCIA port on your laptop computer. The
PMX can work with today’s MC-SCDMA technology and the
OFDM-based 802.16e technology that Navini will trial late 2006.
The PMX provides complete broadband Internet access to
residential and small office/home office (SOHO) users without the
necessity of professional hardware installation.
The PMX also provides portable Internet service. A computer with
the PMX can be moved from room-to-room, location-to-location,
or even city-to-city as long as there is coverage and appropriate
reception in the area.
This manual will guide you through the simple process of installing
the PMX and its monitoring software.
Currently, the PMX comes in one model. However, other models
will be introduced in the future. The model indicates the frequency
the PMX will operate in (for example, 3.4 GHz). The frequency
number appears on the PMX’s label. The current model is detailed
in the table below.
Model Model Number Frequency
Range MHz
2.3 GHz 2305-2360 PMX
2.5-2.6 GHz 2.5-2.6 PMX
3.4 GHz 3410-3525 PMX
3.5 GHz 3475-3600 PMX
2305-2360 International Only
2500-2686 EBS
3410-3525 WLL
3475 - 3600 WLL
Operating Band
The following table lists the minimum requirements your computer
should meet before connecting to the PMX.
Operating
System1:
CPU:
RAM:
Hard Drive:
Monitor:
Windows 2000 or Windows XP. It is assumed the latest
Windows service pack is installed on the Operating System.
Note: The PMX is not supported on MacIntosh systems or
Linux/Unix systems.
Pentium level or higher
32 MB or the Operating System minimum, whichever is
greater
50 MB free disk space for the optional Navini Diagnostics
software
256 colors, 800 x 600 resolution
Page 6
060825_pv1.3_pmx_user_guide_40-00460-00Ra(4.5)
Page 7
Navini Networks, Inc. PMX User’s Guide
Physical
Characteristics
NOTE: If you are going to upgrade your Operating System after
loading the Navini Diagnostics software, you must first uninstall Navini
Diagnostics prior to upgrading the OS. Otherwise, the PMX will
continue to operate, but the Navini Diagnostics will not work. See
Uninstall instructio ns in this Guide.

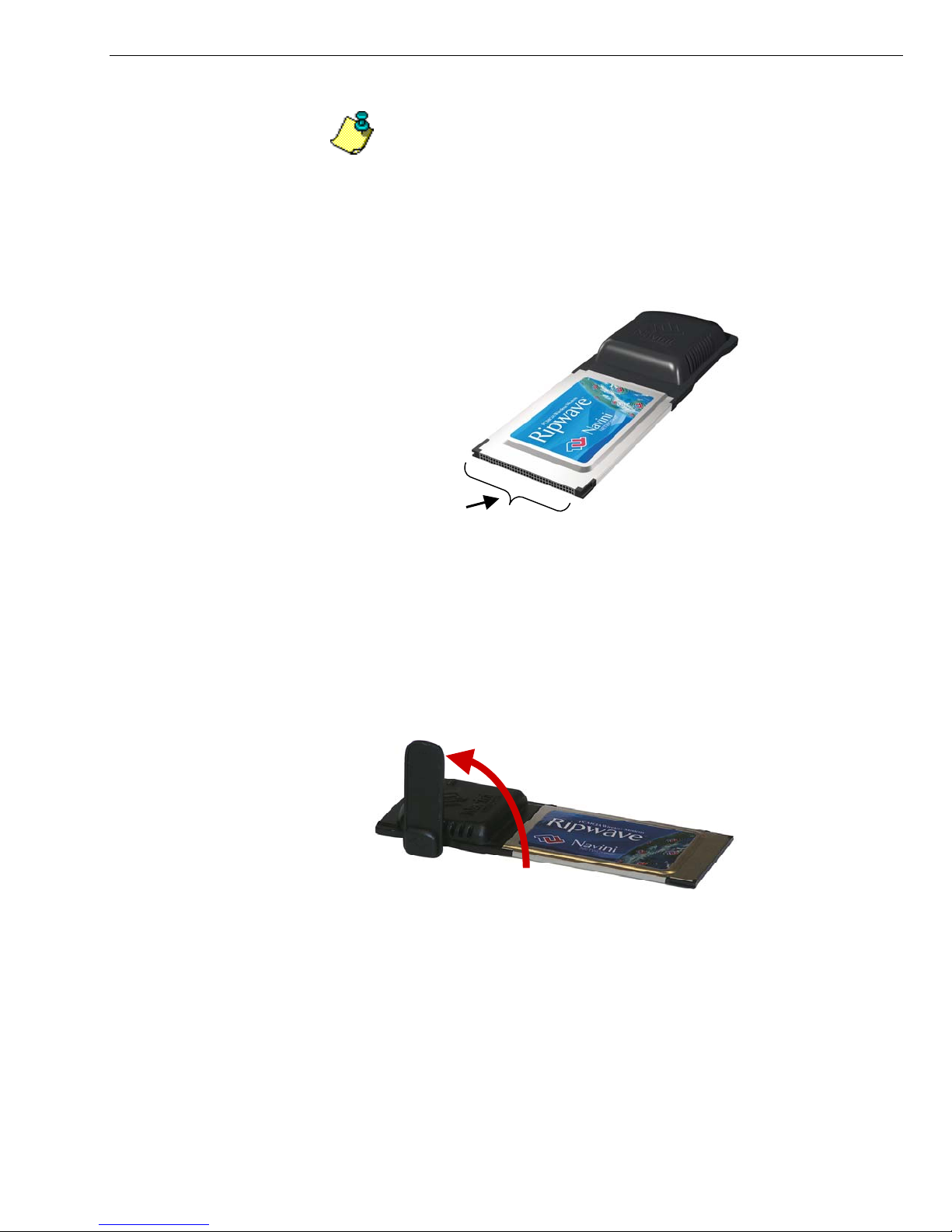

The PMX fits into a standard Type II PCMCIA slot. A 68-pin
connector on the end of the card connects it to the laptop.
68-pin connector
Two inverted-F antennas reside inside the PMX. All models also
have an external antenna.

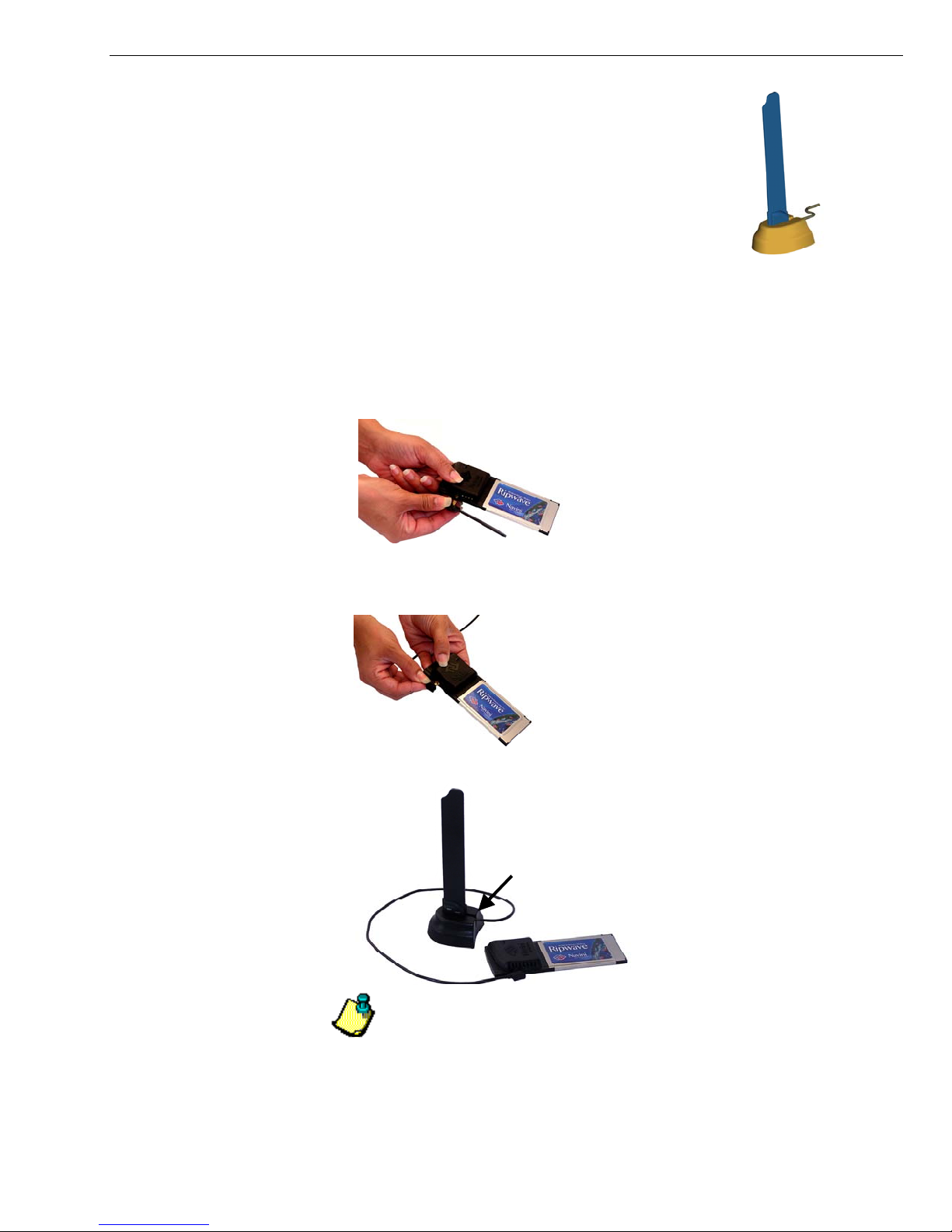

Following is a picture of the external antenna in the upright
position. To raise the antenna to its upright position, raise the
antenna counterclockwise. Do not turn the antenna beyond its
upright position.
Page 7
060825_pv1.3_pmx_user_guide_40-00460-00Ra(4.5)
Page 8
Navini Networks, Inc. PMX User’s Guide
Installing Your
PMX
The following instructions explain how to install the PMX and its
driver software on your computer. Please read all instructions
before attempting the installation.
NOTE: The laptop should be used preferably on a desk when the PMX
is installed. Using the laptop with the PMX close to the body, such as
on the lap, is undesirable.
NOTE: The screenshots shown in these instructions were taken from a
laptop operating with Windows 2000. If you have a Windows XP
operating system, the screens you see may vary from the screens shown
in the instructio ns.

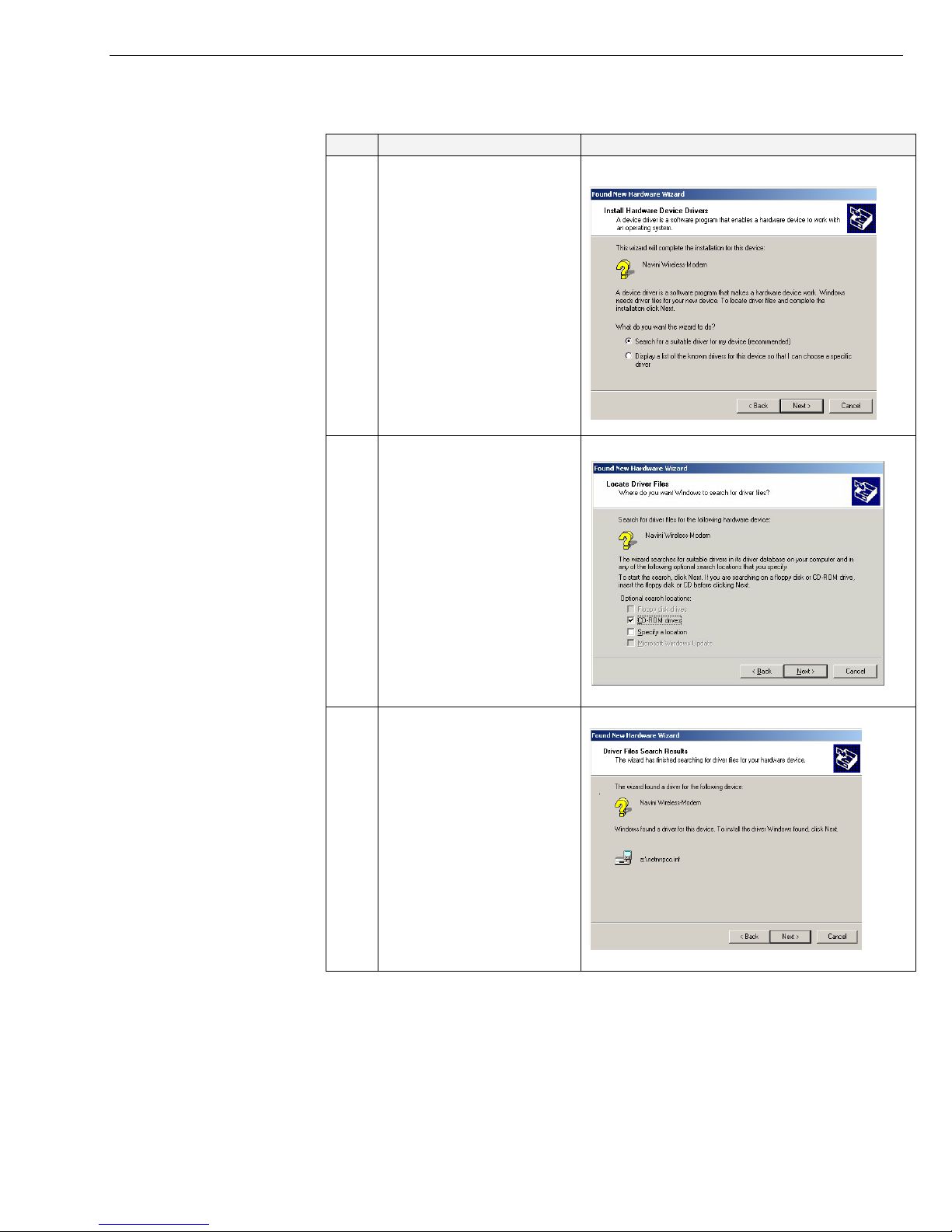

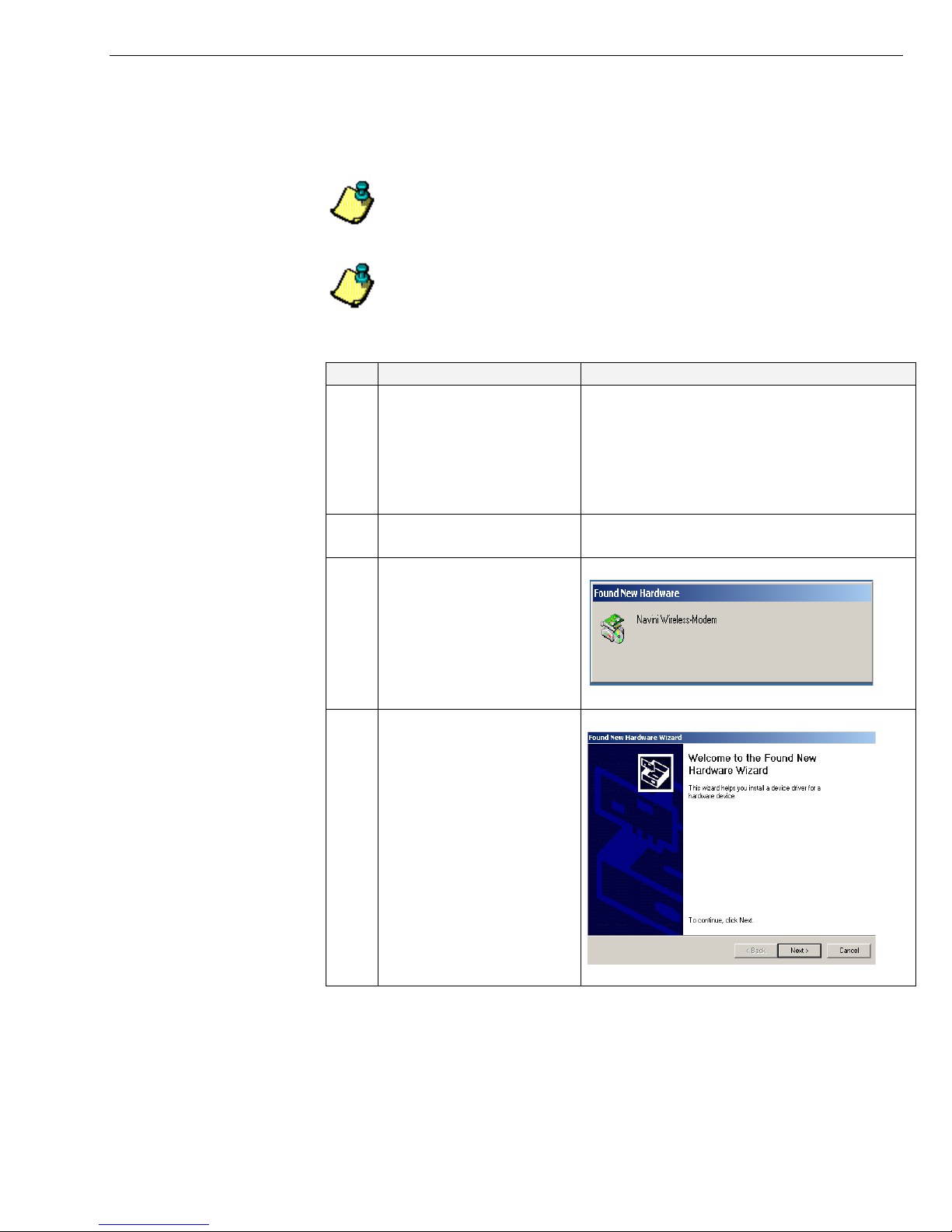

Step Action Illustration
1. Insert the PMX into the
Type II card slot on your
laptop. Be sure to insert
the end that has the 68pin connector into the
card slot.
2. Raise the antenna to the
upright position.
3. The Found New
Hardware box appears
Windows 2000 Screen
indicating the PC sees
the PMX.
4. The Welcome to the
Windows 2000 Screen
Found New Hardware
Wizard dialog box
appears. Click Next to
continue.
Page 8
060825_pv1.3_pmx_user_guide_40-00460-00Ra(4.5)
Page 9
Navini Networks, Inc. PMX User’s Guide
Installing Your PMX,
continued
Step Action Illustration
5. The Install Hardware
Device Drivers box
Windows 2000 Screen
appears. Select ‘Search
for a suitable driver for
my device
(recommended).’ Click
Next to continue.
6. The Locate Driver Files
Windows 2000 Screen
box appears. Select ‘CD
ROM.’ Insert the
Installation CD into the
computer’s CD-ROM
drive. Click Next to
continue.
7. The Driver Files Search
Windows 2000 Screen
Results box appears.
Click Next to install the
driver.
Page 9
060825_pv1.3_pmx_user_guide_40-00460-00Ra(4.5)
Page 10
Navini Networks, Inc. PMX User’s Guide
Installing Your PMX,
continued
Accessing the
Internet
Step Action Illustration
8.
9. After the files are
Now that your PMX is installed and your computer is on, you
should be able to access the Internet (that is, assuming you hav
signed up with a Service Provider). To access the Internet, open t
web browser that is installed on your computer, (for example,
Netscape, Internet Explorer, etc.).

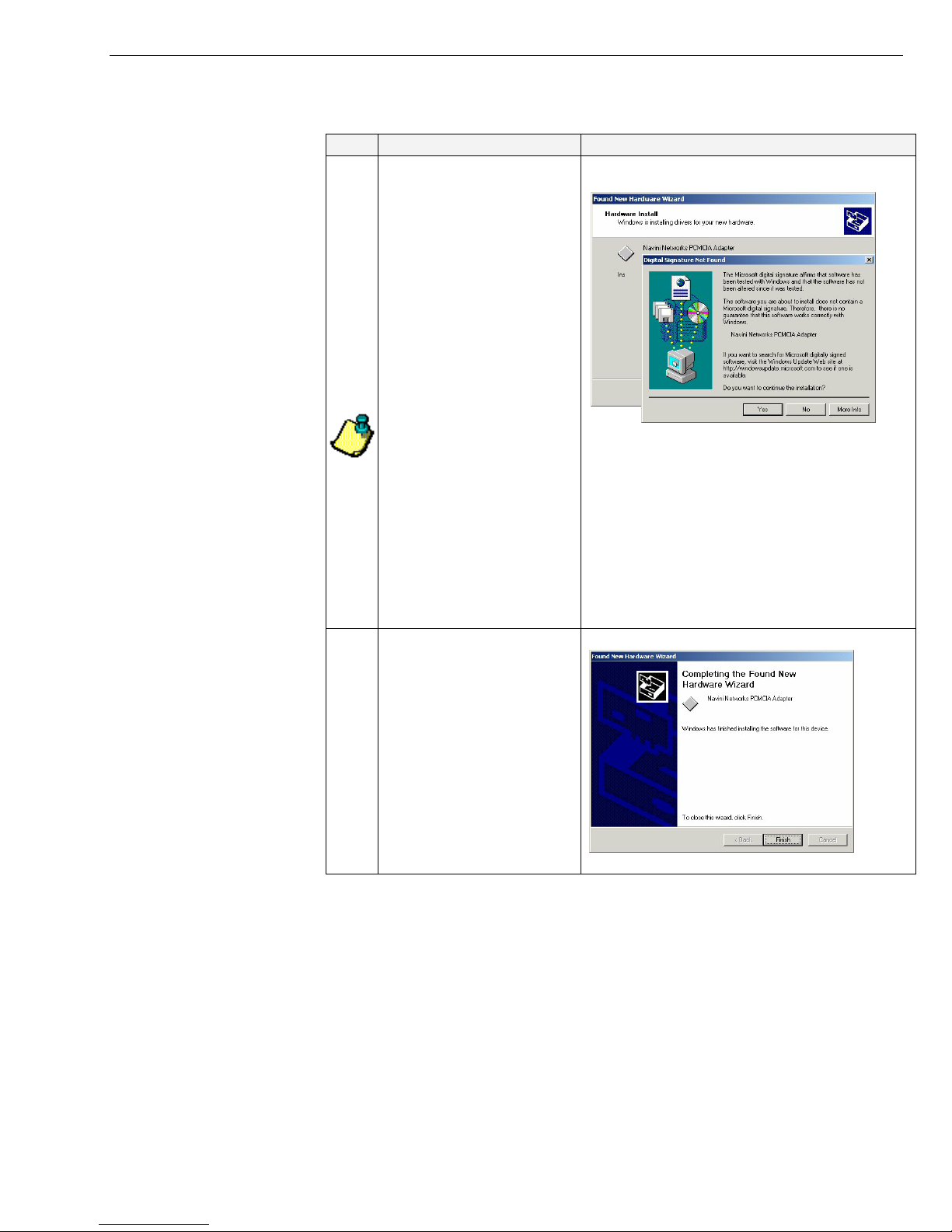

The Hardware Install
box appears, along with
a Digital Signature Not
Found box. Click Yes
on the Digital Signature
Not Found box, and then
click Yes on the
Hardware Install box. If
the sound is turned up
on your computer, two
beeps are heard.
Note: Windows XP
systems may show a
screen stating the
PCMCIA Adapter has
not passed Windows
Logo testing and asking
if you want to continue
installation. Select the
option that continues the
installation.
copied, a Completing
the Found New
Hardware Wizard box
appears indicating the
driver installation is
complete. Click Finish
to close the Wizard.
Windows 2000 Screen
Windows 2000 Screen
e
he
Page 10
060825_pv1.3_pmx_user_guide_40-00460-00Ra(4.5)
Page 11
Navini Networks, Inc. PMX User’s Guide
Removing Your
PMX
Before you store your PC in a computer case, you should remove
the PMX from the PC. Also, turn the antenna to its original down
position. Leaving the PMX in the PC or the antenna in the upright
position while storing the PC in a computer case may damage the
PMX or the antenna.
To properly remove the PMX from your computer, you must first
stop the driver software. If you do not stop the driver software first,
the following box will appear:

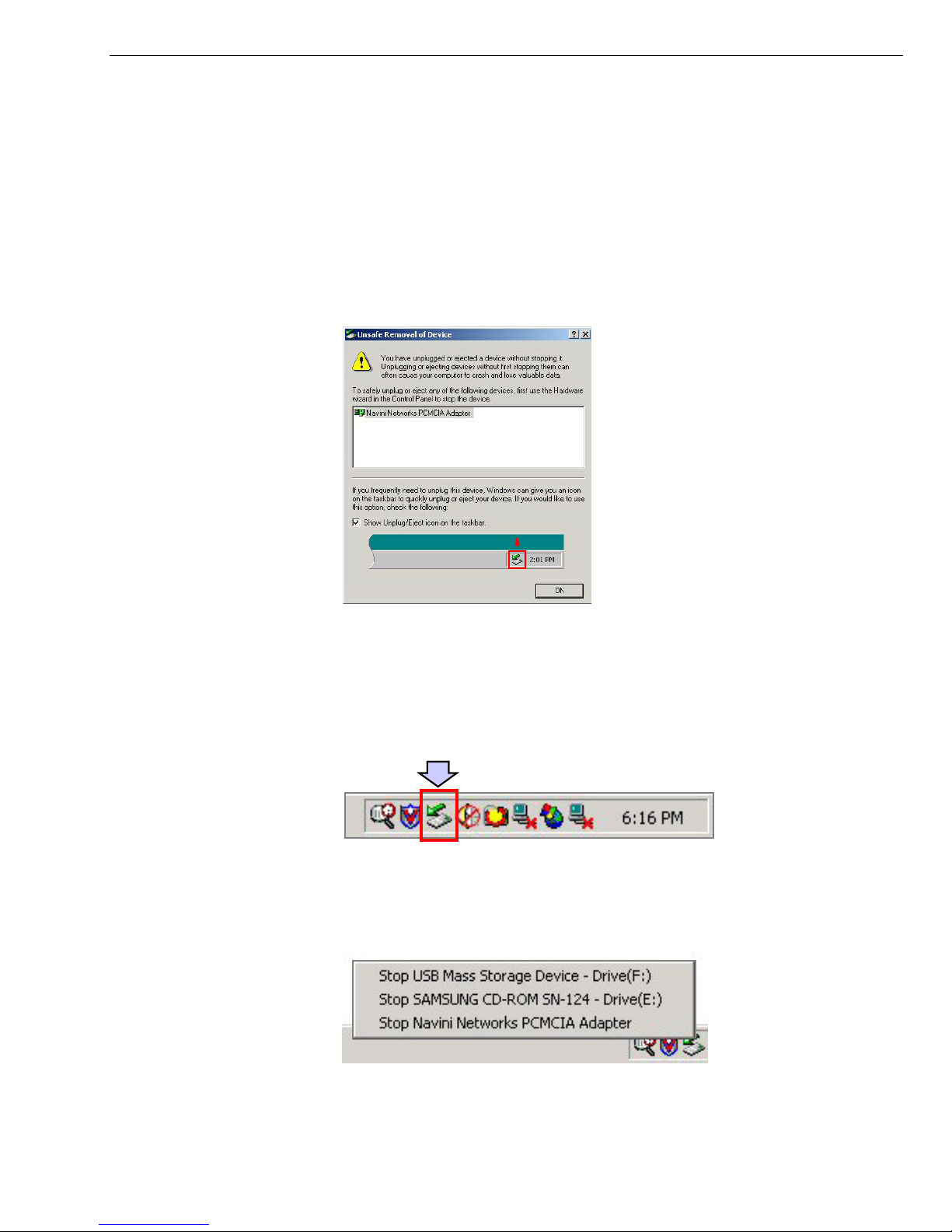

To safely remove the PMX, click on the PMX icon indicated in the
following illustration. Depending on your computer’s setup, this
icon is probably located in the lower right-hand corner of your
computer.
Once you click on the icon, a list with one or more elements will
appear. This list is dependent on the devices currently installed on
your PC. For example:
Page 11
060825_pv1.3_pmx_user_guide_40-00460-00Ra(4.5)
Page 12
Navini Networks, Inc. PMX User’s Guide
Removing Your PMX,
continued
Indicator Light
Select Stop Navini Networks PCMCIA Adapter.
Next, the Stop a Hardware Device dialog box appears. Click OK.
You can now pull the PMX out of your computer. If the sound on
your computer is turned on, you may hear a beep indicating the
PMX was unplugged.

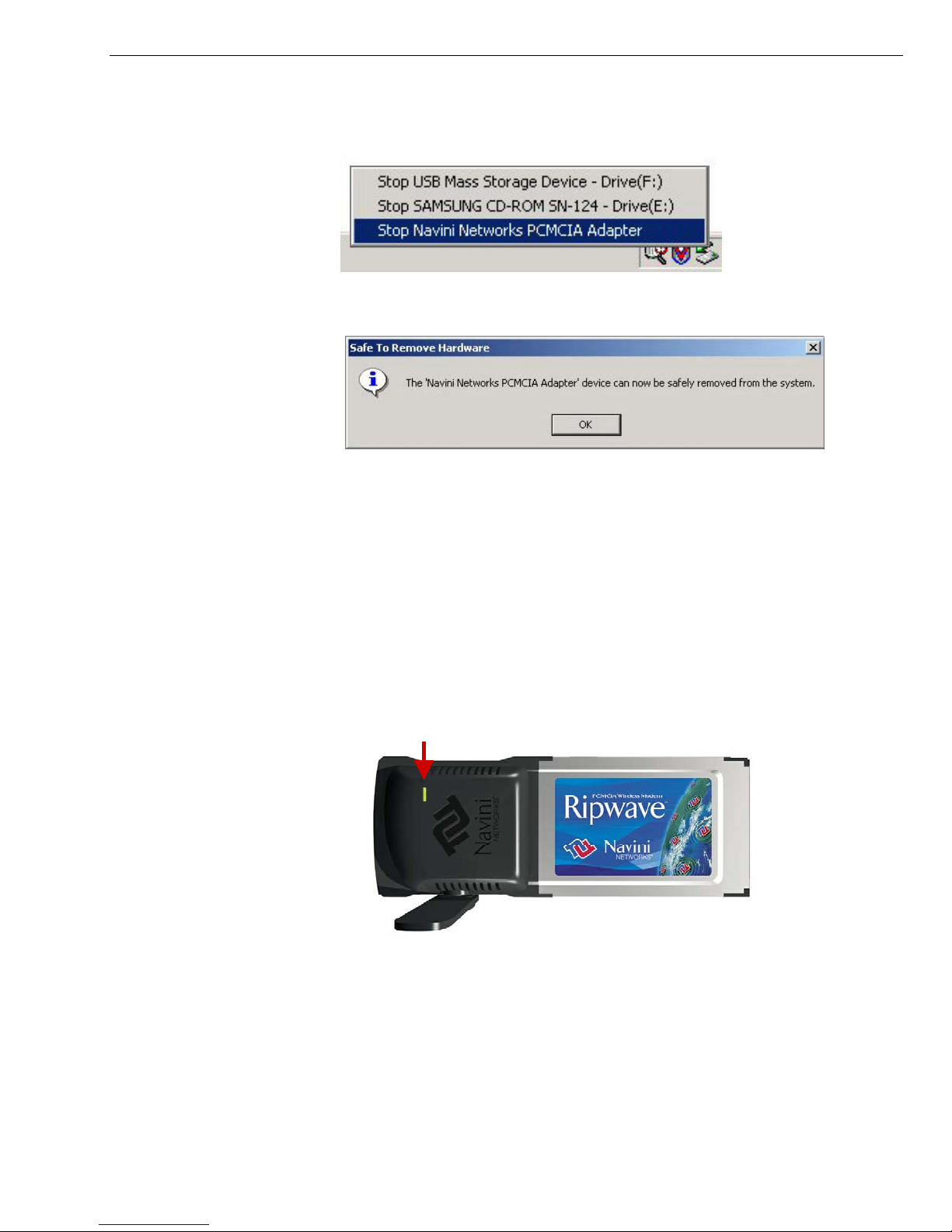

An indicator light on the top of the PMX’s black encasement
provides information about the PMX’s operation. When the light
blinks, the PMX is trying to synchronize with a BTS. When the
light is solid, the PMX has acquired synchronization with a Base
Station.
Indicator Light
Page 12
060825_pv1.3_pmx_user_guide_40-00460-00Ra(4.5)
Page 13
Navini Networks, Inc. PMX User’s Guide
Troubleshooting
Installing Navini
Diagnostics Tool
(NavDiag)
If you experience difficulties with your Internet connection after
you have installed the PMX driver software, please review the
Minimum Computing Requirements and Addendum 1. Ensure your
computer meets those requirements. Also, review the installation
procedures and ensure all steps were completed properly. If you are
still experiencing difficulties, troubleshoot using the Navini
Diagnostics (NavDiag) monitoring software or contact your
Service Provider.
The NavDiag software assists you in solving connection problems
and provides other valuable information. This software is provided
on the Installation CD that came in your PMX package. This
section explains how to install this software.
Note: To install NavDiag on a Windows 2000, you must have
administrative privileges. To check your account privileges, open your
Control Panel. Double-click on the Users and Passwords symbol. You
should see Administrator under the Users tab.
Note: The screenshots shown in the instructions were taken from a
laptop with Windows 2000. If you have a Windows XP operating
system, the screens you see may vary from the screens shown in the
instructions.
Step Action Illustration
1. Before installing the
NavDiag software, shut
down all programs,
including anti-virus
software programs.
2. Insert the Installation
CD into the CD-ROM
drive.
3. Open the CD by clicking
on the My Computer
icon. Double-click on
the folder named
Navini_Diagnostics.
Page 13
060825_pv1.3_pmx_user_guide_40-00460-00Ra(4.5)
Page 14
Navini Networks, Inc. PMX User’s Guide
Installing NavDiag,
continued
Step Action Illustration

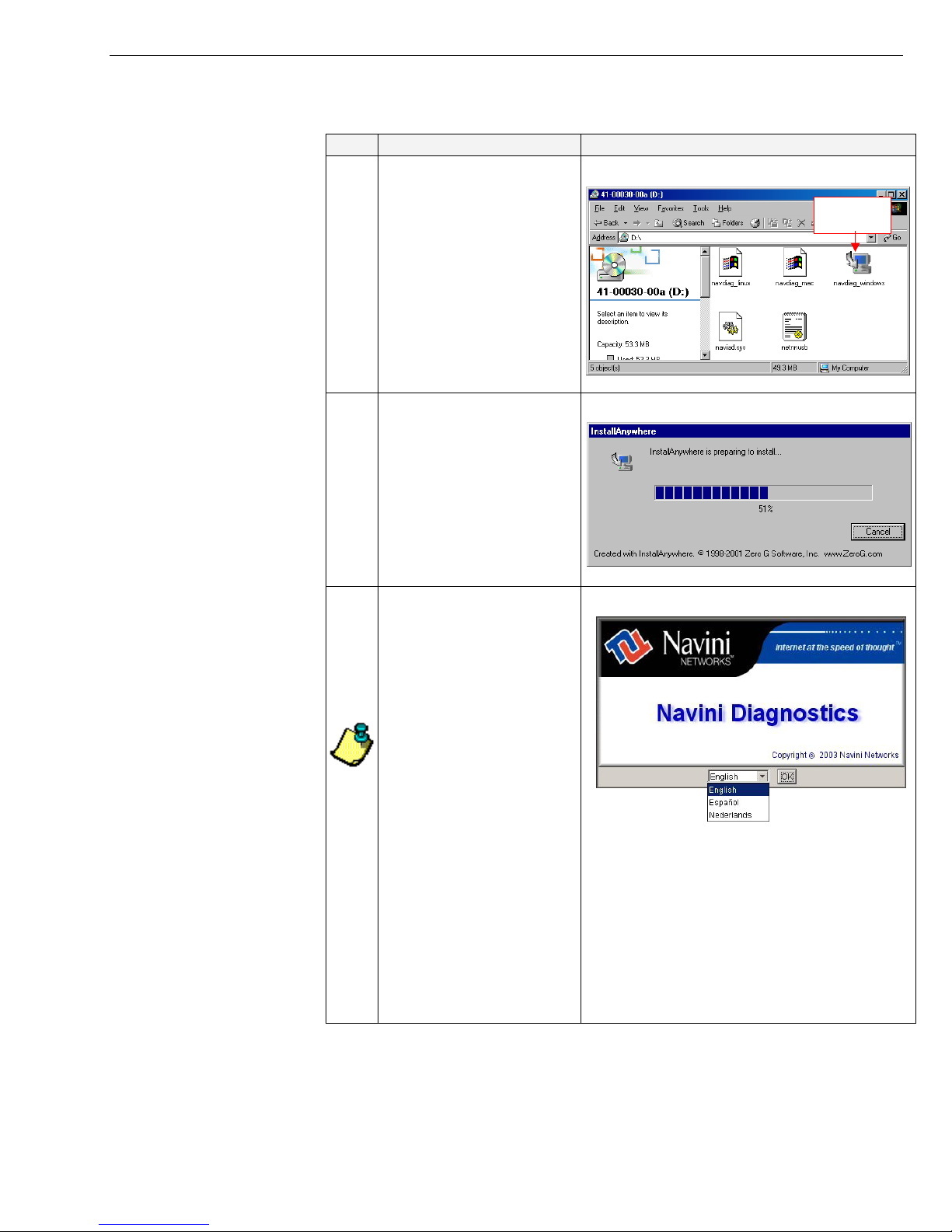

4. Double-click on the icon
for the file
navdiag_windows.exe*.
This will automatically
start the installation of
NavDiag.
5. The InstallAnywhere
Windows 2000 Screen
window appears. The
progress bar indicates
that InstallAnywhere has
initialized.
6. The Navini Diagnostics
Windows 2000 Screen
Language screen
appears* (see Note
above). Select a
language, and click OK
to continue.
Note: NavDiag may
automatically attempt to
match the language set on
your PC under Regional
Options. The language
selection affects how
NavDiag displays its screens.
If you receive an error
message concerning the
language, click OK and
NavDiag will default to
English. At this time,
NavDiag supports three
languages: 1. English (U.S.),
2.Spanish (Spain), and 3.
Dutch (Holland).
Example
Doubleclick
this file.
Page 14
060825_pv1.3_pmx_user_guide_40-00460-00Ra(4.5)
Page 15
Navini Networks, Inc. PMX User’s Guide
Installing NavDiag,
continued
Step Action Illustration

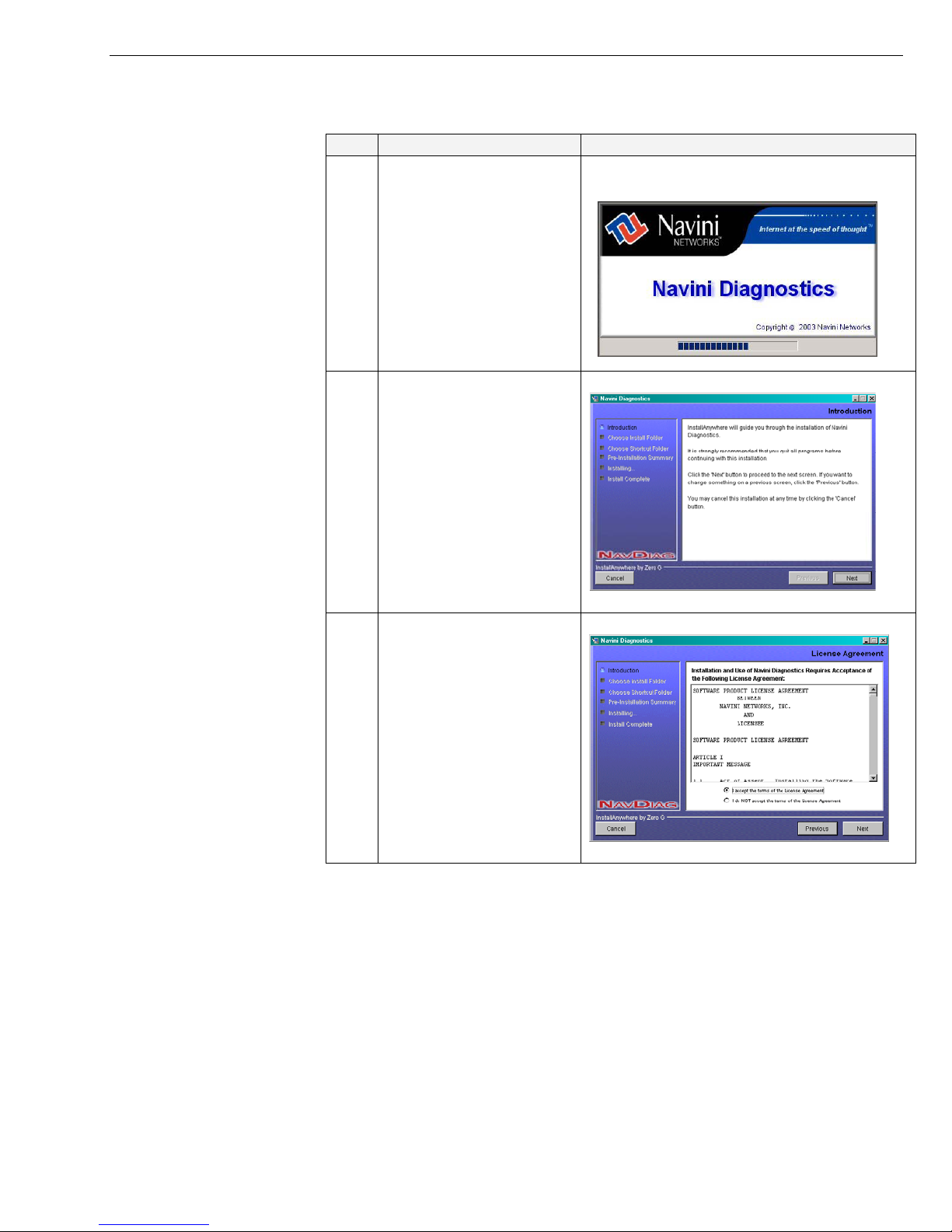

7. The progress bar
indicates the files are
Windows 2000 Screen
being installed.
8. The NavDiag
Windows 2000 Screen
Introduction screen
appears. Click Next to
continue.
9. The License Agreement
screen appears. Read the
Windows 2000 Screen
Licensing Agreement.
Select the I Accept
option, and click Nex
t to
continue.
the License
If
Agreement is n
accepted, you cann
ot
ot
install the software.
Page 15
060825_pv1.3_pmx_user_guide_40-00460-00Ra(4.5)
Page 16
Navini Networks, Inc. PMX User’s Guide
Installing NavDiag,
continued
Step Action Illustration
10. The Choose Install
Windows 2000 Screen
Folder screen appears.
Enter the name of the
folder where you wish to
install the software.
Next to continue.
Click
The default installation
folder provided by the
software is shown in the
illustration.
11. The Choose Shortcut
Windows 2000 Screen
Folder screen appears.
Accept the default and
Next to continue.
click
12. The Pre-Installation
Windows 2000 Screen
Summary screen
appears. Review the
contents for accuracy.
Install to
Click
continue.
For your installation and
computer, this screen
may have different
information than what is
shown in the illustration.
Page 16
060825_pv1.3_pmx_user_guide_40-00460-00Ra(4.5)
Page 17
Navini Networks, Inc. PMX User’s Guide
Installing NavDiag,
continued
Troubleshooting
Using Navini
Diagnostics
Step Action Illustration

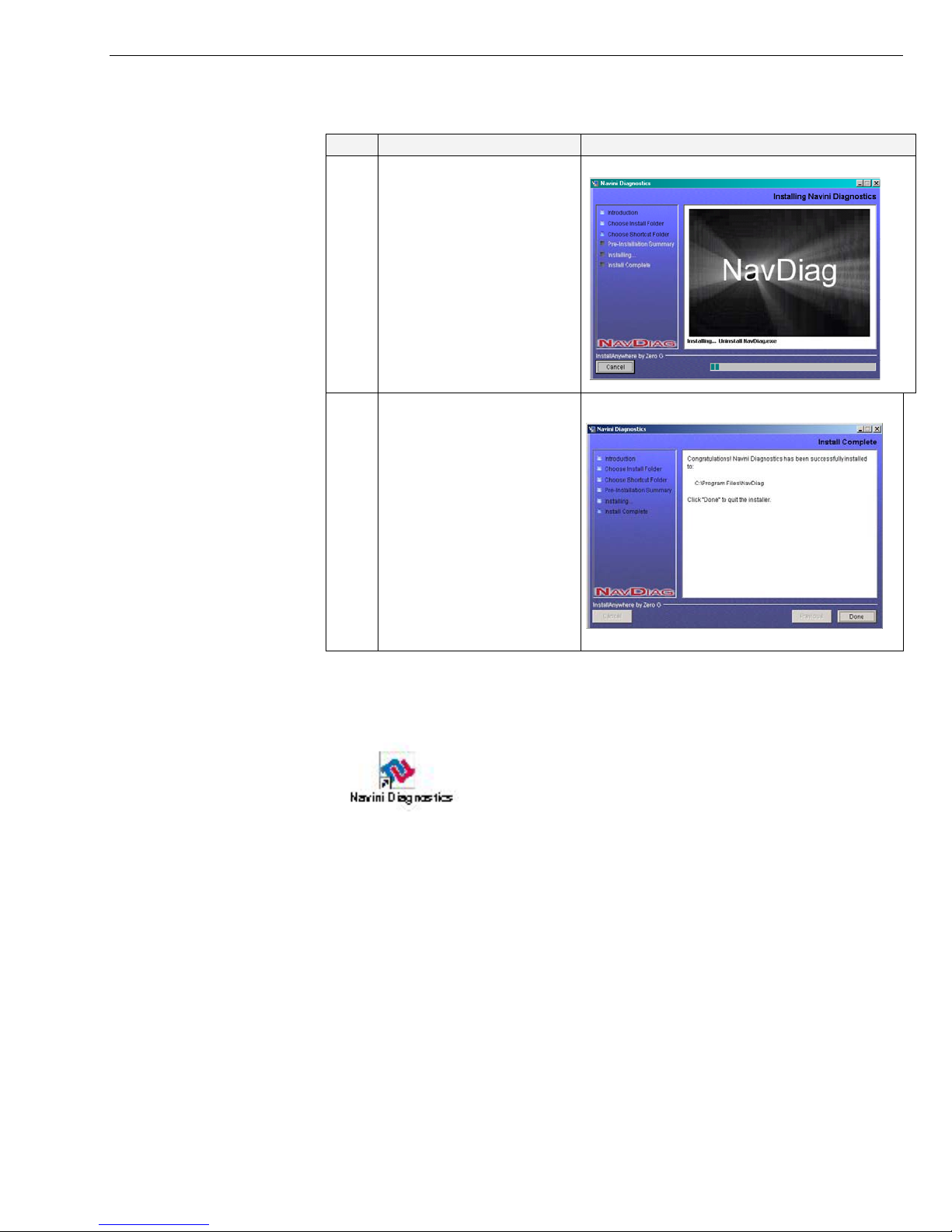

13. The Installing screen
will change as the
application files are
loaded.
14. At the Install Complete
screen, click
close the window.
To open the Navini Diagnostics software application, double-click
on the Navini Diagnostics icon on your desktop.
The Connection Status screen will open and display data if the
PMX is in use. The screen will refresh live data every second.
Done to
Windows 2000 Screen
Windows 2000 Screen
Page 17
060825_pv1.3_pmx_user_guide_40-00460-00Ra(4.5)
Page 18
Navini Networks, Inc. PMX User’s Guide

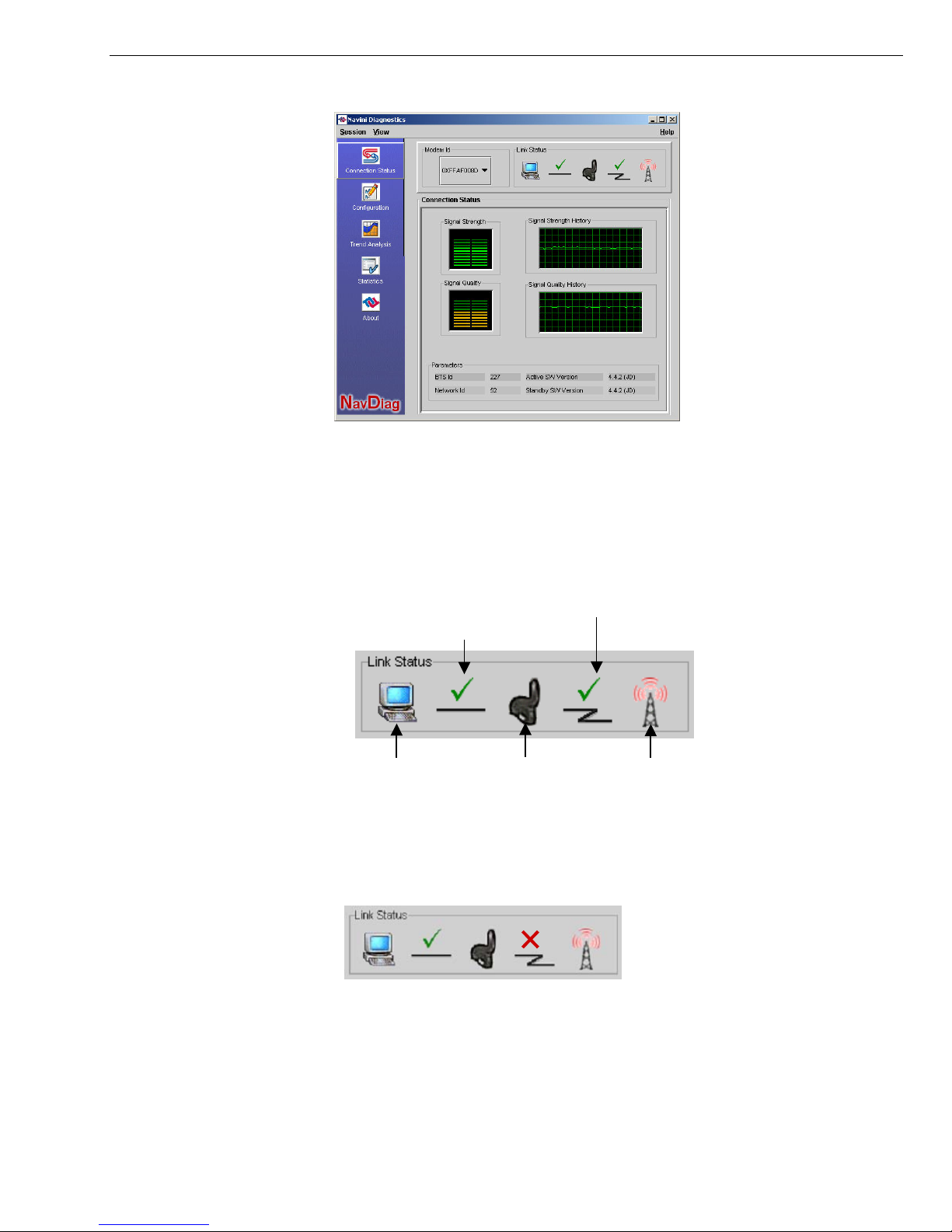

Connection Status
The pictures that appear on the top right side of the screen
represent the PC, the connection between the PC and the PMX
(Modem), the PMX, the connection between the PMX and the
Base Station, and the Base Station to which the PMX is
communicating. Check marks over the connections indicate
working connections.
Connection between
Connection between
PC & Modem
PC & Modem
Connection between
Connection between
Modem & Base Station
Modem & Base Station
PC
PC
Modem
Modem
Base Station
Base Station
If the connection between the PC and the PMX or between the
PMX and the Base Station is interrupted, an “X” is positioned over
the corresponding icon.
Page 18
060825_pv1.3_pmx_user_guide_40-00460-00Ra(4.5)
Page 19
Navini Networks, Inc. PMX User’s Guide
Signal Strength &
Signal Quality Bars
How to Increase the
Strength and Quality
of the Signal

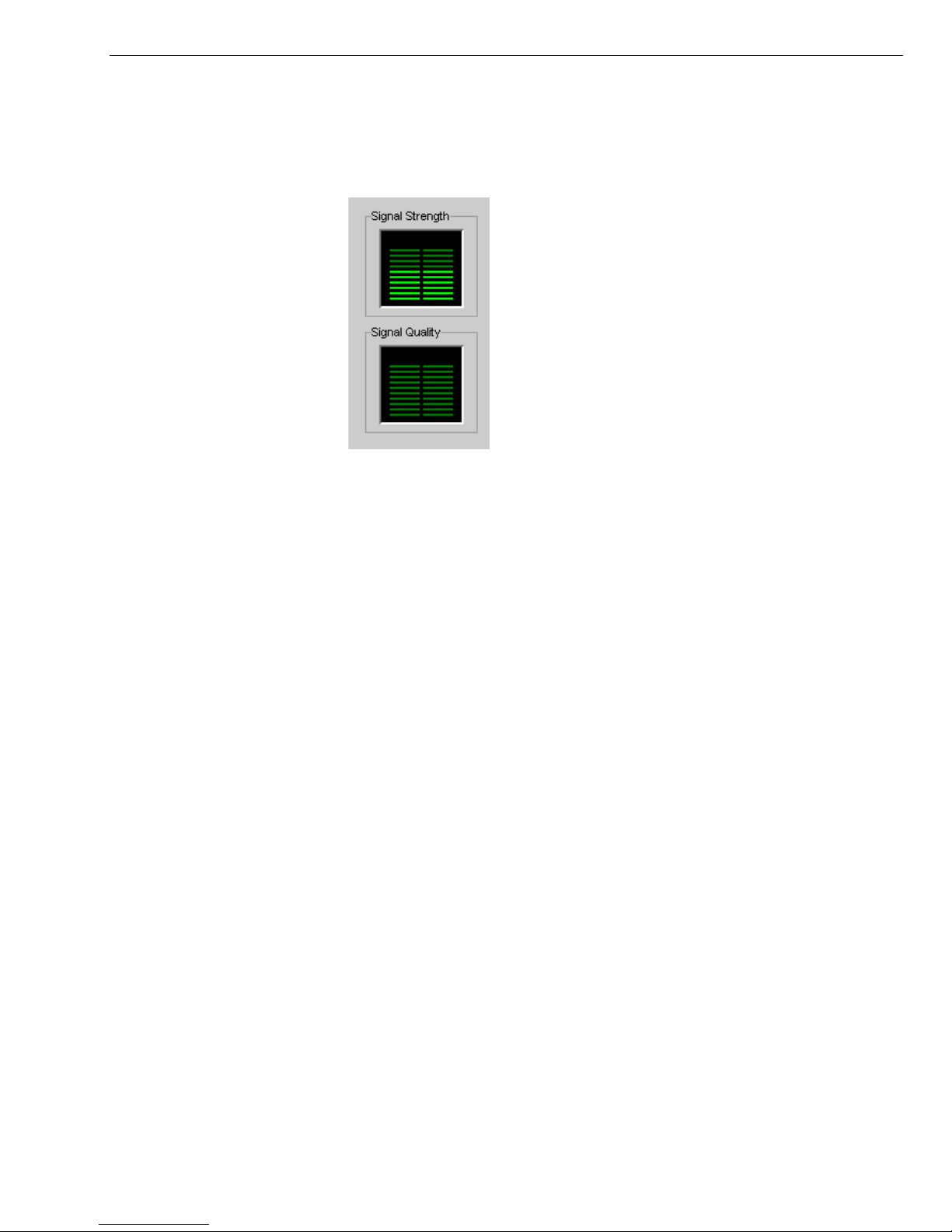

Signal Strength and Signal Quality are dynamic bar displays that
indicate how well your PMX is receiving signals from the Base
Station.
In particular, the Signal Strength bars graphically represent the
strength of the synchronization signal your Modem is receiving
from a Base Station. The higher the pile of bars goes, the stronger
the signal is. The color of the bars also gives an indication of the
strength of the signal. Green lines indicate an excellent signal;
orange lines indicate a good signal; and red lines indicate a weak
signal.
The Signal Quality bar area graphically represents the Signal-toNoise Ratio (SNR) received by your Modem. Again, the quality of
the signal is represented by a group of colored bars. The higher the
pile of bars goes, the better the SNR of the signal. The color of the
bars also gives an indication of the quality of the signal. Green
lines indicate an excellent signal or an SNR greater than 21.
Orange lines indicate a good signal or an SNR greater than or equal
to 13 but less than or equal to 21. Red lines indicate a weak signal
or an SNR less than 13.
To increase the strength and quality of the signal, change the
location of the PC in which the PMX is inserted. Try moving it
closer to a window, to a higher location, away from other wireless
devices (microwave ovens, cordless phones), and away from metal
objects (shelves, file cabinets). As you reposition your PC, watch
the Signal Strength and Quality bars on the NavDiag screen. Place
your PC in the location where you receive the most green signal
strength and quality bars.
Page 19
060825_pv1.3_pmx_user_guide_40-00460-00Ra(4.5)
Page 20
Navini Networks, Inc. PMX User’s Guide
History Graphs
Parameters
NavDiag Screen
Options

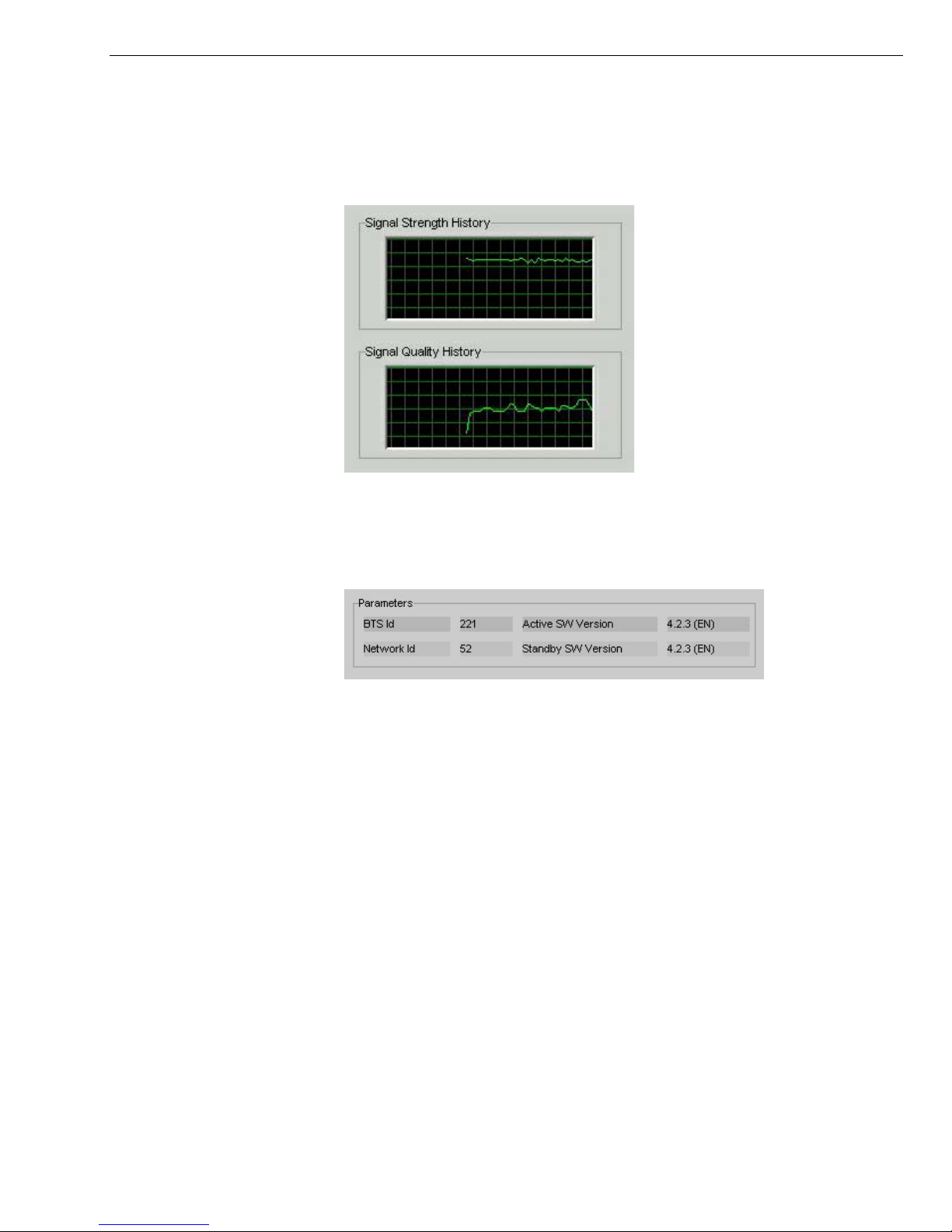

The History graphs plot the change in signal strength and signal
quality over time. The graphs cover the last minute and are updated
every second. Read the graphs from right to left. The right side of
the graph represents the most recent status of your PMX.
At the bottom of the Connection Status screen are four parameters.
These parameters are BTS ID, Network ID, Active SW Version,
and Standby SW Version.
The BTS ID indicates the BTS to which the PMX is currently
synchronized. The Network ID indicates the network in which
the PMX is operating. Active SW Version and Standby SW
Version indicate the version number of the software currently
loaded in the “active side” and “standby side” of the PMX’s flash
memory. The two letters in parenthesis following the release
number indicate the type of software load. JD indicates Joint
Detection while EN indicates Enhanced Nulling.
On the left-hand side of the screen, there are five screen option
icons: Connection Status, Configuration, Trend Analysis, Statistics,
and About. We just saw what the Connection Status screen can tell
you. Now, let’s look at the other screen options.
Page 20
060825_pv1.3_pmx_user_guide_40-00460-00Ra(4.5)
Page 21
Navini Networks, Inc. PMX User’s Guide
Configuration
Trend Analysis

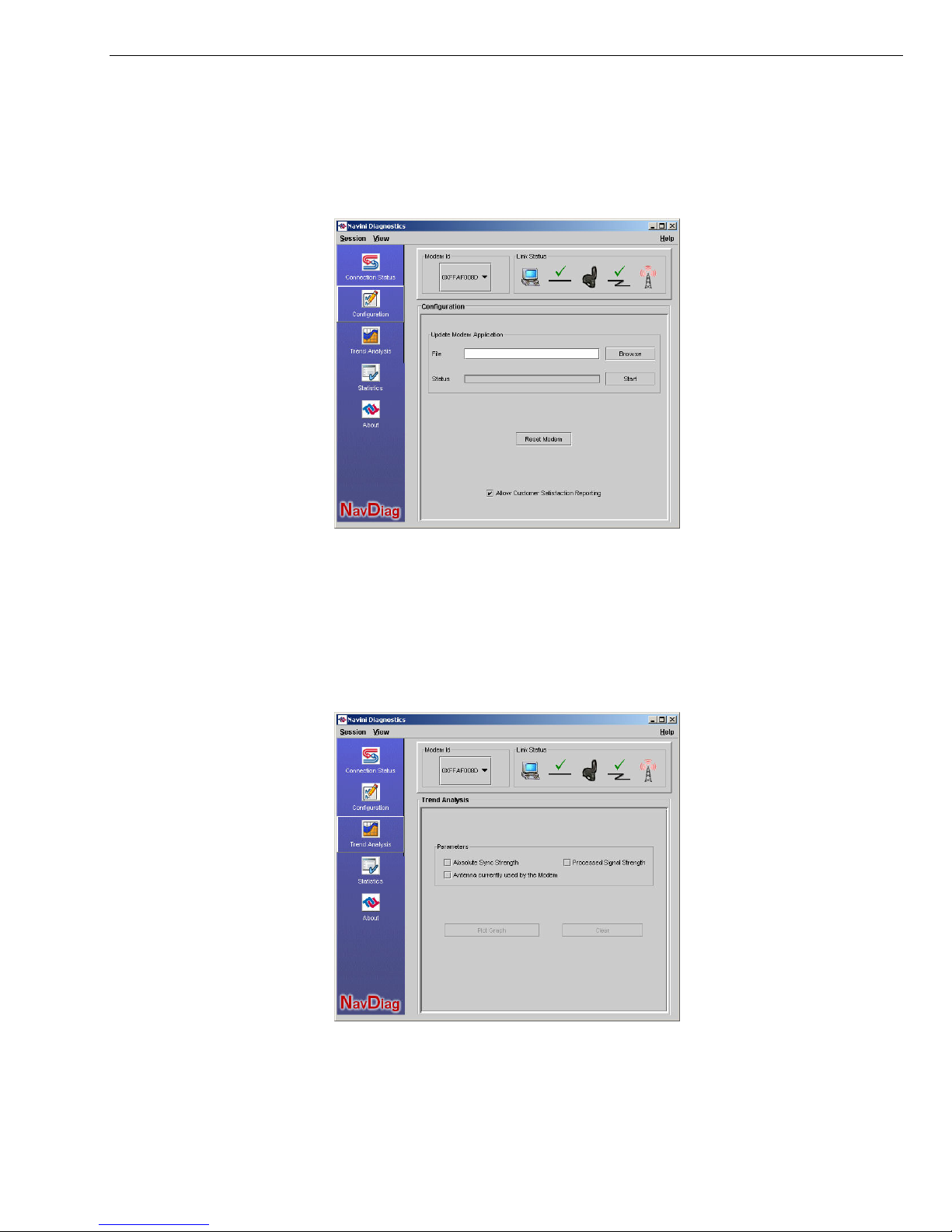

The Configuration screen enables you to update your PMX’s
software if directed to do so by your Service Provider. If you must
update your PMX’s software, your Service Provider will provide
you with instructions regarding what to do.
At the bottom of the screen is an Allow Customer Satisfaction
Reporting box. This box currently is not supported on the PMX.
The Trend Analysis lets you view PMX parameters that evolve
over time. With this screen, you can select up to three parameters
to plot.
Page 21
060825_pv1.3_pmx_user_guide_40-00460-00Ra(4.5)
Page 22
Navini Networks, Inc. PMX User’s Guide
Trend Analysis, continued
Statistics

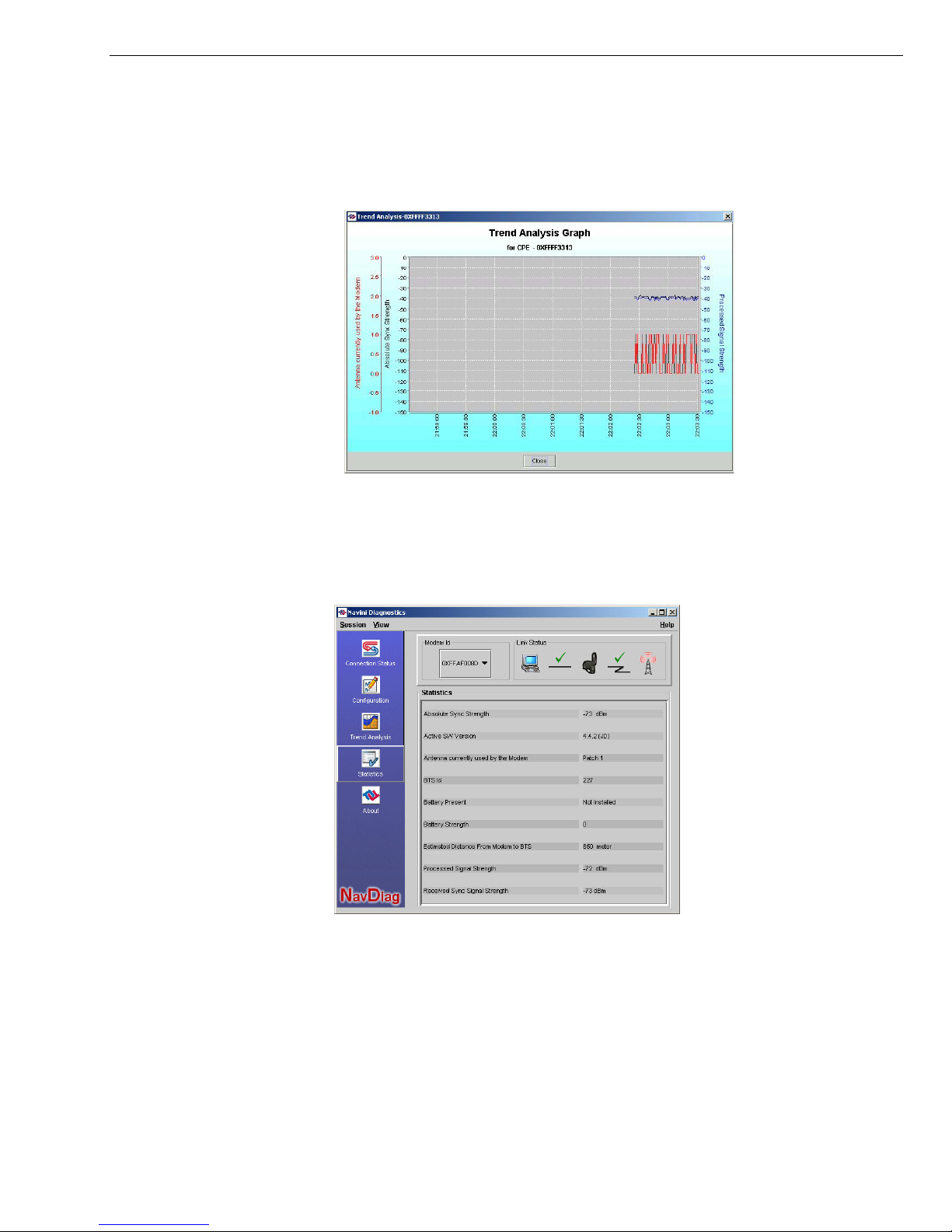

By pressing the Plot Graph button, the following screen appears.
This screen displays the value of the selected parameters over the
last five minutes, and is updated once every second. The graphic
scrolls from right to left.
The Statistics screen lets you view the current value of selected
parameters. These values are updated as they change over time. To
view the Statistics screen, press the Statistics button.
Page 22
060825_pv1.3_pmx_user_guide_40-00460-00Ra(4.5)
Page 23
Navini Networks, Inc. PMX User’s Guide
About
Help
Uninstalling
NavDiag
Software

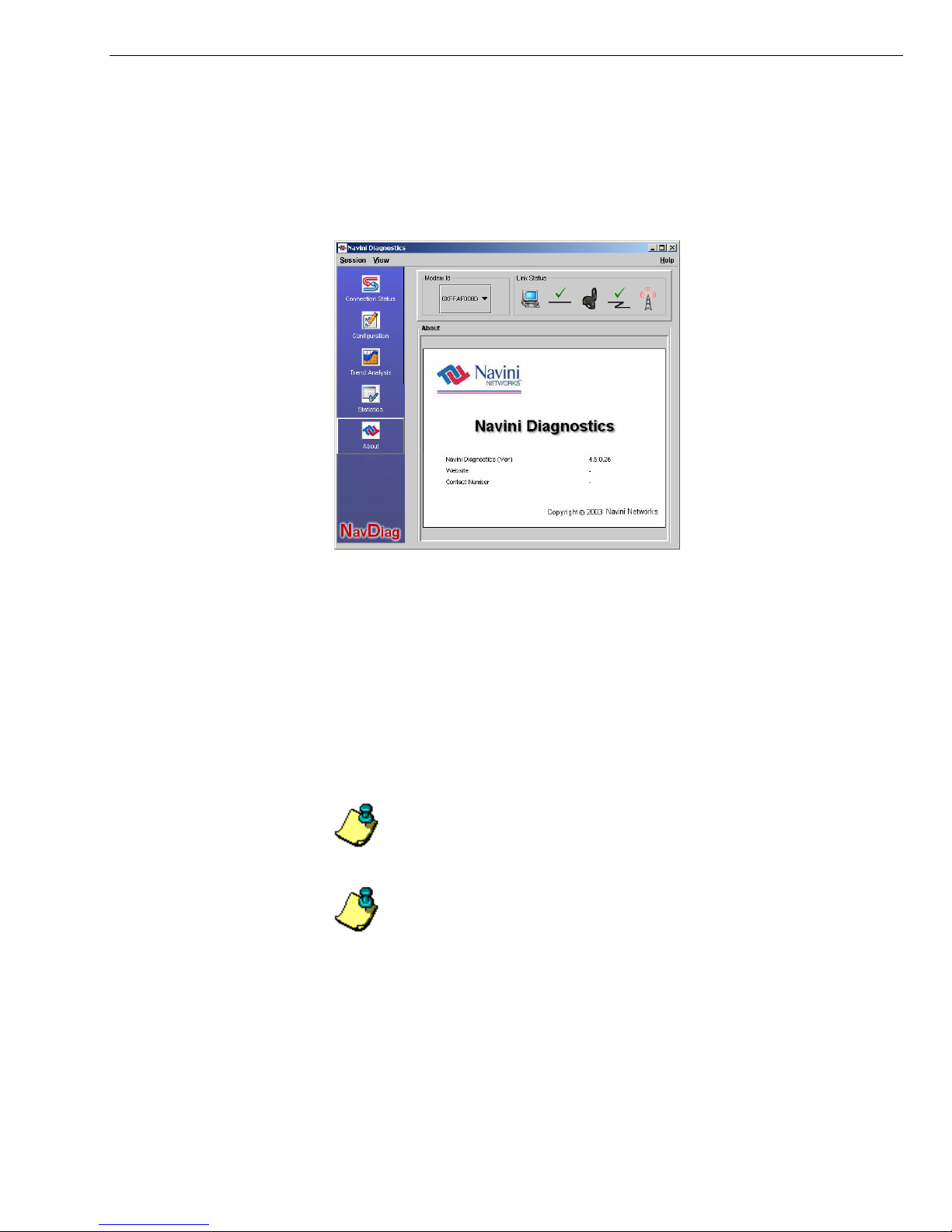

The About screen provides vital information such as the version of
the Navini Diagnostics software currently installed on your
computer. It also provides a website address and telephone number
where you can contact your Service Provider. To view the About
screen, press the About button.
A Help button appears on the top right corner of all the NavDiag
windows. The Help button gives you two options. The first option,
On NavDiag, provides help text on the functionality of the
NavDiag program. The second option, About NavDiag, is
equivalent to clicking on the About icon.
If for some reason you need to uninstall the NavDiag software,
e.g., to upgrade your Operating System software, follow the
procedure below.
Note: If you are going to upgrade your PC Operating System after
loading the Navini Diagnostics software, you must first uninstall
NavDiag prior to upgrading the OS. Otherwise, NavDiag will not work.
Note: The screenshots shown in these instructions were taken from a
laptop with Windows 2000. If you have a Windows XP operating
system, the screens you see may vary from the screens shown in the
instructions.
Page 23
060825_pv1.3_pmx_user_guide_40-00460-00Ra(4.5)
Page 24
Navini Networks, Inc. PMX User’s Guide
Uninstalling NavDiag
Software, continued

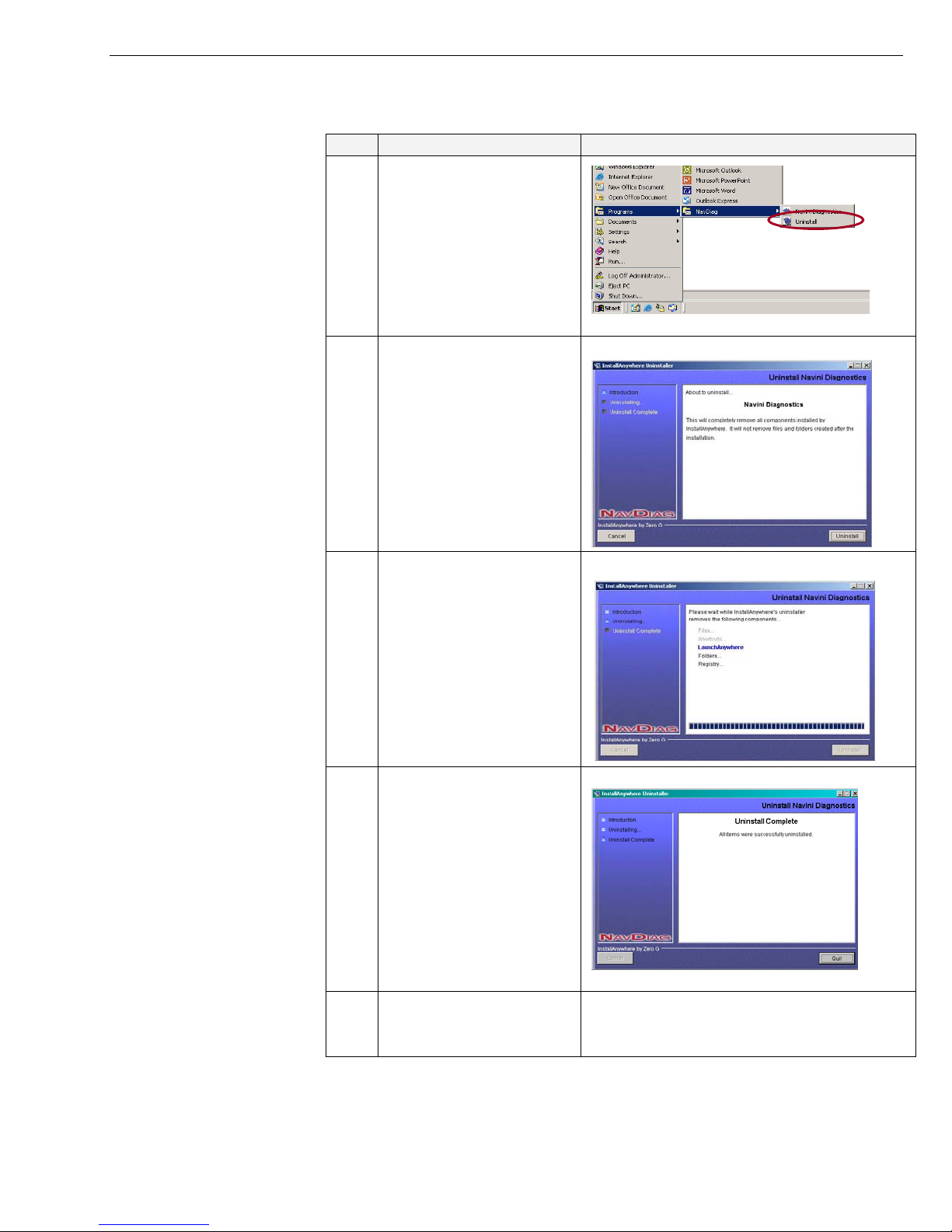

Step Action Illustration
1. On your computer
screen lower left corner,
click on
Start >
Programs > NavDiag >
Uninstall.
2. The Install-Anywhere
Windows 2000 Screen
Uninstaller screen
appears. Click
Uninstall.
3. The screen indicates the
Windows 2000 Screen
application files are
uninstalled.
4. The Uninstall Complete
Windows 2000 Screen
screen appears when
finished. Click on
Quit
to close the Uninstall
screen.
5. Restart the PC to
complete the unins
tall
process.
Page 24
060825_pv1.3_pmx_user_guide_40-00460-00Ra(4.5)
Page 25
Navini Networks, Inc. PMX User’s Guide
Optional
Desktop
Antenna
An optional desktop antenna is available for the
PMX. This antenna connects to the PMX and then
sits on a surface next to the laptop. This antenna
should be used if optimal reception cannot be
obtained through the original PMX antenna.
To connect the desktop antenna to the PMX, you must first remove
the original antenna attached to the PMX. To remove the antenna,
turn the antenna down so that it is lying parallel with the PMX.
Grasp the base of the antenna near its connection point and firmly
pull the antenna away from the card. Do not grasp the top or
middle of the antenna as it may break when you try to pull on the
antenna.
Once the original antenna is removed, connect the desktop antenna
by inserting its connector into the port on the PMX card.
Insert the other end of the antenna cable into the base unit.
Note: Avoid frequently connecting and disconnecting the desktop
antenna from the PMX, as this may cause the connector on the desktop
antenna to break.
Base
Page 25
060825_pv1.3_pmx_user_guide_40-00460-00Ra(4.5)
Page 26
Navini Networks, Inc. PMX User’s Guide
Care and
Maintenance
The PMX is designed to give you years of trouble-free service. To
ensure operation, read the following care and maintenance
instructions.
Keep the PMX free of dust and moisture. If the PMX gets wet,
use a towel to dry it immediately.
Handle the PMX gently. Dropping it or mishandling it can
cause damage to the metal/plastic shell or the electronic
circuitry.
Keep the PMX away from high temperatures. Heat can cause
damage to the metal/plastic shell or the electronic circuitry.
To clean the external areas of the PMX, use only an electrical
contact cleaner that is non-conductible and a soft, damp, lintfree cloth. Do not use any chemicals or abrasives to clean the
PMX. Also use caution around the connection pins.
If there is a problem with the PMX, do not attempt to repair it
yourself. Report the problem to your Service Provider.
Do not apply adhesive labels to the PMX. This may cause the
PMX to become jammed inside the card slot.
The PMX should fit easily into the PC slot. Do not force the
PMX into the PC slot. Forcing the PMX into the slot may cause
damage to the connector pins.
If you are going to upgrade your computer Operating System
after loading the NavDiag software, you must first uninstall
NavDiag prior to upgrading the OS. Otherwise, NavDiag will
not work. See the
Uninstall instructions in this Guide.
Page 26
060825_pv1.3_pmx_user_guide_40-00460-00Ra(4.5)
Page 27
Navini Networks, Inc. PMX User’s Guide
Upgrading the
There are two different ways to upgrade the software that makes
the PMX work.
PMX Software
Your Service Provider may perform an over-the-air (OTA)
upgrade, where the up-to-date software files are transferred
wirelessly from a Base Station to your PMX. This method will
normally be transparent to you; in other words, you should not
experience any noticeable service interruption.
Your Service Provider may provide a downloadable web file or
CD-ROM with software that is installed on your PC and used
to upgrade the PMX software. This method is used only if the
PMX was not inserted and “on” during the OTA upgrade
process. If you must upgrade your software using this method,
your Service Provider will give you instructions on what to do.
This method takes a minimal amount of time to complete.
Note: If you must upgrade the PMX Driver to the latest driver,
Windows will tell you that the current driver is the latest driver. Ignore
this message, and force Windows to update the driver.
Page 27
060825_pv1.3_pmx_user_guide_40-00460-00Ra(4.5)
Page 28
Navini Networks, Inc. PMX User’s Guide
ADDENDUM 1: PMX - PC Troubleshooting
- For Use With the Ripwave MX PC Card (PMX) & Navini Diagnostics Software -
PC Operating Systems
Prior to installing the Navini Diagnostics (NavDiag) software, please check to ensure that the PC
Operating System meets the criteria given in the table below. If these criteria are not met,
unpredictable problems may occur as a result of installation. It is recommended that the user
have the latest Windows
Operating System PMX Interface Notes
Win 2000 Supported 1, 3
Win XP Supported 2, 3
Note 1: Internet Explorer 3.0 or higher is required
Note 2: Requires Service Pack 1
Note 3: To load the NavDiag software, the user MUST have Administrative privileges.
Results of Correct NavDiag Installation
Experienced PC users can check the results of the Navini Diagnostics installation by looking at
the log file that is created during the installation process. The log file is named
“Ripwave_Diagnostics_InstallLog.log.” It is located under
Diagnostics.
-------
Install Begin: Tue Jul 20 12:15:22 CDT 2004
Install End: Tue Jul 20 12:15:30 CDT 2004
Created with Zero G's InstallAnywhere 4.5.3 Enterprise Build 1394
Summary
-------
Installation: Successful with warnings.
2 SUCCESSES
1 WARNINGS
0 NONFATAL ERRORS
0 FATAL ERRORS
Action Notes:
None.
Install Log Detail:
c
updates installed prior to installing the NavDiag software.
c:\Program Files\Navini
Page 28
060825_pv1.3_pmx_user_guide_40-00460-00Ra(4.5)
Page 29
Navini Networks, Inc. PMX User’s Guide
Check Disk Space: C:\Program Files\NavDiag
Status: SUCCESSFUL
Additional Notes: NOTE - Required Disk Space: 29,363,315; Free Disk Space: 30,806,179,840
Install Directory: C:\Program Files\NavDiag\
Status: SUCCESSFUL
Get Registry Entry: Key: HKEY_LOCAL_MACHINE\SOFTWARE\Navini Networks\NavDiag, ValueName:
InstallDirectory
Status: WARNING
Additional Notes: WARNING - Win32Exception
Make Registry Entry: Key: HKEY_LOCAL_MACHINE\SOFTWARE\Navini Networks, Value Name: , Value
Data:
Status: SUCCESSFUL
Make Registry Entry: Key: HKEY_LOCAL_MACHINE\SOFTWARE\Navini Networks\NavDiag, Value Name:
, Value Data:
Status: SUCCESSFUL
Make Registry Entry: Key: HKEY_LOCAL_MACHINE\SOFTWARE\Navini Networks\NavDiag, Value Name:
InstallDirectory, Value Data: C:\Program Files\NavDiag
Status: SUCCESSFUL
Install Directory: C:\Program Files\NavDiag\Uninstall\
Status: SUCCESSFUL
Install Uninstaller: Navini Diagnostics (Install All Uninstaller Components)
Status: SUCCESSFUL
Install Directory: C:\Program Files\NavDiag\jre
Status: SUCCESSFUL
Install File: C:\Program Files\NavDiag\Uninstall\Uninstall NavDiag.exe
Status: SUCCESSFUL
Install File: C:\Program Files\NavDiag\Uninstall\Uninstall NavDiag.lax
Status: SUCCESSFUL
Install Directory: C:\Program Files\NavDiag\Uninstall\resource\
Status: SUCCESSFUL
Install File: C:\Program Files\NavDiag\Uninstall\resource\iawin32.dll
Status: SUCCESSFUL
Install File: C:\Program Files\NavDiag\Uninstall\resource\remove.exe
Status: SUCCESSFUL
Make Registry Entry: Key:
HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows\CurrentVersion\Uninstall\Navini Diagnostics,
Value Name: DisplayName, Value Data: Navini Diagnostics
Status: SUCCESSFUL
Page 29
060825_pv1.3_pmx_user_guide_40-00460-00Ra(4.5)
Page 30
Navini Networks, Inc. PMX User’s Guide
Make Registry Entry: Key:
HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows\CurrentVersion\Uninstall\Navini Diagnostics,
Value Name: UninstallString, Value Data: "C:\Program Files\NavDiag\Uninstall\Uninstall NavDiag.exe"
Status: SUCCESSFUL
Install Uninstaller: Navini Diagnostics (Install All Uninstaller Components)
Status: SUCCESSFUL
Create LaunchAnywhere: Navini Diagnostics.exe (Install All LaunchAnywhere Java Executable Components)
Status: SUCCESSFUL
Install File: C:\Program Files\NavDiag\Navini Diagnostics.exe
Status: SUCCESSFUL
Install File: C:\Program Files\NavDiag\Navini Diagnostics.lax
Status: SUCCESSFUL
Create LaunchAnywhere: Navini Diagnostics.exe (Install All LaunchAnywhere Java Executable Components)
Status: SUCCESSFUL
Install Directory: C:\Program Files\NavDiag\data\
Status: SUCCESSFUL
Install Directory: C:\Program Files\NavDiag\data\images\
Status: SUCCESSFUL
Install File: C:\Program Files\NavDiag\data\images\billboard.gif
Status: SUCCESSFUL
Install File: C:\Program Files\NavDiag\data\images\splash.gif
Status: SUCCESSFUL
Install File: C:\Program Files\NavDiag\data\images\buttonbar.gif
Status: SUCCESSFUL
Install File: C:\Program Files\NavDiag\data\images\about2.gif
Status: SUCCESSFUL
Install File: C:\Program Files\NavDiag\data\images\about1.gif
Status: SUCCESSFUL
Install File: C:\Program Files\NavDiag\data\images\about.gif
Status: SUCCESSFUL
Install File: C:\Program Files\NavDiag\data\images\uninstall.gif
Status: SUCCESSFUL
Install Directory: C:\Program Files\NavDiag\data\log\
Status: SUCCESSFUL
Install Directory: C:\Program Files\NavDiag\data\lib\
Status: SUCCESSFUL
Install File: C:\Program Files\NavDiag\data\lib\ctl.jar
Page 30
060825_pv1.3_pmx_user_guide_40-00460-00Ra(4.5)
Page 31
Navini Networks, Inc. PMX User’s Guide
Status: SUCCESSFUL
Install File: C:\Program Files\NavDiag\data\lib\navDiag.jar
Status: SUCCESSFUL
Install File: C:\Program Files\NavDiag\data\lib\jfreechart-0.9.13.jar
Status: SUCCESSFUL
Install File: C:\Program Files\NavDiag\data\lib\jcommon-0.8.8.jar
Status: SUCCESSFUL
Install File: C:\Program Files\NavDiag\data\lib\log4j.jar
Status: SUCCESSFUL
Install Directory: C:\Program Files\NavDiag\data\doc\
Status: SUCCESSFUL
Install Directory: C:\Program Files\NavDiag\config\
Status: SUCCESSFUL
Install File: C:\Program Files\NavDiag\config\NavDiag.lcf
Status: SUCCESSFUL
Install Directory: C:\Documents and Settings\luis\Start Menu\Programs\NavDiag\
Status: SUCCESSFUL
Create Shortcut: C:\Documents and Settings\luis\Start Menu\Programs\NavDiag\Navini Diagnostics.lnk
Status: SUCCESSFUL
Create Shortcut: C:\Documents and Settings\luis\Start Menu\Programs\NavDiag\Uninstall.lnk
Status: SUCCESSFUL
Install Directory: C:\Documents and Settings\luis\Desktop\
Status: SUCCESSFUL
Additional Notes: NOTE - Directory already existed
Create Shortcut: C:\Documents and Settings\luis\Desktop\Navini Diagnostics.lnk
Status: SUCCESSFUL
Page 31
060825_pv1.3_pmx_user_guide_40-00460-00Ra(4.5)
Page 32
Navini Networks, Inc. PMX User’s Guide
ADDENDUM 2: End User Software License Agreement
between
Navini Networks, Inc.
and
Buyer
ARTICLE 1
IMPORTANT MESSAGE
1.1
2.1
2.2
2.3
2.4
Act of Assent. Installing the Software indicates that you have read, understand and accept
this License Agreement.
ARTICLE 2
LICENSES
Grant of License. The Software and related Documentation, are the intellectual property
of Navini Networks, Inc. and are protected by law. Navini Networks, Inc. grants to
Buyer a personal, nonexclusive, nontransferable worldwide license, for revocable use (as
permitted herein) of the Software based on the terms and conditions of this License
Agreement and the Master Supply Agreement to which it is attached. Buyer is permitted
to install and use the Software on its server, but only in conjunction with the Navini
Hardware. Buyer is not permitted to rent, sell or otherwise transfer the Software to any
third parties.
Ownership Rights. Under this Agreement, Buyer does not acquire any rights of
ownership in the Software and related Documentation and subsequent releases and
versions licensed by Navini Networks, Inc. to Buyer pursuant to this License Agreement,
whether in printed or machine-readable format. Buyer acquires only the right to use the
Software and related Documentation subject to the terms and conditions of this
Agreement. Buyer promises to keep the Software in confidence for the benefit of Navini
Networks, Inc. and agrees to destroy or return the Software and all copies at such time as
Buyer chooses to cease using the Software or upon termination or cancellation of this
License Agreement for any reason.
Backup Copies. Buyer may copy the Software for safekeeping (archival) or backup
purposes, provided that all such copies of the Software are subject to the provisions of
this License Agreement, and also provided that each copy shall include in readable
format any and all confidential, proprietary, and copyright notices or markings contained
in the original.
Assignment. The rights granted in this License Agreement are restricted for use solely by
Buyer and may not be assigned, transferred, or sublicensed, however Buyer may grant
access to its server to End-Users. Each Buyer shall be authorized to make use of the
Software in the form in which it is provided to Buyer solely for Buyer’s own computer
server location. Buyer represents that it will not use the Software for any purpose that is
not expressly delineated in this Agreement. Further Buyer represents that it will comply
with all export, re-export, and other laws in its use of the Software.
Page 32
060825_pv1.3_pmx_user_guide_40-00460-00Ra(4.5)
Page 33
Navini Networks, Inc. PMX User’s Guide
2.5 Suitability.
a. Buyer alone is responsible for determining which software best suits Buyer’s
needs, for installing and operating the Software, and for the results obtained.
Accordingly, each Buyer should determine its needs, and evaluate the Software’s
capabilities before making a final decision about licensing the software.
b. Navini Networks, Inc. makes no representation that the Software conforms to or
satisfies any federal, state, or local laws. Buyer is encouraged to engage
professional assistance from attorneys and engineers to evaluate the suitability of
the Software for Buyer’s use.
c. Navini Networks, Inc. makes no claims that the Software is suitable for Buyer’s
intended purposes.
2.6
Remote Digital Access. Navini Networks, Inc. reserves the right, but is not obligated to
digitally access the Software for the purposes of upgrading and maintaining the Software.
2.7
U.S. GOVERNMENT RESTRICTED RIGHTS. All Software provided to the U.S.
Government pursuant to solicitations issued on or after December 1, 1995 is provided
with the commercial license rights and restrictions described elsewhere herein. All
Software provided to the U.S. Government pursuant to solicitations issued prior to
December 1, 1995 is provided with “Restricted Rights” as provided for in FAR, 48 CFR
52.227-14 (June 1987) or DFAR, 48 CFR 252.227-7013 (Oct 1988), as applicable
ARTICLE 3
TRADE SECRETS
3.1
Trade Secret. Navini Networks, Inc. considers the licensed Software covered by this
License Agreement to be a trade secret. Navini Networks, Inc. does not disclose any
information to Navini Networks, Inc. competitors or potential competitors. Buyer shall
not disclose any design, code, or technological know-how gained by access to the
Software to Licensor’s competitors. Buyer shall not use design, code, or documentation
gained by access to the Software to develop a similar technology or a competing software
product. To attempt to or to do so, the Parties acknowledge, understand and agree,
constitute a material breach of this License Agreement.
3.2
Third Party Intellectual Property. Buyer acknowledges, understands and agrees that the
licensed Software covered by this License Agreement may contain Intellectual Property
owned by Third Parties and duly licensed to Navini Networks, Inc. Copyright, Patent
and other laws protect Third Party Intellectual Property manufactured with, marketed
with, or otherwise bundled with the licensed Software. Buyer promises to keep such
Third Party Intellectual Property in confidence to the benefit of the Third Party, agrees
not to reverse engineer or otherwise decompile Third Party Intellectual Property, and
agrees to stop using, destroy and/or return such Third Party owned Intellectual Property
under the same terms and conditions as the licensed Software as set forth in this License
Agreement.
Page 33
060825_pv1.3_pmx_user_guide_40-00460-00Ra(4.5)
Page 34
Navini Networks, Inc. PMX User’s Guide
ARTICLE 4
INDEMNIFICATIONS AND WARRANTY
4.1
Intellectual Property Indemnification; Entire Liability. ARTICLE 15 OF THE SUPPLY
AGREEMENT TO WHICH THIS AGREEMENT IS ATTACHED STATES THE
ENTIRE LIABILITY OF NAVINI NETWORKS, INC. WITH RESPECT TO
INFRINGEMENT OF COPYRIGHTS, TRADE SECRETS, TRADEMARKS,
PATENTS, AND OTHER INTELLECTUAL PROPERTY RIGHTS BY THE
LICENSED SOFTWARE, DOCUMENTATION, OR ANY PARTS THEREOF, AND
NAVINI NETWORKS, INC. SHALL HAVE NO ADDITIONAL LIABILITY WITH
RESPECT TO ANY ALLEGED OR PROVEN INFRINGEMENT.
4.2
Warranty. EXCEPT AS GRANTED IN THE BODY OF THE SUPPLY AGREEMENT
TO WHICH THIS LICENSE AGREEMENT IS ATTACHED, THE LICENSED
SOFTWARE IS PROVIDED BY NAVINI NETWORKS, INC. “AS IS” AND
WITHOUT WARRANTY OF ANY KIND OR NATURE, WRITTEN OR ORAL,
EXPRESS OR IMPLIED, INCLUDING (WITHOUT LIMITATION) THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE. THIS LIMITATION OF WARRANTIES WAS A MATERIAL FACTOR
IN THE ESTABLISHMENT OF THE LICENSE FEE CHARGED FOR EACH
SPECIFIC ITEM OF SOFTWARE LICENSED.
ARTICLE 5
LIMITATION OF LIABILITY
5.1
5.2
5.3
Consequential Damages. TO THE MAXIMUM EXTENT PERMITTED BY THE
APPLICABLE LAW, IN NO EVENT SHALL NAVINI NETWORKS, INC. OR ANY
THIRD PARTY INVOLVED IN THE CREATION, PRODUCTION, DELIVERY, OR
LICENSING OF THE SOFTWARE BE LIABLE FOR ANY LOST REVENUES,
PROFITS OR DATA OR OTHER SPECIAL, INDIRECT, INCIDENTAL,
CONSEQUENTIAL, OR PUNITIVE DAMAGES, HOWEVER CAUSED AND
REGARDLESS OF THEORY OF LIABILITY, EVEN IF NAVINI NETWORKS, INC.
HAS, OR SHOULD HAVE HAD ANY KNOWLEDGE, ACTUAL OR
CONSTRUCTIVE, OF THE POSSIBILITY OF SUCH DAMAGES.
License-Fee Limitation. Except for the indemnification provisions of Article 15, Navini
Networks, Inc.’s maximum liability for damages is limited to the license fees paid by
Buyer under this Agreement for the particular licensed Software that caused the damages.
Loss of Data. Software error can cause a significant loss of data. Navini Networks, Inc.
shall not be responsible for any loss of data. Navini Networks, Inc.’s responsibility is to
correct the Software error as provided in this License Agreement or the Supply
Agreement to which it is attached. It is Licensee’s responsibility to have adequate
backup procedures to protect Buyer from significant loss of valid data.
Page 34
060825_pv1.3_pmx_user_guide_40-00460-00Ra(4.5)
Page 35
Navini Networks, Inc. PMX User’s Guide
ARTICLE 6
OBJECT CODE ONLY-NO MODIFICATIONS
6.1
Modifications. In order to maintain the “trade secret” status of the information contained
in the Licensed Software, Navini Networks, Inc. provides the Software in object-code
form only. Buyer shall not modify, enhance, adapt, disassemble, translate, decompile or
otherwise decode any portion of the object code of the Software module. Buyer shall not
use the Software without a license to the Software object code. The object code contains
the license number, date of license, and other license information. This information is
placed in the object-code portions to prevent unauthorized and unlicensed distributions of
the Software. Buyer shall not subvert or change any of this information. Further Buyer
shall not make, full or partial, copies of any documentation whether printed or machinereadable media supplied with the Licensed Software unless expressly granted prior
written permission by Navini Networks, Inc.
6.2
Responsibility for Damages. Buyer is subject to the provisions of the Supply Agreement
with respect to the Software (including Section 16). Buyer is fully liable and responsible
for any damages, indirect or direct, and costs that Navini Networks, Inc. may incur if
Buyer appoints a subcontractor who accesses the Software without Navini’s prior written
consent. Buyer shall defend, indemnify, and hold Navini Networks, Inc., its directors,
officers, employees, agents, Authorized Partners, and other representatives harmless
accordingly for all costs and direct and indirect damages sustained by Navini Networks,
Inc. However, if the subcontractor is pre-approved by Navini in writing for access to the
Software, then this Section shall not apply.
6.3
Copyright Notices. Buyer shall not remove any copyright or proprietary rights notice or
identification that indicates Navini Networks, Inc. ownership from any part of the
licensed Software, it being expressly understood and agreed that the existence of such
copyright notice should not be construed as an admission or presumption that publication
of the licensed Software has occurred.
END OF AGREEMENT
Copyright © 2004-2006 Navini Networks, Inc.
All rights reserved. Printed in the USA.
Navini Networks is a registered trademark. Zero-Install, Ripwave, and Unwired by Navini are
trademarks of Navini Networks, Inc. Other product and company names mentioned herein may
be trademarks and/or service marks of their respective owners. Rev. 052302
Page 35
060825_pv1.3_pmx_user_guide_40-00460-00Ra(4.5)
Loading...
