Navilock BT-821G User guide

Navilock BT-821G MT3333 Multi GNSS Bluetooth Receiver

Manual (60324)

1. Introduction

The BT-821g is a Bluetooth multi-GNSS receiver with internal antenna and MT3333 GNSS

chipset. The Bluetooth interface enables connection to various mobile and stationary devices.

Thanks to its extremely compact design and very long battery life, it is the perfect companion on

any tour.

1.1. Package content*

1x Navilock BT-821G

1x 8cm CD ROM incl. manual

1x USB power cable

*Make sure before commissioning that all components of the delivery are included in the

package. If anything is missing or damaged, please immediately contact your dealer.

Important Health and Safety

If you use this product, you should take the following precautions to avoid possible legal liabilities

and damages. Follow all product safety and operating instructions and keep them in a safe place.

Observe all warnings in the manual and on the product. To avoid injury, electric shock, fire, and

damage to the equipment, observe the following precautions.

Electrical safety

This product is intended for use with current internal batteries or via USB or via the included USB

power cable. Other usage may be dangerous and will invalidate any approval given to this product.

NOTE: RECYCLE OR DISPOSE OF USED BATTERIES OR BATTERY CELLS

ACCORDING TO THE LOCAL REGULATIONS OR THE ENCLOSED INSTRUCTIONS.

SAFETY PRECAUTIONS FOR DIRECT SUNLIGHT

Make sure that the product away from excessive moisture and extreme temperatures. Allow the unit, the

battery or the battery cells are not over a longer period of time in a vehicle or in places where can increase

the temperature to 60 ° C (140 ° F) (a car dashboard, window sill, or behind a glass pane that is exposed

to direct sunlight or strong ultraviolet light). The device or the vehicle may be damaged and the batteries

or rechargeable batteries become overheated.

Damage Requiring Service

Disconnect in the following cases, the product from the power supply, remove the battery, and contact an

authorized service technician or the dealer:

If liquid has been spilled into the product or an object has fallen.

The product has been dropped or damaged.

There are noticeable signs of overheating.

The product does not operate normally when the operating instructions.

Avoid using your device after a dramatic change in temperature

If you expose rapid changes in temperature and / or humidity ranges, condensation may occur

inside the unit. To avoid damaging the device, allow sufficient time for the moisture to evaporate

before using the device.

NOTE: If you move the unit from a cold to a warm or from a warm to a cold environment, allow

the device to acclimate to room temperature before turning it on.

2. Starting operation

2.1. Bluetooth connection

Charge the GNSS receiver battery pack completely before first use, using the provided USB

power cable. After charging you can use the GNSS receiver by pressing and holding the On /

Off switch. The receiver indicate start up by the green LED 2 lights. Position to a location with

a clear view of the sky. The green LED 2 starts to flash after a successful satfix. The receiver

is ready to supply data. The Bluetooth connection to your device, you create as usual. As a

new device "BT-GPS-xxxxxx" is displayed. Connect with this unit. You will be prompted for the

coupling enter the Bluetooth password. In this case please enter "0000". The receiver is now

connected to your device and can be used as a GNSS receiver.

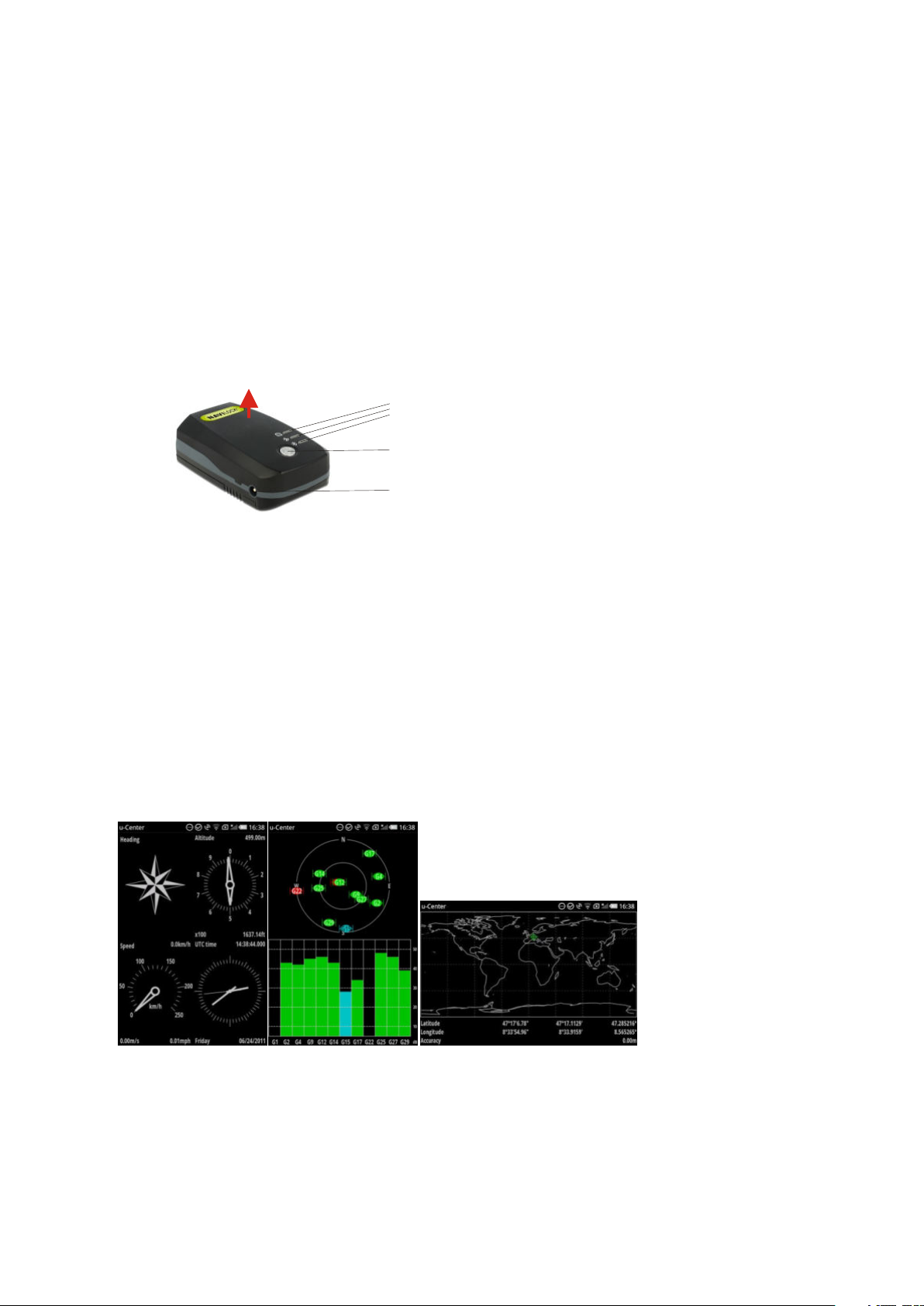

SKY

LED 1 orange

LED 2 green

LED 3 blue

ON/OFF

DC 5V Power

3. LED

LED 1 orange: lights up, charging

flashes, the battery pack needs to be charged.

LED 2 green: lights up, on without satfix

flashes, on with satfix

LED 3 blue: flashes 5Hz Bluetooth ready to connect

flashes 1Hz Bluetooth connected

4. Application Environment

The BT-821g can be used with most Bluetooth devices, with the exception of Apple products.

5. Function test example using u-blox u-center under Android® Google Inc.

1. Download the u-center app from the Play Store and install it on your device. U-center is a

pure test program and can not be used for navigation or orientation.

Please inform yourself directly at u-blox about the different versions and the possibilities of

this extensive test software: http://www.u-blox.com/en/evaluation-tools-a-software/u-center/u-

center. html.

Explosion on contact with fire!

Do not permanently expose the receiver to temperatures of over 60°C (140°F).

6. Possible sources of error and their elimination

6.1 You still don’t get a satfix.

The BT-821G needs up to 20 minutes for its first satfix on another continent. To get a satfix

the view to the sky must be unobstructed. Move the BT-821G as far as possible from the wall.

A house wall reflects the signal strongly and contributes to the satfix time delay.

6.2 Without an active Bluetooth connection, the BT-821g switched off automatically after

about 15 minutes. Just turn it on by pressing and holding the On / Off button again.

The Navilock repair center tries to be as obliging as possible, so please tell us the real reason

for the defect. During the error analysis, we can generally detect if the cause for the defect was

an external cause, water damage, fall, over-voltage or the wrong handling of the unit.

Failures are often the result of little causes. It is not always necessary to exchange the product

immediately, because this will not solve the cause of the failure if it is not a GNSS hardware

problem.

Before visiting your dealer, please contact the Navilock support center. They will try to help you

quickly and without further ado, so that the circumstances of an exchange, which might in any

case be unnecessary, are avoided.

In this case, please write down a detailed description of the error, add this information to your

end device and the software used in this device, as well as the operation environment (operating

system, service pack version, CPU type, storage size, hard disk drive and interface etc.), and

send an e-mail to .

A support member will look into your problem and work out a solution.

We hope your Navilock product brings you fun and enjoyment!

[e-mail]

7. Specifications

Chipset vendor/type:MediaTek MT3333 GLONASS GPS

Cannels:33 tracking, 99 acquisition

Sensitivity:-165 dBm

Frequency: GPS:L1, 1575.4200 MHz

GLONASS:G1, 1602.5625 ~ 1615.5000 MHz

Target precisions:

Position horizontal: GPS/SBAS/QZSS+GLONASS: 2.5 m CEP

Time: 1 micro second syncronized with GPS time

Speed:0.1m/s

Date:WGS-84

Protocol:NMEA-0183 V3.01 GGA, GSA, GSV, RMC, VTG

Detection rates:

Cold start: 34 s average

Hot start: 1 s average

Reacquisition:1 s average

Update rate:1 ~ 10 Hz

Dynamic prerequisites:

Acceleration limit: smaller than 4 g

Heigth limit: 18000 m

Speed limit: 515 m/s

Performance:

Power supply:5 V

Akku:3.7 V 1700 mA/h

Operating time:ca. 30 h tracking

Current:ca. 50 mA tracking

Connection:

Operatring temperature:-20°C ~ 60°C

Dimensions (LxBxH):ca. 73.50 x 43.00 x 24.50 mm

Weight: ca. 86 g

8. Zertifikate

CE

9. Warranty period

Your GNSS receiver will be repaired free of charge within the legal warranty period, unless it was

damaged due to external cases, humidity dropping or other damages due to improper usage.

Your dealer is always ready to help you. Please send your unit for repairs directly to:

Navilock Repair Center

Beeskowdamm 13/15

D-14167 Berlin-Zehlendorf

Postage must always be paid by the client.

Please add a proof of purchase and a detailed error description. Time based error, meaning how

often an error occurs, must be expressly mentioned.

For logistic reasons, we cannot accept returned packages without the postage being paid

by the client.

10. Support

For additional support questions, please contact our support center:

[e-mail] www.navilock.com

You can also call the Service Hotline at the following hours: Mo – Fr.: 9:00 – 16:30.

* You will be charged a connection fee for a telephone call to Germany/Berlin, in accordance with

the connection fee overview of your telephone service provider. Callers from Germany, who

subscribed to a national telephone flat-rate service and can call nation-wide fixed-telephone

numbers free of charge, can call us without incurring additional charges.

You can also find current product information on our homepage.

/ or by telephone: [phone]*.

www.navilock.com.

11. Final provision

The information and data contained in this manual may be changed without prior notice. Errors

and misprints reserved.

12. Copyright

No part of this instruction manual may be duplicated or transmitted for any purpose and by any

means, be they electronic or mechanical, without the express written authorization from Navilock.

The brand Navilock is a registered trademark and may not be used without the written

authorization of the trademark owner. In no case may it be altered or completed by additions.

13. Brands of third parties

Brands, trade names, product names and logos of third parties mentioned in this

documentation may be trademarks or registered trademarks of the respective owners.

Conformity declaration

Please download the Declaration of Conformity from http://www.navilock.de/support/ in the conformity area.

WEEE note

The WEEE (Waste Electrical and Electronic Equipment) directive, which came into force on 13 February 2003, lead to a

comprehensive change in the disposal of used electric products. It is the main purpose of this directive to avoid electric waste

products (WEEE), while simultaneously promoting the re-usage, recycling and other forms of reconditioning in order to reduce the

amount of waste. The WEEE logo on the product and the package shows that the product should not be disposed of with regular

garbage. You are responsible for disposing all used electric and electronic devices at the corresponding collection sites. The separate

collection and meaningful re-usage of electronic waste helps to deal with natural resources more economically. In addition, re-using

electronic waste contributes to the preservation of the environment and human health. Additional information regarding the disposal

of electric and electronic devices, their re-usage and the collection sites can be found at your local authorities, disposal companies,

specialist shops and the manufacturer of the product.

RoHS conformity

This product meets the requirements of directive 2002/95/EC of the European Parliament and of the Council of 27 January 2003,

concerning the limited usage of dangerous substances in electric and electronic devices (RoHS) and its amendments. This product

complies with the directive 2011/65/EU from January 3rd 2013.

EU Import:

Tragant Handels- und Beteiligungs GmbH Beeskowdamm 13/15, 14167 Berlin, Germany

Status: 12/2014
