Navig DRONE-WF20 User Manual

USER MANUAL DRONE-WF20

To help get you started, please refer to the quick connection guide below

Action Drone Indicator Remote Indicator
1 Turn on Drone Fast then slow flash -
2 Turn on Remote Slow flash Slow RED flash

Connection (Throttle up then down before begin)
3 Connection successful Solid light RED light off
4 Press launch / land button, then throttle up to take off
5 Press the launch / land button / throttle down to land

Note:
Drone Double flashes Drone not paired
Drone Fast flashes Flat battery / Cannot connect

USER MANUAL DRONE-WF20

SAFETY PRECAUTIONS

Keep the battery away from heat sources such as fire and sun
Store the battery in a cool dry place
When recharging, only use the battery charger intended for that purpose
Don’t over-charge the battery
Don’t charge the battery for more than two hours
Don’t leave a charging battery unattended
Please read through the manual before use and store for later reference.
Please store small parts in a place well out of the reach of small children
Keep all body parts away from the drone while the rotor blades are spinning
Never try to repair internal circuitry. This product has no serviceable parts
Keep small parts out of reach of children as they can be a choking hazard.
Do not rush your flight. Always stay in control.
After flight, turn the DRONE off first, then turn the controller off.
Do not fly your Drone in prohibited areas, such as near airports or near/above people
Children should operate a drone only with adult supervision
Always keep sight of your drone while flying and resist the urge to fly too high
Always turn the power off on the controller and DRONE when not in use.

BATTERY PROTECTION

This DRONE is equipped with low-voltage protection. When a battery is low on charge, the programmed
control system will stop the DRONE’s rotors. The battery will then need re-charging before use

MAINTENANCE

Clean the DRONE with a clean, dry soft cloth only. To avoid irreparable damage, keep the DRONE dry
and away from water such as rain. Check the DRONE and accessories for damage before flight. If
damage is found, do not use the DRONE until it is repaired.

REMOTE CONTROL BATTERY INSTALLATION

Remove the battery cover screw using the
supplied screwdriver. Remove the battery
cover and insert 4 X 1.5V AAA batteries,
according to indicated polarity (batteries
not included). Reattach the cover and
tighten the screw.

Note: Battery installation should be done
under adult supervision. Do not mix old and new batteries inside the controller.

USER MANUAL DRONE-WF20

CHARGING YOUR DRONE BATTERY

Connect your drone battery to a USB charger, such as a PC, using the supplied USB cable. You can also
remove the battery from the drone for charging. (See details below.)

Note: The battery is fully charged once the GREEN status indicator on the battery turns off.

HOW TO REMOVE THE BATTERY FROM THE DRONE

Depress both top and bottom locking latches together and carefully slide the
battery out.

USER MANUAL DRONE-WF20

No. Function

Description

1

Power

Indicator

Illuminates when power is turned on

Take picture

/

P

ush the control stick in

(

as opposed to up or down). A

repeating

BEEP will

5 Right Stick

Drive

the drone forwards, backwards, left or right

6

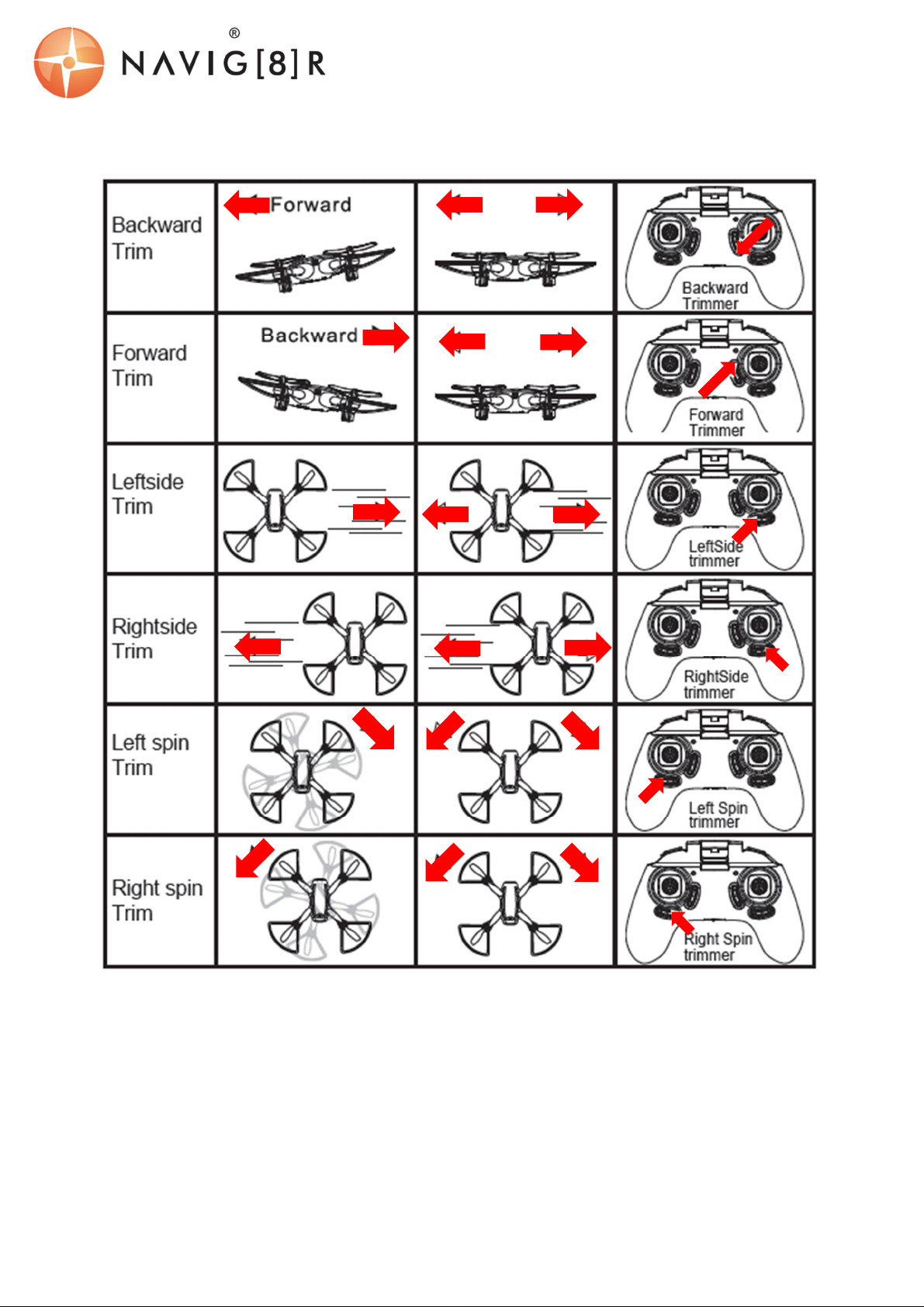

Trim button

(See explanation below)

7

Trim button

(See explanation below)

Press once

to select

headless mode

. Press

again to

exit

headless

mode.

Drives the drone back to its

original start

area

(manua

l landing then required)

10 Trim button

(See explanations below)

11

Left Stick

Move up and down to control speed and side to

side to rotate

Press

in (as opposed to up or down) There are 3 different speeds; slow,

REMOTE CONTROL

12

11

10

Connection
indicator

2

Camera Indicator

(Not available on
this model)

1

13

2

3

4

5

6

9

Flashes RED during the connection process. Turns off when connected.

The light will blink once while taking picture and remain on while recording
video (Not available on this model)

8

7

record video

3

(Not available on
this model)

4 Flip

8 Headless mode

One key return

9

function

12 Speed Select

Press one time for taking picture, press for 3 seconds for recording video

(Not available on this model)

then sound alerting you that you are in FLIP mode. Then, use the right control
stick to flip the drone in the selected direction. Once the flip is complete, the
BEEP sound will stop. Repeat this process for multiple flips.

Note: Headless mode will always drive the drone forwards, no matter which
way the front of the drone is facing.

Note: The DRONE and user must stay in the same orientation from each
other, in order for this function to operate correctly.

medium and fast. These are indicated by one, two or three BEEPs)

Unlock / Take off /

13

Land / Emergency

Press once to unlock the drone and to start the rotors for take-off.
Press after your flight, to land the drone.
Note: During flight press and hold for 5 seconds for an emergency stop.
