Navibe SP611 User Manual

SP611
Sport GPS Receiver User manual
Introduction
Table of Contents i Announcement ii Warnings iii Caution iv Welcome to Navibe v General Information vi-vii
Reference
Hardware Description 01 Button Description Table 02-04 LCD Screen Words & Icons Definition 05 Operation Flow 06 Getting Started 07 Bracket Mounting Instruction 08-10 Pin Assignment 11 USB GPS Receiver 12
i
Compass Systems Corp. Email: service@cpss.com.tw
No part of this User’s Manual may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying recording ,for any purpose other than the purchaser’s personal use, without the written permission of Compass Systems Corp.
Information in this User’s Manual is subject to change without notice. Compass Systems Corp. reserves the right to change or improve or modify its products and to make changes to the content without obligation to notify any person or organization of such changes.
©Copy right 2005 by Compass Systems Corp. All rights reserved.
April 2005 Printed in Taiwan
Introduction
ii
Introduction
WARNINGS
Some certain knowledge is required to be well known by the user for proper and safe use of Navibe Sport GPS receiver. Please read this User’s Manual first before operation.
Because Navibe Sport GPS receiver is an assistant device, it will NOT undertake any legal responsibility for any accident or damage caused by the user’s wrong operation and/or wrong judgement in navigating with Navibe Sport GPS receiver.
WARNINGS
Some certain knowledge is required to be well known by the user for proper and safe use of Navibe Sport GPS receiver. Please read this User’s Manual first before operation.
Because Navibe Sport GPS receiver is an assistant device, it will NOT undertake any legal responsibility for any accident or damage caused by the user’s wrong operation and/or wrong judgement in navigating with Navibe Sport GPS receiver.
iii
Introduction
CAUTION
The Global Positioning System(GPS) is a system of 24 satellites which circle the earth twice a day in a very precise orbit and transmit information to earth. The Navibe Sport GPS receiver must continuously find at least three of these satellites to calculate your position and your movement.
This GPS system is operated by the government of the United States, which is solely responsible for its accuracy and maintenance. Any changes of the system could affect the accuracy and performance of all GPS equipment.
The Navibe Sport GPS receiver is designed for recreational use only. Please do not use this product for obtaining measurements in industrial or professional fields.
CAUTION
The Global Positioning System(GPS) is a system of 24 satellites which circle the earth twice a day in a very precise orbit and transmit information to earth. The Navibe Sport GPS receiver must continuously find at least three of these satellites to calculate your position and your movement.
This GPS system is operated by the government of the United States, which is solely responsible for its accuracy and maintenance. Any changes of the system could affect the accuracy and performance of all GPS equipment.
The Navibe Sport GPS receiver is designed for recreational use only. Please do not use this product for obtaining measurements in industrial or professional fields.
iv
Introduction
Thank you for choosing Navibe Sport GPS receiver! Take it now --- it can be your best friend!
Application Conditions:
Navibe Sport GPS receiver is not designed for indoors or under water usage. It uses Global Positioning System (GPS) satellites to calculate distances, current/maximum/average speed. Navibe Sport GPS receiver is intended for outdoors sport application usage in the temperature range of -10°C~ 60°C. For best performance, please use Navibe Sport GPS receiver outdoors with an unobstructed view of sky.
Introductionsection gives you a general overview of Navibe Sport GPS receiver features. Reference section tells how to operate the unit outdoor for sport activities and how to use it
as a normal USB GPS receiver inside the car for car navigation applications with this unit specifically in more details.
If you find something missing or damaged with this unit to the standard package, please contact the local dealer or retailer.
v
General Information
1. Package list
Thank you for purchasing the SP611. Please make sure the SP611 Navibe Sport GPS Receiver package contain the following items:
z Navibe Sport GPS receiver z Armband z User manual z Three brackets
If any of the items are missing, please contact the local dealer or retailer.
2. Maintenance
z Please don’t try to dismantle the Navibe Sport GPS receiver. There are no user
serviceable components in this product.
z Store the Navibe Sport GPS receiver away from direct sunlight or extreme heat. z Remove battery before storing for an extended period.
vi
Introduction
3. Sprinkling water resistance
The Navibe Sport GPS Receiver is sprinkling water resistant.
4. Changing the battery
Please always shut down the Navibe Sport GPS receiver before changing the battery. The instruction of changing the battery is shown below:
vii
Introduction
Reference
1
Button 2 LCD Backlight
Button 1 Power
Hardware Description
Button 3 Mode/Reset
LCD Screen
Reference
The Sport GPS has three Buttons. The first is power Button that is named Button1. The second is LCD Backlight on/off Button that is named Button
2. The third is Mode/Reset Button that is named Button 3. The function table of Button is shown as follows:
Button 1
Hold the button for about 1 second to switch the
device off.
Power Off
Hold the button for about 1 second to switch the
device on
Power On
DescriptionAction
2
Button Description Table
Reference
Button2
3
Press button again > 2 seconds, then LCD back light OFF.
LCD Backlight OFF
Press < 1 second, then LCD back light stays on for 5 seconds. Press till the light is ON, then LCD back light stays on permanently.
LCD Backlight ON
DescriptionAction
Button3
press > 2 seconds: reset the distance, MAX and AVG speed.
Reset
press < 1 second: switch between MAX and AVG speed.
Mode
DescriptionAction
Reference
4
Button2 & Button3
Press 2nd and 3rd Buttons together for minimum 3 seconds., then it changes between MILE MPH to KM KM/H, default setting is KM KM/H.
Press Button2 and Button3 together
DescriptionAction
Reference
GPS – to indicate GPS status
MAX – For MAX speed
AVG – For average speed
MPH – Mile per hour
KM/H – Kilometer per hour
KM – Kilometer for distance
MILE – Mile for distance
Battery Icon – To warn low battery status
Distance Digit / Speed Digit – To show the values of distance and speed. The decimal accuracy will
be adjusted automatically
5
LCD Screen Words & Icon Definition
Reference

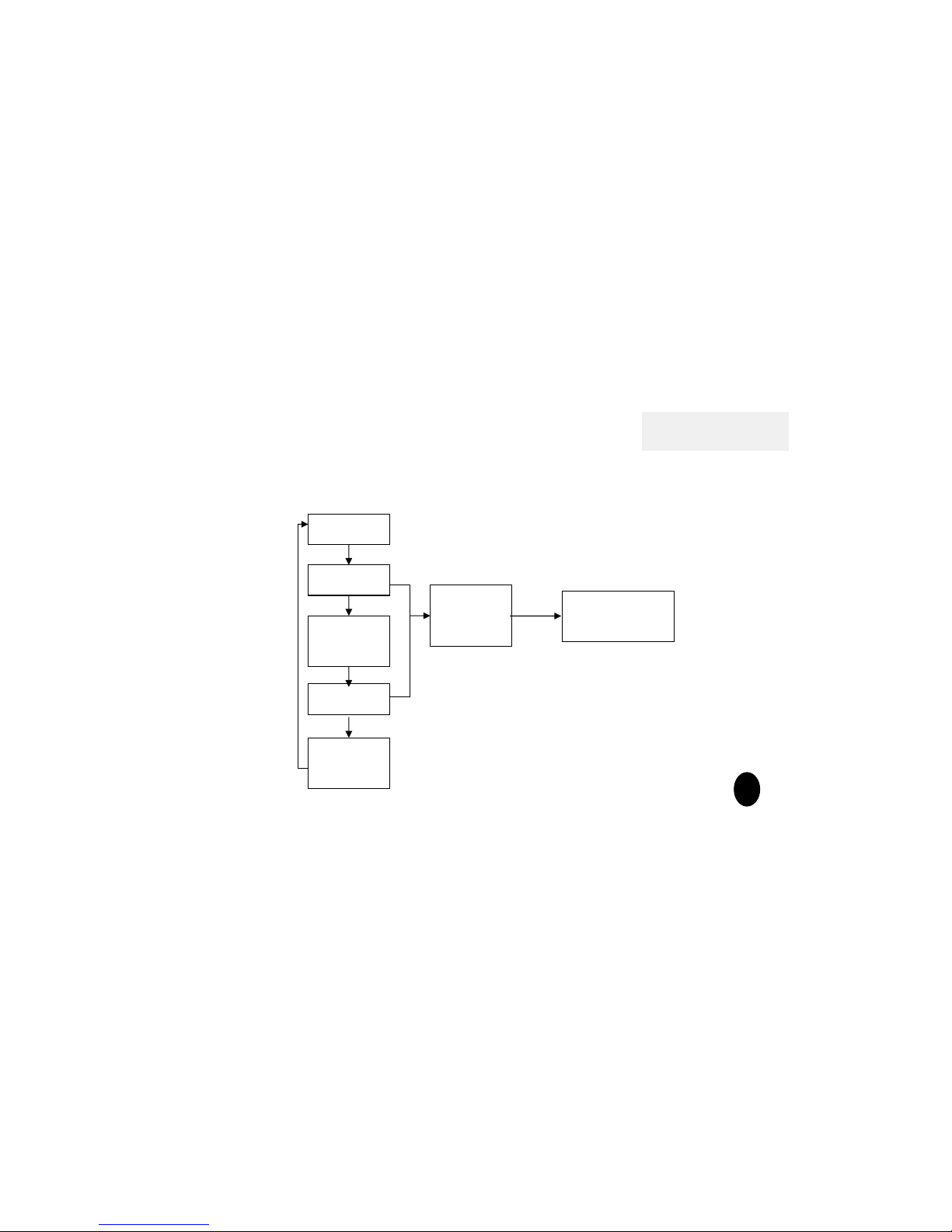

Operation Flow
(Once power is ON, MAX speed will be shown)
MAX Speed
Press button1 Power ON
Press button3 < 1 second
AVG Speed
Press button3 < 1 second
Press button 3 > 2 seconds
Reset MAX, AVG speed & Distance
6
Getting started
1. Depending on your sport activities, fit or mount the Navibe Sport GPS receiver around the upper arm, on the belt or on the bike.
2. Press the Button 1 to turn on the power and start the operation. First start may take up to 60 seconds to acquire all the satellite data.
3. Once GPS is 3D locked, the LCD screen of Navibe Sport GPS receiver will display the distance (KM), current speed (KM/H) and maximum speed (KM/H).
4. Press the Button 3 less than one second, you can switch between maximum and average speed.
5. Press the Button 3 more than two seconds, you can reset the distance, maximum and average speed.
6. Press the Button 2 to enlighten the LCD backlight.
7
Reference
Reference
Bracket Mounting Instruction
1.Wear It Around the Upper Arm.
Mount the bracket on the Navibe Sport GPS receiver (Figure 1). Insert armband to the hole and slide through the bracket (Figure 2). Then fix the Navibe Sport GPS receiver on the upper arm to create an enclosure (Figure 3).
8
Figure 1 Figure 2 Figure 3
2. Fix It On The Waist Belt
Mount the bracket on the Navibe Sport GPS receiver (Figure 4). Then use the bracket to fix the Navibe Sport GPS receiver on the waist belt (Figure 5).
9
Reference
Figure 4
Figure 5
3. Assemble it on the bike
Assemble the Navibe Sport GPS receiver on the bike (see below). Then you are ready to have a biking adventure.
10
Reference
Reference
11
Pin Assignment
Mini-USB female connector
Ground 5
N/C4
TX (TTL) – GPS output (NMEA)3
TX (RS-232) – GPS output (NMEA)2
+5 VDC1
Signal NamePin
After plugged in the USB cable into Navibe Sport GPS receiver, Navibe Sport GPS receiver can be used as a normal USB GPS receiver.
Reference
12
USB GPS Receiver
Compass Systems Corp. Email: service@cpss.com.tw
©Copy right 2005 by Compass Systems Corp. All rights reserved. April 2005 Printed in Taiwan
