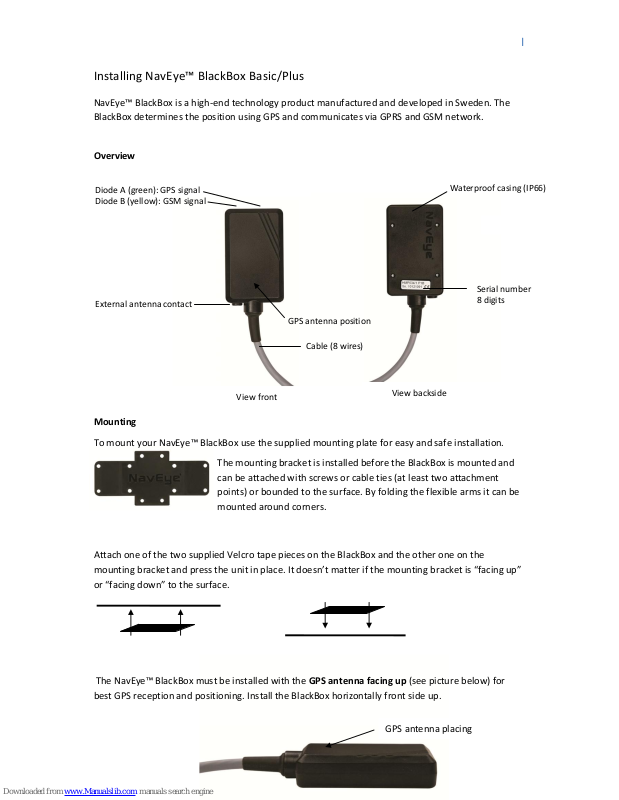

Installing NavEye™ BlackBox Basic/Plus
NavEye™ BlackBox is a high-end technology product manufactured and developed in Sweden. The
BlackBox determines the position using GPS and communicates via GPRS and GSM network.
Overview
Mounting
To mount your NavEye™ BlackBox use the supplied mounting plate for easy and safe installation.
The mounting bracket is installed before the BlackBox is mounted and
can be attached with screws or cable ties (at least two attachment
points) or bounded to the surface. By folding the flexible arms it can be
mounted around corners.
Attach one of the two supplied Velcro tape pieces on the BlackBox and the other one on the
mounting bracket and press the unit in place. It doesn’t matter if the mounting bracket is “facing up”
or “facing down” to the surface.
The NavEye™ BlackBox must be installed with the GPS antenna facing up (see picture below) for
best GPS reception and positioning. Install the BlackBox horizontally front side up.
External antenna contact
Diode A (green): GPS signal
Diode B (yellow): GSM signal
Cable (8 wires)
Waterproof casing (IP66)
View front
View backside
Serial number
8 digits
GPS antenna placing
GPS antenna position
II
Installation
Wiring
1. Connect the RED wire to +12V (constant voltage accepting +8V to +32V).
Connect the GREY wire to GROUND, the battery’s negative terminal.
The NavEye™ BlackBox has a built-in automatic fuse. No external fuse is therefore needed.
2. The other wires should not be connected for the model NavEye™ BlackBox BASIC. These
wires are only used with the model NavEye™ BlackBox PLUS.
Startup
3. When the BlackBox is powered up, a beep will be heard and the two LEDs will light up.
LED A. GPS signal: A steady green light will be seen when the unit is searching for a GPS signal or
if the signal is week. It changes to a flashing green light when a good GPS signal is received.
LED B. GSM signal: A fast yellow flashing light is shown when searching for a GSM network. It
changes to a slow flashing light when a good GSM connection have established.
The LEDs will be turned off automatically after a few minutes or when the unit is armed.
Confirmation
4. To ensure that the BlackBox is properly connected, call it or send an SMS with the text
“Diag”.
The response will contain the following information:
S.N: 101xxxxx The BlackBox serial number (8 digits).
Ver: 0.3.8 Version of the software.
VI: 3.754V Internal battery voltage.
VE: 12.346V External battery voltage (the vehicles battery).
GPS: Searching GPS status.
In1 (Pink) : Low Status of input 1.
In2 (Yellow): High Status of input 2.
In3 (Green): Low Status of input 3.
In4 (Brown): Low Status of input 4.
NavEye™ BlackBox BASIC The inputs are disabled. Always ”Low”.
NavEye™ BlackBox PLUS The inputs are ”HIGH” or ”LOW” depending on the connection.
Any cell phone (caller ID must be turned on) can be used to contact the BlackBox before registration.
After the registration only cell phone numbers designated as alarm receivers will receive SMS from
the BlackBox.
Configuration
5. Register your NavEye™ BlackBox on www.naveye.com/blackbox. Note that you must
complete the registration process for your BlackBox to function properly.
III
NO
NC
NO
NC
Wiring diagram
NavEye™ BlackBox PLUS
GROUND, negative terminal
87a
GREY - GROUND
30
87
86
85
30
87a
87
86
85
WHITE – RELAY CONTROL
BLUE -IMMOBILIZER
YELLOW - BURGLARY
PINK – GAS & FIRE
GREEN – WATER LEVEL GUARD
BROWN - OTHER
+8V to +32V (BATTERY)
RED - PLUS
INPUTS
OUTPUTS
RED – Connect to plus 12V (constant voltage, accepting 8V – 32V).
GRAY – Connect to ground, the battery’s negative terminal.
INPUTS
PINK – Connect the pink wire to smoke/gas alarm. Connect the other wire from the smoke alarm to +12V.
YELLOW – Connect the yellow wire to an IR sensor or magnetic switch. Connect the other wire from the sensor to +12V.
(If more than one burglary sensor is used, connect them in series.)
GREEN – Connect the green wire to the water level guard. Connect the other wire from the sensor to +12V.
BROWN – Brown wire can be connected to optional accessories. Connect the other wire from the sensor to +12V.
OUTPUTS
BLUE – Connect to a relay. It can control an immobilizer. This output follows the alarm, activated – can’t start the engine,
deactivated – can start the engine.
Connect the blue wire to 85 and ground to 86. Connect 30 and 87 in series with the wire between e.g. the ignition key and
starter.
WHITE – Connect to a relay. Control such as refrigerators. Turn on/off the output with an SMS command.
Connect the white wire to 85 and ground to 86. Connect 30 and 87 in series with the on/off function for example the
fridge.
+ -
BATTERY
8V – 32V
