PRODUCT MANUAL

Class-A SOLAS/Inland

AIS Transponder

Art. No. 100 1001

DISCLAIMER Although Nauticast GmbH strives for accuracy in all its publications this material may contain errors or omissions and is subject to change without prior notice. Nauticast GmbH shall not be made liable for any specific, indirect, incidental or consequential damages as a result of the usage of this manual. Please visit our website for the latest manual revision at

www.nauticast.com if necessary.

This document is protected by copyright law. Copying or duplicating be it physically or electronically for any usage other than the operation of a Nauticast A2 AIS System is prohibited and any offender may be liable to the payment of damages.

Dieses Dokument ist urheberrechtlich geschützt. Jede Weitergabe oder Vervielfältigung dieser Unterlage ist ausschließlich zur Unterstützung des Betriebes eines Nauticast A2 AIS Systems zulässig. Zuwiderhandlungen verpflichten zu Schadenersatz.

Ce document est protégé par le droit d'auteur. Toute redistribution ou reproduction de ce document est autorisée exclusivement pour appuyer le fonctionnement d'un système AIS A2 Nauticast. Les contrevenants seront passibles de dommages-intérêts.

Este documento está protegido por derechos de autor. Cualquier redistribución o reproducción de este documento está permitida exclusivamente para apoyar la operación de un sistema AIS A2 Nauticast. Los infractores quedan obligados por daños y perjuicios.

GENERAL WARNINGS All marine Automatic Identification System (AIS) units utilize a satellite based system such as the Global Positioning Satellite (GPS) network or the Global Navigation Satellite System (GLONASS) network to determine their position. The accuracy of these networks is variable and is affected by factors such as the antenna positioning, the number of satellites that are available to determine a position and how long satellite information has been received for. It is desirable wherever possible

to verify both your vessel’s AIS derived position data and other vessels’ AIS derived position data with visual or radar

based observations.

In most countries the operation of an AIS unit is included under the vessel’s marine VHF license provisions. The vessel onto which the AIS unit is to be installed must therefore possess a valid VHF radiotelephone license which lists the AIS system and the vessel Call Sign and MMSI number. Please contact the relevant authority in your country for more information.

LIMITED WARRANTY This product is warranted against factory defect in material and workmanship for a period of 24 months from the date of purchase. During the warranty period Nauticast GmbH will repair or at its option, replace the product at no cost to the buyer provided that a return authorization is obtained from Nauticast GmbH, Lützowgasse 12-14 / 3. OG, 1140 Vienna, Austria (see Section Contact & Support information). This warranty does not apply if the product has been damaged by accident or misuse, or as a result of service or modification by unauthorized service personnel. For authorized service partners see our homepage www.nauticast.com or contact Nauticast support directly. Warranty and certification void if device is opened.

Nauticast™ is a protected trademark of Nauticast GmbH

Page 2 of 80 1001001-2EN A2 Product Manual 2_0

Index

1 GENERAL INTRODUCTION ...................................................................................................................... 6

1.1 Description of AIS..................................................................................................................... 6

1.2 AIS Networks ........................................................................................................................... 8

1.3 Inland AIS................................................................................................................................ 8

2 SYSTEM OVERVIEW .............................................................................................................................. 9

2.1 Product Description .................................................................................................................. 9

2.2 Main features ......................................................................................................................... 10

3 INSTALLATION .................................................................................................................................. 11

3.1 Installation Requirements ....................................................................................................... 11

3.2 Installation Overview .............................................................................................................. 11

3.3 Mounting the NAUTICAST A2 .................................................................................................. 11

3.4 Mount the NAUTICAST A2 VHF antenna ................................................................................... 12

3.5 Mount the NAUTICAST A2 GPS Antenna .................................................................................. 13

3.6 Electrical Installation ............................................................................................................... 14

3.7 System Configuration .............................................................................................................. 19

4 OPERATION...................................................................................................................................... 20

4.1 System Mode ......................................................................................................................... 20

4.2 LED’s and Controls ................................................................................................................. 20

4.3 Main Menu – Tree View .......................................................................................................... 22

4.4 Configuration Parameters ........................................................................................................ 23

4.5 Alarm and Alert Pop-ups ......................................................................................................... 29

4.6 Status Bar .............................................................................................................................. 30

4.7 Status Icons ........................................................................................................................... 30

4.8 View Remote Ship Information ................................................................................................ 31

4.9 View Plot of Targets ............................................................................................................... 32

4.10 View Transmitted Own Ship Information .................................................................................. 32

4.11 Enter and Read Voyage Related Information ............................................................................ 33

4.12 Handling Safety Related Messages (SRM) and Text Messages ................................................... 33

4.13 Send Persons On Board .......................................................................................................... 34

4.14 Long Range Interrogations ...................................................................................................... 35

4.15 Inland ETA and RTA ............................................................................................................... 36

4.16 Inland Water Levels ................................................................................................................ 36

4.17 Regional Areas ....................................................................................................................... 37

4.18 Alarms ................................................................................................................................... 37

4.19 Status List .............................................................................................................................. 37

4.20 Non Functional Time ............................................................................................................... 38

4.21 GPS Status ............................................................................................................................. 38

4.22 View Raw Data ....................................................................................................................... 38

4.23 SW/HW Info ........................................................................................................................... 39

4.24 VHF Status ............................................................................................................................. 39

4.25 Communication Test ............................................................................................................... 39

4.26 Update Software .................................................................................................................... 40

4.27 Restore Config ....................................................................................................................... 40

4.28 Save Configuration to USB memory ......................................................................................... 40

4.29 Load Configuration from USB memory ..................................................................................... 41

5 SOFTWARE UPGRADE .......................................................................................................................... 43

6 TECHNICAL SPECIFICATIONS ................................................................................................................. 44

6.1 Transponder Physical .............................................................................................................. 44

6.2 Transponder Electrical ............................................................................................................ 44

6.3 Transponder Environment ....................................................................................................... 44

6.4 Transponder VHF Transceiver ................................................................................................. 44

6.5 Transponder Internal GPS Receiver ......................................................................................... 44

6.6 AIS Alarm Relay ..................................................................................................................... 44

7 TROUBLESHOOTING............................................................................................................................ 45

7.1 Troubleshooting Prerequisites ................................................................................................. 45

7.2 Troubleshooting with the Front Panel LED’s ............................................................................. 45

7.3 Troubleshooting with Alarm Messages ..................................................................................... 45

7.4 Troubleshooting via the Display ............................................................................................... 47

7.5 Reporting Intervals for Class A Transponders ........................................................................... 49

Page 3 of 80 1001001-2EN A2 Product Manual 2_0

7.6 F.A.Q ..................................................................................................................................... 50

7.7 Contact & Support information ................................................................................................ 50

7.8 Indication Messages ............................................................................................................... 51

7.9 Long Range Definitions ........................................................................................................... 51

8 INTERPRETATION OF INPUT SENTENCES .................................................................................................. 52

8.1 GPS and Sensor Input Sentences ............................................................................................. 52

8.2 General Input Sentences ......................................................................................................... 55

8.3 AIS Specific Input Sentences ................................................................................................... 56

8.4 Long Range Input Sentences .................................................................................................. 58

8.5 Proprietary Input Sentences .................................................................................................... 58

9 INTERPRETATION OF OUTPUT SENTENCES ................................................................................................ 59

9.1 Proprietary Output Sentences (PSTT) ...................................................................................... 59

9.2 Long Range Output Sentences ................................................................................................ 60

9.3 AIS Output Sentences ............................................................................................................. 61

10 GLOSSARY ....................................................................................................................................... 65

10.1 Inland ERI Ship Types ............................................................................................................ 67

10.2 Units ...................................................................................................................................... 68

11 APPENDIX ........................................................................................................................................ 69

11.1 Appendix A – Drawings ........................................................................................................... 69

11.2 Appendix B – License .............................................................................................................. 72

11.3 Appendix C – Declaration of Conformity ................................................................................... 75

11.4 Appendix D – Certification ....................................................................................................... 76

Page 4 of 80 1001001-2EN A2 Product Manual 2_0

Date

Version

Status

Comments

Responsible

2013-07-15

1.2

Release

First Official Release

Ch. Aschl

2014-01-28

1.3

Release

Changes due to SW update

Ch. Aschl

2014-09-30

2.0

Release

Nauticast, Certification, general rework

V. Janik

Date

AIS software Version

Status

Comments

Responsible

2014-07-01

1.1.10

Release

Type approved

V. Janik

Equipment

Standard magnetic compass

Steering magnetic compass

Nauticast A2 Transponder

0.60 m

0.45 m

History of Changes

Software dependencies

This revision of the Manual is valid for the Software version (s) below stated and future versions unless otherwise noted. Please find further information on the Nauticast homepage (www.nauticast.com).

Current software version can always be verified in the S/W info dialog as described in section 4.23.

Safety Instructions

Note the following compass safe distances:

Disposal Instructions

Broken or unwanted electrical or electronic equipment parts shall be classified and handled as ‘Electronic Waste’. Improper disposal may be harmful to the environment and human health. Please refer to your local

waste authority for information on return and collection systems in your area.

Contact Information

For installation, service, ordering info and technical support please contact your local Nauticast service partner. A list of dealers and service stations can be found on our website http://www.nauticast.com.

Page 5 of 80 1001001-2EN A2 Product Manual 2_0

1 General Introduction

1.1 Description of AIS

AIS stands for: “Automatic Identification System”

What is AIS?

According to IALA regulations, AIS is defined as follows: AIS is a broadcast transponder system, operating in the VHF maritime mobile Band (161,975 and 162,025 MHz). It is capable of sending ship information such as identification, position, course, speed and more to other ships and to shore stations. It can handle multiple reports at rapid update rates and uses Self-Organizing Time Division Multiple Access (SOTDMA) technology to meet these high broadcast rates and ensure reliable and robust operation.

The Modules of an AIS are:

 DGPS / GPS receiver  VHF Radio  Antenna  Computer (CPU)  Power Supply

Appropriate application software connects the individual modules.

In which modes do AIS operate?

AIS devices are required to function flawlessly in a variety of modes. The relevant regulations require that the system shall be capable of

 An "autonomous and continuous" mode for operation in all areas. This mode shall be capable of being

 An "assigned" mode for operation in an area subject to a competent authority responsible for traffic

 A "polling or controlled" mode, where the data transfer occurs in response to interrogation from a ship

Types of AIS:

 Class A Transponder – This type of transponder is used on open sea waters and is mandatory for ships

 Class B Transponder – Used on smaller vessels and pleasure crafts. It transmits with less power than

 Base Station – Fixed shore station that is typically connected to an AIS network to collect information

 Repeater Stations – Used to extend the coverage range by repeating incoming messages. Can be

 SAR (Search and Rescue) Transponder – Used on airplanes and helicopters in search and rescue

 AtoN (Aids to Navigation) – A transceiver that is fitted on buoys and lighthouses in order to send

 Inland AIS – A European standardized extension to Class A systems for use on inland water ways. An

 SART (Search and Rescue Transmitters) – Distress beacons for life rafts. An active SART signal will

switched to/from one of the following alternate modes by a competent authority;

monitoring such that the data transmission interval and/or time slots may be set remotely by that authority;

or competent authority.

of 300 gross tonnage or more on international voyages, all cargo ships of 500 gross tonnage or more and on passenger ships.

class A transponders and has a lower priority ranking on the data link.

from all vessels around a certain port or shore line.

implemented as a function in an AIS Base station or an AtoN station.

missions.

information about their positions.

inland transponder has additional messages to communicate with bridges, ports and locks and can also send some additional information that are useful on water ways such as blue sign indication, specific hazardous cargo etc.

always be sorted at the top of the target list to highlight its presence.

Page 6 of 80 1001001-2EN A2 Product Manual 2_0

AIS in an Operational Environment

This illustration depicts a typical AIS System, where two or more AIS equipped vessels (and shore based systems) are automatically communicating with each other.

Figure 1 – AIS System

Both vessels in the above illustration are equipped with a NAUTICAST A2 (or any other certified AIS-

Transponder). Due to “Time – Synchronization” they use the same organization of free and allocated windows (Slots) in the shared VHF Data Link (this method is called “Self Organized Time Division Multiple Access”) to send and receive messages.

On the next page, a typical NAUTICAST A2 installation in a common environment is shown. The NAUTICAST A2 is connected to the vessel’s emergency power supply, and in connection with the VHF, and GPSAntennas, the minimal requirements for transponder operation are fulfilled. By means of standardized messages the involved AIS systems exchange certain static data and dynamic information, such as the location and the course of the other ships in the area.

Page 7 of 80 1001001-2EN A2 Product Manual 2_0

1.2 AIS Networks

The illustration below shows a full AIS covered area (including applications and shore infrastructure).

Figure 2 – AIS Network

1.3 Inland AIS

The AIS Inland Standard is an European extension to class A devices for use on inland waterways. AIS Inland transponders support additional messages for communication with Bridges, Ports and locks. Blue Sign or dangerous cargo messages can also be transmitted.

Note: The NAUTICAST A2 AIS can operate in both modes, standard (SOLAS) class A and Inland, depending the user’s needs.

Page 8 of 80 1001001-2EN A2 Product Manual 2_0

2 System Overview

2.1 Product Description

The NAUTICAST A2 System consists of a transceiver radio unit, a GPS receiver, a controller unit and a colour LCD with a numerical keypad. The radio has three receivers, two tuneable TDMA receivers and one DSC receiver. The transmitter alternates its transmissions between the two operating TDMA. The controller unit creates and schedules data packets (containing dynamic, static and voyage related data) for transmission based on the IMO performance standard for AIS. The NAUTICAST A2 shall be connected to the ship’s sensors as required by the installation guidelines published by IALA. The NAUTICAST A2 can interface external navigation and presentation systems that support required IEC 61162-1 sentences. Refer to chapter 8 for more information. The NAUTICAST A2 is prepared for connection to Long Range systems like Inmarsat C. The colour LCD and numerical keypad provides a graphical user-friendly interface to the system. It is possible to plot the location of other vessels, aids to navigation and search and rescue vessels. The LCD and numerical keypad can also be used to send and receive messages, perform configuration as well as supervise the systems status.

Figure 3 – System Overview

Page 9 of 80 1001001-2EN A2 Product Manual 2_0

2.2 Main features

 Multi-colour 3.5” LCD with numerical keypad interface.  USB Host interface for connection of USB keyboard and USB flash memories.  Individual visual display settings for day and night operations.  Broadcast of Dynamic, Static and Voyage related information.  Standardized interface for connection to ship sensors e.g. GNSS, Gyro, Rate of Turn Indicator,

ECDIS/ECS and ARPA.

 Plot capable of presenting up to 500 targets in the vicinity of the own ship.  Messaging views for generation and presentation of safety related messages and text messages.  Pilot plug integrated to the front of the transponder unit.  Channel management capability for areas without access to the worldwide allocated AIS frequencies.  Possibility to generate Long Range AIS reply over satcom equipment such as Inmarsat C.  In addition to the normal high (12,5W) and low (1W) power mode, the NAUTICAST A2 has a 1W

tanker mode in accordance with requirements for tanker operations in port.

 Reception and processing of AIS messages 18,19 and 24A/B as transmitted by AIS Class B ‘CS’

Transponders.

 Easily upgraded with the latest software release from Nauticast using USB memory.  Save/Restore configuration using USB Storage.

Page 10 of 80 1001001-2EN A2 Product Manual 2_0

Name

Part number

Qty.

NAUTICAST A2 AIS Transponder SOLAS Class A & Inland AIS

1001001

1 Documentation for Nauticast A2

1001001-1

Power Cable 2m

1001002

3 Installation

IMPORTANT:

completed, all ship data and settings be entered into the AIS transponder. See Section 4 for further instructions.

3.1 Installation Requirements

General Requirements Please note that international conventions, regulations, instructions and guidelines have to be followed when installing the NAUTICAST A2. The following points must be observed before installation can commence:

- Permission by the local authority to install such a device must be granted.

- Trained service personnel must undertake the installation.

- The NAUTICAST A2 must be fitted in a suitable place on the bridge.

- The VHF and GPS Antennas must be installed in a suitable position, where excellent reception

- All available interfaces must be installed.

- The vessels power supply must suffice, and the GMDSS power supply has to be used.

- Installation of the pilot plug in conning position (close to the pilot’s work place).

3.2 Installation Overview

Basic Equipment:

AUTHORITIES MANDATE that after the physical installation has been successfully

conditions apply (refer to Chapter 3.4)

Table 1 – NAUTICAST A2 Basic Equipment

AIS is considered part of the ship’s radio station and is surveyed together with radio installation. Surveys on

SOLAS Convention ships should be carried out in accordance with the rules laid down in IMO Res. A 746(18) "Survey Guidelines under the harmonized system of survey and certification" (R) 8, and "Protocol of 1988 relating to the International Convention for the Safety of Life at Sea, 1974." The NAUTICAST A2 consists of one unit, which integrates all necessary modules.

Step-by-Step Installation Procedure:

When installing the NAUTICAST A2, it is recommended to follow the steps described in this manual. Details of the installation procedure can be found in the coming sections. Recommended installation steps:

1. Mount the NAUTICAST A2 at conning station

2. Mount the alarm relay unit (if available)

3. Mount the VHF antenna

4. Mount the GPS antenna

5. Connect antennas, all external systems and sensors to the NAUTICAST A2

6. Power up the system

7. Set configuration parameters

8. Perform system functional check

3.3 Mounting the NAUTICAST A2

3.3.1 Location The NAUTICAST A2 should be mounted close to the position from which the ship is normally operated, preferably on the bridge console close to the conning position. When mounting the NAUTICAST A2, please consider the following:

 The NAUTICAST A2 shall be connected to ship ground using the earth terminal found on the rear plate.  The temperature and humidity should be moderate and stable at the place of mounting, +15ºC to +35ºC

(Operating temperature: -15ºC to +55ºC.)

 Select a location away from excessive heat sources

Page 11 of 80 1001001-2EN A2 Product Manual 2_0

Type

Attenuation @ 150 MHz (dB/100m)

 (mm)

Weight (kg/100m)

RG 214

10.8

18.5

RG 217

13.8

30.1

RG 225 8 10.9

23.3

 Ensure that there is enough airflow to avoid high ambient temperatures  Avoid areas where there is a high flow of humid salt air  Avoid places with high levels of vibrations and shocks  Avoid mounting the NAUTICAST A2 in direct sunlight for the best readability  Ensure that the cables can be connected without violating their minimum bending radius  The unit can affect magnetic compasses. The minimum compass safe distance is 0.60 meters to a standard

magnetic compass and 0.45 meters to a steering magnetic compass

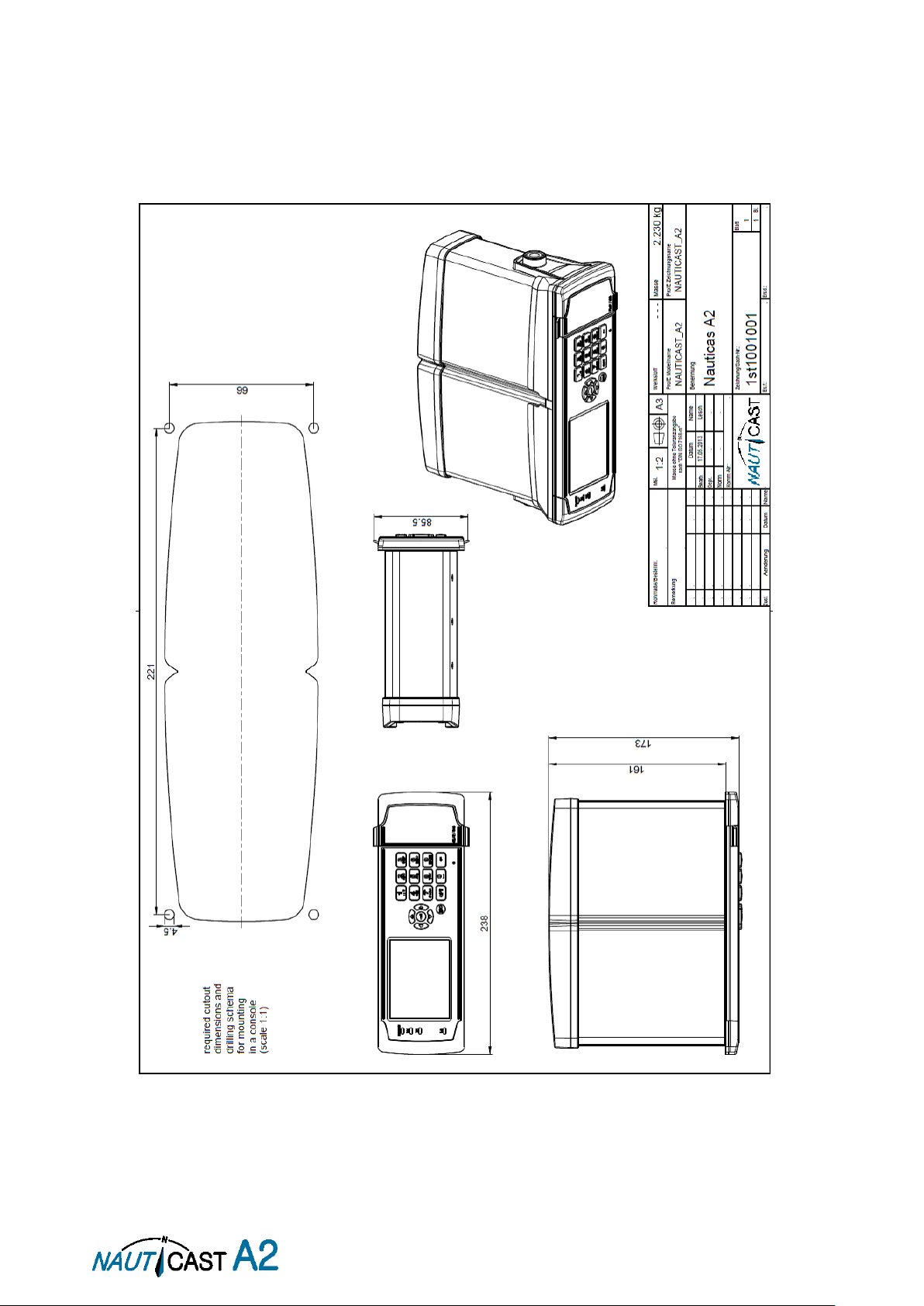

Regarding the physical size please see the Appendix A – Drawings containing all mechanical drawings.

3.4 Mount the NAUTICAST A2 VHF antenna

Interference to the Ship’s VHF Radiotelephone

The AIS ship borne equipment, like any other ship borne transceiver operating in the VHF maritime band, may

cause interference to a ship’s VHF radiotelephone. Because AIS is a digital system, this interference may occur as a periodic (e.g. every 20 seconds) soft clicking sound on the ship’s radiotelephone. This affect may become

more noticeable if the VHF radiotelephone antenna is located close to the AIS VHF antenna, and when the radiotelephone is operating on channels near the AIS operating channels (e.g. channels 27, 28 and 86). Attention should be paid to the location and installation of the various antennas, in order to support the antenna characteristics in the best possible way.

3.4.1 VHF Antenna Location Location of the mandatory AIS VHF-antenna should be carefully considered. Digital communication is more sensitive than analogue/voice communication to interference created by reflections caused by obstructions such as masts and booms. It may be necessary to relocate the VHF radiotelephone antenna to minimize interference effects.

To minimize interference effects, the following guidelines apply:

 The AIS VHF antenna should have omnidirectional vertical polarization.  The AIS VHF antenna should be placed in an elevated position, as free standing as possible, with a

minimum of 2 meters in horizontal direction from constructions made of conductive materials. The antenna should not be installed close to any large vertical obstruction. The AIS VHF antenna should have a visible sky of 360°.

 The AIS VHF antenna should be installed at least 3 meters away from interfering high-power energy

sources such as radar and other transmitting radio antennas, and out of the way of the transmitting beam.

 There should not be more than one antenna on each level. The AIS VHF antenna should be mounted

directly above or below the ship’s primary VHF radiotelephone antenna, with no horizontal separation and

a minimum of 2 meters vertical separation. If it is located on the same level as other antennas, the distance apart should measure at least 10 meters.

3.4.2 VHF Cabling The cable should be kept as short as possible to minimize attenuation of the signal. Double shielded coaxial cable equal or better than RG214 is recommended to minimize the effects from electromagnetic interference from high power lines, radar or other radio transmitter cables. The table below gives recommendation on cables that can be used for the VHF-antenna connections, the cables used should always be of marine approved type. The cable attenuation shall be kept as low as possible; a 3 dB loss is the same as cutting the signal strength in half.

Example: A cable of 40 meter RG 214 has a cable attenuation of 2.8 dB.

All outdoor connectors on the coaxial cables should be fitted with preventive isolation, such as shrink-stocking with silicone to protect the antenna cable against water penetration. Coaxial cables should be installed in

Page 12 of 80 1001001-2EN A2 Product Manual 2_0

Table 2 – VHF Antenna Cables

Type

Attenuation @ 1.5 GHz (dB/m)

 (mm)

Weight (kg/100m)

RG 58

0.9 5 3.7

RG 400

0.6

4.95

6.3

RG 223

0.6

5.40

5.5

RG 214

0.35

10.8

18.5

RG 225

0.3

10.9

23.3

separate signal cable channels/tubes, and at least 10 cm away from any power supply cables. Crossing of cables should take place at right angles (90°). Coaxial cables should not be exposed to sharp bends, which may lead to changes to the characteristic impedance of the cable. The minimum bend radius should be 5 times the cables outside diameter.

Grounding

Coaxial down-leads must be used for all receiving antennas, and the coaxial screen should be connected to the ground at one end.

3.5 Mount the NAUTICAST A2 GPS Antenna

The NAUTICAST A2 shall be connected to a GPS antenna type Procom GPS-4 (1001022), Nauticast Standard GPS antenna (3001002) or to a combined GPS/VHF antenna AC Marine VHF/GPS-2 (1001027). 5V DC is supplied through the antenna lead for the antenna preamplifier. Please note the Compass Safe Distances in section 6.3 “Transponder Environment”. If the combined AC Marine GPS/VHF antenna is used the diplexer unit shall be installed in an indoor environment. Attention should be paid to the location and installation of the different antennas on the ship in order to obtain the best possible efficiency. How and where the GPS antenna and cable is installed will greatly affect its sensing efficiency.

3.5.1 GPS Antenna Location The GNSS antenna must be installed where it has a clear view of the sky, so that it accesses the horizon freely through 360°, with a vertical observation of 5 to 90 degrees above the horizon. Small diameter obstructions, such as masts and booms, do not seriously impair signal reception, but such objects must not eclipse more than a few degrees of any given bearing. The antenna must be located at least three meters away from, and out of the transmitting beam of highpower transmitters (S-Band Radar and/or Inmarsat systems). This includes the ship’s own AIS VHF antenna, if it is designed and installed separately. If a DGNSS system is included or connected to the AIS system, the installation of the antenna should be undertaken in accordance with IEC 61108-4, Edition 1.

3.5.2 GPS Cabling The gain of the GPS antenna built-in pre-amplifier shall match the cable attenuation. The resulting installation gain (pre-amplifier gain minus cable attenuation) shall be within 0 to 26 dB. A minimum value of 10 dB is recommended for optimum performance. A double shielded coaxial cable is recommended. The coaxial cable should be routed directly between the GPS antenna and the NAUTICAST A2 GPS connector in order to reduce electromagnetic interference effects. The cable should not be installed close to high-power lines, such as radar or radio transmitter lines or the AIS VHF antenna cable. A separation of 1 meter or more is recommended to avoid interference due to RF-coupling. Crossing of antenna cables should be done at 90 degrees to minimise magnetic field coupling. The table below gives recommendation on cables that can be used for the Transponder GPS-antenna

connections, the cables used should always be of marine approved type. Due to the high frequency it’s

important that the attenuation in the cable is low for the specific frequency (1.5 GHz).

For optimum performance approximately +10dB gain should be available when the cable attenuation has been subtracted from the GPS-antenna preamplifier gain. The net gain shall not exceed +26dB.

Page 13 of 80 1001001-2EN A2 Product Manual 2_0

Table 3 – GPS Antenna Cables

Cable type

Preamplifier gain (dB)

Required min cable length (m)

Recommended max. cable length (m)

RG 58

12 0 2

RG 58

26 0 18

RG 58

4.5

RG 223

12 0 3.5

RG 223

26 0 26.5

RG 223

6.5

33.5

RG 214

12 0 6

RG 214

26 0 46

RG 214

11.5

Priority

Identification

Default Baud Rate

Port direction

1 (Highest priority)

Sensor 1

4800 bps

Input (See note 1)

Sensor 2

4800 bps

Input

Sensor 3

4800 bps

Input

ECDIS

38400 bps

Input / Output (See note 2)

Long Range

9600 bps

Input / Output (See note 2)

Pilot

38400 bps

Input / Output (See note 2)

7 (Lowest priority)

RS-232

38400 bps

Input / Output (See note 2)

Example:

Table 4 – GPS Antenna Cable Examples

Min length = (Preamp. Gain – 26 dB)/Cable attenuation per meter Max length = (Preamp. Gain – 10 dB)/Cable attenuation per meter

Coaxial cables (marine approved type) should be installed in separate signal cable channels/tubes and at least 10 cm away from power supply cables. Crossing of cables should be done at right angles (90°). Coaxial cables should not be exposed to sharp bends, which may lead to a change of the characteristic impedance of the cable. The minimum bending radius should be 5 times the cable's diameter. All outdoor installed connectors should be weather proofed, e.g. with shrink tubing, watertight seal tape or butyl rubber tape and plastic tape sealing, to protect against water penetration into the antenna cable. Secure the cable properly near the cable ends.

Grounding Coaxial down-leads must be used. The coaxial shielding screen should be connected to ground at one end.

3.6 Electrical Installation

The protocol of the serial port interfaces is compliant to IEC 61162-1Ed.4 (2010-11). All serial ports in the NAUTICAST A2 have the same capabilities with one exception, any Long Range equipment must be connected to the Long Range port. The primary external position sensor should be connected to the Sensor 1 port since this port has the highest priority. The serial ports in the NAUTICAST A2 can also receive differential corrections in RTCM format for correction of the internal GPS receiver. The ports in the NAUTICAST A2 have different default baud rates but they can all be configured to any baud rate of 4800, 9600, 38400, 57600 or 115200 bps. The priority levels for input of sensor data on the different ports are listed below:

Table 5 Port Priorities and Default Baud Rates

NOTE 1: This means that if valid position data from external position sources are input on e.g. both Sensor 1 and ECDIS port, the position data from Sensor 1 will be used. NOTE 2: Output will be limited if baud rate is below 38400 bps. VDM and VDO messages will not be output.

If the same data is provided using different NMEA sentences on the same port, the priority depends on the

Page 14 of 80 1001001-2EN A2 Product Manual 2_0

Priority

Position

COG/SOG

HDG

ROT

1 (Highest)

RMC

THS

ROT

GNS

VTG

HDT

- 3 GGA

VBW

OSD

GLL

OSD

ISO Power

Internal Signals to AIS

To connected

equipment

sentence in accordance with Table 6.

Table 6 – Sentence priority

3.6.1 Output Drive Capacity for Serial Ports Each serial port transmitter in the NAUTICAST A2 can have a maximum of 25 listeners consuming 2.0 mA each.

3.6.2 Input Load Input impedance for each listener input is 6.4 kΩ.

3.6.3 Schematics of a NAUTICAST A2 Serial Transceiver Each of the RS422 serial interfaces on the NAUTICAST A2 fulfils the requirements of IEC 61162-2 and IEC 61993-2. A detailed schematic of one of the serial ports in the NAUTICAST A2 is shown below.

Figure 4 – Serial Port Schematics

Page 15 of 80 1001001-2EN A2 Product Manual 2_0

In/Out

Signal Name

Signal Type

Colour

Out

ECDIS - TxB (+)

RS422

White

Out

ECDIS - TxA (-)

RS422

Brown

Sensor1 - RxB (+)

RS422

Green

Sensor1 - RxA (-)

RS422

Yellow

Sensor2 - RxB (+)

RS422

Grey

Sensor2 - RxA (-)

RS422

Pink

Long Range - RxB (+)

RS422

Blue

Long Range - RxA (-)

RS422

Red

9 - Long Range - GND

RS422

Black

10 - ECDIS - GND

RS422

Violet

ECDIS – RxB (+)

RS422

Grey / Pink

ECDIS – RxA (-)

RS422

Red / Blue

13 - Sensor1 – GND

RS422

White / Green

14 - Sensor2 – GND

RS422

Brown / Green

Sensor3 – RxB (+)

RS422

White / Yellow

Sensor3 – RxA (-)

RS422

Yellow / Brown

Out

Long Range – TxB (+)

RS422

White / Grey

Out

Long Range – TxA (-)

RS422

Grey / Brown

19 - Alarm Relay – GND

White / Pink

Out

Alarm Relay – Out

Pink / Brown

21 - GND

White / Blue

22 - - - Brown / Blue

23 - Sensor3 – GND

RS422

White / Red

24 - Alarm Relay - VCC

Brown / Red

In/Out

CAN (+)

Differential CAN bus

White/Black

In/Out

CAN (-)

Differential CAN bus

Brown/Black

Signal Name

Not Connected

Tx (Transponder side)

Rx (Transponder side)

Not Connected

GND

Not Connected

3.6.4 Data Interface Cable with open ends, 1001003

3.6.5 RS232 Data Cable

Table 7 – 26-pin High Density D-sub

Table 8 – 9-pin female D-sub

Page 16 of 80 1001001-2EN A2 Product Manual 2_0

Signal Name

Colour

24VDC positive

Red

GND

Black

External Switch (R)

Brown

External Switch (F)

Orange

RELAY VCC

Brown/Red

RELAY GND

White / Pink

RELAY OUT

Pink / Brown

BLUE SIGN

SWITCH

Power Cable Pin 3

Power Cable Pin 4

External resistor

3.6.6 Power Cable, 1001002

Table 9 – 4-pin male circular ConXall

3.6.7 External Switch The Power Cable enables connection of an external switch to the NAUTICAST A2. This switch can be used as a Silent switch or, if configured as an Inland AIS system, as a Blue sign switch.’

3.6.7.1 Blue Sign installation (Inland Mode only)

If the blue sign switch should be used, the parameter “External Switch” must be configured to “Blue Sign” in

Misc. Interface view accessed from

Main Menu  Config  Interfaces  Miscellaneous

. The status of the blue sign can be controlled by input on the brown and orange wires of the Power Cable. The status of the Blue Sign will be read by the NAUTICAST A2 and output on the VHF data link when operating in “Inland Mode” (see section 4.4.16 for more details). Connect the blue sign switch to pin 3 (brown wire) and pin 4 (orange wire) of the Power Cable together with an external parallel resistor. When the switch is open, blue sign will be off. When the switch is closed, blue sign will be on. The external resistor value depends on the power supply voltage the NAUTICAST A2 is using:

 12V: 2.2kΩ resistor, 10% tolerance, at least 1/8W power rating  24V: 10kΩ resistor, 10% tolerance, at least 1/8W power rating

Figure 5 – Blue Sign Switch

3.6.7.2 Silent switch installation It is possible to connect a silent switch to the NAUTICAST A2 to quickly turn off transmissions.

If a silent switch is to be used, the parameter “External Switch” must be configured to “Silent Switch” in Misc.

Interface view accessed from The silent switch should be connected in the same way as the blue sign switch. However, the external resistor may be omitted for the silent switch. When the circuit is closed (brown and orange wires connected with each other), the NAUTICAST A2 will transmit as normal. When the circuit is open, the NAUTICAST A2 will be completely silent.

3.6.8 Alarm Relay It is required that the AIS alarm output (relay) is connected to an audible alarm device or the ship’s alarm system, if available.

Alternatively, the ship’s BIIT alarm system may use the alarm messages output on the AIS Presentation

Interface (PI) provided the alarm system is AIS compatible. The AIS Alarm Relay is either mounted directly on a board or on the wall. The alarm relay wires have the following colour codes in the 26-pole NAUTICAST A2 data interface cable:

Figure 6 shows the alarm relay and its dimensions and explains how to connect the alarm relay to the data cable and how to connect the load (Alarm Circuit) to the alarm relay. The operating voltage of the alarm relay is 3 to 60 VDC with a load current of 0.1 to 2 A (3A when using a heat sink).

Page 17 of 80 1001001-2EN A2 Product Manual 2_0

Main Menu  Config  Interfaces  Miscellaneous

Table 10 – Alarm Relay Wires

Transponder:

RELAY VCC

RELAY GND

RELAY OUT

Ext. Power Supply:

- (GND)

+12 to 32VDC

Figure 6 – Alarm Relay

Page 18 of 80 1001001-2EN A2 Product Manual 2_0

3.7 System Configuration

When the physical and electrical installation of the system is complete, the NAUTICAST A2 needs to be configured. The installer is required to set the parameters listed below. For detailed information about the configuration parameters and how to set them, refer to section 4.2.1 and 4.4.

 MMSI number (Maritime Mobile Service Identity)  IMO vessel number (should be set to zero for Inland vessels)  Call Sign  Ship Name  Ship Type (Only when operating in Class A mode)  Height Over Keel  Ship dimensions and antenna positions. Refer to section 4.4.4 Main Menu  Config Ship Dimensions

for more information.

If the NAUTICAST A2 is operating in Inland mode, the following parameters also need to be configured:

 ENI, Unique European Ship Number  ERI Ship Type (ERI code and standard AIS ship type will be set automatically by the NAUTICAST A2

when selecting an ERI Ship Type from list in Ship Static view.

 Quality setting for SOG, COG and HDG. Should be set to low if no type approved sensor (e.g. a gyro

or speed log) is connected to NAUTICAST A2.

When the NAUTICAST A2 has been installed according to the procedures described in previous sections, it is recommended to make a first functional check of the system. Check the following things to ensure that the NAUTICAST A2 is fully functional.

 Check the Transmitted Own Ship Data view to make sure that the configured data is sent by the

NAUTICAST A2 on the VHF link, refer to section 4.10 “View Transmitted Own Ship Information” for more information.

 Make sure that there are no unexpected active alarms in the alarm list, see section 4.18 “Alarms”.  Perform a communication test to ensure that the NAUTICAST A2 can send and receive messages from

other AIS transponders. Refer to section 4.25 “Communication Test” for information on how to perform a communication test.

Page 19 of 80 1001001-2EN A2 Product Manual 2_0

4 Operation

4.1 System Mode

The NAUTICAST A2 can operate in two different system modes, Class A mode and Inland mode. The Class A mode should be used for vessels falling under the carriage requirements of Chapter V of the International Convention for the Safety of Life at Sea (SOLAS). The Inland mode should be used for vessels travelling on European inland waterways that falls under the carriage requirements of European River Information Services (RIS). When Inland mode is enabled, additional views for ETA/RTA messaging and convoy settings will be enabled. The NAUTICAST A2 will also output binary messages with Inland Static and Voyage data. As default, the NAUTICAST A2 will operate in Class A mode. It is possible to switch system mode in the System Settings view, see section 4.4.16 for more information.

4.2 LED’s and Controls

This section describes the controls and status LED’s on the front panel of the NAUTICAST A2. It is also possible

to connect a USB keyboard via the USB Host interface that can be found under the hatch of the front panel.

Figure 7 –Nauticast A2 Front View

1. STATUS LED (multi-colour)

This LED is constant green when the transponder is operating and no alarms are active. The LED is constant red if there is an active alarm and it is flashing red if there is an unacknowledged alarm.

2. RX LED (yellow)

This LED is flashing yellow when the transponder is receiving a message on the VHF link.

3. TX LED (red)

This LED is flashing red when the transponder is transmitting a message on the VHF link.

4. LIGHT SENSOR

The light sensor will automatically dim the backlight of the display depending on measured input light to the sensor.

5. ARROW KEYPAD and ENTER

The arrow keypad (< > and ∧ ∨) is used to navigate in menus, lists and edit fields. The center button of the keypad is an ENTER button which is used to select the highlighted choice in a menu, list or edit control.

6. ESC

The ESC button is used to return to the previous screen or to cancel an edit change of a data field.

7. ALPHANUMERIC KEYS

These keys are used for entering text and numbers. To write a number in a numeric field, press the key once. To write a character in a text field, press once for the character associated with the key, twice for the second

character and so on. When pressing twice on key “1” when editing a text field, a popup view with special

characters appears. Choose the desired special character by using the ARROW KEYPAD and ENTER.

Page 20 of 80 1001001-2EN A2 Product Manual 2_0

When a USB keyboard is used, the normal letters, numbers and special characters can be used. Only American keyboard layout is supported.

8. OPT

This button is an “Option key” which is only active in some of the dialogs. When pressed, it gives the user a

list of options that can be performed on the highlighted item. In e.g. the Target List view the OPT button can be used to send an SRM to the highlighted target. In the Main Menu view, the OPT button is used to quickly change navigational status. When a USB keyboard is used, the ALT button of the keyboard corresponds to OPT button on the NAUTICAST A2 keypad. If the OPT button is pressed for more than 5 seconds, the visual settings in the NAUTICAST A2 will be restored to default, i.e. LCD backlight, LED intensity and button backlight will all be 80% and day mode will be used.

9. BACKSPACE

The BACKSPACE button is used to erase the character to the left of the marker in an edit field.

4.2.1 Change Settings of a Parameter Several of the views in the NAUTICAST A2 contain parameters that can be edited. To edit a parameter, select it by using the ARROW KEYPAD and press ENTER. Then enter data in one of the following ways:

 Numbers: Press the ALPHANUMERIC KEY that corresponds to each digit. To delete a digit, press

function key BACKSPACE. Some of the parameters are decimal numbers. The OPT button can then be used to insert a decimal point.

 Text: Press the ALPHANUMERIC KEY that corresponds to each character. Press the key once for

the first character, twice for the second character and so on. Press the key “1” twice to, where allowed,

bring up a menu for entering special characters. To delete a character, press function key BACKSPACE. When entering passwords both lower and upper case letters can be used. To change

between upper and lower case letters, press function key OPT and choose “Caps Lock Off” or “Caps Lock On”.

 List of predefined values: Use the ∧ ∨ keys to select between the predefined values.  List of predefined values and numeric input: In some of the views like the AIS Message Send

view where it is possible to send an SRM to a target, it is possible to select an MMSI in a list of predefined values. The predefined MMSI values are the MMSI numbers that have been received by the transponder. It is also possible to enter a new MMSI number that has not been received yet. To

do this, simply input a numerical value with the ALPHANUMERIC KEYS. Press ENTER when done. If desired, use the ARROW KEYPAD keys to select a new parameter to be edited, or navigate to the Save/Send button located above the list of parameters and press ENTER to save the parameters / send the message. Use the ESC key to undo changes and to return to the previous view.

NOTE: DO NOT TURN OFF TRANSPONDER WITHIN 2 SECONDS OF A PARAMETER CHANGE!

Page 21 of 80 1001001-2EN A2 Product Manual 2_0

4.3 Main Menu – Tree View

Figure 8 – Menu Tree

Page 22 of 80 1001001-2EN A2 Product Manual 2_0

Parameter Name

Description

Navigational Status

Changes the navigational status reported by own ship. It is also possible to quickly change navigational status by pressing the OPT button when standing in the Main Menu.

Destination

The destination for the current voyage

Estimated Time of Arrival (ETA)

The estimated time of arrival to destination of current voyage

Draught (Class A)

The vertical distance measured from the lowest point of a

ship’s hull to the water surface, in meters (one decimal

precision)

Persons on Board

Total number of persons on board

Hazardous Cargo (X,Y,Z,OS)

Classification of current cargo according to X,Y,Z,OS

Draught (Inland)

The vertical distance measured from the lowest point of a

ship’s hull to the water surface, in meters (two decimal

precision)

Air Draught

The vertical distance measured from the ship’s waterline to the ship’s highest point, in meters (two decimal precision)

Hazardous Cargo (Blue Cones)

Blue cone classification of cargo

Loaded / Unloaded

Specifies if the ship cargo is loaded or unloaded

Crew Members

Number of crew members on board

Passengers

Number of passengers on board

Personnel

Number of shipboard personnel on board

4.3.1 Navigating in Menus Use the ARROW KEYPAD buttons < > and ∧ ∨ to navigate between the view buttons in the different menus. Press the ENTER button to enter the currently selected view. It is also possible to directly select a view by pressing the ALPHANUMERIC KEY that corresponds to the number in the upper left corner of the view button.

Figure 9 – Main Menu

4.4 Configuration Parameters

This section describes the different configuration parameters that can be set in the NAUTICAST A2. Some of

the parameters will only be available when operating in “Class A” mode; these parameters are marked with

light grey. Parameters that are only available when operating in “Inland” mode are marked with dark grey. Common parameters for both system modes are white.

4.4.1 Main Menu  Voyage AIS Voyage The parameters in AIS Voyage view are used for input of voyage specific information that is sent over the AIS link. These parameters should typically be configured before each voyage.

When the NAUTICAST A2 system mode is set to “Inland”, additional voyage parameters for inland water way

voyages are available. The system mode can be configured in the System Settings view described in section

4.4.16.

Page 23 of 80 1001001-2EN A2 Product Manual 2_0

Parameter Name

Description

Tx Mode

This parameter determines the transmission of the NAUTICAST A2. If set to “Silent”, the NAUTICAST A2 will be completely silent on the VHF radio and it will not answer on interrogations. If a silent switch is used, this parameter will be locked and “Silent Switch Used” will be displayed as parameter value.

Parameter Name

Description

MMSI

Maritime Mobile Service Identity reported by own ship

IMO

International Maritime Organization number reported by own ship

Ship Name

Ship name reported by own ship

Call Sign

Call sign reported by own ship.

Shall be set to ATIS code for Inland vessel installations.

Height over Keel

Height over keel in meters (one decimal precision). Height over Keel information is sent as a response to an

“Extended Ship Static and Voyage Related Data” request

message.

Ship Type (IMO)

Type of Ship according to ITU-R M.1371-4. Both numerical input and selection from list is possible.

ENI

Unique European Vessel Identification Number reported by own ship

ERI Ship Type

Ship or combination type according to numeric ERI classification. Both numerical input and selection from list is possible. See chapter 10.1 “Inland ERI Ship Types” for available types.

Quality Speed

Shall be set to low if no type approved speed sensor is connected to transponder

Quality Course

Shall be set to low if no type approved course sensor is connected to transponder

Quality HDG

Shall be set to low if no type approved heading sensor is connected to transponder

4.4.2 Main Menu  Operational Mode

4.4.3 Main Menu  Config Ship Static

4.4.4 Main Menu  Config Ship Dimensions

The parameters in the Ship Dimensions view depends on the configuration parameter “Ship Size Mode” in the

Misc Interfaces view. The Ship Size Mode parameter can be set to either Standard or Simplified (default). The Ship Size Mode affects how the user should input ship size and antenna position information and how it is interpreted.

Standard Mode

In this mode the user must input:



Convoy/ship length



Convoy/ship beam



A, B, C, D



A, B, C, D

It is the users responsibility to input correctly rounded data (

Convoy/ship beam

If the user inputs data which is not correctly rounded the “Ship size mismatch” alarm will be activated. The output on the AIS data link will be exactly the values input by the user.

Simplified Mode (default)

In this mode the user inputs:



Ship length



Ship beam



X, Y



Page 24 of 80 1001001-2EN A2 Product Manual 2_0

X, Y

for internal antenna [m] for external antenna [m]

rounded up).

[m] (one decimal precision)

[m] (one decimal precision) for internal antenna relative to ship [m] (one decimal precision) for external antenna relative to ship [m] (one decimal precision)

[m] (one decimal precision)

A+B

Convoy/ship length

rounded up,

C+D

Parameter Name

Description

Channel A

The channel number for AIS channel A (2087 = default) that should be used in the regional area.

Channel B

The channel number for AIS channel B (2088 = default) that should be used in the regional area.

Zone Size

The transitional zone size of the regional area in nautical miles (NM).

Tx Mode

Decides on which channels the transponder will use when transmitting in the regional area. When set to “Silent”, the transponder will stop automatic transmissions on AIS channels A and B.

Power

Output power for the transponder in the regional area. High = 12.5 W, Low = 1 W.

LAT NE

The latitude for the North East corner of the regional area

LON NE

The longitude for the North East corner of the regional area

LAT SW

The latitude for the South West corner of the regional area

LON SW

The longitude for the South West corner of the regional area

Parameter Name

Description

LR Broadcast Ch. 1

The first channel number for broadcasting long range message 27. The message is sent every 6 minutes on each channel so if both channels are configured a message 27 will be broadcasted every 3 minutes. If this parameter is set to zero no long range broadcast transmissions will be sent on this channel.

LR Broadcast Ch. 2

The second channel number for broadcasting long range message 27. The message is sent every 6 minutes on each channel so if both channels are configured a message 27 will be broadcasted every 3 minutes. If this parameter is set to zero no long range broadcast transmissions will be sent on this channel.

When operating in Inland Mode, extra convoy size can be added to ship dimension Extra convoy size on each side (value = 0 if convoy not used):



Bow

[m] (one decimal precision)



Stern

[m] (one decimal precision)



Port side



Starboard

The extra convoy parameters can be configured from Main MenuVoyageConvoy Settings when the Ship Size Mode is set to “Simplified”. In this mode there is no way for the user to input mismatching data, all parameters uses the same precision and each measurement is entered only once (in standard mode it is for example possible to enter three different lengths of ship: transponder will automatically calculate and correctly round the A, B, C and D values reported on the VHF link.

4.4.5 Main Menu  Config VHF Radio  Regional Areas This view shows the regional areas set in the transponder. To make a new regional area or to edit or delete an existing regional area, press the OPT button and choose the desired action. The following parameters can be edited when “New Area” or “Edit Area” is chosen:

[m] (one decimal precision)

Convoy/ship length, internal A+B

and

external A+B

). In simplified mode the

4.4.6 Main Menu  Config  VHF Radio  LR Broadcast Settings

4.4.7 Main Menu  Config  Alarm

In this view all alarms can be configured to either “Enabled” or “Disabled”. When the alarm is enabled, an

active alarm will affect the external alarm relay, the buzzer in the NAUTICAST A2 and show a popup dialog in the display. When the alarm is set to disabled it will not affect anything when the alarm becomes active. For more information about the alarm view, refer to section 4.18 “Alarms”. For a list of all the alarms that can occur, refer to section 7.3 “Troubleshooting with Alarm Messages.”

Page 25 of 80 1001001-2EN A2 Product Manual 2_0

Parameter Name

Description

New User Password

Changes the user level password for the NAUTICAST A2.

The default user level password is “user”

New Admin Password

Changes the admin level password for the NAUTICAST A2.

The default admin level password is “admin”

Restore Code

It is possible to restore both user password and admin password to the default values above with a secret restore code. To obtain the restore code, contact Nauticast Technical Support and be prepared to provide the serial number of the transponder unit.

Parameter Name

Description

Reply Mode

When set to “Auto” the NAUTICAST A2 will automatically

respond to any Long Range interrogation messages.

When set to “Manual” the operator is responsible for sending

a response or refusal to any Long Range interrogation message. This can be done from the

Long Range

view that is

accessed from

Main Menu  Messages  Long Range

. For more information see section 4.14 “Long Range Interrogations”. The information that is sent in a response is automatically filled in by the NAUTICAST A2 depending on the Long Range filter settings (the parameters below).

Ship ID (A)

Filter setting that defines if a Long Range response message should include ship name, call sign and IMO number.

Message Date/Time (B)

Filter setting that defines if a Long Range response message should include information about date and time of message composition.

Latitude / Longitude (C)

Filter setting that defines if a Long Range response message should include position.

Course Over Ground (E)

Filter setting that defines if a Long Range response message should include COG.

Speed Over Ground (F)

Filter setting that defines if a Long Range response message should include SOG.

Destination And ETA (I)

Filter setting that defines if a Long Range response message should include destination and ETA.

Draught (O)

Filter setting that defines if a Long Range response message should include draught.

Ship Type And Cargo (P)

Filter setting that defines if a Long Range response message should include ship type and cargo information.

Ship Size And Type (U)

Filter setting that defines if a Long Range response message should include ship’s length, beam and type.

Persons On Board (W)

Filter setting that defines if a Long Range response message should include number of persons on board.

4.4.8 Main Menu  Config  Password

4.4.9 Main Menu  Config  Long Range

Page 26 of 80 1001001-2EN A2 Product Manual 2_0

Parameter Name

Description

Dimming Mode

If set to “Manual”, the LCD backlight, button backlight and

LED brightness are controlled by the user with the parameters described below.

If set to “Automatic”, the LCD backlight, button backlight and

LED brightness will automatically be controlled with the light sensor on the front of the NAUTICAST A2. The less ambient light registered by the light sensor, the lower percentage of backlight and brightness will be used.

Toggle Day/Night

Toggle between day or night mode. In Day mode the display background is white and in night mode the background is black. There are also separate settings for the LCD backlight, LED intensity and button backlight in the different day/night modes.

Backlight

Changes the LCD backlight where 0% is completely turned off and 100 % is maximum brightness.

LED Light Intensity

Changes the light intensity of the three LED’s on the front of

the NAUTICAST A2.

It is possible to turn off the LED’s completely by setting a 0%

light intensity. However, if there is an active, unacknowledged

alarm in the NAUTICAST A2, the light intensity of LED’s will

temporarily be set to 10% until the alarm is acknowledged.

Button Illumination

Changes the brightness of the button backlight on the NAUTICAST A2.

Parameter Name

Description

Alarm Waiting For ACK

Determines how the NAUTICAST A2 sound buzzer should behave when an alarm is active and waiting for acknowledgement. This setting does NOT affect the

behavior of the alarm relay or any external alarm system.

Long Range Message

Controls the behaviour of the NAUTICAST A2 sound buzzer when an LR interrogation message is received.

AIS Message

Controls the behaviour of the NAUTICAST A2 sound buzzer when a SRM or binary text message is received.

Inland RTA

Controls the behaviour of the NAUTICAST A2 sound buzzer when an Inland RTA (Recommended Time of Arrival) message is received.

Parameter Name

Description

Time Zone

This parameter defines if the times that are displayed in the NAUTICAST A2 should be in UTC or LOC (local) time. If local time is chosen, the offset from UTC must be specified with the three parameters listed below.

Offset sign

The sign of the local time offset from UTC.

Hours

The local time hour offset from UTC.

Minutes

The local time minute offset from UTC.

4.4.10 Main Menu  Config Display  Visual

It is possible to completely turn off the backlight on LCD, buttons and LED’s. It may then be difficult to read

the NAUTICAST A2 display and find the way to the correct configuration parameter in order to increase the backlight again. If this should happen, it is possible to hold down the OPT button for 5 seconds to restore the backlight to 80%.

4.4.11 Main Menu  Config Display  Sound

4.4.12 Main Menu  Config Display  Time

Page 27 of 80 1001001-2EN A2 Product Manual 2_0

Parameter Name

Description

Language

Changes the language in all the menus and views of the NAUTICAST A2. The changes will take effect immediately when pressing “Save”.

Parameter Name

Description

Baud Rate

Changes the baud rate (bits per second) for the corresponding serial port.

Checksum

When set to “Required”, all messages that are input on the corresponding serial port to the NAUTICAST A2 must have a valid checksum.

When set to “Disabled”, messages both with and without

checksum are accepted on the corresponding serial port.

Parameter Name

Description

SSD Password

Changes the value of the SSD password level. When set to

“None”, no password is required when configuring the

transponder with an SSD sentence from e.g. an ECDIS via the serial port interface. When set to “User”, an SPW sentence with the correct user level password must be sent before the SSD on the serial port interface.

Ship Size Mode

This affects how the user should input the ship size, convoy size and antenna positions. See section 4.4.4 for more details.

AIS GPS Output Port

Defines on which serial port the NAUTICAST A2 should output

data from the internal GPS. When set to “None” no internal

GPS data will be output.

External Switch

This parameter specifies if there is a blue sign switch or silent switch connected to the orange and brown wires of the NAUTICAST A2 Power Cable. If no switch is used, set the parameter to “No Function”. See sections 3.6.7.1 and 3.6.7.2 for more information about the blue sign switch and silent switch.

Require Text Msg ACK

This parameter determines if an ACK msg is required as a response when sending addressed binary text messages to another target.

Automatic PoB Broadcast

Enable automatic 6 minute periodic broadcast of passenger information. See section 4.13 for details on message types.

Parameter Name

Description

System Mode

Determines if the NAUTICAST A2 should operate as a Class A transponder or as an Inland transponder. This parameter affects which config parameters and menus that are visible in the system.

Range Unit

This parameter determines the unit for the range value of targets in the Target List, Extended Info view and Plot view. The range value can be calculated in nautical mile (NM), kilometre (km) or statute mile (Sm).

Speed Unit

This parameter determines the unit for the SOG value of targets in Extended Info view and Plot view. The SOG values can be calculated in knots (kn), kilometres per hour (km/h) or miles per hour (mph).

Plot Compass

This parameter determines how the plot of AIS targets should be oriented.

4.4.13 Main Menu  Config  Interface  Language

4.4.14 Main Menu  Config Interface  Port Rate

4.4.15 Main Menu  Config Interface  Miscellaneous

4.4.16 Main Menu  Config  System Settings

Page 28 of 80 1001001-2EN A2 Product Manual 2_0

If set to “North Always Up”, the plot will always have north up

and own ship will rotate according to heading input. If set to “Own Ship Bow Always Up”, the plot will always have own ship pointing up and rotate the rest of the plot according to heading input.

Parameter Name

Description

Sensor Data Source

This parameter specifies which port the NAUTICAST A2 should use as its external sensor source. The default value of this

parameter is “Automatic” which means that the NAUTICAST

A2 will accept sensor information on any port and use the information on the port with highest priority. If Sensor Data Source is set to anything other than “Automatic”, the NAUTICAST A2 will only accept sensor information if it comes from the port specified by this parameter. The parameter reverts to “Automatic” after a reboot.

SART Test Mode

This parameter determines if SART Test targets should be displayed in Target List and Plot views of the NAUTICAST A2. It also controls if connected systems, for example ECDIS, will receive SART Test targets.

4.4.17 Main Menu  Maintenance  Installation Test

4.5 Alarm and Alert Pop-ups

The NAUTICAST A2 features alarm and alert pop-ups that can appear any time during operation. To acknowledge an alarm or alert message, press ENTER. An example of an alarm message is shown below.

Figure 10 – New Alarm Message

Page 29 of 80 1001001-2EN A2 Product Manual 2_0

Current position

Status icons

Current time

synchronization state

Current time

4.6 Status Bar

The top of the screen of the NAUTICAST A2 always displays a summary of the system’s status. See illustration

below.

Figure 11 – Status Bar

If a valid navigation position is available, it is displayed to the left. The status icons are displayed in the middle and the current time is shown to the right. Time is either UTC or local (LOC). Beneath the current time there is also information about the transponder’s synchronization state.

The synchronization state can be:

 UTC Direct – This is the normal state where the NAUTICAST A2 gets the UTC time from its own

internal GPS receiver.

 Indirect Synchronization – The NAUTICAST A2 is synchronizing based on receipt of data from

other AIS transmitters.

NOTE: It is possible to be in Indirect Synchronization but still have a valid position in the upper left corner of the status bar. The position information may be from an external GPS sensor, but UTC Direct synchronization can only be taken from the internal GPS receiver.

4.7 Status Icons

The status icons that can be displayed are:

 Unread message (safety related message, text message or RTA)  Unread Long Range message (automatic reply)  Unread Long Range message (manual reply)  Active alarms  1W mode (Indicates 1 Watt TX mode for Tankers is enabled.) See NOTE below for details.  Blue Sign On (only available when System Mode is “Inland”)  Blue Sign Off (only available when System Mode is “Inland”)  Silent Mode activated, either with Tx Mode parameter or silent switch. 

Navigational status, being one of:

 Navigational status is undefined  At anchor or moored  Under way using engine  Navigational status is one of: Not under command, Restricted manoeuvrability, Constrained by her

draught, Aground, Engaged in fishing, Under way sailing, Reserved for future use.

NOTE: The transponder will automatically engage 1W mode when the following conditions are met: Ship type = Tanker, Nav Status = Moored and SOG <= 3 knots, otherwise 1W mode will be automatically disengaged. The Tanker 1W mode is fully automatic and cannot be disengaged by other external control.

Page 30 of 80 1001001-2EN A2 Product Manual 2_0

4.8 View Remote Ship Information

The NAUTICAST A2 will power up in accessed from the any other view. The

The list includes MMSI or ship’s name (Ship Id), range (RNG), bearing (BRG) and time since last report was

received (Age) for each AIS target received by the system.

The OPT button can be used in the target. For more information about AIS messages, refer to section 4.12. For extended information about a target in the list, select the ship with the ∧ ∨ key and press ENTER. The

Extended Information

this view it is also possible to query for static and voyage data as well as persons on board information by using the OPT button.

Main Menu

Target List

view includes static, dynamic and voyage related data for the selected target. In

view. The

view displays a list of all targets sorted by range from own ship (closest first).

Target List

view. This view, also referred to as the

Main Menu

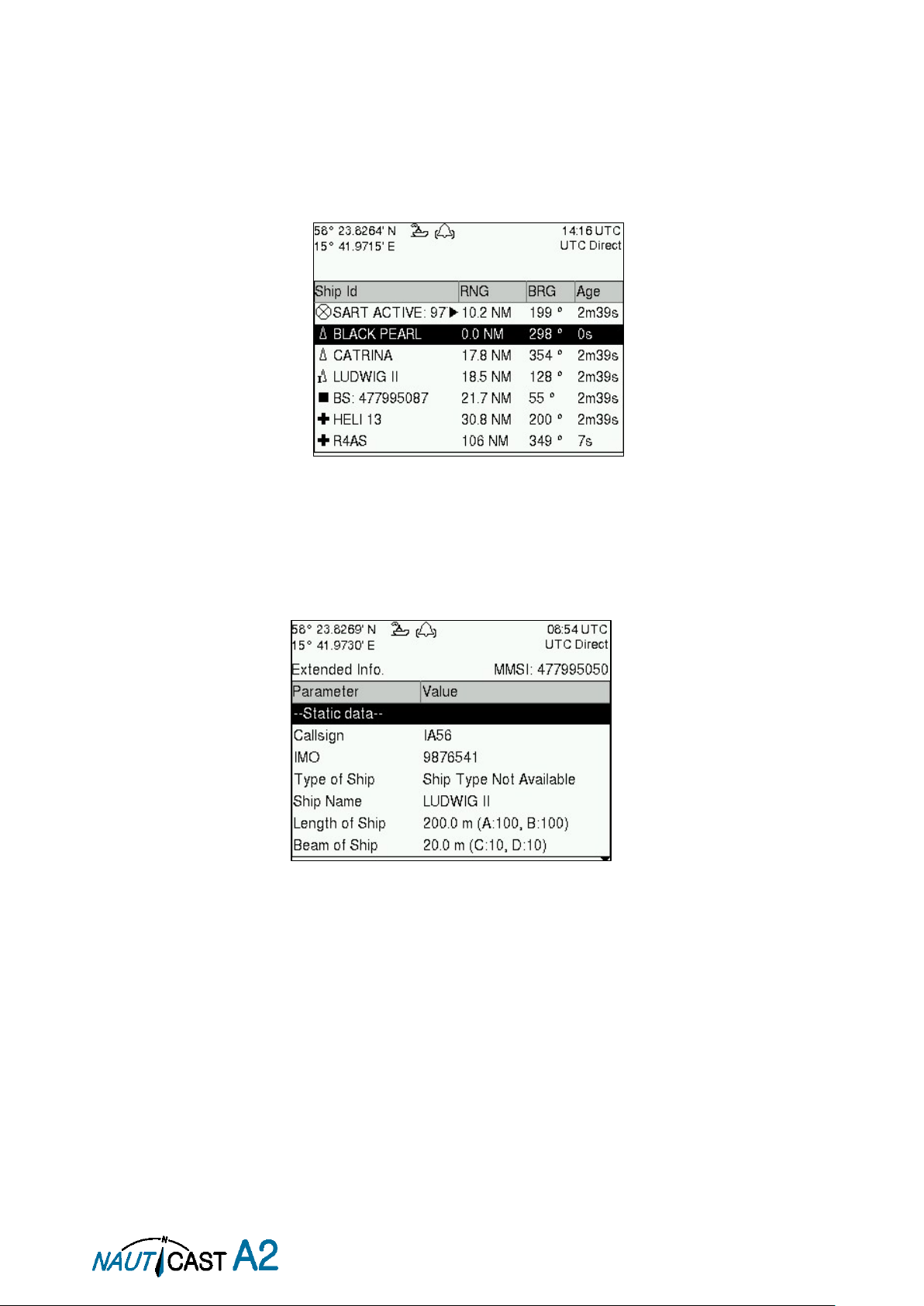

Figure 12 – Target List

Target List

view to send a safety related message (SRM) to the selected

minimal display

view can be reached by pressing ESC repeatedly from

, is

Figure 13 – Extended Info

Press

ESC

to return to

Page 31 of 80 1001001-2EN A2 Product Manual 2_0

Target List

view.

4.9 View Plot of Targets

The location of targets relative to your own ship is visualized in the

Main Menu

In and Zoom Out.

For extended information about a target select it using the < > key and press ENTER.

The own ship target is displayed as a ‘T’ shaped symbol. Class B targets are indicated by a ‘B’ appended to the target icon and Inland targets are indicated by either an ‘I’ or by a blue sign symbol appended to the

target (not shown in the figure above). The OPT button can be used in the For more information about AIS messages, refer to section 4.12.

view. Use the

ARROW KEYPAD

Figure 14 – Target Plot

Plot

view to send a safety related message (SRM) to the selected target.

< > to select any of the targets on the display or ∧ ∨ to Zoom

Plot

view. The view is accessed from the

4.10 View Transmitted Own Ship Information

The information transmitted by the NAUTICAST A2 on the VHF link is viewed in the

Data

view. This view is accessed from related data actually sent by the NAUTICAST A2. The view reflects the contents of the last transmitted AIS message, thus there may be some delay from the time the parameters are changed until they are displayed in the

Transmitted Own Ship Data

Main Menu Status

view.

Figure 15 – Transmitted Own Ship Data

view and includes the static, dynamic and voyage

Transmitted Own Ship

Page 32 of 80 1001001-2EN A2 Product Manual 2_0

4.11 Enter and Read Voyage Related Information

Voyage related information (for transmit via AIS) is displayed in the from

Main MenuVoyageAIS Voyage

(ETA) and number of people aboard.

4.12 Handling Safety Related Messages (SRM) and Text Messages

Safety related messages (SRMs) and text messages can be sent to specific targets (addressed messages) or broadcast to all targets. The Inbox, Outbox and Send views for SRMs and text messages can be accessed from

Main MenuMessagesAIS Messages

. Voyage related data includes destination, estimated time of arrival

Figure 16 – AIS Voyage

AIS Voyage

view. The view is accessed

Figure 17 - AIS Messages

4.12.1 Read Received Messages Received messages can be accessed in the letter icon in the status bar and are marked with red color in the inbox.

Inbox

view. Unread SRMs and text messages are indicated with a

Figure 18 – AIS Message Inbox

Page 33 of 80 1001001-2EN A2 Product Manual 2_0

Select a message with ARROW KEYPAD buttons ∧ ∨. A preview of the selected message is shown at the bottom of the screen. To read the entire message and mark it as being read, press ENTER. When the message is read, navigate back to the inbox by pressing ESC. It is possible to reply to, forward or delete the selected message by pressing the OPT button.

4.12.2 Send SRMs and Text Messages SRMs are composed and sent in the Send view accessed from Use the ARROW KEYPAD buttons ∧ ∨ to navigate between the text input field, list of parameters and “Send” button.

Figure 19 – AIS Message Send view

Sent messages can be viewed in the

MessagesOutbox

Outbox

view accessed from

Main MenuMessagesAIS MessagesSend

Main MenuMessagesAIS

Figure 20 – AIS Message Outbox

4.13 Send Persons On Board

In the (PoB) to another vessel. The PoB message can be sent as either addressed or broadcast. The PoB message can also be sent in two different versions: The IMO version sends the total number of persons on board as a binary message with international FI 16. The Inland (IWW) version sends a message with number of crew, personnel and passengers as a binary message with inland FI 55. The information sent in the messages is automatically filled in by the NAUTICAST A2 depending on the voyage configuration made in

Send Persons On Board

view it is possible to send information about the number of persons on board

Main MenuVoyageAIS Voyage.

Page 34 of 80 1001001-2EN A2 Product Manual 2_0

Figure 21 – Persons On Board

4.14 Long Range Interrogations

An AIS transponder can receive long range interrogation messages to poll for certain information. A received

interrogation message is indicated by a LR icon in the status bar. If the “Long Range Reply Mode” parameter has been configured to “Auto”, the NAUTICAST A2 will automatically send a response to the interrogation. If the “Long Range Reply Mode” parameter is set to “Manual”, the operator must send a response or refusal

from the

Long Range Message

view accessed from

Main Menu  Messages  Long Range

. For more

information about the “Reply Mode” parameter and Long Range filter settings, see section 4.4.9.

Figure 22 – Long Range

To send a reply or refusal to the interrogation or to delete an interrogation from the message list, use the ARROW KEYPAD buttons ∧ ∨ to mark the desired interrogation and then press the OPT button and choose the desired option. The Long Range view uses the following symbols to indicate the status of a request or reply message: ? – The information is requested by the sender X – The information is available and provided ! – The information requested is refused

Page 35 of 80 1001001-2EN A2 Product Manual 2_0

4.15 Inland ETA and RTA

The NAUTICAST A2 has capability to send Inland ETA (Estimated Time of Arrival) messages and receive Inland RTA (Recommended Time of Arrival) messages which are used when communicating with ports, locks and bridges on the inland water ways. This is done from the

 Messages  ETA/RTA

be viewed in the

Inbox

. Sent ETA messages can be viewed in the

view and new ETA messages can be composed in the

ETA/RTA

view that can be accessed from

Outbox

view, received RTA messages can

Send

view.

Main Menu

Figure 23 – ETA/RTA

4.16 Inland Water Levels

The NAUTICAST A2 can receive and display Inland water levels messages. All received water levels messages can be viewed in the

Water Levels

view that can be accessed from

Figure 24 – Inland Water Levels

Main Menu  Messages  Water Levels

Page 36 of 80 1001001-2EN A2 Product Manual 2_0

4.17 Regional Areas

All regional areas that are stored in the NAUTICAST A2 can be viewed in the Regional Areas view which is accessed from west corners of the area. The area is marked with blue color if it is in use by the NAUTICAST A2. To view more information about the area, edit the area or create a new area, press the OPT button and choose the desired option.

4.18 Alarms

Main Menu  Config  VHF Radio  Regional Areas

Figure 25 – Regional Areas

. The list shows the north east and south

All currently active and enabled alarms are shown in the

MenuAlarms

to also show disabled active alarms by pressing OPT button and choose “Show All Alarms”. For a list of all alarms, see section 7.3.

4.19 Status List

Current status indications are listed in the

Status List

. As default, only alarms that are configured as “Enabled” will be shown in the list. It is possible

Figure 26 - Alarms

Status List

. The different status indications that can occur are listed in section 7.8.

view that can be accessed from

Alarm

view that can be accessed from

Main Menu  Status 

Main

Figure 27 - Status List

Page 37 of 80 1001001-2EN A2 Product Manual 2_0

4.20 Non Functional Time

This view displays information about times when the NAUTICAST A2 has been turned off or for some other reason not been transmitting for more than 15 minutes. The view is accessed from

Non Func. Time

4.21 GPS Status

This view displays the satellites received by the NAUTICAST A2 internal GPS receiver. The list is sorted by the satellites ID (PRN number) and shows elevation, azimuth and signal to noise ratio (SNR) for each satellite. The view also displays the total number of satellites in view and the total number of satellites used in the position calculation reported by GGA sentence.

Figure 28 - Non Functional Time

Main Menu  Status 

Figure 29 – GPS Status

4.22 View Raw Data

This view displays the incoming data on the selected serial port. It is also possible to pause the data on the screen by pressing the “Freeze” button. Use the ARROW KEYPAD buttons ∧ ∨ to navigate to the Freeze button and press ENTER. The View Raw Data view can be a helpful tool when trouble shooting the system to see what sensor input is actually received on each port. The view can be accessed from

View Raw Data

Figure 30 - View Raw Data

Main Menu Status

Page 38 of 80 1001001-2EN A2 Product Manual 2_0

4.23 SW/HW Info

This view displays the software and hardware revisions for the NAUTICAST A2 and is accessed from Main

Menu  Status  SW/HW Info. NOTE: This information should always be provided when in contact

with Nauticast Technical Support.

Figure 31 - SW/HW Info

4.24 VHF Status

The VHF Status view shows the currently used settings. Channel number, frequency, power and operation mode are displayed for each VHF transceiver in the NAUTICAST A2. This information is useful when troubleshooting to make sure that the NAUTICAST A2 transponder uses the expected VHF radio settings. If e.g. a regional area is set and in use, this will affect the parameters in the VHF Status view.

Figure 32 - VHF Status

4.25 Communication Test

When installing the NAUTICAST A2, or when performing annual testing, a communication test shall be done to ensure that other transponder system can receive the NAUTICAST A2 transmissions. This can be done from the Communication Test view accessed from

Main Menu  Maintenance  Comm. Test

. When entering the Communication Test view a suggested target with a suitable range (between 15 NM and 25 NM) will be selected in the MMSI parameter field if such a target has been received by the NAUTICAST A2. It is however possible to select a different target for the communication test. To start the test, use the ARROW KEYPAD button ∧ to select the “Send” button and press ENTER. The status of the test will be shown beneath the parameter list. If no response is received within 15 seconds from the selected target a fail message will be shown.

Figure 33 - Communication Test

Page 39 of 80 1001001-2EN A2 Product Manual 2_0

4.26 Update Software

The software in the NAUTICAST A2 is easy upgradable via the USB Host interface located behind the front hatch. To perform a software update, follow the instructions in the accessed from procedure, refer to chapter 5 “

4.27 Restore Config

Main MenuMaintenanceUpdate Software

Figure 34 - Update Software

. For more information about the upgrade

Update Software

view which can be

All config parameters described in section 4.4 “Configuration Parameters” can be set to default values from the

Restore Config

view which can be accessed from

Main Menu  Maintenance  Restore Config

NOTE: The MMSI parameter will also be reset to zero and therefore the transponder will stop transmitting and the alarm “Tx Malfunction” will become active.

4.28 Save Configuration to USB memory

The NAUTICAST A2 AIS Transponder System has the capability to save all configuration settings to an USB memory. The configuration file can be used as backup so that the NAUTICAST A2 AIS system can be restored to a previous configuration; however during normal software upgrade of the NAUTICAST A2 AIS system the configuration parameters will NOT be changed so a backup is usually not needed. The saved configuration file can also be used to load several NAUTICAST A2 systems with the same settings. To save the configuration to a file on a USB memory, follow the steps below:

1. Insert a FAT32 formatted USB memory in the USB host interface port in the NAUTICAST A2.

2. Enter the

to USB

Save Config to USB

view which is accessed from

Main Menu  Maintenance  Save Config

Figure 35 – Save Config to USB

Open

the folder on the USB memory where the transponder configuration file should be saved. Use the arrow keypad to navigate between folders and files on the USB memory. Only folders and transponder configuration files will be listed in the view. To view the contents of a sub folder, mark

Page 40 of 80 1001001-2EN A2 Product Manual 2_0

the folder and press ENTER. To go back to the previous folder, mark the folder “..” on the top of the list and press ENTER.

4. Press the “Save” button. A popup will appear where a file name can be entered.

Figure 36 – Enter file name

5. Press OK to save the configuration to the specified file and directory on the USB

Figure 37 – Configuration Saved Successfully.

4.29 Load Configuration from USB memory

To load and directly use a configuration from an existing configuration file on a USB memory, follow the below steps:

1. Insert the USB memory with the configuration file in the USB host interface port on the NAUTICAST A2.

2. Enter the

Config from USB

Load Config from USB

view which is accessed from

Main Menu  Maintenance  Load

Figure 38 – Load Config from USB

Page 41 of 80 1001001-2EN A2 Product Manual 2_0

3. Select the desired configuration file. Use the arrow keypad to navigate between folders and files on the USB memory. Only folders and transponder configuration files will be listed in the view. To view the contents of a sub folder, mark

the folder and press ENTER. To go back to the previous folder, mark the folder “..” on the top of the

list and press ENTER.

4. Press ENTER to load the selected file. A confirmation popup will appear.

Figure 39 – Confirmation popup

5. Check that the correct configuration file is selected. Press “Yes” in the confirmation popup. A password popup will appear. Fill in the admin password (default = “admin”) and press OK.

Figure 40 – Password popup

6. The configuration file will be loaded in the NAUTICAST A2 and the settings will take effect immediately.

Figure 41 – Configuration successfully loaded from USB

Page 42 of 80 1001001-2EN A2 Product Manual 2_0

STATUS

Upgrade mode started GREEN

YELLOW

Upgrade in progress Blinking YELLOW

Upgrade complete (automatic reboot after 3 sec)

GREEN

Error: USB Not Found

RED

Blinking YELLOW

0.5Hz

Error: No SW found on USB

RED

Blinking YELLOW 4Hz

Error: Flash erase failed

RED

Blinking RED

0.5 Hz

Error: Flash write failed

RED

Blinking RED 4 Hz

5 Software Upgrade

Note: After updating the software add a sticker stating the new software version close to the product label.

The NAUTICAST A2 is easy upgradable through the USB host interface located behind the front hatch. To upgrade the software in the NAUTICAST A2, perform the following steps:

 Unzip the NAUTICAST A2 upgrade package in the root folder of an USB memory stick. There should

now be a folder called swload in the USB root folder.

 Insert the USB memory stick in the USB host interface located behind the front hatch. Hold down the ‘4’-button on the front of the NAUTICAST A2 and reboot the system. The ‘4’-button must be held down until the STATUS LED is lit green and Rx LED is lit yellow. The software upgrade is complete when the STATUS LED is lit green. The NAUTICAST A2 will automatically reboot after 3 seconds. Check that correct SW has been loaded in the SW/HW Info view which can be accessed through If the upgrade process fails, The STATUS LED will be lit red and one of the Rx LED or Tx LED starts blinking. Should this happen, hold down the ‘4’-button and reboot the NAUTICAST A2 to try again. The software upgrade can also be initiated from the section 4.26 “Update Software” for more information.

Main Menu  Status SW/HW Info

Update Software

view in the NAUTICAST A2. Refer to

Page 43 of 80 1001001-2EN A2 Product Manual 2_0

Table 11 – LED Indicators during Software Upgrade

Dimensions:

Height: 87 mm Width: 238 mm Depth: 173 mm

Dimensions: Incl. gimbal mount

Height: 124 mm (minimum) Width: 292 mm Depth: 173 mm

Weight:

2.25 kg

2.45 kg incl gimbal mount

Supply Voltage:

24 VDC (12VDC)

Power Consumption (/Max):

17W/24W (48W)

Peak Current

1 A (4A)

Temperature:

-15˚C to +55˚C (Operational)

-30˚C to +80˚C (Storage)

Vibrations:

IEC 60945 ed. 4

EMC:

IEC 60945 ed. 4

Radio Type Approval:

IEC 61993-2 ed. 2

Compass Safe Distance NAUTICAST A2

60 cm (for standard magnetic compass) 45 cm (for steering magnetic compass)

Compass Safe Distance GPS Antenna AT575-68W

30 cm (for standard magnetic compass) 30 cm (for steering magnetic compass)

Compass Safe Distance GPS Antenna MA-700

65 cm (for standard magnetic compass) 50 cm (for steering magnetic compass)

Compass Safe Distance Combined VHF/GPS-1

65 cm (for standard magnetic compass) 50 cm (for steering magnetic compass)

Receivers:

156 – 163 MHz (TDMA)

156.525 MHz fixed (DSC, Channel 70)

Transmitter:

156 – 163 MHz

Channel bandwidth:

25 kHz

Output Power:

High: 12,5 W Low: 1W “Tanker 1W Mode”: 1W

VHF antenna connector:

BNC-Female

Antenna Input Impedance:

50 ohm

Type:

GPS L1, C/A Code, 50 Channels SBAS: WAAS, EGNOS, MSAS, GAGAN

Update rate:

2 Hz

Accuracy:

< 2.5 m (GPS, CEP, 50%, 24 hours static) < 2.0 m (SBAS, CEP, 50% 24 hours static)

Antenna feeding:

5 VDC

GPS Antenna connector:

TNC-Female

Antenna Input Impedance:

50 ohm

Max switching current:

0,1 – 2 A (with heat sink up to 3A)

Max switching voltage:

3 – 60 VDC

6 Technical Specifications

6.1 Transponder Physical

6.2 Transponder Electrical

6.3 Transponder Environment

This product complies with the R&TTE directive, 1999/5/EC

6.4 Transponder VHF Transceiver

6.5 Transponder Internal GPS Receiver

6.6 AIS Alarm Relay

Page 44 of 80 1001001-2EN A2 Product Manual 2_0

7 Troubleshooting

The Nauticast A2 is a very rugged and stable device, so that in the majority of cases erroneous configurations rather than real hardware defects are the cause of perceived malfunctioning.

7.1 Troubleshooting Prerequisites

A transponder operating environment may naturally affect and render complicated the search for the root cause of a system defect. It is always advisable to start by minimizing all possible interference sources in order to simplify the troubleshooting.

 Disconnect other NMEA equipment from the NAUTICAST A2 (ECDIS, RADAR, NAV, etc.)

 Switch off other emission sources (RADAR, SATCOM, VHF, etc.)

We encourage applying the latest software available for the NAUTICAST A2 if any problems are experienced. It may contain bug-fixes and other improvements solving already known issues. Check supplied software release notes to see what has been changed in the new software.

7.2 Troubleshooting with the Front Panel LED’s

It is very fast and effective to use the LED’s to verify the status of the NAUTICAST A2. This should always be

the first step in the troubleshooting.

7.2.1 STATUS LED (multi-colour)

 The STATUS LED is constantly lit green when the transponder is operating and no alarms are active.

 The STATUS LED is constantly lit red if there is one or more acknowledged active alarms in the

transponder, but no unacknowledged alarms. Refer to section 7.3 for interpretation of the alarms.

 The STATUS LED is flashing red if there is one or more unacknowledged alarms in the transponder.

Refer to section 7.3 for interpretation of the alarms.

If neither colours are lit, nor flashing, then check the power supply and make sure that:

 The voltage is correct and stable

 The polarity is correct and not switched

 The available current is sufficient for start up and transmission

 The external fuse is functional

 The power cable is undamaged

 The power connector is properly connected and secured

Also check so that the LED backlight is not completely turned off in the Visual Config view accessed from

MenuConfigDisplayVisual

7.2.2 Rx LED (yellow) The Rx LED is flashing yellow when the transponder is receiving a message from the VDL. This can be intermittently. If there is verified traffic on the VDL and the Rx LED still is dark, then check the alarm list for any active alarms. Refer to section 7.3 for interpretation of the alarms. Lack of reception may be an indication of a VHF antenna problem or connectivity issues. Check the installation for problems.

7.2.3 Tx LED (red) The Tx LED is flashing red when the transponder is transmitting a message to the VDL. The transmission interval is between 2 – 360 seconds. Refer to section 7.5. If the Tx LED is completely dark, then check so that the transmission is not switched off either through an active regional area or by the Tx Mode parameter. It is possible to check the status on each transceiver in the VHF Status view described in section 4.24. If the transmission is activated and there is still no red flashing, then check the alarm list for any active alarms. Refer to section 7.3 for interpretation of the alarms.

Main

7.3 Troubleshooting with Alarm Messages

The NAUTICAST A2 constantly monitors itself for failures, abnormal conditions and other important parameters. Some of the monitoring trigger alarms and those alarms are excellent aids in the troubleshooting process. An active alarm can have two states, unacknowledged or acknowledged. The state of an alarm will affect the STATUS LED. Refer to section 7.2.1.

Page 45 of 80 1001001-2EN A2 Product Manual 2_0

A new alarm (unacknowledged) will raise a pop-up window that needs to be acknowledged by the user. The active alarms can be found in the alarm view. Refer to section 4.18. All active alarms are outputted on all the serial interface ports every 30 seconds. The alarm status can for example be used in interfacing ECDIS systems or centralized alarm systems. The alarms can also be monitored or recorded for troubleshooting purposes by for example a terminal application.

The status of an alarm can be identified by two letters in the alarm sentence, “A” and “V”. The alarm

sentence is constructed as:

$AIALR,hhmmss.ss,xxx,A,A,c-c, where: hhmmss.ss = Time (UTC) of alarm condition change xxx = Unique alarm identifier A = Alarm condition (A = Active, V = Inactive) A = Alarm’s acknowledge state, A = acknowledged, V = unacknowledged c-c = Alarm’s description text

$AIALR,hhmmss.ss,xxx,V,A,c-c: Tx malfunction $AIALR,hhmmss.ss,xxx,V,V,c-c: Tx malfunction $AIALR,hhmmss.ss,xxx,A,A,c-c: Tx malfunction $AIALR,hhmmss.ss,xxx,A,V,c-c: Tx malfunction

: Alarm is Inactive : Alarm is Inactive

: Alarm is Active and Acknowledged : Alarm is Active and Unacknowledged

The alarms that can occur in the NAUTICAST A2 are listed below:

7.3.1 AIS: Tx Malfunction (ID 001) A Tx Malfunction alarm is generated if there is a malfunction in the radio transmitter hardware or if the antenna VSWR exceeds an allowed ratio. If the radio transmitter returns to normal operation or if VSWR returns to a value below the allowed threshold, the alarm is cleared. The Tx Malfunction alarm is also generated when the MMSI is configured to “0”, in which case the NAUTICAST A2 will not transmit.

7.3.2 AIS: Antenna VSWR Exceeds limit (ID 002) The VSWR (Voltage Standing Wave Ratio) of the antenna is checked for every transmission and if it exceeds a given ratio then a VSWR alarm is generated. If the VSWR goes below the allowed threshold, the alarm is cleared.

7.3.3 AIS: Rx Ch A Malfunction (ID 003)

7.3.4 AIS: Rx Ch B Malfunction (ID 004)

7.3.5 AIS: Rx Ch C Malfunction (ID 005)

The radio receivers are continuously monitored and if any part of the receivers’ hardware should malfunction,

an Rx Malfunction alarm is generated for that receiver. If the radio receiver returns to normal operation, the alarm is cleared.

7.3.6 AIS: General Failure (ID 006) This alarm is generated if the NAUTICAST A2 fails to initiate the radio or if a severe hardware failure has occurred. If this alarm occurs, contact your retailer.

7.3.7 AIS: UTC Sync Invalid (ID 007) This alarm is generated when the NAUTICAST A2 loses UTC direct synchronization (cannot synchronize from internal GPS receiver).

7.3.8 AIS: MKD connection lost (ID 008) This alarm is active if the communication between the control unit and the display unit in the NAUTICAST A2 does not work.

7.3.9 AIS: Internal/External GNSS position mismatch (ID 009) This alarm is generated if the difference between the internal and external GNSS position is more than 100 m for more than 15 minutes.

7.3.10 AIS: NavStatus incorrect (ID 010) This alarm is generated if the navigational status is incorrect. If e.g. the navigational status is set to “At Anchor” but the ship is moving faster than 3 knots, the NavStatus incorrect alarm will become active.

7.3.11 AIS: Heading sensor offset (ID 011) This alarm is active when SOG (Speed Over Ground) is greater than 5 kn and the difference between COG (Course Over Ground) and HDT (True Heading) is greater than 45˚ for 5 min.

Page 46 of 80 1001001-2EN A2 Product Manual 2_0

7.3.12 AIS: Active AIS SART (ID 014) This alarm is generated when the NAUTICAST A2 has received an active AIS SART position report.

7.3.13 AIS: External EPFS Lost (ID 025) This alarm is generated if the position from the external Electronic Position Fixing System is invalid (i.e. no external GNSS). Due to the fallback arrangement for the positioning sensor this alarm can be inactive up to 30 seconds (during which the internal GNSS is used) before the alarm is activated.

7.3.14 AIS: No Sensor Position In Use (ID 026) This alarm is active if the NAUTICAST A2 does not have a valid position (latitude/longitude) from any sensor.

7.3.15 AIS: No Valid SOG Information (ID 029) / No Valid COG Information (ID 030) These alarms are active if the NAUTICAST A2 does not have a valid SOG (Speed Over Ground) or a valid COG (Course Over Ground) from any sensor. The SOG and COG is based on the speed log (if external GNSS is used and a valid heading is available) or the GNSS currently in use.

7.3.16 AIS: Heading Lost/Invalid (ID 032) This alarm is generated if either the heading information is lost/invalid (from external sensors) or if the heading is undefined.

7.3.17 AIS: No Valid ROT Information (ID 035) This alarm is active if ROT (Rate of Turn) is undefined or if no valid ROT information is available from external sensor or internal calculations.

7.3.18 IAIS: Ship Size mismatch (ID 060) This alarm is active when the inland parameters length and beam of ship does not match the antenna position parameters A, B, C and D.

7.3.19 AIS: Tx disabled externally (ID 072) This alarm is active when an external silent switch is used and the switch has disabled transmissions.

7.4 Troubleshooting via the Display

There is a lot of information and data accessible via the display that can be useful for troubleshooting, and that can help finding a presumed problem. The following items are just a few examples of what to look at.

7.4.1 Transmitted Own Ship Data View When the transponder transmits data on the VDL, it also simultaneously outputs this data on all the serial ports. This information is displayed in the Transmitted Own Ship Data view.

Figure 42 – Transmitted Own Ship Data

Page 47 of 80 1001001-2EN A2 Product Manual 2_0

7.4.2 Target List The target list is primarily useful when analyzing the receiving functionality. The propagation characteristics of VHF radio frequencies are close to line of sight. A harsh radio environment, reflections in cables, connectors or the antenna will shorten the effective range.

Figure 43 – Target List

7.4.3 Date and Time The date and time (UTC) in the upper right corner of the display is provided by the transponder. If the date and time are not correct, the transponders internal GPS does not have a position fix. This will also be indicated by the alarm “UTC sync invalid”. This problem is normally caused by a GPS-antenna failure or damaged antenna cables. This problem may also be caused by interference from radio equipment on-board.

7.4.4 View Raw Data The

View Raw Data

view can be used to see received data on the ports of the NAUTICAST A2. It is useful for

troubleshooting to make sure that connected sensors provide correct data to the NAUTICAST A2 unit. The

“View Port” parameter determines from which port the data displayed in the view are taken. It is possible to pause the view by pressing the “Freeze” button. All data that is received while the view is paused will not be

displayed in the view.

Figure 44 – View Raw Data

Page 48 of 80 1001001-2EN A2 Product Manual 2_0

Information type / Condition

Nominal reporting interval

Static Information

6 min, on amendment, on request

Voyage related information

6 min, on amendment, on request

Dynamic information (See conditions below)

- Ship at anchor or moored and not moving faster than 3 knots

3 minutes

- Ship at anchor or moored and moving faster than 3 knots

10 seconds

- Ship 0-14 knots

10 seconds

- Ship 0-14 knots and changing course

3 1/3 seconds

- Ship 14-23 knots

6 seconds

- Ship 14-23 knots and changing course

2 seconds

- Ship > 23 knots

2 seconds

- Ship > 23 knots and changing course

2 seconds

7.4.5 Status List The status list view is used to display status indications that are stored in the transponder. The indications are created when an important event has occurred in the transponder. Time of occurrence and status indication text are shown in the view. A list of all possible indications can be found in section 7.8 Indication Messages.

Figure 45 – Status List

7.5 Reporting Intervals for Class A Transponders

The different information types are valid for different time periods and therefore they need different update intervals. These update intervals are defined in the AIS standard (ITU-R M.1371) and should be applied by all transponders. There are however some exceptions from this, which can be found in the standard. Class B transponders have for example different intervals than the Class A transponder. All this needs to be taken in consideration while troubleshooting thus it affects the anticipated behaviour of a transponder.

Table 12 – Reporting Intervals

Page 49 of 80 1001001-2EN A2 Product Manual 2_0

7.6 F.A.Q

7.6.1 I cannot see the vessel on the Internet AIS service Websites providing AIS services like e.g. www.marinetraffic.com does not cover all the seas of the world, but only specific coastal areas where AIS receivers have been installed and that upload the data to the websites. The vessel must be in reception range of these AIS receivers to show up on the Internet AIS service. If wrong information about your ship shows up on these websites (e.g. pictures or wrong position), this doesn’t mean your AIS is not working correctly. If the data is shown correctly on the AIS, the incorrect information is mostly due to false information delivered to these websites through other sources.

7.6.2 I can “see” the other vessel, but they do not “see” my vessel There are several reasons why this might happen. The first thing to check is if the NAUTICAST A2 is transmitting at all or if is transmitting in low power mode. In possible to check the status on all NAUTICAST A2 VHF transceivers. Make sure that correct channels and power mode are used. There might be a regional area set in the transponder that changes the operating mode of the NAUTICAST A2. Regional areas are listed in the The MMSI must also be configured in order for the NAUTICAST A2 to transmit. If the MMSI is zero, the NAUTICAST A2 will be silent.

Another possibility is that the other vessels’ transponder requires a shorter reception range in order to receive

the NAUTICAST A2 transmissions. In the bearing to other vessels.

7.6.3 The VHF range seems to be short As a general rule, the VHF range is equal to line of sight from the antenna position, which means that the higher the antenna is installed, the longer the range will be. It is also important to follow the guide lines for an antenna installation thoroughly. Section 3.4 describes how to best install the VHF antenna.

7.6.4 I can only receive a few GPS satellites The position of the GPS antenna is of high importance to optimize the GPS reception. Follow the guide lines of GPS antenna installation described in section 3.5. If the ship is close to a harbour or shore with high structures or travelling in an area with high terrain, the GPS reception might be lowered. The GPS antenna must be installed where it has a clear view of the sky. The objective is to see the horizon freely through 360 degrees with a vertical observation of 5 to 90 degrees above the horizon. The GPS antenna cable should also be as short as possible and with 50 Ω impedance. A very long antenna cable or faulty impedance can heavily reduce the GPS reception.

Target List

Regional Area

view and the

VHF Status

Plot

view described in section 4.24 it is

view (see section 4.17).

view it is possible to see the range and

7.7 Contact & Support information

Contact your local dealer for NAUTICAST A2 support. Please visit www.nauticast.com to see our worldwide service partners.

Nauticast GmbH

Lützowgasse 12-14/ 3. OG 1140 Vienna Austria Tel: +43 (1) 5 237 237-240 Fax: +43 (1) 5 237 237-150 Mail: support@nauticast.com Web: www.nauticast.com

To enable us to provide you with precise and thorough support please contact support@nauticast.com per Email and include the “Technical Support / Problem Report using all relevant information provided by the SW/HW Info view which can be accessed from

Main MenuStatusSW/HW Info

Page 50 of 80 1001001-2EN A2 Product Manual 2_0

Type

Message text

021

Status

External DGNSS in use

022

Status

External GNSS in use

023

Status

Internal DGNSS in use (beacon)

024

Status

Internal DGNSS in use (msg 17)

025

Status

Internal GNSS in use

027

Status

External SOG/COG in use

028

Status

Internal SOG/COG in use

031

Status

Heading valid

033

Status

Rate of Turn Indicator in use

034

Status

Other ROT source in use

036

Event

Channel management parameters changed

056

Event

Channel management zone memory changed

061

Status

Enter semaphore mode

062

Event

Leave semaphore mode

063

Event

NVM Checksum errors

064

Event

RATDMA overflow

066

Status

Tanker Low VHF Power Mode

067

Status

Beacon correction received

068

Status

VDL correction received (id XXXX)

069

Status

No correction received

7.8 Indication Messages

The indication messages, with identity and type information, are listed below:

7.9 Long Range Definitions

A = Ship’s name, call sign, and IMO number B = Date and time of message composition C = Position E = Course over ground (COG) F = Speed over ground (SOG) I = Destination and Estimated Time of Arrival (ETA) O = Draught P = Ship/Cargo U = Ship’s length, breadth, type W= Persons on board

Page 51 of 80 1001001-2EN A2 Product Manual 2_0

Field

Format

Name

Comment

--DTM

Sentence Id

Used

ccc

Local Datum Code

Interpret if it’s WGS84 or not

3 A Local Datum Subdivision Code

Ignored

x.x

Lat Offset (2 fields)

Ignored Ignored

x.x

Long Offset (2 fields)

Ignored Ignored

7 a 8

x.x

Altitude Offset

Ignored

ccc

Reference Datum Code

Ignored

Field

Format

Name

Comment

--GBS

Sentence Id

Used

hhmmss.s s

UTC Time of GGA or GNS

Ignored

x.x

Expected Error in latitude

Used

x.x

Expected Error in longitude

Used 5 x.x

Expected error in altitude

Ignored

ID number of most likely failed satellite

Ignored

x.x

Probability of missed detection

Ignored

x.x

Estimate of bias in meters

Ignored

x.x

Standard Deviation of bias estimate

Ignored

Field

Format

Name

Comment

--GGA

Sentence Id

Used

hhmmss.s s

UTC of position

UTC Second is used to indicate Time Stamp

llll.ll

Latitude

Used

yyyy.yy

Longitude

Used

7 x GPS quality indicator

Used, 1 -> Position with Low Accuracy 2 -> Position with High Accuracy 3 -> Position with Low Accuracy 6 -> Dead Reckoning with Low Accuracy 7 -> Manual mode with low accuracy OTHER -> No Position Used when the GPS is the internal GPS (Used in proprietary sentences)

Satellites in use

Ignored

x.x

Horizontal dilution of precision

Ignored

x.x

Antenna altitude

Ignored

11 M Units of antenna altitude, meter

Ignored

x.x

Geodial separation

Ignored

13 M Units of geodial sep.

Ignored

x.x

Age of differential GPS data

Ignored

xxxx

Differential reference station ID

Ignored

8 Interpretation of Input Sentences

All interface ports accepts the full set of input listed below sentences, except the sentences listed in section

8.4.1 that are unique to the Long Range interface port. The protocol of the serial input sentences shall be compliant to IEC 61162-1Ed.4 (2010-11) for maximum interoperability.

8.1 GPS and Sensor Input Sentences

8.1.1 DTM - Datum Reference If local code is other than WGS84, then the positions report from that port is discarded. $--DTM,ccc,a,x.x,a,x.x,a,x.x,ccc

8.1.2 GBS - GNSS Satellite Fault Detection If this sentence is received once a second from the position source in use, the RAIM flag will be set to TRUE. $--GBS,hhmmss.ss,x.x,x.x,x.x,xx,x.x,x.x,x.x

8.1.3 GGA - Global Positioning System Fix Data $--GGA,hhmmss.ss,llll.ll,a,yyyy.yy,a,x,xx,x.x,x.x,M,x.x,M,x.x,xxxx

Page 52 of 80 1001001-2EN A2 Product Manual 2_0

Field

Format

Name

Comment

--GLL

Sentence Id

Used 2 llll.ll

Latitude

Used

3 a 4

yyyy.yy

Longitude

Used

hhmmss.s s

UTC of position

UTC Second is used to indicate Time Stamp

7 A Status

Used

8 a Mode indicator

NULL -> Message is ignored A -> Position with Low Accuracy D -> Position with High Accuracy E -> Dead Reckoning Mode with Low Accuracy M-> Manual Mode with Low Accuracy OTHER -> No Position

Field

Format

Name

Comment

--GLL

Sentence Id

Used

hhmmss.s s

UTC of position

UTC Second is used to indicate Time Stamp

llll.ll

Latitude

Used

yyyy.yy

Longitude

Used

c--c

Mode indicator

A, P -> Position with low accuracy D, R, F -> Position with high Accuracy E -> Dead Reckoning Mode with Low accuracy M -> Manual Mode with low accuracy OTHER -> No Position

Total number of satellites

Used when the GPS source is the internal GPS (used in proprietary sentences)

x.x

HDOP

Ignored

x.x

Antenna altitude, meter

Ignored

x.x

Geodial separation

Ignored

x.x

Age of differential corrections

Ignored

x.x

Differential reference station ID

Ignored

Field

Format

Name

Comment

--HDG

Sentence Id

Used 2 x.x

Heading, degrees true

Used

8.1.4 GLL – Geographic position, latitude/longitude $--GLL,llll.ll,a,yyyy.yy,a,hhmmss.ss,A,a

8.1.5 GNS – GNSS fix data If the Mode Indicator is a NULL field, the sentence is ignored. $--GNS,hhmmss.ss,llll.ll,a,yyyy.yy,a,c--c,xx,x.x,x.x,x.x,x.x,x.x

8.1.6 HDT - Heading, True The use of this sentence is talker identifier dependent. $--HDT,x.x,T

NOTE: HDT input must be sent at least every 3 seconds for the NAUTICAST A2 to calculate ROT from the HDT input.

Page 53 of 80 1001001-2EN A2 Product Manual 2_0

Field

Format

Name

Comment

--OSD

Sentence Id

Used 2 x.x

Heading, degrees true

Used if heading status is ‘A’

3 A Heading status

Used 4 x.x

Vessel course, degrees true

Used as COG

5 a Course reference

Used1

x.x

Vessel speed

Used as SOG

7 a Speed reference

Used1

x.x

Vessel set

Ignored

x.x

Vessel drift

Ignored

10 a Speed units

Used to convert SOG to knots

Field

Format

Name

Comment

--RMC

Sentence Id

Used

hhmmss.s s

UTC of position

UTC Second is used to indicate Time Stamp

3 A Status

Used

llll.ll

Latitude

Used

yyyy.yy

Longitude

Used

x.x

Speed over ground, knots

Used

x.x

Course over ground, degrees true

Used

xxxxxx

Date

Ignored

x.x

Magnetic variation

Ignored

13 a Mode indicator

NULL -> Message is ignored A -> Position with low accuracy D -> Position with high accuracy E -> Dead Reckoning Mode with Low accuracy M -> Manual Mode with low accuracy OTHER -> No Position

Field

Format

Name

Comment

--ROT

Sentence Id

Used

x.x

Rate of turn

Used if Status is set to ‘A’

3 A Status

Used

Field

Format

Name

Comment

--ROT

Sentence Id

Used

x.x

Longitudinal water speed

Ignored

x.x

Transverse water speed

Ignored

4 A Status: water speed

Ignored

x.x

Longitudinal ground speed

Used if Status is set to A

x.x

Transverse ground speed

Used if Status is set to A

7 A Status: ground speed

Used 8 x.x

Stern transverse water speed

Ignored

9 A Status stern water speed

Ignored

x.x

Stern transverse ground speed

Ignored

11 A Status stern ground speed

Ignored

8.1.7 OSD – Own ship data $--OSD,x.x,A,x.x,a,x.x,a,x.x,x.x,a

8.1.8 RMC – Recommended minimum specific GNSS data $--RMC,hhmmss.ss,A,llll.ll,a,yyyy.yy,a,x.x,x.x,xxxxxx,x.x,a,a

8.1.9 ROT – Rate of turn The rate of turn value is only used if the talker identifier is TI. Otherwise the value will only be used to determine the direction, i.e. ”Moving Right” or ”Moving Left”. $--ROT,x.x,A

8.1.10 VBW - Dual Ground / Water Speed The current position source must be external GPS, and heading must be available for the transponder to accept this sentence. $--VBW,x.x,x.x,A,x.x,x.x,A,x.x,A,x.x,A

SOG and COG are used if both COG reference and SOG reference are set to either: B, P, R

Page 54 of 80 1001001-2EN A2 Product Manual 2_0

Field

Format

Name

Comment

--VTG

Sentence Id

Used 2 x.x

Course over ground, degrees true

Used

3 T 4

x.x

Course over ground, degrees magnetic

Ignored

x.x

Speed over ground, knots

Used

x.x

Speed over ground, km/h

Ignored

10 a Mode indicator

Used

Field

Format

Name

Comment

--ZDA

Sentence Id

Used

hhmmss.s s

UTC

Used

Day (UTC)

Used

Month (UTC)

Used

xxxx

Year (UTC)

Used

Local zone hours

Ignored

Local zone minutes

Ignored

Field

Format

Name

Comment

--ACK

Sentence Id

Used

xxx

ID of the alarm source

Used

Field

Format

Name

Comment

--EPV

Sentence Id

Used

2 a Sentence status flag

Used 3 c--c

Destination equipment type

Used, AI or STT

c--c

Unique Identifier

Used, may be null

x.x

Property identifier

Used

c--c

Value of property to be set

Used

Field

Format

Name

Comment

--SPW

Sentence Id

Used

ccc

Password protected sentece

Used 3 c--c

Unique Identifier

Used, may be NULL

4 x Password level

Used 5 c--c

Password

Used

Field

Format

Name

Comment

--SPW

Sentence Id

Used 2 x.x

Configured repeat interval

Used (Limited to 60 sec)

3 A Equipment status

Used 4 x

Sequential sentence identifier

Ignored

8.1.11 VTG – Course over ground and ground speed $--VTG,x.x,T,x.x,M,x.x,N,x.x,K,a

8.1.12 ZDA – Time and date This message is only interpreted if it’s received from the internal GPS (the time synchronisation source). $--ZDA,hhmmss.ss,xx,xx,xxxx,xx,xx

8.2 General Input Sentences

8.2.1 ACK – Acknowledge Alarm $--ACK,xxx

8.2.2 EPV – Command or report equipment property value $--EPV,a,c--c,c--c,x.x,c--c,

8.2.3 SPW – Security Password Sentence $--SPW,ccc,c--c,x,c--c

8.2.4 HBT – Heartbeat Supervision Sentence $--HBT,x.x,A,x

Page 55 of 80 1001001-2EN A2 Product Manual 2_0

Field

Format

Name

Comment

--ABM

Sentence Id

Used

2 x Total nr of sentences

Used if in interval 1..9, otherwise the sentence is ignored

3 x Sentence number

Used if in interval 1..total sentences, otherwise the sentence is ignored

4 x Sequential message identifier

Used if in interval 0..3, otherwise the sentence is ignored

xxxxxxxx xx

MMSI of Destination

Used

6 X AIS Channel

Used

x.x

Message Id

Used if 6 or 12, otherwise the sentence is ignored

s--s

Encapsulated Data

Used 9 x

Number of filled bits

Used

Field

Format

Name

Comment

--ACA

Sentence Id

Used

2 x Sequence number

Ignored

llll.ll

NE latitude (2 fields)

Used

4 a 5

yyyy.yy

NE longitude (2 fields)

Used

llll.ll

SW latitude (2 fields)

Used

yyyy.yy

SW longitude (2 fields)

Used

11 x Transitional zone size

Used

xxxx

Channel A

Used

13 x Channel A bandwidth

Used

xxxx

Channel B

Used

15 x Channel B bandwidth

Used

16 x Tx/Rx mode

Used

17 x Power level

Used

18 a Information source

Ignored

19 x In use flag

Ignored

hhmmss.s s

Time of In use change

Ignored

Field

Format

Name

Comment

Talker ID of requester

Used

AIQ

Talker ID for device

Used

ccc

Approved sentence formatter of data being requested

It’s possible to query the following

sentences: ACA, ALR, EPV, LRI, SSD, TRL, TXT and VSD

8.3 AIS Specific Input Sentences

8.3.1 ABM – Addressed Binary and Safety-Related Message !--ABM,x,x,x,xxxxxxxxx,x,x.x,s--s,x

8.3.2 ACA – AIS Regional Channel Assignment Message The zone created of this sentence must be accepted by the channel management rules (size of zone, distance to own position, valid channel number etc). If the zone isn’t accepted, the zone will be ignored. $--ACA,x,llll.ll,a,yyyy.yy,a,llll.ll,a,yyyy.yy,a,x,xxxx,x,xxxx,x,x,x,a,x, hhmmss.ss

8.3.3 AIQ – Query Sentence $--AIQ,ccc

Page 56 of 80 1001001-2EN A2 Product Manual 2_0

Field

Format

Name

Comment

--AIR

Sentence Id

Used

xxxxxxxx x

MMSI 1

Used

x.x

Message ID 1.1

Used 4 x

Message sub section

Ignored

x.x

Message ID 1.2

Used, may be NULL

6 x Message sub section

Ignored

xxxxxxxx x

MMSI 2

Used, may be NULL

x.x

Message ID 2.1

Used, may be NULL

9 x Message sub section

Ignored

10 x Channel

Used, may be NULL

Field

Format

Name

Comment

--BBM

Sentence Id

Used

2 X Total number of sentences

Used if in interval 1..9, otherwise rejected

Sentence number

Used if in interval 1..total number of sentences, otherwise rejected.

4 X Sequential message identifier

Used if in interval 0..9, otherwise rejected

5 X AIS channel

Used

x.x

Message Id

Used if 8 or 14

s—s

Encapsulated data

Used 8 X

Number of filled bits

Used

Field

Format

Name

Comment

--SSD

Sentence Id

Used

c--c

Call sign

Used, may be NULL

c--c

Name

Used, may be NULL

xxx

Pos ref A

Used to change position reference for the position source in use. May be NULL.

xxx

Pos ref B

Used to change position reference for the position source in use. May be NULL.

Pos ref C

Used to change position reference for the position source in use. May be NULL.

Pos ref D

Used to change position reference for the position source in use. May be NULL.

8 c DTE

Ignored

Source identifier

Used

Field

Format

Name

Comment

--VSD

Sentence Id

Used

x.x

Type of ship and cargo

Used 3 x.x

Maximum present draught

Used

x.x

Persons on-board

Used

c--c

Destination

Used

hhmmss.s s

Est. UTC of arrival

Used

Est. day of arrival

Used 8 Xx

Est. month of arrival

Used

x.x

Navigational status

Used

x.x

Regional application flags

Used

8.3.5 AIR – AIS Interrogation Request This sentence can also be used to do a “UTC Request”. $--AIR,xxxxxxxxx,x.x,x,x.x,x,xxxxxxxxx,x.x,x,x

8.3.6 BBM – Broadcast Binary Message $--BBM,x,x,x,x,x.x,s--s,x

8.3.7 SSD – Ship Static Data $--SSD,c--c,c--c,xxx,xxx,xx,xx,c,aa

8.3.8 VSD – Voyage Static Data $--VSD,x.x,x.x,x.x,c--c,hhmmss.ss,xx,xx,x.x,x.x

Page 57 of 80 1001001-2EN A2 Product Manual 2_0

Field

Format

Name

Comment

--LRF

Sentence Id

Used 2 x

Sequence number

Used

xxxxxxxx x

MMSI of requestor

Used

c--c

Name of requestor

Used

c--c

Function request

Used 6 c--c

Function reply status

Used

Field

Format

Name

Comment

--LRI

Sentence Id

Used

2 x Sequence number

Used

xxxxxxxx x

MMSI of requestor

Used

xxxxxxxx

MMSI of destination

Used

llll.ll

Latitude

Used

6 a N / S

Used 7 yyyyy.yy

Longitude

Used

8 a E / W

Used

Field

Format

Name

Comment

--LRF

Sentence Id

Used

2 x Sequence number

Used

xxxxxxxx x

MMSI of requestor

Used

c--c

Name of requestor

Used 5 c--c

Function request

Used

c--c

Function reply status

Used

Field

Format

Name

Comment

PSTT

Proprietary Nauticast Sentence

Used

101

Sentence Query

Used

c--c

Proprietary sentence to query

Used

8.4 Long Range Input Sentences

8.4.1 On Long Range Port The LR sentences can only be used with the Long Range interface port.

8.4.1.1 LRF – AIS long-range function $--LRF,x,xxxxxxxxx,c—c,c—c,c—c

8.4.1.2 LRI – AIS long-range interrogation $--LRI,x,a,xxxxxxxxx,xxxxxxxxx,llll.ll,a,yyyyy.yy,a,llll.ll,a,yyyyy.yy,a

8.4.2 On Other Input Ports LRF – AIS long-range function $--LRF,x,xxxxxxxxx,c—c,c—c,c—c

8.5 Proprietary Input Sentences

All Nauticast Proprietary Sentences will have talker ID PSTT.

8.5.1 Proprietary Query message PSTT,101 $PSTT,101,c--c,

Page 58 of 80 1001001-2EN A2 Product Manual 2_0

Field

Format

Name

Comment

10A

Sentence Id

10A always

YYYYMMDD

Date

Year, month and day in decimal notation. (00000000 = Not available)

HHMMSS

Time

Hour, minute and second in decimal notation. (999999 = Not available)

Field

Format

Name

Comment

10C

Sentence Id

10C always

Channel

A = VDL Channel A B = VDL Channel B

LLL

Traffic Load

Data link traffic load in precent, 0-100.

NNNN

Number of Units

Number of units occupying the data link

Field

Format

Name

Comment

146

Sentence Id

146 always

2 X 1 W Mode

0 = Default 1 = 1 Watt

3 X System Mode

0 = Class A 1 = Inland

4 X Transmit mode

0 = Normal 1 = Silent

Field

Format

Name

Comment

1F3

Sentence Id

1F3 always

Restart Reason

0 = Unknown 1 = Cold Start 2 = General Protection Fault 3 = Power Fail 4 = Warm Start

9 Interpretation of Output Sentences

9.1 Proprietary Output Sentences (PSTT)

In addition to the standardized IEC sentences, the NAUTICAST A2 is able to output the proprietary sentences listed below. All Nauticast Proprietary Sentences have talker ID “PSTT”.

9.1.1 $PSTT,10A – UTC Date and Time This sentence provides UTC Date and Time, i.e. NAUTICAST A2 system time (based on internal GNSS time). It is output approximately once every 10 seconds (± 1 s). $PSTT,10A,YYYYMMDD,HHMMSS

Example: $PSTT,10A,20121028,135230*<FCS><CR><LF> = Date October 28, 2012 = Time 13:52:30 UTC

9.1.2 $PSTT,10C – Data Link Status This sentence provides information about the traffic on the VHF data link. It is output approximately once every 60 seconds. Traffic load is calculated over the last frame (i.e. 60 seconds). Number of units is derived from the internal user list and is generally the number of received units within the last few minutes. $PSTT,10C,C,LLL,NNNN

9.1.3 $PSTT,146 – System Operational Mode Status This sentence reports the system operational mode. This sentence is output on change, periodically every minute and on request using PSTT,101. $PSTT,146,x,x,x*hh<CR><LF>

9.1.4 $PSTT,1F3 – Transponder Restart This sentence will be output when the transponder has restarted. $PSTT,1F3,R

Page 59 of 80 1001001-2EN A2 Product Manual 2_0

Field

Format

Name

Comment

--LR1

Sentence Id

Used 2 x

Sequence number

Used

xxxxxxxx x

MMSI of responder

Used 4 xxxxxxxx x

MMSI of requestor (reply destination

Used

c--c

Ship’s name

Used

c--c

Call sign

Used

xxxxxxxx x

IMO Number

Used

Field

Format

Name

Comment

--LR2

Sentence Id

Used

2 x Sequence number

Used

xxxxxxxx x

MMSI of responder

Used

xxxxxxxx

Date

Used

hhmmss.s s

UTC time of position

Used

llll.ll

Latitude

Used 7 a

N / S

Used

yyyyy.yy

Longitude

Used

9 a E / W

Used

x.x

Course over ground

Used

11 T Validity of COG

Used

x.x

Speed over ground

Used

13 N Validity of SOG

Used

Field

Format

Name

Comment

--LR3

Sentence Id

Used

2 x Sequence number

Used

xxxxxxxx x

MMSI of responder

Used

c--c

Voyage destination

Used 5 xxxxxxxx

ETA Date

Used

hhmmss.s s

ETA time

Used

x.x

Draught

Used 8 x.x

Ship / Cargo

Used

x.x

Ship length

Used

x.x

Ship width

Used

x.x

Ship type

Used

x.x

Persons

Used

9.2 Long Range Output Sentences

9.2.1 On Long Range Port

9.2.1.1 LR1 – AIS long-range reply sentence 1 $--LR1,x,xxxxxxxxx,xxxxxxxxx,c—c,c—c,xxxxxxxxx

9.2.1.2 LR2 – AIS long-range reply sentence 2 $--LR2,x,xxxxxxxxx,xxxxxxxx,hhmmss.ss,llll.ll,a,yyyyy.yy,a,x.x,T,x.x,N

9.2.1.3 LR3 – AIS long-range reply sentence 3 $--LR3,x,xxxxxxxxx,c—c,xxxxxx,hhmmss.ss,x.x,x.x,x.x,x.x,x.x,x.x Output rate: On event

Page 60 of 80 1001001-2EN A2 Product Manual 2_0

Field

Format

Name

Comment

--LRF

Sentence Id

Used 2 x

Sequence number

Used

xxxxxxxx x

MMSI of requestor

Used

c--c

Name of requestor

Used

c--c

Function request

Used 6 c--c

Function reply status

Used

Field

Format

Name

Comment

--LRF

Sentence Id

Used

2 x Sequence number

Used

xxxxxxxx x

MMSI of requestor

Used

c--c

Name of requestor

Used 5 c--c

Function request

Used

c--c

Function reply status

Used

Field

Format

Name

Comment

--LRI

Sentence Id

Used

2 x Sequence number

Used

xxxxxxxx x

MMSI of requestor

Used

xxxxxxxx

MMSI of destination

Used 5 llll.ll

Latitude

Used

6 a N / S

Used 7 yyyyy.yy

Longitude

Used

8 a E / W

Used

Field

Format

Name

Comment

--ABK

Sentence Id

Used 2 xxxxxxxxx

MMSI of the addressed AIS unit

Used

3 x AIS channel of reception

Used 4 x.x

ITU - R M.1371 Message ID

Used

5 x Message sequence number

Used

6 x Type of acknowledgement

Used

9.2.1.4 LRF – AIS long-range function $--LRF,x,xxxxxxxxx,c—c,c—c,c—c Output rate: On event

9.2.2 On All Other Output Ports

9.2.2.1 LRF – AIS long-range function $--LRF,x,xxxxxxxxx,c—c,c—c,c—c Output rate: On event

9.2.2.2 LRI – AIS long-range interrogation $--LRI,x,a,xxxxxxxxx,xxxxxxxxx,llll.ll,a,yyyyy.yy,a,llll.ll,a,yyyyy.yy,a Output rate: On event

9.3 AIS Output Sentences

9.3.1 ABK – AIS Addressed and binary broadcast acknowledgement $ -- ABK,xxxxxxxxx,x,x.x,x,x Output rate: On event.

Page 61 of 80 1001001-2EN A2 Product Manual 2_0

Field

Format

Name

Comment

--ACA

Sentence Id

Used

2 x Sequence number

Ignored

llll.ll

NE latitude (2 fields)

Used

yyyy.yy

NE longitude (2 fields)

Used

llll.ll

SW latitude (2 fields)

Used

yyyy.yy

SW longitude (2 fields)

Used

11 x Transitional zone size

Used

xxxx

Channel A

Used

13 x Channel A bandwidth

Used

xxxx

Channel B

Used

15 x Channel B bandwidth

Used

16 x Tx/Rx mode

Used

17 x Power level

Used

18 a Information source

Ignored

19 x In use flag

Ignored

hhmmss.s s

Time of In use change

Ignored

Field

Format

Name

Comment

--ALR

Sentence Id

Used

hhmmss.ss

Time of alarm condition change, UTC

Used

Xxx

Unique alarm number (identifier) at alarm source

Used

Alarm condition A = threshold exceeded V = not exceeded

Used

Alarm’s acknowledge state A =

acknowledged V = unacknowledged

Used

c--c

Alarm’s description text

Used

Field

Format

Name

Comment

--EPV

Sentence Id

Used

2 a Sentence status flag

Used 3 c--c

Destination equipment type

Used

c--c

Unique Identifier

Used

x.x

Property identifier

Used

c--c

Value of property

Used

Field

Format

Name

Comment

--NAK

Sentence Id

Used

Talker identifier

Used 3 ccc

Affected sentence formatter

Used

c--c

Unique Identifier

Used

x.x

Reason code for negative acknowledgement

Used

c--c

Negative acknowledgement’s descriptive

text

Used

9.3.2 ACA – AIS Regional Channel Assignment Message $--ACA,x,llll.ll,a,yyyy.yy,a,llll.ll,a,yyyy.yy,a,x,xxxx,x,xxxx,x,x,x,a,x, hhmmss.ss Output rate: On event. On request.

9.3.3 ALR – Set alarm state $--ALR,hhmmss.ss,xxx,A, A,c--c Output rate: On event, on request, and automatically. Output every 30s for active alarms and every 60s when no active alarms.

9.3.4 EPV – Command or report equipment property value $--EPV,a,c--c,c--c,x.x,c—c Output rate: On request.

9.3.5 NAK – Negative acknowledgement $--NAK,cc,ccc,c--c,x.x,c—c Output rate: On event

Page 62 of 80 1001001-2EN A2 Product Manual 2_0

Field

Format

Name

Comment

--SSD

Sentence Id

Used 2 c--c

Call sign

Used, may be NULL

c--c

Name

Used, may be NULL

xxx

Pos ref A

Used to change position reference for the position source in use. May be NULL.

xxx

Pos ref B

Used to change position reference for the position source in use. May be NULL.

Pos ref C

Used to change position reference for the position source in use. May be NULL.

Pos ref D

Used to change position reference for the position source in use. May be NULL.

8 c DTE

Ignored

Source identifier

Ignored

Field

Format

Name

Comment

--TRL

Sentence Id

Used

x.x

Total number of log entries

Used

x.x

Log entry number

Used 4 x

Sequential message identifier

Used

xxxxxxxx

Switch off date

Used 6 hhmmss.ss

Switch off UTC time

Used

xxxxxxxx

Switch on date

Used 8 hhmmss.ss

Switch on UTC time

Used

9 X Reason code1

Used

Field

Format

Name

Comment

--TXT

Sentence Id

Used

Total number of sentences

Used 3 xx

Sentence number

Used

Text identifier

Used 5 c--c

Text message

Used

Field

Format

Name

Comment

--VDM

Sentence Id

Used

Total number of sentences needed to transfer the message

Used

3 X Sentence number

Used

4 X Sequential message identifier

Used

5 A AIS channel

Used

s—s

Encapsulated ITU-R M.1371 radio message

Used

7 X Number of fill bits

Used

9.3.6 SSD – Ship Static Data $--SSD,c--c,c--c,xxx,xxx,xx,xx,c,aa Output rate: On request.

9.3.7 TRL – AIS transmitter non functioning log $--TRL,x.x,x.x,x,xxxxxxxx,hhmmss.ss,xxxxxxxx,hhmmss.ss,x Output rate: On request. Up to 10 sentences in a burst.

9.3.8 TXT – Text transmission $--TXT,xx,xx,xx,c--c Output rate: On request, on event.

9.3.9 VDM – AIS VHF data-link message !--VDM,x,x,x,a,s—s,x Only output on serial port when baudrate is 38400 bps or higher. Output rate: On VHF message receive event.

Page 63 of 80 1001001-2EN A2 Product Manual 2_0

Field

Format

Name

Comment

--VDO

Sentence Id

Used

Total number of sentences needed to transfer the message

Used

3 X Sentence number

Used 4 X

Sequential message identifier

Used

AIS channel

Used for transmission event. Not used for “dummy” position messages.

s—s

Encapsulated ITU-R M.1371 radio message

Used

7 X Number of fill bits

Used

Field

Format

Name

Comment

--VER

Sentence Id

Used

2 x Total number of sentences

Always 1

3 x Sentence number

Always 1

Device Type

Used

c--c

Vendor ID

Used

c--c

Unique Identifier

Used 7 c--c

Manufacturer serial number

Used

c--c

Model code

Used

c--c

Software revision

Used

c--c

Hardware revision

Used

11 x Sequential message identifier

Always NULL

Field

Format

Name

Comment

--VSD

Sentence Id

Used 2 x.x

Type of ship and cargo

Used

x.x

Maximum present draught

Used 4 x.x

Persons on-board

Used

c--c

Destination

Used

hhmmss.s s

Est. UTC of arrival

Used

Est. day of arrival

Used

Est. month of arrival

Used 9 x.x

Navigational status

Used

x.x

Regional application flags

Used

9.3.10 VDO – AIS VHF data-link own-vessel report !--VDO,x,x,x,a,s—s,x Only output on serial port when baudrate is 38400 bps or higher.

Output rate: On VHF transmission event. “Dummy” messages once per second.

9.3.11 VER – Version $--VER,x,x,aa,c--c,c--c,c--c,c--c,c--c,c--c,x Output rate: On request.

9.3.12 VSD – Voyage Static Data $--VSD,x.x,x.x,x.x,c--c,hhmmss.ss,xx,xx,x.x,x.x Output rate: On request.

Page 64 of 80 1001001-2EN A2 Product Manual 2_0

ACK

Acknowledgement

AFSK

Audio Frequency Shift Keying

AIS

Automatic Identification System

Ant

Antenna

App

Application

ARPA

Automatic Radar Plotting Aid

BRG

Bearing

Base Station

Channel

COG

Course Over Ground

Comm

Communication

DGNSS

Differential Global Navigational Satellite System

Disp

Display

DTE

Data Terminal Equipment

DSC

Digital Selective Calling

ECDIS

Electronic Chart Display and Information System

EGNOS

European Geostationary Navigation Overlay Service

EPFS

Electronic Position Fixing System

ETA

Estimated Time of Arrival

Ext

External

GALILEO

European GNSS

GLONASS

Russian GNSS

GMSK

Gaussian Minimum Shift Keying

GNSS

Global Navigational Satellite System

GPS

Global Positioning System

HDG

Heading

HDOP

Horizontal Dilution Of Precision

Hecto

Hectometre

H/W

Hardware

IALA

International Association of Lighthouse Authorities

Identifier

IEC

International Electrotechnical Commission

IMO

International Maritime Organization

Int

Internal

ITU

International Telecommunications Union

LAT

Latitude

LED

Light Emitting Diode

LOC

Local

LON

Longitude

Long Range

Msg

Message

MKD

Minimum Keyboard and Display

MSAS

MTSAT Satellite Augmentation System (Japan)

NMEA

National Marine Electronics Association

MMSI

Maritime Mobile Service Identity

N/A

Not available

North East

10 Glossary

Page 65 of 80 1001001-2EN A2 Product Manual 2_0

Number

NVM

Non-Volatile Memory

PoB

Persons on board

Pos

Position

RAIM

Receiver Autonomous Integrity Monitoring

RNG

Range

RATDMA

Random Access Time Division Multiple Access

ROT

Rate Of Turn

RTA

Recommended Time of Arrival

Receive

SAR

Search And Rescue

SART

Search And Rescue Transmitter

SBAS

Satellite Based Augmentation System

SNR

Signal to Noise Ratio

SOG

Speed Over Ground

SRM

Safety Related Message

Sync

Synchronization

South West

S/W

Software

TDMA

Time Division Multiple Access

Transp

Transponder

Transmit

United Nations

UTC

Universal Time Coordinated

VHF

Very High Frequency

VSWR

Voltage Standing Wave Ratio. (A low value indicates a problem with the antenna or connections/cables to the antenna.)

WAAS

Wide Area Augmentation System (United States)

Page 66 of 80 1001001-2EN A2 Product Manual 2_0

ERI Ship Type

Description

IMO Ship Type

8000

Vessel Type Unknown

8010

Motor Freighter

8020

Motor Tanker

8021

Motor Tanker Liquid (N)

8022

Motor Tanker Liquid (C)

8023

Motor Tanker Dry Cargo

8030

Container Vessel

8040

Gas Tanker

8050

Motor Freighter Tug

8060

Motor Tanker Tug

8070

Motor Freighter (Ships Alongs.)

8080

Motor Freighter With Tanker

8090

Motor Freighter Push Freighter(s)

8100

Motor Freighter Push Tank-Ship(s)

8110

Tug Freighter

8120

Tug Tanker

8130

Tug Freighter Coupled

8140

Tug Freighter/Tanker Coupled

8150

Freightbarge

8160

Tankbarge

8161

Tankbarge Liquid cargo (N)

8162

Tankbarge Liquid cargo (C)

8163

Tankbarge Dry Cargo

8170

Freightbarge Containers

8180

Tankbarge Gas

8210

Pushtow One Cargo Barge

8220

Pushtow 2 Cargo Barges

8230

Pushtow 3 Cargo Barges

8240

Pushtow 4 Cargo Barges

8250

Pushtow 5 Cargo Barges

8260

Pushtow 6 Cargo Barges

8270

Pushtow 7 Cargo Barges

8280

Pushtow 8 Cargo Barges

8290

Pushtow >=9 Cargo Barges

8310

Pushtow one Tank/Gas barge

8320

Pushtow 2 Barges (>= 1 T/G)

8330

Pushtow 3 Barges (>= 1 T/G)

8340

Pushtow 4 Barges (>= 1 T/G)

8350

Pushtow 5 Barges (>= 1 T/G)

8360

Pushtow 6 Barges (>= 1 T/G)

8370

Pushtow 7 Barges (>= 1 T/G)

8380

Pushtow 8 Barges (>= 1 T/G)

8390

Pushtow >=9 Barges (>= 1 T/G)

8400

Tug Single

8410

Tug One or More Tows

8420

Tug Assisting a Vessel or Linked.

8430

Pushboat Single

8440

Passenger Ship Ferry Cruise

8441

Ferry

8442

Red Cross Ship

8443

Cruise Ship

8444

Passenger Ship No Accomodation

8450

Service Vessel Police etc.

8460

Vessel Maint. Derric etc.

8470

Object Towed

8480

Fishing Boat

8490

Bunkership

8500

Barge Tanker Chemical

8510

Object Not Specified

1500

General Cargo Vessel

1510

Unit Carrier Maritime

1520

Bulk Carrier Maritime

1530

Tanker

1540

Liquified Gas Tanker

1850

Pleasure Craft >= 20m

1900

Fast Ship

1910

Hydrofoil

10.1 Inland ERI Ship Types

Page 67 of 80 1001001-2EN A2 Product Manual 2_0

bps

Bits per second

Watt

Meter

kHz

Kilo Hertz

dB-Hz

Decibel-Hertz

Nautical Mile

Kilometer

Statute Mile

Knots

km/h

Kilometer per Hour

mph

Miles per Hour

mm-dd hh:mm

month-day hour:minute

h:m:s

hours:minutes:seconds

10.2 Units

Page 68 of 80 1001001-2EN A2 Product Manual 2_0

11 Appendix

11.1 Appendix A – Drawings

11.1.1 Panel Mounting:

Page 69 of 80 1001001-2EN A2 Product Manual 2_0

11.1.2 Gimbal Mount:

Page 70 of 80 1001001-2EN A2 Product Manual 2_0

11.1.3 Upgrade Retrofit Frame

Page 71 of 80 1001001-2EN A2 Product Manual 2_0

11.2 Appendix B – License

The NAUTICAST A2 Transponder System runs on a Linux operating system which is licensed with GNU General Public License. The source code of the Linux kernel can be obtained by contacting Nauticast GmbH: Email: support@nauticast.com Copy of the GNU General Public License:

GNU GENERAL PUBLIC LICENSE

Copyright (C) 1989, 1991 Free Software Foundation, Inc. 51 Franklin St, Fifth Floor, Boston, MA 02110-1301 USA; Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed.

The licenses for most software are designed to take away your freedom to share and change it. By contrast, the GNU General Public License is intended to guarantee your freedom to share and change free software--to make sure the software is free for all its users. This General Public License applies to most of the Free Software Foundation's software and to any other program whose authors commit to using it. (Some other Free Software Foundation software is covered by the GNU Library General Public License instead.) You can apply it to your programs, too. When we speak of free software, we are referring to freedom, not price. Our General Public Licenses are designed to make sure that you have the freedom to distribute copies of free software (and charge for this service if you wish), that you receive source code or can get it if you want it, that you can change the software or use pieces of it in new free programs; and that you know you can do these things. To protect your rights, we need to make restrictions that forbid anyone to deny you these rights or to ask you to surrender the rights. These restrictions translate to certain responsibilities for you if you distribute copies of the software, or if you modify it. For example, if you distribute copies of such a program, whether gratis or for a fee, you must give the recipients all the rights that you have. You must make sure that they, too, receive or can get the source code. And you must show them these terms so they know their rights. We protect your rights with two steps: (1) copyright the software, and (2) offer you this license which gives you legal permission to copy, distribute and/or modify the software. Also, for each author's protection and ours, we want to make certain that everyone understands that there is no warranty for this free software. If the software is modified by someone else and passed on, we want its recipients to know that what they have is not the original, so that any problems introduced by others will not reflect on the original authors' reputations. Finally, any free program is threatened constantly by software patents. We wish to avoid the danger that redistributors of a free program will individually obtain patent licenses, in effect making the program proprietary. To prevent this, we have made it clear that any patent must be licensed for everyone's free use or not licensed at all. The precise terms and conditions for copying, distribution and modification follow.

TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION

0. This License applies to any program or other work which contains a notice placed by the copyright holder saying it may be distributed under the terms of this General Public License. The "Program", below, refers to any such program or work, and a "work based on the Program" means either the Program or any derivative work under copyright law: that is to say, a work containing the Program or a portion of it, either verbatim or with modifications and/or translated into another language. (Hereinafter, translation is included without limitation in the term "modification".) Each licensee is addressed as "you". Activities other than copying, distribution and modification are not covered by this License; they are outside its scope. The act of running the Program is not restricted, and the output from the Program is covered only if its contents constitute a work based on the Program (independent of having been made by running the Program). Whether that is true depends on what the Program does.

1. You may copy and distribute verbatim copies of the Program's source code as you receive it, in any medium, provided that you conspicuously and appropriately publish on each copy an appropriate copyright notice and disclaimer of warranty; keep intact all the notices that refer to this License and to the absence of any warranty; and give any other recipients of the Program a copy of this License along with the Program. You may charge a fee for the physical act of transferring a copy, and you may at your option offer warranty protection in exchange for a fee.

2. You may modify your copy or copies of the Program or any portion of it, thus forming a work based on the Program, and copy and distribute such modifications or work under the terms of Section 1 above, provided that you also meet all of these conditions: a) You must cause the modified files to carry prominent notices stating that you changed the files and the date of any change. b) You must cause any work that you distribute or publish, that in whole or in part contains or is derived from the Program or any part

thereof, to be licensed as a whole at no charge to all third parties under the terms of this License.

c) If the modified program normally reads commands interactively when run, you must cause it, when started running for such

interactive use in the most ordinary way, to print or display an announcement including an appropriate copyright notice and a notice that there is no warranty (or else, saying that you provide a warranty) and that users may redistribute the program under these conditions, and telling the user how to view a copy of this License. (Exception: if the Program itself is interactive but does not

normally print such an announcement, your work based on the Program is not required to print an announcement.) These requirements apply to the modified work as a whole. If identifiable sections of that work are not derived from the Program, and can be reasonably considered independent and separate works in themselves, then this License, and its terms, do not apply to those sections when you distribute them as separate works. But when you distribute the same sections as part of a whole which is a work based on the Program, the distribution of the whole must be on the terms of this License, whose permissions for other licensees extend to the entire whole, and thus to each and every part regardless of who wrote it. Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by you; rather, the intent is to exercise the right to control the distribution of derivative or collective works based on the Program. In addition, mere aggregation of another work not based on the Program with the Program (or with a work based on the Program) on a volume of a storage or distribution medium does not bring the other work under the scope of this License.

3. You may copy and distribute the Program (or a work based on it, under Section 2) in object code or executable form under the terms of Sections 1 and 2 above provided that you also do one of the following: a) Accompany it with the complete corresponding machine-readable source code, which must be distributed under the terms of Sections

1 and 2 above on a medium customarily used for software interchange; or,

Version 2, June 1991

Preamble

GNU GENERAL PUBLIC LICENSE

Page 72 of 80 1001001-2EN A2 Product Manual 2_0

b) Accompany it with a written offer, valid for at least three years, to give any third party, for a charge no more than your cost of

physically performing source distribution, a complete machine-readable copy of the corresponding source code, to be distributed

under the terms of Sections 1 and 2 above on a medium customarily used for software interchange; or, c) Accompany it with the information you received as to the offer to distribute corresponding source code. (This alternative is allowed

only for noncommercial distribution and only if you received the program in object code or executable form with such an offer, in

accord with Subsection b above.) The source code for a work means the preferred form of the work for making modifications to it. For an executable work, complete source code means all the source code for all modules it contains, plus any associated interface definition files, plus the scripts used to control compilation and installation of the executable. However, as a special exception, the source code distributed need not include anything that is normally distributed (in either source or binary form) with the major components (compiler, kernel, and so on) of the operating system on which the executable runs, unless that component itself accompanies the executable. If distribution of executable or object code is made by offering access to copy from a designated place, then offering equivalent access to copy the source code from the same place counts as distribution of the source code, even though third parties are not compelled to copy the source along with the object code.

4. You may not copy, modify, sublicense, or distribute the Program except as expressly provided under this License. Any attempt otherwise to copy, modify, sublicense or distribute the Program is void, and will automatically terminate your rights under this License. However, parties who have received copies, or rights, from you under this License will not have their licenses terminated so long as such parties remain in full compliance.

5. You are not required to accept this License, since you have not signed it. However, nothing else grants you permission to modify or distribute the Program or its derivative works. These actions are prohibited by law if you do not accept this License. Therefore, by modifying or distributing the Program (or any work based on the Program), you indicate your acceptance of this License to do so, and all its terms and conditions for copying, distributing or modifying the Program or works based on it.

6. Each time you redistribute the Program (or any work based on the Program), the recipient automatically receives a license from the original licensor to copy, distribute or modify the Program subject to these terms and conditions. You may not impose any further restrictions on the recipients' exercise of the rights granted herein. You are not responsible for enforcing compliance by third parties to this License.

7. If, as a consequence of a court judgment or allegation of patent infringement or for any other reason (not limited to patent issues), conditions are imposed on you (whether by court order, agreement or otherwise) that contradict the conditions of this License, they do not excuse you from the conditions of this License. If you cannot distribute so as to satisfy simultaneously your obligations under this License and any other pertinent obligations, then as a consequence you may not distribute the Program at all. For example, if a patent license would not permit royalty-free redistribution of the Program by all those who receive copies directly or indirectly through you, then the only way you could satisfy both it and this License would be to refrain entirely from distribution of the Program. If any portion of this section is held invalid or unenforceable under any particular circumstance, the balance of the section is intended to apply and the section as a whole is intended to apply in other circumstances. It is not the purpose of this section to induce you to infringe any patents or other property right claims or to contest validity of any such claims; this section has the sole purpose of protecting the integrity of the free software distribution system, which is implemented by public license practices. Many people have made generous contributions to the wide range of software distributed through that system in reliance on consistent application of that system; it is up to the author/donor to decide if he or she is willing to distribute software through any other system and a licensee cannot impose that choice. This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this License.

8. If the distribution and/or use of the Program is restricted in certain countries either by patents or by copyrighted interfaces, the original copyright holder who places the Program under this License may add an explicit geographical distribution limitation excluding those countries, so that distribution is permitted only in or among countries not thus excluded. In such case, this License incorporates the limitation as if written in the body of this License.

9. The Free Software Foundation may publish revised and/or new versions of the General Public License from time to time. Such new versions will be similar in spirit to the present version, but may differ in detail to address new problems or concerns. Each version is given a distinguishing version number. If the Program specifies a version number of this License which applies to it and "any later version", you have the option of following the terms and conditions either of that version or of any later version published by the Free Software Foundation. If the Program does not specify a version number of this License, you may choose any version ever published by the Free Software Foundation.

10. If you wish to incorporate parts of the Program into other free programs whose distribution conditions are different, write to the author to ask for permission. For software which is copyrighted by the Free Software Foundation, write to the Free Software Foundation; we sometimes make exceptions for this. Our decision will be guided by the two goals of preserving the free status of all derivatives of our free software and of promoting the sharing and reuse of software generally.

11. BECAUSE THE PROGRAM IS LICENSED FREE OF CHARGE, THERE IS NO WARRANTY FOR THE PROGRAM, TO THE EXTENT PERMITTED BY APPLICABLE LAW. EXCEPT WHEN OTHERWISE STATED IN WRITING THE COPYRIGHT HOLDERS AND/OR OTHER PARTIES PROVIDE THE PROGRAM "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE PROGRAM IS WITH YOU. SHOULD THE PROGRAM PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION.

12. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO MAY MODIFY AND/OR REDISTRIBUTE THE PROGRAM AS PERMITTED ABOVE, BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE PROGRAM (INCLUDING BUT NOT LIMITED TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE OR LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE PROGRAM TO OPERATE WITH ANY OTHER PROGRAMS), EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

END OF TERMS AND CONDITIONS

How to Apply These Terms to Your New Programs If you develop a new program, and you want it to be of the greatest possible use to the public, the best way to achieve this is to make it free software which everyone can redistribute and change under these terms. To do so, attach the following notices to the program. It is safest to attach them to the start of each source file to most effectively convey the exclusion of warranty; and each file should have at least the "copyright" line and a pointer to where the full notice is found. <one line to give the program's name and a brief idea of what it does.>

NO WARRANTY

Page 73 of 80 1001001-2EN A2 Product Manual 2_0

This program is free software; you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation; either version 2 of the License, or (at your option) any later version.

This program is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General Public License for more details.

You should have received a copy of the GNU General Public License along with this program; if not, write to the Free Software Foundation, Inc., 51 Franklin St, Fifth Floor, Boston, MA 02110-1301 USA Also add information on how to contact you by electronic and paper mail. If the program is interactive, make it output a short notice like this when it starts in an interactive mode: Gnomovision version 69, Copyright (C) year name of author Gnomovision comes with ABSOLUTELY NO WARRANTY; for details type `show w'. This is free software, and you are welcome to redistribute it under certain conditions; type `show c' for details. The hypothetical commands `show w' and `show c' should show the appropriate parts of the General Public License. Of course, the commands you use may be called something other than `show w' and `show c'; they could even be mouse-clicks or menu items--whatever suits your program. You should also get your employer (if you work as a programmer) or your school, if any, to sign a "copyright disclaimer" for the program, if necessary. Here is a sample; alter the names: Yoyodyne, Inc., hereby disclaims all copyright interest in the program `Gnomovision' (which makes passes at compilers) written by James Hacker.

<signature of Ty Coon>, 1 April 1989 Ty Coon, President of Vice This General Public License does not permit incorporating your program into proprietary programs. If your program is a subroutine library, you may consider it more useful to permit linking proprietary applications with the library. If this is what you want to do, use the GNU Library General Public License instead of this License.

Page 74 of 80 1001001-2EN A2 Product Manual 2_0
