Thank you for your purchase of a NAUTICAM camera housing.
At NAUTICAM, we pride ourselves on the ability to recognise the
requirements of professional as well as amateur underwater
photographers and fulfill them through the innovative designs of our
products. We strive to achieve a high level of user-friendliness by
allowing stress-free installation and easy operation of all important
functions of the camera.
Each NA-NEX5R housing is individually inspected and water pressure
tested to ensure optimum quality.
Please read this manual carefully before using the housing, this will
maximise its performance as well as its lifetime.
2
1. All NAUTICAM Products are warranted against any material and
manufacturing defects for one year from the date of purchase for
consumer use.
2. NAUTICAM accepts no liability for any damage to and defects in the
housing caused by improper use and/or poor maintenance; it is the
responsibility of the owner to carefully follow the instructions in
this manual.
3. NAUTICAM does not hold responsibility for damage, of any nature,
to any equipment used with and/or placed within the housing.
4. NAUTICAM accepts no liability for any loss of captured images or
the inability to capture images even if it is due to the
malfunctioning or leakage of the housing.
5. This warranty only applies to products purchased from authorised
NAUTICAM dealers and does not extend beyond the original retail
purchaser.
6. Unauthorised modifications and/or repairs of the housing will
automatically invalidate this warranty.
7. To return products for service, please contact our regional
distributor, normally you would need to notify them by email first
and ship them the product by registered mail, along with your
contact details and a brief description of the defect.
3
1. NA-NEX5R housing
2. Instruction manual
3. Spare silicone rubber housing o-ring
4. O-ring remover
5. CR2032 battery (for moisture alarm)
6. Lubricant
7. Set of Allen keys
Spare silicone rubber o-ring
Lubricant
Set of Allen keys
CR2032 battery
O-ring remover
4
1. A water-tight test without the camera inside the housing is highly
recommended when using the system for the first time and after
the changing of port and O-ring(s).
2. Do not use lubricants from other brands with the silicone rubber O-
ring on this housing, only use the lubricant provided by NAUTICAM.
3. Discontinue use immediately should you notice any leakage.
4. Store the housing in a robust, shock-proof container during
transportation; avoid transporting with any equipment, such as a
camera, inside the housing.
5. When travelling by air, do not close the housing if the port is
installed, as this may lead to a pressure difference between the
atmosphere and inside the housing.
6. Care must be taken when opening the housing, as pressure may
build up inside the housing which increases the opening force.
7. Do not open the product in a wet or sandy environment. Protect
the interior from moisture and debris in order to prevent
malfunction or leakage.
8. Do not store the product in an environment of high humidity.
9. Do not leave the housing and the camera in direct sunlight for
prolonged periods.
10. Keep out of reach of children, failure to do so could result in injury.
11. Defective products should be shipped to our distributors for service,
unauthorized disassembling and/or modifications could result in
malfunction or leakage.
5
Specifications 6
Identification of Parts 7
Preparation of the Housing 10
Opening and Locking the Housing 12
Installing the Camera 13
Mounting the Port 15
Care and Maintenance 17
Optional Accessories
18
6
Construction
Housing body: Aluminium alloy
Surface treatment: Hard anodised
Display window: Abrasion resistant polycarbonate
Dimensions
Width: 168mm
Height: 126mm
Depth: 97mm
Weight Approx. 0.79kg (without camera)
Buoyancy Slightly negative
Depth rating 100 metres
Features
Moisture alarm: Blinking LED and audible alarm
TTL capability:
Optical fibre mount included for
external strobes connection,
utilising the camera’s pop-up flash
as trigger.
Port mount:
Patented easy port installation
system.
Control dial: Easily reached by thumb.
Flash up/off lever:
Allows the camera's built-in flash
to be disabled underwater.
7
1 Optical fibre mount 8 Playback button
2 On/off lever 9 Movie button
3 Shutter release lever 10 M10 strobe mounting base
4 Lens release button 11 Fn button
5 Zoom/Focus knob 12 Control dial
6 Port alignment index 13 Housing lock safety button
7 Accessory coldshoe 14 Housing lock
1
2
3
4
6
5
11
13
14
10
7
9
8
12
8
15 Flash up/off lever 20 Soft key C button
16 Moisture alarm window 21 Right selection/ISO button
17 Soft key A button 22
Down selection/Exposure
comp./Image index button
18 Up selection/Display button 23 Control wheel
19
Left selection/Drive mode
button
24 Soft key B button
15
16
17
20
21
22
18
19
23
24
9
25 Port release safety button 27 1/4”–20UNC tripod socket x 4*
26 Port lock/release latch
* The maximum length of screws that can be
used with the tripod sockets is 4mm
25
26
27
10
1. After verifying that the housing O-ring is in good condition, lightly
coat it with the lubricant provided.
2. Make sure the O-ring groove located in the rear part of the housing
is free from any foreign material; the groove can be cleaned with
the aid of a microfiber cloth.
3. Place the O-ring into the groove.
4. To install the optical fibre mount for external strobe connection,
fasten it with the screws provided to the threaded sockets of the
accessory coldshoe as shown:
11
Setting up the moisture alarm
1. Install the CR2032 battery
provided into the battery
compartment on the circuit
board inside the rear part of the
housing.
2. Test the alarm by contacting
the two wires near the bottom
of the housing with a damped
cotton bud; the alarm should
start giving out a repeating
“beep” sound along with a
flashing red light. The “beep”
sound and the light should keep
on going for 5 seconds after the
removal of the damped cotton
bud.
12
To open the housing:
To lock the housing:
2. Turn the housing lock anti
-
clockwise for 270°, until the lock
reaches the “Open” position as
shown.
3. Close the housing while the
housing lock is in the “Open”
position.
4. Turn the housing lock clockwise
for 270°, until the lock reaches
the “lock” position as shown.
Confirm that the white indicator
line on the safety button is
visible.
1. Press the housing lock safety
button.
13
1. Disengage the
red
camera saddle
lock by pressing it inwards.
Remove the camera saddle from
the housing by sliding it outwards
2. Tilt the LCD monitor of the camer
a
upwards, then attach the saddle to
the camera by tightening the screw
to the tripod socket of the camera.
4. Install
the camera by sliding
the attached saddle along the
rail in the housing until it
cannot go in any further.
3. If you do not want to have the
LCD monitor tilted, remove
the LCD monitor support from
the camera saddle before
attaching it to the camera.
14
5. Before closing the housing,
please make sure that the LCD
monitor is tilted in the correct
position as shown above.
Correct
Incorrect
15
Please refer to the NAUTICAM system port chart for a range of compatible
ports.
1. Remove the O
-
ring from the
port, inspect for any damage
and lightly coat it with the
provided lubricant before
placing it back into its groove.
2. Verify that the port opening of
the housing is clean and free
from foreign material.
3. Lift the Port lock/release latch.
4. Press and hold the port release
safety button, turn the port
lock/release latch clockwise for 60°
until the circle mark on the latch
aligns with the “Rel” index on the
rear housing.
Press
5. Lift housing cap.
16
6. Align the Port mounting indices of
the port and the housing.
7. Gently push the port into the port
opening of the housing, until it
cannot go in any further.
8. To lock the port in place, t
urn the
port lock/release latch anticlockwise for 60° to the “Lock”
position.
9. To remove the port from the
housing, repeat steps 3 and 4 then
gently pull it out.
17
1. Soak the housing system in fresh water after each salt water use,
during which all control buttons/knobs should be operated a few
times to avoid the accumulation of salt residue; wipe the housing
with a towel before opening.
2. After each day of diving, it is advisable to have the main O-ring in
the rear part of the housing removed from its groove with the Oring remover and inspected for damage. Also check that the O-ring
retains its original circular shape; never stretch the O-ring
excessively or remove it with a sharp object. The O-ring groove
should be cleaned to ensure it is free from any salt deposit or
foreign material; lightly coat the O-ring with the provided lubricant
before reinstalling it in the groove. A damaged O-ring should be
discarded immediately and replaced only with one that is provided
by NAUTICAM.
3. Replace the main O-ring annually.
4. It is recommended that you ship the housing to our distributor for a
complete overhaul every year or after every 200 dives.
18

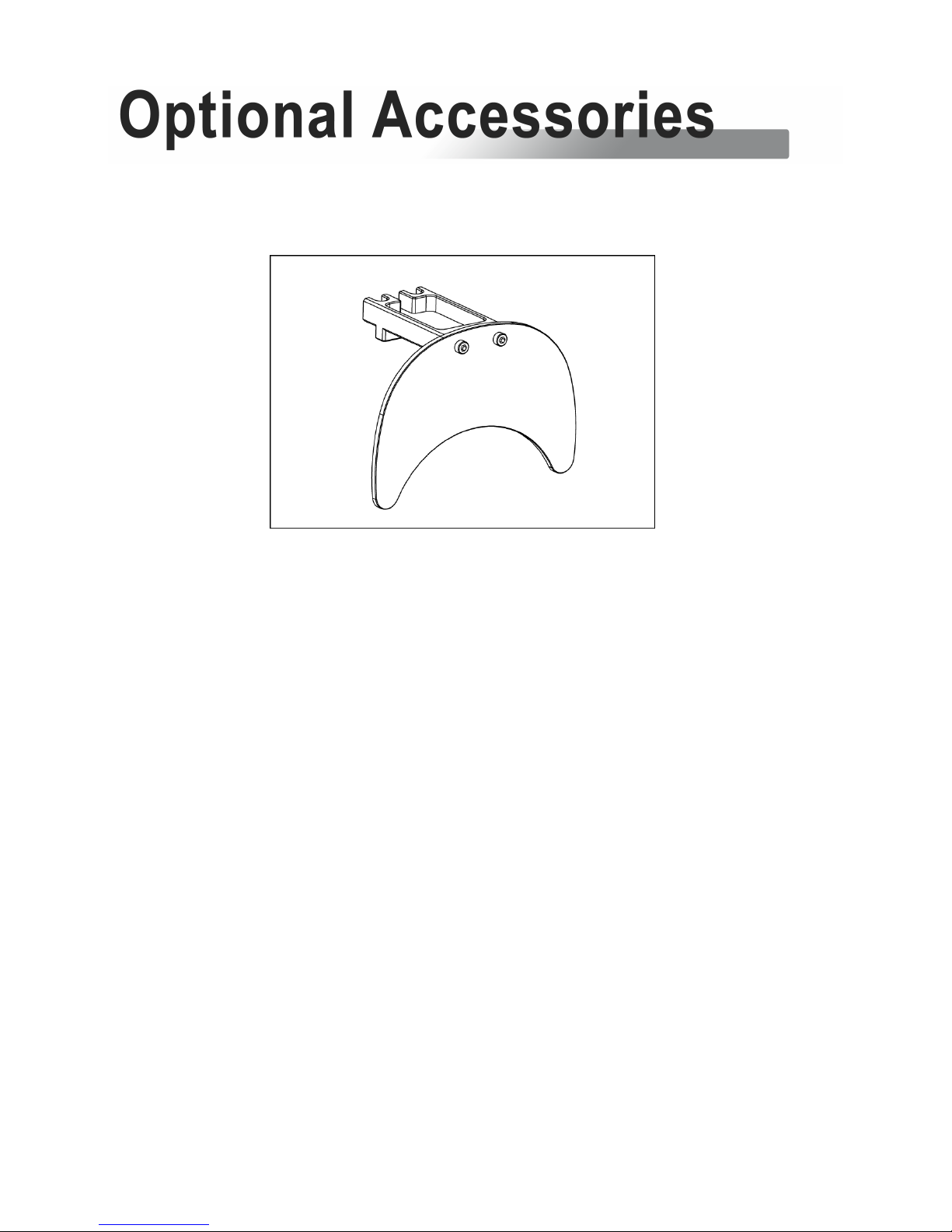

P.N.
36314
Diffuser for E1855 port with mount
